Réf. NC00122287
12/2013
ESPACE GRAPHIQUE
www.tefal.com
EN
User Guide
2
1
13
12
3
4
5
6
7
8
10
9
11
*
Depending on model.
TE_FRYERS_FILTRA-ONE_UK_NC00122287_Mise en page 1 06/12/13 15:36 PageC1
0 L
30 sec
11
2
1 min.

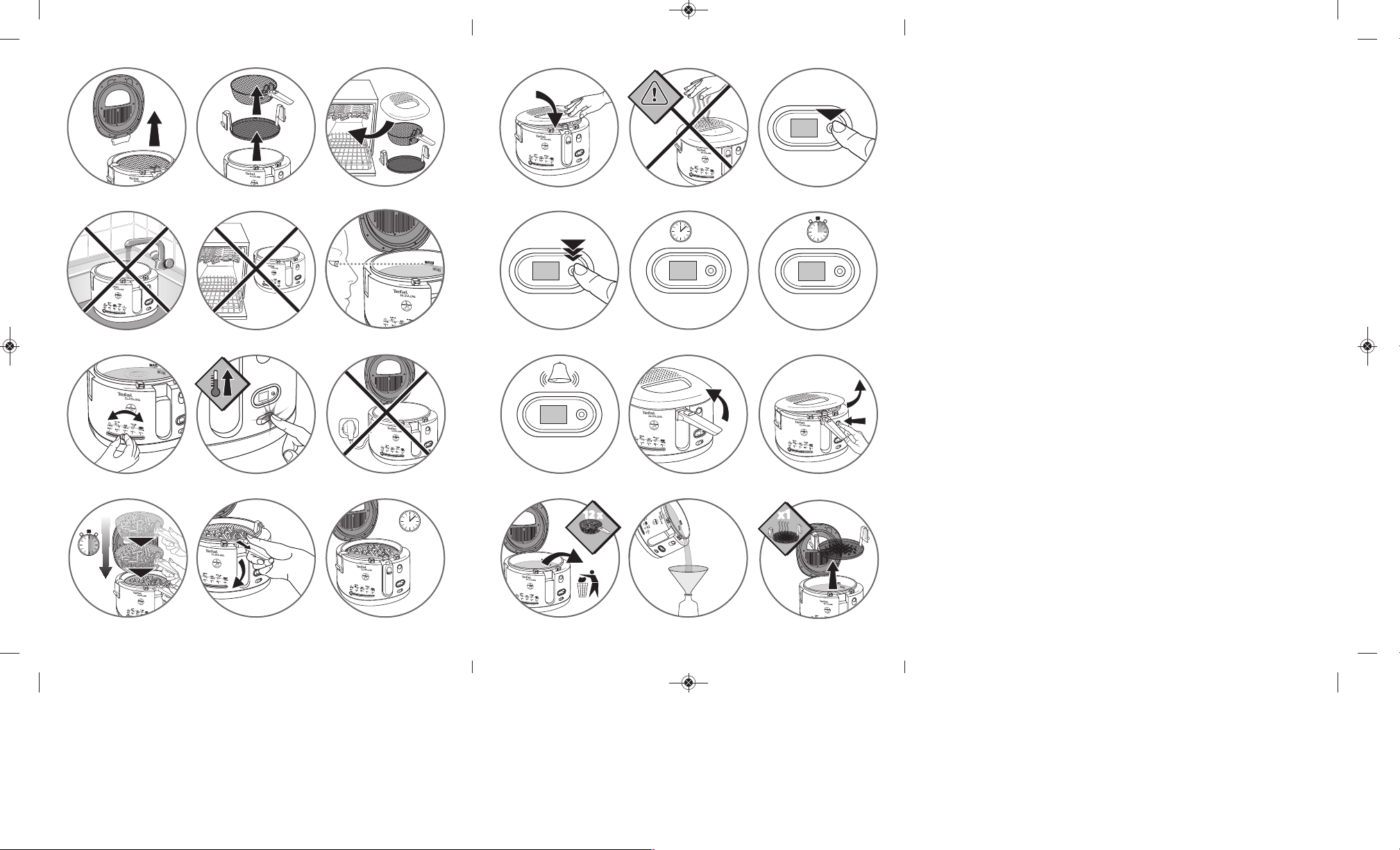

fig 1 fig 2 fig 3
fig 4 fig 5 fig 6
fig 7 fig 8 fig 9
fig 10 fig 11 fig 12
click x 1
00
click x 15
1 click = 1 min.
15
3 sec
15
1514
00
12 x12 x
MaxMax
x1x1
fig 13 fig 14fig 12a
fig 15
fig 16 fig 17
fig 18
fig 19 fig 20
fig 21
fig 22 fig 23
TE_FRYERS_FILTRA-ONE_UK_NC00122287_Mise en page 1 06/12/13 15:36 PageC4
5
EN
Safety instructions
General instructions
Read and follow the instructions for use. Keep them safe.
This appliance is not intended to be operated using an external timer or separate
remote control system.
For your safety, this appliance complies with the safety regulations and directives
in effect at the time of manufacture (Low-voltage Directive, Electromagnetic
Compatibility,Food Contact Materials Regulations, Environment…).
Check that the power supply voltage corresponds to that shown on the appliance
(alternating current).
Given the diverse standards in effect, if the appliance is used in a country other
than that in which it is purchased, have it checked by a Tefal Approved Service
Centre.
This appliance is designed for indoor domestic household use only.
In case of professional use, inappropriate use or failure to comply with the
instructions, the manufacturer accepts no responsibility and the guarantee does
not apply.
Remove all packaging materials and any promotional labels or stickers from your
deep fryer before use.
Do not use the appliance if the appliance or the cord is damaged, if the appliance
has fallen or shows visible damage or does not work properly. In the event of the
above, the appliance must be sent to a Tefal Approved Service Centre. Do not take
the appliance apart yourself.
For your own safety, use only accessories and spare parts which are suitable for your
appliance.
Connecting to the power supply
Always plug the appliance into a power socket outlet with an earth connection.
Do not use an extension lead. If you accept liability for doing so, only use an
extension lead which is in good condition, has a plug with an earth connection and
is suited to the power of the appliance.
If the power supply cord is damaged, it must be replaced by the manufacturer or a
Tefal Approved Service Centre in order to avoid any danger.
Do not leave the cord hanging. The power cord must never be in close proximity to
or in contact with the hot parts of your appliance, close to a source of heat or rest
on sharp edges.
Do not unplug the appliance by pulling on the cord.
Always unplug the appliance: immediately after use, when moving it, prior to any
cleaning or maintenance.
TE_FRYERS_FILTRA-ONE_UK_NC00122287_Mise en page 1 06/12/13 15:37 Page5
6
Using
This appliance is not designed to be used by people (including children) with a
physical, sensory or mental impairment, or people without knowledge or experience,
unless they are supervised or given prior instructions concerning the use of the
appliance by someone responsible for their safety.
Children must be supervised to ensure that they do not play with the appliance.
Use a flat, stable, heat-resistant surface, away from any water splashes.
Never leave the appliance unattended when in use.
This electrical equipment operates at high temperatures which may cause burns.
Do not touch the hot parts of the appliance (filter, window, metal walls (depending
on model), other apparent metal parts…). Be careful of hot steam and never put
your hands above the filtration zone.
Do not switch on the appliance near to flammable materials (blinds, curtains….)
or close to an external heat source (gas stove, hot plate etc.).
In the event of fire, never try to extinguish the flames with water. Close the lid.
Unplug the appliance.
Smother the flames with a damp cloth.
Do not move the appliance when it is full of liquids or hot food.
Never immerse the appliance or the electrical control unit in water !
Before throwing away your appliance, the timer battery must be removed by a Tefal
Service Centre (depending on model).
Do not store your deep fryer outside. Store it in a dry and well ventilated area.
It is essential that you wait until the oil has cooled down before storing the fryer.
Cooking
Never plug in the deep fryer without oil or fat inside.
The oil level must always be between the min and max markers.
If you use solid vegetable fat, cut it into pieces and melt it over a slow heat (max
150°C) in a separate pan beforehand, then slowly pour it into the deep fryer bowl.
Never put solid fat directly into the deep fryer bowl or fryer basket as this will lead
to deterioration of the appliance.
Do not mix different types of oil. Never add water to the oil or fat.
Do not overfill the basket, never exceed the maximum capacity.
Oils to use: For best results we recommend using a good quality blended vegetable
oil. If using Sunflower oil ensure the oil is changed after every 5 uses.
Oils which should NOT be used under any circumstances and may cause
overflowing/smoking/risk of fire are: ground nut oil, soya oil, olive oil, lard or
dripping.
If you have a removable anti-odour filter, change it after every 10 - 15 uses (foam
filter) or after 30 - 40 uses (cartridge with saturation indicator), or 80 uses (carbon
TE_FRYERS_FILTRA-ONE_UK_NC00122287_Mise en page 1 06/12/13 15:37 Page6
7
filter).
Some models are equipped with a permanent metallic filter, which does not need
to be changed.
No matter what the recipe, whether preparing fresh or frozen food, it must be
perfectly dry. Dry the food thoroughly with paper kitchen towel or a clean tea towel
before frying. This will prevent the oil from splattering and/or overflowing, will
extend the life of the oil and give crispier results.
Recommendations
Limit the cooking temperature to 190°C, especially for potatoes.
Use the basket for chips.
Control the cooking: Do not eat burnt food.
Clean your oil after every use to avoid burnt crumbs and change it after every 8 to
10 uses (after every 5 uses if using Sunflower oil). Do not pour used oil/fat into the
sink.
Leave it to cool and throw it away with household waste - according to the local
community regulations.
Store your fresh potatoes in a room above 8°C.
For best results and fast cooking, we recommend
that you limit the quantity of chips to 1/2 basket per frying.
For larger quantities of food or potatoes the temperature of the oil drops very fast
just after having lowered the basket. This lowers the oil temperature considerably
and it is normal for the temperature to take a while to return to 190°C.
• Take great care when handling the food and use tongs.
Gradually place the food in the hot oil, submerging it an inch at a time to prevent
it from sinking straightaway and any oil overflowing. Always fry fresh made chips
twice: A first fry at 160°C and a second fry at 190°C.
HELPLINE:
If you have any product problems or queries, please contact our Customer Relations
Team first for expert help and advice:
0845 602 1454 – UK
(01) 677 4003 – Ireland
Environment protection first!
Your appliance contains valuable materials which can be recycled.
When you decide to replace your appliance, leave at a local civic waste
collection point.
TE_FRYERS_FILTRA-ONE_UK_NC00122287_Mise en page 1 06/12/13 15:37 Page7
8
Description
Preparation
Before first use
• Press the button to unlock the lid and the lid will open.
• Remove the lid from the fryer - fig 1, the basket and
the filter sieve (depending on model) - fig 2.
• Wash the lid, basket and filter sieve (depending on
model) in the dishwasher - fig 3 or with a sponge and
soapy water.
• Wash the bowl with a sponge and soapy water.
• Carefully rinse and dry all items.
• Replace the filter sieve (depending on model), the
basket and the fryer lid.
Filling the bowl
• Fill the bowl with oil.
• Never fill the bowl above the maximum level shown on
the bowl - fig 6.
• Use an oil recommend for frying: sunflower, blended
vegetable, etc. If using sunflower oil ensure the oil is
changed after every 5 uses. Oil which should not be
used under any circumstances and may cause overflo-
wing/smoking/risk of fire are: ground nut oil, soya oil,
olive oil, lard or dripping.
1. Lid
2. Filter system
3. Viewing window
4. Basket
5. Basket handle
6. Detachable filter sieve (depending
on model)
7. Fryer bowl
8. Min. and Max. filling levels
9. Lid open button
10.Timer (depending on model)
11.On/Off switch with light
12.Carry handles
13.Adjustable thermostat
Oil Solid vegetable fat
Max. 2.1 L 1910 g
Min. 1.9 L 1660 g
EN
Never immerse this
appliance in water
- fig 4.
Never put the
appliance body in the
dishwasher - fig 5.
Your fryer should
always be used indoors.
Never mix different
types of oil or fat
because this could
cause the fryer to
overflow.
The oil/fat level should
always be between the
Min. and Max. levels
shown inside the bowl.
– fig. 6.
Check this before each
use and add the same
type of oil/fat as
required.
TE_FRYERS_FILTRA-ONE_UK_NC00122287_Mise en page 1 06/12/13 15:37 Page8
9
• If you use solid fat, chop it into pieces and then melt it
in a separate pan before pouring it into the bowl (never
melt solid fat in the basket or in the bowl).
• Never exceed 150°C to melt the fat that has solidified
in the bowl. For the cooking temperature follow the ins-
tructions (see cooking charts p.10).
• NEVER use animal fat such as lard or dripping as this
could cause overflow, smoke or a fire hazard.
Pre-heating
• After filling the bowl with the fat, close the lid and plug
in your fryer without the basket
• Adjust the thermostat - fig 7 depending on the food to
be fried (see cooking charts p. 10).
• Press the On/Off switch. The indicator will light up - fig 8.
• When the temperature indicator switches off, press
the lid unlock button to open the lid and allow the
steam to escape.
Loading the basket
• Dry the food to remove any excess water or ice.
• Fill the basket before placing it in the fryer.
• Do not overfill the basket.
• Reduce quantities for frozen food.
• Tip: Cut food to the same size so that it cooks evenly.
Avoid pieces that are too thick.
Cooking
Lowering the basket
• After the temperature indicator light goes out place
the basket in the bowl.
• Lower the bowl gently into the oil - fig 10. Lowering it
too quickly could cause the fryer to overflow.
EN
Place the fryer:
- on a secure surface
- out of the reach of
children
- away from any
sources of spatter or
heat.
Never plug the fryer in
when it is empty
(without any oil or fat)
- fig 9.
Never exceed the
maximum safety
limit – fresh products
1200 g, frozen 900 g.
To avoid overflow and
extend the life of the
oil, wipe the food
carefully before
cooking it.
TE_FRYERS_FILTRA-ONE_UK_NC00122287_Mise en page 1 06/12/13 15:37 Page9
10
• Pull down the handle - fig 11, wait for one minute - fig 12
then close the lid - fig 12a.
• Set the cooking timer (depending on model): for models
with timer, press the button to adjust the time minute
by minute. The selected time is displayed and the
countdown begins - fig 14 to fig 18.
• During cooking, it is normal for the temperature light
to switch on and off.
At the end of cooking
• The timer emits a sound (depending on model), indicating
that the programmed cooking time has ended. To stop
the timer alarm, press the button.
• Set the thermostat to the minimum position.
• Press the On/Off button.
• Raise the handle - fig 19, then press the lid unlock
button to open and allow the steam to escape for
around 15 seconds - fig 20. Open the lid.
• Drain your food.
• Remove the basket and serve.
• Close the lid when the fryer is not in use.
• To cook more food, add oil/fat as required, set the ther-
mostat to the required temperature, press the On/Off
switch and then wait until the temperature light comes
on before placing the new food in the oil.
Table of cooking times
• The cooking times are a guide only; they may vary
depending on the size of the food and the amount of
food and individual preferences. Thicker food may
require turning halfway through frying to ensure even
cooking on both sides.
• Cooking tips: For best results, use the traditional French
method of frying homemade chips:
- first frying at 170 °C
- second frying at 190 °C
• When cooking battered food and doughnuts, remove
the wire basket to prevent food sticking to it and use
tongs to slowly lower the food into the hot oil.
EN
Do not place your hand
above the filter system –
fig. 13, or over the
viewing window.
The steam and the glass
will be hot. Do not touch
the fryer walls which
may also be hot.
The timer (depending
on model) signals the
end of the cooking
time, but does not stop
the appliance.
For crispy fried food,
open the lid as soon as
you have finished
cooking to prevent
steam from softening
the food.
When cooking battered
food and doughnuts,
take great care when
handling the food and
use tongs. Gradually
place the food into the
hot oil, submerging it
an inch at a time to
prevent it from sinking
immediately.
TE_FRYERS_FILTRA-ONE_UK_NC00122287_Mise en page 1 06/12/13 15:37 Page10
11
SWITCHING OFF THE FRYER
When you have finished frying, press the ON/OFF switch.
Unplug the fryer.
Leave the fryer and the oil/fat inside to cool completely (approx 2 hours).
FRESH FOOD
Number of
serving
Quantity Temperature Cooking time
Chips
350/400 g 190° C 6 - 8 minutes
600 g 190° C 9 - 11 minutes
1000 g 190° C 15 - 17 minutes
1200 g
(maximum
quantity)
1) 170° C 12 - 14 minutes
2) 190° C 5 - 7 minutes
Fried chicken 8 180° C 14 - 16 minutes
Breaded fish fillets 3 170° C 6 - 7 minutes
Fried whole
mushrooms
200 g 150° C 8 - 10 minutes
Vegetable fritters 7-8 180° C 11 - 13 minutes
Apple fritters 6 180° C 6 - 8 minutes
FROZEN FOOD
Number of
serving
Quantity Temperature Cooking time
Chips
450 g
(quantity
recommended
for best results)
190° C 7 - 9 minutes
750 g
(maximum
quantity)
190° C 10 - 12 minutes
Breaded fish fillets 10 190° C 6 - 8 minutes
Chicken nuggets 900 g 190° C 7 - 9 minutes
Fried onion rings 300 g 190° C 5 - 6 minutes
EN
TE_FRYERS_FILTRA-ONE_UK_NC00122287_Mise en page 1 06/12/13 15:37 Page11
12
Cleaning
Filtering the oil
• You may store the oil in the fryer, or in a separate airtight
container.
• Do not pour used oil/fat into the sink. Leave it to cool,
and throw it away with household waste-according to
the local community regulations.
• If you use solid vegetable fat, we advise you to store it
separately from the fryer - fig 22.
• Crumbs that break away from foods tend to burn and
alter the quality of the oil more rapidly. Over time, this
increases the risk of catching fire. For this reason, filter
the oil regularly.
Cleaning the fryer
• Always unplug your fryer and leave it to cool completely
before cleaning it (approx. 2 hours).
• Remove the lid and the basket.
• Next remove the filter sieve (depending on model), and
dispose of any residue – fig.23.
• Put the lid, basket and filter sieve in the dishwasher or
wash them with a sponge and soapy water.
• Dry all items carefully before replacing them.
• Put the lid back on the fryer for storage.
• If you do not keep the oil in your fryer, you can store the
filter sieve (depending on model) and the basket inside
the fryer.
• The lid is fitted with a permanent metallic filter, you
don't need to change it.
EN
You cannot remove the
metallic filter located in
the lid when washing
the lid.
Never immerse your
appliance in water and
never wash it under
running water.
Never wash the
appliance body in the
dishwasher.
Do not use aggressive or
abrasive cleaning
products.
Do not store your deep
fryer outside, store it in
a dry and well-ventilated
area.
Leave the fryer with the
oil in the bowl to cool
completely before
filtering the oil (2 hours).
We recommend
changing the oil/fat
after a maximum of 10
to 12 uses. – fig.21.
If using sunflower oil,
ensure the oil is changed
after every 5 uses.
TE_FRYERS_FILTRA-ONE_UK_NC00122287_Mise en page 1 06/12/13 15:37 Page12
13
Problems and solutions
Problems and possible causes Solutions
The deep fryer does not work.
The appliance is not plugged in. Plug in the appliance.
Unpleasant odours.
The oil/fat has deteriorated.
Replace the frying oil/fat (after 12 uses
max.), or more frequently depending on
the type of oil/fat used.
The oil/fat is unsuitable.
Use a good quality blended vegetable
oil/fat. (see p.8).
Steam escapes from around the lid.
The lid is not closed properly.
Check that the lid is properly locked
closed.
Food is wet or contains too much water
(frozen food).
Remove any ice and dry the food
thoroughly. Lower the basket slowly (see
p.9).
Different types of oil have been mixed.
Empty and clean the bowl. Refill the bowl
with one type of oil.
Vision through the viewing window is not clear.
Not cleaning the window often enough
or using an inappropriate cleaning
method.
To ensure good visibility, clean the
viewing window by wiping it with a
sponge and lemon juice.
Allow the window to dry at room
temperature or dry with a clean cotton
cloth.
EN
TE_FRYERS_FILTRA-ONE_UK_NC00122287_Mise en page 1 06/12/13 15:37 Page13
14
Problems and possible causes Solutions
The frying oil overflows.
The Max. marker for filling the bowl has
been exceeded.
Check the level (Max.) and remove the
excess of oil after the fryer is cool.
The frying basket has been overfilled
with food.
Check that the basket is not too full.
Food is wet or contains too much water
(i.e. frozen food).
Remove any ice and dry the food
thoroughly before frying.
Wrong oil or different types of oil/fat
have been mixed.
Empty and clean the bowl. Refill the bowl
with one type of oil/fat.
Unsuitable oil/fat has been used.
Use a good quality blended vegetable
oil/fat (see p. 8).
Food does not become golden and remains soft.
Pieces are too thick and contain too
much water.
Experiment by lengthening the cooking
time or by cutting food smaller and
thinner.
Too much food is being cooked at the
same time and the cooking oil/fat is no
longer at the right temperature.
Respect the recommended quantities of
food (see table of cooking p.11).
The temperature of the frying oil/fat may
not be high enough: the temperature is
set incorrectly.
Set the thermostat selector to the
recommended temperature.
Chips stick together.
Potatoes have not been washed before
immersed in hot oil/fat.
Cut the potatoes and wash them well to
remove starch and then dry them
thoroughly.
Too much food is being cooked at the
same time.
Respect the recommended quantities of
food (see table of cooking p.11).
The timer no longer works (depending on model)
The battery is low.
Have it replaced by an approved Service
Centre.
EN
TE_FRYERS_FILTRA-ONE_UK_NC00122287_Mise en page 1 06/12/13 15:37 Page14
TE_FRYERS_FILTRA-ONE_UK_NC00122287_Mise en page 1 06/12/13 15:37 Page15
TE_FRYERS_FILTRA-ONE_UK_NC00122287_Mise en page 1 06/12/13 15:37 Page16
TE_FRYERS_FILTRA-ONE_UK_NC00122287_Mise en page 1 06/12/13 15:37 Page17
TE_FRYERS_FILTRA-ONE_UK_NC00122287_Mise en page 1 06/12/13 15:37 Page18
TE_FRYERS_FILTRA-ONE_UK_NC00122287_Mise en page 1 06/12/13 15:37 Page19
TE_FRYERS_FILTRA-ONE_UK_NC00122287_Mise en page 1 06/12/13 15:37 Page20
