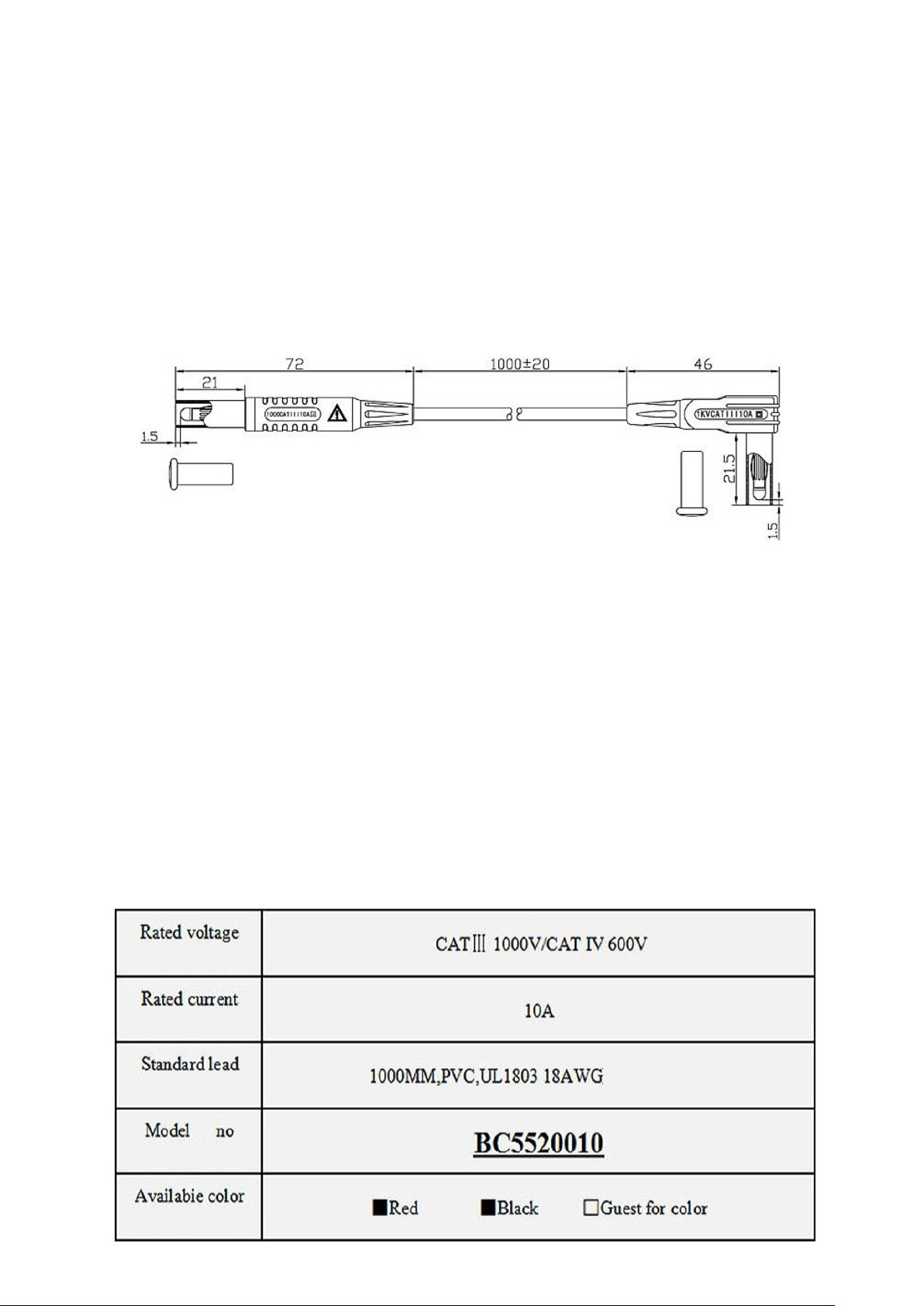

Ф4MM Test lead
● Test Lead for Multimeters, Voltage Testers, etc.
● High Quality UL1803 18 AWG double-insulated wire
● 4 mm straight Beryllium Copper test plug. Safety Cap included
● 4 mm right angle Beryllium Copper plug on opposite end. Protective head and insulated sleeve
included to avoid any accidental exposure
● Double injection for complete grip and highest safety
● Complies with IEC: 61010, EN: 61010
Thank you for purchasing the AstroAI Electronic Test Lead Kit. If you experience
the need for any kind of help or support from our Customer Service team, please
email us at support@astroai.com and we will be sure to get back to you as soon
as possible. Thanks again!
AstroAI 8-Piece Electronic Test Lead Kit
Ф2mm Test Probe
● Test probe attaches to the testing instrument
● 2 mm test probe constructed of brass on one side, with safety cap
included
● 4 mm rigid socket on the other end, accepting a 4 mm spring plug
● Complies with IEC/EN: 61010-031:2008
Rated Voltage: CAT III 1000V
Rated Current: 10A
Craftwork
：
Double injection
Model Number: BC5540010

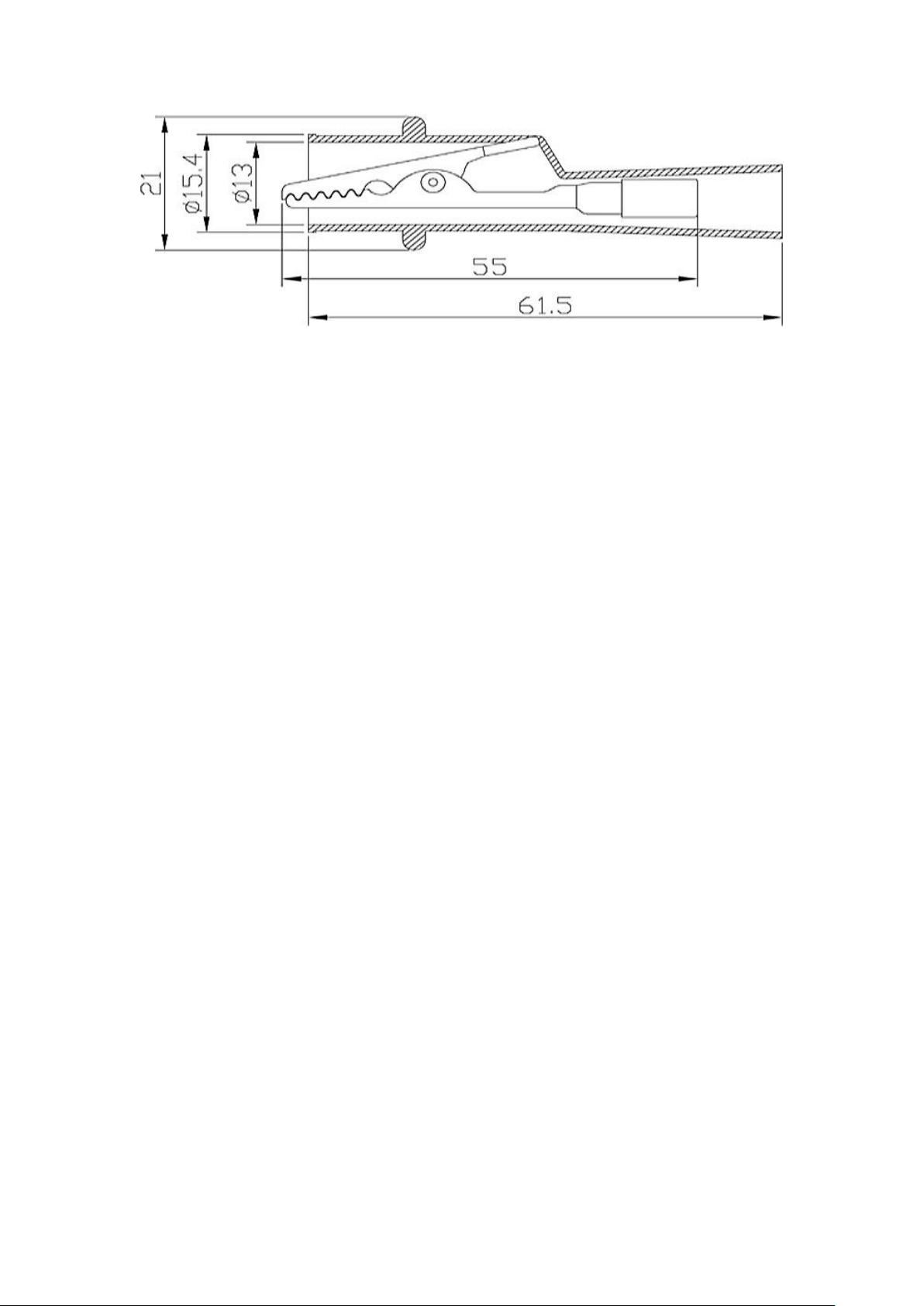

Crocodile Clamp
● Toothed jaws grip wires
● 2 mm rigid socket with M4 screw connection
● Covered by soft PVC insulation
● Complies with IEC/EN: 61010
Rated voltage
：
CATIII 1000V
Rated current
：
10A
Clamp openning
：
8MM
Model Number:BC5530081

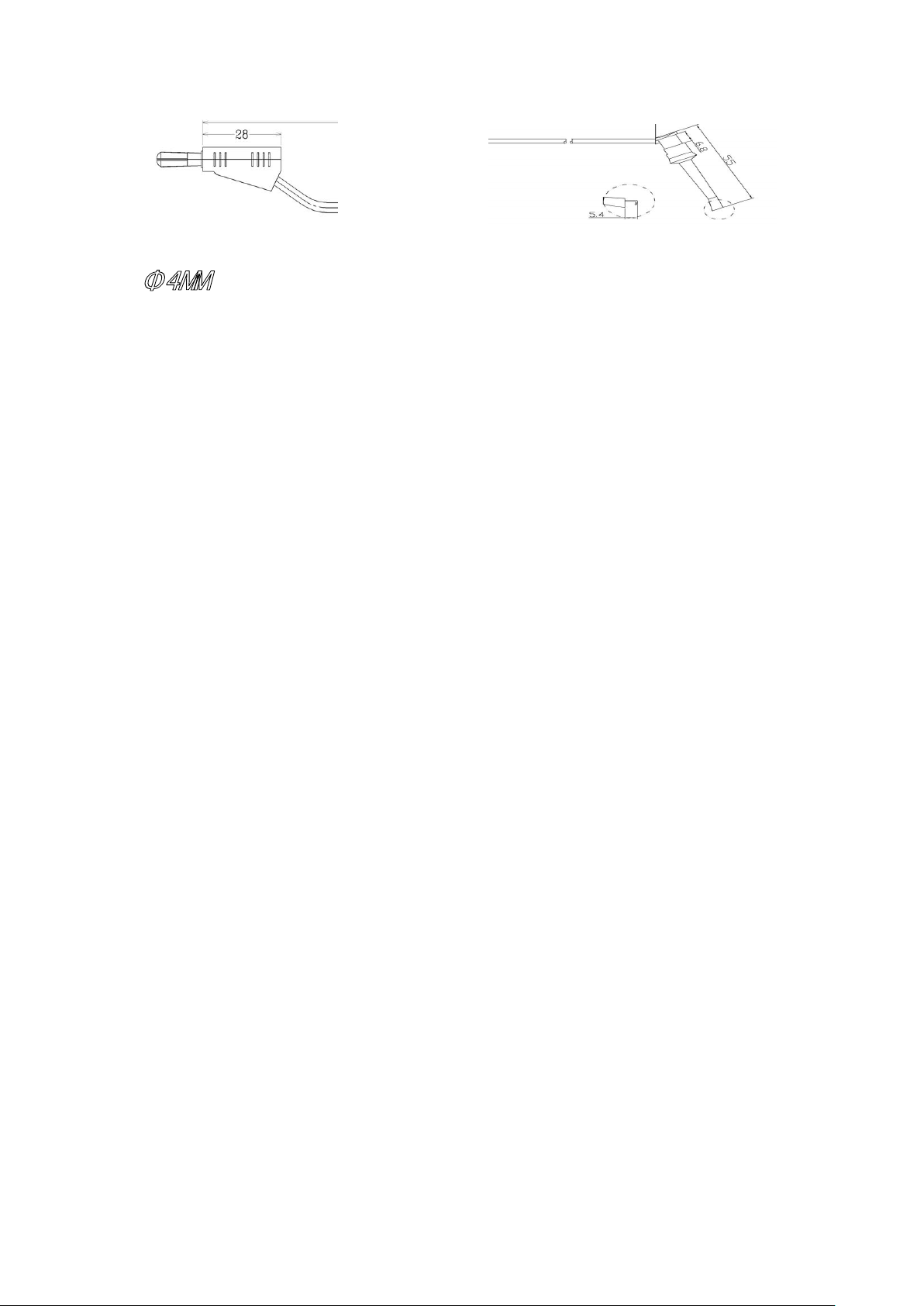

Ф4MM
Test lead with Miniature Hook Clip
● Test lead with miniature hook clip with integrated circuit and component leads for
gripping PCBs
● 1 pc. miniature hook clip on one end
● 4 mm Beryllium copper plug on the other end
Rated voltage: 30V AC/60V DC
Rated current: 2A
Standard lead:1000MM PVC Doubl- insulation
Model Number: BC5 520180
