ASSEMBLY MANUAL / OWNER’S MANUAL
230i
This product is compliant with the
applicable CE requirements.
2
Important Safety Instructions - Assembly 3
Safety Warning Labels / Serial Number 4
Specications 5
BeforeAssembly 5
Parts 6
Hardware 7
Tools 7
Assembly 8
Moving the Machine 18
Leveling the Machine 19
Important Safety Instructions 20
Features 21

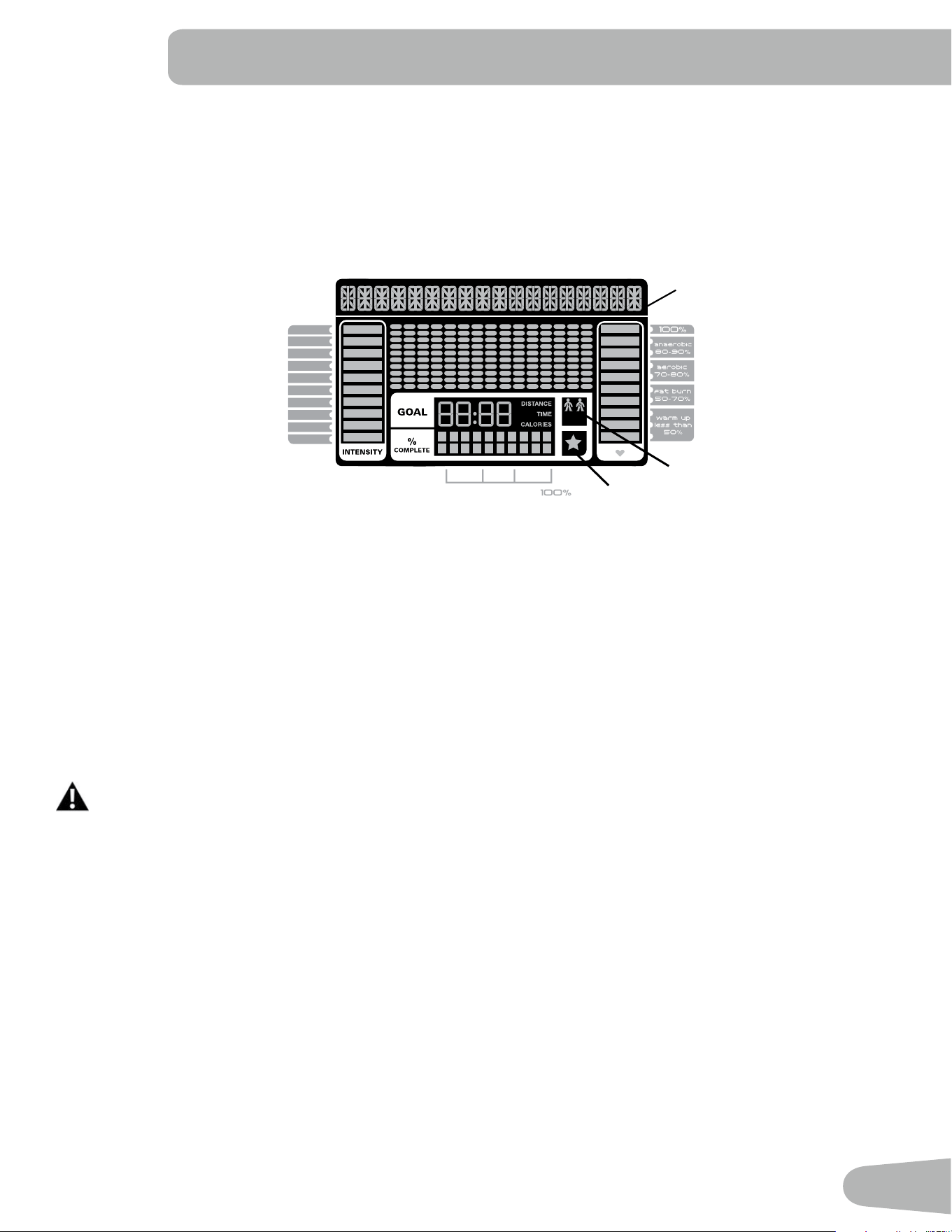

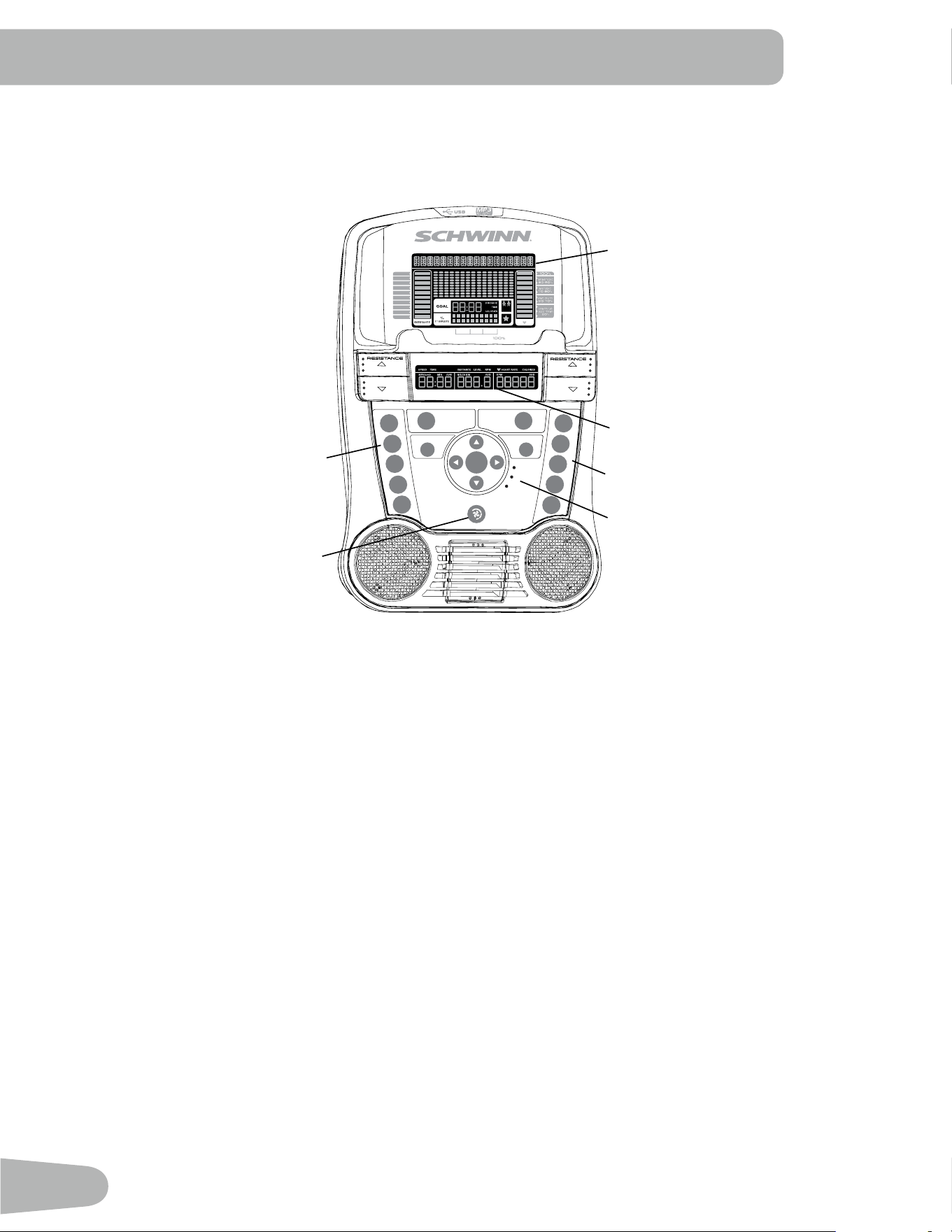

Console Features 22
Operations 27
Adjustments 27
Power Up / Idle Mode 27
Quick Start Program 28
UserProles 28
Pausing or Stopping 32
Results / Cool Down Mode 33
GOAL TRACK Statistics 33
Console Service Mode 36
Maintenance 37
Maintenance Parts 38
Troubleshooting 40
TABLE OF CONTENTS
To validate warranty support, keep the original proof of purchase and record the following information:
Serial Number __________________________
Date of Purchase ____________________
To register your product warranty, contact your local distributor.
If you have questions or problems with your product, please contact your local Schwinn distributor.
Tondyourlocaldistributor,goto:www.nautilusinternational.com
Nautilus,Inc.,www.NautilusInc.com-CustomerService:[email protected]|Nautilus,Inc.,18225NERiversideParkway,Portland,
OR 97230 USA | Printed in China | © 2013 Nautilus, Inc. | ® indicates trademarks registered in the United States. These marks may be
registered in other nations or otherwise protected by common law. MyFitness Pal
®
is a registered trademark of its owner.
3
IMPORTANT SAFETY INSTRUCTIONS
-ASSEMBLY
This icon means a potentially hazardous situation which, if not avoided, could result in death or serious injury.
Obey the following warnings:
Read and understand all warnings on this machine.
Carefully read and understand the Assembly instructions.
• Keep bystanders and children away from the product you are assembling at all times.
• Do not connect power supply to the machine until instructed to do so.
• Do not assemble this machine outdoors or in a wet or moist location.
• Makesureassemblyisdoneinanappropriateworkspaceawayfromfoottrafcandexposuretobystanders.
• Some components of the machine can be heavy or awkward. Use a second person when doing the assembly steps
involving these parts. Do not do steps that involve heavy lifting or awkward movements on your own.
• Set up this machine on a solid, level, horizontal surface.
• Do not try to change the design or functionality of this machine. This could compromise the safety of this machine and
will void the warranty.
• If replacement parts are necessary, use only genuine Nautilus replacement parts and hardware. Failure to use
genuine replacement parts can cause a risk to users, keep the machine from operating correctly and void the
warranty.
• Do not use until the machine has been fully assembled and inspected for correct performance in accordance with the
Manual.
• ReadandunderstandthecompleteManualsuppliedwiththismachinebeforerstuse.KeeptheManualforfuture
reference.
• Do all assembly steps in the sequence given. Incorrect assembly can lead to injury or incorrect function.
• Thisproductcontainsmagnets.Magneticeldscaninterferewiththenormaluseofcertainmedicaldevicesataclose
range.Usersmaycomeintoproximityofthemagnetsintheassembly,maintenance,and/oruseoftheproduct.Given
the obvious importance of these devices, such as a pacemaker, it is important that you consult with your medical
provider in connection with the use of this equipment. Please consult the “Safety Warning Labels and Serial Number”
section to determine the location of the magnets on this product.
4

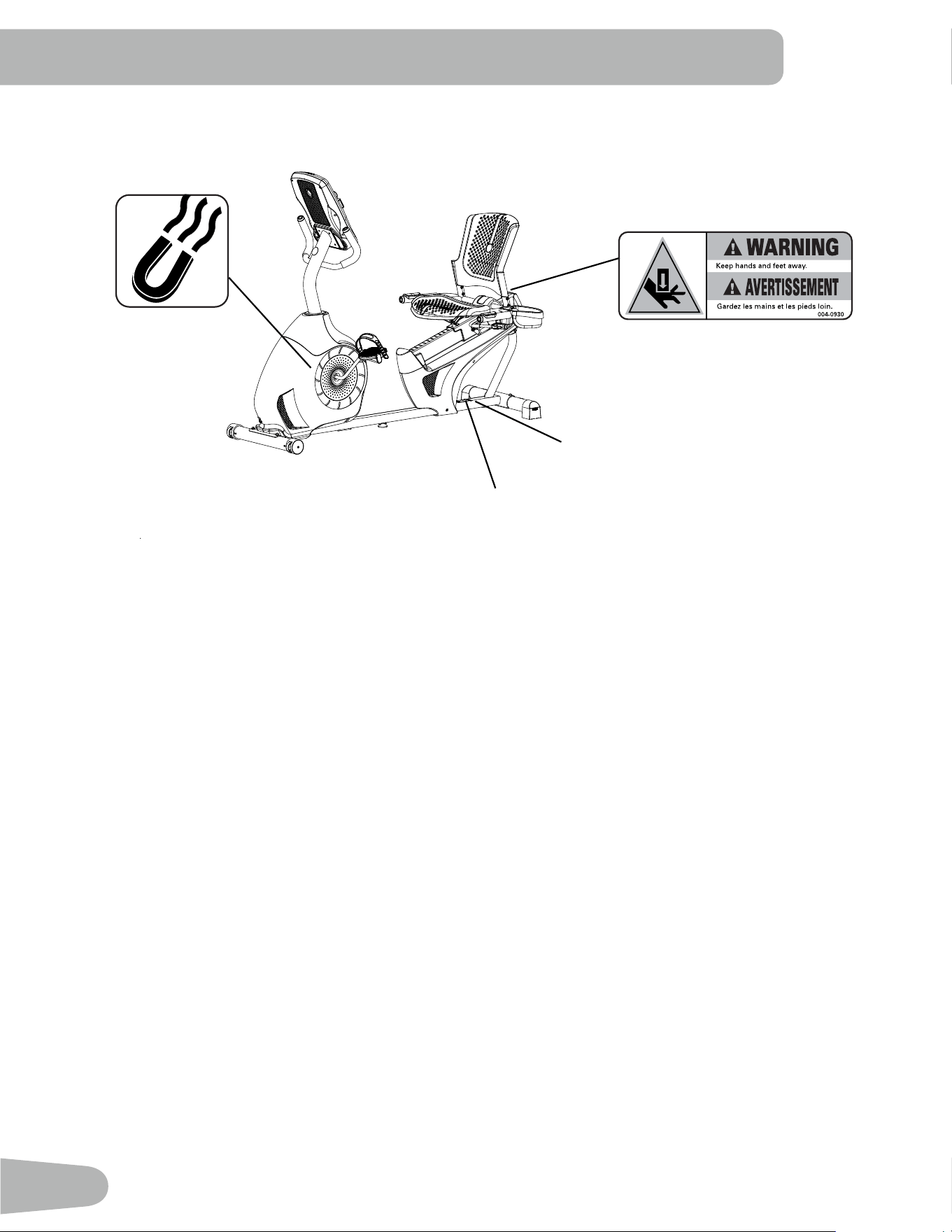

SAFETY WARNING LABELS AND
SERIAL NUMBER
Serial Number
Product
specification
REVISIONS
ECO
REVISION
REV DESCRIPTION
APPROVED
DATE
TITLE.
PART NO.
REV.
SHEET 1 OF 1
SCALE: 1:1
DO NOT SCALE DRAWING
1. ALL ITEMS MUST BE RoHS COMPLIANT
2. ALL DIMENSIONS APPLY BEFORE PLATING OR COATING.
3. REMOVE ALL BURRS, BREAK SHARP EDGES 0.5 MM MAX.
4. ALL MACHINES SURFACES Ra 3.2 uM.
5. ALL APPLICABLE NAUTILUS STANDARDS AND
SPECIFICATIONS APPLY.
6. ALL DIMENSIONS ARE IN MILLIMETERS
7. ALL DUAL DIMENSIONS ARE IN INCH
UNLESS OTHERWISE SPECIFIED:
METRIC
THIRD ANGLE
PROJECTION
INTERPRET DIMENSIONS AND TOLERANCES
PER ASME Y14.5M - 1994
2.5
1.5
0.75
0.25
1°
X.
X.X
X.XX
X.XXX
ANGULAR
C
SIZE
This document is the property of Nautilus, Inc. It may not be reproduced in whole or part, provided to third parties, or used for any purposes other than the performance of work for Nautilus, Inc. without written authorization. All rights are reserved, including copyrights.
TOLERANCES.
DRAWN
DESIGNED
DATE
METRIC_C_REV G
NAUTILUS, INC.
16400 SE NAUTILUS DRIVE, VANCOUVER, WA 98683
LIFECYCLE
7-22-10
APPROVALS
- -
- - - -
WARRANTY ITEM:
A RELEASED
NPI 13149 DLOVELY
7-22-10
D.LOVELY
D.LOVELY
07 /22 / 2010
D.LOVELY
A
004-0930
CRUSH WARNING
21.78mm
54.8mm
MATERIAL.
COLOR.
DIE LINE
PMS 152
PMS 109
BLACK
WHITE
Labels must be created from an agency approved tamper proof labeling system
such as "UL Recognized component marking and labeling system (example: UL PGGU2) or equivalent.
Label and adhesive must be rated for surface it is applied to (painted metal or ABS plastic),
Label and adhesive must be rated for 60 degrees C minimum. Labels must meet UL 1647 Permanence of Marking Test.
•
•
5

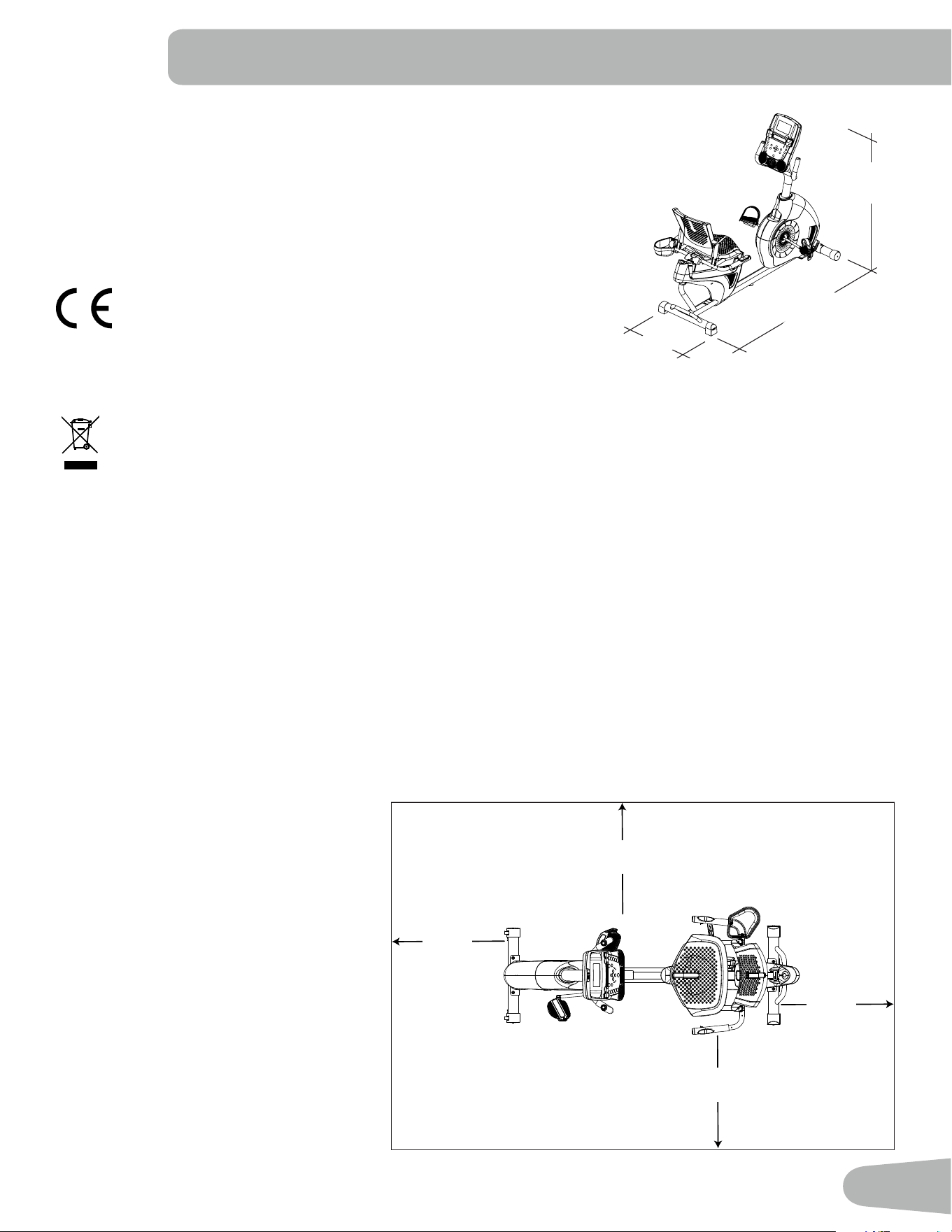

SPECIFICATIONS
Before Assembly
Select the area where you are going to set up and operate your machine. For safe operation, the location must be on a
hard,levelsurface.Allowaworkoutareaofaminimum1.9mx2.8m(75”x112”).
Basic Assembly Tips
Follow these basic points when you assemble your machine:
• Read and understand the “Important Safety Instructions” before assembly.
• Collect all the pieces necessary for each assembly step.
• Usingtherecommendedwrenches,turntheboltsandnutstotheright(clockwise)totighten,andtheleft(counter-
clockwise)toloosen,unlessinstructedotherwise.
• When attaching 2 pieces, lightly lift
and look through the bolt holes to help
insert the bolt through the holes.
• The assembly can require 2 people.
Maximum User Weight: 136kg(300lb)
Machine Weight: 37kg(81.57lb)
Total Surface Area (foot print) of equipment:10,705.5cm
2
(1662.5inches
2
)
Power Requirements:
OperationalVoltage:220V-240VAC,50Hz
Operating Current: 0.4A
Complies with the following:
ISO20957compliant.
DO NOT dispose of this product as refuse. This product is to be recycled. For proper disposal of this product,
please follow the prescribed methods at an approved waste center.
126.8 cm
( 49.9”
)
162.5 cm
( 64” )
70.3 cm
( 27.7” )
2.8m (112”)
1.9m
(75”)
0.6m
( 24” )
0.6m
( 24” )
0.6m
( 24” )
0.6m
( 24” )
6
Item Qty Description Item Qty Description
1 1 Console 10 1 AC Adapter
2 1 Water Bottle Holder 11 1 Left Pedal
3 1 Seat Back 12 1 Front Stabilizer
4 1 Cover 13 1 Right Pedal
5 1 Seat Frame Assembly 14 1 Upper Shroud
6 1 Seat Bottom 15 1 Shroud Cap
7 1 Seat Adjustment Handle 16 1 Console Mast
8 1 Rear Stabilizer 17 1 MP3 Cord
9 1 Frame

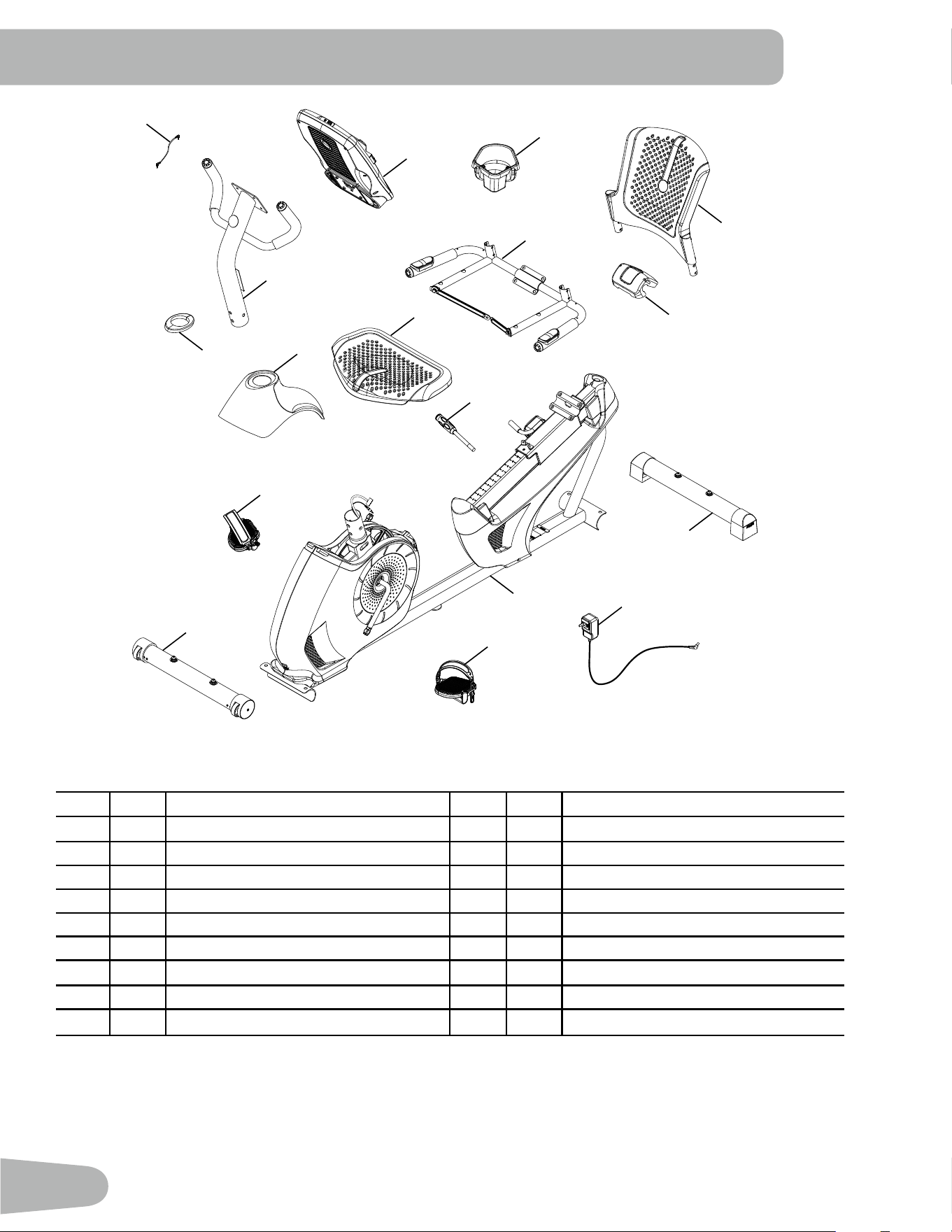

PARTS
4
1
2
5
16
6
14
15
9
7
13
12
11
8
3
10
17
7

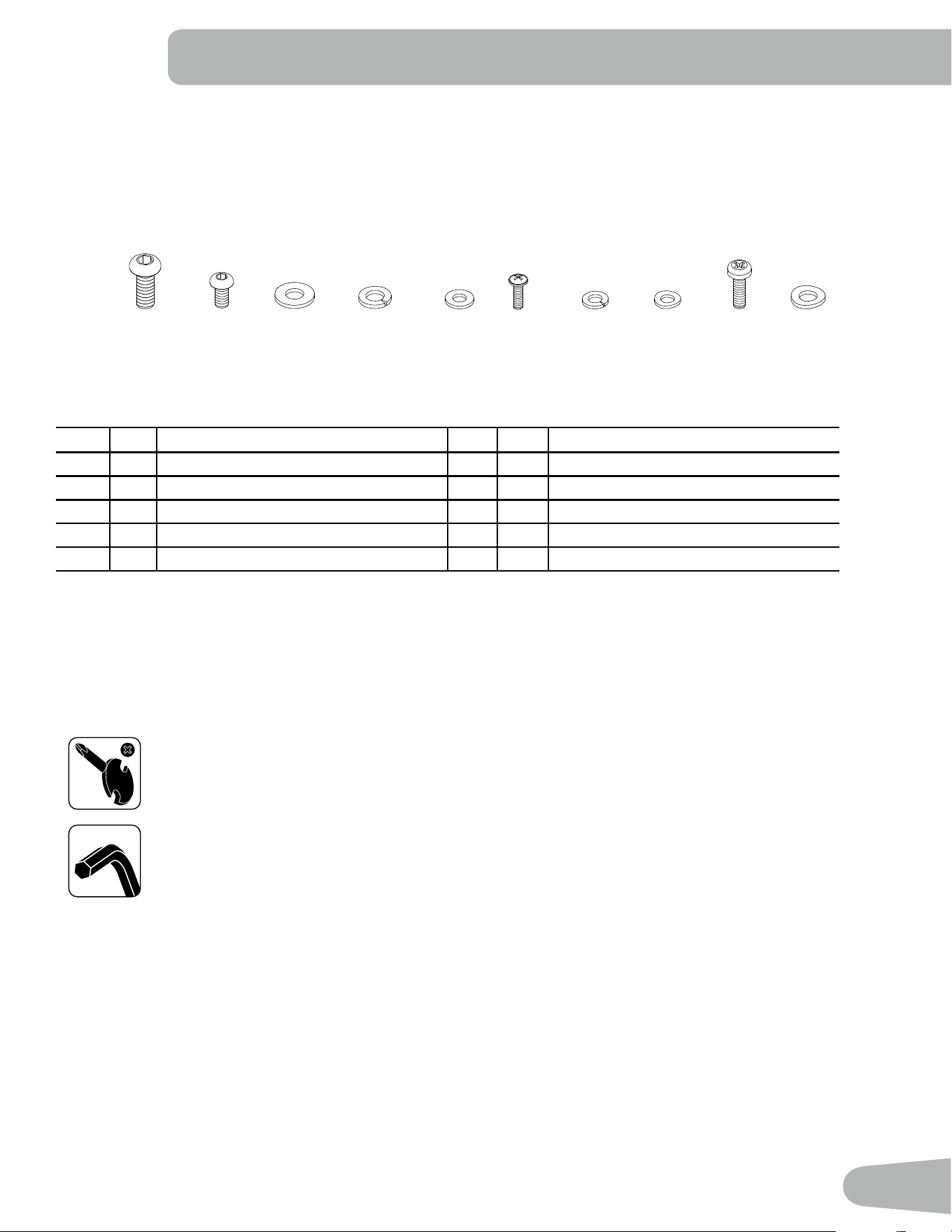

Item Qty
Description
Item Qty
Description
A 8 ButtonHeadHexScrew,M8x20 F 2 PhillipsHeadScrew,M5x12
B 10 ButtonHeadHexScrew,M6x12 G 14 Lock Washer, M6
C 4 Flat Washer, M8 H 4 Curved Washer, M6
D 8 Lock Washer, M8 I 4 PhillipsHeadScrew,M6x25
E 10 Flat Washer, M6 J 4 Curved Washer, M8
HARDWARE / TOOLS
Tools
Included
4 mm
6 mm
A B C D E F
G H
I J
8
ASSEMBLY

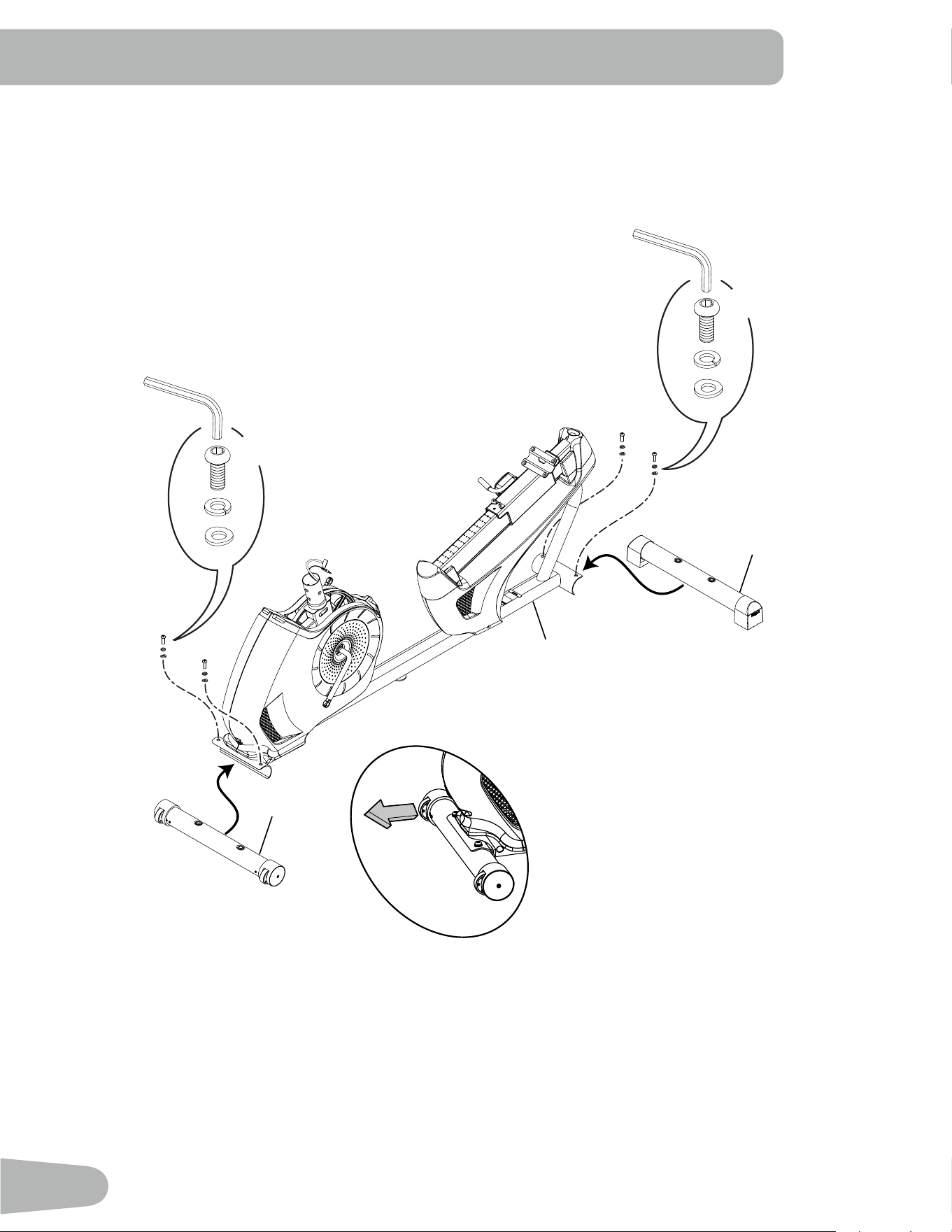

1. Attach Stabilizers to Frame
Note: Hardware is pre-installed and not on the Hardware Card. *
*
6mm
12
8
9
*
*
X2
*
6mm
*
*
X2
9

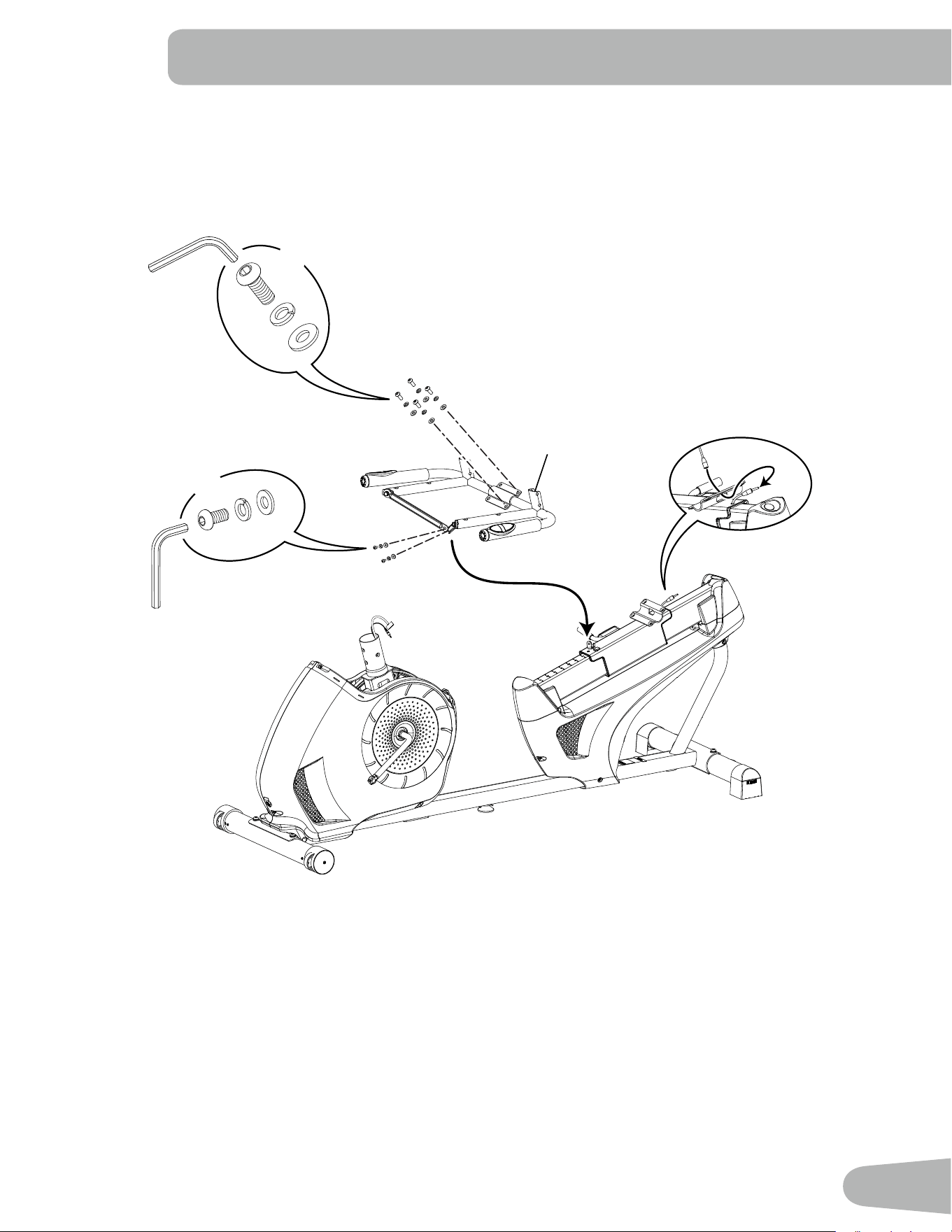

2. Attach the Seat Frame Assembly to the Seat Rail
NOTICE: Do not crimp the Heart Rate Cable. Once all hardware has been inserted, be sure to fully tighten it.
B
E
G
4mm
X2
5
A
C
D
6mm
X4
10

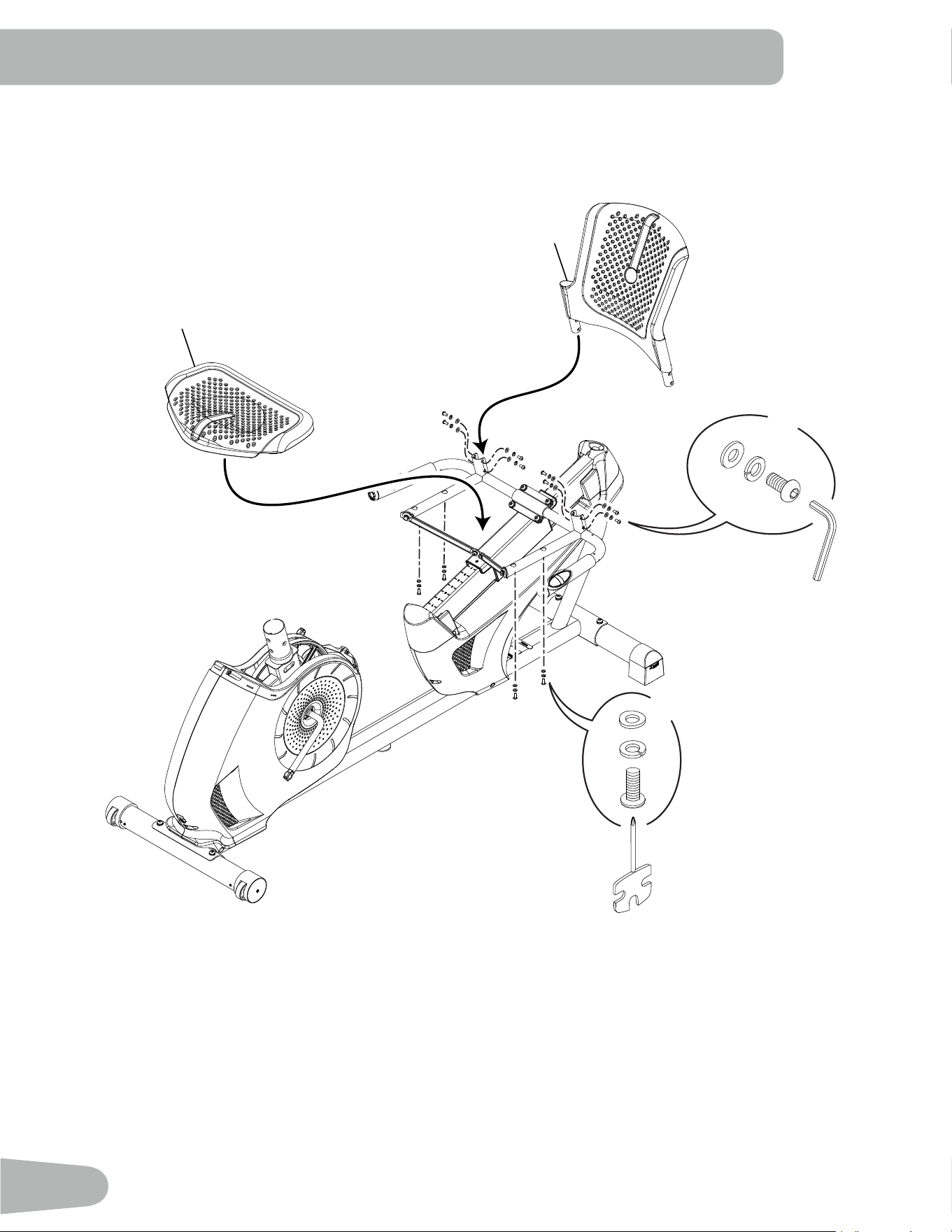

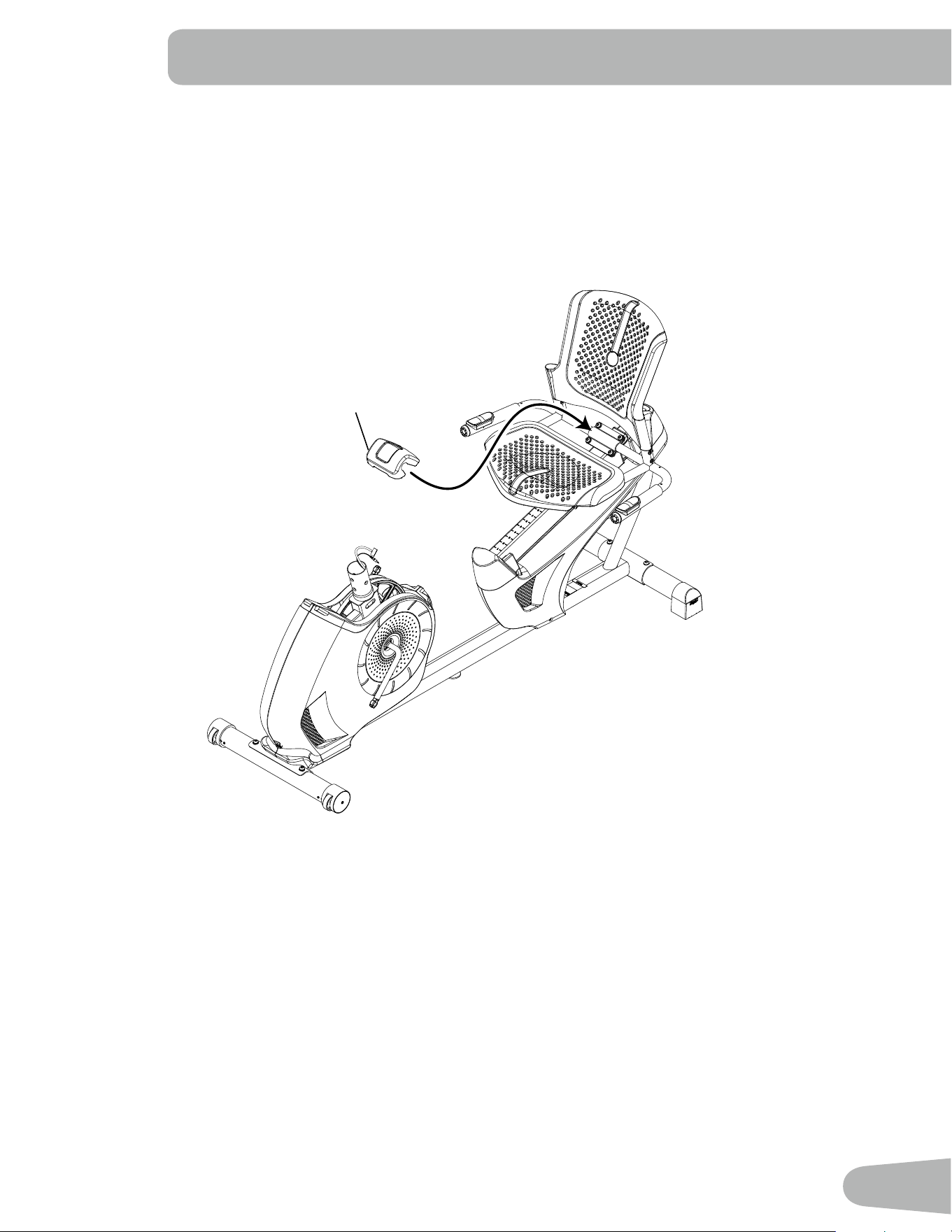

3. Attach Seat Pads to Seat Frame Assembly
3
6
X8
4mm
B
E
G
H
X4
#2
G
I
11
4. Attach Cover to Frame Assembly
4
12
5. Attach Seat Adjustment Handle to Frame Assembly
7
13

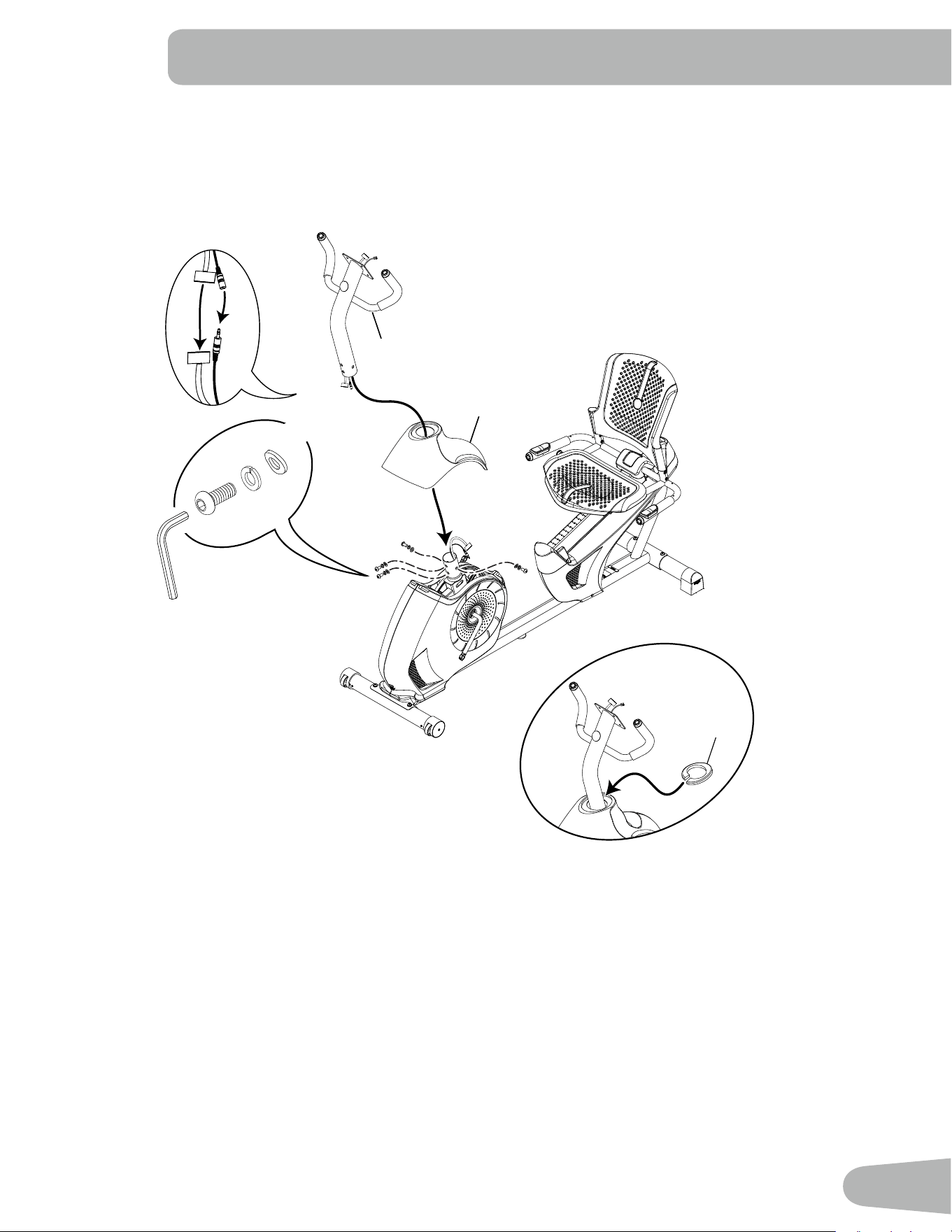

6. Connect the Cables and Attach the Console Mast to Frame Assembly
NOTICE: Do not crimp Console Cables.
15
A
J
6mm
X4
16
14
D
14

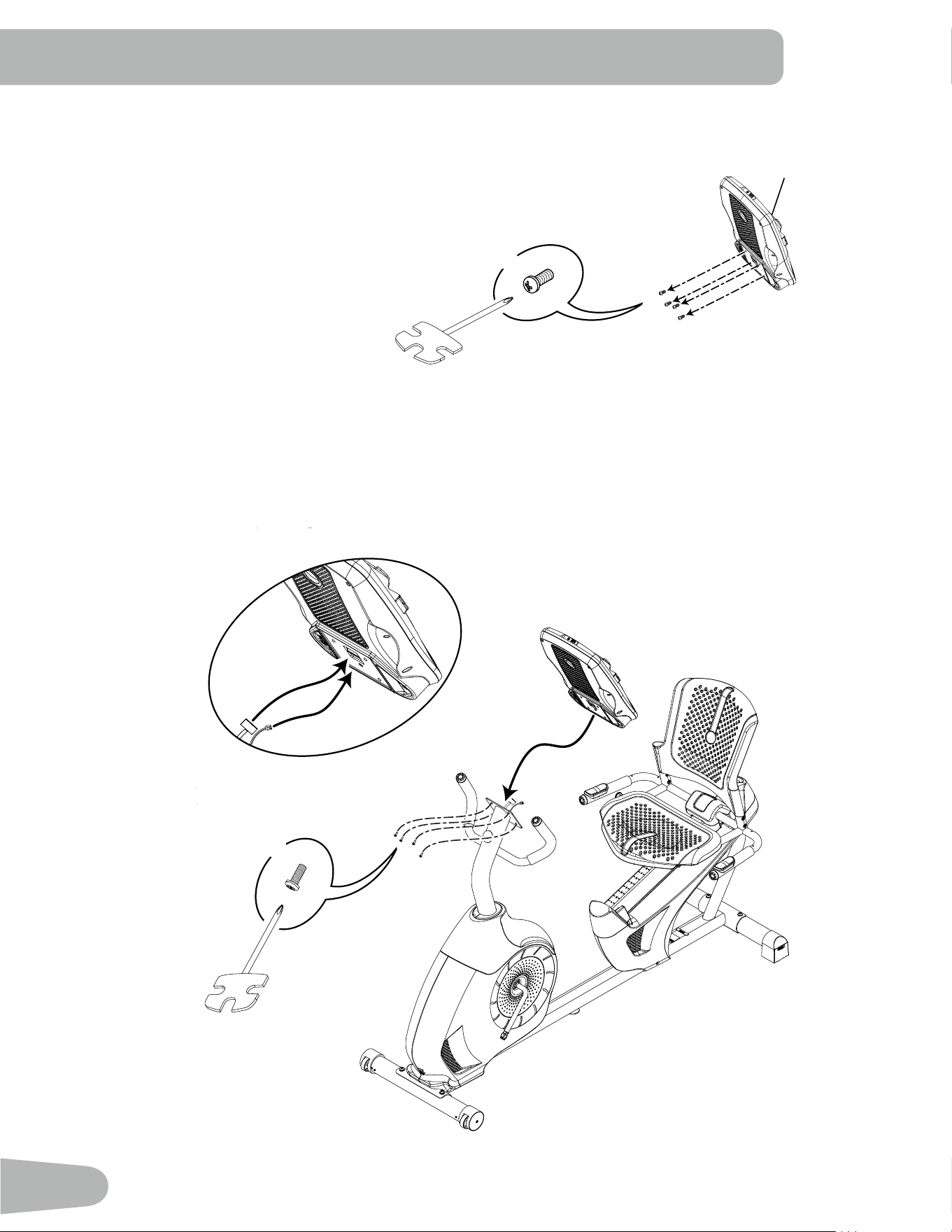

7. Remove Hardware from Console
NOTICE: Do not crimp the cable.
Note: Hardware is pre-installed and not on the Hardware Card. *
*
X4
8. Connect Cables and Attach Console to Frame Assembly
NOTICE: Align the clips on the cable connectors and make sure the connectors lock. Do not crimp cables.
1
*
X4
#2
15

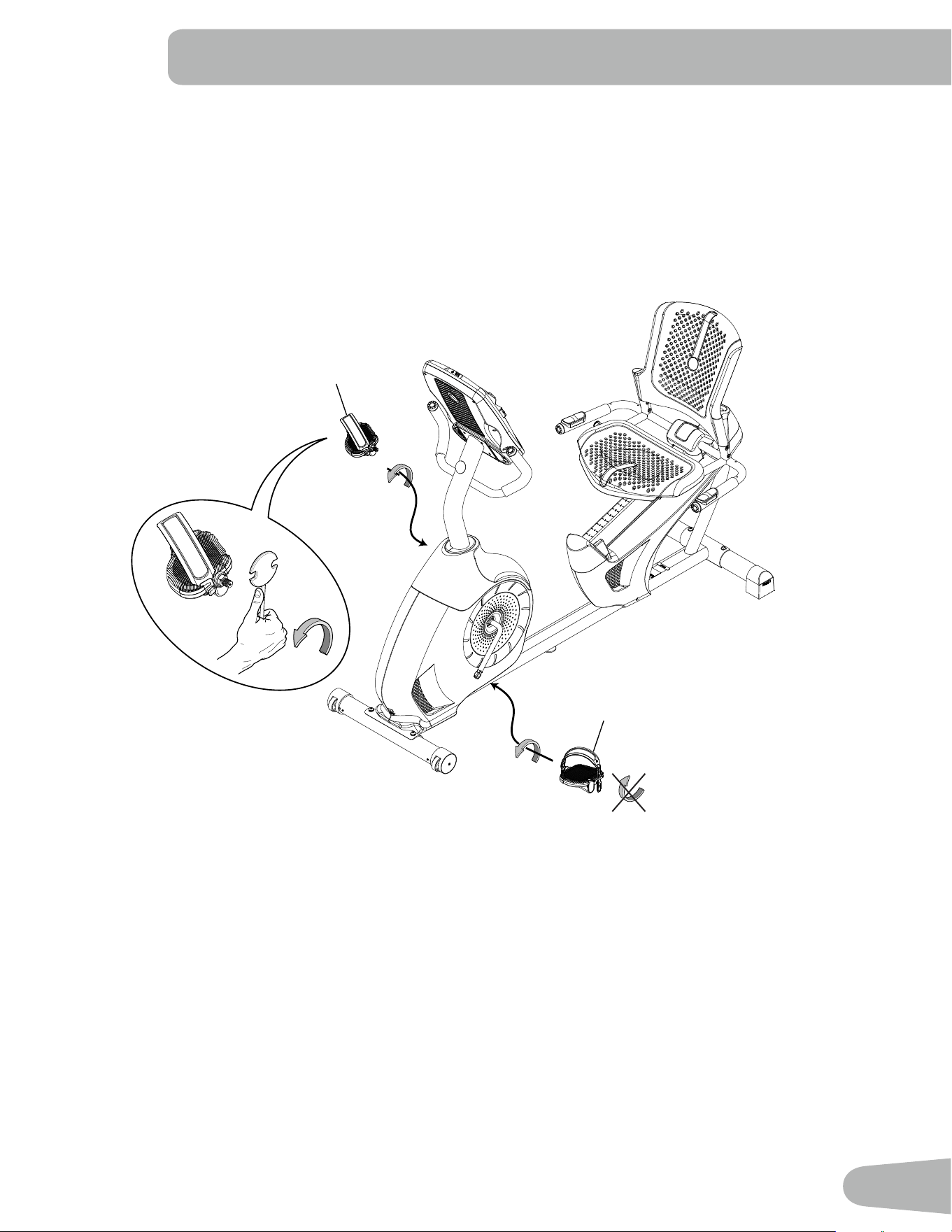

9. Attach Pedals to Frame Assembly
NOTICE: The Left Pedal is reverse-threaded. Be sure to attach Pedals on the proper side of the Bike. Orientation
is based from a seated position on the bike. The Left Pedal has an “L”, the Right Pedal an “R”.
13
11
16

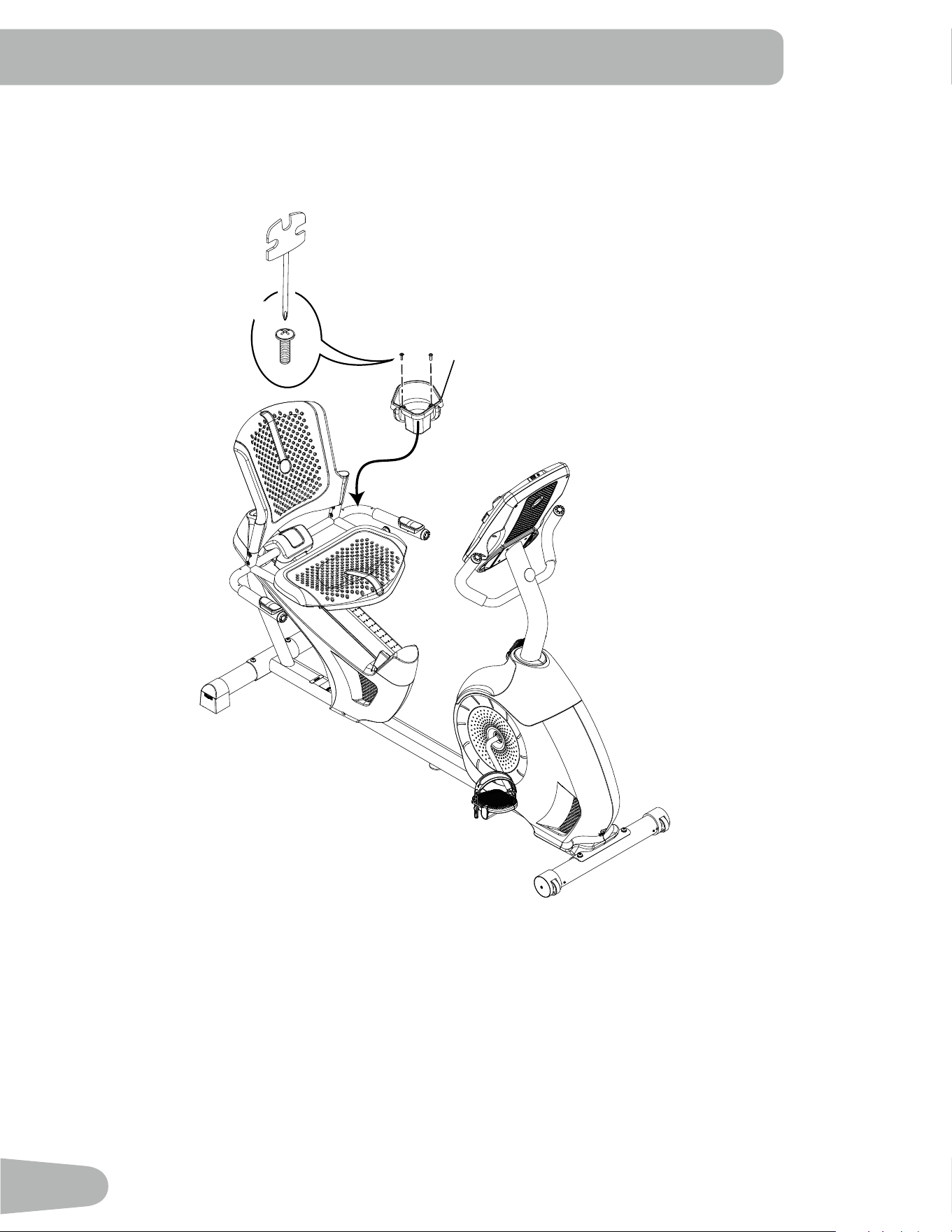

10. Attach Water Bottle Holder to Frame Assembly
2
X2
F
#2
17

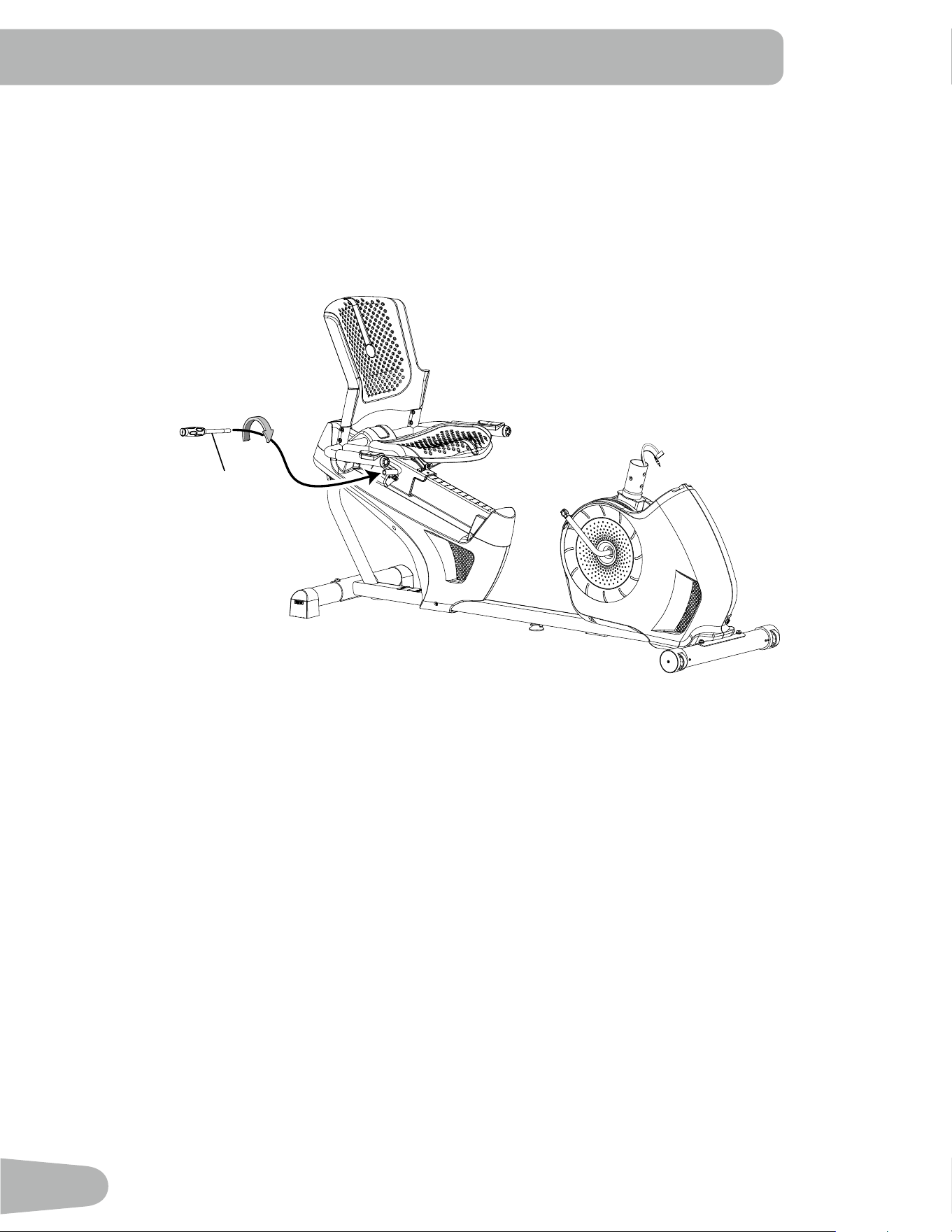

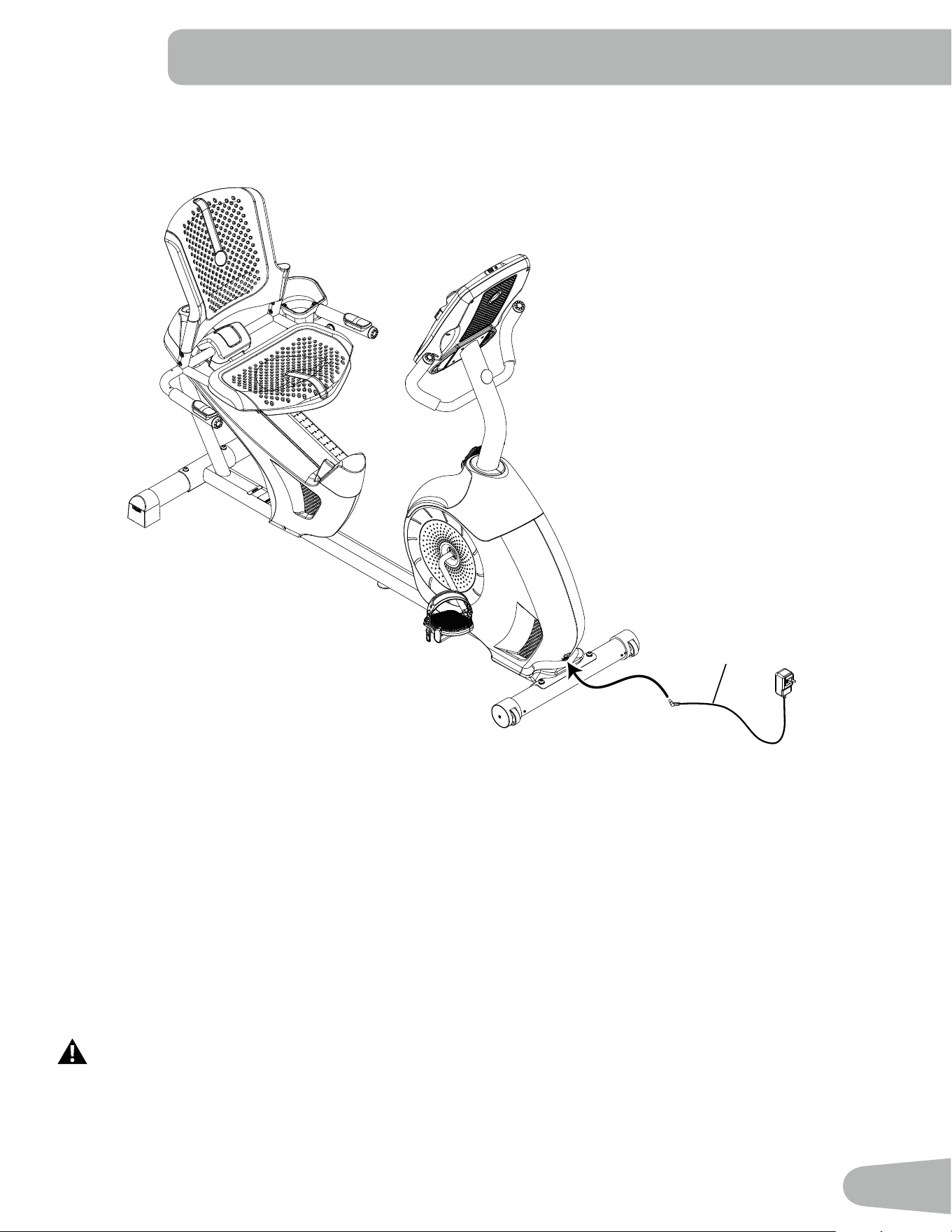

11. Connect AC Adapter to Frame Assembly
12. Final Inspection
Inspect your machine to ensure that all hardware is tight and components are properly assembled.
Be sure to record the serial number in the field provided at the front of this manual.
Do not use until the machine has been fully assembled and inspected for correct performance in accordance with the Owner’s
Manual.
10
18

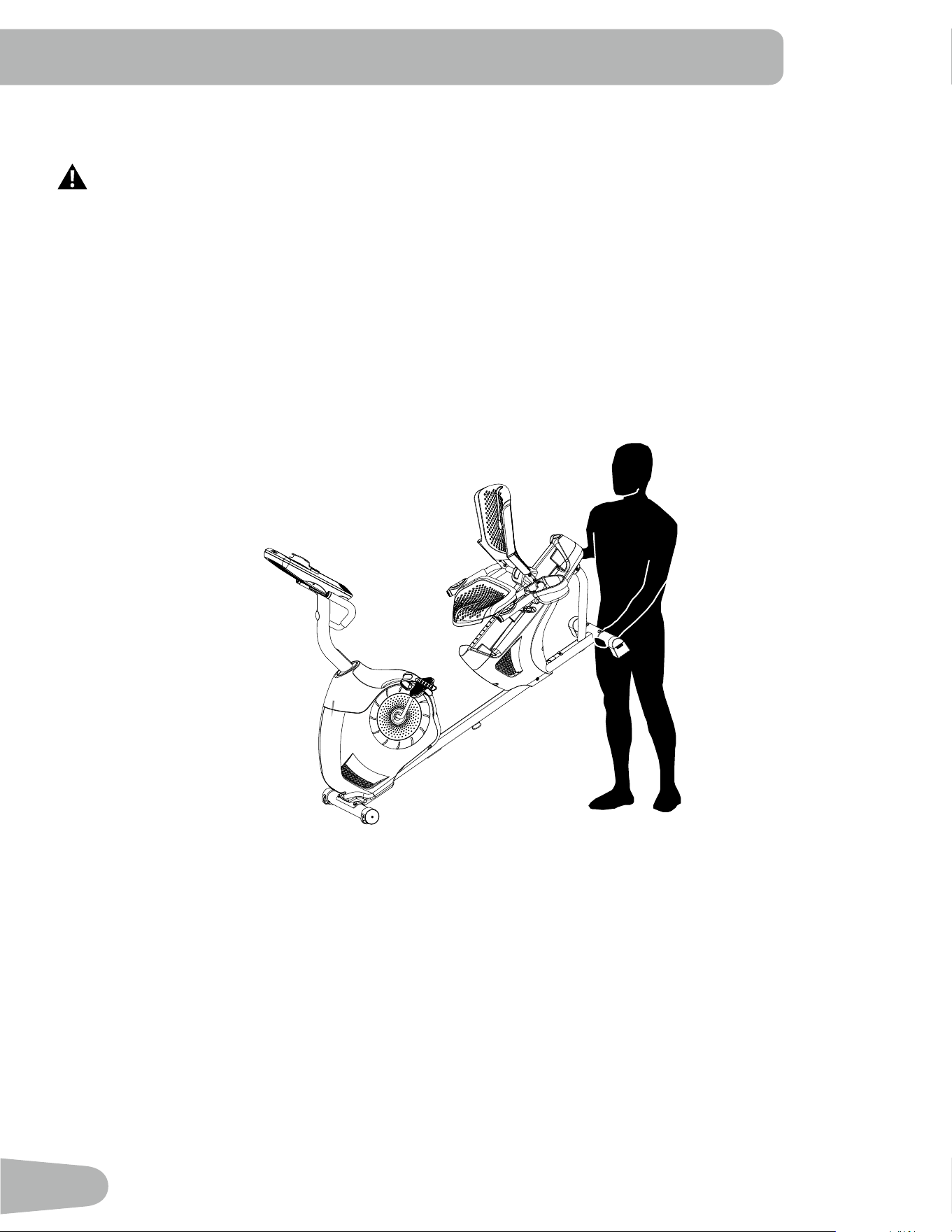

Moving the Bike
The machine may be moved by one or more persons depending on their physical abilities and capacities. Make sure that you
and others are all physically fit and able to move the machine safely.
1. Remove the power cord.
2. Use the Transport Handle to carefully lift the machine onto the transport rollers.
3. Push the machine into position.
4. Carefully lower the machine into position.
NOTICE: Be careful when you move the bike. All abrupt motions can affect the computer operation.
BEFORE YOU START
19

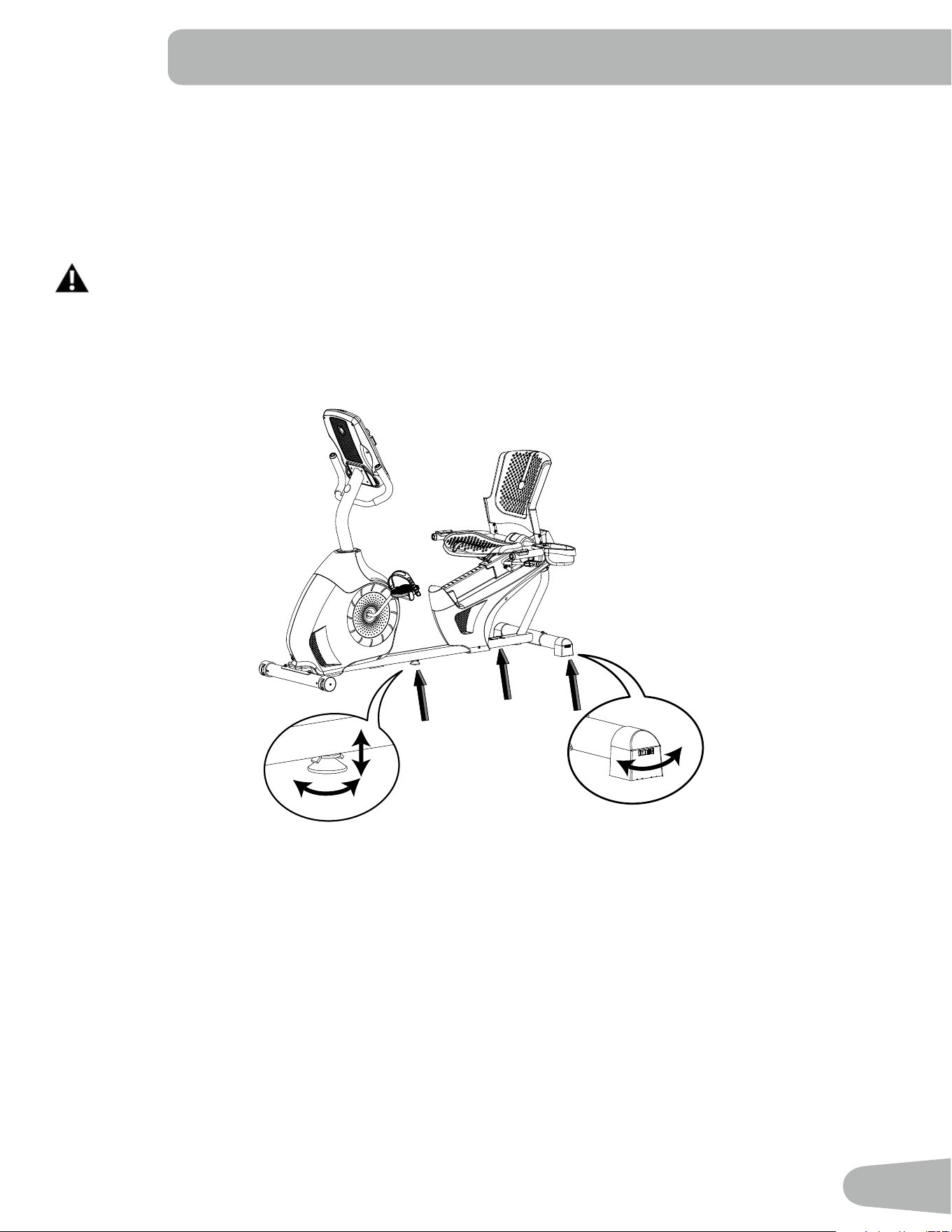

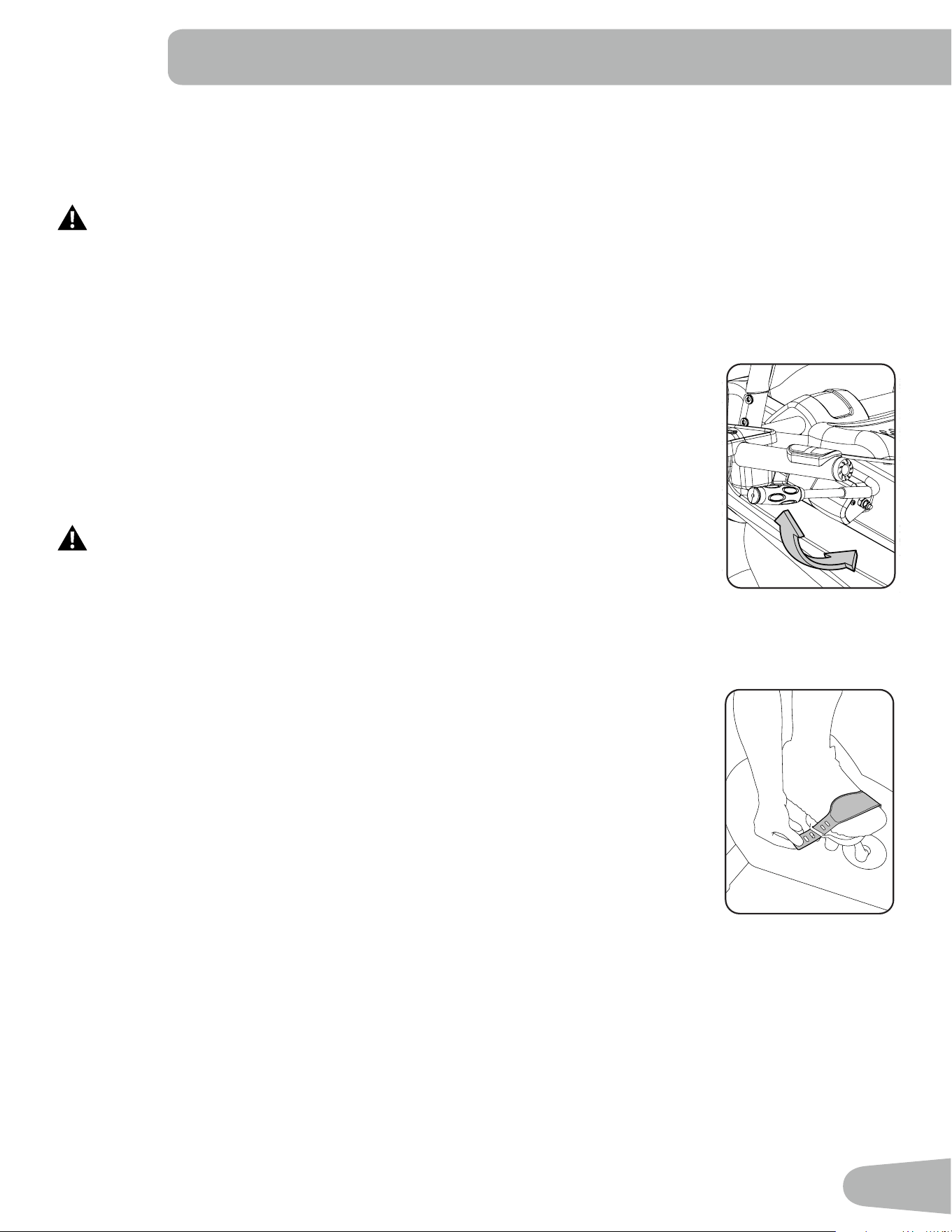

Leveling the Bike
Levelers are found on each side of the Rear Stabilizer and on the Frame Rail. On the Rear Stabilizer, turn the knob to
adjust the stabilizer foot.
To adjust the leveler on the Frame Rail:
1. Loosen the upper locking nut.
2. Turn the leveler to adjust the height.
Do not adjust the levelers to such a height that they detach or unscrew from the machine. Injury to you or
damage to the machine can occur.
3. Tighten the upper locking nut to lock the leveler.
Makesurethebikeislevelandstablebeforeyouexercise.
20
IMPORTANT SAFETY INSTRUCTIONS
!
This icon means a potentially hazardous situation which, if not avoided, could result in death or serious injury.
Before using this equipment, obey the following warnings:
!
Read and understand the complete Manual. Keep the Manual for future reference.
Read and understand all warnings on this machine. If at any time the Warning stickers become loose,
unreadable or dislodged, contact your local distributor for replacement stickers.
• Children must not be let on or near to this machine. Moving parts and other features of the machine can be
dangerous to children.
• Not intended for use by anyone under 14 years of age.
• Consultaphysicianbeforeyoustartanexerciseprogram.Stopexercisingifyoufeelpainortightnessinyour
chest, become short of breath, or feel faint. Contact your doctor before you use the machine again. Use the
values calculated or measured by the machine’s computer for reference purposes only.
• Beforeeachuse,examinethismachineforloosepartsorsignsofwear.Donotuseiffoundinthiscondition.
Monitor the Seat, Pedals, and Crank Arms closely. Contact your local distributor for repair information.
• Maximumuserweightlimit:136kg(300lbs.).Donotuseifyouareoverthisweight.
• This machine is for home use only.
• Donotwearlooseclothingorjewelry.Thismachinecontainsmovingparts.Donotputngersorotherobjectsinto
movingpartsoftheexerciseequipment.
• Set up and operate this machine on a solid, level, horizontal surface.
• Make the Pedals stable before you step on them. Use caution when you step on and off the machine.
• Disconnect all power before servicing this machine.
• Do not operate this machine outdoors or in moist or wet locations. Keep the foot pedals clean and dry.
• Keepatleast0.6m(24”)oneachsideofthemachineclear.Thisistherecommendedsafedistanceforaccess
and passage around and emergency dismounts from the machine. Keep third parties out of this space when
machine is in use.
• Donotoverexertyourselfduringexercise.Operatethemachineinthemannerdescribedinthismanual.
• Correctly adjust and safely engage all Positional Adjustment Devices. Make sure that the Adjustment Devices do
not hit the user.
• Exerciseonthismachinerequirescoordinationandbalance.Besuretoanticipatethatchangesinspeedand
resistance level can occur during workouts, and be attentive in order to avoid loss of balance and possible injury.
• Thisapplianceisnotintendedforusebypersons(includingchildren)withreducedphysical,sensoryormental
capabilities,orlackofexperienceandknowledge,unlesstheyhavebeengivensupervisionorinstruction
concerning use of the appliance by a person responsible for their safety.
21

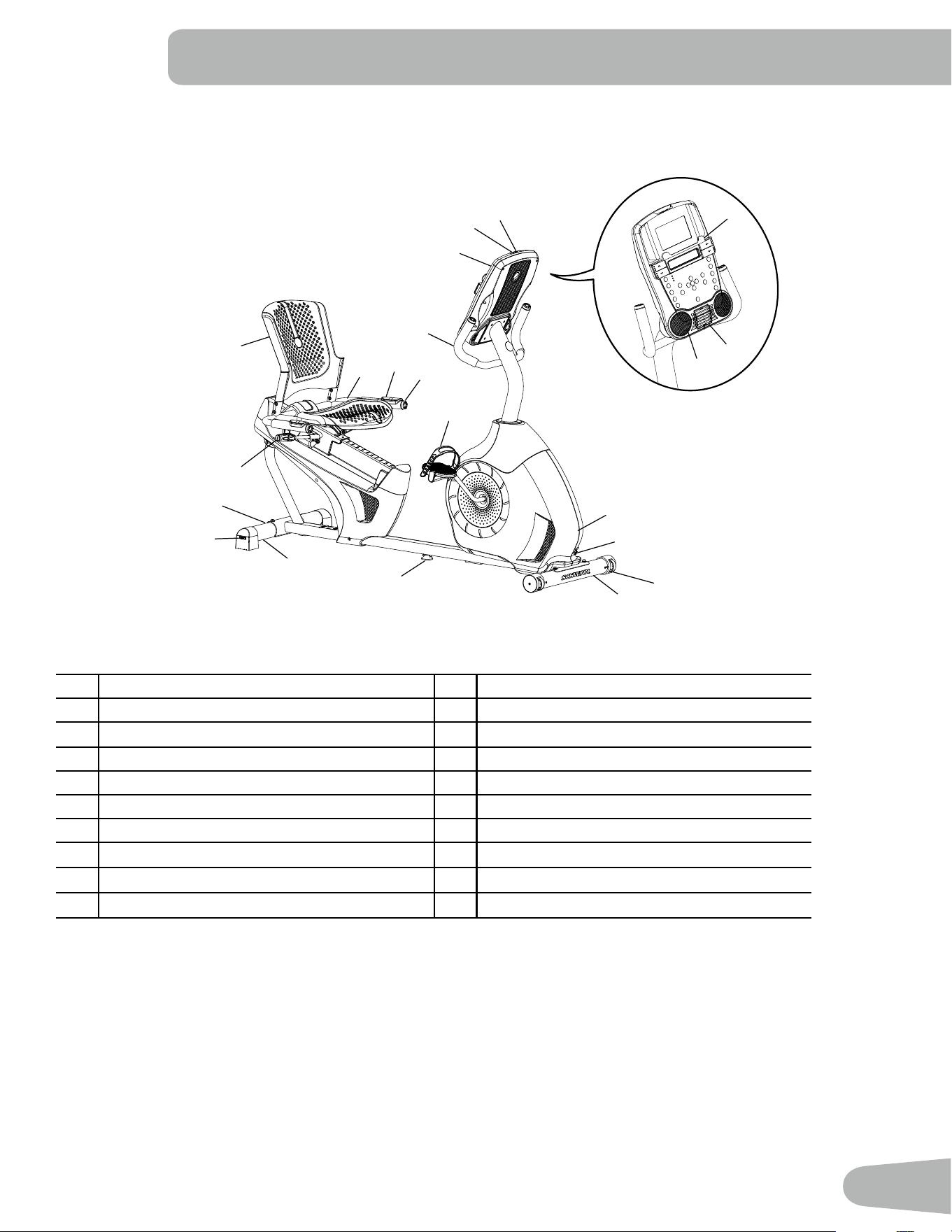

FEATURES
A Console K Leveler
B MP3 Input L Transport Handle
C USB Port M Seat Adjustment Knob
D Media Tray N Water Bottle Holder
E Fan O Adjustable Seat
F Speakers P ContactHeartRate(CHR)Sensors
G Fully Shrouded Flywheel Q Handlebar, Side
H Power Connector R Pedal
I Transport Wheel S Handlebar, Upright
J Stabilizer
B
C
A
H
I
G
J
K
P
R
L
K
J
M
N
Q
O
E
F
D
S
WARNING!Heartratemonitoringsystemsmaybeinaccurate.Overexercisingmayresultinseriousinjuryor
death.Ifyoufeelfaint,stopexercisingimmediately.
22
Console Features
The Console provides important information about your workout and lets you control the resistance levels while you
exercise.TheConsolefeaturestheSchwinnDualTrack
™
display with touch control buttons to navigate you through the
exerciseprograms.
OK
PAUSE/
END
QUICK
START
PROGRAMS
GOAL TRACK
CURRENT WORKOUT
LAST WORKOUT
LAST 7 DAYS
1
5
9
14
18
3
7
12
16
20
10%
40%
70%
1
2
3
4
5
6
7
8
9
10
Hr
10%
40%
70%
1
2
3
4
5
6
7
8
9
10
Hr
Upper Display
Lower Display
Resistance Level Quick Buttons
Resistance Level Quick Buttons
Achievement Indicator Lights
Fan
Keypad Functions
ResistanceIncrease()button-Increasestheworkoutresistancelevel
ResistanceDecrease()button-Decreasestheworkoutresistancelevel
QUICK START button- Begins a Quick Start workout
PROGRAMS button- Selects a category and workout program
PAUSE/ENDbutton-Pausesanactiveworkout,endsapausedworkout,orgoes back to the previous screen
GOALTRACKbutton-DisplaystheWorkoutTotalsandAchievementsfortheselectedUserProle
Increase()button-Increasesavalue(age,time,distance,orcalories)ormovesthroughoptions
Left()button-Displaysdifferentworkoutvaluesduringaworkout,andmovesthroughoptions
OKbutton-StartsaProgramworkout,conrmsinformation,orresumesapausedworkout.
Right()button-Displaysdifferentworkoutvaluesduringaworkout,andmovesthroughoptions
Decrease()button-Decreasesavalue(age,time,distance,orcalories)ormovesthroughoptions
FAN button- Controls 3-speed fan
23
Resistance Level Quick Buttons- Shifts the resistance levels to the setting quickly during a workout
Achievement Indicator Lights- when a workout result is reviewed, the achievement indicator light will activate.
Schwinn Dual Track™ Display
Upper Display Data
Program Display
TheProgramDisplayshowsinformationtotheUserandthegriddisplayareashowsthecourseprolefortheprogram.
Eachcolumnintheproleshowsoneinterval(workoutsegment).Thehigherthecolumn,thehighertheresistancelevel.
Theashingcolumnshowsyourcurrentinterval.
Intensity Display
The Intensity Display shows the level of work at that moment based on the current resistance level.
Heart Rate Zone Display
The Heart Rate Zone shows which zone the current heart rate value falls into for the current User. These Heart Rate
Zonescanbeusedasaworkoutguideforacertaintargetzone(anaerobic,aerobic,orfatburn).
Consultaphysicianbeforeyoustartanexerciseprogram.Stopexercisingifyoufeelpainortightnessinyourchest,
become short of breath, or feel faint. Contact your doctor before you use the machine again. The heart rate
displayedisanapproximationandshouldbeusedforreferenceonly.
Note: If no heart rate is detected, the display will be blank.
Goal Display
TheGoalDisplayshowsthecurrentlyselectedtypeofgoal(Distance,TimeorCalories),thecurrentvaluetoachievethe
goal, and the percent completed toward the goal.
User Display
TheUserDisplayshowswhichUserProleiscurrentlyselected.
Achievement Display
The Achievement Display activates when a workout goal is reached or a workout milestone is surpassed from past
workouts. The Console display will congratulate and inform the User of their achievement, along with a celebratory sound.
OK
PAUSE/
END
QUICK
START
PROGRAMS
GOAL TRACK
CURRENT WORKOUT
LAST WORKOUT
LAST 7 DAYS
1
5
9
14
18
3
7
12
16
20
10%
40%
70%
1
2
3
4
5
6
7
8
9
10
Hr
10%
40%
70%
1
2
3
4
5
6
7
8
9
10
Hr
User Display
Achievement Display
Program Display
24
Lower Display Data
TheLowerDisplayshowstheWorkoutValuesandcanbecustomizedforeachUser(Consultthe“EditUserProle”
sectionofthismanual).
Speed
TheSpeeddisplayeldshowsthemachinespeedinmilesperhour(mph)orkilometersperhour(km/h).
Time
TheTIMEdisplayeldshowsthetotaltimecountoftheworkout,theaverageTimefortheUserProle,orthetotalopera-
tional time of the machine.
Note: IfaQuickStartworkoutisperformedformorethan99minutesand59seconds(99:59),theunitsforTimewillshift
tohoursandminutes(1hour,40minutes).
Distance
TheDistancedisplayshowsthedistancecount(milesorkm)intheworkout.
Note:TochangethemeasurementunitstoEnglishImperialormetric,refertothe“ConsoleSetupMode”sectioninthis
manual.
Level
TheLEVELdisplayshowsthecurrentresistancelevelintheworkout.
RPM
TheRPMdisplayeldshowsthepedalrevolutionsperminute(RPM).
Heart Rate (Pulse)
TheHeartRatedisplayshowsthebeatsperminute(BPM)fromtheheartratemonitor.Whenaheartratesignalisre-
ceivedbytheConsole,theiconwillash.
Consultaphysicianbeforeyoustartanexerciseprogram.Stopexercisingifyoufeelpainortightnessinyourchest,
become short of breath, or feel faint. Contact your doctor before you use the machine again. The heart rate
displayedisanapproximationandshouldbeusedforreferenceonly.
Calories
TheCaloriesdisplayeldshowstheestimatedcaloriesthatyouhaveburnedduringtheexercise.
OK
PAUSE/
END
QUICK
START
PROGRAMS
GOAL TRACK
CURRENT WORKOUT
LAST WORKOUT
LAST 7 DAYS
1
5
9
14
18
3
7
12
16
20
10%
40%
70%
1
2
3
4
5
6
7
8
9
10
Hr
10%
40%
70%
1
2
3
4
5
6
7
8
9
10
Hr
25
Contact Heart Rate Sensors
ContactHeartRate(CHR)sensorssendyourheartratesignalstotheConsole.TheCHRsensorsarethestainlesssteel
parts of the Handlebars. To use, put your hands comfortably around the sensors. Be sure that your hands touch both the
topandthebottomofthesensors.Holdrm,butnottootightorloose.Bothhandsmustmakecontactwiththesensorsfor
the Console to detect a pulse. After the Console detects four stable pulse signals, your initial pulse rate will be shown.
OncetheConsolehasyourinitialheartrate,donotmoveorshiftyourhandsfor10to15seconds.TheConsolewillnow
validatetheheartrate.Manyfactorsinuencetheabilityofthesensorstodetectyourheartratesignal:
• Movementoftheupperbodymuscles(includingarms)producesanelectricalsignal(muscleartifact)thatcaninterfere
with pulse detection. Slight hand movement while in contact with the sensors can also produce interference.
• Calluses and hand lotion may act as an insulating layer to reduce the signal strength.
• SomeElectrocardiogram(EKG)signalsgeneratedbyindividualsarenotstrongenoughtobedetectedbythesensors.
• Theproximityofotherelectronicmachinescangenerateinterference.
If your heart rate signal ever seems erratic after validation, wipe off your hands and the sensors and try again.
Heart Rate Calculations
Yourmaximumheartrateusuallydecreasesfrom220BeatsPerMinute(BPM)inchildhoodtoapproximately160BPMby
age60.Thisfallinheartrateisusuallylinear,decreasingbyapproximatelyoneBPMforeachyear.Thereisnoindication
thattraininginuencesthedecreaseinmaximumheartrate.Individualsofthesameagecouldhavedifferentmaximum
heartrates.Itismoreaccuratetondthisvaluebycompletingastresstestthanbyusinganagerelatedformula.
Yourat-restheartrateisinuencedbyendurancetraining.Thetypicaladulthasanatrestheartrateofapproximately72
BPM, whereas highly trained runners may have readings of 40 BPM or lower.
TheHeartRatetableisanestimateofwhatHeartRateZone(HRZ)iseffectivetoburnfatandimproveyourcardiovas-
cular system. Physical conditions vary, therefore your individual HRZ could be several beats higher or lower than what is
shown.
Themostefcientproceduretoburnfatduringexerciseistostartataslowpaceandgraduallyincreaseyourintensityun-
tilyourheartratereachesbetween60–85%ofyourmaximumheartrate.Continueatthatpace,keepingyourheartrate
in that target zone for over 20 minutes. The longer you maintain your target heart rate, the more fat your body will burn.
26

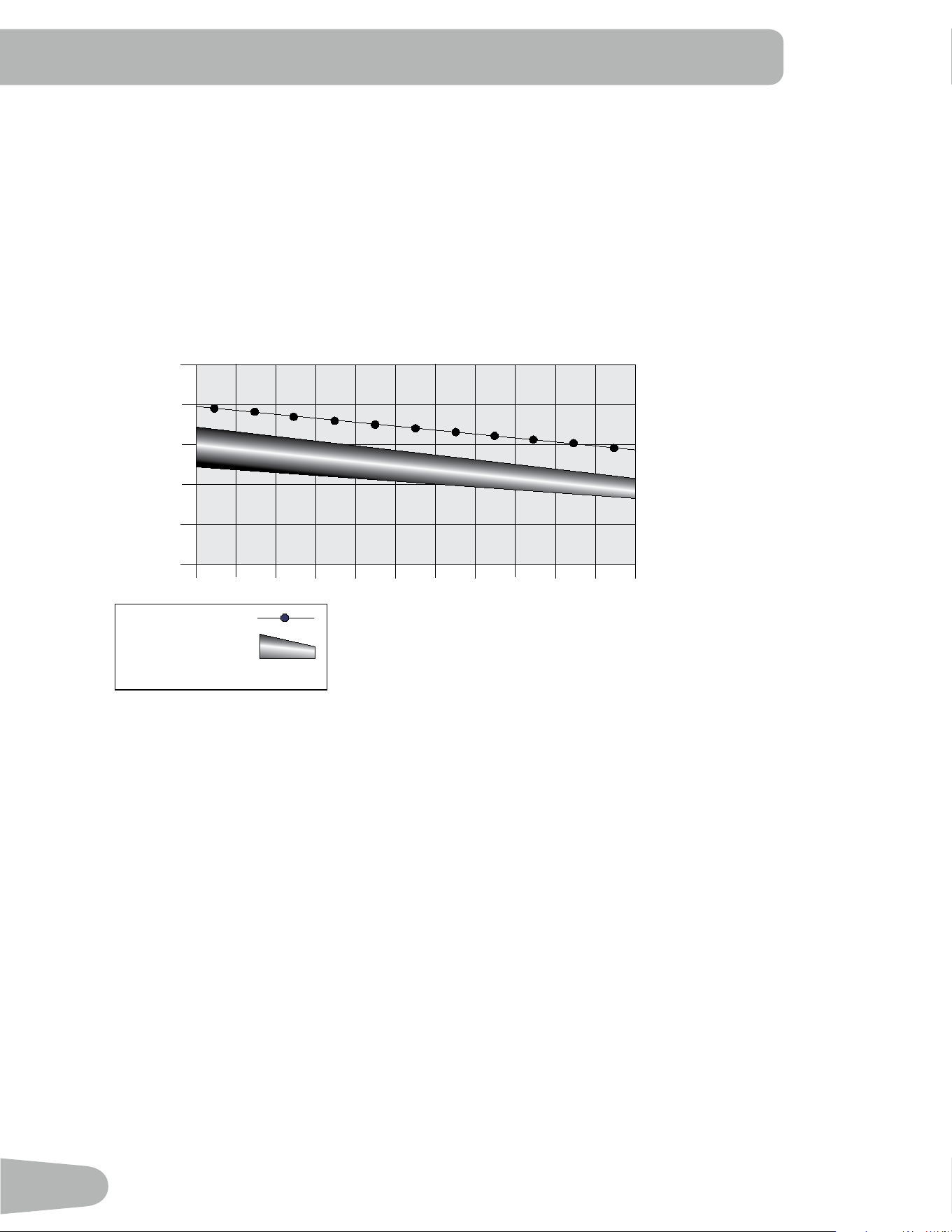

The graph is a brief guideline, describing the generally suggested target heart rates based on age. As noted above, your
optimal target rate may be higher or lower. Consult your physician for your individual target heart rate zone.
Note:Aswithallexercisesandtnessregimens,alwaysuseyourbestjudgmentwhenyouincreaseyourexercisetime
or intensity.
20-24
FAT-BURNING TARGET HEART RATE
Heart Rate BPM (beats per minute)
Age
25-29
0
50
100
150
200
250
30-34 35-39 40-44 45-49 50-54 55-59 60-64 65-69 70+
196
191
186
181
176
171
166
161
156
151
146
167
162
158
154
150
145
141
137
133
128
126
Maximum Heart Rate
Target Heart Rate Zone
(keep within this range
for optimum fat-burning)
11 8
11 5
11 2
109
106
103
100
97
94
91
88
27
OPERATIONS
What to Wear
Wearrubber-soledathleticshoes.Youwillneedtheappropriateclothesforexercisethatallowyoutomovefreely.
How Often Should You Exercise
Consultaphysicianbeforeyoustartanexerciseprogram.Stopexercisingifyoufeelpainortightnessinyourchest,
become short of breath, or feel faint. Contact your doctor before you use the machine again. Use the values calcu-
lated or measured by the machine’s computer for reference purposes only. The heart rate displayed on the console
isanapproximationandshouldbeusedforreferenceonly.
• 3 times a week for 30 minutes each day.
• Schedule workouts in advance and try to follow the schedule.
Seat Adjustment
Correctseatplacementencouragesexerciseefciencyandcomfort,whilereducingtheriskof
injury.
1. With a Pedal in the forward position, place the ball of your foot over the center of it. Your leg
should be bent slightly at the knee.
2. If your leg is too straight or your foot cannot touch the Pedal, move the seat forward. If your
leg is bent too much, move the seat toward the back.
Step off the bike before you adjust the seat.
3. Push down on the Seat Adjustment Handle, and adjust the seat to the desired height.
4. Pull up the Seat Adjustment Handle to engage the locking mechanism. Be sure that the
handle is fully engaged.
Foot Position / Pedal Strap Adjustment
Footpedalswithstrapsprovidesecurefootingtotheexercisebike.
1. Rotate the Pedals until one can be reached.
2. Put the ball of each foot on the Pedals.
3. Fasten the strap over the shoe.
4. Repeat for the other foot.
BesuretoesandkneespointdirectlyforwardtoensuremaximumPedalefciency.Pedalstraps
can be left in position for subsequent workouts.
Power-Up / Idle Mode
The Console will enter Power-Up / Idle Mode if it is plugged into a power source, any button is pushed, or if it receives a
signal from the RPM sensor as a result of pedaling the machine.
Auto Shut-Off (Sleep Mode)
IftheConsoledoesnotreceiveanyinputinapproximately5minutes,itwillautomaticallyshutoff.TheLCDdisplayisoff
while in Sleep Mode.
Note: The Console does not have an On/Off switch.
28
Initial Setup
Duringtherstpower-up,theConsoleshouldbesetupwiththedate,timeandyourpreferredmeasurementunits.
1. Date:PushtheIncrease/Decreasebuttonstoadjustthecurrentlyactivevalue(ashing).PushtheLeft/Rightbuttons
tochangewhichsegmentisthecurrentlyactivevalue(month/day/year).
2. Push OK to set.
3. Time:PushtheIncrease/Decreasebuttonstoadjustthecurrentlyactivevalue(ashing).PushtheLeft/Rightbuttons
tochangewhichsegmentisthecurrentlyactivevalue(hour/minute/AMorPM).
4. Push OK to set.
5. UnitsofMeasurement:PushtheIncrease/Decreasebuttonstoadjustbetween“MILES”(ImperialEnglish)or“KM”
(metric).
6. Push OK to set. The Console goes back to the Power-Up / Idle Mode screen.
Note: To adjust these selections, consult the “Console Set-Up Mode” section.
Quick Start ( Manual ) Program
TheQuickStart(Manual)programletsyoustartaworkoutwithoutenteringanyinformation.
During a Manual Workout, each column represents a 2 minute time period. The active column will advance across the
screenevery2minutes.Iftheworkoutlastsformorethan30minutes,theactivecolumnisxedonthefarthestcolumnon
the right and pushes the previous columns off the display.
1. Sit on the machine.
2. PushtheIncrease/DecreasebuttontoselectthecorrectUserprole.IfyoudonothaveaUserprolesetup,youcan
selectaUserprolethathasnocustomizeddata(defaultvaluesonly).
3. Push the QUICK START button to start the Manual program.
4. To change the resistance level, push the Resistance Increase/Decrease buttons. The current interval and future
intervals are set to the new level. The default Manual resistance level is 4. The time will count up from 00:00.
Note: IfaManualworkoutisperformedformorethan99minutesand59seconds(99:59),theunitsforTimewillshiftto
hoursandminutes(1hour,40minutes).
5. Whendonewithyourworkout,stoppedalingandpushPAUSE/ENDtopausetheworkout.PushPAUSE/ENDagain
to end the workout.
Note: The workout results are recorded to the current User Profile.
User Profiles
The Console lets you store and use 2 User profiles. The User profiles automatically record the workout results for each
workout, and allow the workout data to be reviewed.
The User profile stores the following data:
• Name—up to 10 characters
• Age
• Weight
• Height
• Gender
• Preferred Workout Values
29
Select a User Profile
EveryworkoutissavedtoaUserProle.BesuretoselecttheproperUserProlebeforestartingaworkout.ThelastUser
that completed a workout will be the default user.
UserProlesareassignedthedefaultvaluesuntiltheyarecustomizedbyediting.BesuretoedittheUserProleformore
accurate calorie and heart rate information.
FromthePower-UpModescreen,pushtheIncrease()orDecrease()buttonstoselectoneoftheUserProles.The
ConsolewilldisplaythenameoftheUserProleandtheUserProleIcon.
Edit User Profile
1. From the Power-Up Mode screen, push theIncrease()orDecrease()buttonstoselectoneoftheUserProles.
2. Push the OK button to select the User Profile.
3. TheConsoledisplayshowstheEDITpromptandthecurrentUserProfilename.PushOKtostarttheEditUserProle
option.
ToexittheEditUserProleoption,pushthePAUSE/ENDbuttonandtheconsolewillgobacktothePower-Up Mode
screen.
4. TheConsoledisplayshowstheNAMEpromptandthecurrentUserProfilename.
Note: The User name will be blank if this is the first edit. The name of a User Profile is limited to 10 characters.
The currently active segment will flash. Use the Increase/Decrease buttons to move through the alphabet and blank
space(foundbetweenAandZ).Toseteachsegment,usetheLeft()orRight()buttonstoshiftbetweensegments.
Push the OK button to accept the displayed User name.
5. ToedittheotherUserdata(EDITAGE,EDITWEIGHT,EDITHEIGHT,EDITGENDER),usetheIncrease/Decrease
buttons to adjust, and push OK to set each entry.
6. The Console display shows the SCAN prompt. This option controls how the workout values are displayed in the Lower
Displayduringaworkout.The“OFF”settingallowstheusertopushtheRIGHTorLEFTbuttonstoviewtheother
workout value channels when desired. The “ON” setting allows the Console to automatically display the workout value
channels every 6 seconds.
The default is “OFF”.
Push the OK button to set how the workout values are displayed.
7. TheConsoledisplayshowstheEDITLOWERDISPLAYprompt.Thisoptionallowsyoutocustomizewhich Workout
Values are displayed during a workout.
TheLowerDisplaywillshowalloftheworkoutvalues,withtheactiveWorkoutValueashing.TheUpperDisplay
showstheactivevaluesetting:“ON”or“OFF”.PushtheIncrease()orDecrease()buttonstohidetheactive
workoutvalue,andpushtheLeft()orRight()buttonstoshifttheactiveworkoutvalue.
NOTE: to show a hidden workout value, repeat procedure and change Upper Display value to “ON” for that value.
When done with customizing the Lower Display, push the OK button to set it.
Hr
8. The Console will go to the Power-Up Mode screen with the user selected.
30
Reset a User Profile
1. From the Power-Up Mode screen, push theIncrease()orDecrease()buttonstoselectoneoftheUserProles.
2. Push the OK button to select the User Profile.
3. TheConsoledisplayshowsthecurrentUserProfilenameandtheEDITprompt.PushtheIncrease()orDecrease()
buttons to change the prompt.
Note: ToexittheEditUserProleoption,pushthePAUSE/ENDbuttonandtheconsolewillgobacktothePower-Up
Mode screen.
4. TheConsoledisplayshowstheRESETpromptandthecurrentUserProfilename.PushOKtostarttheResetUser
Proleoption.
5. TheConsolewillnowconfirmtherequesttoresettheUserprofile(thedefaultselectionis‘NO’).PushtheIncrease()
orDecrease()buttonstoadjusttheselection.
6. Push OK to make your selection.
7. The Console will go to the Power-Up Mode screen.
Changing Resistance Levels
PushtheResistanceLevelIncrease()orDecrease()buttonstochangetheresistancelevelatanytimeinaworkout
program. To rapidly change the resistance level, push the desired Resistance Level Quick Button. The Console will adjust
to the selected resistance level of the quick button.

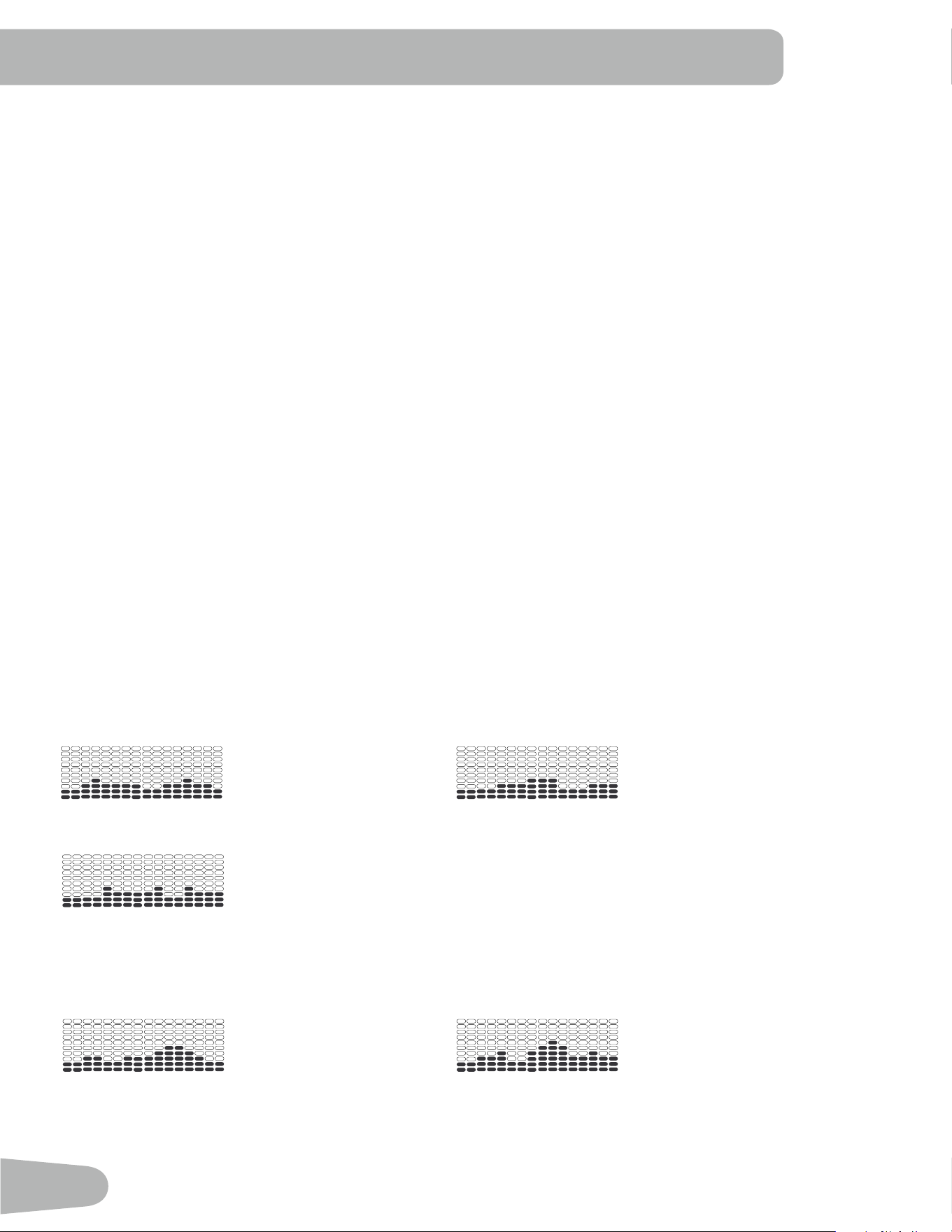

Profile Programs
Theseprogramsautomatedifferentresistanceandworkoutlevels.TheProleProgramsareorganizedintoCategories
(FunRides,Mountains,andChallenges).
Note:OnceaUserviewsalltheCategories,theywillbeexpandedtodisplaytheProgramswithineachoftheCat-
egories.
FUN RIDES
Rolling Hills Ride in the Park
Secondary Case 6: Profile Programs
Rolling Hills
FUN RIDES
Ride in the Park Easy Tour
Pike’s Peak
MOUNTAINS
Mount Hood Pyramids
Uphill Finish
CHALLENGES
Cross-Training Interval
Stream Crossing
Summit Pass
Stairs
REVED : 122612
Secondary Case 6: Profile Programs
Rolling Hills
FUN RIDES
Ride in the Park Easy Tour
Pike’s Peak
MOUNTAINS
Mount Hood Pyramids
Uphill Finish
CHALLENGES
Cross-Training Interval
Stream Crossing
Summit Pass
Stairs
REVED : 122612
EasyTour
Secondary Case 6: Profile Programs
Rolling Hills
FUN RIDES
Ride in the Park Easy Tour
Pike’s Peak
MOUNTAINS
Mount Hood Pyramids
Uphill Finish
CHALLENGES
Cross-Training Interval
Stream Crossing
Summit Pass
Stairs
REVED : 122612
MOUNTAINS
Pike’s Peak Mount Hood
Secondary Case 6: Profile Programs
Rolling Hills
FUN RIDES
Ride in the Park Easy Tour
Pike’s Peak
MOUNTAINS
Mount Hood Pyramids
Uphill Finish
CHALLENGES
Cross-Training Interval
Stream Crossing
Summit Pass
Stairs
REVED : 122612
Secondary Case 6: Profile Programs
Rolling Hills
FUN RIDES
Ride in the Park Easy Tour
Pike’s Peak
MOUNTAINS
Mount Hood Pyramids
Uphill Finish
CHALLENGES
Cross-Training Interval
Stream Crossing
Summit Pass
Stairs
REVED : 122612
31

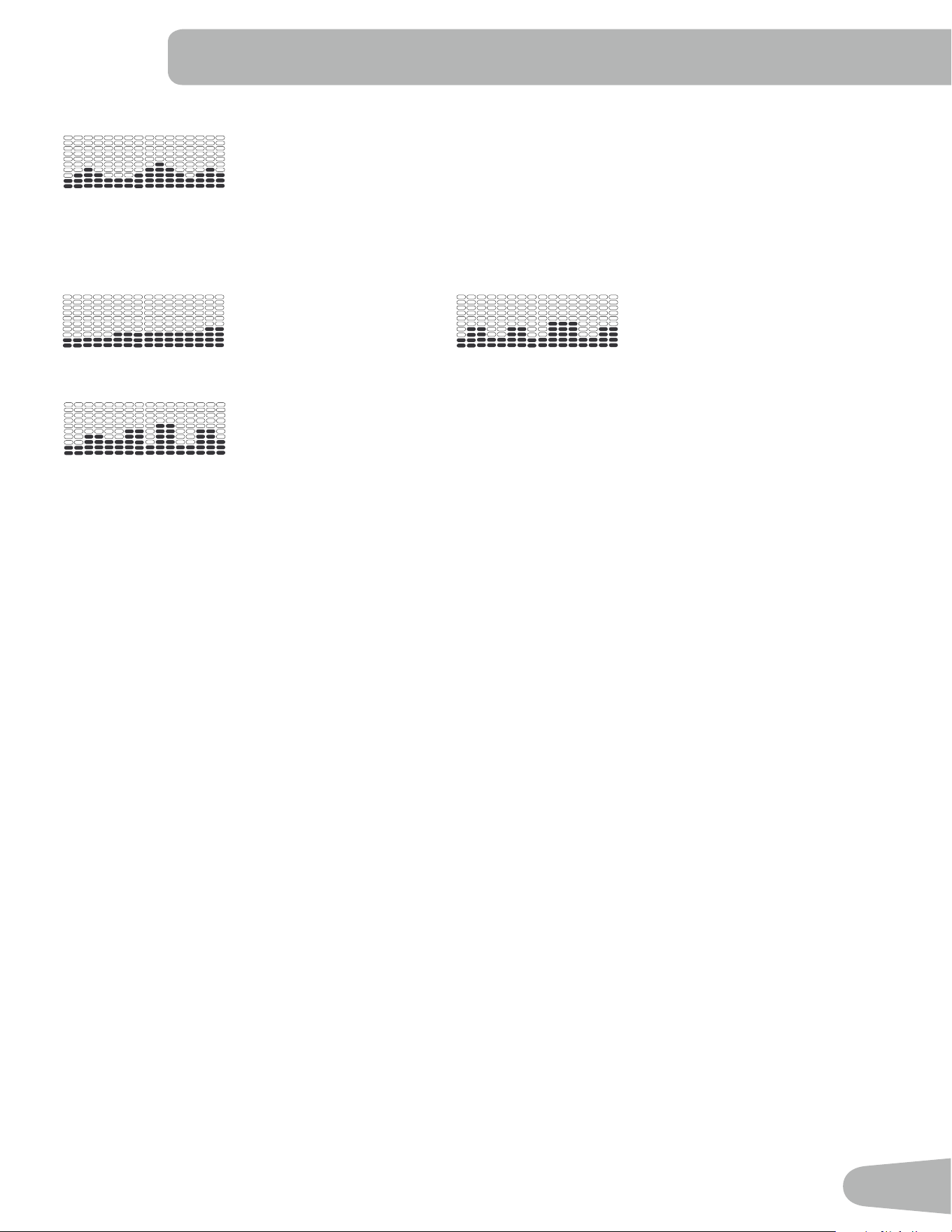

Pyramids
Secondary Case 6: Profile Programs
Rolling Hills
FUN RIDES
Ride in the Park Easy Tour
Pike’s Peak
MOUNTAINS
Mount Hood Pyramids
Uphill Finish
CHALLENGES
Cross-Training Interval
Stream Crossing
Summit Pass
Stairs
REVED : 122612
CHALLENGES
Uphill Finish Cross-Training
Secondary Case 6: Profile Programs
Rolling Hills
FUN RIDES
Ride in the Park Easy Tour
Pike’s Peak
MOUNTAINS
Mount Hood Pyramids
Uphill Finish
CHALLENGES
Cross-Training Interval
Stream Crossing
Summit Pass
Stairs
REVED : 122612
Secondary Case 6: Profile Programs
Rolling Hills
FUN RIDES
Ride in the Park Easy Tour
Pike’s Peak
MOUNTAINS
Mount Hood Pyramids
Uphill Finish
CHALLENGES
Cross-Training Interval
Stream Crossing
Summit Pass
Stairs
REVED : 122612
Interval
Secondary Case 6: Profile Programs
Rolling Hills
FUN RIDES
Ride in the Park Easy Tour
Pike’s Peak
MOUNTAINS
Mount Hood Pyramids
Uphill Finish
CHALLENGES
Cross-Training Interval
Stream Crossing
Summit Pass
Stairs
REVED : 122612
Workout Profile and Goal Program
TheConsoleletsyouselecttheProleProgramandtypeofGoalforyourworkout(Distance,TimeorCalories),andset
the Goal value.
1. Sit on the machine.
2. PushtheIncrease()orDecrease()buttonstoselectthecorrectUserprole.
3. Push the Programs button.
4. Push the Left()orRight()buttonstoselect a Category of Workout.
5. PushtheIncrease()orDecrease()buttonstoselect a Profile Workout, and push OK.
6. Use theIncrease()orDecrease()buttons to select a typeofGoal(Distance,TimeorCalories), and push OK.
7. Use theIncrease()orDecrease()buttons to adjust the workout value.
8. Push OK to begin the goal-oriented workout. The GOAL value will count down as the value for percent completed
increases.
Note: During a Calories Goal, each column is for a 2 minute time period. The active column will advance across the
screenevery2minutes.Iftheworkoutlastsformorethan30minutes,theactivecolumnwillxtothelastright
column and push the previous columns off the display.
Fitness Test Program
TheFitnessTestmeasurestheimprovementsofyourphysicaltnesslevel.Thetestcomparesyourpoweroutput(in
Watts)toyourheartrate.Asyourtnesslevelimproves,yourpoweroutputwillincreaseatagivenheartrate.
Note:TheConsolemustbeabletoreadtheheartrateinformationfromtheContactHeartRate(CHR)sensorstowork
correctly.
YoucanstarttheFitnessTestfromtheFEEDBACKcategory.TheFitnessTestprogramrstpromptsyoutoselectyour
tnesslevel—Beginner(“BEG”)orAdvanced(“ADV”).TheConsolewillusetheAgeandWeightvaluesfortheselected
UserProletocalculatetheFitnessScore.
Start to workout and hold the Heart Rate Sensors. When the test starts, the intensity of the workout slowly increases. This
means you will work harder, and as a result, your heart rate increases. The intensity continues to increase automatically
32
untilyourheartratereachesthe“TestZone”.Thiszoneisindividuallycomputedtobenear75percentofthemaximum
heartrateofyourUserProle.WhenyoureachtheTestZone,themachineholdstheintensitysteadyfor3minutes.
Thisletsyoureachastablecondition(whereyourheartratebecomessteady).Attheendofthe3minutes,theConsole
measures your heart rate and the power output. These numbers, along with information about your age and weight, are
computed to produce a “Fitness Score”.
Note: Fitness Test scores should only be compared to your previous scores and not to other User Profiles.
Compare your Fitness Scores to see your improvement.
Heart Rate Control (HRC) Workout Programs
TheHeartRateControl(HRC)programsletyousetaheartrategoalforyourworkout.Theprogrammonitorsyourheart
rateinbeatsperminute(BPM)fromtheContactHeartRate(CHR)sensorsonthemachine,andadjuststheworkoutto
keep your heart rate in the selected zone.
Note: The console must be able to read the heart rate information from the CHR sensors for the HRC program to work
correctly.
The Target Heart Rate programs use your age and other User information to set the Heart Rate Zone values for your
workout. The console display then gives prompts for you to set up your workout:
1. SelecttheHeartRateControlworkoutlevel:BEGINNER(“BEG”)orADVANCED(“ADV”)andpushOK.
2. Push the Increase()orDecrease()buttonstoselectthepercentageofmaximumheartrate:50–60%,60–70%,
70–80%,80–90%.
Consultaphysicianbeforeyoustartanexerciseprogram.Stopexercisingifyoufeelpainortightnessinyourchest,
become short of breath, or feel faint. Contact your doctor before you use the machine again. Use the values calcu-
lated or measured by the machine’s computer for reference purposes only. The heart rate displayed on the console
isanapproximationandshouldbeusedforreferenceonly.
3. Push the Increase()orDecrease()buttonstoselecttheGoaltype,andpushOK.
4. Push the Increase()orDecrease()buttonstosetthegoalvaluefortheworkout.
Note: Be sure to allow time for your heart rate to reach the desired heart rate zone when setting the goal.
5. PushOKtostarttheworkout.
Changing a Workout Program During a Workout
The Console allows a different Workout Program to be started from an active workout.
1. From an active workout, push PROGRAMS.
2. Push the Increase()orDecrease()buttonstoselectthedesiredworkoutprogram,andpushOK.
3. Push the Increase()orDecrease()buttonstoselecttheGoaltype,andpushOK.
4. Push the Increase()orDecrease()buttonstosetthevaluefortheworkout.
5. PushOKtostoptheactiveworkoutandstartthenewworkout.
ThepreviousworkoutvaluesaresavedtotheUserProle.
33
Pausing or Stopping
TheConsolewillgointoPauseModeiftheuserstopspedalingandpushesPAUSE/ENDduringaworkout,orthereisno
RPMsignalfor5seconds(usernotpedaling).TheConsolewillcyclethroughaseriesofmessagesthatchangeevery4
seconds:
-WORKOUTPAUSED
-PEDALTOCONTINUE(ifabike)/STRIDETOCONTINUE(ifanelliptical)
-PUSHENDTOSTOP
During a paused workout, you can use the Increase/Decrease buttons to move through the result channels manually.
1. StoppedalingandpushthePAUSE/ENDbuttontopauseyourworkout.
2. To continue your workout, push OK or start pedaling.
Tostoptheworkout,pushthePAUSE/ENDbutton.TheConsolewillgointoResults/CoolDownmode.
Results / Cool Down Mode
After a workout the GOAL display shows 03:00 and then starts to count down. During this Cool Down period, the Console
showstheWorkoutResults.AllworkoutsexceptQuickStarthavea3-minuteCoolDownperiod.
The LCD display shows the Current Workout values in three channels:
a.) TIME(total),DISTANCE(total),andCALORIES(total)
b.) SPEED(average),RPM(average),andHEARTRATE(average)
c.) TIME(average),LEVEL(average),andCALORIES(average).
PushtheLeft()orRight()buttonstomovethroughtheresultchannelsmanually.
During the Cool Down period, the Resistance Level will adjust to a third of the average Level of the workout. The Cool
Down resistance level can be adjusted with the Resistance Increase and Decrease buttons, but the Console will not dis-
play the value.
YoucanpushPAUSE/ENDtostoptheResults/CoolDownperiodandgobacktoPower-UpMode.IfthereisnoRPMor
HR signal, the Console automatically goes into Sleep Mode.
GOAL TRACK Statistics (and Achievements)
ThestatisticsfromeveryworkoutarerecordedtoaUserProle.
The Schwinn Dual Track
™
Console shows the Goal Track workout Statistics on the Lower Display in three channels:
a.) TIME(total),DISTANCE(total),andCALORIES(total)
b.) SPEED(average),RPM(average),andHEARTRATE(average)
c.) TIME(average),DISTANCE(average)/orLEVEL(average)*,andCALORIES(average)
*IftheGoalTrackStatisticisasingleworkout,LEVEL(average)isdisplayed.IftheGoalTrackStatisticisa
combinationofmultipleworkouts,DISTANCE(average)isdisplayedinsteadofLEVEL(average).
ToviewtheGOALTRACKstatisticsofaUserProle:
1. From the Power-Up screen, push the Increase()andDecrease()buttonstoselect a User Profile.
2. Push the GOAL TRACK button. The Console will display the LAST WORKOUT values and activate the corresponding
Achievement light.
34
Note: Goal Track statistics can be viewed even during a workout. Push GOAL TRACK and the LAST WORKOUT values
willbedisplayed.TheworkoutvaluesforthecurrentworkoutwillbehiddenexceptfortheGOALdisplay.Push
GOAL TRACK again to return to the Power-Up screen.
3. Push theIncrease()buttontomovetothenextGOALTRACKstatistic,“LAST7DAYS”.TheConsolewilldisplay
thecaloriesburnedonthedisplay(50caloriespersegment)fortheprevioussevendays,alongwiththeworkoutvalue
totals. Use the Left()orRight()buttonstomovethroughalltheworkoutstatisticchannels.
4. Push theIncrease()button to move to “BMI”, or BodyMassIndex. The Console will display the BMI value based on
the User settings. BesuretheheightvalueiscorrectforyourUserProle,andtheweightvalueiscurrent.
The BMI Measurement is a useful tool that shows the relationship between weight and height that is associated with body
fat and health risk. The table below gives a general rating for the BMI score:
Underweight Below18.5
Normal 18.5–24.9
Overweight 25.0–29.9
Obesity 30.0 and above
Note: The rating may overestimate body fat in athletes and others who have a muscular build. It may also underesti-
mate body fat in older persons and others who have lost muscle mass.
ContactyourdoctorformoreinformationaboutBodyMassIndex(BMI)andtheweightthatisappropriateforyou.
Use the values calculated or measured by the machine’s computer for reference purposes only.
5. PushtheIncrease()buttontomovetothe“SAVETOUSB-OK?”prompt.PushOK,andthe“AREYOUSURE?
-NO” prompt will display. Push the Increase()buttontochangeittoyesandpushOK.TheConsolewilldisplaythe
“INSERTUSB”prompt.InsertaUSBFlashDriveintotheUSBPort.TheConsolewillrecordtheStatisticstotheUSB
Flash Drive.
TheConsolewilldisplay“SAVING”,andthen“REMOVEUSB”whenitissafetoremovetheUSBFlashDrive.
Note:PushthePAUSE/ENDbuttontoforceanexitfromthe“SAVING”prompt.
6. Push theIncrease()buttontomovetothe“CLEARWORKOUTDATA-OK?”.PushOK,andthe“AREYOUSURE?
- NO” prompt will display. Push the Increase()buttontochangetothe“AREYOUSURE?-YES”display,andpush
OK. The user workouts have been reset.
7. Push GOAL TRACK to return to the Power-Up screen.
www.SchwinnConnect.com
Gotothewww.SchwinnConnect.comwebsitetocreateanonlineprole,uploadyourworkoutresultsusingaUSBFlash
Drive, and then view and track your achievements over time.
www.SchwinnConnect.com also works with MyFitnessPal
®
. Simply follow the prompts from the “Link to MyFitnessPal
®
”
button,andyourworkoutresultswillbeavailablewithyourexistingMyFitnessPal
®
prole.
35
CONSOLE SETUP MODE
TheConsoleSetupModeletsyouinputthedateandtime,settheunitsofmeasurementtoeitherEnglishorMetric,
changethemachinetype,controlthesoundsettings(on/off),orseemaintenancestatistics(ErrorLogandRunHours–
forservicetechnicianuseonly).
1. HolddownthePAUSE/ENDbuttonandRightbuttontogetherfor3secondswhileinthePower-UpModetogointo
the Console Setup Mode.
Note:PushPAUSE/ENDtoexittheConsoleSetupModeandreturntothePower-UpModescreen.
2. The Console display shows the Date prompt with the current setting. To change, push the Increase/Decrease buttons
toadjustthecurrentlyactivevalue(ashing).PushtheLeft/Rightbuttonstochangewhichsegmentisthecurrently
activevalue(month/day/year).
3. Push OK to set.
4. The Console display shows the Time prompt with the current setting. Push the Increase/Decrease buttons to adjust
thecurrentlyactivevalue(ashing).PushtheLeft/Rightbuttonstochangewhichsegmentisthecurrentlyactivevalue
(hour/minute/AMorPM).
5. PushOKtoset.
6. The Console display shows the Units prompt with the current setting. To change, push OK to start the Units option.
PushtheIncrease/Decreasebuttonstochangebetween“MILES”(ImperialEnglishunits)and“KM”(metricunits).
Note: If the units change when there is data in User Statistics, the statistics convert to the new units.
7. Push OK to set.
8. The Console display shows the Machine Type prompt with the current setting. Push the Increase/Decrease buttons to
changebetween“BIKE”andElliptical(“ELIP”).
9. Push OK to set.
10. The Console display shows the Sound Settings prompt with the current setting. Push the Increase/Decrease buttons
to change between “ON” and “OFF”.
11. Push OK to set.
12. The Console display shows the TOTAL RUN HOURS for the machine.
13. Forthenextprompt,pushtheOKbutton.
14. The Console display shows the Software Version prompt.
15. Forthenextprompt,pushtheOKbutton.
16 . The Console will display the Power-Up Mode screen.
36
MAINTENANCE
Read all maintenance instructions fully before you start any repair work. In some conditions, an assistant is required to do
the necessary tasks.
Equipmentmustberegularlyexaminedfordamageandrepairs.Theownerisresponsibletomakesurethatregular
maintenance is done. Worn or damaged components must be repaired or replaced immediately. Only manufacturer
supplied components can be used to maintain and repair the equipment.
To reduce the risk of electrical shock or unsupervised usage of the equipment, always unplug the power
cordfromthewalloutletandthemachineandwait5minutesbeforecleaning,maintainingorrepairingthemachine.Place
the power cord in a secure location.
Daily:
Beforeeachuse,examinetheexercisemachineforloose,broken,damaged,orwornparts.
Donotuseiffoundinthiscondition.Repairorreplaceallpartsattherstsignofwearordam-
age. After each workout, use a damp cloth to wipe your machine and Console free of moisture.
Note:AvoidexcessivemoistureontheConsole.
Weekly:
Clean the machine to remove any dust, dirt, or grime from the surfaces. Check for smooth seat
slider operation. If needed, apply a very thin coating of silicone lube to ease operation.
Note: Do not use petroleum based products.
Monthly
or after 20 hours:
Check pedals and crank arms and tighten as necessary. Make sure all bolts and screws are
tight. Tighten as necessary.
NOTICE: Do not clean with a petroleum based solvent or an automotive cleaner. Be sure to keep the Console free
of moisture.
37

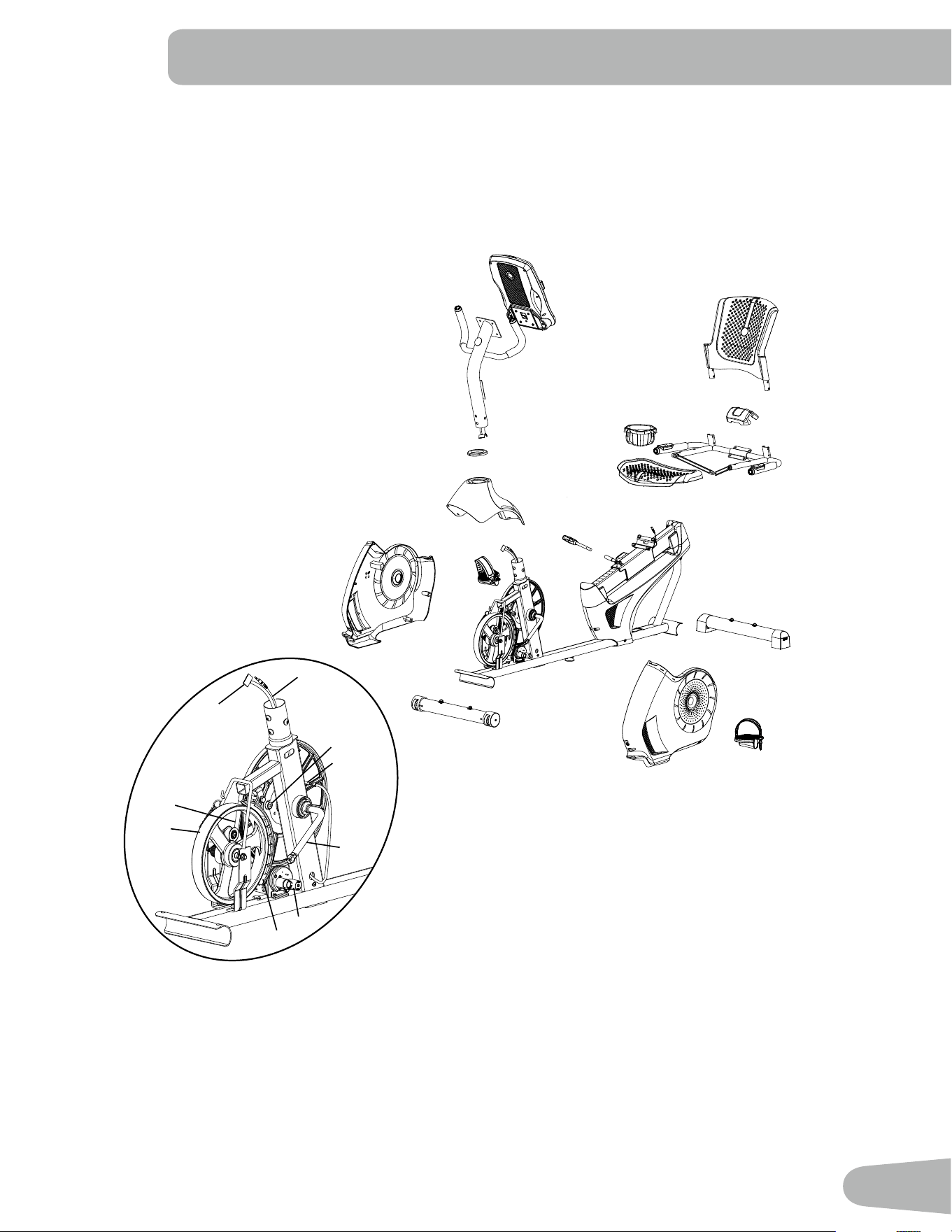

Maintenance Parts
A
CC
Z
Y
B
D
C
E
F
H
I
J
K
M
G
X
W
O
P
S
U
T
V
N
Q
R
AA
BB
L
38
A Console K Frame Assembly U Flywheel
B Seat Back L Transport Wheel V Console Cable, Lower
C Seat Cover M Stabilizer, Front W Shroud, Right
D Water Bottle Holder N Heart Rate Cable, Lower X Pedal, Right
E Handlebar, Side O Speed Sensor Magnet Y Shroud, Upper
F Seat Bottom P Speed Sensor Z Shroud Cap
G Seat Adjustment Handle Q Crank Arm AA Console Cable, Upper
H Rear Stabilizer R Servo Motor BB Heart Rate Cable, Upper
I Shroud, Left S Brake Assembly CC Console Mast
J Pedal, Left T Drive Belt
39
TROUBLESHOOTING
Condition/Problem Things to Check Solution
No display/partial display/
unit will not turn on
Checkelectrical(wall)
outlet
Make sure unit is plugged into a functioning wall outlet.
Check connection at front
of unit
Connection should be secure and undamaged. Replace
adapter or connection at unit if either are damaged.
Check data cable integrity All wires in cable should be intact. If any are visibly crimped or
cut, replace cable.
Check data cable
connections/orientation
Be sure cable is connected securely and oriented properly.
Small latch on connector should line up and snap into place.
Check console display for
damage
Check for visual sign that console display is cracked or other-
wise damaged. Replace Console if damaged.
Console Display IfConsoleonlyhaspartialdisplayandallconnectionsarene,
replace the Console.
If the above steps do not resolve the problem, contact Cus-
tomer Care for further assistance.
Unit operates but Contact
HR not displayed
HR cable connection at
Console
Be sure cable is connected securely to Console.
HRcableboxconnection Be sure cables from handlebars and cable to Console are
secure and undamaged.
Sensor grip Be sure hands are centered on HR sensors. Hands must be
kept still with relatively equal pressure applied to each side.
Dry or calloused hands Sensorsmayhavedifcultywithdriedoutorcallousedhands.
Aconductiveelectrodecream(heartratecream)canhelp
make better conduct. These are available on the web or at
medicalorsomelargertnessstores.
Static Handlebar If tests reveal no other issues, Static Handlebar should be
replaced.
No speed/RPM reading,
Console displays “Please
Pedal” error code
Check data cable integrity All wires in cable should be intact. If any are cut or crimped,
replace cable.
Check data cable
connections/orientation
Be sure cable is connected securely and oriented properly.
Small latch on connector should line up and snap into place.
Check magnet position
(requiresshroudremoval)
Magnet should be in place on pulley.
CheckSpeedSensor(re-
quiresshroudremoval)
Speed sensor should be aligned with magnet and connected to
data cable. Realign sensor if necessary. Replace if there is any
damage to the sensor or the connecting wire.
Consoleshutsoff(enters
sleepmode)whileinuse
Checkelectrical(wall)
outlet
Make sure unit is plugged into a functioning wall outlet.
Check connection at front
of unit
Connection should be secure and undamaged. Replace
adapter or connection at unit if either are damaged.
Check data cable integrity All wires in the cable should be intact. If any are cut or crimped,
replace cable.
Check data cable
connections/orientation
Be sure cable is connected securely and oriented properly.
Small latch on connector should line up and snap into place.
Reset machine Unplug unit from electrical outlet for 3 minutes. Reconnect to
outlet.
40
Check magnet position
(requiresshroudremoval)
Magnet should be in place on pulley.
CheckSpeedSensor(re-
quiresshroudremoval)
Speed sensor should be aligned with magnet and connected to
data cable. Realign sensor if necessary. Replace if there is any
damage to the sensor or the connecting wire.
Fan will not turn on or will
not turn off
Check data cable integrity All wires in cable should be intact. If any are cut or crimped,
replace cable.
Check data cable
connections/orientation
Be sure cable is connected securely and oriented properly.
Small latch on connector should line up and snap into place.
Reset machine Unplug unit from electrical outlet for 3 minutes. Reconnect to
outlet.
Fan will not turn on, but
Console operates
Check for blockage of fan Unplugunitfromelectricaloutletfor5minutes.Removemate-
rial from fan. If necessary, detach the Console to help with
removal. Replace the Console if unable to remove blockage.
Unit rocks/does not sit
level
Check leveler adjustment Adjust levelers until machine is level.
Check surface under unit Adjustmentmaynotbeabletocompensateforextremelyun-
even surfaces. Move machine to level area.
Pedalsloose/unitdifcult
to pedal
Check pedal to crank
connection
Pedal should be tightened securely to crank. Be sure connec-
tion is not cross threaded.
Clicking sound when
pedaling
Check pedal to crank arm
connection
Remove pedals and reattach.
Seat Assembly shifts /
squeaks when in use
Hardware Check hardware that attaches Seat assembly, and fully tighten
hardware.
41
Nautilus® Bowex® Schwinn® Universal®
8008430.041515.A
EN
