KITCHEN
SYSTEMS
PF6000 . PF7000
INSTRUCTION MANUAL
2/8
*NOTE: Specify color finish when
ordering replacement parts
ENGLISH
2
1
9
3
7
5
6
4
8

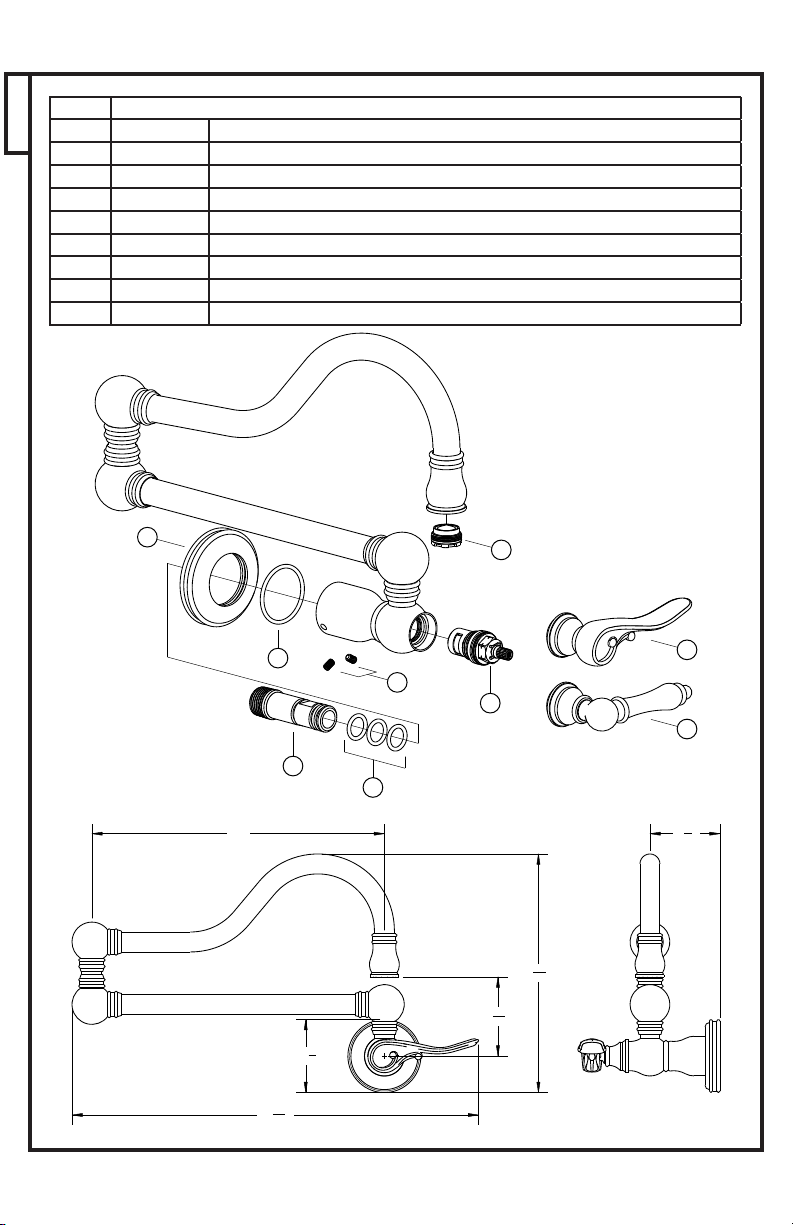

PARTS LIST - PF6000
1 Cartridge Cold, Lead Free
2 Cache Aerator Junior 1.5GPM
3 Escutcheon Flange
4 Injector Shank, 1/2”NPT
Handle, PF Standard Lever Swan
Handle, PF Decorative Swan
Set Screw
10210
10560
10686 *
10694
3-042 *
3-044 *
92060
5
6
7
‘O’ Ring -113
‘O’ Ring -128
90113
90128
8
9
11"
2
31
32
"
Ø
2
3
4
"
15
9
32
"
8
31
32
"
2
5
8
"
3/8
*NOTE: Specify color finish when
ordering replacement parts

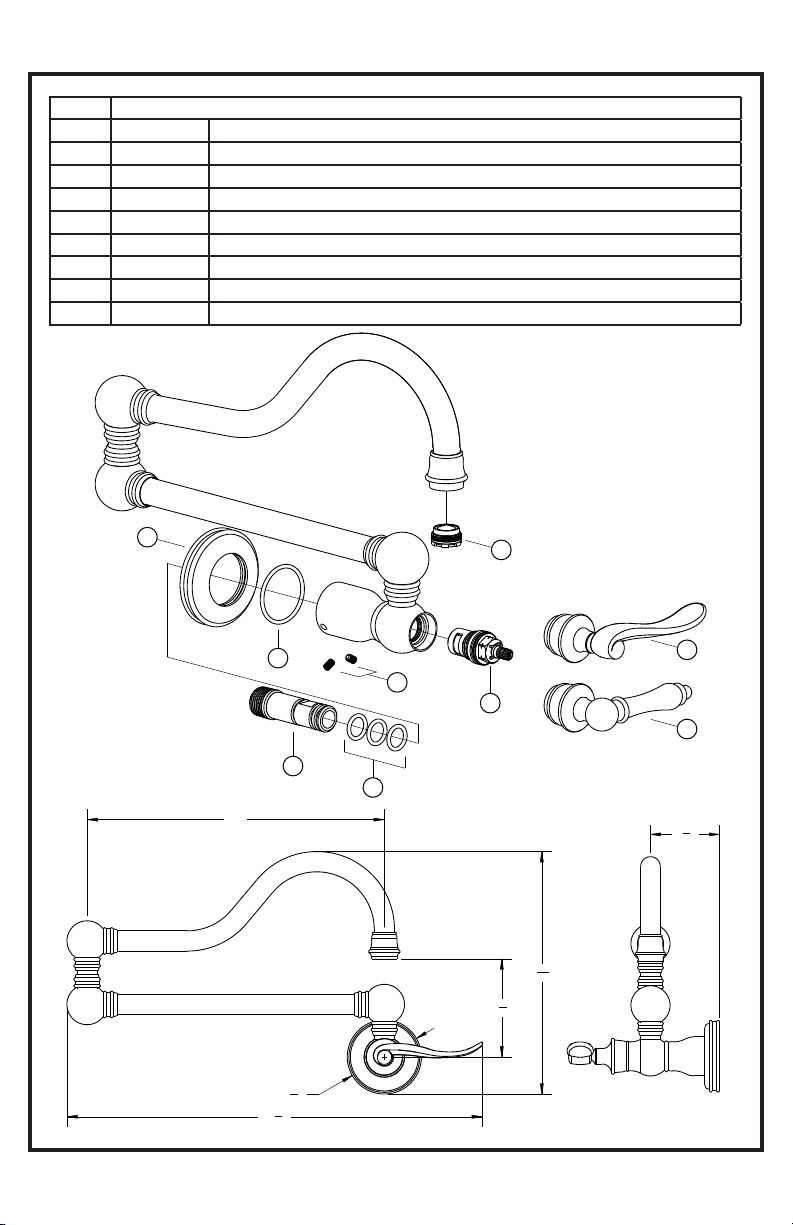

PARTS LIST - PF7000
1 Cartridge Cold, Lead Free
2 Cache Aerator Junior 1.5GPM
3 Escutcheon Flange
4 Injector Shank, 1/2”NPT
Handle, PF Standard Lever Lalingua
Handle, PF Decorative Lalingua
Set Screw
10210
10560
10686 *
10694
3-043 *
3-045 *
92060
5
6
7
‘O’ Ring -113
‘O’ Ring -128
90113
90128
8
9
2
1
9
3
7
5
6
4
8
15
3
8
"
11"
8
31
32
"
3
5
8
"
Ø
2
3
4
"
2
5
8
"
4/8
TABLE OF CONTENT
1 Faucet
2 Escutcheon & ‘O’Ring
3 Injector Mount
1
2
3

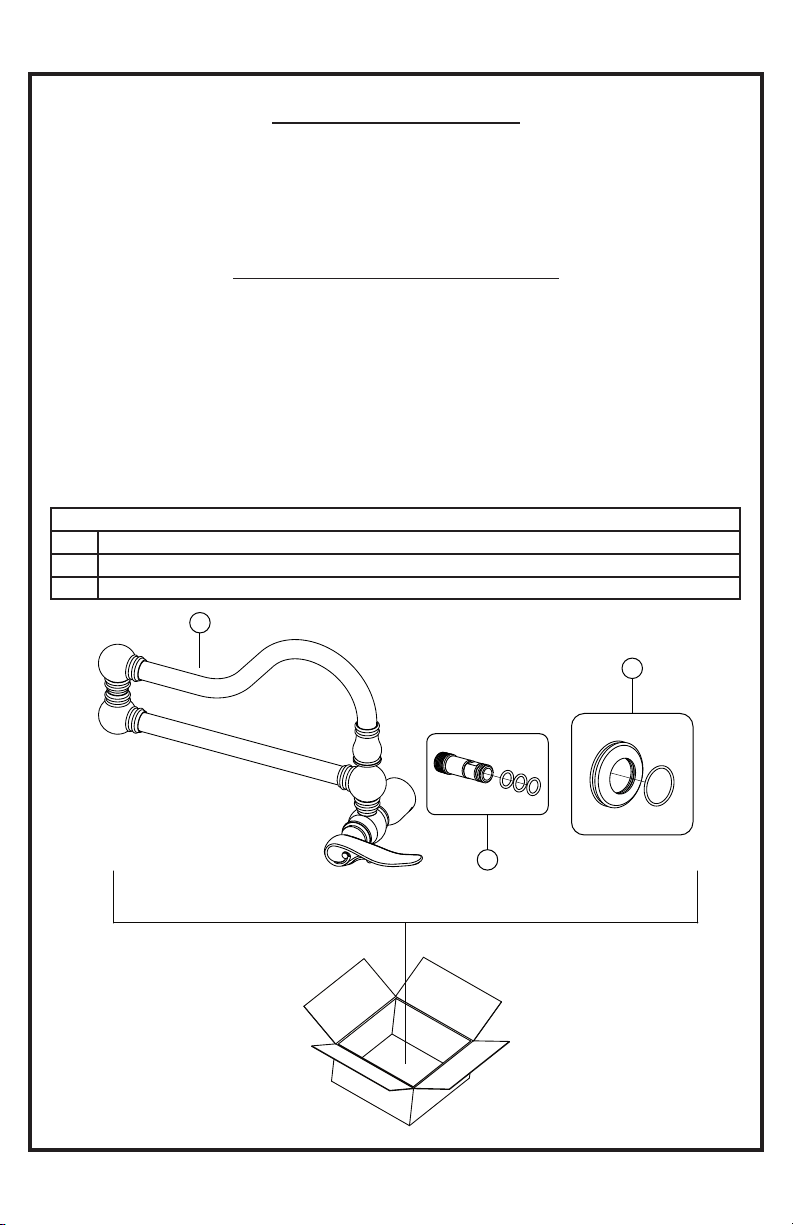

1. Remove all contents from the package and check for completeness.
NOTE:
Call us immediately if you see inconsistencies.
(1-800-626-5771)
or visit
www.frankeksd.com
FAUCET INSTALLATION
Standard water flow 1.5 gpm - 45 PSI
Maximum water flow 2.2 gpm - 60 PSI
Recommended pressure range 25-100 PSI - Over 100 PSI PRV required
Complies with Proposition 65, NSF 61, UPC and C-UPC requirements
TECHNICAL DATA
5/8

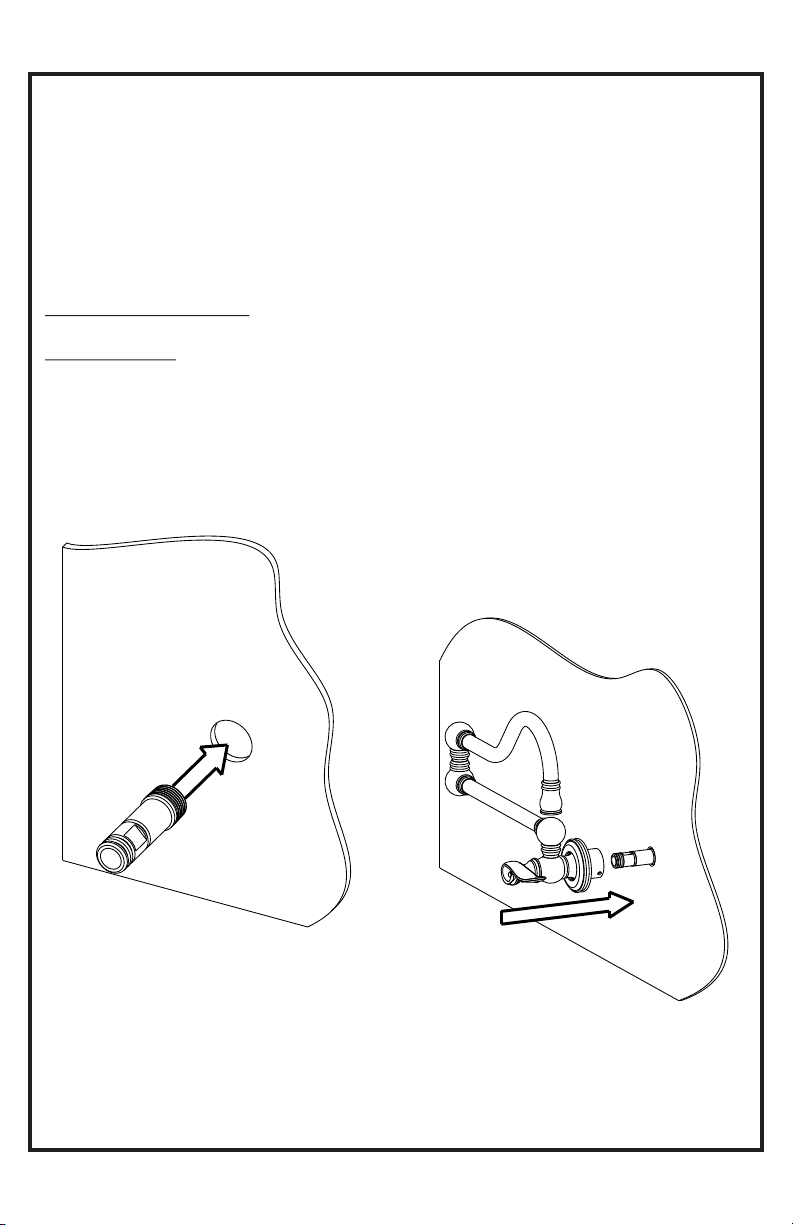

2. Flush pipe work to ensure it is free from debris.
3. Remove faucet and hardware from its protective packaging. Unscrew injector mount
from back side of faucet.
4. Place the escutcheons and large 'O'rings over the back end of the faucet and place the
faucet into the desired position.
ATTENTION: The rubber ‘O’ring should be sitting between the wall the faucet
escutcheon. DO NOT use putty or other sealant at this location.
NOTE:
Solid surface installation: The sub-countertop mounting surface needs to be flat and
free of debris; otherwise the faucet will not sit properly.
Tile installation: Avoid installations near or on top of grout lines. The escutcheon will
not sit secure when sitting on such.
5. Assure that the handle and spout are properly aligned in correct positions; spout
should swivel face forward toward range and handle should point outward parallel
with horizon. Handle should 1/4" turn downward toward counter top (clockwise).
6. Tighten injector shank into pre-plumbed 1/2” NPT female fitting.
7. Push faucet up to finished wall onto injector.
6/8

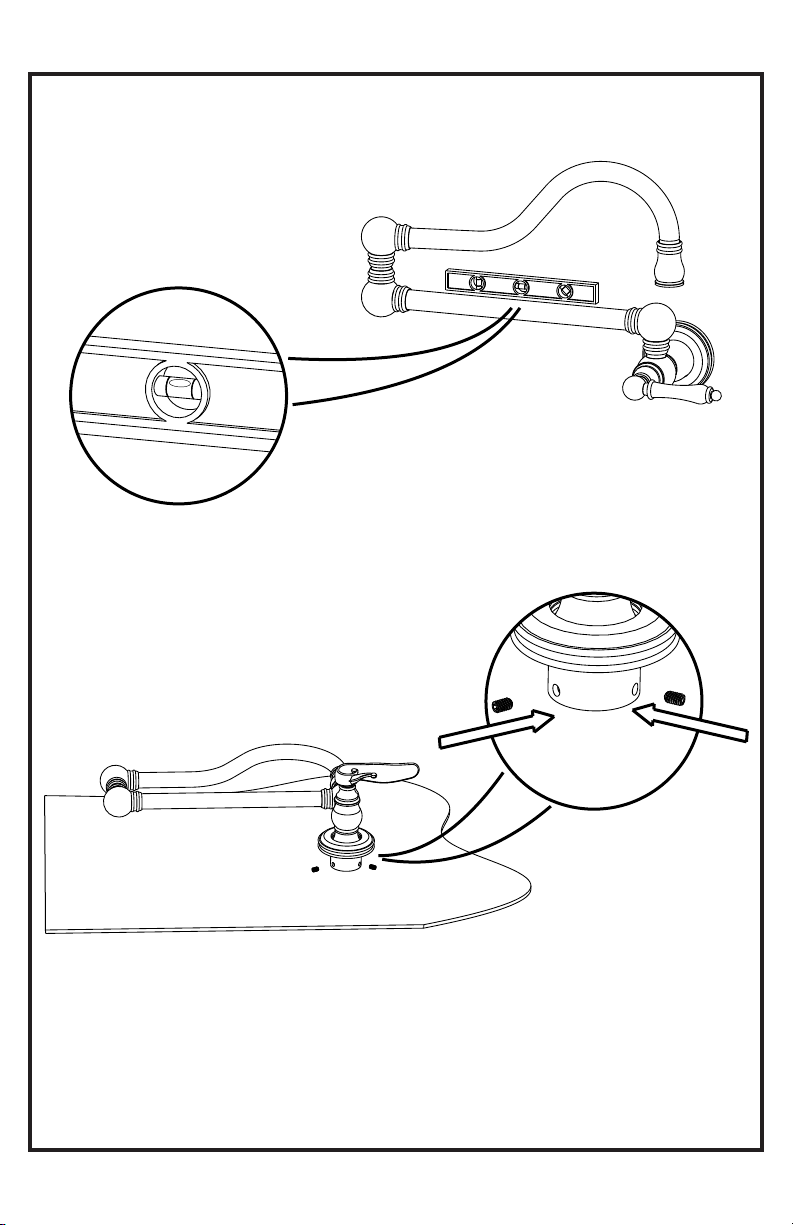

8. Ensure faucet is horizontally level before set screws are fastened.
10. Turn water supply back on to faucet.
11. Open faucet handle by turning handle clockwise. Let the faucet run over a pot for
15 to 30 seconds.
12. Turn faucet off.
13. Check / test for leaks.
9. Tighten the two set screws onto the injector until fastened. Then, push back
escutcheon up to finished wall.
7/8
STANDARD MAINTENANCE AND
TROUBLE SHOOTING

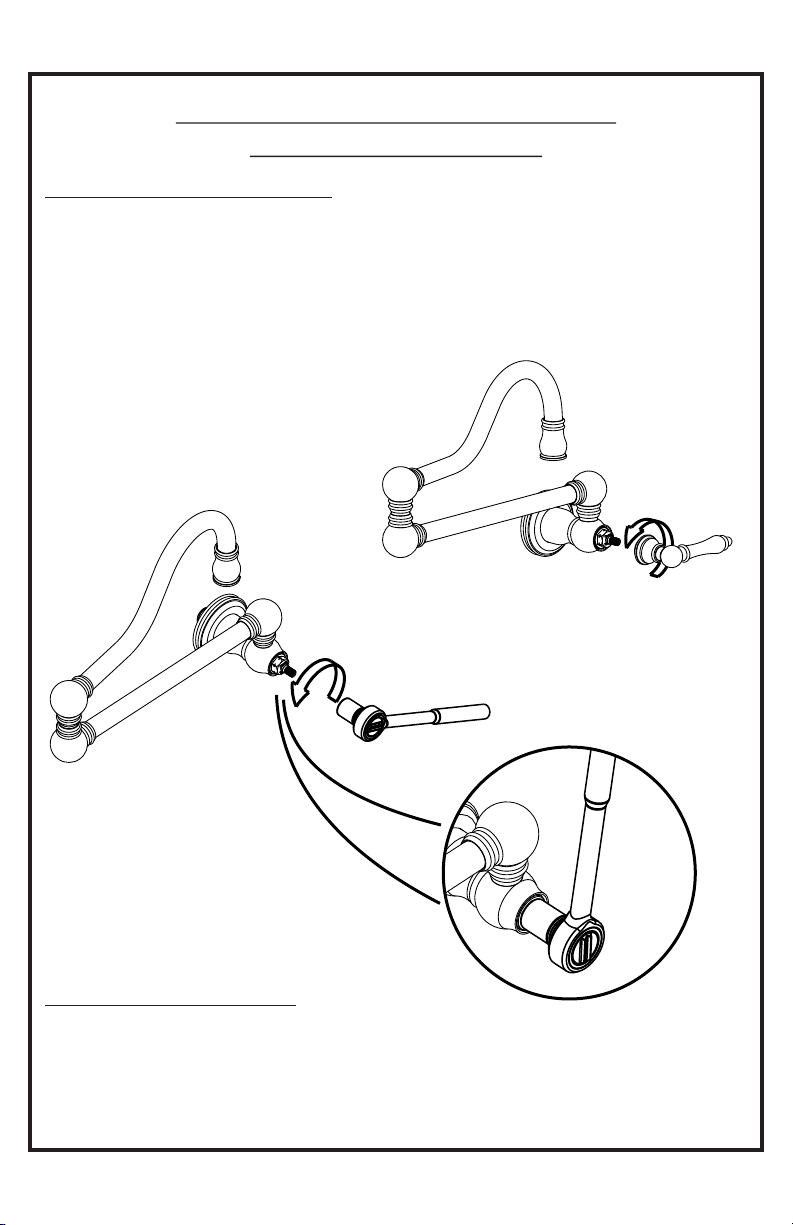

REPLACING THE CARTRIDGE
1. Shut off the water supply to the faucet.
2. Open the faucet briefly to relieve any pressure inside the faucet.
3. Move the faucet handle to the “OFF” position.
4. Remove handle assembly to access cartridge.
5. Remove cartridge from valve body seat by using a 17mm socket wrench.
5. Install the new cartridge into valve body; ensure to tighten cartridge to 14 ft./lbs.
(18.9 Nm).
6. Re-assemble faucet in reverse order.
7. Test for leakage.
GENERAL MAINTENANCE
Clean aerator periodically.
Do not use harsh detergents, solvents, chemical agents, metallic sponges, etc. that could
harm the surface and damage the finish.
Clean only with a soft sponge and soapy water.
REQUIRED TOOLS:
17mm Socket Wrench
Franke Consumer Products, Inc., Kitchen Systems Division extends the following
warranty to the original purchaser of its faucets effective January 1, 2003.
All faucets installed in a private residence will carry a limited lifetime warranty on all
mechanical parts to be free of manufacturing defects in material and workmanship
under normal usage. All chrome finishes carry a limited lifetime warranty; all other
finishes are warranted for five (5) years form the original date of purchase.
This warranty applies only to the original owner, providing the product has been
installed in accordance with our installation instructions, used as recommended and in
a normal residential application. In the event of a warranty claim, the owner will be
required to provide proof of purchase - save sales receipt. This warranty covers all
components which make the product operational. Franke, at its option, may repair or
replace the product or components necessary to restore the product to good working
condition. Franke reserves the right to inspect the installation prior to the actual
replacement of the product or component part.
This warranty does not cover misuse or abuse, accidental damages, scuffs or scratches,
improper installation, abnormal usage, negligence or damage caused by improper
maintenance or cleaning. Normal wear of parts is excluded from the warranty. Damage
caused by impurities or acts beyond our control are not covered. Any product or part
which has been repaired or altered in any manner outside of Franke's factory, unless
previously authorized in writing by Franke, will void warranty. Any replacement
excludes transportation and any labor re-installation costs. This warranty does not
allow recovery of incidental or consequential damages such as loss of use, delay,
property damage or other consequential damage, and Franke accepts no liability for
such damages.
The Franke warranty is limited to the above conditions and to the warranty period
specified herein and is exclusive. Franke DISCLAIMS all other warranties, expressed
or implied, including IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR
FITNESS FOR AS PARTICULAR PURPOSE. This warranty gives you specific legal
rights that may vary from state to state.
Further information
For any further information about our products, about the installation of them or about
the guarantee, please dial the number of the customer service:
Phone number +1-215-822-6590 Franke Consumer Products Inc. - Kitchen Systems Division
Or: 1-800-626-5771 3050 Campus Drive, Suite Hatfield, PA 19440
Fax number + 1-215-822-5873
8/8
LIMITED LIFETIME WARRANTY
InstallationGuide(Web)-PF6000&PF7000_A
