P516-866
Prepare for Installation
Tools Needed
• Phillips screwdriver, #1
and #2 bits
• Tape Measure
• Pencil
Optional
• Flathead Screwdriver
• Wood Block
• Hammer
IMPORTANT NOTES
DO NOT use a power drill for installation!
• Install and test lock with door open to avoid being locked
out.

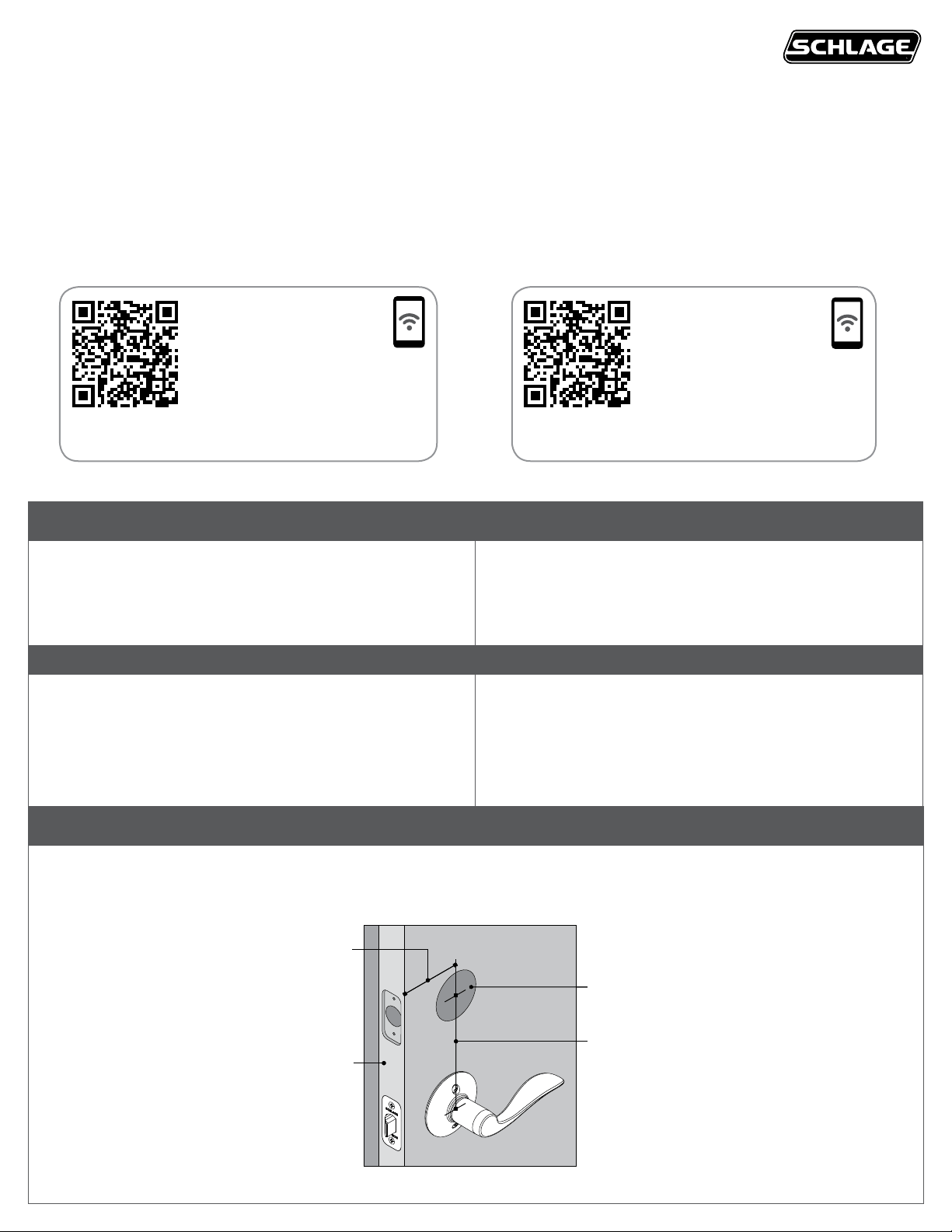

A Check door dimensions.
See consumer.schlage.com/Service-Support for door
preparation instructions if dimensions are different.
2³⁄₄” (70 mm)
OR
2³⁄₈” (60 mm)
2¹⁄₈” (53 mm)
Hole
1” (25 mm)
Door Edge
Model FE695, Lever Installation Instructions
Default Codes
Códigos de predeterminado
Codes du défaut
Place Label Here
Poner la etiqueta aquí
Placer l’autocollant ici
Scan for programming
information, help,
warranty, and more.
Alternate Faceplate
Placa frontal alternativa
Plaque frontale alternative

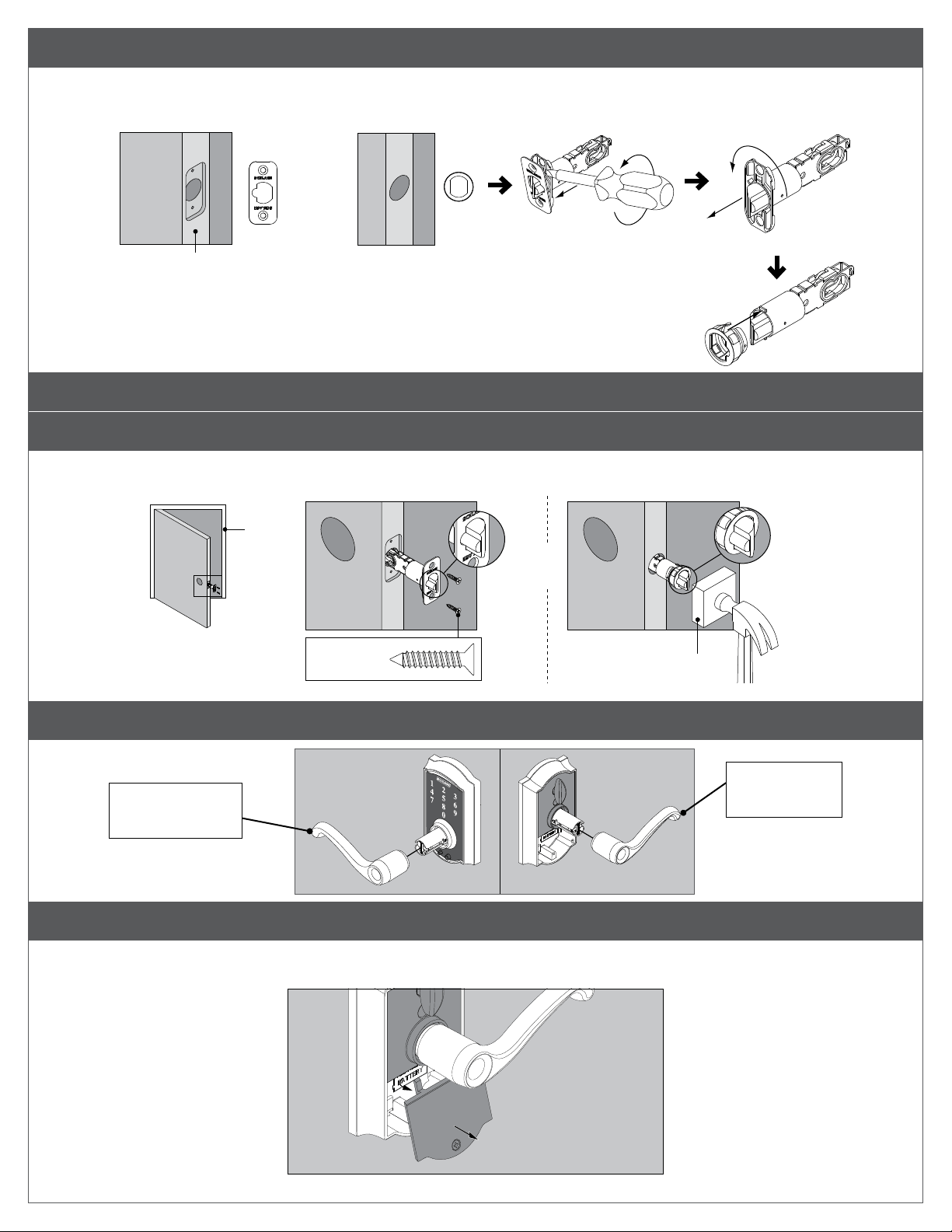

B Change faceplate, if necessary.
Choose the drawing that matches your door edge. If the hole
has no mortise, change to the circular faceplate.
Door Edge
No change necessary.
OR
Door Edge

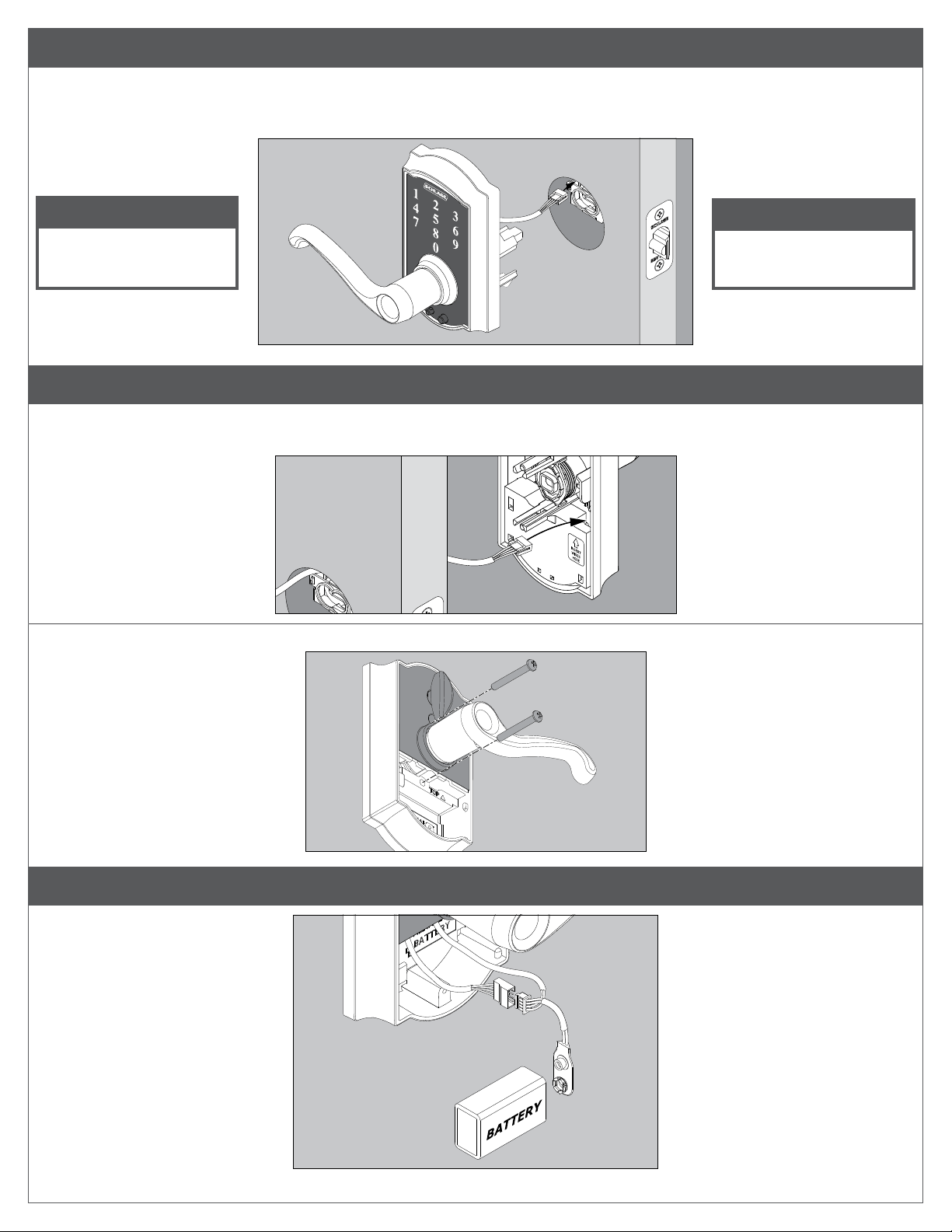

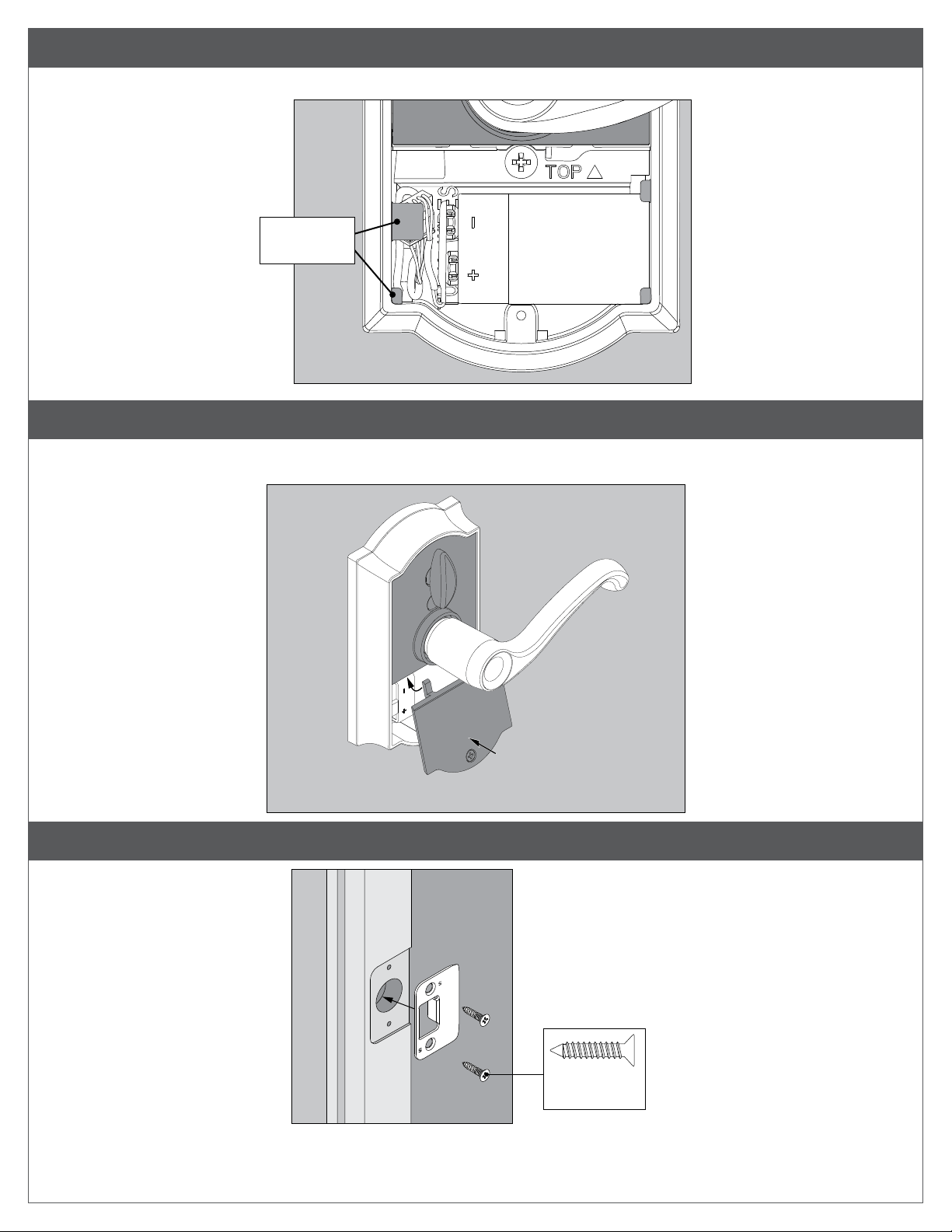

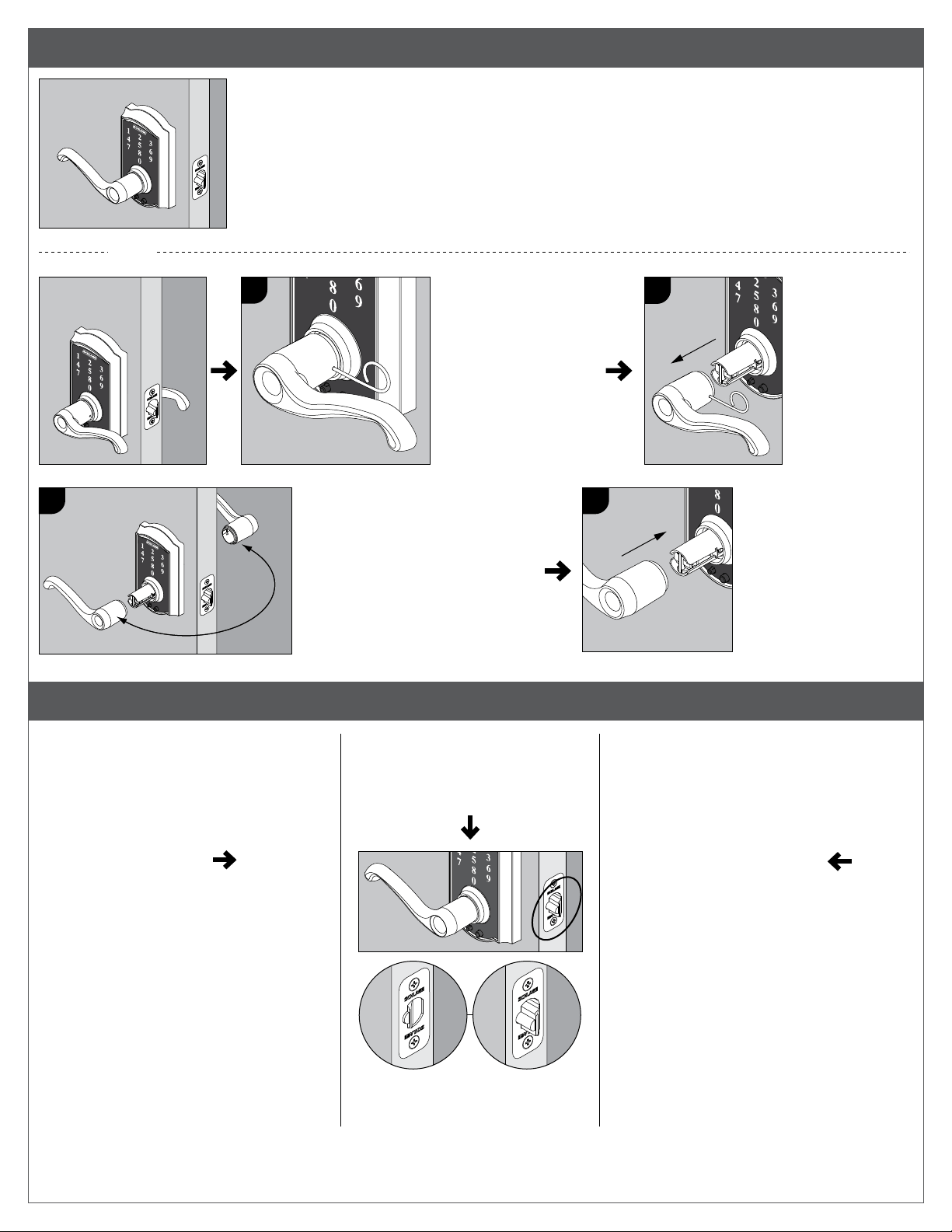

Install Lock
1 Install latch.
Make sure latch angle faces door jamb.
OR
Actual Size
Jamb
Angle
Wood Block
(Not Included)
Angle
