ASSEMBLING & INSTALLATION INSTRUCTIONS PRODUCT#
6294 6296 62613 62614 62615 62616
WARNING! SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER .
ASSEMBLING THE FIXTURE (Fig.1)
1. Shut off the power at the circuit breaker box. Remove old
fixture and all hardware from Junction Box.
2. Carefully unpack your new fixture and lay out all the parts on a
clear area. Take care not to lose any small parts necessary for
installation.
3. Raise the tube (B) to bottom of canopy (A), raise the tube
(C) ,tube (D) and tube (E) to the nipple in order , then lock it
until tight.
4. Attach the tube assemble to top center nipple of the shade (F),
by turning it clockwise until tight.
5. Thread the two studs into the pre-drilled holes in the Mounting
plate spaced the same distance apart as the holes in the canopy
(A).
6. Attach the Mounting plate to the Junction Box with the two
Junction Box Screws as shown. The side of the Mounting plate
marked "GND" must face to out.
The junction box is not
include.
7. While holding the fixture lamp towards the ceiling , connect the
electrical wires as Shown in Fig.2, making sure that all wire nuts
are secured. You may have to wrap the connections with
electrical tape. If your outlet has a ground wire (green or bare
copper), connect the fixture ground wire to it. Otherwise
connect fixture’s ground wire directly to the Mounting plate
with the green screw provided. After wires are connected, tuck
them carefully inside the Junction Box.
8. Raise the canopy (A) on to the Junction box, aligning screws on
mounting plate with mounting holes in canopy and lock it
securely with the ball nuts (I).
9. Put the socket sleeve (G) onto the socket (H).
10.Install the light bulbs in accordance with the fixture’s
specifications. NOTE: DO NOT EXCEED THE SPECIFIED
WATTAGE. The item 6294, 62613, 62615 not light bulb in
the bottom of lamp body.
Your installation is now complete Return power to the
junction box and test the fixture.

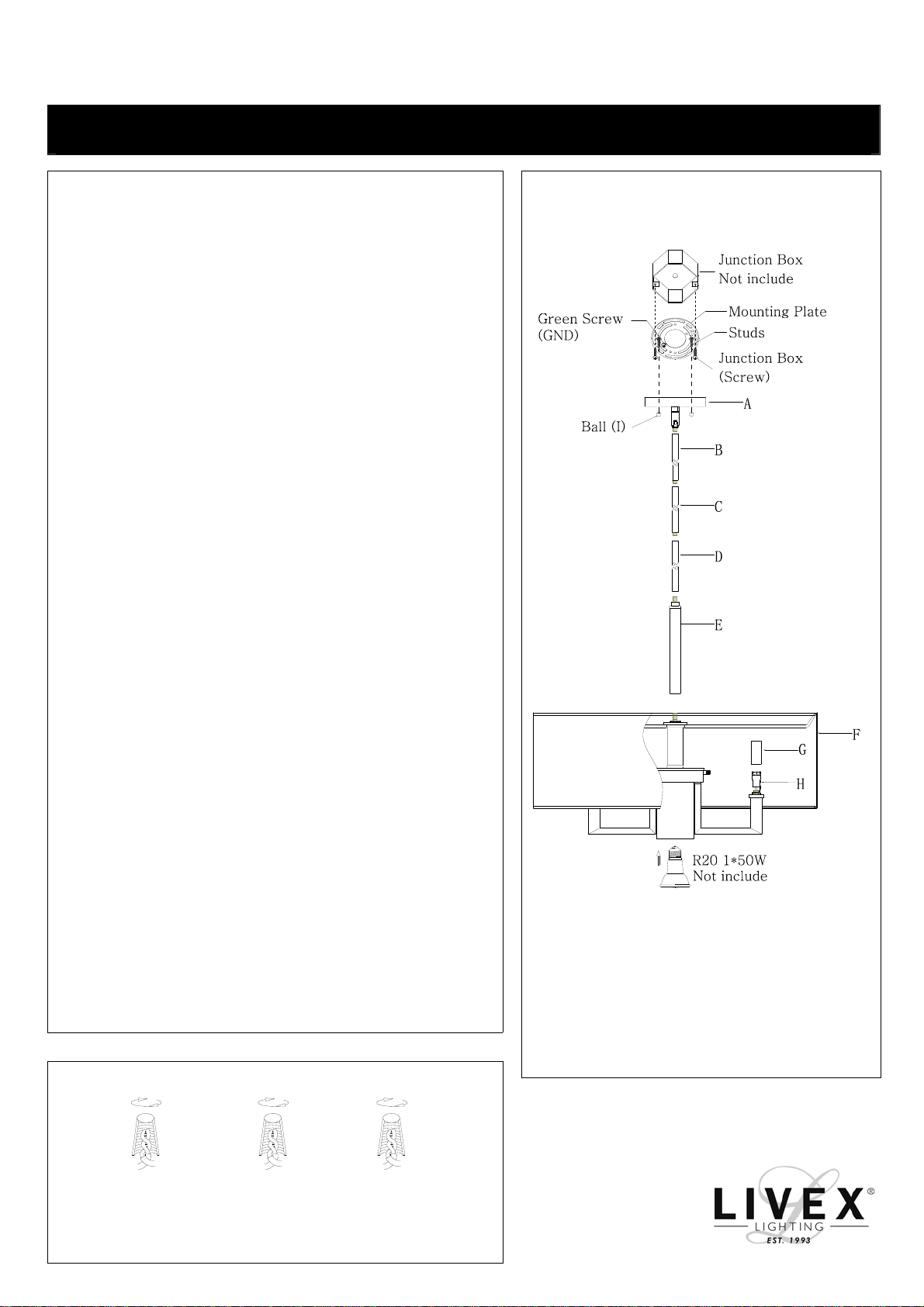

Fig.1
Fig.2
DOC20141206294
White or
HOUSE
Black
WIRES
(Hot)
Smooth
FIXTURE
WIRES
Black or
Ribbed
WIRES
FIXTURE
Bare Copper(Ground)
FIXTURE
WIRES
Copper
(Ground)
HOUSE
(Neutral)
WIRES
White
Bare
Green or
WIRES
HOUSE
