Installation and User Guide 264 Contemporary Electronic Deadbolt Kwikset 264CNT

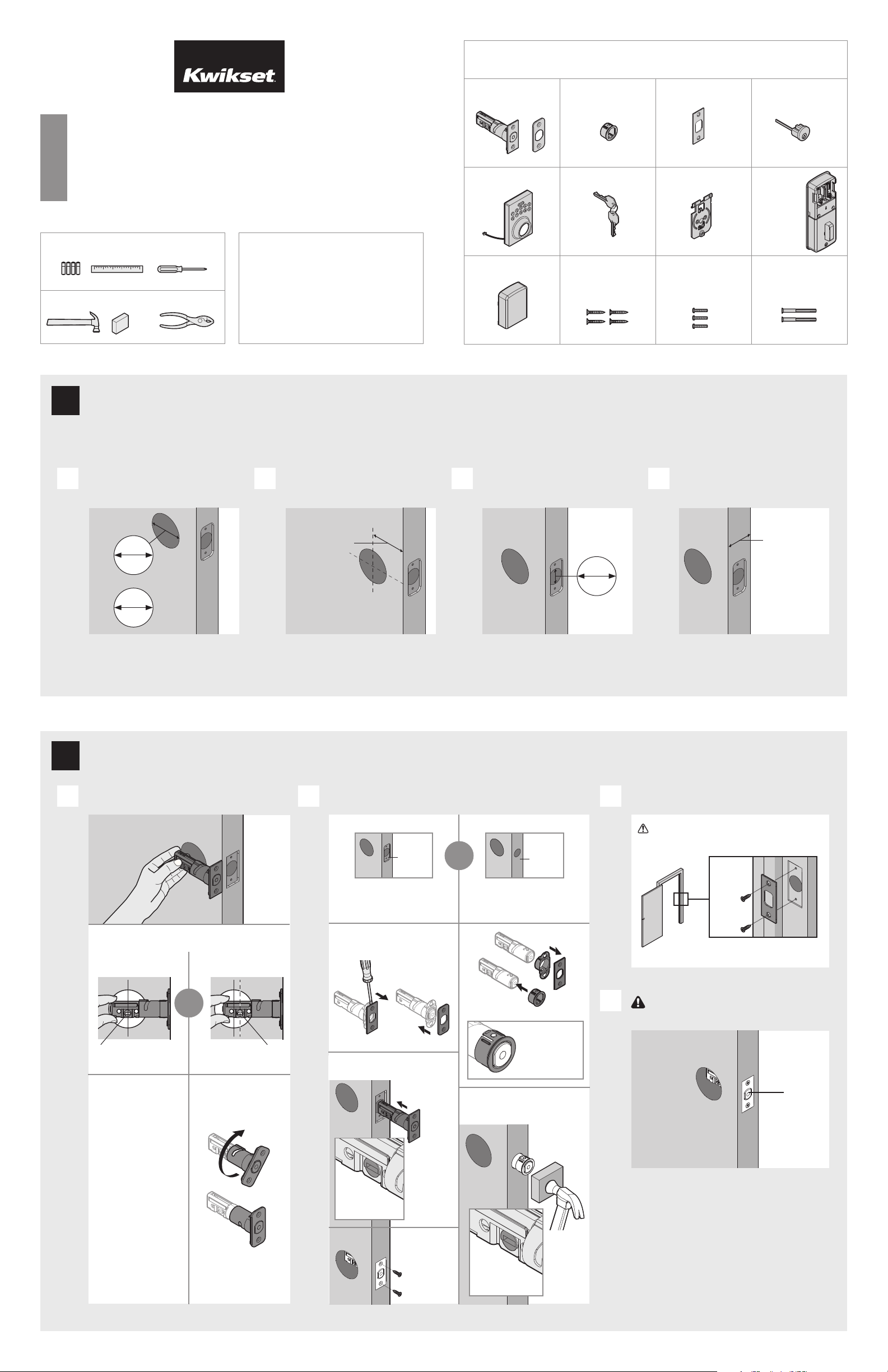

Prepare the door and check dimensions

  1. Measure to confirm that the hole in the door is either 2-1/8" (54 mm) or 1-1/2" (38 mm).
  2. Measure to confirm that the backset is either 2-3/8" or 2-3/4" (60 or 70 mm).
  3. Measure to confirm that the hole in the door edge is 1" (25 mm).
  4. Measure to confirm that the door is either 1-3/8" or 1-3/4" (35 mm or 44 mm) thick.

Install the latch and strike

  1. Hold the latch in front of the door hole, with the latch face flush against the door edge.
  2. Is the door edge chiseled? YES: Install latch in door with supplied screws. Optional: Remove square corner face and replace with round corner face (if needed). Install latch in door with supplied screws. Make sure slotted hole is at bottom of latch. NO: Use a flathead screwdriver to lift tabs on collar of rectangular face to remove it from latch. Install drive-in collar. Align tabs with holes in collar. Ensure collar snaps into place. Pull collar to test for tight fit. Install latch in door with wood block and hammer. Make sure slotted hole is at bottom of latch.
  3. Install strike on the door frame. Make sure hole in door frame is drilled a minimum of 1” (25 mm) deep.
  4. IMPORTANT: Make sure the latch bolt is fully retracted (in the unlocked position).

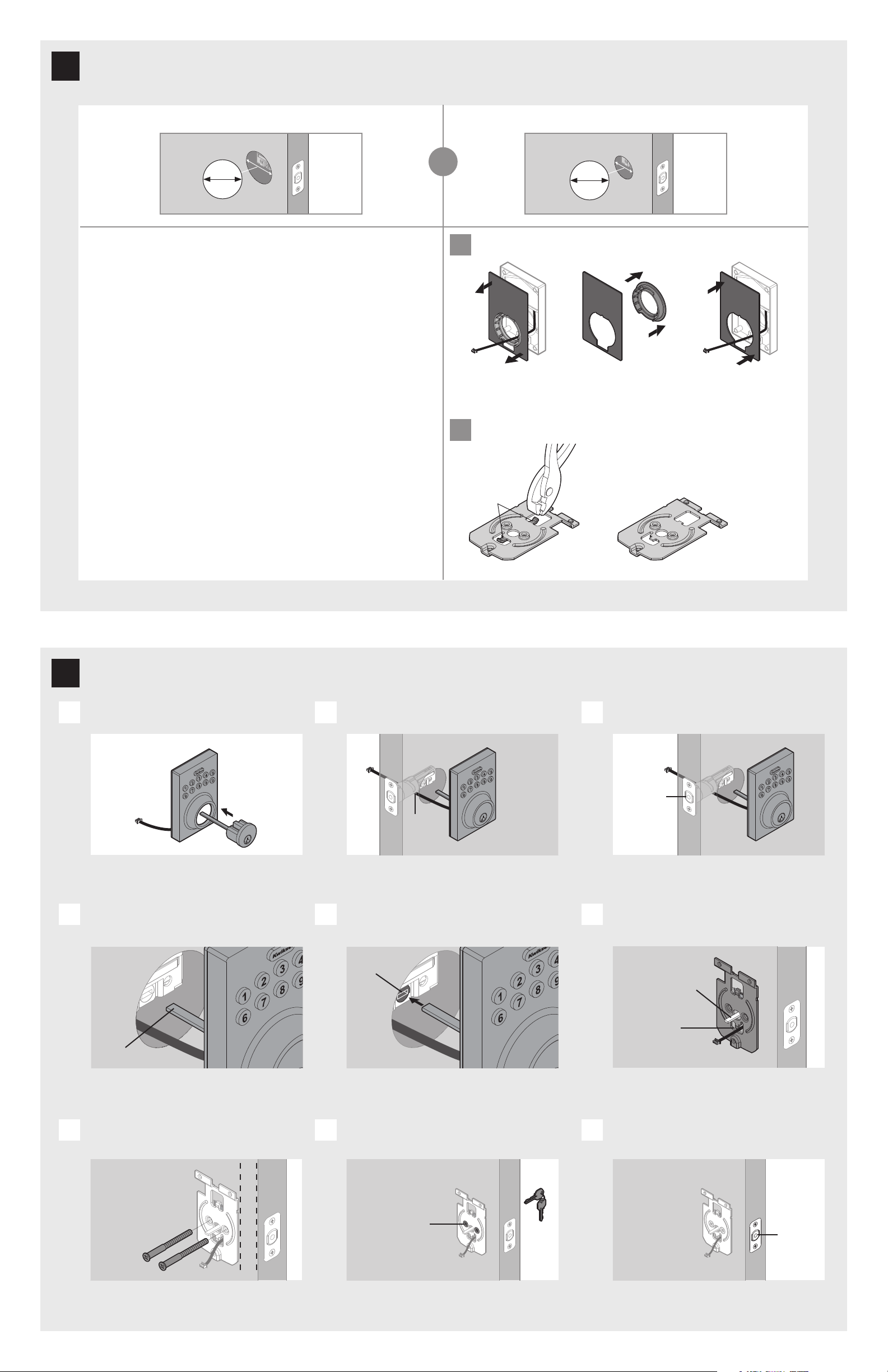

Prepare keypad and mounting plate (only for doors with smaller holes)

  1. Remove adapter ring from exterior assembly:
  2. Use pliers to remove two tabs from mounting plate:

Install exterior assembly

  1. Install the cylinder into the exterior assembly
  2. Route the cable below the latch
  3. IMPORTANT: Make sure the latch is fully retracted (in the unlocked position).
  4. IMPORTANT: Make sure the torque blade is in the horizontal position.
  5. Insert the torque blade through the horizontal slot in the latch.
  6. Push the torque blade through the center hole in the mounting plate and send the cable through the bottom hole.
  7. Secure the mounting plate with the supplied screws.
  8. Insert the key and test the latch for smooth operation.
  9. Remove the key and make sure the latch bolt is still in the unlocked position.

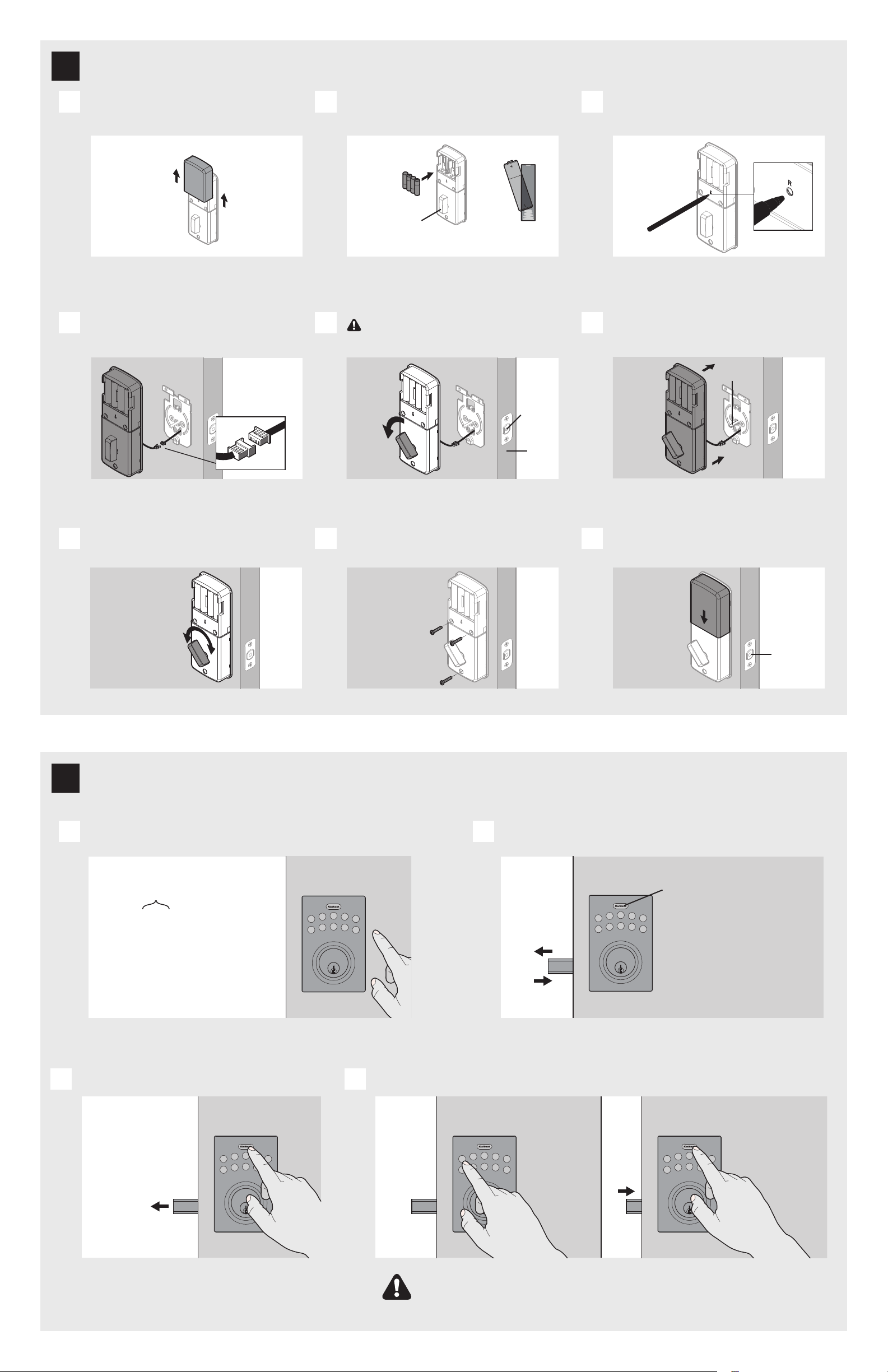

Install interior assembly

  1. Remove the battery cover.
  2. Load 4 AA batteries into the interior assembly. For best results, use new, nonrechargeable Alkaline batteries only
  3. Press and hold the Reset button on the interior assembly for 5 seconds, until you hear 3 long beeps.
  4. Align the colored edges of the connectors and ensure a tight cable connection.
  5. IMPORTANT: Rotate the turnpiece AWAY from the door edge and make sure the latch is fully retracted (in the unlocked position).
  6. Make sure the torque blade is still in the horizontal position and install the interior assembly.
  7. Test the turnpiece for smooth rotation. If turnpiece doesn’t rotate, repeat steps 5E and 5F, making sure to rotate the turnpiece AWAY from the door edge.
  8. Secure the interior assembly with the supplied screws.
  9. Reinstall battery cover and make sure the latch is still in the unlocked position.

Additional Programming Features

How to delete individual User Codes

  1. Make sure the lock is unlocked and the door is open.
  2. Enter your existing Programming Code.
  3. Press Kwikset . You will hear one beep.
  4. Press 2.
  5. Press Kwikset . You will hear one beep.
  6. Enter the User Code you wish to delete.
  7. Press Kwikset . You will hear two beeps if successful. If you hear three beeps, it was unsuccessful. Repeat from step 1 slowly.
  8. Test the code: While your door is open, lock it. Enter the User Code, then press the Lock symbol. The door should not unlock.

How to add a one-time User Code

  1. Make sure the lock is unlocked and the door is open.
  2. Enter your existing Programming Code.
  3. Press Kwikset. You will hear one beep.
  4. Press 9.
  5. Press Kwikset. You will hear one beep.
  6. Enter a new User Code. It must be between 4 and 10 digits.
  7. Press Kwikset. You will hear two beeps if successful. If you hear three beeps, it was unsuccessful. Repeat from step 1 slowly.

How to restore default settings

  1. Make sure the door is open and unlocked. Press and hold the Reset button for 5 seconds, until you hear 3 long beeps.
  2. Enter the default Programming Code (O-O-O-0).
  3. Press Kwikset. You will hear one beep.
  4. Press 0.
  5. Press Kwikset.The latch bolt will extend and retract to learn the orientation of the door. If successful, the Kwikset button will flash green and you will hear 2 beeps. If unsuccessful, the Kwikset button will flash red and you will hear 3 beeps (make sure the door is open and unlocked and that you are using a fresh set of batteries).
  6. Test the lock: With the door open and unlocked, press Kwikset. Make sure it locks the door.
  7. Test the default User Code: Enter the default User Code (1-2-3-4), then press Kwikset. Make sure it unlocks the door.

Troubleshooting

The lock cannot be locked or unlocked by the keypad

  • Make sure the lock is programmed with at least one User Code and that the User Codes are not disabled. If needed, restore the lock’s default settings.

After the lock has been working normally, the latch bolt locks up and the turnpiece will not rotate.

  • Enter your Programming Code.
  • Press Kwikset.. You will hear one beep.
  • Press 0.
  • Press Kwikset ..
  • You will hear two beeps The latch bolt will extend and retract to learn the orientation of the door. If successful, the Kwikset button will flash green and you will hear 2 beeps. If unsuccessful, the button will flash red and you will hear 3 beeps (make sure the door is open and unlocked and that you are using a fresh set of batteries).
