KITCHEN
SYSTEMS
INSTALLATION GUIDE
Little Butler® Hot Water Dispensing Faucets and Drinking Water Dispensing Faucets
DW5000 / LB5100 Series LB5200 Series DW6100 / LB6100 Series LB6200 Series
DW7000 / LB7100 Series LB7200 Series DW8000 / LB8100 Series LB8200 Series
DW9000 / LB9100 Series
LB9200 Series
Rev 3 - 2/5/2014
Loading page 2...
Loading page 3...
Loading page 4...
Loading page 5...
Loading page 6...
Loading page 7...
Loading page 8...
Loading page 9...
Loading page 10...
Loading page 11...
Loading page 12...

User Manual - Transcript

  • Page 1 - German - : KITCHEN SYSTEMS INSTALLATION GUIDE Little Butler Hot Water Dispensing Faucets and Drinking Water Dispensing Faucets DW5000 LB5100 Series LB5200 Series DW6100 LB6100 Series LB6200 Series DW7000 LB7100 Series LB7200 Series DW8000 LB8100 Series LB8200 Series DW9000 LB9100 Series LB9200 Series Rev 3 252014

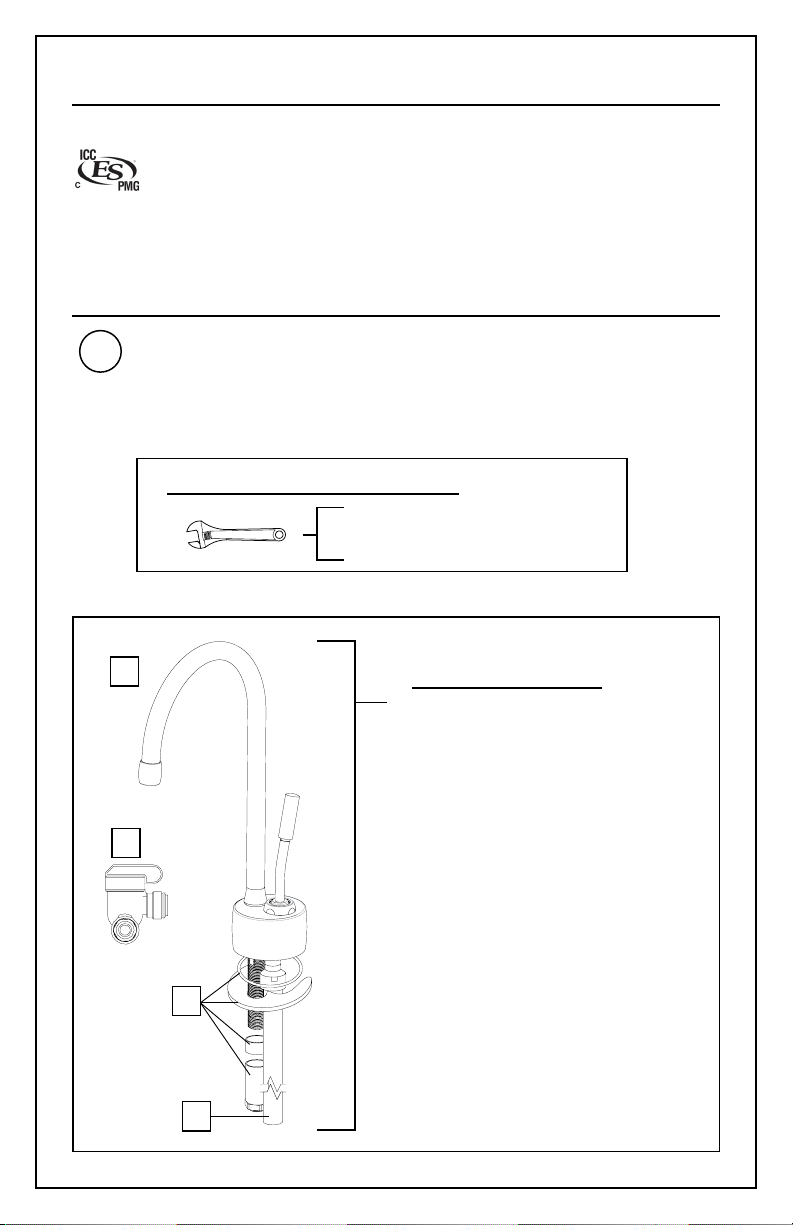

  • Page 2 - English - : TECHNICAL DATA has certified that this faucet complies with NSF61 and NSF372 drinking water system component requirements These requirements meet California Health and Safety Code requirements for low lead AB1953 as well as the new low lead requirements of the US Safe Drinking Water Act to go into effect in January 2014 INSTALLATION INSTRUCTIONS Remove all contents from the package and check for completeness NOTE Call immediately if you see inconsistencies 18006265771 or visit wwwfrankeksdcom Package Contents 1 Faucet item pictured may differ from faucet you have See front cover for accurate illustration 2 Fastening Set 1 ORing 1 Mounting Washer 1 Mounting Spacer 1 Mounting Nut 3 Cold Water Supply Tubing Black 38 polytube 4 Shutoff Valve Installation Tools 58 16mm Mounting Nut Recommended Pressure Range 15 to 75 PSI Drinking Water Series Faucets DW 00

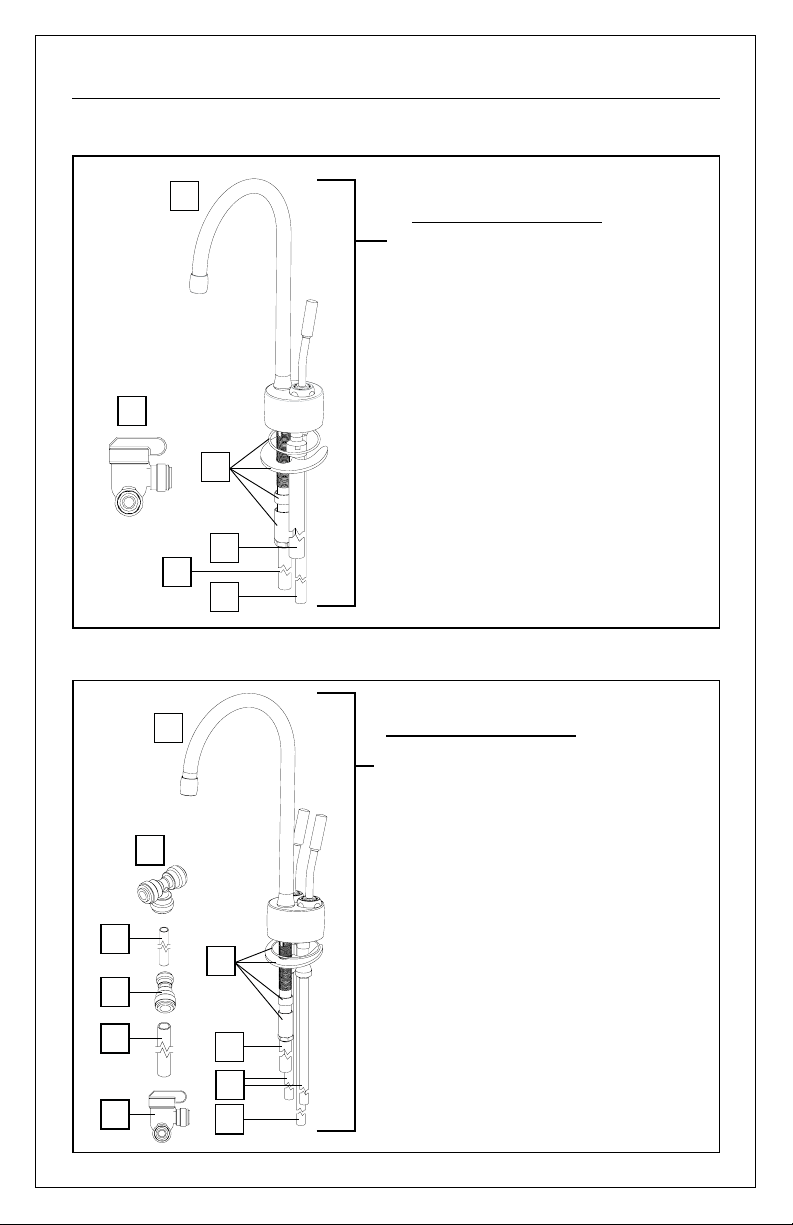

  • Page 3 - English - : Installation Package Contents 1 Faucet item pictured may differ from faucet you have See front cover for accurate illustration 2 Fastening Set 1 ORing 1 Mounting Washer 1 Mounting Spacer 1 Mounting Nut 3 Cold Water Supply Tubing black 38 polytube 4 Heating Tank Supply Tubing red ¼polytube comes pre assembled with faucet 5 Heating Tank Return Tubing hightemp silicone tube comes pre assembled with faucet 6 Shutoff Valve Little Butler Series Hot only Faucets LB100 Package Contents 1 Faucet item pictured may differ from faucet you have See front cover for accurate illustration 2 Fastening Set 1 ORing 1 Mounting Washer 1 Mounting Spacer 1 Mounting Nut 3 Cold Water Supply Tubing 2 blue 14 polytubes 4 Heating Tank Supply Tubing red ¼polytube comes pre assembled with faucet 5 Heating Tank Return Tubing hightemp silicone tube comes pre assembled with faucet 6 14 Tee Fitting 7 Tee Tubing blue ¼ polytube 8 14 x 38 Reducing Union Fitting 9 Cold Water Supply Tubing black 38 polytube 10 Shutoff Valve Little Butler Series Hot and Cold Faucets LB200
  • Page 4 - English - : Installation Franke recommends the installer familiarize themselves with how this dispensing faucet will be installed and function as part of a pointofuse hot water a filtration only drinking water or a combination hot and filtered pointofuse water dispensing arrangement BEFORE the products are installed Make certain to observe all local plumbing and building codes during installation of this unit It is important to identify the dispenser to be installed as this guide applies to multiple configurations The hot water dispensing faucets are part of the Little Butler Series There are 2 different styles of Little Butler Series dispensers available The LB200 Series dispensers offer hot and filtered water separately These dispensers must be used in conjunction with both a Franke heating tank unit and a Franke filtration system They utilize 4 tubes to connect to the system 2 blue polytubes for the cold water supply into the dispensing faucet which comes from the filtration system 1 red polytube to carry the filtered water from the dispensing faucet to the heating tank unit 1 opaque high temperature silicone tube to carry the heated water from the heating tank back to the dispensing faucet The LB100 Series dispensers offer hot water only These dispensers are required to be used in conjunction with a Franke heating tank unit Use of a Franke filtration system in addition to the heating tank is optional but strongly recommended in order to prolong the life and improve the performance of the heating tank as well as providing much higher quality water as compared to unfiltered water entering the tank These models utilize 3 tubes to connect to the system 1 black polytube for the cold water supply to the dispensing faucet which must come from the home water supply or from the filtration system if utilized 1 red polytube to carry the filtered water from the dispensing faucet to the heating tank unit 1 opaque high temperature silicone tube to carry the heated water from the heating tank back to the faucet The filtered water only dispensing faucets are part of the Drinking Water Series which are designated as DW 00 models These dispensing faucets will only be used in conjunction with a Franke filtration system There will only be one black polytube to connect the faucet to the filtration system IMPORTANT Customer MUST USE genuine Franke components see below in tandem with all Franke dispensing faucets Use of any filtration products heating tanks or service parts other than genuine Franke components will VOID THE PRODUCT WARRANTY in its entirety Use of any Franke dispensing faucet with a Reverse Osmosis Filtration system will also VOID THE PRODUCT WARRANTY Franke HT200 Heating Tank Franke FRCNSTR100 Filtration System Franke FRCNSTR Filtration System
  • Page 5 - English - : Installation It is recommended to take the components and locate their optimum positions before starting the installation Make sure there is adequate clearance for the dispenser handles to open fully without interference Make sure all plumbing and electrical connections will reach the intended mounting positions for all the components and there will be no obstructions or sharp bends in plumbing Make sure the counter top is no thicker than 2¼ WARNING Before inserting polytubing into the push fittings in subsequent steps ensure the ends of the tubing used are cut square and free of burrs both inside and outside Ensure there are no gouges scratches or any other form of damage within 1 from the cut end of the tubing Damage in this area can cause leakage Do NOT use any thread sealant plumbers putty glue or other adhesive chemicals on the tubing or push fittings This can damage the orings inside the push fittings and cause leakage Any foreign substances used on the push fitting connections will VOID THE PRODUCT WARRANTY Do not use tools or modify any of the push fit connections as this could damage the connection resulting in leaks and will VOID THE PRODUCT WARRANTY 38 Black Tubing To Filtration System Shutoff Valve To Kitchen Faucet Cold Water Supply Kitchen Faucet Cold Water Inlet Push Fit Connections Collar NOTE When installing polytubing into push fit connections the tubing should be firmly pressed into the fitting until it stops to ensure a proper seal If you should need to remove the tubing from the push fitting use your thumb and forefinger to press and hold in on the collar while gently pulling the tube out First the cold water supply to the dispensing faucet needs to be created Install the Shutoff valve provided by placing it between the cold water supply connection to the kitchen faucet and the kitchen faucet cold water inlet connection Cut the black 38 polytubing to the required length to provide water from the shutoff valve to the filtration system You should have some polytubing left over In the unlikely event you should need more black 38 polytubing to complete the installation please contact our Customer Service Department at 18006265771 Connect the black 38 polytubing to the shutoff valve by pressing the tubing firmly into the push fitting on the shutoff valve until it stops Connect the other end of the 38 polytubing to the filtration system as outlined in the instructions provided with the filtration system Take the remaining black 38 polytubing and set it aside for later use NOTE For the Drinking Water Series Faucets DW 00 there is a service label attached to one end of the black 38 polytubing Be sure the tubing set aside for later use has this service label attached as it will be connected to the faucet later It is important this label remains connected to the faucet should you ever need to service the faucet For the Little Butler series faucets LB100 and LB200 the service label will be attached to the hot water supply line from the factory

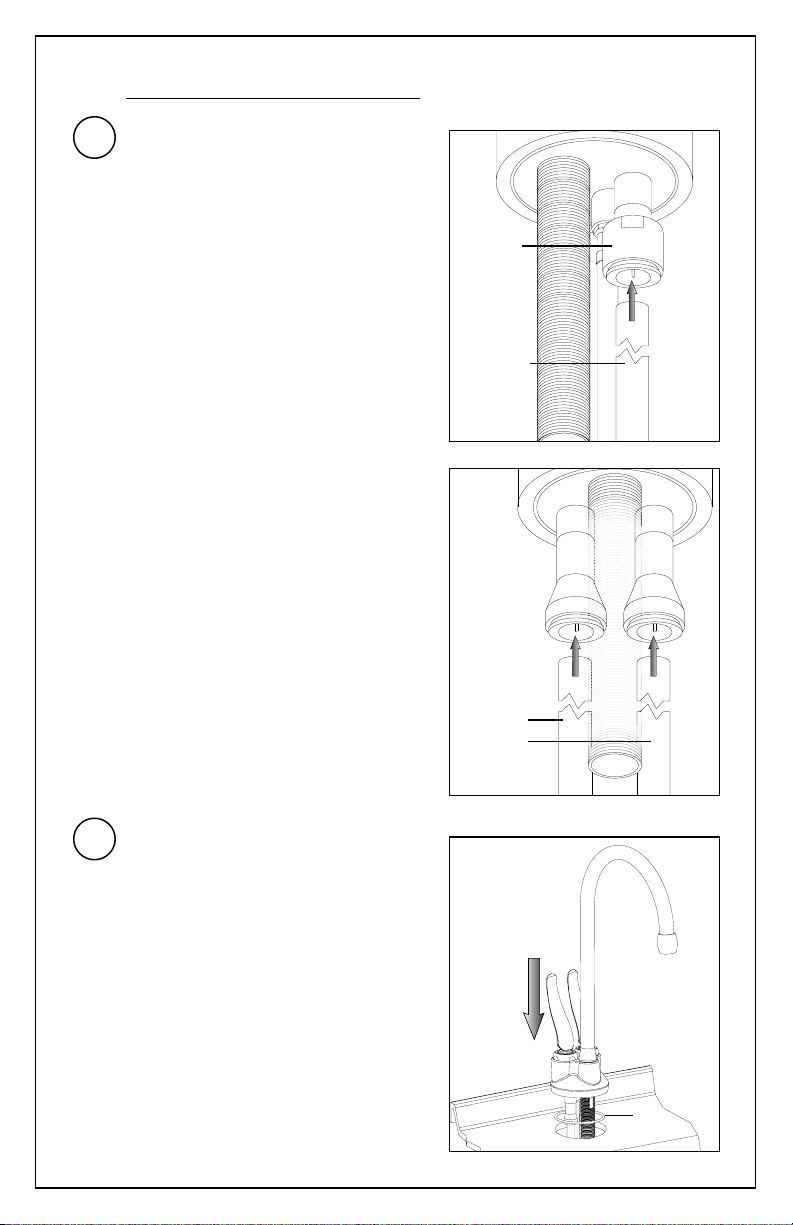

  • Page 6 - English - : Next Connect the cold water supply tubing to the faucet This will differ depending on which dispensing faucet you have For Drinking Water Series Faucets DW 00 and Little Butler Series Hot only Faucets LB100 insert the remainder of the black 38 cold water supply tubing left over from Step 4 into the 38 push fitting at the base of the faucet as illustrated For the Little Butler Series Hot and Cold Faucets LB200 insert the 2 blue ¼ cold water supply tubes into the ¼ push fittings at the base of the faucet as illustrated Installation 38 Black Tubing 38 Push Fitting 14 Blue Tubing 14 Push Fittings ORing Ensure proper hole is in place for the faucet This faucet is designed for a 138 35mm mounting hole Before inserting the faucet in the hole in the sink or counter top make sure the Oring is positioned in its seat and all hoses are secure Place the faucet in the hole orienting the spout towards the sink bowl
  • Page 7 - English - : NOTE Depending on counter top thickness it may be easier to access the mounting nut by disconnecting the cold water supply hoses Install fastening set as shown mounting washer mounting spacer if necessary and mounting nut Tighten the mounting nut with wrench from the underside of the sink The mounting spacer is only needed for installations where the faucet is mounted directly to a stainless steel sink or where the counter top is less than ½ thick Installation Mounting Washer Mounting Nut Complete the assembly of the cold water supply tubing by inserting the 2 14 blue polytubes already connected to the faucet into 14 tee push fitting Be careful not to kink the tubes Take the tee tubing the short piece of blue ¼ polytubing and connect it to the bottom part of the ¼ tee and to the 14 x 38 reducing union fitting Lastly take the part of the black 38 polytube left over from Step 4 and connect it to the 14 x 38 reducing union fitting NOTE Step 8 is only required on Little Butler Series dispensers that offer hot and cold water separately LB200 Series dispensers If you have a Little Butler hot water only LB100 Series dispenser or a Drinking Water only DW 00 Series dispenser go to Step 9 38 x 14 Reducing Union 14 tee Push Fit Connections collar Mounting Spacer From Faucet From Faucet Blue 14 Tee Tubing Take the black 38 polytubing from the faucet and connect it to the outlet of the filtration system as outlined in the filtration system instructions If you decide not to utilize a filtration system with your LB100 Series faucet you must provide a connection for the black 38 polytube to the homes cold water supply This will complete the installation for the Drinking Water only DW 00 Series dispensing faucets For Little Butler Series dispensers LB100 and LB200 continue to Step 10 5 6

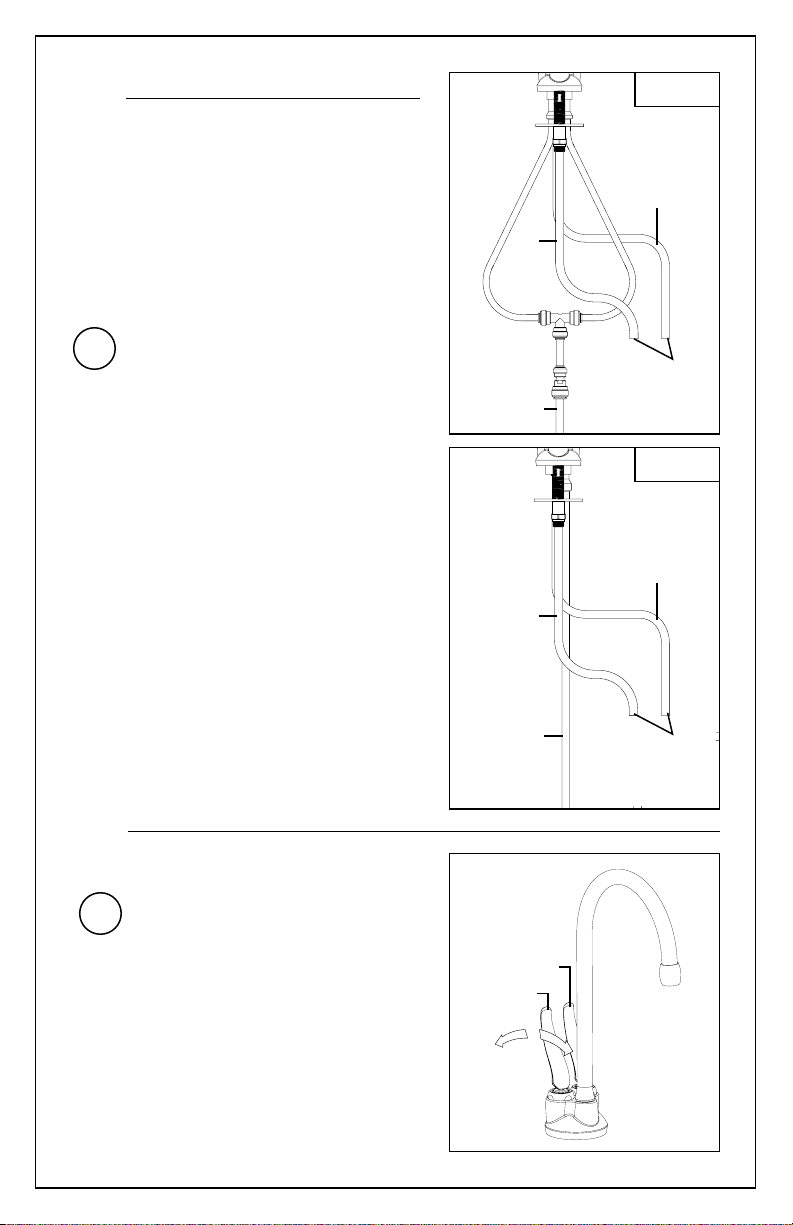

  • Page 8 - English - : Connect the red ¼ Heating Tank Supply Hose to the heating tank inlet and the high temp silicone Heating Tank Return Hose to the heating tank outlet per the instructions provided with the heating tank Installation Tubing Connections to Heating Tank Red Heating Tank Supply Tubing Silicone Heating Tank Return Tubing Tubing Connections to Heating Tank Red Heating Tank Supply Tubing Silicone Heating Tank Return Tubing 38 Black Polytubing 38 Black Polytubing Push the handles back to turn on the water supply The cold valve will lock in the on position and the hot valve on the left side if equipped has a safety feature that requires constant force to keep the valve open to protect from unintentional contact with hot water Note The spout has a 360 swivel capability Usage HOT COLD ON OFF LB200 LB100
  • Page 9 - English - : 7 8 Usage WARNING Do not operate both handles at the same time as this can build up pressure in the heating tank causing the bladder to expand and eventually burst Such damage is not covered by the warranty Seasonal Shutdown If you plan to be away from home for extended periods of time refer to the filtration system instructions and heating tank instructions if applicable under the Winterizing or Seasonal Shutdown sections to prevent system failures MAINTENANCE Trouble Shooting PROBLEM POSSIBLE CAUSE RECOMMENDED ACTION Water spews and steams forcefully from spout with the dispenser in the off position The heating tank is boiling because temperature setting it too high The heating tank is boiling because there may be a problem with internal heating mechanism Lower temperature adjustment on the heating tank Turn on faucet lever and run water until stream is normal again If spewing returns lower temperature again until spewing stops Water is not hot The heating tank is unplugged The power supply to the heating tank is inoperable There may be a problem with the internal heating mechanism on the heating tank Make sure heating tank is connected to a properly grounded electric outlet Make sure the circuit breaker or fuses are functioning properly Water is dripping from spout intermittently This is normal during water heating cycles but should only occur for a few minutes If dripping is continual it could be low water pressure to the heating tank Check the supply valve to ensure it is fully open and there are no obstructions or kinks in the water lines Also check for clogged water filters Check supply hoses for loops or low sections
  • Page 10 - English - : Replacement Parts 9 9 Must Identify Color Finish when ordering replacement parts DW 00 Series Faucet pictured may differ from faucet you have See front cover for accurate illustration LB100 Series Faucet pictured may differ from faucet you have See front cover for accurate illustration LB200 Series Faucet pictured may differ from faucet you have See front cover for accurate illustration 4 Replacement Levers Per Series Series Series Series Series Series Hot R or Cold B indicators included with specified lever Red amp Blue indicators Specify Red R or Blue B Alternate Cam used for 6000 7000 and 9000 Series 50165017 Model LB5100 Series LB5200 Series DW5000 Series LB6100 Series LB6200 Series DW6100 Series LB7100 Series LB7200 Series DW7000 Series LB8100 Series LB8200 Series DW8000 Series LB9100 Series LB9200 Series DW9000 Series Replacement Part for Identified Part 1 Cold Cartridge Assy 2 Hot Cartridge Assy 3 Cover Nut 4 Lever see chart below for all series HotCold 5 Mounting Washer 6 Mounting Spacer 7 Mounting Nut 8 Cold Water Supply Tubing 38 OD 9 Cold Water Supply Tubing 14 OD 10 14 Tee Fitting 11 14 x 38 Reducing Union Fitting 5001 5001 5016 5016 5016 5016 5001 5001 5016 5016 5002 5002 5017 5017 5017 5017 5002 5002 5017 5017 5003 5003 5003 5003 5003 5003 5003 5003 5003 5003 5003 5003 5003 5003 5003 5004 5004 5010 5010 5011 5011 5012 5012 5013 5013 5004 5004 5010H 5010H 5011H 5011H 5012 5012 5013H 5013H 5007 5007 5007 5007 5007 5007 5007 5007 5007 5007 5007 5007 5007 5007 5007 5014 5014 5014 5014 5014 5014 5014 5014 5014 5014 5014 5014 5014 5014 5014 5008 5008 5008 5008 5008 5008 5008 5008 5008 5008 5008 5008 5008 5008 5008 12 Shutoff Valve 13 Red and Blue Indicators Red R BlueB 5015 5015 5015 5015 5015 5015 5015 5015 5015
  • Page 11 - English - : LIMITED LIFETIME WARRANTY Congratulations on the purchase of this Franke product Franke is one of the worlds largest manufacturers of kitchen systems Our products are manufactured using the highest degree of technology quality and design As a result we are proud to offer the following warranty Franke Inc Kitchen Systems Division warrants the quality of its water dispensing systems to be free from manufacturing defects for a period of five years from the date of purchase This warranty applies only to the original owner providing the product has been installed in accordance with these installation instructions used as recommended and in a normal residential application In the event of a warranty claim the owner will be required to provide proof of purchase SAVE ORIGINAL SALES RECEIPT This warranty covers all components necessary to restore the product to good working condition Franke reserves the right to inspect the installation prior to the replacement of the product or component part Marine and Outdoor Installation Franke Consumer Products Inc faucets are NOT warranted for Marine and Outdoor installations This warranty does not cover misuse or abuse accidental damage scuffs or scratches abnormal usage negligence or damage caused by improper maintenance or cleaning Normal wear of parts is excluded from warranty Damage caused by impurities or acts beyond Frankes control are not covered Any product or part which has been repaired or altered in any manner outside of Frankes factory unless previously authorized in writing by Franke will void warranty Any replacement excludes transportation and any labor reinstallation costs This warranty does not allow recovery of incidental or consequential damages such as loss of use delay property damage or other consequential damage and Franke accepts no liability for such damages The Franke warranty is limited to the above condition and to the warranty period specified herein and is exclusive Franke DISCLAIMS all other warranties expressed or implied including the IMPLIED WARRANTIES OF MERCHANTABILITY ANDOR FITNESS FOR A PARTICULAR PURPOSE This warranty gives you specific legal rights which may vary from state to state Further Information For any further information about our products about the installation of them or about the guarantee please contact our Customer Service Department Franke Consumer Products Inc Kitchen Systems Division 800 Aviation Parkway Smyrna TN 37167 Phone 18006265771 Fax 18886850007 wwwfrankeksdcom
