2000W Glass Panel Heater with WiFi
Operating Instructions
Model: GPPH220
CAUTION: In order to avoid a hazard due to inadvertent resetting of the
thermal cut-out, this appliance must not be supplied through an external
switching device, such as a timer, or connected to a circuit that is regularly
switched on and off by the utility.
• This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities or lack of experience and
knowledge, unless they are supervised or have been given instruction
concerning the use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the
appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
WARNING: You must not cover this appliance. Covering this appliance
presents fire risk and will activate the safety fuse; permanently disabling the
unit.
WARNING: Do not use this appliance in small rooms when they are
occupied by persons not capable of leaving the room on their own, unless
constant supervision is provided.
WARNING: To reduce the risk of fire, keep textiles, curtains, or any
flammable material a minimum distance of 1 metre from the air outlet.
General Care and Safety Guide
• Use only the voltage specified on the rating label of the appliance.
• Keep all objects at least 1 metre from the front, sides and rear of the
appliance.
• This appliance is intended for household use only and not for commercial or
industrial use.
• Indoor use only.
• Use this appliance only as described in this manual. Any other use is not
recommended by the manufacturer and may cause fire, electric shock or
injury.
• Do not use the appliance if it has been dropped or damaged.
• The common cause of overheating is deposits of dust or fluff in the appliance.
Ensure these deposits are removed regularly by unplugging the appliance and
vacuum cleaning the air vents and grills.
YOUR SAFETY IS IMPORTANT TO US. PLEASE ENSURE YOU TAKE NOTE OF THE
INSTRUCTIONS AND WARNINGS OUTLINED IN THIS MANUAL.
• Never use the appliance to dry clothes.
• Always unplug appliance when not in use.
• When the appliance has been unpacked, check it for transport damage and
ensure all parts have been delivered. If parts are missing or the appliance has
been damaged, contact the Customer Services Team.
• Do not use if there are visible signs of damage to the appliance.
• Do not connect the appliance to mains supply until completely assembled and
adjusted.
• Ensure hands are dry before handling the plug or main unit.
• Ensure appliance is on a flat, stable, heat-resistant surface.
• Do not operate with cord set coiled up as a heat build up is likely, which could
be sufficient to become a hazard.
• Carry out regular checks of the supply cord to ensure no damage is evident
• Do not operate this appliance with a damaged cord, plug or after the appliance
malfunctions or has been dropped or damaged in any manner. Take to a
qualified electrical person for examination, electrical service or repair.
• Do not twist, kink or wrap the cord around the appliance, as this may cause the
insulation to weaken and split. Always ensure that all cord has been removed
from any cord storage area and is unrolled before use.
• It is recommended that this appliance is plugged directly into the wall socket.
Power boards are not rated to supply power to high wattage appliances.
• A correctly specified, undamaged extension cord may be used with this
appliance provided it is used in a safe manner.
• Do not remove plug from power socket until the appliance has been switched
off.
• Do not remove plug from power socket by pulling cord; always grip plug.
• Do not place cord under carpet or cover with rugs or furniture. Arrange the cord
so it cannot be tripped over.
• Don’t place appliance on bedding or on thick & long carpet where the openings
may get blocked.
• Switch off and use handle provided when moving
• Do not place appliance close to radiant heat source.
• Do not insert or allow foreign objects to enter any ventilation or exhaust
opening, as this may cause an electric shock, fire or damage to the appliance.
• Do not sit on the appliance.
• Do not use abrasive cleaning products on this appliance. Clean with a damp
cloth (not wet) rinsed in hot soapy water only. Always remove plug from the
mains supply before cleaning.
• Do not operate in areas where petrol, paint or other flammable liquids are used
or stored.
• Do not use this appliance in the immediate surrounds of a bath, a shower, or a
swimming pool or other liquids.
General Care and Safety Guide
• The appliance must not be immersed in any liquids.
• There are no user serviceable parts installed in the unit.
• Do not place the unit in wardrobes or other enclosed spaces as this may cause
fire hazards.
• This unit is not supposed to be used in or around locations where foodstuffs,
works of art or delicate articles of science, etc. are stored.
• If your appliance does not work, or is not working properly, contact the place of
purchase or the Customer Services Team.
General Care and Safety Guide
SCREW PACK
8 x SCREWS including 2 x ONE
WAY SCREWS TO ATTACH
FEET
WALL MOUNTING
6 x LONG SCREWS
4 x WALL PLUGS
Components
FEET x 2
CONTROL PANEL
HEAT OUTLET
AIR INLET
(BACK)
MAIN POWER SWITCH
Assembly and Installation
Use this heater on a horizontal and stable surface, or fix it to the wall, as applicable.
Before using this appliance, it must have the feet fitted.
This appliance has been supplied with ‘1 way screws’ for permanent installation of the
feet. This is a safety requirement for the New Zealand and Australian market.
FREE STANDING
1. Ensure the appliance is unplugged and power switches are off.
2. Carefully turn the main body upside-down on a scratch-free and stable surface. Be
careful to prevent damage to the cosmetic finish or your floor surfacing.
3. Align the screw hole on the Castor Wheel Bracket with the screw hole on the base
of the appliance.
4. Attach Castor Wheel Bracket with the ‘one way screws’ provided and ensure the
bracket sits firmly in place (do not over tighten). Firmly press Castor Wheels into
the slots provided on the Castor Wheel Bracket until they click into place. Some
force may be required.
5. Set appliance upright.
WALL MOUNTED
1. Make sure the appliance is unplugged and power switches are off.
2. Position the panel appliance within one metre of a wall socket. Do not mount in front of or
below the wall socket. Ensure there is at least 100mm clearance on all sides of the
appliance.
3. Assemble the bracket with the screws provided – see image 1.
4. Position the mounting screws on the wall per below mounting guide and check they are
horizontal with a spirit level. Ensure the bottom of the heater is at least 100mm from the
floor and drill holes as required. Fix the bracket to the wall.
5. Slot the back of the appliance onto the mounting screws. The bottom mount is on there to
keep the heater at the correct distance from the wall. You do not need to put a screw in the
bottom mount.
6. Plug appliance into a standard 240 volt AC electrical outlet.
Assembly and Installation
The appliance must not be located immediately below a socket outlet.
NOTE: Your Panel Heater should be installed with at least 150mm clearance from the
floor and any other surrounding parts including other appliances and side walls.
At least 300mm clearance from ceilings, shelves and soft furnishings.
Note: Do not run the power cord behind the heater.
WALL MOUNTED HEATERS ARE ONLY TO BE MOUNTED ON HEAT
RESISTANT WALLS THAT COMPLY WITH CURRENT AS/NZS
SPECIFICATIONS & BUILDING REGULATIONS
Operating your Appliance
1
5
6
8
2
3
7
4
1 – Display
2 – Up Button
3 – Down Button
4 – Power Button
5 – Heat Setting Button
6 – Timer Button
7 – Receiver
8 – Child Lock Button
Always choose a safe location for the heater, keeping in mind the safety precautions
outlined. Ensure all packaging has been removed from the unit before use. Please
follow the below instructions.
WARNING: In order to avoid overheating or fire, do not cover the heater.
WARNING: Keep all objects at least 1 metre from the front and 150mm
from the sides of the appliance.
WARNING: Do not use this heater with a programmer, separate timer,
remote-control system or any other device that switches the heater on
automatically, since a fire risk exists if the heater is covered or positioned
incorrectly.
WARNING:Never leave this heater unattended when in use.
If mounted on castors or feet, ensure heater is on a flat, stable, heat-resistant
surface.
Once the heater is in a safe operating position and all switches are in the off
position, insert the power plug into the mains outlet and switch on.
CAUTION: Ensure the power cord is not tight because if pulled it may
partially pull the plug from the socket. A partially inserted plug will overheat
the plug and socket and could result in fire.
HEATER CONTROL PANEL
OPERATION
Plug in the unit and switch on the main power switch. The power indicator will light up.
Press the Power button (4) to turn the unit on. The current room temperature will be displayed.
HEAT SETTINGS
Press the Heat Setting button (5) to set the heat level to either low or high.
SETTING THE TEMPERATURE
Press the Up (2) or Down (3) buttons to increase or decrease the temperature. If no buttons are
pressed for 3 seconds, the heater will run to the previously set temperature.
SETTING THE TIMER
Press the Timer button (6) to set timer. The set time is displayed. Press the Timer button to
increase the timer in one hour increments. The timer has a range of 0-24 hours. The unit will
turn off once the timer completes its countdown.
CHILD SAFETY LOCK
Press and hold the Child Lock button for 3 seconds to lock the system. A will be displayed.
To unlock, either turn the unit off or press and hold the Child Lock button for 3 seconds.
TURN OFF
Press and hold the Power button (4) to turn off the unit. The power indicator light will remain lit
while the main power switch is in the On position.
Operating your Appliance
WiFi – Downloading and Setting up APP
For WiFi, the APP is supported only on 2.4GHz WiFi channels. Please ensure your
phone is 2.4GHz capable.
WARNING: Using the APP outside of your home means you could turn the
heater on whilst you are not home.
You should never leave your heater unattended when in use.
Tap REGISTER in the centre of the screen.
If you already have an existing account, then you
can Log In.
Download Goldair mobile APP
• Open the APP Store or Google Play on your
mobile phone.
• Open “Search” and enter “Goldair"
• Click “GET” and begin to download and install.
Once downloaded to your phone open the APP
WiFi – Downloading and Setting up APP
You can either register an email address or a phone number. The APP defaults to email but you just need
to tap the “Register by Phone” at top right of the screen to change.
XXXXXXXXXXXXXX XXXXXXXX
Enter you email address or a phone number then press “Get authentication code”.
Pairing APP to Heater
Enter the verification code that you will receive by email or text message
Next you will be prompted to Set a Password. The password must contain 6 - 20 characters and must be a
mix of letters and numbers.
We recommend allowing the APP to access your location.

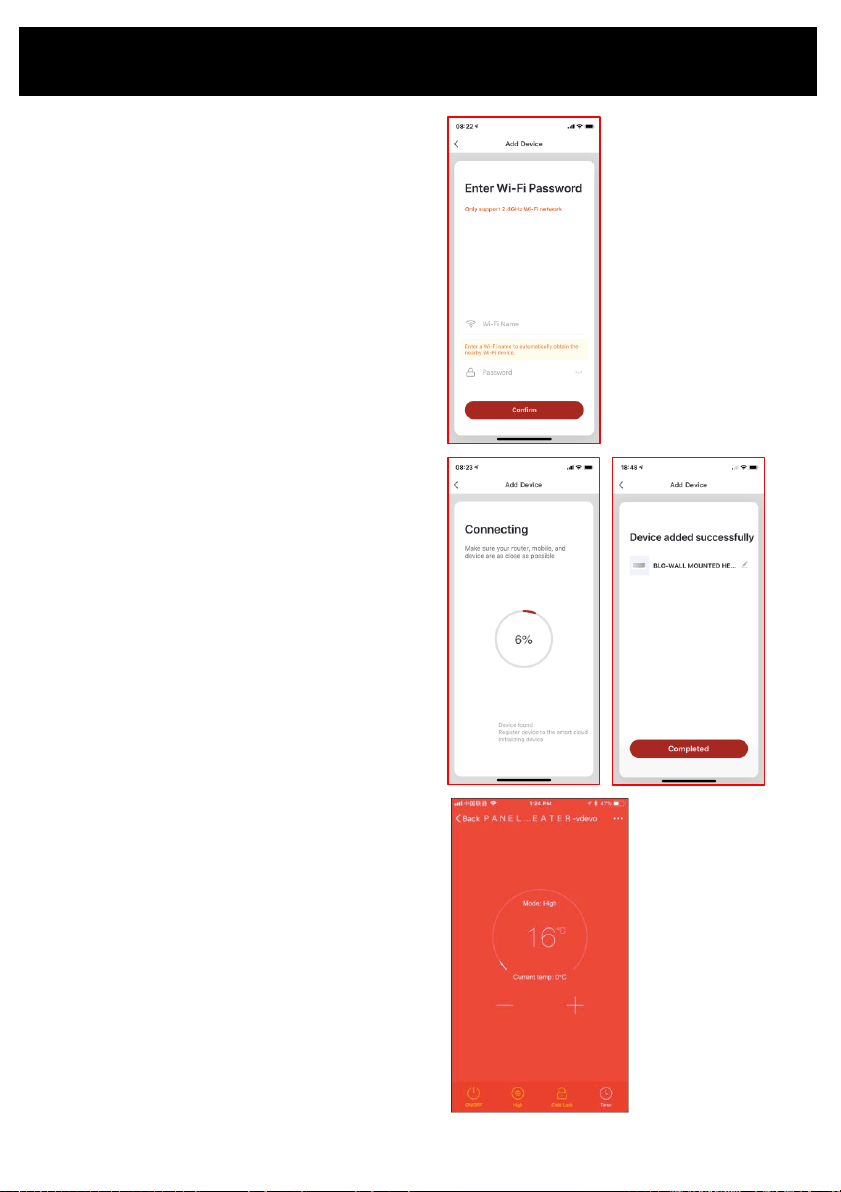

Pairing APP to Heater
On your phone tap the ‘+’ to connect to the heater.
Press the Power button (4) on the heater. A beep will
sound indicating the heater is now on and the current
temperature will be displayed on the screen.
The power indicator light will start flashing to indicate the
WiFi is in pairing mode.
To reset the WiFi press and hold the high heat setting (5)
for 5 seconds. When active the power light will flash.
Tap ‘Confirm indicator rapidly blink’ on the phone.
4
Pairing APP to Heater
When the phone interface shows the addition is
successful, and the WIFI indicator on the heater
will stop flashing.
The heater pairing is complete and the main
control screen on your phone will appear showing
the heater as ON.
If the phone and heater fail to connect, then you will need to try to connect again as per the above
process.
Choose/confirm which WiFi to connect to.
Note: your phone may pick up other WiFi signals
(e.g. neighbours) so you will need to choose.
Enter your WiFi password and press ‘Confirm’
The phone will then connect to the heater.
Ensure you have a good strong signal from your
WiFi router.
Note: The WiFi indicator on the heater may go off
during this pairing process.
Once complete the screen showing the device has
been successfully added will appear.
Rename the heater if desired.
Tap “Done” to continue.
Operating your Heater from the APP
You can rename the heater.
Tap the 3 dots on the top right of the control
screen of the APP to take you to the next page.
Click “Modify Device Name” and rename the
heater. Example: Bedroom 1, Dining Room etc.
and tap save.
DEVICE SHARING SET UP
The person you add will need to have the Goldair Heater APP installed on
their phone.
Open the “GOLDAIR APP” and tap the 3 dots in the top right of the
screen.
Tap "Add Sharing" to enter the number of the person you want to
include or tap the phone icon to select the persons phone number.
Tap “Confirm” to complete the addition.
DEVICE SHARING CANCELLATION
Open the “GOLDAIR APP” and tap the 3 dots in the top right of the
screen. Tap “Add Sharing” and delete the phone numbers of shared
members to cancel the device sharing.
NOTE: There can only be one user operating the heater at a time. The
APP needs to be closed on all other devices to enable the sharing to
work.
NOTE: If someone else sets up their phone on the same heater without
using the “Device Sharing” the original phone will be disconnected and
the heater will disappear from the device list.
Operating your Heater from the APP
Mobile phone remote operation (connect heater
power and turn on the side switch, so that the
heater is in standby mode).
Open the “GOLDAIR" APP to select the heater
(when using one mobile phone to control multiple
heaters, you need to select the heater to be
operated).
• Select the heater to be operated and enter the
operation interface.
If the phone interface color is dark red, this
indicates that the heater is in the OFF standby
setting.
• Tap the OFF icon and the heater will turn on.
The display will change to bright red.
• You can now control the heater.
• To turn the heater off again tap the power icon
and the heater will revert to the dark screen.
TEMPERATURE SETTING:
The temperature can be set from 15 – 35
o
C
• Tap the ‘+’ or ‘-’ button to set the temperature.
• When the set temperature is higher than the
ambient temperature, the heater begins to
heat.
• If the heater temperature setting is below
ambient temperature the heater will be in
standby mode and will not operate until the
ambient temperature drops below the set
temperature.

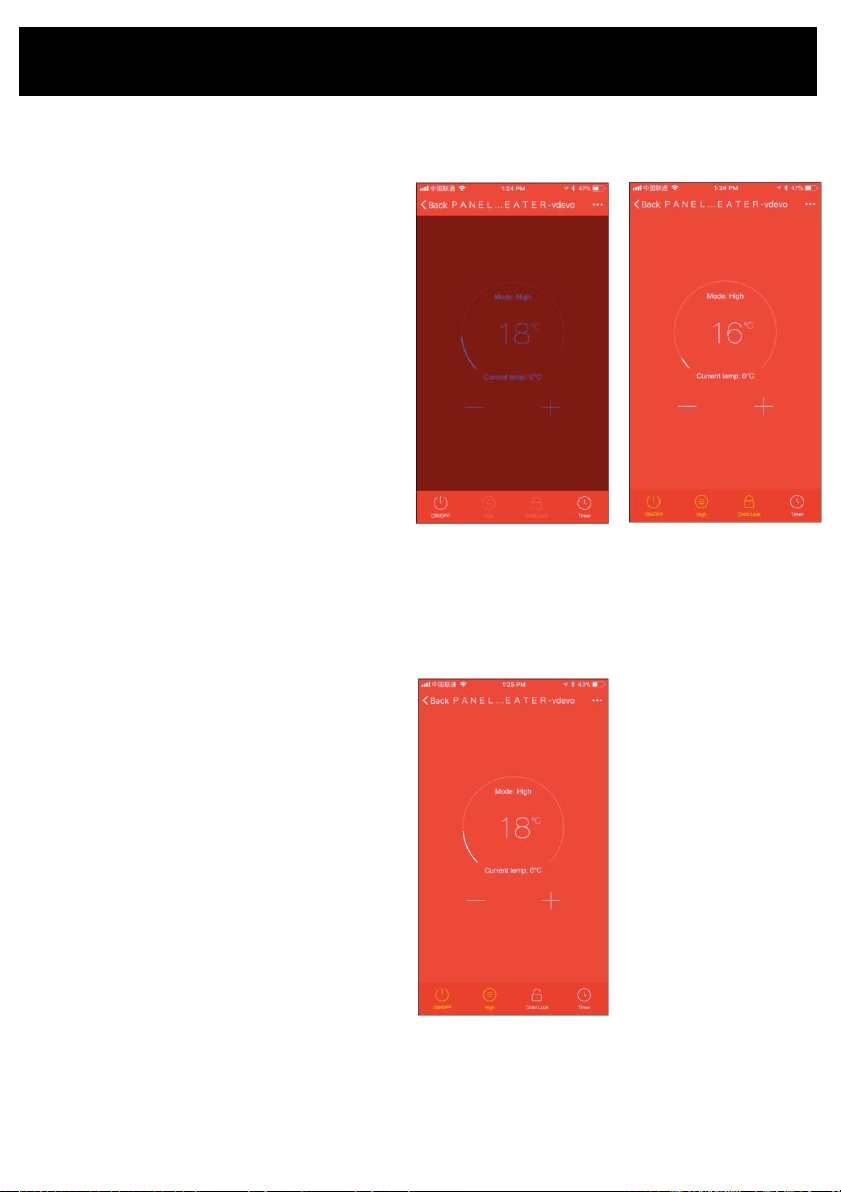

Dark Red – Heater Off
Bright Red – Heater On
HEAT SETTINGS
Press the HIGH/LOW button to switch between
high and low heat settings. The set level will be
shown on the bottom of the APP.
It will also show on the heater display as ‘Mode’
CHILD LOCK
Tap the padlock icon to display the closed padlock
indicating that the child lock is active.
Tap the padlock icon again to unlock the child lock.
You can adjust the heater settings with your mobile
phone without having to unlock the child lock.
Operating your Heater from the APP
AUTO OFF TIMER
When the heater is ON you can set it to turn OFF
after a number of hours (1-24 hours) has elapsed.
• In the APP, tap the heater to be operated and
enter the operation interface.
• With the power icon on the lower left corner of
the mobile phone interface is displaying ON
and the heater is turned ON.
• Tap the timer button and scroll to select the
number of hours before the heater will turn
OFF and tap OK to return to the heater
operation interface.
• The timer icon on the lower right will display
how long before the timer will turn the heater
OFF.
To cancel the timer, touch the timer button again
and the numbers will disappear and just show
timer.
SUPPORT AND TECHNICAL ADVICE
Goldair – New Zealand
Monday – Friday 8am-5pm
Phone +64 (0)9 917 4000
Phone 0800 232 633
Goldair – Australia
Monday – Friday 8am-5pm
Phone +61 (0)3 9365 5100
Phone 1300 465 324
Operating Your Heater
TECHNICAL SPECIFICATION
Model No: GPPH220
Supply: 220-240VAC 50/60Hz
Wattage: 2000W
PROOF OF PURCHASE
To receive warranty retain receipt as proof of purchase.
SAFETY DEVICES
This appliance has one protection device:
• Resettable Thermal Link - this will automatically disconnect the power to the
appliance at a pre-set overheat temperature. After cooling down it will reset and
power on again. If this occurs, investigate what is causing the appliance to
overheat.
CAUTION: The appliance generates heat during use. Precautions must be
taken to prevent the risk of burns, scalds, fires or other damage to persons.
CARE AND CLEANING
The heater requires regular cleaning to ensure trouble free operation:
• Unplug the heater from the mains supply before cleaning.
• Ensure that the heater has been allowed to cool down completely before cleaning.
• The common cause of overheating is deposits of dust or fluff in the appliance.
Ensure these deposits are removed regularly by unplugging the appliance and
vacuum cleaning the air vents and grills.
• Use a damp cloth (not wet) to wipe the exterior of the heater to remove dust and
dirt.
• Never use solutions such as petrol, thinners or polishing agents.
• Ensure the heater is dry before plugging back into the mains supply.
• Do not attempt to dismantle the heater.
• There are no user serviceable parts. For service or repair, contact an authorised
electrical service technician.
Thank you for purchasing this Goldair product. Your product is warranted against faults and manufacture when used in normal
domestic use for a period of three years. In non-domestic use Goldair limits the voluntary warranty to three months.
Goldair undertake to repair or replace this product at no charge if found to be defective due to a manufacturing fault during the
warranty period.
This warranty excludes damage caused by misuse, neglect, shipping accident, incorrect installation, or work carried out by anyone
other than a qualified electrical service technician.
PLEASE KEEP YOUR RECEIPT AS THIS WILL HELP VERIFY YOUR WARRANTY.
The benefits given to you by this warranty are in addition to other rights and remedies available to you under law in relation to the
goods or services to which this warranty relates.
In Australia, our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also
entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a
major failure.
In New Zealand this warranty is additional to the conditions and guarantees of the Consumers Guarantee Act (1993).
Three Year Warranty
Goldair Two Year Warranty (IMPORTANT: Please complete and retain this warranty card)
Name
Address
Place Of Purchase Date Of Purchase
Name Of Product Model Number
Attach a copy of the purchase receipt to this warranty card
Due to continual design improvements, the product illustrated in this User Manual may differ slightly from the actual product.
Goldair – New Zealand
CDB Goldair
PO Box 100-707
N.S.M.C
Auckland
Phone +64 (0)9 917 4000
Phone 0800 232 633
www.goldair.co.nz
Goldair – Australia
CDB Goldair Australia Pty
PO Box 574
South Morang
Victoria, 3752
Phone +61 (0)3 9365 5100
Phone 1300 GOLDAIR (1300 465 324)
www.goldair.com.au
New Zealand
PO Box 100707,
North Shore Mail Centre,
Auckland, 0745
www.goldair.co.nz
Australia
PO Box 574,
South Morang,
Victoria, 3752
www.goldair.com.au
