Flowchart and Reference Guides
This Guide
Shooting with the Camera
Software Starter Guide
Installing the Software
Software Starter Guide
Connecting the Camera to a Computer
Software Starter Guide
Downloading Images to a Computer
Camera User Guide
• This guide covers both the PowerShot S30 and PowerShot S40 digital cameras.
• Please start by reading the Precaution on the reverse side of this cover.
• Please see the User Guide that accompanies each printer.
DIGITAL CAMERA
Camera User Guide
CDI-E055-010 XXXXXXX © 2002 CANON INC. PRINTED IN JAPAN
ENGLISH
Precaution
Camera Body Temperature
If your camera is used for prolonged periods, the camera body may become
warm. Please be aware of this and take care when operating the camera for an
extended period.
About the LCD Monitor
The LCD monitor is produced with extremely high-precision manufacturing
techniques. More than 99.99% of the pixels operate to specification. Less than
0.01% of the pixels may occasionally misfire or appear as red or black dots. This
has no effect on the recorded image and does not constitute a malfunction.
Please read through the “Read This First” section (p. 4) before using your camera.
Video Format
Please set the camera’s video signal format to the one used in your region before using it
with a TV monitor (p. 138).
Language Setting
Please see page 25 to change the language setting.
Charging the Date/Time Battery
• The camera has a built-in rechargeable lithium battery that maintains the date, time
and other camera settings. This battery recharges when the main battery pack is
inserted into the camera. When you first purchase the camera, place a charged
battery pack in it or use the AC adapter kit (sold separately) for at least 4 hours to
charge the date/time battery. It will charge even when the camera power is set to Off.
• If the Set Date/Time menu appears when the camera power is turned on, it means
that the date/time battery charge is depleted. Recharge it as described above.
Disclaimer
• While every effort has been made to ensure that the information contained in this guide
is accurate and complete, no liability can be accepted for any errors or omissions.
• Canon Inc. reserves the right to change the specifications of the hardware and software
described herein at any time without prior notice.
• No part of this guide may be reproduced, transmitted, transcribed, stored in a retrieval
system, or translated into any language in any form, by any means, without the prior
written permission of Canon Inc.
• Canon Inc. makes no warranties for damages resulting from corrupted or lost data due
to a mistaken operation or malfunction of the camera, the software, the
CompactFlash™ cards (CF cards), personal computers, peripheral devices, or use of non-
Canon CF cards.
Trademark Acknowledgements
• Canon, PowerShot and Bubble Jet are trademarks of Canon, Inc.
• CompactFlash is a trademark of SanDisk Corporation.
• Other names and products not mentioned above may be registered trademarks or
trademarks of their respective companies.
Copyright ©2002 Canon Inc. All rights reserved.
FCC Notice
Digital Camera, Model PC1016 and PC1018
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions;
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
Note: This equipment has been tested and found to comply with the limits for Class B digital
devices, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
The cables with the ferrite core provided with the digital camera must be used with this
equipment in order to comply with Class B limits in subpart B of Part 15 on FCC rules.
Do not make any changes or modifications to the equipment unless otherwise specified in the
manual. If such changes or modifications should be made, you could be required to stop
operation of the equipment.
Canon U.S.A. Inc.
One Canon Plaza, Lake Success, NY 11042, U.S.A.
Tel No. (516) 328-5600
Canadian Radio Interference Regulations
THIS CLASS B DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN INTERFER-
ENCE CAUSING EQUIPMENT REGULATIONS.
Réglementation canadienne sur les interférences radio
CET APPAREIL NUMERIQUE DE LA CLASSE B RESPECTE TOUTES LES EXIGENCES DU REGLEMENT
SUR LE MATERIEL BROUILLEUR DU CANADA.
Precautions
This digital camera is designed to perform optimally when used with genuine Canon
brand digital camera accessories (“Canon Brand Accessories”).
You may use non Canon Brand Accessories with this Digital Camera. However,
Canon Makes no warranties concerning, and is not responsible for damages
resulting from, use of non Canon Brand Accessories.
Table of Contents 1
Read this First ............................................................................. 4

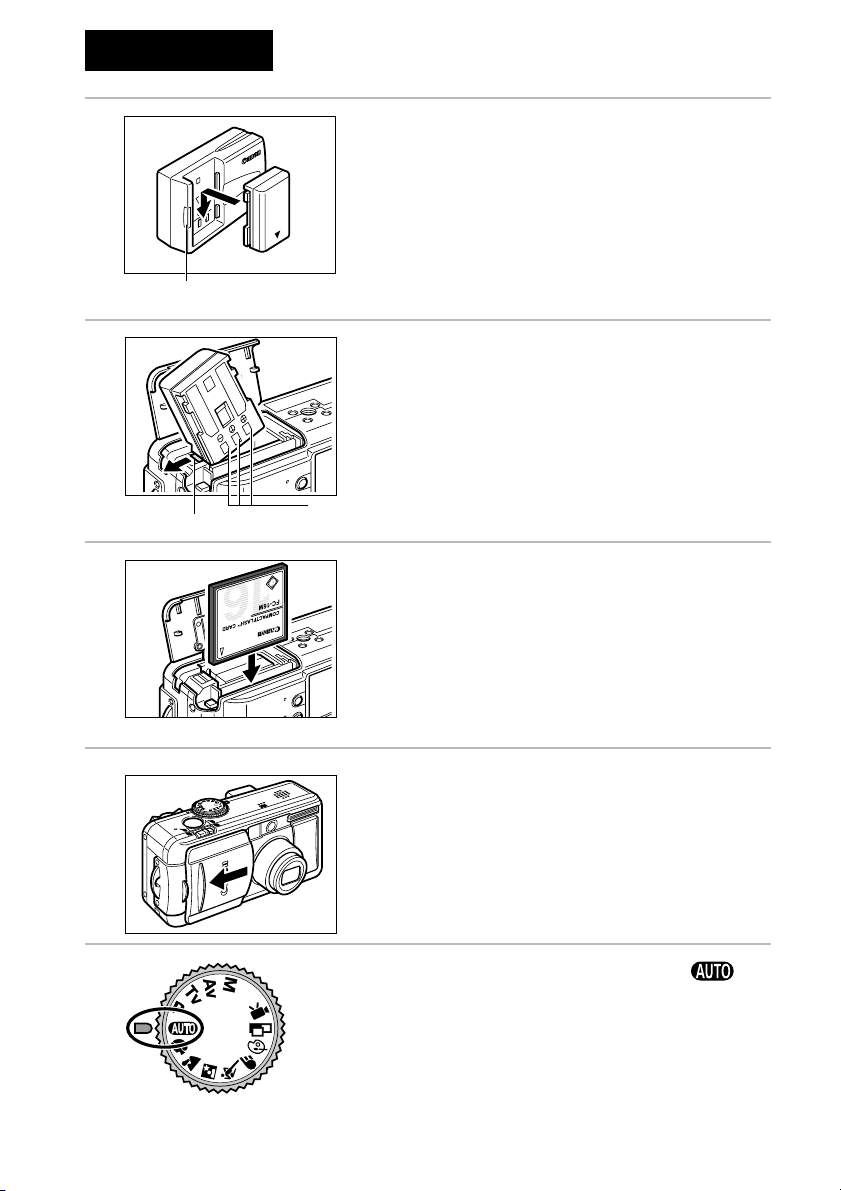

Quick Start .................................................................................. 8
Components Guide ................................................................... 10

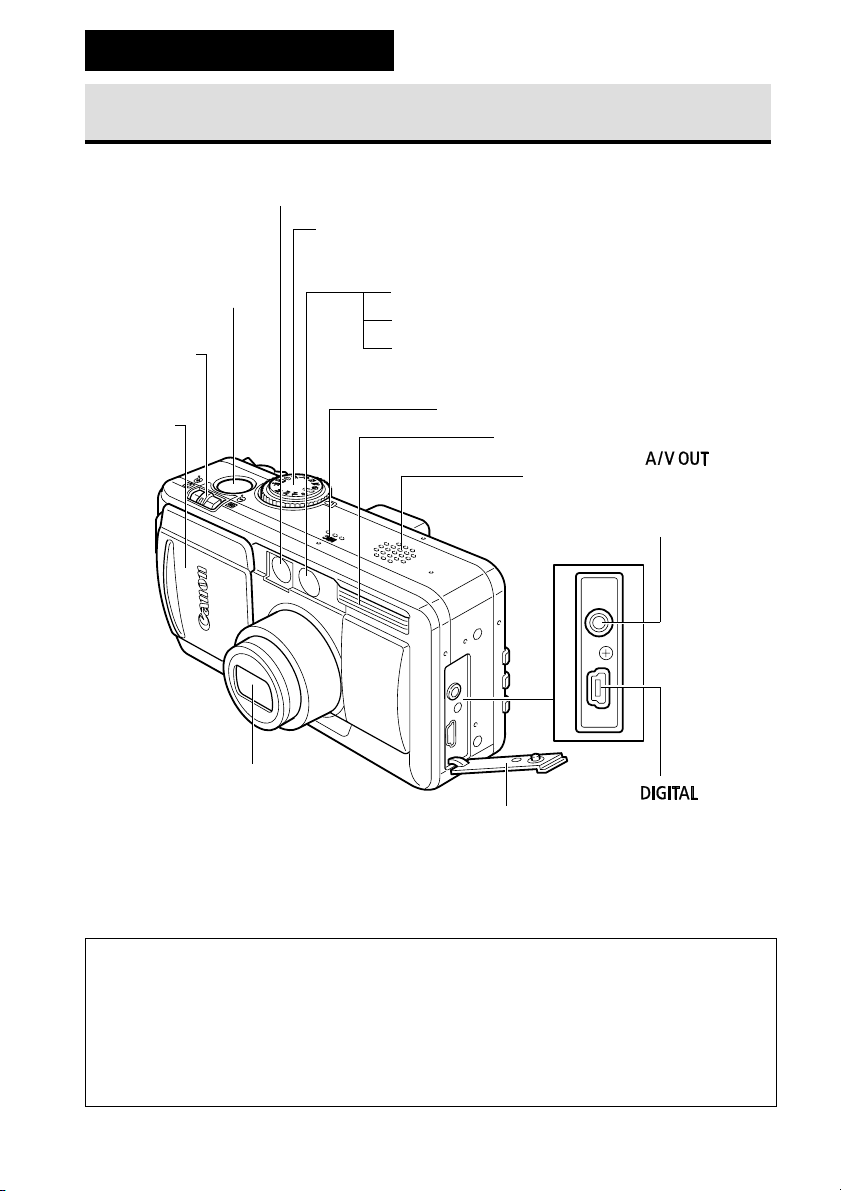

Front View ................................................................................... 10

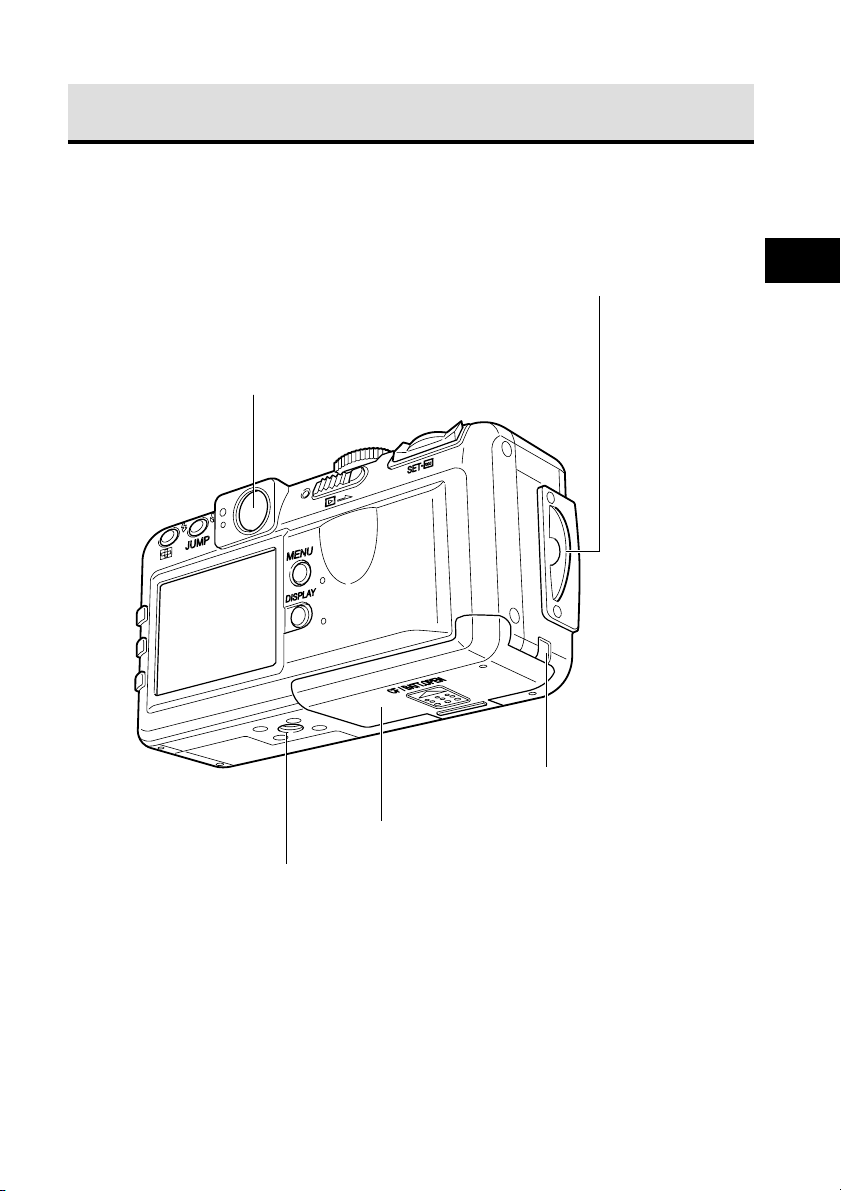

Back / Bottom View ...................................................................... 11
Controls ....................................................................................... 12
Shooting Mode Dial ...................................................................... 13

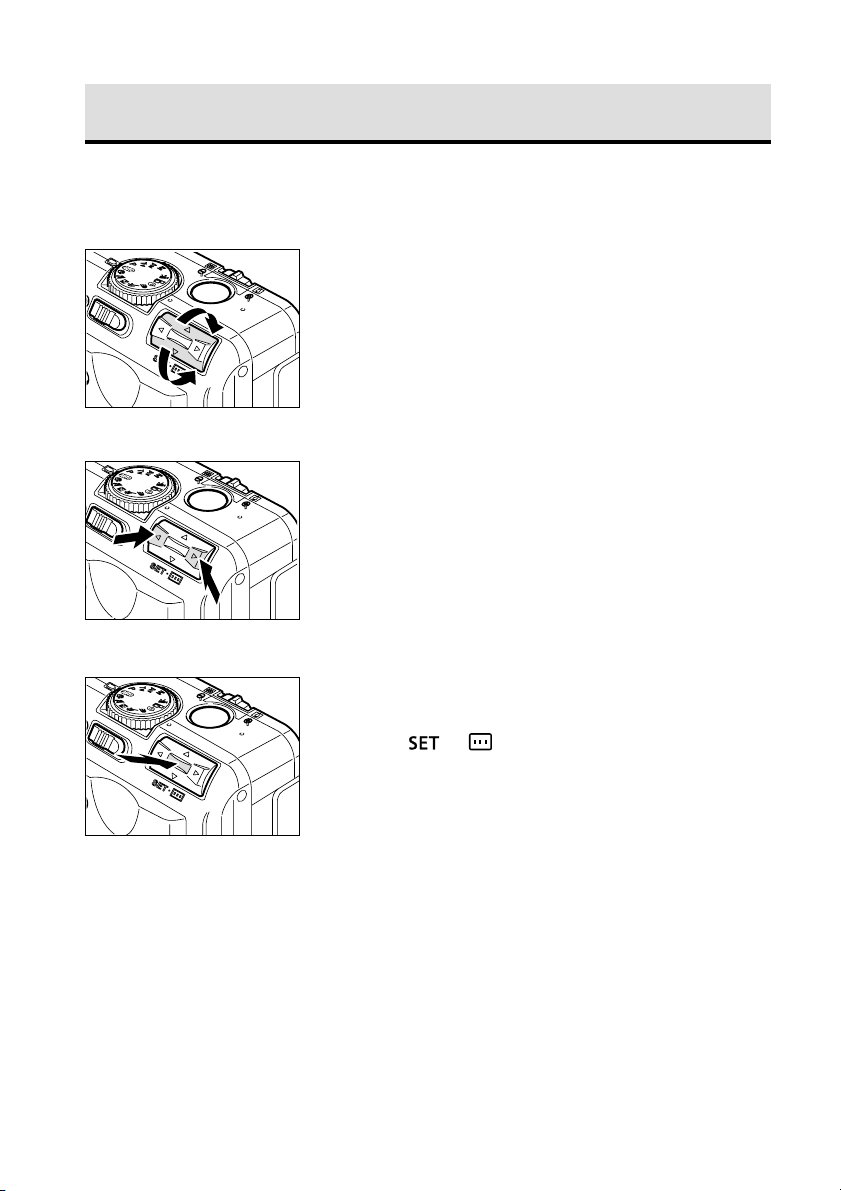

Operating the Multicotroller .......................................................... 14
Preparing the Camera .............................................................. 15

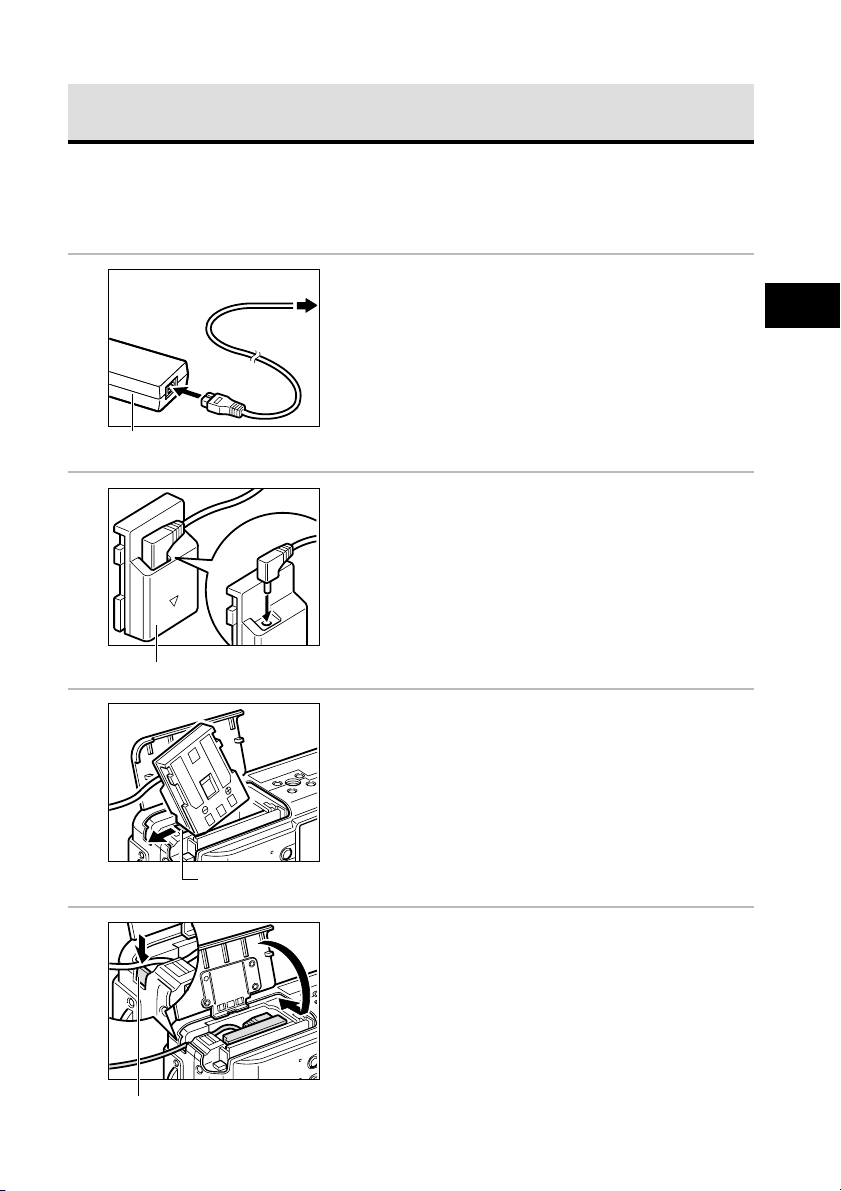

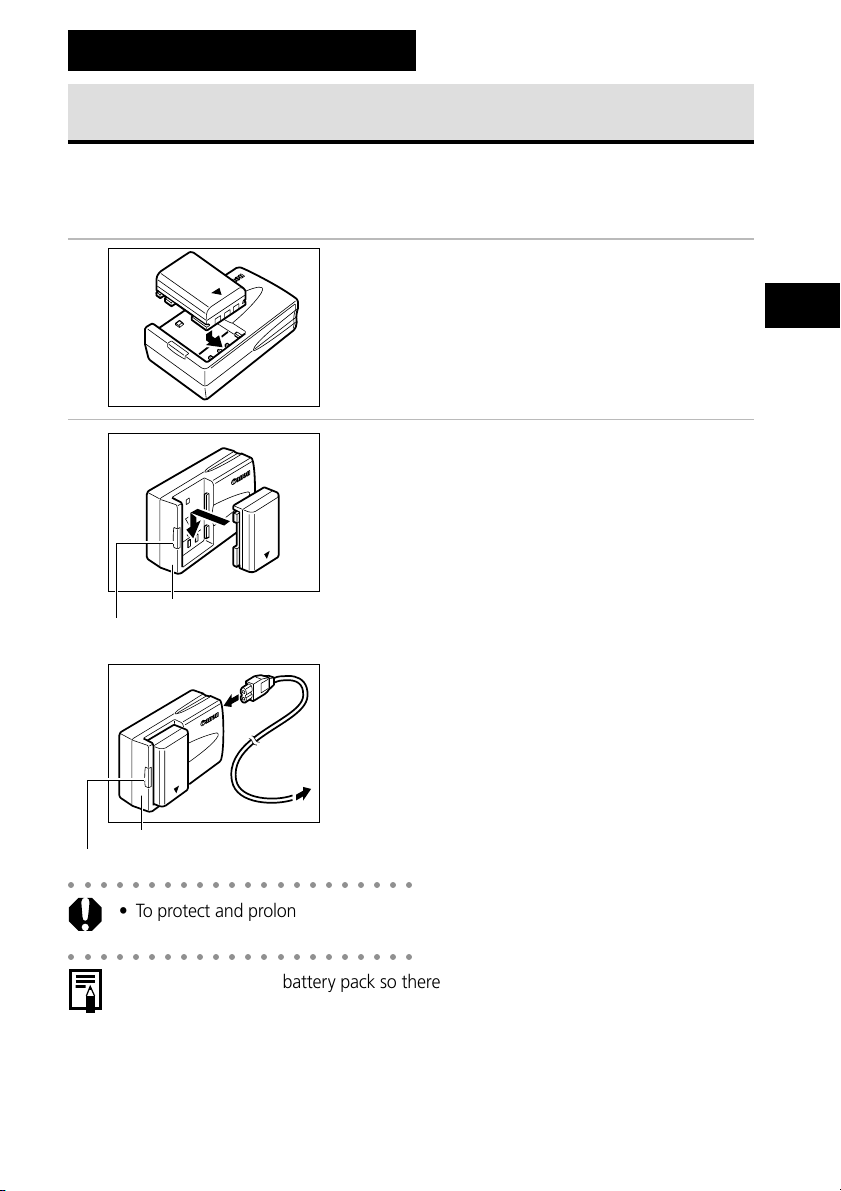

Charging the Battery Pack ............................................................. 15

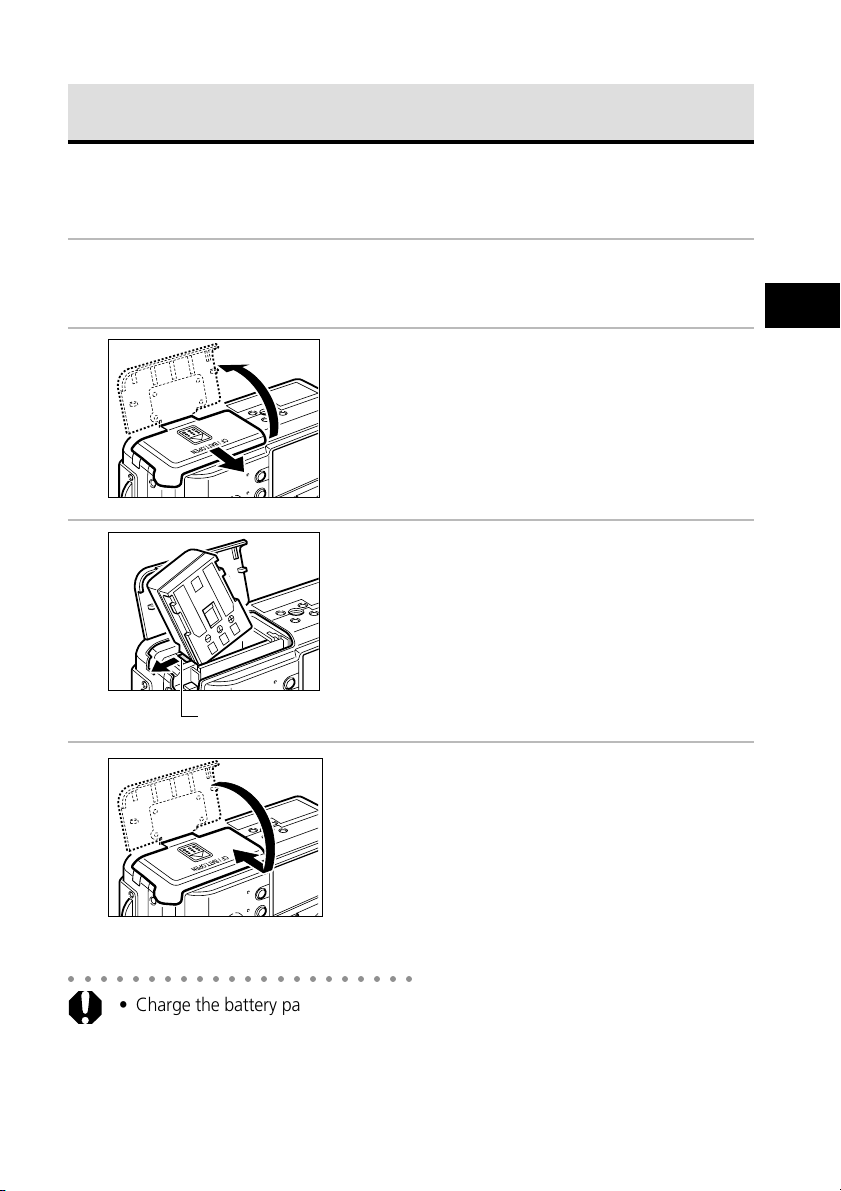

Installing the Battery Pack ............................................................. 17
Using a Household Power Source .................................................. 19
Installing a CF Card ....................................................................... 21

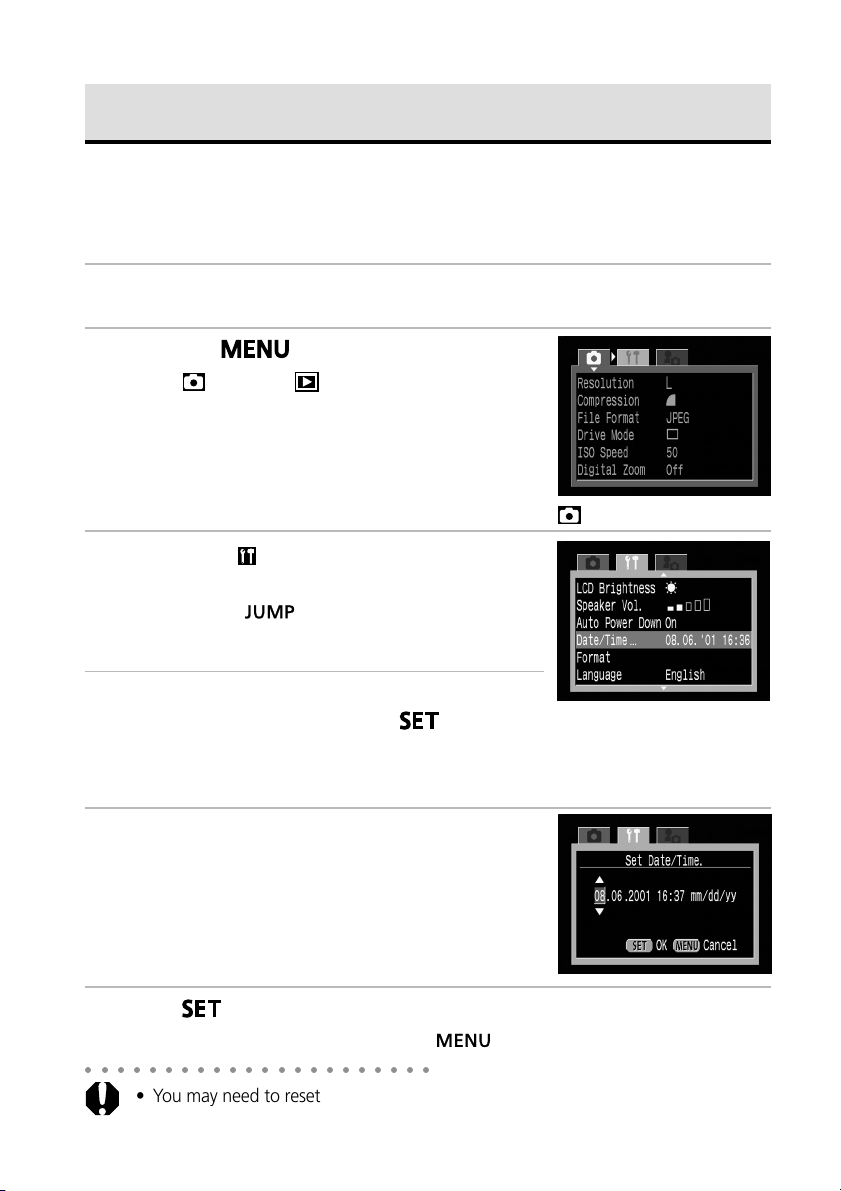

Setting the Date / Time ................................................................. 24

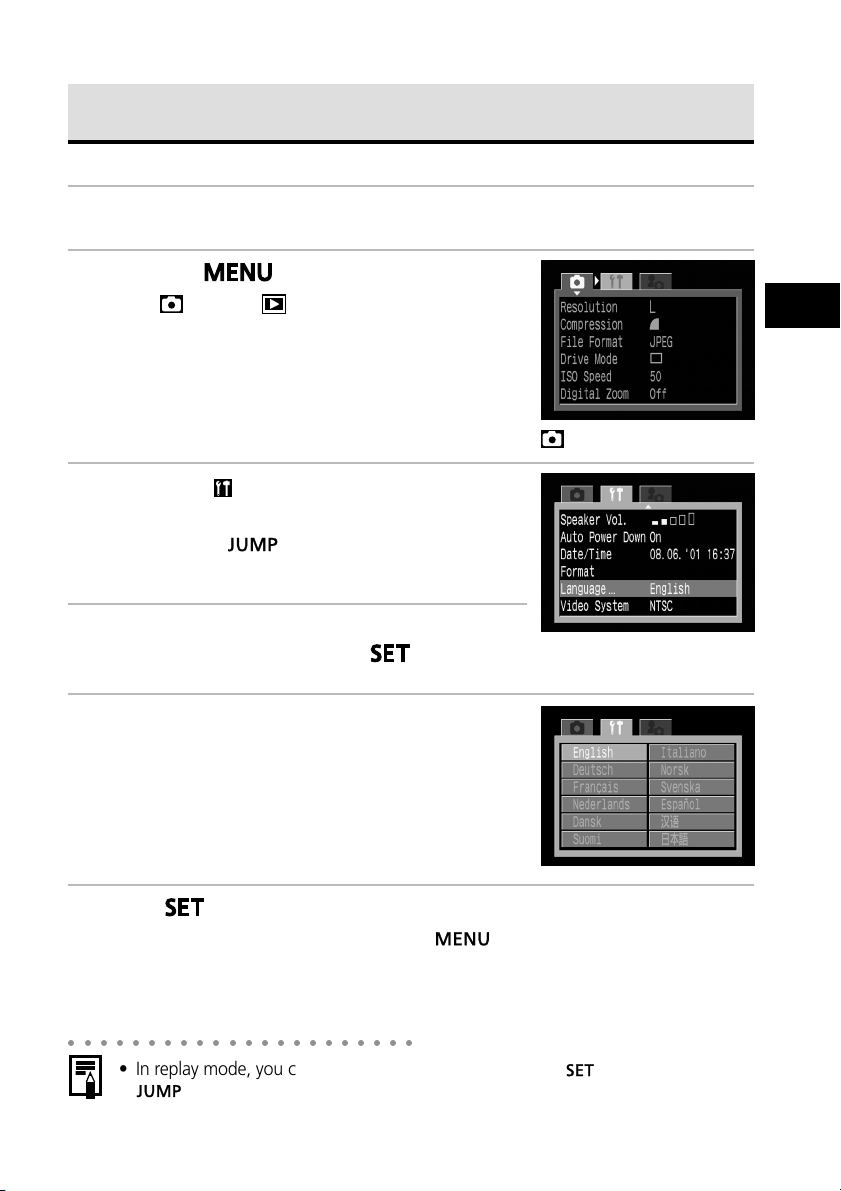

Setting the Language .................................................................... 25

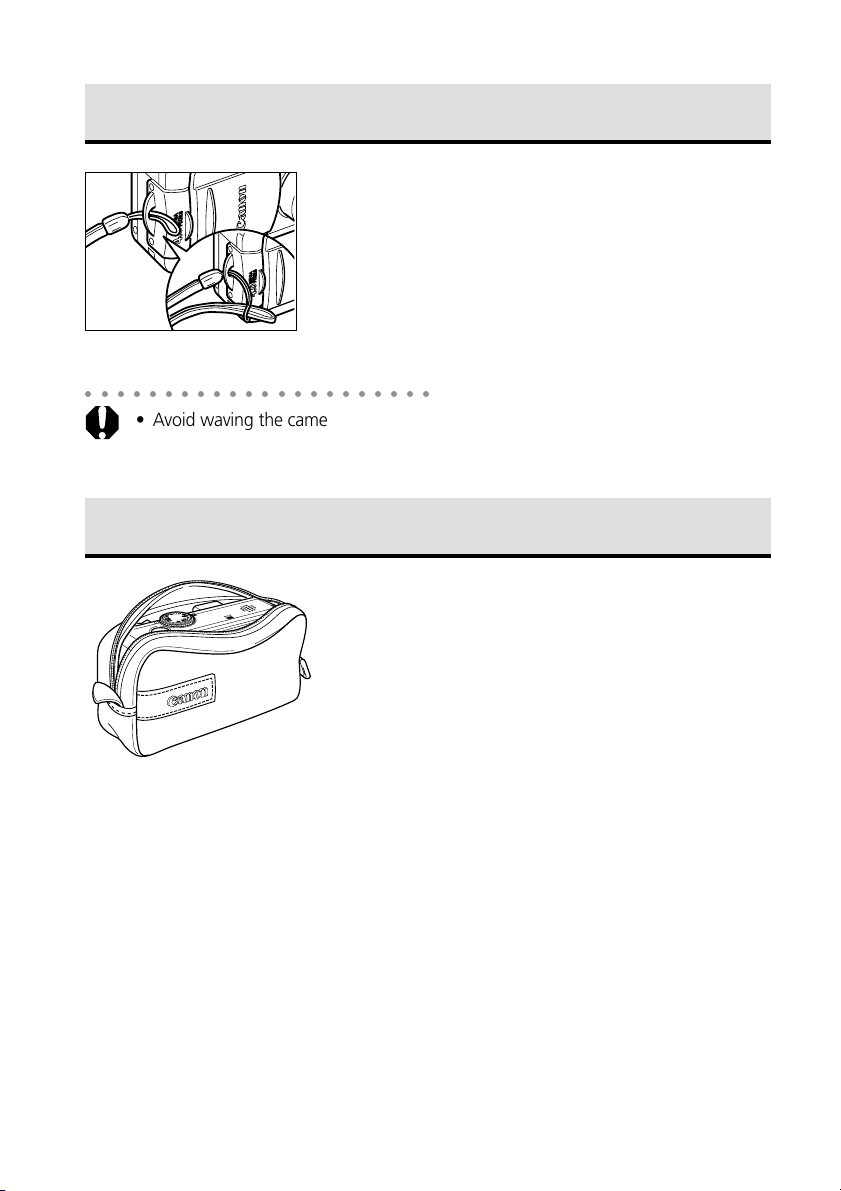

Attaching the Strap ...................................................................... 26
Using the Soft Case (Optional) ...................................................... 26
Basic Functions.......................................................................... 27
Turning the Power On / Off ........................................................... 27
Switching between Shooting and Replaying ................................... 29

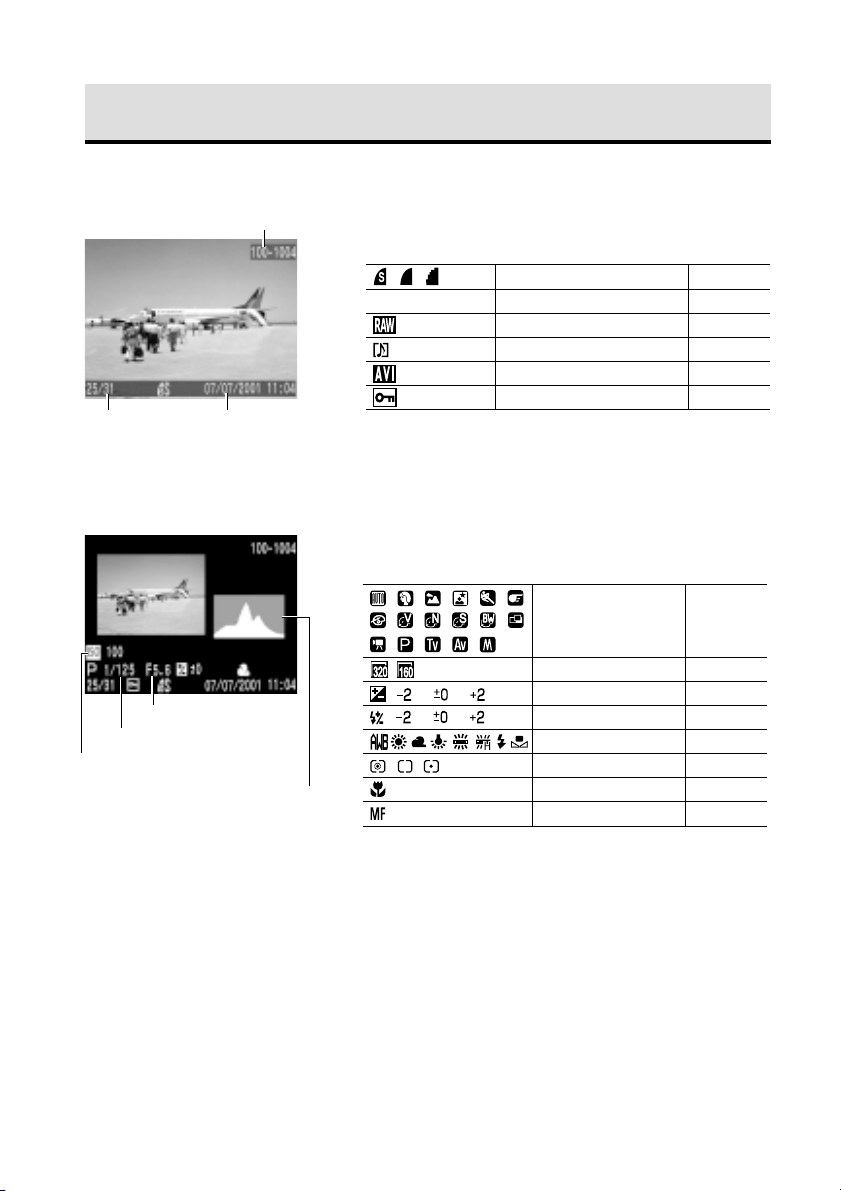

Switching the LCD Monitor Display Mode ...................................... 30

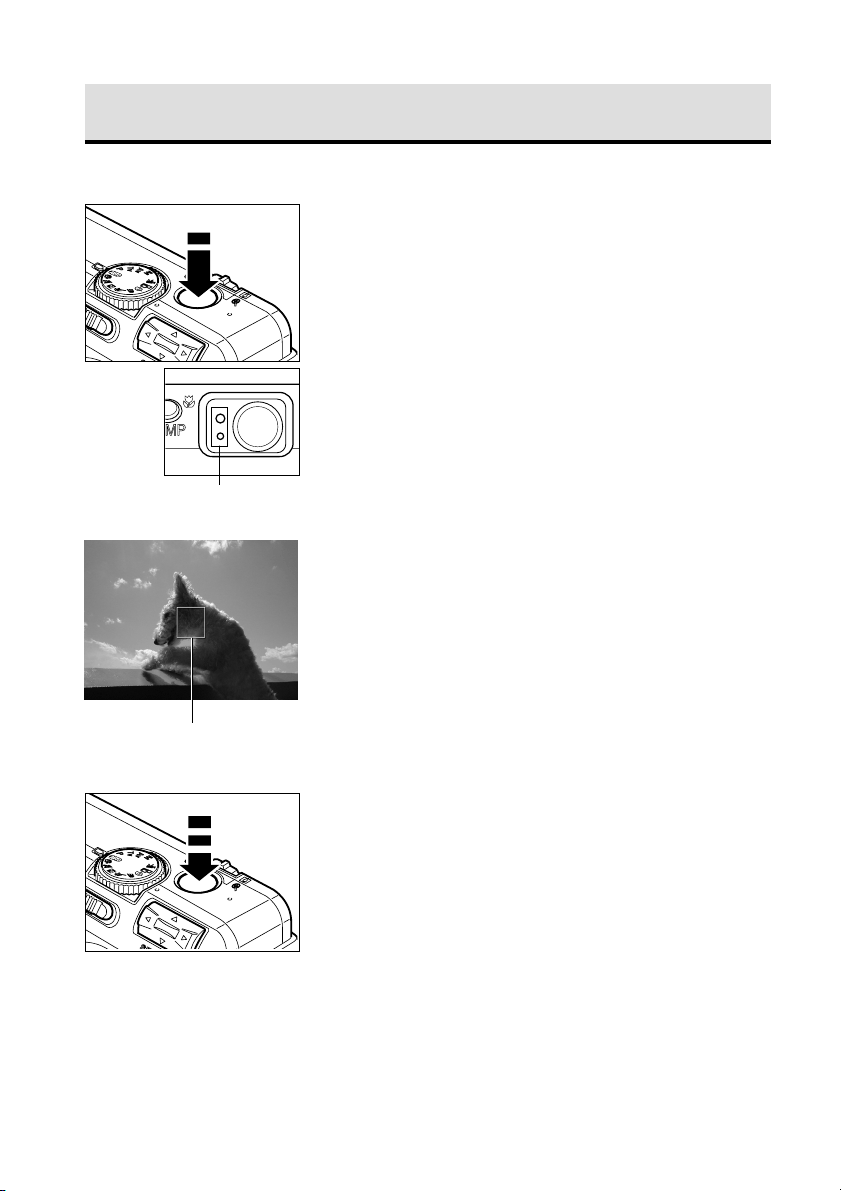

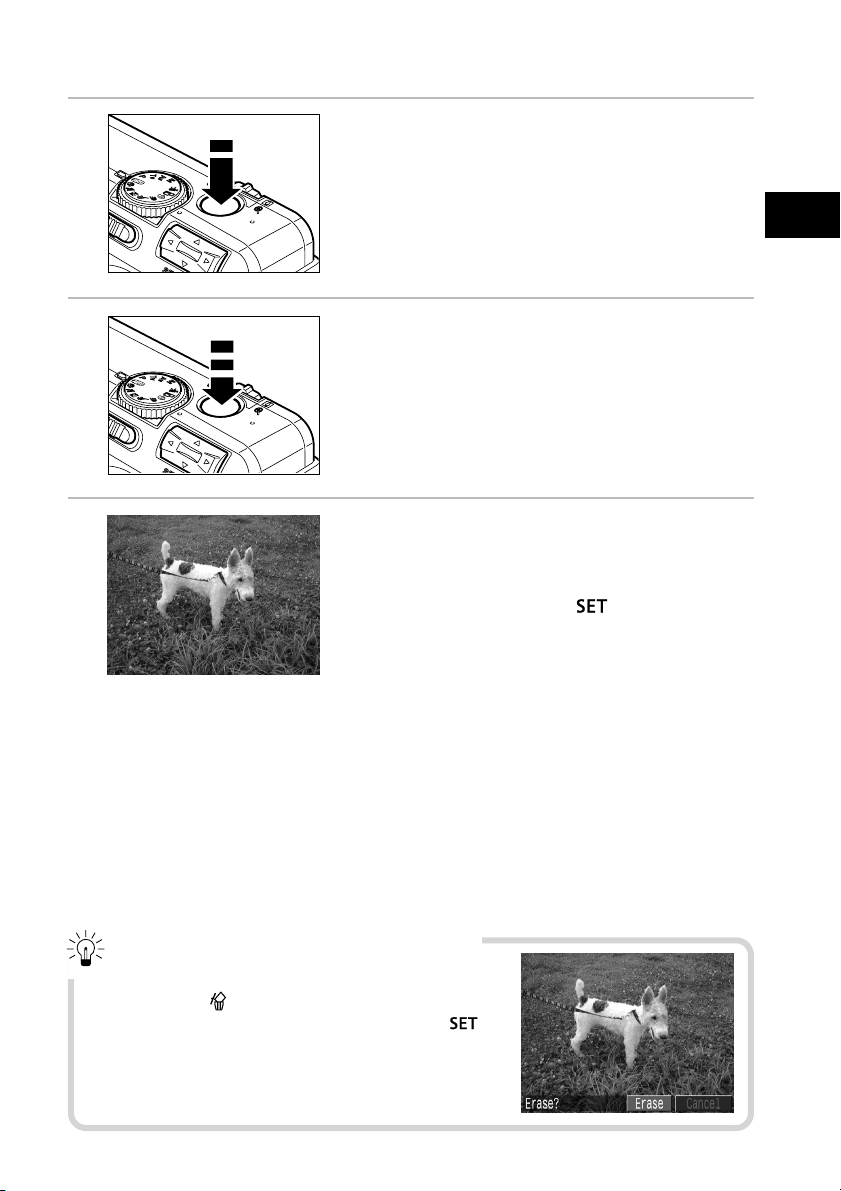

Pressing the Shutter Button ........................................................... 34

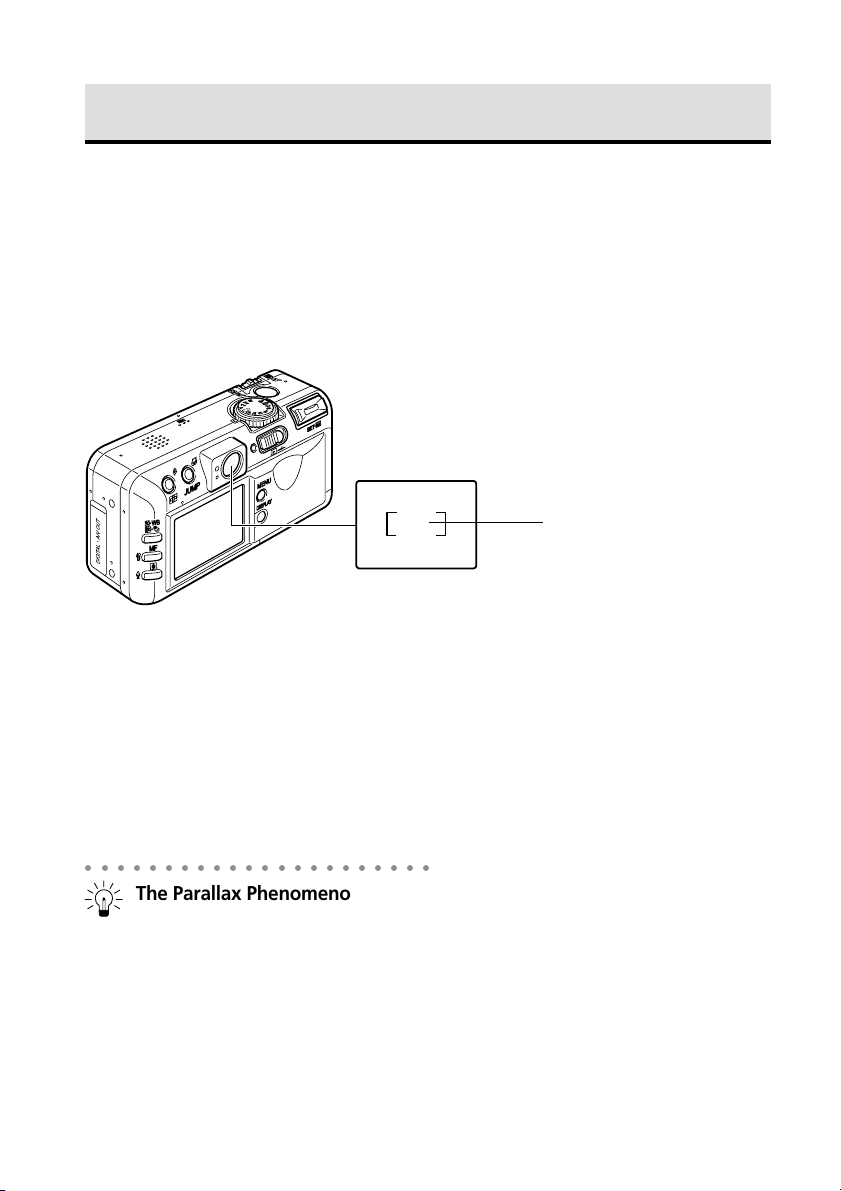

Using the Optical Viewfinder to Shoot ........................................... 36
Adjusting the Zoom (Focal Length) ................................................ 37

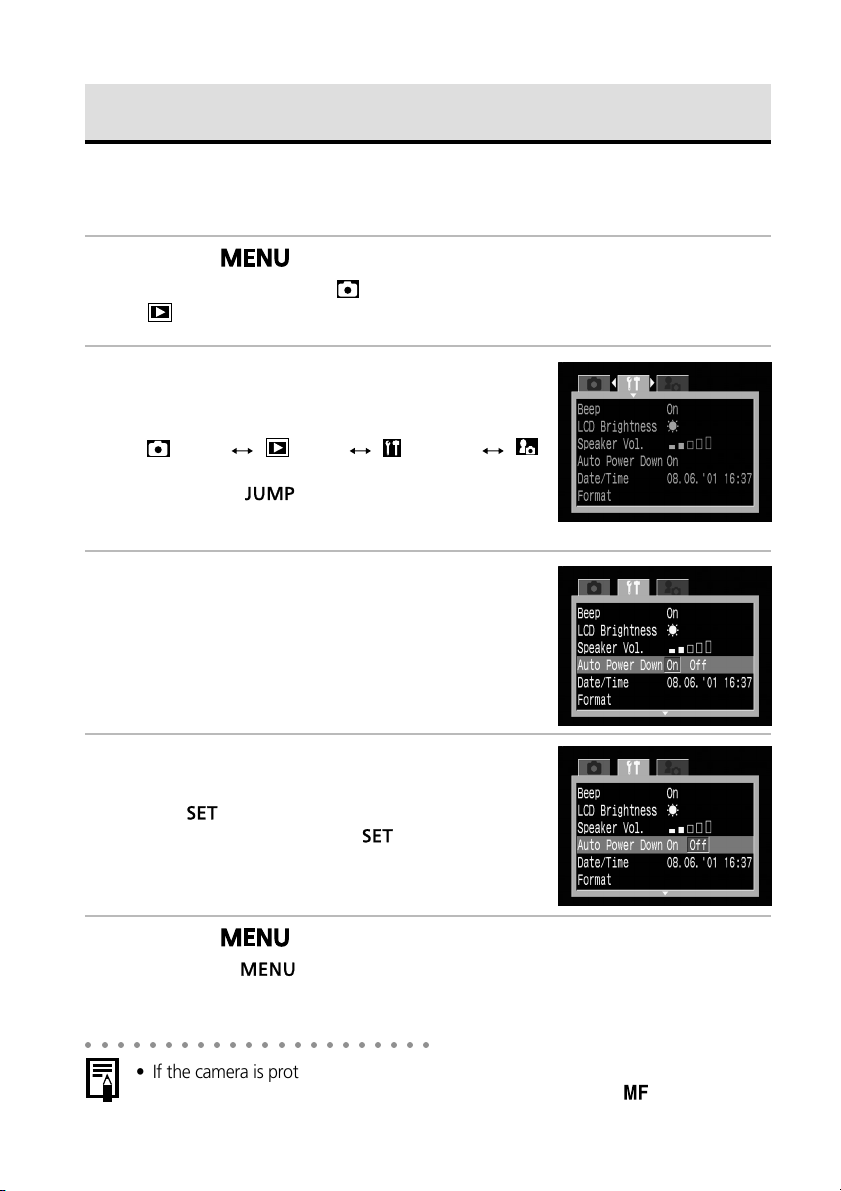

Selecting Menus and Settings ........................................................ 38
Customizing the Camera (My Camera Settings) ...................... 41
Changing My Camera Settings ...................................................... 41

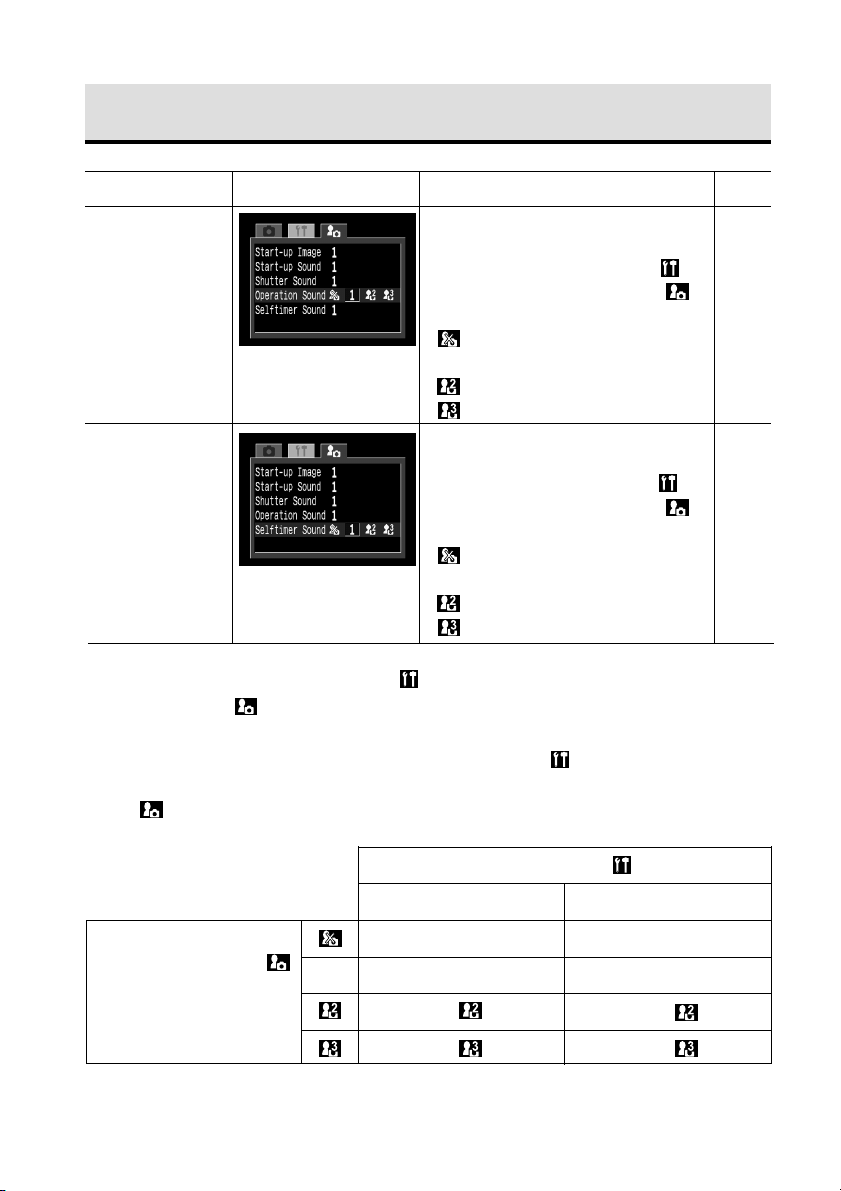

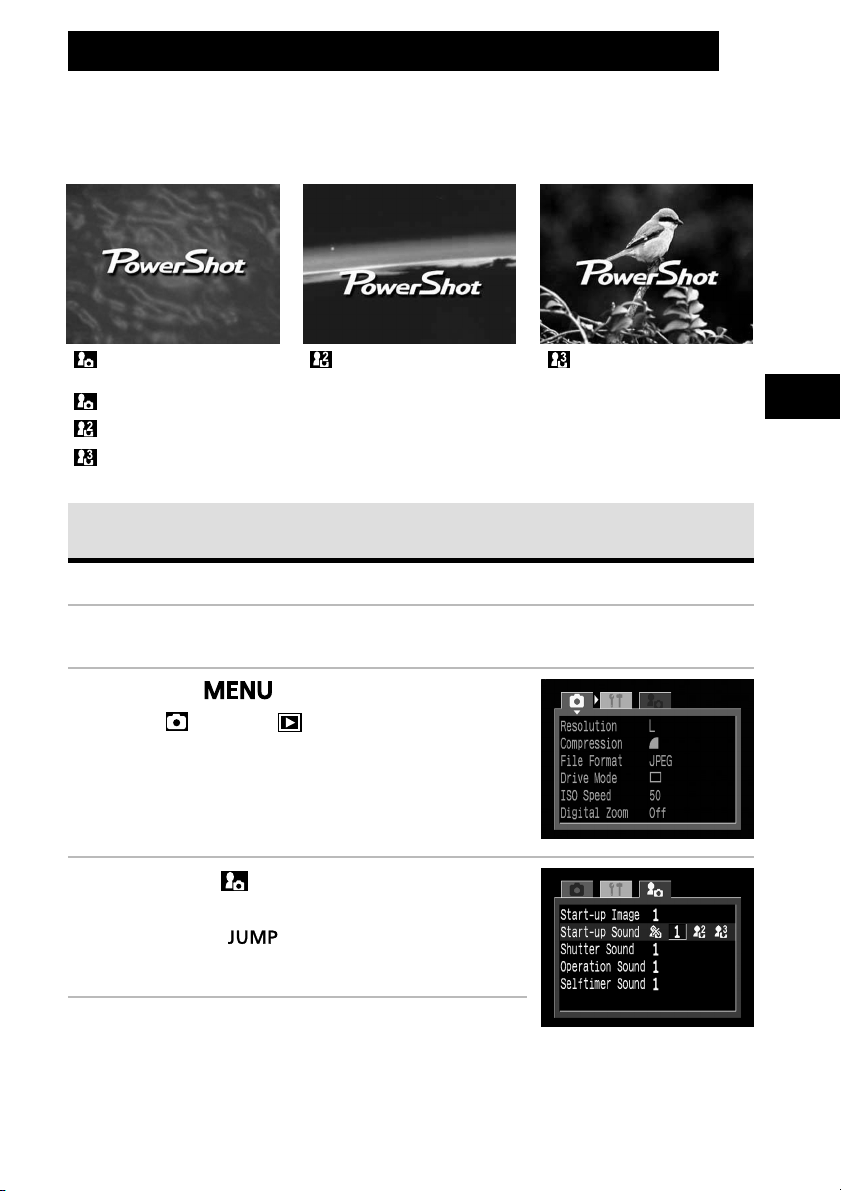

Customizing My Camera Settings .................................................. 43
Shooting - Letting the Camera Select Settings ......................... 44
Auto Mode .......................................................................... 44
Checking an Image Right after Shooting ........................................ 46

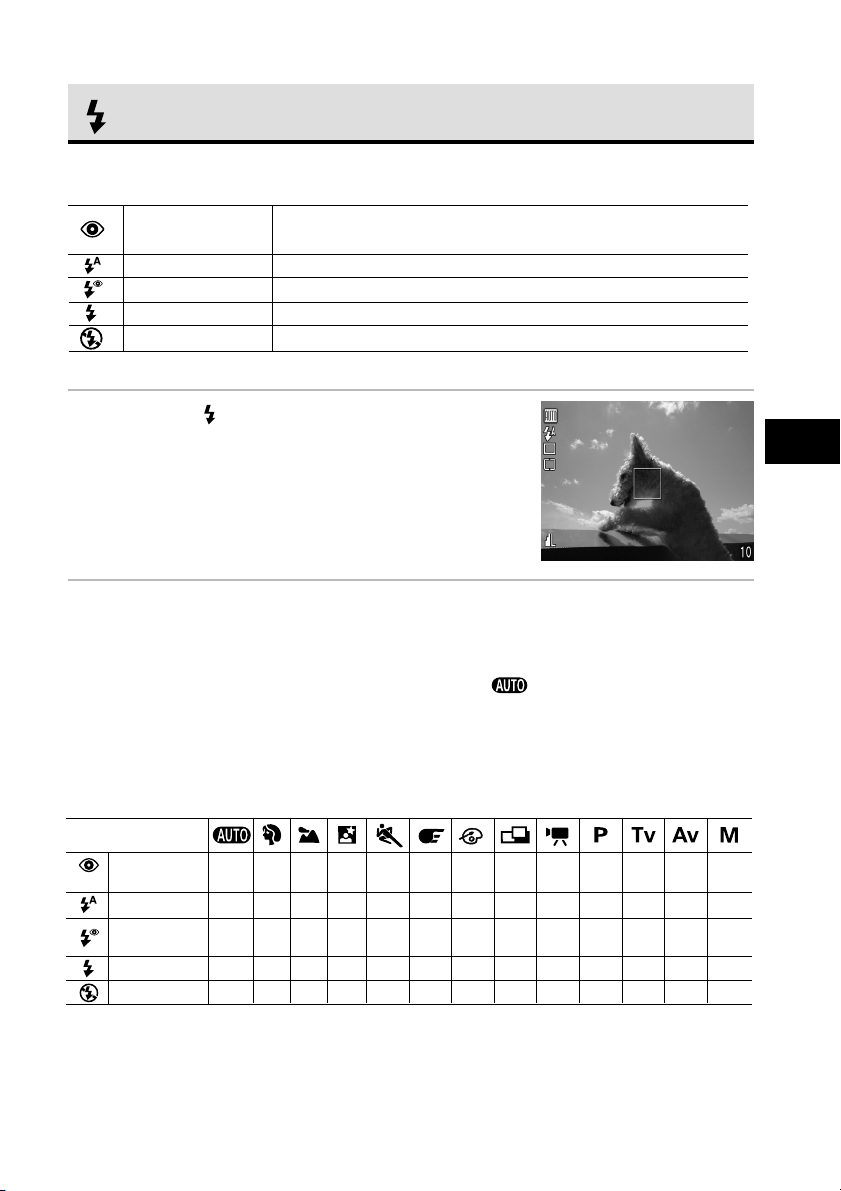

Using the Flash .................................................................... 47

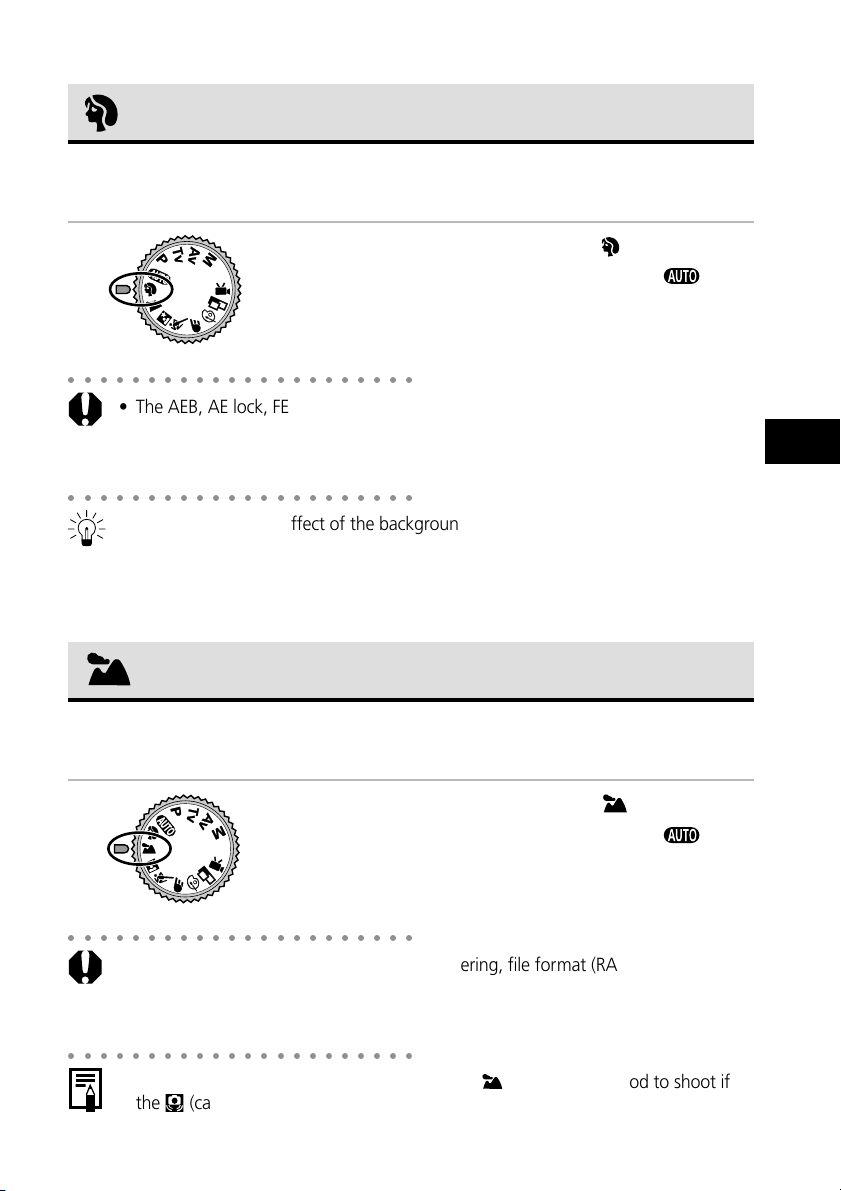

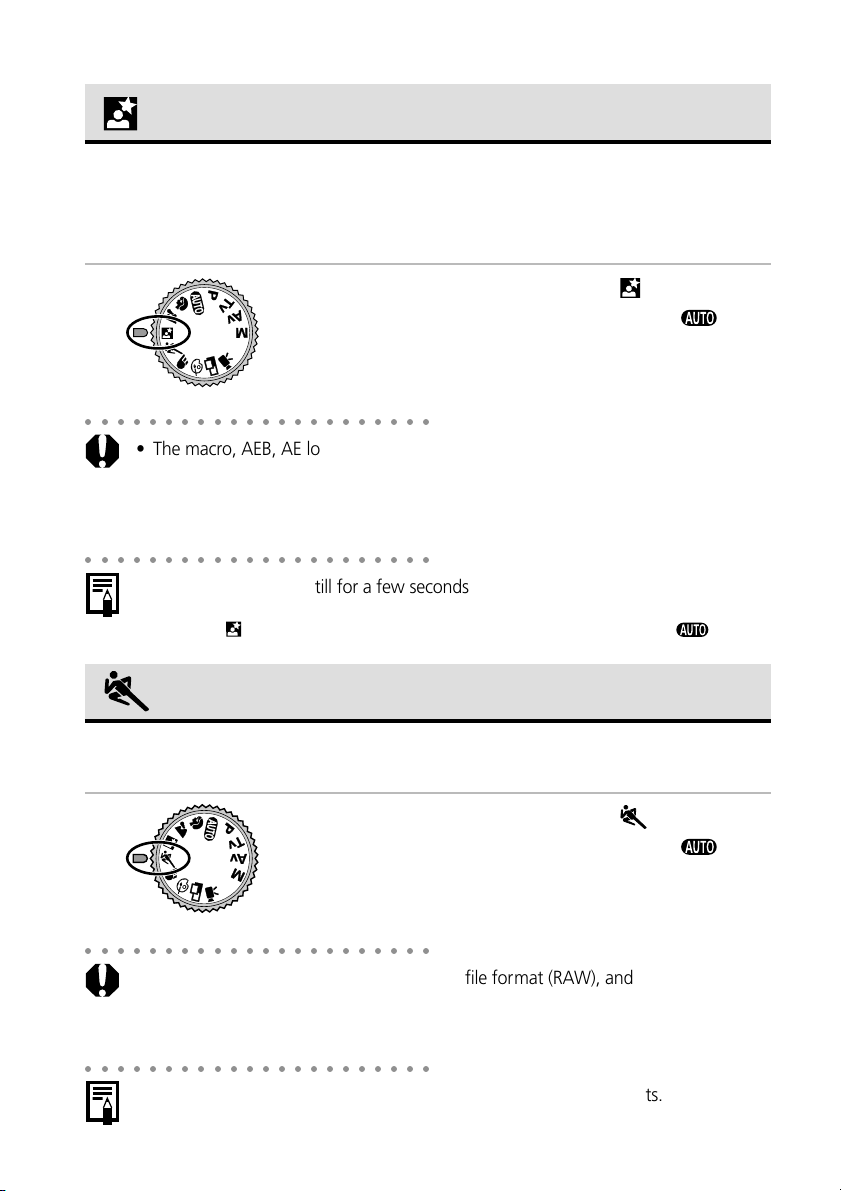

Portrait Mode ...................................................................... 49
Landscape Mode ................................................................. 49
Night Scene Mode ............................................................... 50
Fast Shutter ......................................................................... 50
Slow Shutter ........................................................................ 51

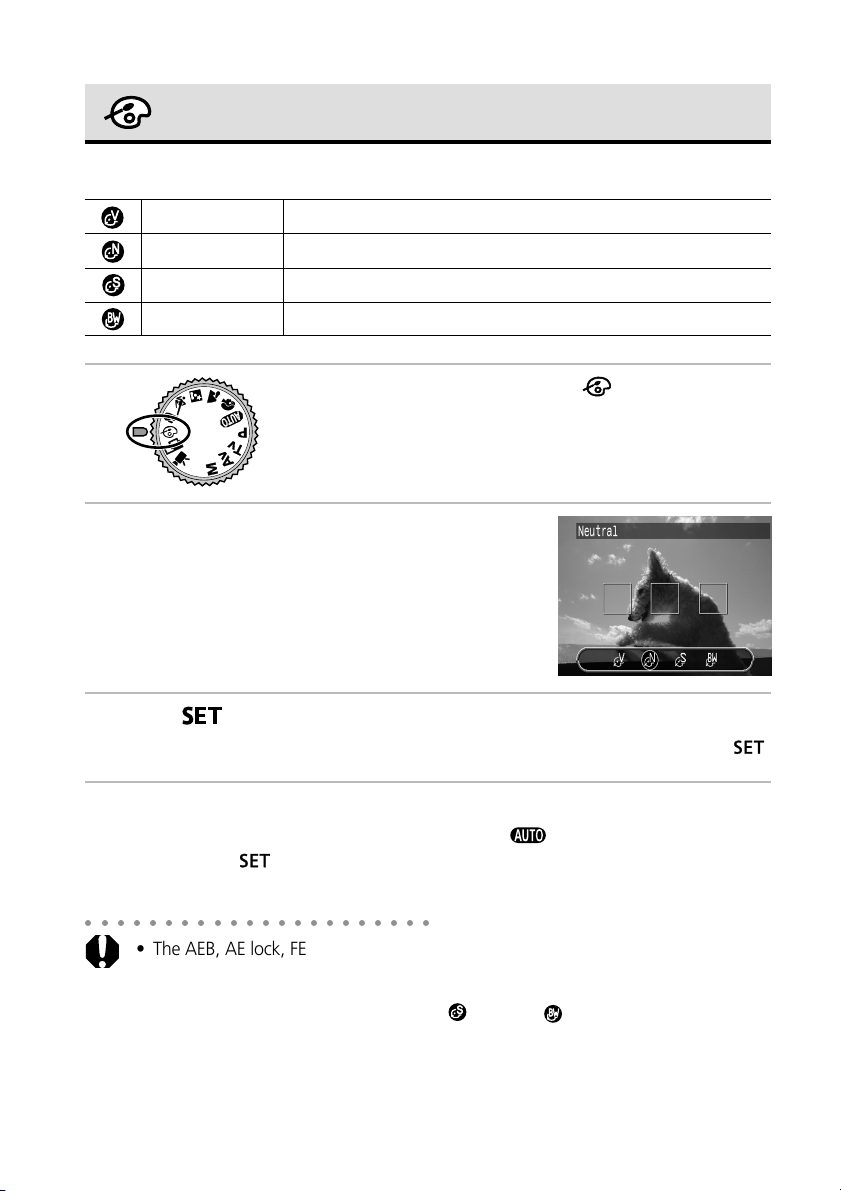

Changing the Color Effect .................................................... 52

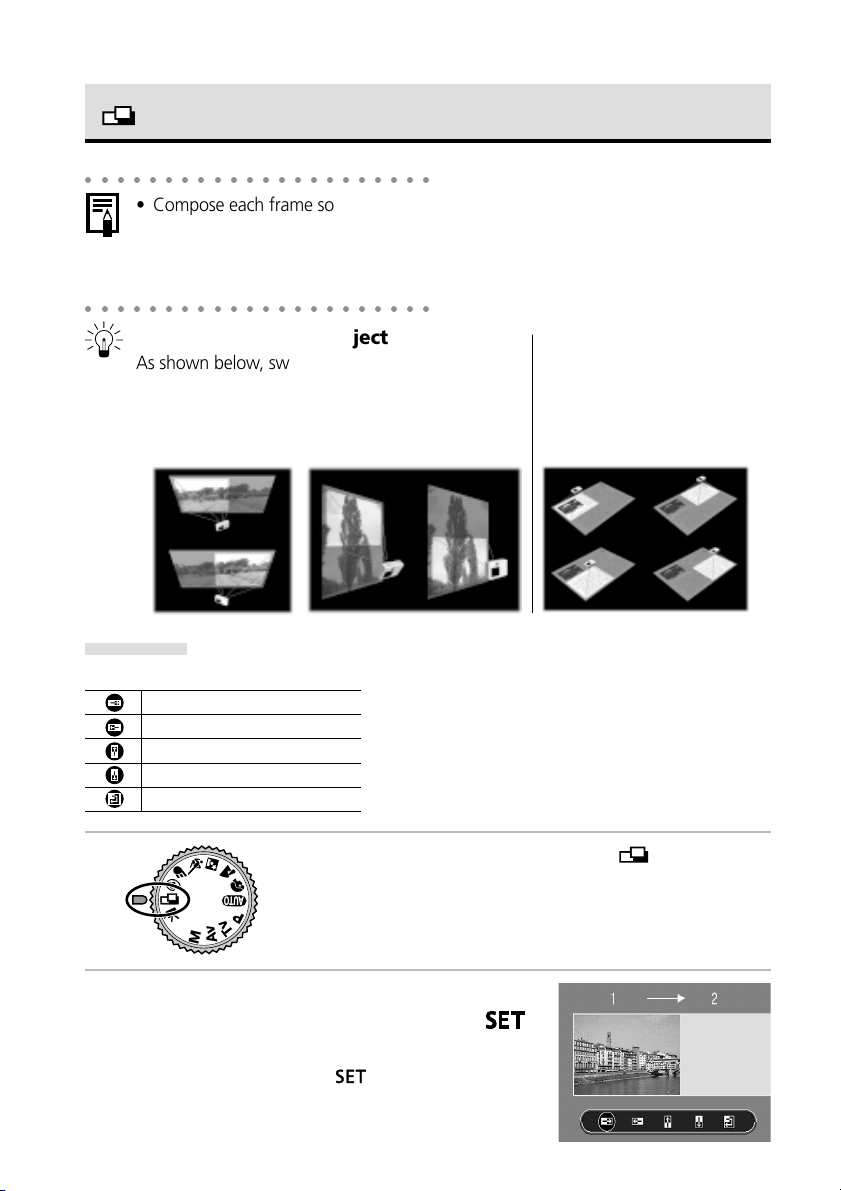

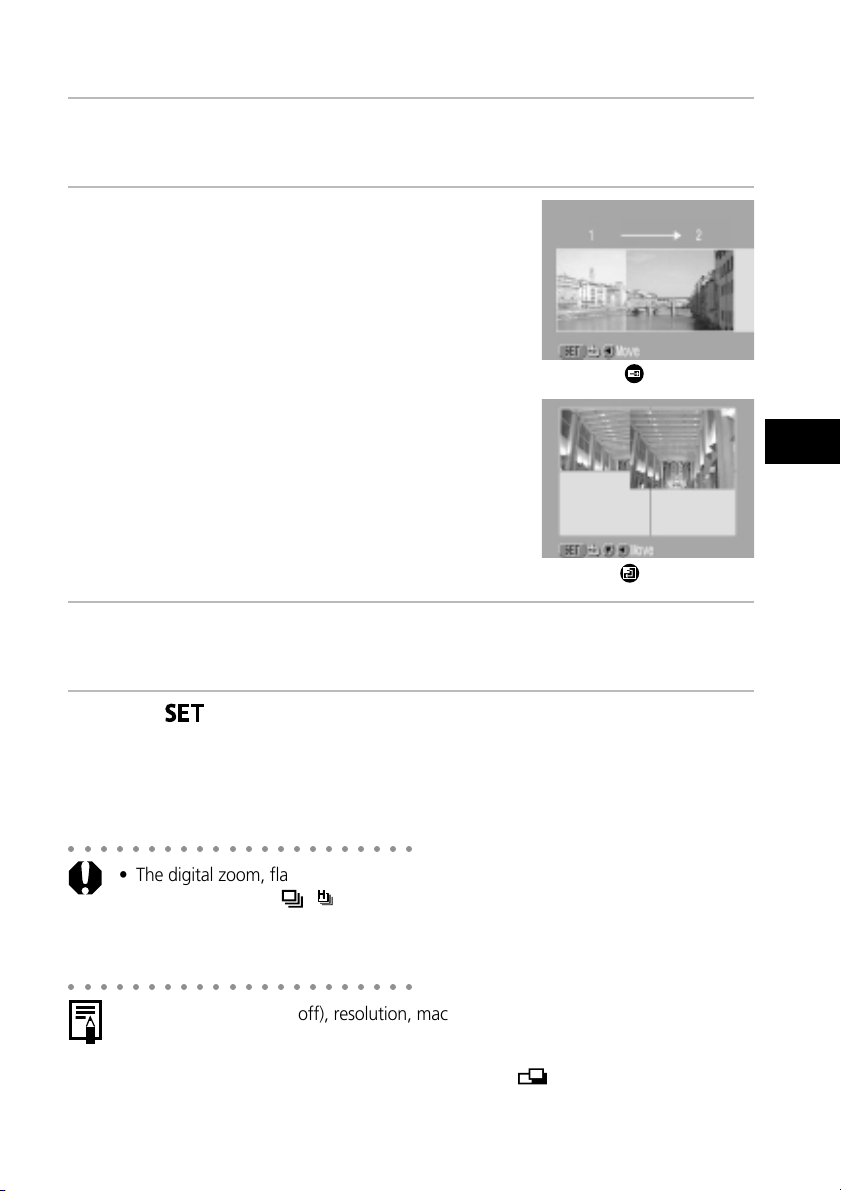

Stitch Assist Mode ................................................................ 53
Movie Mode ........................................................................ 56

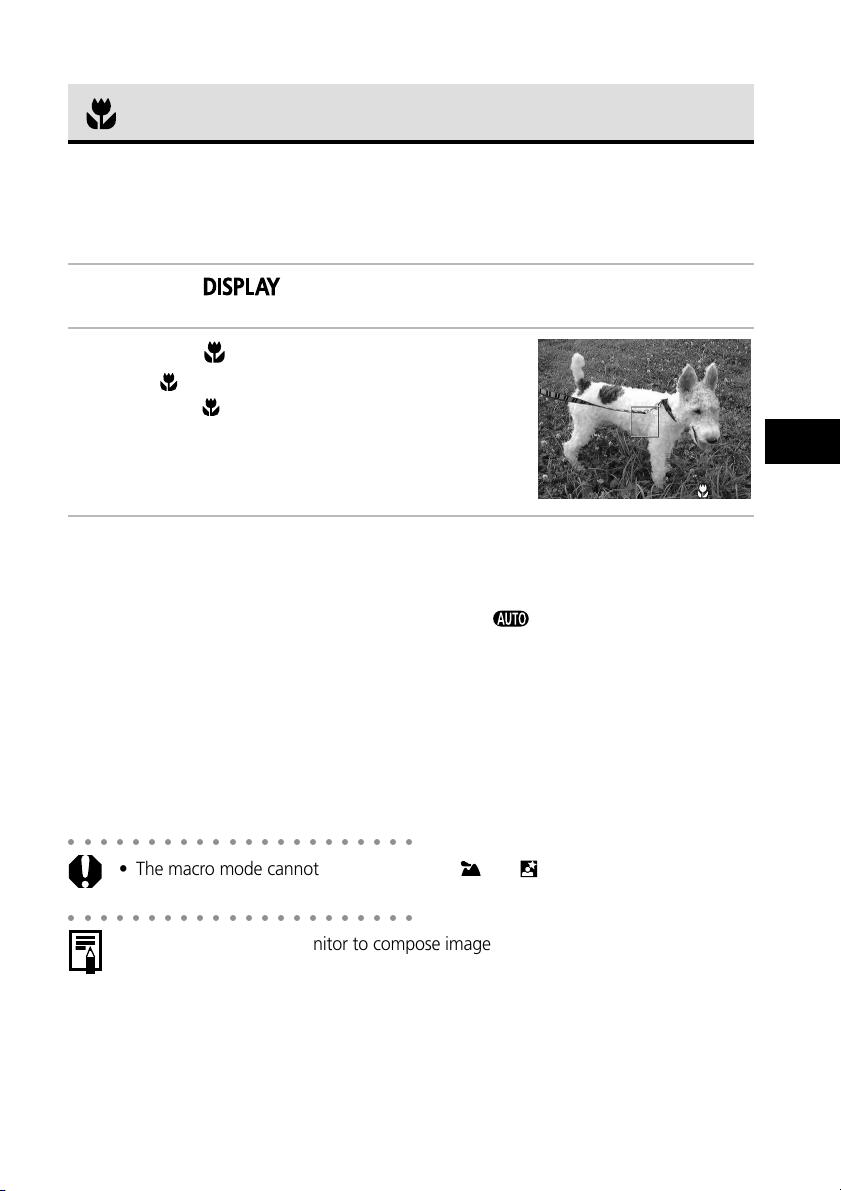

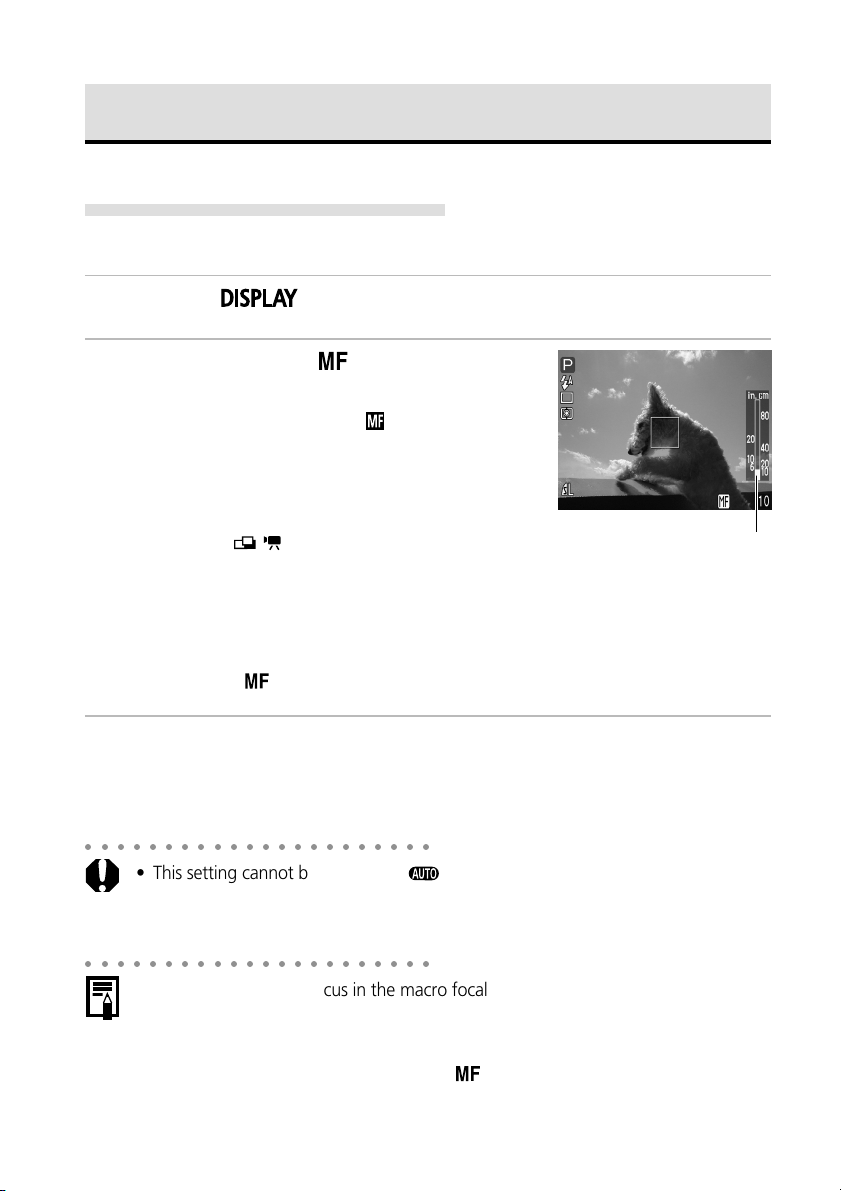

Macro Mode........................................................................ 57
Table of Contents
2 Table of Contents

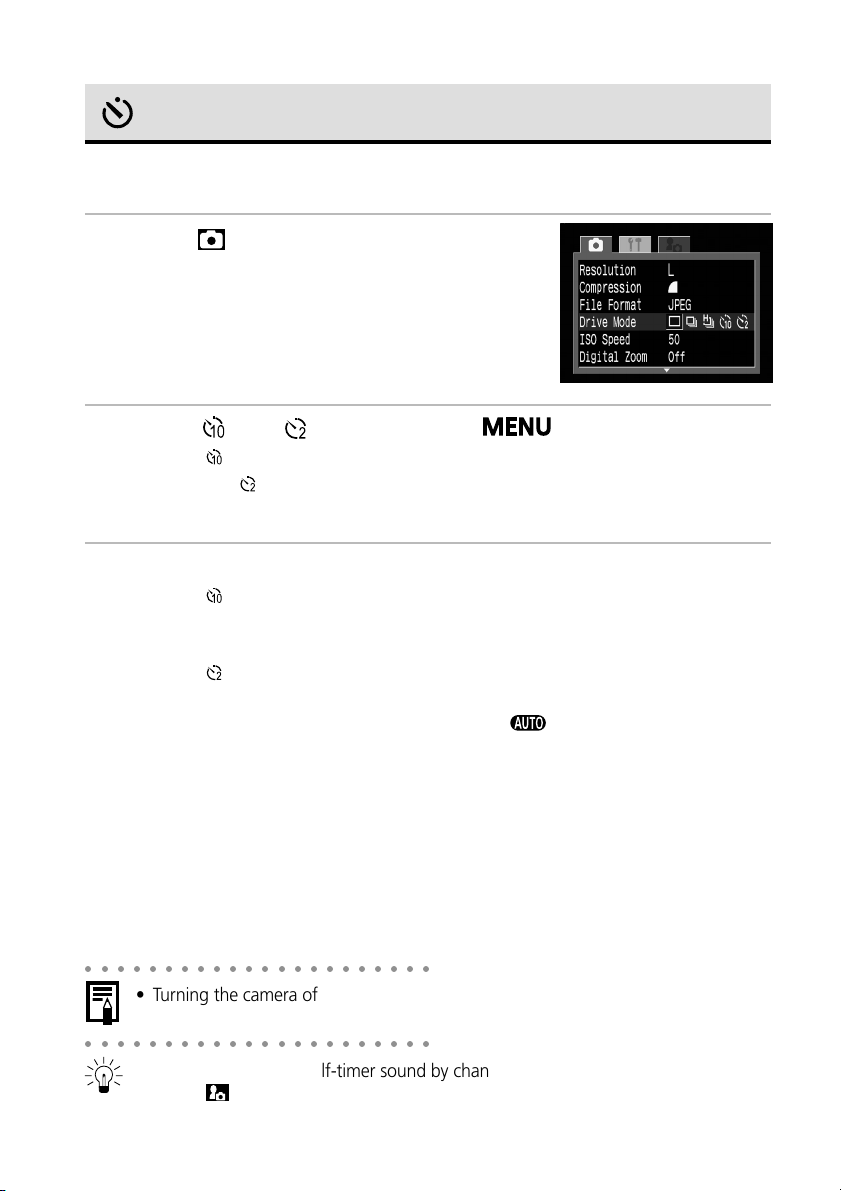

Self-Timer ............................................................................ 58
Continuous Mode ................................................................ 59

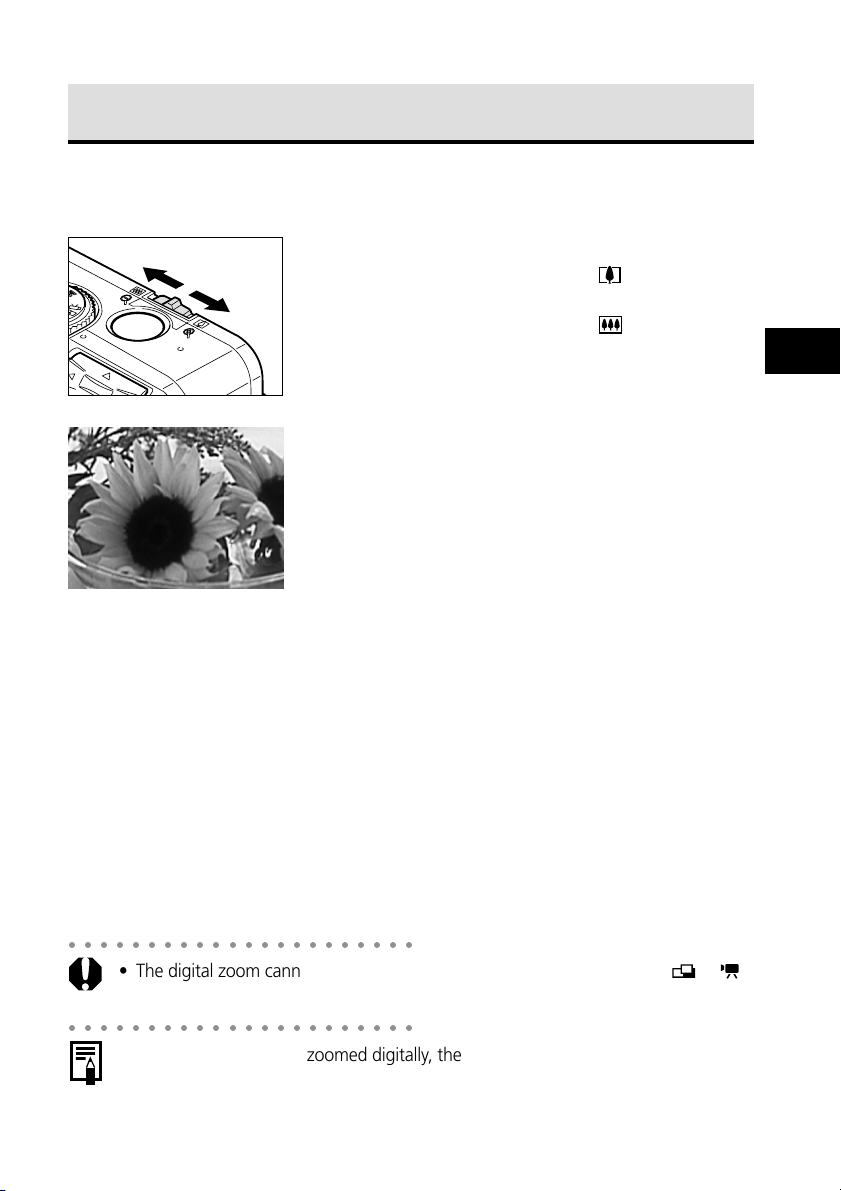

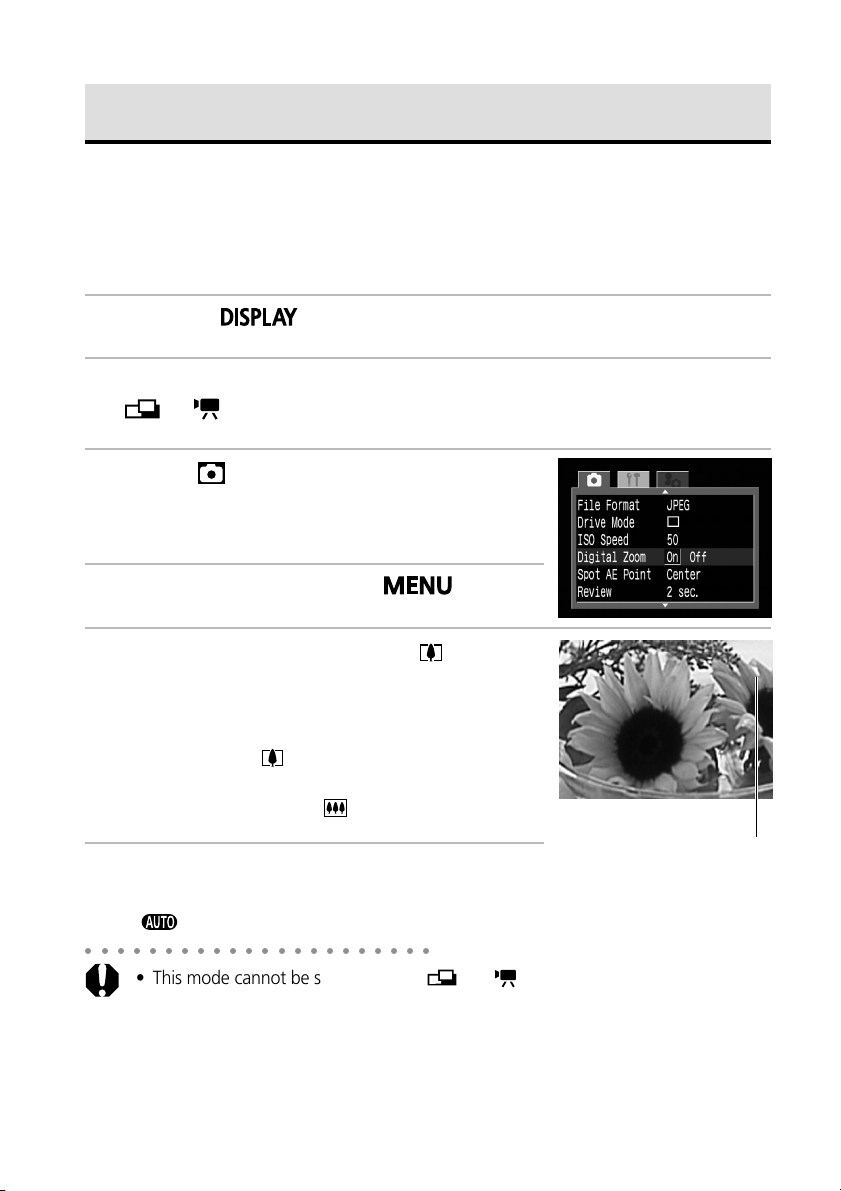

Digital Zoom ................................................................................ 60
Shooting - Selecting Particular Effects ..................................... 61

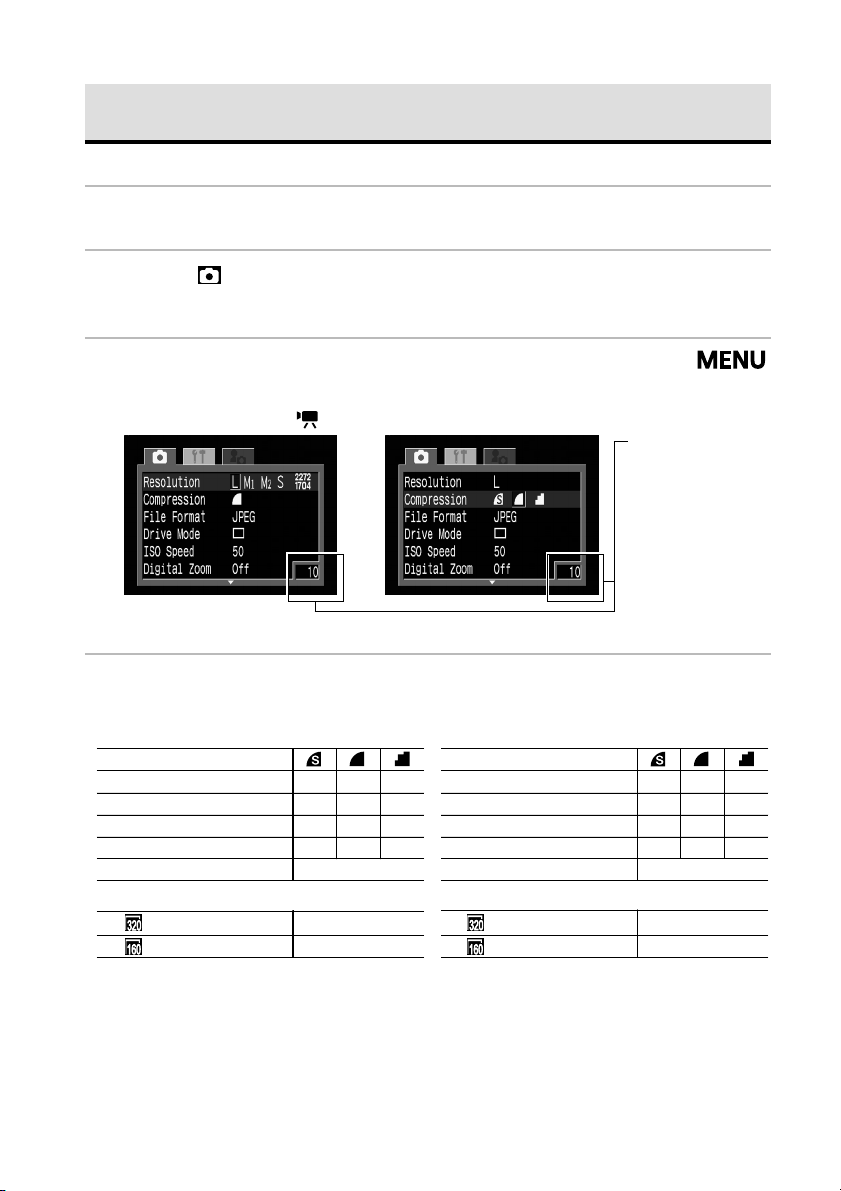

Changing the Resolution and Compression .................................... 61
Changing the File Format .............................................................. 64

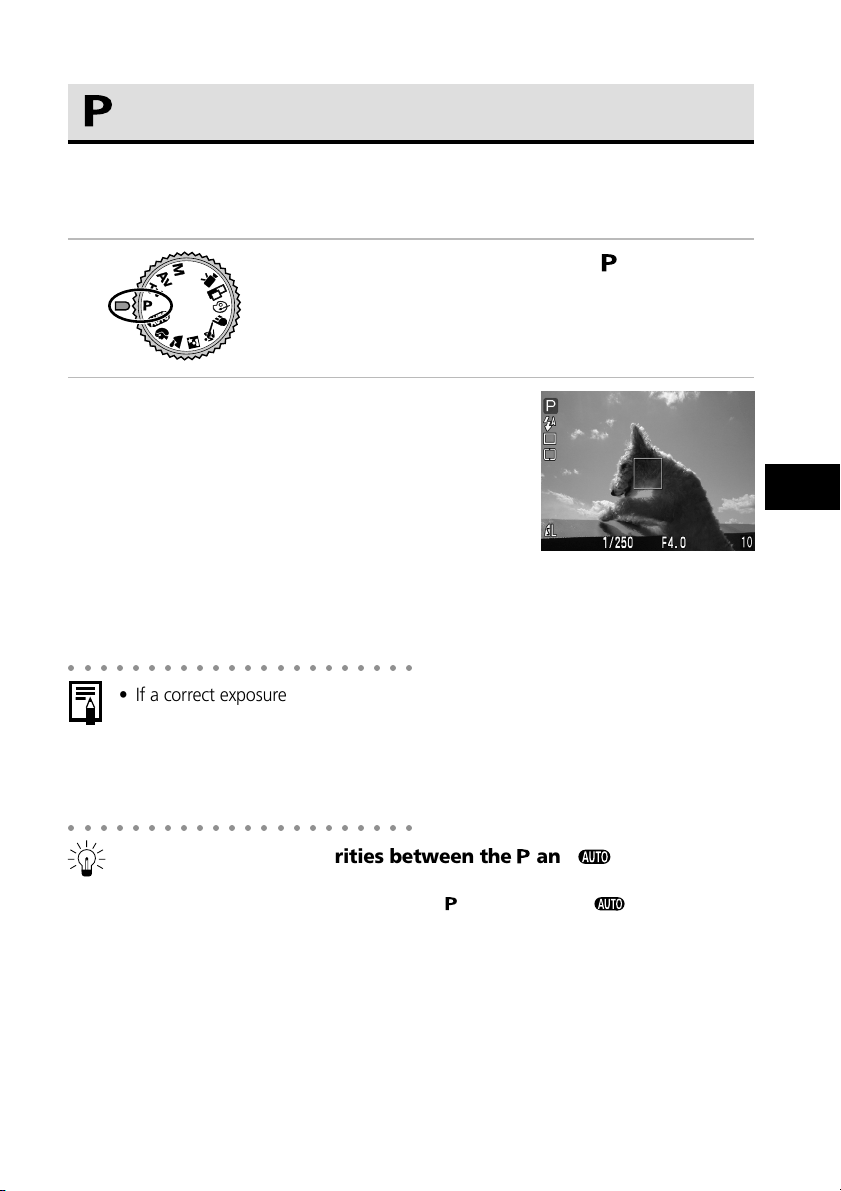

Program AE ......................................................................... 65

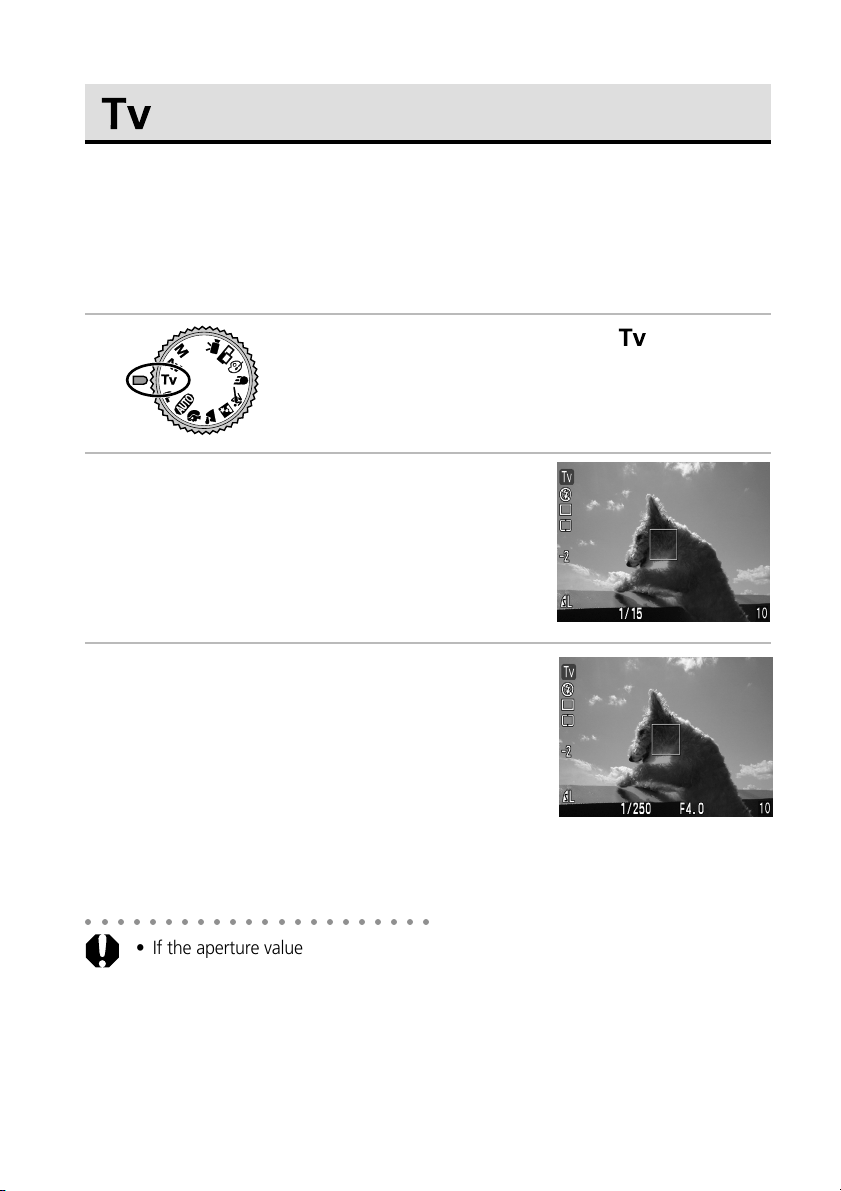

Setting the Shutter Speed ..................................................... 66

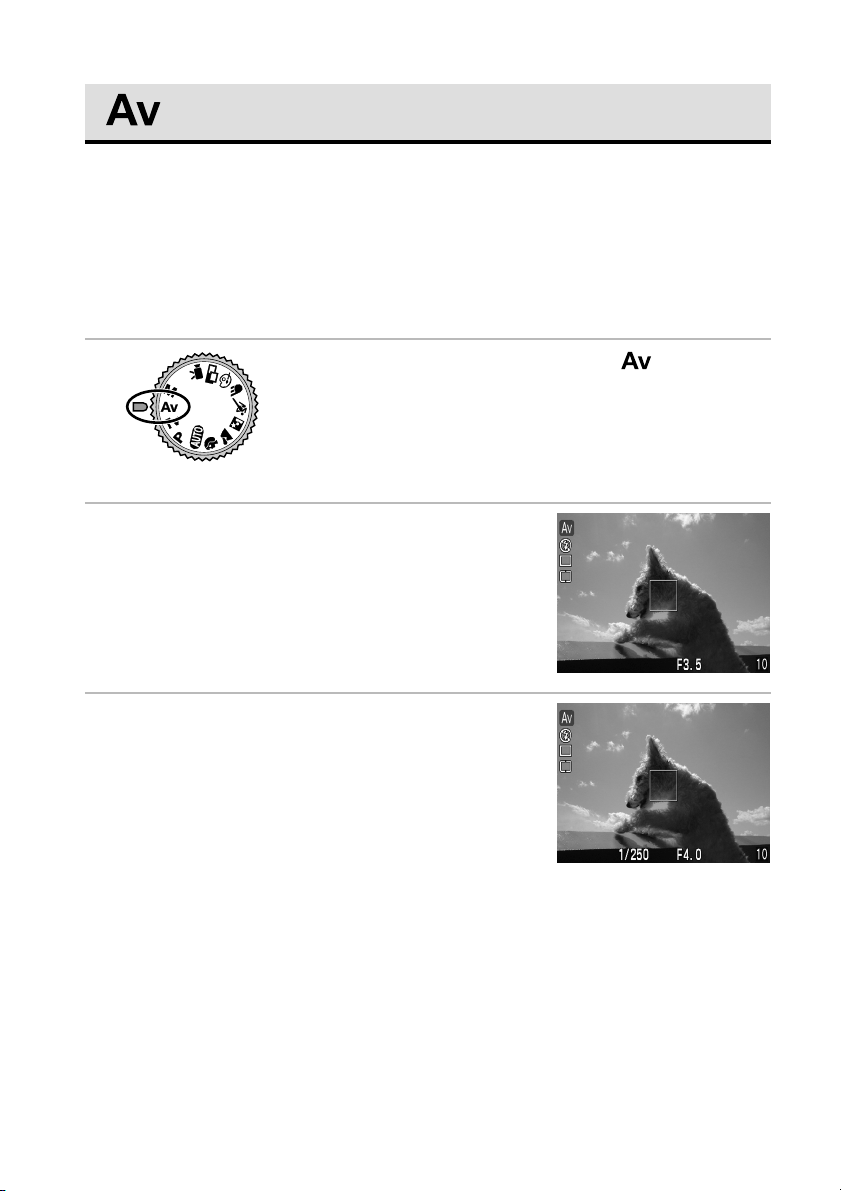

Setting the Aperture ............................................................ 68

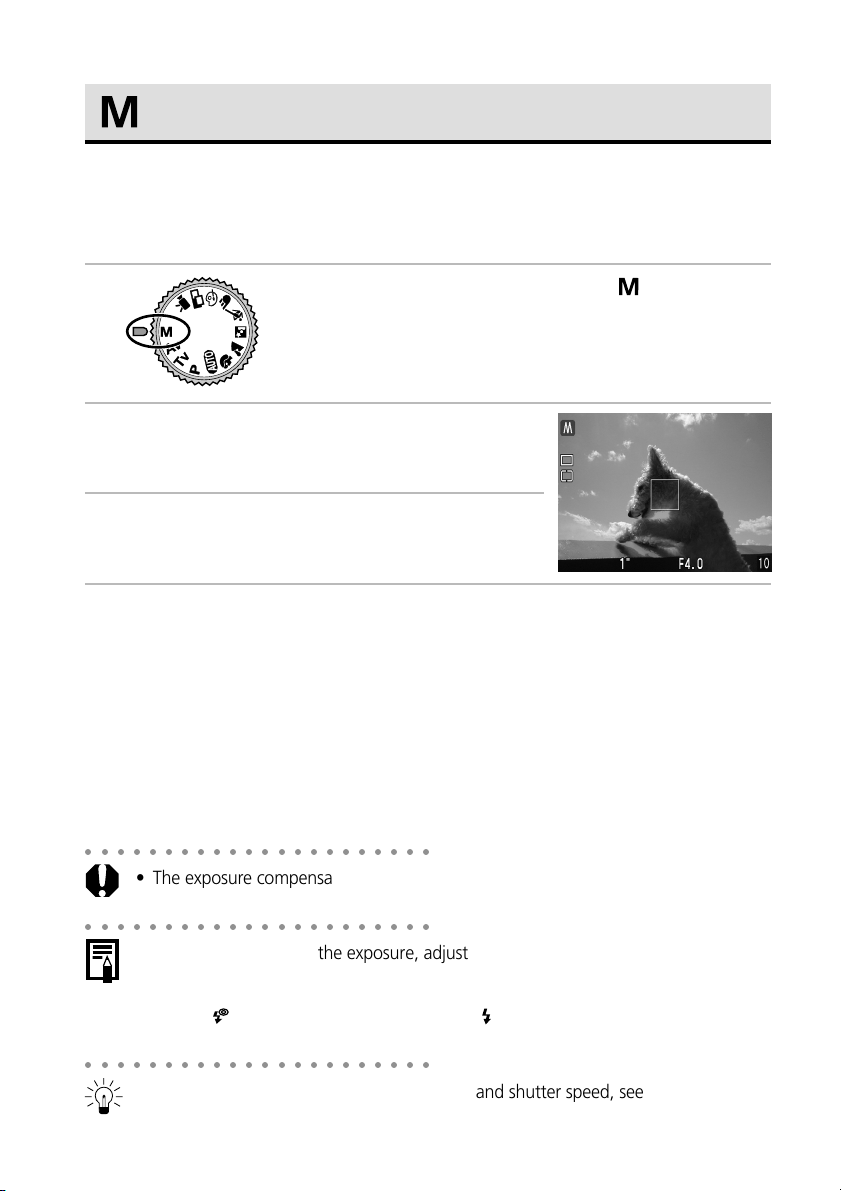

Manually Setting the Shutter Speed and Aperture ................. 70

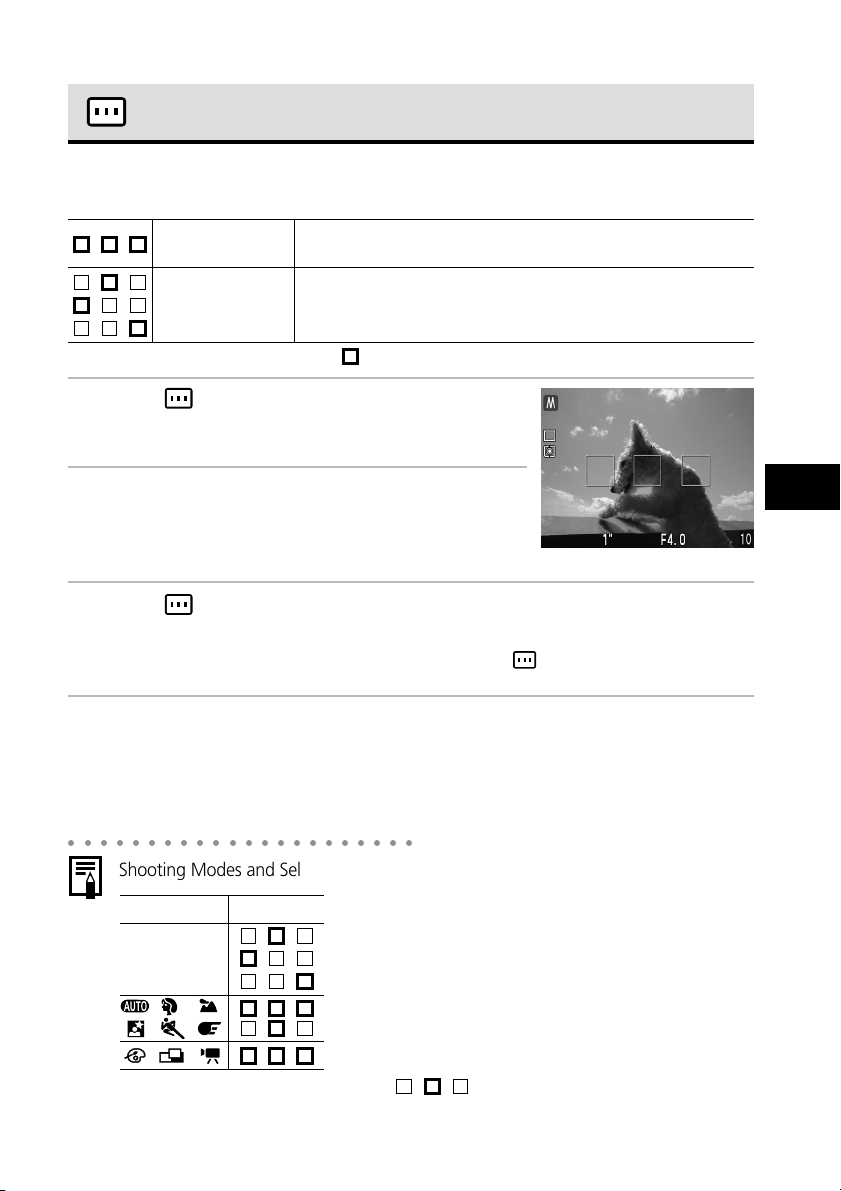

Selecting an AF frame .......................................................... 71
Adjusting the Exposure Compensation .................................. 73

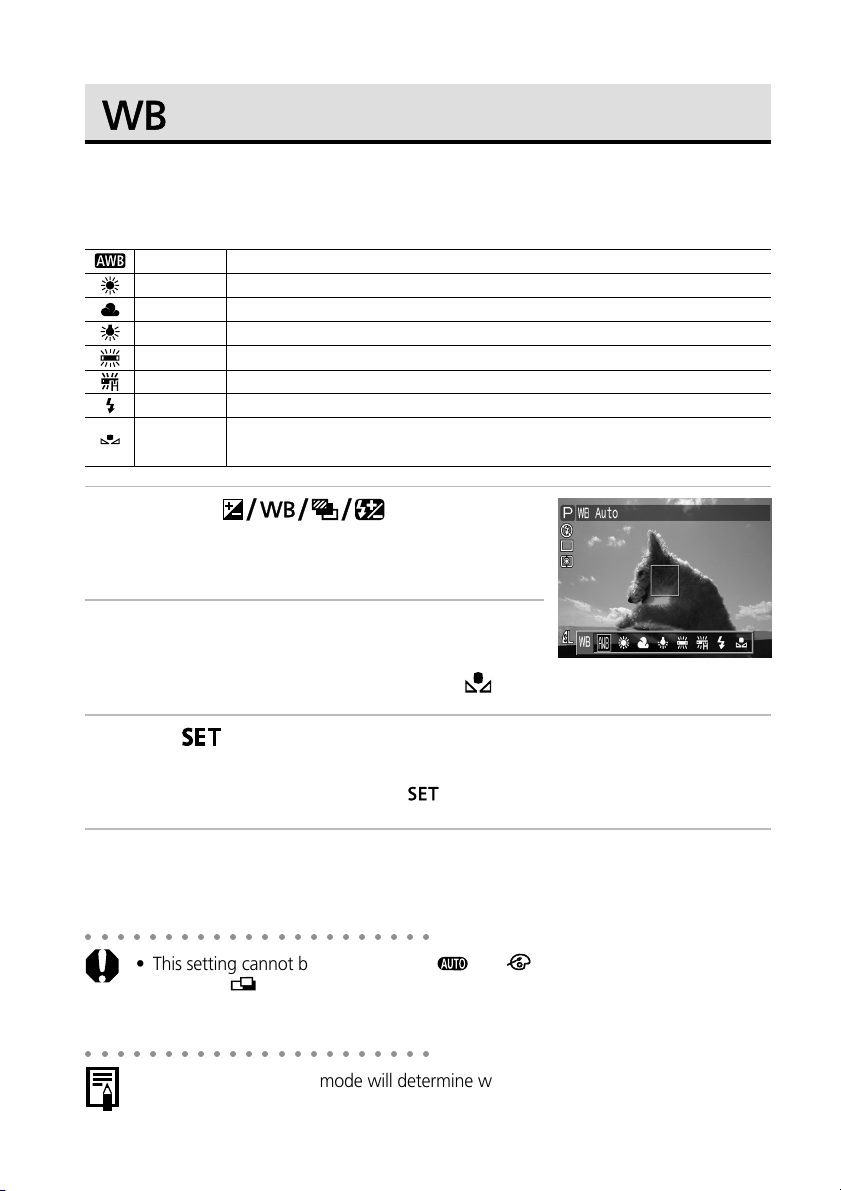

Setting the White Balance .................................................... 74

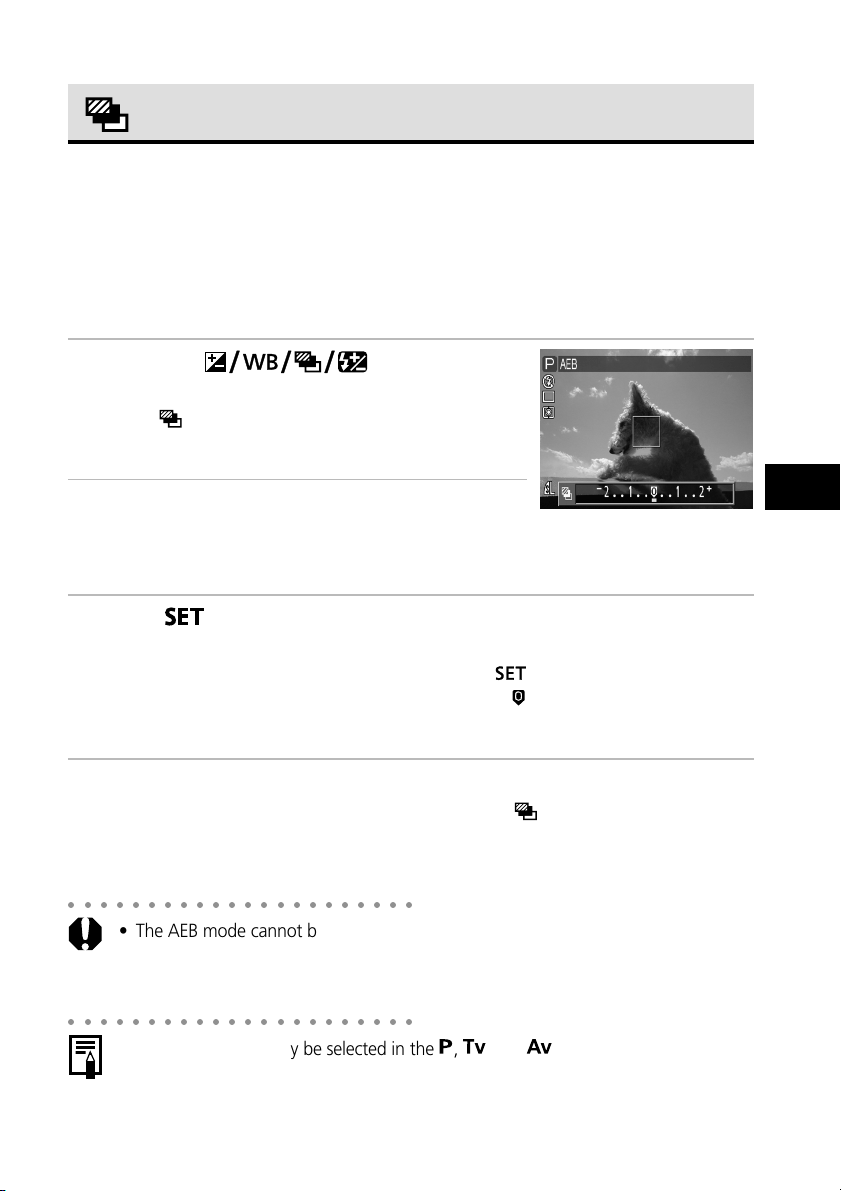

Auto Exposure Bracketing (AEB Mode) .................................. 77

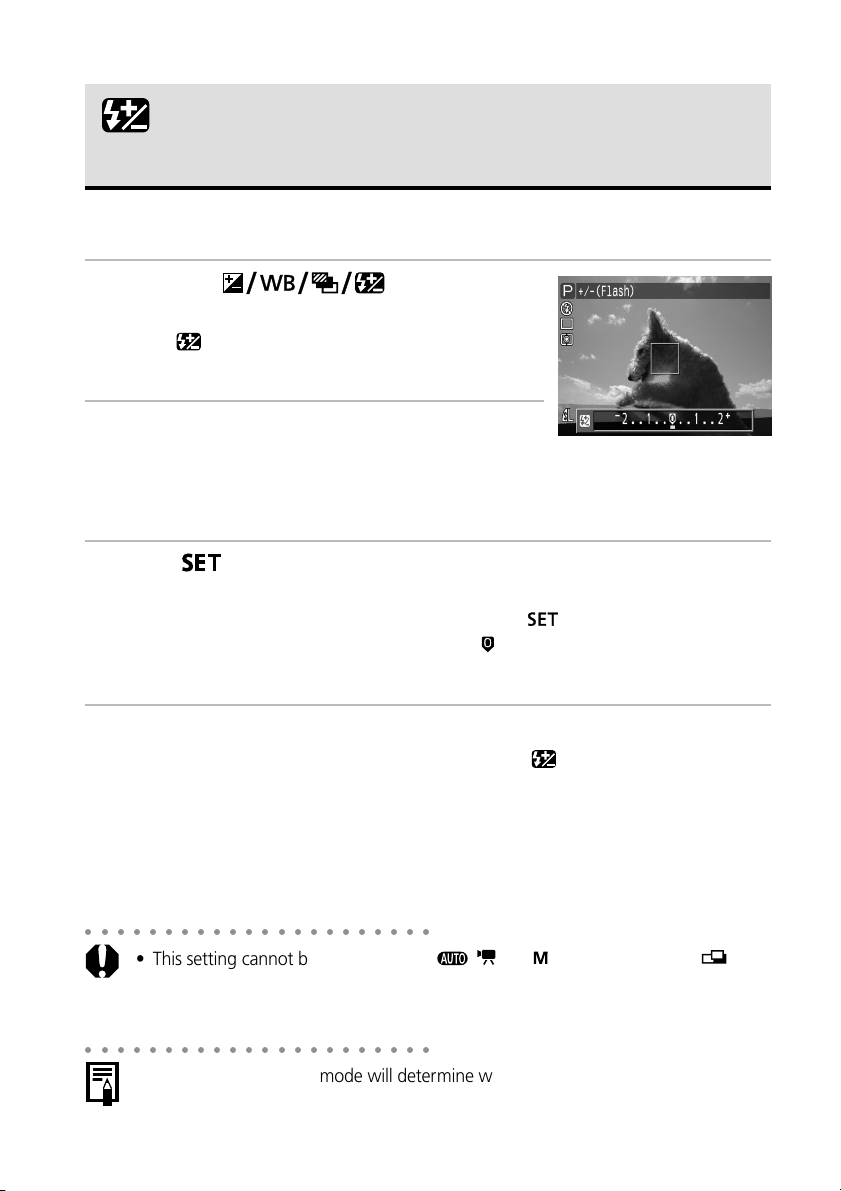

Adjusting the Flash Output (Flash Exposure Compensation) .... 78

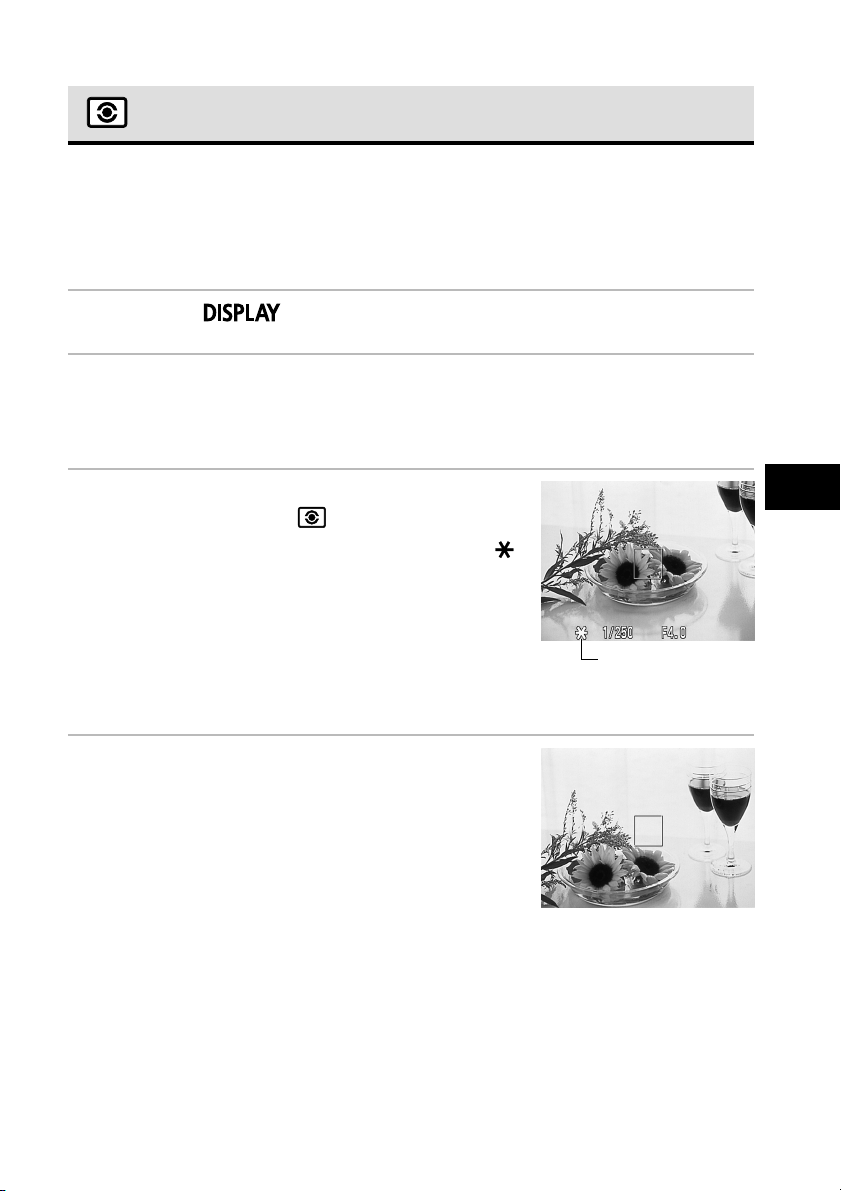

Locking the Exposure Setting (AE Lock) ................................. 79
Locking the Flash Exposure Setting (FE Lock) .......................... 81

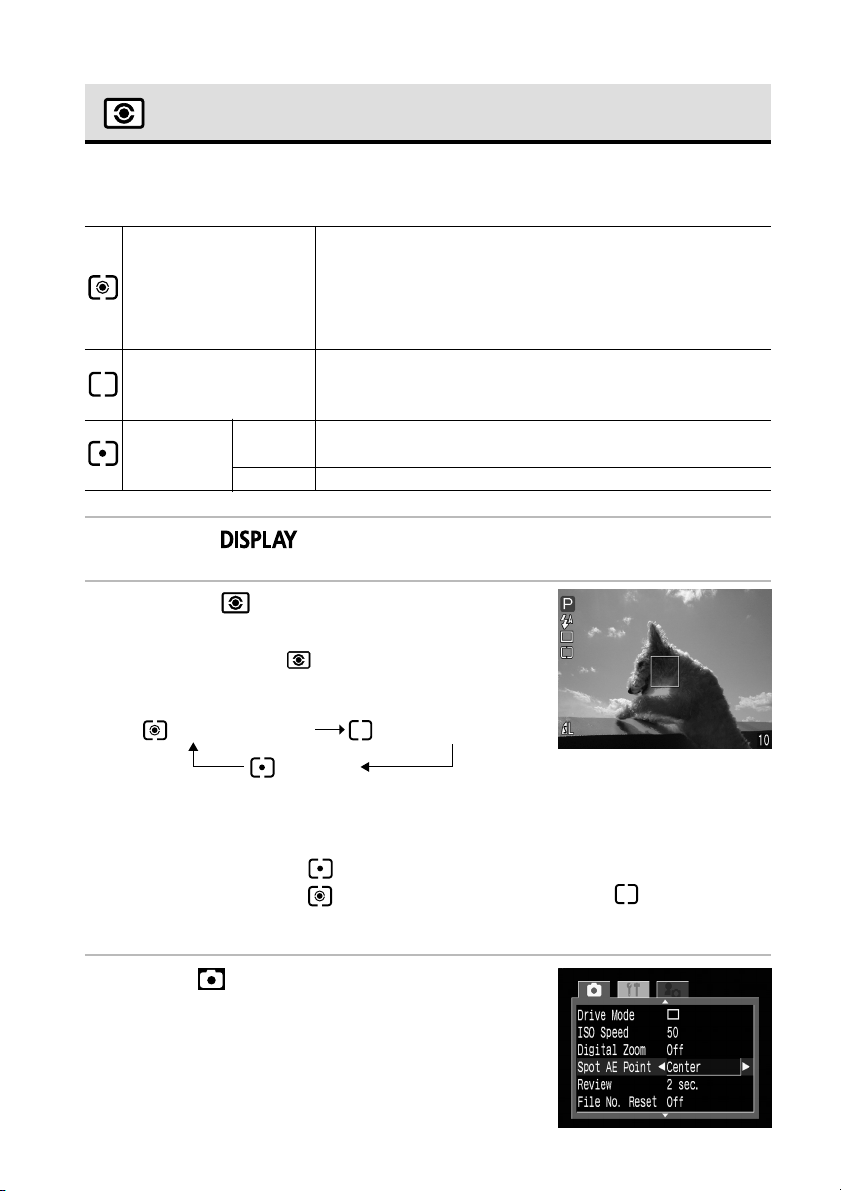

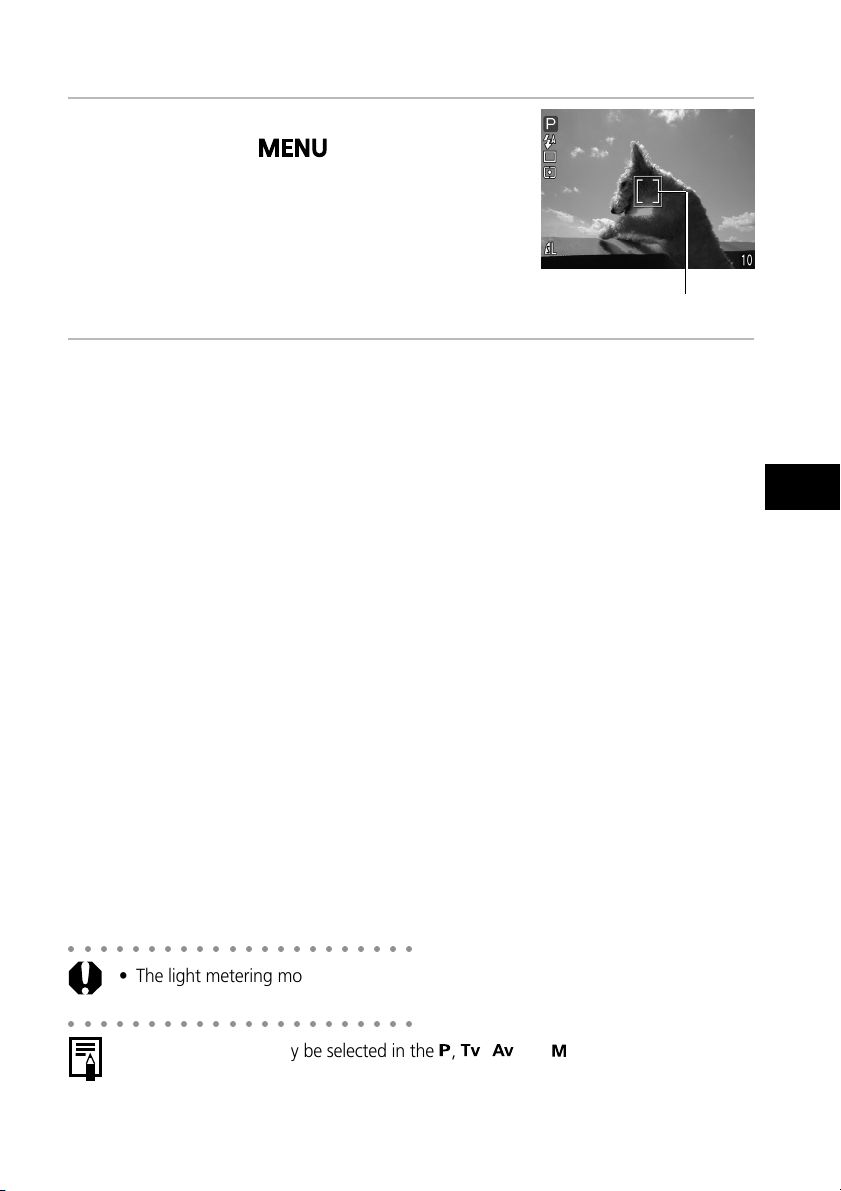

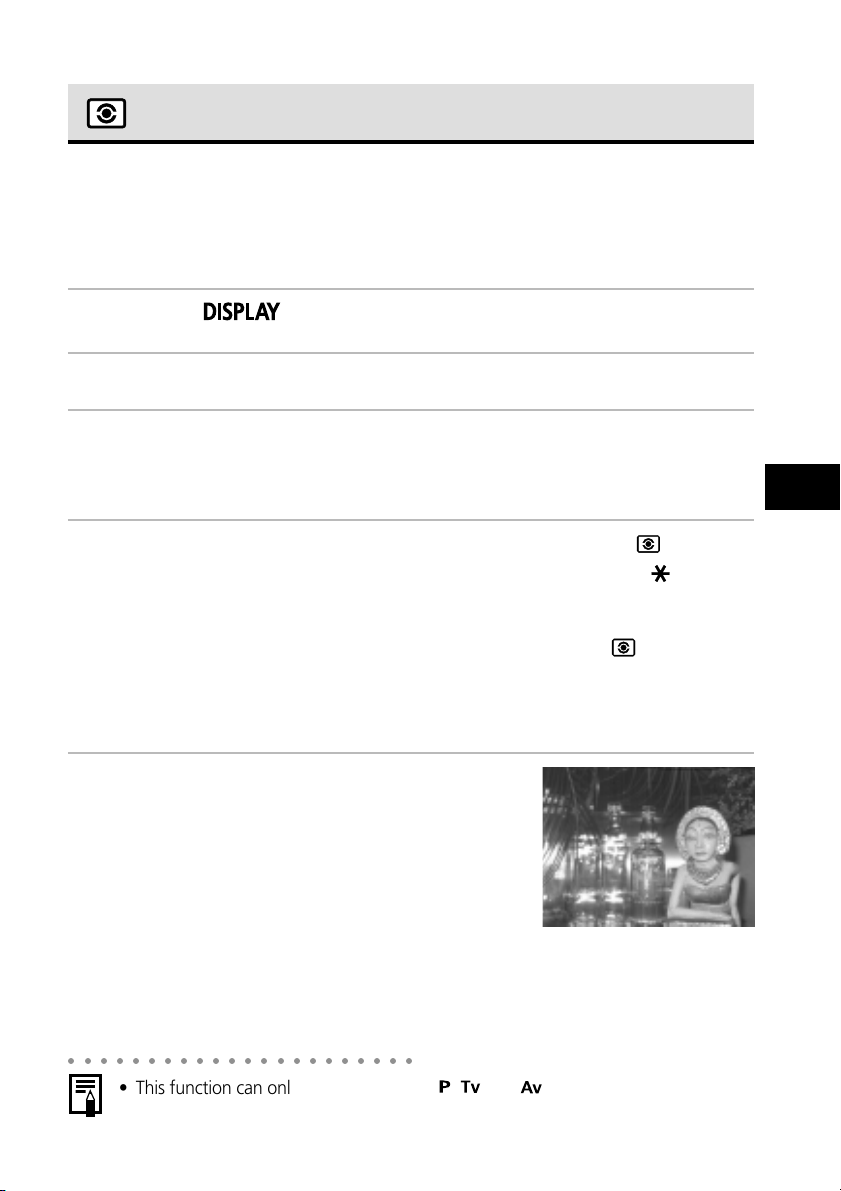

Switching Between Light Metering Modes ............................ 82
Shooting Problem Subjects for the Autofocus ................................ 84

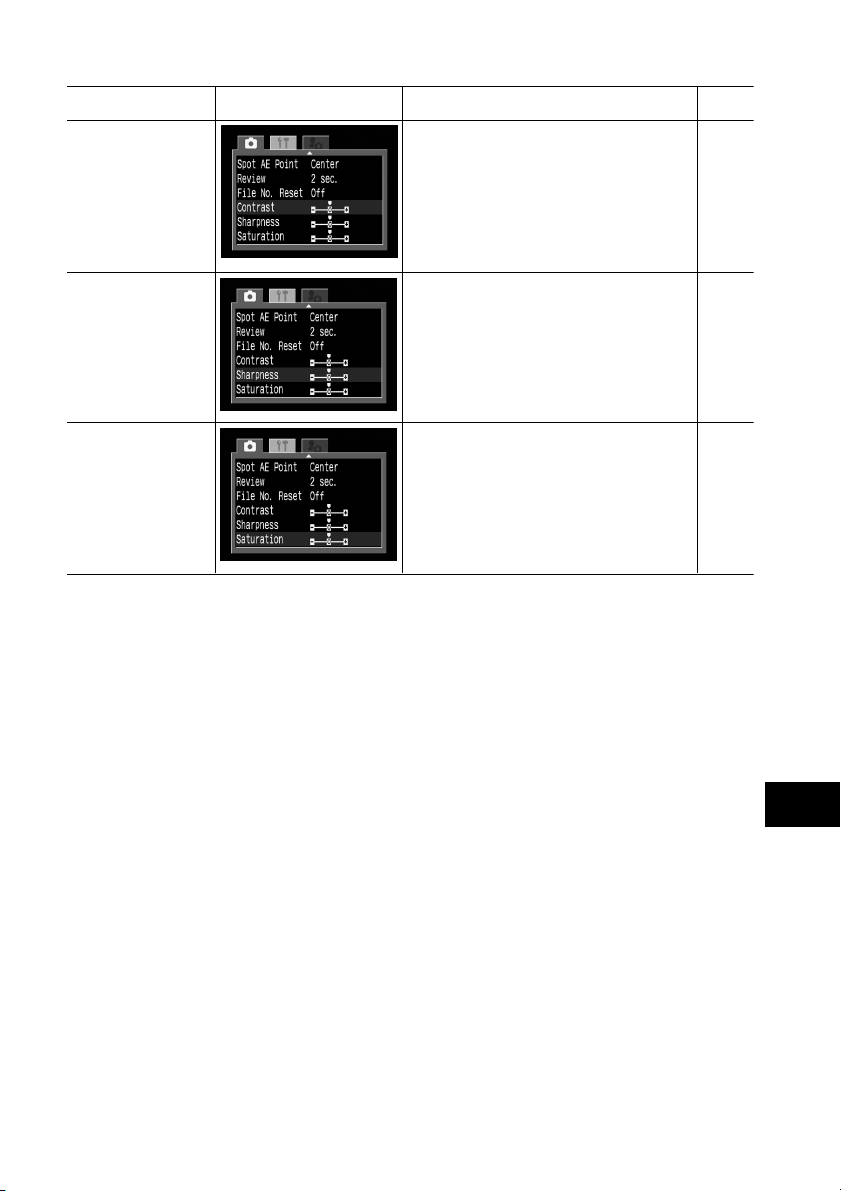

Manually Setting Image Characteristics .......................................... 87
Resetting the File Number ............................................................. 89

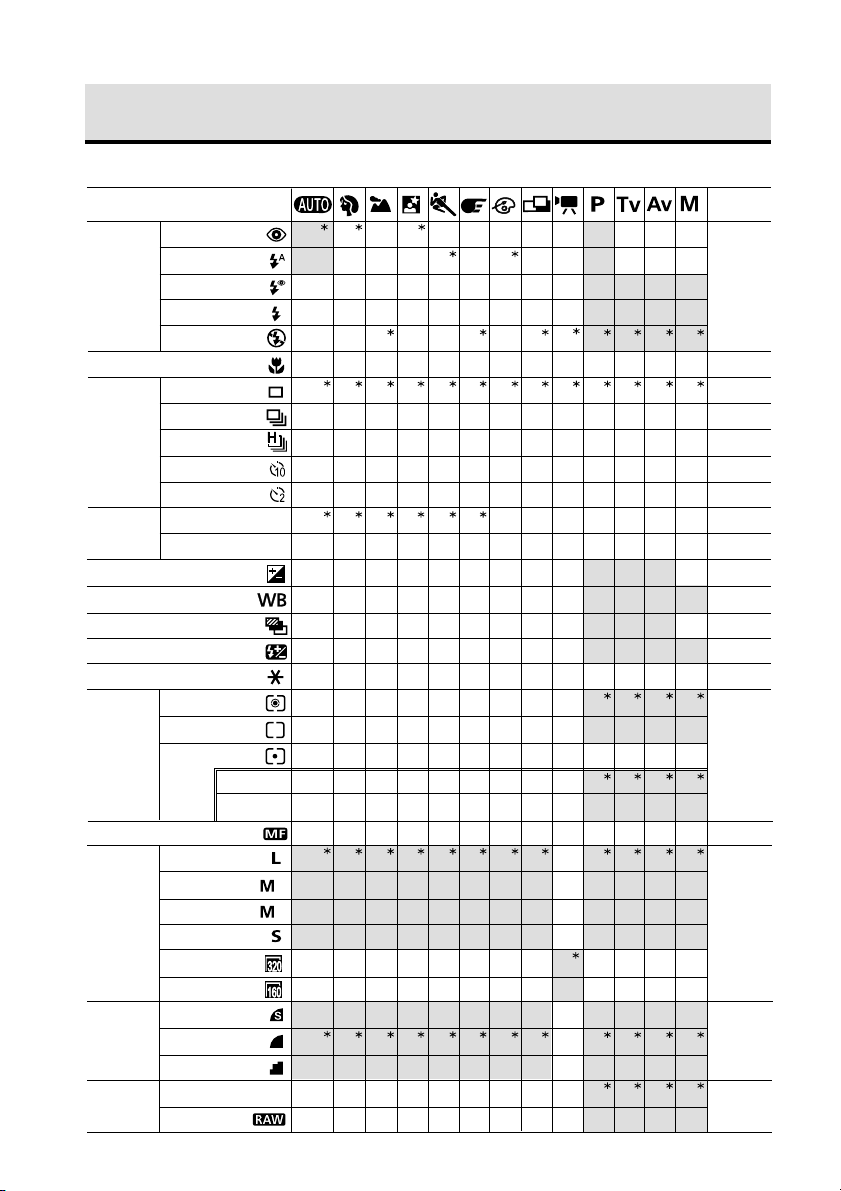

Functions Available in Each Shooting Mode ................................... 90
Replaying .................................................................................. 92

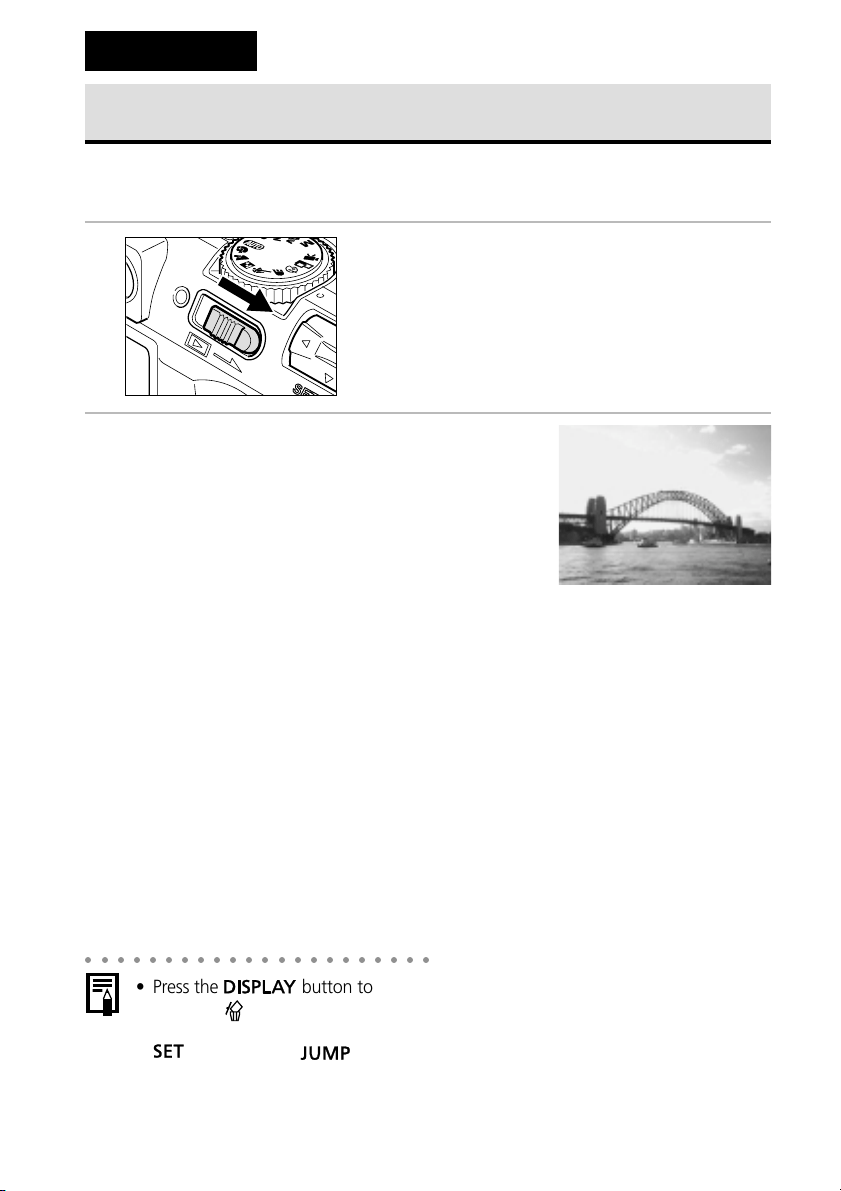

Viewing Images Singly (Single Image Replay) .................................. 92

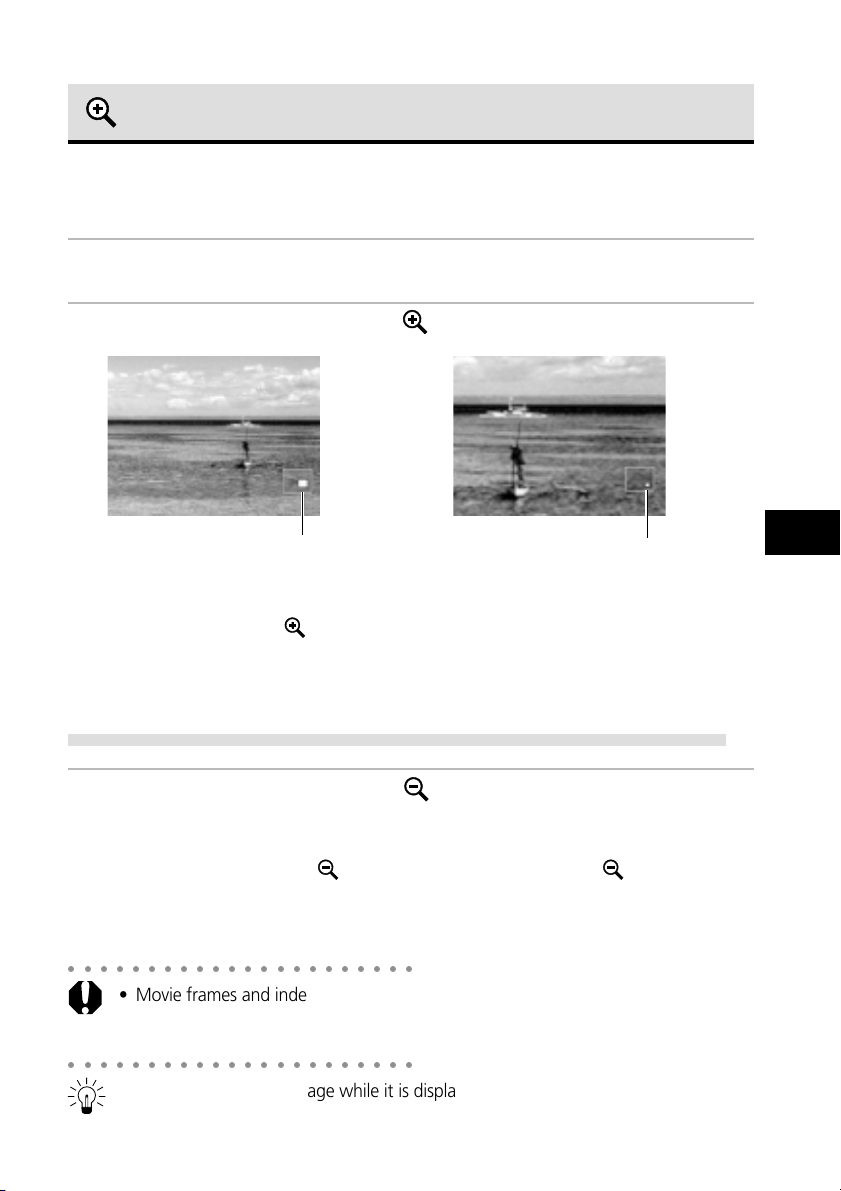

Magnifying Images .............................................................. 93

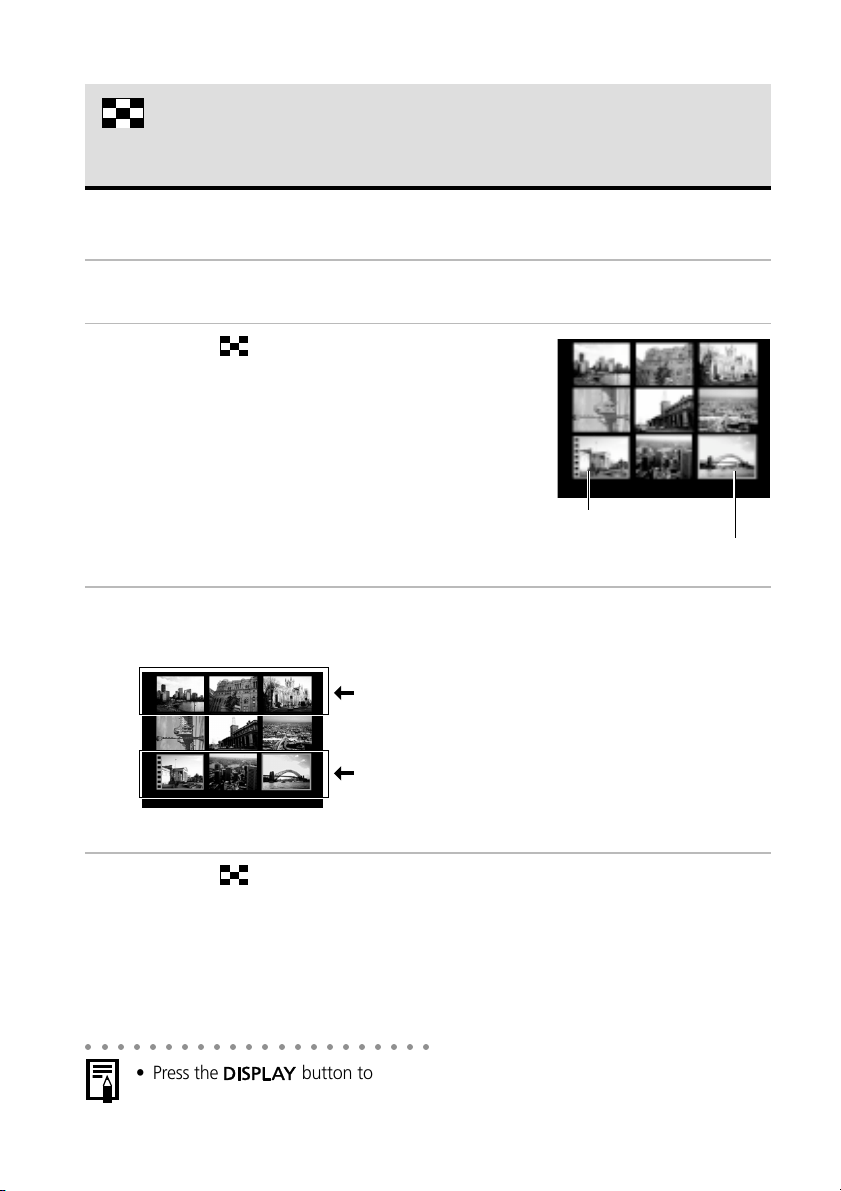

Viewing Nine Images at a Time (Index Replay) ....................... 94

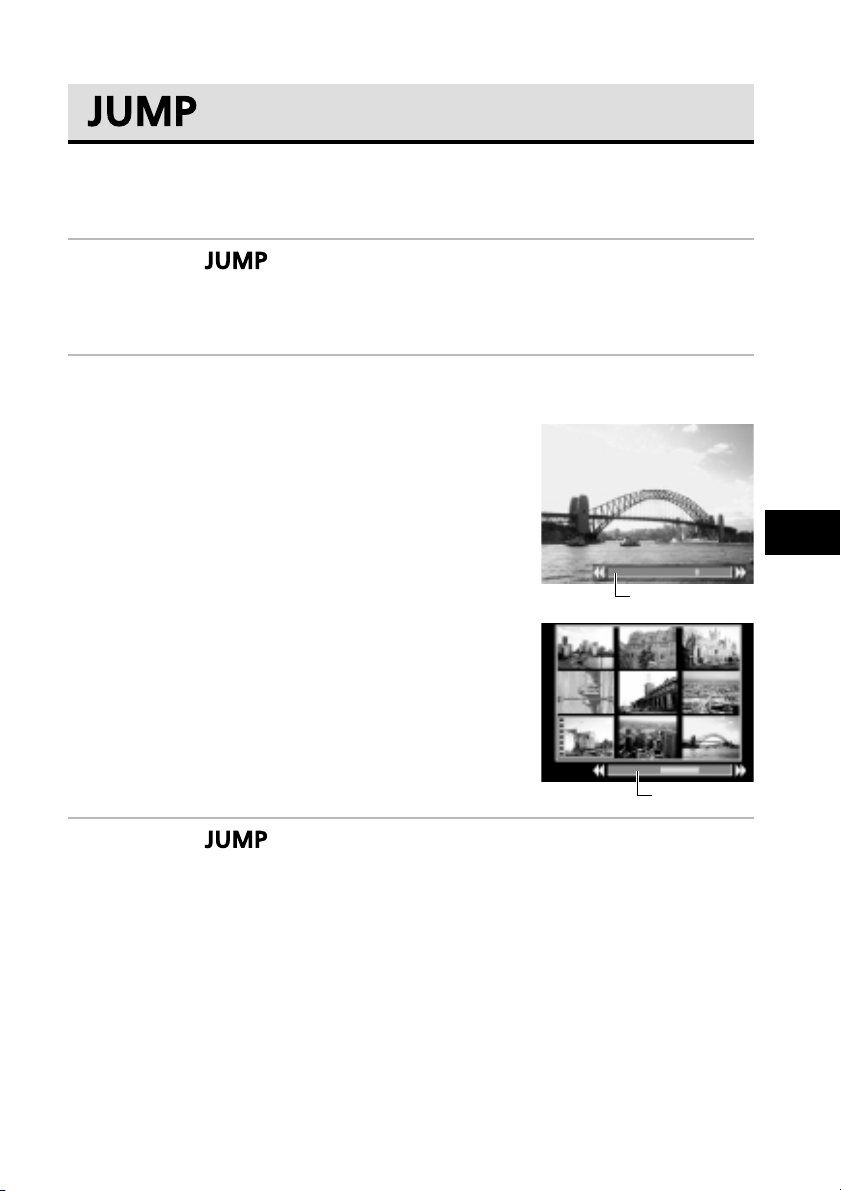

Jumping Between Images ................................................. 95
Viewing Movies ............................................................................ 96

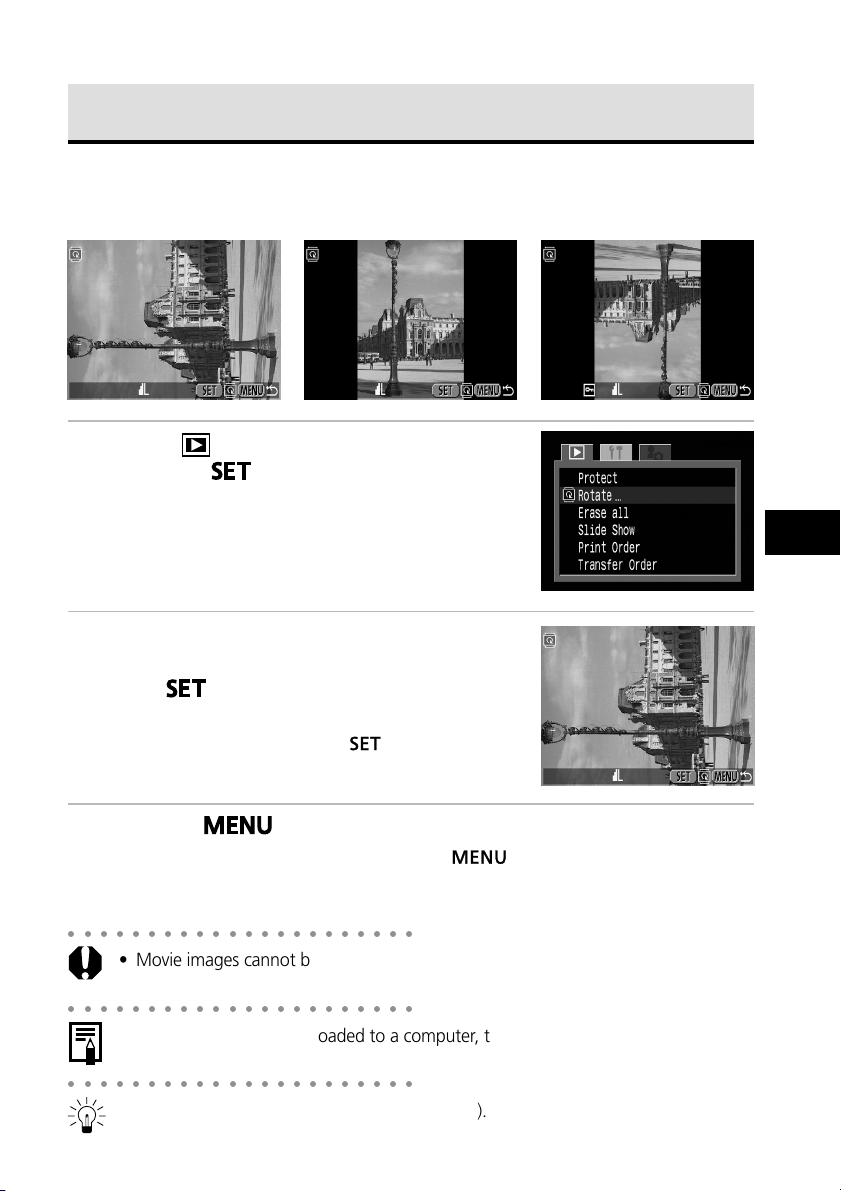

Rotating Images in the Display ...................................................... 97

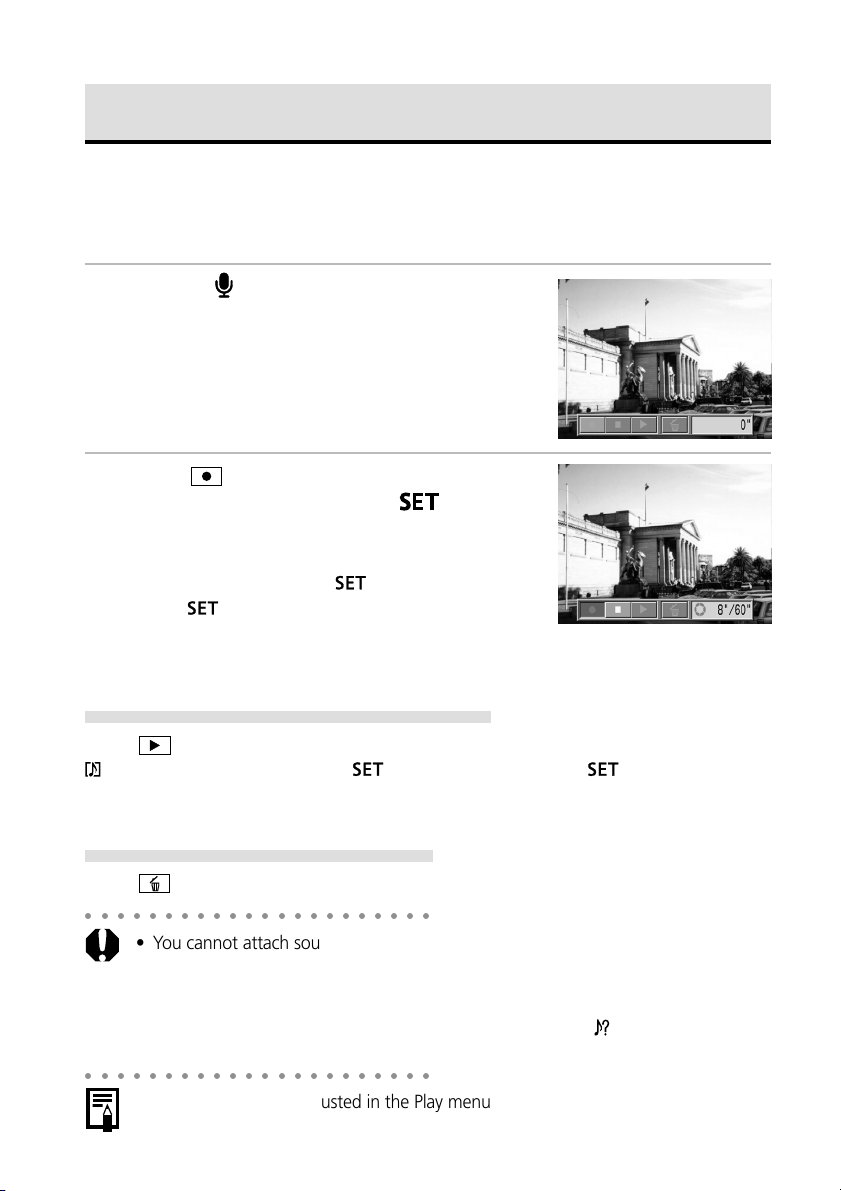

Attaching Sound Annotations to Images ........................................ 98

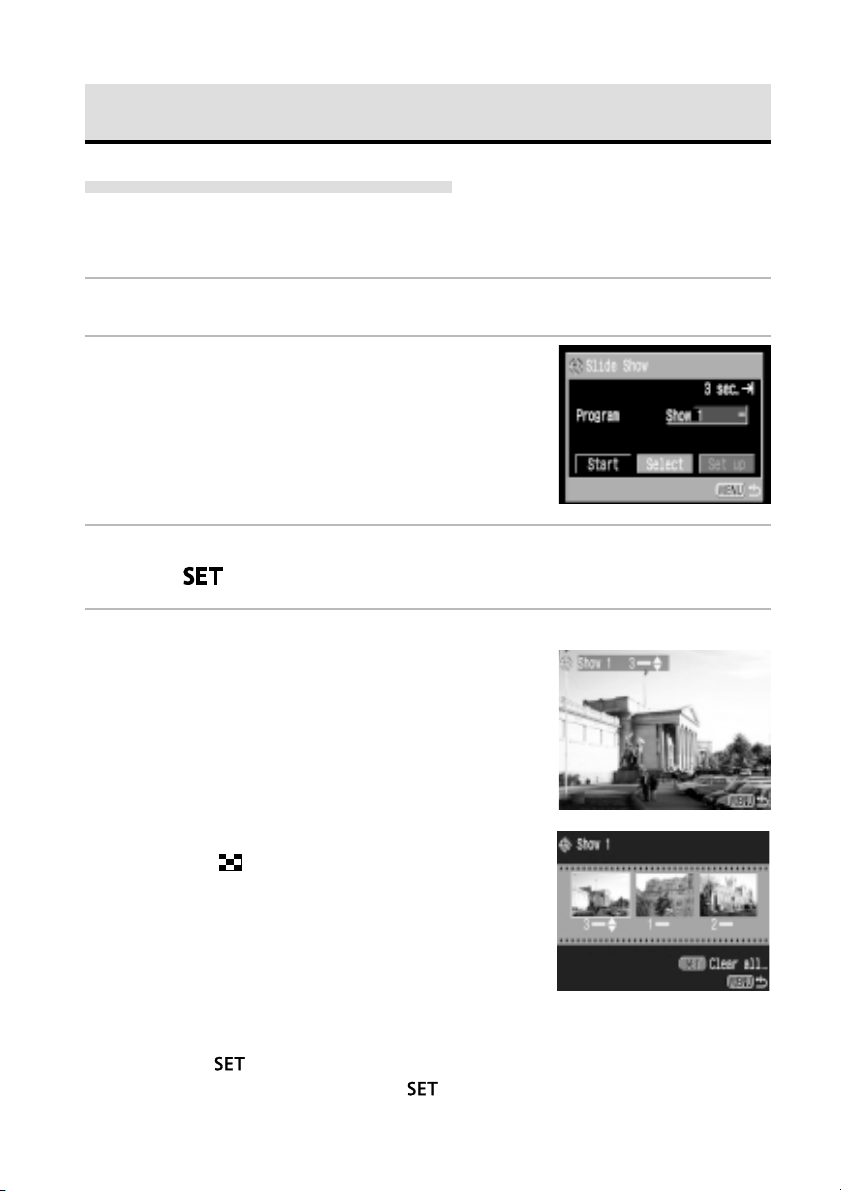

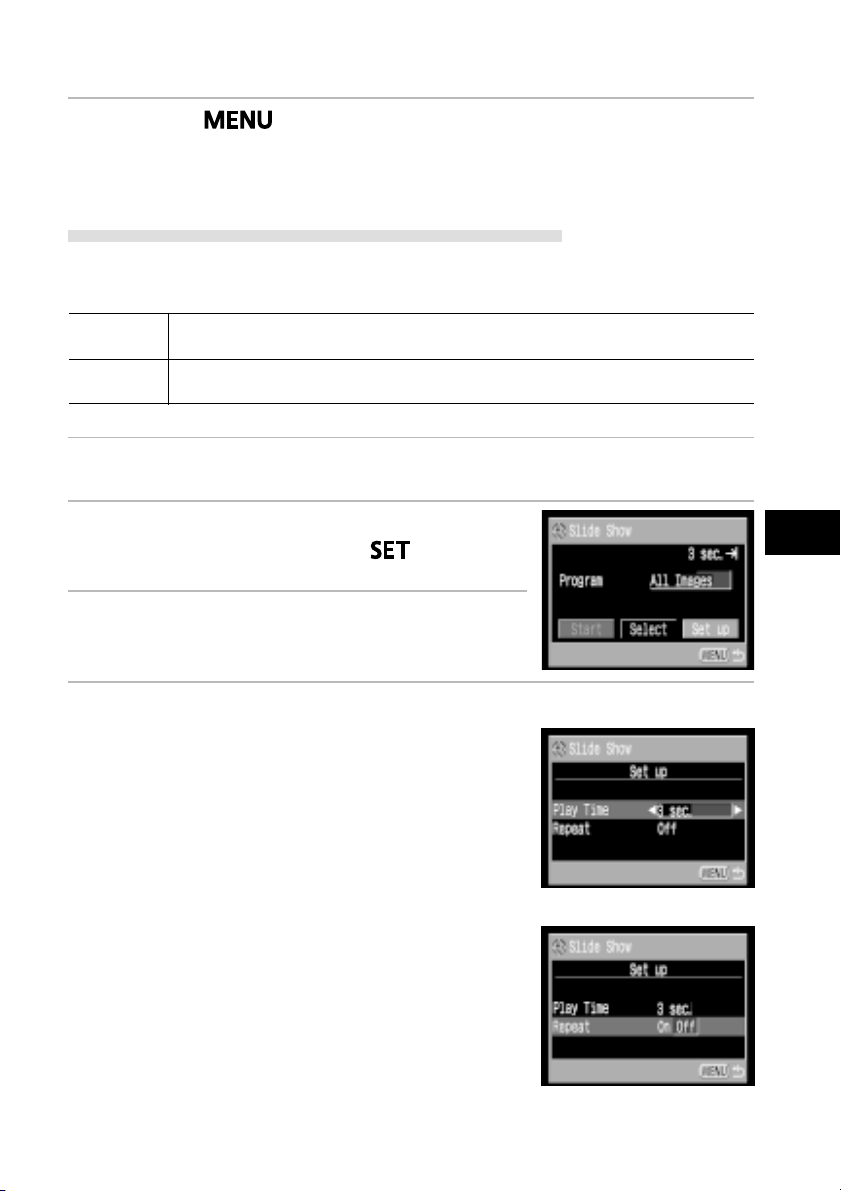

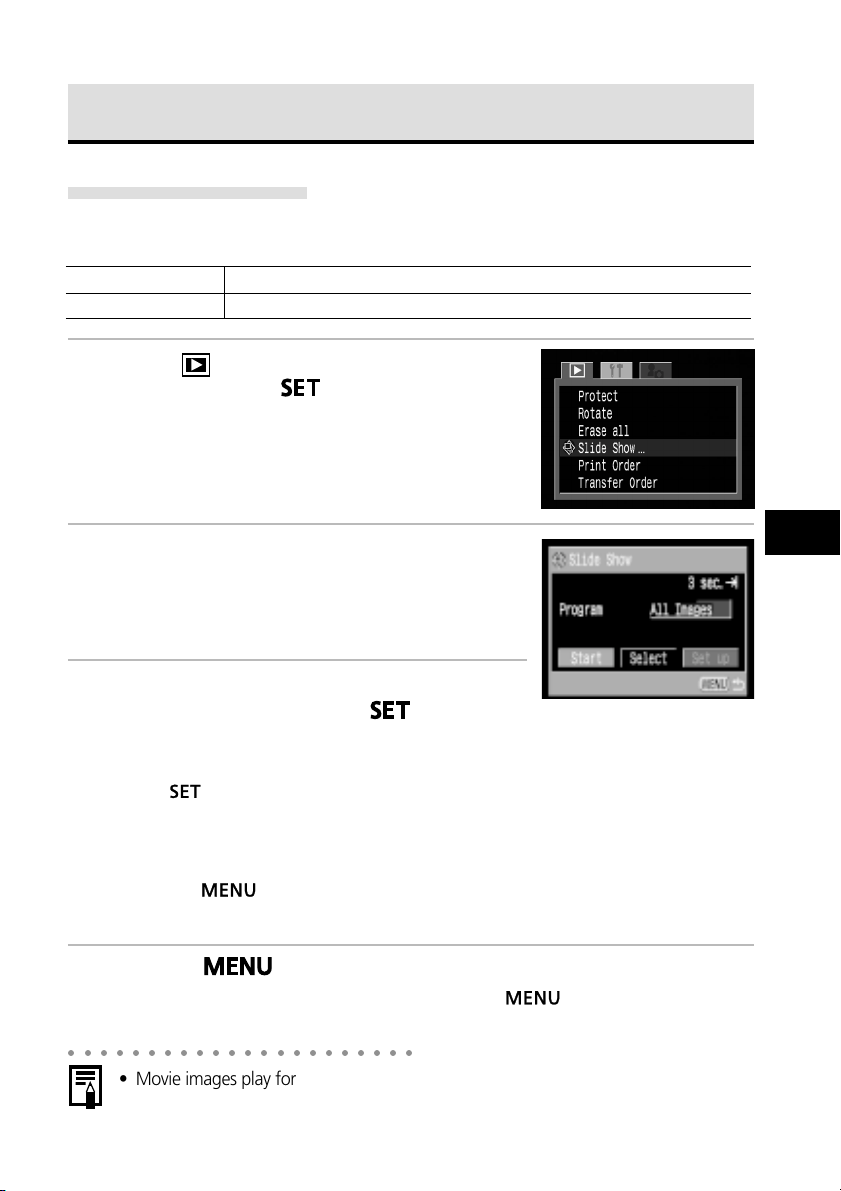

Automated Playback (Slide Show) .................................................. 99

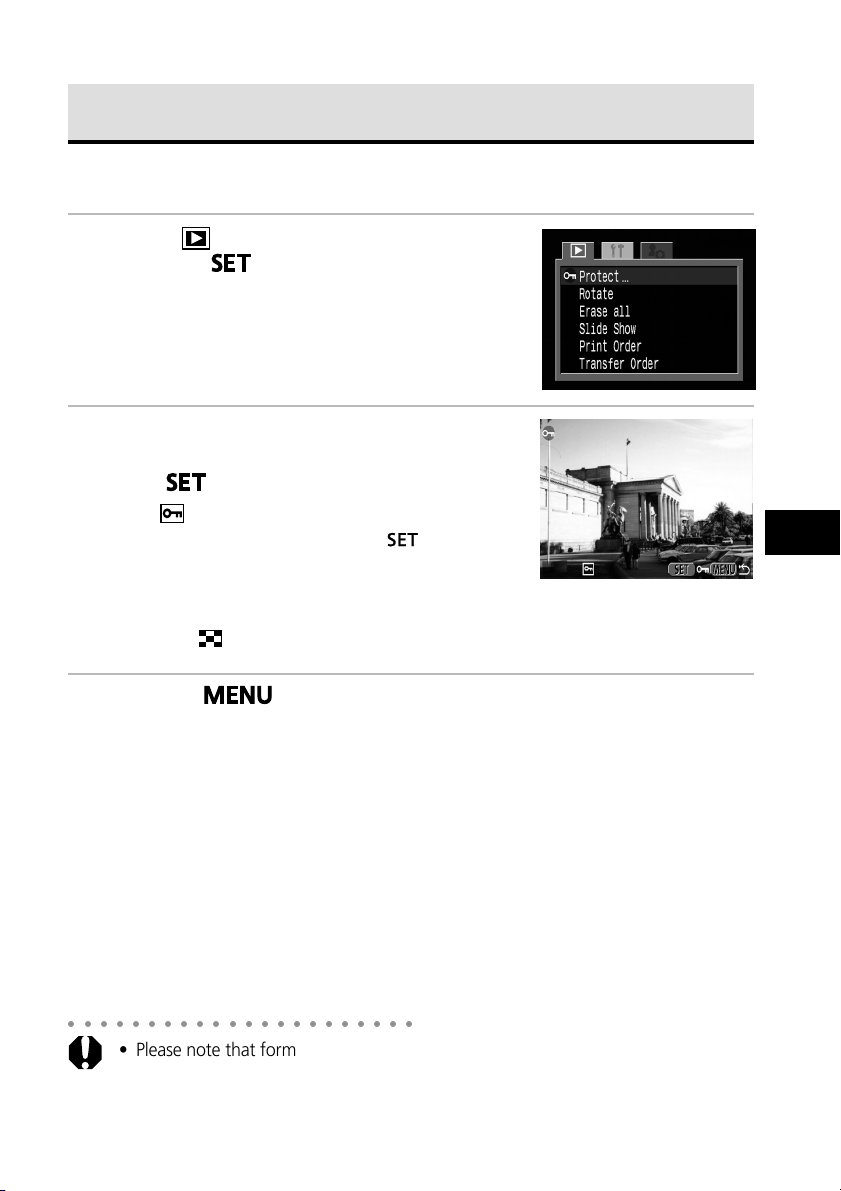

Protecting Images ....................................................................... 103
Erasing .................................................................................... 104
Erasing Images Singly .................................................................. 104

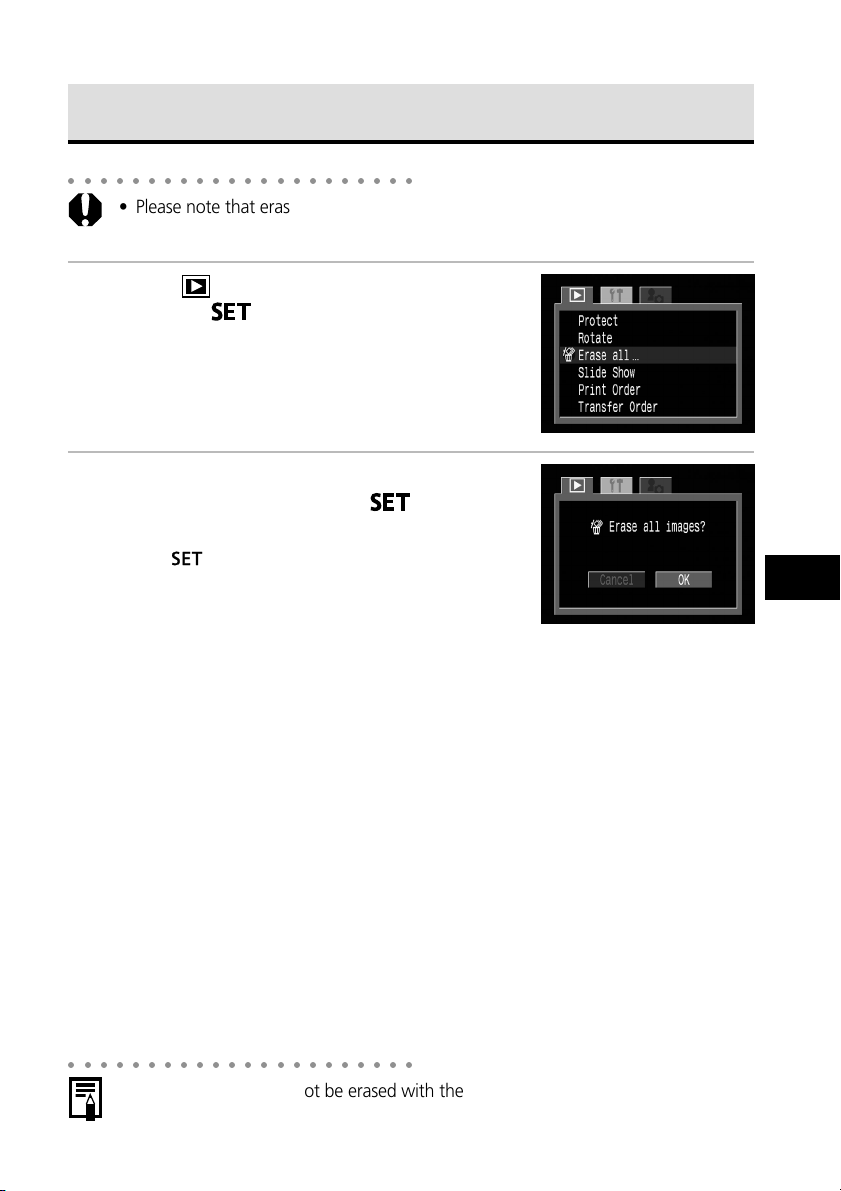

Erasing All Images ...................................................................... 105

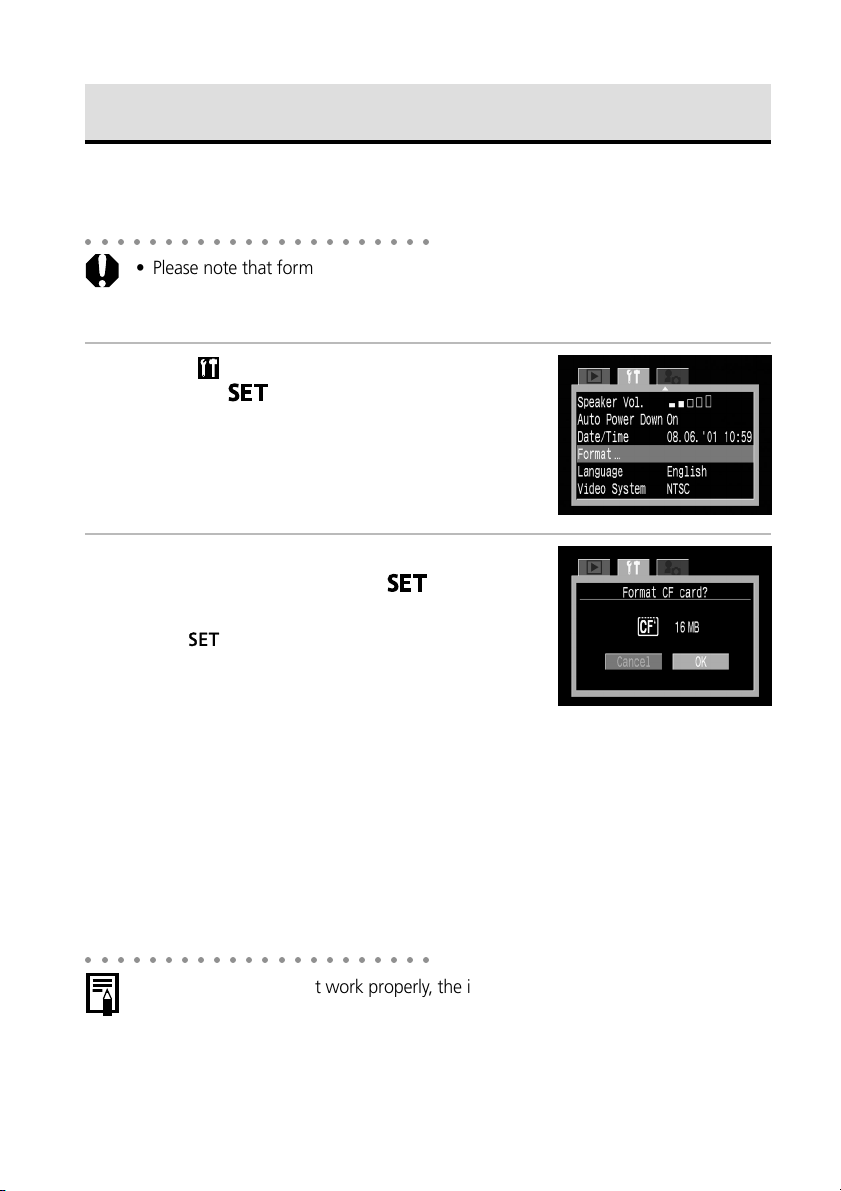

Formatting a CF Card ................................................................. 106

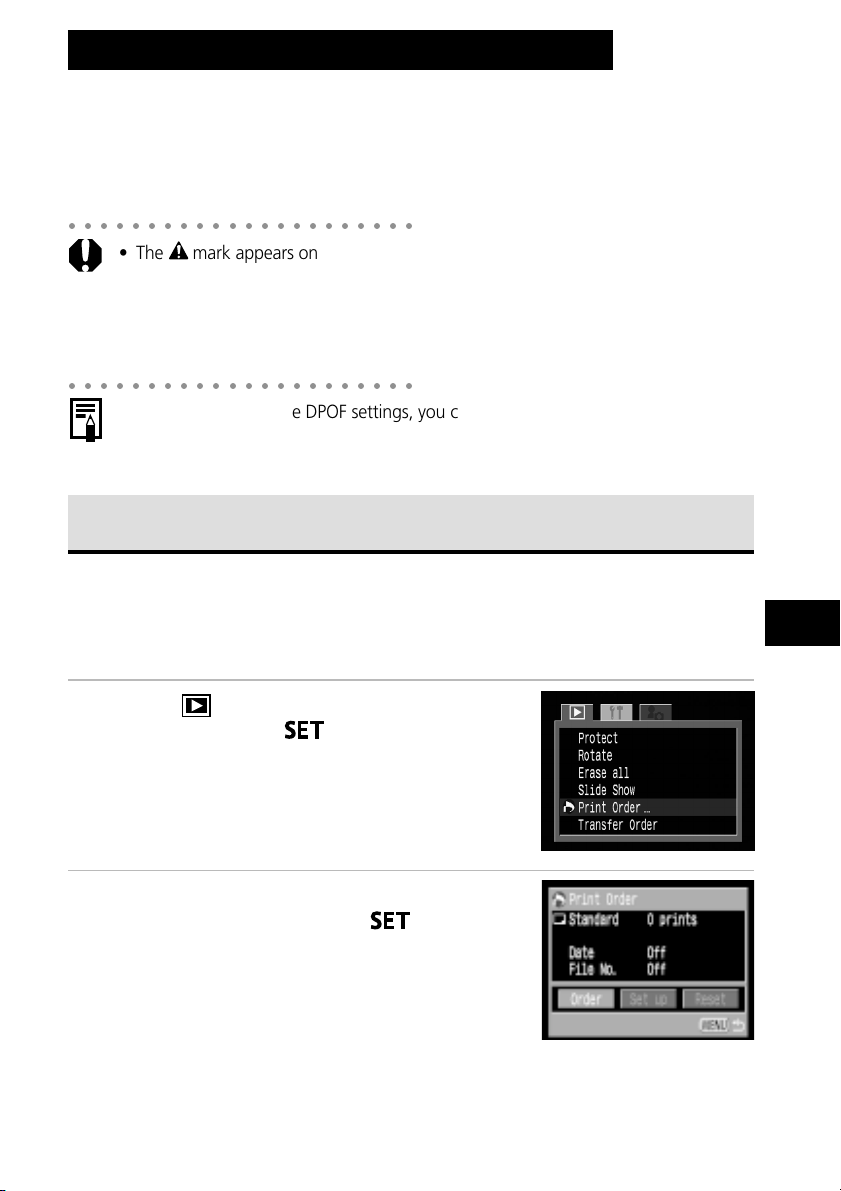

Print Settings (DPOF Print Settings) ........................................ 107
Selecting Images for Printing ....................................................... 107

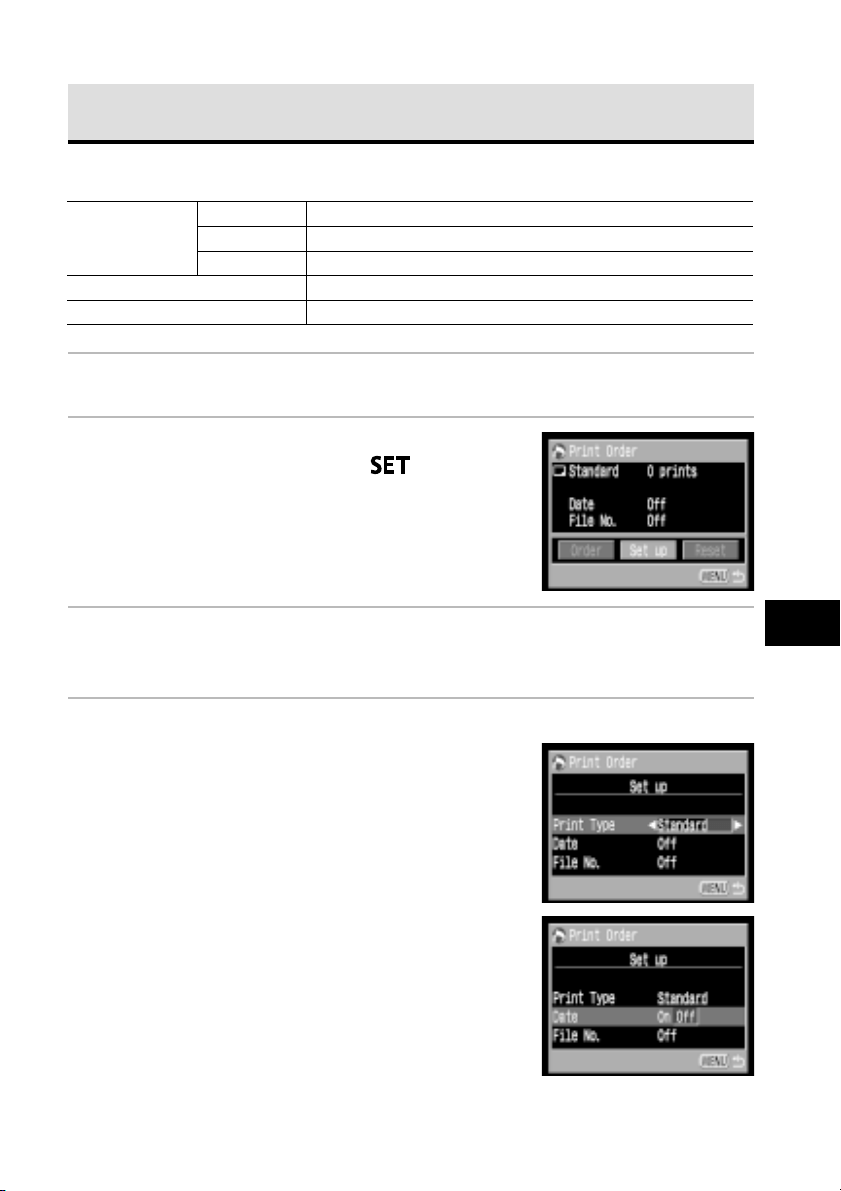

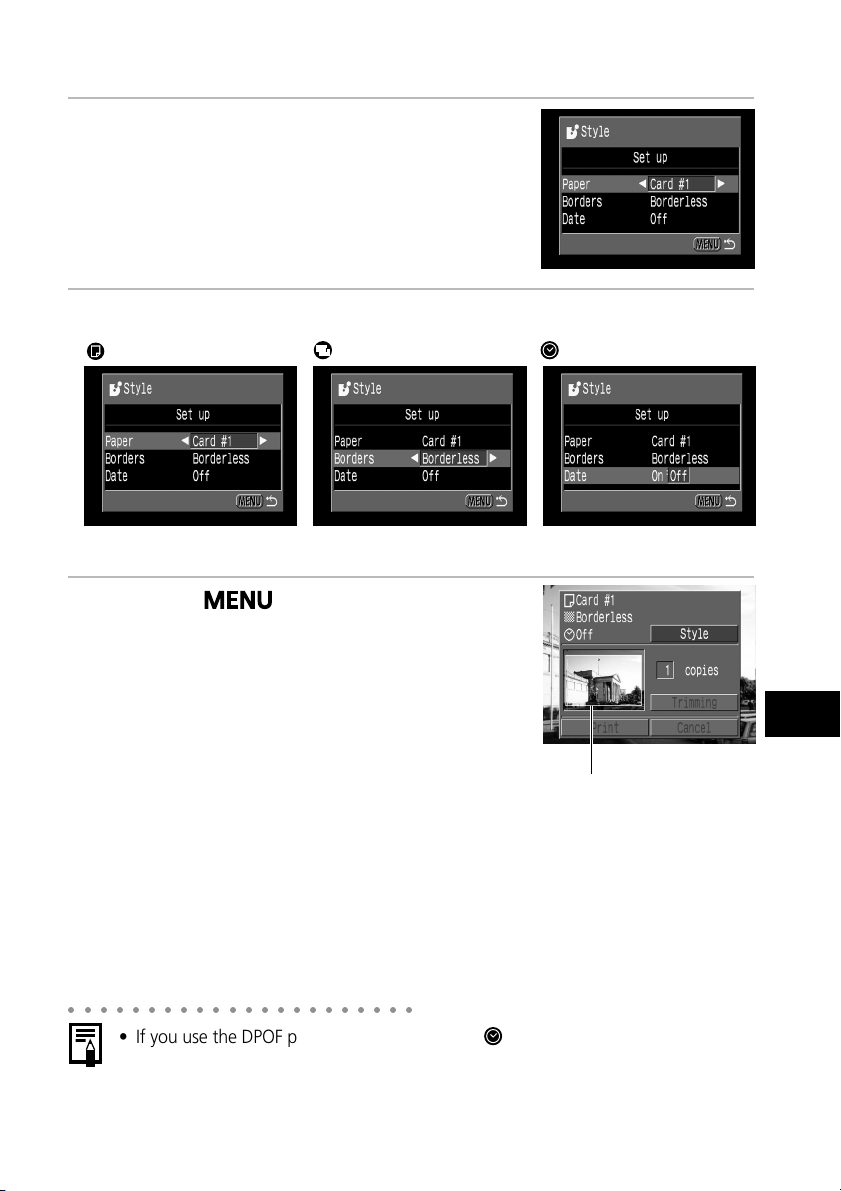

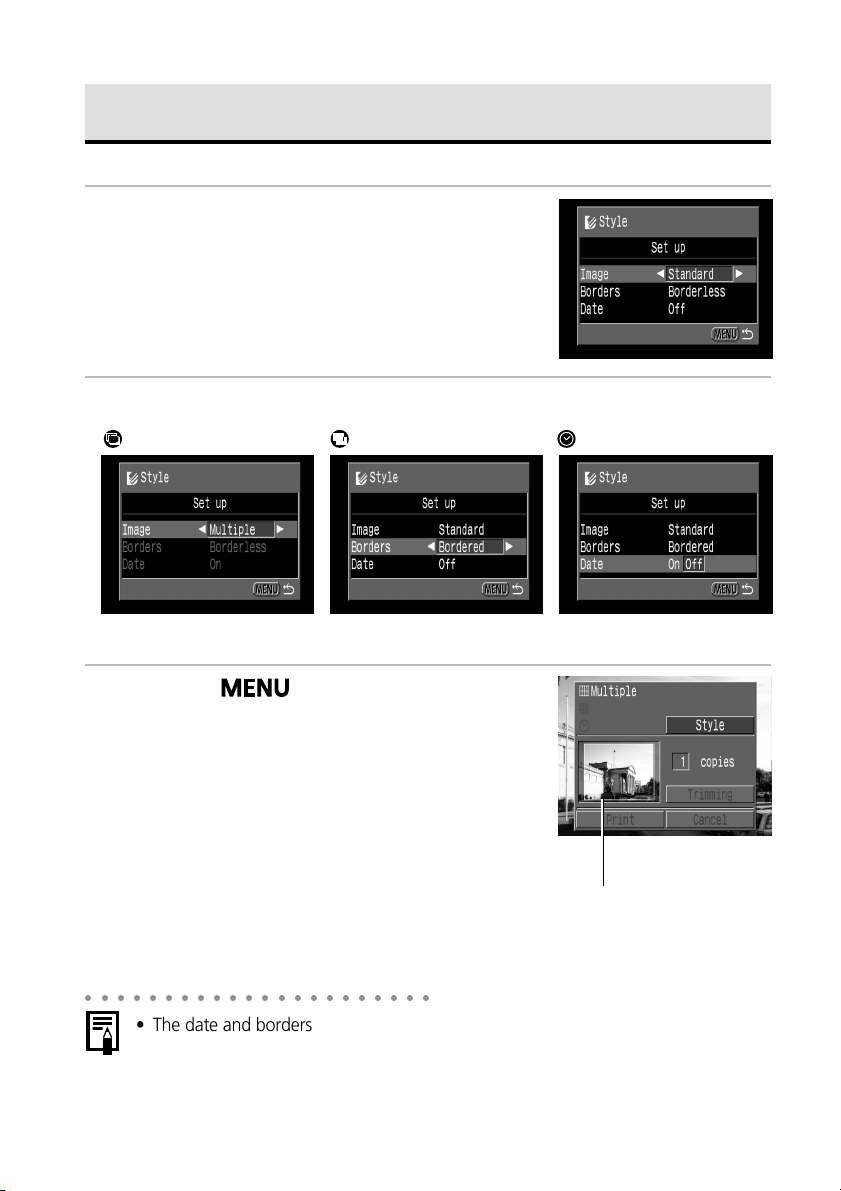

Setting the Print Style .................................................................. 109

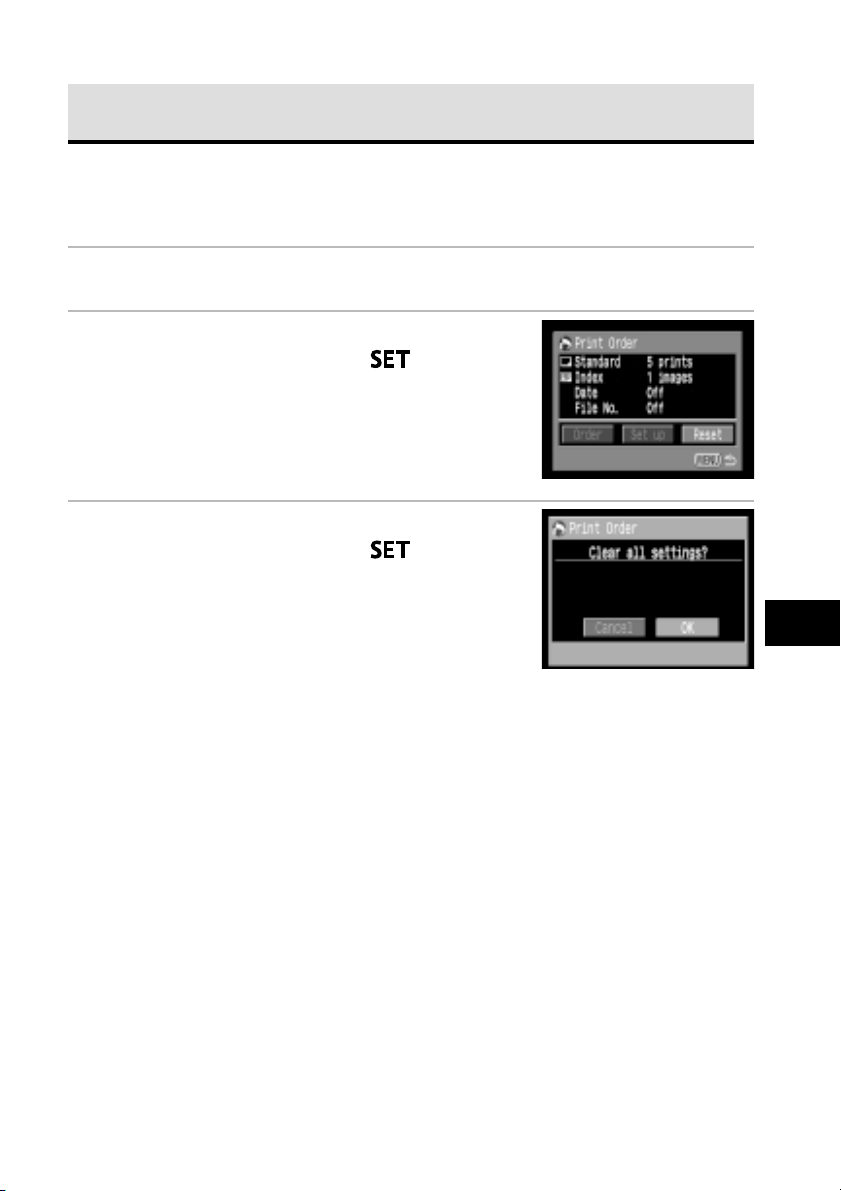

Resetting the Print Settings ......................................................... 111
Table of Contents 3
Icon Conventions in the Text
○○○○○○○○○○○○○○○○○○○○○
This mark denotes topics about issues that may affect the camera’s operation.
○○○○○○○○○○○○○○○○○○○○○
This mark denotes additional topics that complement the basic operating
procedures.
○○○○○○○○○○○○○○○○○○○○○
This mark denotes tips about the camera and photography.
Printing with a Direct Print Compatible Printer (Optional) ... 112

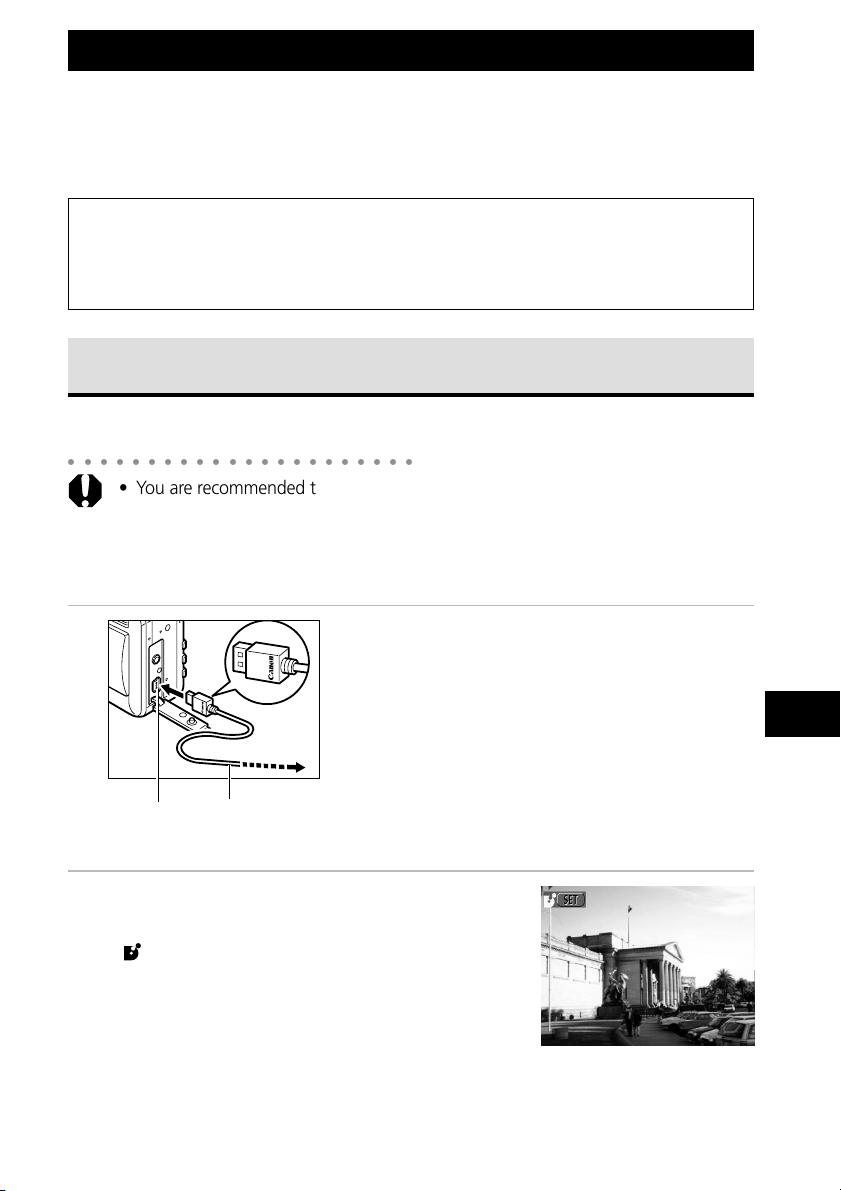

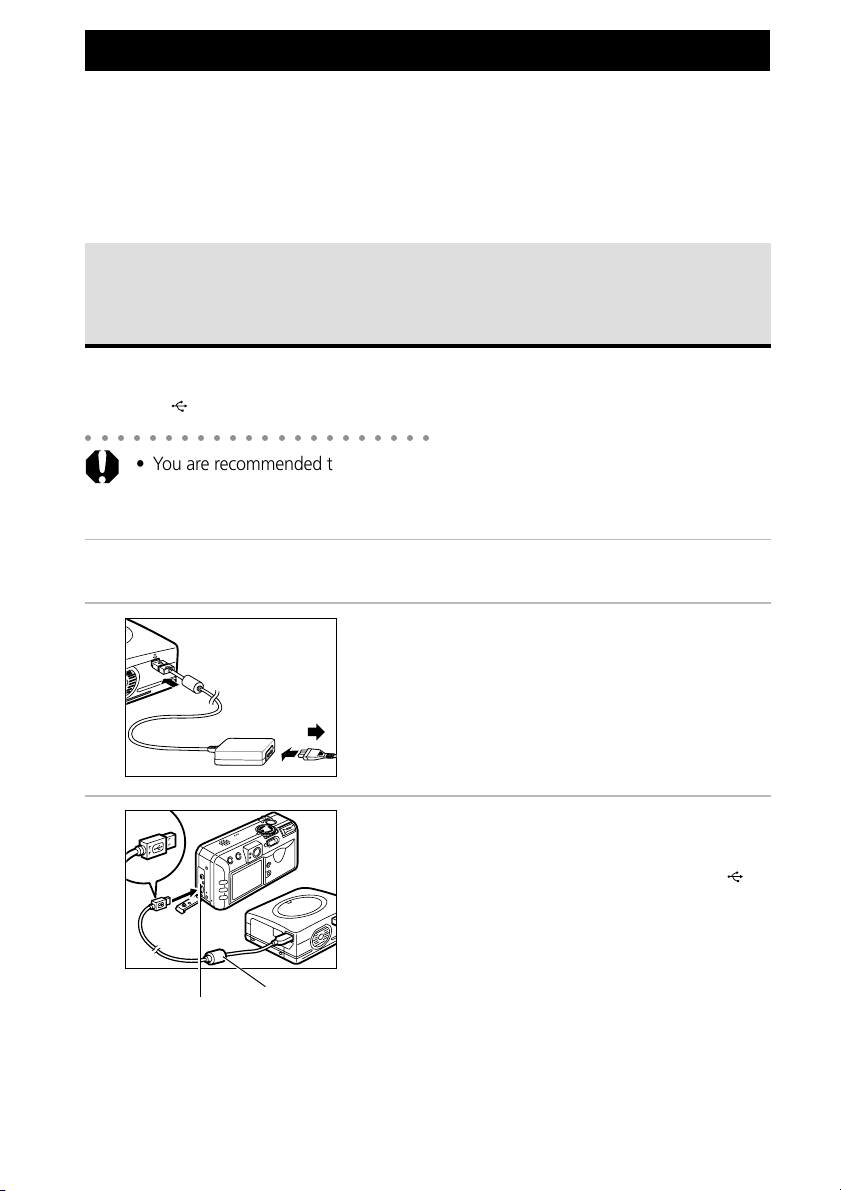

Connecting a Direct Print Compatible Printer to the Camera ......... 112

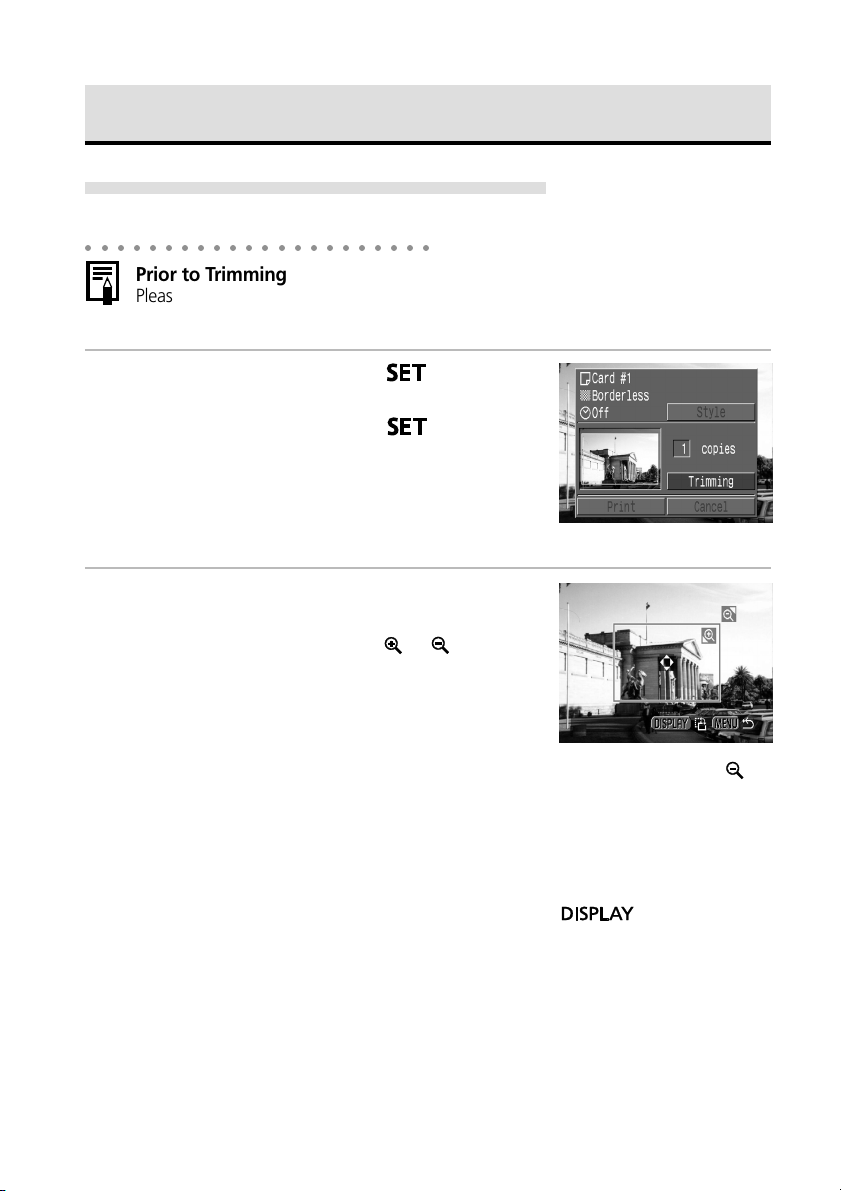

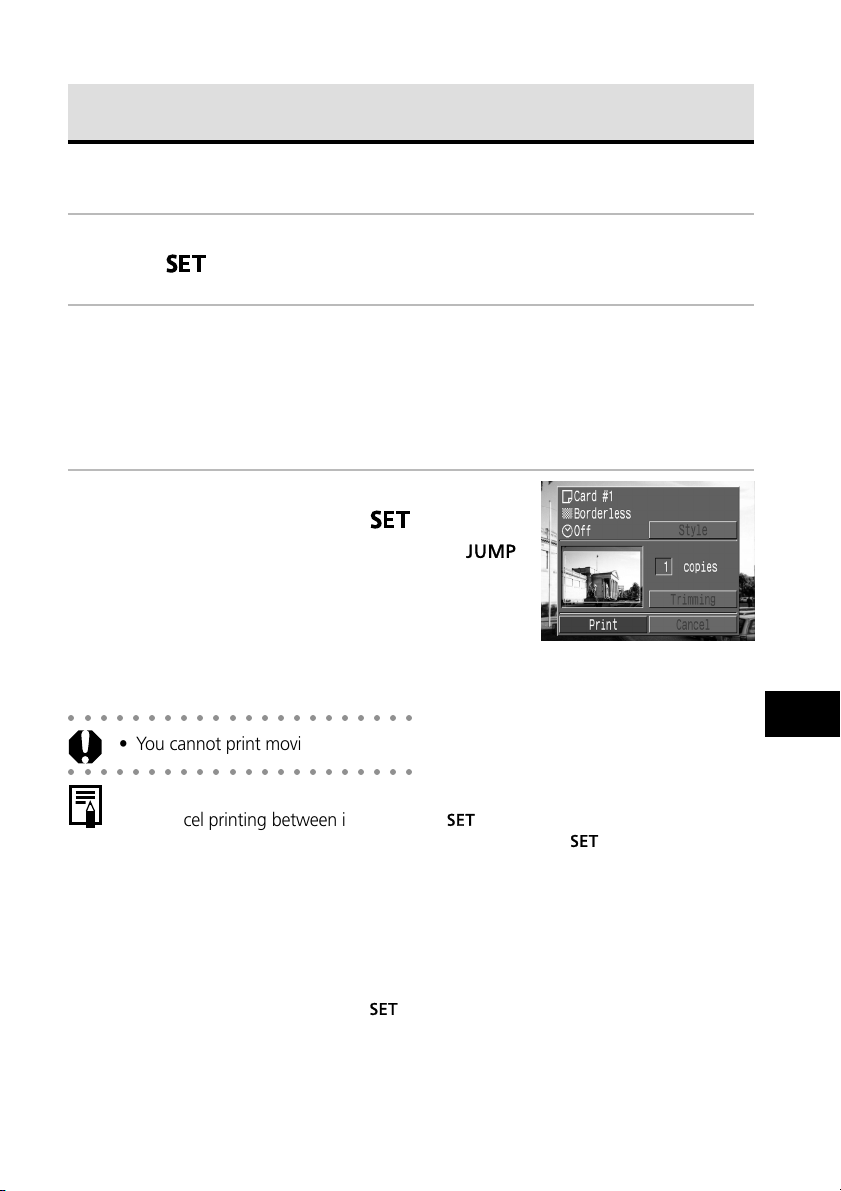

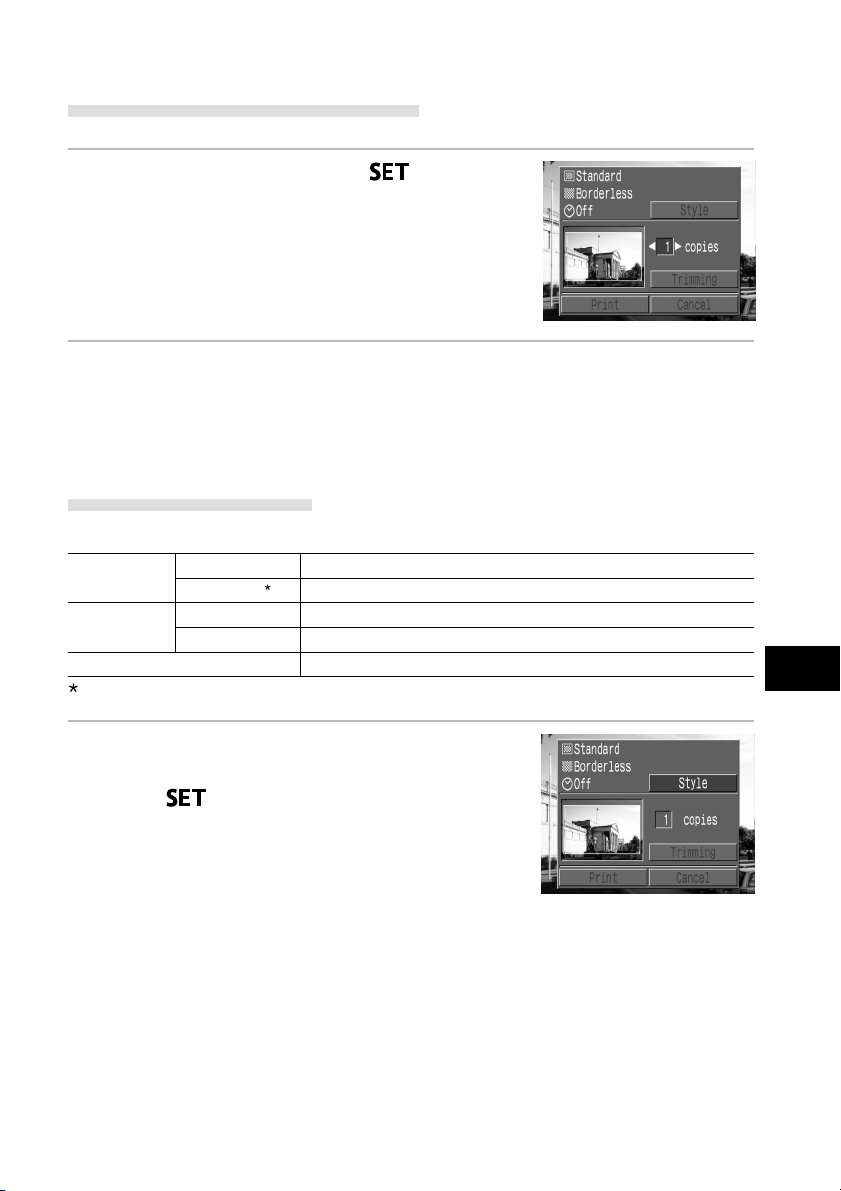

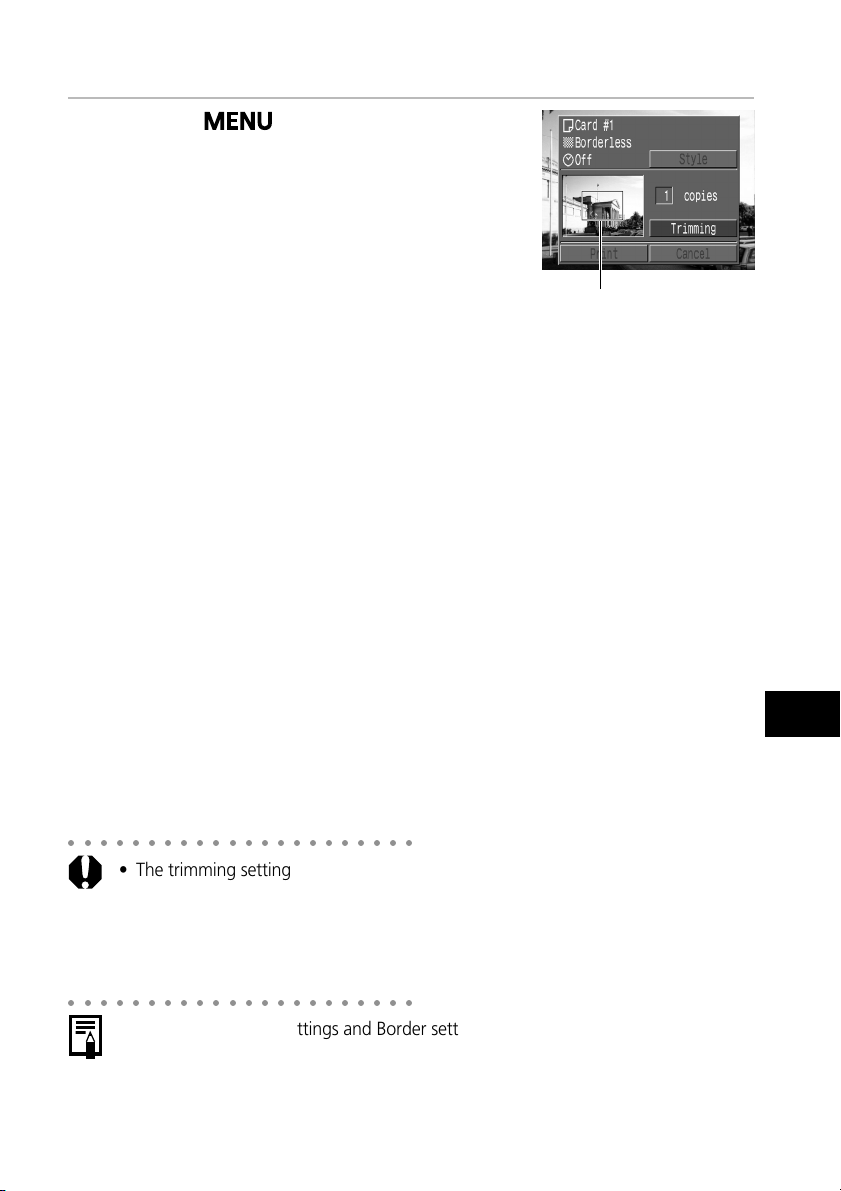

Printing ...................................................................................... 114

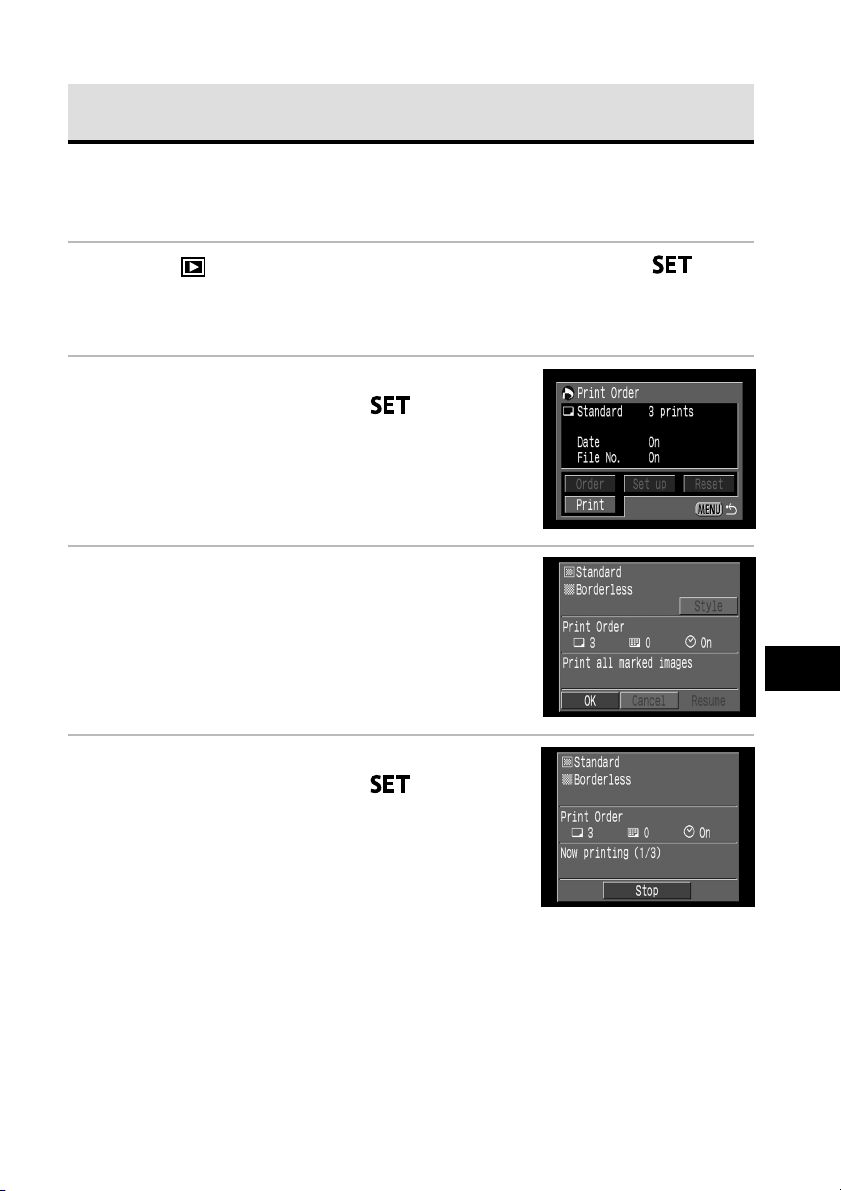

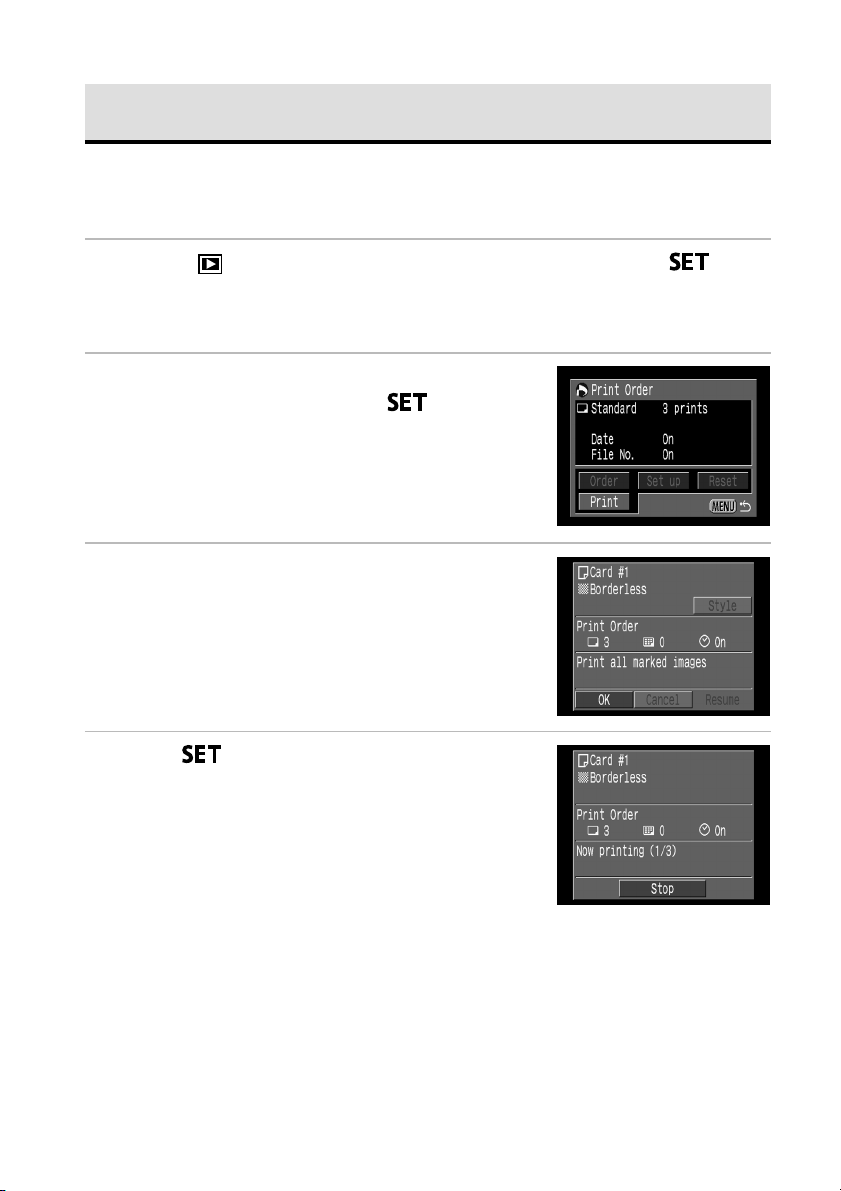

Printing with DPOF Print Settings ................................................. 119
Printing with the Direct Print Compatible Bubble Jet Printer
(Optional) ............................................................................... 121
Connecting Bubble Jet Printer to the Camera ............................... 121

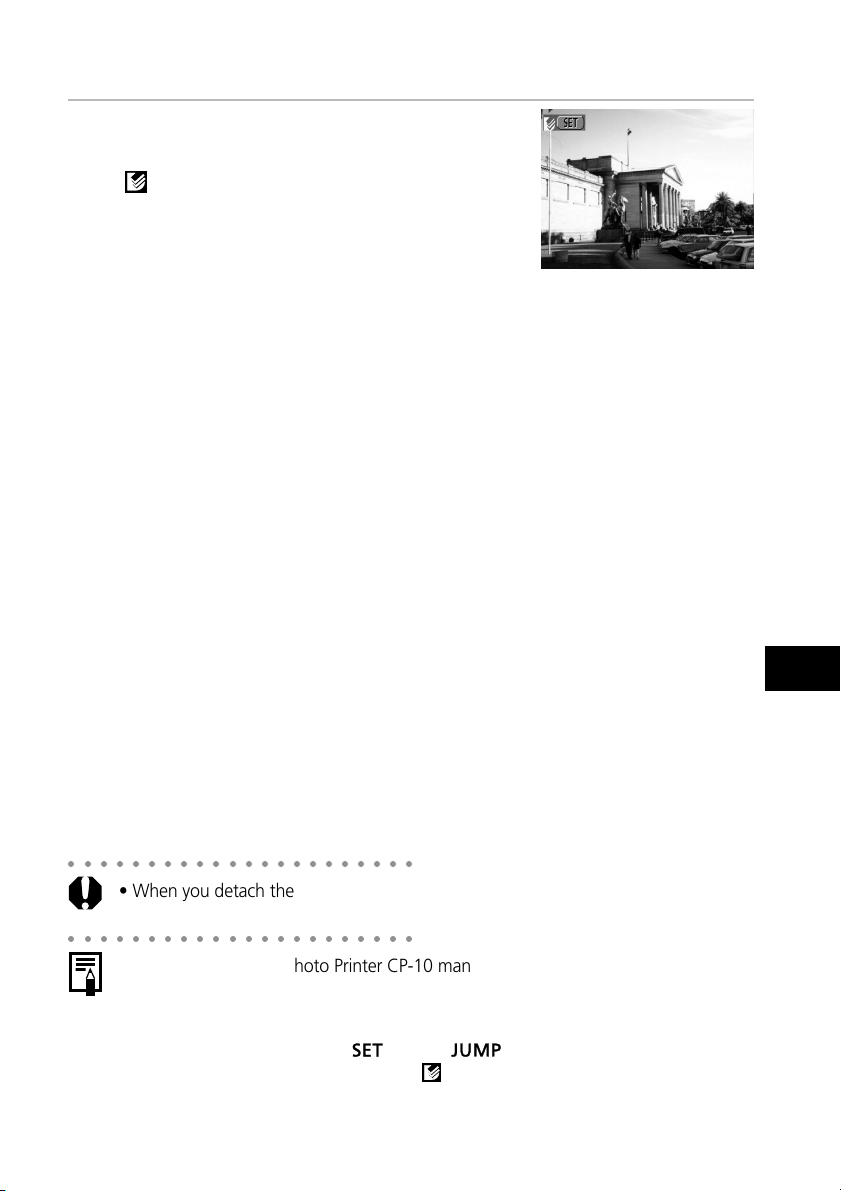

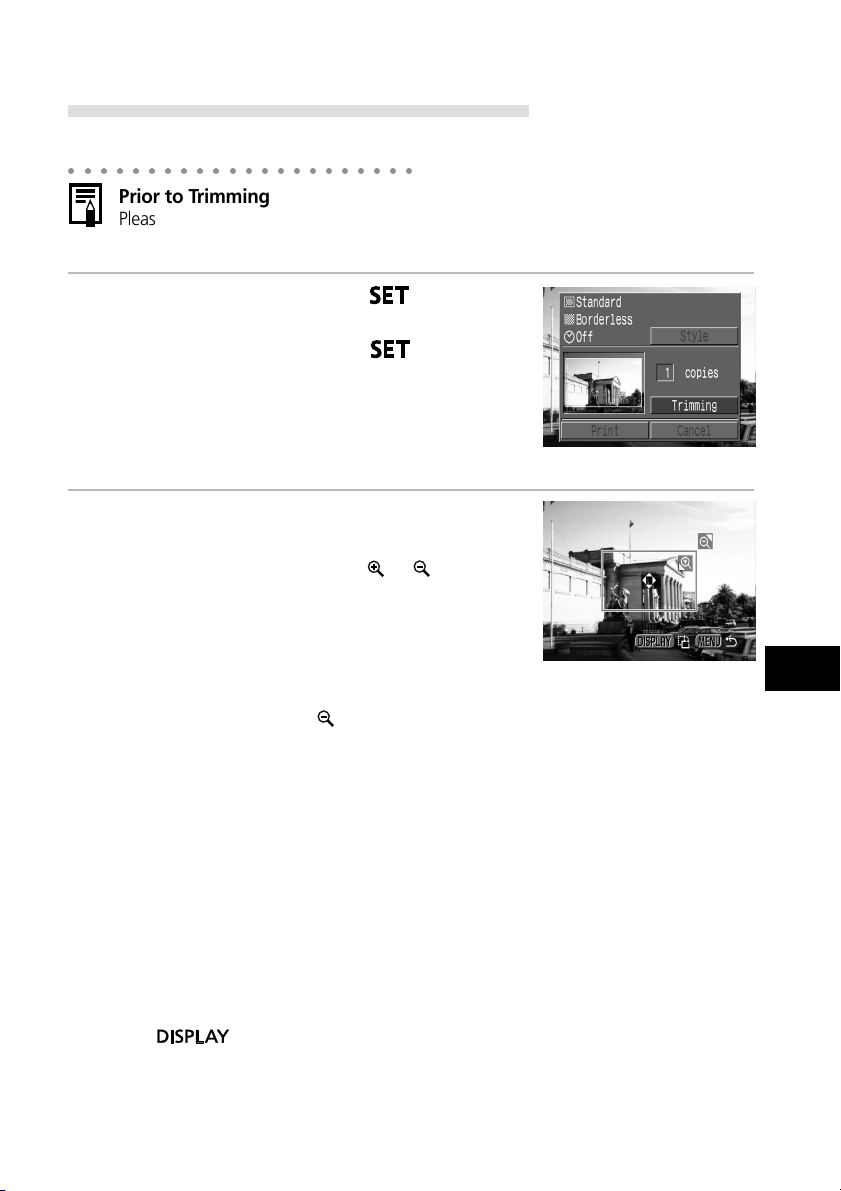

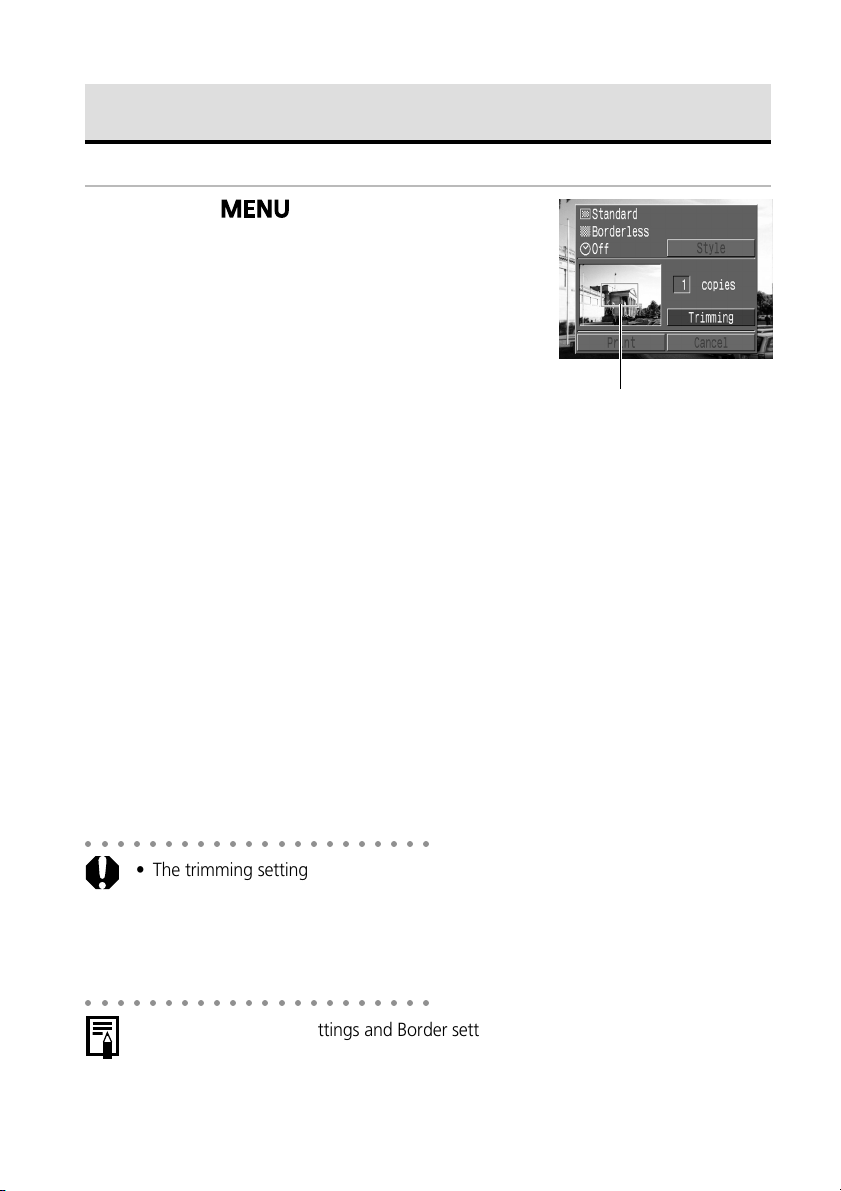

Printing ...................................................................................... 123
Printing with DPOF Print Settings ................................................. 128

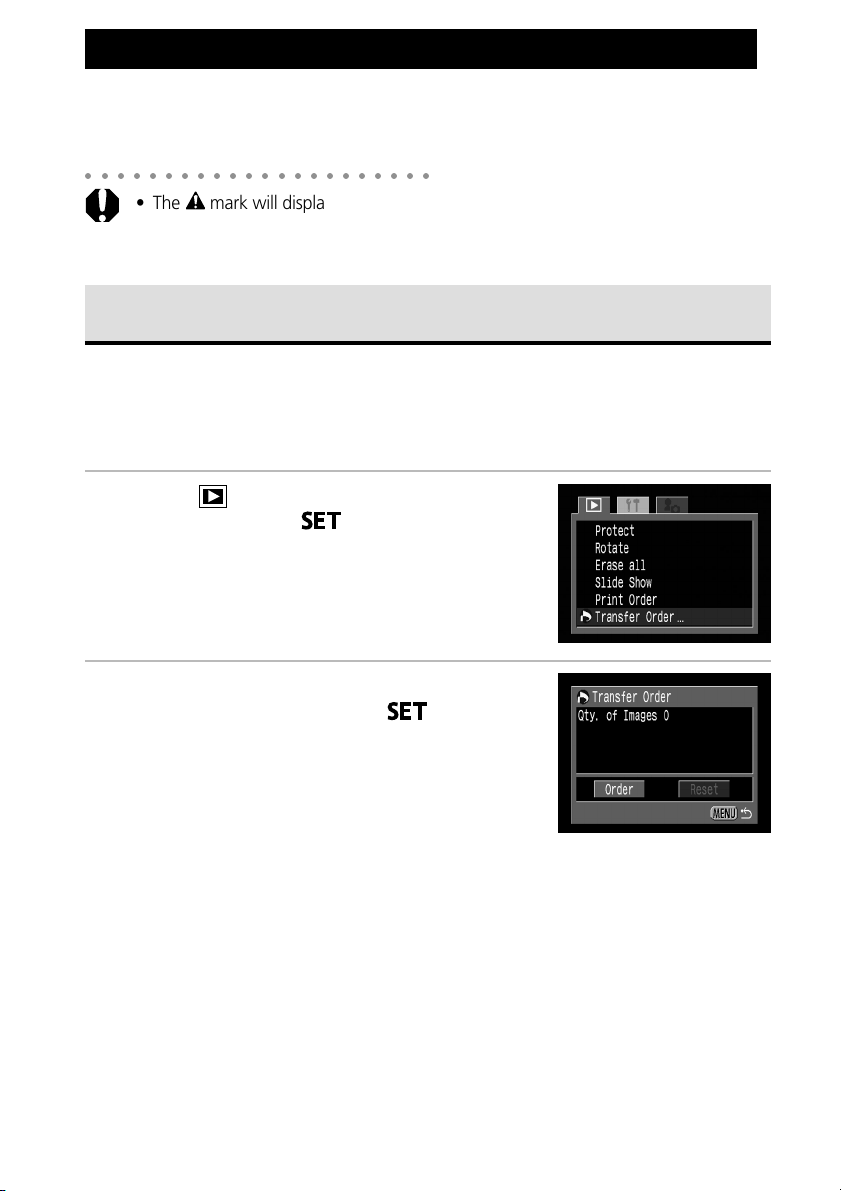

Image Transfer Settings (DPOF Transfer Order) ..................... 130

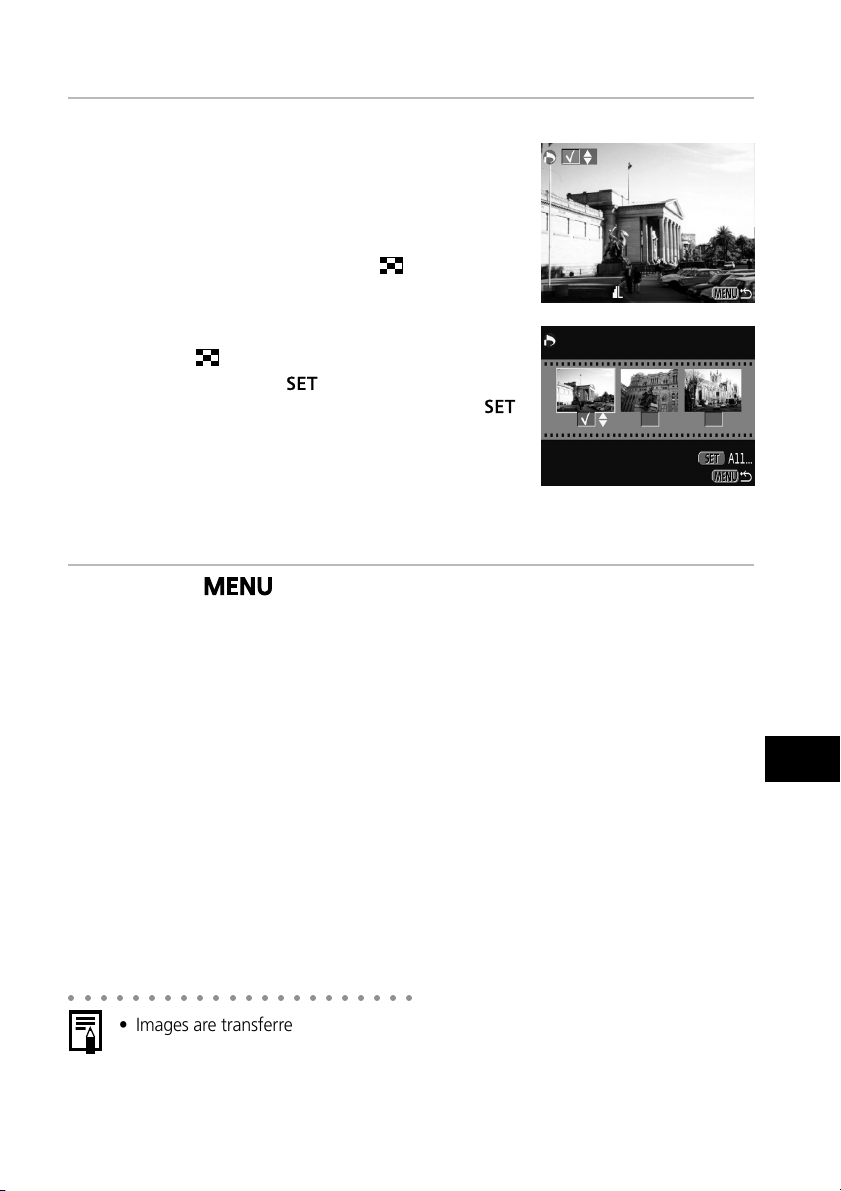

Selecting Images for Transferring ................................................. 130
Resetting the Transfer Settings .................................................... 132
List of Menu Options .............................................................. 133

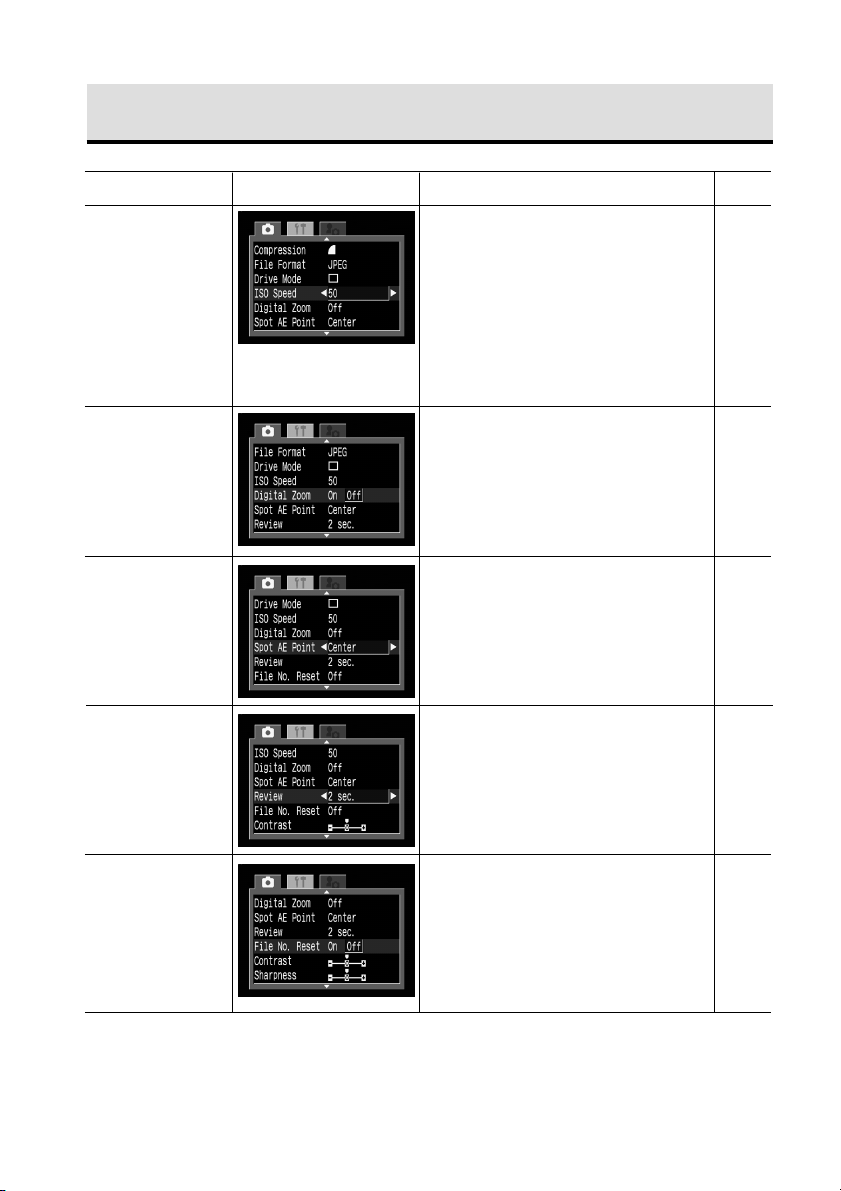

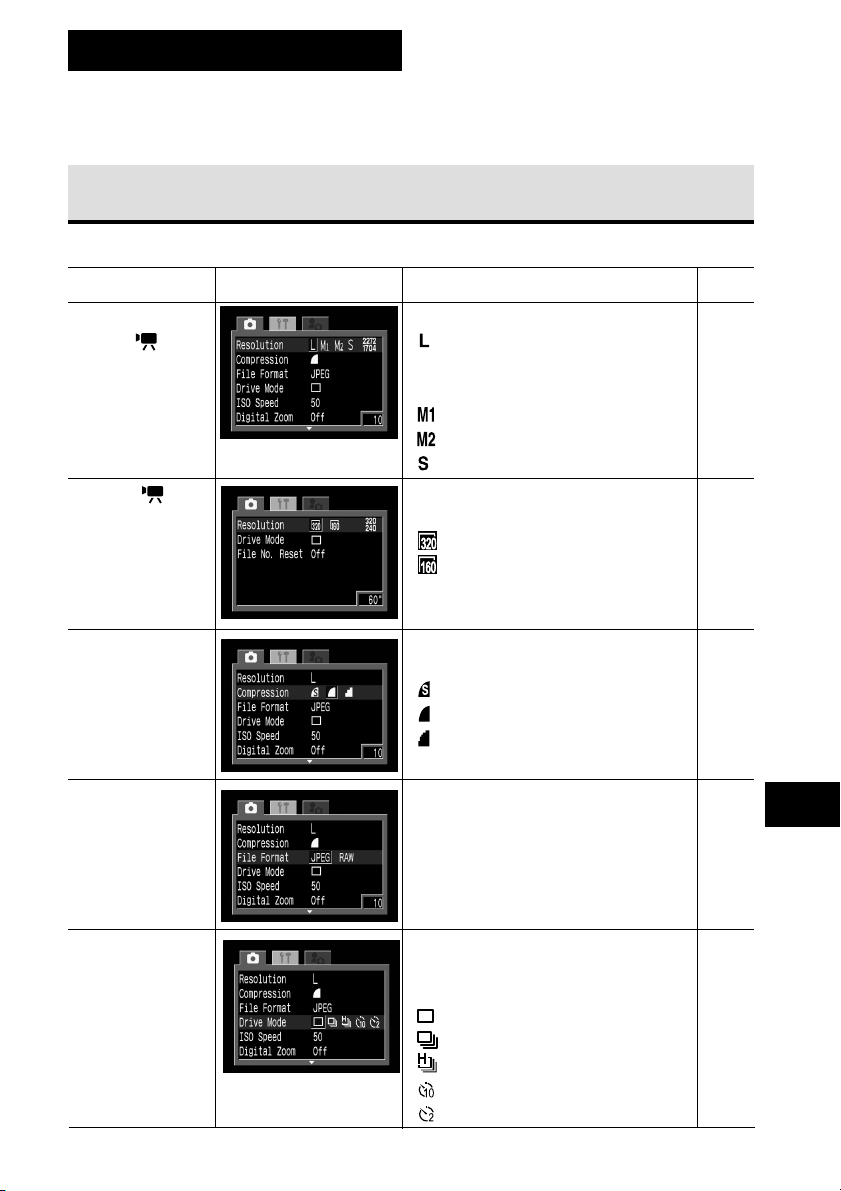

Rec. Menu ................................................................................. 133

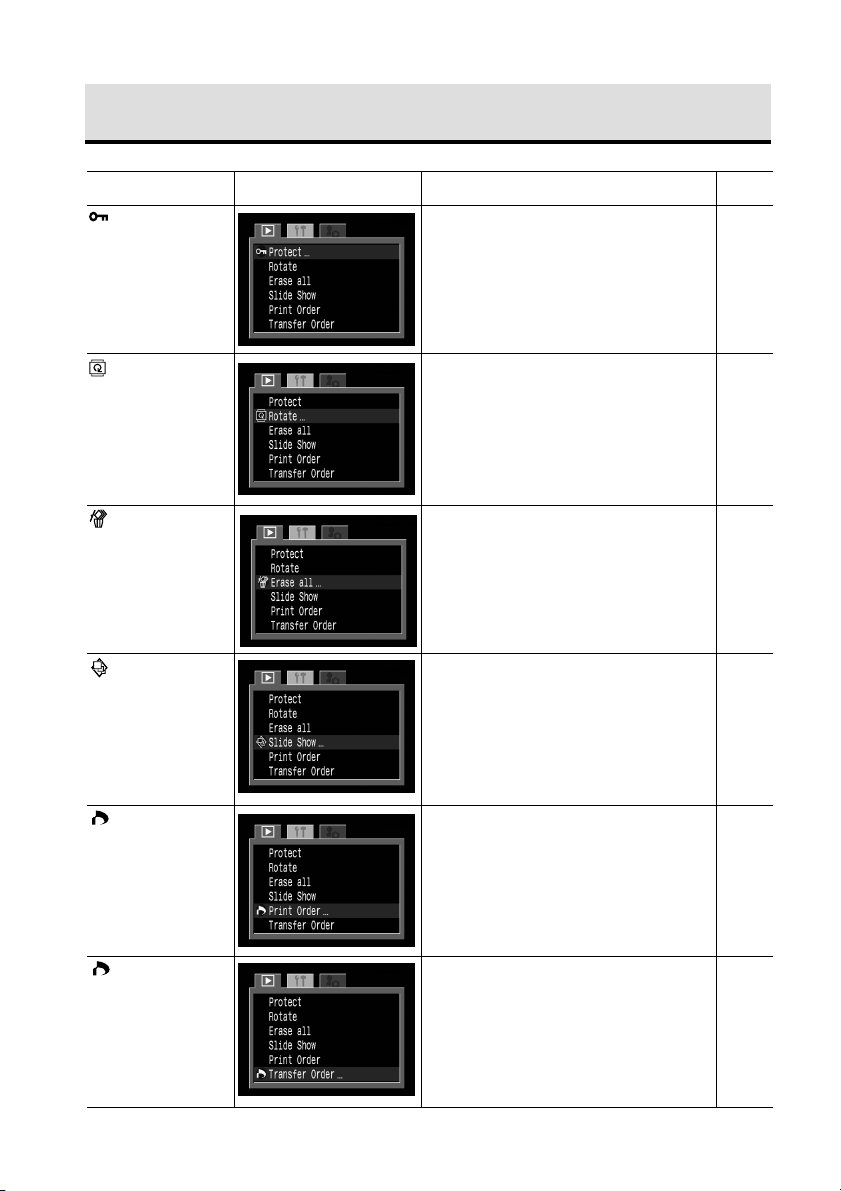

Play Menu .................................................................................. 136

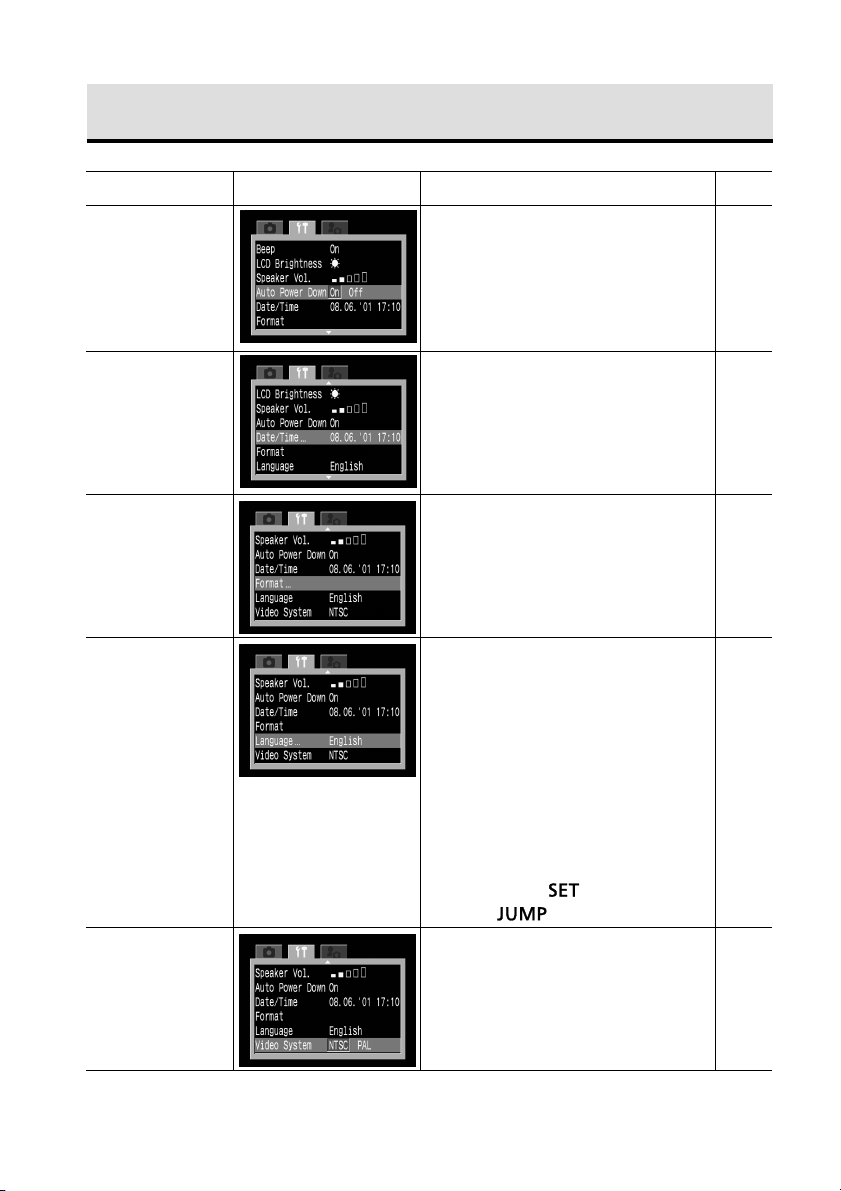

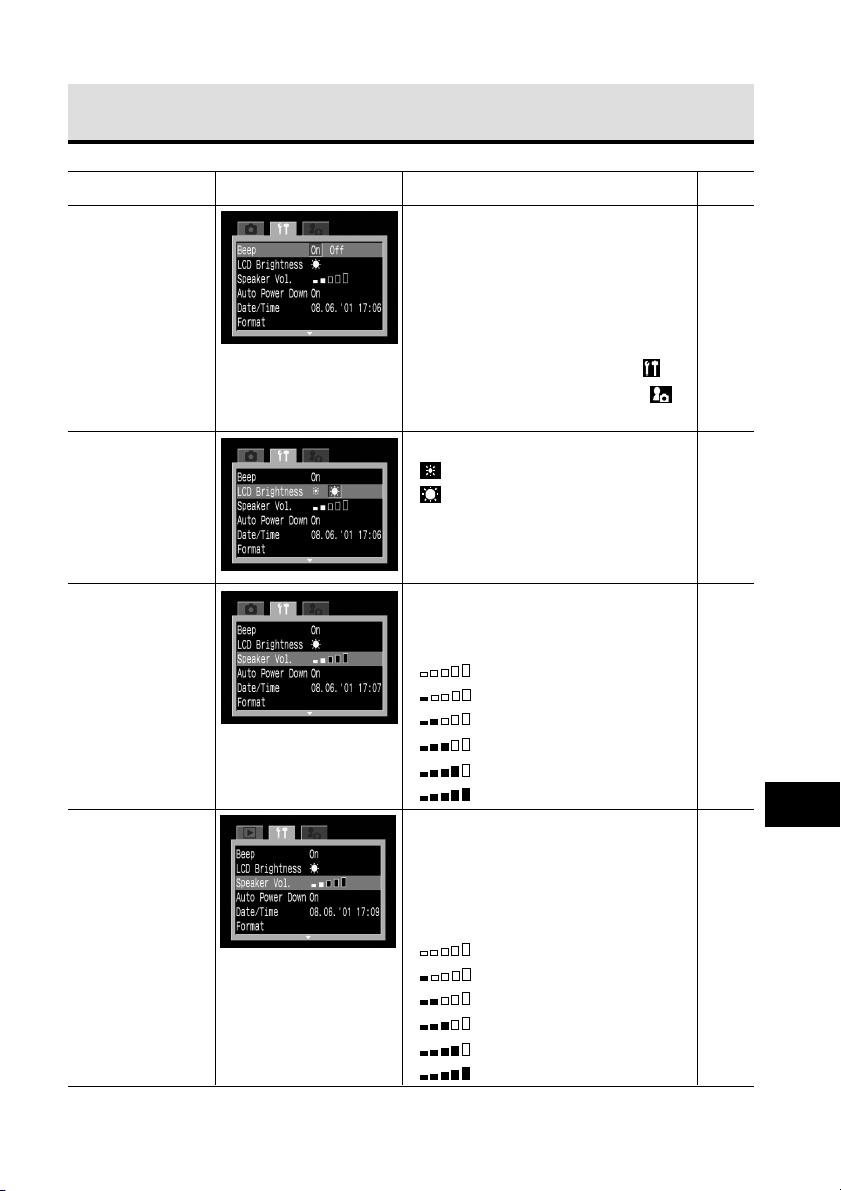

Set up Menu .............................................................................. 137
My Camera Menu ...................................................................... 139
Resetting all of the Settings to Default ......................................... 141
Shooting / Replaying with a TV Monitor ................................ 142
Appendices ............................................................................. 143
Camera Care and Maintenance ................................................... 143
Troubleshooting.......................................................................... 144
List of Messages ......................................................................... 147
Specifications ............................................................................. 151
Index ....................................................................................... 155
4 Read This First
Please Read
Test Shots
Before you try to photograph important subjects, we highly recommend that you
shoot several trial images to confirm that the camera is operating and being
operated correctly. Please note that Canon Inc., its subsidiaries and affiliates, and its
distributors are not liable for any consequential damages arising from any
malfunction of a camera or accessory, including CompactFlash™ cards, that results in
the failure of an image to be recorded or to be recorded in a format that is machine
sensible.
Warning Against Copyright Infringement
Please note that Canon digital cameras are intended for personal use and should
never be used in a manner that infringes upon or contravenes international or
domestic copyright laws and regulations. Please be advised that in certain cases the
copying of images from performances, exhibitions, or commercial properties by
means of a camera or other device may contravene copyright or other legal rights
even if the image was shot for personal use.
Warranty Limitations
This camera’s warranty is only effective in the country of sale. If a problem arises
while the camera is in use abroad, please convey it back to the country of sale before
proceeding with a warranty claim to a Canon Customer Support Help Desk.
Safety Precautions
• Before using the camera, please ensure that you read and understand the safety
precautions described below. Always ensure that the camera is operated correctly.
• The safety precautions noted on the following pages are intended to instruct you in
the safe and correct operation of the camera and its accessories to prevent injuries or
damage to yourself, other persons and equipment.
• In the next few pages, the term “equipment” refers primarily to the camera, its
power supply accessories and an optional compact power adapter.
Read this First
Read This First 5
Warnings
• Do not aim the camera directly into the sun or at other intense light sources which
could damage your eyesight.
• Do not trigger the flash in close proximity to human or animal eyes. Exposure to the
intense light produced by the flash may damage eyesight. In particular, remain at least
one meter (39 inches) away from infants when using the flash.
• Store this equipment out of the reach of children and infants. Accidental damage to
the camera or batteries by a child could result in serious injury. In addition, placement
of the strap around the child’s neck could result in asphyxiation.
• Do not attempt to disassemble or alter any part of the equipment that is not expressly
described in this guide. Disassembly or alteration may result in high-voltage electrical
shock. Internal inspections, alterations and repairs should be conducted by qualified
service personnel authorized by your camera distributor or a Canon Customer Support
Help Desk.
• To avoid the risk of high-voltage electrical shock, do not touch the flash portion of the
camera if it has been damaged. Similarly, never touch internal portions of the
equipment that become exposed as a result of damage. There is a risk of high-voltage
electrical shock. Please take the first opportunity to consult your camera distributor or a
Canon Customer Support Help Desk.
• Stop operating the equipment immediately if it emits smoke or noxious fumes. Failure to do
so may result in fire or electrical shock. Immediately turn the camera’s power off, remove
the camera battery and unplug the power cord from the electrical outlet. Confirm that
smoke or fume emissions have ceased. Please consult your camera distributor or the closest
Canon Customer Support Help Desk.
• Stop operating the equipment if it is dropped or the casing is damaged. Failure to do so
may result in fire or electrical shock. Immediately turn the camera’s power off, remove the
camera battery and unplug the power cord from the electrical outlet. Please consult your
camera distributor or the closest Canon Customer Support Help Desk.
• Do not allow the equipment to come into contact with, or become immersed in, water
or other liquids. Do not allow liquids to enter the interior. The camera has not been
waterproofed. If the exterior comes into contact with liquids or salt air, wipe it dry with
a soft, absorbent cloth. In the event that water or other foreign substances enter the
interior, immediately turn the camera’s power off and remove the camera battery or
unplug the power cord from the electrical outlet. Continued use of the equipment may
result in fire or electrical shock. Please consult your camera distributor or the closest
Canon Customer Support Help Desk.
• Do not use substances containing alcohol, benzene, thinners or other flammable
substances to clean or maintain the equipment. The use of these substances may lead
to fire.
6 Read This First
• Remove the power cord on a regular periodic basis and wipe away the dust and dirt
that collects on the plug, the exterior of the electrical outlet and the surround area. In
dusty, humid or greasy environments, the dust that collects around the plug over long
periods of time may become saturated with humidity and short-circuit, leading to fire.
• Do not cut, damage, alter or place heavy items on the power adapter cord. Any of these
actions may cause an electrical short circuit, which may lead to fire or electrical shock.
• Do not handle the power cord if your hands are wet. Handling it with wet hands may
lead to electrical shock. When unplugging the cord, ensure that you hold the solid
portion of the plug. Pulling on the flexible portion of the cord may damage or expose the
wire and insulation, creating the potential for fires or electrical shocks.
• Use of power sources not expressly recommended for this equipment may lead to
overheating, distortion of the equipment, fire, electrical shock or other hazards. Use
only the recommended power accessories.
• Do not place the batteries near a heat source or expose them to direct flame or heat.
Neither should you immerse them in water. Such exposure may damage the batteries and
lead to the leakage of corrosive liquids, fire, electrical shock, explosion or serious injury.
• Do not attempt to disassemble, alter or apply heat to the batteries. There is serious risk
of injury due to an explosion. Immediately flush with water any area of the body,
including the eyes and mouth, or clothing, that comes into contact with the inner
contents of a battery. If the eyes or mouth contact these substances, immediately flush
with water and seek medical assistance.
• Avoid dropping or subjecting the batteries to severe impacts that could damage the
casings. It could lead to leakage and injury.
• Do not short-circuit the battery terminals with metallic objects, such as key holders. It
could lead to overheating, burns and other injuries. Use the supplied terminal cover to
transport or store the battery pack.
• Before you discard a battery, cover the terminals with tape or other insulators to
prevent direct contact with other objects. Contact with the metallic components of
other materials in waste containers may lead to fire or explosions. Discard the batteries
in specialized waste facilities if available in your area.
• Use NB-2L battery pack only. Use of other batteries may cause explosions or leaks,
resulting in fire, injury and damage to the surroundings.
• Use the supplied battery charger to charge the NB-2L battery pack. Use of other
battery chargers may cause the unit to overheat and distort, resulting in fire or
electrical shock.
• Disconnect the battery charger or the compact power adapter from both the camera
and electrical outlet after recharging and when the camera is not in use to avoid fires
and other hazards.
• The battery charger and the camera terminal of the optional compact power adapter
are designed for exclusive use with this camera. Do not use it with other products .
There is a risk of fire and other hazards.
Read This First 7
• Always keep the terminals of the battery charger clean. Do not place metal objects
on top of the terminals. There is a risk of fire and other hazards.
Cautions
• Avoid using, placing or storing the equipment in places subject to strong sunlight or
high temperatures, such as the dashboard or trunk (boot) of a car. Exposure to intense
sunlight and heat may cause the batteries to leak, overheat or explode, resulting in fire,
burns or other injuries. High temperatures may also cause deformation of the casing.
Ensure that there is good ventilation when using the compact power adapter to charge
the battery pack or power the camera.
• Do not store the equipment in humid or dusty areas. Storage in such areas could lead
to fire, electrical shock or other damage.
• Be careful not to bang the camera or subject it to strong impacts or shocks that could
lead to injury or damage the equipment when wearing or holding it by the strap.
• Be careful not to cover the flash with your fingers when shooting. In addition, do not
touch the surface of the flash after taking several pictures in rapid succession. Either
action could result in burns.
• If your camera is used for prolonged periods, the camera body may become warm.
Please take care when operating the camera for an extended period as your hands
may experience a burning sensation.
Preventing Malfunctions
■ Avoid Strong Magnetic Fields
Never place the camera in close proximity to electric motors or other equipment
generating strong electromagnetic fields. Exposure to strong magnetic fields may
cause malfunctions or corrupt image data.
■ Avoid Condensation Related Problems
Moving the equipment rapidly between hot and cold temperatures may cause
condensation (water droplets) to form on its external and internal surfaces. You can
avoid this by placing the equipment in an airtight, resealable plastic bag and letting it
adjust to temperature changes slowly before removing it from the bag.
■ If Condensation Forms Inside the Camera
Stop using the camera immediately if you detect condensation. Continued use may
damage the equipment. Remove the CF card, and battery or a household power
source, from the camera and wait until the moisture evaporates completely before
resuming use.
8 Quick Start
1
Charge the Battery (p. 15).
Charge the battery using the supplied battery
charger. The charging is complete when the
charging indicator turns from orange to green.
• Please note that the battery charger shape
varies between regions.
2
Install the Battery (p. 17).
Open the CF card slot/battery cover. Hold back
the battery lock in the direction of the arrow
using the corner of the battery pack, then insert
the battery pack into the compartment until it is
locked.
3
Install the CF card (p. 21).
4
Open the lens cover (p. 27).
The camera powers up into Shooting mode.
• If the [Set Date/Time] menu appears on the
LCD monitor, set the date and time (p. 24).
5
Turn the Shooting Mode dial to
(p. 44).
Quick Start
Charging indicator
Battery lock
Terminals
Quick Start 9
6
Focus (p. 34).
Aim the camera and lightly press the shutter
button halfway. Two beeps will sound when the
autofocus is set.
7
Shoot (p. 34).
Press the shutter button all the way. You will hear
the sound of the shutter close when the shot is
complete.
8
View the recorded image (p. 46).
The recorded image appears in the LCD monitor
for approximately 2 seconds. Keep your finger on
the shutter button, or press
on the
multicontroller while the image is displayed to
continue to display the image after the shutter
button is released.
To Immediately Delete the Displayed
1. Press the button while the image is displayed.
2. Confirm that [Erase] is selected and press
on the multicontroller.
10 Components Guide
* To connect the camera to a computer or printer, use one of the following cables.
• Computer: USB Interface Cable IFC-300PCU (supplied with this camera)
• Direct Print Compatible Printer (optional): Direct Interface Cable DIF-100 (supplied
with Direct Print compatible printers)
• Bubble Jet Printer with the direct print function (optional): Bubble Jet Printer-
digital camera connection cable (supplied with the Direct Print compatible Bubble
Jet Printer)
Front View
Components Guide
Lens
Lens Cover
(p. 27)
Speaker
Flash (p. 47)
Microphone
(Audio/Video
Out) Terminal
(p. 142)
Terminal*
(p. 112, 121)
Optical Viewfinder Window (p. 36)
Zoom Lever
(p. 37, 39)
Shooting Mode Dial
Terminal cover
Shutter button
(p. 34)
AF-Auxiliary Light Emitter
Red-Eye Reduction Lamp (p. 47)
Self-Timer Lamp (p. 58)
Components Guide 11
Back / Bottom View
Viewfinder (p. 36)
Strap Eyelet (p. 26)
DC Coupler Cable Cover
(p. 19)
CF Card Slot/Battery Cover
(p. 17, 21)
Tripod Socket
• The LCD monitor is covered with a thin plastic film for protection against
scratches during shipment. Remove it before using the camera.
12 Components Guide
Controls
● Upper Indicator
The indicators shine or flash when the shutter button is pressed or the
following operations are underway.
• Green: Ready to record / Ready to communicate (during a computer
connection)
• Flashing Green: Powering up / Recording to CF card / Reading CF card / Erasing from CF card/
Transmitting data (during a computer connection)
• Orange: Ready to record (flash on)
• Flashing Orange: Ready to record (camera shake warning)
● Lower Indicator
• Yellow: Macro mode / Manual focus mode
• Flashing Yellow: Focusing difficulty (although you can press the shutter button, try using
focus lock or adjusting the focus manually, p. 86)
(Exposure) / (White Balance) /
(AEB) / (Flash Exposure
Compensation) Button (p. 73, 74, 77, 78)
(Flash) / (Index)
Button (p. 47, 94)
(Macro) /
(Jump)
Button (p. 57, 95)
Power/Mode Indicator (p. 27)
Power/Replay Lever (p. 27, 29)
Multicontroller (p. 14, 71)
(Menu) Button (p. 38)
(Display) Button (p. 30)
LCD Monitor (p. 30)
(Light Metering) /
(Microphone) Button
(p. 79, 81, 82, 98)
(Manual Focus) /
(Single image erase)
Button (p. 85, 86, 104)
Components Guide 13
Shooting Mode Dial
Use the shooting mode dial to switch between the shooting modes.
•
: Auto (p. 44)
The camera automatically selects settings.
• Image Zone
The camera automatically selects settings according to
the image composition type.
: Portrait (p. 49)
: Landscape (p. 49)
: Night Scene (p. 50)
: Fast Shutter Speed (p. 50)
: Slow Shutter Speed (p. 51)
: Color Effects (p. 52)
: Stitch Assist (p. 53)
: Movie (p. 56)
• Creative Zone
The user selects exposure, aperture or other settings to
achieve special effects.
: Program AE (p. 65)
: Shutter Speed-Priority AE (p. 66)
: Aperture-Priority AE (p. 68)
: Manual Exposure (p. 70)
I
m
a
g
e
Z
o
n
e
C
r
e
a
t
i
v
e
Z
o
n
e
Auto
14 Components Guide
Operating the Multicontroller
The multicontroller is used to select choices, images and menus on the LCD
monitor and confirm the selection.
Moving the cursor on the LCD monitor up and
down.
Use C or D to select a menu item on the LCD
monitor.
Moving the cursor on the LCD monitor left
and right.
Use B or A to select a menu item on the LCD
monitor.
Confirming a menu selection or selecting an
AF frame.
Press
or .
Preparing the Camera 15
Charging the Battery Pack
Recharge Battery Pack NB-2L (supplied) with Battery Charger CB-2LT or CB-2LTE before you use the
camera for the first time and subsequently when the “Charge the battery pack” message is displayed.
1
Align the edge of the battery pack with
the line on the battery charger, then slide
the battery in the direction of the arrow.
2
Battery charger model names and types
vary by region.
(For CB-2LT)
Plug the battery charger into an
electrical outlet.
(For CB-2LTE)
Attach the power cord to the battery
charger and plug it into an electrical
outlet.
(For CB-2LT and CB-2LTE)
• The charging indicator will shine orange while
the battery pack is charging. It will change to a
steady green when the charge is complete.
• After charging, unplug the battery charger and
remove the battery pack from it.
○○○○○○○○○○○○○○○○○○○○○○
• To protect and prolong the life of the battery pack, do not charge it for 24 hours
or longer at a time.
○○○○○○○○○○○○○○○○○○○○○○
• This is a lithium ion battery pack so there is no need to completely use or
discharge it before recharging. It can be recharged at any time.
• It takes approximately 80 minutes to bring a fully discharged battery pack to full
charge (based on standard Canon testing criteria). Charge it within a temperature
range of 5 to 40º C (32 to 104º F).
• Charging times will vary according to the surrounding humidity and battery pack
charge state.
• You may hear a noise during charging. This is not a malfunction.
Preparing the Camera
Charging Indicator
CB-2LT
Charging Indicator
CB-2LTE
16 Preparing the Camera
Charging the Battery Pack (continued)
Battery Pack Handling Precautions
•
Keep the battery pack and camera terminals ( ) clean at all times. Dirty
terminals may cause a poor contact between the battery pack and camera. Polish
the terminals with a tissue or a dry cloth before charging or using the battery pack.
•
Do not cover the battery charger with anything, such as a tablecloth, cushion or
blanket, when it is charging. Heat will build up internally and possibly lead to fire.
•
Do not charge batteries other than Battery Pack NB-2L with the supplied battery
charger.
•
The battery pack continues to discharge a small amount when left in the camera
(even with the power turned off) or battery charger. This shortens the battery life.
Remove it from the camera, attach the supplied terminal adapter and store it at
room temperature (30° C/86° F or less) in a dry place. Charge it before use.
•
Even charged battery packs continue to discharge naturally. You are advised to
charge the battery on the day of use, or one day before, to ensure a full charge.
•
Since storing a fully charged battery pack for long periods of time (about 1 year)
can shorten its lifecycle or affect performance, you are recommended to use the
battery pack in the camera until it is completely discharged and to store it at
room temperature (30° C/ 86° F or less). If you do not use the battery pack for
long periods of time, charge it fully and discharge it fully in the camera at least
once a year before returning it to storage.
•
The camera consumes the battery charge when the power is on even when a
function is not being used. To conserve the battery charge, be particularly
attentive in turning the camera off.
•
Although the battery pack’s maximum operating range is 0 to 40º C (32 to 104º F),
the optimal range is 10 to 30º C (50 to 86º F). At cold temperatures, such as those
experienced when skiing, performance will temporarily decline, reducing the
usable time before recharging.
•
If the usable time of a battery pack diminishes substantially even when fully
charged, it should be replaced.
Preparing the Camera 17
Installing the Battery Pack
Install Battery Pack NB-2L (supplied) into the camera as follows. Use a household
power source to power the camera for extended periods (p. 19).
1
Turn off the camera (p. 27, 29).
• Check that the power/mode indicator is not lit.
2
Slide the CF card slot/battery cover in
the direction of the arrow to open the
cover.
3
Hold back the battery lock in the
direction of the arrow with the corner
of the battery pack, then insert the
battery pack into the compartment
until it is locked.
• To remove the battery pack, release the battery
lock.
4
Close the CF card slot/battery cover
then slide it to the original position
until it clicks.
○○○○○○○○○○○○○○○○○○○○○○
• Charge the battery pack before using it the first time (p. 15).
• When the upper indicator on the left side of the viewfinder is flashing green, the
CF card is being written to, read, erased or transmitted to. Therefore, never turn
off the camera or open the CF card slot/battery cover while this indicator is
flashing green.
• Remove the battery pack when the camera is not in use.
Battery lock
18 Preparing the Camera
Installing the Battery Pack (continued)
○○○○○○○○○○○○○○○○○○○○○○
Battery Low Status
The following icon and/or message appears when the battery becomes low.
Battery Performance (Battery Pack NB-2L at full charge)
*
The data above reflects standard Canon testing conditions. The actual figures will vary according to the shooting
conditions and settings.
* Movie data is excluded.
* At low temperatures, the battery pack performance may diminish and the low battery icon appear very rapidly.
In these circumstances, the performance can be improved by warming the battery pack in a pocket before use.
<Test Conditions>
Shooting: Room temperature (23º C, 73º F), alternating maximum wide angle and maximum telephoto shots at
20-second intervals with flash fired once every four shots and camera power turned off and on every
eighth shot. CF card used.
Replaying: Room temperature (23º C, 73º F), continuous playback at one image per 5 seconds. CF card used.
PowerShot S30
PowerShot S40
Number of Images Shot
LCD Monitor On
Approx. 160 images
Approx. 180 images
Replay Time
LCD Monitor Off
Approx. 390 images
Approx. 420 images
Approx. 150 minutes
Approx. 150 minutes
Battery pack charge is low. Recharge it as soon as possible before it
is required for an extended period.
When the LCD monitor is off, this icon will display when you press
the
, , or button.
Battery charge is insufficient to operate the camera. Replace the
battery pack immediately.
Change
the battery pack
Preparing the Camera 19
Using a Household Power Source
You are advised to use AC Adapter Kit ACK700* (optional) for long periods of use
and when connecting to a computer or printer.
* Consists of Compact Power Adapter CA-PS700, DC Coupler DR-700 and a power cord.
1
Attach the power cord to the compact
power adapter and plug it into an
electrical outlet.
2
Connect the DC plug of the compact
power adapter cable to the DC Coupler
DR-700 terminal.
3
Open the CF card slot/battery cover,
then insert the DC Coupler until it is
locked.
4
Press and hold the DC Coupler cable
cover using the cable, then close the CF
card slot/battery cover.
• Always disconnect the power cord from the
power supply after use.
Compact Power Adapter
CA-PS700
Connect to Power
Supply
DC Coupler DR-700
DC Coupler Cable Cover
Battery lock
20 Preparing the Camera
Using a Household Power Source (continued)
○○○○○○○○○○○○○○○○○○○○○○
• Always turn the camera’s power off before connecting or disconnecting the
compact power adapter.
• Use of any adapter other than AC Adapter Kit ACK700 may cause malfunction of
the camera or AC adapter kit.
Preparing the Camera 21
Installing a CF Card
1
Turn off the camera (p. 27, 29).
• Check that the power/mode indicator is not lit.
2
Slide the CF card slot/battery cover in
the direction of the arrow to open the
cover.
3
Insert the CF card with the label facing
out and the arrow pointing in.
• Push the card in until the CF card eject button
fully extends.
• To remove the CF card, push the CF card eject
button and pull the card out.
○○○○○○○○○○○○○○○○○○○○○○
• When the indicator on the left side of the viewfinder flashes green, the camera is
writing, reading, erasing or transmitting an image to or from the card. Do not
perform the following, for image data may be lost or corrupted:
- Do not shake the camera.
- Do not turn off the power or open the CF card slot/battery cover.
- Do not remove the CF card.
• Never open the CF card slot/battery cover when the power is on.
• Please note that CF cards formatted in or edited with other manufacturer’s
cameras or application programs may not operate correctly in the camera.
CF card Eject Button
22 Preparing the Camera
Installing a CF Card (continued)
CF Cards and Estimated Capacities (Recordable Images)
• These figures reflect standard shooting conditions established by Canon. Actual totals may vary according to the
subject, shooting conditions and shooting mode.
• The following are the approximate maximum recording times for movie clips:
: 30 seconds, : 120 seconds. The maximums in the chart reflect continuous shooting.
• (Superfine), (Fine) and (Normal) indicate the relative compression ratio.
FC-64M
38
68
136
30
54
110
61
109
217
107
189
349
241
394
677
24
20
250 sec
916 sec
L
(Large)
M 1
(Medium)
M 2
(Medium)
S
(Small)
FC-8M
4
8
16
3
6
13
7
13
26
12
23
42
29
47
83
2
1
30 sec
112 sec
FC-16M
8
16
32
7
13
26
14
26
52
25
46
84
58
94
165
5
4
61 sec
223 sec
FC-32M
18
33
68
14
27
54
30
54
108
53
94
174
120
196
337
11
10
124 sec
457 sec
FC-128M
76
137
274
61
110
220
123
219
435
215
379
700
483
789
1355
49
42
502 sec
1834 sec
RAW
Movie
PowerShot S30
2048 x 1536 pixels
PowerShot S40
2272 x 1704 pixels
1600 x 1200 pixels
1024 x 768 pixels
640 x 480 pixels
PowerShot S30
2048 x 1536 pixels
PowerShot S40
2272 x 1704 pixels
320 x 240 pixels
160 x 120 pixels
Preparing the Camera 23
CF Card Handling Precautions
•
CF cards are high-precision electronic devices. Do not bend, force, or subject
them to shocks or vibration.
•
Do not attempt to disassemble or alter a CF card.
•
Moving a CF card rapidly between temperature extremes may cause condensation
to form in the card, leading to potential malfunctions. To avoid condensation
formation, place the CF card in a sealed plastic bag before moving it into a
different temperature zone and allow it to adjust slowly to the new temperature. If
condensation forms on the CF card, put it aside until the water droplets have
evaporated completely.
•
Place the CF card in the supplied case for storage.
•
Do not use or store CF cards in the following types of locations.
• Locations subject to dust or sand
• Locations subject to high humidity and high temperatures
Microdrives are a recording medium with a hard disk. Their merits are a large
capacity and a low price per megabyte of capacity. However, they are relatively
more susceptible to vibrations and shocks than CF cards, which use durable
flash memories. Please be careful, therefore, not to subject the camera to
vibrations or shocks when using a microdrive, especially while recording or
replaying.
24 Preparing the Camera
Setting the Date / Time
The Set Date/Time menu will appear the first time the camera power is turned on
or whenever the built-in rechargeable lithium battery charge is low. Start from Step
5 to set the date and time.
1
Turn on the camera (p. 27).
2
Press the button.
• The [ (Rec.)] or [ (Play)] menu appears.
3
Select the [ (Set up)] menu using A on
the multicontroller.
• Pressing the button also switches
between menus.
4
Select [Date/Time] using C or D on the
multicontroller, then press .
• The factory default for the date format may differ from that shown here in
some regions.
5
Set the date and time.
• Select the item using B or A on the multicontroller.
• Set the values using C or D on the multicontroller.
• The date can be set up to the year 2030.
6
Press .
• After adjusting the settings, press the button to close the menu window.
○○○○○○○○○○○○○○○○○○○○○○
• You may need to reset the date and time if the battery pack is removed for about
three weeks.
(Rec.) Menu.
Preparing the Camera 25
Setting the Language
1
Turn on the camera (p. 27).
2
Press the button.
• The (Rec.) or (Play) menu appears.
3
Select the (Set up) menu using A on
the multicontroller.
• Pressing the button also switches
between menus.
4
Select [Language] using C or D on the
multicontroller and press .
5
Select a language using B or A on the
multicontroller.
6
Press .
• After adjusting the settings, press the button to close the menu
window.
○○○○○○○○○○○○○○○○○○○○○○
• In replay mode, you can change the language by holding while you press the
button, except when Card Photo Printer CP-10 (optional) or Bubble Jet
Printer with the direct print function (optional) is connected.
(Rec.) Menu.
26 Preparing the Camera
Attaching the Strap
Thread the small loop of the wrist strap
through the strap holder on the camera
and pull the large loop through the
small loop until the strap is firmly
secured.
○○○○○○○○○○○○○○○○○○○○○○
• Avoid waving the camera about or catching it on other items when suspending it
from the strap.
Using the Soft Case (Optional)
The soft case can be used to carry the
camera, battery pack and CF card.
• Optional soft case appearance and
specifications may vary according to region.
Basic Functions 27

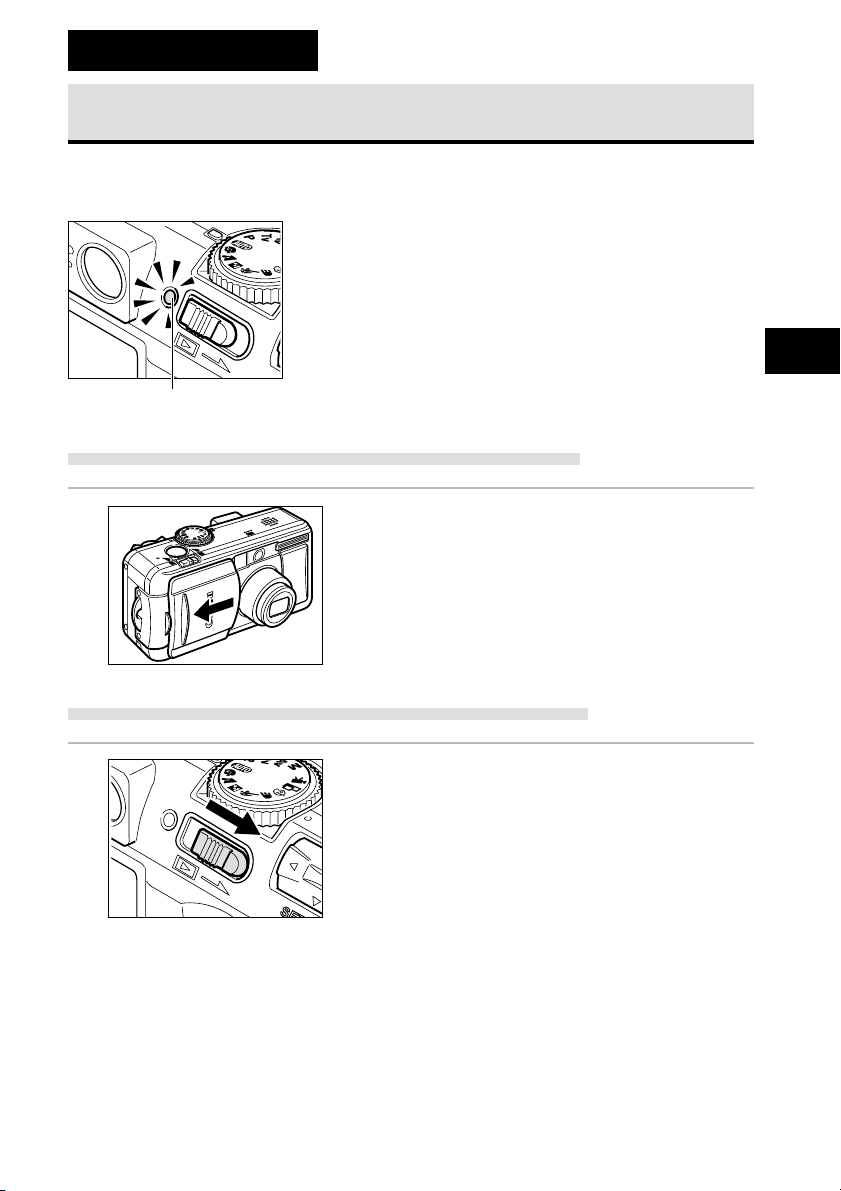

Turning the Power On / Off
The power/mode indicator remains lit while the power of the camera is on. The
power/mode indicator indicates the state of the camera as follows.
Orange: Shooting mode
Green: Replaying mode/Printer connection mode*
Yellow: Computer connection mode*
Off: The power of the camera is off.
* For printer connection mode, see Printing with Card Photo
Printer CP-10 (Optional) (p. 112) and Printing with Bubble Jet
Printer with Direct Print Function (Optional) (p. 121).
For computer connection mode, see Software Starter Guide
supplied with the camera.
Turning On/Off the Camera in Shooting Mode
1
Open the lens cover.
• The camera powers up in Shooting mode.
• The power/mode indicator shines orange.
Close the lens cover.
• The power goes off.
Turning On/Off the Camera in Replaying Mode
1
Slide the power/replay lever to the
right and hold its position until an
image appears on the LCD monitor,
then release it.
• The camera powers up in Replaying mode.
• The power/mode indicator shines green.
Slide the power/replay lever to the
right again.
• The power goes off.
Basic Functions
Power/Mode Indicator
28 Basic Functions
Turning the Power On / Off (continued)
○○○○○○○○○○○○○○○○○○○○○○
• You will hear a startup sound and see the startup image when the power comes
on. (To change the startup sound and image, see below and pages 41 and 139.)
• The startup image does not appear when the LCD monitor is off or the
terminal is connected to a TV.
○○○○○○○○○○○○○○○○○○○○○○
Turning on the camera without the startup sound and image
Press and hold the button, then turn on the power.
Power Save Function
The camera is equipped with a power save function. If [Auto Power Down] is set to
[Off], the power goes off according to the following conditions.
Shooting Mode: Powers down approximately three minutes after the last
time a camera control is accessed. The LCD monitor will shut
off approximately three minutes after the last time a camera
control is accessed even if the power save function is turned
off.
Replaying Mode: Powers down approximately five minutes after the last time
a camera control is accessed.
Printer Connection Mode:
Powers down approximately five minutes after the last time
a camera control is accessed on the camera or something is
printed on the printer.
PC Connection Mode: Displays a warning message on the computer screen
approximately 5 minutes after a control is last accessed. The
camera will power down if no controls are used after 1
additional minute.
It will not activate when the camera is powered from a
household power source.
• The following are the ways to restore the power.
– If the power save function is activated while the camera is in Shooting mode,
press the shutter button halfway.
– If the power save function is activated while the camera is in Replaying mode,
slide the power/replay lever to the right again.
• Please note that the camera continues to consume a minimal amount of power
even when the power save function shuts it down.
• The power save function is disabled while a slide show plays on the camera (p. 99).
• You can turn off the power save function in the [
(Set up)] menu (p. 138).
Basic Functions 29
Switching between Shooting and Replaying
You can quickly switch between Shooting mode and Replaying mode. This is
convenient when you wish to shoot again after checking or deleting an image
immediately after it is shot.
2 Shooting Mode
1
Slide the power/replay lever to the right (p. 27).
• The camera is switched to Replaying mode. In this case, the lens does not
retract.
• To return to Shooting mode, slide the power/replay lever to the right again
or press the shutter button halfway.
2 Replaying Mode (With the Lens Cover Closed)
1
Open the lens cover (p. 27).
• The camera is switched to Shooting mode.
○○○○○○○○○○○○○○○○○○○○○○
Relationship of the Three States (Power Off/Shooting Mode/Replaying
Mode) of the Camera
Replaying Mode
Power Off
Replaying Mode
Shooting Mode
: Sliding the Power/Replay lever to the right
: Opening/Closing the Lens Cover
: Pressing the Shutter Button Halfway
30 Basic Functions

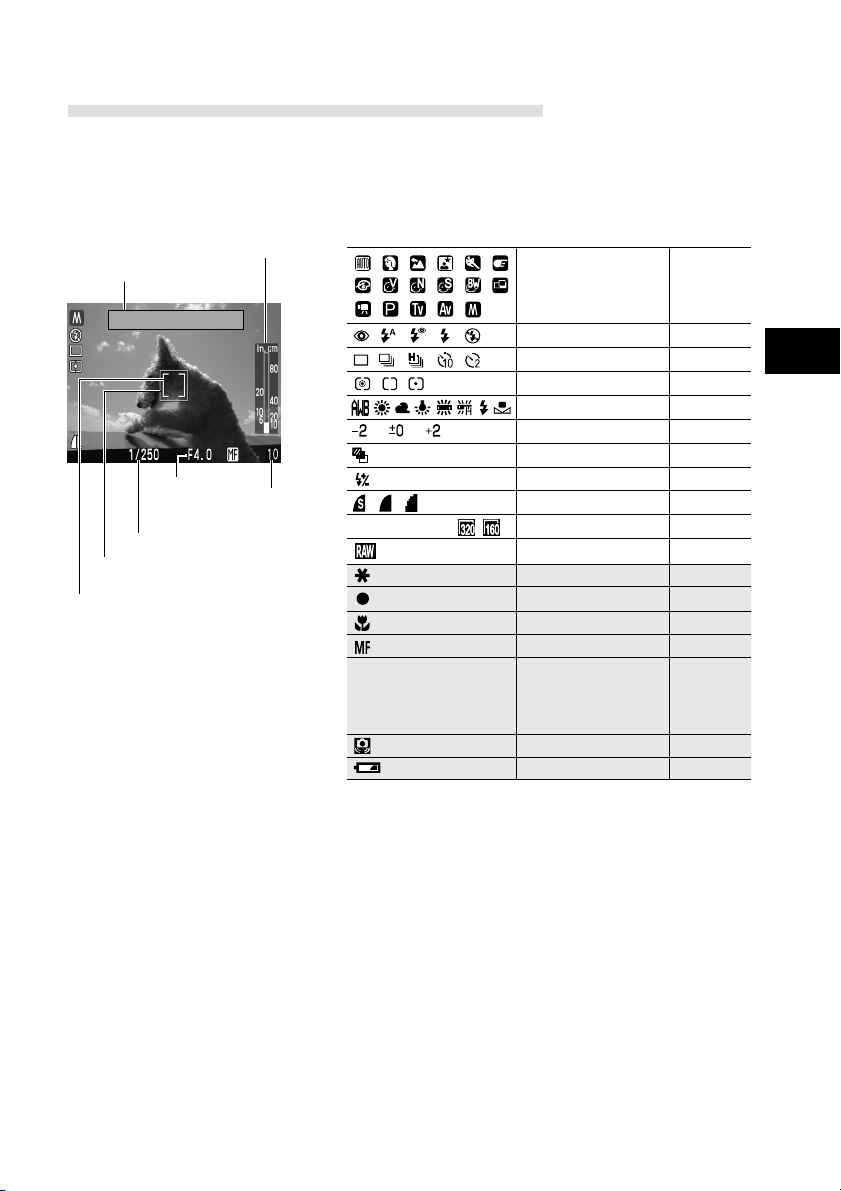

Switching the LCD Monitor Display Mode
The LCD monitor can be used to confirm an image during shooting, to replay
recorded images or to adjust menu settings. Pressing the
button switches
the LCD monitor display mode.
2 Shooting Mode
• Pressing the
button cycles the LCD monitor to the next mode each time
the button is pressed.
On (No Information) ➝ On (Information View) ➝ Off
○○○○○○○○○○○○○○○○○○○○○○
• The on/off setting of the LCD monitor display mode is memorized when the
camera is turned off. When the camera is turned on again it assumes the last
mode. However, when the LCD monitor is turned on and the “Change the Battery
Pack” message appears, the LCD monitor may not automatically turn on the next
time the camera is started.
• Changing the shooting mode will cause the LCD monitor to display relevant
information for about six seconds when it is turned on regardless of whether the
information view mode is on or off.
• Setting the mode dial to
, or turns on the LCD monitor regardless of
whether it is set to on or off.
○○○○○○○○○○○○○○○○○○○○○○
• The camera shake warning icon will appear at the center of the LCD monitor in
low light conditions while the camera is preparing to shoot. When this icon
appears, use the flash or fix the camera to a tripod to shoot.
2 Replaying Mode
•
The LCD monitor turns on when you turn on the camera in Replaying mode
(p. 27).
•
Pressing the button cycles the information view mode each time the
button is pressed.
Single Replay: Simple Display ➞ Detailed Display ➞ No Display
Index Replay: Simple Display
No Display
Basic Functions 31
Information Displayed on the LCD Monitor
The LCD monitor displays information in Shooting or Replaying mode, such as the
camera settings, remaining image capacity and shooting date / time.
2 Shooting Mode
The following displays in information view.
• The icons in the shaded boxes above appear even when the
information view is turned off.
• In addition to the above, the message, shutter speed, AF frame ,
Spot Light Metering Frame, aperture setting and MF indicator
(when manual focus is selected) are shown as in the example to
the left.
* Zoom powers reflect the combined optical and digital zoom
effects. These figures appear when the digital zoom is activated.
Shutter Speed
Aperture
Setting
MF (Manual Focus) Indicator
Shooting Mode
Flash
Drive Mode
Light Metering Method
White Balance (WB)
Exposure Compensation
AEB Mode
Flash Exposure Compensation
Compression Settings
Resolution Settings
File Format
AE Lock/FE Lock
Movie Recording Mode
Macro Mode
Manual Focus
Digital Zoom Setting
Camera Shake Warning
Low Battery
p. 13
p. 47
p. 58, 59
p. 82
p. 74
p. 73
p. 77
p. 78
p. 61
p. 61
p. 64
p. 79, 81
p. 56
p. 57
p. 85, 86
p. 60
p. 30
p. 18
• • •• • •
(PowerShot S30)
x3.8 x4.8 x6.0 x7.4 x10
(PowerShot S40)
x4.3 x5.3 x6.7 x8.2 x11
L M1 M2 S
*
()
(Red)
Message
Recordable
Images or
Recordable
Movie Time
(sec.)
AF Frame
Spot AE Point
Frame
32 Basic Functions
Switching the LCD Monitor Display Mode (continued)
2 Replaying Mode
In simple display mode, the following information
appears.
In detailed display mode, the following
information also appears.
• In addition to the above, the ISO speed, shutter speed, aperture
setting, histogram and overexposure warning appear.
••• •••
••• •••
()
Shooting Mode
Resolution Settings
Exposure level
Flash Exposure Compensation
White Balance
Light Metering Method
Macro Mode
Manual Focus
p. 13
p. 61
p. 73
p. 78
p. 74
p. 82
p. 57
p. 85, 86
File Number
Image Number
and Total
(Display Image/
Total)
Shooting
Date / Time
Aperture Setting
Shutter Speed
ISO Speed Setting
L M1 M2 S
Compression Settings
Resolution Settings
File Format
Sound annotation (wav file)
Movie
Protection Status
p. 61
p. 61
p. 64
p. 98
p. 96
p. 103
Histogram
Basic Functions 33
○○○○○○○○○○○○○○○○○○○○○○
About the Histogram
The histogram is a graph that allows you to judge the brightness of the recorded
image. The greater the bias toward the left in the graph, the darker the image. The
greater the bias toward to the right, the brighter the image. If the image is dark,
adjust the exposure compensation to a positive number. Similarly, adjust the
exposure compensation to a negative number if the image is bright (p. 73).
Overexposure Warning
In detailed display mode, overexposed portions of the image flash. You can use the
histogram as a guide to set the exposure compensation to a negative setting and
retake the image.
The following information may also appear with some image files.
○○○○○○○○○○○○○○○○○○○○○○
• Please note that image information recorded by this camera may not display
correctly on other cameras and image information recorded by other cameras may
not display correctly on this camera.
Notice Concerning Shooting
When using this camera to shoot scenes containing extremely bright subjects, a
vertical, red bar of light may appear on the LCD monitor. It will not be recorded
when shooting still photos, but will be recorded when shooting movies. This is a
normal occurrence in devices containing CCDs and does not consitute a
malfunction.
An audio file other than a wav file, or a file with an unrecognized format, is attached.
A JPEG file not supported by “Design rule for Camera File system” (DCF) standards.
A file with an unrecognized format.
Dark Image
Balanced Image
Bright Image
Histogram Examples
34 Basic Functions
Pressing the Shutter Button
The shutter button features a two-stage action.
● Pressing Halfway
Pressing halfway automatically sets the exposure,
focus and white balance.
• The indicators shine or flash as follows.
•
Green: Metering complete (two beeps
sound)
•
Orange: Flash will fire
•
Flashing Orange: Camera shake warning /
Insufficient exposure
•
Yellow: Macro mode/Manual focus mode
•
Flashing Yellow: Focusing difficulty* (single
beep sounds)
* Use the focus lock, or focus manually, to shoot when the
indicator flashes yellow (p. 86).
• The AF frame appears as follows when the LCD
monitor is on.
•
Green: Metering complete
•
Yellow: Focusing difficulty
● Pressing Fully
Pressing fully releases the shutter.
• The upper indicator flashes green while the
image is recording onto the CF card.
• You will hear the shutter sound when the shot
is complete. Do not move the camera until you
hear this sound.
Indicators
AF Frame
Basic Functions 35
○○○○○○○○○○○○○○○○○○○○○○
• If the orange or yellow indicator flashes while you press halfway, you can still press
fully to take the shot.
• Images are first saved into the camera’s internal memory before being recorded
onto the CF card, allowing the next images to be taken immediately as long as
sufficient space is available in the internal memory.
• The beep and shutter sound can be set On / Off in the Set up menu (p. 116).
• When the shutter sound is set to Off, but the beep is set to On, one beep will
sound when the shutter button is fully pressed.
• There is no shutter sound in movie mode.
36 Basic Functions
Using the Optical Viewfinder to Shoot
The camera is equipped with an optical viewfinder.
• Align the square brackets (autofocus metering
field) inside the viewfinder on the primary
subject to compose the image.
• The viewfinder has a field of vision of
approximately 82% of the actual shooting
image.
Viewfinder
○○○○○○○○○○○○○○○○○○○○○○
The Parallax Phenomenon
Please note that the actual image may differ from the image seen in the optical
viewfinder due to the physical separation between the viewfinder and lens. This is
called the parallax phenomenon and is more noticeable the closer the subject is to
the lens. In some cases, portions of images shot up close that appear in the
viewfinder will not appear in the recorded image. You are recommended to use the
LCD monitor to shoot images up close.
Shooting with an Off-Center AF Frame Selected
You should always use the LCD monitor to compose images when you have selected
an off-center AF frame (p. 71).
Basic Functions 37
Adjusting the Zoom (Focal Length)
The focal length can be adjusted from 7.1 to 21.3 mm (equivalent to 35 to 105
mm in 35 mm film format).
Telephoto / Wide Angle
• Slide the zoom lever toward to zoom in
(telephoto).
• Slide the zoom lever toward
to zoom out
(wide angle).
Digital Zoom
• An image already zoomed with the optical
zoom lens can be further zoomed digitally up
to an approximate factor of 10 for PowerShot
S30, and 11 for PowerShot S40, for shooting
(p. 60).
○○○○○○○○○○○○○○○○○○○○○○
• The digital zoom cannot be used with the LCD monitor turned off or in or
mode.
○○○○○○○○○○○○○○○○○○○○○○
• The more the image is zoomed digitally, the coarser its image quality becomes.
e.g. PowerShot S40
x4.3
38 Basic Functions
Selecting Menus and Settings
Menus are used to adjust shooting, replaying, date / time and electronic sound
settings. Watch the LCD monitor while performing the following procedures.
1
Press the button.
• In Shooting mode, the [ (Rec.)] menu appears. In Replaying mode, the
[
(Play)] menu appears.
2
Switch between menu tabs using B or A
on the multicontroller.
• The menu switches as follows:
[
(Rec.)] [ (Play)] [ (Set up)] [
(My Camera)]
• Pressing the
button also switches
between the menu tabs.
3
Select a menu item using C or D on the
multicontroller.
4
Select setting contents using B or A on
the multicontroller.
• Press for items followed by an ellipsis (...)
then select a setting. Press
again to confirm
the setting.
5
Press the button.
• Pressing the button closes the menu and makes the settings take effect.
• In Shooting mode, the menu can be closed by pressing the shutter button
halfway.
○○○○○○○○○○○○○○○○○○○○○○
• If the camera is protected by Digital Camera Waterproof Case WP-DC300 (optional),
select a menu item using B or A after pressing and holding the
button.
Basic Functions 39
Menu Settings and Factory Defaults
This chart shows the options for each menu and the default settings.
Menu Item
Resolution (Movie)
Compression
File Format
Drive Mode
ISO Speed
Digital Zoom
Spot AE Point
Review
File No. Reset
Contrast
Sharpness
Saturation
Protect
Rotate
Erase all
Slide Show
Print Order
Transfer Order
Available Settings
L
2048 x 1536 /
M1
1600 x 1200 /
M2
1024 x 768 /
S
640 x 480
L
2272 x 1704 /
M1
1600 x 1200 /
M2
1024 x 768 /
S
640 x 480
320 x 240* / 160 x 120
(Superfine) / (Fine*) / (Normal)
JPEG* / RAW
* / / / /
50* / 100 / 200 / 400 / 800 / AUTO
(ISO 800 available on PowerShot S30 only)
On / Off*
Center* / AF Point
Off / 2 sec.* / 10 sec.
On / Off*
– / 0* / +
– / 0* / +
– / 0* / +
Turns image protection on and off
Rotates the image in the display
Erases all images on the CF card
Replays selected images in a slide show
Sets the print settings
Sets the transfer settings
p. 61
p. 61
p. 61
p. 64
p. 58, 59
p. 87
p. 60
p. 82
p. 46
p. 89
p. 87
p. 87
p. 87
p. 103
p. 97
p. 105
p. 99
p. 107
p. 130
PowerShot S30
PowerShot S40
Resolution
(Still picture)
Rec.
Menu
(Red)
Play
Menu
(Blue)
Reference
Page
40 Basic Functions
* Default values. Default languages and video system settings vary between regions.
• Some menu items are not available in certain shooting modes.
• You can apply a desired image and sound to and in the [ (My Camera)] menu by connecting the
camera to the computer. For details, see Software Starter Guide.
• The default of all the settings changed by the menu and button operations except for [Date/T ime], [Language]
and [Video System] can be restored all at once (p. 141).
Menu Item
Beep
LCD Brightness
Speaker Vol.
Auto Power Down
Date/Time
Format
Language
Video System
Start-up Image
Start-up Sound
Shutter Sound
Operation Sound
Selftimer Sound
Available Settings
On* / Off
Normal / Bright*
Off / 1 / 2* / 3 / 4 / 5
On* / Off
Sets the date and time
Formats the CF card
English
*
/ Deutsch / Français / Nederlands /
Dansk / Suomi / Italiano / Norsk / Svenska /
Español / Chinese / Japanese
NTSC / PAL
/ 1
*
/ /
/ 1
*
/ /
/ 1
*
/ /
/ 1
*
/ /
/ 1
*
/ /
p. 137
p. 137
p. 137
p. 138
p. 24
p. 106
p. 25
p. 138
p. 41, 139
p. 41, 139
p. 41, 139
p. 41, 140
p. 41, 140
Reference
Page
Set up
Menu
(Yellow)
My
Camera
Menu
(Blue)
Selecting Menus and Settings (continued)
Customizing the Camera (My Camera Settings) 41
My Camera allows you to customize the start-up image and start-up, shutter,
operation and self-timer sounds. Each menu item has three choices.
e.g. Start-up image
[
][][]
[ ] Default camera theme
[
] Science fiction theme
[
] Animal (bird or dog) theme
Changing My Camera Settings
1
Turn on the camera (p. 27).
2
Press the button.
• The [ (Rec.)] or [ (Play)] menu appears.
3
Select the [ (My Camera)] menu using
A on the multicontroller.
• Pressing the button also switches
between the menu tabs.
4
Select a menu item using C or D on the
multicontroller.
Customizing the Camera (My Camera Settings)
42 Customizing the Camera (My Camera Settings)
Changing My Camera Settings (continued)
5
Select setting content using B or A on
the multicontroller.
6
Press the button.
• Pressing the button closes the menu and makes the settings take
effect.
• In Shooting mode, the menu can be closed by pressing the shutter button
halfway.
○○○○○○○○○○○○○○○○○○○○○○
• If [Beep] in the [ (Set up)] menu is set to [On], the beep sounds even if each
sound item such as [Start-up Sound], [Shutter Sound], [Operation Sound] and
[Selftimer Sound] in the [
(My Camera)] menu is set to [ (Off)] (p. 140).
Customizing the Camera (My Camera Settings) 43
Customizing My Camera Settings
You can customize the contents of menu [ ] and [ ] using the supplied software
and storing these to your camera.
File format of My Camera Settings
● Start-up Image
•
Recording image format JPEG (Base line JPEG)
•
Sampling rate 4 : 1 : 1
•
Image size 320 x 240 pixels
•
File capacity 20 KB or less
● Start-up Sound, Shutter Sound, Operation Sound and Selftimer Sound
•
Recording format WAVE (monaural)
•
Standardizing bit 8 bit
•
Sampling frequency 11.025 kHz and 8.000 kHz
•
Recording time
11.025 kHz 8.000 kHz
Start-up Sound 1.0 sec. or less 1.3 sec. or less
Shutter Sound 0.3 sec. or less 0.4 sec. or less
Operation Sound 0.3 sec. or less 0.4 sec. or less
Selftimer Sound 2.0 sec. or less 2.0 sec. or less
Any file format other than those described above cannot be used with this camera.
An example of this function is to record “Say cheese” as the Selftimer sounds so
the camera will replay this sound two seconds before the photo is taken.
See the Software Starter Guide of the supplied software as well as the
ZoomBrowser EX or ImageBrowser Software Guide (both are in pdf format)
included in the Solution Disk.
44 Shooting - Letting the Camera Select Settings
Auto Mode
In this mode, all you have to do is press the shutter button and let the camera do
everything else.
1
Check that the camera is in Shooting mode (p. 27).
2
Turn the shooting mode dial to .
3
Aim the camera at the subject.
4
Use the zoom lever to achieve the desired composition
(relative subject size in the viewfinder).
5
Press the shutter button halfway (p. 34).
• Two beeps will sound when the camera has
finished metering, and the indicator beside the
viewfinder will shine green or orange. If the LCD
monitor is on, the AF frame will appear green.
• The shutter speed and aperture settings are
automatically determined and show on the LCD
monitor if it is on.
• The yellow indicator will flash and the beep will sound one time if the
subject is difficult to focus on. The AF frame will also appear yellow.
6
Press the shutter button all the way (p. 34).
• You will hear the sound of the shutter when the shutter activates.
• The picture appears for two seconds on the LCD monitor, if it is on.
Shooting - Letting the Camera Select Settings
AF Frame
Shooting - Letting the Camera Select Settings 45
○○○○○○○○○○○○○○○○○○○○○○
• You can change the following settings.
* Default settings
• With the Review function, you can change the length of time images show on the
LCD monitor after shooting, or set it so they do not show at all (p. 46).
Resolution
Compression
Flash Settings
Macro
Digital Zoom
Drive Mode
Review
File No. Reset
Off* / On
On / Off*
On / Off*
Off / 2sec.
*
/ 10sec.
(Large)* / (Medium 1) / (Medium 2) / (Small)
(Superfine) / (Fine) / (Normal)
(Red-Eye Reduction Auto)* / (Auto) / (Off)
*
/ /
46 Shooting - Letting the Camera Select Settings
Checking an Image Right after Shooting
Checking the Image
After a photo is taken, the image displays on the LCD monitor for two seconds.
There are two ways to display the image for longer.
2Keeping the Shutter Button Pressed
The image continues to appear on the LCD monitor as long as you keep the
shutter button fully depressed.
2Pressing
If you press while the image is displayed on the LCD monitor, it will continue to
display even after the shutter button is released. Press the shutter button halfway
again to stop displaying it.
○○○○○○○○○○○○○○○○○○○○○○
• You can perform the following while images are displayed.
– Erasing Images Singly (p. 9, 104)
– Displaying Images in detailed display mode (p. 30)
– Magnifying Images (p. 93)
– Attaching Sound Annotations (p. 98)
Changing the Image Display Duration
The length of time images are displayed after a photo has been taken can be
changed from 2 seconds to 10 seconds or turned off.
1
In the [ (Rec.)] menu, select [Review].
• See Selecting Menus and Settings (p. 38).
2
Select a Review setting and press the
button.
• With the [Off] option, the image will not
automatically display.
• With the [2 sec.] or [10 sec.] options, the image
will appear for the time selected.
• You can continue to display the image as long as
the shutter button is fully held pressed regardless
of the Review setting.
• Another picture can be taken even while the last is displayed.
Shooting - Letting the Camera Select Settings 47
Using the Flash
Use the flash according to the guidelines below.
1
Press the button to switch between
flash modes.
• The selected flash mode appears on the LCD
monitor.
2
Shoot the image.
• The flash will fire if the indicator beside the viewfinder shines orange when
the shutter button is pressed halfway.
• Shooting procedures are the same as for the
Auto mode (p. 44).
Built-in Flash Settings
The flash cannot be used with some shooting modes.
●*
●
–
–
●
–
–
–
–
●*
●
●
●
●
●*
–
–
●
●
●*
–
–
●
●
●*
–
–
●
●
●*
–
–
–
▲
●*
●
●*
●
●
●
●*
●
●
●
●
●
●*
●
●
●
●
●
●
●
●*
●
●
●
●
●*
●*
●
●
●
●
Red-eye
reduction, Auto
Auto
Red-eye reduction,
Flash on
Flash on
Flash off
Red-eye reduction, Auto
Auto
Red-eye reduction, Flash on
Flash on
Flash off
The flash fires automatically as required by the lighting level, and the
red-eye reduction lamp fires each time the main flash fires
The flash fires automatically as required by the lighting level.
The red-eye reduction lamp and the flash always fire.
The flash always fires.
The flash does not fire.
* Default setting.
●
Setting selection is possible.
▲
Setting can only be selected for the first image.
-
Setting selection is not possible.
48 Shooting - Letting the Camera Select Settings
Using the Flash (continued)
○○○○○○○○○○○○○○○○○○○○○○
• When shooting with a high ISO sensitivitiy and using the built-in flash, there is
more of a chance of overexposure the closer you are to the subject.
○○○○○○○○○○○○○○○○○○○○○○
• The fastest shutter speed for flash synchronization is 1/250 second. The camera
automatically resets the shutter speed to 1/250 second if a faster speed is selected.
• The flash may take up to approximately 10 seconds to charge in some cases.
Actual times will vary according to usage and the battery charge.
• In
mode, the flash fires at full intensity. The flash intensity is automatically
adjusted except in
mode.
• The flash setting is saved when the camera is turned off in the
, , and
shooting modes.
• The flash will fire twice. A pre-flash will fire and will be followed by the main flash.
The pre-flash is used by the camera to obtain the subject’s exposure data so that
the main flash can be set to the optimal intensity for the shot.
○○○○○○○○○○○○○○○○○○○○○○
About the Red-Eye Reduction Function
Light reflecting back from eyes can make them appear red when the flash is used in
dark areas. Under these conditions, use the red-eye reduction mode. For this mode
to be effective, the subject must be looking right at the red-eye reduction lamp. Try
asking them to look directly at the lamp. Even better results can be obtained by
shooting with the lens set to the wide angle, increasing the lighting in indoor
settings or approaching closer to the subject.
Shooting - Letting the Camera Select Settings 49
Portrait Mode
Use this mode when you want the subject to appear sharp and the background to blur.
1
Turn the shooting mode dial to .
• Shooting procedures are the same as for the Auto
Mode (p. 44).
○○○○○○○○○○○○○○○○○○○○○○
• The AEB, AE lock, FE Lock, light metering, file format (RAW), and image
adjustment (ISO speed, contrast, sharpness and saturation) settings cannot be
adjusted in this mode.
• You can set the AF frame to either the auto (AiAF) selection or manual center (p. 71).
○○○○○○○○○○○○○○○○○○○○○○
• To best achieve the effect of the background gradually fading, compose the image
so that the upper half of the subject’s body fills most of the viewfinder or LCD
monitor.
• The background gets increasingly indistinct the more you adjust the focal length
toward telephoto.
Landscape Mode
Use this mode to shoot expansive landscape scenes.
1
Turn the shooting mode dial to .
• Shooting procedures are the same as for the Auto
Mode (p. 44).
○○○○○○○○○○○○○○○○○○○○○○
• The macro, AEB, AE lock, FE Lock, light metering, file format (RAW), and image
adjustment (ISO speed, contrast, sharpness and saturation) settings cannot be
adjusted in this mode.
• You can set the AF frame to either the auto (AiAF) selection or manual center (p. 71).
○○○○○○○○○○○○○○○○○○○○○○
• Since a slow shutter speed is often selected in mode, use a tripod to shoot if
the
(camera shake warning) icon appears on the LCD monitor.
50 Shooting - Letting the Camera Select Settings
Night Scene Mode
Use this mode to capture human subjects against the backdrop of an evening sky or
night scene. The people are illuminated with light from the flash while the backdrop
is captured at a slow shutter speed so that both appear correctly exposed.
1
Turn the shooting mode dial to .
• Shooting procedures are the same as for the Auto
mode (p. 44).
○○○○○○○○○○○○○○○○○○○○○○
• The macro, AEB, AE lock, FE Lock, light metering, file format (RAW), and image
adjustment (ISO speed, contrast, sharpness and saturation) settings cannot be
adjusted in this mode.
• You can set the AF frame to either the auto (AiAF) selection or manual center (p. 71).
• Always use a tripod to prevent camera shake in this mode.
○○○○○○○○○○○○○○○○○○○○○○
• Warn people to stay still for a few seconds after the flash fires because of the slow
shutter speed.
• Using the
mode in daylight will produce an effect similar to that of the mode.
Fast Shutter
Use this mode to shoot fast moving objects such as sports figures.
1
Turn the shooting mode dial to .
• Shooting procedures are the same as for the Auto
mode (p. 44).
○○○○○○○○○○○○○○○○○○○○○○
• The AEB, AE lock, FE lock, light metering, file format (RAW), and image
adjustment (ISO speed, contrast, sharpness and saturation) settings cannot be
adjusted in this mode.
• You can set the AF frame to either the auto (AiAF) selection or manual center (p. 71).
○○○○○○○○○○○○○○○○○○○○○○
• Noise in the recorded image may increase if you shoot dark subjects.
Shooting - Letting the Camera Select Settings 51
Slow Shutter
Use this mode to shoot moving objects to make them appear blurred such as river
rapids.
1
Turn the shooting mode dial to .
• Shooting procedures are the same as for the Auto
mode (p. 44).
○○○○○○○○○○○○○○○○○○○○○○
• The AEB, AE lock, FE lock, light metering, file format (RAW), and image
adjustment (ISO speed, contrast, sharpness and saturation) settings cannot be
adjusted in this mode.
• You can set the AF frame to either the auto (AiAF) selection or manual center (p. 71).
• Always use a tripod to prevent camera shake in this mode.
52 Shooting - Letting the Camera Select Settings
Changing the Color Effect
You can shoot with different color effects.
1
Turn Shooting mode dial to .
• The LCD monitor turns on and displays the color effects
menu.
2
Select a color effect using B or A on the
multicontroller.
3
Press .
• You can also press the shutter button directly to shoot instead of pressing .
4
Shoot the image.
• Shooting procedures are the same as for the Auto mode (p. 44).
• If you press
after shooting, the Setup menu will appear and allow you
to change the setting again.
○○○○○○○○○○○○○○○○○○○○○○
• The AEB, AE lock, FE lock, light metering, file format (RAW), and image
adjustment (ISO speed, contrast, sharpness, and saturation) settings cannot be
adjusted in this mode.
• The white balance cannot be set when
(sepia) or (B/W) mode is selected.
• You cannot change the macro mode setting while the Color Effect Setup menu is
displayed.
• The AF frame is set to the auto (AiAF) selection when shooting with the color
effect.
Emphasizes the contrast and color saturation to record in bold color.
Tones down the contrast and color saturation to record neutral hues.
Records in sepia tones.
Records in black and white.
Vivid
Neutral
Sepia
B/W
Shooting - Letting the Camera Select Settings 53
Stitch Assist Mode
Use this mode to shoot a series of overlapping frames for merging (stitching) into a
large panoramic image using a computer.
○○○○○○○○○○○○○○○○○○○○○○
• Please use the bundled PhotoStitch program to merge the images on a computer.
Framing a Subject
PhotoStitch detects the overlapping portions of adjoining images and merges
them. When composing shots, try to include a distinctive item (landmark, etc.) in
the overlapping portions.
Horizontal Vertical
2 x 2
54 Shooting - Letting the Camera Select Settings
Shooting
Images can be shot in the following 5 sequences in Stitch Assist mode.
1
Turn the shooting mode dial to .
• The LCD monitor will turn on.
2
Select the shooting sequence using B or
A on the multicontroller and press .
• You can also press the shutter button directly to
shoot without pressing
.
Horizontally, left to right
Horizontally, right to left
Vertically, bottom to top
Vertically, top to bottom
Clockwise starting at the top left
Horizontal:
swivel left to right
or vice versa
Vertical:
swivel up and down
or vice versa
To Shoot a Close
Subject
Slide the camera (move
the camera parallel to
the subject) to take
successive shots.
Stitch Assist Mode (continued)
○○○○○○○○○○○○○○○○○○○○○○
• Compose each frame so that it overlaps 30 to 50% of the adjoining image. Try to
keep the vertical misalignment to within 10% of the image height.
• Do not include moving items in the overlap.
• Do not try to stitch images that include both distant and close subjects. Objects
may appear warped or doubled up.
○○○○○○○○○○○○○○○○○○○○○○
To Shoot a Distant Subject
As shown below, swivel the camera around its axis
to take successive shots.
Shooting - Letting the Camera Select Settings 55
3
Shoot the first image.
• The exposure and white balance settings are set and locked with the first image.
4
Compose and shoot the second image so
that it overlaps the first.
• Minor discrepancies in the overlap can be corrected
with the software.
• An image can be retaken. Press B or A on the
multicontroller to return to that frame.
5
Use the same procedures to shoot the remaining frames.
• A maximum of 26 images can be recorded either horizontally or vertically.
6
Press after the last shot.
○○○○○○○○○○○○○○○○○○○○○○
• The digital zoom, flash (red-eye reduction auto, auto, red-eye reduction),
continuous mode (
, ), AEB, AE lock, FE Lock, AF frame, light metering, file
format (RAW), and image adjustment (ISO speed, contrast, sharpness and
saturation) settings cannot be adjusted in this mode.
• A TV cannot be used as the monitor for shooting in this mode.
○○○○○○○○○○○○○○○○○○○○○○
• The zoom, flash (on / off), resolution, macro mode, exposure, white balance* and
flash exposure compensation settings can only be adjusted for the first image. The
selected settings are applied to the subsequent images and cannot be changed.
* A custom white balance setting cannot be set in
mode. To use a custom
white balance setting, first set it in another shooting mode.
Sequence
Sequence
56 Shooting - Letting the Camera Select Settings
Movie Mode
Use this mode to shoot movie frames. The resolution can be set to 320 x 240
pixels (default setting) or
160 x 120 pixels in [Resolution] of the [ (Rec.)] menu
(p. 61).
1
Turn the shooting mode dial to .
• The LCD monitor turns on and displays the maximum
recording time (in seconds).
2
Press the shutter button all the way.
• Shooting and sound recording starts simultaneously.
• During the shooting a red circle appears in the upper right of the LCD monitor.
3
Press the shutter button all the way to stop recording the movie.
• The maximum length of individual movie clips (approximately 15 frames/
second) is about 30 seconds* at the (320 × 240) setting and about 120
seconds* at the (160 × 120) setting. The clip will end automatically after this
time elapses or when the CF card becomes full.
* The data reflects standard Canon testing conditions. The actual figures will vary according to the
shooting objects and conditions.
○○○○○○○○○○○○○○○○○○○○○○
• Be careful not to touch the microphone while shooting.
• The AE, AF, white balance and zoom settings are set and locked to the settings of
the first frame.
• If the indicator on the left side of the viewfinder flashes green after a shot, this
indicates that the movie is being written to the CF card. You cannot shoot again
until it stops flashing.
• The digital zoom, flash, continuous mode, AEB, flash exposure compensation, AE
lock, FE Lock, light metering, AF mode (single), compression, file format (RAW),
and image adjustment (ISO speed, contrast, sharpness and saturation) settings
cannot be adjusted in this mode.
○○○○○○○○○○○○○○○○○○○○○○
• Sound is recorded monaurally.
• There is no shutter sound in movie mode.
○○○○○○○○○○○○○○○○○○○○○○
• QuickTime 3.0 or higher is required to replay movie files (AVI / Motion JPEG) on a
computer.
Shooting - Letting the Camera Select Settings 57
Macro Mode
Use the macro mode to shoot close-ups of subjects in the range of 10 to 80 cm
(3.9 in. to 2.7 ft.) at maximum wide angle and 30 to 80 cm (1.0 ft. to 2.7 ft.) at
maximum telephoto.
1
Press the button to turn the LCD monitor on.
2
Press the button.
• The icon appears on the LCD monitor.
• Press the
button again to cancel the macro
mode.
3
Shoot the image.
• The indicator beside the viewfinder will shine yellow when the shutter
button is pressed halfway.
• Shooting procedures are the same as for the
Auto Mode (p. 44).
○○○○○○○○○○○○○○○○○○○○○○
• The macro mode cannot be selected in the and shooting modes.
○○○○○○○○○○○○○○○○○○○○○○
• Always use the LCD monitor to compose images in macro mode. Shooting with
the viewfinder is possible, though, the parallax phenomenon (p. 36) may cause
images composed with the optical viewfinder to be off-center.
• When the lens is zoomed out to the maximum wide angle, the recordable area is
approximately 108 × 80 mm (4.25 in. × 3.15 in.) at the closest focal distance, and
at maximum telephoto, it is approximately 111 × 83 mm (4.37 in. × 3.27 in.).
• Use of the built-in flash may not provide an appropriate amount of light.
• Turning the camera off cancels the setting.
58 Shooting - Letting the Camera Select Settings
Self-Timer
You can take pictures with the self-timer in any shooting mode.
1
In the [ (Rec.)] menu, select [Drive
Mode].
• See Selecting Menus and Settings (p. 38).
2
Select [ ] or [ ], then press the button.
• When [ ] is selected, the shutter release will be delayed for 10 seconds,
and when [
] is selected, the shutter release will be delayed for 2 seconds,
after you press the shutter button.
3
Shoot the image.
• When [ ] is selected, the self-timer lamp starts flashing when the shutter
button is pressed all the way. The self-timer sounds and the flashing gets
faster two seconds before the shutter activates.
• When [
] is selected, the self-timer lamp flashes fast from the beginning.
The shutter activates in two seconds.
• Shooting procedures are the same as for the
Auto mode (p. 44).
○○○○○○○○○○○○○○○○○○○○○○
• Turning the camera off cancels the setting.
○○○○○○○○○○○○○○○○○○○○○○
• You can change the self-timer sound by changing the setting in [Selftimer Sound]
in the [
(My Camera)] menu (p. 140).
Shooting - Letting the Camera Select Settings 59
Continuous Mode
Use this mode to shoot successive frames while the shutter button is fully pressed.
1
In the [ (Rec.)] menu, select [Drive
Mode].
• See Selecting Menus and Settings (p. 38).
2
Select [ ] or [ ], then press the
button.
3
Press the shutter button halfway to lock the focus.
4
Press the shutter button all the way to shoot.
• Shooting will stop when the shutter button is released.
• The shooting speed is as follows.*
(PowerShot S30)
When [
] is selected: Approx. 2 frames per second
When [
] is selected: Approx. 3 frames per second
(PowerShot S40)
When [
] is selected: Approx. 1.5 frames per second
When [
] is selected: Approx. 2.5 frames per second
* Large/Fine, LCD monitor off mode. (These figures reflect standard Canon testing conditions. The actual
figures will vary according to the shooting conditions and settings.)
○○○○○○○○○○○○○○○○○○○○○○
• This mode cannot be selected in , or shooting mode.
• In [
] mode, images do not appear on the LCD monitor as they are shot.
• The flash can be used, but the interval between images will lengthen to
accommodate the flash recharge time.
○○○○○○○○○○○○○○○○○○○○○○
• Successive frames can be taken until the CF card is full.
• The interval between frames may lengthen somewhat when the internal memory
becomes full.
Standard
Continuous Shooting
High Speed
Continuous Shooting
Use this mode to view the images as you shoot continuously. The shutter
interval is longer in this mode than in mode.
Use this mode to shoot continuously with a short shutter interval. The camera’s
internal memory will become full faster in this mode than in mode when
many frames are shot or when high image quality settings are selected.
60 Shooting - Letting the Camera Select Settings
Digital Zoom
With the combined optical and digital zoom functions, images can be
zoomed as follows.
PowerShot S30: 3.8 times, 4.8 times, 6.0 times, 7.4 times, and 10 times
PowerShot S40: 4.3 times, 5.3 times, 6.7 times, 8.2 times, and 11 times
1
Press the button to turn the LCD monitor on.
2
Turn the shooting mode dial to any shooting mode except for
or .
3
In the [ (Rec.)] menu, select [Digital
Zoom].
• See Selecting Menus and Settings (p. 38).
4
Select [On] and press the button.
5
Slide the zoom lever toward and hold
it.
• The lens will zoom to the maximum optical
telephoto setting and stop. Release the lever and
slide it toward
again to further zoom the
image digitally.
• Slide the lever toward
to zoom back out.
6
Shoot the image.
• Shooting procedures are the same as for the
Auto mode (p. 44).
○○○○○○○○○○○○○○○○○○○○○○
• This mode cannot be selected in the and shooting modes or for the RAW
file format.
• Images become coarser the more they are digitally zoomed.
• The digital zoom On/Off setting is memorized even when the camera power is
turned off so you can skip steps 3 and 4 if you wish to use the same option the
next time.
The combined
magnifications
of the optical
zoom and
digital zoom
are displayed.
e.g. PowerShot S40
x4.3
Shooting - Selecting Particular Effects 61
Camera settings such as image resolution and compression, shutter speed and
aperture can be freely changed for shooting.
○○○○○○○○○○○○○○○○○○○○○○
• Please see Auto Mode (p. 44) for shooting procedures once you have
changed a setting.
Changing the Resolution and Compression
You can change the resolution and compression (excluding movies) settings to suit
the purpose of the image you are about to shoot. The resolution gets higher in the
order
S
(Small),
M2
(Medium 2),
M1
(Medium 1), and
L
(Large). Use a higher
resolution if you wish to make a large print. Conversely, use a lower resolution if
you wish to print on small objects, such as labels, to send images electronically, or
to fit more images on a CF card.
The compression gets higher in the order
(Superfine), (Fine) and (Normal).
Select
(Superfine) for a higher quality image, or (Normal) if you wish to fit more
images on a CF card. The
(Fine) setting provides adequate quality for standard
shots. To record the CCD output without compression, select the RAW file format
(p. 64).
L
(Large)
M1
(Medium 1)
M2
(Medium 2)
S
(Small)
PowerShot S30 PowerShot S40
2048 x 1536 pixels 2272 x 1704 pixels
1600 x 1200 pixels
1024 x 768 pixels
640 x 480 pixels
Resolution (excluding ) Resolution ( )
320 x 240
pixels
160 x 120
pixels
Superfine
Fine
Normal
Compression (excluding )
• Common to PowerShot S30
and PowerShot S40
Shooting - Selecting Particular Effects
62 Shooting - Selecting Particular Effects
* This figure reflects standard shooting conditions established by Canon. Actual figures may vary according to
the subject and shooting conditions.
* Please see the list of CF cards and their approximate capacities (p. 22).
Approximate File Size for One Image
PowerShot S30
L
(2048 x 1536)
M1
(1600 x 1200)
M2
(1024 x 768)
S
(640 x 480)
RAW
(2048 x 1536)
(320 x 240)
(160 x 120)
PowerShot S40
L
(2272 x 1704)
M1
(1600 x 1200)
M2
(1024 x 768)
S
(640 x 480)
RAW
(2272 x 1704)
(320 x 240)
(160 x 120)
Unit : KB
Unit : KB / sec.
Unit : KB
Unit : KB / sec.
1602
1002
570
249
240
60
240
60
893
558
320
150
2469
445
278
170
84
1116
558
320
150
2862
556
278
170
84
2002
1002
570
249
Changing the Resolution and Compression (continued)
1
Turn the shooting mode dial to the desired shooting mode.
2
In the [ (Rec.)] menu, select [Resolution] or [Compression].
• See Selecting Menus and Settings (p. 38).
3
Select a resolution or compression setting and press the
button.
4
Shoot the image.
Resolution (excluding ) Compression
e.g. PowerShot S40
The number of
recordable
images
(only displayed
when the
resolution,
compression or
file format is
changed)
Shooting - Selecting Particular Effects 63
○○○○○○○○○○○○○○○○○○○○○○
• In mode, the resolution can be set for the first frame only.
• The resolution and compression settings are affected by the shooting mode
selection as follows (only the resolution in
mode).
• The resolution and compression settings are memorized even when the camera
power is turned off.
Initial Shooting
Mode
Next Shooting Mode
Resolution and Compression after Change
Settings change to those of the next mode
Settings do not change
Settings change to those of the next mode
Settings do not change
Settings change to those of the next mode
64 Shooting - Selecting Particular Effects
Changing the File Format
The recording file format can be switched to the RAW format. With the standard JPEG
file format, the camera processes images after capturing them to produce optimal results.
The JPEG format compresses images so that more can be stored on a single CF card.
However, the compression is irreversible, meaning that the original image data cannot be
recovered after processing. In contrast, the RAW format records the image data as
captured by the camera’s CCD without further processing. RAW images are compressed,
but the compression is reversible* so that a high-quality image can be obtained from the
decompressed file without any loss of image quality. In addition, although a RAW file is
larger than an equivalent JPEG file, it is still only approximately one-quarter the size** of
an uncompressed RGB TIFF format file, making it relatively compact.
With standard uncompressed file formats, such as RGB TIFF, images are processed in the
camera and require further processing by retouching software to adjust the image
parameters, which reduces image quality. With the RAW format, however, the original
data can be used in special software* to adjust the image parameters (white balance,
contrast, sharpness and saturation) making it possible to maintain the image quality while
making changes. The resolution (PowerShot S30: 2048 x 1536, PowerShot S40: 2272 x
1704) and compression settings cannot be adjusted for these images.
* The bundled software can be used to open or adjust the parameters of images recorded in the RAW
file format. Please consult the Software Starter Guide for details.
** As measured by standard Canon test conditions.
1
Turn the shooting mode dial to , , or .
2
In the [ (Rec.)] menu, select [File Format].
• See Selecting Menus and Settings (p. 38).
3
Select [RAW] and press the
button.
• The icon appears while the LCD monitor is
on.
4
Shoot the image.
○○○○○○○○○○○○○○○○○○○○○○
• The RAW file format can only be selected in the , , and modes.
The number of recordable
images (only displayed when
the resolution, compression
or file format is changed)
Shooting - Selecting Particular Effects 65
Program AE
Use the program AE mode to have the camera automatically set the shutter speed
and aperture settings to match the brightness of the scene.
1
Turn the shooting mode dial to .
2
Shoot the image.
• The shutter speed and aperture settings will be set
automatically. They appear on the LCD monitor if it
is on.
• The correct exposure has been set if the shutter
speed and aperture settings show in white.
○○○○○○○○○○○○○○○○○○○○○○
• If a correct exposure cannot be obtained, the shutter speed and aperture settings
show in red on the LCD monitor. Use the following methods to make them show
in white.
- Use the flash.
- Change the ISO speed setting.
- Change the light metering method.
○○○○○○○○○○○○○○○○○○○○○○
Differences and Similarities between the and Modes.
• Both modes automatically select the shutter speed and aperture settings.
• The following settings can be adjusted in
mode, but not in mode.
•
Exposure Compensation
•
White Balance
•
AEB Mode
•
Flash Exposure Compensation
•
Flash (Red-Eye Reduction, Flash On)
•
Continuous Mode
•
File Format Settings
•
Image Adjustment (ISO Speed, Contrast, Sharpness and Saturation) Settings
•
Change of Light Metering Method
•
Manual Focus
•
Change of AF frame (left or right AF frame)
•
AE Lock
•
FE Lock
• For the correlation between aperture value and shutter speed, see page 67.
66 Shooting - Selecting Particular Effects
○○○○○○○○○○○○○○○○○○○○○○
• If the aperture value shows in red, the image is under- or overexposed (insufficient
light). Adjust the shutter speed using B or A on the multicontroller until the
aperture value display turns to white.
• The nature of CCD image sensors is such that noise in the recorded image
increases at slow shutter speeds. This camera, however, applies special processing
to images shot at shutter speeds slower than 1.3 seconds to eliminate the noise,
thereby producing high-quality images. Nevertheless, a certain amount of
processing time may be required before the next image can be shot.
Setting the Shutter Speed
When you set the shutter speed in the shutter speed-priority AE mode, the camera
automatically selects an aperture setting to match the brightness. Faster shutter
speeds allow you to catch an instantaneous image of a moving subject while
slower speeds create a flowing effect and allow you to shoot without a flash in
dark areas.
1
Turn the shooting mode dial to .
• The shutter speed appears on the LCD monitor if it is
on.
2
Select a speed using B or A on the
multicontroller.
3
Shoot the image.
• The correct exposure has been set if the shutter
speed and aperture settings show in white.
Shooting - Selecting Particular Effects 67
○○○○○○○○○○○○○○○○○○○○○○
• Please note that camera shake becomes a factor at low shutter speeds. If the
camera shake warning
appears in the center of the LCD monitor, secure the
camera to a tripod before shooting.
• The aperture value and shutter speed change according to the zoom state as
follows.
Aperture
Shutter Speed (seconds)
Wide Angle
F 2.8 - 3.5 to 1/1000
F 4.0 - 8.0 to 1/1500
Telephoto
F 4.9 - 6.3 to 1/1000
F 7.1 - 8.0 to 1/1500
Shutter Speed Display
The numbers in the table below indicate the shutter speed in seconds. For slower
speeds, quote marks indicate the decimal place, so that 0"3 indicates 0.3 second
and 2" indicates 2 seconds.
1/1500 1/1250 1/1000 1/800 1/640 1/500 1/400 1/320
1/250 1/200 1/160 1/125 1/100 1/80 1/60 1/50 1/40
1/30 1/25 1/20 1/15 1/13 1/10 1/8 1/6 1/5 1/4
0"3 0"4 0"5 0"6 0"8 1" 1"3 1"6 2" 2"5 3"2 4"
5" 6" 8" 10" 13" 15"
68 Shooting - Selecting Particular Effects
Setting the Aperture
When you set the aperture in the aperture-priority AE mode, the camera
automatically selects a shutter speed to match the brightness. Selecting a lower
aperture value (opening the aperture) allows you to fade the background and
create a beautiful portrait. A higher aperture value (closing it) brings the entire
range from foreground to background into focus. The larger the aperture value,
the greater the range of the image brought into clear focus.
1
Turn the shooting mode dial to .
• The aperture setting appears on the LCD monitor if it is
on.
2
Select a value using B or A on the
multicontroller.
3
Shoot the image.
• The correct exposure has been set if the shutter
speed and aperture settings show in white.
Shooting - Selecting Particular Effects 69
○○○○○○○○○○○○○○○○○○○○○○
• If the shutter speed shows in red on the LCD monitor, the image is under- or
overexposed (insufficient light). Adjust the aperture value using B or A on the
multicontroller until the shutter speed display turns white.
○○○○○○○○○○○○○○○○○○○○○○
• Please note that camera shake becomes a factor at low shutter speeds. If the
camera shake warning
appears in the center of the LCD monitor, secure the
camera to a tripod before shooting.
• When using a flash in this mode, the slowest shutter speed is 1/60 second.
Aperture Setting Display
The larger the aperture value, the smaller the lens aperture.
F2.8 F3.2 F3.5 F4.0 F4.5 F5.0 F5.6 F6.3 F7.1 F8.0
○○○○○○○○○○○○○○○○○○○○○○
• For the correlation between aperture value and shutter speed, see page 67.
70 Shooting - Selecting Particular Effects
Manually Setting the Shutter Speed and Aperture
You can manually set the shutter speed and aperture to achieve a particular effect.
This is convenient for shooting fireworks and other images where it is difficult to
set the correct exposure automatically.
1
Turn the shooting mode dial to .
• The shutter speed and aperture settings appears on the
LCD monitor if it is on.
2
Select a shutter speed using B or A on
the multicontroller.
3
Select an aperture setting using C or D
on the multicontroller.
4
Shoot the image.
• When you press the shutter button halfway, a number indicating the
difference between the standard exposure* and the selected exposure
appears on the LCD monitor. If the difference is more than ±2 steps, “-2”
or “+2” appears in red.
* The standard exposure is calculated by the AE function according to the selected metering method.
○○○○○○○○○○○○○○○○○○○○○○
• The exposure compensation, AE lock, FE lock, flash exposure compensation, AEB
and ISO speed (AUTO) settings cannot be adjusted in this mode.
○○○○○○○○○○○○○○○○○○○○○○
• If you wish to change the exposure, adjust the shutter speed using B or A on the
multicontroller, or adjust the aperture using C or D on the multicontroller.
• When you select a fast shutter speed or shoot a subject in a dark place, set the
flash to
(Red-Eye Reduction, Flash On) or (Flash On) so that the LCD monitor
does not darken and you can check the image before shooting.
○○○○○○○○○○○○○○○○○○○○○○
• For the correlation between aperture value and shutter speed, see page 67.
Shooting - Selecting Particular Effects 71
Selecting an AF Frame
The AF frame indicates the area of the composition on which the camera focuses.
You can set the AF frame in the following way.
1
Press .
• The three frames appear on the LCD monitor.
2
Select the AF frame using B or A on the
multicontroller.
• The selected frame appears green.
3
Press .
• You can immediately shoot the image using the selected AF frame by
pressing the shutter button instead of pressing
.
4
Shoot the image.
○○○○○○○○○○○○○○○○○○○○○○
Shooting Modes and Selectable AF Frames
The camera automatically selects the AF frame to focus according to
the shooting conditions.
Manually select one of the three AF frames. This is convenient for
focusing accurately on an off-center subject to obtain the
composition you desire.
Auto Selection
(AiAF)
Manual
Selection
indicates the selected AF frame which appears green on the LCD monitor.
P Tv Av M
*
* In the macro modes, the AF frame always set to “ ”.
• The camera resumes the auto selection mode after you turn off the camera.
Shooting Mode
AF Frames
72 Shooting - Selecting Particular Effects
Selecting an AF Frame (continued)
○○○○○○○○○○○○○○○○○○○○○○
• If any particular AF frame is selected, it is recommended that you use the LCD
monitor to check the AF frame while shooting.
• When the Spot AE Point is selected as the light metering method, you can use the
selected AF frame as the Spot AE Point (p. 82).
• For an explanation of the AF frame colors, please refer to page 34.
• If the shooting mode is changed, the AF frame may also change depending on the
shooting mode. See the table below.
○○○○○○○○○○○○○○○○○○○○○○
• AiAF* has a wide range of measuring for accurate focusing. AiAF focuses on the
object even if it is not exactly at the center area.
* “Ai” stands for “Artificial intelligence” and “AF” stands for “Auto Focus.”
Initial Shooting Mode
AF frames after
change
Next Shooting Mode
No change
P Tv Av M
P Tv Av MP Tv Av M
P Tv Av M
Shooting - Selecting Particular Effects 73
Adjusting the Exposure Compensation
Adjust the exposure compensation setting to avoid making the subject too dark
when it is backlit or shot against a bright background.
1
Press the button once.
• The icon and exposure compensation bar will
appear on the LCD monitor if it is on.
2
Select a setting using B or A on the multicontroller.
• The settings can be adjusted in 1/3 steps in the range of -2EV to +2EV.
3
Press .
• You can also take the picture with the set exposure compensation value by
pressing the shutter button without pressing
.
• To cancel the exposure compensation, return the setting to
using B or A
on the multicontroller.
4
Shoot the image.
• If you pressed the shutter button at Step 3, the exposure compensation bar
will reappear after the shot, allowing you to change the setting for the next
shot.
○○○○○○○○○○○○○○○○○○○○○○
• This setting cannot be adjusted in the and shooting modes. In mode, it
can only be adjusted for the first image.
• The macro mode cannot be set while the exposure compensation bar appears on
the LCD monitor.
○○○○○○○○○○○○○○○○○○○○○○
• The selected shooting mode will determine whether or not the exposure
compensation setting is cancelled when the camera is turned off (p. 90).
74 Shooting - Selecting Particular Effects
Setting the White Balance
When the white balance mode is set to match the light source, the camera can
reproduce colors more accurately. Set the white balance mode to a natural or
artificial light setting according to the circumstances.
1
Press the button twice.
• The balance setting menu appears on the LCD
monitor.
2
Select a setting using B or A on the
multicontroller.
• Please see the next page regarding the custom setting.
3
Press .
• You can also take the picture in the set white balance mode by pressing the
shutter button without pressing .
4
Shoot the image.
• If you pressed the shutter button at Step 3, the current white balance mode will
reappear after the shot, allowing you to change the setting for the next shot.
○○○○○○○○○○○○○○○○○○○○○○
• This setting cannot be adjusted in the and (Sepia and B/W) shooting
modes. In
mode, it can only be adjusted for the first image.
• The metering mode (p. 82) cannot be changed and the macro mode cannot be set
while the white balance setting menu appears on the LCD monitor.
○○○○○○○○○○○○○○○○○○○○○○
• The selected shooting mode will determine whether or not the white balance
setting is cancelled when the camera is turned off (p. 90).
Auto
Daylight
Cloudy
Tungsten
Fluorescent
Fluorescent H
Flash
Custom
Settings are automatically set by the camera
For recording outdoors on a bright day
For recording under overcast, shady or twilight skies
For recording under tungsten and bulb-type 3-wavelength fluorescent lighting
For recording under warm-white, cool-white or warm-white (3-wavelength) fluorescent lighting
For recording under daylight fluorescent, or daylight fluorescent-type 3-wavelength fluorescent lighting
For flash photography
For setting a custom value with a white sheet of paper, etc., to obtain the optimal white balance for
the conditions
Shooting - Selecting Particular Effects 75
Setting a Custom White Balance
You can set a custom white balance to obtain the optimal setting for the shooting
conditions by having the camera evaluate a subject such as a white piece of paper
or cloth, or a photo-quality gray card.
1
Press the button twice.
• The WB setting menu appears on the LCD monitor if it is on.
2
Select using B or A on the
multicontroller.
3
Aim the camera at the white paper or
cloth, or gray card and press the
button.
• Aim the camera so that the white paper or cloth,
or gray card, completely fills the frame on the
LCD monitor screen or the entire viewfinder
before pressing the
button. When you press
the button, the camera reads the white
balance data.
4
Press .
• You can also take the picture with the white balance set to the selected
value by pressing the shutter button without pressing
.
5
Shoot the image.
• If you pressed the shutter button at Step 4, the white balance mode will
reappear after the shot, allowing you to change the setting for the next
shot.
76 Shooting - Selecting Particular Effects
Setting the White Balance (continued)
○○○○○○○○○○○○○○○○○○○○○○
• To set and use a custom white balance setting, it is advisable to select the
shooting mode and set the exposure compensation and flash exposure
compensation to zero (±0). The correct white balance may not be obtained when
the exposure is incorrect (image is completely black or white).
• It is also advisable to use the LCD monitor to compose the shot and to zoom in to
the maximum telephoto setting.
• Since the white balance data cannot be read in
mode, preset the white
balance in another shooting mode first before selecting
mode.
• If the flash fires when setting a custom white balance with the flash set to red-eye
reduction auto or auto, make sure you also use the flash when you go to shoot.
The correct white balance cannot be obtained unless the flash is used consistently.
To ensure consistency, set the flash to on or off as appropriate.
• The selected shooting mode will determine whether or not the custom white
balance setting is cancelled when the camera is turned off.
Shooting - Selecting Particular Effects 77
Auto Exposure Bracketing (AEB Mode)
In this mode, the camera automatically changes the exposure within a set range to take
three shots after you press the shutter button once. You can adjust AEB settings in 1/3EV
steps within the range of -2EV to +2EV of the standard exposure setting. AEB settings can
be combined with exposure compensation settings (p. 73) to extend the adjustment
range. The images are shot in the following order: Standard exposure,
underexposure and overexposure.
1
Press the button three
times.
• The icon and the exposure compensation bar
appear on the LCD monitor.
2
Expand or contract the range using B or
A on the multicontroller.
• Use A to expand the range and B to contract it.
3
Press .
• You can also take the picture with the set exposure compensation value by
pressing the shutter button without pressing
.
• To cancel the AEB setting, return the setting to
using B or A on the
multicontroller.
4
Shoot the image.
• If you pressed the shutter button at Step 3, the icon and the exposure
compensation bar will reappear after the shot, allowing you to change the
setting for the next shot.
○○○○○○○○○○○○○○○○○○○○○○
• The AEB mode cannot be used for flash photography. If the flash fires, only one
image gets recorded.
• The macro mode cannot be set while the exposure compensation bar appears on
the LCD monitor.
○○○○○○○○○○○○○○○○○○○○○○
• This function can only be selected in the , and shooting modes.
• The selected shooting mode will determine whether or not the AEB setting is
cancelled when the camera is turned off.
78 Shooting - Selecting Particular Effects
Adjusting the Flash Output
(Flash Exposure Compensation)
You can adjust the flash output for flash photography.
1
Press the button four
times.
• The icon and the flash exposure
compensation bar appears on the LCD monitor.
2
Expand or contract the range using B
or A on the multicontroller.
• The flash exposure compensation can be adjusted in 1/3 steps within a
range of -2EV to +2EV.
3
Press .
• You can also take the picture with the set flash exposure compensation value
by pressing the shutter button without pressing
.
• To cancel the setting, return the setting to
using B or A on the
multicontroller.
4
Shoot the image.
• If you pressed the shutter button at Step 3, the icon and the flash
exposure compensation bar will reappear after the shot, allowing you to
change the setting for the next shot.
○○○○○○○○○○○○○○○○○○○○○○
• This setting cannot be adjusted in the , and shooting modes. In
mode, it can only be adjusted for the first image.
• The macro mode cannot be set while the flash exposure compensation bar
appears on the LCD monitor.
○○○○○○○○○○○○○○○○○○○○○○
• The selected shooting mode will determine whether or not the flash exposure
compensation setting is cancelled when the camera is turned off (p. 90).
Shooting - Selecting Particular Effects 79
Locking the Exposure Setting (AE Lock)
You can set the exposure and focus separately. This is effective when the contrast is
too strong between the subject and background or when a subject is backlit. For
an explanation of how different combinations of light metering options and a
selected AF frame affect where the AE lock is metered, see page 80.
1
Press the button to turn on the LCD monitor.
2
Focus on the subject on which you wish to lock the exposure
setting.
• Press the shutter button halfway.
3
While pressing the shutter button
halfway, press the button.
• The exposure setting locks (AE Lock) and the
icon appears on the LCD monitor.
• Using any button, lever or switch other than
pressing the shutter button halfway or using B,
A, C or D on the multicontroller cancels the AE
lock.
4
Recompose the image and shoot.
AE Lock Icon
80 Shooting - Selecting Particular Effects
Locking the Exposure Setting (AE Lock) (continued)
○○○○○○○○○○○○○○○○○○○○○○
• The AE lock function cannot be used when the optical viewfinder is used to shoot.
○○○○○○○○○○○○○○○○○○○○○○
• This function can only be selected in the , and shooting modes.
○○○○○○○○○○○○○○○○○○○○○○
The automatically selected combinations of shutter speeds and aperture values can
be freely changed without altering the exposure with the following procedures.
1 Turn the mode dial to
, or .
2 Press the
button to turn on the LCD monitor.
3 Focus on the subject on which you wish to lock the exposure.
4 Press the
button.
- The exposure setting will lock and the
icon will appear in the display panel
and LCD monitor.
5 Press B or A on the multicontroller until the desired shutter speed or aperture
value is reached.
6 Recompose the image and shoot.
The setting will cancel after the shot is taken.
Exposure Metering Position for the AE/FE Lock According to Different Light
Metering Options when an AF Frame is Selected (Creative Shooting Modes)
Light Metering Option
Evaluative Light Metering
Center-Weighted Averaging
Spot AE Point
Center
AF Point
AF Frame Is Selected
AE/FE locks at the exposure metered within the selected AF frame
AE/FE locks at the exposure metered in the center AF frame
AE/FE locks at the exposure metered in the spot AE point at the center
AE/FE locks at the exposure metered in the spot AE point corresponding to the
selected AF frame
Shooting - Selecting Particular Effects 81
Locking the Flash Exposure Setting (FE Lock)
You can lock the flash exposure so that the exposure settings are correctly set for a
particular portion of your subject. For an explanation of how different
combinations of light metering options and a selected AF frame affect where the
FE lock is metered, see page 80.
1
Press the button to turn on the LCD monitor.
2
Set the flash to fire (p. 47).
3
Focus on the subject on which you wish to lock the flash
exposure setting.
• Press the shutter button halfway.
4
While pressing the shutter button halfway, press the button.
• The flash exposure compensation setting locks (FE lock) and the icon
appears on the LCD monitor.
• The flash will fire a pre-flash and lock the flash exposure to the required
intensity to illuminate the subject. (Each time you press the
button, the
flash exposure locks at the required intensity for that composition).
• Using any button, lever or switch other than pressing the shutter button
halfway or using B, A, C or D on the multicontroller cancels the FE lock.
5
Recompose the image and shoot.
• As the example to the right shows, a backlit
subject can be shot at the correct exposure if the
FE lock is set when the camera is aimed at a
non-backlit portion of the subject.
○○○○○○○○○○○○○○○○○○○○○○
• This function can only be selected in the , and shooting modes.
82 Shooting - Selecting Particular Effects
Switching between Light Metering Modes
Center-weighted averaging is the default light metering mode. This can be
switched to spot light metering.
1
Press the button to turn on the LCD monitor.
2
Press the button to select the
metering mode.
• Each press of the button changes the
metering mode as follows.
• The icon of the currently selected light metering
mode appears on the LCD monitor.
If you have selected
(Spot AE Point), go to step 3.
If you have selected
(Evaluative Light Metering) or (Center-
Weighted Averaging), go to step 5.
3
In the [ (Rec.)] menu, select [Spot AE
Point].
• See Selecting Menus and Settings (p. 38).
Evaluative
Light Metering
Center-Weighted
Averaging
Spot AE Point
Center
AF Point
Appropriate for standard shooting conditions, including backlit scenes. The
camera divides images into several zones for light metering. The camera
evaluates the complex lighting conditions, such as the position of the subject,
the brightness, the background, the direct light, and the backlighting, and
adjusts the settings to the correct exposure for the main subject.
Averages the exposure from the entire image, but places more weight on
the subject at the center. Use this mode when the subject is backlit or
surrounded by bright light.
Meters the area within the spot AE point frame at the center of the LCD
monitor.
Meters the spot AF point corresponding to the selected AF frame.
(Evaluative Light Metering) (Center-Weighted Averaging)
(Spot AE Point)
Shooting - Selecting Particular Effects 83
4
Select the [Center] or [AF Point] option,
then press the button.
• When [Spot AE Point] is set to [Center], the spot
AE point frame appears at the center of the LCD
monitor, and when [Spot AE Point] is set to [AF
Point], it appears inside the selected AF frame.
5
Shoot the image.
Spot AE Point Frame
○○○○○○○○○○○○○○○○○○○○○○
• The light metering mode cannot be changed while the white balance setting
menu appears on the LCD monitor.
○○○○○○○○○○○○○○○○○○○○○○
• This function can only be selected in the , , and shooting modes.
• The setting is cancelled when the camera power is turned off. However, the [Spot
AE Point] option selected in the menu remains selected.
e.g. Center
84 Shooting - Selecting Particular Effects
Shooting Problem Subjects for the Autofocus
The autofocus may not work well on the following types of subjects.
•
Subjects with extremely low contrast to the surroundings
•
Subjects mixing close and far objects
•
Subjects with extremely bright objects at the center of the composition
•
Subjects that are moving quickly
To shoot these subjects, first aim the camera at an object at a similar distance, lock the
focus and recompose the image with the desired subject, or use the manual focus.
○○○○○○○○○○○○○○○○○○○○○○
• When shooting through glass, get as close as possible to avoid reflections off the
glass.
Shooting with Focus Lock
Focus Lock Method 1
1
Press the button to turn on the LCD monitor.
2
Aim the AF frame at an object at a similar distance to the
subject you wish to shoot.
3
Press the shutter button halfway to lock the focus.
• The AE setting will also lock when you do this. The exposure may
occasionally be incorrect if the difference between the two items is too
great. Use Method 2 or the AE lock procedure when this happens.
4
Keep it pressed while you recompose the image and press the
shutter button all the way to shoot the image.
Shooting - Selecting Particular Effects 85
Focus Lock Method 2
1
Press the button to turn on the LCD monitor.
2
Press the shutter button halfway to lock the focus. Keep it
pressed and press the button.
• The icon appears on the LCD monitor.
• The focus setting will lock even if the shutter button and the
button are
released.
• The manual focus setting will cancel if the
button is pressed again.
3
Recompose the image and press the shutter button all the way
to shoot the image.
○○○○○○○○○○○○○○○○○○○○○○
• Focus lock cannot be used while the shooting mode is set to .
○○○○○○○○○○○○○○○○○○○○○○
• Method 2 is convenient because you can let go of the shutter button to
recompose the image.
86 Shooting - Selecting Particular Effects
Shooting Problem Subjects for the Autofocus (continued)
Shooting in Manual Focus Mode
The focus can be manually set.
1
Press the button to turn on the LCD monitor.
2
Press and hold the button, then use
C or D on the multicontroller.
• The focus will lock and the icon and the MF
indicator will appear on the LCD monitor. If a
particular AF frame has been manually selected,
the portion of the image in that frame will
appear magnified.*
* Except in the , modes, when the digital zoom is activated
or a TV is used as the display.
• The MF indicator shows approximate figures. Use them as a shooting
guideline only.
• Adjust the focus using C or D on the multicontroller until the image
appears focused on the LCD monitor.
• Pressing the
button a second time cancels the manual focus mode.
3
Shoot the image.
• The indicator beside the viewfinder shines yellow when the shutter button is
pressed halfway.
○○○○○○○○○○○○○○○○○○○○○○
• This setting cannot be adjusted in shooting mode.
• You cannot change the AF frame setting while focusing manually. Cancel the
manual focus mode, then change the AF frame setting. With the changed AF
frame setting, you can resume the manual focus mode.
○○○○○○○○○○○○○○○○○○○○○○
• You can use manual focus in the macro focal distance 10 to 80 cm (3.9 in. to 2.6
ft.) at maximum wide angle and 30 to 80 cm (11.8 in. to 2.6 ft.) at maximum
telephoto. In this case, the fine scale is adopted.
• If the camera is protected by Digital Camera Waterproof Case WP-DC300
(optional), be sure to press and hold the
button then use B or A on the
multicontroller to display the MF indicator and adjust the focus.
MF indicator
Shooting - Selecting Particular Effects 87
Manually Setting Image Characteristics
The ISO speed, contrast, sharpness and saturation settings can be adjusted for shooting.
1
In the [ (Rec.)] menu, select one of the above items.
• See Selecting Menus and Settings (p. 38).
2
Select a value for the item and press the button.
ISO speed
• Switch speeds when you are shooting in dark areas
or want to use a fast shutter speed.
• You can select from 50 (default setting), 100, 200,
400, 800 (only for PowerShot S30) and AUTO.
• When AUTO is selected, the camera automatically
adjusts ISO between 50 and 150 only.
• Higher ISO speeds increase the image noise. To take
clean images, use as low an ISO speed as possible.
Contrast
• Select from - (Weak), 0 (Neutral) and + (Strong).
• This function allows you to adjust the degree of
brightness.
Sharpness
• Select from - (Weak), 0 (Neutral) and + (Strong).
• This function allows you to adjust how sharply
outlines are defined.
Saturation
• Select from - (Weak), 0 (Neutral) and + (Strong).
• This function allows you to adjust the color
depth.
88 Shooting - Selecting Particular Effects
Manually Setting Image Characteristics (continued)
3
Shoot the image.
○○○○○○○○○○○○○○○○○○○○○○
• These functions can only be selected in the , , and shooting modes. In
the
mode, however, the ISO speed cannot be set to [Auto].
• These settings are memorized even when the camera power is turned off.
Shooting - Selecting Particular Effects 89
Resetting the File Numbers
You can select the way file numbers are assigned.
1
In the [ (Rec.)] menu, select [File No.
Reset].
• See Selecting Menus and Settings (p. 38).
2
Select [On] or [Off] and press the button.
○○○○○○○○○○○○○○○○○○○○○○
• Setting the [File No. Reset] to [Off] is useful for avoiding file name duplication
when images are downloaded to a computer.
○○○○○○○○○○○○○○○○○○○○○○
About File Numbers
• Images are assigned file numbers from 0001 to 9900 and organized in folders
usually containing up to 100 images. Folders are assigned numbers from 100 to
998.
Since images shot in continuous mode or Stitch Assist mode are always saved in the
same folder, some folders may contain 101 or more images.
The file numbers are reset to the start (100-0001) each time a new CF card is inserted. New
images recorded on CF cards with existing files are assigned the next available number.
The file number of the last image to be shot is memorized so that images recorded to a new
CF card start from the next number.
On
Off
100
0001 0002
0099
0100
101
0101 0102
0199
0200
198
9801 9802
9899
9900
200
0001 0002
0099
0100
Folder numbers cannot contain 99 in the last two digits.
90 Shooting - Selecting Particular Effects
Functions Available in Each Shooting Mode
This chart shows the functions available in each shooting mode.
●
●
–
–
●
●
●
–
–
●
●
●
●
–
–
–
–
–
●
–
–
–
–
–
●
●
●
●
–
–
●
●
●
●
–
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
–
●
–
●
–
–
–
–
●
●
●
●
●
–
–
●
●
●
●
–
●
●
●
●
●
–
●
●
●
●
●
●
●
●
●
–
●
–
●
–
–
–
–
●
●
●
●
●
–
–
●
●
●
●
–
●
●
●
●
●
–
●
●
●
●
●
●
●
●
●
–
●
–
●
–
–
–
–
●
●
●
●
●
–
–
●
●
●
●
–
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
–
●
–
●
–
–
–
–
●
●
●
●
●
–
–
●
●
●
●
–
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
–
●
–
●
–
–
–
–
●
●
●
●
●
–
–
●
●
●
●
–
●
●
●
●
●
●
●
●
●
●
●
●
–
●
●
–
●
–
●
–
–
–
–
●
●
●
●
●
–
–
●
●
●
●
–
●
●
●
●
●
●
●
●
●
●
●
–
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
–
–
●
●
●
●
●
–
–
●
●
●
●
●
●
●
●
●
–
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
–
–
●
●
●
●
●
–
–
●
●
●
●
●
●
●
●
●
–
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
–
–
●
●
●
●
●
–
–
●
●
●
●
●
●
●
●
●
–
●
–
●
–
–
–
●
●
●
●
●
●
●
●
●
●
–
–
●
●
●
●
●
–
–
–
▲
▲
●
●
–
–
●
●
●
–
▲
▲
–
▲
–
●
–
–
–
–
●
▲
▲
▲
▲
–
–
●
●
●
●
–
–
–
–
–
●
●
●
–
–
●
●
●
–
●
●
–
–
–
●
–
–
–
–
●
–
–
–
–
●
●
–
–
–
–
–
p. 47
p. 57
–
p. 59
p. 59
p. 58
p. 58
p. 71
p. 71
p. 73
p. 74
p. 77
p. 78
p. 79, 81
p. 82
p. 86
p. 61
p. 61
p. 64
Reference
Page
Red-Eye Reduction, Auto
Auto
Flash
Red-Eye Reduction, Flash On
On
Off
Macro Mode
Single Shot
Normal Continuous Mode
Drive Mode
High Speed Continuous Mode
Self-Timer (10 sec.)
Self-Timer (2 sec.)
AF Frame
Auto
Manual
Exposure Compensation
White Balance
AEB Mode
Flash Exposure Compensation
AE Lock/FE Lock
Evaluative Metering
Center-Weighted Averaging
Spot Metering
Center
AF Point
Manual Focus
Large
Medium 1
Resolution
Medium 2
Small
Movie
Movie
Superfine
Compression
Fine
Normal
File
JPEG
Format
RAW
Light
Meterting
Method
(4)
1
2
(1) (1) (1)
(2) (2)
(3)
(3) (2) (2)
Shooting - Selecting Particular Effects 91
–
●
–
–
–
–
●
–
–
–
–
●
–
–
–
–
●
–
–
–
–
●
–
–
–
–
●
–
–
–
–
●
–
–
–
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
–
●
●
●
●
–
–
–
–
–
–
–
–
–
–
p. 87
p. 60
p. 87
ISO Speed
Digital Zoom
Contrast
Sharpness
Saturation
Reference
Page
(5) (5) (5) (5) (5) (5) (5) (5) (6)
(5)
* Default setting.
● Setting selection is possible.
▲ Setting can only be selected for the first image.
-
Setting selection is not possible.
(Shaded Area) Setting remains in effect even when the camera is turned off.
The default for all of the settings changed by the menu and button operations can be restored all at once except
for [Date/Time], [Language] and [Video System] (p. 141).
(1) In Macro mode, the AF frame is set to the center.
(2) The AF frame can only be set to the center. In Macro mode, the AF frame is also set to the center.
(3) The AF frame can only be set to the center.
(4) The sepia and B/W modes cannot be set.
(5) The ISO speed is automatically set between the equivalent of 50 and 150.
(6) [AUTO] cannot be selected.
92 Replaying
Viewing Images Singly (Single Image Replay)
You can view the recorded images on the LCD monitor.
1
Slide the power/replay lever to the
right.
• The last recorded image appears (Single Image
Replay).
2
Move between images using B or A on
the multicontroller.
• Use B to move to the previous image and A to
move to the next. Holding B or A moves more
rapidly between images, but the images will not
appear as clearly.
○○○○○○○○○○○○○○○○○○○○○○
• Press the button to show the data for the displayed image (p. 30).
• Press the
button to quickly delete the displayed image (p. 104).
• You can change the display language on the LCD monitor if you press and hold
then press the button (p. 25). (This function cannot be used while a
Direct Print compatible printer (optional) or the Direct Print compatible Bubble Jet
Printer is connected to the camera.)
Replaying
Replaying 93
Magnifying Images
In single image replay, the displayed image can be shown magnified by an
approximate factor of 2.5 or 5 for PowerShot S30 and 3 or 6 for PowerShot S40.
1
Slide the power/replay lever to the right.
2
Slide the zoom lever toward .
• The display cycles to the next magnification mode each time you slide the
zoom lever toward
.
• You can move around the magnified image using B, A, C or D on the
multicontroller.
Reducing the size of the enlarged image until it displays in its original size
1
Slide the zoom lever toward .
• The most magnified image is reduced to 2.5 times the original size for
PowerShot S30 and 3 times the original size for PowerShot S40 by sliding
the zoom lever toward
. Sliding the zoom lever toward again reduces
the image to its original size.
Magnified
approximately 3 times
(PowerShot S40)
Approximate
position
○○○○○○○○○○○○○○○○○○○○○○
• Movie frames and index replayed images cannot be magnified.
• If the camera is protected by Digital Camera Waterproof Case WP-DC300, you
cannot move the magnified area using C or D on the multicontroller.
○○○○○○○○○○○○○○○○○○○○○○
• You can magnify an image while it is displayed on the LCD monitor in Shooting
mode immediately after the image is shot (p. 46).
Magnified
approximately 6 times
(PowerShot S40)
Approximate
position
94 Replaying
Viewing Nine Images at a Time
(Index Replay)
Up to nine images can be viewed at once in Index Replay.
1
Slide the power/replay lever to the right.
2
Press the button.
• Nine images appear at once (Index Replay).
3
Change the image selection using B, A, C or D on the
multicontroller.
4
Press the button.
• Index replay cancels and the display reverts to single image replay.
○○○○○○○○○○○○○○○○○○○○○○
• Press the button to show the data for the displayed image (p. 30).
Movie Frame
Selected Image
The C operation in this row
displays the previous set of
nine images.
The D operation in this row
displays the next set of nine
images.
Replaying 95
Jumping Between Images
The display can be advanced or set back 9 images in either single image replay or
index replay.
1
Press the button while in single replay (p. 92) or index
replay (p. 94).
• The jump bar appears.
2
The displayed image(s) change.
Single Replay
• Jump 9 images behind or ahead using B or A
on the multicontroller.
Index Replay
• Jump to the previous or next set of nine images
using B or A on the multicontroller.
3
Press the button.
• The jump bar disappears and the jump mode cancels.
Jump Bar
Jump Bar
96 Replaying
Viewing Movies
You can replay the images shot in mode.
1
Slide the power/replay lever to the right.
• Movies cannot be viewed in index replay.
2
Display an image shot in mode using
B or A on the multicontroller.
• A movie displays with the instruction
on it.
3
Press .
• The movie images and sound will play.
• You can adjust the volume using C or D on the multicontroller.
• When a movie has finished playing, it will display the last frame. If
is
pressed in this state, the movie will start playing from the first frame.
Pausing and Resuming Play
• Press
to pause the movie. Press it again to resume.
Fast Forwarding / Rewinding
• Use B or A on the multicontroller to stop the movie and display the
previous or next image or movie.
○○○○○○○○○○○○○○○○○○○○○○
• You may experience frame dropping and audio breakup when replaying a movie
on a computer with insufficient system resources.
○○○○○○○○○○○○○○○○○○○○○○
• The volume at which movies replay can also be adjusted in the Play menu (p. 137).
• Please adjust the audio sound level on the TV when viewing movie files on a TV.
Replaying 97
Rotating Images in the Display
Images can be rotated 90º and 270º clockwise on the LCD monitor.
Original 90º 270º
1
In the [ (Play)] menu, select [Rotate]
and press .
• See Selecting Menus and Settings (p. 38).
2
Select an image you want to rotate
using B or A on the multicontroller and
press .
• The image cycles to the next orientation (90º ➝
270º ➝ original) each time
is pressed.
3
Press the button.
• The Play menu appears again. Press the button again to close the
menu.
○○○○○○○○○○○○○○○○○○○○○○
• Movie images cannot be rotated.
○○○○○○○○○○○○○○○○○○○○○○
• When images are downloaded to a computer, the orientation of images rotated
by the camera will depend upon the software used to download the images.
○○○○○○○○○○○○○○○○○○○○○○
• Images can be magnified when rotated (p. 93).
98 Replaying
Attaching Sound Annotations to Images
In replay mode (including single replay, index replay, magnifying replay and the replay
immediately after shooting in Shooting mode) you can attach sound annotations (up to
60 seconds) to an image. The sound data is saved in WAVE format.
1
Press the button while replaying images.
• The A / V panel appears.
2
Select using B or A on the
multicontroller, then press .
• The recording starts and the elapsed time is displayed.
Speak towards the microphone of the camera.
• To stop recording, press
. To restart recording,
press
again.
• You can add as many sound annotations as you
like until their total time reaches 60 seconds.
Playing back the Sound Annotations
Select in step 2 above. Images with sound annotations are displayed with the
mark. To start playback, press . To stop playback, press again. You can
adjust the volume using C or D on the multicontroller.
Erasing the Sound Annotations
Select in step 2 above.
○○○○○○○○○○○○○○○○○○○○○○
• You cannot attach sound annotation to movies.
• If there is no space for recording on the CF card, the message “CF card full”
appears and you cannot continue recording.
• You cannot attach sound annotations to an image if it already has any
incompatible sound file. Such an image displayed with the
mark and the
message “Unidentified sound file” appears.
○○○○○○○○○○○○○○○○○○○○○○
• The volume can be adjusted in the Play menu (p. 137).
Replaying 99
Automated Playback (Slide Show)
Starting a Slide Show
All images, or a selection of images, can be displayed one-by-one in an automated
slide show.
1
In the [ (Play)] menu, select [Slide
Show] and press .
• See Selecting Menus and Settings (p. 38).
• The slide show menu appears.
2
Select [Program] using C or D on the
multicontroller. Then select between [All
Images] or one of [Show 1]-[Show 3] using
B or A on the multicontroller.
3
Select [Start] using C or D on the
multicontroller and press .
• The slide show will start and automatically stop when the show is done.
Pausing and Resuming a Slide Show
• Press
to pause the show. Press it again to resume.
Fast Forward / Rewinding a Slide Show
• Use B or A on the multicontroller to move to the previous or next image.
Stopping a Slide Show
• Press the
button during a slide show to stop it and display the slide
show menu.
4
Press the button.
• The slide show menu appears again. Press the button again to close
the menu.
○○○○○○○○○○○○○○○○○○○○○○
• Movie images play for the length of time that they were recorded regardless of the
time set in the slide show settings.
• The power save function is disabled while a slide show plays on the camera (p. 28).
Plays all the images on the CF card in order
Plays the images selected for each show in order (p. 100)
All Images
Slide Show 1 - 3
100 Replaying
Automated Playback (Slide Show) (continued)
Selecting Images for Slide Shows
You can mark images for inclusion in slide shows 1-3. Up to 100 images may be
marked per slide show. Images display in the order of their selection.
1
Display the slide show menu (p. 99).
2
Select [Program] using C on the
multicontroller. Then select [Show 1],
[Show 2] or [Show 3] using B or A on
the multicontroller.
• A bright green bar will appear beside a show
already containing images.
3
Choose [Select] using D, and B or A on the multicontroller and
press .
4
Mark images to include in the show.
Single Replay
• Move between images using B or A on the
multicontroller and mark or remove marks from
images using C or D on the multicontroller.
• The selection number and a bright green bar
appear at the top of marked images.
Index Replay
• Press the
button to switch to index replay (3
images).
• Select an image using B or A on the
multicontroller and mark or remove marks from
images using C or D on the multicontroller.
• The selection number and a bright green bar
appear at the bottom of marked images.
• You can deselect all the images in a show by
pressing
, selecting [OK] using B or A on
the multicontroller and pressing
again.
Replaying 101
5
Press the button.
• The image selection screen will close.
Adjusting the Play Time and Repeat Settings
You can change the play time for all the images in a show and have the show
repeat itself continuously.
1
Display the slide show menu.
2
Select [Set up] using B or A on the
multicontroller and press .
3
Select [Play Time] or [Repeat] using C or
D on the multicontroller.
4
Select a setting using B or A on the multicontroller.
Play Time
• Select a play time.
Repeat
• Select [On] or [Off].
Sets the duration that each image in a slide show is displayed. The options are any one
of 3-10 seconds, 15 seconds, 30 seconds and Manual.
Sets whether the slide show stops when all the slides have been displayed or continues
to display until stopped.
Play Time
Repeat
102 Replaying
Automated Playback (Slide Show) (continued)
5
Press the button.
• The set up menu closes.
○○○○○○○○○○○○○○○○○○○○○○
• The display interval may vary somewhat for some images.
• Slide shows can be easily edited on a computer with the supplied software. See
the Software Starter Guide.
Replaying 103
Protecting Images
You can protect important images from accidental erasure.
1
In the [ (Play)] menu, select [Protect]
and press .
• See Selecting Menus and Settings (p. 38).
2
Select an image you want to protect
using B or A on the multicontroller and
press .
• The icon appears on protected images.
• To remove the protection, press
again (in
protection mode).
• You can make the selection of images easier by
toggling between single replay and Index replay
with the
button.
3
Press the button.
• The protect window closes.
○○○○○○○○○○○○○○○○○○○○○○
• Please note that formatting (initializing) a CF card erases all data, including
protected images (p. 106) and other file types. Please check the contents of a CF
card before formatting it.
104 Erasing
Erasing Images Singly
○○○○○○○○○○○○○○○○○○○○○○
• Please note that erased images cannot be recovered. Exercise caution before
erasing a file.
1
Set the camera to the replay mode (p. 29).
2
Select the image you wish to erase using B or A on the
multicontroller and press the button.
3
Select [Erase] using B or A on the
multicontroller and press .
• To cancel instead of erasing, select [Cancel] and
press .
○○○○○○○○○○○○○○○○○○○○○○
• Protected images cannot be erased with the erase function (p. 103).
Erasing
Erasing 105
Erasing All Images
○○○○○○○○○○○○○○○○○○○○○○
• Please note that erased images cannot be recovered. Exercise caution before
erasing a file.
1
In the [ (Play)] menu, select [Erase all]
and press .
• See Selecting Menus and Settings (p. 38).
2
Select [OK] using B or A on the
multicontroller and press .
• To cancel instead of erasing, select [Cancel] and
press .
○○○○○○○○○○○○○○○○○○○○○○
• Protected images cannot be erased with the erase function (p. 103).
106 Erasing
Formatting a CF Card
You should format a new CF card or one from which you wish to erase all images
and other data.
○○○○○○○○○○○○○○○○○○○○○○
• Please note that formatting (initializing) a CF card erases all data, including
protected images and other file types. Please check the contents of the CF card
before formatting it.
1
In the [ (Set up)] menu, select [Format]
and press .
• See Selecting Menus and Settings (p. 38).
2
Select [OK] using B or A on the
multicontroller and press .
• To cancel formatting instead, select [Cancel] and
press
.
○○○○○○○○○○○○○○○○○○○○○○
• If the camera does not work properly, the inserted CF card may be malfunctioning.
Formatting the CF card may solve the problem.
• When a non-Canon brand CF card is malfunctioning, reformatting it may solve the
problem.
• CF cards formatted in another camera, computer or peripheral device may not
operate correctly. When that happens, reformat the CF card with this camera.
Print Settings (DPOF Print Settings) 107
Images on a CF card can be individually selected for printing in a specified number
of copies. You can also select the print type and whether or not to print the date
and file number. These settings are compatible with the Digital Print Order Format
(DPOF) standards so that images can be printed on DPOF-compliant digital printers
or at participating photo labs.
○○○○○○○○○○○○○○○○○○○○○○
• The mark appears on images that have had print marks set by another DPOF-
compliant camera. These settings will be overwritten by any print marks set by
your camera.
• Print settings cannot be set for movie images or RAW images.
• The output of some digital printers or photo lab services may not reflect the
specified print settings.
○○○○○○○○○○○○○○○○○○○○○○
• After you have set the DPOF settings, you can connect a Direct Print compatible
printer (optional) or the Direct Print compatible Bubble Jet Printer (optional) and
print directly from the camera (p. 112, 121).
Selecting Images for Printing
There are two ways to select images.
•
Singly
•
All images on a CF card (the number of copies is set to one per image)
1
In the [ (Play)] menu, select [Print
Order] and press .
• See Selecting Menus and Settings (p. 38).
• The Print Order menu appears.
2
Select [Order] using B or A on the
multicontroller and press .
Print Settings (DPOF Print Settings)
108 Print Settings (DPOF Print Settings)
Selecting Images for Printing (continued)
3
Select images for printing.
Single Images
• When the print type (p. 99) is set to [Standard] or
[Both], select an image using B or A on the
multicontroller. You can set the number of copies
(up to 99) to be printed using C or D on the
multicontroller.
• When the print type (p. 99) is set to [Index], select an
image using B or A on the multicontroller and
mark or remove marks from images using C or D
on the multicontroller.
• You can use the same procedures to select images in
index replay (3 images). Press the
button to
switch between single replay and index replay.
All the Images on a CF Card
• Press the
button to switch to index replay (three
images).
• You can set one copy of each image to print by
pressing
, then selecting [Mark All] using C or
D on the multicontroller, and pressing
again.
• When the print type is set to [Standard] or [Both],
the setting for the number of print copies can be
changed for each image. When [Index] is selected,
the print settings can be deleted. For the instructions
on changing settings, please reread Step 3 from the
beginning.
• You can cancel all the settings by selecting [Clear all].
4
Press the button.
• The selection mode will turn off and the Print Order menu will reappear.
○○○○○○○○○○○○○○○○○○○○○○
• Images are printed in order from oldest to newest by the shooting date.
• A maximum of 998 images can be marked per CF card.
• When [Print Type] is set to [Both], the number of copies can be set. When it is set
to [Index], the number of copies cannot be set (only one copy will be printed).
• Print settings can also be assigned to images with the supplied software programs
on a computer.
Number of Copies
Print Settings (DPOF Print Settings) 109
Setting the Print Style
The following print settings can be selected.
1
Display the Print Order menu (p. 107).
2
Select [Set up] using B or A on the
multicontroller and press .
3
Select [Print Type], [Date] or [File No.] using C or D on the
multicontroller.
4
Select a setting using B or A on the multicontroller.
Print Type
• Select [Standard], [Index] or [Both].
Date
• Select [On] or [Off].
Prints one image per page
Prints the selected images together at a reduced size in an index format
Prints the images in both the standard and index formats
Adds the date to the print
Adds the file number to the print
Standard
Print Type Index
Both
Date
File No.
110 Print Settings (DPOF Print Settings)
○○○○○○○○○○○○○○○○○○○○○○
• When [Print Type] is set to [index], the [Date] and [File No.] cannot be set to [On].
• If [Print Type] is set to [Both], both [Date] and [File No.] can be set to [On],
however, only the file number is printed for the index print.
○○○○○○○○○○○○○○○○○○○○○○
• The date prints as the date and time in the format specified in the Set Date/Time
menu (p. 24).
Setting the Print Style (continued)
File No.
• Select [On] or [Off].
5
Press the button.
• The set up menu will close and the Print Order menu will reappear.
Print Settings (DPOF Print Settings) 111
Resetting the Print Settings
The print settings can all be removed at once. The print type is reset to [Standard]
and the date and file number options are set to [Off].
1
Display the Print Order menu (p. 107).
2
Select [Reset] using B or A on the
multicontroller and press .
3
Select [OK] using B or A on the
multicontroller and press .
112 Printing w
ith a Direct Print Compatible Printer (Optio
nal)
A Direct Print compatible printer, sold separately, can be connected to the camera
and used to print images very easily directly from the camera. It can also be used
with DPOF print settings.
To find out which Direct Print compatible printer can be used with this camera,
please refer to the System Map.
Connecting a Direct Print Compatible
Printer to the Camera
Two direct interface cables are supplied with the printer. Use the cable (DIF-100)
that has a
Symbol on the connector to connect to this camera.
○○○○○○○○○○○○○○○○○○○○○○
• You are recommended to use a household power supply to power the camera
when it is connected to the printer. If you are using a battery pack, ensure that it is
fully charged.
1
Turn off the camera (p. 27, 29).
2
Attach the power cable to the printer
and plug the other end into power
supply.
3
Connect the camera and printer using
the direct interface cable.
• When you insert the cable, make sure the
mark of the cable faces the rear of the camera
(monitor side).
Printing with a Direct Print Compatible Printer (Optional)
Connection
to Power
Supply
Direct Interface
Cable DIF-100
DIGITAL Terminal
Printing w
ith a Direct Print Compatible Printer (
Optional) 113
○○○○○○○○○○○○○○○○○○○○○○
• When you detach the cable from the camera, hold the plug and do not pull the
cable.
○○○○○○○○○○○○○○○○○○○○○○
• Please see the Card Photo Printer CP-10 manual for instructions on loading paper
and installing ink cartridges.
• The following operations cannot be conducted while the printer is connected.
- Replaying movies
- Setting the language using
and the button combination.
• When the printer is disconnected, the
symbol will disappear from the LCD
monitor and the camera will revert to standard replay mode.
4
Slide the power/replay lever to the right
to turn on the camera.
• appears on the camera LCD monitor and the
power/mode indicator is lit in green when the
printer is properly connected to the camera.
114 Printing w
ith a Direct Print Compatible Printer (Optio
nal)
Printing
An image can be printed when displayed in single replay or selected in index replay.
1
Choose an image using B or A on the multicontroller and
press .
2
Set the number of prints, the print style and cropping settings
as required.
• Selecting the number of copies (p. 115)
• Setting the Print Style (p. 115)
• Trimming (Printing a Portion of an image) (p. 117)
3
Choose [Print] using C, D, B or A on the
multicontroller and press .
• You can also select [Print] by pressing the
button.
• The image will start to print and, when it is
completely finished, the display will revert to
standard replay mode.
○○○○○○○○○○○○○○○○○○○○○○
• You cannot print movies or images recorded in the RAW format.
○○○○○○○○○○○○○○○○○○○○○○
Cancel Printing
• To cancel printing between images printed, press . A confirmation dialog
appears. Select [OK] using B or A on the multicontroller and press
.
• A print in progress cannot be stopped. Wait until the current image is printed and
then cancel before the next one starts. The display will revert to standard replay
mode.
Printing Errors
• An error message appears if an error occurs for some reason during the printing
process (p. 149). Select [Stop] or [Resume] using B or A on the multicontroller
and press
.
• The [Resume] option may not appear with some error messages. Select the [Stop]
option in that case.
Printing w
ith a Direct Print Compatible Printer (
Optional) 115
Selecting the Number of Copies
1
In Replaying mode, press and select
the [Copies] option using C or D on the
multicontroller.
2
Specify the desired number of copies using B or A on the
multicontroller.
• You can specify from 1 to 99 prints.
Setting the Print Style
You can select from among the following print styles.
1
In the print setting menu, choose [Style]
using C or D on the multicontroller and
press again.
Prints one image per page.
Prints eight copies of the same image on one page.
Prints right to the edges of the page.
Prints with a border.
Prints the image's creation date.
Standard
Multiple
Borders
Borderless
Bordered
Date
Only selectable when printing with credit-card size paper.
116 Printing w
ith a Direct Print Compatible Printer (Optio
nal)
Printing (continued)
2
Choose [Image], [Borders] or [Date]
using C or D on the multicontroller.
3
Set the selection using B or A on the multicontroller.
4
Press the button.
• If [Borderless] or [Multiple] is selected as the print
style, the center portion of the recorded image
(the image displayed on the LCD monitor) is
printed at an enlarged size. As a result, the
image’s top, bottom and sides may be cropped
slightly. If you have not specified a trimming
setting, a frame will appear around the area of
the image that will be printed, allowing you to
check the portion that will be cropped.
○○○○○○○○○○○○○○○○○○○○○○
• The date and borders settings cannot be selected when the [multiple] option is
selected. (The image will be printed with the Date set to [Off] and the Borders set
to [Borderless].)
• With the [Bordered] option, the border is printed in practically the same space as
the recorded image.
Image Borders Date
Choose [On] or [Off].
Choose [Standard]
or [Multiple].
Choose [Borderless] or
[Bordered].
Print Area Frame
Printing w
ith a Direct Print Compatible Printer (
Optional) 117
Trimming (Printing a Portion of an Image)
You can specify which portion for an image gets printed.
○○○○○○○○○○○○○○○○○○○○○○
Prior to Trimming
Please set the Print Style (Image, Borders and Date) first before setting the trimming
settings (p. 115).
1
In Replaying mode, press and
choose [Trimming] using C or D on the
multicontroller and press again.
• The trimming frame will appear at the center of
the image. If a trimming setting has already
been selected for the image, the frame will
appear around the previously selected portion.
2
Trim the Image.
Changing the Size of the Trimming Frame
• Move the zoom lever toward
or .
• The trimming frame can be changed to a
minimum selection of approximately half the
displayed image or a maximum selection that is
virtually the same size as the image.
• You can cancel the trimming setting by moving
the zoom lever toward
again when the
trimming frame is already set to the maximum
size.
• If the image is magnified while in the trimming
mode, it will print out more coarsely the greater
the degree of magnification. The trimming
frame will change to red.
Setting the Portion of the Trimming Frame
• Move the trimming frame using C, D, B or A
on the multicontroller.
Rotating the Trimming Frame
• You can rotate the trimming frame by pressing
the
button.
118 Printing w
ith a Direct Print Compatible Printer (Optio
nal)
Printing (continued)
3
Press the button to close the
setting menu.
○○○○○○○○○○○○○○○○○○○○○○
• The trimming setting only applies to one image.
• The trimming setting is cancelled with the following operations.
- When you set the trimming settings for another image.
- When you close the Print mode (when you turn the camera power off, change
the camera mode, or detach the DIF-100 direct interface cable).
- When you try to expand the trimming frame beyond its maximum size.
○○○○○○○○○○○○○○○○○○○○○○
• The selected Image Settings and Border setting determine the shape of the
trimming frame.
• Please use the LCD monitor to set the trimming settings. The trimming frame may
not display correctly on a TV monitor.
Trimming Frame
Printing w
ith a Direct Print Compatible Printer (
Optional) 119
Printing with DPOF Print Settings
You can use the DPOF print settings to print with a Direct Print compatible printer
(optional).
1
In the [ (Play)] menu, select [Print Order] and press .
• See Selecting Menus and Settings (p. 38).
• The Print Order menu appears.
2
Select [Print] using C, D, B or A on the
multicontroller and press .
3
Set the print style settings as required.
• See Setting the Print Settings (p. 115).
• A print style cannot be set if the print type is set
to [Index] in the DPOF print setting.
4
Select [OK] using C, D, B or A on the
multicontroller and press .
• The image will start to print and, when it is
completely finished, the display will revert to the
standard replay mode.
120 Printing w
ith a Direct Print Compatible Printer (Optio
nal)
Printing with DPOF Print Settings (continued)
○○○○○○○○○○○○○○○○○○○○○○
• To print the date, set the [Date] setting in the print order menu in Step 2 on the
previous page to [On]. You cannot set the date to print with the [Style] menu in
Step 3 on the previous page. If the print type is set to [Index], the date will not
print even if the [Date] setting is set to [On] in Step 2.
• When the print type is set to [Both], it is possible to have both the [Date] and [File
No.] options set to [On], but only the file number will print on the Index print.
• When the print type is set to [Standard], file numbers will not be printed even if
they are set to [On].
○○○○○○○○○○○○○○○○○○○○○○
• The maximum number of images printed on one page in the Index print type
depends upon the selected paper size.
- Card Size: 20 images
- L Size: 42 images
- Postcard Size: 63 images
Cancel Printing
• To cancel printing between images, press . A confirmation dialog appears.
Select [OK] using B or A on the multicontroller and press
.
• A print in progress cannot be stopped. Wait until the current image is printed and
then cancel before the next one starts. The display will revert to standard replay
mode.
Restarting Printing
• In the Print Order menu, select [Resume] using B or A on the multicontroller and
press
. The remaining images can be printed.
• Printing cannot be restarted under the following circumstances.
- If the print settings have been changed before restarting.
- If the image for which the print settings were set has been deleted before
restarting.
- If there was very little free space on the CF card when the printing was
cancelled.
If these circumstances apply, you can select [OK] in the Print Order menu and
reprint starting from the first image. If printing was cancelled because the camera
battery became discharged, you are recommended to power the camera with a
household power source. If you must use a battery pack, ensure that it is fully
charged for printing. After replacing the spent battery pack, turn the camera
power on again.
Printing Errors
• An error message appears if an error occurs for some reason during the printing
process (p. 149). Choose [Stop] or [Resume] using B or A on the multicontroller
and press
.
• The [Resume] option may not appear with some error messages. Select the [Stop]
option in that case.
Printing with the Direct Print Compatible Bubble Jet Printer (Optional) 121
By connecting the Direct Print compatible Bubble Jet Printer* (optional) to the
camera, you can print images very easily directly from the camera. It can also be
used with the DPOF print settings.
* Not sold in some regions
To find out if your Bubble Jet Printer supports the direct print function,
or for general information about Bubble Jet Printers or connection
cables, please also refer to the Quick Start Guide supplied with your
Bubble Jet Printer.
Connecting Bubble Jet Printer to the Camera
Be sure to turn off the camera before connecting to Bubble Jet Printer.
○○○○○○○○○○○○○○○○○○○○○○
• You are recommended to use a household power supply to power the camera
when it is connected to the printer. If you are using a battery pack, ensure that it is
fully charged. The printing may stop if the camera battery is discharged even if it is
not complete; therefore, early replacement of the low battery with a fully charged
one is recommended.
1
Connect the camera and printer using
the cable.
• When you insert the cable, make sure the
“Canon” logo on the cable faces the front of
the camera (lens side).
2
Slide the power/replay lever to the right
to turn on the camera.
• appears on the camera LCD monitor and the
power/mode indicator is lit green when the
printer is properly connected to the camera.
Printing with the Direct Print Compatible Bubble Jet Printer (Optional)
To Bubble
Jet Printer
DIGITAL
Terminal
Bubble Jet Printer -
digital camera
connection cable
122 Printing with the Direct Print Compatible Bubble Jet Printer (Optional)
Connecting Bubble Jet Printer to the Camera (continued)
○○○○○○○○○○○○○○○○○○○○○○
• When you detach the cable from the camera, hold the plug and do not pull by the
cable.
○○○○○○○○○○○○○○○○○○○○○○
• Please see the Bubble Jet Printer Quick Start Guide manual for instructions to
install paper and ink cartridges.
• The following operations cannot be performed while the printer is connected.
- Replaying movies
- Setting the language using the
and the button combination.
• When the printer is disconnected, the
symbol will disappear from the LCD
monitor and the camera will revert to standard replay mode.
Printing with the Direct Print Compatible Bubble Jet Printer (Optional) 123
Printing
An image can be printed when displayed in single replay or selected in index replay.
1
Choose an image using B or A on the multicontroller and
press .
2
Set the number of prints, the print style and cropping settings
as required.
• Selecting the number of copies (p. 124)
• Setting the Print Style (p. 124)
• Trimming (Printing a Portion of an image) (p. 126)
3
Choose [Print] using B or A on the
multicontroller and press .
• You can also select [Print] by pressing the
button.
• The image starts printing and, when it is
completely finished, the display reverts to
standard replay mode.
○○○○○○○○○○○○○○○○○○○○○○
• You cannot print movies or images recorded in the RAW format.
○○○○○○○○○○○○○○○○○○○○○○
Cancel Printing
• To cancel printing between images, press . A confirmation dialog appears.
Select [OK] using B or A on the multicontroller and press
.
The printing stops even if it is incomplete and the paper is fed through.
• A print in progress cannot be stopped. Wait until the current image is printed and
then cancel before the next one starts. The display reverts to standard replay
mode.
Printing Errors
• An error message will appear if an error occurs for some reason during the
printing process (p. 150). The printing resumes automatically after you correct the
error. If the error persists, press
and stop printing.
• The [Continue] and [Stop] options may appear with some error messages.
• The error number is displayed on the operation panel of Bubble Jet Printer. Please
refer to the Bubble Jet Printer Quick Start Guide for the remedies corresponding to
the error numbers.
124 Printing with the Direct Print Compatible Bubble Jet Printer (Optional)
Printing (continued)
Selecting the Number of Copies
1
In Replaying mode, press and select
the [Copies] option using C or D on the
multicontroller.
2
Specify the desired number of copies using B or A on the
multicontroller.
• You can specify from 1 to 99 prints.
Setting the Print Style
You can select from among the following print styles.
1
In the print setting menu, choose [Style]
using C or D on the multicontroller and
press .
Select the paper size from the following.
[Card #1], [Card #2], [Card #3], [LTR] or [A4]
For the usable paper type, please refer to the Bubble Jet Printer User Guide.
Prints right to the edges of the page.
Prints with a border.
Prints the image's creation date.
Paper
Borders
Borderless
Bordered
Date
Printing with the Direct Print Compatible Bubble Jet Printer (Optional) 125
2
Choose [Paper], [Borders] or [Date] using
C or D on the multicontroller.
3
Set the selection using B or A on the multicontroller.
4
Press the button.
• The setting is complete and the Print Order
menu resumes.
• If [Borderless] is selected as the print style, the
center portion of the recorded image (the image
displayed on the LCD monitor) is printed at an
enlarged size. As a result, the image’s top,
bottom and sides may be cropped slightly. If you
have not specified a trimming setting, a frame
will appear around the area of the image that
will be printed, allowing you to check the
portion that will be cropped.
○○○○○○○○○○○○○○○○○○○○○○
• If you use the DPOF print settings for printing, cannot be set. The date is
printed according to the DPOF print setting.
• With the [Bordered] option, the image area remains relatively unchanged from the
recorded image when it is printed.
Paper Borders Date
Choose [On] or [Off].
Choose [Card #1], [Card #2],
[Card #3], [LTR] or [A4].
Choose [Borderless] or
[Bordered].
Print Area Frame
126 Printing with the Direct Print Compatible Bubble Jet Printer (Optional)
Printing (continued)
Trimming (Printing a Portion of an Image)
You can specify which portion of an image gets printed.
○○○○○○○○○○○○○○○○○○○○○○
Prior to Trimming
Please set the Print Style (Paper, Borders and Date) first before setting the trimming
settings (p. 124).
1
In Replaying mode, press and
choose [Trimming] using C or D on the
multicontroller and press again.
• The trimming frame appears at the center of the
image. If a trimming setting has already been
selected for the image, the frame will appear
around the previously selected portion.
2
Trim the Image.
Changing the Size of the Trimming Frame
• Move the zoom lever toward
or .
• The trimming frame can be changed to a
minimum selection of approximately half the
displayed image or a maximum selection that is
virtually the same size as the image.
• You can cancel the trimming setting by moving the zoom lever toward
again when the trimming frame is already set to the maximum size.
Setting the Portion of the Trimming Frame
• Move the trimming frame using C, D, B or A on the multicontroller.
Rotating the Trimming Frame
• You can rotate the trimming frame by pressing the
button.
Printing with the Direct Print Compatible Bubble Jet Printer (Optional) 127
○○○○○○○○○○○○○○○○○○○○○○
• The trimming setting only applies to one image.
• The trimming setting is cancelled with the following operations.
- When you set the trimming settings for another image.
- When you close the Print mode (when you turn the camera power off, change
the camera mode, or detach the cable).
- When you try to expand the trimming frame beyond its maximum size.
○○○○○○○○○○○○○○○○○○○○○○
• The selected Paper Settings and Border setting determine the shape of the
trimming frame.
• Please use the LCD monitor to set the trimming settings. The trimming frame may
not display correctly on a TV monitor.
Trimming Frame
3
Press the button to close the
setting menu.
128 Printing with the Direct Print Compatible Bubble Jet Printer (Optional)
Printing with DPOF Print Settings
You can use the DPOF print settings to print using Bubble Jet Printer with the direct
print function (optional).
1
In the [ (Play)] menu, select [Print Order] and press .
• See Selecting Menus and Settings (p. 38).
• The Print Order menu appears.
2
Select [Print] using C, D, B or A on the
multicontroller and press .
3
Set the print style settings as required.
• See Setting the Print Settings (p. 124).
4
Press .
• The image starts printing and, when it is
completely finished, the display will revert to the
standard replay mode.
Printing with the Direct Print Compatible Bubble Jet Printer (Optional) 129
○○○○○○○○○○○○○○○○○○○○○○
• To print the date, set the DPOF [Date] setting to [On]. The date will not print with the
Print Style date setting under these circumstances (p. 109). If the print type is set to
[Index], the date will not print even if the [Date] setting is set to [On] in Step 2.
• The file number will not print.
○○○○○○○○○○○○○○○○○○○○○○
Cancel Printing
• To cancel printing between images printed, press . A confirmation dialog
appears. Select [OK] using B or A on the multicontroller and press
.
The printing stops even if it is incomplete and the paper is fed through.
Restarting Printing
• In the Print Order menu, select [Resume] using B or A on the multicontroller and
press
. The remaining images can be printed.
• Printing cannot be restarted under the following circumstances.
- If the print settings have been changed before restarting.
- If the image for which the print settings were set has been deleted before
restarting.
- If there was very little free space on the CF card when the printing was
cancelled.
If these circumstances apply, you can select [OK] in the Print Order menu and
reprint starting from the first image. If printing was cancelled because the camera
battery became discharged, you are recommended to power the camera with a
household power source. If you must use a battery pack, ensure that it is fully
charged for printing. After replacing the spent battery pack, turn the camera
power on again.
Printing Errors
• An error message appears if an error occurs for some reason during the printing
process (p. 150). The printing resumes automatically after you correct the error. If
the error persists, press
and stop printing.
• The [Continue] and [Stop] options may appear with some error messages.
• The error number is displayed on the operation panel of Bubble Jet Printer. Please
refer to the Bubble Jet Printer Quick Start Guide for the remedies corresponding to
the error numbers.
130 Image T ransfer Settings (DPOF T ransfer Or der)
Using the camera, you can make marks on images you wish to transfer and attach
to e-mails. (Please use the supplied software for actually transferring images.) These
settings are compatible with the Digital Print Order Format (DPOF) standards.
○○○○○○○○○○○○○○○○○○○○○○
• The mark will display on images that have had transfer marks set by another
DPOF-compliant camera. These settings will be overwritten by any marks set by
your camera.
Selecting Images for Transferring
There are two ways to select images.
•
Singly
•
All images on a CF card
1
In the [ (Play)] menu, select [Transfer
Order] and press .
• See Selecting Menus and Settings (p. 38).
• The Transfer Order menu appears.
2
Select [Order] using B or A on the
multicontroller and press .
Image Transfer Settings (DPOF Transfer Order)
Image Transfer Settings (DPOF Transfer Order) 131
3
Select images for transferring.
Single Images
• Select an image using B or A on the
multicontroller and mark or remove marks from
images using C or D on the multicontroller.
• You can use the same procedures to select images in
index replay (3 images). Press the
button to
switch between single replay and index replay.
All the Images on a CF Card
• Press the
button to switch to index replay (three
images). Then press
, and select [Mark All]
using C or D on the multicontroller and press
again. (If you select [Clear All] instead of [Mark
All], you can remove marks from all the images.)
• You can mark or remove a mark from each
image after marking or removing marks from all
the images.
4
Press the button.
• The selection mode will turn off and the Transfer Order menu will reappear.
○○○○○○○○○○○○○○○○○○○○○○
• Images are transferred in order from oldest to newest by the shooting date.
• A maximum of 998 images can be marked per CF card.
• Transfer settings can also be assigned to images with the supplied software
programs on a computer.
132 Image T ransfer Settings (DPOF T ransfer Or der)
Resetting the Transfer Settings
The transfer marks can all be removed at once.
1
Display the Transfer Order menu (p. 130).
2
Select [Reset] using B or A on the
multicontroller and press .
3
Select [OK] using B or A on the
multicontroller and press .
List of Menu Options 133
The chart below lists menu items and settings. See Selecting Menus and Settings
(p. 38) to learn how to select a setting.
Rec. Menu
* Some items may not appear in certain shooting modes (p. 90).
Resolution
(Excluding )
Resolution ( )
Compression
File Format
Drive Mode
p. 61
p. 61
p. 61
p. 64
p. 59
Reference
Page
Sets the number of pixels used to record images to CF cards.
• Large
PowerShot S30 (2048 x 1536 pixels)
PowerShot S40 (2272 x 1704 pixels)
• Medium 1 (1600 x 1200 pixels)
• Medium 2 (1024 x 768 pixels)
• Small (640 x 480 pixels)
Sets the resolution of the frames as they are
recorded to the CF card.
• (320 x 240 pixels)
• (160 x 120 pixels)
Sets the relative compression ratio used to record
images to CF cards.
• Superfine
• Fine
• Normal
Sets the file format used to record images to CF
cards.
• JPEG
• RAW
Sets the single shooting, continuous shooting and its option, or self-
timer shooting and its duration. There is no combination of the self-
timer shooting and continuous shooting (only single shooting).
• Single Shooting
• Standard Continuous Shooting
• High-speed Continuous Shooting
• 10 sec Self-Timer
• 2 sec Self-Timer
Item
Menu Screen Settings Content
List of Menu Options
134 List of Menu Options
Rec. Menu (continued)
ISO Speed
Digital Zoom
Spot AE Point
Review
File No. Reset
p. 87
p. 60
p. 82
p. 46
p. 89
Sets the sensitivity at which images are recorded.
(S30) (S40)
• 50 • 50
• 100 • 100
• 200 • 200
• 400 • 400
• 800 • AUTO
• AUTO
Combines with the optical zoom to zoom images.
• Off
• On
Sets the Spot AE Point option, Center (the AE
point is fixed to the center) or AF Point (the AE
point corresponds to the AF point).
• Center
• AF Point
Sets the duration images display on the LCD
monitor after the shutter button is released.
• Off
• 2 sec.
• 10 sec.
Sets how file numbers are assigned to images
when new CF cards are inserted.
•
On
•
Off
Reference
Page
Item
Menu Screen Settings Content
List of Menu Options 135
p. 87
p. 87
p. 87
Adjusts the image contrast.
• –
• 0
• +
Adjusts the image sharpness.
• –
• 0
• +
Adjusts the image saturation.
• –
• 0
• +
Reference
Page
Item
Menu Screen
Settings Content
Contrast
Sharpness
Saturation
136 List of Menu Options
Protect
Rotate
Erase all
Slide Show
Print Order
Transfer Order
p. 103
p. 97
p. 105
p. 99
p. 107
p. 130
Protects images from accidental erasure.
Rotates images 90 or 270 degrees clockwise in
the display.
Erases all images from a CF card (excluding
protected images).
Plays images in an automated slide show.
Sets the images that will be printed on a DPOF-
compatible printer or at a photo lab service, the
number of copies and other parameters.
Sets the images that will be transferred with your
e-mail software.
Reference
Page
Item
Menu Screen
Settings Content
Play Menu
List of Menu Options 137
Set up Menu
Sets whether or not the beep sounds when the
shutter button is pressed or when a menu
operation is performed.
• On
• Off (Still beeps to warn of an error even when
set to Off)
See also “How the [Beep] setting in the [ (Set
up)] menu and each sound setting in the [
(My Camera)] menu are related” on page 140.
Sets the brightness level of the LCD monitor.
• (Normal)
• (Bright)
Adjusts the sound volume when the shutter
button is pressed all the way. The beep does not
sound while a movie is being shot.
• (Off)
• (1)
• (2)
• (3)
• (4)
• (5)
Adjusts the sound volume when a movie is
played* and the startup sound when power
comes on.
* After adjusting the sound volume through the menu, turn
the camera off and back on again in order for the new
volume to take effect when playing movies.
• (Off)
• (1)
• (2)
• (3)
• (4)
• (5)
p. 34
p. 30
p. 34
p. 28,
96,
98
Reference
Page
Item Menu Screen
Settings Content
Beep
LCD Brightness
Speaker Vol.
(Shooting)
Playback Vol. (Replay)
138 List of Menu Options
Sets whether or not the camera automatically
powers down after a specified period of time
elapses without something being pressed.
• On
• Off
Sets the date, time and date format.
Formats (initializes) a CF card.
Sets the language used in the menus and
messages on the LCD monitor. The menu may
appear differently in some regions.
• English • Italiano
• Deutsch • Norsk
• Français • Svenska
• Nederlands • Español
• Dansk • Chinese
• Suomi • Japanese
You can change the language during image
replay by holding the button and
pressing the button.
Sets the video output signal standard.
• NTSC
• PAL
p. 28
p. 24
p. 106
p. 25
p. 142
Auto Power Down
Date/Time
Format
Language
Video System
Reference
Page
Item Menu Screen Settings Content
Set up Menu (continued)
List of Menu Options 139
Sets the start-up image when you turn on the
camera.
•
• 1
•
•
Sets the start-up sound when you turn on the
camera.
See also “How the [Beep] setting in the [ (Set
up)] menu and each sound setting in the [
(My Camera)] menu are related” on page 140.
•
• 1
•
•
Sets the shutter sound when you depress the
shutter button. There is no shutter sound while a
movie is being shot.
See also “How the [Beep] setting in the [ (Set
up)] menu and each sound setting in the [
(My Camera)] menu are related” on page 140.
•
• 1
•
•
Start-up Image
Start-up Sound
Shutter Sound
Reference
Page
Item Menu Screen Settings Content
p. 40
p. 40
p. 40
My Camera Menu
You can select the start-up image and start-up, shutter, operation, and self-timer
sounds. You can customize [
] and [ ] of each item using the supplied software.
For details, please refer to the Software Starter Guide.
140 List of Menu Options
The settings of [Beep] in the [ (Set up)] menu
[On] [Off]
[ ] ● [Beep] –
[1] ● [1] ● [1]
[ ] ● [ ] ● [ ]
[ ] ● [ ] ● [ ]
Sets the sound when the multicontroller or any
button other than the shutter button is operated.
See also “How the [Beep] setting in the [ (Set
up)] menu and each sound setting in the [ (My
Camera)] menu are related” on this page.
•
• 1
•
•
Sets the sound informing you that the photo will
be taken in 2 seconds.
See also “How the [Beep] setting in the [ (Set
up)] menu and each sound setting in the [ (My
Camera)] menu are related” on this page.
•
• 1
•
•
Reference
Page
Item Menu Screen Settings Content
Operation Sound
Selftimer Sound
p. 40
p. 40
My Camera Menu (continued)
How the [Beep] setting in the [ (Set up)] menu and each sound
setting in the [ (My Camera)] menu are related
• To actually turn off the sound of the start-up sound, shutter sound, operation
sound, and self-timer sound individually, [Beep] in the [
(Set up)] menu must be
set to [Off]. If [Beep] is set to [On], the beep sounds even if each sound item in
the [
(My Camera)] menu is set to [Off].
For details, see the table below.
● : The sound specified in [ ] sounds.
– : No sound
The settings of each
sound item in the [
(My Camera)] menu
([Start-up Sound]/[Shutter
Sound]/[Operation
Sound]/[Selftimer Sound])
List of Menu Options 141
Resetting all of the Settings to Default
You can reset all of the menu and button operation settings to default except for
[Date/Time], [Language], and [Video System].
1
Turn on the camera.
• You can turn on the camera into either Shooting or Replaying mode.
2
Press the button for longer than
5 seconds.
• The message “Reset settings to default?”
appears on the LCD monitor.
3
Select [OK] using B or A on the
multicontroller, then press .
• The screen on the right hand appears while
resetting. The normal screen resumes when
resetting is complete.
• To cancel resetting, select [Cancel] instead of
[OK].
142 Shooting / Replaying with a TV Monitor
A video-compatible television connected via the supplied AV cable AVC-DC100 can
be used to view images as you shoot or replay them.
1
Turn off the camera (p. 27, 29).
2
Attach AV Cable AVC-DC100 to the
terminal on the camera.
3
Plug the other ends of the AV cable to
the video in and audio in jacks on the TV.
4
Turn on the TV and switch it to Video mode.
5
Turn on the camera in Shooting mode or Replaying mode
(p. 27).
• The image will appear on the TV. Shoot or replay images as usual.
• If the images are not appearing on the TV when shooting, press the
button.
○○○○○○○○○○○○○○○○○○○○○○
• No image will appear on the LCD monitor when the camera is connected to a TV
monitor.
• The video output signal can be switched (NTSC or PAL) to accommodate different
regional standards (p. 138). The default setting will vary between regions.
NTSC: Japan, U.S.A., Canada, Taiwan, etc.
PAL: Europe, Asia (excluding Taiwan), Oceania, etc.
If an incorrect video system is set, the output image will not display properly.
• You can plug the AV cable into either the left or right input jack on the TV. Please
consult the TV’s manual for details.
• A TV monitor cannot be used in
mode.
Shooting / Replaying with a TV Monitor
To the
Video In Jack
To the
Audio In Jack
Yellow
Plug
Black
Plug
Appendices 143
Camera Care and Maintenance
Use the following procedures to clean the camera body, lens, viewfinder, LCD
monitor and other parts.
Camera body Wipe the body clean with a soft cloth or eyeglass
lens wiper.
Lens First use a lens blower brush to remove dust and
dirt, then remove any remaining dirt by wiping the
lens lightly with a soft cloth.
• Never use synthetic cleansers on the camera body
or lens. If dirt remains, contact the nearest Canon
Customer Support Help Desk.
Viewfinder Use a lens blower brush to remove dust and dirt.
If necessary, gently wipe the viewfinder and LCD
monitor with a soft cloth or an eyeglass lens wiper
to remove stubborn dirt.
LCD monitor Use a lens blower brush to remove dust and dirt.
If necessary, gently wipe the viewfinder and LCD
monitor with a soft cloth or an eyeglass lens wiper
to remove stubborn dirt.
• Never rub or press forcefully on the LCD monitor.
These actions may damage it or lead to other
problems.
○○○○○○○○○○○○○○○○○○○○○○
• Never use thinners, benzene, synthetic cleansers or water to clean the camera.
These substances may distort or damage the equipment.
Appendices
144 Appendices
Troubleshooting
Problem
Cause
Solution
Power is not turned on
CF card slot/battery cover
opened
Insufficient battery volatge
Poor contact between
camera and battery
terminals
Camera is in replaying or
computer/printer mode
Flash is charging (flashing
orange indicator)
CF card full
CF card not formatted
correctly
CF card slot/battery cover
opened with camera on
CF card slot/battery cover
opened while camera was
recording to CF card
(warning signal)
Switched to replaying mode
from shooting mode
• Turn on the camera. See Turning the Power On / Off
(p. 27).
• Confirm that the CF card slot/battery cover is securely
closed.
• Fully charge the battery or use a household power
source.
• Wipe the terminals with a clean, dry cloth.
• Switch the camera to Shooting mode.
See Switching between Shooting and Replaying (p. 29).
• Wait until the orange indicator stops flashing and
shines steadily, signaling that the flash is charged, then
press the shutter button.
• Insert a new CF card.
• If required, download the images to a computer and
erase them from the CF card to make space.
• Format CF card. See Formatting a CF card (p. 106).
• If reformatting doesn't work, the CF card logic circuits
may be damaged. Contact the nearest Canon
Customer Support Help Desk.
• Close the CF card slot/battery cover, then turn off the
camera.
• Close the CF card slot/battery cover, then close the lens
cover.
• The lens does not retract in this case. To let the lens
retract, close the lens cover.
Camera will
not operate
Camera will
not record
Lens will not
retract
Appendices 145
Problem
Cause
Solution
Battery pack capacity
reduced because of disuse
for one year or more after
being fully charged
Battery life exceeded
Battery life exceeded
Poor contact between
battery charger and battery
Camera moved
Autofocus function
hampered by obstruction to
AF auxiliary light emitter
Subject out of focal range
Insufficient light for shooting
Subject dark in comparison
to the background
Subject too far for flash to
reach
• Replace the battery pack with a new one.
• Replace the battery pack with a new one.
• Replace the battery pack with a new one.
• Clean the battery terminals with a clean dry cloth.
• Insert the charger plug firmly into the electrical outlet.
• Be careful not to move the camera when pressing the
shutter button.
• Use a tripod at slow shutter speeds when the camera
shake warning appears.
• Be careful not to block the AF auxiliary light emitter
with your finger or other items.
• Ensure that there is at least 80 cm (2.7 ft.) between the
camera lens and subject.
• Use the macro mode to shoot close-ups between 10
and 80 cm (3.9 in. and 2.7 ft.) at maximum wide angle
and 30 and 80 cm (12 in. and 2.7 ft.) at maximum
telephoto.
• Set the flash to on.
• Set the exposure compensation to a positive (+) setting.
• Use the AE lock or spot metering function.
See Locking the Exposure Setting (AE Lock) (p. 79)
and Switching between Metering Modes (p. 82)
• To use the built-in flash, shoot within the following rages:
When sensitivity is set to AUTO:
35 cm - 4.8 m (1.15 ft. - 15.75 ft.) (W)
35 cm - 3.0 m (1.15 ft. - 9.84 ft.) (T)
When sensitivity is set to ISO 100 equivalent:
55 cm - 4.0 m (1.8 ft. - 13.1 ft.) (W)
55 cm - 2.5 m (1.8 ft. - 8.2 ft.) (T)
•
Raise the ISO sensitivity and then shoot. See Manually
Setting Image Characteristics (p. 87)
Battery pack
consumed
quickly
Battery pack
will not charge
Image is
blurred or out
of focus
Subject in
recorded
image is too
dark
146 Appendices
Problem Cause Solution
Subject too close
Subject bright in
comparison to the
background
Light shining directly on
subject or reflected off
subject into camera
Flash set to On
Flash set to Off
Camera is set to off
Incorrect video system
setting
Zoom lever was moved
while shooting in movie
mode.
• Adjust the flash output with the flash exposure
compensation function (p. 78).
• Set the exposure compensation to a negative (-) setting.
• Use the AE lock or spot metering function.
See Locking the Exposure Setting (AE Lock) (p. 79)
and Switching between Metering Modes (p. 82)
• Change the shooting angle.
• Set the flash to Auto or Off.
• Set the flash to Auto or On.
• Turn the camera on to either shoot or replay.
• Set the video system to the appropriate setting, NTSC or
PAL, for your TV (See Set up Menu, p. 138).
• Operate the zoom before shooting in movie mode.
Subject in
recorded
image is too
bright
Flash will not
fire
Image not
showing on TV
Zoom does not
operate
Troubleshooting (continued)
Appendices 147
List of Messages
The following messages may appear on the LCD monitor.
Reset settings to default? Do you wish to reset all the camera and menu settings
to default?
Resetting Resetting all the camera and menu settings to default
Busy... Image is being recorded to, or read from, CF card.
No CF card: You attempted to shoot or replay images without a CF
card installed.
Cannot record!: You attempted to shoot an image without a CF card
installed.
CF card error!: CF card has experienced an anomaly.
CF card full: CF card is too full to save more images or print
settings.
Naming error!: The file could not be created because there is a file with
the same name as the directory that the camera is
attempting to create, or the highest possible file
number has already been reached. In the Rec. menu,
please set [File No.] Reset to [On]. After you save all the
images you wish to retain onto a computer, format the
CF card (p. 102). Please note that formatting will erase
all the existing images and other data.
Change the battery pack: Battery charge is insufficient to operate the camera.
Replace it immediately with a charged battery pack or
recharge it.
No image: No images recorded on CF card.
Image too large: You attempted to replay an image larger than 3200 x
2400 pixels.
Incompatible JPEG format: You attempted to replay an incompatible JPEG file.
Corrupted data: You attempted to replay an image with corrupted data.
RAW: You attempted to replay an image recorded in an
incompatible RAW format.
148 Appendices
List of Messages (continued)
Cannot magnify!: You attempted to magnify an image that was
photographed with another camera, recorded in a
different format, or edited on a computer.
Cannot rotate: You attempted to rotate an image that was
photographed with another camera, recorded in a
different format, or edited on a computer.
Unidentified Image You attempted to replay an image that was recorded
in a special format (proprietary format used by the
camera of another manufacturer, etc.).
Unidentified Sound Data Cannot attach sound annotation to the image
because the image has some sound file recorded in an
inappropriate format.
Protected!: You attempted to erase a protected image.
Too many marks: Too many images have been marked for printing or
for inclusion in a slide show. Cannot process any
more.
Cannot mark image: You attempted to set the print settings for an non-
JPEG file.
Cannot complete!: Couldn’t save the print or slide show settings.
Cannot edit: Slide show settings file is corrupted
Appendices 149
The following messages may appear on the camera’s LCD monitor when a Direct
Print compatible printer is printing. Depending on the printer model, some
messages may not display.
No Paper: Paper cassette is incorrectly inserted or out of paper.
Or the paper feed isn’t operating correctly.
No Ink: The ink cartridge has not been inserted or has run out
of ink.
Incompatible paper size: Wrong paper size is loaded in the printer.
Incompatible ink size: Wrong ink cassette size is loaded in the printer.
Ink Cassette Error: The ink cassette is experiencing a problem.
Paper and ink do not match:
The paper and ink are from different sets.
Paper Jam: The paper jammed during printing.
Paper has been changed: Paper was changed after the print menu was
displayed.
Recharge the printer battery:
The printer’s battery pack is depleted.
Communication Error: The printer is experiencing a data transmission error.
Cannot trim: You attempted to trim an image from another
camera, one recorded in a different format, or one
that has been edited on a computer.
Readjust trimming: You attempted to print the image with a different
style than the one used when the trimming settings
were set.
Cannot Print!: You attempted to print an image from another
camera, one recorded in a different format, or one
that has been edited on a computer.
Could not print xx images: You attempted to use the DPOF print settings to print
xx images that are from another camera, that have
been recorded in a different format, or that have been
edited on a computer.
150 Appendices
List of Messages (continued)
The following messages may appear when the camera is connected to the Direct
Print compatible Bubble Jet Printer.
Check the error number displayed on the control panel of Bubble Jet Printer and
refer to the Bubble Jet Printer Quick Start Guide.
Printer in use: The printer is printing the data from the memory card
inserted in the computer or printer. The printer
automatically starts printing the images from the
camera after completing the current printing.
Printer warming up: Printer is warming up. When it is ready, the printer
starts printing automatically.
No printhead No print head is installed in the printer.
Printer cover open Close the printer cover securely.
Media type error Cancel printing. Set the paper you chose in the Print
Style.
Paper lever error Adjust the paper selection lever to the proper position.
Low ink level The ink tank needs to be replaced soon. Prepare a
new ink tank. If you select [Continue] in the error
screen, you can restart printing.
Waste tank full You can restart printing by pressing the RESUME/
CANCEL button on Bubble Jet Printer. Please request
replacement of the waste tank to the shop where you
purchased the printer or your nearest Canon customer
support center listed in the Bubble Jet Quick Start
Guide.
Printer error Turn off the printer, then turn it on again. If the error
persists, please consult your nearest Canon customer
support center listed in the Bubble Jet Quick Start
Guide.
Appendices 151
Specifications
All data is based on Canon’s standard testing methods. Subject to change without notice.
PowerShot S30 / PowerShot S40
Camera effective S30 Approx. 3.2 million
pixels:
S40 Approx. 4 million
Image sensor: S30 1/1.8 inch CCD (Total number of pixels: approx. 3.3 million)
S40 1/1.8 inch CCD (Total number of pixels: approx. 4.1 million)
Lens: 7.1 (W)-21.3 (T) mm (35mm film equivalent 35-105 mm)
F2.8(W) -4.9 (T)
Digital S30 Max. approx. 3.2 × (Maximum 10x digital zoom is available
tele-converter: when combined with optical zoom)
S40 Max. approx. 3.6 × (Maximum 11x digital zoom is available when
combined with optical zoom)
Optical viewfinder: Real-image optical zoom viewfinder, picture coverage = approx. 82%
LCD viewfinder: 1.8-inch, low-temperature polycrystalline silicon TFT color LCD,
picture coverage = 100%
Autofocus method: TTL 3 point AiAF (1 point measurement is possible)
Focus lock and Manual focus are available
Focusing range Normal AF: 80 cm (2.7ft.) – ∞
(from tip of the lens barrel): Macro AF: 10 cm (W) / 30 cm (T) – 80 cm (3.9 in. (W) / 11.8 in. (T) – 2.6 ft.)
Manual focus: 10 cm (W) / 30 cm (T) – ∞ (3.9 in. (W) / 11.8 in. (T) – ∞)
Shutter: Mechanical shutter + electronic shutter
Shutter speeds:
15 – 1/1500 sec.
1.3 sec. or more shutter is available in Shutter-Priority mode or Manual mode
Slow shutter speeds of 1.3 sec. or more operates with noise reduction
Light metering method: Evaluative metering, Center-weighted average metering, Spot
metering (Center or AF Point)
Exposure control method: Program AE, Shutter-priority AE, Aperture-priority AE or Manual
exposure control
AE lock is available
Exposure compensation: ±2.0 EV (in 1/3-stop increments)
Auto exposure bracketing (AEB) is available
Sensitivity Auto, ISO 50, ISO 100, ISO 200, ISO 400 and ISO 800* equivalent
(equivalent film speed): (In Auto mode, camera automatically adjusts sensitivity in the
range of I SO 50 to ISO 150 equivalent)
*Only for PowerShot S30
White balance: TTL auto white balance, pre-set white balance (available settings:
Daylight, Cloudy, Tungsten, Fluorescent, Fluorescent H or Flash) or
Custom white balance
Flash: Red-eye reduction auto, Auto, Red-eye reduction On, On or Off
152 Appendices
Specifications (continued)
Flash range: (When sensitivity is set to AUTO)
35 cm - 4.8 m (1.15 ft. - 15.75 ft.) (W),
35 cm - 3.0 m (1.15 ft. - 9.84 ft.) (T)
(When sensitivity is set to ISO 100 equivalent)
55 cm – 4.0 m (1.8 ft. – 13.1 ft.) (W),
55 cm – 2.5 m (1.8 ft. – 8.2 ft.) (T)
Flash exposure compensation: ±2.0EV (in 1/3-stop increments), FE lock is available
Shooting modes: Auto
Creative zone: Program, Shutter Speed Priority, Aperture Priority and
Manual
Image zone: Portrait, Landscape, Night Scene, Fast Shutter, Slow
Shutter, Color Effect, Stitch Assist and Movie
Continuous shooting: High-Speed continuous shooting: Approx. 3 image/sec. (S30),
Approx. 2.5 image/sec. (S40)
Standard continuous shooting: Approx. 2 image/sec. (S30),
Approx. 1.5 image/sec. (S40)
(Large/Fine mode with LCD viewfinder off)
Self-timer: Approx. 2 sec./10 sec. shutter release delay
PC-connected shooting: Available (USB connection only. Use the supplied software
RemoteCapture.)
Storage media: CompactFlash™ (CF) card (Type I and Type II)
File Format: Design rule for Camera File system, DPOF-compliant
Image Still images: JPEG (Exif 2.2)* or RAW
recording format Movies: AVI (Image data: Motion JPEG, Audio data: WAVE [monaural])
JPEG compression mode: Super fine, Fine or Normal
Number of Still images: Large: (S30) 2048 x 1536 pixels
recording (S40) 2272 x 1704 pixels
pixels: Medium 1: 1600 x 1200 pixels
Medium 2: 1024 x 768 pixels
Small: 640 x 480 pixels
Movies: 320 x 240 pixels (Approx. 30 sec.)**
160 x 120 pixels (Approx. 120 sec.)**
Approx. 15 frames/sec.
** The data in parentheses refer to the maximum movie length
per shooting
Playback modes: Single (Histogram displayable), Index (9 thumbnail images),
Magnified (S30: approx. 2.5x or 5x, S40: approx. 3x or 6x on build-
in LCD monitor) or Slide show
Sound annotations (up to 60 sec.)
Image output to Card Photo Printer CP-10 and Bubble Jet Printer
with the direct print function
Display languages English, Deutsch, Français, Nederlands, Dansk, Suomi,
Italiano, Norsk, Svenska, Español, Chinese and Japanese
Appendices 153
My Camera Settings Start-up Image, Start-up Sound, Shutter Sound, Operation Sound
(customizing): and Selftimer Sound
Customizing is possible by downloading data from your computer
using the supplied software.
Interface: Universal Serial Bus (USB), Audio/Video Output (NTSC or PAL
selectable, monaural audio)
Power source: 1. Rechargeable Lithium-ion battery (type: NB-2L) (supplied)
2. AC Adapter kit ACK 700 (optional)
Operating Temperatures: 0 – 40°C
Operating Humidity: 10 – 90%
Dimensions (W × H × D): 112 × 58 × 42 mm (4.4 × 2.3 × 1.7 in.) (excluding protrusions)
Weight: Approx. 260g (9.2 oz.) (camera body only)
(W): wide angle (T): telephoto
*
This digital camera supports Exif 2.2 (also called “Exif Print”). Exif Print is a standard for
enhancing the communication between digital cameras and printer. By connecting to an Exif
Print-compliant printer, the camera’s image data at the time of shooting is used and
optimized, yielding extremely high quality prints.
Battery Pack NB-2L
Type: Rechargeable lithium ion cell
Nominal voltage: 7.4 V
Nominal amperage: 570 mAh
Charge cycles: Approx. 300
Operating temperatures: 0 - 40º C (32 - 104º F)
Dimensions: 33.3 × 45.2 × 16.2 mm (1.3 × 1.8 × 0.6 in.)
Weight: Approx. 40 g (1.4 oz.)
Battery Charger CB-2LT / CB-2LTE
Input voltage: AC 100 - 240 V (50/60 Hz)
0.17 A (100V) - 0.10 A (240V)
Rated output: 8.4 V DC, 0.5 A
Operating temperatures: 0 - 40º C (32 - 104º F)
Dimensions: 91 × 29.5 × 56 mm
(3.6 × 1.2 × 2.2 in.)
Weight: CB-2LT: Approx. 86 g (3.0 oz.)/CB-2LTE: Approx. 82 g (2.9 oz)
154 Appendices
Compact Power Adapter CA-PS700 (optional)
Input voltage: AC 100 - 240 V (50/60 Hz)
0.32 A
Rated output: 7.4 V DC / 2.0 A
Operating temperatures: 0 - 40°C (32 - 104°F)
Dimensions: 112 × 29 × 45 mm (4.4 × 1.1 × 1.8 in.)
Weight: Approx. 186 g (6.6 oz.)
CompactFlash™ Card
Card slot type: Type I
Dimensions: 36.4 x 42.8 x 3.3 mm (1.4 x 1.7 x 0.1 in.)
Weight: Approx. 10 g (0.4 oz.)
Index 155
A
AC Adapter Kit 19
AEB Mode 77
AE Lock 79
AF Frame
Auto Selection 71
Manual Selection 71
Aperture-Priority AE (
) 68
Aperture Settings 65, 66, 68, 70
Auto Mode (
) 44
Auto Exposure Bracketing (AEB Mode) 77
Auto Replay (Slide Show) 99, 136
A/V Out Terminal 10, 142
B
Battery Pack
Charging 15
Handling Precautions 16
Installing 17
Low Status 18
Performance 18
Battery charger 15
Beep 137, 139, 140
Black and White Mode 52
Brightness
LCD Monitor 137
C
Camera Care and Maintenance 143
CF Card
Formatting 106
Handling 23
Installing 21
Recording Capacity 22
Cleaning 143
Color Effect 52
CompactFlash™ Card 21, 22, 23, 106
Compact Power Adapter 19
Components Guide 10
Compression 61, 133
Continuous Mode (
) 59
Contrast 87, 135
Creative Zone 13
D
Date/Time 24, 138
DC Coupler 19
Digital Print Order Format (DPOF) Settings
Print Settings 107, 119, 128
Transfer Order 130
Digital Terminal 10, 112, 121
Digital Zoom 37, 60, 134
Display Modes 30 - 33
Detailed 30, 32
Simple 30, 32
DPOF
Print Settings 107, 119, 128
Transfer Order 130
E
Erasing
All Images 105
Displayed Images 9
Single Images 104
Exposure
AEB 77
AE Lock 79
Aperture-Priority AE (
) 68
Compensation 73
Flash Exposure Compensation 78
Shutter Speed-Priority AE ( ) 66
White Balance 74
Exposure Compensation 73
F
Fast Shutter 50
FE Lock 81
File Format 64, 133
File No. Reset 89
File Numbers 89
Flash 47
Flash Exposure Compensation 78
Focal Length 37
Focus
Lock 84
Manual 86
Format 106
H
Histogram 33
Household Power Source 19
I
Image Characteristics 87
Contrast 87
ISO Speed 87
Saturation 87
Sharpness 87
Image Zone 13
Index Replay 94
Indicators 12, 27
Information View 31 - 33
Interface
Cables 10, 112, 121
ISO Speed 87
J
Jump 95
Index
156 Index
L
Landscape Mode ( ) 49
Language Settings 25, 138
LCD Monitor 30 - 33
Brightness 137
Light Metering
Center-Weighted Averaging 82
Evaluative 82
Spot AE Point (AF Point) 82
Spot AE Point (Center) 82
M
Macro Mode ( ) 57
Magnifying Images 93
Manual
Exposure (
) 70
Focus (
) 86
Setting Image Characteristics 87
Shooting Mode 70
Menu
List of Options 133
Play 136
Rec 133
Selecting Menus and Settings 38
Set up 39, 40
Messages 147
Movie (
)
Shooting 56
Replaying 96
My Camera
Menu 41, 139
Settings 41
N
Night Scene Mode ( ) 50
O
Overexposure Warning 33
Operation Sound 40 - 43, 140
P
PC Connection Mode 12, 28
Play 92
Portrait Mode (
) 49
Program AE (
) 65
Protect 103, 136
Print Settings 107
Selecting Images 107
Print Style 109
Resetting 111
Power On/Off 27 - 29
Power Save 28, 138
R
RAW File Format 64, 133
Recording File Format 64
Red-Eye Reduction Function 48
Replay
Index Replay 94
Jumping 95
LCD Monitor 92
Magnifying Images 93
Movies 96
Rotating 97
Single Image Replay 92
Slide Show 99
Switching from Shooting Mode 29
TV 142
Volume 137
Resolution 61
Resetting the settings to default 141
Rotate 97
S
Saturation 87
Self-Timer 58
Sound 41 - 43, 140
Sharpness 87
Shooting 27, 29, 44
Checking Images 46
Switching from Replaying Mode 29
TV Monitor 142
Shooting Mode 90
Dial 13
Functions Available 90
Shutter
Sound 41 - 43, 139
Shutter Speed Priority AE (
) 66
Speed 65, 66, 68, 70
Volume 137
Shutter Button 34
Pressing Halfway 34
Pressing Fully 34
Single Image Replay 92
Slide Show 99, 136
Play Time 101
Repeat 101
Selecting Images 100
Starting 99
Slow Shutter 51
Soft Case 26
Sound Annotations 98
Speaker 10
Specifications 151 - 154
Spot Light Metering 82
Index 157
Start-up
Image 28, 41 - 43, 139
Sound 28, 41 - 43, 139
Stitch Assist Mode (
) 53
Framing Subjects 53
Shooting 54
Strap 26
T
Telephoto 37
Transfer Order
Reset 132
Selecting Images 130
Troubleshooting 144 - 146
V
Video System 138, 142
Viewfinder
LCD Monitor 12, 30
Optical 10, 36
Volume
Replay 137
Shooting 137
W
WAV Files 32, 43, 98
White Balance 74
Wide Angle 37
Z
Zoom 37, 60, 93
Precaution
Camera Body Temperature
If your camera is used for prolonged periods, the camera body may become
warm. Please be aware of this and take care when operating the camera for an
extended period.
About the LCD Monitor
The LCD monitor is produced with extremely high-precision manufacturing
techniques. More than 99.99% of the pixels operate to specification. Less than
0.01% of the pixels may occasionally misfire or appear as red or black dots. This
has no effect on the recorded image and does not constitute a malfunction.
Please read through the “Read This First” section (p. 4) before using your camera.
Video Format
Please set the camera’s video signal format to the one used in your region before using it
with a TV monitor (p. 138).
Language Setting
Please see page 25 to change the language setting.
Charging the Date/Time Battery
• The camera has a built-in rechargeable lithium battery that maintains the date, time
and other camera settings. This battery recharges when the main battery pack is
inserted into the camera. When you first purchase the camera, place a charged
battery pack in it or use the AC adapter kit (sold separately) for at least 4 hours to
charge the date/time battery. It will charge even when the camera power is set to Off.
• If the Set Date/Time menu appears when the camera power is turned on, it means
that the date/time battery charge is depleted. Recharge it as described above.
Disclaimer
• While every effort has been made to ensure that the information contained in this guide
is accurate and complete, no liability can be accepted for any errors or omissions.
• Canon Inc. reserves the right to change the specifications of the hardware and software
described herein at any time without prior notice.
• No part of this guide may be reproduced, transmitted, transcribed, stored in a retrieval
system, or translated into any language in any form, by any means, without the prior
written permission of Canon Inc.
• Canon Inc. makes no warranties for damages resulting from corrupted or lost data due
to a mistaken operation or malfunction of the camera, the software, the
CompactFlash™ cards (CF cards), personal computers, peripheral devices, or use of non-
Canon CF cards.
Trademark Acknowledgements
• Canon, PowerShot and Bubble Jet are trademarks of Canon, Inc.
• CompactFlash is a trademark of SanDisk Corporation.
• Other names and products not mentioned above may be registered trademarks or
trademarks of their respective companies.
Copyright ©2002 Canon Inc. All rights reserved.
FCC Notice
Digital Camera, Model PC1016 and PC1018
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions;
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
Note: This equipment has been tested and found to comply with the limits for Class B digital
devices, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
