IMPORTANT: THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE
IMPORTANT SAFETY ADVICE
DO NOT COVER OR OBSTRUCT the air inlet or outlet grille.
ENSURE THE APPLIANCE IS EARTHED.
Do not use this heater in areas where excessive dust exists.
This heater must not be located immediately above or below
a fixed socket outlet or connection box.
Always disconnect supply before working on the product.
This appliance should only be connected to the fixed wiring
of the premises by means of conduit.
This product should be mounted safely to solid wall or ceiling
surfaces only.
This product must not be subjected to water spray or
immersion.
Ensure the supply cables are of adequate current carrying
capacity and are protected by a suitable fuse / circuit
breaker.
Ensure proper manual handling procedures are
observed at all times.
WARNING: Isolate electrical supply to ALL modular linked
units when carrying out maintenance.
Models
Heat Electrical Electrical Weight Max
Model Output Supply load Installed
(per phase) height
kW A kg m
AMBIENT / COLD STORE
IAB10A n/a 220-240V ~1PN 8.5 80 6.0
IAB15A n/a 220-240V ~1PN 12.6 120 6.0
ELECTRICALLY HEATED
IAB10E 12 / 24 kW 380-415V ~3PN 42 80 6.0
IAB15E 18 / 36 kW 380-415V ~3PN 63 120 6.0
WATER HEATED (at 82/71 °C - LPHW)**
IAB10W 27 220-240V ~1PN 8.5 80 6.0
IAB15W 41 220-240V ~1PN 12.6 120 6.0
Electrical
The installation of this appliance should be carried out by a
competent electrician and be in accordance with the current IEE
wiring regulations.

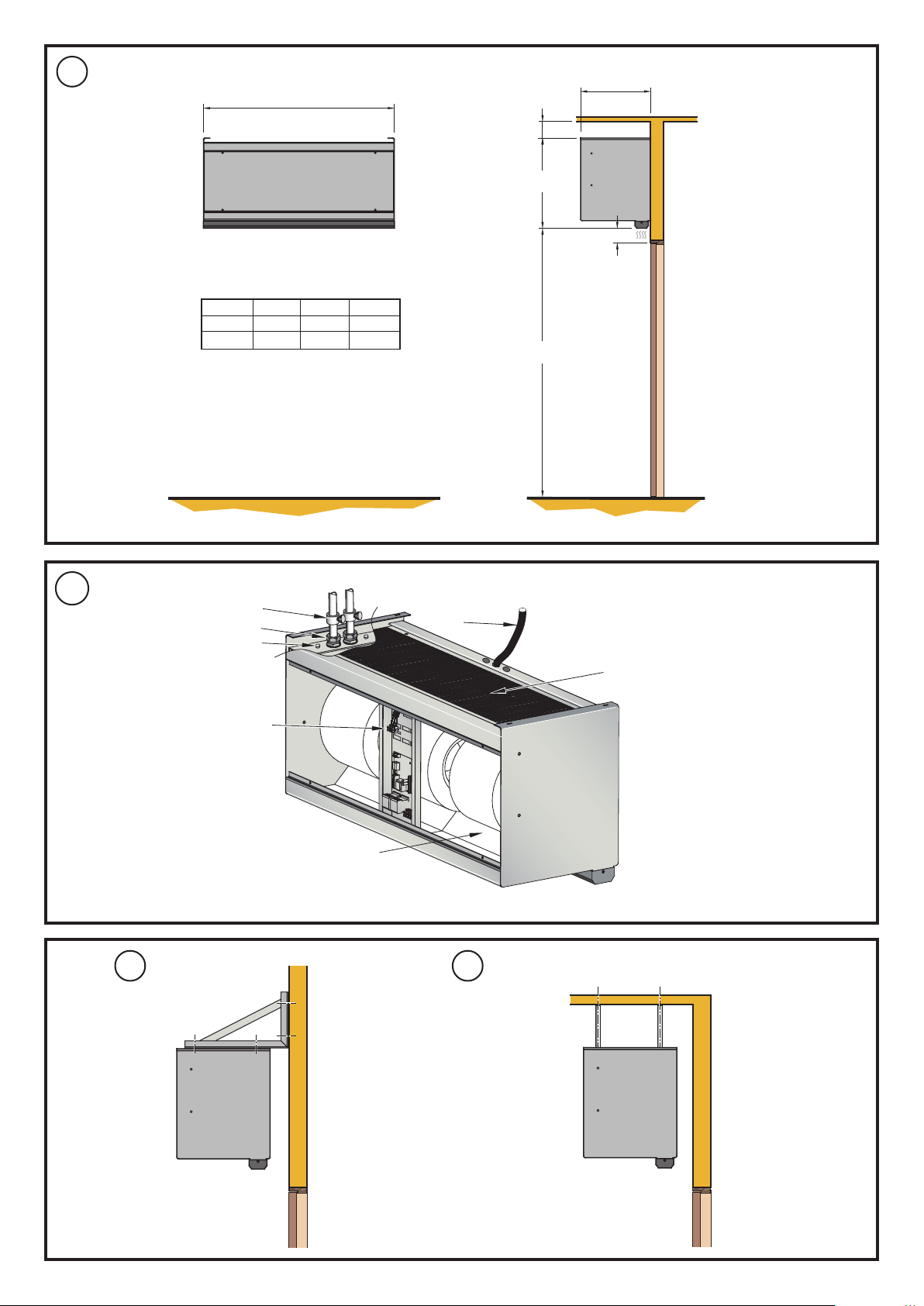

Installation
This appliance may be either wall-mounted or fixed to a ceiling -
see Fig. 3a & 3b for fixing positions and ‘Mounting’ sections
below for fixing details.
A minimum distance of 500mm is required from the top of the
appliance to ceiling - see ‘a’ in Fig. 1.
The distance between the bottom of the appliance and the top of
a door should be kept to a minimum - see ‘b’ in Fig. 1.
Wall Mounting
A suitable load bearing structure (not supplied) is required to
wall mount the appliance, see Fig. 3a. (see Fig. 6 for fixing
dimensions).
Ceiling Mounting
Lift the appliance into position using suitable lifting equipment.
(You may use the pallet supplied with the unit). Secure the
appliance into position using M12 threaded bar and locknuts as
shown in Fig. 3b (see Fig. 6 for fixing dimensions).
Dimplex Industrial Air Curtains
Models : IAB10E, IAB15E, IAB10W, IAB15W, IAB10A, & IAB15A
Electrical connection
All products are fitted with a microprocessor control. Electrical
power and control connections are made as shown in Fig. 2. A
suitable local isolating switch must be provided in the electrical
supply circuit with at least 3mm clearance on each pole.
In order to access the electrical connections, remove the air
supply grille (‘g’ in Fig. 2) and the front panel (‘f’ in Fig. 2).
Feed an appropriate supply cable (see ‘e’ in Fig. 2) through a
suitable cable gland (not supplied) fitted in the top panel and
attach to the Mains In Terminal Block (see ‘d’ in Fig. 2).
A suitable cable for the supplied switch panel can be similarly
introduced and connected to the circuit board. If the unit is to be
operated in conjunction with a door switch, a normally closed
switch should be wired as per Fig. 4 & 5 as appropriate - see
also ‘Switch Panel Instructions’.
If the unit is to be connected to a Building Energy Management
System, connections are made as per ‘G’ in Fig. 4 & 5 as
appropriate.
Water connection
Models designed for use in conjunction with a low pressure hot
water supply should be individually connected (in a parallel
circuit) to the flow and return pipe-work. Connections (see ‘a’ in
Fig. 2) are: 1” BSPT and isolation valves (see ‘b’ in Fig. 2) should
be fitted as close to the air curtain connection points as possible.
For commissioning, air bleed valves (see ‘c’ in Fig. 2) are fitted
to the coil, which can be accessed from outside the unit.
Maximum water supply conditions are 110ºC and 10 bar
(1MPa).
Ensure that the air curtain is securely fastened in position and
that the supply cables are firmly clamped before operating the
appliance.
Operation using Switch Panel
Electrically heated variants
When first turned on the control will run through a system check.
The selected settings will be reached and maintained after a
one minute period.
Switch on electrical supply to the air curtain. Switching the switch
marked ‘I’ energises the fan. The fan switch allows either low or
high fan speeds to be selected. The heat selection switch allows
heat setting to be chosen.
- Off
- ½ heat
- Full heat
The A / M (auto / manual) switch allows for manual over-ride of a
door switch if fitted.
The unit should always be switched OFF using the switch panel
control, and not by mains power supply interruption.
When the unit is switched off (via the switch panel) the fan will
run on for 1 minute without heat to discharge any residual energy
from the heating elements.
Door switch control
By including a door switch in the circuit (as per ‘D’ in Fig. 5) the
air curtain will respond to door openings as follows:
(1) Door opening will energise the air curtain at the set
conditions (switch panel settings).
(2) On door closure operation will continue at the set conditions
for a further 1 minute.
(3) Between 1 minute and 2 minutes from door closure, set
back operation, ½ heat (if heat selected) and ½ fan will
activate.
(4) Between 2 minutes and 3 minutes, the fan only (½ speed)
shut down cycle will be engaged.
(5) After 3 minutes, the air curtain will return to a dormant
state until the door is re-opened.
If the door re-opens during this 3 minute run on cycle, the
process will restart at (1).
Thermal Safety cut outs
The power supply to the heating elements will be interrupted if
one or a combination of the following abnormal events occur:
1. Air inlet or outlet grilles are obstructed.
2. Internal ventilation is impaired due to build up of dust
and fluff.
3. Blower unit stalls.
To reset the thermal safety cut-outs positioned under the air
inlet grille (‘g’ in Fig. 2), first turn off power to unit before pressing
the red reset buttons. Also check the position of the 16A MCB.
Before re-setting the reason for activation must be determined
and corrective action taken.
Low pressure hot water heated and Ambient (fan
only) variants
When first turned on the control will run through a system check.
The selected settings will be reached and maintained after a
one minute period.
Switching the switch marked ‘I’ energises the fan.
The fan switch allows either low or high fan speeds to be
selected.
The A / M (auto / manual) switch allows for manual over-ride of a
door switch if fitted.
The unit should always be switched OFF using the switch panel
control, and not by mains power supply interruption.
Thermostatic control (optional)
A thermostatic regulation valve with a remote sensing bulb (not
supplied) can be positioned in the supply water pipe-work to
regulate the heat output.
Door switch control
By including a door switch in the circuit (as per ‘D’ in Fig. 4) the
air curtain will respond to door openings as follows:
(1) Door opening will energise the air curtain at the set
conditions (switch panel settings).
(2) On door closure operation will continue at the set conditions
for a further 1 minute.
(3) Between 1 minute and 2 minutes from door closure ½ fan
set back operation will activate.
(4) After 2 minutes, the air curtain will return to a dormant
state until the door is re-opened. If the door re-opens during
this 2 minute run on cycle, the process will re-start at (1).
Motor protection
The blower units are protected by a 16A MCB and by thermal
fuses.
If there is an electrical fault, the MCB will trip. Before resetting
the reason for actuation must be determined and corrective
action taken. If a thermal fuse operates, the appliance may cycle
on and off. The appliance should be switched off and the reason
for activation corrected.

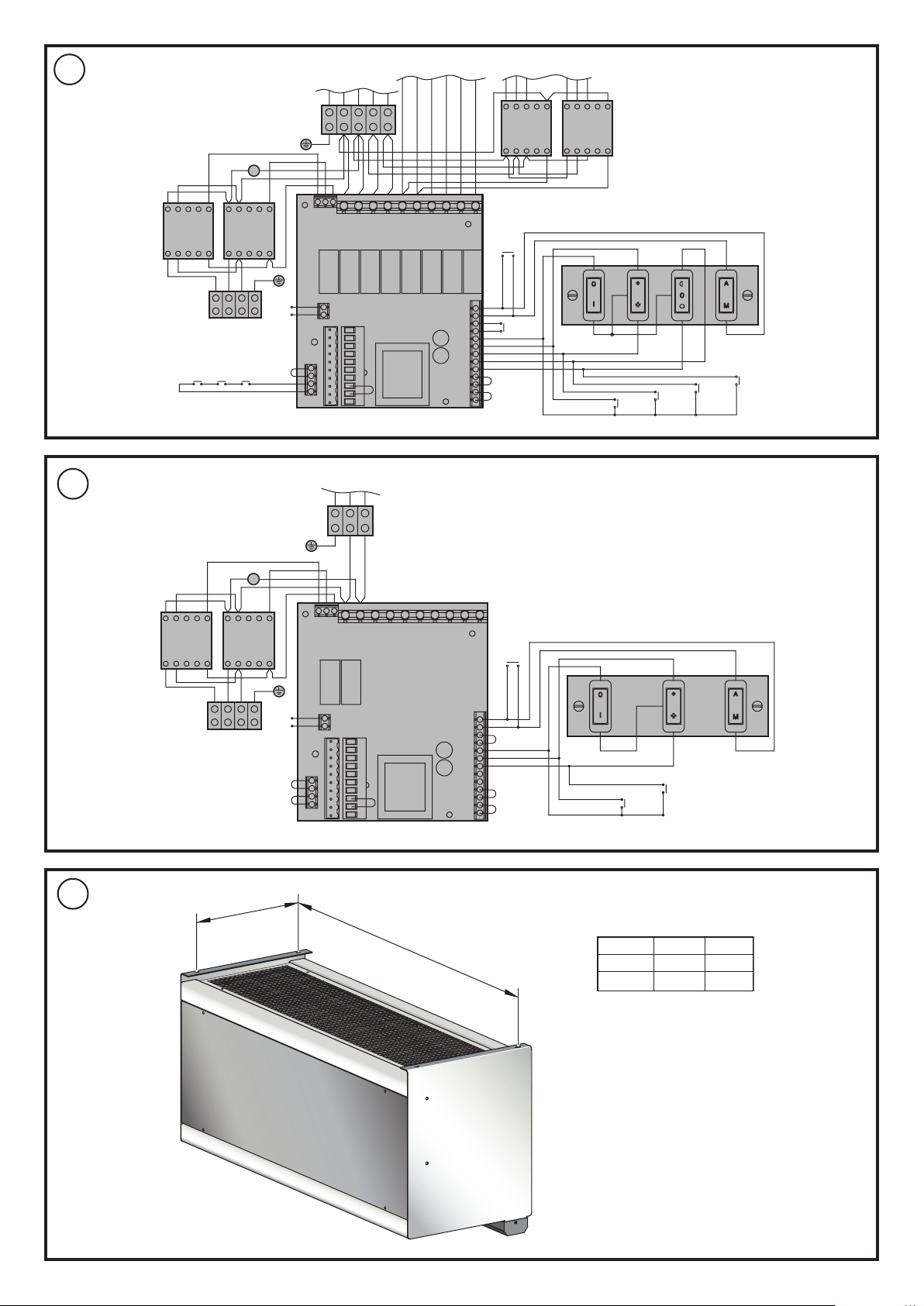

Wiring Diagrams
IAB ‘E’ - Electric models - see Fig. 4
A - Master Module Link
B - 12VDC Feedback Signal to BMS (Unit Fault Check)
C - Thermostat
D - Door Switch (Optional)
E - Thermal Safety Cut-out Circuit
F - Elements
G - BMS Switches (Optional)
H - 16 amp MCB
N - Switch Panel
IAB ‘W’ / ‘A’ - Water heated / Ambient models - see Fig. 5
A - Master Module Link
B - 12VDC Feedback Signal to BMS (Unit Fault Check)
D - Door Switch (Optional)
G - BMS Switches (Optional)
H - 16 amp MCB
N - Switch Panel
For operation via switch panel, all BMS switches as shown in
Fig. 4 & 5 need to be OPEN CIRCUIT if used. Do not remove BMS
links on PCB.
For operation via BMS, switch panel to be set as follows:
I/0 in O (Off) position
Heat selection switch to be in O (Off position)
Fan selection switch in either high or low speed position
O - Circuit Open
1 - Circuit Closed
X - Either Open or Closed
Remote (BMS / BEMS) Operation
Connection to Building Energy Management Control Systems
(BEMS) is possible so that complete remote control of the air
curtain can be carried out in conjunction with other equipment.
Modular Connection
Refer to the instructions provided with the Modular Linking Kit
(Ref: CABM1).
NOTE: Only the modular linking cable is required from this kit
to link the Industrial units together.
Recycling
For electrical products sold within the European Community.
At the end of the electrical products useful life it should
not be disposed of with household waste. Please
recycle where facilities exist. Check with your Local
Authority or retailer for recycling advice in your country.
Cleaning
WARNING: DISCONNECT SUPPLY before carrying out
maintenance.
External appearance can be maintained by wiping occasionally
with a damp cloth ; for stain removal, a weak soap solution can
be applied with a cloth and the surface wiped dry. Care must be
taken to avoid any moisture ingress into the product.
After Sales Service
Your product is guaranteed for two years from the date of purchase.
Within this period, we undertake to repair or exchange this product
free of charge provided it has been installed and operated in
accordance with these instructions.
Your rights under this guarantee are additional to your statutory
rights, which in turn are not affected by this guarantee.
Should you require after sales service you should contact our
customer services help desk on 0845 600 5111. It would assist
us if you can quote the model number, series, date of purchase,
and nature of the fault at the time of your call. The customer
services help desk will also be able to advise you should you
need to purchase any spares.
Please do not return a faulty product to us in the first instance as
this may result in loss or damage and delay in providing you with
a satisfactory service.
Please retain your receipt as proof of purchase.
bms
M2
bms
H1
bms
H2
1O
X
1
1
X
O
1
bms
M1
Glen Dimplex UK Limited
Millbrook House
Grange Drive
Hedge End
Southampton
Hampshire. SO30 2DF
UK customer help line (8.00AM – 6.00PM Mon-Fri; 8.30AM-1.00PM Sat)
Customer Services: Tel. 0845 600 5111
Fax. 01489 773053
e-mail customer[email protected]
Republic of Ireland Tel. 01 8424833
[c] Glen Dimplex UK Limited
All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without prior permission in writing of Glen Dimplex UK Limited.
