Chest Freezer
version A - 05 - 20
MODEL NUMBER
MRC05M4AWW/MRC07M4AWW
www.midea.com
UAL
en
Warning:
Before using this product,
please read this manual carefully
and keep it for future reference.
The design and specifications
are subject to change without
prior notice for product
improvement. Consult with your
dealer or manufacturer for
details.
USER MANUAL
Power supply: 115 V
Frequency: 60Hz
5.0 cu. ft.MRC05M4AWW
7.0 cu. ft.MRC07M4AWW
Dear user
THANK YOU and CONGRATULATIONS on your purchase of
this high-quality Midea product. Your Midea freezer is designed
for reliable, trouble-free performance. Please take a moment to
register your new freezer.
Register your new freezer at www.midea.com under the Support
tab.
For future reference, record your product model and serial
numbers located on right-hand side of the freezer above the
compressor compartment.
Model Number________________________________________
Serial Number_________________________________________
FREEZER SAFETY .............................................................................3
OPERATION REQUIREMENTS .........................................................6
Location Requirements ..........................................................................6
Electrical Requirements .........................................................................7
PARTS AND FEATURES ...................................................................8
INSTALLATION ...................................................................................9
Unpack ..........................................................................................................9
Move to Final Location ...........................................................................9
BEFORE USE ....................................................................................10
Waiting Period .........................................................................................10
Cleaning .....................................................................................................10
FREEZER USE ..................................................................................10
General .......................................................................................................10
Control .........................................................................................................11
FREEZER CARE ............................................................................... 12
Cleaning ..................................................................................................... 12
Defrosting .................................................................................................. 13
Moving ........................................................................................................14
Storage .......................................................................................................14
TROUBLESHOOTING ......................................................................14
WARRANTY ...................................................................................... 17
3
Freezer
Safety
Operating
Requirements
Parts and
Features
Installation
Freezer
Use
Freezer
Care
Troubleshooting
Before
Use
FREEZER SAFETY
YOUR SAFETY AND THE SAFETY OF OTHERS ARE VERY
IMPORTANT
To prevent injury to the user or other people and property damage, the
instructions shown here must be followed. Incorrect operation due to
ignoring of instructions may cause harm or damage, including death.
The level of risk is shown by the following indications.
CAUTION
WARNINGWARNING
WARNING
This symbol indicates the possibility of dangerous voltage
constituting a risk of electrical shock is present that could
result in death or serious injury.
This symbol indicates the possibility of injury or damage to
property.
This symbol indicates the possibility of death or serious
injury.
IMPORTANT SAFETY INSTRUCTIONS
WARNING
GENERAL APPLIANCE SAFETY
•
Read all safety warnings, instructions, illustrations and specifications
provided with this appliance. Failure to follow all instructions listed
below may result in electric shock, fire and/or serious injury.
•
Save all warnings and instructions for future reference
ELECTRICAL SAFETY
•
Plug into a grounded 3 prong outfit.
•
Do not remove ground plug.
•
Do not use an adapter.
•
Unplug the power cord by holding the plug, never by pulling the
cord.
•
DO NOT turn the appliance on or off by plugging or unplugging the
power cord.
•
DO NOT use an extension cord.
•
Unplug the freezer before cleaning or defrosting.
4
Freezer
Safety
Operating
Requirements
Parts and
Features
Installation
Freezer
Use
Freezer
Care
Troubleshooting
Before
Use
Grounding requirement
•
This freezer must be grounded. This freezer is equipped with a
grounding plug. The plug must be inserted into an outlet that is
properly installed and grounded.
•
Improper use of the grounding plug can result in a risk of electric
shock. Consult a qualified electrician or service person if the
grounding instructions are not completely understood or if doubt
exists as to whether the freezer is properly grounded.
LOCATION SAFETY
•
This freezer is intended to be used in household and similar
environments.
•
Install in accordance with the manufacturer’s instructions.
•
This freezer should not be recessed or built-in an enclosed cabinet. It
is designed for freestanding installation only.
WARNING - Keep ventilation openings, in the freezer, clear of
obstruction.
•
DO NOT install near any heat sources, such as radiators, heat
registers, stoves, other cooking appliances or in direct sunlight.
•
DO NOT store or use gasoline or any flammable liquids inside or in
the vicinity of this freezer.
USE AND CARE SAFETY
•
Flammable refrigerant used. Follow handling instructions carefully.
Risk of fire or explosion due to puncture of refrigerant tubing.
•
Flammable refrigerant used. Do not use mechanical devices to
defrost freezer. Do not puncture refrigerant tubing.
•
Do not place heavy objects or other appliances such as microwave
ovens, toasters etc. on the lid of the freezer.
•
This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person
responsible for their safety.
•
Children should be supervised to ensure that they DO NOT play with
the appliance.
•
DO NOT touch the interior of the freezer with wet hands. This could
result in frostbite.
•
Clean only with a damp cloth. Use nonflammable cleaner.
SERVICE SAFETY
•
Disconnect power before servicing.
•
Flammable refrigerant used. To be repaired only by trained service
personnel. Do NOT puncture refrigerant tubing.
5
Freezer
Safety
Operating
Requirements
Parts and
Features
Installation
Freezer
Use
Freezer
Care
Troubleshooting
Before
Use
•
Refer all servicing to qualified service personnel. Do not repair or
replace any part of this appliance unless specifically recommended
in this manual. Servicing is required when the appliance has been
damaged in any way, such as the power supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the
appliance, the appliance has been exposed to rain or moisture, does
not operate normally, or has been dropped.
•
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent, or similarly qualified person, in order
to avoid a hazard.
•
If component part is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in order
to avoid a hazard.
•
Replace all parts and panels before operating.
SAVE THESE INSTRUCTIONS
THIS APPLIANCE IS FOR HOUSEHOLD USE ONLY
State of California Proposition 65 Warnings:
WARNING: Cancer and Reproductive Harm
-www.P65Warnings.ca.gov.
PROPER DISPOSAL
WARNING
Suffocation Hazard
Before you throw away your old freezer:
•
Remove the door or lid so that children cannot hide or get trapped
inside your old appliance.
•
Leave any shelves in place so that children may not easily climb
inside.
•
Failure to follow these instructions can result in death or brain
damage.
IMPORTANT: Flammable gas and refrigerant used. It is the consumer’s
responsibility to comply with Federal and Local regulations when
disposing of this product. Refrigerants must be evacuated by a licensed,
EPA certified refrigerant technician in accordance with established
procedures.
6
Freezer
Safety
Operating
Requirements
Parts and
Features
Installation
Freezer
Use
Freezer
Care
Troubleshooting
Before
Use
OPERATION REQUIREMENTS
LOCATION REQUIREMENTS
WARNING
Explosion and Fire Hazard
•
Keep flammable materials and vapors, such as gasoline, away from
appliance.
•
Failure to do so, can result in death, explosion or fire.
This freezer is designed to be freestanding only, and should not be
recessed or built-in.
•
Place your freezer on a floor that is level and strong enough to support
the freezer when it is fully loaded.
•
Place your freezer where there is access to the required electrical
connection. See “Electrical Requirements.”
•
Your freezer is designed for use in a location where the temperature
will not exceed 110 °F (43 °C). Temperatures 32 °F and below will NOT
affect operation.
•
Locate the freezer away from direct sunlight and sources of heat, such
as a stove, heater or radiator.
NOTE: Direct sunlight may affect the acrylic coating and heat sources
may increase electrical consumption.
•
Avoid locating the freezer in areas with high humidity.
•
Adequate air circulation is required for efficient operation. Maintain the
recommended clearance to ensure adequate air circulation.
RECOMMENDED CLEARANCE
a
a
a
b
a 8" (20 cm)
Between sides
and back of
cabinet and
walls
b 20.9" (53 cm)
Above the
freezer
7
Freezer
Safety
Operating
Requirements
Parts and
Features
Installation
Freezer
Use
Freezer
Care
Troubleshooting
Before
Use
ELECTRICAL REQUIREMENTS
WARNING
Electrical Shock Hazard
•
Plug into a grounded 3 prong outlet.
•
Do not remove the ground prong from the power cord plug.
•
Do not use an adapter.
•
Do not use an extension cord.
•
Failure to do so can result in death, fire or electrical shock.
IMPORTANT: A 115 Volt, 60 Hz., AC only, 15-amp fused, grounded
electrical supply is required.
•
Use an electrical outlet that accepts the grounding prong.
NOTE: The power cord is equipped with a 3-prong (grounding) plug
which mates with a standard 3-prong (grounding) electrical outlet.
•
We recommend that the freezer be plugged into an electrical circuit
serving ONLY this appliance.
•
Use an electrical outlet that cannot be turned off with a switch or pull-
chain.
•
DO NOT use an extension cord.
a
b
c
a 3-prong plug
b 3-prong receptacle
c Receptacle box cover
8
Freezer
Safety
Operating
Requirements
Parts and
Features
Installation
Freezer
Use
Freezer
Care
Troubleshooting
Before
Use

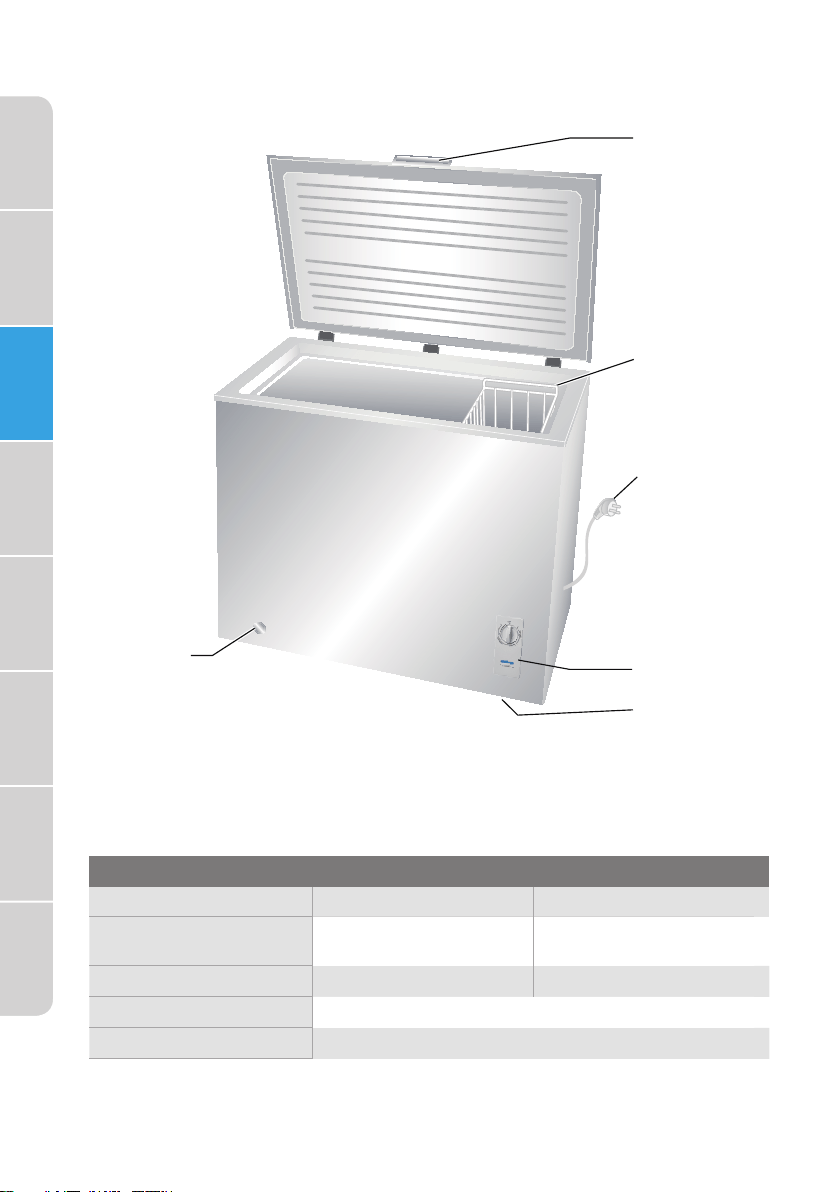

PARTS AND FEATURES
a Lid handle
b Storage basket
c Power cord
d Temperature control
(with power indicator)
e Casters (4)
f Drainage hole
SPECIFICATIONS
"5.33 x "1.22 x "7.42)HxDxW( noisnemiD
(62.8 x 56.2 x 85.0 cm)
"5.33 x "1.22 x "0.23
(81.2 x 56.2 x 85.0 cm)
MRC05M4AWW
Model
MRC07M4AWW
Weight 59.5 lbs. (27 kg)
66.1 lbs. (30 kg)
Power requirements 115 V ~ 60 Hz
Power cord length 67" (170 cm)
b
f
a
c
d
e
9
Freezer
Safety
Operating
Requirements
Parts and
Features
Installation
Freezer
Use
Freezer
Care
Troubleshooting
Before
Use
INSTALLATION
UNPACK
WARNING
Fire or Explosion Hazard
•
Do not puncture refrigerant tubing.
•
Follow handling instructions carefully.
•
Flammable refrigerant used.
•
Failure to do so can result in death, explosion or fire.
IMPORTANT: Remove ALL exterior and interior packing materials
including the foam packing between the exterior condenser and the
freezer cabinet.
MOVE TO FINAL LOCATION
WARNING
Fire or Explosion Hazard
•
Do not puncture refrigerant tubing.
•
Follow handling instructions carefully.
•
Flammable refrigerant used.
•
Failure to do so can result in death, explosion or fire.
IMPORTANT: If the freezer has been in a horizontal position for any period
of time, wait 24 hours to allow the refrigerant to settle before plugging in
the freezer.
Two casters are included to allow you to move the freezer easily.
•
When moving the freezer, tape the lid closed.
NOTE: Tilting the freezer more than 45° could damage the compressor
and the sealed system.
•
When moving the freezer, DO NOT turn it upside down or on its side.
10
Freezer
Safety
Operating
Requirements
Parts and
Features
Installation
Freezer
Use
Freezer
Care
Troubleshooting
Before
Use
BEFORE USE
WAITING PERIOD
•
Before connecting the freezer to power, wait 30 minutes for the
refrigerant to settle.
NOTE: This reduces the possibility of a malfunction in the cooling
system from improper handling during transportation.
CLEANING
1. Wash the freezer interior using a soft cloth dampened with a baking
soda solution (2 tablespoons baking soda mixed with 1 quart of warm
water).
2. Using a soft cloth, thoroughly dry all surfaces.
FREEZER USE
GENERAL
•
The storage life of frozen foods varies and the recommended storage
time should not be exceeded.
•
Pre-packed, commercially frozen food should be stored in accordance
with the frozen food manufacturer’s instructions for a three-star frozen
food storage compartment or home freezer.
•
DO NOT put bottled food or drinks in the freezer.
WARNING
Electrical Shock Hazard
•
Plug into a grounded 3 prong outlet.
•
Do not remove the ground prong from the power cord plug.
•
Do not use an adapter.
•
Do not use an extension cord.
•
Failure to do so can result in death, fire or electrical shock.
1. Plug in the freezer. The Power Indicator on the control should
illuminate.
2. Set the Temperature Control dial to MAX. Wait 30 minutes, and then
open the freezer lid to determine if the freezer is cooling.
3. Allow the freezer to continue to cool for 2 to 3 hours before adding
fresh or frozen food.
NOTE: If the room temperature is warm, allow the freezer to cool for at
least 4 hours before adding food.
4. Place food into the freezer as quickly as possible to prevent cold air
from escaping the freezer.
11
Freezer
Safety
Operating
Requirements
Parts and
Features
Installation
Freezer
Use
Freezer
Care
Troubleshooting
Before
Use
POWER FAILURE
In the event of a power failure, food that is completely frozen will remain
good for several hours.
•
Do not open the lid.
•
Do not add fresh food to the freezer.
ENERGY SAVING TIPS
•
Allow hot foods to cool to room temperature before placing them in
the freezer. Foods that freeze too slowly may lose quality or spoil.
•
Wrap foods properly and wipe containers dry before placing them in
the freezer. This cuts down on frost build-up inside the freezer.
•
Do not line freezer storage shelves or baskets with aluminum foil,
wax paper or paper toweling. Liners interfere with cold air circulation,
making the freezer less efficient.
•
Organize and label food to reduce door openings and extended
searches. Remove as many items as needed at one time, and then
close the door as soon as possible.
•
Do NOT add a large amount of unfrozen food to the freezer at one
time. This will lower the cooling efficiency of the freezer.
•
Overloading the freezer forces the compressor to run longer.
CONTROL
The Power Indicator on the Control will illuminate to let you know that the
freezer is connected to a power supply.
a Temperature control dial
b Power indicator
SET TEMPERATURE
The temperature control, located near the lower, right-hand corner of the
freezer, has three positions FREEZING , COOLING and OFF.
•
Cooling temperature range: 32°F ~ 50 °F (0°C ~ 10 °C)
•
Freezing temperature range: 10°F ~ 11 °F (-12°C ~ -24 °C)
•
OFF: Turns off cooling/freezing
IMPORTANT: Setting the control to the Off position does NOT disconnect
power to the freezer.
a
b
12
Freezer
Safety
Operating
Requirements
Parts and
Features
Installation
Freezer
Use
Freezer
Care
Troubleshooting
Before
Use
FREEZER CARE
Your freezer is designed for year-round use and requires minimal cleaning
and maintenance. To keep your freezer running efficiently and odor free,
we recommend that you clean the freezer regularly.
CLEANING
WARNING
Electrical Shock Hazard
•
Unplug your appliance or disconnect power before cleaning.
•
Failure to do so can result in death, electric shock or personal injury.
WARNING
Explosion Hazard
•
Use nonflammable cleaner.
•
Failure to do so can result in death, explosion or fire.
IMPORTANT: To prevent damage to the finish, DO NOT use gasoline,
benzine, thinner or other solvents, and DO NOT use abrasive cleaners.
1. Unplug the freezer from the electrical outlet.
2. Remove all food.
3. Wash the baskets with a mild detergent solution.
4. Wash the freezer interior using a soft cloth dampened with a baking
soda solution (2 tablespoons baking soda mixed with 1 quart of warm
water).
5. Clean the gasket around the lid. Gently wipe the gasket using a soft
cloth dampened with a mild detergent solution.
NOTE: Gaskets must be kept clean and pliable to assure a proper seal.
6. Using a soft cloth, thoroughly dry all surfaces.
7. Plug in or reconnect power.
13
Freezer
Safety
Operating
Requirements
Parts and
Features
Installation
Freezer
Use
Freezer
Care
Troubleshooting
Before
Use
DEFROSTING
WARNING
Fire or Explosion Hazard
•
Do not puncture refrigerant tubing.
•
Follow handling instructions carefully.
•
Flammable refrigerant used.
•
Failure to do so can result in death, explosion or fire.
Your freezer must be defrosted manually. For most efficient operation and
to minimize energy consumption, defrost the freezer whenever the frost
becomes
1/4 " (6 mm) thick.
IMPORTANT: Do NOT use boiling water to defrost the freezer.
1. Turn the temperature control to the OFF position, and unplug the
freezer.
2. Open the freezer lid and remove all food items. While defrosting, store
the food where it will remain frozen.
NOTE: Defrosting usually takes a few hours. Keep the lid open to speed
the defrosting process.
3. Place a collection tray (not provided) beneath the drainage hole to
collect the water as the ice melts and drains.
4. Remove the plug from the drainage hole. Monitor the collection tray
and empty it regularly to avoid overflow.
5. When defrosting is complete, wipe the freezer interior dry with a soft
cloth and replace the plug into the drainage hole.
WARNING
Electrical Shock Hazard
•
Plug into a grounded 3 prong outlet.
•
Do not remove the ground prong from the power cord plug.
•
Do not use an adapter.
•
Do not use an extension cord.
•
Failure to do so can result in death, fire or electrical shock.
6. Plug into a grounded 3 prong outlet.
7. Reset the temperature control to MAX, and wait 2 to 3 hours for the
freezer to cool.
8. Return the frozen food to the freezer and set the temperature control
to the desired setting.
14
Freezer
Safety
Operating
Requirements
Parts and
Features
Installation
Freezer
Use
Freezer
Care
Troubleshooting
Before
Use
MOVING
IMPORTANT: When moving your freezer, DO NOT tilt it beyond 45° from
upright.
1. Unplug your freezer from the wall outlet.
2. Remove all food.
3. Securely tape down all loose items inside your freezer.
4. Tape the door shut.
STORAGE
IMPORTANT: Do not store freezer in a location that is accessible to
children.
1. Unplug your freezer from the electrical outlet.
2. Remove all food.
3. Clean the freezer.
4. Tape wood or rubber blocks under the edge of the lid to allow air
to circulate inside the freezer. This helps avoid possible formation of
condensation, mold or odor.
TROUBLESHOOTING
IMPORTANT: DO NOT try to repair your freezer yourself. Doing so
invalidates the warranty.
PROBLEM POSSIBLE CAUSE SOLUTION
The freezer
does not
operate
The freezer is unplugged. Make sure that the freezer
power cord is fully plugged
into the electrical outlet.
The fuse on the circuit
is blown or the circuit
breaker is tripped.
Check the house fuse /
circuit breaker box and
replace the fuse or reset
the circuit breaker.
Power failure. If a power failure occurs,
the freezer turns off. Wait
until the power is restored.
The Temperature control is
set to OFF.
Turn the temperature
control dial to MAX or MIN.
The freezer
lid does
not close
completely
Food packages are
interfering with the lid.
Move or remove some food
items.
The lid seals (gaskets) are
dirty.
Clean the lid gaskets.
15
Freezer
Safety
Operating
Requirements
Parts and
Features
Installation
Freezer
Use
Freezer
Care
Troubleshooting
Before
Use
PROBLEM POSSIBLE CAUSE SOLUTION
Food in the
freezer is not
cold
The lid has been opened
too often or was not
closed properly.
Make sure the lid is closed
properly.
A large amount of food
was recently added.
Allow time for the recently
added food to cool, and
then check again.
The lid is not closed
completely.
Check the seal (gasket)
and food distribution to
make sure the lid will close
completely.
The freezer has been
disconnected for a period
of time.
Allow 4 hours for the
freezer to cool completely
before adding food.
The temperature control is
set too warm.
Set the temperature
control to a colder setting.
The freezer
makes
unusual
noises or
vibrations
The freezer cabinet is
touching a wall.
Move the freezer away
from the wall.
Metal parts undergo
expansion and contraction.
This is normal.
Refrigerant circulating
throughout the system
may produce an airflow
sound.
This is normal.
Compressor may
generate a buzzing sound,
especially when starting
up or shutting down.
This is normal.
The solenoid valve or
electric switch may clatter.
This is normal.
Moisture is
building up in
the interior of
the freezer
The lid has been opened
too often or was not
closed properly.
Make sure that the lid is
closed properly.
The freezer is located in a
humid area.
Move the freezer to a drier
location.
The weather is hot and
humid.
This is normal.
The freezer
lid does
not close
completely
Food packages are
interfering with the lid
closure.
Move or remove some food
items.
The lid gaskets are dirty. Clean the lid gaskets.
16
Freezer
Safety
Operating
Requirements
Parts and
Features
Installation
Freezer
Use
Freezer
Care
Troubleshooting
Before
Use
PROBLEM POSSIBLE CAUSE SOLUTION
The
compressor
turns on and
off frequently.
The room temperature is
hotter than normal.
This is normal.
There is a thick layer of
frost in the freezer.
Defrost the freezer. See
“Defrosting.”
A large amount of food
was recently added.
Allow time for the recently
added food to cool, and
then check again.
The lid is not closed
completely or was opened
too often.
Check the seal (gasket)
and food distribution to
make sure the lid will close
completely.
The freezer has been
disconnected for a period
of time.
Allow 4 hours for the
freezer to cool completely
before adding food.
The thermostat was not
set correctly.
Set the thermostat to the
correct setting.
Freezer has
an odor
Freezer needs cleaning. Clean the freezer. See,
“Cleaning.”
Improperly wrapped food
is giving off an odor.
Wrap food tightly or seal
before storing it in the
freezer.
17
1-866-646-4332 MIDEA.

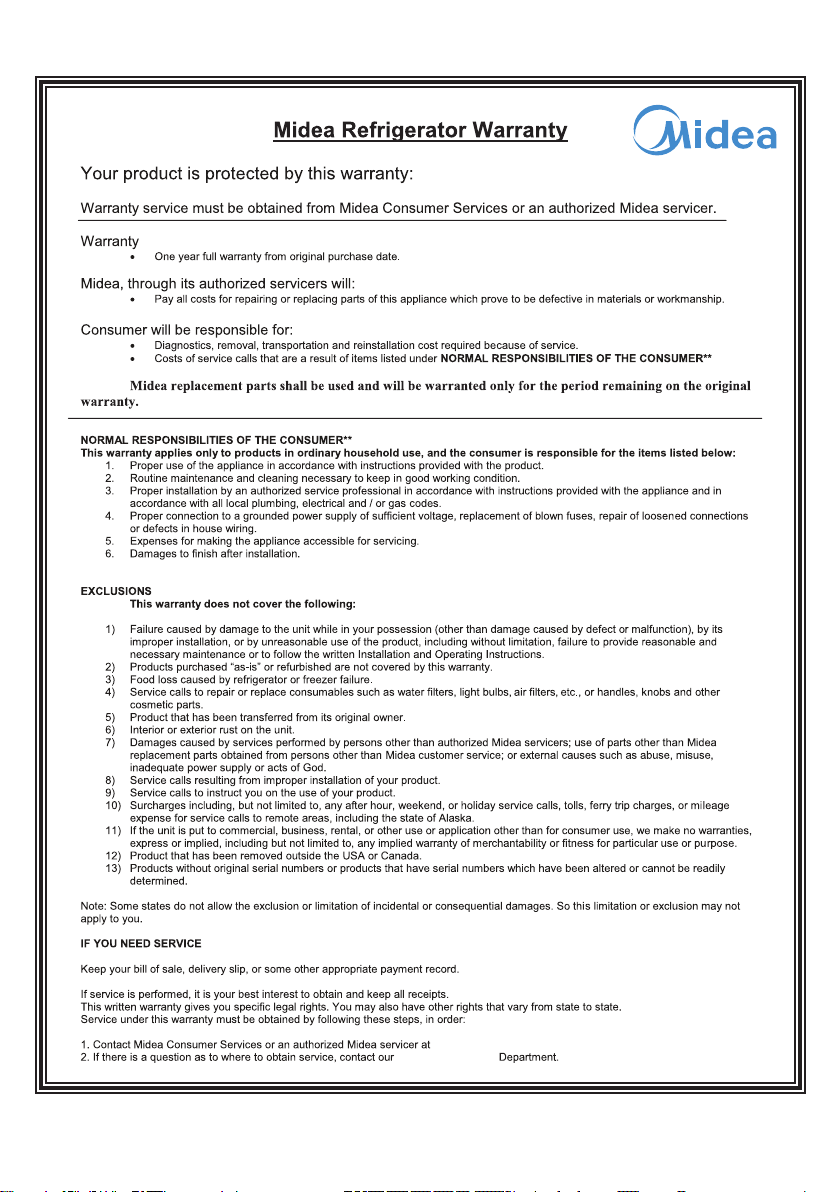

The date on the bill establishes the warranty period should service be required.
Consumer Relations
