- Owner's manual - (English)
HOW TO ASSEMBLE
NOTE: PHILLIPS SCREWDRIVER NEEDED FOR ASSEMBLY
ATTACH HANDLE
1. Position upper handle and slide down into carpet washer base (Fig. 2)
2. Insert both screws and tighten with screwdriver (Fig. 3).
PLACE SOLUTION/ WATER TANK
3. Position bottom of tank onto Carpet Washer (Fig. 4).
4. Push tank handle while supporting back of cleaner with other hand until Solution Tank clicks into place (Fig. 5).
5. Check to make sure tank is securely latched.
STORE TOOLS
6. Place tools and hose into Mesh Tool Storage bag provided.
7. Mesh Tool Storage Bag should not be hung on the Carpet Washer while the Carpet Washer is in use.
8. Mesh Tool Storage Bag can be conveniently stored either on the back of the unit or hung elsewhere by the provided hook (Fig. 6).
CORD STORAGE
9. Wrap cord around cord hooks for convenient storage. Attach the plug end to cord.
FEATURES

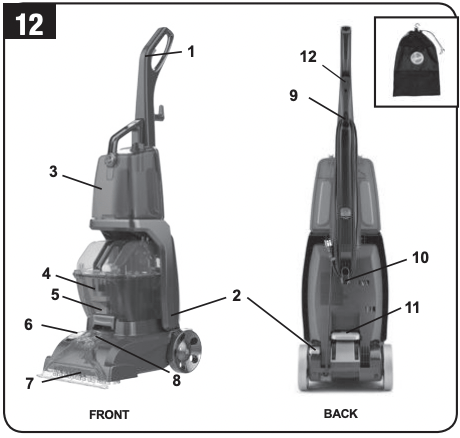

LIST OF FEATURES
1. Solution Trigger: Press to release cleaning solution
2. ON/OFF Pedal
3. Clean Water/Solution Tank
4. Dirty Water Tank
5. Dirty Water Tank Latch
6. Solution Tube Connection Port .
7. Nozzle
8. Accessory Hose Connection Port
9. Cord Storage Hook
10. Cord Storage Hook (Does not rotate)
11. Handle Release Pedal 12. Cord Clip
HOW TO USE
CAUTION ! Do not use this carpet washer and accesories on hard floors. Using this machine on hard floors may scratch or damage your floor.
ON-OFF PEDAL (Fig. 13, A)
1. To turn cleaner ON, step on pedal.
2. To turn cleaner OFF, step on pedal agian.
HANDLE RELEASE PEDAL (Fig 13, B)
1. Grasp handle.
2. Step on Handle Release Pedal to release lower handle to operating position.
3. Do not release grip on handle until handle is returned into locked upright position
TRANSPORTING
1. To move your cleaner from room to room, put handle in upright and locked position.
2. Tilt cleaner back on wheels and push forward (Fig. 14).
CARRY HANDLES
The carpet washer may also be lifted by any of several carry handles as shown. Be sure tanks are properly latched in place before attempting to lift (Fig 15).
A. Upper Handle
B. Solution Tank Handle
C. Dirty Water Tank Handle
D. Solution Tank Shelf
How to Fill
1. Turn off and unplug cleaner from electrical outlet.
2. To remove tank, press down on Solution Tank Latch and pull forward. (Fig. 17).
3. Fill Clean Water Tank (Fig. 18) with hot tap water to fill line. The use of hot water as opposed to cold, significantly improves cleaning performance.
4. Fill Solution Tank (Fig. 16-E) with Hoover® Clean Plus 2X Solution or any other Hoover solution by following the directions on the cleaning solution bottle (see “Cleaning Solutions” page 19 in manual for details). Replace container cap and tighten.
CAUTION Do not fill with water above 140°F (60°C).
5. Place Solution/Water Tank back on to the unit using the method described on page 6.
NOTE: There may be a small amount of water on the base when the tank is removed from the unit. This is a normal condition.
CAUTION Detergents contain Anionic and Nonionic Surfactants. Avoid contact with eyes and skin. In case of contact with eyes, flush with cold water for 15 minutes. In case of contact with skin, wash with water. If irritation persists, call a physician.
WARNING Use only HOOVER® cleaning products intended for use with this machine. (See the “Cleaning Solutions” section in this manual for details) They are specially formulated for use with your cleaner. Non-Hoover cleaning solutions may harm the machine and void the warranty
DIRTY WATER TANK
The Dirty Water Tank holds the dirty water that is picked up from the surface being cleaned. When the Dirty Water Tank is full, the automatic shut-off will engage, suction will stop and the tank must be emptied (see Automatic Shut-Off section).
How to Empty
1. Turn cleaner off and unplug from electrical outlet.
2. Release Dirty Water Tank Latch (Fig. 20).
3. Grab the Dirty Water Tank Handle and remove from carpet washer (Fig. 21).
4. Unplug the Quick Spout Pour Cap (A), rotate it away from drain hole and empty the Tank (Fig. 22).
IMPORTANT Be sure to replace the Quick Spout Pour Cap to ensure proper suction.
5. Place Recovery Tank back on to cleaner making sure to do so with the retaining features (B, Fig. 23) pointing down to ensure proper sealing.
6. Latch the Recovery Tank back in to place.
IMPORTANT For full suction, it is important that the Dirty Water Tank is properly secured before cleaning
How to Clean
1. Empty Dirty Water Tank.
2. Place on flat surface and unlatch Dirty Water Tank lid latch located below the Quick Spout Pour Cap (Fig. 24).
3. Pivot and lift off Dirty Water Tank Lid (Fig. 25).
4. Remove lint from filter screen located on the bottom of the Dirty Water Tank Lid (C, Fig. 25).
5. Rinse debris from Dirty Water Tank Lid and Dirty Water Tank bottom (Fig. 26).
6. Insert tabs on Dirty Water Tank lid and reattach lid to Dirty Water Tank bottom (D, Fig. 27a).
7. Reattach Recovery Tank Lid Latch.
IMPORTANT Regarding Dirty Water Tank Lid: For full suction it is important that the dirty water tank lid is securely in place. If misplaced, poor to no suction will result (see Figs. 27b, 27c).
AUTOMATIC SHUT OFF
When the Dirty Water Tank is full the yellow float disk will rise and shut off the carpet washer’s suction. The carpet washer will no longer pick up dirty water and the motor sound will become noticeably higher in pitch.
When this happens, turn carpet washer off and empty Dirty Water Tank before continuing use. Check Clean Water/Solution Tank also; it may need to be refilled. Do not use without float and float retainer in place. If broken or dislodged, take to an Authorized Dealer for repai
HOW TO CLEAN
BEFORE YOU BEGIN CLEANING
1. Vacuum thoroughly - For carpet, use a HOOVER® vacuum cleaner with an agitator for best results. Vacuum upholstery with a vacuum cleaner with cleaning tool attachments. Use a crevice tool to reach into tufts and folds. Do not use the carpet cleaner as a dry vacuum cleaner.
2. For upholstery, check cleaning code - Use your HOOVER® carpet washer only if the upholstery fabric is marked with a “W” (for “wet” clean) or “S/W” (for “solvent/dry” or “wet” clean). Do not clean fabric marked “S” (“solvent/dry” clean only). If your upholstery does not have a code, seek professional assistance.
3. Test for colorfastness - Wet a white absorbent cloth with the solution. In a small, hidden area, gently rub the surface with the dampened cloth. Wait ten minutes and check for color removal or bleed with white paper towel or cloth. If surface has more than one color, check all colors.
4. When cleaning entire floor, move furniture out of area to be cleaned (may not be necessary if only high traffic areas are to be cleaned). For furniture too heavy to move, place aluminum foil or wax paper under legs. This will prevent wood finishes from staining carpet. Pin up furniture skirts and draperies.
5. Pretreat spots and heavy traffic areas with an appropriate Hoover Cleaning Solutions, see “Cleaning Solutions” section. Follow Directions on bottle. *Available at additional cost if not included with your model.
6. To prevent staining, use plastic or aluminum foil to protect wood or metal surfaces from possible water spray.
7. To avoid wetting and possible damage to wood floors underneath area rugs/carpet, either move area rugs/ carpet to a non-wood hard floor surface or place waterproof material (e.g. plastic) underneath them before cleaning.
WASHING CARPET
Read “Before You Begin Cleaning” instructions.
1. Fill Clean Water Tank according to instructions (Pg. 8).
2. Fill solution tank with Hoover® solution according to instructions (Pg. 8).
3. Dry hands and plug cord into a properly grounded outlet.
CAUTION Do not clean over floor electrical outlets
NOTE: To avoid walking on damp carpet, start at the end of the room farthest from the door or path to sink where tanks will be emptied and filled.
4. Step on handle release pedal and lower handle to operating position.
Step 1
5. Turn cleaner ON.
6. Squeeze trigger to apply cleaning solution and slowly push cleaner forward (equals one wet stroke) (Fig. 29).
7. Continue to squeeze trigger and slowly pull cleaner back toward you (second wet stroke).
Step 2
8. Release trigger and slowly push cleaner forward over area just sprayed with solution (dry stroke). Then slowly pull cleaner back toward you without squeezing trigger (dry stroke). Continue using dry strokes until little water is visible passing through the Dirty Water Tank lid (Pass over the same area a minimum of 4 times = 2 while squeezing the trigger and 2 without).
NOTE: For best results, use straight, parallel strokes. Overlap strokes by 1 inch to help prevent streaking.
9. Keep nozzle flat on floor for both forward and reverse strokes.
For best cleaning results and to aid in faster drying of carpet, end with more dry strokes. (Continue using dry strokes until little water is visible passing through the Dirty Water Tank lid.) Empty Dirty Water Tank when the motor sound becomes higher pitched and there is a loss in suction (see “Automatic shut-off”). When finished cleaning, follow “After Cleaning” instructions on page 12.
10. For best cleaning results, Hoover recommends to rinse the carpet with water only. This will remove residual carpet cleaning solution from your carpets. To Rinse with water only, fill solution tank with hot tap water only and repeat cleaning strokes.
11. For heavily soiled areas, repeat cleaning process. Avoid saturating carpet.
NOTE: It is best to alternate wet and dry strokes as described above.
IMPORTANT To avoid saturating carpet, do not use more than 4 wet strokes over one area. Always end with dry strokes.
AFTER USE
Allow carpet or upholstery to dry. To help prevent matting and resoiling the carpet, keep children and pets away from surface until it is completely dry. If it is necessary to walk on damp carpet, place towels or white cloths on the traffic areas. If furniture must be replaced before the carpet is dry, place plastic or aluminum foil under legs of furniture so metal slides or wood finishes will not stain the carpet.
1. See “Dirty Water Tank: How to Empty” page 9.
2. See “Dirty Water Tank: How to Clean” page 9.
NOTE: Let Dirty Water Tank and Dirty Water Tank Lid air dry before Carpet Washer is stored.
3. See “Cleaning Nozzle” page 16.
4. See “Cleaning Brushes” page 16.
5. Remove lint from filter screen located behind nozzle.

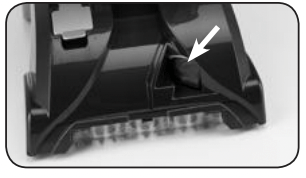

IMPORTANT When brushes seem to be rotating slowly, disconnect cleaner from electical outlet and check and clean the screen behind the nozzle (see arrow below).
CAUTION Water will drip from the brushes and underside of the product after use and may puddle. To avoid damage to wood and laminate flooring and to avoid potential slip hazard, after use (a) do not leave the product on wood and laminate surfaces and remove to a hard surface and (b) place unit on absorbent material (such as a towel) to soak up drips.
TOOLS
CONNECT HOSE FOR TOOL USE
CAUTION ! Always turn off appliance before connecting or disconnecting hose.
How to Attach

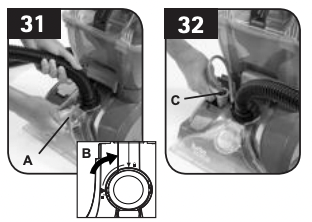

1. Open Accessory Hose Suction Port (A, Fig. 31). Insert hose end, aligning the indicator with the unlock arrows.
2. Rotate clockwise to lock position (B, Fig. 31).
3. Hold open the Accessory Hose Solution Port door (Fig. 32).
4. Plug Accessory Hose Solution Tube connector firmly into Hose Solution Port (C, Fig. 32).
How to Remove
1. Disconnect Accessory Hose Solution Tube Connector from Accessory Hose Solution Port by pulling up firmly. Do not pull on tube, this may cause damage. Accessory port door will automatically close
2. Rotate accessory Hose end counterclockwise from the locked position to the unlocked position and remove by pulling out.
3. Snap Accessory Hose Suction Port door back into place. Make sure to snap both sides to unsure proper suction, unit may lose suction if not closed properly
TOOLS (*Available on select models only.)

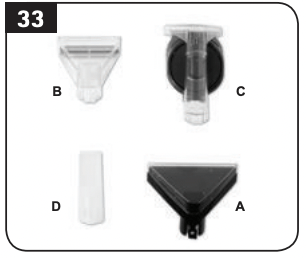

A. Stair Tool*: 6 inches wide, 2 built-in rows of brushes to help provide the scrubbing action that some spots may need for removal on your carpeted stairs.
B. Upholstery Tool has a built-in brush to help provide the scrubbing action some spots may need for removal.
C. SpinScrub® Hand Tool* has rotating brush(s) for extra scrubbing action on small carpet areas, carpeted stairs and upholstery. For some models, the brush(s) can be removed for converting to the scrub module.
D. Crevice Tool*: Great for use around baseboards and those hard to reach areas.
NOTE: Tools located and stored in Mesh Bag.
How to Attach Tools
CAUTION To reduce the risk of injury from moving parts - Unplug before connecting SpinScrub Hand tool. Not to be used for grooming pets
1. To ensure maximum performance and to protect your carpet, be sure to place the handle in the upright position while using the accessory hose. Placing handle in the upright position shuts off the SpinScrub brushes.
NOTE: All tools attach to the hose in the same manner:
2. Connect tool to hose by sliding it onto connector until the tab locks it securely (E, Fig. 34).
3. Using your thumb, push forward and up on the latch to remove tool (F, Fig. 34).
After Using Tool
1. Drain suction hose by turning cleaner ON and holding nozzle up for several minutes. Do not press trigger.
CAUTION ! Always turn off appliance before connecting or disconnecting hose.
2. Disconnect hose and solution tube from cleaner.
3. Drain solution tube by placing round end in sink and raising the trigger end at the hose nozzle above your head (Fig. 35). Press the trigger to release air and fluid..
4. Replace Hose and tools in the Mesh Storage Bag.
CLEANING UPHOLSTERY
Read “Before You Begin Cleaning” instructions. Be sure to check Hoover Cleaning Guide on page 10 and the cleaning code on your upholstery. Use your cleaner only on upholstery marked “W” or “W/S”.
1. Attach hose and solution tube as instructed.
2. Place handle in upright position. SpinScrub brushes will not rotate while handle is in upright position.
3. Fill Clean Water Tank according to instructions on (Pg. 8).
4. Fill solution container with HOOVER® solution according to instructions on (Pg. 8). Do not use hard floor cleaning solution when cleaning upholstery.
5. Attach tool to end of hose.
6. Dry hands and plug cleaner into a properly grounded outlet.
7. Turn cleaner ON.

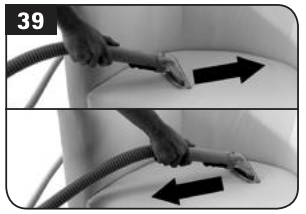

8. Gently press the tool onto the fabric. Press the trigger and slowly pull the nozzle over the fabric (Fig. 39).
9. Overlap strokes by 1/2 inch to help prevent streaking.
10. Make additional strokes without pressing the trigger to remove more solution. To clean in corners or creases, lift the tool one half inch from the fabric and press the solution trigger.
11. For heavily soiled areas, it may be necessary to repeat the cleaning process. Make crisscrossing strokes to the original pattern; overlap each pass (Fig. 40). Make no more than 2 passes with the solution over any one area to prevent over-wetting and damage to fabric.
12. If you would like to rinse the carpet surface with water only, fill the clean water/solution tank with water only.For best cleaning results Hoover recommends to rinse the carpet with water only. This will remove residual carpet cleaning solution from your carpets.
If additional cleaning is necessary, wait until the upholstery is completely dry before using the tool again. Empty Dirty Water Tank when the motor sound becomes higher pitched and there is a loss in suction (see “Automatic Shut-Off”). When finished cleaning, follow “After Cleaning” and “After Using Tool” instructions.
MAINTENANCE
Familiarize yourself with these home maintenance tasks as proper use and care of your cleaner will ensure continued cleaning effectiveness.
Any other servicing should be done by an authorized service representative.
If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, take it to a service center prior to continuing use.
NOZZLE: How to Clean
If lint or other debris becomes lodged in nozzle, it can be removed for cleaning.
CAUTION To reduce the risk of injury from moving parts - Unplug before servicing.
1. To prevent possible leaking, remove Clean Water Tank and Dirty Water Tank.
2. With handle in upright position, tilt carpet washer back so that handle rests on the floor.
3. Rotate nozzle latch to unlock position (Fig. 41).
4. Pull up on nozzle slightly to unsnap nozzle from foot of carpet washer.
5. Pull nozzle forward to remove from carpet washer. Be sure the nozzle does not get caught on retention tank latch (Fig. 42).
6. Rinse debris from nozzle.
7. Position nozzle on to foot, making sure to align the tabs at the bottom of the nozzle with the notches on the foot (Fig. 43).
8. Snap nozzle to foot.
9. Rotate nozzle latch to lock position.
IMPORTANT The nozzle must be in the proper position in order for the Dirty Water Tank to go on properly and for the unit to have proper suction.
BRUSHES: How to Change and Clean
Your cleaner is equipped with removable brushes. Follow these directions for changing brush assemblies or for easy cleaning.
CAUTION ! To reduce the risk of injury from moving parts - Unplug cleaner before servicing.
How to Remove
1. To prevent possible leaking, remove Clean Water Tank and Dirty Water Tank.
2. With handle in upright position, tilt cleaner back until handle rests on the floor.

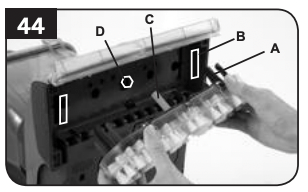

3. Grab brush assembly and pull firmly (Fig. 44).
4. The brushes can be cleaned under running water
How to Replace
1. Align posts (A) on both ends of brush assembly with slots (B) in cleaner housing (Fig. 44).
2. Make sure that the hexagonal post (C) also aligns with the hexagonal hole (D). Turn brushes slightly until post fits easily into hole.
3. Press brush assembly firmly to snap into place.
STORAGE
Before storing:
• Empty Clean Water Tank and let air dry. Replace on cleaner.
• Empty Dirty Water Tank, rinse tank and lid thoroughly with clean water and let air dry.
Allow brushes and underside of carpet cleaner to air dry thoroughly before storing carpet cleaner on a carpeted or wood surface.
LUBRICATION
The motor is equipped with bearings that contain sufficient lubrication for the life of the motor. The addition of lubricant could cause damage. Therefore, do not add lubricant to motor bearings.
TROUBLESHOOTING
If a minor problem occurs, it usually can be solved quite easily when the cause is found by using the checklist below. Any other servicing should be done by an authorized service representative. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, take it to a service center prior to continuing use
WARNING To reduce risk of personal injury - Unplug before cleaning or servicing.
Cleaner won’t run.
1. Not firmly plugged in.
- 1. Plug unit in firmly.
2. No voltage in wall plug.
- 2. Check fuse or breaker in home.
3. Blown fuse or tripped breaker.
- 3. Replace fuse or reset breaker in home.
4. Fuse in cleaner blown.
- 4. Take to service center
Low suction.
1. Dirty Water Tank full/ automatic shut off engaged.
- 1.Remove and empty Dirty Water Tank. See “How to Empty” page 9.
2. Blockage In tool on end of hose.
- 2. Remove tool and clear blockage.
3. Dirty Water Tank lid not on correctly.
- 3. Make sure lid is on securely. See “How to Use” on page 9.
4. Dirty Water Tank Debris Filter Clogged.
- 4. See “How to Clean” page 5.
5. Blockage in nozzle.
- 5. See “How to Clean” page 15.
6. Recovery Tank not properly secured.
- 6. Replace Recovoery Tank as per instructions on page 9.
Hose nozzle stops spraying liquid during use.
1. Clean Water Tank or Detergent Container is empty.
- 1. Turn off cleaner and fill Clean Water Tank and Detergent Container.
Hose nozzle will not spray after filling the Clean Water Tank or Detergent Container.
1. Air is trapped in the pump and hose.
- 1. Turn on the cleaner. If hose does not spray, prime the pump by lowering the hose down to the floor and hold the trigger for up to 1 minute.
Hose nozzle will not spray after priming pump.
1. Pump is defective.
- 1. Call for service: 1-800-944-9200
Clean water won’t dispense.
1. Clean Water Tank not firmly in place.
- 1. Make sure tank is securely locked in position.
2. Clean Water Tank or solution container empty.
- 2. Refill container according to instructions for surface being cleaned.
Brushes won’t rotate during floor cleaning.
1. Dirty filter screen on front of unit behind nozzle.
- 1. Clean screen.
See other models: FH50020RM FH40172PC FH40171PC FH40170PC FH40162
