CO9009A
C R O S L E Y
O U T D O O R
Assembly Instructions
WARNINGS:
· This fire bowl is intended for outdoor use only. Do not use on wooden decks.
· This fire bowl is intended to burn wood logs only. Do not burn coal, leaves, or other
combustible materials in the fire bowl.
· Not for use by children. Keep children and pets away from the fire bowl.
· The fire bowl is hot. Use with caution. Do not touch the hot fire bowl with bare hands.
· Never leave the burning fire bowl unattended, and always extinguish the fire
completely before leaving the fire bowl.
· Do not use near flammable or combustible objects or materials.
· When the fire bowl is in use, the handle on the mesh screen can reach extreme
temperatures that can cause serious injury to an unprotected hand. Use a poker or
an appropriate heat resistant glove or pad when handling.
· DO NOT use this fire bowl as a cooking appliance. This fire bowl is not designed for
grilling food.
· Check local fire regulations and municipal by-laws for safe use.
PART LIST
Hardware List
NO. DESCRIPTION QTY.
A LEG 3
D FIRE BOWL 1
E MESH SCREEN
1
H POKER 1
NO. Hardware QTY.
S1 M8 SCREW 6
S2 NUT 6
K THREADED PIN
M10×10 L=30
3
G2
WRENCH (14)
1

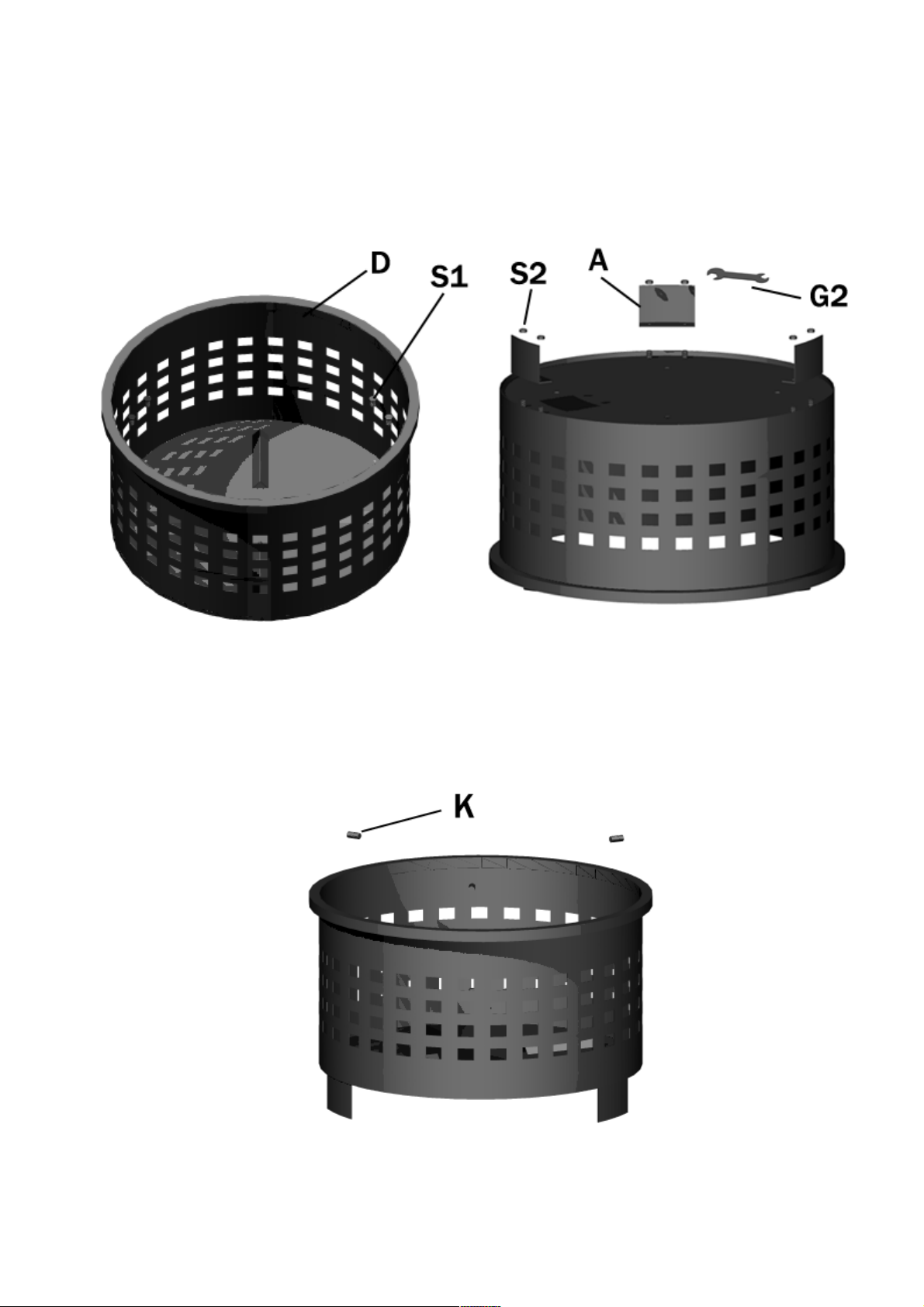

Assembly step:
Step 1
Place the fire bowl(D) upside down on a level surface.Connect the leg(A) to the fire
bowl(D),using two screws (S1) and two nuts(S2), tightened with wrench(G2). Repeat this
step for other legs.
Step 2
Fasten three threaded pins (K) to the holes inside the edge of fire bowl(D).The pins
support the mesh screen installed later.
Step 3
Place the mesh screen (E) on the top of the fire bowl (D).
Step 4
The fire pit is ready for use.
LIMITED MANUFACTURERS WARRANTY
Crosley warrants the product to be free from defects in material and workmanship under normal use for a period of one
year from the original date of purchase. This warranty is not transferable. If the product is determined to be defective
during the warranty period, the unit will be repaired or replaced at Crosley Radio’s sole discretion. This warranty covers
manufacturing defects and normal consumer use and does NOT cover damage or failure as a result of abuse, accident,
alterations, misuse, neglect, abnormal wear and tear, inadequate maintenance, commercial or unreasonable use,
damage caused by power surges, mishandling, accident, acts of God or attempted repair by an unauthorized service
agent. Also not covered are cosmetic damages, cords and antennas.
Should this product fail to function in a satisfactory manner, it is best to first return it to the store or retailer where it was
originally purchased. If additional service is still needed, the original purchaser must FIRST contact our offices to obtain
an RA (Return Authorization) Number.
TO OBTAIN AN RA NUMBER
CALL: 1.888.CROSLEY
(1.888.276.7539)
Send the unit prepaid to the address below in the original packaging (or reasonable substitute to prevent damage).
Clearly mark your RA number on the outside packaging and include the original sales receipt (or a copy) indicating date
of purchase, amount paid, and place of purchase. You must also include your full name, shipping address and daytime
contact number. Please include a check or money order in the amount of $19.95, made payable to Crosley Radio, to
cover handling and return shipping charges. Returned products will not be shipped to PO Boxes. Crosley Radio will not be
responsible for delays or unprocessed claims resulting from a purchaser’s failure to provide any or all of the necessary
information.
CROSLEY
ATTN: RETURNS DEPT
2001 PRODUCTION DRIVE
Louisville, KY 40299
For additional support: Crosley Consumer Service Department
24 hours a day / 7 days a week
Telephone: 1.888.CROSLEY (1.888.276.7539)
There are no express warranties except as listed above.
The purchaser’s bill of sale is the only proof of warranty entitlement.
This warranty gives the purchaser specified legal rights in addition to any rights which may vary from state to state.
In accordance with the “Moss-Magnuson Warranty Act” of July 10, 1975, this is termed a “limited warranty” which
in no way compromises Crosley Radio’s high standards of quality and workmanship.
