User Manual

This is the main product document for model VOADD5300SS.

The file format is pdf, 12 pages, you can download this manual here .

background
1
Installation
MANUAL
5 SERIES
Outdoor Access Doors / Drawers
VOADS5181 / VOADS5241
VODRD5191
VOADD5301 / VOADD5361 / VOADD5421
VOADDR5301 / VOADDR5361 / VOADDR5421
background
2
VOADS5181 - 18” DOOR
15-5/8”
(39.7 cm)
2-3/8” (6.0 cm)
16-5/8”
(42.2 cm)
18”
(45.7 cm)
21-1/8”
(53.7 cm)
18-1/2”
(47.0 cm)
15-3/8”
(39.1 cm)
Clearance
Radius
18-3/4”
(47.6 cm)
2-3/8”
(6.0 cm)
1-1/4”
(3.2 cm)
Product Dimensions
Cutout Dimensions
TOP
VIEW
SIDE
VIEW
FRONT
VIEW
TOP VIEW
SIDE
VIEW
FRONT
VIEW
3” (7.6 cm)
Deep
15-3/4”
(40.0 cm)
19”
(48.3 cm)
High
1-1/2”
(3.8 cm) MIN
19”
(48.3 cm)
3” (7.6 cm)
3-1/2” (7.6 cm)
MIN
background
3
VODRD5191 - 19” DRAWERS
Product Dimensions
Cutout Dimensions
TOP
VIEW
SIDE
VIEW
FRONT
VIEW
17”
(43.2 cm)
15-5/8”
(39.7 cm)
15-5/8”
(39.7 cm)
19”
(48.3 cm)
20-3/8”
(51.8 cm)
1-1/8”
(2.9 cm)
2-5/8”
(6.7 cm)
18-3/4”
(47.6 cm)
21-1/8”
(53.7 cm)
18-1/2”
(47.0 cm)
9-1/4”
(23.5 cm)
19”
(48.3 cm)
21-5/8”
(54.9 cm)
TOP VIEW
SIDE
VIEW
FRONT
VIEW
20”
(50.8 cm)
Deep
1-1/2”
(3.8 cm) MIN
3-1/2” (7.6 cm)
MIN
17-1/4”
(43.8 cm)
19”
(48.3 cm)
High
19”
(48.3 cm)
20”
(50.8 cm)
background
4
VOADS5241 - 24” DOOR
21-5/8”
(54.9 cm)
22-3/4”
(57.8 cm)
Clearance
Radius
Product Dimensions
Cutout Dimensions
SIDE
VIEW
FRONT
VIEW
24”
(61.0 cm)
21-3/8”
(54.3 cm)
2-5/8”
(6.7 cm)
1-1/4”
(3.2 cm)
18-1/2”
(47.0 cm)
21-1/8”
(53.7 cm)
18-3/4”
(47.6 cm)
TOP VIEW
SIDE
VIEW
FRONT
VIEW
3” (7.6 cm)
Deep
22”
(55.9 cm)
19”
(48.3 cm)
High
1-1/2”
(3.8 cm) MIN
19”
(48.3 cm)
3” (7.6 cm)
3-1/2” (7.6 cm)
MIN
background
5
VOADD5301 - 30” DOOR
28”
(71.1 cm)
15-1/8”
(38.4 cm)
Clearance
Radius
Product Dimensions
SIDE
VIEW
FRONT
VIEW
30”
(76.2 cm)
13-7/8”
(35.2 cm)
2-1/4”
(5.7 cm)
1-1/4”
(3.2 cm)
18-3/8”
(46.7 cm)
21-1/8”
(53.7 cm)
18-3/4”
(47.6 cm)
TOP VIEW
SIDE
VIEW
FRONT
VIEW
3” (7.6 cm)
Deep
28-1/4”
(71.8 cm)
19”
(48.3 cm)
High
1-1/2”
(3.8 cm) MIN
19”
(48.3 cm)
3” (7.6 cm)
3-1/2” (7.6 cm)
MIN
background
6
VOADDR5301 - 30” DOOR / DRAWERS
Cutout Dimensions
TOP VIEW
SIDE
VIEW
FRONT
VIEW
20”
(50.8 cm)
Deep
1-1/2”
(3.8 cm) MIN
3-1/2” (7.6 cm)
MIN
28-1/2”
(72.4 cm)
19”
(48.3 cm)
High
19”
(48.3 cm)
20”
(50.8 cm)
Product Dimensions
TOP
VIEW
SIDE
VIEW
FRONT
VIEW
12-3/8”
(31.4 cm)
30-3/8”
(75.9 cm)
14-1/4”
(36.2 cm)
19”
(48.3 cm)
20-3/8”
(51.8 cm)
1-1/4”
(3.2cm)
2-5/8”
(6.7 cm)
18-3/4”
(47.6 cm)
21-1/8”
(53.7 cm)
18-3/8”
(46.7 cm)
9-1/4”
(23.5 cm)
19”
(48.3 cm)
21-5/8”
(54.9 cm)
12”
(30.5 cm)
28”
(71.1 cm)
15-1/8”
(38.4 cm)
Clearance
Radius
background
7
VOADD5361 - 36” DOOR
33-5/8”
(85.4 cm)
18-1/8”
(46.0 cm)
Clearance
Radius
SIDE
VIEW
FRONT
VIEW
36”
(91.4 cm)
16-5/8”
(42.2 cm)
2-3/4”
(7.0 cm)
1-1/4”
(3.2 cm)
18-3/8”
(46.7 cm)
21-1/8”
(53.7 cm)
18-3/4”
(47.6 cm)
Product Dimensions
TOP VIEW
SIDE
VIEW
FRONT
VIEW
3” (7.6 cm)
Deep
33-3/4”
(85.7 cm)
19”
(48.3 cm)
High
1-1/2”
(3.8 cm) MIN
19”
(48.3 cm)
3” (7.6 cm)
3-1/2” (7.6 cm)
MIN
Cutout Dimensions
background
8
VOADDR5361 - 36” DOOR / DRAWER
Cutout Dimensions
TOP VIEW
SIDE
VIEW
FRONT
VIEW
20”
(50.8 cm)
Deep
1-1/2”
(3.8 cm) MIN
3-1/2” (7.6 cm)
MIN
33-3/4” (85.7 cm)
19”
(48.3 cm)
High
19”
(48.3 cm)
20”
(50.8 cm)
SIDE
VIEW
19”
(48.3 cm)
20-3/8”
(51.8 cm)
1-1/4”
(3.2cm)
2-5/8”
(6.7 cm)
18-3/4”
(47.6 cm)
FRONT
VIEW
36”
(91.4 cm)
16-5/8”
(42.2 cm)
21-1/8”
(53.7 cm)
18-3/8”
(46.7 cm)
9-1/4”
(23.5 cm)
15-1/8”
(38.4 cm)
Product Dimensions
TOP
VIEW
15-1/2”
(39.4 cm)
19”
(48.3 cm)
21-5/8”
(54.9 cm)
33-5/8”
(85.4 cm)
15-1/8”
(38.4 cm)
Clearance
Radius
background
9
VOADD5421 - 42” DOOR
39-5/8”
(100.8 cm)
21-1/8”
(53.7 cm)
Clearance
Radius
Product Dimensions
TOP VIEW
SIDE
VIEW
FRONT
VIEW
3” (7.6 cm)
Deep
39-3/4”
(101.0 cm)
19”
(48.3 cm)
High
1-1/2”
(3.8 cm) MIN
19”
(48.3 cm)
3” (7.6 cm)
3-1/2” (7.6 cm)
MIN
Cutout Dimensions
SIDE
VIEW
FRONT
VIEW
42”
(106.7 cm)
19-5/8”
(49.8 cm)
2-3/4”
(7.0 cm)
1-1/4”
(3.2 cm)
18-3/8”
(46.7 cm)
21-1/8”
(53.7 cm)
18-3/4”
(47.6 cm)
background
10
VOADDR5421 - 42” DOOR / DRAWERS
Product Dimensions
TOP
VIEW
18-3/4”
(47.6 cm)
19”
(48.3 cm)
21-5/8”
(54.9 cm)
39-5/8”
(100.6 cm)
22-1/8”
(56.2 cm)
Clearance
Radius
FRONT
VIEW
42”
(106.7 cm)
19-1/2”
(49.5 cm)
21-1/8”
(53.7 cm)
18-3/8”
(46.7 cm)
9-1/4”
(23.5 cm)
18-3/8”
(46.7 cm)
Cutout Dimensions
TOP VIEW
SIDE
VIEW
FRONT
VIEW
20”
(50.8 cm)
Deep
1-1/2”
(3.8 cm) MIN
3-1/2” (7.6 cm)
MIN
19”
(48.3 cm)
High
19”
(48.3 cm)
20”
(50.8 cm)
39-3/4” (101.0 cm)
background
11

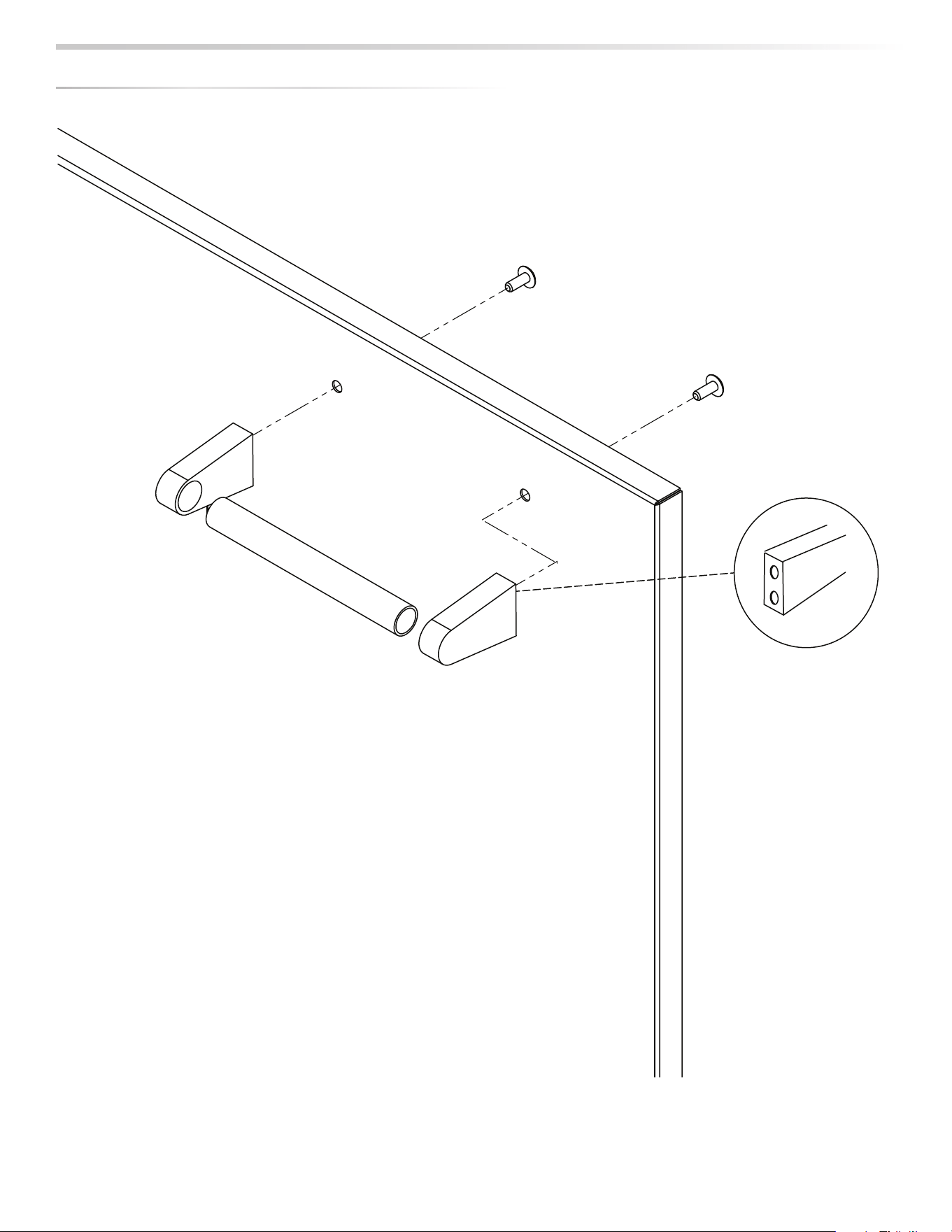

HANDLE INSTALLATION - ALL MODELS
Use the top screw position.
Acessory Door Front
background
Viking Range, LLC
111 Front Street
Greenwood, Mississippi 38930 USA
(662) 455-1200
For product information,
call 1-888-(845-4641)
or visit our web site at vikingrange.com
069343-000A EN (052920)
