OWNER’S MANUAL
BUILT-IN FREEZER
Read this owner's manual thoroughly before operating the appliance
and keep it handy for reference at all times.
SKSCF1801P
2 TABLE OF CONTENTS
TABLE OF CONTENTS
3 PRODUCT FEATURES
4 SAFETY INSTRUCTIONS
4 IMPORTANT SAFETY INSTRUCTIONS
8 PRODUCT SPECIFICATIONS
9 PRODUCT OVERVIEW
9 Interior
10 OPERATION
10 Before Use
11 Control Panel
13 Ice Compartment
13 Automatic Icemaker
13 Storing Food
17 Adjusting the Shelves
18 SMART FUNCTIONS
18 SIGNATURE KITCHEN SUITE Application
20 Smart Grid Function
21 Smart Diagnosis™ Function
24 MAINTENANCE
24 Cleaning
25 Replacing the Water Filter
30 TROUBLESHOOTING
30 FAQs: Frequently Asked Questions
31 Before Calling for Service
39 LIMITED WARRANTY
3PRODUCT FEATURES
ENGLISH
PRODUCT FEATURES
Depending on the model, some of the following functions may not be available.
DOOR ALARM
The Door Alarm function is designed to prevent freezer malfunctioning that could occur if a door remains open.
If a door is left open for more than 60 seconds, a warning alarm sounds at 30-second intervals.
ICE PLUS
Ice production is increased when the freezer section is maintained at the coldest temperature for a 24-hour
period.
4 SAFETY INSTRUCTIONS
SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and
follow all safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or injure you and others.
All safety messages will follow the safety alert symbol and either the word WARNING or CAUTION.
These words mean:
WARNING
You may be killed or seriously injured if you do not follow instructions.
CAUTION
You may be injured or cause damage to the product if you do not follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and
tell you what may happen if the instructions are not followed.
IMPORTANT SAFETY INSTRUCTIONS
WARNING
To reduce the risk of explosion, re, death, electric shock, scalding or injury
to persons when using this product, follow basic precautions, including the
following:
California Proposition 65 (USA only)
• This product contains chemicals known to the State of California to cause cancer and birth defects or other
reproductive harm. Wash hands after handling.
5SAFETY INSTRUCTIONS
ENGLISH
OPERATION
• This product is not to be used for special purposes such as the storage of medicine or test materials or for
use on ships, etc.
• DO NOT allow children to climb, stand, or hang on the freezer doors or on the shelves in the freezer.
They could damage the freezer and seriously injure themselves.
• Do not allow children to climb into the freezer. They could be trapped and suffocated.
• Children should be supervised to ensure that they do not play with the freezer.
• Keep ngers out of pinch point areas when opening or closing doors. Be careful closing doors when
children are nearby.
• Do not touch frozen food or the metal parts in the freezer compartment with wet or damp hands. Doing so
may cause frostbite.
• Do not refreeze frozen food that has thawed completely. Doing so may result in a serious health hazard.
• An individual properly grounded branch circuit or circuit breaker is recommended.
• Do not use an adapter plug or plug the power plug into a multi-outlet extension cord.
• Do not use a cord that shows cracks or abrasion damage along its length or at either the plug or connector
end. Immediately have all power cords that have become frayed or otherwise damaged repaired or replaced
by qualied service personnel.
• Do not operate the freezer or touch the power cord with wet hands.
• Do not modify or extend the power cord.
• Do not use an uncertied power outlet. Do not plug appliance into a damaged wall outlet.
• Do not put hands, feet or other objects into the air vents or bottom of the freezer. Doing so could result in
personal injury or electric shock.
• In the event of a gas leak (propane/LPG), ensure the area is adequately ventilated and contact an
authorized service center before resuming use. Do not touch the freezer or power button of the freezer.
• Turn off power to the appliance immediately and contact an authorized service center if there is a strange
noise, odor, or smoke coming from the appliance.
• Do not use any fuse (such as copper, steel wire, etc.) other than a standard fuse.
• Do not place or use an electrical appliance inside the freezer, unless it is of a type recommended by the
manufacturer.
• Do not put animals inside the appliance.
• Avoid contact with any moving parts of the ejector mechanism or with the heater that releases the ice
cubes. DO NOT place ngers in the automatic icemaker when the freezer is plugged in.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning the use of the appliance by a person responsible for their safety.
• If connected to a circuit protected by fuses, use time delay fuse.
6 SAFETY INSTRUCTIONS
MAINTENANCE
• Do not use a hair dryer to dry the inside of the freezer.
• Do not light a candle to remove odors in the freezer.
• In the event of a refrigerant leak, move ammable objects away from the freezer. Ensure the area is
adequately ventilated and contact an authorized service center.
• Keep ammable materials and vapors, such as gasoline, away from the freezer.
• This appliance is intended to be used in household and similar applications such as staff kitchen areas
in shops, ofces and other working environments; farm houses and by clients in hotels, motels and other
residential type environments; bed and breakfast type environments; catering and similar non-retail
applications.
• Turn off power before cleaning or repairing the freezer.
• The freezer compartment lights are interior LED lighting, and service should be performed by a qualied
technician.
• Turn off power immediately in the event of a blackout or thunderstorm.
• Turn the power off if water or dust penetrates into the freezer. Call a service agent.
• Do not store glass containers or soda in the freezer compartment. Contents may expand when frozen,
break the container and cause injury.
• Do not store, disassemble or repair the appliance yourself or allow unqualied personnel to do so.
• If the electrical supply cord is damaged, it must only be replaced by the manufacturer or its service agent or
a similar qualied person in order to avoid a hazard.
• Do not store explosive substances such as aerosol cans with a ammable propellant in this appliance.
DISPOSAL
• Junked or abandoned freezer are dangerous, even if they are sitting for only a few days. When disposing of
the freezer, remove the packing materials from the door or take off the doors but leave the shelves in place
so that children may not easily climb inside.
• If disposing of a freezer, make sure the refrigerant is removed for proper disposal by a qualied servicer. If
you release the refrigerant, you may be ned or imprisoned in accordance with the relevant environmental
law.
GROUNDING INSTRUCTIONS
• Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with
a qualied electrician or service personnel if you are in doubt whether the appliance is properly grounded.
Do not modify the plug provided with the appliance; if it will not t the outlet, have a proper outlet installed by
a qualied electrician.
• Have a certied electrician check the wall outlet and wiring for proper grounding.
7SAFETY INSTRUCTIONS
ENGLISH
CAUTION
To reduce the risk of minor or moderate injury to persons, malfunction, or damage
to the product or property when using this product, follow basic precautions,
including the following:
INSTALLATION
• Do not install the freezer where there may be a danger of the unit falling.
• The freezer must be properly installed in accordance with the Installation Instructions.
OPERATION
• Do not use aerosols near the freezer.
• This appliance is intended to be used only in domestic and similar applications.
• Do not strike or apply excessive force to any glass surface. Do not touch glass surfaces if they are cracked
or broken.
• Do not overll or pack items too tightly into door bins. Doing so may cause damage to the bin or personal
injury if items are removed with excessive force.
• Do not overll the appliance with food. Doing so may cause personal injury or property damage.
MAINTENANCE
• Do not use strong detergents like wax or thinners for cleaning. Clean with a soft cloth.
• Remove foreign objects (such as dust and water) off the prongs of the power plug and contact areas. Do
not use a wet or damp cloth when cleaning the plug.
• Do not spray water directly on the inside or outside of the freezer.
• Do not clean glass shelves or covers with warm water when they are cold. They may break if exposed to
sudden temperature changes.
SAVE THESE INSTRUCTIONS
WARNING
•
Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
•
Do not use mechanical devices or other means to accelerate the defrosting process, other than those
recommended by the manufacturer.
•
Do not damage the refrigerant circuit.
•
Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the
type recommended by the manufacturer.
•
The refrigerant and insulation blowing gas used in the appliance require special disposal procedures. When
disposing, please consult with service agent or a similarly qualified person.
This appliance contains a small amount of isobutane refrigerant (R600a), natural gas with high environmental
compatibility, but it is also combustible. When transporting and installing the appliance, care should be taken
to ensure that no parts of the refrigerating circuit are damaged. Refrigerant squirting out of the pipes could
ignite or cause an eye injury. If a leak is detected, avoid any naked ames or potential sources of ignition and
air the room in which the appliance is standing for several minutes.
In order to avoid the creation of a ammable gas air mixture if a leak in the refrigerating circuit occurs, the
size of the room in which the appliance may be sited depends on the amount of refrigerant used. The room
must be 1m
2
in size for every 8g of R600a refrigerant inside the appliance. The amount of refrigerant in your
particular appliance is shown on the identication plate inside the appliance. Never start up an appliance
showing any signs of damage. If in doubt, consult your dealer.
8 PRODUCT SPECIFICATIONS
PRODUCT SPECIFICATIONS
The appearance and specications listed in this manual may vary due to constant product improvements.
Electrical requirements: 115 V, 60 Hz
Min. / Max. water pressure: 20 - 120 psi (138 - 827 kPa)
Model SKSCF1801P
Description Built-in, Freezer
Net weight 304 lb (138 kg)
9PRODUCT OVERVIEW
ENGLISH

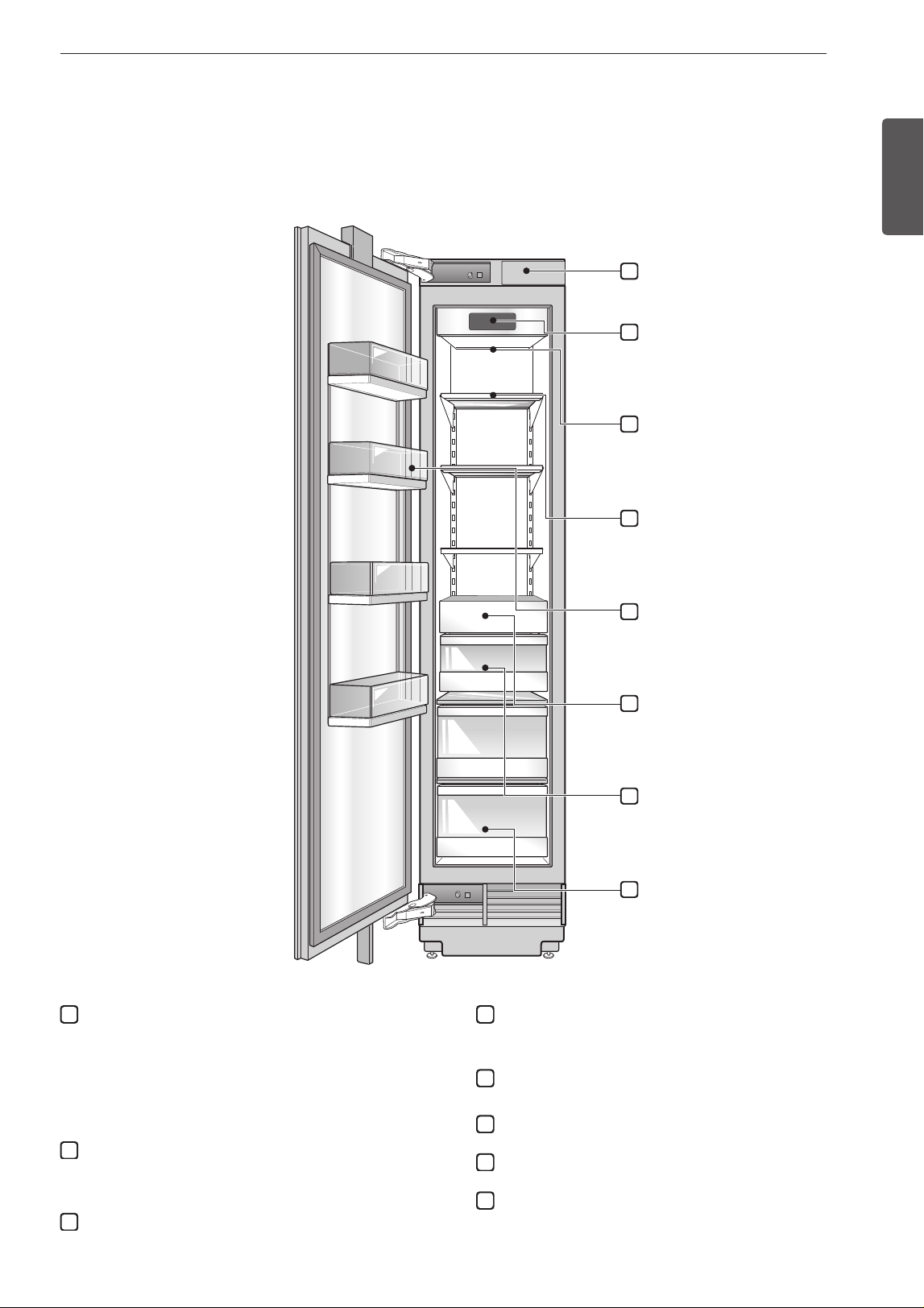

Interior
1
2
3
4
5
6
7
8
1
Water lter
Purifies water.
NOTE
• The lter should be replaced every 6 months.
See the Replacing the Water Filter section in this
manual for details.
2
Control Panel
Sets the freezer temperature and the water lter
condition.
3
LED interior lighting
Lights up the inside of the freezer.
4
Adjustable Freezer Shelf
The freezer shelves are adjustable to meet individual
storage needs.
5
Movable Door Bin
Store chilled food or drinks.
6
Icemaker
7
Ice Storage
8
Drawer
PRODUCT OVERVIEW
The images in this guide may be different from the actual components and accessories, which are subject to
change by the manufacturer without prior notice for product improvement purposes.
10 OPERATION
OPERATION
Before Use
Clean the freezer.
Clean the freezer thoroughly and wipe off all dust that accumulated during shipping.
CAUTION
•
Do not scratch the freezer with a sharp object or use a detergent that contains alcohol,
a ammable liquid or an abrasive when removing any tape or adhesive from the
freezer. Remove adhesive residue by wiping it off with your thumb or dish detergent.
•
Do not peel off the model or serial number label or the technical information on the
rear surface of the freezer.
Open freezer door to ventilate the interior.
The inside of the freezer may smell like plastic at rst. Remove any adhesive tape from
inside the freezer and open the freezer door for ventilation.
Connect the power supply.
Check if the power supply is connected before use.
Turn off the icemaker
Turn off the icemaker if the freezer is not yet connected to the water supply.
NOTE
• The icemaker water valve may buzz if the icemaker is turned on while the freezer is not
connected to the water supply.
Wait for the freezer to cool.
Allow the freezer to run for at least two to three hours before putting food in it. Check the
ow of cold air in the freezer to ensure proper cooling.
CAUTION
•
Putting food in the freezer before it has cooled could cause the food to spoil, or a bad
odor to remain inside the freezer.
The freezer makes a loud noise after initial operation.
This is normal. The volume will decrease as the temperature decreases.
11OPERATION
ENGLISH
Control Panel
Depending on the model, some of the following functions may not be available.

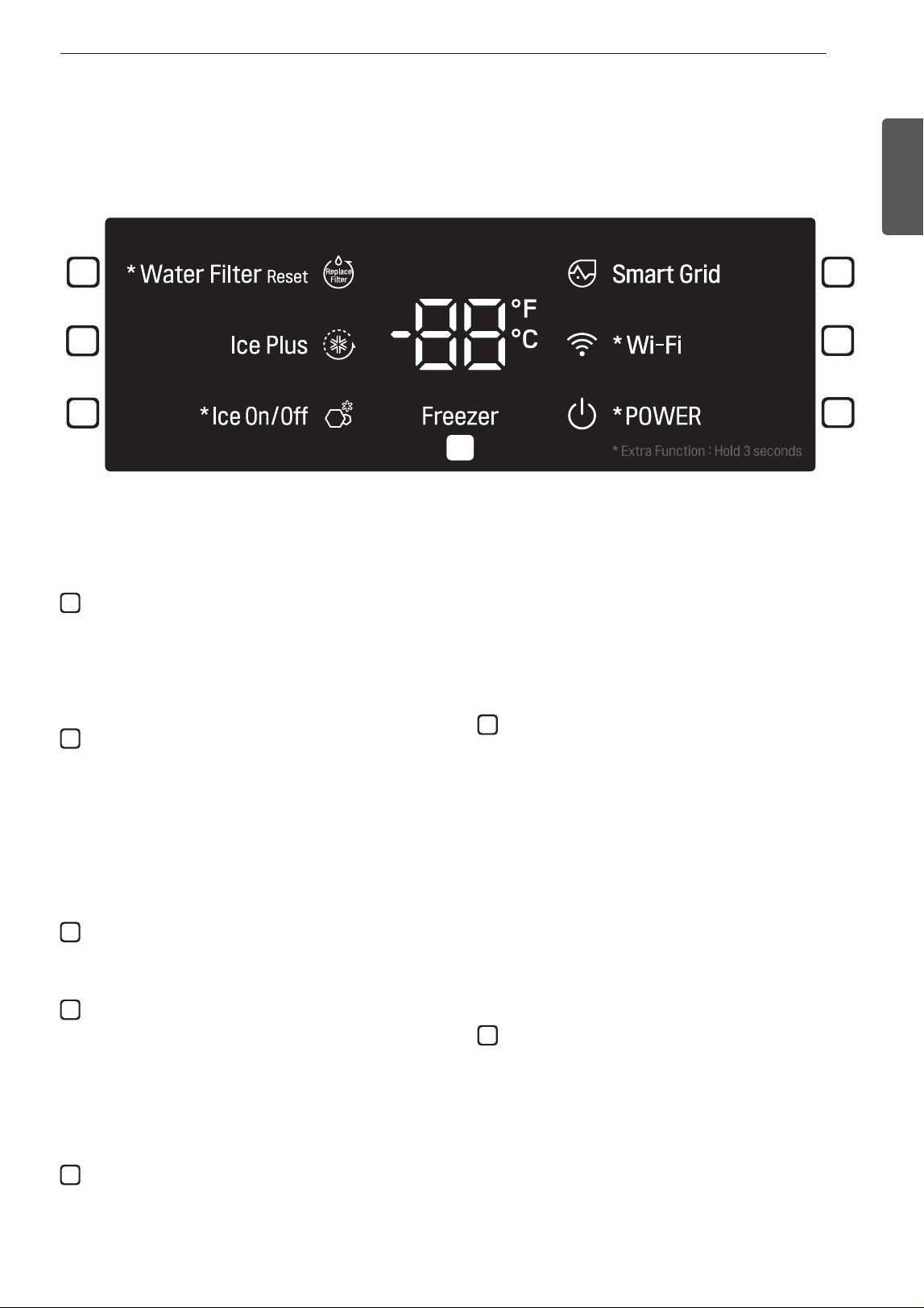

Control Panel Features
1
2
3
5
6
7
4
NOTE
• When the freezer is in the Power Saving Mode, the display remains off until the door is opened or a button is
pressed. Once on, the display remains on for 20 seconds.
1
* Water Filter Reset
Replace the water lter when the Replace Filter
icon turns on. After replacing the water lter,
press and hold the Water Filter button for three
seconds to turn the icon light off. Replace the
water lter approximately every six months.
2
Ice Plus
This function increases both ice making and
freezing capabilities.
• Press the Ice Plus button to illuminate the icon
and activate the function for 24 hours.
The function automatically shuts off after 24
hours.
• Stop the function manually by pressing the
button once more.
3
* Ice On/Off
Press the Ice On/Off button for three seconds to
turn the icemaker on/off.
4
Freezer
Indicates the set temperature of the freezer
compartment in Celsius (°C) or Fahrenheit (°F).
The default freezer temperature is 0°F (-18 °C).
Press the Freezer button repeatedly to select a
new set temperature from -6 °F to 8 °F (-21 °C to
-13 °C).
5
Smart Grid
Press the Smart Grid button to turn the Smart
Grid function On/Off. When the function is on,
the icon illuminates. The Smart Grid function
automatically turns on when the freezer is
connected to the Wi-Fi network.
When the freezer is responding to a Demand
Response (DR) message from the electric
company, the Grid text illuminates.
6
* Wi-Fi
The Wi-Fi button, when used with the
SIGNATURE KITCHEN SUITE smart phone app,
allows the freezer to connect to a home Wi-Fi
network.
Refer to the Smart Functions section for
information on the initial setup of the application.
The Wi-Fi icon shows the status of the freezer’s
network connection. The icon illuminates when
the freezer is connected to the Wi-Fi network.
Press and hold the Wi-Fi button for 3 seconds to
connect to the network. The icon blinks while
the connection is being made, then turns on once
the connection is successfully made.
7
* Power
The Power button turns off all electrical power to the
unit.
Press and hold the Power button for 3 seconds
to turn off the power. When the power is off, the
indicator light is off. There is no need to turn off
power at the circuit breaker or wall receptacle. Use
this function for service or extended vacations.
12 OPERATION
CAUTION
Display Mode (For Store Use Only)
•
The Display Mode disables all cooling in the
freezer sections to conserve energy while on
display in a retail store. When activated, OF is
displayed on the control panel and the display
remains on for 20 seconds.
To deactivate / activate:
•
With the door open, press and hold the Freezer
and Water Filter reset buttons at the same time
for ve seconds. The control panel beeps and
the temperature settings display to conrm that
Display Mode is deactivated. Use the same
procedure to activate Display Mode.
4
and
7
SABBATH
Sabbath mode is used on the Jewish Sabbath
and holidays.
• To turn Sabbath mode on, touch the display to
activate it, then press and hold the Freezer and
Power buttons for 3 seconds until Sb appears in
the display.
• Sabbath mode automatically turns off after 96
hours.
• To turn Sabbath mode off manually, press
and hold the Freezer and Power buttons for 3
seconds.
• Once turned on, Sabbath mode is maintained
even after a power outage.
• Selecting Sabbath mode automatically turns off
the Light and Alarm functions. The icemaker is
also disabled.
• The interior display stays on during Sabbath
mode, but only “Sb” and the Freezer and Power
buttons are displayed.
• The freezer temperature is set to 0°F (-18°C)
and cannot be changed until Sabbath mode is
turned off.
NOTE
• The Smart Grid function is automatically turned off
in Sabbath mode.
When Sabbath mode ends, the Smart Grid function
must be activated again manually.
13OPERATION
ENGLISH
Ice Compartment
Automatic Icemaker
Turning the Automatic Icemaker On
or Off
To turn off the automatic icemaker, press the ice On/
Off button on the display for three seconds.
Normal Sounds You May Hear
• Keeping the power turned on to the icemaker
before the water line is connected can damage the
icemaker.
• The icemaker water valve buzzes as the icemaker
lls with water. If the Ice On/Off button is in the ON
mode, it will buzz even if it has not yet been hooked
up to water. To stop the buzzing, press the Ice On/
Off button to turn it off.
• You will hear the sound of cubes dropping into the
bin and water running in the pipes as the icemaker
rells.
CAUTION
• Keep hands and tools out of the ice
compartment. Failure to do so may result in
damage or personal injury.
• Throw away the rst few batches of ice after
installation. This is also necessary if the freezer
has not been used for a long time.
Preparing for Vacation
Set the Ice On/Off button to OFF and shut off the
water supply to the freezer.
NOTE
• The ice bin should be emptied any time the Ice On/
Off button is turned to the OFF mode.
If the ambient temperature will drop below freezing,
have a qualied technician drain the water supply
system to prevent serious property damage due
to ooding caused by ruptured water lines or
connections.
Storing Food
NOTE
• If you are leaving home for a short period, like
a short vacation, the freezer should be left on.
Refrigerated foods that are able to be frozen will
stay preserved longer if stored in the freezer.
• If you are leaving the freezer turned off for an
extended period, remove all food and unplug the
power cord. Clean the interior, and leave the door
open to prevent fungi from growing in the freezer.
• If the freezer is kept in a hot and humid place,
frequent opening of the door or storing a lot of
vegetables in the freezer may cause condensation
to form. Wipe off the condensation with a clean cloth
or a paper towel.
• If the door is opened or closed too often, warm air
may penetrate the freezer and raise its temperature.
This can increase the running costs of the unit.
CAUTION
• Do not overll or pack items too tightly into door
bins. Doing so may cause damage to the bin
or personal injury if items are removed with
excessive force.
• Do not store glass containers in the freezer.
Contents may expand when frozen, break the
container and cause injury.
14 OPERATION
Food Storage Tips
Wrap or store food in the freezer in airtight and
moisture-proof material unless otherwise noted. This
prevents food odor and taste transfer throughout
the freezer. For dated products, check date code to
ensure freshness.
Food How to
Butter or
Margarine
Keep opened butter in covered dish
or closed compartment in refrigerator.
When storing an extra supply, wrap in
freezer packaging and freeze.
Fish
Freeze fresh sh and shellsh if they
are not being eaten the same day
purchased. Eating fresh sh and
shellsh the same day purchased is
recommended.
Storing Frozen Food
Check a freezer guide or a reliable cookbook for
further information about preparing food for freezing
or food storage times.
Freezing
Your freezer will not quick-freeze a large quantity of
food. Do not put more unfrozen food into the freezer
than will freeze within 24 hours (no more than 2 to 3
pounds of food per cubic foot of freezer space).
Leave enough space in the freezer for air to circulate
around packages. Be careful to leave enough room
at the front so the door can close tightly.
Storage times will vary according to the quality and
type of food, the type of packaging or wrap used
(how airtight and moisture-proof) and the storage
temperature. Ice crystals inside a sealed package are
normal. This simply means that moisture in the food
and air inside the package have condensed, creating
ice crystals.
NOTE
• Allow hot foods to cool at room temperature for 30
minutes, and then package and freeze. Cooling hot
foods before freezing saves energy.
Packaging
Successful freezing depends on correct packaging.
When you close and seal the package, it must not
allow air or moisture in or out. If it does, you could
have food odor and taste transfer throughout the
freezer and could also dry out frozen food.
Packaging recommendations
• Rigid plastic containers with tight-tting lids
• Straight-sided canning/freezing jars
• Heavy-duty aluminum foil
• Plastic-coated paper
• Non-permeable plastic wraps
• Specied freezer-grade self-sealing plastic bags
Follow package or container instructions for proper
freezing methods.
Do not use
• Bread wrappers
• Non-polyethylene plastic containers
• Containers without tight lids
• Wax paper or wax-coated freezer wrap
• Thin, semi-permeable wrap
15OPERATION
ENGLISH

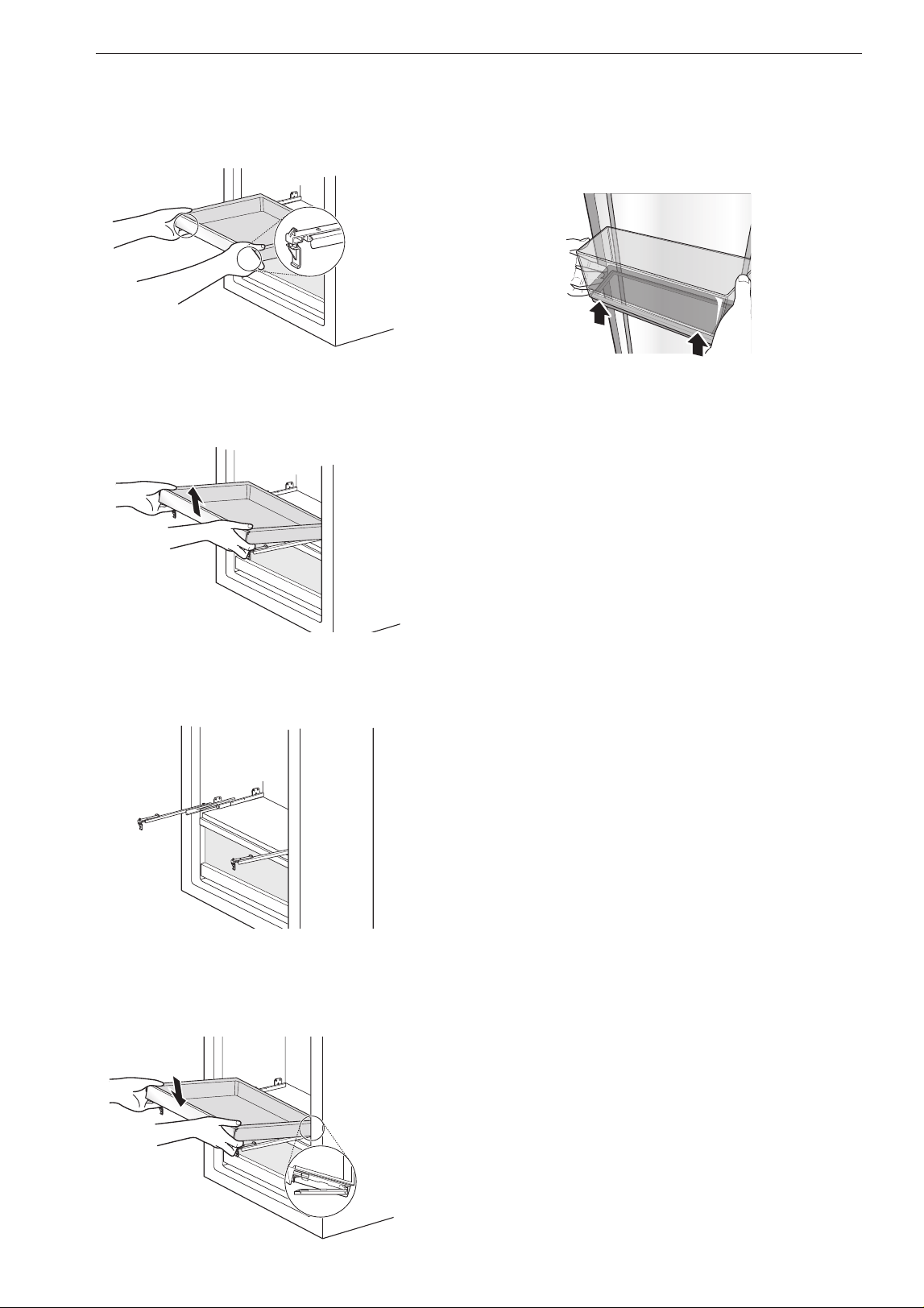

2
Lift the empty drawer slightly to remove it from the
support.
Ice Storage Drawer & Freezer
Drawers
Use the upper compartment to store packaged frozen
foods and frequently-used foods.
Use the lower compartments for larger frozen foods
and items stored for longer periods.
• The sliding drawers allow easy access and
convenience of use.
Removing the Drawers
1
Pull the drawer out until it stops. Empty all
contents out of the drawer before removing it.
Assembling the Drawer
1
Pull out the drawer support until it stops.
Angle the drawer into the space and set it on the
support.
2
Slide the drawer back until it lowers into place on
the support. Close the drawer.
CAUTION
• The drawers are heavy. Always use two hands
when removing or assembling the drawers to
avoid product damage or personal injury. Always
empty drawers before removing them.
• Always open the doors completely before
removing or assembling the drawers.
CAUTION
• The drawers are heavy. Always use two hands
when removing or assembling the drawers to
avoid product damage or personal injury. Always
empty drawers before removing or assembling
them.
• Always open the freezer doors completely before
removing or assembling the drawers.
16 OPERATION
Removing the Drawer Support
1
Press the levers on either side of the drawer
support.
2
Keeping both levers pressed, lift the drawer
support slightly and remove it from the rail system.
Assembling the Drawer Support
1
Pull both drawer rails out until they stop.
2
Line up the bottom edges on the sides of the
drawer support with the groove in each rail and
then lower the support until it clicks into place.
Adjusting the Door Bins
To adjust the location of the bin, tilt the front of the
bin up and slide the bin up or down to the desired
location.
17OPERATION
ENGLISH
Adjusting the Shelves
The shelves in the freezer are adjustable to meet
individual storage needs.
Adjusting the shelves to t items of different heights
will make nding the exact item you want easier.

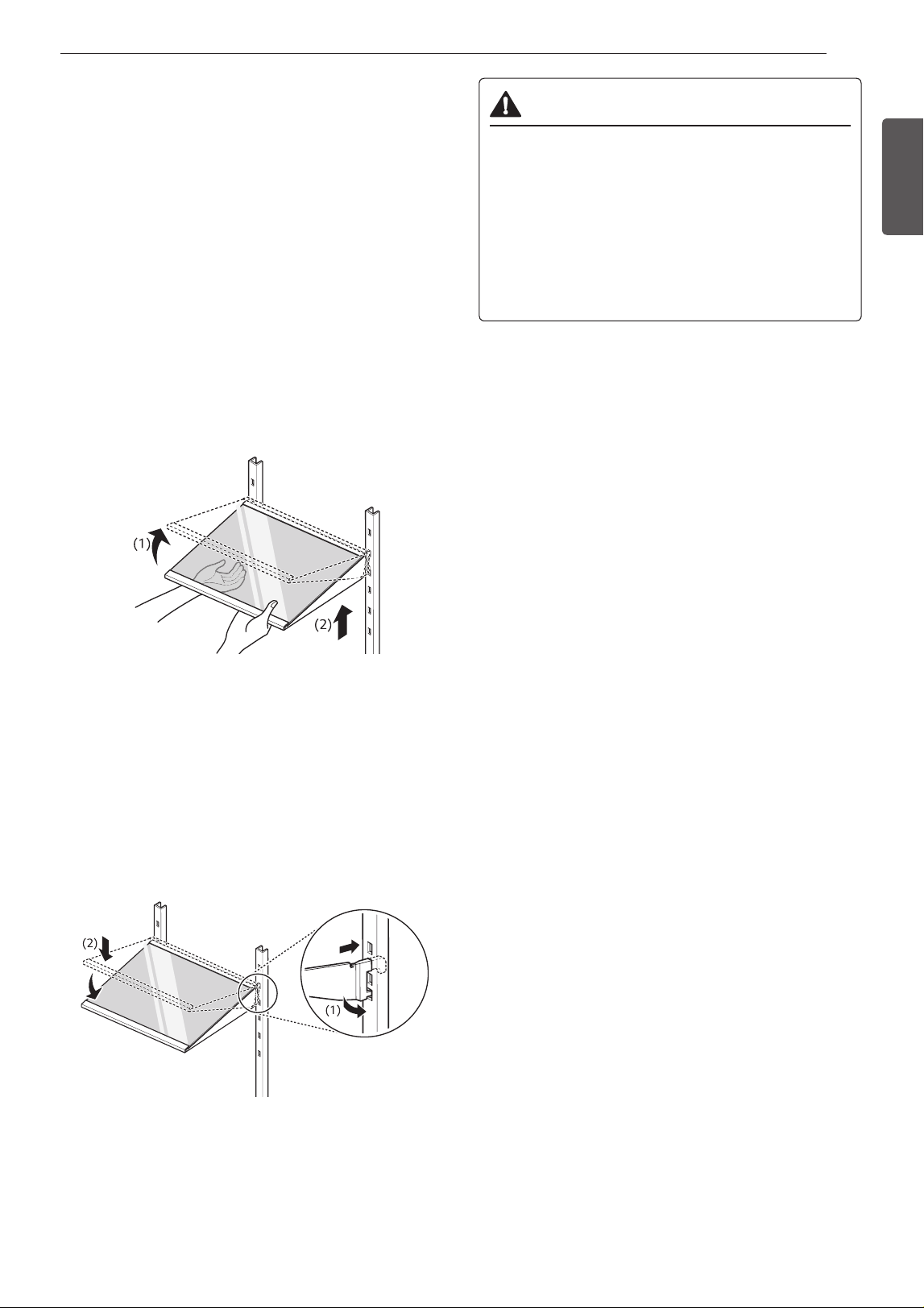

Detaching the Shelf
1
Tilt up the front of the shelf and then lift the shelf
straight up.
2
Pull the shelf out.
Assembling the Shelf
1
Tilt the front of the shelf up and guide the shelf
hooks into the slots at a desired height.
2
Lower the front of the shelf so that the hooks drop
into the slots.
CAUTION
• Make sure that shelves are level from one side
to the other. Failure to do so may result in the
shelf falling or spilled food.
• Do not clean glass shelves with warm water
while they are cold. Shelves may break if
exposed to sudden temperature changes or
impact.
• Glass shelves are heavy. Use special care when
removing them.
18 SMART FUNCTIONS
SMART FUNCTIONS
SIGNATURE KITCHEN SUITE
Application
The SIGNATURE KITCHEN SUITE application allows
you to communicate with the appliance using a
smartphone.
Before Using the Application
1
Check the strength of the wireless signal near the
appliance.
• If the distance between the appliance and the
wireless router is too far, the signal strength
becomes weak. It may take a long time to register
or installation may fail.
2
Turn off the Mobile data or Cellular Data on your
smartphone.
3
Connect your smartphone to the wireless router.
NOTE
• To verify the Wi-Fi connection, check that Wi-Fi
icon on the control panel is lit.
• The appliance supports 2.4 GHz Wi-Fi networks
only. To check your network frequency, contact your
Internet service provider or refer to your wireless
router manual.
• The SIGNATURE KITCHEN SUITE application
is not responsible for any network connection
problems or any faults, malfunctions, or errors
caused by network connection.
• The surrounding wireless environment can make
the wireless network service run slowly.
• If the appliance is having trouble connecting to the
Wi-Fi network, it may be too far from the router.
Purchase a Wi-Fi repeater (range extender) to
improve the Wi-Fi signal strength.
• The network connection may not work properly
depending on the Internet service provider.
• The Wi-Fi connection may not connect or may
be interrupted because of the home network
environment.
• If the appliance cannot be registered due to
problems with the wireless signal transmission, turn
off the router and wait about a minute before turning
it back on and trying again.
• If the rewall on your wireless router is enabled,
disable the rewall or add an exception to it.
• The wireless network name (SSID) should be a
combination of English letters and numbers. (Do not
use special characters.)
• Smartphone user interface (UI) may vary
dependingon the mobile operating system (OS) and
the manufacturer.
• If the security protocol of the router is set to WEP,
you may need to change it to WPA2 in order to
successfully register the product.
19SMART FUNCTIONS
ENGLISH
Installing SIGNATURE KITCHEN
SUITE Application
Search for the SIGNATURE KITCHEN SUITE
application from the Google Play Store or Apple
App Store on a smart phone. Follow instructions to
download and install the application.
NOTE
• If you choose the simple login to access the
SIGNATURE KITCHEN SUITE application, you
must go through the appliance registration process
each time you change your smartphone or reinstall
the application.
SIGNATURE KITCHEN SUITE
Application Features
Manage Food
This feature helps track items in the refrigerator and
freezer, sends alerts when items are near their use
by dates, generates grocery lists, and links to related
recipes.
Energy Monitoring
This feature keeps track of the freezer’s power
consumption and the number of door openings.
Push Messages
If the door remains open for more than ten minutes,
you will receive a push message. When Ice Plus is
nished, you will receive a push message.
Smart Diagnosis™
This function provides useful information for
diagnosing and solving issues with the appliance
based on the pattern of use.
Settings
Allows you to set various options on the freezer and
in the application.
NOTE
• If you change your wireless router, your
Internet service provider or your password after
registering the appliance, please delete it from the
SIGNATURE KITCHEN SUITE application Settings
→ Edit Product and register again.
• This information is current at the time of publication.
The application is subject to change for product
improvement purposes without notice to users.
20 SMART FUNCTIONS
Smart Grid Function
When the freezer operates in Smart Grid mode, the
Smart Freezer function can control energy usage or
delay the operation of some functions to save energy
during peak usage periods.
• You can override the Smart Grid function any time
(using the Smart Grid button or application).
• To use the Smart Grid function, you need to register
your appliance with your electric utility company.
Smart Grid Application Features
Smart Saving_Demand Response
You can lower energy usage based on Demand
Response (DR) signals from the utility company.
If the freezer is operating in Smart Saving mode
according to the DR signal, you can see a pop up.
Seasonal Energy Savings
Lower energy usage based on time period.
Using the Smart Grid Function
This feature responds to notication events from your
utility company to run high energy consuming tasks
during off-peak periods when demand is lower. These
notication events are known as Demand Response
signals.
If the freezer receives a Demand Response signal
from the utility company, the freezer will turn on the
Grid LED on the freezer display and control its power
consumption according to the signal.
The freezer will respond to the signals received from
the utility company as long as product performance is
maintained.
If the freezer receives a Demand Response signal,
the freezer will operate in Delay Appliance Load
(DAL) or Temporary Appliance Load Reduction
(TALR) mode.
Delay Appliance Load (DAL)
The freezer responds to a DAL signal by providing a
moderate load reduction for the duration of the delay
period.
This mode controls functions that consume a lot of
energy such as adjusting the cooling system, running
the defrost cycle, and making ice.
• When the freezer operates in DAL mode, the Grid
LED is illuminated on the freezer display.
• DAL mode is automatically deactivated after the
period stipulated by the DAL signal (max. 4 hours)
or when you override the Smart Grid function.
Temporary Appliance Load Reduction
(TALR)
The freezer responds to a TALR signal by
aggressively reducing the load for a short time
period, typically 10 minutes. This mode reduces
energy consumption by stopping the compressor and
controlling the functions that consume a lot of energy
such as the defrost cycle and fan.
• When the freezer operates in TALR mode, the Grid
LED is illuminated on the freezer display.
• TALR mode is automatically deactivated after the
received duration (max. 10 minutes), or when you
override the Smart Grid function. The mode is
immediately deactivated and the freezer returns to
its normal state when the door is opened or closed,
or the dispenser is used.
Override Smart Grid Mode
To ignore the Demand Response signal from the
utility company and override the Smart Grid function,
push the Smart Grid button while the freezer is in
Smart Grid mode.
When you override the Smart Grid function, the
freezer ignores the Demand Response signal and
is no longer controlled by the utility company until
the next Demand Response signal is sent. You can
also override the Smart Grid function using the smart
phone app.
SIGNATURE KITCHEN SUITE Open API
You can manage Smart Grid features for the
SIGNATURE KITCHEN SUITE freezer.
Please check the detailed specications on the notice
page on www.signaturekitchensuite.com.
API list
Demand Response
• Send demand response signal
Power Saving
• Set saving mode
• Get schedule of DR/Delay Defrost
Energy Monitoring
• Get door open event
• Get energy consumption
Delay Defrost Capability
• Insert a delay defrost schedule event
• Update a delay defrost schedule event
• Delete a delay defrost schedule event
• Get the delay defrost schedule
21SMART FUNCTIONS
ENGLISH
Smart Diagnosis™ Function
Should you experience any problems with the
appliance, it has the capability of transmitting data via
your telephone to the SIGNATURE KITCHEN SUITE
Information Center. NFC or Wi-Fi equipped models
can also transmit data to a smartphone using the
SIGNATURE KITCHEN SUITE application.
Smart Diagnosis™ through the
Customer Information Center
This method allows you to speak directly to our
trained specialists. The specialist records the data
transmitted from the appliance and uses it to analyze
the issue, providing a fast and effective diagnosis.
1
Call the SIGNATURE KITCHEN SUITE Customer
Information Center at:
(U.S.A) 1-855-790-6655
2
Open the freezer door.
3
Hold the mouthpiece of your phone in front of
the speaker that is located on the filter cover of
the freezer, when instructed to do so by the call
center.
4
Press and hold the Freezer button for three
seconds while continuing to hold your phone to
the speaker.
5
After you hear three beeps, release the Freezer
button.
6
Keep the phone in place until the tone
transmission has finished. The display will
count down the time. Once the countdown is
over and the tones have stopped, resume your
conversation with the specialist, who will then
be able to assist you in using the information
transmitted for analysis.
NOTE
• For best results, do not move the phone while the
tones are being transmitted.
• If the call center agent is not able to get an accurate
recording of the data, you may be asked to try
again.
• The Smart Diagnosis™ function depends on the
local call quality.
• Bad call quality may result in poor data transmission
from your phone to the call center, which could
cause Smart Diagnosis™ to malfunction.
Smart Diagnosis™
Use the Smart Diagnosis feature in the SIGNATURE
KITCHEN SUITE application for help diagnosing
issues with the appliance without the assistance
of the SIGNATURE KITCHEN SUITE Customer
Information Center.
Follow the instructions in the SIGNATURE KITCHEN
SUITE application to perform a Smart Diagnosis
using your smartphone.
NOTE
• Smart Diagnosis™ cannot be activated unless
the appliance can be turned on using the Power
button. If the appliance cannot be turned on,
troubleshooting must be done without using Smart
Diagnosis™.
22 SMART FUNCTIONS
FCC Notice
The following notice covers the transmitter module
contained in this product.
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules and also Part 18 of the
FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in
a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference
to radio or television reception, which can be
determined by turning the equipment off and on, the
user is encouraged to try to correct the interference
by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and
the receiver.
- Connect the equipment to an outlet on a circuit
different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV
technician for help.
This device complies with Part 15, Part 18 of the
FCC Rules. Operation is subject to the following two
conditions:
1) this device may not cause harmful interference and
2) this device must accept any interference received,
including interference that may cause undesired
operation of the device.
Any changes or modications in construction of this
device which are not expressly approved by the party
responsible for compliance could void the user’s
authority to operate the equipment.
FCC RF Radiation Exposure
Statement
This equipment complies with FCC radiation
exposure limits set forth for an uncontrolled
environment. This transmitter must not be co-located
or operating in conjunction with any other antenna or
transmitter.
This equipment should be installed and operated with
a minimum distance of 20 cm (7.8 inches) between
the antenna and your body. Users must follow the
specic operating instructions for satisfying RF
exposure compliance.
Industry Canada Statement (For
transmitter module contained in this
product)
This device complies with Industry Canada’s
applicable licence- exempt RSSs. Operation is
subject to the following two conditions:
1) This device may not cause interference; and
2) This device must accept any interference, including
interference that may cause undesired operation
of the device.
Industry Canada ICES-001 Compliance Label: CAN
ICES-1/NMB-1
IC Radiation Exposure Statement
This equipment complies with IC radiation exposure
limits set forth for an uncontrolled environment.
This equipment should be installed and operated with
a minimum distance of 20 cm (7.8 inches) between
the antenna and your body.
NOTE
• The manufacturer is not responsible for any
radio or TV interference caused by unauthorized
modications to this equipment. Such modications
could void the user’s authority to operate the
equipment.
Wireless LAN Module Specications
Model LCW-003
Frequency Range 2412 MHz - 2462 MHz
Output Power (Max) IEEE 802.11b: 17.56 dBm
IEEE 802.11g: 25.53 dBm
IEEE 802.11n: 25.29 dBm
Open Source Software Notice
Information
To obtain the source code under GPL, LGPL, MPL,
and other open source licenses, that is contained
in this product, please visit http://opensource.
signaturekitchensuite.com.
In addition to the source code, all referred license
terms, warranty disclaimers and copyright notices are
available for download.
SIGNATURE KITCHEN SUITE will also provide open
source code to you on CD-ROM for a charge covering
the cost of performing such distribution (such as the
cost of media, shipping, and handling) upon email
request to [email protected].
This offer is valid for a period of three years after our
last shipment of this product. This offer is valid to
anyone in receipt of this information.
23SMART FUNCTIONS
ENGLISH
Transmitter
Receiver
Wireless Power Transfer Specications
Frequency 330 kHz ~ 370 kHz
Rated voltage DC 12V
Delivered power Less than and equal to 3W
per shelf
Transmission
mode
Electromagnetic induction
NOTE
• Foreign objects and dirt between the right side of
shelf and the inner cabinet wall could prevent the
shelf light from turning on.
• The shelf light turns on when the door is opened.
• The shelf light turns off after seven minutes or when
the door is closed.
24 MAINTENANCE
General Cleaning Tips
• The freezer defrosts automatically; however, clean it
once a month to prevent odors.
• Wipe up spills immediately.
• Unplug the freezer or disconnect power before
cleaning.
• Remove all removable parts, such as shelves.
• Use a clean sponge or soft cloth and a mild
detergent in warm water. Do not use abrasive or
harsh cleaners.
• Hand wash, rinse and dry all surfaces thoroughly.
• When cleaning the inside or outside of the
appliance, do not wipe it with a rough brush,
toothpaste, or flammable materials. Do not use
cleaning agents containing ammable substances.
- Doing so may cause discoloration or damage to
the appliance.
- Flammable substances: alcohol (ethanol,
methanol, isopropyl alcohol, isobutyl alcohol,
etc.), thinner, bleach, benzene, flammable liquid,
abrasive, etc.
Inside Walls
• Allow freezer to warm up so the cloth will not stick.
To help remove odors, wash the inside of the freezer
with a mixture of baking soda and warm water. Mix
2 tablespoons of baking soda to 1 quart of water
(26 g soda to 1 liter water.) Be sure the baking soda
is completely dissolved so it does not scratch the
surfaces of the freezer.
Door Liners and Gaskets
Use a clean sponge or soft cloth and a mild
detergent in warm water. Do not use cleaning waxes,
concentrated etergents, bleaches, or cleaners
containing petroleum on plastic freezer parts.
Plastic Parts (covers and panels)
Use a clean sponge or soft cloth and a mild detergent
in warm water. Do not use glass cleaners, abrasive
cleansers, or ammable uids. These can scratch or
damage the material.
MAINTENANCE
Cleaning
WARNING
• Use non-ammable cleaner. Failure to do so can
result in re, explosion, or death.
CAUTION
• Do not use an abrasive cloth or sponge when
cleaning the interior and exterior of the freezer.
• Do not place your hand on the bottom surface of
the freezer when opening and closing the doors.
25MAINTENANCE
ENGLISH

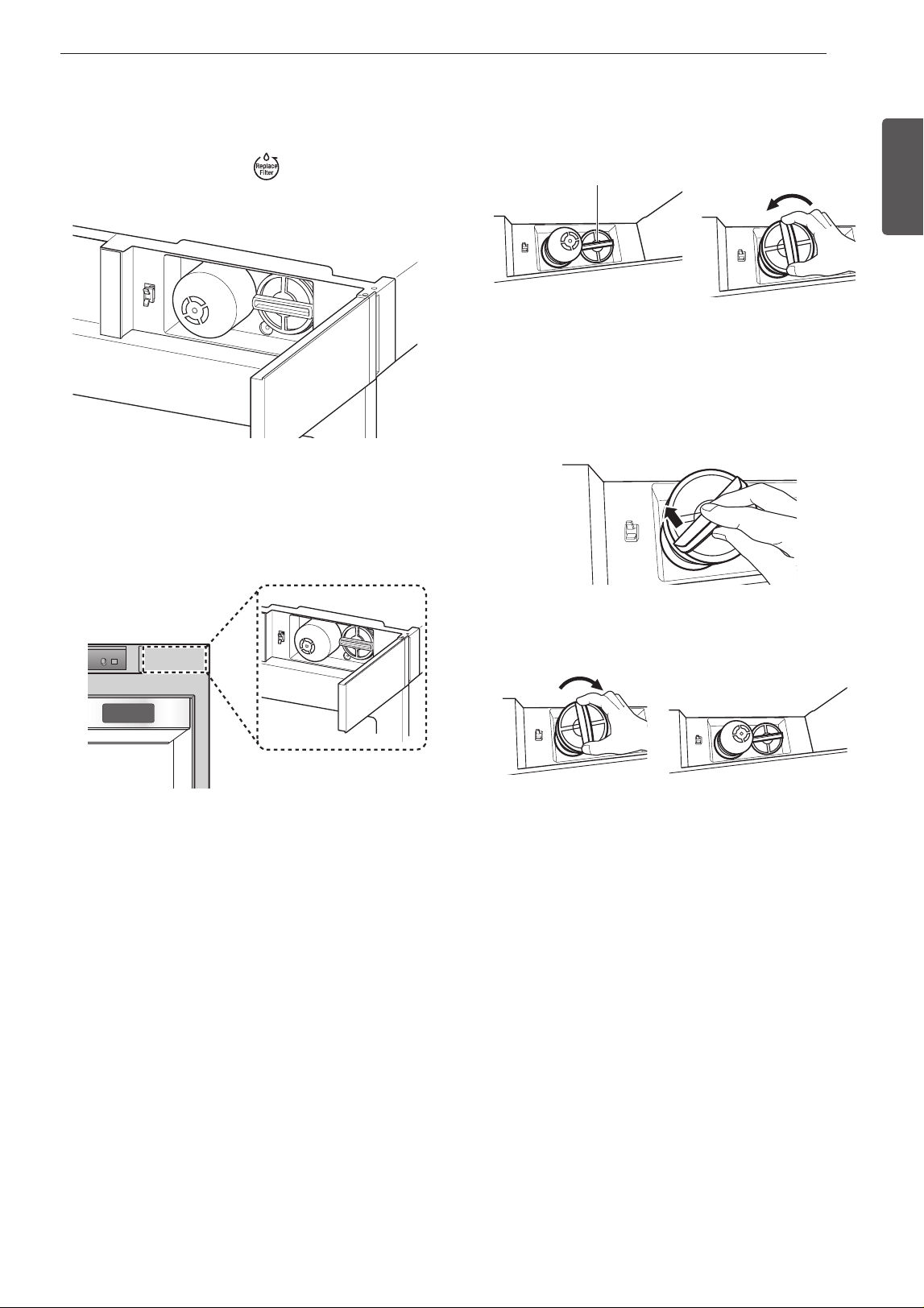

Replacing the Water Filter
Replace the Water Filter
• Approximately every six months.
• When the Replace Filter
icon turns on.
• When the icemaker output decreases.
1 Remove the old water filter.
Push to open the water filter cover at the top right
of the freezer.
NOTE
• Replacing the water lter causes a small amount of
water (around 1 oz. or 25 cc) to drain.
• Wrap a cloth around the front end of the water lter
cover to collect any leaking water. Hold the water
filter upright, once it is removed, to prevent any
remaining water from spilling out of the water lter.
2 Put the cap on water filter, then grasp and rotate
it counterclockwise to remove the water filter from
the filter head.
3 Replace with a new water filter.
Take the new water filter out of its packing and
remove the protective cover from the o-rings.
Put the cap on the new water filter, then push it
into the manifold hole until it stops.
4 Grasp and rotate cap clockwise until it stops.
Replace the cap to the side of the water filter.
Cap
26 MAINTENANCE
5 After changing the filter, press and hold the
Water Filter Reset button for three seconds to
reset the indicator light.
NOTE
To purchase a replacement water lter:
•
Visit your local dealer or distributor
•
Web : Find Parts & Accessories from Support
section of signaturekitchensuite.com
•
Call : 1-855-790-6655 (USA)
For further assistance, call:
1-855-790-6655 (USA)
•
Use replacement cartridge :
LT1000P-S (ADQ74793506)
* POWER
27MAINTENANCE
ENGLISH
P
erformance Data Sheet
Model: LT1000P-S NSF System Trade Name Code : MDJ64844601
The concentration of the indicated substances in water entering the system was reduced to a concentration less than
or equal to the permissible limit for water leaving the system as specied in NSF/ANSI Standard 42, Standard 53 and
Standard 401.
System tested and certied by NSF International against NSF/ANSI Standard 42, Standard
53 and Standard 401 for the reduction of substances listed below.
substance
Reduction
Average
Influent
Challenge
NSF specified
Challenge
Concentration
Avg %
Reduction
Average
Product Water
Concentration
Max
Permissible
Product Water
Concentration
NSF
Reduction
Requirements
Chlorine Taste
and Odor
2.0 μg/L 2.0 μg/L± 10% >97.5% 0.050 μg/L N/A ≥ 50.00%
Nominal
Particulate
Class I, , ≥ 0.5
to < 1.0 μm
12,000,000
pts/mL
At least
10,000
particles/mL
99.80% 24,000 pts/ml N/A ≥ 85.00%
Asbestos 180 MFL
10
7
to 10
8
MFL; fibers
greater than
10 μg/Lin
length
>99.00% < 1 MFL N/A ≥ 99.00%
Atrazine 8.5 μg/L
9.0 μg/L ±
10%
>94.10% 0.500 μg/L 3.0 μg/L NA
Benzene 15.0 μg/L
15.0 μg/L ±
10%
>96.60% 0.510 μg/L 5.0 μg/L NA
Carbofuran 74.0 μg/L
80.0 μg/L ±
10%
98.30% 1.258 μg/L 40 μg/L NA
Lindane 1.9 μg/L
2.0 μg/L ±
10%
>99.00% 0.019 μg/L 0.2 μg/L NA
P-Dichlorobenzene
230.0 μg/L
225.0 μg/L ±
10%
>99.80% 0.460 μg/L 75.0 μg/L NA
2,4-D 210.0 μg/L
210.0 μg/L ±
10%
>99.90% 0.210 μg/L 70.0 μg/L NA
Lead pH @6.5 140.0 μg/L
150.0 μg/L ±
10%
99.60% 0.560 μg/L 10.0 μg/L NA
Lead pH @8.5 150.0 μg/L
150.0 μg/L ±
10%
>99.70% <0.500 μg/L 10.0 μg/L NA
Mercury @ pH
6.5
5.9 μg/L
6.0 μg/L ±
10%
91.00% 0.531 μg/L 2.0 μg/L NA
(Continued on next page)
28 MAINTENANCE
substance
Reduction
Average
Influent
Challenge
NSF specified
Challenge
Concentration
Avg %
Reduction
Average
Product Water
Concentration
Max
Permissible
Product Water
Concentration
NSF
Reduction
Requirements
Mercury @ pH
8.5
5.6 μg/L 6.0 μg/L ± 10% 92.5% 0.420 μg/L 2.0 μg/L NA
Cyst*
100,000
cysts/L
Minimum
50,000 cysts/L
>99.99% 10 cysts/L N/A ≥ 99.95%
Atenolol 240 ng/L
200 ± 40%
ng/L
> 95.50% 10.80 ng/L 30 ng/L NA
Carbamazepine 1600 ng/L
1400 ± 40%
ng/L
98.40% 25.60 ng/L 200 ng/L NA
DEET 1600 ng/L
1400 ± 40%
ng/L
97.10% 46.40 ng/L 200 ng/L
NA
Trimethoprim 170 ng/L
140 ± 40%
ng/L
>96.80% 5.44 ng/L 20 ng/L
NA
Linuron 160 ng/L
140 ± 40%
ng/L
>96.60% 5.44 ng/L 20 ng/L
NA
Phenytoin 200 ng/L
200 ± 40%
ng/L
>94.80% 10.40 ng/L 30 ng/L
NA
Ibuprofen 400 ng/L
400 ± 40% ng/
L
>94.50% 22.00 ng/L 60 ng/L
NA
Naproxen 140 ng/L
140 ± 40% ng/
L
>96.10% 5.46 ng/L 20 ng/L
NA
Estrone 120 ng/L
140 ± 40% ng/
L
>96.10% 4.68 ng/L 20 ng/L
NA
Bisphenol A 2000 ng/L
2000 ± 40%
ng/L
>98.90% 22.00 ng/L 300 ng/L
NA
Nonyl Phenol 1600 ng/L
1400 ± 40%
ng/L
>97.10% 46.40 ng/L 200 ng/L
NA
•
Based on the use of Cryptosporidium parvum oocysts.
29MAINTENANCE
ENGLISH
Application Guidelines/Water Supply
Parameters
Service Flow 0.5 gpm (1.89 lpm)
Water Supply Community or Private Well -
Potable Water
Water Pressure 20 – 120 psi (138 – 827 kPa)
Water Temperature 33 °F – 100 °F (0.6 °C – 37.8
°C)
Capacity 200 gallons (757 liters)
It is essential that the manufacturer’s recommended
installation, maintenance and filter replacement
requirements be carried out for the product to perform
as advertised.
NOTE
•
While the testing was performed under standard
laboratory conditions, actual performance may vary.
Replacement Cartridge: LT1000P-S
For replacement filters, visit your local dealer or
distributor or search under "water filters" on the
signaturekitchensuite.com website.
For further assistance, the SIGNATURE KITCHEN
SUITE Customer Information Center is open 24 hours
a day/7 days a week.
USA: 1-855-790-6655
NSF is trademark of NSF.
WARNING
To reduce the risk associated with choking:
• Do not allow children under 3 years of age to
have access to small parts during the installation
of this product.
To reduce the risk associated with the
ingestion of contaminants:
• Do not use with water that is microbiologically
unsafe or of unknown quality without adequate
disinfection before or after the system. Systems
certied for cyst reduction may be used on
disinfected water that may contain lterable
cysts. EPA Establishment # 070595-MEX-001
CAUTION
To reduce the risk associated with property
damage due to water leakage:
• Read and follow Use Instructions before
installation and use of this system.
• Installation and use MUST comply with all state
and local plumbing codes.
• Do not install if water pressure exceeds 120 psi
(827 kPa). If your water pressure exceeds 80
psi, you must install a pressure limiting valve.
Contact a plumbing uncertain how to check your
water pressure.
• Do not install where water hammer conditions
may occur. If water hammer conditions exist you
must install a water hammer arrester. Contact a
plumbing professional if you are uncertain how to
check for this condition.
• Do not install on hot water supply lines. The
maximum operating water temperature of this
lter system is 100 °F (37.8 °C).
• Protect lter from freezing. Drain lter when
temperatures drop below 40 °F (4.4 °C).
• The disposable lter cartridge MUST be replaced
every 6 months, at the rated capacity or if a
noticeable reduction in ow rate occurs.
• Protect from freezing, remove lter cartridge
when temperatures are expected to drop below
33° F.
• Do not install systems in areas where ambient
temperatures may go above 110° F (43.3° C).
• Where a backow prevention device is installed
on a water system, a device for controlling
pressure due to thermal expansion must be
installed.
• Ensure all tubing and ttings are secure and free
of leaks.
30 TROUBLESHOOTING
TROUBLESHOOTING
FAQs: Frequently Asked Questions
Q: What are the best temperature settings for my freezer?
A: The default setting for the freezer is 0° Fahrenheit (-18° Celsius). Adjust these settings as necessary
to keep food at desired temperatures. Ice cream should be rm and ice cubes should not melt in
the freezer. To switch the display from Fahrenheit to Celsius, press the Freezer button rst to wake
the display then press and hold the Freezer and Smart Grid buttons until you hear a beep and the
settings in the display change.
Q: How do I set the freezer temperature?
A: Continually press the Freezer button on the control panel until the desired temperature appears.
The numbers will cycle from highest to lowest and then return to the highest again with continuous
pressing.
Q: Why do I hear a buzzing noise from my freezer periodically?
A: This may happen if you do not have a water source attached to your freezer and the icemaker is
turned on. If you do not have a water source attached to the freezer you should turn the icemaker off
on the control panel.
Q: Why does the icemaker tray look crooked?
A: This is a normal part of the icemaker cycle. The icemaker tray may appear level or with a slight tilt.
The change in position is to assist in the freezing process.
Q:
My freezer is powered on and the controls are working, but it’s not cooling and the display
shows “OF” (see below). What is wrong?
A:
The freezer is in Demo Mode. This mode disables cooling to save energy while the appliance is on
display in a store. To restore normal operation, press Freezer button rst to wake the display then
press and hold the Freezer and Water Filter Reset buttons until you hear a beep and the temperature
setting appears in the display. Use the same procedure to return the freezer to Demo Mode, if
desired.
31TROUBLESHOOTING
ENGLISH
Before Calling for Service
Review this section before calling for service; doing so will save you both time and money.
Cooling
Problem Possible Cause Solutions
Refrigerator and
Freezer section are
not cooling.
The control is set to OFF
(some models).
Turn the control ON. Refer to the Setting the Controls
section for proper temperature settings.
Appliance is set to Demo
Mode.
Demo Mode allows the lights and control display to work
normally while disabling cooling, to save energy while
the appliance is on the showroom oor. See the FAQs
section of this manual for instructions on how to disable
Demo Mode.
Appliance is in the defrost
cycle.
During the defrost cycle, the temperature of each
compartment may rise slightly. Wait 30 minutes and
conrm the proper temperature has been restored once
the defrost cycle has completed.
Appliance was recently
installed.
It may take up to 24 hours for each compartment to
reach the desired temperature.
Appliance was recently
relocated.
If the appliance was stored for a long period of time or
moved on its side, it is necessary for the appliance to
stand upright for 24 hours before connecting it to power.
Cooling system
runs too much.
Appliance is replacing an older
model.
Modern appliances require more operating time but use
less energy due to more efcient technology.
Appliance was recently
plugged in or power restored.
The appliances will take up to 24 hours to cool
completely.
The door is opened often or a
large amount of food / hot food
was added.
Adding food and opening the door warms the freezer,
requiring the compressor to run longer in order to cool
the freezer back down. In order to conserve energy, try to
get everything you need out of the freezer at once, keep
food organized so it is easy to nd, and close the door as
soon as the food is removed. (Refer to the Food Storage
Guide.)
Doors are not closed
completely.
Firmly push the doors shut. If they will not shut all the
way, see the "Doors will not close correctly or pop open"
section.
Freezer is installed in a hot
location.
The compressor will run longer under warm conditions.
At normal room temperatures (70 °F) expect your
compressor to run about 40 % to 80 % of the time. Under
warmer conditions, expect it to run even more often. The
freezer should not be operated above 110 °F.
32 TROUBLESHOOTING
Cooling
Problem Possible Cause Solutions
Interior moisture
buildup.
Doors are opened often or for
long periods of time.
When the doors are opened often or for long periods
of time, warm, humid air enters the compartment. This
raises the temperature and moisture level within the
compartment. To lessen the effect, reduce the frequency
and duration of door openings.
Doors are not closed correctly.
See the "Doors will not close correctly or pop open"
section.
Weather is humid.
Humid weather allows additional moisture to enter the
compartments when the doors are opened leading to
condensation or frost. Maintaining a reasonable level of
humidity in the home will help to control the amount of
moisture that can enter the compartments.
Defrost cycle recently
completed.
During the defrost cycle, the temperature of each
compartment may rise slightly and condensation may
form on the back wall. Wait 30 minutes and conrm that
the proper temperature has been restored once the
defrost cycle has completed.
Food is not packaged
correctly.
Food stored uncovered or unwrapped, and damp
containers can lead to moisture accumulation within each
compartment. Wipe all containers dry and store food in
sealed packaging to prevent condensation and frost.
Freezer is too
warm.
Freezer was recently installed.
It may take up to 24 hours for each compartment to
reach the desired temperature.
The air vents are blocked.
Locate air vents by using your hand to sense airow and
move all packages that block vents and restrict airow.
Rearrange items to allow air to ow throughout the
compartment.
33TROUBLESHOOTING
ENGLISH
Cooling/Ice & Water
Problem Possible Cause Solutions
Freezer is too
warm.
Doors are opened often or for
long periods of time.
When the doors are opened often or for long periods
of time, warm, humid air enters the compartment. This
raises the temperature and moisture level within the
compartment. To lessen the effect, reduce the frequency
and duration of door openings.
Unit is installed in a hot
location.
The freezer should not be operated in temperatures
above 110 °F.
A large amount of food or
hot food was added to the
compartment.
Adding food warms the compartment requiring the
cooling system to run. Allowing hot food to cool to room
temperature before putting it in the freezer will reduce
this effect.
Doors not closed correctly.
See the Doors will not close correctly or pop open
section in Parts & Features Troubleshooting.
Temperature control is not set
correctly.
If the temperature is too warm, adjust the control one
increment at a time and wait for the temperature to
stabilize.
Defrost cycle has recently
completed.
During the defrost cycle, the temperature of the
compartment may rise slightly and condensation may
form on the back wall. Wait 30 minutes and conrm the
proper temperature has been restored once the defrost
cycle has completed.
Freezer is too cold.
Incorrect temperature control
settings.
If the temperature is too cold, adjust the control one
increment at a time and wait for the temperature to
stabilize. Refer to the Control Panel for more information.
Frost or ice crystals
form on frozen food
(inside of sealed
package).
Condensation from food with a
high water content has frozen
inside of the food package.
This is normal for food items with a high water content.
Food has been left in the
freezer for a long period of
time.
Do not store food items with high water content in the
freezer for a long period of time.
Frost or ice crystals
form on frozen
food (outside of
package).
Door is opened frequently or
for long periods of time.
When the doors are opened often or for long periods
of time, warm, humid air enters the compartment. This
raises the temperature and moisture level within the
compartment. Increased moisture will lead to frost and
condensation. To lessen the effect, reduce the frequency
and duration of door openings.
Door is not closing properly.
Refer to the Doors will not close correctly or pop open
section in the Troubleshooting section.
34 TROUBLESHOOTING
Ice & Water
Problem Possible Cause Solutions
Icemaker is
not making
enough ice.
Demand exceeds ice storage
capacity.
The icemaker will produce approximately 70-184 cubes
in a 24 hour period.
House water supply is not
connected, valve is not turned on
fully, or valve is clogged.
Connect the freezer to a cold water supply with adequate
pressure and turn the water shutoff valve fully open. If
the problem persists, it may be necessary to contact a
plumber.
Water lter has been exhausted.
Replacing the water lter is recommended:
Approximately every six months.
When the water lter indicator turns on.
When the water dispenser output decreases.
When the ice cubes are smaller than normal.
Low house water supply pressure.
The water pressure must be between 20 and 120 psi on
models without a water lter and between 40 and 120 psi
on models with a water lter. If the problem persists, it
may be necessary to contact a plumber.
Reverse Osmosis ltration system
is used.
Reverse osmosis ltration systems can reduce the
water pressure below the minimum amount and result
in icemaker issues. (Refer to the Connecting the Water
Line section.)
Tubing connecting freezer to house
supply valve is kinked.
The tubing can kink when the freezer is moved during
installation or cleaning resulting in reduced water ow.
Straighten or repair the water supply line and arrange it
to prevent future kinks.
Doors are opened often or for long
periods of time.
If the doors of the unit are opened often, ambient air
will warm the freezer which will prevent the unit from
maintaining the set temperature. Lowering the freezer
temperature can help, as well as not opening the doors
as frequently.
Doors are not closed completely.
If the doors are not properly closed, ice production will be
affected. See the "Doors will not close correctly or pop
open" section in Parts & Features Troubleshooting for
more information.
The temperature setting for the
freezer is too warm.
The recommended temperature for the freezer
compartment for normal ice production is 0°F. If the
freezer temperature is warmer, ice production will be
affected.
Icemaker is
not making
ice
Freezer was recently installed or
icemaker recently connected.
It may take up to 24 hours for each compartment to
reach the desired temperature and for the icemaker to
begin making ice.
Icemaker not turned on.
Locate the icemaker ON/OFF and conrm that it is
turned on.
35TROUBLESHOOTING
ENGLISH
Ice & Water
Problem Possible Cause Solutions
Icemaker is not
making ice
The ice detecting sensor is
obstructed.
Foreign substances or frost on the ice-detecting sensor
can interrupt ice production. Make sure that the sensor
area is clean at all times for proper operation.
The freezer is not connected
to a water supply or the supply
shutoff valve is not turned on.
Connect the freezer to the water supply and turn the
water shutoff valve fully open.
Icemaker shutoff (arm or
sensor) obstructed.
If your icemaker is equipped with an ice shutoff arm,
make sure that the arm moves freely. If your icemaker
is equipped with the electronic ice shutoff sensor, make
sure that there is a clear path between the two sensors.
Reverse osmosis water
ltration system is connected
to your cold water supply.
Reverse osmosis ltration systems can reduce the
water pressure below the minimum amount and result
in icemaker issues. (Refer to the Connecting the Water
Line section.)
Ice has bad taste or
odor.
Water supply contains
minerals such as sulfur.
A water lter may need to be installed to eliminate taste
and odor problems. NOTE: In some cases, a lter may
not help. It may not be possible to remove all minerals/
odor/taste in all water supplies.
Icemaker was recently
installed.
Ice that has been stored for too long will shrink, become
cloudy, and may develop a stale taste. Throw away old
ice and make a new supply.
The food has not been stored
properly in the compartment.
Rewrap the food. Odors may migrate to the ice if food is
not wrapped properly.
The interior of the freezer
needs to be cleaned.
See the Maintenance section for more information.
The ice storage bin needs to
be cleaned.
Empty and wash the bin (discard old cubes). Make sure
that the bin is completely dry before reinstalling it.
Icemaker is making
too much ice.
Icemaker shutoff (arm/ sensor)
is obstructed.
Empty the ice bin. If your icemaker is equipped with an
ice shutoff arm, make sure that the arm moves freely. If
your icemaker is equipped with the electronic ice shutoff
sensor, make sure that there is a clear path between the
two sensors. Reinstall the ice bin and wait 24 hours to
conrm proper operation.
36 TROUBLESHOOTING
Parts & Features
Problem Possible Cause Solutions
Doors will not close
correctly or pop
open.
Food packages are blocking
the door open.
Rearrange food containers to clear the door and door
shelves.
Ice bin, crisper cover, pans,
shelves, door bins, or baskets
are out of position.
Push bins all the way in and put crisper cover, pans,
shelves and baskets into their correct positions. See the
Operation section for more information.
The doors were removed
during product installation and
not properly replaced.
Remove and replace the doors according to the
installation instructions.
Freezer is not leveled properly.
See Door Alignment in the installation instructions to
level freezer.
Door is difcult to
open.
The gaskets are dirty or sticky.
Clean the gaskets and the surfaces that they touch. Rub
a thin coat of appliance polish or kitchen wax on the
gaskets after cleaning.
Door was recently closed.
When you open the door, warmer air enters the freezer.
As the warm air cools, it can create a vacuum. If the door
is hard to open, wait one minute to allow the air pressure
to equalize, then see if it opens more easily.
Lights do not work. LED interior lighting failure.
The freezer compartment lamp is LED interior lighting,
and service should be performed by a qualied
technician.
The interior of the
freezer is covered
with dust or soot.
The freezer is located near
a re source, such as a
replace, chimney, or candle.
Make sure that the freezer is not located near a re
source, such as a replace, chimney or candle.
37TROUBLESHOOTING
ENGLISH
Noises
Problem Possible Cause Solutions
Clicking
The defrost control will click when the
automatic defrost cycle begins and ends.
The thermostat control (or refrigerator
control on some models) will also click
when cycling on and off.
Normal Operation
Rattling
Rattling noises may come from the ow
of refrigerant, the water line on the back
of the unit, or items stored on top of or
around the freezer.
Normal Operation
Freezer is not resting solidly on the oor.
Floor is weak or uneven or leveling legs need
to be adjusted. See the Leveling and Door
Alignment section.
Freezer with linear compressor was jarred
while running.
Normal Operation
Whooshing
Evaporator fan motor is circulating air
through the freezer compartment.
Normal Operation
Air is being forced over the condenser by
the condenser fan.
Normal Operation
Gurgling
Refrigerant owing through the cooling
system.
Normal Operation
Popping
Contraction and expansion of the inside
walls due to changes in temperature.
Normal Operation
Sizzling
Water dripping on the defrost heater
during a defrost cycle.
Normal Operation
Vibrating
If the side or back of the freezer is
touching a cabinet or wall, some of the
normal vibrations may make an audible
sound.
To eliminate the noise, make sure that the
sides and back cannot vibrate against any
wall or cabinet.
Dripping
Water running into the drain pan during
the defrost cycle.
Normal Operation
Pulsating or high-
pitched sound
Your freezer is designed to run more
efciently to keep your food items at the
desired temperature. The high efciency
compressor may cause your new freezer
to run longer than your old one, but it is
still more energy efcient than previous
models. While the freezer is running, it is
normal to hear a pulsating or high-pitched
sound.
Normal Operation
38 TROUBLESHOOTING
Wi-Fi Network
Problem Possible Cause Solutions
Your home appliance and
smartphone is not connected to
the Wi-Fi network.
The password for the Wi-Fi that
you are trying to connect to is
incorrect.
• Find the Wi-Fi network connected
to your smartphone and remove
it, then register your appliance on
SIGNATURE KITCHEN SUITE
application
Mobile data for your smartphone
is turned on.
• Turn off the Mobile data of your
smartphone and register the
appliance using the Wi-Fi network.
The wireless network name (SSID)
is set incorrectly.
• The wireless network name (SSID)
should be a combination of English
letters and numbers. (Do not use
special characters.)
The router frequency is not 2.4
GHz.
• Only a 2.4 GHz router frequency
is supported. Set the wireless
router to 2.4 GHz and connect the
appliance to the wireless router. To
check the router frequency, check
with your Internet service provider
or the router manufacturer.
The distance between the
appliance and the router is too far.
• If the distance between the
appliance and the router is too far,
the signal may be weak and the
connection may not be congured
correctly. Move the location of the
router so that it is closer to the
appliance.
39LIMITED WARRANTY
ENGLISH
LIMITED WARRANTY
FOR USA
Should your SIGNATURE KITCHEN SUITE (“Product”) fail due to a defect in materials or workmanship under
normal and proper use, during the warranty period set forth below, SIGNATURE KITCHEN SUITE will, at its
option, repair or replace the Product. This limited warranty is valid only to the original retail purchaser of the
Product and applies only when purchased and used within the United States including U.S. Territories.
WARRANTY PERIOD
Refrigerator/
Freezer
Sealed System
(Condenser, Dryer,
Connecting Tube and
Evaporator)
Compressor
Three (3) years from
the date of original
retail purchase
Five (5) years from the date
of original retail purchase
Five (5) years from
the date of original
retail purchase
Linear / Inverter Compressor Only :
Parts Only for years 6-10 from the date
of original retail purchase (Consumer
will be charged for labor)
Parts and Labor
(internal/ functional
parts only)
Parts and Labor Parts and Labor
•
Replacement products and parts are warranted for the remaining portion of the original warranty period or
ninety (90) days, whichever is greater.
•
Replacement products and parts may be new, reconditioned, refurbished, or otherwise factory remanufactured.
•
Proof of original retail purchase specifying the Product model and date of purchase is required to obtain
warranty service under this limited warranty.
EXCEPT TO THE EXTENT PROHIBTED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THE PRODUCT IS LIMITED IN
DURATION TO THE DURATION OF THE ABOVE LIMITED WARRANTY. UNDER NO CIRCUMSTANCES
SHALL SIGNATURE KITCHEN SUITE OR ITS U.S. DISTRIBUTORS/DEALERS BE LIABLE FOR ANY
INDIRECT, INCIDENTAL, CONSEQUENTIAL, SPECIAL, OR PUNITIVE DAMAGES, INCLUDING, WITHOUT
LIMITATION, LOST GOODWILL, LOST REVENUES OR PROFITS, WORK STOPPAGE, IMPAIRMENT OF
OTHER GOODS, COST OF REMOVAL AND REINSTALLATION OF THE PRODUCT, LOSS OF USE, OR ANY
OTHER DAMAGES WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE. SIGNATURE KITCHEN
SUITE’S TOTAL LIABILITY, IF ANY, SHALL NOT EXCEED THE PURCHASE PRICE PAID BY YOU FOR THE
PRODUCT.
Some states do not allow the exclusion or limitation of incidental or consequential damages or limitations on how
long an implied warranty lasts, so the above exclusions or limitations may not apply to you. This limited warranty
gives you specific legal rights and you may also have other rights that vary from state to state.
THIS LIMITED WARRANTY DOES NOT COVER:
•
Service trips to deliver, pick up, or install, educate how to operate, correct wiring, or correct unauthorized
repairs.
•
Damage or failure of the Product to perform during power failures and interrupted or inadequate electrical
service.
•
Damage or failure caused by leaky or broken water pipes, frozen water pipes, restricted drain lines, inadequate
or interrupted water supply or inadequate supply of air.
•
Damage resulting from operating the product in a corrosive atmosphere or contrary to the product owner’s
manual.
40 LIMITED WARRANTY
•
Damage or failure to the Product caused by accidents, pests and vermin, lightning, wind, re, oods, acts of
God, or any other causes beyond the control of SIGNATURE KITCHEN SUITE.
•
Damage or failure caused by unauthorized modication or alteration, or if used for other than the intended
purpose.
•
Damage or failure resulting from misuse, abuse, improper installation, repair, or maintenance. Improper repair
includes use of parts not authorized by SIGNATURE KITCHEN SUITE. Improper installation or maintenance
includes installation or maintenance contrary to the Product owner’s manual or installation manual.
•
Damage or failure caused by incorrect electrical current, voltage, or plumbing codes.
•
Damage or failure caused by transportation and handling, including scratches, dents, chips, and/or other
damage to the nish of the Product, unless such damage is reported within one (1) week of delivery.
•
Damage or missing items to any display, open box, or discounted Product.
•
Refurbished Product or any Product sold “As Is”, “Where Is”, “With all Faults”, or similar disclaimer.
•
Products with original serial numbers that have been removed, altered, or cannot be readily determined.
•
Increases in utility costs and additional utility expenses.
•
Any noises associated with normal operation.
•
Use of accessories (e.g., water lters, etc.), components, or consumable cleaning products that are not
authorized by SIGNATURE KITCHEN SUITE.
•
Replacement of light bulbs, lters, or any consumable parts.
•
When Product is used for other than normal and proper household use (e.g. commercial or industrial use,
ofces, and recreational facilities or vehicles) or contrary to the instructions outlined in the Product’s owner’s
manual.
•
Costs associated with removal and reinstallation of your Product for repairs.
•
Shelves, door bins, drawers, handle and accessories, except for internal/functional parts covered under this
limited warranty.
The cost of repair or replacement under these excluded circumstances shall be borne by the consumer.
TO OBTAIN WARRANTY SERVICE AND ADDITIONAL INFORMATION
Call 1-855-790-6655 and select the appropriate option from the menu.
Or visit our website at http://www.signaturekitchensuite.com.
Or by mail: SIGNATURE KITCHEN SUITE Customer Service P.O. Box 240007 Huntsville, AL 35813 ATTN: CIC
1-855-790-6655
