08/54279/0 Issue 1
OCN:
OPERATING
INSTRUCTION MANUAL
The product complies with the European Safety Standards and the European Standard Electromagnetic Compatibility (EMC).
These cover the essential requirements of EMC Directives and the LVD Directive.
EN : This product is only suitable for well insulated rooms or occasional use. DE : Dieses Produkt ist nur für gut isolierte Bereiche oder gelegentli-
che Verwendung geeignet. FR : Ce produit convient uniquement à des endroits bien isolés ou pour un usage occasionnel. IT : Questo prodotto è
adatto solo per spazi ben isolati o per uso occasionale. ES : Este producto sólo es adecuado para espacios bien aislados o un uso ocasional. NL :
Dit product is uitsluitend geschikt voor goed geïsoleerde ruimten of voor sporadisch gebruik. PL : Produkt ten jest odpowiedni wyłącznie do dobrze
odizolowanych miejsc lub do okazjonalnego użytku. NO : Dette produktet egner seg kun for godt isolerte rom eller sporadisk bruk. RO : Acest
produs este adecvat exclusiv spaţiilor bine ventilate sau utilizării ocazionale. CZ : Tento výrobek je vhodný pouze do dobře izolovaných prostor
nebo k příležitostnému použití. DK : Dette produkt er kun egnet til velisolerede rum eller lejlighedsvis brug. PT : Este produto somente é ade-
quado para espaços bem isolados ou uso ocasional. SE : Denna produkt är endast avsedd för välisolerade utrymmen eller tillfällig användning.
FI : Tämä tuote soveltuu ainoastaan hyvin eristettyihin tiloihin tai satunnaiseen käyttöön. SK : Tento výrobok je vhodný len pre dobre izolované
priestory alebo na občasné použitie. SI : Ta izdelek je primeren le za dobro izolirane prostore ali za občasno uporabo. HR : Ovaj proizvod je
pogodan samo za dobro izolirane prostore ili povremenu upotrebu. HU : Ez a termék csak jól szigetelt terekhez vagy eseti használatra alkalmas.
Dimplex Electric Radiant Fire
Models: Yeominster YEO20
Important Safety Advice
When using electrical appliances, basic
precautions should always be followed
to reduce the risk of re, electrical shock,
and injury to persons, including the
following:
CAUTION: Some parts of this product
can become very hot and cause burns.
Particular attention has to be given
where children and vulnerable people
are present.
Do not use in the immediate surroundings
of a bath, shower or swimming pool.
The guard on this appliance conforms
to the requirements of BS 1945 (1971)
and satisfies the heating appliances
(reguards) regulations 1973. The guard
is to prevent the risk of fire or injury
from burns, and no part of it should be
permanently removed.
This appliance is not intended for use
by children or other persons without
assistance or supervision if their physical,
sensory or mental capabilities prevent
them from using it safely.
In the event of a fault unplug the heater.
Unplug the heater when not required for
long periods.
Keep the supply cord away from the front
of the heater.
Do not use this heater in series with a
thermal control, a program controller, a
timer or any other device that switches
on the heat automatically, since a re risk
exists when the heater is accidentally
covered or displaced.
Ensure that furniture, curtains or other
combustible material are positioned no
closer than 1 metre from the heater.
If the supply cord is damaged it must be
replaced by the manufacturer or service
agent or a similarly qualied person in
order to avoid a hazard.
Although this heater complies with safety
standards, we do not recommend its use
on deep pile carpets or on long hair type
of rugs.
WARNING : THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE
This heater is not equipped with a device to
control the room temperature. Do not use this
heater in small rooms when they are occupied
by persons not capable of leaving the room
on their own, unless constant supervision is
provided
The appliance must be positioned so that the
plug is accessible.
This appliance must not be located
immediately in front, above or below a
xed socket outlet or connection box.
This appliance can be used by children
aged from 8 years and above and persons
with reduced physical, sensory or mental
capabilities or lack of experience and
knowledge if they have been given
supervision or instruction concerning
use of the appliance in a safe way and
understand the hazards involved. Children
shall not play with the appliance. Cleaning
and user maintenance shall not be made
by Children without supervision.
Children of less than 3 years should
be kept away unless continuously
supervised. Children aged from 3 years
and less than 8 years shall only switch
on/off the appliance provided that it has
been placed or installed in its intended
normal operating position and they have
been given supervision or instruction
concerning use of the appliance in a
safe way and understanding the hazards
involved. Children aged from 3 years
and less than 8 years shall not plug
in, regulate and clean the appliance or
perform user maintenance.
Do not use outdoors.
Introduction
Unpack the heater carefully and retain all packaging for future
use.
Always ensure that the heater is stood on a rm, level base near
to, but not directly beneath, a suitable mains supply socket.
It is recommended that this heater be restrained to the wall as
described in “Restraint” later.

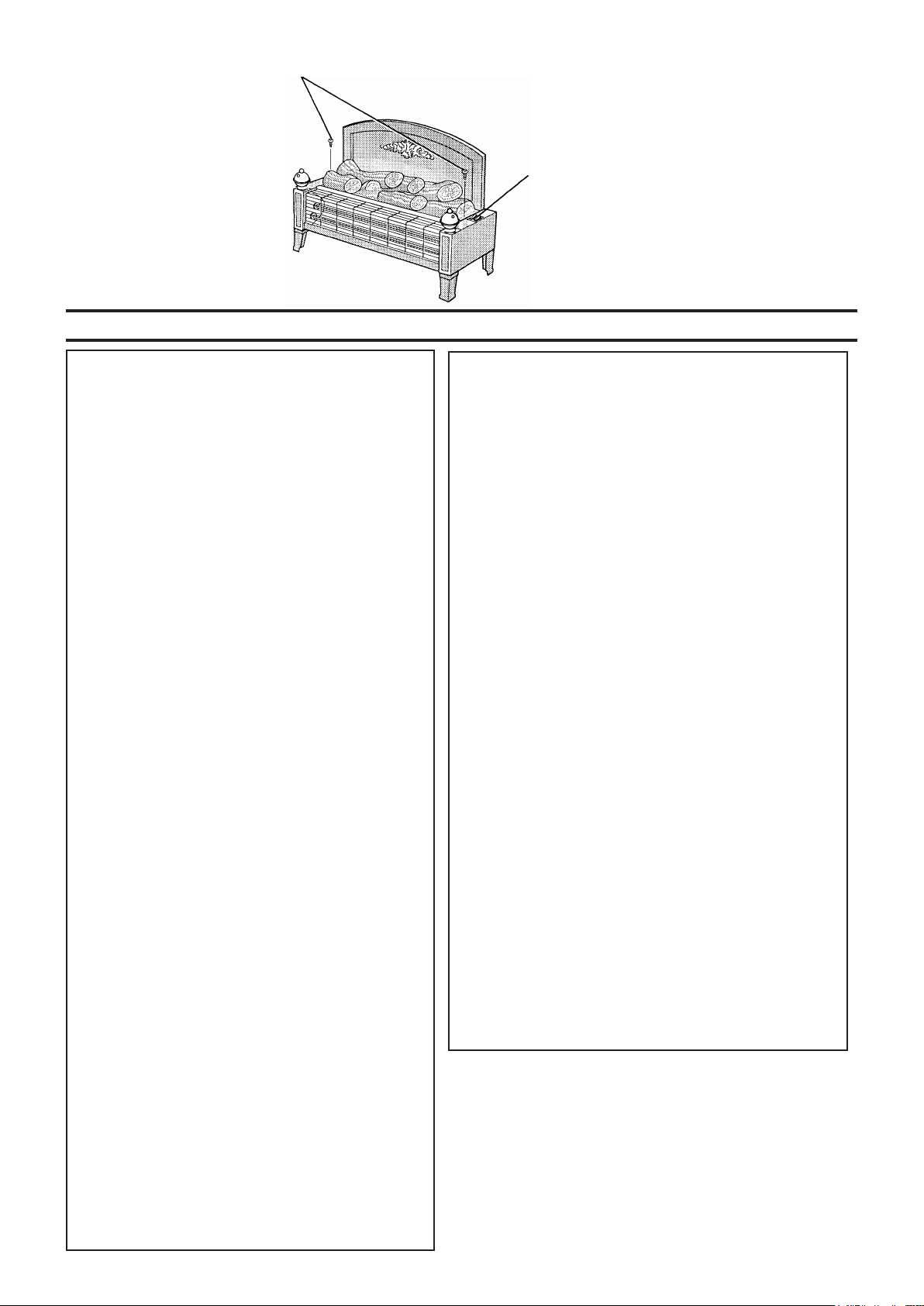

Fig. 1
Remove for access to
lamp and icker rotor
Radiant element
switches
Maintenance
WARNING : ALWAYS DISCONNECT FROM THE POWER
SUPPLY BEFORE ATTEMPTING ANY MAINTENANCE.

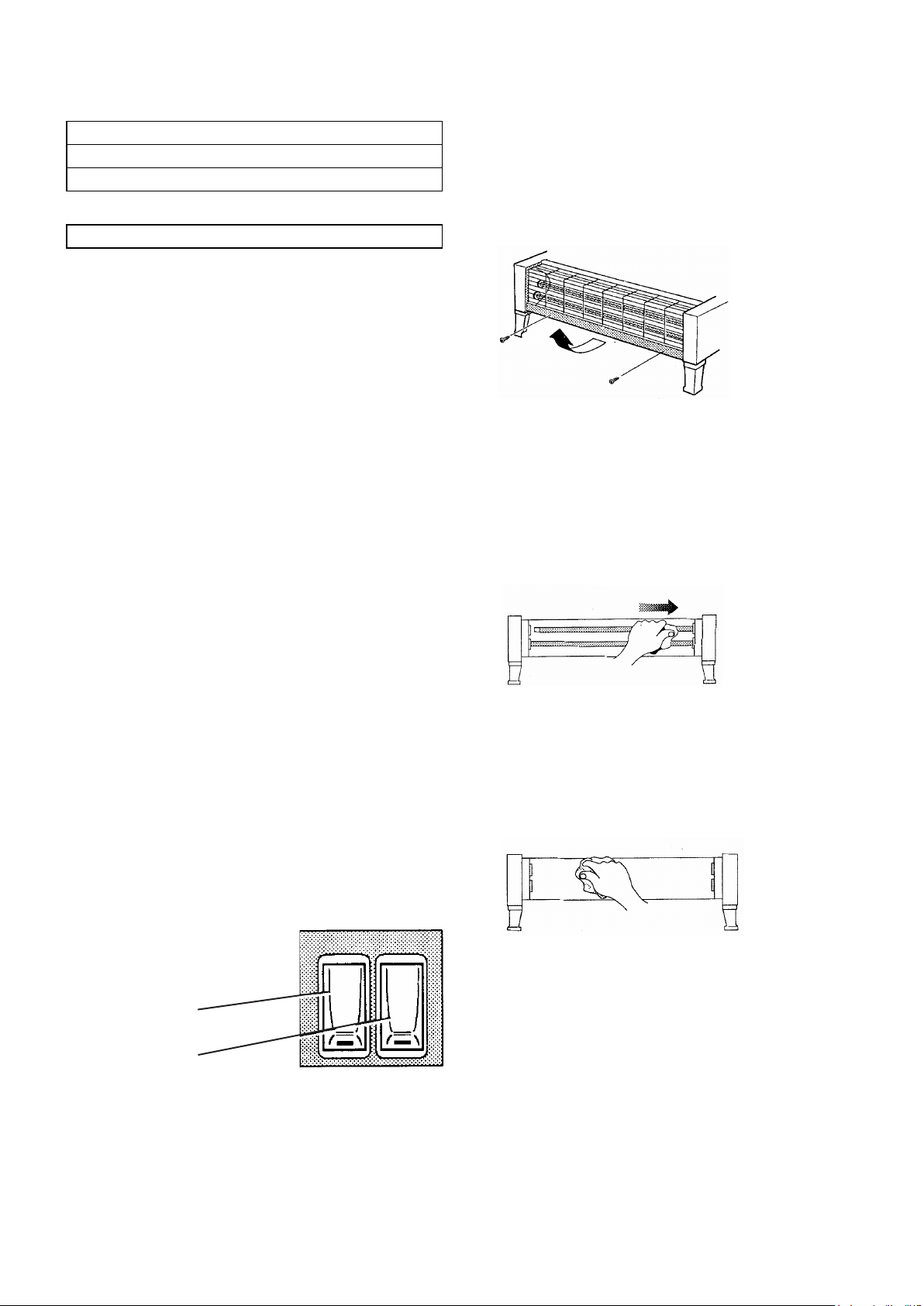

Removing the guard
To remove the guard, remove the two screws along the bottom
edge of the guard, then swing the guard upwards to gain access
to the elements - see Fig. 3.
Replace the guard in reverse order.
Removing the elements
The element holders are spring loaded. To remove an element,
grip one end using a soft cloth to protect the surface, then push
carefully but rmly to one side until the other end disengages
from its socket. Withdraw the element carefully - see Fig. 4.
Ret in reverse order.
Cleaning the reector
The reector may be more easily cleaned if the elements are
rst removed (see previous). Wipe the reector with a warm
soapy cloth, then buff with a soft dry cloth - see Fig. 5.
DO NOT use abrasive cleaning powders or metal polish.
Lamp replacement
Remove the fuel effect (two screws) - see Fig. 1 and replace
the defective lamp with a 60 or 40 watt, 220/250 volt, 2 pin
bayonet cap (BC) re glow fuel effect lamp. Ensure that the
icker rotor spins freely, then reassemble.
The left-hand
switch controls the
lower element
The right-hand switch
controls the upper
element
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Technical Information
Electrical connection
WARNING – THIS APPLIANCE MUST BE EARTHED
This heater must be used on an AC ~ supply only and the
voltage marked on the heater must correspond to the supply
voltage.
Before switching on, please read the safety warnings and
operating instructions.
In the event of replacing the fuse in the plug supplied, a 13 amp
fuse approved by ASTA to BS1362 must be used.
Using the heater
Before switching on remove the fuel effect (two screws - see
Fig. 1) and check that the lamp and icker rotor are positioned
correctly.
The icker rotor should sit horizontal on its pin and spin freely
without fouling its mounting brackets. If necessary, adjust the
bracket by bending slightly.
Ret the fuel effect by inserting the front edge rst, then secure
with the screws. Ensure that all packing items are removed
(read any warning labels carefully) and that the radiant elements
and fuel effect are positioned correctly, otherwise damage may
occur.
Operation
When you are certain that you have completed the installation,
plug in and switch on at the wall socket.
The fuel effect will light.
The icker rotor will begin to rotate after a minute or so.
Radiant elements
Each of the two radiant elements provides 600 watts of heat.
A switch is set to ON when the red dot is visible.
For full heat, set both switches to ON - see Fig. 2.
Switch off at the wall socket to turn the heater off completely.
Unplug from the wall socket when not in use.
Model No: YEO20
Heat Output 230V 240V
Nominal Heat Output
P
Nom
1.15 - 1.25 kW
Minimum Heat Output
P
min
0.6 - 0.6 kW
Maximum Continous Heat Output
P
max,c
1.2 - 1.3 kW
Auxiliary Electricity Consumption
In Standby mode el
SB
0.00 - 0.00 W
Cleaning
Before cleaning the heater, disconnect it by pulling out the
plug from the wall socket. Do not use detergents, abrasive
cleaning powder or polish of any kind on the body of the heater.
Allow the heater to cool, then wipe with a dry cloth to remove
dust and a damp cloth (not wet) to clean off stains. Be careful
not to allow moisture into the heater.
To clean the reector, see ‘Maintenance’.

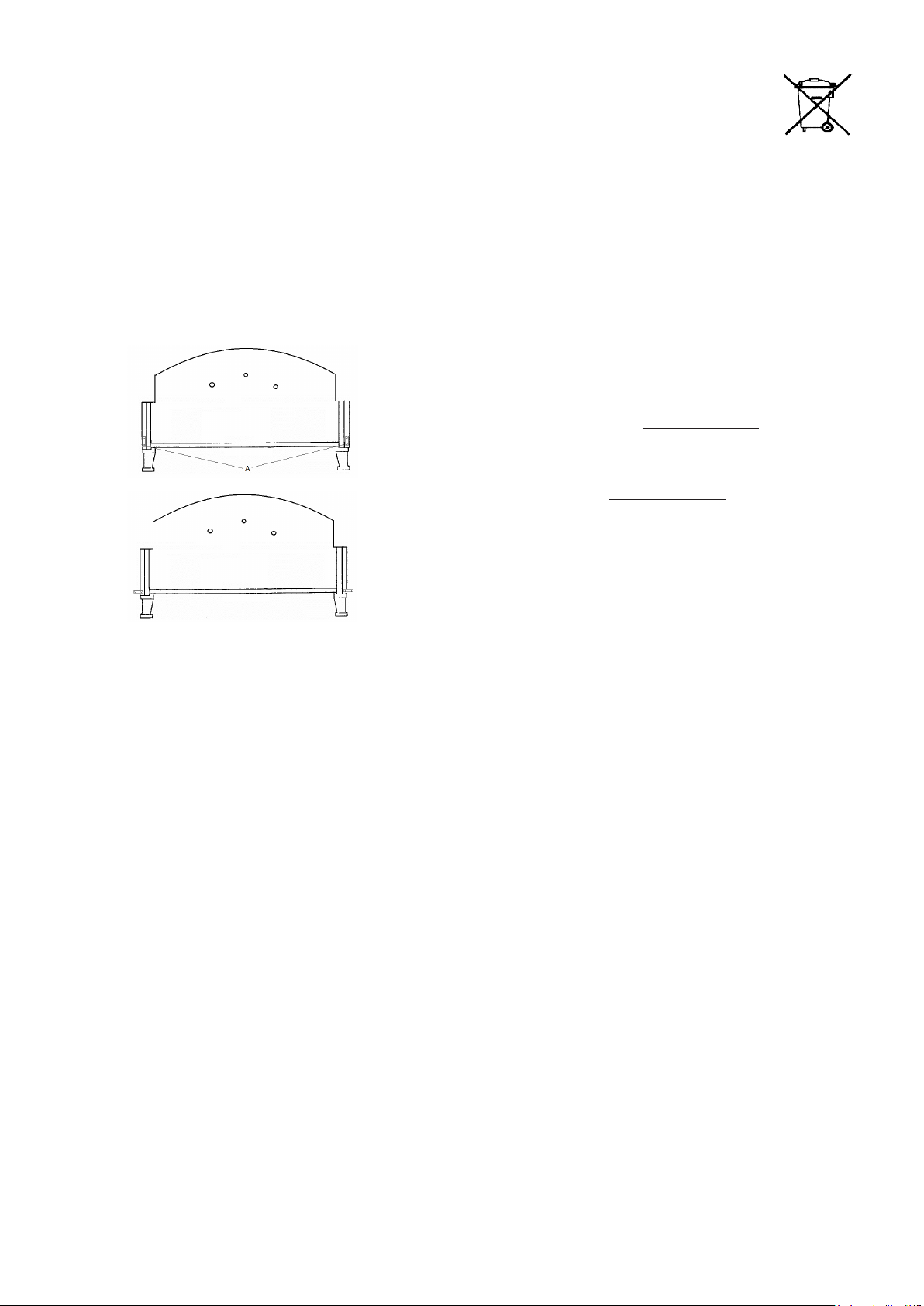

Restraint.
On the rear of the heater there are two retraining brackets ‘A’,
as shown in Fig 6 below. To use these brackets loosen the
mounting screws partially and rotate the brackets outwards
90 degrees, as in Fig. 7 then retighthen the screws.
Place the heater in the location where it is intended to be used
and with a pencil mark the location of the holes on the wall.
Lift the heater safely to one side and carefully drill and plug
the wall using a suitable xing plug for the type of wall. Place
the heater back in position and screw the heater in position.
Recycling
For electrical products sold within the European
Community.
At the end of the electrical products useful life it
should not be disposed of with household waste.
Please recycle where facilities exist. Check with your Local
Authority or retailer for recycling advice in your country.
After Sales Service
Your product is guaranteed for one year from the date of
purchase.
Within this period, we undertake to repair or exchange
this product free of charge (excluding lamps & subject to
availability) provided it has been installed and operated in
accordance with these instructions.
Your rights under this guarantee are additional to your statutory
rights, which in turn are not affected by this guarantee.
Should you require after sales information or assistance with
this product please go to www.dimplex.co.uk where you will
nd our self help guide by clicking on “After Sales” or ring our
helpdesk on 0844 879 3588 (UK) or 01 842 4833 (R.O.I.) .
Spare parts are also available on the website
www.dimplex.co.uk
Please retain your receipt as proof of purchase.
Fig. 6
Fig. 7
Dimplex
Millbrook House
GrangeDrive
HedgeEnd
Southampton
Hampshire.SO30 2DF
TEL: 0844 879 3588
FAX: 0844 879 3583
WEBSITE: www.dimplex.co.uk
Republic of Ireland Tel.01 8424833
[c] GDC Group Ltd,
All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without prior permission in writing of Dimplex. A division of GDC
Group Ltd,
THIS APPLIANCE HAS BEEN CAREFULLY PACKED TO REACH YOU IN PRIME CONDITION. IN THE UNLIKELY EVENT YOU HAVE
REASON TO RETURN IT PLEASE ENSURE IT IS CAREFULLY PACKED IN ITS ORIGINAL PACKAGING OTHERWISE WE CANNOT
ACCEPT LIABILITY FOR THE PRODUCT RETURNED. WE SUGGEST YOU FOLD THE CARTON FLAT AND STORE IT COMPLETE
WITH PACKAGING.
THIS DOES NOT AFFECT YOUR ATATUTORY RIGHTS
