User Manual

2020.10v1.0

Contents

Using this Manual

Legend 2

Before You Begin 2

Download the Ronin App 2

Contents

Introduction

DJI RS 2 Diagram 5

Getting Started

Attaching the Extended Grip/Tripod 6

Mounting the Grip 6

Unlocking and Locking the Gimbal 7

Mounting the Camera 7

Balancing 9

BG30 Grip and Built-In Battery

Charging 12

Safety Guidelines 12

Operations

Activating DJI RS 2 16

Touchscreen 16

Ronin App Settings 20

Image Transmission 29

Operation Modes

Updating Firmware

Maintenance

Specications

DJI RS 2 User Manual

DJI RS 2 Diagram

1. Tilt Lock

2. Tilt Motor

3. Pan Lock

4. Pan Motor

5. Touchscreen

6. Ronin Series Accessories (RSA)/

NATO Ports

7. Power Button

8. Camera Control Button

9. M Button

10. BG30 Grip (Built-in battery with

¼"-20 screw hole)

11. Extended Grip/Tripod

12. Joystick

13. Lower Quick-Release Plate

14. Upper Quick-Release Plate

15. Roll Motor

16. Roll Lock

17. Grip Lever/Safety Button

18. Battery Level Indicators

19. Battery Level Button

20. Power Port (USB-C)

21. Trigger

22. Front Dial

23. Image Transmission/Focus Motor

Port (USB-C)

24. Focus Motor Port (USB-C)

25. RSS Camera Control Port (USB-C)

Getting Started

Attaching the Extended Grip/Tripod

Mounting the Grip

Insert the grip into the gimbal as shown

. Make sure the grip lever is in the unlocked

position

, and then toggle to the locked position after attaching

To remove the grip, toggle the lever to the unlocked position, hold down the safety

button, and pull the grip away from the gimbal.

DJI RS 2 User Manual

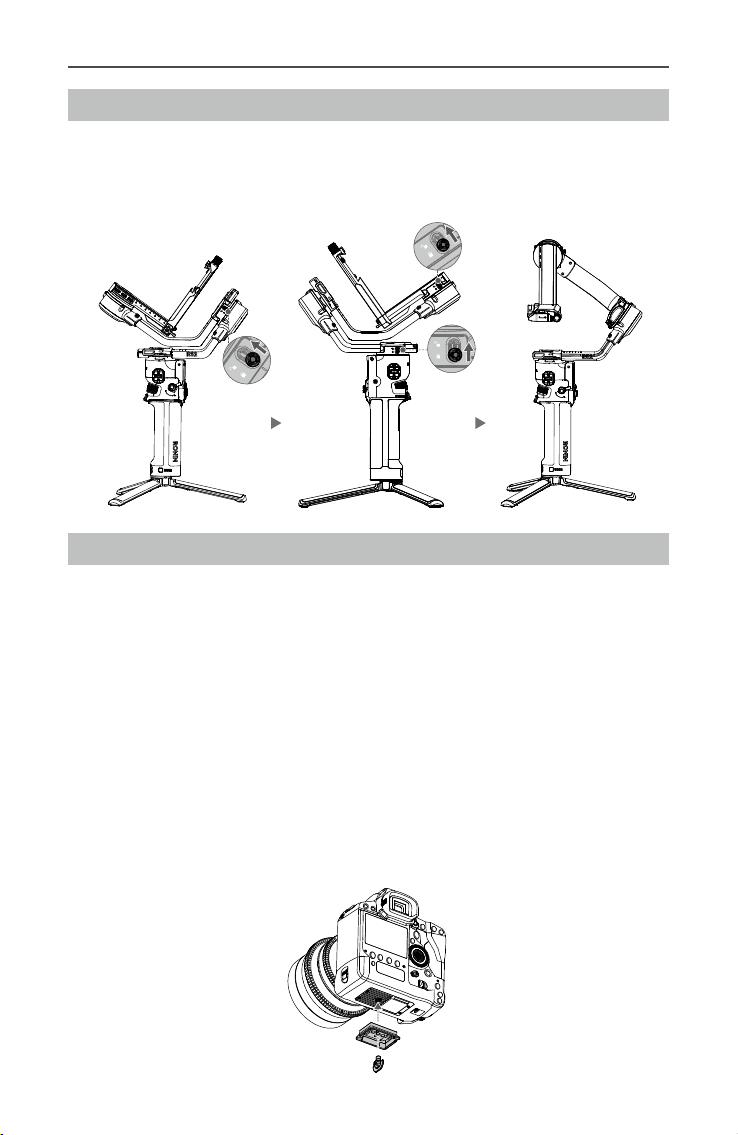

Unlocking and Locking the Gimbal

The gimbal is folded by default. To unfold the gimbal, toggle the tilt lock, roll lock, and

pan lock levers to the unlocked position and adjust the gimbal position as shown, and

then toggle the three locks to the locked position.

Mounting the Camera

Supported Cameras and Lenses

DJI RS 2 has been rigorously tested to support a payload of 4.5 kg. Make sure the

combined weight of the camera, lens, and other accessories are within 4.5 kg. Refer

to the official DJI website (https://www.dji.com/support/compatibility) for the most

updated DJI RS 2 Camera Compatibility List.

Mounting a Camera

Make sure to prepare the camera before mounting it to DJI RS 2. Remove the lens cap

and check that the battery and memory card are inserted in the camera. Make sure DJI

RS 2 is powered o or in sleep mode before mounting the camera.

1. Attach the Upper Quick-Release Plate

The camera lens and the arrow on the bottom of the upper quick-release plate must

face the same direction. Attach the upper quick-release plate to the camera by

tightening the screw.

Roll Lock

Pan Lock

Tilt Lock

DJI RS 2 User Manual

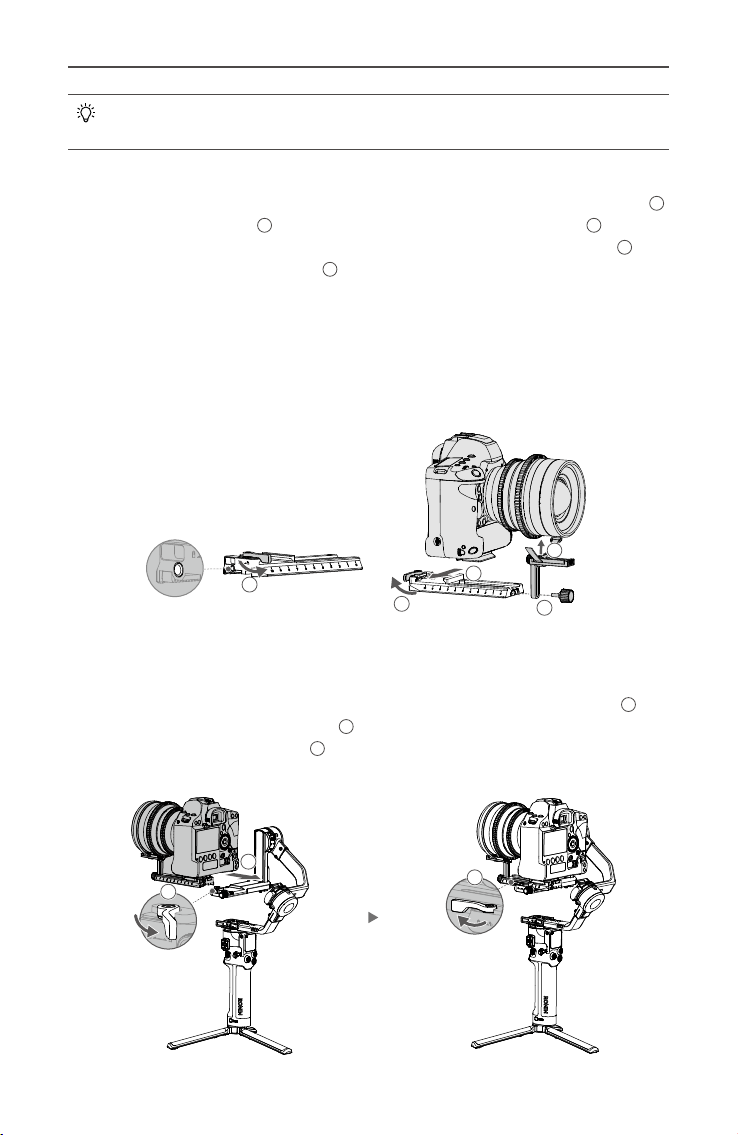

A camera riser is required when using a focus motor or a small camera with a

large lens, such as a Sony A6400 with the Sony FE 24-70 f2.8 GM lens.

2. Attach the Lower Quick-Release Plate and Lens-Fastening Strap

Toggle the lever on the lower quick-release plate to the unlocked position

then insert the camera

and toggle the lever to the locked position

after it is

engaged. Attach the lens-fastening strap to the lower quick-release plate

, and

bind the strap to the camera lens

. Note that the rubber of the lens-fastening strap

must be directly under the lens.

It is recommended to use the lens-fastening strap when using a long or heavy lens,

and always use the lens-fastening strap before enabling SuperSmooth mode.

To remove the camera from the lower quick-release plate, toggle the lever to the

unlocked position and remove the camera while pressing the safety lock beside the

lever.

Safety Lock

3. Attach the Camera to the Gimbal

Toggle the lever on the camera mounting plate to the unlocked position

and

insert the lower quick-release plate

. Toggle the lever to the locked position once

the camera is roughly balanced

DJI RS 2 User Manual

To remove the lower quick-release plate, toggle the lever on the camera mounting plate

to the unlocked position and remove the lower quick-release plate while pressing the

safety lock on the mounting plate.

Safety Lock

RSS Camera Control Port

4. Connect the Camera Control Cable

Choose the proper camera control cable according to the camera type. Plug one

end of the cable into the camera and plug the other end into the RSS camera

control port of the gimbal as shown above.

Balancing

To obtain the best performance from DJI RS 2, proper balancing is essential. Proper

balance is critical for shots with DJI RS 2 where fast motion or acceleration is required

and also oers longer battery runtimes. There are three axes that need to be properly

balanced before powering on DJI RS 2 and setting up the software.

Before Balancing

1. The camera needs to be fully congured, with all accessories and cables connected,

before installing and balancing the camera on the gimbal. If the camera has a lens

cap, make sure to remove it before balancing.

2. Before balancing, make sure to power on the camera if using an optical zoom

lens and to select the focal length if using a varifocal lens. Make sure DJI RS 2 is

powered o or in sleep mode before balancing.

Balancing Steps

1. Balancing the Vertical Tilt

a. Unlock the tilt axis and loosen the mounting plate knob

b. Rotate the tilt axis so that the camera lens is pointing upward. Check to make

sure the camera is not top or bottom-heavy. If top-heavy, move the camera

backward

. If bottom-heavy, move the camera forward

c. Tighten the mounting plate knob while holding the camera upward. The vertical

tilt is balanced when the camera is steady while pointing upward.

DJI RS 2 User Manual

2. Balancing Depth for the Tilt Axis

a. Rotate the tilt axis so that the camera lens is pointing forward. Toggle the lever to

the unlocked position

b. Check to make sure the camera is not front or back-heavy. If front-heavy, move

the camera backward by turning the knob

. If back-heavy, move the camera

forward.

c. Toggle the lever to the locked position. The tilt axis is balanced when the camera

is steady while tilted up or down by 45°.

d. Lock the tilt axis.

3. Balancing the Roll Axis

a. Unlock the roll axis. Toggle the lever on the roll arm to the unlocked position

b. Check the direction in which the roll motor swings. If the camera rotates to the

left, move the camera to the right

. If the camera rotates to the right, move the

camera to the left

c. Toggle the lever on the roll arm to the locked position. The roll axis is balanced

when the camera is steady.

d. Lock the roll axis.

DJI RS 2 User Manual

4. Balancing the Pan Axis

a. Unlock the pan axis. Toggle the lever on the pan arm to the unlocked position

b. While holding the grip, tilt DJI RS 2 forward, and rotate the pan arm until parallel

with you.

c. Check the movement of the pan axis. If the camera lens rotates to the left, push

the pan axis to the right

. If the camera lens rotates to the right, push the pan

axis to the left

d. Toggle the lever on the pan arm to the locked position. The pan axis is balanced

when the camera is steady when rotating the pan while tilting the grip.

If mounting a longer camera system, it is necessary to use counterweights. Visit the

ocial DJI store to purchase the counterweights.

BG30 Grip and Built-In Battery

The BG30 grip is for handheld use. The built-in battery within the grip has a capacity

of 1950 mAh and the maximum runtime is 12 hours (when the DJI RS 2 is properly

balanced).

Charging

Before using for the rst time, charge the battery grip through the power port using a

charging cable (included) and a USB adapter (not included). It is recommended to use

a USB adapter with QC 2.0 and PD protocol (max. 24 W).

During charging and usage, the battery level indicators indicate the battery level. When

not in use, press the battery level button to check the battery level.

Safety Guidelines

The following terms are used throughout the product literature to indicate various levels

of potential harm when operating this product:

Procedures, which if not properly followed, create a possibility of physical

property damage AND a little or no possibility of injury.

Procedures, which if not properly followed, create the probability of property

damage, collateral damage, and serious injury OR create a high probability of supercial

injury.

USB Power

Adapter

Power Outlet

100 - 240 V

Power Port

High Low

Read the user manual to become familiar with the features

of this product before operating. Failure to operate the

product correctly can result in damage to the product, personal property, and cause

serious injury. This is a sophisticated product. It must be operated with caution and

common sense and requires some basic mechanical ability. Failure to operate this

product in a safe and responsible manner could result in injury or damage to the

product or other property.

This product is not intended for use by children without direct adult supervision.

Do not use with incompatible components or alter this product in any way

outside of the documents provided by SZ DJI OSMO TECHNOLOGY CO.,

LTD. These Safety Guidelines contain instructions for safety, operation and

maintenance. It is essential to read and follow all of the instructions and

warnings in the user manual, prior to assembly, setup or use, in order to

operate the product correctly and avoid damage or serious injury.

DJI RS 2 User Manual

To avoid fire, serious injury, and property damage, observe the following safety

guidelines when using, charging, or storing the grip.

Grip Use

1. DO NOT allow the grip to come into contact with any kind of liquid. DO NOT

leave the grip out in the rain or near a source of moisture. DO NOT drop the grip

into water. If the inside of the battery comes into contact with water, chemical

decomposition may occur, potentially resulting in the battery catching on re, and

may even lead to an explosion.

2. If the grip falls into water by accident, put it in a safe and open area immediately.

Maintain a safe distance from the grip until it is completely dry. DO NOT use the grip

again, and dispose of the grip properly as described in the Grip Disposal section.

3. Put out any re using water, sand, re blanket, or a dry powder re extinguisher.

4. DO NOT use non-DJI batteries. Go to www.dji.com to purchase new batteries. DJI

takes no responsibility for any damage caused by non-DJI batteries.

5. DO NOT use or charge a swollen, leaky, or damaged grip. If the grip is abnormal,

contact DJI or a DJI authorized dealer for further assistance.

6. The grip should be used in temperatures from -20° to 45° C (-4° to 113° F). Use of

the grip in environments above 50° C (122° F) can lead to a re or explosion. Use of

grip below -10° C (14° F) can lead to permanent damage.

7. DO NOT use the grip in strong electrostatic or electromagnetic environments.

Otherwise, the battery control board may malfunction.

8. DO NOT disassemble or pierce the grip in any way or the battery may leak, ignite,

or explode.

9. DO NOT drop or strike batteries. DO NOT place heavy objects on the grip or

charger.

10. Electrolytes in the battery are highly corrosive. If any electrolytes make contact with

your skin or eyes, immediately wash the aected area with fresh running water for

at least 15 minutes, and then see a doctor immediately.

11. DO NOT use the grip if dropped.

12. DO NOT heat batteries. DO NOT put the grip in a microwave oven or in a pressurized

container.

13. DO NOT manually short-circuit the grip.

14. Clean grip terminals with a clean, dry cloth.

Grip Charging

1. DO NOT leave the grip unattended during charging. DO NOT charge the grip near

ammable materials or on ammable surfaces such as carpet or wood.

2. Charging the grip outside of the temperature range of 5° to 40° C (41° to 104° F) may

lead to leakage, overheating, or battery damage. The ideal charging temperature is

22° to 28° C (72° to 82° F).

DJI RS 2 User Manual

Grip Storage

1. Keep the grip out of the reach of children and animals.

2. If the grip will be stored for an extended period, charge the grip until the battery

level reaches between 30% and 50%.

3. DO NOT leave the grip near heat sources such as a furnace or heater. DO NOT

leave the grip inside of a vehicle on hot days. The ideal storage temperature is 22°

to 28° C (72° to 82° F).

4. Keep the grip dry.

Grip Maintenance

1. DO NOT use the grip when the temperature is too high or too low.

2. DO NOT store the battery in environments with a temperature higher than 45° C

(113° F) or lower than 0° C (32° F).

Travel Notice

1. Before carrying the grip on an airline flight, it must first be discharged until the

battery level is lower than 30%. Only discharge the grip in a reproof location and

store the grip in a ventilated location.

2. Keep the grip away from metal objects such as glasses, watches, jewelry, and

hairpins.

3. DO NOT transport a damaged grip or a grip with battery level higher than 30%.

Grip Disposal

Dispose of the grip in specic recycling boxes only after a complete discharge. DO NOT

place the grip in regular trash containers. Strictly follow your local regulations regarding

the disposal and recycling of batteries.

Grip Use

1. Make sure the grip is fully charged before use.

2. If a low-battery warning appears, charge the grip as soon as possible.

Grip Charging

1. The grip is designed to stop charging when it is full. It is good practice, however, to

monitor the charging progress and disconnect the gimbal when fully charged.

Grip Storage

1. Discharge the grip to 40%-65% if it will not be used for 10 days or more. This can

greatly extend the battery life.

DJI RS 2 User Manual

2. If the grip is stored for an extended period and the battery is depleted, the grip will

enter sleep mode. Recharge the grip to exit sleep mode.

3. Remove the grip from the gimbal when stored for an extended period.

Grip Maintenance

1. Battery life may be reduced if not used for an extended period.

2. Discharge and charge the grip completely once every three months to keep it in

good condition.

Grip Disposal

1. If the grip is disabled and the battery cannot be fully discharged, contact a

professional battery disposal or recycling agent for further assistance.

2. Dispose of the grip immediately if it cannot be powered on after over-discharging.

Operations

Activating DJI RS 2

DJI RS 2 needs to be activated through the Ronin app before using for the rst time.

1. Press and hold the power button to power on the gimbal.

2. Enable Bluetooth on your mobile device and launch the Ronin app. Once detected

in the list of Bluetooth devices, select DJI RS 2 and input the default Bluetooth

password: 12345678. Make sure you are connected to the internet and follow the

on-screen instructions to activate DJI RS 2. Note that a DJI account is required

during activation.

Touchscreen

Home

100

PTF Fast

M1 User Profile: indicates the current user profile.

Users can set and save three user proles: M1, M2,

and M3.

Camera Status: indicates a camera control cable is

connected.

100

Battery Level: displays the current battery level of

the gimbal. indicates the battery is charged with

a normal charger. indicates the battery is charged

with a quick charger.

Auto Tune: tap to enter the auto tune screen after balancing the gimbal. If the lens-

fastening strap is installed, users can enable SuperSmooth prior to auto tune for

optimal performance. SuperSmooth will take eect after auto tune completed. The

stiness can be adjusted on the auto tune screen.

Balance Status: tap to check the balance status.

DJI RS 2 User Manual

Follow Mode: tap to select follow mode. The tilt motor controls the tilt axis to follow,

pan motor controls the pan axis to follow, and roll motor controls the roll axis to follow.

PF: pan follow, where only the pan axis follows the movement of the grip.

PTF: pan and tilt follow, where both the pan and tilt axes follow the movement of the grip.

FPV: pan, tilt and roll follow, where all three axes follow the movement of the grip.

3D Roll 360: enable to shoot footage while rotating the camera 360°.

Portrait: enable to shoot in portrait mode.

Custom: enable or disable any axis follow as required.

Follow Speed: tap to select follow speed. Users can choose fast, medium, slow, and

custom.

Joystick Speed: allows users to control the speed of the joystick for the gimbal. Users

can choose fast, medium, slow, and custom.

Joystick Smoothness: allows users to control the sensitivity of the gimbal. The lower

the smoothing value, the more sensitive the movement of the gimbal.

Dial Functions: allows users to set the function of the front dial. Users can choose to

control the focus motor, focus, ISO, aperture, and roll axis.

Dial Speed: allows users to set the response speed of the function set for the front dial.

High

Joystick Speed Joystick Smoothness

Dial Functions Dial Speed

Slide Up: Joystick and Front Dial Settings Screen

Slide up from the bottom of the screen to enter the joystick

and front dial settings screen.

100

Slide Down: Image Transmission Screen

Slide down from the top of the screen to enter the image

transmission screen after mounting the DJI Ronin RavenEye

Image Transmission System.

After the subject is selected, ActiveTrack can be enabled by pressing the trigger once.

ActiveTrack allows users to track the subject automatically and maintain the subject in the

middle of the frame.

The appropriate speed should be set by adjusting the speed bar on the bottom of the

screen when using ActiveTrack. Subjects may be lost if the speed is set too high and

the stabilization may be aected if the speed is set too low.

DJI RS 2 User Manual

Silent Mode: enable to turn o sounds including the warning tone.

Push Mode: enable to manually control the tilt and pan axis.

Disable Sele: prevents accidentally entering sele mode and interrupting recording. If

disabled, Sele mode will not be entered if the trigger is pressed three times.

More Settings

Horiz Calibration: use if the gimbal is unlevel when the gimbal is steady. If the issue

persists, use Tune Manually.

Gimbal Auto Check: tap to analyze and output the status information of the gimbal.

Restore Parameters: tap to restore the gimbal parameters and Bluetooth password to

default settings.

Language: choose the onscreen language from English, Chinese (Simplied), Chinese

(Traditional), German, French, Korean, Japanese, Spanish, Brazilian Portuguese,

Russian, and Thai.

Device Info: displays the IMU, GCU, and more Bluetooth information.

Silent Mode

Push Mode

Disable Selﬁe

Slide Left: System Settings Screen

Slide left from the right edge of the screen to enter the

system settings screen.

Slide Right: Create Screen

Slide right from the left edge of the screen to enter the

Create screen.

Timelapse Track

Panorama Time Tunnel

Timelapse

In Timelapse, DJI RS 2 triggers the camera to capture still images at the set interval time

and will automatically stop when completed. The duration for the Timelapse and the interval

time can be set so that DJI RS 2 can calculate the exact number of images required, and

the duration of the video can be calculated after the frame rate is set.

Motionlapse allows users to set up to ve waypoints so that the camera moves and

shoots during the Timelapse.

Track

Track is designed to capture video with up to 10 waypoints. The waypoint needs to be

selected by manually moving the gimbal or using the joystick. Tap + to add a waypoint.

DJI RS 2 User Manual

* The functions of the camera control button and front dial vary according to the camera and require the camera

control cable to be connected. Refer to the DJI RS 2 Camera Compatibility List on https://www.dji.com/support/

compatibility for more information.

The duration and stay time can be set on the waypoint settings screen after a waypoint

is added and the position of the waypoint also can be reset. The duration indicates how

much time it will take for the gimbal to travel from one waypoint to the next. The stay

time indicates how long the gimbal will remain steady at the waypoint before moving to

the next waypoint.

Panorama

Panorama allows users to capture a series of interconnecting still images with precise

control based on the settings. Users can then generate a panorama using image

processing software. The camera captures interconnecting still images based on

the setting range when selecting 3x3 or 180° panorama. When creating a custom

panorama, users need to set the shooting range, sensor type, lens focal length,

overlap, and interval.

Time Tunnel

Allows users to capture a Timelapse while the gimbal is in 3D Roll 360 mode. The

number of photos and the duration of the video can be calculated after setting the

interval, duration, and the frame rate. The starting angle and the number of rotations

will determine the way that the gimbal will move. Tap Start to begin shooting and check

progress by tapping Preview.

Make sure the camera and gimbal are connected using the corresponding

camera control cable before using Timelapse, Panorama, or Time Tunnel. The

interval time between shooting photos should be set to one second more than

the shutter time to avoid blurred footage when using a long exposure.

Button Functions

Power Button

Press and hold to power on or o.

Tap to lock or unlock the touchscreen.

Press twice to enter or exit sleep mode.

Battery Level Button

Press once to check battery leve

Trigger

Tap once to start ActiveTrack (requires

the Image Transmission System to be

enabled).

Press and hold to enter Lock mode.

Tap twice to re-center the gimbal.

Tap three times to turn the gimbal

180° so that the camera faces you

(sele mode).

Front Dial*

Turn to control focus (default setting).

Camera Control Button*

Press halfway for autofocus.

Press once to start or stop

recording.

Press and hold to take a photo.

Joystick

Push up or down to control the

movement of the tilt axis (default

setting). Push left or right to control

the movement of the pan axis (default

setting).

DJI RS 2 User Manual

M Button

Tap to select a user prole.

Press and hold to enter Sport mode.

Press and hold and press the trigger twice to remain in Sport mode. Repeat to exit Sport mode.

Quickly tap twice to enter portrait mode.

Press three times to enter or exit 3D Roll 360. When in 3D Roll 360, move the joystick left or right

twice to automatically rotate the camera. Tap the trigger twice to stop continuous auto rotation.

Press and hold the M button together with the trigger to begin auto tune.

Ronin App Settings

The Ronin App contains all the features of the touchscreen as well as more features of

the gimbal and the DJI Ronin RavenEye Image Transmission System. The screenshots

below are based on the iOS version of the app.

Top Bar

Sleep/Wake: tap to enter or exit sleep mode. When DJI RS 2 is in sleep mode, the

motor will be powered o, but the gimbal remains powered on.

M1: displays the current user prole .

Battery Level: displays the battery level of the gimbal.

About

Settings: view your account and the quick start guide.

Device List: displays the device name and password.

Firmware: displays the rmware version.

Academy

Watch the tutorials and read the manual documents.

DJI RS 2 XXX

DJI RS 2 User Manual

Create

Virtual Joystick

Use the virtual joystick in the app to control the movement of the gimbal and to shoot.

1. Control Bar: control the speed and smoothness of the gimbal by adjusting the

control bar. Speed allows users to adjust the remote-controlled rotational speed.

Smoothness allows users to adjust the sensitivity of the gimbal. The lower the

smoothing value, the more sensitive the movement of the gimbal.

2. Roll Stick: control the roll axis movement of the gimbal using the virtual joystick.

3. Pan/Tilt Stick: control the pan and tilt axis movement of the gimbal using the virtual

joystick.

4. Recenter: tap to recenter the gimbal.

5. Shoot/Record Button: tap to take photos or record videos.

6. Photo/Video Toggle: tap to switch between photo and video modes. Make sure the

mode is the same as the settings on the camera.

DJI RS 2 User Manual

Force Mobile

Force Mobile requires the phone holder and a mobile phone mounted on a tripod or

handlebar vertically. After enabling this feature in the Ronin app, the gimbal movement

can be controlled by tilting and rotating your mobile phone.

Speed determines the relationship between the rotational speed and angle. When the

speed is set to 50, the angle of rotation for the gimbal and mobile phone is 1-to-1. The

gimbal will move at an identical angle to the mobile phone. When the speed is set to

less than 50, the gimbal will rotate slower than the movement of the phone. When the

max speed is set higher to a higher value than 50, the rotation of the gimbal is faster

than the mobile phone.

Smoothing allows users to control the sensitivity of the gimbal. The lower the smoothing

value, the more sensitive the movement of the gimbal.

Recenter: tap to recenter the gimbal.

Shutter/Record Button: tap to take photos or record videos.

DJI RS 2 User Manual

Panorama

Panorama allows users to capture a series of interconnecting still images with precise

control based on the sensor type, lens focal length, overlap, and interval.

Make sure you have connected the camera and gimbal using the corresponding

camera control cable before using Panorama.

Overlap: determines the overlap ratio of every photo when generating a panorama.

The interval time between shooting photos should be set to one second more than the

shutter time to avoid blurred footage when using a long exposure.

After conrming the camera settings, the panorama range can be set by dragging the

white dots on the grid map, pushing the gimbal manually, or using the virtual joystick.

The total range covered by the endpoints and the shots required to compose the

panorama is displayed above the grid map. The tilt axis range in Panorama is -45° to

+90° in order to avoid capturing the gimbal in the shot, while the pan axis allows you to

capture a full 360° rotation.

Tap the shutter/record button to begin.

DJI RS 2 User Manual

Timelapse

In Timelapse, DJI RS 2 triggers the camera to capture still images with the set interval

time and will automatically stop when completed. The duration for the Timelapse and

the frame rate can be set so that DJI RS 2 can calculate the exact number of images

required.

By enabling Push mode, users can manually adjust the pan and tilt axes before starting

the Timelapse. Users can push DJI RS 2 to alter the camera orientation and adjust

the framing. Tap the virtual joystick icon to use the virtual joystick to adjust the camera

orientation.

Motionlapse allows users to set up to ve waypoints so that the camera moves during

the Timelapse.

To adjust the position of a waypoint, adjust the camera to the desired position, and tap

the + icon to conrm the waypoint. You can also use the virtual joystick to control the

pan, tilt, and roll axis as well.

To add another waypoint, move the gimbal to the next waypoint, and tap the + icon

above the grid map. Afterwards, to delete a waypoint, select the waypoint and tap the

trash icon.

After setting up the waypoints, you can either tap Preview to make sure the Motionlapse

includes everything or tap the shutter/record button to start shooting. Make sure the

camera and gimbal have been connected using the corresponding camera control

cable.

DJI RS 2 User Manual

Track

Track is designed to capture video with up to 10 waypoints. Users need to select the

waypoint manually by moving the gimbal or using the virtual joystick. The duration

parameter below the grid map indicates how much time it will take for the gimbal to

travel from one waypoint to the next. The stay time indicates how long the gimbal will

remain steady at the waypoint before moving to the next waypoint.

DO NOT press the shutter button of the camera while using Track.

DJI RS 2 User Manual

Gaming Controller

PS4 DualShock and Xbox controllers can be used to control the gimbal and camera.

After connecting the controller to the mobile device and gimbal, users can control

gimbal movements, focus, and zoom, and can record videos, recenter gimbal, capture

photos, and switch proles.

The speed and smoothness of the control sticks can be adjusted. Set the focus value

within 10 on the camera settings for optimal performance. iOS 13 or higher, Android 9.0

or higher, and Ronin app v1.4.0 or higher are required.

Tap How to Use to learn more about the gaming controller.

Balance Adjustment

Tap Begin Test and DJI RS 2 will check the balance status and provide a score for each

axis. Make sure the gimbal is not obstructed in any way before performing the balance

test and follow the onscreen instructions.

DJI RS 2 User Manual

Motor Parameters

Auto Tune: the stiness value is determined by the payload of the gimbal. Use Auto

Tune to obtain the stiness value automatically after balancing.

Tap Auto Tune and DJI RS 2 automatically calculates the result based on the weight of

the gimbal setup. Alternatively, press and hold the M button and trigger simultaneously

for four seconds to start auto tune without using the app.

The auto tune process takes approximately 15 to 30 seconds. After auto tune, you

can see detailed motor diagnostics at the bottom of the screen. If the gimbal is

properly balanced, the power value of the motors should be in the range of ±5. If

power consumption on a particular axis constantly goes beyond that range, check the

mechanical balance of DJI RS 2.

Stiffness: the motor stiffness adjustment allows you to fine-tune the power that is

applied by the motors as they react and balance the weight on each axis. Make sure

you leave an extra margin to ensure stability at all times. If the stiffness value is too

high the gimbal may shake and if the value is too low the gimbal performance will be

aected.

When using auto tune, make sure the three axes are unlocked and that DJI

RS 2 is placed on a steady surface in Upright or Underslung mode.

Make sure the gimbal is balanced and the stiness values are tuned properly

every time you change the camera or lens.

DJI RS 2 User Manual

User Prole

Three user proles can be set and save.

Follow Mode: choose from Pan and Tilt Follow, FPV, Customized, and 3D Roll 360.

Speed: determines how fast the camera travels while translating a pan, tilt, or roll

movement.

Deadband: determines how much movement the gimbal tolerates prior to translating

the pan, tilt, and roll movement of the camera.

Push: After enabling Push, the gimbal axis can be manually pushed to the desired position.

Control Settings

Channels

The channel indicator provides feedback when conguring remote operation. Pan, tilt,

and roll channels can be reassigned and each axis can also be inverted. Normal means

the direction of movement is the same as the joystick. Inverted means the direction of

movement is the opposite of the joystick.

When using the joystick, you can only control CH1 and CH3, which is mapped to tilt

and pan axes by default. You can customize channel mapping by tapping on the name

of the axis on the right of the screen.

Motion

You can set the joystick control by adjusting deadband, max speed, smoothing, and

endpoints for each axis. There are three default proles for each settings.

Deadband: when the deadband value increases, more stick movement will be required

to translate into the actual movement of the gimbal.

Max Speed: allows the remote-controlled rotational speed to be adjusted.

Smoothing: allows you to control the sensitivity of the gimbal. The lower the smoothing

value, the more sensitive the movement of the gimbal.

DJI RS 2 User Manual

Status

Settings

Use more features such as Motor Pause, Disable Gimbal Portrait Mode, Silent Mode,

System Calibration, Advanced Calibration, and Restore Gimbal Setup.

Checklist

When the gimbal status is abnormal, the status information is displayed here.

Endpoint: limits the rotational range of the gimbal by setting the endpoints. The pan axis has

a slip-ring, enabling DJI RS 2 to rotate continuously when the endpoints are set to 180°.

On the tilt axis, you can set up the endpoints according to your requirements. Some longer

lenses may hit the gimbal frame. Set the endpoint angle to prevent such cases.

Image Transmission

With the DJI Ronin RavenEye Image Transmission System mounted, tap Connect to

RavenEye on the home screen of the Ronin app to use the image transmission feature.

02:30

800

1/800

F 2.8F 2.8

100100

ActiveTrack Speed: 15

Dji CP.RN.00000094.01 RS 2 Combo - 3-Axis Gimbal Stabilizer

Product's Documents

User Manual

Specifications

Dji CP.RN.00000094.01 Questions and Answers

Related Products

Dji CP.OS.00000160.01 OM 5 Smartphone Gimbal Stabilizer, 3-Axis Phone Gimbal, Built-In Extension Rod, Portable and Foldable, Android and iPhone Gimbal

Dji OF200 Osmo Mobile 6 Smartphone Gimbal Stabilizer, 3-Axis Phone Gimbal, Built-In Extension Rod, Portable and Foldable, Android and iPhone Gimbal

Dji CP.RN.00000121.01 RSC 2 - 3-Axis Gimbal Stabilizer

Dji CP.RN.00000093.01 RS 2-3-Axis Gimbal Stabilizer

Dji RONIN-S Camera Stabilizer 3-Axis Gimbal Handheld

DJI OSMO POCKET Handheld 3-Axis Gimbal Stabilizer
