OWNER’S MANUAL
LED LCD TV
Please read this manual carefully before operating
your set and retain it for future reference.
P/NO : MFL67441718 (1202-REV03)
Printed in Korea
www.lg.com
LS57**
LS58**
2
ENG
ENGLISH
TABLE OF CONTENTS
TABLE OF CONTENTS
3 LICENSES
3 OPEN SOURCE SOFTWARE NOTICE
4 SAFETY INSTRUCTIONS
10 INSTALLATION PROCEDURE
10 ASSEMBLING AND PREPARING
10 Unpacking
13 Separate purchase
14 Parts and buttons
15 Lifting and moving the TV
16 Setting up the TV
16 - Attaching the stand
17 Mounting on a table
18 Mounting on a wall
19 Tidying cables
20 MAKING CONNECTIONS
20 Antenna connection
21 HDMI connection
22 DVI to HDMI connection
22 RGB-PC connection
23 Component connection
23 Composite connection
24 Audio connection
24 - Digital optical audio connection
24 USB connection
25 REMOTE CONTROL
26 USING THE USER GUIDE
27 MAINTENANCE
27 Cleaning your TV
27 - Screen, frame, cabinet and stand
27 - Power cord
27 TROUBLESHOOTING
WARNING
y
If you ignore the warning message, you may
be seriously injured or there is a possibility
of accident or death.

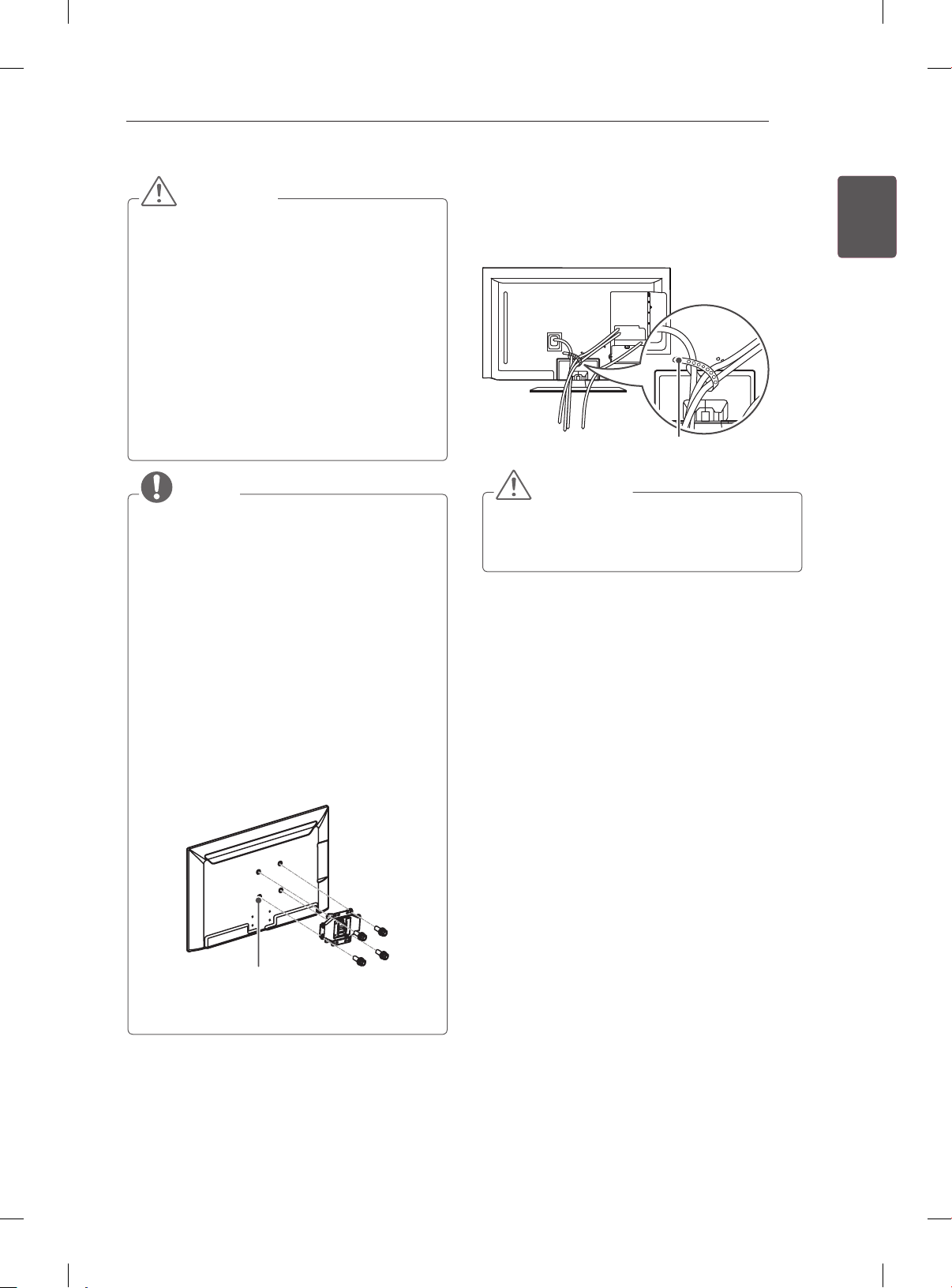

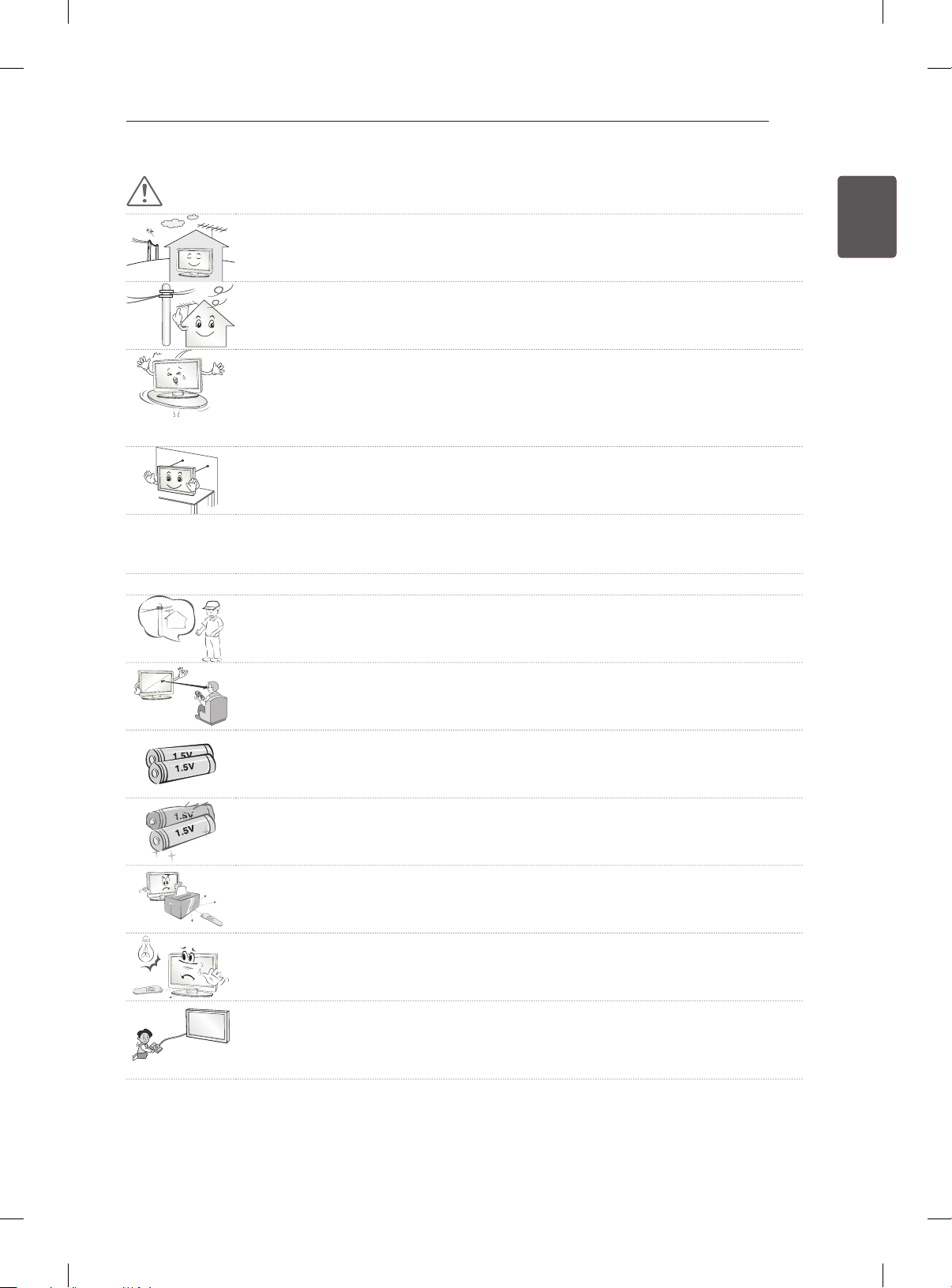

CAUTION
y
If you ignore the caution message, you may
be slightly injured or the product may be
damaged.
NOTE
y
The note helps you understand and use
the product safely. Please read the note
carefully before using the product.
28 ENVIRONMENTAL INFORMATION
28 WEEE
29 SPECIFICATIONS
3
ENGENGLISH
LICENSES / OPEN SOURCE SOFTWARE NOTICE
LICENSES
Supported licenses may differ by model. For more information about licenses, visit www.lg.com.
Manufactured under license from Dolby Laboratories. “Dolby” and the double-D
symbol are trademarks of Dolby Laboratories.
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing LLC.
ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a
subsidiary of Rovi Corporation. This is an ofcial DivX Certied® device that plays
DivX video. Visit divx.com for more information and software tools to convert your
les into DivX video.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certied® device must be registered
in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your
registration code, locate the DivX VOD section in your device setup menu. Go to vod.
divx.com for more information on how to complete your registration.
“DivX Certied® to play DivX® video up to HD 1080p, including premium content.”
“DivX®, DivX Certied® and associated logos are trademarks of Rovi Corporation or
its subsidiaries and are used under license.”
“Covered by one or more of the following U.S. patents :
7,295,673; 7,460,668; 7,515,710; 7,519,274”
Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535
& other U.S. and worldwide patents issued & pending. DTS, the Symbol & DTS and
the Symbol together are registered trademarks & DTS 2.0+Digital Out is a trademark
of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.
OPEN SOURCE SOFTWARE NOTICE
To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this
product, please visit http://opensource.lge.com .
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are
available for download.
LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of
performing such distribution (such as the cost of media, shipping and handling) upon email request to
[email protected]. This offer is valid for three (3) years from the date on which you purchased the
product.
4
ENG
ENGLISH
SAFETY INSTRUCTIONS
SAFETY INSTRUCTIONS
Please read these safety precautions carefully before using the product.
WARNING
y
Do not place the TV and remote control in the following environments:
- A location exposed to direct sunlight
- An area with high humidity such as a bathroom
- Near any heat source such as stoves and other devices that produce heat
- Near kitchen counters or humidifiers where they can easily be exposed to steam
or oil
- An area exposed to rain or wind
- Near containers of water such as vases
Otherwise, this may result in fire, electric shock, malfunction or product deformation.
y
Do not place the product where it might be exposed to dust.
This may cause a fire hazard.
y
Mains plug is the disconnecting device. The plug must remain readily operable.
y
Do not touch the power plug with wet hands. Additionally, if the cord pin is wet or
covered with dust, dry the power plug completely or wipe dust off.
You may be electrocuted due to excess moisture.
y
Make sure to connect the power cable to the grounded current. (Except for devices
which are not grounded.)
You may be electrocuted or injured.
y
Fix the power cable completely.
If the power cable is not fixed completely, a fire can break out.
y
Ensure the power cord does not come into contact with hot objects such as a
heater.
This may cause a fire or an electric shock hazard.
y
Do not place a heavy object, or the product itself, on power cables.
Otherwise, this may result in fire or electric shock.
y
Bend antenna cable between inside and outside building to prevent rain from
flowing in.
This may cause water damaged inside the Product and could give an electric
shock.
y
When mounting a TV it on the wall, make sure not to install TV by hanging power
and signal cables on the back of the TV.
It may cause fire, electric shock.
5
ENGENGLISH

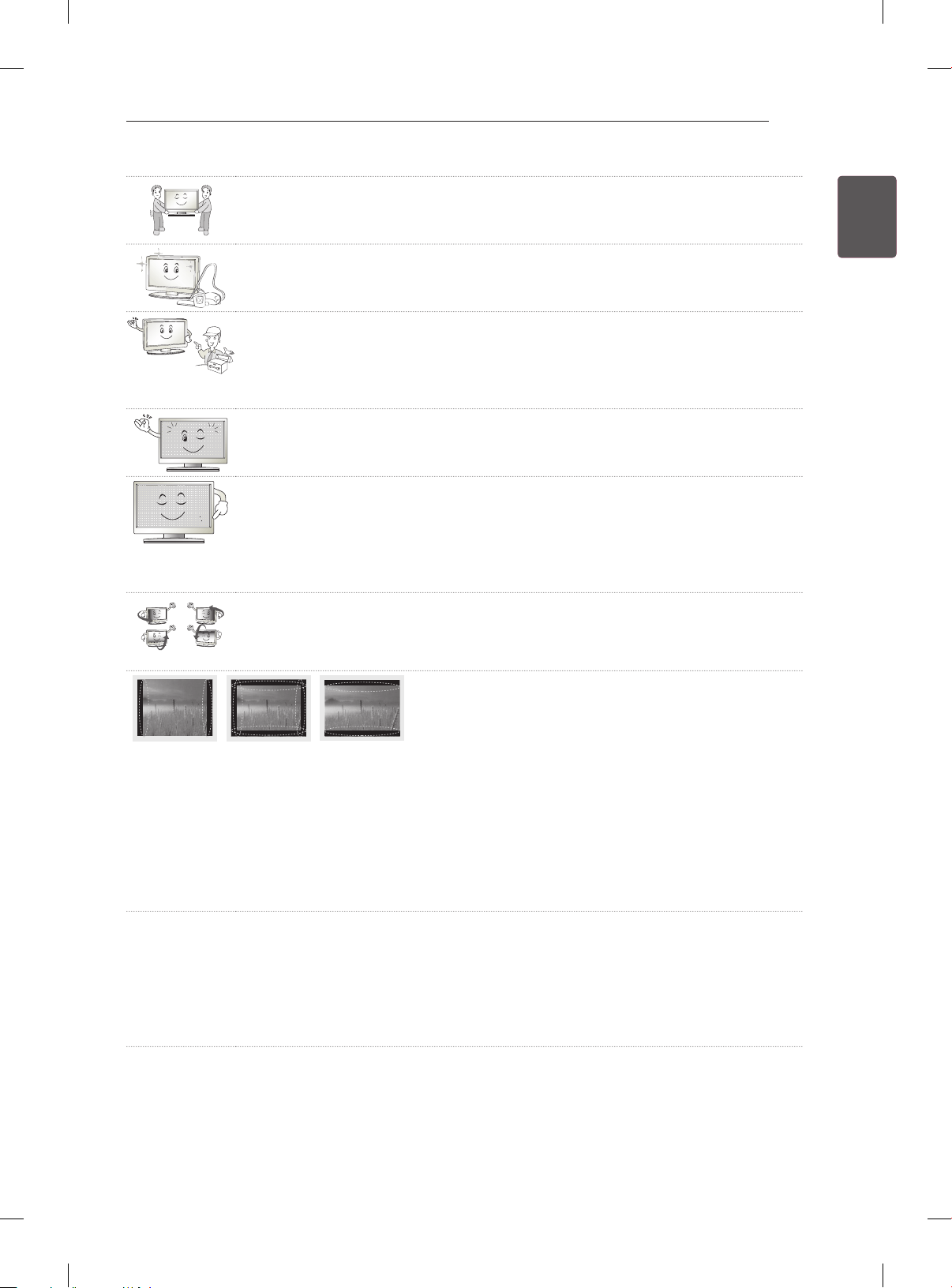

SAFETY INSTRUCTIONS
y
Do not plug too many electrical devices into a single multiple electrical outlet.
Otherwise, this may result in fire due to over-heating.
y
Do not drop the product or let it fall over when connecting external devices.
Otherwise, this may result in injury or damage to the product.
Desiccant
y
Keep the packing anti-moisture material or vinyl packing out of the reach of
children.
Anti-moisture material is harmful if swallowed. If swallowed by mistake, force the
patient to vomit and visit the nearest hospital. Additionally, vinyl packing can cause
suffocation. Keep it out of the reach of children.
y
Do not let your children climb or cling onto the TV.
Otherwise, the TV may fall over, which may cause serious injury.
y
Dispose of used batteries carefully to protect a child from eating them.
In case that it eats them, take it to see a doctor immediately.
y
Do not insert a conductor (like a metal chopstick) into one end of the power cable
while the other end is connected to the input terminal on the wall. Additionally, do
not touch the power cable right after plugging into the wall input terminal.
You may be electrocuted.
(Depending on model)
y
Do not put or store inflammable substances near the product.
There is a danger of explosion or fire due careless handling of the inflammable
substances.
y
Do not drop metallic objects such as coins, hair pins, chopsticks or wire into the
product, or inflammable objects such as paper and matches. Children must pay
particular attention.
Electrical shock, fire or injury can occur. If a foreign object is dropped into the
product, unplug the power cord and contact the service centre.
y
Do not spray water on the product or scrub with an inflammable substance (thinner
or benzene). Fire or electric shock accident can occur.
y
Do not allow a impact shock or any objects to fall into the product, and do not drop
onto the screen with something.
You may be injured or the product can be damaged.
y
Never touch this product or antenna during a thunder or lighting storm.
You may be electrocuted.
y
Never touch the wall outlet when there is leakage of gas, open the windows and
ventilate.
It may cause a fire or a burn by a spark.
6
ENG
ENGLISH
SAFETY INSTRUCTIONS
y
Do not disassemble, repair or modify the product at your own discretion.
Fire or electric shock accident can occur.
Contact the service center for check, calibration or repair.
y
If any of the following occur, unplug the product immediately and contact your local
service centre.
- The product has been impacted by shock
- The product has been damaged
- Foreign objects have entered the product
- The product produced smoke or a strange smell
This may result in fire or electric shock.
y
If you don’t intend to use the product for a long time, unplug the power cable from
the product.
Covering dust can cause a fire, or insulation deterioration can cause electric
leakage, electric shock or fire.
y
Apparatus shall not be exposed to dripping or splashing and no objects filled with
liquids, such as vases, shall be placed on the apparatus.
7
ENGENGLISH
SAFETY INSTRUCTIONS
CAUTION
y
Install the product where no radio wave occurs.
y
There should be enough distance between an outside antenna and power lines to
keep the former from touching the latter even when the antenna falls.
This may cause an electric shock.
y
Do not install the product on places such as unstable shelves or inclined surfaces.
Also avoid places where there is vibration or where the product cannot be fully
supported.
Otherwise, the product may fall or flip over, which may cause injury or damage to
the product.
y
If you install the TV on a stand, you need to take actions to prevent the product
from overturning. Otherwise, the product may fall over, which may cause injury.
y
If you intend to mount the product to a wall, attach VESA standard mounting interface (optional
parts) to the back of the product. When you install the set to use the wall mounting bracket (optional
parts), fix it carefully so as not to drop.
y
Only use the attachments / accessories specified by the manufacturer.
y
When installing the antenna, consult a qualified service man.
This may create a fire hazard or an electric shock hazard.
5~7 times
y
We recommend that you maintain a distance of at least 5 to 7 times the diagonal
screen size when watching TV.
If you watch TV for a long period of time, this may cause blurred vision.
y
Only use the specified type of battery.
This could cause damage to the remote control.
y
Do not mix new batteries with old batteries.
This may cause the batteries to overheat and leak.
y
Make sure there are no objects between the remote control and its sensor.
y
Signal from the remote control may be disturbed by sun light or other strong light.
In this case, darken the room.
y
When connecting external devices such as video game consoles, make sure the
connecting cables are long enough.
Otherwise, the product may fall over, which may cause injury or damage the
product.
8
ENG
ENGLISH
SAFETY INSTRUCTIONS
y
Do not turn the product On/Off by plugging-in or unplugging the power plug to the
wall outlet. (Do not use the power plug for switch.)
It may cause mechanical failure or could give an electric shock.
y
Please follow the installation instructions below to prevent the product from
overheating.
- The distance between the product and the wall should be more than 10 cm.
- Do not install the product in a place with no ventilation (e.g., on a bookshelf or in
a cupboard).
- Do not install the product on a carpet or cushion.
- Make sure the air vent is not blocked by a tablecloth or curtain.
Otherwise, this may result in fire.
y
Take care not to touch the ventilation openings when watching the TV for long
periods as the ventilation openings may become hot. This does not affect the
operation or performance of the product.
y
Periodically examine the cord of your appliance, and if its appearance indicates damage or
deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact
replacement part by an authorized servicer.
y
Prevent dust collecting on the power plug pins or outlet.
This may cause a fire hazard.
y
Protect the power cord from physical or mechanical abuse, such as being twisted,
kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs,
wall outlets, and the point where the cord exits the appliance.
y
Do not press strongly upon the panel with a hand or sharp object such as nail,
pencil or pen, or make a scratch on it.
y
Avoid touching the screen or holding your finger(s) against it for long periods of
time. Doing so may produce some temporary distortion effects on the screen.
y
When cleaning the product and its components, unplug the power first and wipe it
with a soft cloth. Applying excessive force may cause scratches or discolouration.
Do not spray with water or wipe with a wet cloth. Never use glass cleaner, car or
industrial shiner, abrasives or wax, benzene, alcohol etc., which can damage the
product and its panel.
Otherwise, this may result in fire, electric shock or product damage (deformation,
corrosion or breakage).
y
As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power
source even if you turn off this unit by SWITCH.
y
When unplugging the cable, grab the plug and unplug it.
If the wires inside the power cable are disconnected, this may cause fire.
y
When moving the product, make sure you turn the power off first. Then, unplug the
power cables, antenna cables and all connecting cables.
The TV set or power cord may be damaged, which may create a fire hazard or
cause electric shock.
9
ENGENGLISH
SAFETY INSTRUCTIONS
y
When moving or unpacking the product, work in pairs because the product is
heavy.
Otherwise, this may result in injury.
y
Contact the service center once a year to clean the internal parts of the product.
Accumulated dust can cause mechanical failure.
y
Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has
been dropped.
y
If the product feels cold to the touch, there may be a small “flicker” when it is turned
on. This is normal, there is nothing wrong with product.
y
The panel is a high technology display product with resolution of two million to six
million pixels. You may see tiny black dots and/or brightly coloured dots (red, blue
or green) at a size of 1 ppm on the panel. This does not indicate a malfunction and
does not affect the performance and reliability of the product.
This phenomenon also occurs in third-party products and is not subject to
exchange or refund.
y
You may find different brightness and color of the panel depending on your viewing
position(left/right/top/down).
This phenomenon occurs due to the characteristic of the panel. It is not related with
the product performance, and it is not malfunction.
y
Displaying a still image (e.g., broadcasting channel logo, on-screen menu, scene from a video
game) for a prolonged time may cause damage to the screen, resulting in retention of the image,
which is known as image sticking. The warranty does not cover the product for image sticking.
Avoid displaying a fixed image on your television’s screen for a prolonged period (2 or more hours
for LCD, 1 or more hours for Plasma).
Also, if you watch the TV at a ratio of 4:3 for a long time, image sticking may occur on the borders of
the panel.
This phenomenon also occurs in third-party products and is not subject to exchange or refund.
y
Generated Sound
“Cracking” noise: A cracking noise that occurs when watching or turning off the TV is generated by
plastic thermal contraction due to tempera-ture and humidity. This noise is common for products
where thermal deformation is required. Electrical circuit humming/panel buzzing: A low level noise is
generated from a high-speed switching circuit, which supplies a large amount of current to operate a
product. It varies depending on the product.
This generated sound does not affect the performance and reliability of the product.
10
ENG
ENGLISH
INSTALLATION PROCEDURE / ASSEMBLING AND PREPARING
NOTE
y
Image shown may differ from your TV.
y
Your TV’s OSD (On Screen Display) may differ slightly from that shown in this manual.
y
The available menus and options may differ from the input source or product model that you are
using.
y
New features may be added to this TV in the future.
y
The TV can be placed in standby mode in order to reduce the power consumption. And the TV should
be turned off if it will not be watched for some time, as this will reduce energy consumption.
y
The energy consumed during use can be significantly reduced if the level of brightness of the picture
is reduced, and this will reduce the overall running cost.
INSTALLATION PROCEDURE
1 Open the package and make sure all the accessories are included.
2 Attach the stand to the TV set.
3 Connect an external device to the TV set.
4 Make sure the network connection is available.
You can use the TV network functions only when the network connection is made.

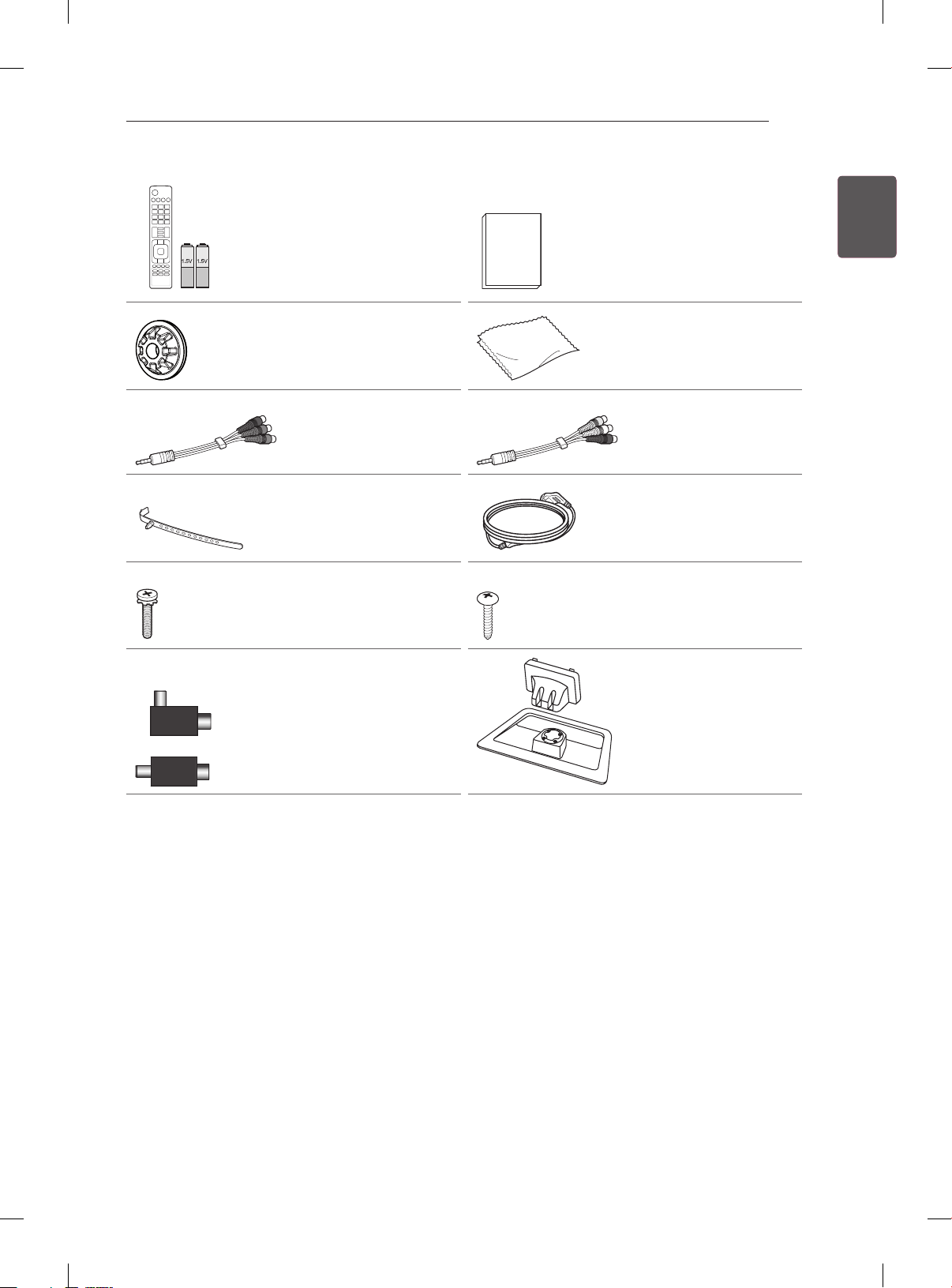

ASSEMBLING AND PREPARING
Unpacking
Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual
product and item.
CAUTION
y
Do not use any unapproved items to ensure the safety and product life span.
y
Any damag or injuries caused by using unapproved items are not covered by the manuafacturer’s
warranty.
y
Some models have a thin film attached on to the screen and this must not be removed.
NOTE
y
The items supplied with your product may vary depending on the model.
y
Product specifications or contents of this manual may be changed without prior notice due to upgrade
of product functions.
y
For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick
and 18 mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory
stick does not fit into your TV’s USB port.
A
B
A
B
*A
<
=
10 mm
*B
<
=
18 mm
11
ENGENGLISH
ASSEMBLING AND PREPARING
FREEZE
RATIO
L/R SELECT
ENTER
BACK
EXIT
Q.MENU
INFO
MENU
CHVOL
P
A
G
E
FAV
3D
MUTE
1 2 3
4 5 6
7 8
0
9
MARK
LIST
FLASHBK
ENERGY
SAVING
TV
AV MODE
INPUT
Remote control and
batteries (AAA)
(See p. 25)
Owner’s manual
Wall mount inner spacers
4EA
(See p.19)
Polishing cloth
(Depending on model)
Use this to remove dust
from the cabinet.
Component video cable
(See p. 23)
Composite video cable
(See p. 23)
Cable holder
(Depending on model)
(See p. 19)
Power Cord
Stand Screws
8EA, M4 x 20
(See p. 16)
Desk-mount Screw
(Only 32/42/47LS57**,
42LS58**)
(See p. 17)
or
Isolator
(Depending on model)
(See p. 12)
Stand Body / Stand Base
(See p. 16)
12
ENG
ENGLISH
ASSEMBLING AND PREPARING
NOTE
y

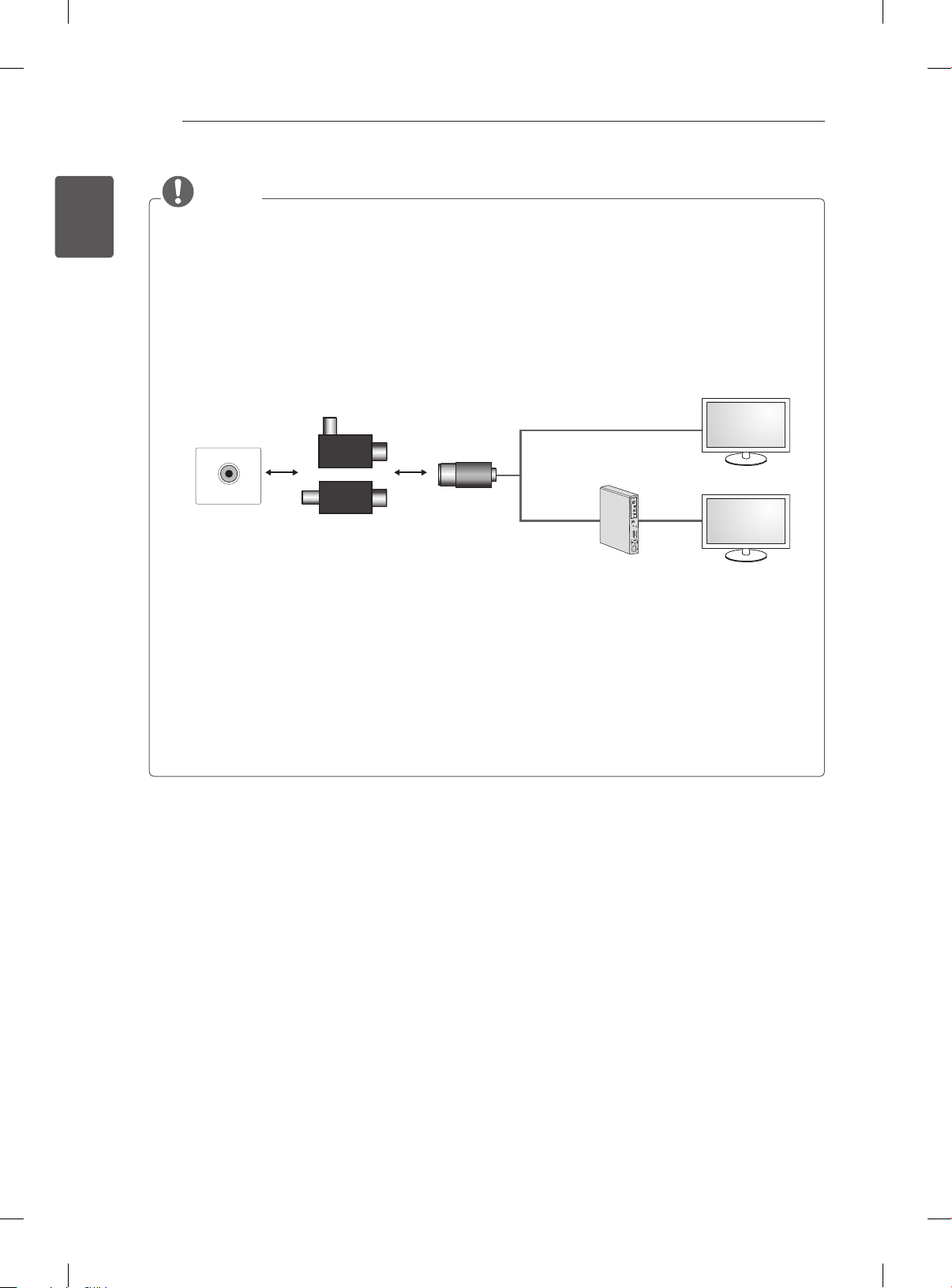

Antenna Isolator Installation Guide
- Use this to install TV in a place where there is a voltage difference between TV Set and GND of
antenna signal.
»
If there is a voltage difference between TV Set and GND of antenna signal, the antenna contact
might be heated and excessive heat might cause an accident.
- You can improve the safety when watching TV by efficiently removing power voltage from TV
antenna. It is recommended to mount the isolator to the wall. If it cannot be mounted to the wall,
mount it on the TV. Avoid disconnecting the antenna Isolator after installation.
- Before starting, be sure that the TV antenna is connected.
ANTENNA/
CABLE IN
Cable / Antenna
Wall
Isolator
1. Connect to TV.
2. Connect to Set-Top box.
or
Connect one end of the isolator to cable/antenna jack and the other to TV set or set-top box.
“Equipment connected to the protective earthing of the building installation through the mains connection
or through other equipment with a connection to protective earthing - and to a cable distribution system
using coaxial cable, may in some circumstances create a re hazard. Connection to a cable distribution
system has therefore to be provided through a device providing electrical isolation below a certain
frequency range (galvanic isolator, see EN 60728-11)”
When applying the RF Isolator, a slight loss of signal sensitivity can occur.
13
ENGENGLISH
ASSEMBLING AND PREPARING
Separate purchase
Separate purchase items can be changed or modied for quality improvement without any notication.
Contact your dealer to buy these items.
These devices only work with certain models.
P
AN-MR300
Magic Remote Control
AN-WF100
Wireless LAN
The model name or design may be changed depending on the upgrade of product functions,
manufacturer’s circumstances or policies.
14
ENG
ENGLISH
ASSEMBLING AND PREPARING

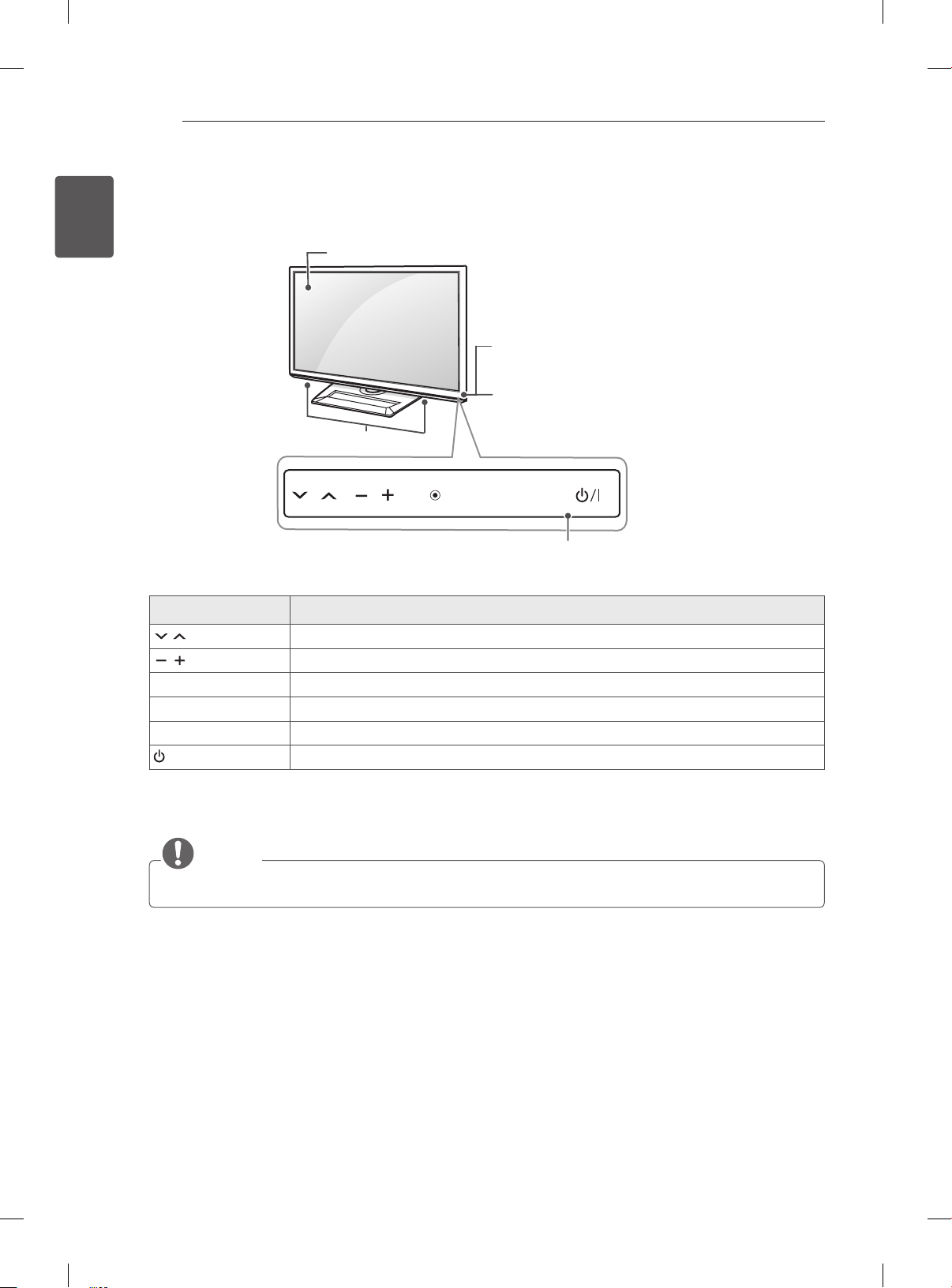

Parts and buttons
Touch button Description
H
Scrolls through the saved programmes.
H
Adjusts the volume level.
OK
ꔉ
Selects the highlighted menu option or confirms an input.
SETTINGS Accesses the main menu, or saves your input and exits the menus.
INPUT Changes the input source.
/ I
Turns the power on or off.
1 Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment.
2 All of the buttons are touch sensitive and can be operated through simple touch with your nger.
NOTE
y
You can set the power indicator light to on or off by selecting OPTION in the main menus.
SETTINGS
INPUT
OK
SETTINGS
INPUT
OK
Touch buttons
2
Power indicator
Speakers
Remote control and
intelligent sensors
1
Screen
15
ENGENGLISH
ASSEMBLING AND PREPARING

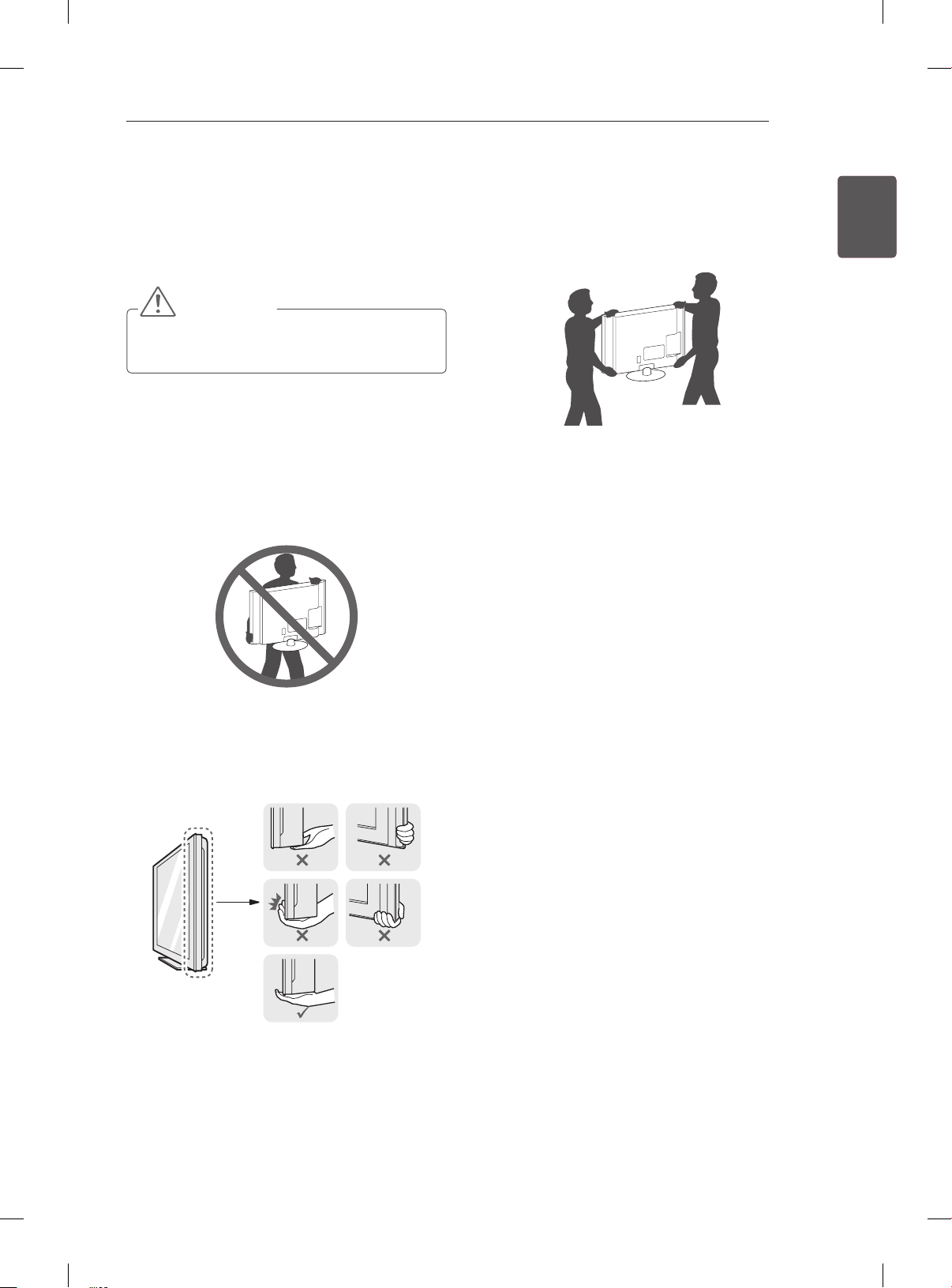

Lifting and moving the TV
Please note the following advice to prevent the
TV from being scratched or damaged and for safe
transportation regardless of its type and size.
CAUTION
y
Avoid touching the screen at all times, as
this may result in damage to the screen.
y
It is recommended to move the TV in the box
or packing material that the TV originally came
in.
y
Before moving or lifting the TV, disconnect the
power cord and all cables.
y
When holding the TV, the screen should face
away from you to avoid damage.
y
Hold the top and bottom of the TV frame rmly.
Make sure not to hold the transparent part,
speaker, or speaker grill area.
y
When transporting a large TV, there should be
at least 2 people.
y
When transporting the TV by hand, hold the TV
as shown in the following illustration.
y
When transporting the TV, do not expose the
TV to jolts or excessive vibration.
y
When transporting the TV, keep the TV upright,
never turn the TV on its side or tilt towards the
left or right.
16
ENG
ENGLISH
ASSEMBLING AND PREPARING

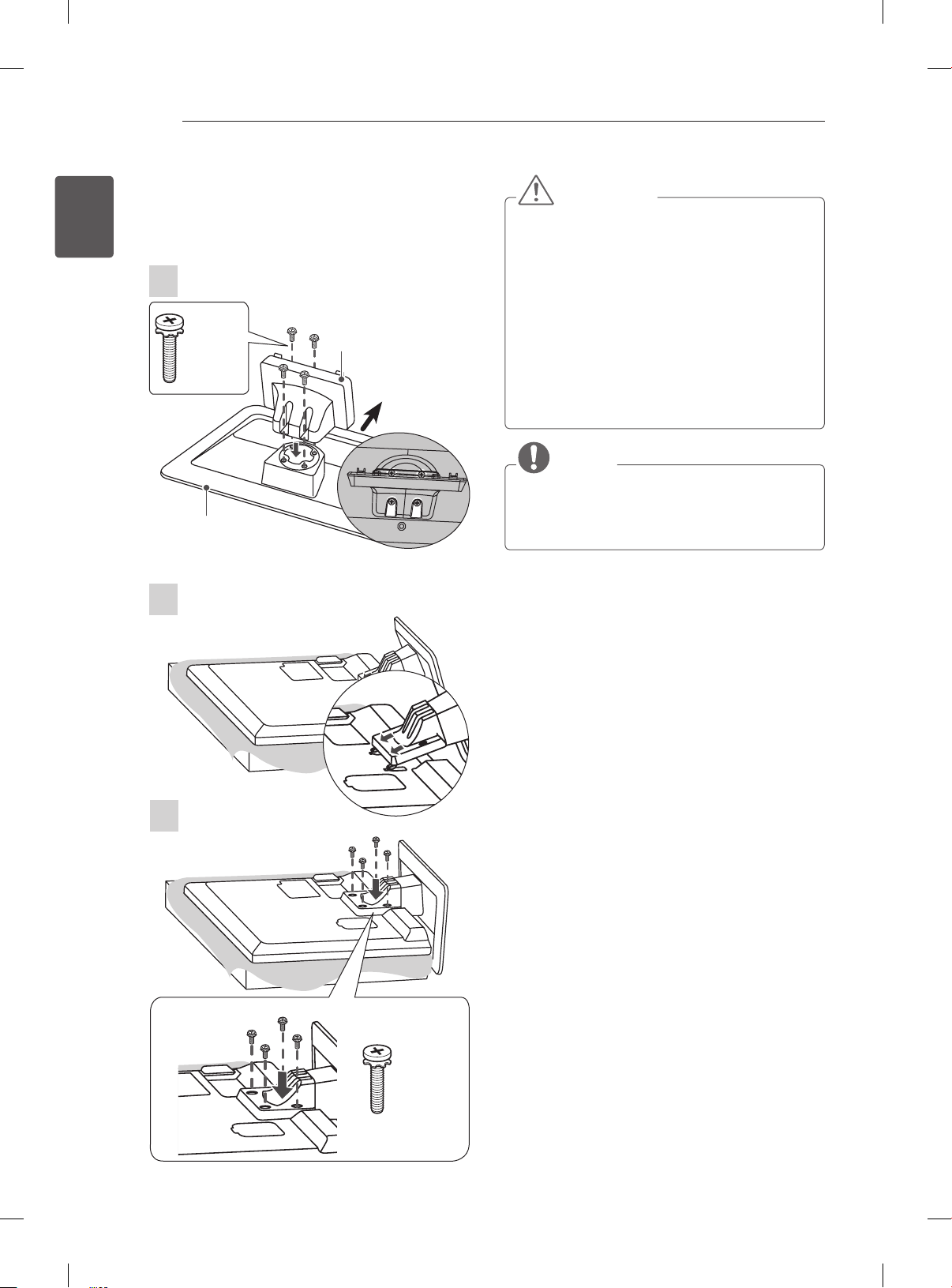

Setting up the TV
Image shown may differ from your TV.
Attaching the stand
CAUTION
y
When attaching the stand to the TV
set, place the screen facing down on a
cushioned table or flat surface to protect the
screen from scratches.
y
Make sure that the screws are fastened
completely. (If they are not fastened securely
enough, the TV may tilt forward after being
installed.)
Do not fasten the screws with too much
force; otherwise they may be worn out and
get loosened.
NOTE
Remove the stand before installing the TV
on a wall mount by performing the stand
attachment in reverse.
M4 x 20
4EA
Front
Stand Base
Stand Body
1
2
Top View
3
M4 x 20
4EA
17
ENGENGLISH
ASSEMBLING AND PREPARING
Mounting on a table
1 Lift and tilt the TV into its upright position on a
table.
- Leave a 10 cm (minimum) space from the
wall for proper ventilation.
2 Connect the power cord to a wall outlet.
CAUTION
y
Do not place the TV near or on sources
of heat, as this may result in fire or other
damage.
10 cm
10 cm
10 cm
10 cm
Securing the TV to a table
Fix the TV to a table to prevent from tilting forward,
damage, and potential injury.
To secure the TV to a table, insert and tighten the
supplied screw on the rear of the stand.
(
Only 32/42/47LS57**, 42LS58**)
WARNING
y
To prevent TV from falling over, the TV
should be securely attached to the floor/
wall per installation instructions. Tipping,
shaking, or rocking the TV may cause injury.
Adjusting the angle of the TV to suit view
(This feature is not available for all models.)
Adjusting the angle of the TV to suit view
Swivel 20 degrees to the left or right and adjust the
angle of the TV to suit your view.
2020
CAUTION
When adjusting the angle of the product,
watch out for your fingers.
»
Personal injury may occur if hands or fingers
are pinched. If the product is tilted too much, it
may fall, causing damage or injury.
18
ENG
ENGLISH
ASSEMBLING AND PREPARING
Securing the TV to a wall
(This feature is not available for all models.)
1 Insert and tighten the eye-bolts, or TV brackets
and bolts on the back of the TV.
- If there are bolts inserted at the eye-bolts
position, remove the bolts first.
2 Mount the wall brackets with the bolts to the
wall.
Match the location of the wall bracket and the
eye-bolts on the rear of the TV.
3 Connect the eye-bolts and wall brackets tightly
with a sturdy rope.
Make sure to keep the rope horizontal with the
at surface.
CAUTION
y
Make sure that children do not climb on or
hang on the TV.
NOTE
y
Use a platform or cabinet that is strong and
large enough to support the TV securely.
y
Brackets, bolts and ropes are not provided.
You can obtain additional accessories from
your local dealer.
Mounting on a wall
Attach an optional wall mount bracket at the rear
of the TV carefully and install the wall mount
bracket on a solid wall perpendicular to the
oor. When you attach the TV to other building
materials, please contact qualied personnel.
LG recommends that wall mounting be performed
by a qualied professional installer.
Make sure to use screws and wall mount bracket
that meet the VESA standard. Standard
dimensions for the wall mount kits are described in
the following table.
Separate purchase(Wall Mounting Bracket)
Model 32LS57**
42/47/55LS57**
42LS58**
VESA (A x B) 200 x 200 400 x 400
Standard screw M6 M6
Number of
screws
4 4
Wall mount
bracket
LSW200BX,
LSW200BXG
LSW400BX,
LSW400BXG
A
B
10 cm
10 cm
10 cm
10 cm
19
ENGENGLISH
ASSEMBLING AND PREPARING
CAUTION
y
Disconnect the power first, and then move
or install the TV. Otherwise electric shock
may occur.
y
If you install the TV on a ceiling or slanted
wall, it may fall and result in severe injury.
Use an authorised LG wall mount and
contact the local dealer or qualified
personnel.
y
Do not over tighten the screws as this may
cause damage to the TV and void your
warranty.
y
Use the screws and wall mounts that meet
the VESA standard. Any damages or injuries
by misuse or using an improper accessory
are not covered by the warranty.
NOTE
y
Use the screws that are listed on the VESA
standard screw specifications.
y
The wall mount kit includes an installation
manual and necessary parts.
y
The wall mount bracket is not provided. You
can obtain additional accessories from your
local dealer.
y
The length of screws may differ depending
on the wall mount. Make sure to use the
proper length.
y
For more information, refer to the manual
supplied with the wall mount.
y
When attaching a third-party wall mounting
bracket to the TV, insert the wall mount
inner spacers into the TV wall mount holes
to move your TV in vertical angle. Please
make sure not to use the spacers for LG
wall mounting bracket.
Wall Mount Inner Spacer
Tidying cables
1 Gather and bind the cables with the Cable
Holder.
Cable Holder
CAUTION
Do not move the TV by holding the cable
holders, as the cable holders may break, and
injuries and damage to the TV may occur.
20
ENG
ENGLISH
MAKING CONNECTIONS
MAKING
CONNECTIONS
This section on MAKING CONNECTIONS mainly
uses diagrams for the LS57** models.
Connect various external devices to the TV
and switch input modes to select an external
device. For more information of external device’s
connection, refer to the manual provided with each
device.
Available external devices are: HD receivers,
DVD players, VCRs, audio systems, USB storage
devices, PC, gaming devices, and other external
devices.
NOTE
y
The external device connection may differ
from the model.
y
Connect external devices to the TV
regardless of the order of the TV port.
y
If you record a TV program on a DVD
recorder or VCR, make sure to connect the
TV signal input cable to the TV through a
DVD recorder or VCR. For more information
of recording, refer to the manual provided
with the connected device.
y
Refer to the external equipment’s manual for
operating instructions.
y
If you connect a gaming device to the TV,
use the cable supplied with the gaming
device.
y
In PC mode, there may be noise associated
with the resolution, vertical pattern, contrast
or brightness. If noise is present, change
the PC output to another resolution, change
the refresh rate to another rate or adjust the
brightness and contrast on the PICTURE
menu until the picture is clear.
y
In PC mode, some resolution settings may
not work properly depending on the graphics
card.
Antenna connection
Connect the TV to a wall antenna socket with an
RF cable (75 Ω).
IN
ANTENNA/CABLE
NOTE
y
Use a signal splitter to use more than 2 TVs.
y
If the image quality is poor, install a signal
amplifier properly to improve the image
quality.
y
If the image quality is poor with an antenna
connected, try to realign the antenna in the
correct direction.
y
An antenna cable and converter are not
supplied.
21
ENGENGLISH
MAKING CONNECTIONS
HDMI connection
Transmits the digital video and audio signals from
an external device to the TV. Connect the external
device and the TV with the HDMI cable as shown.
Choose any HDMI input port to connect. It does
not matter which port you use.
2 3 1
(ARC)
4
(PC)
IN
HDMI
NOTE
y
It is recommended to use the TV with the
HDMI connection for the best image quality.
y
Use the latest High Speed HDMI™ Cable
with CEC (Customer Electronics Control)
function.
y
High Speed HDMI™ Cables are tested to
carry an HD signal up to 1080p and higher.
y
Supported DTV Audio: MPEG, Dolby Digital,
Dolby Digital Plus
y
Supported HDMI Audio format : Dolby
Digital, PCM (Up to 192 KHz, 32k/44.1k/48k
/88k/96k/176k/192k, DTS Not supported.)
(*Not Provided)
DVD/ Blu-Ray / HD Cable
Box / HD STB / PC
ARC (Audio Return Channel)
y
An external audio device that supports
SIMPLINK and ARC must be connected
using HDMI IN 1 (ARC) port.
y
When connected with a high-speed
HDMI cable, the external audio device
that supports ARC outputs optical SPDIF
without additional optical audio cable and
supports the SIMPLINK function.
22
ENG
ENGLISH
MAKING CONNECTIONS
DVI to HDMI connection
Transmits the digital video signal from an external
device to the TV. Connect the external device and
the TV with the DVI-HDMI cable as shown. To
transmit an audio signal, connect an audio cable.
Choose any HDMI input port to connect. It does
not matter which port you use.
DVI OUT
AUDIO OUT
IN
(RGB/HDMI-PC)
AUDIO
2 3 1
(ARC)
4
(PC)
IN
NOTE
y
Depending on the graphics card, DOS mode
may not work if a HDMI to DVI Cable is in
use.
y
It is recommended to connect the DVI-HDMI to
HDMI IN 4.
(*Not Provided)
DVD/ Blu-Ray / HD Cable Box / PC
RGB-PC connection
Transmits the video signal from PC to the TV. To
transmit an audio signal, connect an audio cable.
RGB OUT (PC)
AUDIO OUT
IN
(RGB/HDMI-PC)
AUDIO
(PC)
RGB
(*Not Provided)
PC
23
ENGENGLISH
MAKING CONNECTIONS
Composite connection
Transmits analog video and audio signals from an
external device to the TV. Connect the external
device and the TV with the composite cable as
shown.
VIDEO
MONO
( )
AUDIOL R
IN
COMPONENT
AV
PB
PR Y
VIDEO
AUDIO
RED
RED
RED
WHITE
WHITE
WHITE
YELLOW
YELLOW
YELLOW
VCR / DVD / Blu-Ray
/ HD Cable Box
(Use the composite video
cable provided.)
(*Not Provided)
Component connection
Transmits analog video and audio signals from an
external device to the TV. Connect the external
device and the TV with a component cable as
shown.
VIDEO
AUDIO
L R
IN
COMPONENT
AV
PR
PB Y
VIDEO
AUDIO
NOTE
y
If cables are installed incorrectly, it could
cause the image to display in black and
white or with distorted colour.
RED RED RED
BLUE BLUE BLUE
GREEN GREEN GREEN
RED RED RED
WHITE WHITE WHITE
YELLOW
DVD / Blu-Ray /
HD Cable Box
(Use the composite
video cable provided.)
(Use the component
video cable provided.)
(*Not Provided)
GREENYELLOW
YELLOW
24
ENG
ENGLISH
MAKING CONNECTIONS
Audio connection
You may use an optional external audio system
instead of the built-in speaker.
NOTE
y
If you use an optional external audio device
instead of the built-in speaker, set the TV
speaker feature to off.
Digital optical audio connection
Transmits a digital audio signal from the TV to an
external device. Connect the external device and
the TV with the optical audio cable as shown.
OPTICAL
AUDIO IN
OUT
OPTICAL
DIGITAL
AUDIO
NOTE
y
Do not look into the optical output port.
Looking at the laser beam may damage
your vision.
y
Audio with ACP (Audio Copy Protection)
function may block digital audio output.
Digital Audio System
(*Not Provided)
USB connection
Connect a USB storage device such as a USB
ash memory, external hard drive, or a USB
memory card reader to the TV and access the
Smart Share menu to use various multimedia les.
USB Apps
3
USB Hub
2
HDD IN
USB IN
1
USB
Hub
HDD
NOTE
y
To use a USB Hub device, make sure that it
is connected to the USB IN 2 USB Hub port.
y
Some USB Hubs may not work. If a USB
device connected using a USB Hub is not
detected, connect it to the USB port on the
TV directly.
(*Not Provided)
(*Not Provided)
25
ENGENGLISH

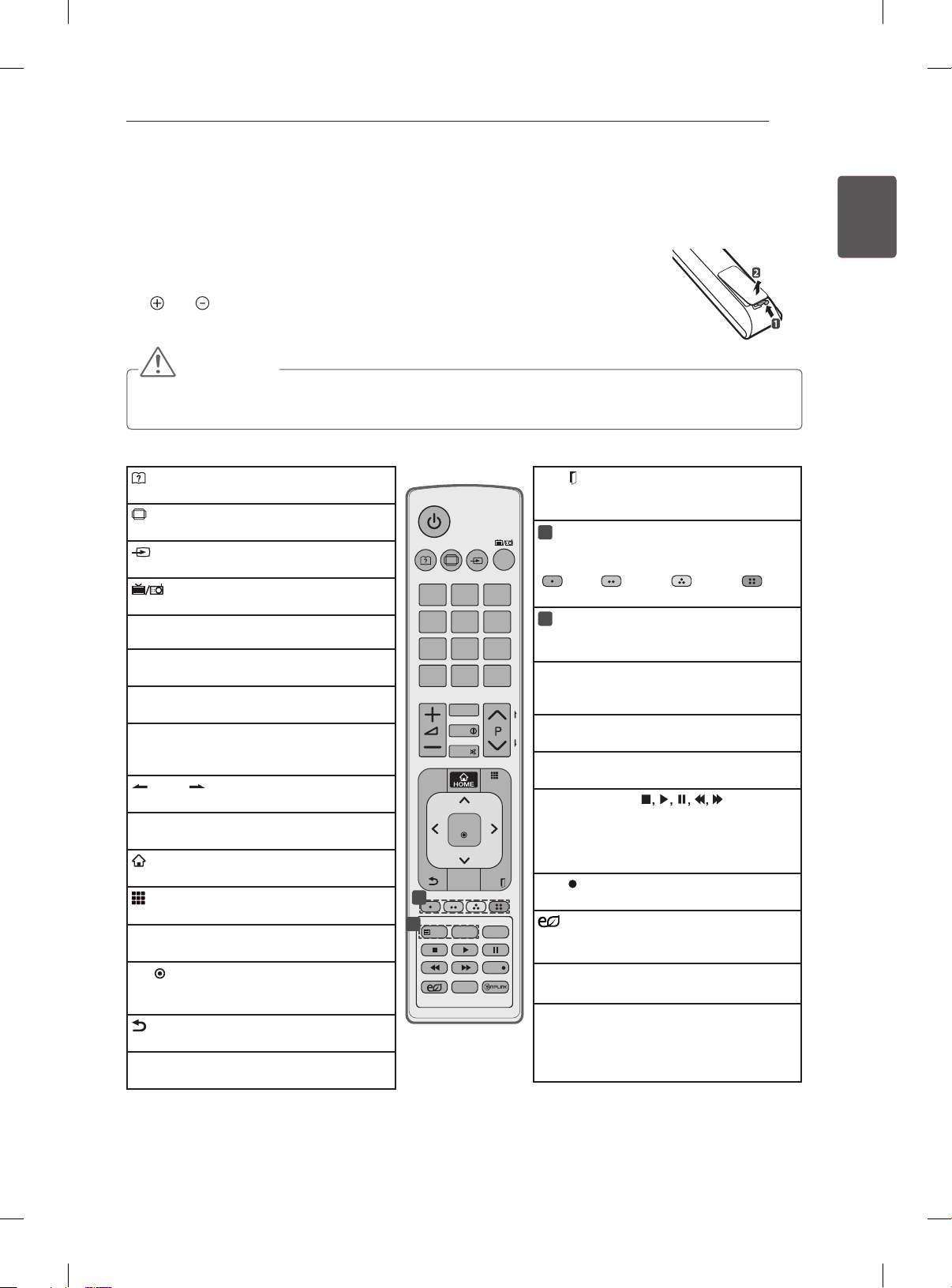

REMOTE CONTROL
REMOTE CONTROL
The descriptions in this manual are based on the buttons on the remote control.
Please read this manual carefully and use the TV correctly.
To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching
the
and ends to the label inside the compartment, and close the battery cover.
To remove the batteries, perform the installation actions in reverse.
CAUTION
y
Do not mix old and new batteries, as this may damage the remote control.
y
In Analogue TV and some countries, some remote control keys may not work.
Make sure to point the remote control toward the remote control sensor on the TV.
(User Guide)
Sees user-guide.
RATIO
Resizes an image.
INPUT
Changes the input source.
TV/RAD
Selects Radio, TV and DTV programme.
LIST
Accesses the saved programme list.
Q.VIEW
Returns to the previously viewed programme.
FAV
Accesses your favourite programme list.
INFO
Views the information of the current
programme and screen.
PAGE
Moves to the previous or next screen.
SETTINGS
Accesses the main menus.
HOME
Accesses the Home menus.
MY APPS
Shows the list of Apps.
Navigation buttons (up/down/left/right)
Scrolls through menus or options.
OK
Selects menus or options and confirms your
input.
(Back)
Returns to the previous level.
GUIDE
Shows programme guide.
EXIT
Clears on-screen displays and return to TV
viewing.
1
Colour buttons
These access special functions in some
menus.
(
: Red, : Green, : Yellow, :
Blue)
2
TELETEXT BUTTONS
These buttons are used for teletext.
For further details, see the ‘Teletext’ section.
SUBTITLE
Recalls your preferred subtitle in digital
mode.
Q. MENU
Accesses the quick menus.
LIVE TV
Return to LIVE TV.
Control buttons (
)
Controls the Premium contents, DVR or
Smart Share menus or the SIMPLINK
compatible devices (USB or SIMPLINK or
DVR).
REC
Uses to adjust DVR menu.
ENERGY SAVING
Adjusts the brightness of the screen to reduce
energy consumption.
AV MODE
Selects an AV mode.
SIMPLINK
Accesses the AV devices connected with the
HDMI cable through HDMI-CEC.
Opens the SIMPLINK menu.
1
2 3
4
5
6
7 8
0
9
P
A
G
E
TV/
RAD
RATIO INPUT
FAV
MUTE
LIST
Q.VIEW
EXIT
OK
GUIDE
SETTINGS
MY APPS
LIVE TV
ENERGY
SAVING
REC
TEXT
T.OPT
SUBTITLE
Q.MENU
INFO
AV MODE
2
1
26
ENG
ENGLISH
USING THE USER GUIDE
1 Press the
HOME button to access the HOME
menu.
2 Select User Guide and press Wheel(OK).
Input List Settings Live TV
Search
Internet
3D
LG Smart W
Programme Guide
User Guide
Recent List
User Guide
NOTE
y
You can also access the User Guide by
pressing
(User Guide) in the remote
control.
3
User Guide
OPTION
PROGRAMME Setting
PICTURE, SOUND Setting
LG SMART Function
Advanced Function
To use input device
To set time options
To set language
Disabled Assistance
To set Magic Remote Control
To set TV lock options
To use Energy Saving feature
1
4
Information
2
1
Shows the current watching programme or
input source screen.
2
Allows to select the category you want.
3
Allows to select the item you want.
You can use
ꕌ
/
ꕍ
to move between pages.
4
Allows to browse the description of the
function you want from the index.
1
2
3
User Guide
OPTION > To set language
HOME Settings OPTION Language
Selects Menu Language and Audio Language displayed on the screen.
Menu Language
Audio Language
Subtitle
Language
Selects a language for the display text.
[In Digital Mode Only]
When watching a digital broadcast containing several
audio languages, you can select the language you want.
[In Digital Mode Only]
Use the Subtitle function when two or more subtitle
languages are broadcast.
✎ If subtitle data in a selected language is not broadcast,
the default language subtitle will be displayed.
Try Now Close
Zoom In
OPTION
PROGRAMME Setting
PICTURE, SOUND Setting
LG SMART Function
Advanced Function
Information
3
HOME Settings OPTION Language
Selects Menu Language and Audio Language displayed on the screen.
Menu Language
Audio Language
Subtitle
Language
Selects a language for the display text.
[In Digital Mode Only]
When watching a digital broadcast containing several
audio languages, you can select the language you want.
[In Digital Mode Only]
Use the Subtitle function when two or more subtitle
languages are broadcast.
✎ If subtitle data in a selected language is not broadcast,
the default language subtitle will be displayed.
Try Now Close
Zoom Out
1
Shows the description of the selected menu.
You can use
ꕌ
/
ꕍ
to move between pages.
2
Moves to the selected menu directly from the
User Guide.
3
Zooms in or out the screen.
USING THE USER GUIDE
User Guide allows you to more easily access the detailed TV information.
My Apps
27
ENGENGLISH
MAINTENANCE / TROUBLESHOOTING
MAINTENANCE
Cleaning your TV
Clean your TV regularly to keep the best performance and to extend the product lifespan.
CAUTION
y
Make sure to turn the power off and disconnect the power cord and all other cables first.
y
When the TV is left unattended and unused for a long time, disconnect the power cord from the wall
outlet to prevent possible damage from lightning or power surges.
Screen, frame, cabinet and stand
y
To remove dust or light dirt, wipe the surface with a dry, clean, and soft cloth.
y
To remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild
detergent. Then wipe immediately with a dry cloth.
CAUTION
y
Avoid touching the screen at all times, as this may result in damage to the screen.
y
Do not push, rub, or hit the screen surface with your fingernail or a sharp object, as this may result in
scratches and image distortions.
y
Do not use any chemicals as this may damage the product.
y
Do not spray liquid onto the surface. If water enters the TV, it may result in fire, electric shock, or
malfunction.
Power cord
Remove the accumulated dust or dirt on the power cord regularly.
TROUBLESHOOTING
Problem Solution
Cannot control
the TV with the
remote control.
y
Check the remote control sensor on the product and try again.
y
Check if there is any obstacle between the product and the remote control.
y
Check if the batteries are still working and properly installed (
to , to ).
No image display
and no sound is
produced.
y
Check if the product is turned on.
y
Check if the power cord is connected to a wall outlet.
y
Check if there is a problem in the wall outlet by connecting other products.
The TV turns off
suddenly.
y
Check the power control settings. The power supply may be interrupted.
y
Check if the Auto sleep feature is activated in the Time settings.
y
If there is no signal while the TV is on, the TV will turn off automatically after
15 minutes of inactivity.
When connecting
to the PC (RGB/
HDMI DVI),
‘No signal’ or
‘Invalid Format’ is
displayed.
y
Turn the TV off/on using the remote control.
y
Reconnect the RGB/HDMI cable.
y
Restart the PC with the TV on.
28
ENG
ENGLISH
ENVIRONMENTAL INFORMATION
ENVIRONMENTAL INFORMATION
(India only)
WEEE
Disposal of your old appliance
1. When this crossed-out wheeled bin symbol is attached to a product it means the product
is covered by the e-waste (Management and Handling) Rules, 2011.
2. All electrical and electronic products should be disposed of separately from the
municipal waste stream via designated collection facilities appointed by the government
or the local authorities.
3. The correct disposal of your old appliance will help prevent potential negative
consequences for the environment and human health.
4. For more detailed information about disposal of your old appliance, please contact your city ofce, waste
disposal service or the shop where you purchased the product.
5. This product does not contain any of the hazardous substances as specied in the rule 13 (1) and (2) of
the e-waste (Management and Handling) Rules, 2011.
i;kZoj.kh; tkudkjh
WEEE
vius iqjkus midj.k dk fuiVku
ƒ. tc ;g dkVs x;s ifg;s okys fcu dk fpg+u fdlh mRikn ds lkFk layXu gksrk gS rks bldk vFkZ gS mRikn
¼izca/ku vkSj gFkkyu½ fu;e „Œƒƒ ds varxZr lfEefyr fd;k x;k gSA
„
. lHkh bysfDVªdy ,oa vkSj bysDVªkfud mRiknkas dks ljdkj ;k LFkkuh; vf/kdkfj;ksaa }kjk fu;qDr uxjikfydk /kkjk
ls vyx izkf/kd`r dh xbZ laxzg lqfo/kkvksa ds ek/;e ls fuiVk;k tkuk pkfg,A
…
. lgh rjhds ls vius iqjkus midj.kksa dk fuiVku okrkoj.k vkSj ekuoh; LokLF; dss fy, laHkkfor udkjkRed ifj.kkeksa dks
jksdus esa enn djsxkA
†
. vius iqjkus midj.kksa ds fuiVku ds lac/k esa vkSj vf/kd folr`r tkudkjh ds fy,] d`i;k vius uxj dk;kZy;] fuiVku lsok ;k tgka
ls vkius mRikn [kjhnk Fkk] ogka laidZ djsaA
‡
. bl mRikn esa ¼izca/ku vkSj gFkkyu½ fu;e] „Œƒƒ ds fu;e ƒ… ¼ƒ½ vkSj ¼„½ esa funsZ’kkuqlkj dksbZ Hkh gkfudkjd inkFkZ “kkfey ugha gSA
29
ENGENGLISH
SPECIFICATIONS
SPECIFICATIONS
Product specifications may be changed without prior notice due to upgrade of product functions.
For the power supply and power consumption, refer to the label attached to the product.
MODELS
32LS57** 42LS57** 47LS57**
32LS5700-TB
32LS570Y-TB
42LS5700-TB
42LS570Y-TB
47LS5700-TB
47LS570Y-TB
Dimensions
(W x H x D)
With stand (
mm
)
746.0 x 527.0 x 204.0
979.0 x 660.0 x 269.0
1089.0 x 720.0 x 269.0
Without stand(
mm)
746.0 x 462.0 x 35.5
979.0 x 594.0 x 35.5
1089.0 x 655.0 x 35.5
Weight With stand (kg)
9.7
15.1
17.8
Without stand (kg)
8.4
12.6
15.3
Power requirement
AC 100-240 V~ 50 / 60
Hz
AC 100-240 V~ 50 / 60
Hz
AC 100-240 V~ 50 / 60
Hz
MODELS
55LS57** 42LS58**
55LS5700-TB
55LS570Y-TB
42LS5800-TB
42LS580Y-TB
Dimensions
(W x H x D)
With stand (
mm
)
1263.0 x 822.0 x 315.0
979.0 x 660.0 x 269.0
Without stand(
mm)
1263.0 x 754.0 x 35.5
979.0 x 594.0 x 35.5
Weight With stand (kg)
25.5
15.6
Without stand (kg)
21.9
13.1
Power requirement
AC 100-240 V~ 50 / 60
Hz
AC 100-240 V~ 50 /
60 Hz
Environment
condition
Operating Temperature
0 °C
to
40 °C
Operating Humidity
Less than 80 %
Storage Temperature
-20 °C
to
60 °C
Storage Humidity
Less than 85 %
30
ENG
ENGLISH
SPECIFICATIONS
Digital TV Analogue TV
New Zealand,
Singapore
Television System DVB-T PAL/SECAM-B/G/D/K
, PAL-I
Programme
Coverage
UHF 21 to 69
BG : VHF/UHF 1 to 69, CATV 01 to 47
I : VHF/UHF 1 to 69, CATV 01 to 47
DK : VHF/UHF 1 to 69, CATV 01 to 47
Australia Television System DVB-T PAL B/B
Programme
Coverage
VHF 06 to 12,
UHF 27 to 69
B/B : VHF/UHF 0 to 75, CATV : 2 to
44
Indonesia,
Israel, Myanmar,
Sri Lanka
Television System DVB-T PAL/SECAM-B/G/D/K
, PAL-I, NTSC-M
Programme
Coverage
UHF 21 to 69
BG : VHF/UHF 1 to 69, CATV 01 to 47
I : VHF/UHF 1 to 69, CATV 01 to 47
DK : VHF/UHF 1 to 69, CATV 01 to 47
M : VHF/UHF 2 to 78, CATV 01 to 71
South Africa
Television System DVB-T PAL/SECAM-B/G/D/K
, PAL-I, NTSC-M
Programme
Coverage
VHF 4 to 11, 13
UHF 21 to 68
BG : VHF/UHF 1 to 69, CATV 01 to 47
I : VHF/UHF 1 to 69, CATV 01 to 47
DK : VHF/UHF 1 to 69, CATV 01 to 47
M : VHF/UHF 2 to 78, CATV 01 to 71
Vietnam,
Malaysia
Television System DVB-T PAL/SECAM-B/G/D/K
, PAL-I, NTSC-M
Programme
Coverage
VHF 6 to 12,
UHF 21 to 69
BG : VHF/UHF 1 to 69, CATV 01 to 47
I : VHF/UHF 1 to 69, CATV 01 to 47
DK : VHF/UHF 1 to 69, CATV 01 to 47
M : VHF/UHF 2 to 78, CATV 01 to 71
Iran, Algeria,
Tunisia, Digital
model
Television System DVB-T PAL/SECAM-B/G/D/K
, PAL-I, NTSC-M
Programme
Coverage
VHF 5 to 12,
UHF 21 to 69
BG : VHF/UHF 1 to 69, CATV 01 to 47
I : VHF/UHF 1 to 69, CATV 01 to 47
DK : VHF/UHF 1 to 69, CATV 01 to 47
M : VHF/UHF 2 to 78, CATV 01 to 71
Analogue model,
India, Thailand,
--
Television System - PAL/SECAM-B/G/D/K
, PAL-I, NTSC-M
Programme
Coverage
-
BG : VHF/UHF 1 to 69, CATV 01 to 47
I : VHF/UHF 1 to 69, CATV 01 to 47
DK : VHF/UHF 1 to 69, CATV 01 to 47
M : VHF/UHF 2 to 78, CATV 01 to 71
External Antenna
Impedance
75 Ω 75 Ω
31
ENGENGLISH
SPECIFICATIONS
HDMI/DVI-DTV supported mode
Resolution
Horizontal
Frequency (kHz)
Vertical
Frequency
(Hz)
720X480
31.469
31.5
59.94
60
720X576 31.25 50
1280X720
37.5
44.96
45
50
59.94
60
1920X1080
33.72
33.75
28.125
26.97
27
33.716
33.75
56.25
67.43
67.5
59.94
60
50
23.97
24
29.976
30.00
50
59.94
60
Component port connecting information
Component ports on
the
TV
Y P
B
P
R
Video output ports
on DVD player
Y P
B
P
R
Y B-Y R-Y
Y Cb Cr
Y Pb Pr
Signal Component
480i/576i O
480p/576p O
720p/1080i O
1080p
O
(50 Hz / 60 Hz only)
Record the model number and serial number of
the TV.
Refer to the label on the back cover and quote
this information to your dealer when requiring any
service.
MODEL
SERIAL
Trade Mark of the DVB Digital Video
Broadcasting Project (1991 to 1996)
(Only DTV)
SMART TV Quick Setup Guide
Wireless Network Connection
NETWORK SETTING
Wired Network Connection
P/NO: MBM37745546 (1202-REV01)
Please call LG Customer Service if you experience any problems.
Troubleshooting Network Problems
1 Press the
REC
HOME button to access the HOME
menu.
Input List Settings Live TV
Search
Internet
3D
LG Smart W
My Apps
More...
Programme Guide
User Guide
Recent List
Settings
2 Select the NETWORK → Network Status menu.
Network Connection
Network Status
Wi-Fi Screen Share
Smart Share Setting
NETWORK
Follow the instructions below that correlate to your
network status.
Check the TV or the router.
Network Status
TV Gateway DNS Internet
When an
✔
appears TV.
1
Check the connection status of TV, AP and cable
modem.
2
Power off and power on TV, AP and cable modem.
3
If you are using a static IP, enter IP directly.
4
Contact internet companies or AP companies.
Additional points to check when using a wireless
connection
1
Check the password for the wireless
connection in the router settings window.
2
Change the router SSID (network name) or the
wireless channel.
Premium Apps are pre-installed on the TV. These may vary by country.
* Image shown may differ from your TV.
* Image shown on a PC or mobile phone may vary depending on the OS(Operating System).
1 Press the
REC
HOME button to access the HOME
menu. Select Settings and press Wheel(OK).
Input List Settings Live TV
Search
Internet
3D
LG Smart W
My Apps
More...
Programme Guide
User Guide
Recent List
Settings
2 Select the NETWORK → Network Connection
menu.
Network Connection
Network Status
Wi-Fi Screen Share
Smart Share Setting
NETWORK
3 Select the Start Connection.
To use network, prepare the following items.
Network Connection
To connect to a wired network:
Connect a LAN cable to the back of TV.
To connect to a wireless network:
Install AP.
Start Connection
or
4 The device automatically tries to connect to the
network available(wired network first).
Cancel
Connecting to the network.
Network Connection
If you select Cancel or it fails to connect to the
network, the network list available is displayed.
Choose the network you want.
Choose the network you want.
Wired Network
Wireless : AAA
Wireless : BBB
Wireless : CCC
Wireless : 11111
Set Expert
Show More
Searching New
Network Connection
For wireless routers that have the
ꔒ
symbol, you
need to enter the security key.
Network Connection
Wireless : AAA...Enter security key of network.
Forgot your password? Contact your AP manufacturer.
5 The connected network is displayed.
Select Complete to confirm the network connection.
If you select the Other Network List, the network
list available is displayed.
Network is connected.
Wireless:AAA
Select [Other Network List] to connect to another network.
Complete
Other Network List
Network Connection
Internet connection
Wired router
LG wireless
dongle
wireless router
NOTE
LG wireless dongle is required to use Wi-Fi network.
(Read the Owner's Manual to find out your TV's Wi-Fi capability.)
Check the router or consult your Internet
service provider.
Network Status
TV Gateway DNS Internet
When an
✔
appears TV and Gateway.
1
Unplug the power cord of the AP, cable modem and
try to connect after 5 seconds.
2
Initialise(Reset) the AP or cable medem.
3
Con
tact internet companies or AP companies.
Network Status
TV Gateway DNS Internet
When an
✔
appears TV, Gateway and DNS.
1
Unplug the power cord of the AP, cable modem and
try to connect after 5 seconds.
2
Initialise(Reset) the AP or cable medem.
3
Check that the MAC address of the TV/router is
registered with your Internet service provider. (The
MAC address displayed on the right pane of the
network status window should be registered with
your Internet service provider.)
4
Check the router manufacturer’s website to make
sure your router has the latest firmware version
installed.
SMART TV Quick Setup Guide
Installing & Setting
Media Link Connection
DLNA Connection to PC
WiDi (Wireless Display) Setting
Wi-Fi Screen Share Setting
a
b
1 Start Nero Media Home 4 and enable shared folders on your PC.
»
a
: Click the Share button.
»
b
: Click the Add button and select the desired folder.
(Read the Owner's Manual to find out which file formats support
the DLNA function.)
c
d
2 Make sure that the PC network device is selected.
»
c
: Click the Network button and check that the correct PC network
device is selected. (At least one network device must be
selected.)
»
d
: Click the Start Server button.
SMART SHARE
Setting
Connecting guide
Contents Type
More...
Click Green Key to get more information about SmartShare...
Recently Watched
Newly Added
More...
More...
Linked Device
More...
USB
DLNA Device
Settop Box
Settop Box
USB
Camera
All
MUSIC
PHOTOS
RECORDED TV
VIDEOS
e
3 You can view and enjoy shared content by using the TV’s Smart Share
function.
DLNA Device
»
e
: Select the DLNA Device on the TV’s Smart Share Card to enjoy
content from your PC.
DLNA Connection to Smartphone
1 Check that Wi-Fi is enabled on your smartphone.
Settings
2 Install/run the app for sharing content on your smartphone (It's called SmartShare on LG phones).
3 Enable your smartphone to share content files with other devices.
4 Select the file type you want to play (movie, audio or photo).
5 Select a movie, music or photo file to play on the TV.
6 Add the selected file to the playlist.
7 Select a TV model name on which to play the files. (The TV model name is labelled on the rear side of the
panel.)
8 Play the media file to view and enjoy it on your TV.
Install the
and SmartShare programme on your PC.
1 Go to
. Then, select your region.
2 Select Support. Then, Search for your model.
3 Select Drivers & Software. Then, select
and .
4 You can run the programme when installation is complete.
NOTE
DLNA or Media Link service is only available if TV and other devices are connected via a single router.
Please call LG Customer Service if you experience any problems.
HOME → Settings → SUPPORT → Software Update
Uses Software Update to check and obtain the latest version. If not updated, certain functions may not work
properly. It is also possible to check manually for available updates.
Software Update Set it to On.
When an updated file is detected, the file is downloaded automatically.
When the file download is complete, the software update window appears.
Check Update Version Checks the latest update version installed. When a new update is available, the
download process can be performed manually.
NOTE
The latest version can be obtained via the digital broadcast signal or an internet connection.
Changing the programme while downloading the software via a digital broadcast signal interrupts the
download process. Returning to the initial programme allows downloading to resume.
If software is not updated, certain functions may not work properly.
[Only Nordic models]
You can check whether LG OTA service is available in the DTV channel by pressing the red button as you
see the “Update is detected.” message under the channel banner.
Updating the TV Firmware
1
After installing the programme, right-click the Plex icon(
a
) on your PC's taskbar.
Click Media Manager(
b
)... and select the type
(
c
)
you want.
b
a
c
2 Name(
d
) : Enter the section name to be displayed on the screen.
Add(
e
) : Select a folder in the PC to add. Create a folder to store files you want to watch on TV.
Add Section(
f
) : Complete to create the section.
Turn on the TV and select Media Link(
g
)from the Home menu.
d
e
f
UCC
Service
News
Sports
Service
Video
Streaming
Weather
Info
Album
Social
Network
Service
Movie
Online
3D World
Input List Settings Live TV
Search
Internet
3D
LG Smart W
User Guide
Recent List
Meida Link
g
My Apps
More...
* For more information on file sharing, visit www.plexapp.com/medialink.
WiDi represents Wireless Display. It is a system that received AV stream that can be played back on the laptop
supporting Intel WiDi. It can be used only for Live TV and external input (Composite/Component/RGB/HDMI). Other
than these modes, your computer cannot detect LG Smart TV.
1 Wi-Fi Screen Share is set to On. Connect your laptop to AP. (Without AP, it is possible to this function; it is
recommended to connect to AP.) Your laptap runs the Intel WiDi(
ithout AP, it is possible to this function; it is
) programme.
2 It detects LG Smart TVs available, which supports WiDi. In the list, select the TV you want and click Connect.
Enter the 4-digit number(
a
) shown on the screen into the input field(
b
) on your laptop and then click Continue.
[Intel Notebook] Request connection
Enter the following Security keys.
PIN****
Cancel
Remain: 92 second(s)
a
b
TV Screen Notebook Screen
3 The TV screen appears on the laptop screen within 10 seconds. The wireless environment may affect the
screen display. If the connection is poor, the Intel WiDi connection may be lost.
* LG TV is not need to register.
* TV sound setting for Digital Sound Out is set to PCM.
* For more information on Intel WiDi, visit http://intel.com/go/widi
* On the
Wi-Fi Screen Share
, WiDi device is not searched. Close the
Wi-Fi Screen Share
, then search Wi-Di.
HOME →
Settings → NETWORK → Wi-Fi Screen Share
The Wi-Fi Screen Share function supports wireless connection technology, such as Wi-Fi Direct and WiDi. With
Smart Share, you can share files or screens of devices connected to Wi-Fi Screen Share.
[ABCDEF] Do you want to request
a connection?
Yes No
Connection
Connection
Wi-Fi Screen Share
Device Name
Show More
Research Close
TAAAA
BBBB
CCCC
DDDD
On
Wi-Fi Screen Share uses wireless connection such as
Wi-Fi Direct, WiDi, Wi-Fi Display, etc.
You can share files and screens of other devices using
Wi-Fi Screen Share at SmartShare.
Wi-Fi Screen
a
1
If Wi-Fi Screen Share
is set to On, a list of available
devices appears.
»
To use
Wi-Fi Screen Share, go to
Settings →
NETWORK and set Wi-Fi Screen Share(
a
) to
On
.
2
When you are prompted to request connection, select Yes.
Wi-Fi Screen Share is now connected to your TV.
*
If you are not using
Wi-Fi Screen Share
to minimize the interference between Wi-Fi devices, it is recommended to
set
Wi-Fi Screen Share(
a
)
to Off.
