Bulk Wine Storage Installation
subzero.com 800.222.7820
page 1 of 1
7030126 REV-D 08/2015
CONTENTS
1 Drawer, bulk storage
2 Slide, full extension
8 Plug, plastic
8 Screw, #8 x
5
∕8"
Models IW-18, IW-24, IW-30 and BW-30 will accommodate
a maximum 2 bulk storage drawers. The drawer(s) must be
installed in the lowest (or third lowest) rack position(s).
Model IW-30R will accommodate one bulk storage drawer
and must be installed in the lowest position only.

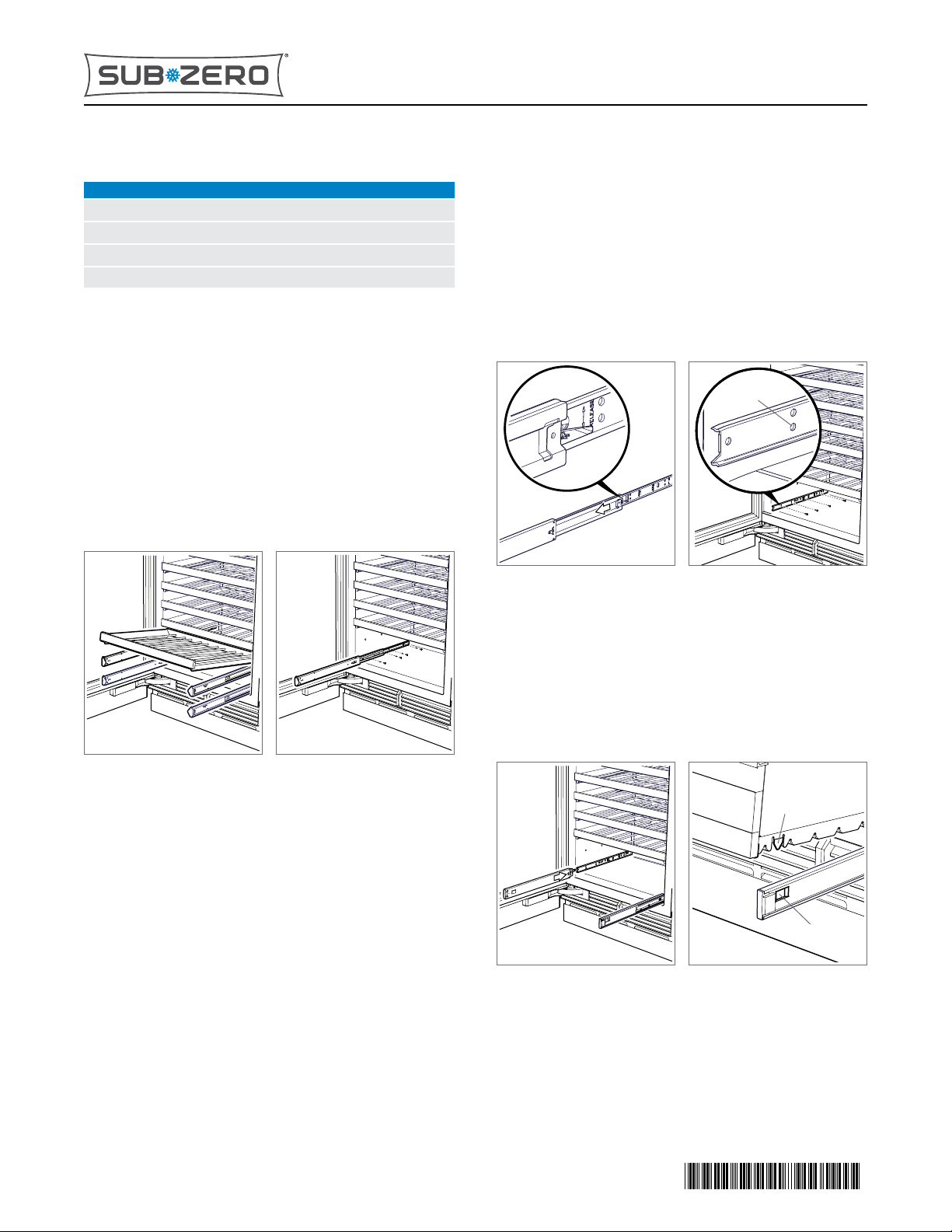

INSTALLATION
1 Remove the bottom two wine racks. To remove, pull
rack out to full extension, tilt up, then lift up and out.
2 Remove the bottom four slides. To remove, pull slides
out then remove 4 screws from each slide.
3 Remove new bulk storage slides from packaging. The
slides are hinge side and handle side specic. Refer to
the sticker on each slide to properly identify its location.
4 Pull slide out to full extension then press the release tab
to disengage the slide mount from the assembly. Install
the slide mount using the #8 x
5
∕8" screws provided.
Screws must be installed in the lower mounting holes.
Use a low torque setting when using a power drill.
Wine rack removal Slide removal
5 Once mounts have been installed, reinstall slides onto
mounts. Insert plastic plugs in the unused holes.
6 Pull slides out to full extension then place the back of
the bulk storage drawer onto the slides then lower the
front into position. Verify the front tabs have engaged
the slide detents.
Reassemble slide assembly Install the bulk drawer
TAB
DETENT
Disassemble slide assembly
Install slide mount
LOWER
