Kühl
®
Smart Room Air Conditioners
Quietmaster
®
technology
Quiet, it’s in the details
Control with App
Home or away, you’re in control
with New Friedrich Connect
™
Save big on energy
Manage energy use with ease
Breathe easier
Dual ltration for cleaner indoor air
THE EXPERTS IN ROOM AIR CONDITIONING
2 | KÜHL
®
SMART ROOM AIR CONDITIONERS
Kühl
®
Smart Room Air Conditioners
HOME OR AWAY, YOU’RE IN CONTROL WITH
THE FRIEDRICH CONNECT
™
APP.
Integrated Wi-Fi control from your smartphone. Also compatible with Amazon Alexa
and Google Home.
Connect in minutes
It’s easy with our simplified set up process
Easily set your home, away, and night time preferences
Set a seven-day custom schedule that fits your lifestyle
You’re in control anytime, anywhere
Power units off and on, increase or decrease a unit’s set point temperature,
change system cool, fan, heat, and auto settings and fan speeds
Controlling multiple units is simple
With our advanced grouping program, you can control multiple units to
work independently or as a single system. You can even invite other users
to manage one or more of your units
3
CURRENT CAPABILITIES
• Smart home ready, Amazon Alexa and Google Home
compatibility
• Advanced grouping of multiple units
• Auto-restart should power interruption occur
• Keypad lockout option protects settings
• Temperature limiting for maximum low and high
temperature settings
• Auto-changeover between cooling and heating
FUTURE CAPABILITIES
• Smart grid capable via participating energy provider
• BMS/EMS system compatible for control via 3rd party
energy management system
UNRIVALED ENERGY SAVINGS OPTIONS,
FOR CONTROL OF ONE OR MULTIPLE KÜHL UNITS
In commercial applications, only Kühl has true energy management capabilities
4 | KÜHL
®
SMART ROOM AIR CONDITIONERS
QUIETMASTER
®
TECHNOLOGY
Building the quietest air conditioners begins with the design process
and continues through the selection of superior components and
materials. It is shaped by skilled manufacturing and refined through
on-going product testing in our engineering lab.
The result is a noticeably quieter cooling and heating experience, as
much as 45% quieter than competitor’s products.

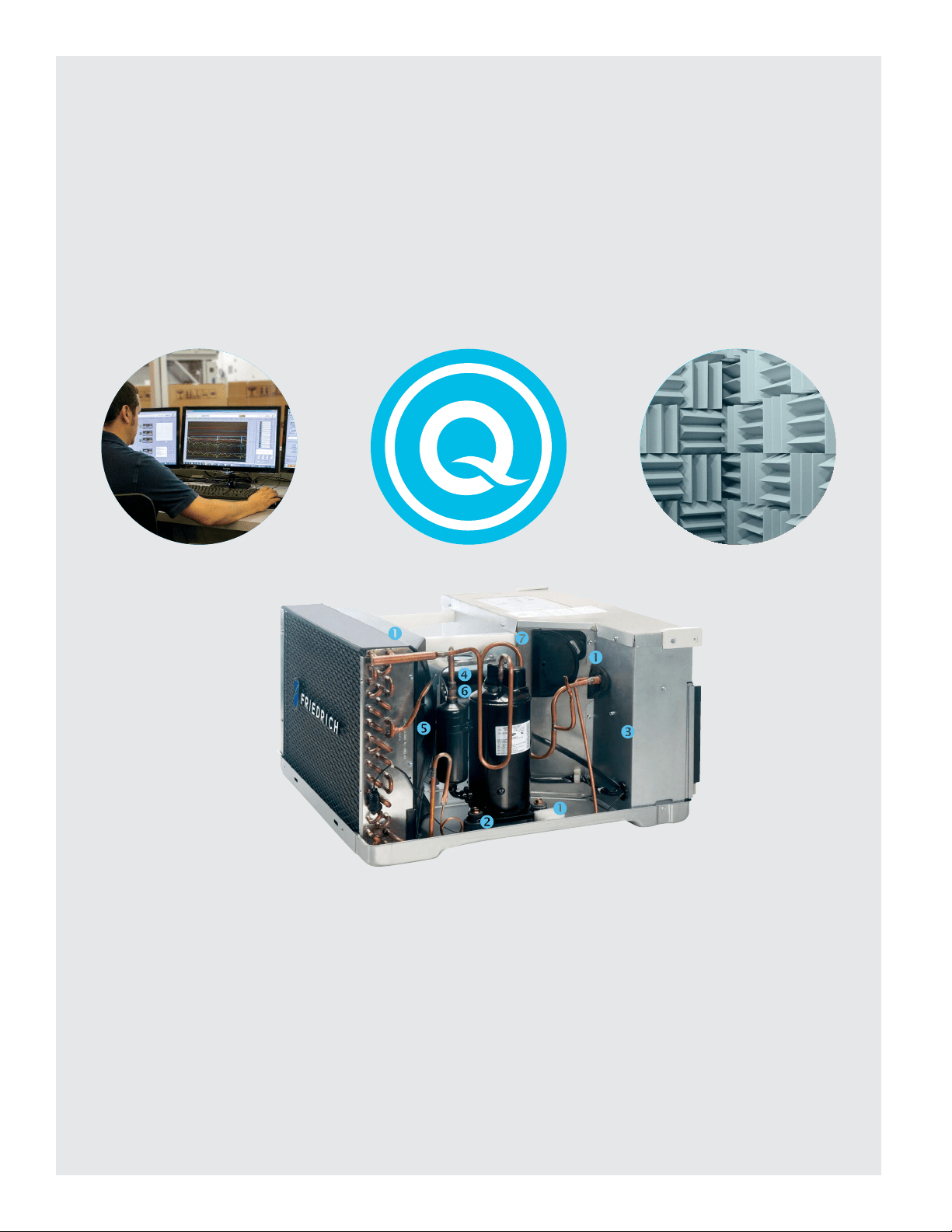

Q uietmaster
technology
Dense, sound-blocking insulation
Quiet rotary compressor mounted
on large rubber grommets
Steel inner walls
Totally-enclosed commercial grade
fan motor
Insulated air plenum prevents
outside air and noise intrusion
Two resilient rings on motor mount
prevent metal-to-metal contact,
which eliminates extra vibration
and noise.
Solid steel blower wheel housing
for maximum sound reduction.
45%
QUIETER
IN LAB TESTS
5

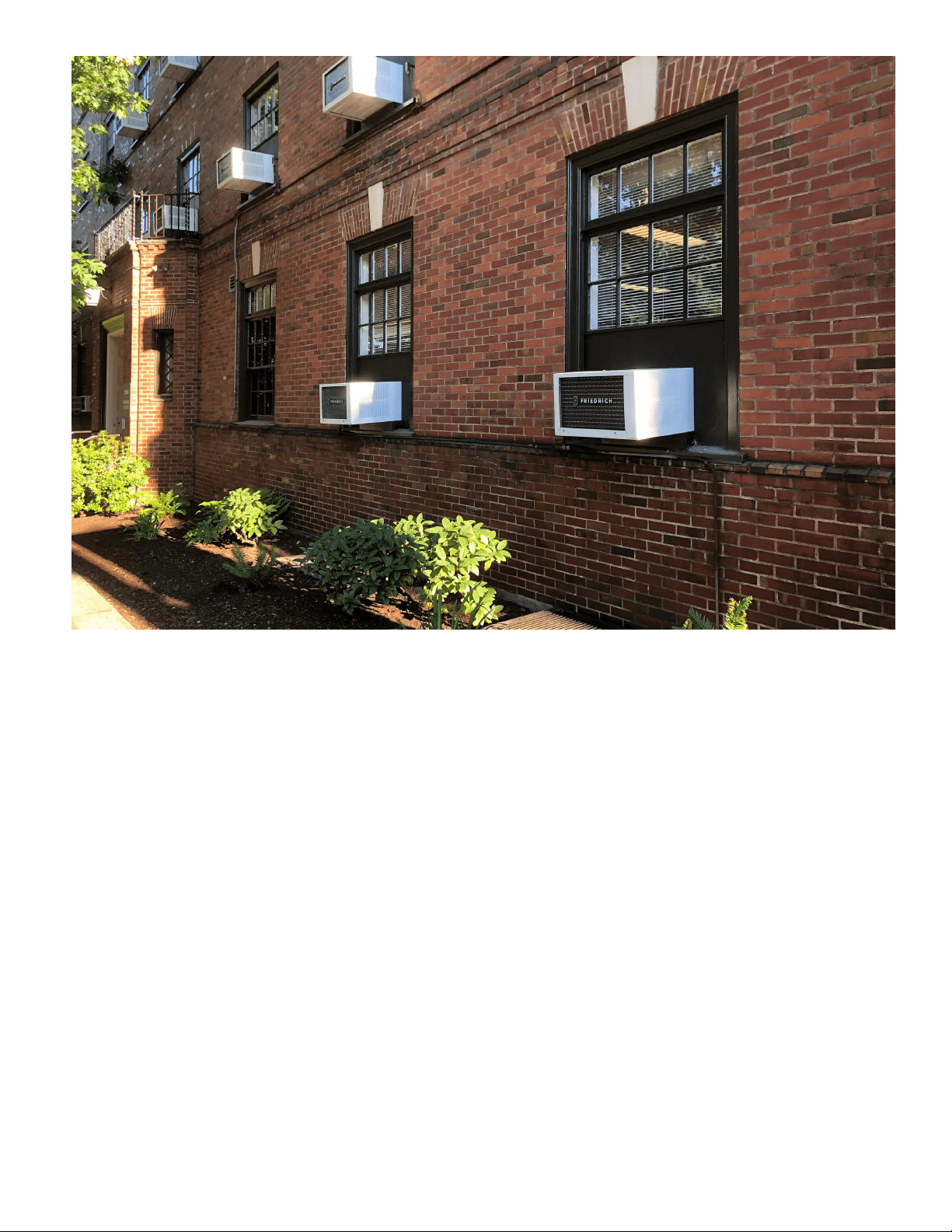

Installation
• Install in a window or thru-the-wall
• Slideout chassis for more
permanent installation and easier
access for maintenance
• Patented firm grip handles for
easier chassis installation and
removal
• Includes heavy duty window
installation hardware (optional
accessory on Kühl+ models
sold separately)
• Rugged hardboard side panels
for a more permanent installation
(heavy duty side curtains on KCQ
and KEQ models)
• Power cord can run either left
or right
• Front cover attaches easily and
securely. Nut driver included**.
Built To Last
• Robust 20 gauge steel cabinet
• Solid-steel blower housing offers
enhanced protection
• Totally enclosed commercial
grade fan motor runs at a
lower temperature to prevent
overheating and is double-
mounted for added
stability and reduced
wear
• Durable base pan and
steel inner walls
• Aluminum end plates
will not contribute to rust-stained
building exteriors
• Scratch-resistant cabinet
• High-tech aluminum fins with
rifled copper tubing are more
efficient and less prone to
corrosion
Earth Friendly
• ENERGY STAR
®
qualified models,
including heat pumps
• Multiple scheduling options save
energy
• Environmentally-friendly R-410A
refrigerant used in all models
• Recyclable packaging
Safety & Security
• EntryGard
®
anti-intrusion
protection secures the chassis
to the sleeve to deter ‘kick-in’
intrusion
• Power cord leakage current
protected
• Insect barrier*
• Aluminum rear grille protects
the outdoor coil from debris and
vandalism
Comfort & Convenience
• Create customizable, 7-day
schedules
• 24-hour timer
• Up to 4 cooling and 4 fan-only
speeds on select models†
• Auto fan adjusts the fan speed to
maintain the set temperature
• Auto-changeover between cooling
and heating modes (Kühl+ models
except KEQ08)
• Auto restart
• 8-way air flow control for better air
distribution
• Control panel lockout (ON/OFF)
• Premium remote control allows
user to adjust temperature, adjust
fan speed, select auto-fan and
switch between cool and heat
(Kühl+ models)
QuietMaster technology
• Steel inner wall and extra dense
insulation blocks outdoor noise
• Vibration isolating design and
components reduce operating
noise
• Precision engineering delivers
maximum air flow and air
dispersion at low sound levels
Superior Air Filtration
• Superior fresh air
intake and stale air
exhaust vent*
• Washable,
antimicrobial air filter
• Carbon filter absorbs
odors and reduces ozone and
volatile organic compounds (VOCs)
• Dual filtration provides superior
air filtration with ratings as high as
MERV 6.
• Check filter reminder
• Hinged door allows easy filter
access for easier maintenance
KÜHL FEATURES
LIMITED
WARRANTY
LIMITED
WARRANTY
Sleeve sizes have remained unchanged for over
45 years. Today’s Friedrich units are compatible
with your existing similar-sized Friedrich sleeve
should you decide to use it.
6 | KÜHL
®
SMART ROOM AIR CONDITIONERS
Model UPC
Cooling
Btu
Heating
Btu Volts
Cooling
Amps
Cooling
Watts
Heating
Amps
Heating
Watts EER CEER
Esti-
mated
Yearly
Energy
Cost COP
Moisture
Removal-
Pints/HR CFM
Net/ship
Wt. lbs. Sleeve
Kühl
®
(Cool Only)
KCQ06A10A 724587436570 6000 — 115 4.8 492 — — 12.2 12.1 $48 — 1.5 190
72/85
Q
KCQ08A10A 724587436587 8000 — 115 6.5 661 — — 12.1 12.0 $65 — 2.1 200 72/85
KCQ10A10A 724587436594 9500 — 115 8.6 864 — — 11.0 10.9 $85 — 3.2 250 72/85
KCS08A10A 724587436631 8000 — 115 6.5 661 — — 12.1 12.0 $65 — 1.9 255 106/128
S
KCS10A10A 724587432640 10000 — 115 8.5 826 — — 12.1 12.0 $81 — 2.9 300 112/134
KCS12A10A 724587432688 12000 — 115 9.5 1000 — — 12.0 12.0 $98 — 3.5 300 112/134
KCS12A30A 724587432695 12000 — 230 4.8 992 — — 12.1 12.0 $97 — 3.5 300 116/138
KCS14A10A 724587432701 13600 — 115 11.8 1236 — — 11.0 10.9 $121 — 4.3 275 141/154
KCS16A30A 724587436678 15700 — 230 6.6 1454 — — 10.8 10.7 $142 — 5.0 330 141/154
KCM14A10A 724587432435 13800 — 115 10.9 1140 — — 12.1 12.0 $112 — 3.0 360 138/150
M
KCM18A30A 724587436617 20000 — 230 9.6 1923 — — 10.4 10.3 $188 — 6.0 425 132/153
KCM21A30A 724587436624 21500 — 230 9.6 2067 — — 10.4 10.3 $202 — 6.0 425 132/153
KCL24A30A 724587436549 24000 — 230 11.1 2308 — — 10.4 10.3 $225 — 7.5 640 191/212
L
KCL28A30A 724587432657 28000 — 230 13.4 2800 — — 10.0 9.9 $273 — 9.3 640 193/214
KCL36A30A 724587436556 35000 — 230 18.2 3846 — — 9.1 9.0 $376 — 11.0 725 212/248
Kühl
®
+ (Heat Pump)
KHS10A10A* 724587432541 10000 8800 115 8.8 917 9.1 978 10.9 10.8 $90 2.6 2.0 300 109/131
S
KHS12A33A 724587436525 12000 9800 230 5.0 1101 4.7 1257 10.9 10.8 $108 2.9 3.0 375 115/136
KHM18A34A 724587436532 17500 14900 230 7.4 1606 7.4 1568 10.9 10.8 $157 2.8 5.6 370 141/154
M
KHL24A35A 724587432633 24000 21000 230 11.1 2330 10.3 2211 10.3 10.2 $228 2.8 7.0 600 197/211
L
Kühl
®
+ (Electric Heat)
KEQ08A11A 724587432749 7700 4000 115 6.4 694 11.2 1290 11.1 11.0 $68 — 2.1 200 72/85
Q
KES12A33A 724587430004 12000 10700 230 4.9 1091 16.0 3500 11.0 10.9 $107 — 3.6 325 113/128
S
KES16A33A 724587436678 15700 10700 230 6.6 1454 16.0 3500 10.8 10.7 $142 — 3.4 300 138/150
KEM18A34A 72458743249 20000 13000 230 9.6 1923 19.5 4200 10.4 10.3 $188 — 6.0 750 141/154
M
KEL24A35A 724587431612 24000 17300 230 11.1 2308 24.0 5500 10.4 10.3 $225 — 7.0 425 197/211
L
KEL36A35A 724587436563 35000 17300 230 18.2 3846 24.0 5500 9.1 9.0 $376 — 11.0 725
213/246
SPECIFICATIONS
* KHS10A10A heat pump operates on 115 volt and is not equipped with supplemental heat. Will not provide heat at temperatures below 40˚F.
Friedrich room air conditioners are designed to operate in outdoor temperatures from 60˚F to 115˚F.
Kühl+ Heat Pump heating information indicates heat pump performance. Kühl+ Electric Heat heating information indicates electric heat strip performance.
For Kühl+ Heat Pump electric heating performance refer to corresponding Kühl+ Electric Heat model.
As an ENERGY STAR
®
partner, Friedrich Air Conditioning Co. has determined that the selected ENERGY STAR
®
models meet the ENERGY STAR
®
guidelines for energy
efciency. EER is the unit’s Energy Efciency Ratio; CEER is the unit’s Combined Energy Efciency Ratio.
Your energy costs will depend on your utility rates and use. The estimated energy cost is based on an electricity cost of $.12 per kWh.
For more information, visit www.ftc.gov/energy.
Due to continuing research in new energy-saving technology, specications are subject to change without notice.
ENERGY STAR
®
models
7
* Minimum extensions when mounted in a window.
** Minimum widths achieved using one side curtain assembly as opposed to both in a standard installation.
NOTE: S, M and L sleeves may be installed in window with no side kits if properly installed.
Sleeve
Height
Inches
Width
Inches
Depth
with Front
Inches
Shell Depth
to Louvers
Inches
Minimum
Extension
Into Room*
Inches
Minimum
Extension
Outside
* Inches
Window Width
INCHES
In-wall Installation
Finished Hole Inches
Carton Dimensions
Inches
Minimum** Maximum Height Width
Max. Depth
Height Width Depth
Q 14
1
/
4
" 19
3
/
4
" 21
3
/
8
" 8
1
/
2
" 5
1
/
2
" 10
3
/
4
" 22" 42" 14
1
/
2
" 20" 8
1
/
2
" 18
3
/
4
" 22" 25
1
/
2
"
S 15
15
/
16
" 25
15
/
16
" 29" 8
3
/
4
" 5
3
/
4
" 16
15
/
16
" 27
3
/
8
" 42" 16
3
/
16
" 26
3
/
16
" 7
3
/
8
" 19" 29" 34
1
/
2
"
M 17
15
/
16
" 25
15
/
16
" 29" 8
3
/
4
" 5
3
/
4
" 16
15
/
16
" 27
3
/
8
" 42" 18
3
/
16
" 26
3
/
16
" 7
3
/
8
" 21" 29" 34
1
/
2
"
L 20
3
/
16
" 28" 35
1
/
2
" 16
1
/
2
" 5
3
/
8
" 18
15
/
16
" 29
7
/
8
" 42" 20
3
/
8
" 28
1
/
4
" 15
1
/
8
" 24
1
/
2
" 31
5
/
8
" 38
7
/
8
"
FRONT
SIDE VIEW

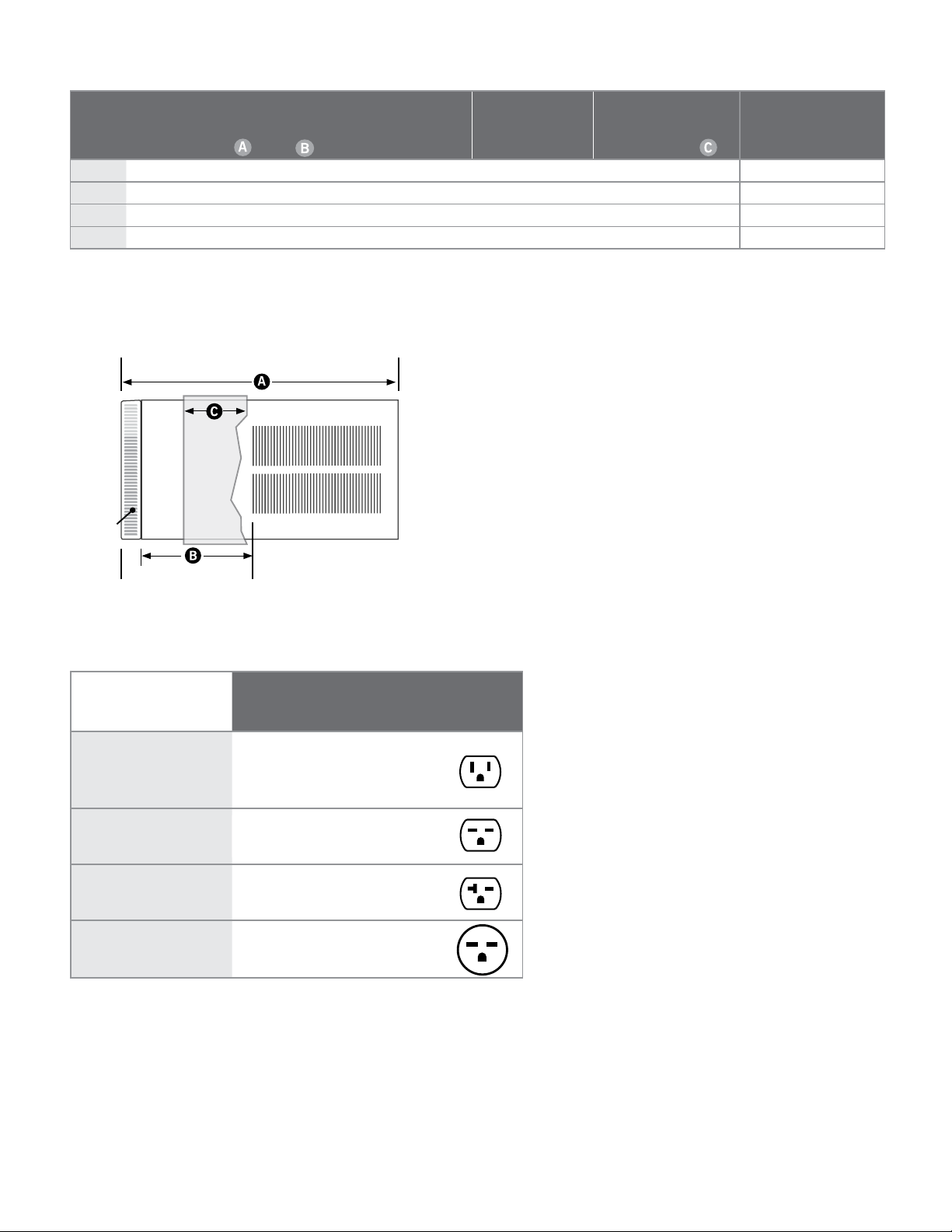

SLEEVE DIMENSIONS DRAWING
CIRCUIT RATING/ BREAKER/ POWER CORD
Model
Circuit Rating
Breaker or
T-D Fuse
Plug Face
(NEMA#)
Power Cord
Length (ft.)
Wall Outlet
Appearance
All KCQ MODELS. KEQO8A11A.
KCS08A10A, KCS10A10A,
KCS12A10A and KCS14A10A.
KHS10A10A. KCM14A10A.
125V - 15A 5 - 15P 6
KCS12A30A and KCS16A30A.
KCM18A30A and KCM21A30A.
250V - 15A 6 - 15P 6
KCL24A30A and KCL28A30A.
KES12A33A and KES16A33A.
KHS12A33A.
250V - 20A 6 - 20P 6
KCL36A30A. KEM18A34A and
KEL24A35A and KEL36A35A.
KHM18A34A and KHL24A35A.
250V - 30A 6 - 30P 6
INSTALLATION
COOLING SIZING GUIDE
AREA TO BE
CONDITIONED
IN SQ. FT.
APPROXIMATE
COOLING BTU
REQUIRED
100 - 150 5000
150 - 250 6000
250 - 300 7000
300 - 350 8000
350 - 400 9000
400 - 450 10000
450 - 550 12000
550 - 700 14000
700 - 1000 18000
1000 - 1200 21000
1200 - 1400 23000
1400 - 1500 24000
1500 - 2000 30000
2000 - 2500 34000

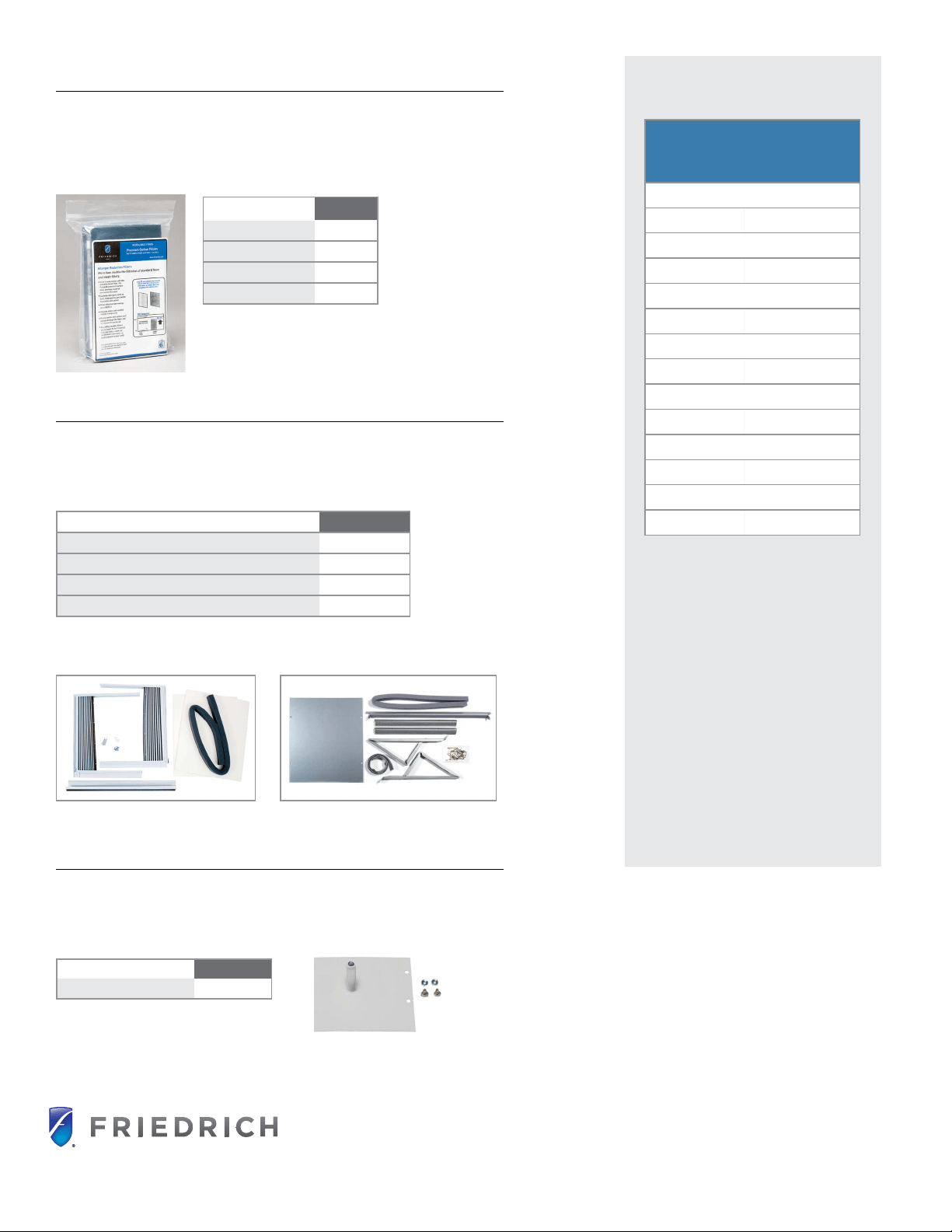

Window Mounting Kits: Kühl+
Window kits are included with cooling only models, but are an accessory item
for Kühl+ heat/cool models. Window kits are required for installation of Kühl+
models in a window.
* KEQO8A11A window kit KWIKQA does not include window brackets.
KWIKQA KWIKSB, KWIKMB, KWIKLB
Heat/Cool Models Kit No.
KEQO8A11A* KWIKQA
KES12A33A, KES16A33A, KHS10A10A and KHS12A33A. KWIKSB
KEM18A34A and KHM18A34A. KWIKMB
KEL24A35A, KEL36A35A and KHL24A35A. KWIKLB
Premium Carbon Filters
Remove odors and VOCs (volatile organic compounds). Achieve up to a MERV 6
rating when used with standard lter. 3 pack
Model Kit No.
KCQ and KEQ
KWCFQ
KCS, KES and KHS KWCFS
KCM, KEM and KHM KWCFM
KCL, KEL and KHL KWCFL
ACCESSORIES
Model Kit No.
All Kühl Series Models DC2
Drain Kit
Allows eld installed drain tube to be installed to the bottom of the sleeve to
route the condensate from the unit.
Guide based on normal room
insulation, average number of
sun exposed windows and two
person occupancy.
1. If heavily shaded, reduce cooling
Btus required by 10%
2. If very sunny, increase cooling
Btus required by 10%
3. Add 500 Btus per person over 2
people
4. Add 4,000 Btus if the area is a
kitchen
BRO_KÜHL_2019_Rev.1 (2-19-19) Printed in USA
Friedrich Air Conditioning Co. l 10001 Reunion Place, Suite 500 l San Antonio, TX 78216 l 877.599.5665 l www.friedrich.com
