K 4 Premium Power Control
K 4 Power Control
59688950
(10/20)
English
2
A
3
B
4
C D
E F
G H
I J
5
K L
M N
O P
Q R
5
6English
Contents
Safety instructions
Read this safety chapter and these origi-
nal instructions before using the device
for the first time. Act in accordance with
them. Keep the original instructions for future reference
or for future owners.
● In addition to the notes in the operating instructions,
you also need to take into consideration the general
safety regulations and accident prevention guide-
lines applicable by law.
● Warnings and information notices attached to the
device provide important information for hazard-free
operation.
Hazard levels
DANGER
● Indication of an imminent threat of danger that will
lead to severe injuries or even death.
몇 WARNING
● Indication of a potentially dangerous situation that
may lead to severe injuries or even death.
몇 CAUTION
● Indication of a potentially dangerous situation that
may lead to minor injuries.
ATTENTION
● Indication of a potentially dangerous situation that
may lead to damage to property.
Personal protective equipment
몇 CAUTION ● Wear suitable protective clothing
and safety goggles to protect yourself from water or dirt
backsplash. ● Aerosols can be formed when using high-
pressure cleaners. Inhaling aerosols can be harmful for
your health. Depending on the application, the use of
fully shielded nozzles (e.g. surface cleaners) can signif-
icantly lower the emission of aqueous aerosols. De-
pending on the environment to be cleaned, wear a
suitable respiratory protective mask of class FFP 2 or
comparable to protect yourself from inhaling aerosols if
the use of a fully shielded nozzle is not possible.
General safety warnings
DANGER ● Risk of asphyxiation. Keep pack-
aging film out of the reach of children.
몇 WARNING ● Only use the device for its proper
use. Take into account the local conditions and beware
of third parties, in particular children, when working with
the device. ● Persons with reduced physical, sensory
or mental capabilities, or those with a lack of experience
and knowledge, are only allowed to use the appliance if
they are supervised or have been instructed with re-
spect to using the appliance safely, and understand the
resultant dangers involved. ● Children must not operate
the device. ● Children must be supervised to prevent
them from playing with the appliance.
몇 CAUTION ● Safety devices are provided for
your own protection. Never modify or bypass safety de-
vices.
Risk of electric shock
DANGER ● Only connect protection class I de-
vices to properly earthed power sources. ● Only con-
nect the device to alternating current. The voltage
indicated on the type plate must match the voltage of
the power source. ● Only operate the device via a fault
current protection switch (maximum 30 mA). ● Never
touch the mains plug and socket with wet hands. ● The
mains plug and coupling of the extension cable must be
water tight and may not be placed in water. The coupling
may not be on the floor. Use cable drums to ensure that
the sockets are at least 60 mm above the floor. ● All live
parts in the work area must be protected against water
jets.
몇 WARNING ● Only connect the device to an
electrical connection which has been set up by a quali-
fied electrician as per IEC 60364-1. ● Check the power
supply cable with mains plug for damage before opera-
tion each time. Do not put the device into operation with
a damaged power supply cable. Have a damaged pow-
er supply cable replaced immediately by the authorised
customer service / qualified electrician. ● Do not dam-
age the power supply and extension cable by running
over it, crushing or yanking it or similar. Protect the pow-
er supply cable from heat, oil and sharp edges. ● Un-
suitable electrical extension cables are dangerous. Only
use approved and appropriately marked electrical ex-
tension cables with a sufficient line cross section when
outdoors: 1-10 m : 1.5 mm
2
, 10-30 m : 2.5 mm
2
몇 CAUTION ● Always fully unwind the extension
cable from the cable drum. ● In case of longer breaks in
operation and after use, switch off the device at the
main switch / device switch and pull the mains plug.
Safety instructions ............................................... 6
KÄRCHER Home & Garden app......................... 8
Environmental protection..................................... 8
Intended use........................................................ 8
Accessories and spare parts ............................... 8
Scope of delivery................................................. 8
Description of the device ..................................... 8
Safety devices ..................................................... 9
Symbols on the device ........................................ 9
Assembly............................................................. 9
Initial startup ........................................................ 10
Operation............................................................. 10
Transport ............................................................. 11
Storage................................................................ 12
Care and service ................................................. 12
Troubleshooting guide ......................................... 13
Warranty .............................................................. 13
Technical data ..................................................... 13
EU Declaration of Conformity.............................. 14
English 7
Operation
DANGER ● Operation in explosive atmos-
pheres is prohibited. ● Never suction solvents, liquids
containing solvents or undiluted acids. This includes
e.g. petrol, paint thinner or heating oil. The spray mist is
highly flammable, explosive and poisonous. ● Dam-
aged wheels / tyre valves are extremely dangerous.
Damaged wheels / tyre valves can be damaged by the
high-pressure jet and explode. The first sign of this is
discolouration of the tyres. Keep a spray distance of at
least 30 cm when cleaning the wheels / tyre valves.
몇 WARNING ● Do not use the device if people
without the proper protective clothing are in its reach.
● Do not aim the high-pressure jet at yourself, e.g. to
clean clothes or shoes. ● Do not direct the high-pres-
sure jet at persons, animals, live electrical equipment or
at the device itself. ● Do not spray any objects which
contain harmful substances (e.g. asbestos). ● Check
the device and the accessories, such as the high-pres-
sure hose, high-pressure gun and safety devices, to
make sure they are in proper safe and reliable condition
before each operation. Do not use the device if it is dam-
aged. Replace damaged components immediately.
● Only use high-pressure hoses, control panels and
couplings specified by the manufacturer. ● Risk of
scalding. When disconnecting the supply or high-pres-
sure hose, hot water can leak out of the connections af-
ter operation.
몇 CAUTION ● According to the applicable regu-
lations, the appliance may never be used with the drink-
ing water network without a system separator. Ensure
that the connection to your house water system, with
which the high-pressure cleaner is operated, is
equipped with a system separator according to
EN 12729 type BA. ● Water that has flowed through a
system separator is no longer classified as drinkable.
● Never leave the device unsupervised while it is in op-
eration. ● Recoil force from the water stream emerging
at the high-pressure nozzle acts on the high-pressure
gun. Keep proper footing and hold the high-pressure
gun and spray lance firmly. ● Accidents or damage due
to the device falling over. Before all actions with or on
the device, you must make sure that it is stable.
ATTENTION ● Do not operate the device at tem-
peratures below 0 °C.
Operation with detergent
몇 WARNING ● Incorrect use of detergents can
cause serious injuries or poisoning.
몇 CAUTION ● Keep the detergent out of the
reach of children. ● Only use the detergents supplied or
specified by the manufacturer. The use of other deter-
gents or chemicals can impair the safety of the device.
Care and service
몇 WARNING ● Always pull out the mains plug
before all care and maintenance work.
몇 CAUTION ● Have repair work and work on
electrical components carried out by the authorised cus-
tomer service only.
ATTENTION ● Do not use acetone, undiluted ac-
ids or solvents, as they corrode the materials used on
the device.
Transportation
몇 CAUTION
● Risk of accidents and injuries. Take into account the
weight of the device for transportation and storage.
See chapter Technical data in the operating instruc-
tions.
8English
KÄRCHER Home & Garden app
The KÄRCHER Home & Garden app contains:
● Installation and initial startup information
● Information about the areas of application
● Tips & Tricks
● FAQ with detailed troubleshooting
● Connection to the KÄRCHER Service Centre
The app can be downloaded here:
Trademarks
● Google Play™ and Android™ are trademarks or
registered trademarks of Google Inc.
● Apple
®
and App store
®
are trademarks or registered
trademarks of Apple Inc.
Environmental protection
The packing materials can be recycled. Please
dispose of packaging in accordance with the en-
vironmental regulations.
Electrical and electronic appliances contain valu-
able, recyclable materials and often components
such as batteries, rechargeable batteries or oil,
which - if handled or disposed of incorrectly - can
pose a potential danger to human health and the envi-
ronment. However, these components are required for
the correct operation of the appliance. Appliances
marked by this symbol are not allowed to be disposed
of together with the household rubbish.
Cleaning work producing in oily waste water, e.g.
washing engines, washing undercarriages etc.,
may only be performed at washing stations with an oil
separator.
Working with detergents may only be performed on
watertight surfaces with connection to the waste
water sewage system. Do not allow detergent to enter
waterways or the soil.
Extraction of water from public waterways is not
permitted in some countries.
Notes on the content materials (REACH)
Current information on content materials can be found
at: www.kaercher.de/REACH
Intended use
Use the high-pressure cleaner in private households
only.
The high-pressure cleaner is intended for cleaning ma-
chines, vehicles, buildings, tools, façades, terraces,
garden machines etc. using a high-pressure water jet.
Accessories and spare parts
Only use original accessories and original spare parts.
They ensure that the appliance will run fault-free and
safely.
Information on accessories and spare parts can be
found at www.kaercher.com.
Scope of delivery
The scope of delivery for the appliance is shown on the
packaging. Check the contents for completeness when
unpacking. If any accessories are missing or in the
event of any shipping damage, please notify your deal-
er.

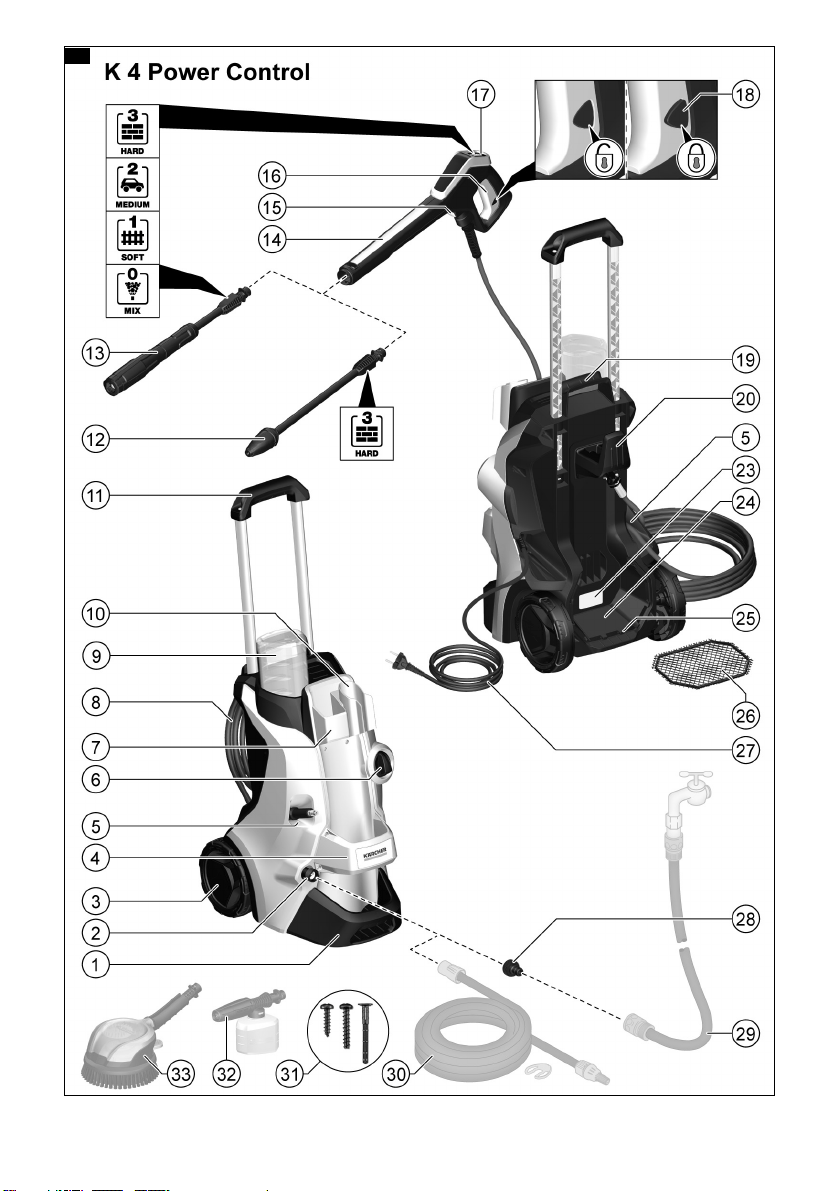

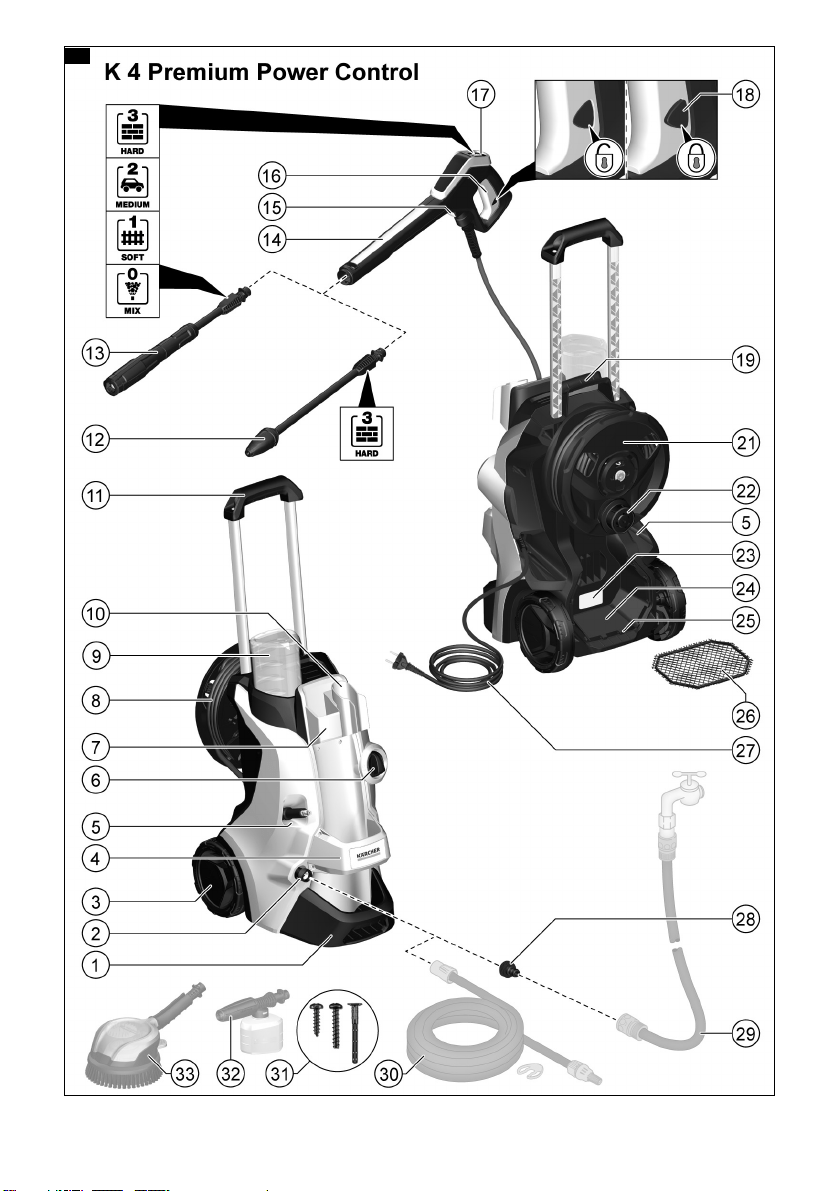

Description of the device
The maximum amount of equipment is described in
these operating instructions. Depending on the model
used, there are differences in the scope of delivery (see
packaging).
For the illustrations, refer to the graphics page
Illustration A
Illustration B
1 Stand with carrying handle
2 Water connection with integrated sieve
3 Transport wheel
4 Visor
5 Hose guide
6 Trigger "0/OFF" / "I/ON"
7 Storage for spray lance
8 High-pressure hose
9 *Plug 'n' Clean detergent bottle
10 Storage / parking position for high-pressure gun
11 Transport handle, telescoping
12 Power Control spray lance dirt grinder for stubborn
dirt, pressure level: HARD
13 Vario Power Power Control spray lance for the most
common cleaning tasks, pressure levels: HARD /
MEDIUM / SOFT / MIX
14 Power Control high-pressure gun
15 Button for separating the high-pressure hose from
the high-pressure gun
16 High-pressure gun lever
17 Pressure indicator (0-MIX / 1-SOFT / 2-MEDIUM /
3-HARD)
18 High-pressure gun lock
19 Carrying handle
English 9
20 Hose holder
21 High pressure hose reel
22 Crank handle for hose reel
23 Type plate
24 Accessory compartment
25 Hook for net attachment
26 Accessory compartment net
27 Mains connection with mains plug
28 Water connection coupling
29 **Garden hose with commonly available coupling
– Fabric reinforced
– Diameter of at least 1/2 inch (13 mm)
– Length at least 7.5 m
30 **KÄRCHER suction hose for water supply from
open containers (order no. 2.643-100.0)
31 Supplied screws and dowels
32 *Foam nozzle with detergent container
The detergent is sucked out of the container to pro-
duce a strong detergent foam.
33 *Rotating washing brush (e.g. for washing cars)
* optional, ** additionally required
Supplied screws and dowels

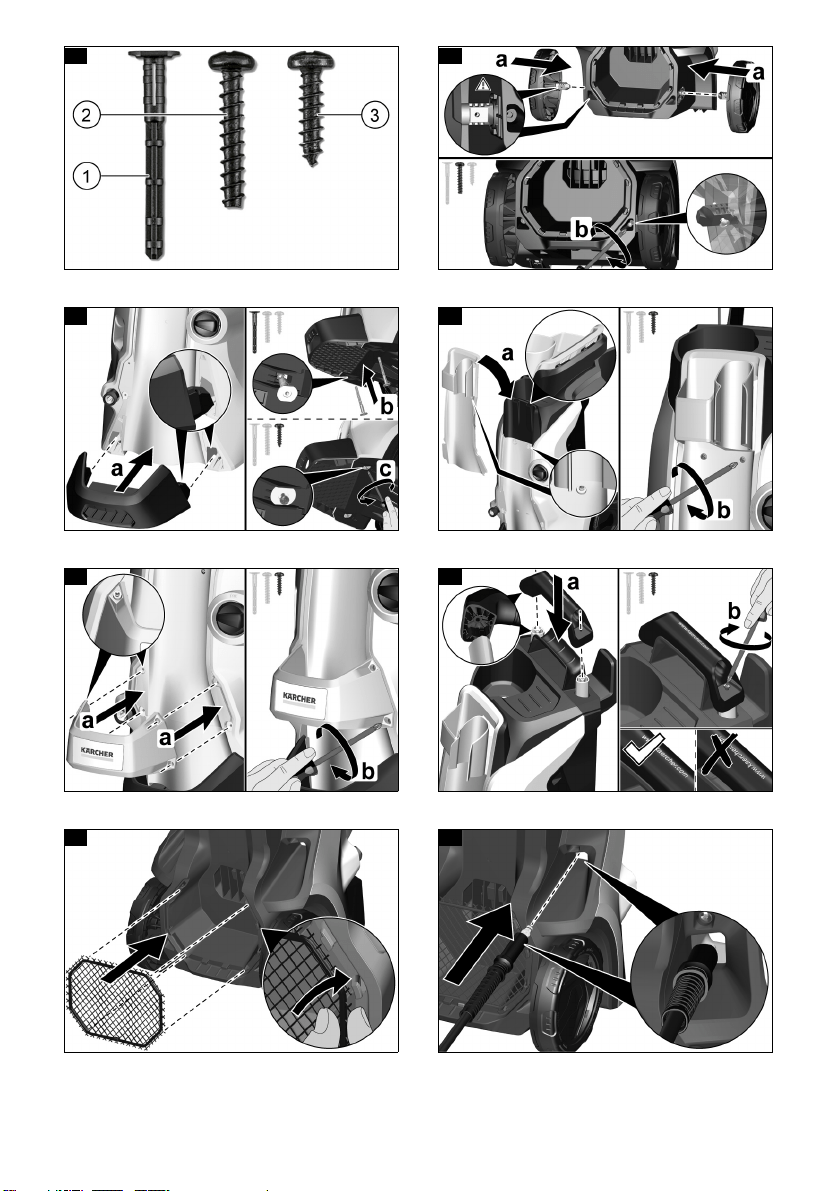

Illustration C
1 Stand dowels (2 pieces)
2 Screw M 4x22 (2 pieces)
3 Screw M 4x16 (10 pieces)
Safety devices
몇 CAUTION
Missing or modified safety devices
Safety devices are provided for your own protection.
Never modify or bypass safety devices.
Power switch
The power switch prevents unintentional operation of
the device.
High-pressure gun lock
The lock locks the lever of the high-pressure gun and
prevents the device from starting unintentionally.
Auto-stop function
If the lever of the high-pressure gun is released, the
pressure switch turns off the pump and the high-pres-
sure jet stops. The pump switches on again when the le-
ver is pressed.
Motor circuit breaker
The motor circuit breaker shuts off the device if power
consumption it too high.
Symbols on the device
Assembly
For the illustrations, refer to the graphics page.
Place the screws provided and matching screwdriver at
the ready.
Fit the supplied loose parts onto the device before start-
ing up the device.
Fitting the wheels
1. Insert the wheels.
Note
Pay attention to the alignment of the hole.
Illustration D
2. Secure the wheels with 1 screw each.
Mounting the stand
1. Insert the stand.
Illustration E
2. Insert the 2 dowels into the holes as far as they will
go.
3. Secure the base with 2 screws.
Installing the spray lance storage
1. Hang the spray lance storage in position.
2. Secure the storage with 2 screws.
Illustration F
3. Secure the cover with 4 screws.
Illustration G
Mounting the transport handle
1. Attach the transport handle.
Illustration H
2. Secure the transport handle with 2 screws.
Mounting the accessory net
1. Hang the accessory net on the hooks.
Illustration I
Push the high-pressure hose through the
hose guide
1. Insert the high-pressure hose through the hose
guide from the rear.
Illustration J
Installing the water connection coupling
1. Screw the water connection coupling onto the water
connection on the device.

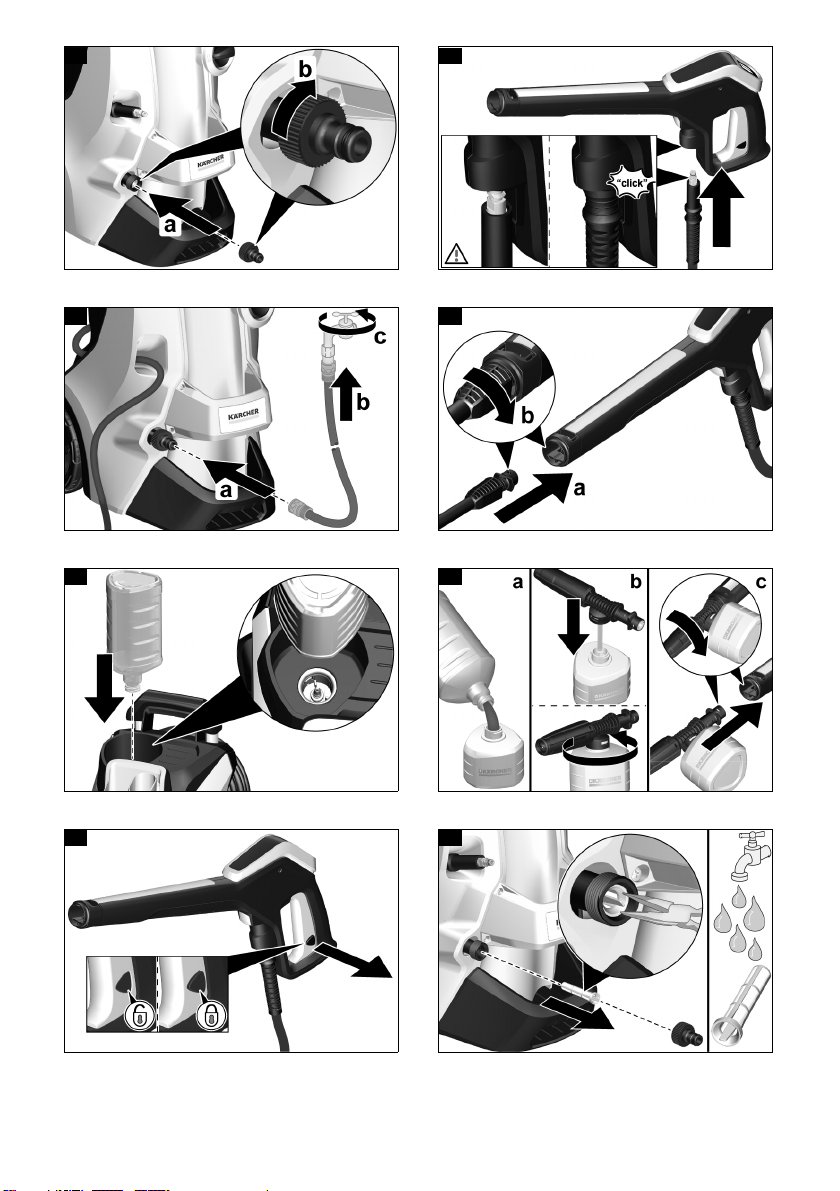

Illustration K
Do not aim the high-pressure jet may at per-
sons, animals, live electrical equipment or
the device itself.
Protect the device against frost.
The device may not be connected to the
public drinking water network.
10 English
Initial startup
1. Place the device on a flat and level surface.
2. For devices with a hose reel:
Completely unwind the
high-pressure hose from the hose reel.
3. For devices without a hose reel:
Unwind the high-
pressure hose completely and eliminate any loops
and twists.
4. Pull the high-pressure hose all the way forwards
through the hose guide.
5. Insert the high-pressure hose into the high-pressure
gun until it audibly latches into place.
Note
Take care to ensure the correct alignment of the nipple.
Illustration L
6. Check for a secure connection by pulling on the
high-pressure hose.
7. Plug the mains plug into a mains socket.
Water supply
For the connection values, see the type plate or chapter
Technical data.
Observe the water distribution company regulations.
ATTENTION
Damage through contaminated water
Contamination in the water can damage the pump and
the accessories.
KÄRCHER recommends using the KÄRCHER water fil-
ter for protection(special accessory, order number
4.730-059).
Connection to the water line
ATTENTION
Hose coupling with Aquastop on the water connec-
tion of the device
Damage to the pump
Never use a hose coupling with Aquastop on the water
connection of the device.
You can use an Aquastop coupling on the tap.
1. Plug the garden hose onto the water connection
coupling.
2. Connect the garden hose to the water line.
3. Open the water tap fully.
Illustration M
Sucking water from open containers
When used with the KÄRCHER suction hose with check
valve (special accessory, order number 2.643-100) this
high-pressure cleaner is suitable for sucking up surface
water, e.g. from rain barrels or ponds (for the maximum
suction height see chapter Technical data).
The water connection coupling is not required for vacu-
uming operation.
1. Fill the suction hose with water.
2. Screw the suction hose onto the device water con-
nection and hang it in a water source (e.g. water
butt).
Vent the device
1. Switch the device on "I/ON".
2. Unlock the lever of the high-pressure gun.
3. Press the lever of the high-pressure gun.
The device switches on.
4. Allow the device for run a maximum of 2 minutes un-
til the water escaping from the high-pressure gun is
free of air bubbles.
5. Release the lever of the high-pressure gun.
6. Lock the lever of the high-pressure gun.
Operation
ATTENTION
Pump running dry
Damage to the device
If pressure does not build up in the device after 2 min-
utes then switch the device off and proceed according
to the instructions in chapter Troubleshooting guide.
Power Control System
The pressure indicator on the high-pressure gun shows
the currently set pressure level when operating with a
Power Control spray lance.
Note
The sensitivity of materials can vary greatly depending
on age and condition. The recommendations are there-
fore not binding.
Note
When operating with surface cleaner and other acces-
sories, the pressure indicator is not accurate.
High-pressure operation
ATTENTION
Damage to painted or sensitive surfaces
Surfaces can be damaged when the jet is too close to
the surface or an unsuitable spray lance is used.
Maintain a minimum spray distance of 30 cm when
cleaning painted surfaces.
Do not clean car tyres, paint or sensitive surfaces such
as wood with the dirt grinder.
1. Insert a spray lance into the high-pressure gun and
lock it by turning it 90°.
Illustration N
2. Switch the device on ("I/ON").
3. Unlock the lever of the high-pressure gun.
4. Press the lever of the high-pressure gun.
The device switches on.
5. Turn the Vario Power Power Control spray lance un-
til the required pressure level is shown on the pres-
sure indicator.
Display Pressure
level
Recommended for e.g.
HARD Stone terraces made of pav-
ing stones or washed con-
crete, asphalt, metal
surfaces, garden utensils
(wheelbarrow, spade, etc.)
MEDIUM Cars / motorcycles, brick
surfaces, plastered walls,
plastic furniture
SOFT Wooden surfaces, bicycle,
sandstone surfaces, rattan
furniture
MIX Operation with detergent
English 11
Operation with a washing brush
ATTENTION
Paint damage
Damage to surfaces through a dirty brush
Ensure that the washing brush is free from dirt or other
particles before using it.
Note
The device operates at low pressure when using wash-
ing brushes. This means that detergent can be mixed
with the water.
1. Insert the washing brush into the high-pressure gun
and turn by 90° to fasten it.
Operation with detergent
DANGER
Failure to adhere to the safety data sheet
Incorrect handling of the detergent can seriously dam-
age your health
Observe the safety data sheet of the detergent manu-
facturer, in particular the instructions on personal pro-
tective equipment.
Note
Detergent can only be mixed into the jet at low pressure.
Note
A Plug ‘n’ Clean detergent bottle is required for operat-
ing with detergent. KÄRCHER detergent can be pur-
chased ready to use in a Plug ‘n’ Clean detergent bottle.
1. Remove the cover from the Plug ‘n’ Clean detergent
bottle.
2. Plug the detergent bottle into the Plug ‘n’ Clean de-
tergent connection with the opening facing down.
Illustration O
3. Use the Vario Power spray lance.
4. Turn the spray lance towards "MIX" until "MIX" is
displayed on the high-pressure gun.
The detergent solution is mixed with the water jet
during operation.
5. You can optionally use the foam nozzle.
a Fill the detergent solution into the detergent tank.
Adhere to the dosage specifications on the deter-
gent container.
b Connect the foam nozzle to the detergent con-
tainer.
c Insert the foam nozzle into the high-pressure gun
and turn by 90° to fasten it.
Illustration P
Recommended cleaning method
1. Spray the detergent sparingly on the dry surface and
let it work for a while (do not let it dry).
2. Rinse off the loosened dirt with the high-pressure
jet.
After operation with detergent
1. Pull the Plug ‘n’ Clean detergent bottle out of the
mount and close it with the cap before transporting
the device lying down.
2. Store the detergent bottle in the holder with the lid
facing up.
3. Flush the device with clear water for approx. 30 sec-
onds.
Interrupting operation
1. Release the lever of the high-pressure gun.
The device switches off when the lever is released.
The high pressure in the system is retained.
2. Lock the lever of the high-pressure gun.
Illustration Q
3. Place the high-pressure gun with the spray lance in
the parking position.
4. Switch the device off "0/OFF" during work breaks
longer than 5 minutes.
Ending operation
몇 CAUTION
Pressure in the system
Injuries from high-pressure water escaping uncontrolla-
bly
Only disconnect the high-pressure hose from the high-
pressure gun or the device when the system is fully de-
pressurised.
1. Release the lever of the high-pressure gun.
2. Close the water tap.
3. Press the lever of the high-pressure gun for 30 sec-
onds.
The pressure remaining in the system is discharged.
4. Release the lever of the high-pressure gun.
5. Lock the lever of the high-pressure gun.
6. Disconnect the device from the water supply.
7. Switch off the device "0/OFF".
8. Pull the mains plug out of the socket.
Transport
몇 CAUTION
Failure to observe the weight
Risk of injury and damage
Be aware of the weight of the device during transporta-
tion.
Carrying the device
1. Lift and carry the device by the carrying handles.
Pulling the device
1. Pull the transport handle out until it audibly latches
into place.
2. Pull the device via the transport handle.
Transporting the device in a vehicle
1. Before transporting lying down, pull the Plug ‘n’
Clean detergent bottle out of the mount and close it
with the cap.
2. Secure the device against slipping and tipping over.
12 English
Storage
몇 CAUTION
Failure to observe the weight
Risk of injury and damage
Be aware of the weight of the device during storage.
Storing the device
1. Place the device on a level surface.
2. Disconnect the spray lance from the high-pressure
gun.
3. Press the separation button on the high-pressure
gun and disconnect the high-pressure hose from the
high-pressure gun.
ATTENTION
Damage to the high-pressure hose
Damage to the high-pressure hose through incorrect di-
rection of rotation
Observe the correct direction of rotation of the hose reel
when winding on the hose.
4. For devices with a hose reel: Use the crank handle
to turn the hose reel anticlockwise and coil up the
high-pressure hose.
5. For devices without a hose reel:
Store the high-pres-
sure hose on the device.
6. Store the mains connection cable and accessories
on the device.
Observe the additional instructions before storing the
device for a longer period of time, see chapter Care and
service.
Frost protection
ATTENTION
Danger of frost
Incompletely emptied devices can be destroyed by
frost.
Completely empty the device and accessories.
Protect the device from frost.
The following requirements must be satisfied:
● The device is disconnected from the water supply.
● The high-pressure gun is disconnected from the
high-pressure hose.
1. Switch the device on "I/ON".
2. Wait for a maximum of 1 minute until no more water
escapes from the high-pressure hose.
3. Switch off the device.
4. Store the device in a frost-protected room, together
with all accessories.
Care and service
DANGER
Danger of electric shock
Injuries due to touching live parts
Switch off the device.
Remove the mains plug.
The device is maintenance-free, i.e. you do not need to
perform any maintenance work.
Clean the sieve in the water connection
ATTENTION
Damaged sieve in the water connection
Damage to the device through contaminated water
Check the sieve for damage before inserting it in the wa-
ter connection.
If necessary, clean the sieve in the water connection.
1. Remove the water connection coupling.
2. Pull the sieve out using flat pliers.
3. Clean the sieve under running water.
Illustration R
4. Insert the sieve into the water connection.
English 13
Troubleshooting guide
Malfunctions often have simple causes that you can
remedy yourself using the following overview. When in
doubt, or in the case of malfunctions not mentioned
here, please contact your authorised Customer Service.
DANGER
Danger of electric shock
Injuries due to touching live parts
Switch off the device.
Remove the mains plug.
Device not running
1. Press the lever of the high-pressure gun.
The device switches on.
2. Check that the voltage specified on the type plate
corresponds to the voltage of the power source.
3. Check the mains connection cable for damage.
4. If the motor is overloaded and the motor circuit
breaker has triggered:
a Switch off the device "0/OFF".
b Allow the device to cool down for 1 hour.
c Switch the device on "I/ON" and resume opera-
tion.
Have the device checked by Customer Service if
this fault occurs repeatedly.
The device does not start up, the motor buzzes
Voltage drop due to a weak mains grid or when using an
extension cable
1. When switching on, first press the lever on the high-
pressure gun and then switch on the device "I/ON".
Device does not reach required pressure
The water supply is too low
1. Open the water tap fully.
2. Check the water inlet for an adequate flow rate.
The sieve in the water connection is dirty.
1. Pull the sieve in the water connection out using flat
pliers.
2. Clean the sieve under running water.
Air is in the device.
1. Vent the device:
a Switch on the device without a connected spray
lance for a maximum of 2 minutes.
b Press the high-pressure gun and wait until the
water escaping from the high-pressure gun is
free of air bubbles.
c Connect the spray lance.
d Observe the maximum suction height during suc-
tion operation (see chapter Technical data).
Strong pressure fluctuations
1. Clean the high-pressure nozzle:
a Use a needle to remove dirt from the nozzle drill.
b Rinse the high-pressure nozzle from the front
with water.
2. Check the water supply volume.
Device leaking
1. The device leaks a small amount for technical rea-
sons. If the leak is severe, request authorised Cus-
tomer Service.
Detergent is not sucked in
1. Use the Vario Power spray lance and turn it to "MIX".
2. Check that the Plug ‘n’ Clean detergent bottle is sit-
ting correctly with the opening facing down in the de-
tergent connection.
Warranty
The warranty conditions issued by our relevant sales
company apply in all countries. We shall remedy possi-
ble malfunctions on your appliance within the warranty
period free of cost, provided that a material or manufac-
turing defect is the cause. In a warranty case, please
contact your dealer (with the purchase receipt) or the
next authorised customer service site.
(See overleaf for the address)
Technical data
Subject to technical modifications.
K 4 Premium
Power
Control
Power
Control
Electrical connection
Voltage V 230-240 230-240
Phase ~ 1 1
Frequency Hz 50 50
Power rating kW 1,8 1,8
Degree of protection IPX5 IPX5
Protection class I I
Power protection (slow-
blowing)
A13 13
Water connection
Feed pressure (max.) MPa 1,2 1,2
Input temperature (max.) °C 40 40
Input amount (min.) l/min 9 9
Suction height (max.) m 0,5 0,5
Device performance data
Operating pressure MPa 11 11
Max. permissible pressure MPa 13 13
Water flow rate l/min 6,3 6,3
Maximum flow rate l/min 7,0 7,0
Detergent flow rate l/min 0,3 0,3
High-pressure gun recoil
force
N13 13
Dimensions and weights
Typical operating weight kg 13,6 13,1
Length mm 414 402
Width mm 306 306
Height mm 588 588
Determined values in acc. with EN 60335-2-79
Hand-arm vibration value m/s
2
3,2 3,2
Uncertainty K m/s
2
0,8 0,8
Sound pressure level L
pA
dB(A) 75 75
Uncertainty K
pA
dB(A) 3 3
Sound power level L
WA
+ K
uncertainty
WA
dB(A) 92 91
14 English
EU Declaration of Conformity
We hereby declare that the machine described below
complies with the relevant basic safety and health re-
quirements in the EU Directives, both in its basic design
and construction as well as in the version placed in cir-
culation by us. This declaration is invalidated by any
changes made to the machine that are not approved by
us.
Product: High-pressure cleaner
Type: 1.324-xxx
Currently applicable EU Directives
2000/14/EC
2014/30/EU
2006/42/EC (+2009/127/EC)
2011/65/EU
Harmonised standards used
EN 50581
EN 55014-1: 2017
EN 55014-2: 2015
EN 60335-1
EN 60335-2-79
EN 61000-3-2: 2014
EN 61000-3-3: 2013
EN 62233: 2008
Conformity evaluation procedure used
2000/14/EC: Appendix V
Sound power level dB(A)
K 4 Premium Power Control
Measured: 89
Guaranteed: 92
K 4 Power Control
Measured: 88
Guaranteed: 91
The signatories act on behalf of and with the authority of
the company management.
Documentation supervisor: S. Reiser
Alfred Kärcher SE & Co. KG
Alfred-Kärcher-Str. 28 - 40
71364 Winnenden (Germany)
Ph.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2019/12/01
Chairman of the Board of Management
Director Regulatory Affairs & Certification
H. Jenner
S. Reiser
English 15
www.kaercher.com/dealersearch
Alfred Kärcher SE & Co. KG
Alfred-Kärcher-Str. 28-40
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
