OWNER'S GUIDE
THE ORIGINAL REFRIGERATION EXPERTS SINCE 1892
MARVEL UNDERCOUNTER REFRIGERATION
MAC L215
MAC P215
MLCL215
MLC P215
MOC L215
MOC P215
MP15CP
CONTENTS
Contents:
Welcome ..............................................................................2
Warranty registration ..........................................................2
Safety information ...............................................................3
Unpacking your appliance ..................................................3
Installing your appliance .......................................................4
Installing the drain plumbing ................................................6
Installing the water supply ...................................................8
Operation of the ice machine ............................................10
Product dimensions ..........................................................12
Door reversal ....................................................................14
Using your electronic control .............................................16
Cleaning your ice machine ................................................19
Care & cleaning, energy saving tips & obtaining service ...21
Overlay door panel installation ..........................................22
Overlay door panel installation ..........................................26
Panel Dimensions .............................................................28
Troubleshooting ................................................................30
Preparing the ice machine for storage ...............................32
Drain pump removal ...........................................................35
Warranty ............................................................................37
XXXXXXXXXXXX
XXXXXXXXXXXX
Warranty Registration:
We encourage all new ice machine owners to take a
moment to register their product for a more tailored
experience should you need support from us in the future.
It's recommended to send in your warranty registration card
immediately after taking delivery of your appliance.
To Register:
• Mail in your warranty registration card or register online
at marvelrefrigeration.com
• The following fields are required:
• Service Number
• Serial Number
• Date of Purchase
• Dealer Name and Address
• The service number and serial number can be found on
the serial plate located on the inside of the cabinet on
the left side.
Welcome
Congratulations on your purchase of the industry's quietest
clear ice machine with the best ice clarity and purity. Your
new investment is protected by a limited warranty for the
rst year, and hermetically sealed refrigeration system parts
are covered for an additional 4 years.
Here's your guide to the operation and maintenance of your
Marvel Clear Ice Machine to ensure years of enjoyment. If
you have any questions, please contact Marvel Customer
Service or Tech Support at:
Phone: 616-754-5601
Email:
• Customer Service: [email protected]
• Tech Support: [email protected]
MARVEL
NOTE
NOTE
!
CAUTION
Important Safety Instructions
Warnings and safety instructions appearing in this guide are not meant to cover all possible conditions and situations that
may occur. Common sense, caution, and care must be exercised when installing, maintaining, or operating this appliance.
Recognize Safety Symbols,
Words, and Labels.
CAUTION-Hazards or unsafe practices which could
result in personal injury or property / product damage.
NOTE-Important information to help assure a problem
free installation and operation.
Marvel Refrigeration is committed to building a quality product in an environmentally friendly manner.
!
WARNING
EXCESSIVE WEIGHT HAZARD
Use two or more people to move product.
Failure to do so can result in personal injury.
Remove Interior Packaging
Your appliance has been packed for shipment with all parts
that could be damaged by movement securely fastened.
Remove internal packing materials and any tape holding
internal components in place. The owners manual is
shipped inside the product in a plastic bag along with the
warranty registration card, and other accessory items.
Important
Keep your carton and packaging until your appliance
has been thoroughly inspected and found to be in good
condition. If there is damage, the packaging will be needed
as proof of damage in transit. Afterwards please dispose of
all items responsibly.
Note to Customer
This merchandise was carefully packed and thoroughly
inspected before leaving our plant. Responsibility for its
safe delivery was assumed by the retailer upon acceptance
of the shipment. Claims for loss or damage sustained in
transit must be made to the retailer.
DO NOT RETURN DAMAGED MERCHANDISE TO THE
MANUFACTURER - FILE THE CLAIM WITH THE
RETAILER.
SAFETY INFORMATION AND UNPACKING YOUR APPLIANCE
!
WARNING
WARNING - You can be killed or seriously injured
if you do not follow these instructions.
!
WARNING
WARNING - Dispose of the plastic bags which can
be a suocation hazard.
!
CAUTION
Cabinet Clearance
Ventilation is required from the bottom front of the
appliance. Keep this area open and clear of any
obstructions. Adjacent cabinets and counter top can be
installed around the appliance as long as the front grille
remains unobstructed. Overlay door models with articulated
hinges are intended for built-in applications only.
!
CAUTION
Outdoor Installation
Do not install in a location where the ice machine will
be exposed to direct sun exposure as this may result in
unsatisfactory performance.
!
CAUTION
!
CAUTION
The warranty is voided if product is used in an ambient
temperature of 40°F (5°C) or below.
INSTALLING YOUR APPLIANCE
Select Location
The proper location will ensure peak performance of
your appliance. We recommend a location where the ice
machine will be out of direct sunlight and away from heat
sources. To ensure your product performs to specications,
the recommended installation location temperature range
is from 55 to 90°F (13 to 32°C) for built in ice machines and
55 to 100°F (13 to 38°C) for freestanding ice machines.
Ice machines will not perform correctly in ambient
temperatures less than 55°F (13°C).
Front Grille
Do not obstruct the front grille. The openings within
the front grille allow air to
ow through the condenser
heat exchanger. Restrictions to this air ow will result in
increased energy usage, loss of cooling capacity and low
ice production. For this reason it is important this area not
be obstructed and the grille openings kept clean. Marvel
does not recommend the use of a custom made grille as
air flow may be restricted.

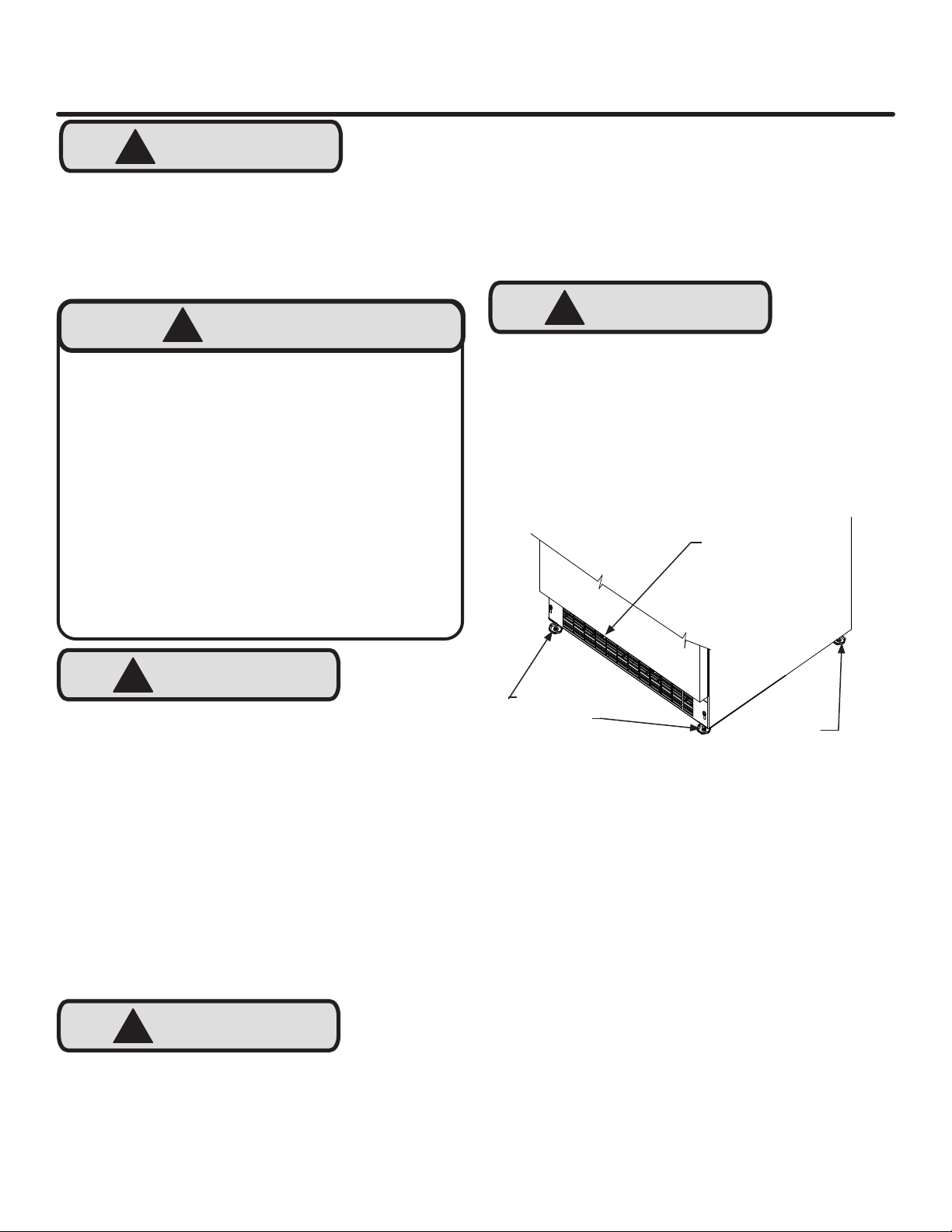

Leveling Legs
Adjustable legs at the front and rear corners of the
appliance should be set so the unit is rmly positioned on
the oor and level from side to side and front to back. The
overall height of your Marvel appliance may be adjusted
higher (by turning the leveling leg out) and lower (by turning
the leveling leg in). Cabinet height adjustment dimensions
are shown in the table on the next page.
To adjust the leveling legs, place the appliance on a solid
surface and protect the
oor beneath the legs to avoid
scratching the oor. With the assistance of another person,
lean the appliance back to access the front leveling legs.
Raise or lower the legs to the required dimension by turning
the legs. Repeat this process for the rear by tilting the
appliance forward using caution. On a level surface check
the appliance for levelness and adjust accordingly.
The front grille screws may be loosened to raise and
lower the grille to the desired height. When adjustment is
complete tighten the two front grille screws.
Rear
Leveling
Legs
Front Leveling
Legs
Front Grille,
keep this area
open.
!
WARNING
WARNING - Help Prevent Tragedies
Child entrapment and suocation are not problems of
the past. Junked or abandoned refrigerators are still
dangerous - even if they sit out for "just a few hours".
If you are getting rid of your old refrigerator, please
follow the instructions below to help prevent
accidents.
Before you throw away your old refrigerator or
freezer:
• Take o the doors or remove the drawers.
• Leave the shelves in place so children may not
easily climb inside.
If the appliance was shipped, handled, or stored in other
than an upright position for any period of time, allow the
appliance to sit upright for a period of at least 24 hours
before plugging in. This will assure oil returns to the
compressor. Plugging the appliance in immediately may
cause damage to internal parts.
NOTE
Do not remove
ground prong
INSTALLING YOUR APPLIANCE
Front grille
Front grille screw

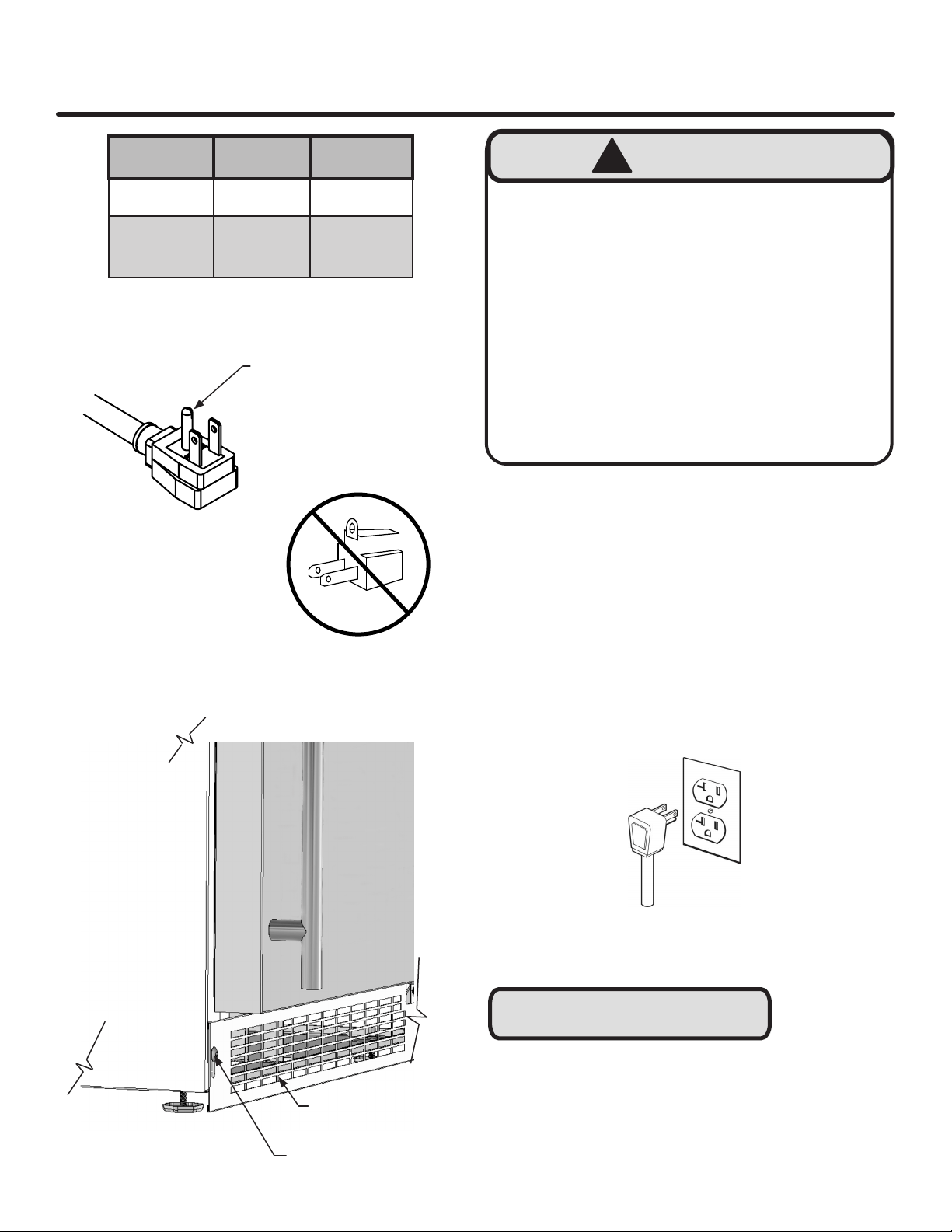

Electrical Shock Hazard
• Do not use an extension cord with this appliance.
They can be hazardous and can degrade product
performance.
• This appliance should not, under any
circumstances, be installed to an un-grounded
electrical supply.
• Do not remove the grounding prong from the power
cord.
• Do not use an adapter.
• Do not splash or spray water from a hose on the
appliance. Doing so may cause an electrical shock,
which may result in severe injury or death.
!
WARNING
Electrical Connection
A grounded 115 volt, 15 amp dedicated circuit is required.
This product is factory equipped with a power supply
cord that has a three-pronged, grounded plug. It must
be plugged into a mating grounding type receptacle
in accordance with the National Electrical Code and
applicable local codes and ordinances. If the circuit does
not have a grounding type receptacle, it is the
responsibility and obligation of the customer to provide the
proper power supply. The third ground prong should not,
under any circumstances, be cut or removed.
Figure 6
Ground Fault Circuit Interrupters (GFCI) are prone to
nuisance tripping which will cause the appliance to shut
down. GFCI’s are generally not used on circuits with power
equipment that must run unattended for long periods of
time, unless required to meet local building codes and
ordinances.
Table A
Model
Minimum
Height
Maximum
Height
MAC**15 31" 32"
MLC**15
MOC**15
MP**15
33
3
⁄4" 34
3
⁄4"

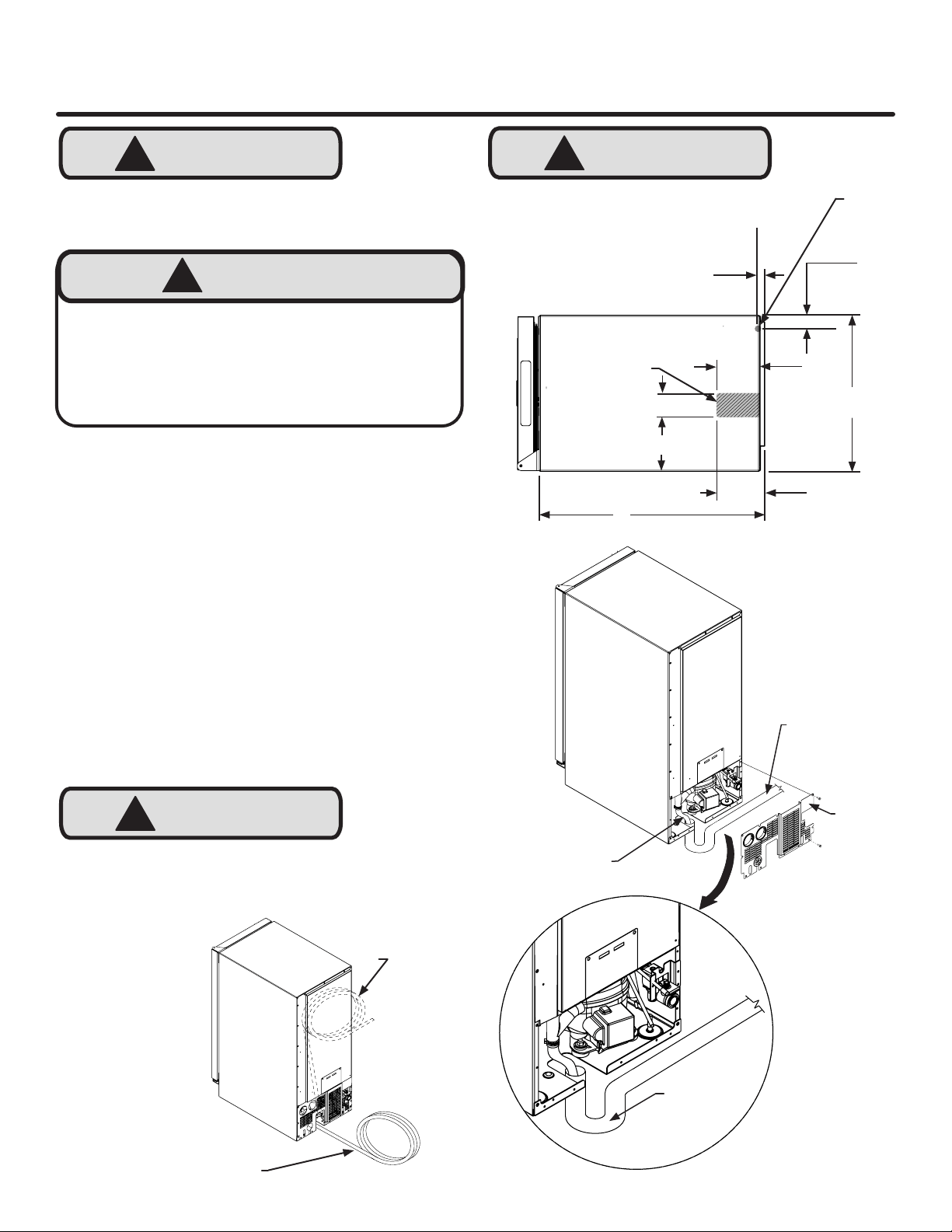

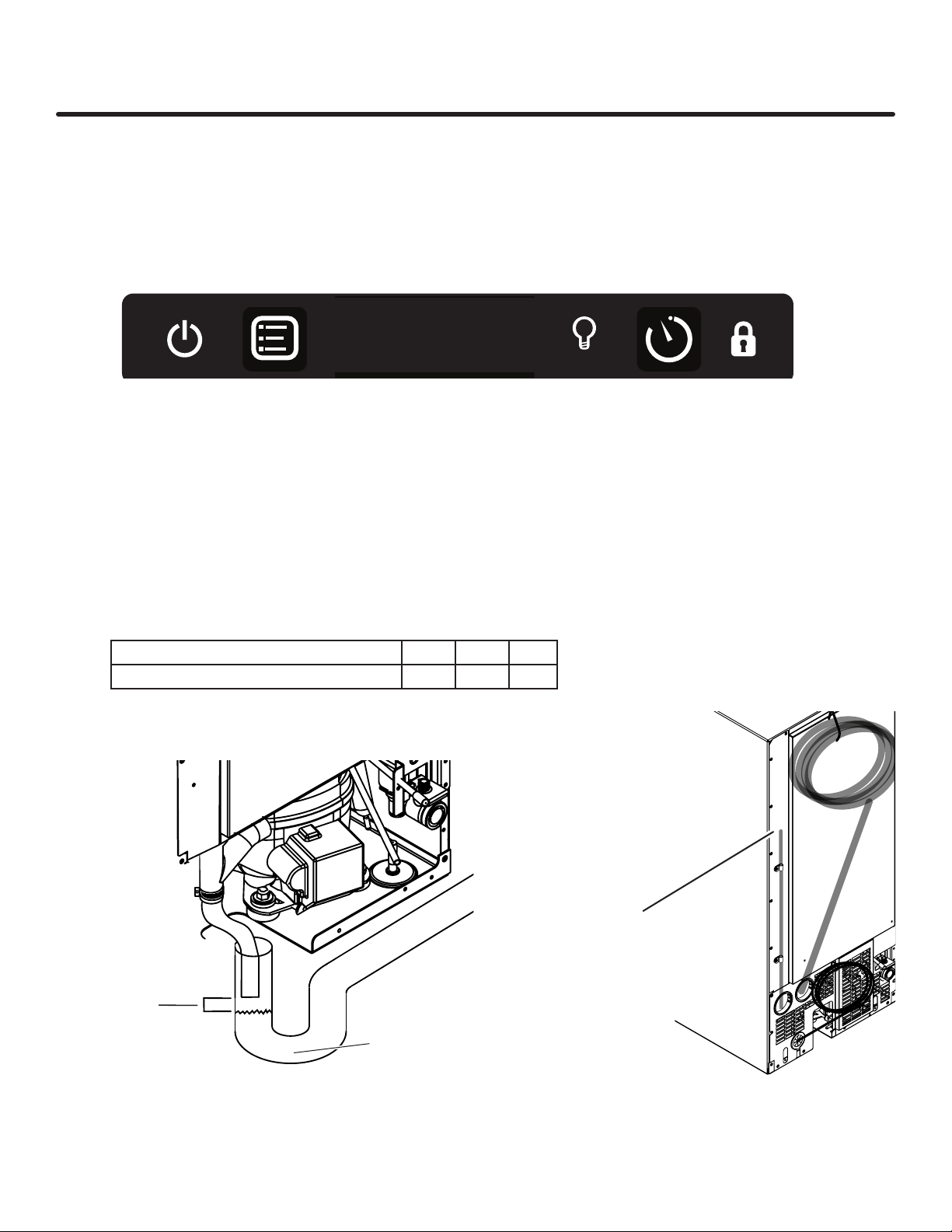

INSTALLING THE DRAIN PLUMBING
Access
panel
provided)
to length and
install in the drain
C
L
C
L
14
7
8"
(37.8 cm)
11
16"
(17mm)
1
1
4"
(3.2 cm)
4
17
32"
(11.5 cm)
21
1
2"
(54.6 cm)
Drain line coiled
and secured to
the back of the
unit
to an appropriate drain and
Electrical Shock Hazard
Reasonable care and safe methods should be
practiced. Do NOT work with energized electrical
installation instructions listed in this manual.
!
WARNING
!
CAUTION
surrounding water damage and/or poor ice production.
!
CAUTION
Observe and follow all local building codes
when installing this ice machine and drain
lines.
Water
supply
inlet
Drain access in
bottom of unit
4
3
32"
(10.4 cm)
Sanitary
trap
2
1
4"(5.7 cm)
5
1
8" (13 cm)
Drain Plumbing
variations of ice machines in regards to the installation of
and with a drain pump.

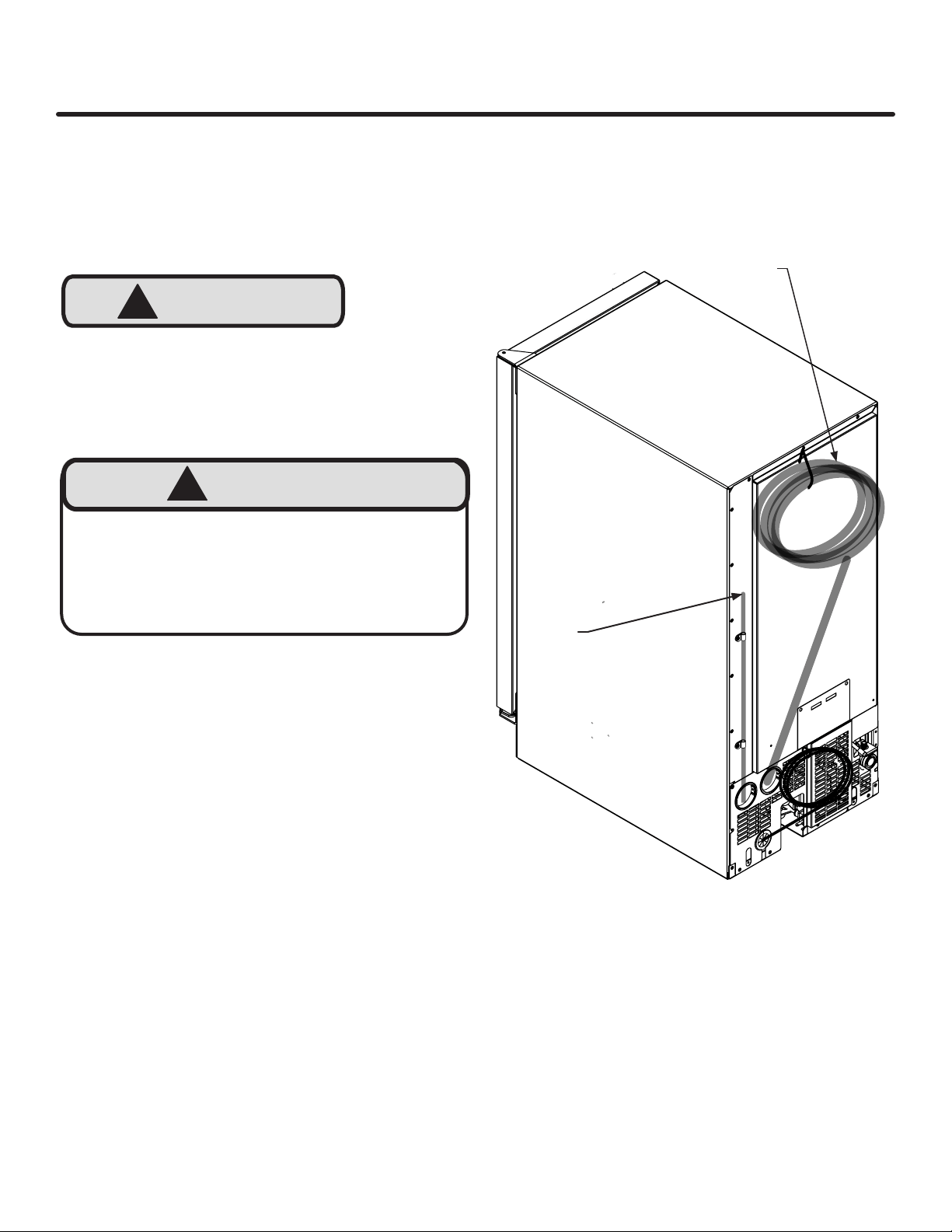

Gravity Drain (no drain pump):
coiled and secured to the back of the cabinet as shown
provision of drain routing through the cut-out in the bottom
.installed in this gray area with the
drain line cut to a short ,
below.
The gravity drain line must be routed no higher than 6"
!
CAUTION
INSTALLING THE DRAIN PLUMBING

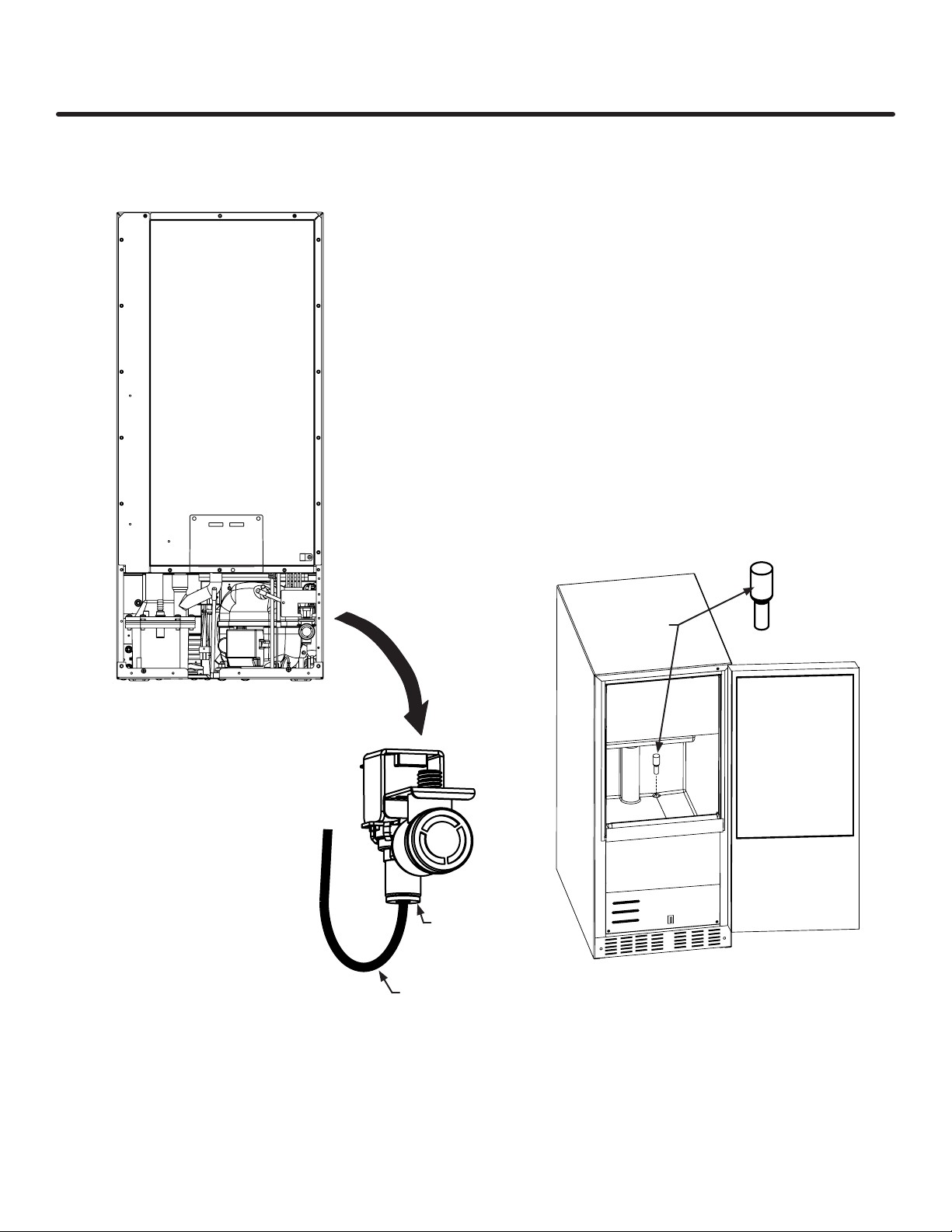

This drain pump is designed to be installed in Marvel ice

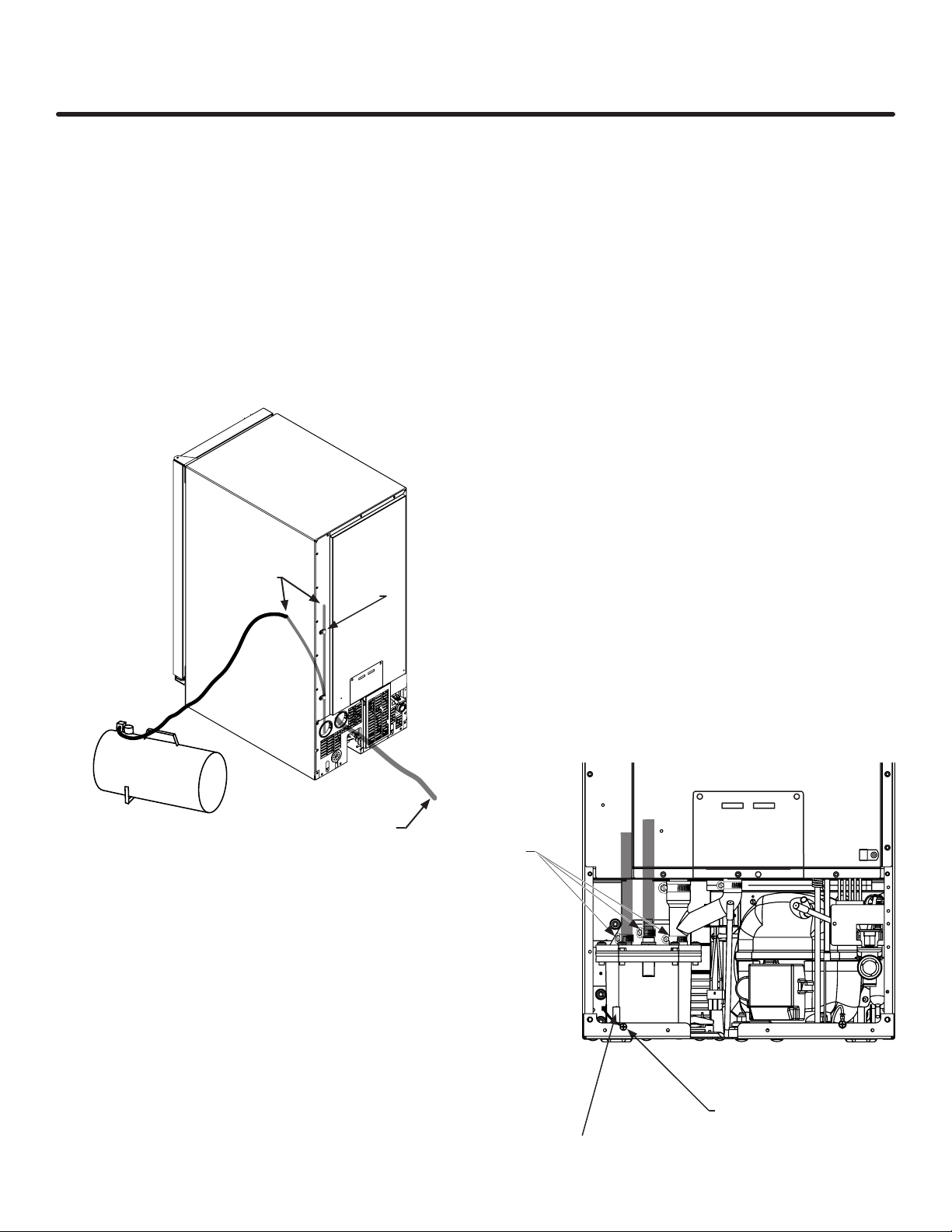

machines only and approved for use with water only.
!
CAUTION

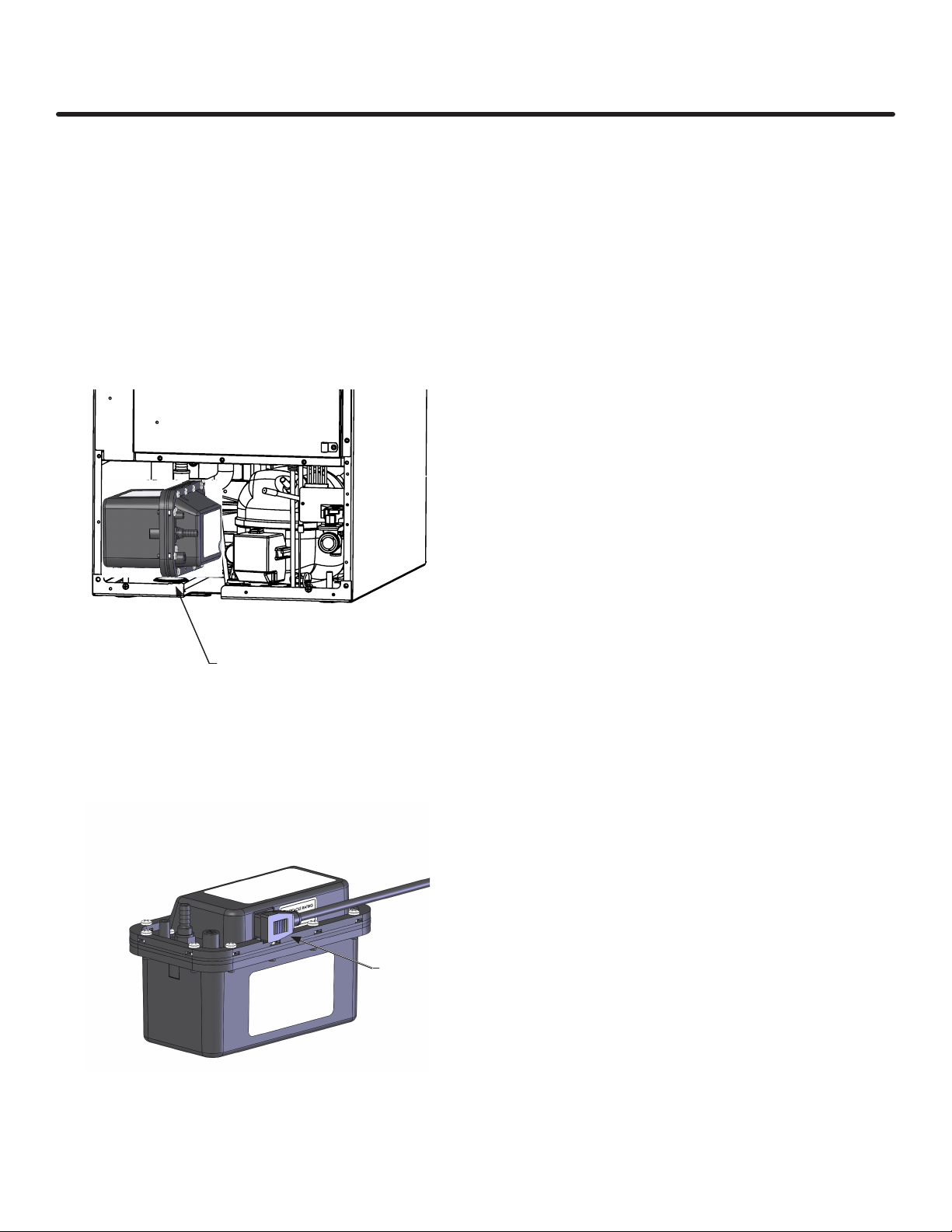

Drain pump
vent tube.
Keep this
open to
assure air
as water
enters
the pump
reservoir.
Drain line coiled and
secured to the back of the
an appropriate drain and
cut to length.

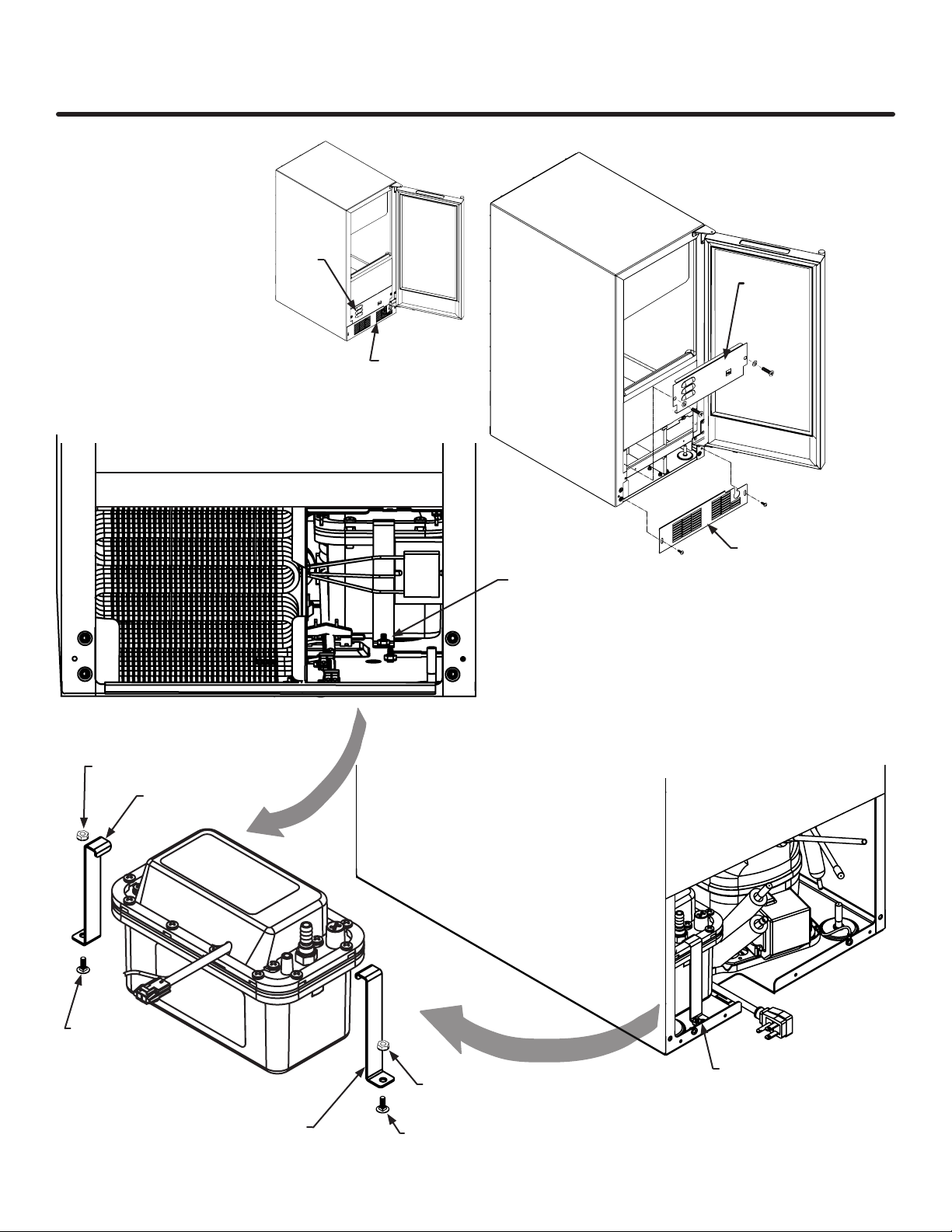

Optional Drain Pump.
An optional drain pump is available if you have purchased
an ice machine without one and do not have access to a
gravity drain. Installation instructions are provided with the
optional drain pump. Contact Marvel customer service at
616-754-5601 or your dealer for ordering.
Electrical Shock Hazard
Risk of electrical shock or personal injury could
compartment access cover is removed before
unplugging the ice machine power cord.
!
WARNING
ionized water are not recommended as they can adversely
Water
Supply
Line
Clamp and
Screw
Back view of
ice machine
NOTE
!
CAUTION

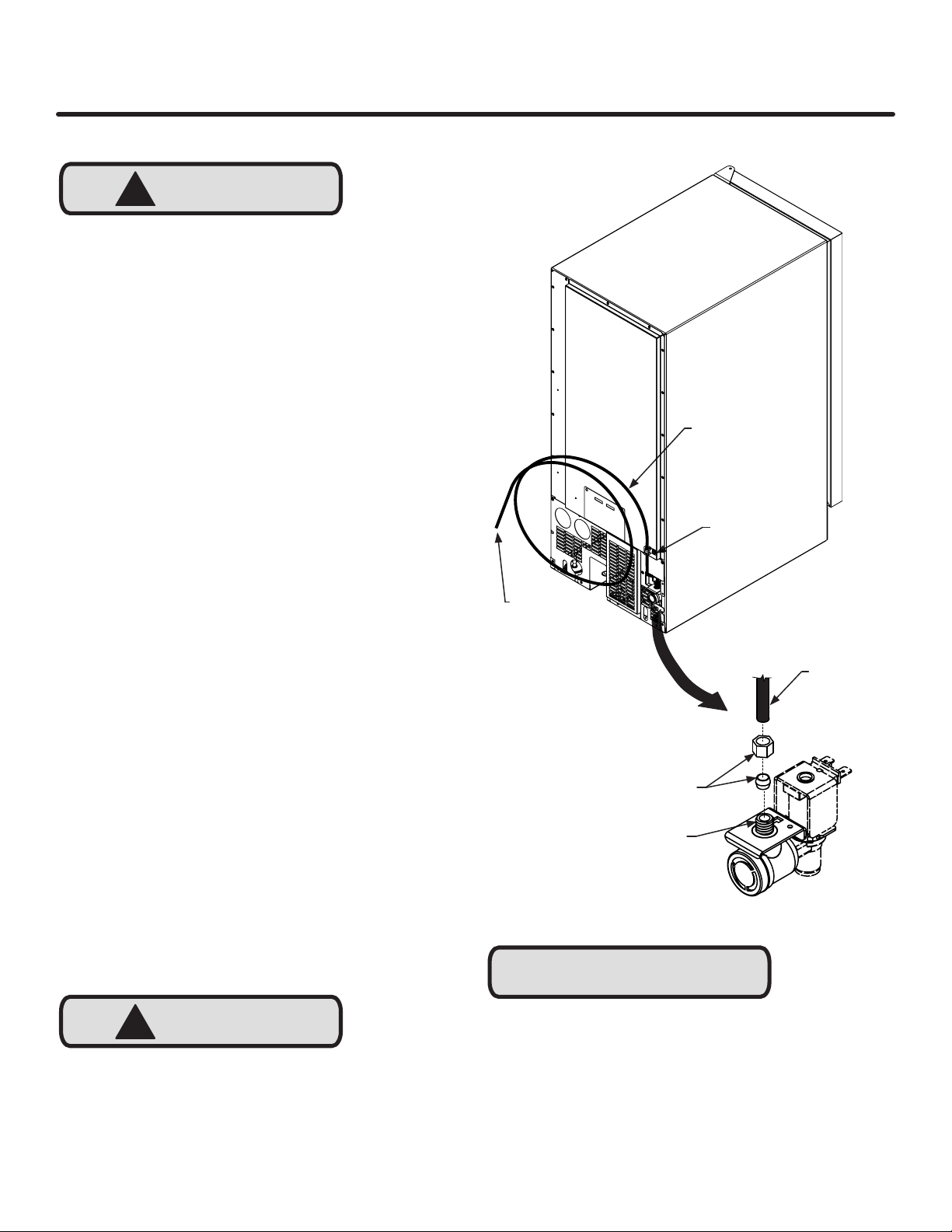

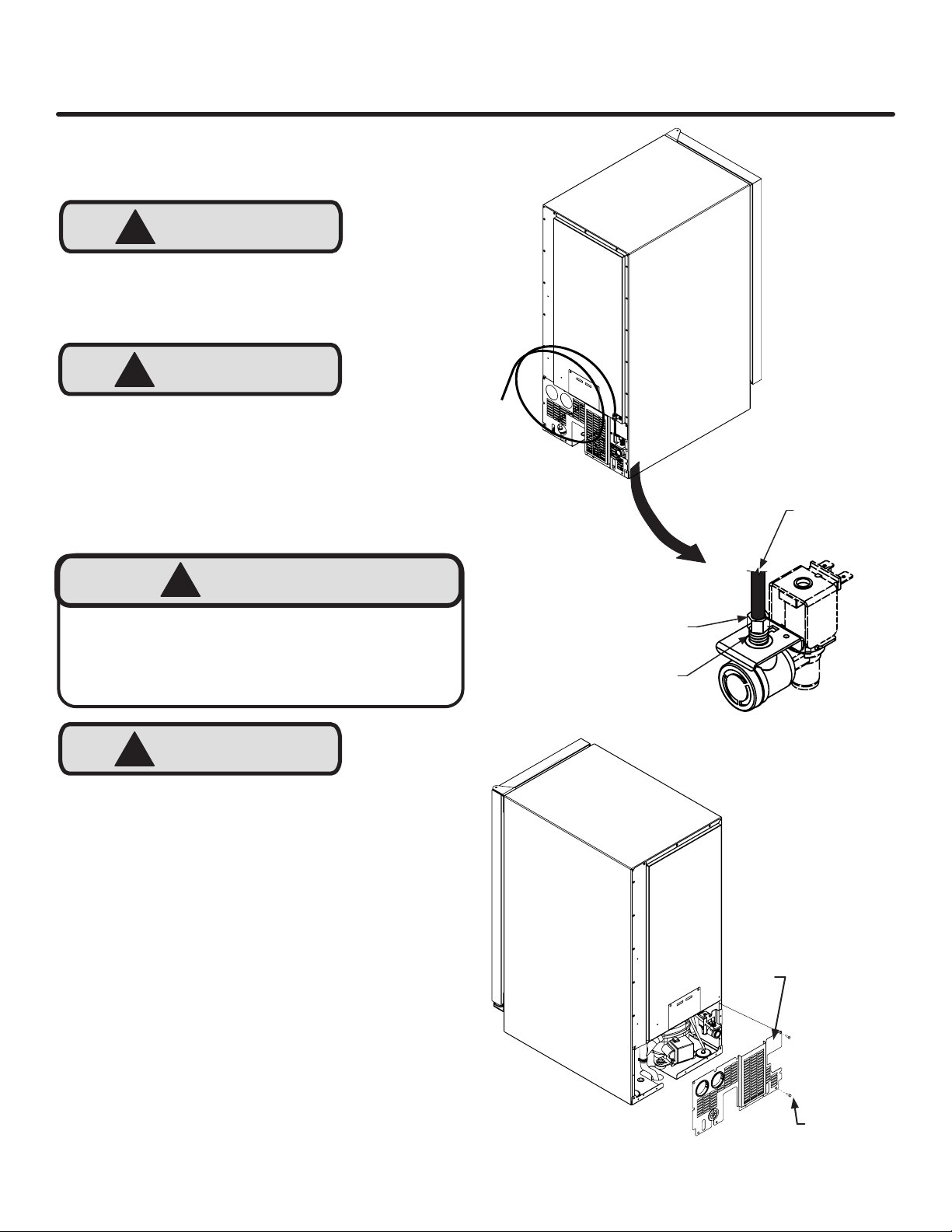

INSTALLING THE WATER SUPPLY
Compression
Water
supply
line
Water supply
service loop
valve
Water valve
inlet
Water Supply
Observe and follow all local building codes when installing
this appliance.
This ice machine must be connected to a potable cold
water supply line. delivering water pressure between a
minimum of 20 psi and a maximum of 120 psi.
Use
¹
" copper tubing for your water supply which is
available at any local hardware or plumbing supply store.
Route the
¹
" copper tubing to suit your installation being
sure not to kink the tubing. Purchase enough copper tubing
length to allow a coil to be formed behind the unit for a
"service loop" which will allow the appliance to be pulled
out from the installation for servicing or cleaning. Connect
the copper tubing to the "top side" of a cold water pipe to
prevent the ice-maker from plugging with sediment.
ease servicing the appliance. NOTE: A SELF-PIERCING
TYPE VALVE IS NOT RECOMMENDED as they are prone
to clogging with sediment which will create pressure drop
reducing the water supply to the unit.
Connect the copper tubing water supply to the water valve
IMPORTANT: Secure the water supply line to the back of
the cabinet with the screw and strain relief clamp provided
in the corner of the back panel.
Make certain all connections are watertight after
installation. Form the tubing so that it will not vibrate
against the cabinet body or kink when your appliance is
moved in and out of position.
This ice machine is designed to make clear ice from the
majority of water sources on a daily basis. If your results
treated. A water specialist can recommend proper water
treatment.
!
CAUTION
•
only. Do not use with plastic tubing.
•
INSTALLING THE WATER SUPPLY
Procedure for Testing Drain System
(both gravity and drain pump models)
Drain pump models have a safety feature that will interrupt power to the unit if a high-limit condition occurs to prevent
.
Drain pump vent
tube. Keep this
open to assure
water enters the
pump reservoir.
Sanitary trap
hours
ICE
1 4 6 8
OFF CLEAN
DOOR
ECO
days
Menu Light Delay timer Lock
7.
Air gap
between
end of
drain line
and top of
water level
1. Plug the ice machine into 115v power supply.
2.
3.
mode if the unit has one.
4.
5.
installation of the ice machine can be continued.
6.
excess tubing should be removed to prevent possible restrictions).
Rise Above Floor Level 8 ft. 9 ft. 10 ft.
Maxium Allowable Drain Line Length 20 ft. 15 ft. 10 ft.
c. Your drain line is plumbed into an open drain.
d. The vent tube on the back of the unit is open.

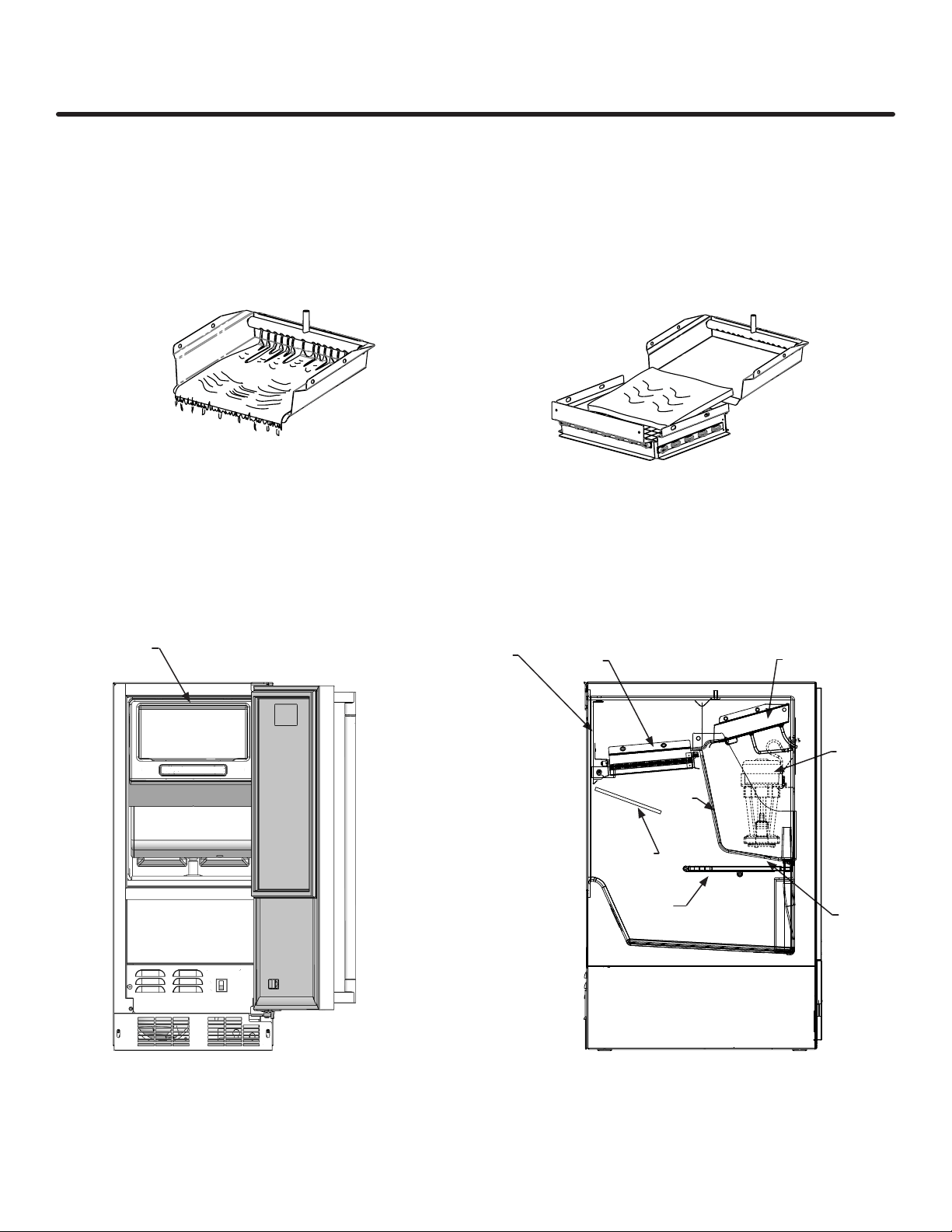

The Ice Making Process
fractional freezing to form a slab of ice that is clear and
has less dissolved solids than the water it is produced
from. This is accomplished by running water over the cold
evaporator plate which gradually freezes
leaving the
dissolved solids in the residual reservoir water to provide
clear ice.

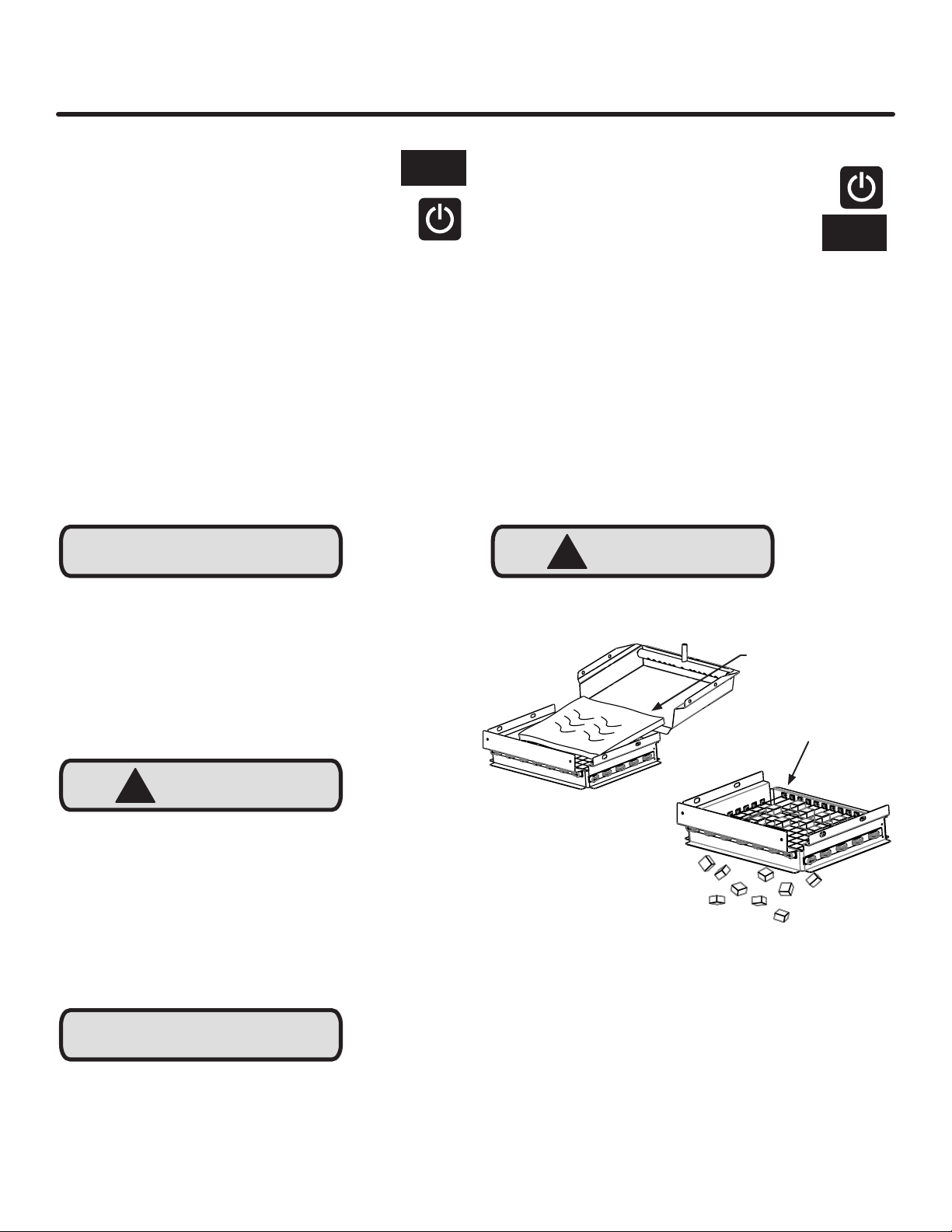

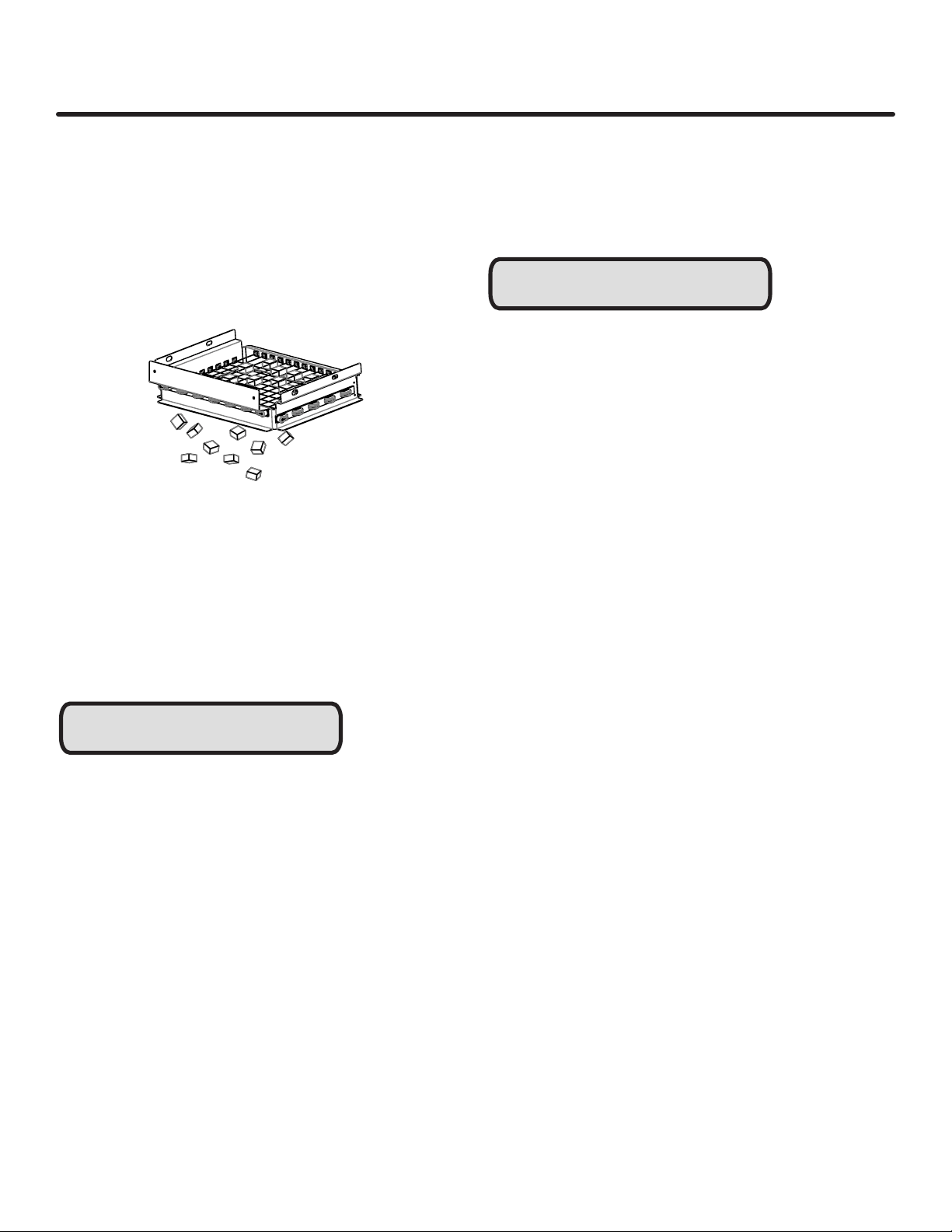

sheet is released and slides onto the grid cutter
cutter’s heated
wires. The water containing the dissolved minerals is
drained after each freezing cycle. Fresh water enters the
machine for the next ice making cycle.
Water distributor
Water
reservoir
Evaporator
Circulation
Pump
Reservoir
drain plug
Front
panel
Bin Level
Sensor
Ice
Grid Cutter
OPERATION OF THE ICE MACHINE
when the ice supply is low or full and starts or stops the ice
making process accordingly.
power to the unit.
New Sounds
your household refrigerator. Because these sounds are
new to you they may be of a concern but are most likely
normal. The ice production process will make noises that
valves opening and closing. Following are some of the
A buzzing sound will be heard when the water valve
water line.
evaporator plate and into the water reservoir.
A "thud" when the ice slab is released from the
evaporator plate and slides onto the grid cutter.
"Clicks" when the cubes fall into the ice storage bin.
machine.
An air noise from the condenser fan.
Ice Production
In normal mode the ice machine will produce up to 39
pounds (17.7 kg) of clear ice in a 24-hour period when
installed in a 72°F ambient with a 55°F water supply. In
"ECO" mode (see page 16) the ice machine will produce up
to 29 pounds (13.2 kg) of clear ice in the 24 hour period.
24-hours of operation the unit will produce up to 39 lbs of
the ice storage bin is maintained at a temperature slightly
production rate will overcome the ice melt and the storage
NOTE
NOTE
OPERATION OF ICE MACHINE
The ice machine will keep producing ice until the ice
machine’s bin is full and will restart automatically when
ice needs to be replenished in the bin. The ice bin is
machine to run for 24-48 hours to accumulate ice in the ice
machine’s bin.

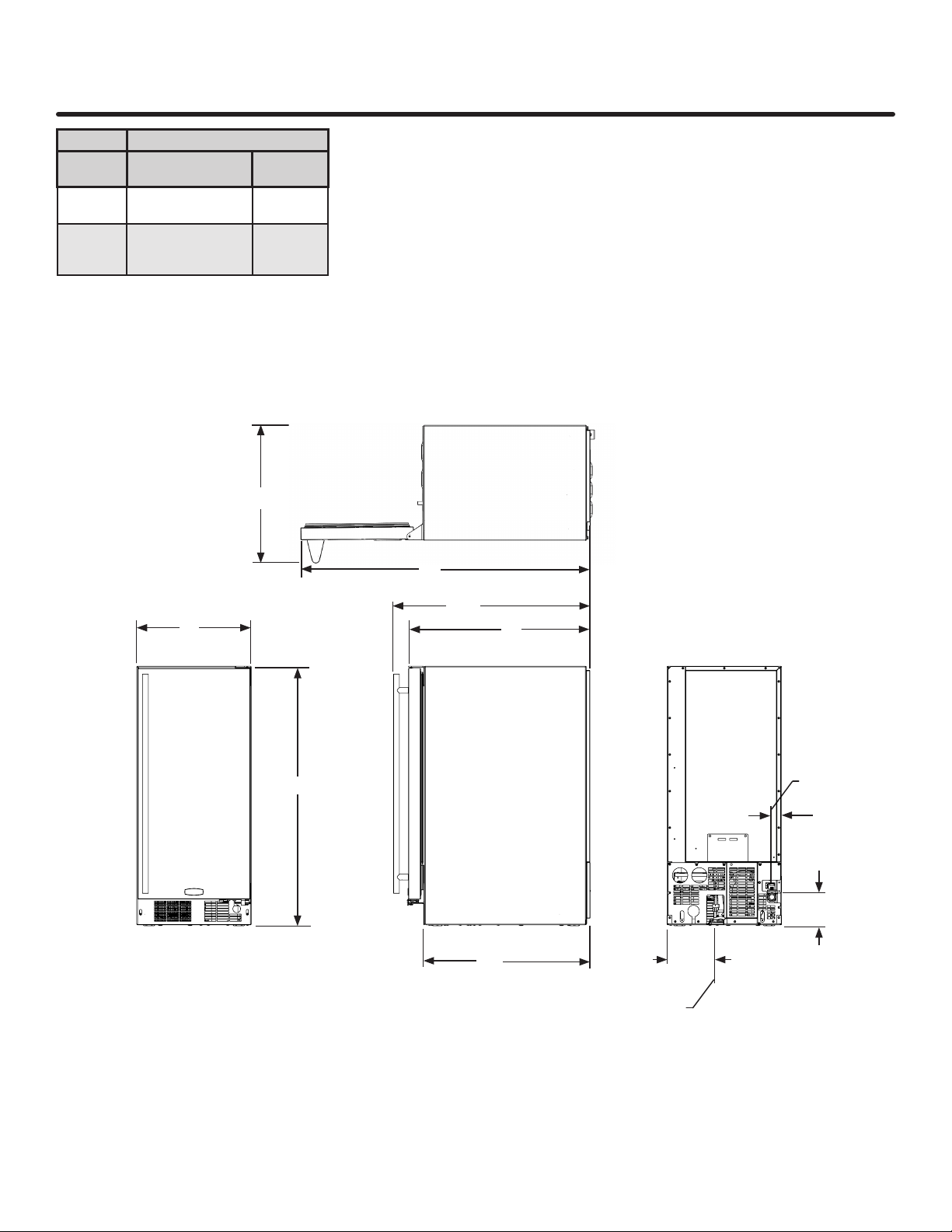

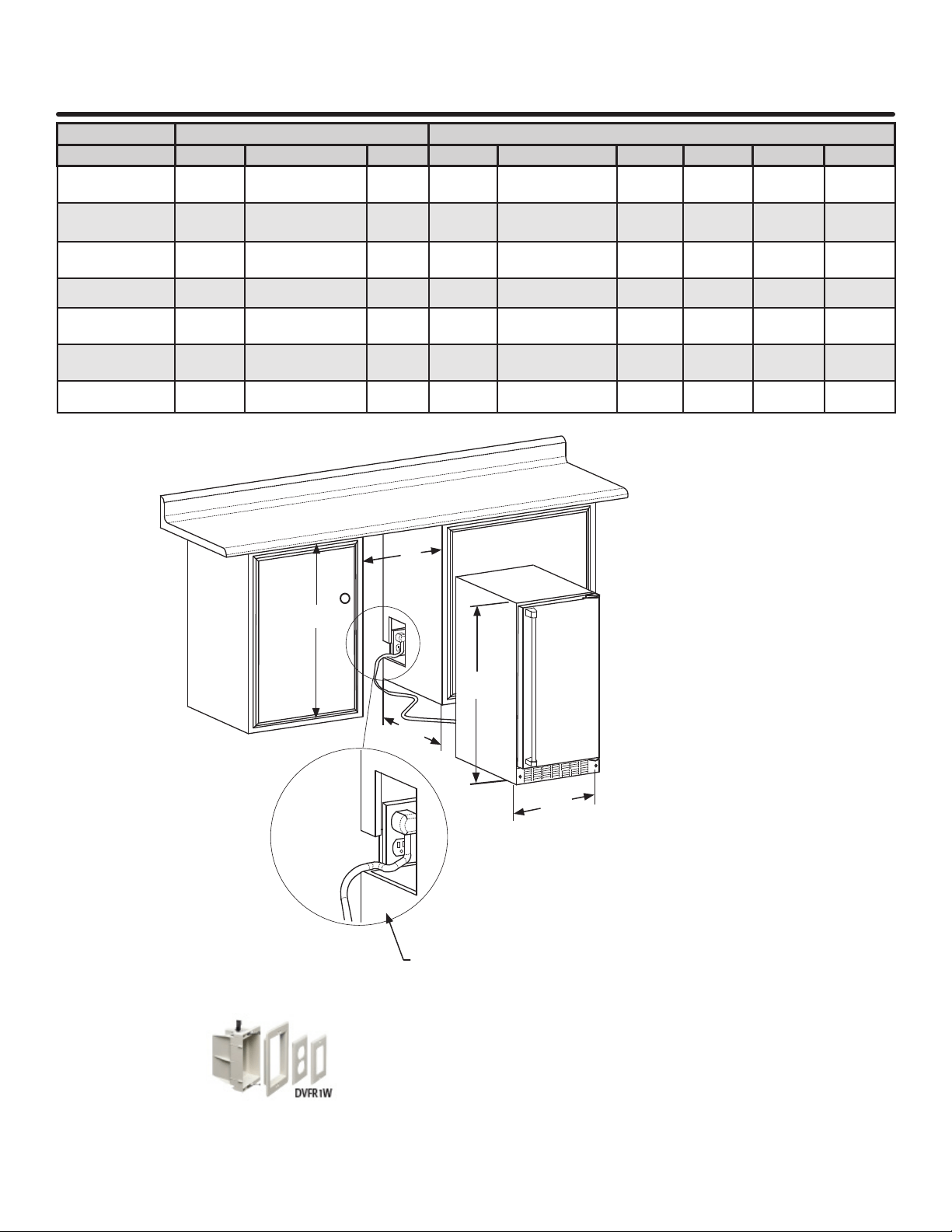

PRODUCT DIMENSIONS
ROUGH-IN OPENING DIMENSIONS CABINET DIMENSIONS
MODEL "A" "B" "C" "D" "E" "F" "G" "H" "J"
MAC**15-SS 15" 31
1
4" to 32
1
4" 24" 14
7
8" 31" to 32" 23
5
8" 25
1
2" 37
3
8" 16
5
8"
MAC**15-IS 15" 31
1
4" to 32
1
4" 24" 14
7
8" 31" to 32" 22
7
8" - 37
3
8" 14
1
4"
MLC**15-SS
MLC**15-SG
15" 34" to 35" 24" 14
7
8" 33
3
4" to 34
3
4" 23
5
8" 22
1
2" 37
3
8" 16
5
8"
MLC**15-IS 15" 34" to 35" 24" 14
7
8" 33
3
4" to 34
3
4" 22
7
8" - 37
3
8" 14
1
4"
MOC**15-SS 15" 34" to 35" 24" 14
7
8" 33
3
4" to 34
3
4" 23
5
8" 26
1
8" 37
3
8" 16
5
8"
MP15CPS
MP15CPG
15" 34" to 35" 24" 14
7
8" 33
3
4" to 34
3
4" 22
7
8" 26
3
8" 38
7
8" 17
1
2"
MP15CPP 15" 34" to 35" 24" 14
7
8" 33
3
4" to 34
3
4" 22
7
8" - 38
7
8" 14
1
4"
"A"
"B"
"C"
"D"
"E"
If necessary to gain clearance inside the rough-
in opening a hole can be cut through the adjacent
cabinet and the power cord routed through this hole to
a power outlet. Another way to increase the available
opening depth is to recess the power outlet into the
rear wall to gain the thickness of the power cord
plug. Not all recessed outlet boxes will work for this
.
PRODUCT DIMENSIONS
PRODUCT DATA
MODEL
ELECTRICAL
REQUIREMENTS #
PRODUCT
WEIGHT
MAC**15 115V/60Hz/15A
100 lbs
(45.5 kg)
MLC**15
MOC**15
MP15CP
115V/60Hz/15A
105 lbs
(47.7 kg)
the adjusted height of the cabinet.
all local building codes when installing electrical and
appliance.
"F"
"D"
"E"
"J"
"G"
CL
Water
inlet
4
7
8"
(12.4 cm)
1
1
4"
(3.2 cm)
CL Gravity
drain
(S) solid
door shown
21
1
2"
(54.6cm)
6
15
16"
(17.6 cm)
"H"

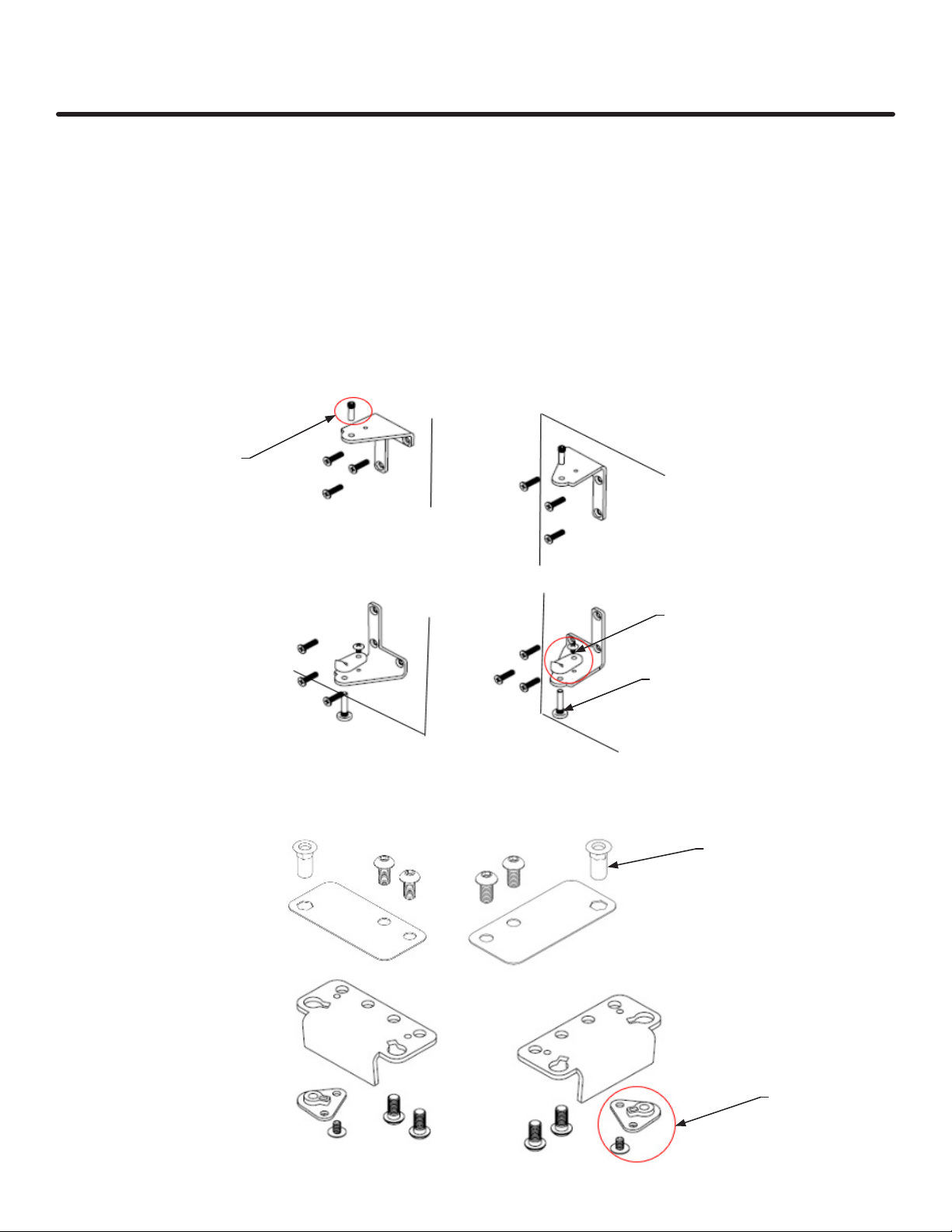

Door Reversing Instructions
Tools Needed:
• 1/8” Hex Key
• 5/32” Hex Key
• Phillips Screwdriver

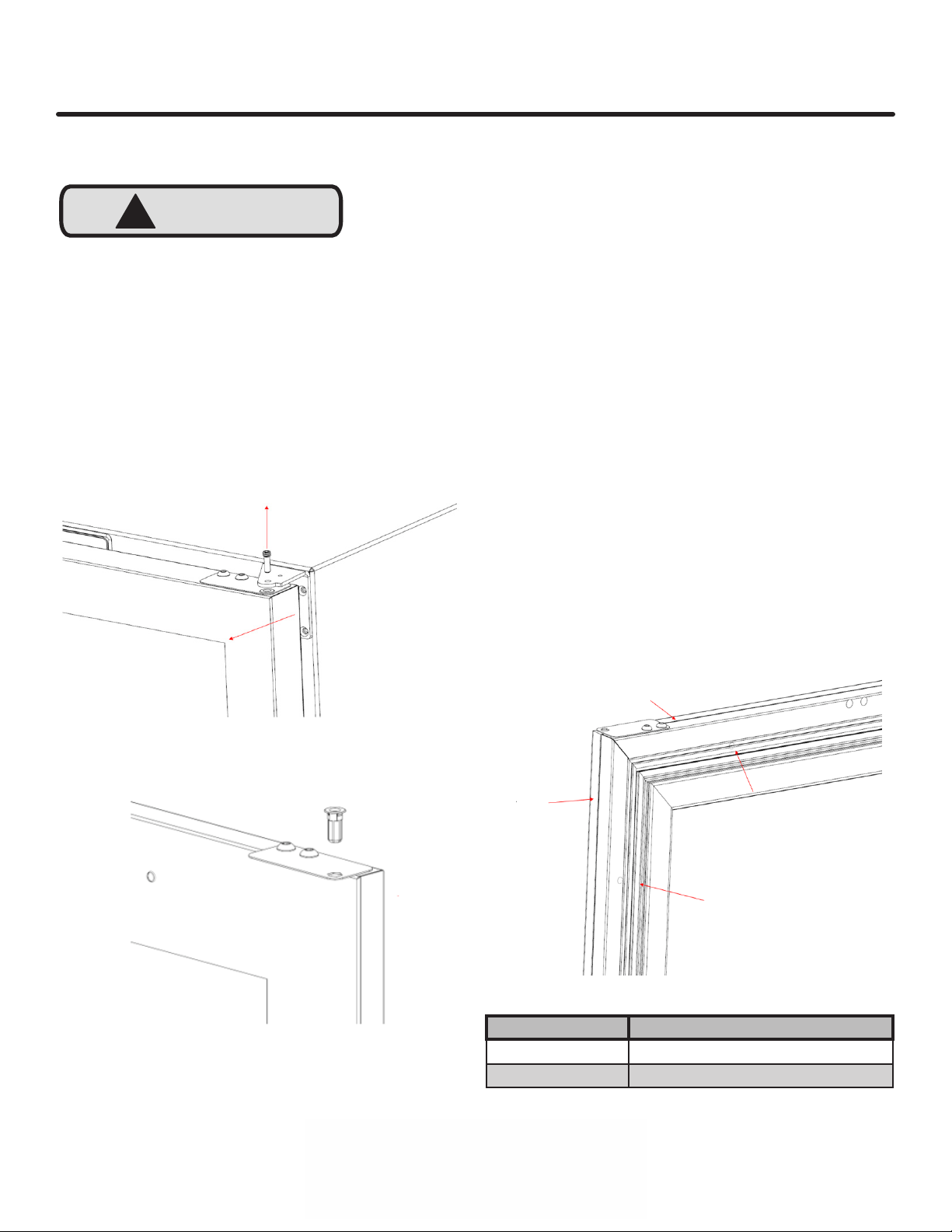

1. Open door and remove Hinge Pin from the Upper Hinge using a 1/8” Hex Key tool, making sure to steady the door
Slowly remove the door from the Upper Hinge and lift to remove off the base Lower Hinge.
2. Using a Phillips Screwdriver, remove the 6 screws from both the Upper and Lower Hinges and save for later steps
3. Once the Hinges are removed from the unit, using a Phillips Screwdriver, remove the Bushing Screw and Hinge Pin
Screw and save for later steps.
4. On the Bottom Hinge, reattach the Bushing Screw and Hinge Pin Screw to the opposite side.
Lower Hinge Bracket
(Before Reversal)
Upper Hinge Bracket
(After Reversal)
Lower Hinge Bracket
(After Reversal)
5.
Using a 5/32” Hex Key, remove the Upper and Lower Hinge Brackets from the door, saving all components. Remove
black plugs from opposite side of door. flip the Upper Hinge Bracket and reattach the Hinge Bushing and screw into place
on the opposite side of the door (where plugs were removed). Remove the Cam Closer from the Lower-Hinge Bracket
and attach it to the opposite side.
DOOR REVERSAL
Hinge Pin
Upper Right Hinge
Orientation
(Before Reversal)
Hinge Pin
Screw
Bushing
Screw
Lower Right Hinge
Orientation
(Before Reversal)
Upper Left Hinge
Orientation
(After Reversal)
Upper Left Hinge
Orientation
(After Reversal)
Hinge
Bushing
Cam Closer
Upper Hinge Bracket
(Before Reversal)
6.

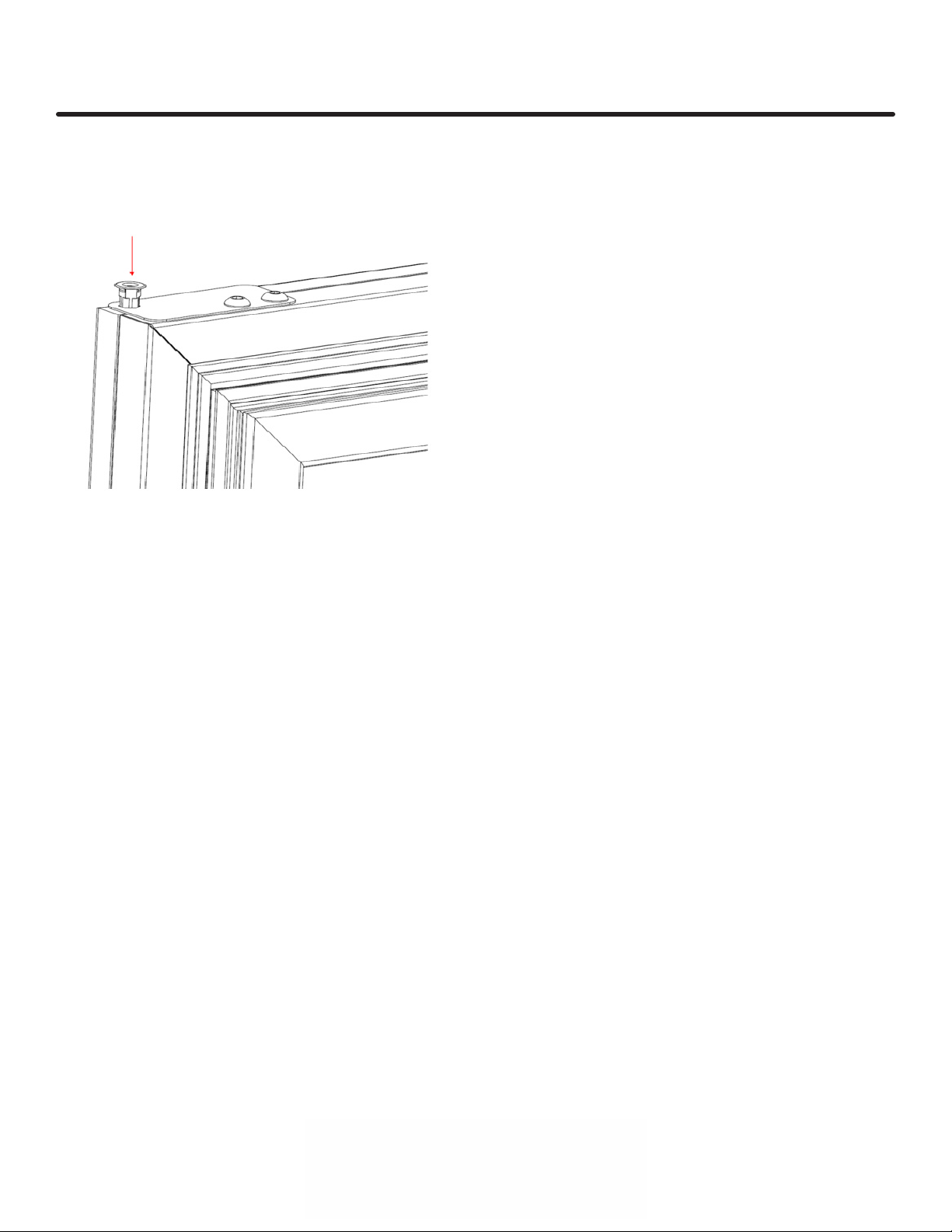

Remove the Toe Kick from the door and attach it to the opposite side
DOOR REVERSAL
Toe Kick Reversal
7. Reattach the Upper and Lower Hinges, and Hinge Brackets to opposite sides. Then install the door.
USING YOUR ELECTRONIC CONTROL
Starting your clear ice machine:
(see page 5 for electrical information). Your
appliance is shipped from the factory in the "ICE" mode
and will begin start-up of ice production after the start-up
routine.
followed by a harvest cycle to clear any in-process ice
before an ice production cycle starts.
section below). Do not start the ice machine in "ECO"
mode. "ECO" mode should only be used after there is a full
bin of ice.
hours
ICE
1 4 6 8
OFF CLEAN
DOOR
ECO
days
functions in the user interface.

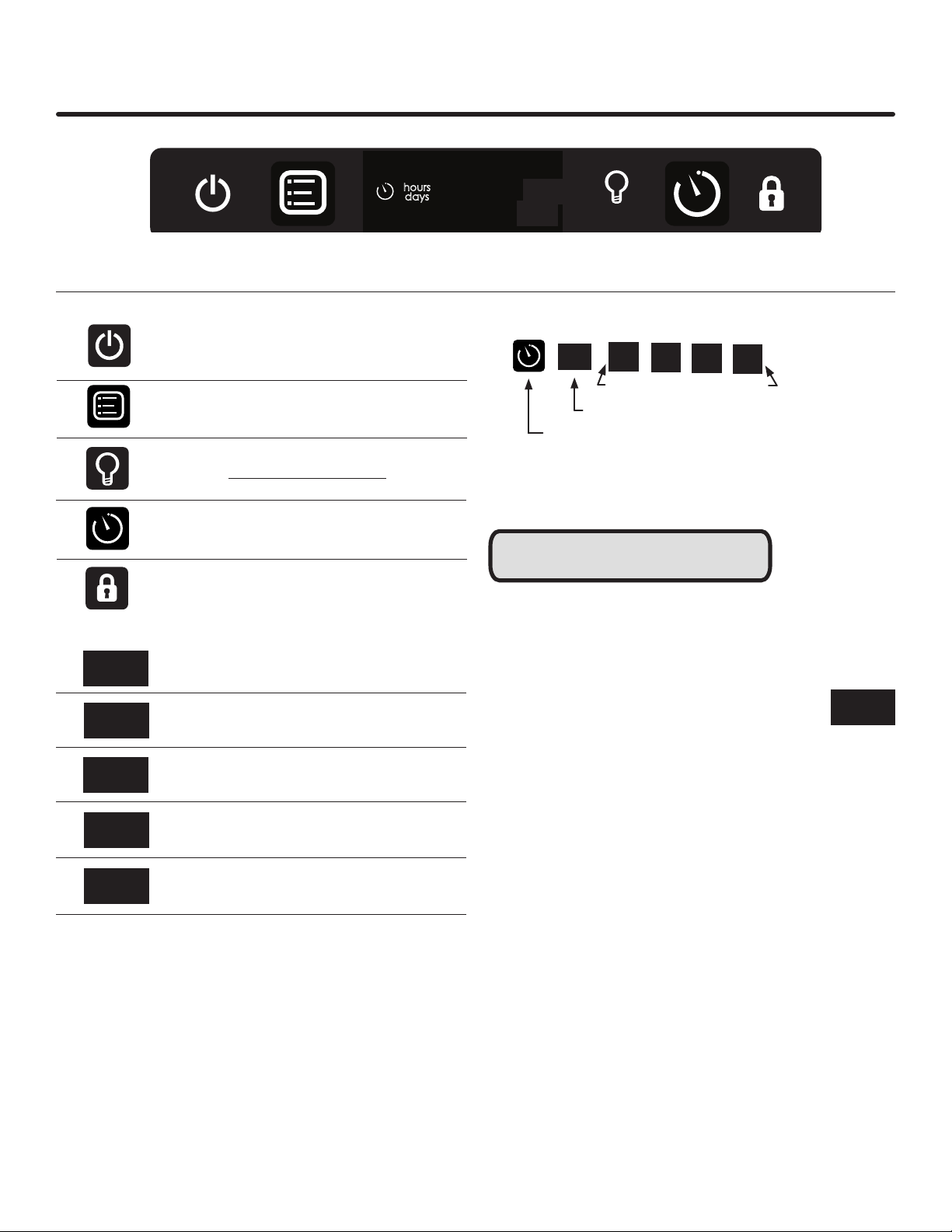

Display icons:
ICE
1
4
6
8
hours
days
vacation mode.
the user interface.
Display area text:
ICE
OFF
DOOR
CLEAN
ECO
ice.
Cleaning is recommended or the appliance
is in the clean mode.
production mode.
User interface display
Menu Display area Delay timer Lock
operational.
Hours or days will be lit
Hours or days timer is set for
Delay start/Vacation mode:
The control display is covered with a clear plastic protective
corner.
NOTE
Light
glass door models only.
Turning your ice machine On and O:
OFF" icon for 3-seconds. The display will show
"OFF" .
will still be functioning during the OFF mode. To
ICE
ICE
OFF
USING YOUR ELECTRONIC CONTROL
Control Lock:
The user interface can be locked to avoid
unintentional changes from things like cleaning. To
NOTE
NOTE
The "LOCK" icon is the only active key in this mode. If other
icons are pressed while in the lock mode the "LOCK" icon
the user the appliance is in the lock mode.
Door ajar alarm:
minutes the "DOOR" indicator will illuminate and
alarm can be muted by pressing the "Lock" keypad.
This alarm condition can be reset by closing the
alarm will recur in 5 minutes if the alarm condition persists.
DOOR
Turning the ice machine "OFF" will only terminate the
appliance. Always unplug the power cord from the
wall outlet before servicing the unit.
!
WARNING
Delay start/Vacation mode:
This feature can be used to temporarily shut the appliance
This is ideal for temporarily stopping ice machine noises or
to save water and electricity if you are away from home but
want fresh ice upon your return.
icon while the appliance is in "ICE" mode. This will
delay the next harvest by the time displayed. Each
press after 8 days will leave delay set
mode. After the desired time has been
and your selected time will be displayed. When the
resume.
and hold the "ON/OFF" icon until the
hold the "ON/OFF" icon again until the
appliance enters "ICE" mode.
1 4 6 8
hours
days
ICE
OFF
Error Codes

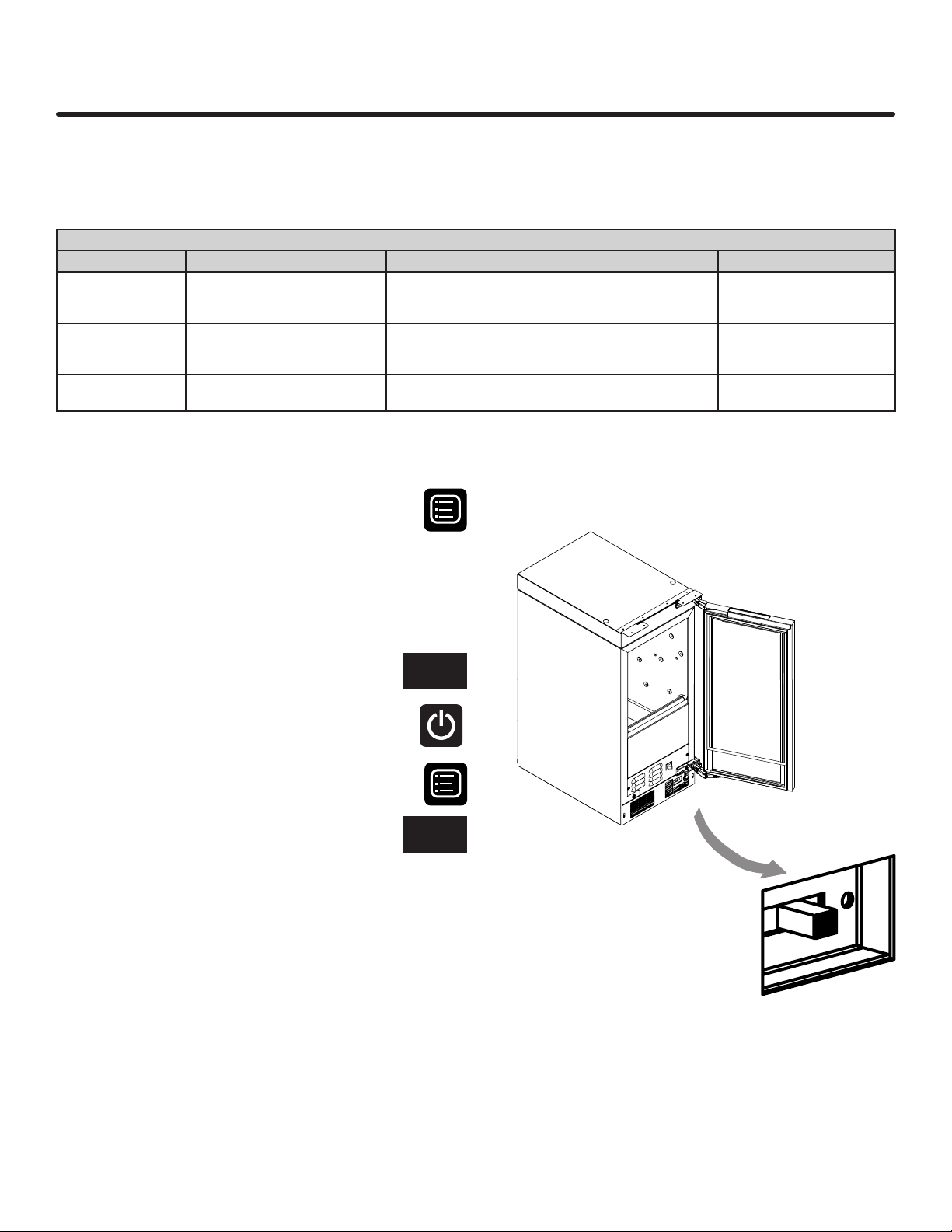

Error Displayed Code Error Description Action to Take
Bin Sensor error
second intervals in the display. No
audible alarm will sound.
Failed temperature sensor. Machine operation will
immediately enter an OFF state.
Call service to have the
temperature sensor replaced.
System Sensor error
the display. No audible alarm will
sound.
Failed condenser temperature sensor. Machine operation
will continue but ice production cycle will not adapt to
Call service to have the
temperature sensor replaced.
Communication error
on the display.
Loss of communication between the main board and the
user interface.
Call service to have a
diagnostic check.
Error codes:
The ice machine is monitored continuously. Any OPEN or
SHORTED circuit condition with a temperature sensor or
miscommunications between the control and user interface
ICE
Options menu:
Normal and ECO mode:
Your ice machine comes with an optional "ECO" mode.
This new feature allows you to tailor ice production to a
ice production will slow and the appliance will use less
water and electricity. "ECO" mode should only
be initiated after there is a full bin of ice. To enter
• Press the "MENU" icon twice and the green
• Press and hold the "ON/OFF" icon until the
illuminated.
• To return to the standard operating rate press the
and remains illuminated.
ECO
USING YOUR ELECTRONIC CONTROL
Changing the Tri-Color lighting: (MP15CP
Models Only)
The light switch for changing
the light color is located in the toe
grille. Move the switch to the left
or right to change
Three position
slide light switch

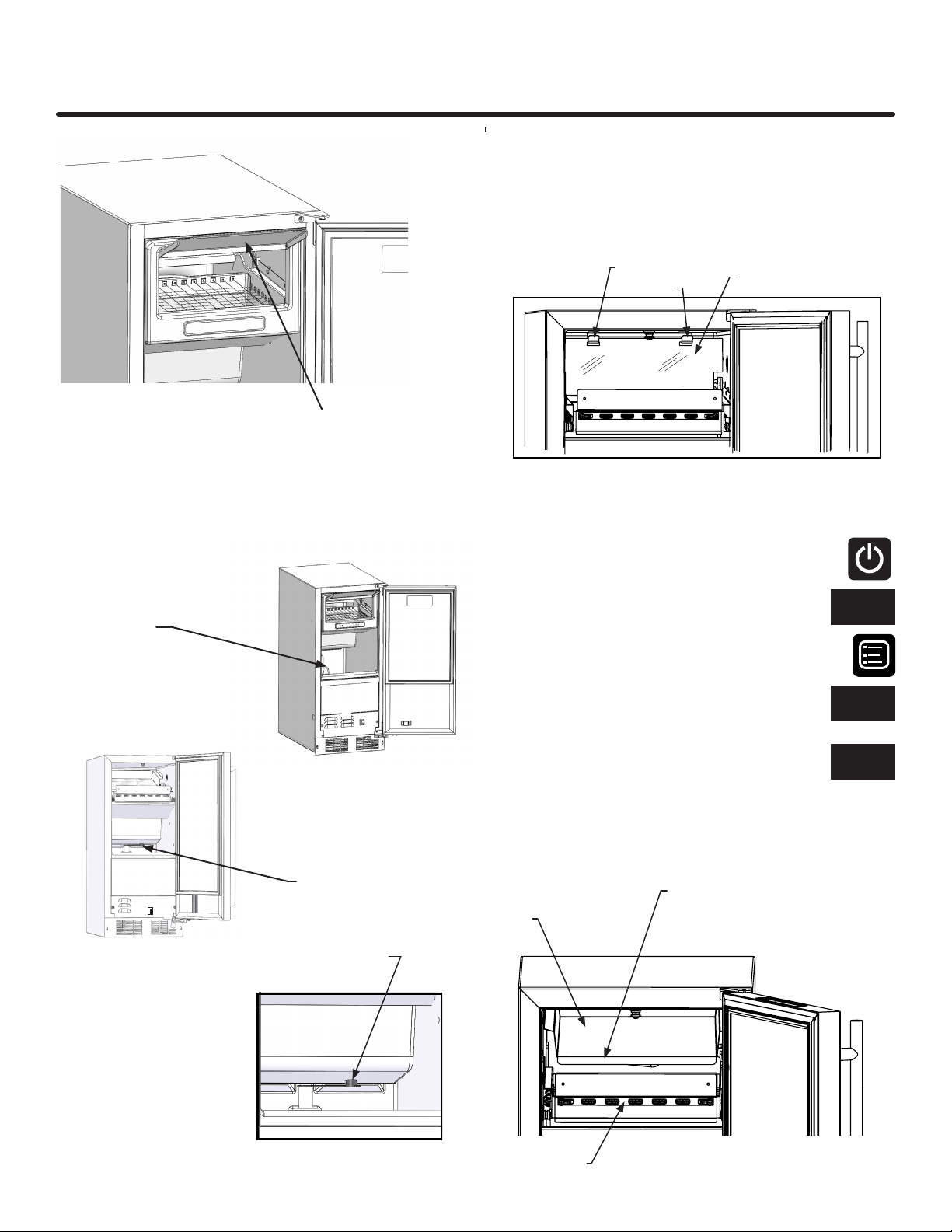

CLEANING YOUR ICE MACHINE
!
CAUTION
Forcing ice through the grid cutter will break the grid cutter
wires.
!
CAUTION
Remove all ice
from the evaporator
plate and grid cutter
area that is not
embedded in wires
Clean mode:
recommended to clean your ice machine once every six
months. This simple cleaning routine will also ensure water
Clean reminder:
A "CLEAN" reminder will occur every 6 months
to remind you that it may be time to clean your
appliance. Over time mineral build up on the cold
evaporator plate can occur which can adversely
dependent on your water source and usage. Normal
ice production will continue while the "CLEAN" reminder
is displayed. You may clear the "CLEAN" reminder at any
time by momentarily pressing the "ON/OFF" icon. When
another 6 months. If you choose to clean the appliance at
CLEAN
NOTE
To clean your ice machine you will need to purchase a
"nickel safe" ice maker cleaner. Cleaner can be obtained by
contacting Marvel customer service at 616-754-5601
Use only Marvel-approved ice machine cleaner and follow
all label warnings and directions. Incorrect chemical
warranty.
Available to order
Clear Ice Machine Cleaner, 4-oz. bottle Part # S41013789
NOTE
For reference see our "Care and Cleaning video" at the
Once you have your cleaner:
the "ON/OFF" icon for 3 seconds. "OFF" will be
displayed on the control.
Remove all ice from the ice bin.
Drain the water from the water reservoir by removing the
black plug from the bottom of the fresh water reservoir
the bottom of
the reservoir.
Allow all of the ice to fall from the evaporator plate
and remove any ice from the grid cutter. If there is ice
fall out. Do not try to remove ice that is embedded in
the grid cutter wires as that may break the wires.
OFF
CLEANING YOUR ICE MACHINE
Remove all of
the ice from
the ice bin
Remove the
black reservoir
drain plug from
the bottom of
the reservoir.
Turn the ice machine back on by pressing and
holding the "ON/OFF" icon for 3 seconds. The
display will indicate "ICE" mode. Press and hold
is displayed. Press the "ON/OFF" icon until
now enter the clean cycle.
The clean and rinse cycle will take about 49
minutes.
After the clean cycle is complete the ice machine
will return to the "OFF" position.
has been removed. If not repeat the clean cycle procedure.
ICE
CLEAN
OFF
Refer to your cleaning solution instructions to determine
the proper amount of cleaning solution to add based on
evaporator plate. Pour the cleaning
the fresh water
reservoir.
Splash shield
brackets
Replace the splash shield if removed.
Pour cleaning solution slowly
onto the front edge of evaporator
plate behind the grid cutter.
Evaporator
plate
Grid cutter
Splash shield
Lift fascia door up to
access evaporator plate
CARE AND CLEANING AND ENERGY SAVING TIPS
OBTAINING SERVICE
Front Grille
vacuum lint and dirt from the front grille area.
SHOCK HAZARD: Disconnect electrical power from the
appliance before cleaning with soap and water.
Cabinet
The painted cabinet can be washed with either a mild soap
and water and thoroughly rinsed with clear water. NEVER
use abrasive scouring cleaners.
Cleaning
Routine cleaning of the stainless steel surfaces will serve
to greatly extend the life of your product by removing
contaminants. This is especially important in coastal areas
which can expose the stainless to sever contaminants such
as halide salts (sodium chloride).
It is strongly recommended to periodically inspect and
showing signs of corrosion should be replaced.
Interior
Wash interior compartment with mild soap and water. Do
undiluted detergent or chlorine based cleaners.
Care of Appliance
1.
hinges or tip the appliance.
2.
mopping near the front of the appliance. Damage to the
grille can occur.
3. Periodically clean the interior of the appliance as
needed.
4. Periodically check and/or clean the front grille as
needed.
In the Event of a Power Failure
possible. Minimize the number of door openings while the
temperature.
Light assembly replacement
All models use LED lamps to illuminate the interior of the
of the LED.
!
CAUTION
Energy Saving Tips
The following suggestions will minimize the
cost of operating your ice machine appliance.
1.
sources.
2. Install product out of direct sunlight.
3. Assure the front grille vents at front of the ice machine
beneath the door are not obstructed and kept clean to
allow ventilation for the refrigeration system to expel
heat.
4. Plug your appliance into a dedicated power circuit. (Not
shared with other appliances).
5. Minimize door openings and duration of door openings.
6.
time.
7.
8. Use the delay start function if the ice machine will not
be used for long periods of time.
If Service is Required:
•
please contact your dealer or call Marvel Customer
Service at 616-754-5601 for directions on how to obtain
warranty coverage in your area.
•
recommendations of service centers in your area. A
listing of authorized service centers is also available at
www.marvelrefrigeration.com under the service and
support section.
•
purchase.
• Try to have information or description of nature of the
• Table below is provided for recording pertinent
information regarding your product for future reference.
For Your Records
Date of Purchase
Dealer’s name
Dealer’s Address
Dealer’s City
Dealer’s State
Dealer’s Zip Code
Appliance Serial Number
Appliance Service Number
Date Warranty Card Sent (Must be
within 10 days of purchase).
!
CAUTION
!
WARNING
Use extreme caution with the articulated hinges. The
hinge is self closing and many pinch points exist prior
to built-in installation. Do not remove the cabinet "Z"
bracket from the top of the cabinet.
!
WARNING
The articulated hinges have many pinch points.
Carefully close / collapse the hinges as soon as the
door is removed from the cabinet.

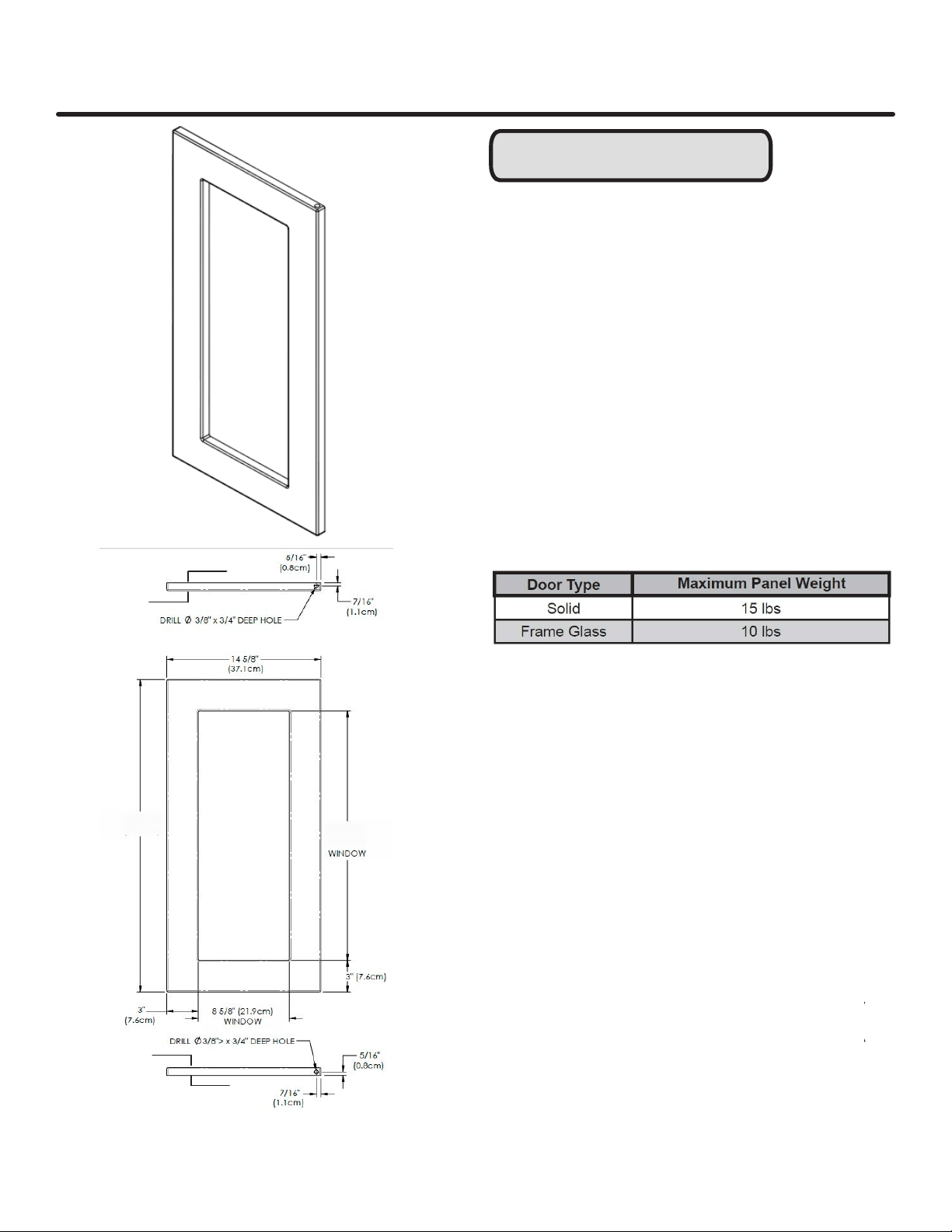

OVERLAY DOOR PANEL INSTALLATION - MP15C MODELS ONLY
built-in installations. Custom panel thicknesses of
5
8" (15
mm) and
3
4" (18 mm) are accommodated.
It is important to use the factory provided grille that came
through the condenser. The use of a custom grille is not
recommended and will void the warranty.
!
WARNING
Overlay panel models are designed for use with built-
in installations only. Use in freestanding installations
could result in personal injury.

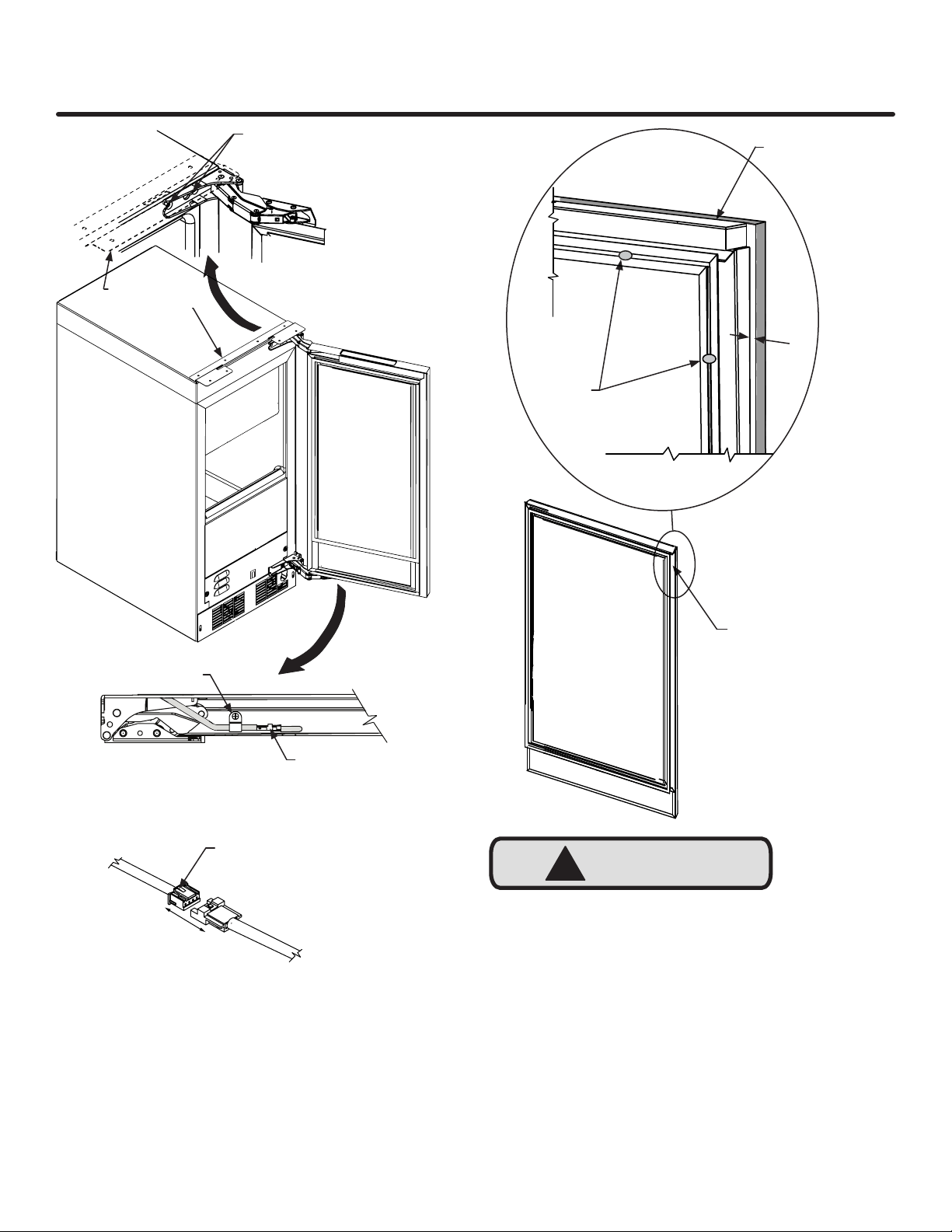

Step 1: Removing the Door
With a phillips screwdriver remove the screw and "P" clamp
from the bottom of the door near the hinge. See Figure 31b.
Disconnect the door wire harness by pressing and holding
down the locking tab on the wire connector and pulling the
connector apart.
Open the door and loosen the screws holding the hinges to
the cabinet (2 at the top and 2 at the bottom hinge). Do not
remove the screws but loosen them enough so the hinges
the side.
1
2 inch and
remove the hinges and door from the unit.
Optional:
you may wash the interior with a mild detergent / dish soap
or a solution of two tablespoons of baking soda and one
Replace the grid cutter cover.
After cleaning it is recommended you discard the ice
produced after 3 hours of ice production.
If you cancel clean mode after adding ice maker
cycle to complete to remove the cleaning solution
before resuming ice production.
!
WARNING
Do not use bleach based cleaners or any abrasive cleaning
products. Chlorine based cleaners will attack the stainless
Canceling clean mode:
To exit clean mode press and hold the "ON/OFF" icon
until "OFF" is displayed. Wait 3 minutes for clean mode to
complete it's cancel routine before turning unit back on by
pressing and holding the "ON/OFF" icon. If you turn the
completion of the 3 minute clean cancel routine.
ICE
Your ice machine is now ready to
restart. Press and hold the "ON/
OFF" icon for 3 seconds until "ICE is
displayed.
!
CAUTION
Weight of overlay door panel must not exceed 15
pounds (6.8 kg).
Loosen (do not remove ) these
2 phillips head screws on the
top and bottom hinges
Cabinet
"Z" Bracket
"P" clamp
and screw
Wire connector
see
Bottom of
door
Press and hold down this
tab on the wire connector
and pull the connector apart.
OVERLAY DOOR PANEL INSTALLATION - MP15C MODELS ONLY

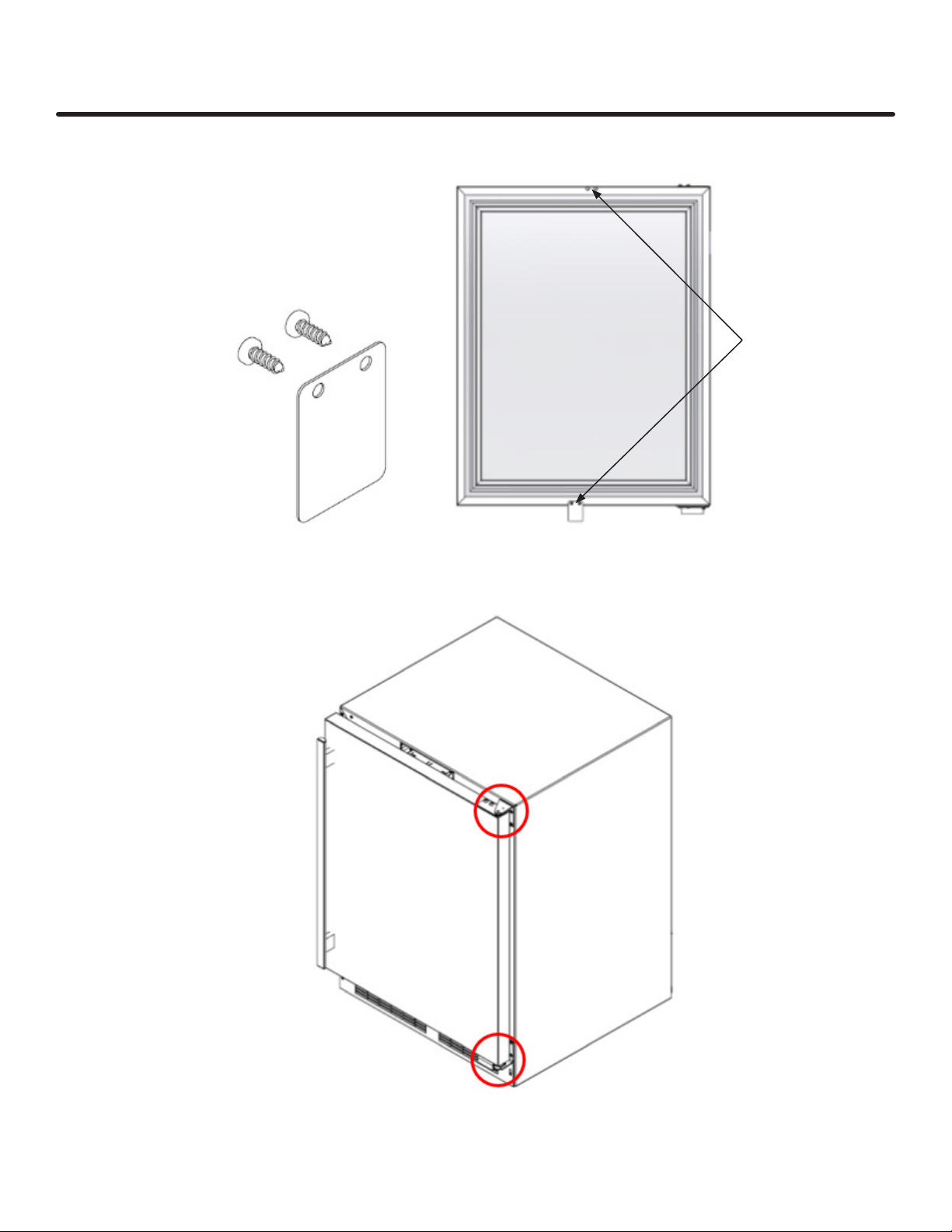

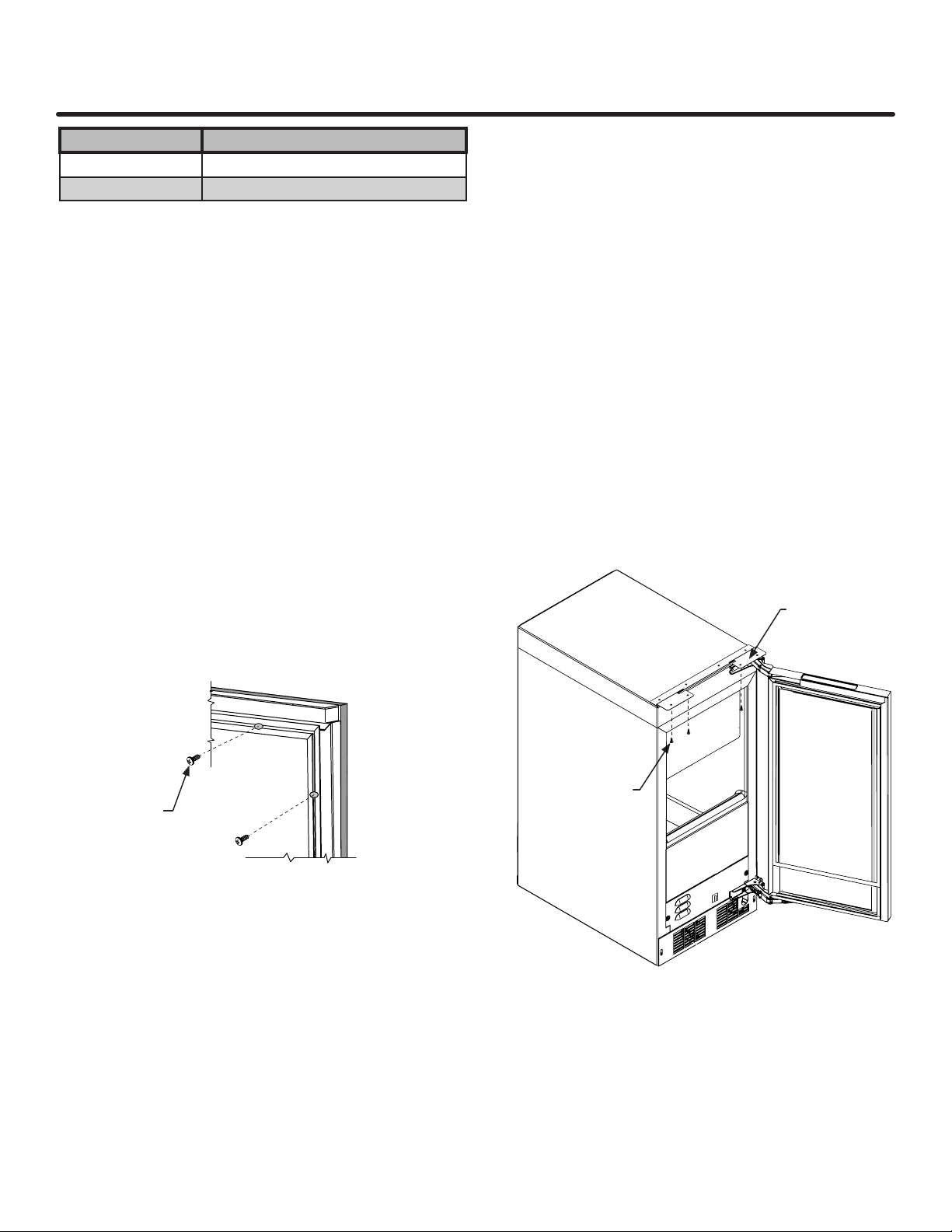

Step 2: Remove the door gasket
corner of the door remove the magnetic door gasket from
it's retainer by pulling it away from the interior side of the
.
each side and 2 at the top and bottom which are used to
fasten the panel to the front of the door. The screws are
provided in the literature pack.
Overlay panel
of door.
Magnetic Gasket
remove starting at a
away from the door.
Holes in
gasket
retainer.
Figure 33a
Figure 33

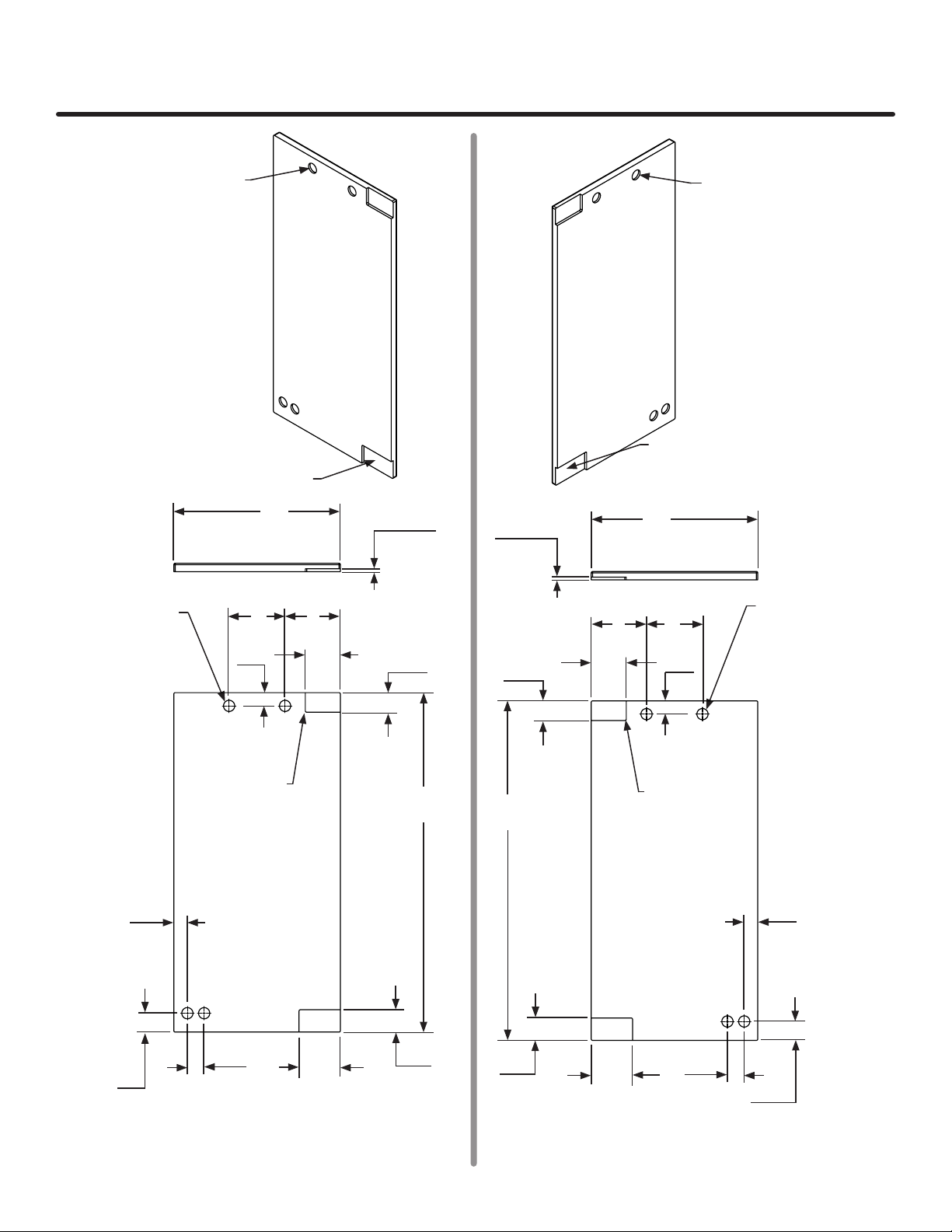

Step 3: Cut and drill the overlay panel
Depending on your model cut the overlay door panel to
the dimensions shown in the images on the next page.
Clearance for
4 places
Clearance
for hinge
2 places
Right Hand Hinged Door
15" (38.1 cm) wide appliance
Right Hand Hinged Door
15" (38.1 cm) wide appliance
Clearance for
4 places
Clearance
for hinge
2 places
Left Hand Hinged Door
15" (38.1 cm) wide appliance
Left Hand Hinged Door
15" (38.1 cm) Wide Appliance
4
7
8"
(12.4 cm)
1
3
16"
(3 cm)
3
1
8"
(7.9 cm)
1
1
2"
(3.8 cm)
typical
Hinge side of door
Top of door
14
3
4"
(37.5 cm)
1
4" (6 mm)
Deep
5"
(12.7 cm)
1" (25.4 mm) diameter
counter bore
1
4" (6 mm)
deep 4 places.
1
3
4"
(4.4 cm)
2"
(5.1 cm)
3
11
16"
(9.4 cm)
1
4" (6 mm)
radius is
permissible
1
11
16"
(4.3 cm)
4
7
8"
(12.4 cm)
1
3
16"
(3 cm)
3
1
8"
(7.9 cm)
1
1
2"
(3.8 cm)
typical
1
11
16"
(4.3 cm)
Hinge side of door
14
3
4"
(37.5 cm)
1
4" (6 mm)
Deep
5"
(12.7 cm)
1" (25.4 mm) diameter
counter bore
1
4" (6 mm)
deep 4 places.
1
3
4"
(4.4 cm)
2"
(5.1 cm)
3
11
16"
(9.4 cm)
This side
facing interior
This side
facing interior
1
4" (6 mm)
radius is
permissible
1
5
32"
(2.9 cm)
1
5
32"
(2.9 cm)
30
11
32"
(77.1 cm)
30
11
32"
(77.1 cm)
OVERLAY DOOR PANEL INSTALLATION - MP15C MODELS ONLY
OVERLAY DOOR PANEL INSTALLATION - MP15C MODELS ONLY
Material Type #10 Wood Screw
Hardwood
¹
" (3.2 mm) Diameter Pilot Hole
Softwood
(2.8 mm) Diameter Pilot Hole
1
2"
screw
Step 4: Assemble the panel to the door
The preferred method of attaching the panel to the door
is to clamp the panel to the door so it cannot move while
drilling the screw pilot holes. Use bar clamps or "C" clamps
with pads on the clamping surfaces that will not mar the
panel or the door. The custom overlay panel should be
of the door. Drill holes through the gasket extrusion using
the 10 holes as pilot holes. Use the drill
abovethrough the front surface of
the panel. If the
overlay panel is thinner than
5
8" (16 mm)
thick shorter screws will have to be obtained. Fasten the
panel to the door with the 10 screws provided in the
literature pack. Remove the clamps and replace the gasket
in the gasket extrusion
the gasket into the channels. Be
sure the gasket corners are seated properly.
Step 5: Install the door
Carefully open the top and bottom hinges on the door being
careful as there are many pinch points. Place the hinges
bottom and slide the door into position. Tighten the 4 hinge
screws with a phillips screwdriver. Place wire harness from
the grille and mount to the bottom of the door with the
screw and "P" clamp removed
Step 6: Secure the cabinet
3
4" black screws from the literature pack to
secure the counter top to the cabinet top through the holes
in the cabinet "Z" bracket.
Cabinet
"Z" bracket
3
4" black
screws
(3 places)
12
!
CAUTION
Step 1: Removing the Door and Hinges
Hold the door secure in the closed position and remove
Hinge Pin from the Upper Hinge using a 1/8” Hex Key tool.
Slowly remove the door by sliding outward away from the
the door, remove hinges from cabinet per Door Reversal
Remove the hinge bushing from the adaptor plate. A new
bushing is included in the literature pack with your unit.
Cut and prepare panels according to the information
through the condenser. The use of a custom grille is not
recommended and will void the warranty.
Step 2: Remove the Door Gasket
corner of the door, remove the magnetic door gasket from
surface.
There are 10 holes in the gasket retainer extrusions (3 on
each side and 2 at the top and bottom) which are used to
fasten the panel to the front of the door. The screws are
provided in the literature pack.
Step 3: Assemble the Panel to the Door
The preferred method of attaching the panel to the door
is to clamp the panel to the door so it cannot move while
drilling the screw pilot holes. Use bar clamps or "C" clamps
with pads on the clamping surfaces that will not mar the
the top of the door and centered along the width of the
door. Drill holes through the gasket extrusion using the 10
holes as pilot holes. Use the drill size from the chart in the
table below being careful not to drill through the front sur-
face of the panel. Fasten the panel to the door with the 10
screws provided in the literature pack. Remove the clamps
and replace the gasket in the gasket extrusion channels of
the door. Some force may be required to seat the gasket
into the channels. Be sure the gasket corners are seated
properly.
door
door
Holes in gasket
container
Material Type #10 Wood Screw
Hardwood
¹
" (3.2 mm) Diameter. Pilot Hole
Softwood
(2.8 mm) Diameter. Pilot Hole
OVERLAY DOOR PANEL INSTALLATION - MLC**15 & MAC**15
13
Step 4: Install the Door
into adaptor plate.
Align hinge bushing with top hinge and reinstall upper hinge
OVERLAY DOOR PANEL INSTALLATION - MLC**15 & MAC**15
1
5
⁄32"
(2.9 cm)
PANEL DIMENSIONS - MLC**15
Top of door
15" (38.1 cm) wide appliance
15" (38.1 cm)
Door Dimensions
NOTE
Back of
Panel
Back of
Panel
Front of
Panel
Front of
Panel
v 3DQHOWKLFNQHVVPD\EHRU
v &HQWHUWKHXQLWLQWKHRSHQLQJ
v ,IWKHKLQJHVLGHRIWKHSURGXFWLVSUHVVHG
DJDLQVWWKHDGMDFHQWFDELQHWXVHDWKLFN
SDQHO
v 7KHZLQGRZFXWRXWLVIRUJODVVGRRUPRGHOVRQO\
v 'RQRWXVHDVROLGGRRUSDQHORQDJODVVGRRU
PRGHO
1
5
⁄32"
(2.9 cm)
PANEL DIMENSIONS
- MAC**15
Top of door
15" (38.1 cm) wide appliance
15" (38.1 cm)
Door Dimensions
NOTE
Back of
Panel
Back of
Panel
Front of
Panel
Front of
Panel
v 3DQHOWKLFNQHVVPD\EHRU
v &HQWHUWKHXQLWLQWKHRSHQLQJ
v ,IWKHKLQJHVLGHRIWKHSURGXFWLVSUHVVHG
DJDLQVWWKHDGMDFHQWFDELQHWXVHDWKLFN
SDQHO
v 7KHZLQGRZFXWRXWLVIRUJODVVGRRUPRGHOVRQO\
v 'RQRWXVHDVROLGGRRUSDQHORQDJODVVGRRU
PRGHO
27 1/32"
(68.7cm)
21 1/32"
(53.4cm)
• Never attempt to repair or perform maintenance on
the appliance until the main electrical power has been
disconnected. Turning the appliance control "OFF"
does not remove electrical power from the unit's wiring.
• Replace all parts and panels before operating.
!
WARNING
Electrocution Hazard
TROUBLESHOOTING THE ICE MACHINE
Before You Call for Service
troubleshooting guide below. Locate the problem in the
guide and refer to the cause and its remedy before calling
for service. The problem may be something very simple
technician.
Troubleshooting guide:
Ice Machine Operation
Ice machine does not operate
Is the ice machine’s power cord plugged in? Plug the
power cord into a grounded 3 prong outlet.
Is the electronic control showing the "ICE" position?
Check the control to be sure it is in the "ICE" position.
Is a fuse blown or a circuit breaker been tripped?
Replace a blown fuse or reset a tripped circuit breaker.
Is the temperature of the room cooler than it normally
is? The minimum room temperature is 55°F (13°C). The
bin thermistor may be sensing the room temperature and
remains low the ice machine may not restart.
Is there a drain pump in the ice machine? The drain
a few minutes as the drain pump will continue to operate
to dispose of the excess water. If there is still water in the
ice bin check the drain pump vent line and drain line for
obstructions or kinking.
The ice machine is noisy
household refrigerator. This subject is discussed on page
Do you hear water being circulated in the ice
machine? This is a normal sound as water is added once
every ice making cycle.
Is there a “whoosing” sound? Make sure water is
getting to the ice machine. Also check to make sure the
drain plug is fully seated in the water reservoir.
Is there an ice slab caught between the evaporator
plate and the grid cutter? First check to see if the ice
machine is level. If the ice machine is level run a cleaning
cycle.
Ice Production
Little or no ice production from the ice machine
Is the electronic control set to the "ICE" position?
Check the control to be sure it is in the "ICE" position.
Is water getting to the ice machine? Make sure nothing
is restricting the water supply such as a closed water
Has the ice machine just been started? A typical ice
production cycle can take up to 1
¹
² hours. Initial start up
cycles can take longer. Check the ice machine after 24
hours for ice accumulation in the bin.
Is the reservoir drain plug in place? Check that the
reservoir drain plug is properly seated.
Is the water distributor tube restricted? Run a cleaning
make sure they are not restricted.
Is the condenser fan air ow restricted? Make sure the
grille in the front of the ice machine is open for proper air
circulation.
Is the room and/or water temperature to warm? Move
the ice machine to an area where the ambient temperature
is below 90°F (32°C) for built-in ice machines or below
100°F (38°C) for freestanding ice machines. The ice
machine should not be placed next to a heat source such
as an oven. Check the cold water connection.
Is there scale build up in the ice machine? If there is
TROUBLESHOOTING THE ICE MACHINE
Plumbing Problems
Is the drain hose aligned over the drain? Move the ice
machine to align the drain.
Is the ice machine draining properly? Check that there
are no kinks or restrictions in the drain lines; this can
cause water to back up in the ice bin. Check that foreign
material is not blocking the ice bin drain located at the
right rear corner of the ice bin. Check the drain pump
discharge and vent line or any restrictions or kinks. Check
that the drain pump is level.
they cannot be repaired by the service technician. A
Ice Quality
Odor, grey color, or o taste in the ice
Is there mineral scale build up on the evaporator
plate
Is there a high mineral content in the water? The water
Are food items being stored in the ice bin? Remove
food from the ice bin.
Unpleasant Odors
on the water supply line.
Clumps of ice
Are there clumps of ice in the bin? If the ice isn’t used
on a regular basis it will melt and form into clumps. Break
up the ice clumps with the ice scoop.
Ice cubes are too big or too small
Is there low ice consumption? Ice is slowly melting in
will return to the regular size.
Is the ice slab releasing? Clean the evaporator. See
Is the distributor tube restricted? Check the water line
to the ice machine to make sure there are no restrictions
Troubleshooting the Drain Pump
If the drain pump reservoir (not the ice machine bin)
If the ice machine is not working, check the following:
• Make sure there is power at the receptacle.
• Make sure the ice machine is turned on.
• Make sure the ice bin is not full.
Then check the drain pump:
The pump does not run:
• Make sure the pump is plugged in and there is power
to the receptacle.
• Check the inlet to the drain pump for debris and clean
as needed. Remove clamps and inlet tube from drain
pump to check for and remove debris.
• Make certain the vent line is free of kinks/sharp bends
or restrictions.
• Make certain there is enough water to activate the
of water to activate the drain pump.
The pump runs, but no water is pumped out:
• Check that the vent is clear and free of restrictions.
• Check the discharge line to make certain there are no
restrictions.
• Make sure that the discharge tubing has not exceeded
the maximum lift of eight (8) feet (2.44 meters) and the
horizontal run is not greater than twenty (20) feet (6.1
meters).
The pump runs and then quickly turns o repeatedly:
• Check to make certain the drain pump is level.
• Check that the vent is clear and free of restrictions.
The ice machine is running but not producing ice:
• Check to make sure water is not backing up in the ice
bin.
NOTE
NOTE
Draining and Removing Water from the Ice-
Making System with a Gravity Drain.
1.
2.
3.
water valve.
Change the electronic control to the "CLEAN" position
for approximately one (1) minute. This will energize and
open the water valve and remove most of the water
from the water valve and the water valve’s outlet water
line to the reservoir.
4. Change the electronic control to the "OFF" position.
This will energize and open the drain valve to drain the
reservoir and the ice machine drain system.
5. Unplug the ice machine from the electrical outlet.
6. Remove the access cover from the rear of the ice
machine.
PREPARING THE ICE MACHINE FOR STORAGE
water in the ice-making system.
This ice machine must have all water drained and removed
to prevent ice machine damage as well as possible water
damage to the surrounding area in freezing conditions.
These damages are not covered under warranty.
Do not use any type of anti-freeze or other solution as a
substitution for properly draining the ice machine.
Clean the Ice Machine
Cleaning the ice machine will help prevent mold and
mildew growth as well as sanitize the ice machine for
storage or when it is put back into service.
!
CAUTION
!
CAUTION
Risk of electrical shock or personal injury could occur
access cover is removed before unplugging the ice
machine.
!
WARNING
Electrocution Hazard
Back view of
ice machine
Water supply
Water
supply
line
Water valve
inlet
Access
cover
Screw
!
CAUTION
Winterization: If the unit will be exposed to temperatures
PREPARING THE ICE MACHINE FOR STORAGE
8. Reconnect the water valve outlet water line.
9. Reinstall the ice machine’s access cover.
10. Clean and dry the ice machine’s storage bin.
11. Prop the door open for air circulation to prevent mold
and mildew.
12. Leave the water supply line disconnected or
reconnect
water on and allow water to enter back into the
water valve.
White
collar
Plastic outlet
water line
7. Disconnect the water valve’s outlet water line to the
reservoir and drain the remaining water left in the water
line trap area.
To disconnect the water outlet
line: Push up on the white collar
and pull the plastic water line
from the bottom of the water
valve.
To reconnect the water outlet
line: Simply insert the plastic
tubing into the white collar and
push until it stops (about
1
2
valve).
Draining Water for Factory Installed Drain
Pump Applications
Follow steps 1 through 12 for the gravity drain then do the
13. Install the winterization plug in the water drain hole
inside the ice bin.
Winterization
plug
Drain Pump Removal Instructions:
1. Unplug the ice machine from the electrical supply and
remove the rear access cover from the ice machine.
2. Remove the front panel and the toe grille from the front
of the ice machine.
3. Remove the front and rear drain pump brackets.
4. Unscrew the 3 hose clamps and remove the 3 hoses
from the front of the drain pump.
5. Unscrew the leveling leg in the back corner until the
nut insert in the base.
To Restart the Ice Machine
1. Reconnect or turn on the water supply line.
2. Reconnect drain tubing if removed.
3. Plug in the power cord to a wall outlet and turn the
.
4.
water leaks.
5.
storage bin. The drain pump should activate and
discharge water (Check for water leaks at all hose
connections.
14.
access for the air hose.
15. Apply air pressure (approximately 10 psi) to the end of
the vent tube which will purge the remainder of the
water from the drain pump and the drain line.
16. Reinstall the vent tube and clamp to the back of the ice
machine and remove the winterization plug from the ice
bin and save it for future use.
Vent
tube
Remove
clamp
screw
Drain
line
PREPARING THE ICE MACHINE FOR STORAGE
Unscrew the
leveling leg so
the end of the
with the top of
the nut insert.
Remove
these 3 hose
remove the
3 tubes from
the drain
pump
Drain pump ground
wire connection
DRAIN PUMP REMOVAL INSTRUCTIONS
Rear of ice machine
Front of ice machine
Remove the
hex nut on
front drain
pump bracket
with the
3
8"
socket then
remove the
bracket.
Remove the hex nut on
rear drain pump bracket
with the
3
8" socket then
remove the bracket.
carriage bolt
carriage bolt
Rear drain
pump bracket
Front drain
pump bracket
Toe grille
Toe grille
Front
panel
Front
panel
DRAIN PUMP REMOVAL INSTRUCTIONS
Additional issues to be inspected by
the installer upon service replacement:
1. The drain pump must be level.
2. No pinched water lines.
3. No interference with electrical cords or wiring.
4. The drain pump should not set on any
5. Secure all hose clamps leading to and from
the drain pump.
6.
18 inches minimum.
7.
maximum of 8 feet.
8.
maximum of 20 feet.
9. Checked for water leaks after installation of
the drain pump.
10. Check for vibrations caused by improper
installation.
11. Insure that there is no interference with back
access cover.
12. Insure that the hole grommets are in place at
each location so that any vent or drain tubes
do not rub on any sharp surfaces.
Ice machine
power cord
Rotate drain pump and
remove from back of
ice machine.
6. Rotate the drain pump and remove from the ice
. disconnect the ground
wire connection in the back
7. Disconnect the ice machine power cord from the drain
pump
8. Drain the water in the drain pump’s reservoir by turning
the pump upside down and allowing water to drain
9. Installation of drain pump is reverse of this procedure.
HOUSEHOLD PRODUCT WARRANTY
Marvel Refrigeration (Marvel) Limited Warranty
ONE YEAR LIMITED PARTS & LABOR WARRANTY
For one year from the date of original purchase, this warranty covers all parts and labor to repair or replace any part of the product that proves to
be defecve in materials or workmanship. For products installed and used for normal residenal use, material cosmec defects are included in this
warranty, with coverage limited to 60 days from the date of original purchase. All service provided by Marvel under the above warranty must be
performed by a Marvel factory authorized servicer, unless otherwise specied by Marvel. Service provided during normal business hours.
TWO YEAR LIMITED PARTS & LABOR WARRANTY (MARVEL PROFESSIONAL PRODUCTS)
For two years from the date of original purchase, this warranty covers all parts and labor to repair or replace any part of the product that proves to
be defecve in materials or workmanship. For products installed and used for normal residenal use, material cosmec defects are included in this
warranty, with coverage limited to 60 days from the date of original purchase. All service provided by Marvel under the above warranty must be
performed by a Marvel factory authorized servicer, unless otherwise specied by Marvel. Service provided during normal business hours.
AVAILABLE THIRD YEAR LIMITED WARRANTY (MARVEL PROFESSIONAL PRODUCTS)
For designated Marvel Professional product, Marvel oers a one year extension of the two year warranty coverage from the date of purchase, free
of charge. To take advantage of this third year warranty, you must register your product with Marvel within 60 days from the date of purchase at
marvelrefrigeraon.com and provide proof of purchase.
LIMITED FIVE YEAR SEALED SYSTEM WARRANTY
For ve years from the date of original purchase, Marvel will repair or replace the following parts, labor not included, that prove to be defecve
in materials or workmanship: compressor, condenser, evaporator, drier, and all connecng tubing. All service provided by Marvel under the above
warranty must be performed by a Marvel factory authorized servicer, unless otherwise specied by Marvel. Service provided during normal
business hours.
WARRANTY TERMS
These warranes apply only to products installed in any one of the y states of the United States, the District of Columbia, or the ten provinces
of Canada. The warranes do not cover any parts or labor to correct any defect caused by negligence, accident or improper use, maintenance,
installaon, service, repair, acts of God, re, ood or other natural disasters. The product must be installed, operated, and maintained in accordance
with the Marvel User Guide.
The remedies described above for each warranty are the only ones that Marvel will provide, either under these warranes or under any warranty
arising by operaon of law. Marvel will not be responsible for any consequenal or incidental damages arising from the breach of these warranes
or any other warranty, whether express, implied, or statutory. Some states do not allow the exclusion or limitaon of incidental or consequenal
damages, so the above limitaon or exclusion may not apply to you. These warranes give you specic legal rights, and you may also have other
rights which vary from state to state.
Any warranty that may be implied in connecon with your purchase or use of the product, including any warranty of merchantability or any
warranty t for a parcular purpose is limited to the duraon of these warranes, and only extends to ve years in duraon for the parts described
in the secon related to the ve year limited warranty above. Some states do not allow limitaons on how long an implied warranty lasts, so the
above limitaons may not apply to you.
• The warranes only apply to the original purchaser and are non-transferable.
• These warranes cover products installed and used for normal residenal use only.
• The warranes apply to units operated outside only if designed for outdoor use by model and serial number.
• Replacement water lters, light bulbs, and other consumable parts are not covered by these warranes.
• The start of Marvel’s obligaon is limited to four years aer the shipment date from Marvel.
• In-home instrucon on how to use your product is not covered by these warranes.
• Food, beverage, and medicine loss are not covered by these warranes.
• If the product is located in an area where Marvel factory authorized service is not available, you may be responsible for a trip charge or
you may be required to bring the product to a Marvel factory authorized service locaon at your own cost and expense.
• Units purchased aer use as oor displays, and/or cered recondioned units, are covered by the limited one year warranty only and no
coverage is provided for cosmec defects.
• Signal issues related to Wi-Fi connecvity are not covered by these warranes.
For parts and service assistance, or to nd Marvel factory authorized service near you, contact Marvel Refrigeraon:
MarvelRefrigeraon.com • techsupport@MarvelRefrigeraon.com • +616.
754.5601
1260 E. Van Deinse St., Greenville, MI 48838
Marvel Refrigeration
previously purchased products.
www.marvelrefrigeration.com
1260 E. Van Deinse St.
Greenville MI 48838
616-754-5601
41016196 Rev A
3/10/21
