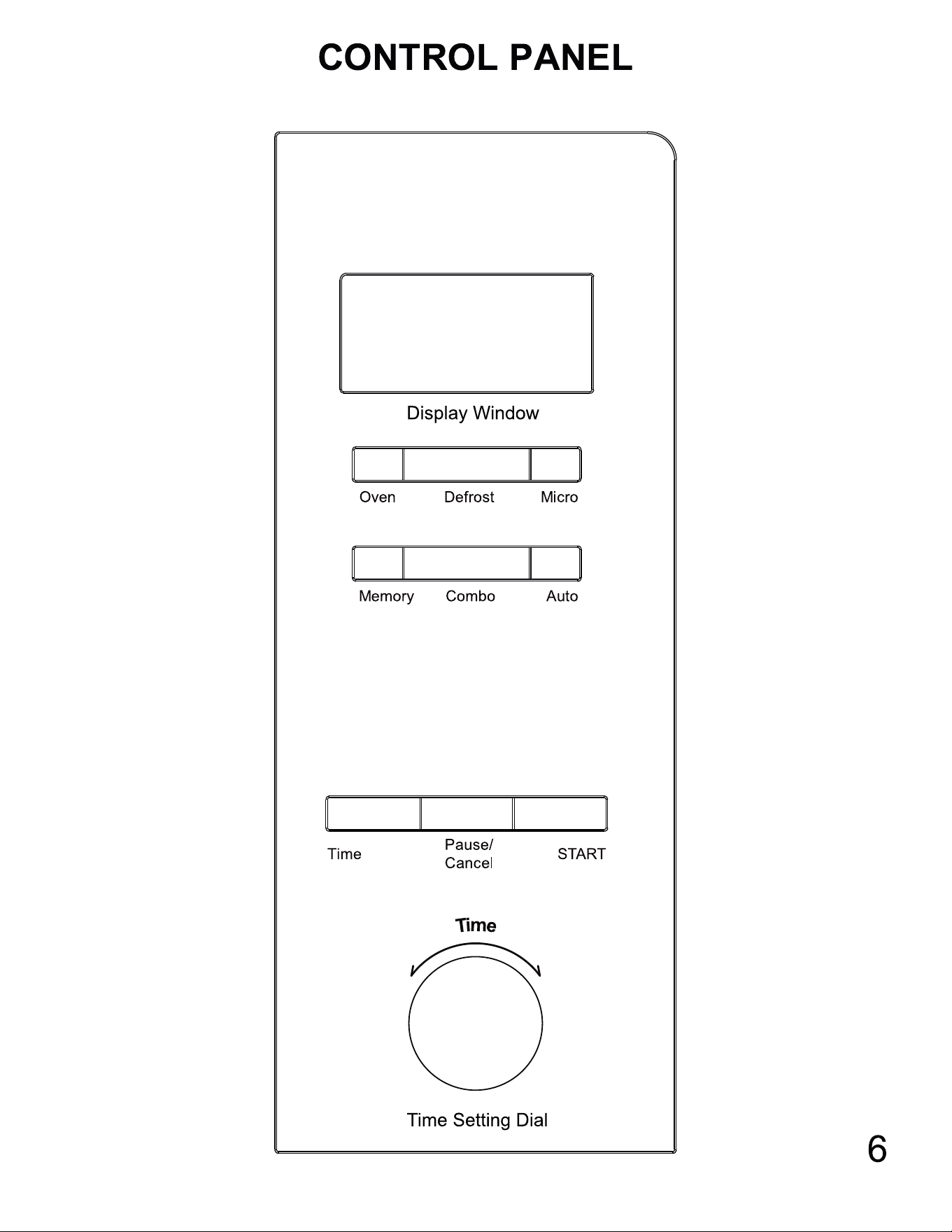

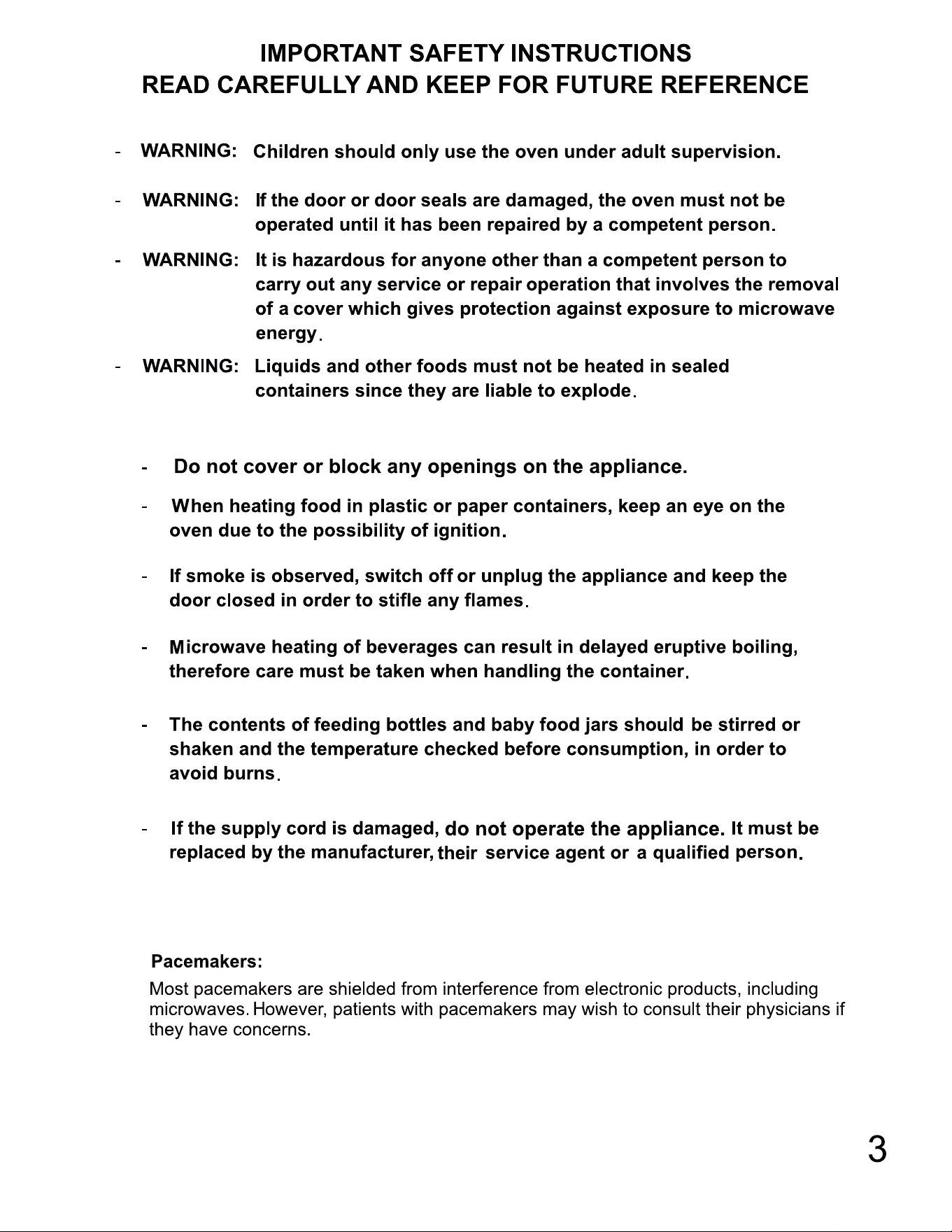

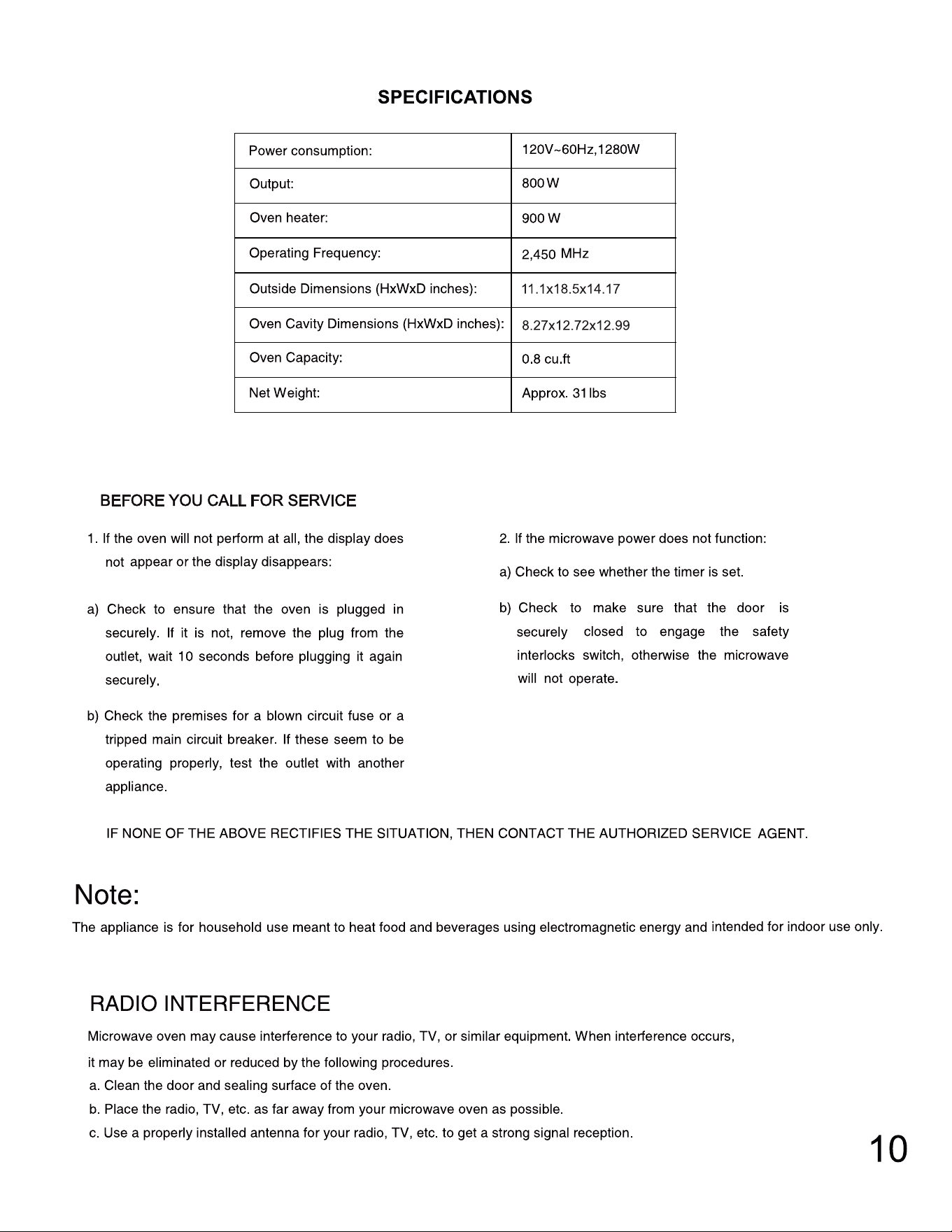

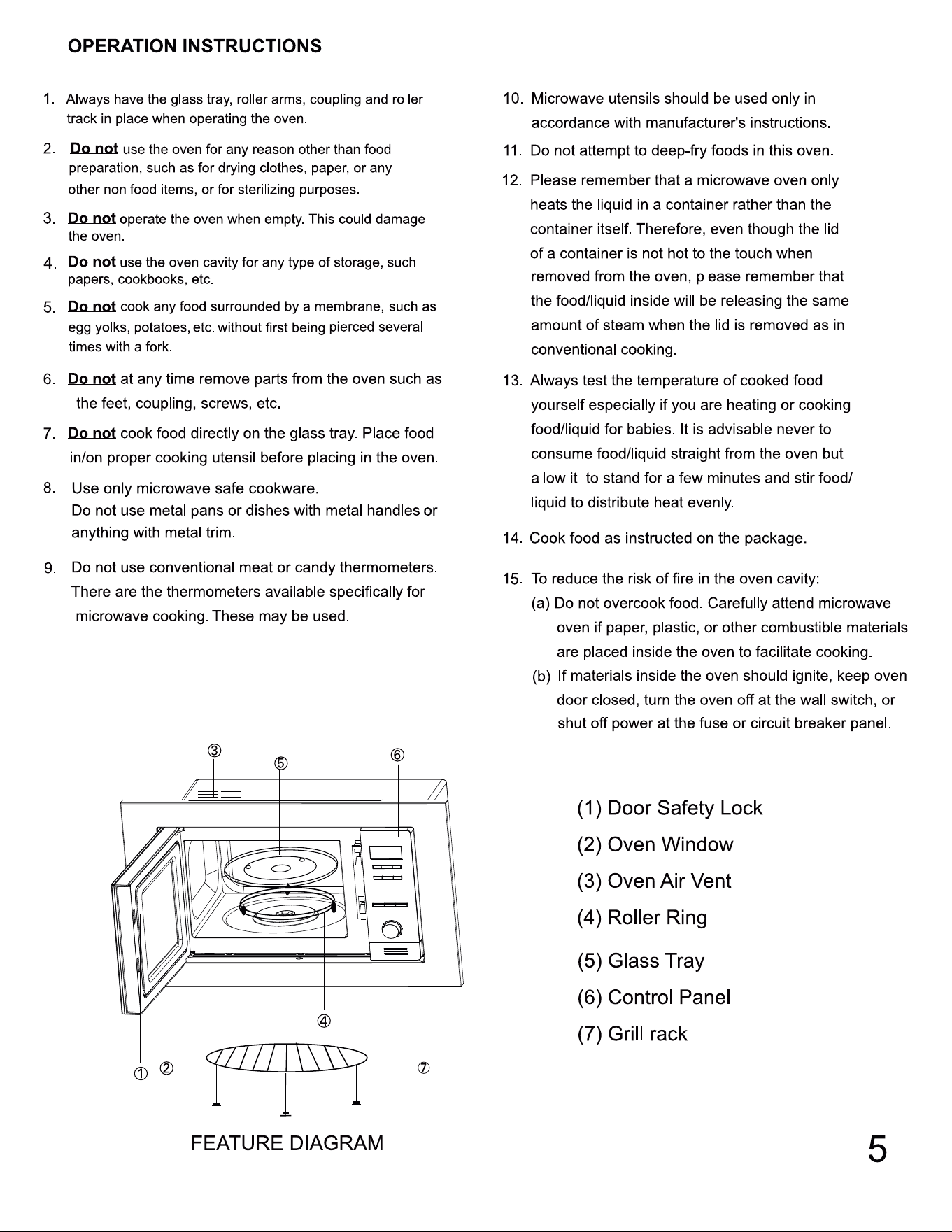

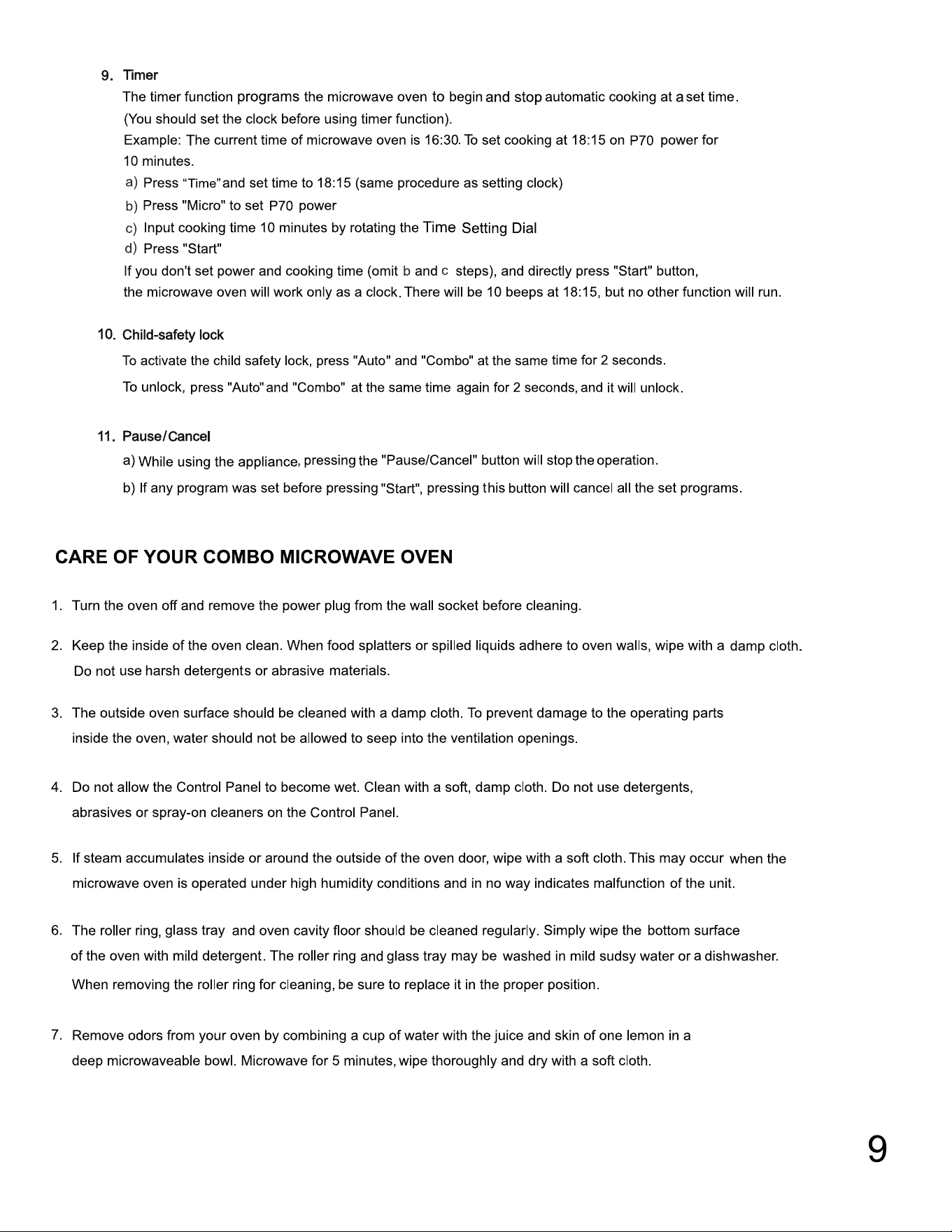

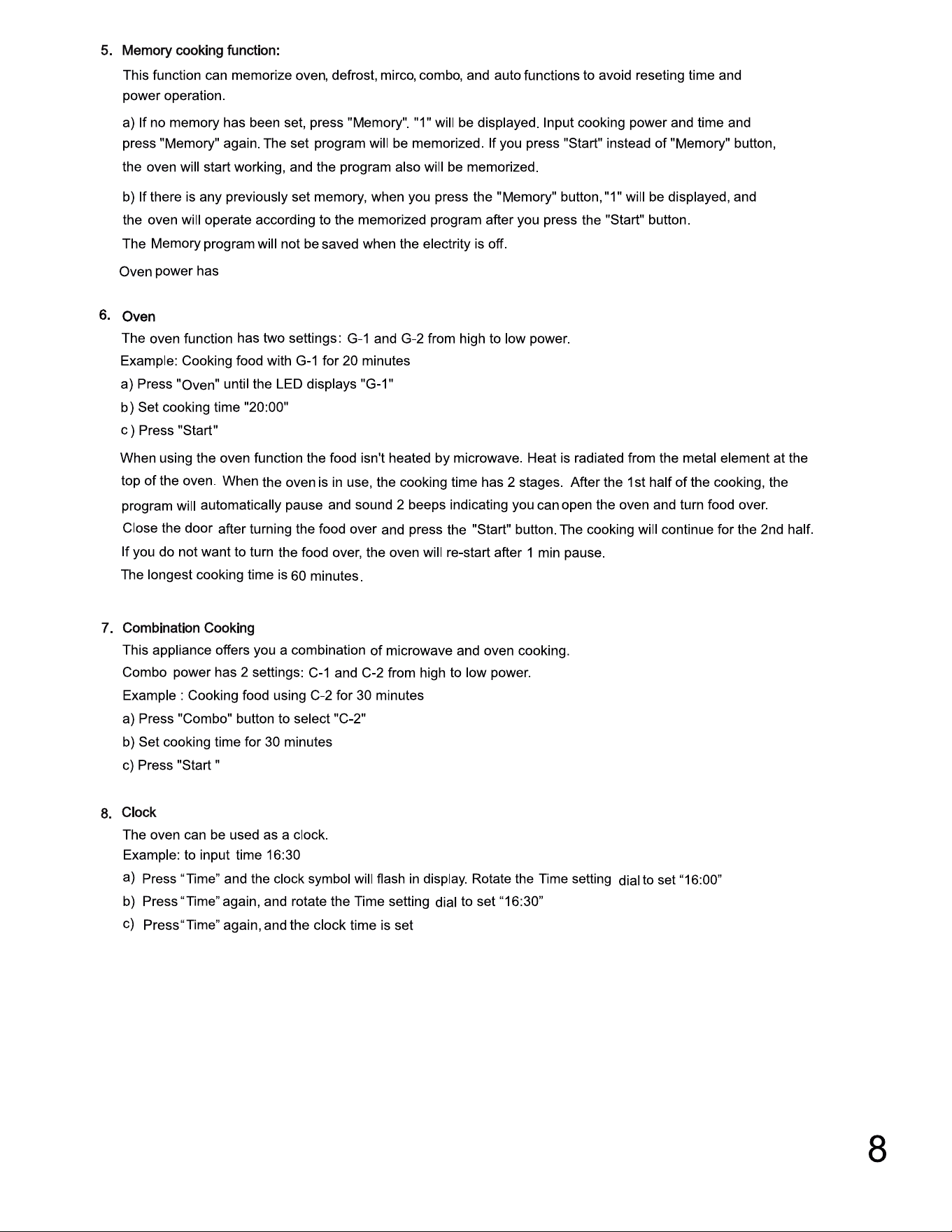

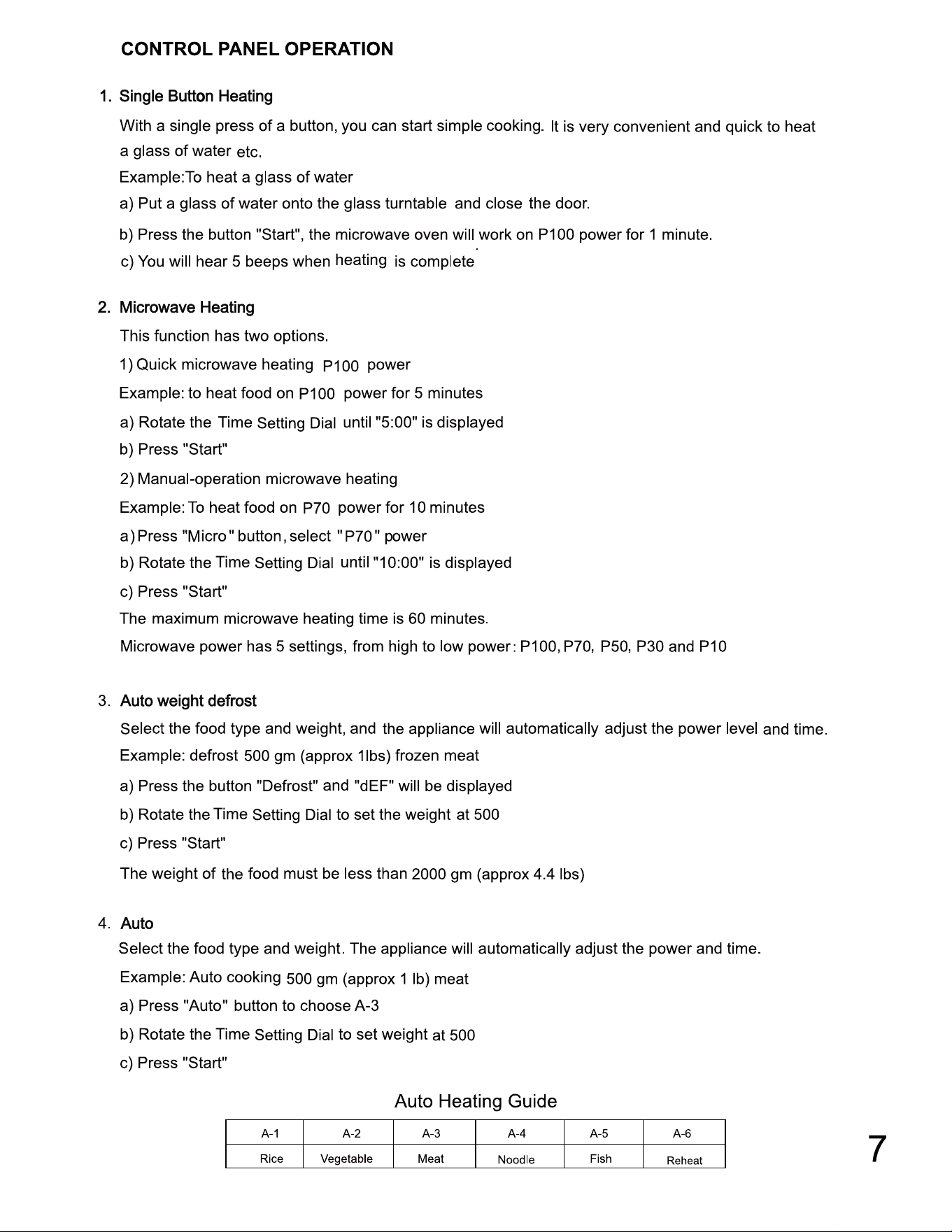

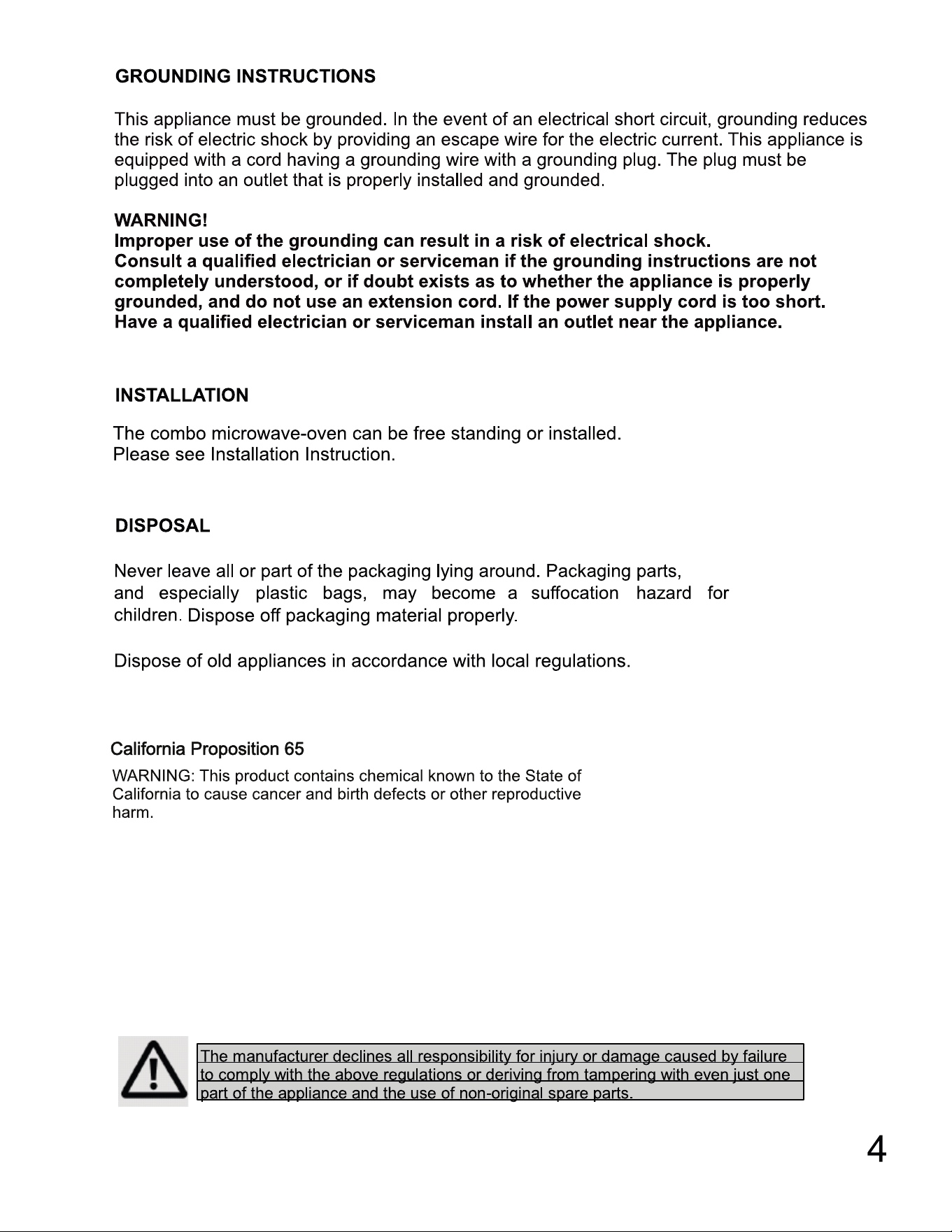

MICROWAVE INSTALLATION KIT
1. Frame IPCS 2. Fixing Bolt 4 PCS 3. Bolts 0.12''X0.47'' 8 PCS
4.
Metal Piece IPCS 5. Base setting paper I PCS 6. feetmat 2 PCS
7. Bolts 0.16''X10.39'' 4PCS
Technical Specifications of the Installation Kit
Cavity dimensions Overall Kit Dimensions
Internal Width 22.36'' Width 23.31''
External FRONT HEIGHT 14.37'' Height 14.8''
Depth 21.65'' Depth 0.79''
Microwave Oven Cabinet
vent
MICROWAVE CAVITY
vent
Cabinet Measurement Requirements (illustrated above):
1. Cabinet's inner dimension in transverse direction is 22.36''. This is the minimum distance from the left batten to right batten.
Do not alter.
2. Cabinet's inner dimension in lengthways direction is 14.37''. This is the minimum distance from the left batten to right batten.
Do not alter.
3. Cabinet' s depth should be no less than 21.65''.
4. Outside dimension of cabinet should be no less than 23.46'' as the frame length is 23.31''.
5. Cabinet's board less than 0.59'' or 0.78'' thick.
8. Fix metal sheet 2 PCS
450
28.4
568
94.7
320
380
1
2
4
3
5
6
7
8
Attention: The bottom of the Microwave Oven should be 850mm
away from the floor at least while doing the installation;
1/EN
21.65''
5.91''
21.65''
5.91''
14.37''
3.94''
22.36''
15.75''
