CRP-HR08 Fuzzy Series
1.44L(1~8Persons)
Operating Instructions
NO.1 CUCKOO
CUCKOO IH PRESSURE JAR COOKER
Read the following instruction manual before use. Save this
instruction manual for future reference. This manual will be useful if
you have any questions or have problems operating the rice cooker.
Important safeguards
3
4
35~38
39
40~42
43
43
44
44
45
46
47
48~49
49
50~52
53~54
55
56~57
57
58~60
61
61
62~64
74~83
Important safeguards 3
Specifications
4
Safety precautions
5~8
Name of each part
9
How to clean
10~12
Function operating part
13
How to set current time 14
How to set or cancel voice guide function
14
Night voice volume reduction / Woman and man voice setting function
15
Before cooking rice
16
For the best taste of rice
17
How to cook
18~19
MY MODE (Cuckoo Customized Taste Function)
20~22
How to use “GABA RICE(Brown rice)”
23~24
How to cook the MULTI-COOK and NU RUNG JI
25
How to preset timer for cooking
26~27
How to use simple soft function
27
To keep cooked rice warm and tasty
28~30
How to use power saving function
31
How to lock buttons
31
Check before asking for service 32~34

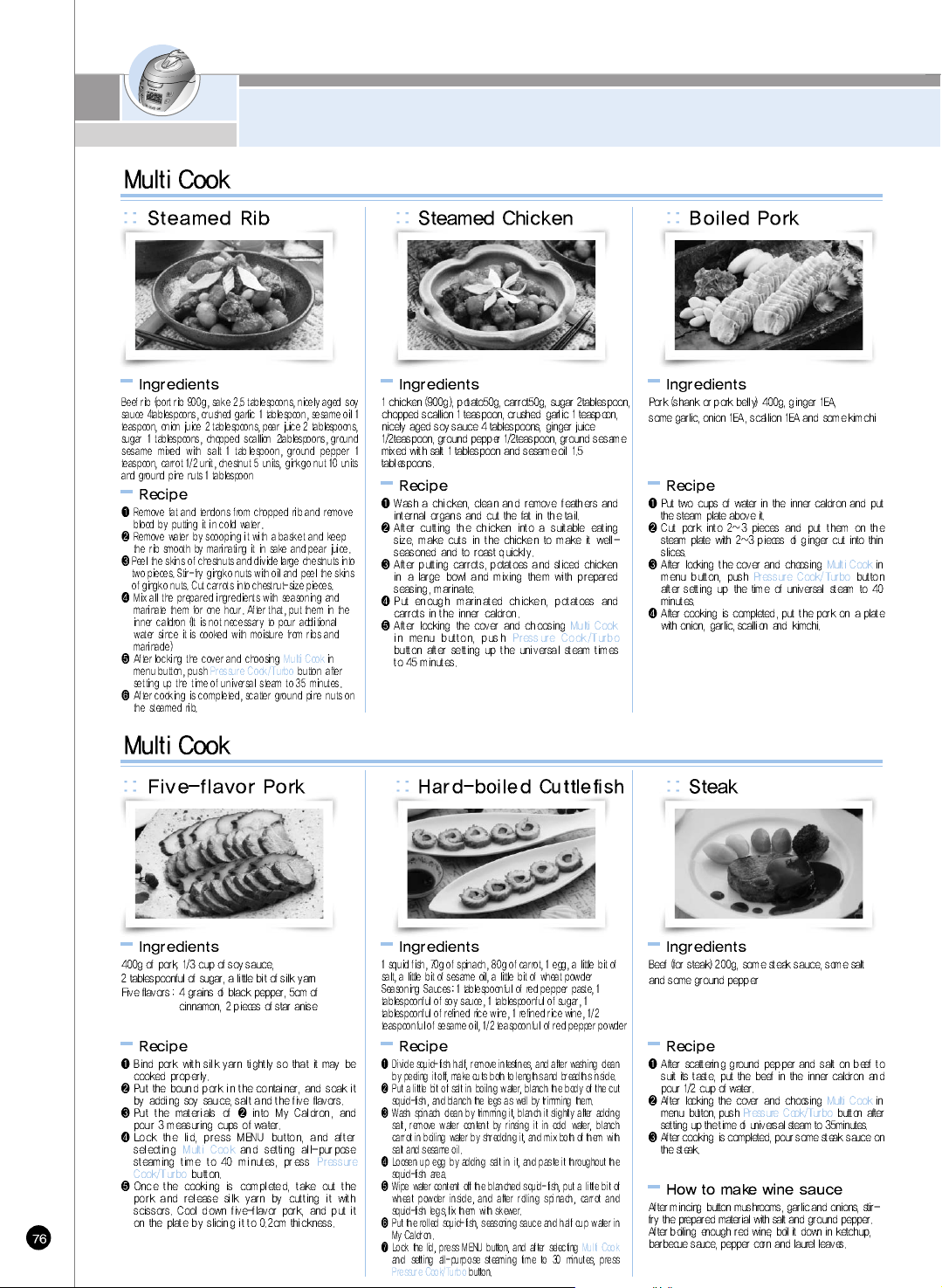

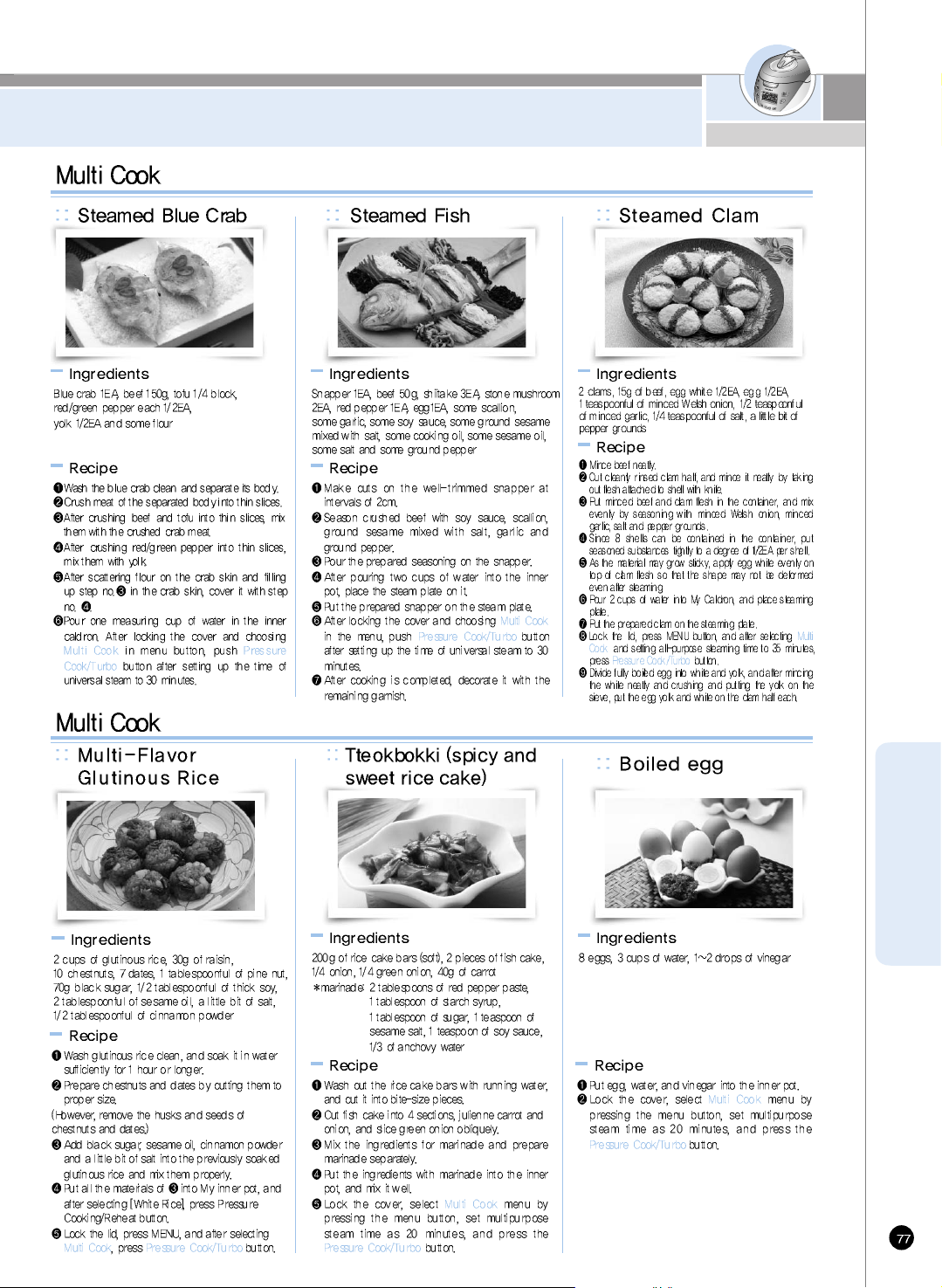

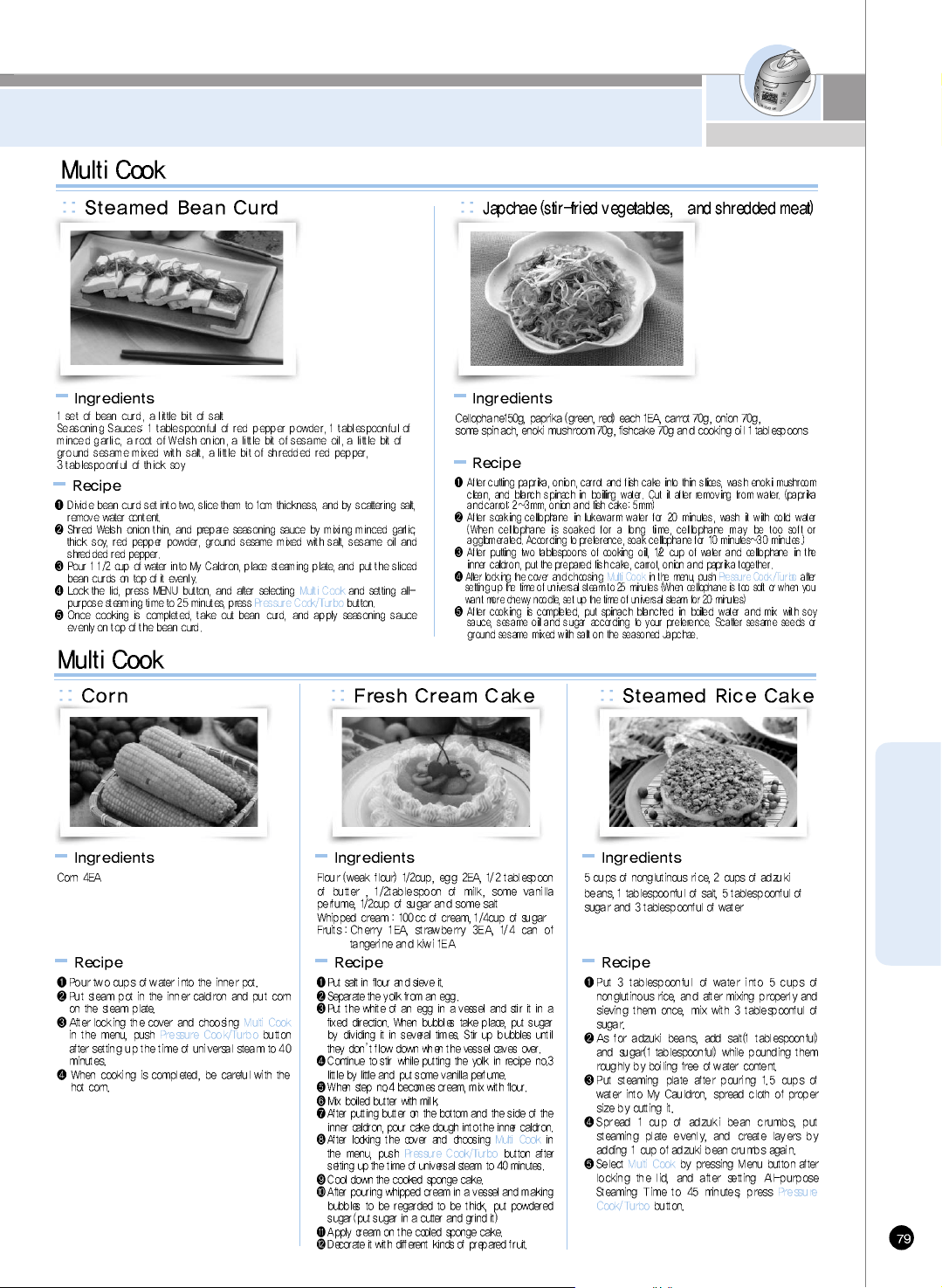

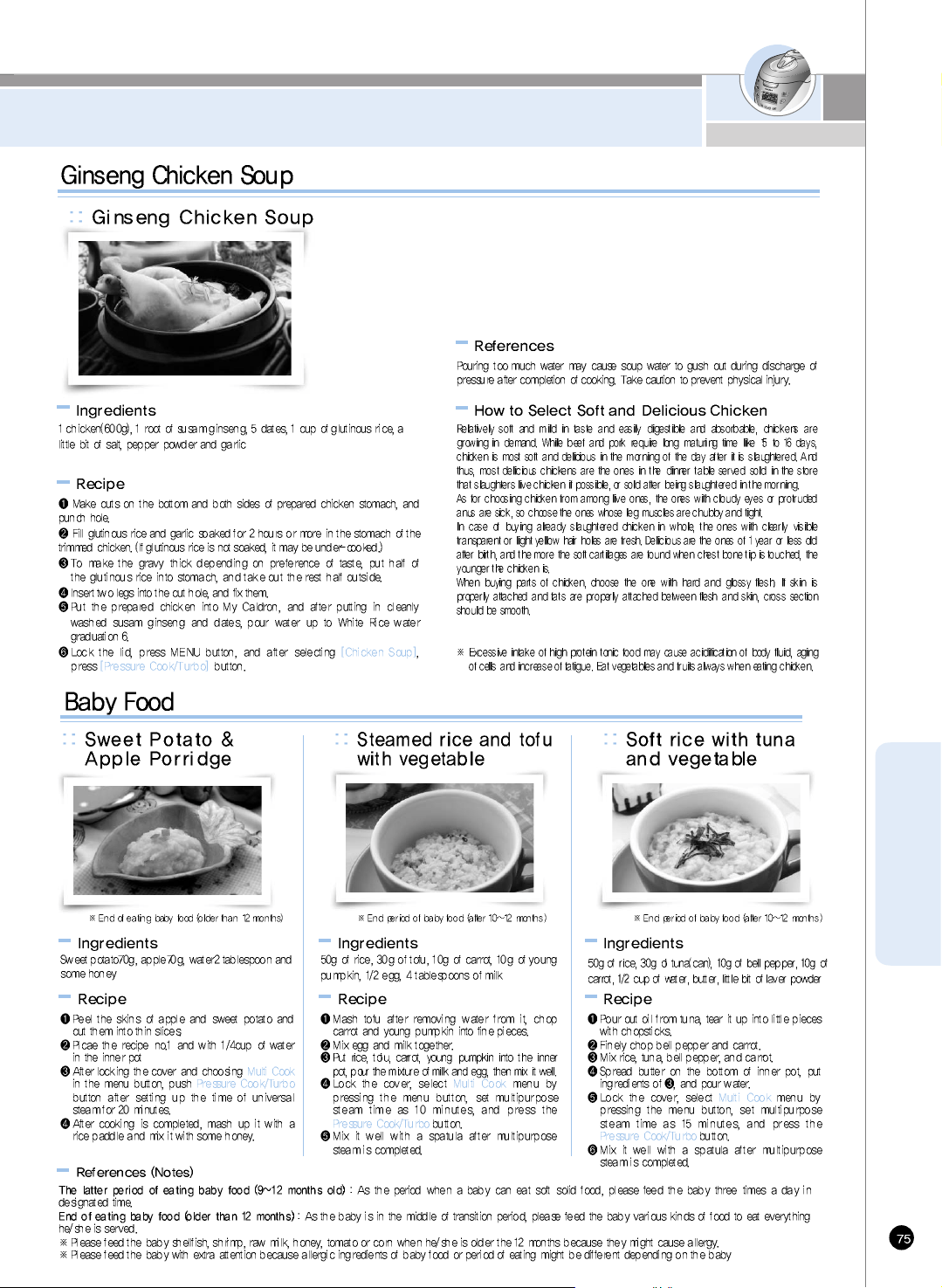

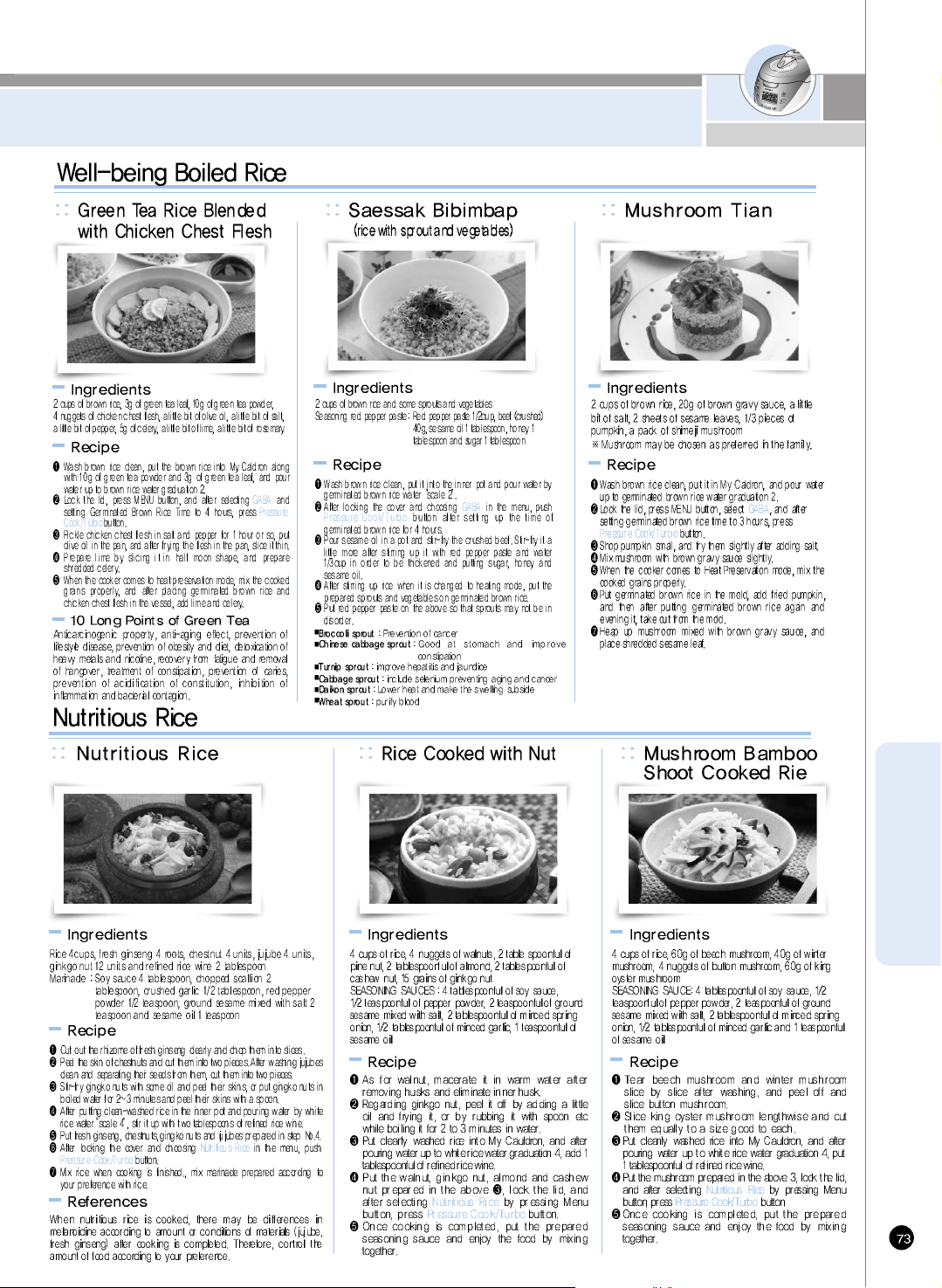

Cooking Guide 65~73
CONTENTS
1. Read all instructions before using this appliance.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against fire, electric shock and / or injury to persons do not immerse cord, plugs, or Pressure
Cooker Body in water or any other liquid.
4. Close supervision is necessary when this appliance is used by or near children.
This appliance is not intended for use by young children without supervision.
5. Unplug from outlet when not in use and before cleaning.
Allow appliance to cool before putting on or taking off parts, and before cleaning the appliance.
6. Do not operate any appliance with a damaged cord or plug, after the appliance malfunctions, or has
been damaged in any manner. Return the appliance to the nearest authorized service facility for
examination, repair or adjustment.
7. The use of accessory attachments not recommended by the appliance manufacturer may result in fire,
electric shock, and / or injury to persons.
8. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the
manufacturer or your service agent.
9. Do not use outdoors.
10. Do not let the cord hang over the edge of a table or counter, or touch hot surfaces.
11. Do not place on or near a hot gas, electric burner, or in a heated oven.
12. Always attach the plug to the appliance first, then plug the cord into the wall outlet. To disconnect, or
set all control to off , then remove the plug from the wall outlet.
13. Do not use this appliance for other than its intended use.
14. Extreme caution must be used when moving an appliance containing hot oil or any hot liquids.
15. Oversized foods, metal foil packages, or utensils must not be inserted into the appliance as they are a
risk of fire or electric shock.
16. A fire may occur if the appliance is covered or touching flammable material, including curtains,
draperies, walls, etc while in operation.
17. To reduce the risk of electric shock, cook only in the provided removable container.
18. This appliance cooks under pressure. Improper use may result in scalding injury.
Before operating the unit, properly secure and close the unit. See “Operating Instructions.”
19. Do not cook foods such as applesauce, cranberries, cereals, macaroni, spaghetti, or other foods.
These foods tend to foam, froth, and sputter, and may block the pressure releasing device.
20. Before use always check the pressure releasing device for clogging.
21. Do not open the pressure cooker until the unit has cooled and internal pressure has been reduced.
See “Operating Instructions.”
22. Do not use this pressure cooker to fry in oil.
23. Be sure that handles are assembled and fastened properly before each use.
Cracked, broken or charred handles should be repalced.
SAVE THESE INSTRUCTIONS
THIS APPLIANCE IS FOR HOUSEHOLD USE ONLY
WARNING : This appliance generates heat and releases steam during use. Use proper precaution to
prevent risk of burns, fires, other injuries, or damage to property.
1. Keep hands and face away from the Pressure Release Valve when releasing pressure.
2. Take extreme caution when opening the Lid after cooking. Severe burns can result from steam inside.
3. Never open the Lid while the unit is in operation.
4. Do not use without the inner Pot in place.
5. Do not cover the Pressure Valve with anything as an explosion may occur.
6. Do not touch the inner pot nor any heating parts, immediately after use.
Allow the unit to cool down completely first.
ADDITIONAL IMPORTANT SAFEGUARDS
IMPORTANT SAFEGUARDS
Note:
A. A short power-supply cord (or cord set) is provided to reduce the hazards from entanglement by a longer cord.
B. Extension cord should be used properly.
C. Extension cord usage for the rice cooker:
(1) The correct rated voltage should be used for the rice cooker.
(2) If the appliance is set on the ground, the extension cord should also be set on the ground.
(3) The cord wires and extension cord should always be arranged to prevent hazards to children.
This appliance has a polarized plug : (one blade is wider than the other).
As a safety feature, this plug will fit in a polarized outlet only one way.
If the plug does not properly fit in the outlet, turn the plug over.
If it still does not fit, contact a qualified electrician.
Please, keep this safety feature.
HOW TO USE EXTENSION CORD
SPECIFICATIONS /
HOW SERVICE IS HANDLED
The East and the Central Districts
Tel. No. (718) 888-9144
The West and the Central Districts
Tel. No. (213) 687-9828
TORONTO
Tel. No. 905 707 8224 / 416 878 4561
VANCOUVER
Tel. No. 604 540 1004 / 604 523 1004
USA Canada
CRP-HR08 Fuzzy Series
220V~, 50/60Hz
1240W, 5.6A
1~8 /0.18~1.44L (1~8cups)
1.2m
78.4KPa(0.8kgf/cm
2
)
117.6KPa(1.2kgf/cm
2
)
169
6.4kg
38.6cm
28.7cm
26.5cm
2~6 /0.36~1.08L (1~6cups)
1~1.5 /0.18~0.27L (1~1.5cups)
2~8 /0.36~1.44L (2~8cups)
WARNINGS FOR SAFETY
www.cuckoo.co.kr
ENGLISH
This sign is intended to remind and alert that something
may cause problems under the certain situation.
Please read and follow the instruction to avoid any harmful
situation.
Indicates a prohibition
This means that the action it describes may result
in death or severe injury.
This means that the action it describes may result
in injury or property damage.
Indicates an instruction
The following must be observed to use the product safely and correctly to prevent accidental and dangerous situations.
‘Warning’ and ‘Caution’ are different as follows.
Warning
Caution
Do not alter, reassemble,
disassemble or repair.
It can cause fire, electric
shock or injury.
For repair, contact dealer
or the service center.
Do not let the cooker contact any water by
sprinkling water on the cooker.
It can cause an electric shock or fire.
If it contacts water, please separate power cord
and contact dealer and service center.
Do not use damaged
power cord, plug or loose
socket.
Please check the power cord and
frequently because it can be damage
by using circumtance or method. Also,
the damaged one can cause and electric shock or fire.
It can cause an electric shock short circuit or fire.
If the plug was damaged, contact dealer
or a service center.
Do not use the cooker near
hot things such as stove,
gas stove or direct ray
of light.
It can cause an electric shock,
fire, deformation, malfunction, or discoloration.
Please check the power cord and plug frequectly.
Warning
Do not cover the automatic
steam outlet or pressure
weight with your hand or face.
It can cause burns.
Especially be careful to keep
it out of children’s reach.
Do not
Use a single socket with
the rated current
above 15A.
Using several lines in one socket
can cause overheating resulting in fire.
Please check the power cord and plug frequently.
Use an extension cord with a rated current
above 15A.
Please pay careful attention
against water and chemicals
It can cause an electric
shock or fire.
When separate it, the steam control vent can be blocked.
Do not pull out the clean steam vent by force.
If you have any problem with assembly and
cleaning of the clean steam vent, please call
a dealer or service center.
Keep clean the product before and after use.
Please make sure you clean and check
the assembly condition of the clean
steam vent before and after use.
Do not insert metal objects
such as pins and wires or any
other external substances in
the automatic steam exhaust
outlet or any other slot.
It can cause an electric shock or fire.
Especially be careful to keep it out of reach of children.
Damages by impact can cause an
electric shock or fire.
Please check the power cord and plug frequently.
Be careful that both the plug
and power cord are not to let
animal bite or to be shocked
by sharp metal materials.
Do not use pots that are not
designed for the cooker.
Do not use abnormal pot and
do not use without inner pot.
It can cause an electric shock or fire.
Do not cover the automatic
steam outlet or pressure
weight with a duster,
a towel, or apron, etc.
It can cause deformation or a breakdown.
It can cause an explosion by pressure.
Don’t spray or put any
insecticide and chemicals.
It can cause an electric shock or fire.
If cockroaches or any insects
get inside the cooker, please call a dealer
or a service center.
It can cause an electric shock or short
circuit resulting in fire. Please check the
power cord and plug frequently.
Do not bend, tie or pull the
power cord by force.
Do not open the top cover during heating
and cooking.
It can cause burns.
If you need to open the lid while cooking, keep pressing
the cancel button for 2 seconds and confirm internal
steam is released, completely turning the pressure
weight over.
Do not put any needle, cleaning pin etc in
the ventilator or any gap of the cooker.
Do not turn the Lock/Unlock Handle to
“Unlock” during cooking.
The hot steam or any hot content within the cooker can cause
burns.
After you finish the cooking do not try to open the cooker by
force until the steam is completely exhausted.
Do not insert cleaning pins to other parts except to
the valve hole of the pressure weight.
It can cause an electric shock or fire.
Especially be careful to keep it out of reach of
children.
Keep the cooker out of children’s reach.
It can cause burns, electric shock or injury.
Remove external substances on plug with
a clean cloth.
It can cause fire. Please check the power cord and plug frequently.
Do not place heavy things on the power cord.
It can cause an electric shock or fire.
Please check the power cord and plug frequently.
Warning Do not
<Inner pot>
Metal
objects
Do not use it without the inner pot.
It can cause electric shock or malfunction.
Do not pour rice or water without the inner pot.
If rice or water gets in then do not turn the product over
or shake it please contact to dealer or service center.
WARNINGS FOR SAFETY
WARNINGS FOR SAFETY
www.cuckoo.co.kr
ENGLISH
When this unit is working, it can influence any
electrical medical equipment.
If you use cardiac pacemakers
or electrical medical supporting
equipment, consult a doctor
before using this unit.
Do not use on a rice chest
or a shelf.
Do not press the power code
between furniture. It can cause
an electric shock resulting in fire.
Please check the power cord and plug frequently.
When using on furniture, automatically released steam
can cause damage, fire and an electric shock.
Don’t use the cooker near a
magnetic field.
It can cause burns or breakdown.
Please use the cooker for original purposes.
It can cause the malfunction or smell.
Do not touch the metallic surface of the inner
pot and pressure weight after cooking or
warming.
It can cause burns.
Remaining hot steam can cause burns when you tilt
the pressure weight during and after the cooking.
It can cause overflow or breakdown.
Do not cook over capacity stated for cooking of
chicken soup and congee.
Use product on a flat surface.
Do not use on a cushion.
Please avoid using it on an
unstable location prone to
falling down.
Do not use the cooker except for original
purposes. It can cause danger and accidents.
Please contact dealer or service center
when strange smell or smoke has occurred.
Do not use over the maximum capacity.
It can cause malfunction or a fire.
Please check the power cord and plug frequently.
Do not plug or pull the power cord with
wet hands.
It can cause an electric shock.
Warning
Caution Do not
Please pull out
the plug when not in use.
It can cause electric shocks or fire.
Use AC 220V only.
Clean any dust or external
substances off the temperature
sensor and inner pot.
It can cause a system malfunction
or fire.
Remember
First pull out the power cord.
Do not pull up the cooker by holding the
inner pot handle.
If can cause problems and dangerous situations.
There are portable handles on bottom right and left
side of the cooker. Hold the handles with both hands
and move it carefully.
Don’t use for various purposes for inner pot.
It can cause deformation of the inner pot
It can cause to spill the inner coating.
Please contact dealer or service
center when either a button of
a product or a product itself is not
working properly.
Do not place on rough top
or tilted top.
It can cause burns or breakdowns.
Be careful to install the power cord
to pass without disruption.
After you finish cooking, do
not try to open the cooker
by force until the steam is
completely exhausted.
The hot steam or any hot content within
the cooker can cause burns.
Cautiously open the top cover after cooking is
done to avoid dangerous steam and burns.
Do not drop the cooker or impact.
It can cause malfunction.
Please call the customer service
if the inner pot coating peels off.
Oven coating may wear away
after long use.
When cleaning the inner pot,
do not use tough scrubber, metallic
scrubber, brush, abrasive metallic etc.
Caution Do not
Tough crubber
Abrasive
Material Brush
Metallic crubber
When the exterior of inner pot is titanium ion plated.
The exterior of titanium inner pot can get darker when
used for a long time.
Use dry kitchen cleaner or sponge to clean the inner
pot since rough scrub or metallic ones might cause
scratch on the exterior of the plating.
The friction of the inner pot with sink or other
appliances can cause its plating’s coming off.
(No problem to use it)
Wipe off any excessive water on the cooker
after cooking.
It can cause odor and discoloration.
Wipe off water that is left behind from dew.
If power fails during rice cooking, automatic
vapor emission device may work,
leading to dispersion of contents.
Cook rice with specified amounts of rice and water.
In particular, water more than specified amount may
cause overflowing of contents.
Cook rice while soft steam cap is mounted.
Maintain more than 30cm of distance from the
product while using.
A magnetic field can be released from electronic goods.
Do not keep easily spoiled food warm in the
product such as red bean rice, mixed food,
croquette or gratin.(Except white rice)
Even if power plug is unplugged,
turn the lid to the (Lock)
location.
When you pull out the power
plug, don’t pull the power
cord. Please, safely pull out
the power plug.
If you inflict impact on power cord,
it can cause an electric shock or fire.
Be cautious when steam is being released
Please clean the body and
other parts after cooking.
When the steam is released don’t be surprised.
Please keep the cooker out of reach of children.
After cooking chicken soup or, multi
cook dishes, etc., the smell may be absorbed.
Clean the oven packing, top heater plate and
inner pot every time you cook any of those.
It can cause alteration or smell.
Use dry kitchen cleaner or sponge to clean the inner pot,
since rough scrub or metallic ones are abrasive to the coating.
Depending on the using methods or user's circumstances
inner pot coating might rise.
Please call the customer service for those cases.
Please, do not pull out the clean steam vent by force.
In case My Cauldron is hot or hot cooked rice is left
after cooking is completed, close lid and turn lid combining
hand grip to (Lock) direction even after unplugging power plug.
Otherwise product deformation or damage may occur by internal
pressure.
Be sure to turn lid combining hand grip to (Lock) direction during
cooking and heat preservation before use.
Caution Remember
WARNINGS FOR SAFETY
NAME OF EACH PART
www.cuckoo.co.kr
ENGLISH
Plated inner pot with titanium ion (The outside)
Name of each part
Name of each part
Pressure Weight
Always keep it horizontal it keeps the steam
inside of the oven. When the pressure
weight is twisted it releases steam.
Feature
1.By plating the surface with titanium the inner pot is more durable
2.Durable against corrosion
3.Exterior is plated with gold titanium
Soft Steam Cap
Automatic Steam Exhaust Outlet
(Solenoid valve)
When finished cooking or during warming ,
steam is automatically released.
Lock/Unlock Handle (Set the
handle to lock when cooking or
warming the rice)
The handle has to turn to ‘Lock’ for operation.
Clamp Knob
Turn handle to ‘Unlock’, and then press
Clamp knob to open.
Control Panel
Accessories
Manual&Cooking Guide
Rice Scoop
Rice Measuring Cup
Steam Plate
Cleaning Pin
(Attached on the
bottom of the unit)
(Refer to page40)
Dew Dish
Empty the water out of a
dew dish after cooking or
keepwarming. Leaving the
water in the dew dish results in bad smell.
Holder
Handle
Inner Pot(Oven)
Place the inner pot Into
the body property.
Pressure
Control Plate
Holder Guide
Clean Steam Vent
Power Cord
Power Plug
Temperature Sensor
Control Plate
Packing Cover
Control Plate
Packing
Rice Scoop holder
Pot Handle
Detachable Cover
Top Cover Assy
-Unless you clean the detachable cover, it can cause bad smell (After cooling out, unplugging and cleaning it).
-Body and cover should be cleaned by a dry dish towel. Do not use bentol while using rice cooker, starch can remain.
No effect on health.
-Do not put materials like screws into holes of detachable cover. Look up back cover and front cover.
Detachable cover & Pressure packing
After cleaning detachable cover, put it back on the lid
Unless detachable cover is mounted, preset cooking cannot be done. (Alarm may sound while keeping warm.)
Please fit a rubber packing into the cover plate completely after washing or replacing the rubber packing.
1. Handle must be located at “Lock” during Cooking.
The lamp turning on means the top cover is closed
perfectly, so you can cook.
2. After cooking, the handle must be turned from
“Lock” to “Unlock”, and then push clamp knob to open.
It is hard to open when there is remaining steam in the
Inner pot. At the time, twist pressure weight and let the
steam out. Do not open by force.
3. Handle must be turned to the “Lock” position to begin cooking.
When the lamp is turned on it means the top cover
is closed properly and you may begin cooking.
To open and close turn the handle from the lock to
the unlock position.
How to use handle
When mounting the cover, grab
separate cover handle, attach it
to hole, and after adjusting
holder on top of packing stop
tab, fix it by turning it clockwise.
Make sure to clean the clean
steam vent after/before use. Do
not try to pull out the clean
steam vent and safety packing,
clean it with care. Make sure
the clean steam vent and safety
packing are installed completely
after/before use. If the steam
vent is detached, or not
attached completely, please
contact customer service.
Wipe the inner, upper, and
outer of the inner pot of any
external substances.
Do not use tough scrubber,
metallic scrubber, brush,
abrasive material etc.
Maintaning a rubber packing
cleanly will let the rice cooker
last longer.
Wipe the main unit with a wet
cloth that has been extracted
out of all water.
Make sure to clean the
steam control vent before
and after use.
CLEAN STEAM VENT
AND SAFETY PACKING
INNER POT MAIN UNIT
INNER BODY
In case the cauldron is stained
with cooked rice broth or
foreign matter, wipe the
cauldron with a damp dish
cloth. Using a rough scouring
pad or brush etc may damage
cauldron surface.
If the buttons are functioning
correctly please contact our
customer care service.
CONTROL
Wash the cover with cooking
purpose neutral detergent and
sponge frequently, and wipe off
moisture with handkerchief.
Please keep clean the edge of
rubber packing, then the rice
cooker last’s longer.
If washed without separating
pressure packing , it is likely to
have water leak as described in
the image.
Turn the holder counterclockwise,
and the cover will be easily
separated from the cooker and
can be washed.
It is easier to attach the cover
holder when the lower part of
the detachable cover is
pressed.
After fitting 6 projections to the
holes, please press the rubber
packing around the corner
completely as shown in the picture.
To put back the rubber packing,
please fit it to each of 6 projections
and holes as shown in the picture.
Rubber packing guide Oven cover point
To separate the rubber packing,
please pull it out from the cover plate
as shown in the picture.
Please check that the rubber packing fits into the cover
plate completely. If not, steam may be released from the
crack between the packing and the plate.
Inner pot
contact surface.
HOW TO CLEAN
HOW TO CLEAN
www.cuckoo.co.kr
ENGLISH
How to clean the soft steam cap
Do not touch the surface of the soft steam cap right after cooking. You can get burned.
Detach the soft
steam cap like the
picture.
Press the hook in the back, and follow the arrow to
detach and clean. Make sure you clean frequently
with a sponge or a neutral detergent.
Assemble the vent
so that it fits into
the groove
perfectly.
After you attach the soft
steam cap to fit into the
groove, press ‘A’part
firmly to assemble the
soft steam cap into the
product.
Separate dew
dish.
Separate the drain
ditch cap by pushing
it down.
Clean the drain ditch
cap and dew dish
with a neutral
detergent.
Clean the drain ditch
cap with brush kit.
Securely put in the
dew dish after
cleaning.
How to clean dew dish
2. To close the top cover, the handle must
be located at “Unlock” as shown by the
picture on the right.
1. Check the inner pot correctly put in the
main body.
3. If there are hot things in the inner
pot, the top cover would not be
closed. At the time twist the
pressure weight and let the steam
out and then close the top cover.
Do not try to close the top cover by force. It can cause problems.
Cautions when top cover does not close perfectly
neutral
detergent
The valve hole of the pressure weight allowing the escape of steam should be checked regularly to
ensure that it is not blocked.
If you use the valve hole of pressure weight as it is blocked, the hot steam or any hot content within the
cooker can cause injury.
Do not use a Cleaning Pin for other use except cleaning the valve hole of the pressure weight.
Soft steam cap
Cleaning Pin
If the valve hole of the pressure weight part is clogged, punch it with the cleaning pin
How to
disassemble the
pressure weight
After the Lock/Unlock handle is locked(located on “Lock”) turn the pressure weight counter-
clockwise while pulling it up, and pull it out.
Punch the clogged valve hole with the cleaning pin and reassemble it by turning it clockwise.
When the pressure weight is properly assembled, it can freely be turned.
Alien
Substance
Pressure Weight
Attached on the
botton of the unit.
This function is used to select from
among glutinous rice, turbo glutinous rice, sushi, GABA, mixed rice, dried rice, rinse free, nutritious rice, nutritious porridge, all-
purpose, ginseng chicken soup, steaming and Automatic Sterilization (Steam Cleaning), and to modify preset time.
Keep Warm /
Reheat button
Use it for warming or reheating the
cooked meal right before eating.
(Refer to page 55)
Preset/AUTO
CLEAN Button
Use it by presetting the time
when you desire specific to
eat.(Refer to page 53~54)
When you use automatic
steam cleaning function
(Refer to page 47)
Mode button
This function is used to
customize individual cooking
preference, time-setting,
voice volume setting, keep
warm temperature setting,
and power saving movement.
Menu / Selection
button
Pressure Cook/Turbo
Button
Use it for cooking the rice.
(Refer to page 46)
Cancel button
Use it for cancelling selected
function or releasing
remaining steam in the inner
pot.
(Refer to page 62)
When using Power saving
function
(Refer to page 58)
Display
Set button
When you use selected
function or button-lock
function. (Refer to page 59)
When the product has any problems or used it inappropriately, you can follow the below marks.
If error persistently shows up even in normal using conditions or after taking measure, inquire with customer service .
Error Code and Possible Cause
Function Operating Part
When the inner pot is not placed into the unit.
When pressing the Pressure Cook and Timer botton, while the Lock/Unlock handle is on “Unlock”
Turn the Lock/Unlock handle “Lock”.
When boiling only water.
Problem on fan motor.
marks blink.
When setting preset time longer than 13 hours
Set the preset time within 13 hours. (Refer to page 53~54)
It appears on the display when you press Start button again, or if the cooking has finished and you’ve never
ever turned the handle to ‘Unlock’. It can be solved by turning handle to ‘Unlock’ and then turn to ‘Lock’.
Ploblem on micom power.
Problem on environment sensor.
Problem on micom memory.
This error message shows up when Pressure Cook or keeping warm/reheating button is pressed while detachable cover is not
mounted. Mount separate cover. Note: While keeping warm, alarm will sound and keeping warm and reheating do not work.
This code indicates the function of checking for abnormality of power or product.
Problem on temperature sensor. (“ ”mark, “ ”mark, “ ”mark blink. )
If no operation is done while power cord is plugged, the system is on standby as shown in the screen in the figure.
(The menu on standby screen, time, voice and customized rice taste stage may differ depending on user configuration.)
If cancel button is pressed during function manipulation, the condition turns to standby condition.
The button has to be pressed until buzzer sounds. There is a chance that the picture may be different with actual one.
<Standby condition screen>
FUNCTION OPERATING PART /
ERROR CODE AND POSSIBLE CAUSE
HOW TO SET CURRENT TIME /
HOW TO SET OR CANCEL VOICE GUIDE FUNCTION
www.cuckoo.co.kr
ENGLISH
To enter this function, press Mode button 2 times. Mode button needs to be pressed for over 1 second at the first time.
Voice guide volume control (The function which can control volume and cancel)
Press mode button once.
It can be operated by pressing mode button for more than 1sec
Current time mode press yes button” after setting current time with
selection button.
Menu/Selection button blinks and Mode, Set and Cancel buttons turn ON.
Colon mark(:) on the sec. screen is blinging once per second.
1
About Lithium battery
This product contains lithium battery for improving blackout
compensation and time. Lithium battery lasts for 3 years.
When current time is not displayed on the screen, it means the
battery is exhausted. It should be replaced.
What is blackout compensation
This product remembers and maintains previous condition and
processes. After finishing blackout, it operates immediately.
If blackout happens during cooking, the cooking time will be
delayed depending on blackout time.
If the rice became cold because of blackout, warming will be
cancelled.
How to set current time during keep
warming mode
1. Press Cancel button to cancel keep warm and
then press Mode button over 1 time to set
current time.
2. After setting time, press keep warm button to
re-start keep warm.
ex)8:25am now
How to set current time
When finishing to set time you want, press "Set" button.
If it is over 7sec without yes button, setting time will be canceled with
voice,"it is canceled due to overtime".
3
Set o'clock and minute as pressing menulselection button.
2
1 min up “ ” button
1 min down “ ” button
10 min up or down “ ”, “ ” keep pressing.
Careful of setting am,pm.
In case of 12:00 it is 12:00 pm.
<Standby mode>
Set button blinks and Mode, Menu/Selection and Cancel buttons turn ON.
Keep the button pressed, and the button will turn to Continuous.
Set to desired voice volume, and press Set button.
‘3’ sign is displayed when entered volume control mode by
pressing Mode button 2 times.
If set value became ‘0’ by pressing button, voice guide
function is off.
Press button to set ‘5’, that is the maximum volume sound.
When finish setting desired volume, press Mode button to store.
Menu/Selection button blinks and Mode, Set and Cancel buttons turn ON.
Night Voice Volume Reduction
1. Press mode button 8 times in standby status, and you will enter Night Voice Volume Reduction mode. When pressing
mode button initially, press the button for 1 second or longer to enter Night Voice Volume Reduction mode.
2. When you enter Night Voice Volume Reduction mode, a voice comes up saying “You have entered Night Voice Volume
Reduction. Select or inactivate Night Voice Volume Reduction mode with ‘Select’ button and press ‘Confirm’ button.”
3. Press ‘Menu’/’Select’ button, and as process progress bar changes, voice volume will change. Select desired voice
volume, and press ‘Confirm’ button.
4. Once process progress bar reach full condition through adjustment of ‘Menu’/’Select’ button, a voice will come saying
“The function of Night Voice Volume Reduction is inactivate.” Inactivate the function by pressing ‘Confirm’ button.
5. If ‘Inactivate’ button is pressed or no button is pressed for 7 seconds after you enter Night Voice Volume Reduction mode,
the function will be inactivated along with voice “As set time is elapsed, the function is inactivated”, and the system will be
back to standby mode.
1. Press mode button 9 times in standby status, and you will enter Woman and Man Voice mode. When pressing mode
button initially, press the button for 1 second or longer to enter Woman and Man Voice mode.
2. When you enter Woman and Man Voice mode, a voice comes up saying “You have entered Night Woman and Man
Voice. Select or inactivate Woman and Man Voice mode with ‘Select’ button and press ‘Confirm’ button.”
3. After setting Auto (woman and man) voice with ‘Menu’/’Select’ button, man voice or woman voice, and press ‘Confirm’
button.
4. If ‘Inactivate’ button is pressed or no button is pressed for 7 seconds after you enter Night Voice Volume Reduction mode,
the function will be inactivated along with voice “As set time is elapsed, the function is inactivated”, and the system will be
back to standby mode.
Example) 60% of day time voice volume
Example) When set to woman voice Example) When set to man voice
Night voice volumes by the setting of process progress
Set the function of night voice volume reduction, the function to reduce the volume of voice during
night time(10:00PM-05:59AM) on need-to-do basis. This function works only during night time.
How to set night voice volume reduction
Woman and Man Voice Setting Function
This function helps you select Auto voice for either a manor woman’s voice.
With this function, you can set to your desired voice.
How to set night voice volume reduction
Zero volume
20% of day time voice volume
40% of day time voice volume
60% of day time voice volume
80% of day time voice volume
NIGHT VOICE VOLUME REDUCTION /
WOMAN AND MAN VOICE SETTING FUNCTION
BEFORE COOKING RICE
www.cuckoo.co.kr
ENGLISH
Clean the inner pot and wipe the water on the inner pot with dry cloth.
Use the soft cloth to wash the inner pot.
Tough scrubber can make the coating come off.
1
Measure the amount of rice you want to cook using the measuring cup.
Make the rice flat to the top of measuring cup and it is serving for
1 person.
(ex: for 3 servings 3 cups, for 6 servings 6 cups)
2
Wash the rice with another container until the water becomes clear.
3
Put rinsed rice into the inner pot.
4
Put the inner pot into the main body and close the topcover.
Please, check if detachable cover is attached
In case detachable cover is not attached, when pressure cook/ reheat button
is pressed, “ ” error could occur and cook/ warm function will not work.
Put the inner pot correctly.
If there is any external substance on the temperature sensor or the bottom
of the inner pot, wipe it off before putting the pot into the main unit.
Top cover will not close if the inner pot is not placed correctly in the main
body (Place the inner pot to the corresponding parts of the main body)
6
Connect power plug and turn the handle to “Lock”
7
According to menu, adjust the water amount.
For measuring, place the inner pot on a leveled surface and adjust
the amount of water.
The marked line of the inner pot indicates water level when putting
the rice and water into inner pot together.
About water scale
Glutinous rice, turbo glutinous rice, mixed rice and nutritious rice : Adjust water level to the
water scale for ‘glutinous rice, mixed rice and rinse free’. Glutinous rice can be cooked to
max 8 servings, turbo glutinous rice, mixed rice and nutritious rice to max 6 servings.
Sushi : Adjust water level to the water scale for 'sushi'. Sushi can be cooked to max 6
servings
GABA : Adjust water level to the water scale for 'GABA'. GABA can be cooked to max 6
servings
Nutritious porridge : Adjust water level to the water scale for 'nutritious porridge'. Nutritious
porridge can be cooked to max 1.5 servings
Dried rice : Adjust water level to the water scale for 'Dried rice:'. Dried rice can be cooked
to max 6 servings
Rince free : Adjust water level to the water scale for 'Rince free:'. Dried rice can be cooked
to max 8 servings
5
Glutinous Rice for 4 persons
(4 cups) : Set the water to scale
4 of GLUTINOUS
For overcooked rice : pour less
water than the measured scale
When you want to cook the old
rice or want the soft rice :
pour more water than the
measured scale
The lamp turning on means closed perfectly.
If you press the cook button without setting the Lock/Unlock
handle to “Lock” the cooker will not operate. You will hear “beep
beep beep” sound and “ ” is shown in the LCD.
If " " mark shows up in other instance, turn cover handle to "Open" direction,
and turn it toward "Lock". Then the cooker will work normally. (The operation of
cover lock sensing device can be checked.)
Note: This instruction is not applicable if cover handle is turned toward "Open" direction
once or more after cooking was completed in previous cooking.
Rice for 4 persons
(4cups)
Use the measuring
cup!
Pour the water until
water level marking
in the inner pot!
How to store rice
Shorten the
duration of the
“Present” time for
better cooking.
It
s better to set
the “warm” time
shortly.
Keep the product
clean.
When measuring the rice, Use the measuring cup.
(The amount of the rice may vary depending on
the quality of the rice.)
Place the inner pot on a flat surface and adjust the
water to water level in the inner pot.
If possible, buy a small amount of rice and keep
the rice some place where ventilates well and
avoid a direct ray of light. It can prevent
evaporation of rice moisture.
If the rice has been unsealed for long, rice can be
dry and stale. In this case, you should pour the
half of water more. It s tastier.
If possible, do not use the preset time function
when rice is too dry and pour the half of water
more.
It s better to set “warm” less than 12 hours.
Clean the product often.
(Especially clean the top of the cover for external
substance.)
If amount of water and amount of
rice is different, rice can be crisp or
hard.
If the rice is too dry, rice can be crisp
even though it is measured properly.
If you set “Preset” over the 10 hours
or “Preset” dried rice, rice can be crisp
or half cooked. Even worse condition,
rice can be cooked different tastes
each level.
If the preset time is longer, the
melanoizing effect could be increased.
If rice is kept warm for a long period
of time, rice color will change, as
well as odor.
Wipe the top cover heating part well
for any rice or external substance.
For the best taste of rice, check the following points carefully.
Cook tasty rice with Cuckoo pressure rice cooker
FOR THE BEST TASTE OF RICE
HOW TO COOK
www.cuckoo.co.kr
ENGLISH
Choose menu with menu/selection button.
Start cooking by pressing Pressure
Cook/Turbo button.
Select button.
Each time “Menu” button is pressed, the selection
switches in the sequential order, glutinous rice
turbo glutinous rice sushi GABA mixed rice
dried rice rinse free nutritious rice
nutritious porridge Multi cook chicken soup
Automatic Sterilization(Steam Cleaning)
If the button is pressed, repeatedly, the menu switches
continuously in sequential order.
In the cases of glutinous rice, sushi, mixed rice, GABA
and Dried rice, the menu remains memorized once
each cooking is completed, so for continuous use of the
same menu, no selection of menu is required.
You must turn lid handle to lock before cooking.
Then press the pressure Cook/Turbo
Unless lid handle is not turned to close, you get
alarm with “ ” , and sound “turn lid handle
to lock”.
12
The end of cooking.
When cooking is completed. warming will start
with the voice "cuckoo completed glutinous".
When cooking ends, stir rice equally and
immediately. If you don't stir rice at once and keep
it stagnant, rice will go bad and smell bad.
If the lid handle is not working well, take out the
steam completely out of inner pot by turning over
pressure weight.
While cooking, do not press cancel button.
4
Cooking thoroughly.
The cooktime remaining on the display is shown
from cooking thoroughly. The cook time is
different relying on menu.
Careful not to be burned in automatic steam
outlet.
3
After cooking chicken soup and multi cook etc, the smell may permeate into the unit, use the Unit after cleaning the rubber packing and lid
part according to page 39.
Glutinous
Turbo
Glutinous rice
Sushi GABA
Mixed
rice
Dried
Rice
Rince free
Nutritious
rice
Porridge
Multi
cook
Chicken
Soup
Automatic Sterilization
(Steam Cleaning)
Cooking
Capacity
Cooking
Time
Menu
1. Put desired amount of Rinse free into the cooker body by measuring it with measuring cup, and pour water to meet
glutinous water scale. (Rinse free can be cooked to min 2 servings to max 10 servings.)
2. Stir evenly with scoop so Rinse free and water may mix properly, lock the cover, and after selecting Rinse free menu with
Menu/Selection button, press Pressure Cook/Turbo button.
Note : Washed rice is cooked only with water poured with no separate washing, so they may experience the fine scorching
phenomenon(melanoizing).
Note : Do not store washed rice in a humid place as it is vulnerable to humidity. In summer or rainy seasons, the rice may
go bad or be inhabited by beetles, so when purchasing washed rice in the market, buy it by units of small pack.
How to cook with Rinse free
Put water until water scale 2, make sure to close and lock the cover.
Method 1, After choosing automatic cleaning menu by pressing
“Menu/Select” button, and then press “Pressure Cook/Turbo” button.
Method 2. After choosing automatic cleaning function by pressing
“Preset/AUTO CLEAN” button twice in standby mode, press “Pressure
Cook/Turbo” button.
How to do Automatic Sterilization (Steam Cleaning)
- If you cook long stored rice or dried rice, they could be half-cooked. If using the old rice menu, you can get better taste .
- The taste of rice will be different depending on storage of rice and water state.
you can add the “SOFT” time or “SWEET”time (Refer to page48).
Dried rice cook function
The cooked rice can be light yellow at the bottom of the oven, because this product is designed to improve pleasant flavor
and taste. Especially, melanoizing is more serious at the
Preset cooking than just Cooking .
It does not mean malfunction.
When mixing other rice with Glutinous, Melanoizing effect could increase more than Glutinous cook setting.
Melanoizing effect
After white rice turbo and cooking small servings, discard the water within water gutter.
In case of white rice turbo and smaller servings cooking, more water may stay compared with other menu.
Please refer to the cooking guide (Refer to page 72~80)
Glutinous
When you want to have sticky and
nutritious white rice.
Sushi
When you want to have a little more sticky and nutritious
white rice than Glutinous rice.
How to use the cooking menu
GABA
Used to cook germinated brown rice.
Mixed
/Brown
This menu is used to cook a variation of mixed rice or
brown rice.
Dried
Rice
Used to cook dried rice
Rince free
This menu is used to cook washed rice.
Nutritious
Rice
Used to cook nutritious rice.
Porridge
For cooking germinated brown rice.
Multi Cook
For cooking Nutritious Rice.
Chicken
Soup
This menu cooks samgyetang automatically.
Automatic
Sterilization
(Steam
Cleaning)
This menu is used to eliminate smell
soaked after cooking or warming.
Turbo
function
for
Glutinous
rice
Pressing twice Pressure Cook/Turbo twice will switch to quick cooking and shorten the cooking time.
(It takes about 14 minutes when you cook the Glutinous rice for 2 persons.)
Use this turbo cooking function only for cooking rice for less than 6 persons.
(The condition of the rice will not be good for more than 6 persons)
The turbo cooking function is allowed up to 6 persons.
If you soak the rice in water for about 20 minutes before cooking the rice and then cook the rice
in turbo cooking course, the rice will taste good.
HOW TO COOK
MY MODE (Cuckoo Customized Taste Function)
www.cuckoo.co.kr
ENGLISH
Cuckoo’s patented technology based on variable circuit design. User can select the degree of “softness” and “glutinosity
& tastiness” to meet a user’s desire.
What is “MY MODE”?
Longer “SOFT” Time : rice becomes soft and glutinous. (selectable in 4 steps)
Longer “SWEET” Time : rice becomes tasty (selectable in 4 steps) [amelanizing will occur]
Above 2 functions can be selected both or individually.
MY MODE Function
“MENU”setting screen
To enter "Customized Rice Taste Setting Mode", select the menu in which Customized Rice Taste is supported such as glutinous rice, mixed rice, glutinous rice,
GABA, mixed rice, dried rice, rinse free and press the mode button for 1 second or longer. Then, you are going to enter "Customized Rice Taste Setting Mode" while
hearing the voice saying "You've entered Customized Rice Taste Setting Mode. Select swelling and heating stage with Selection button, and press Set button."
How to use “MY MODE”
“MY MODE” setting screen
Soft time control mode
Sweet time control mode
Setting completed screen after
“MENU”setting screen
You can set the major cooked rice taste of customized cooked rice taste by entering Customized Cooked Rice Taste mode and pressing Mode button. At
each press of Mode button, the major cooked rice taste will show up in the sequential order ‘Sticky Cooked Rice Taste –> Soft Cooked Rice Taste -> Soothing
Cooked Rice Taste -> Soft and Soothing Cooked Rice Taste’.
How to Use Cuckoo Customized Cooked Rice Taste
“MY MODE” setting screen
Soft time control mode
Sweet time control mode
Setting completed screen after
Soft and Sweet time control mode
The display of my mode
This is a graph the flavors of 16 types of cuckoo custom-made rice
If you press the mode button 5times, customized cooking function is setup. Select heating power by
selection button. You can see all means with cuckoo customized cooking function on the display.
*1. The rice becomes solid and glutinous.
*2. The rice becomes soft and well-raised rice.
*3. The rice becomes soft and glutinous.
Note: Rice taste number from 1 to 16 will be
displayed on the display window.
How to use Cuckoo Customized cooking function
1 . ‘Cuckoo customized cooking function’ applies to Glutinous, Turbo glutinous, Sushi, GABA, Mixed rice, Dried, Rinse free, nutritious rice collectively.
2 . Set up the step of customized cooking function to taste. The scorch can occur when cooking in high step.
3 . Cook is subject to be set differently depending on the percentage of water content and the condition of rice.
Initialization is set up “ ” get step by step as the case may be.
- High step : for cooking cereals, old rice and soft-boiled rice.
- Low step : for cooking the year’s crop of rice.
While cooking you can control the heating temperature (both high an low) depending on, your prefenence.
Cuckoo customized cooking function
The display Cuckoo
customized cooking
function
Make the screen changed by
pressing menu button.
push the menu/selection button, then the
screen will be changed as above picture.
High level mode
If you press the “set”button,
established menu will be set up
automatically.(If you press
cancel or do not press a button
within 7 seconds, the function
will deactivate and return to the
standby mode.)
If you push the mode button
5times, the display for
customized cooking function
will be set up. Initiation is like
above picture.
Menu/Selection button will blink, and Mode,
Set and Cancel buttons will turn ON.
Setting completed
screen after
Low level mode
Set button will blink, and Mode, Menu/Selection
and Cancel buttons will turn ON.
Keep pressing the button, and the menu will
switch continuously.
Set button will blink, and Mode, Menu/Selection and Cancel buttons will turn ON.
Keep pressing the button, and the menu will switch continuously.
1. ‘MY MODE’ function may influence scorching or cooking quality. Ensure that cooking time is not
changed, by children.
Default settings for soft rice and sweet rice is “1step” sticky rice.
2. ‘MY MODE” function may elongate cooking time according to set-up time.
3. Scorching of rice may occur by longet “SWEET” Time.
Cautions
The stage mark will show up as in the figure above on the display as much as the time set during setting swelling time and heating
maintenance time, and the mark will continue to show up during cooking, reservation, keeping warm and reheating as well.
Cuckoo customized taste function is applied to glutinous, GABA, mixed, dried rice, rinse free.
Set-up time is stored untill the next reset. No need to set-up at every cooking.
During cooking, warming and preset time cooking modes, “soft” and “sweet” time cannot be readjusted.
MY MODE (Cuckoo Customized Taste Function)
HOW TO USE GABA (Brown rice)
www.cuckoo.co.kr
ENGLISH
Check the dates of harvest and pounding.
The dates should be within 1year from harvest, 3 months from pounding.
Inspect rice with your eyes.
Check that embryo is alive
Rice surface should be light yellow and glazing. Whitely stirred up surface, or darkish colored Brown rice is not suitable
for germination
Avoid fractured, not fully corned, or empty ear’s. Empty ear’s may generate odors during germination and bluish- nor
corned Brown rice cannot be germinated.
(Regular brown rice)
Brown rice has richer nutrients than polished rice. However, brown rice is rather tough and harder to be digested.
By germination, the enzymes in the brown rice are activated, generating nutrients and become more digestible.
What is Germinated Brown rice?
Germinated Brown rice increases nutrients and enhances taste which is a weak point of brown rice.
Germinated Brown rice also improves digestion.
Taste will be greatly enhanced.
Digestive and rich in nutrients.
Diabetic hormone is generated improving digestion.
Good as a health food for children or students.
- Rich with dietary fiber.
Germinated brown rice has rich GABA (Gamma Amino Butryc Acid)
- GABA promotes metabolism in liver and kidneys, suppresses neutral fat, lowers blood pressure, promotes metabolism
in brain cells - these effects have been proven by medical science.
Features of Germinated Brown rice
Tips to Buy Quality Brown Rice
(Poor brown rice
- Empty ear and nit fully corned brown rice)
< Comparison of Germinated brown rice s nutrition
and Glutinous rice
s (6 hours) nutrition. >
Phytic acid 10.3Times
Ferulic acid 1.4Times
Gamma-orizanol 23.9Times
Gammma-aminobutyric 5Times
Inositol 10Times
Food fiber 4.3Times
Using GABA Menu
Precautions for GABA Cooking
If smaller germ is preferred, omit pre-germination process. Select GABA menu, set-up appropriate germination
time, and start cooking (nutrient ingredients do not vary significantly by the size of germ).
During hot seasons, longer germination time may generate odor. Reduce germination time.
GABA cooking is allowed up to 6 persons.
City water can be used for germination. However, spring water is recommended. Germination may not be properly
performed in hot or boiled water even after cooling.
Germination rate, germ growth may differ by the Brown rice type, condition or period of storing, etc.
- Germinated brown rice is sprouted brown rice. Germination rate and growth may differ by the Brown rice type.
The brown rice should be within 1 year from harvest, and not long since pounded.
In GABA mode, preset on 4H, 5H, 6H may not be possible. If you want to preset the GABA, set up ‘ ’.(See the page 53)
The taste of rice could be different as depending on a kind of brown rice. Use customized taste function or control the
amount of water for your taste. (Refer to page 48~49)
In order to promote germination, soak brown rice for 16 hours in water.
Method of Pre-germination
Put washed brown rice in an appropriate container, pour sufficient water to soak the rice.
Pre-germination shall not exceed 16 hours. Make sure to wash rice clean with flowing water before using
GABA menu. Be careful that hard washing may take off embryos which generate the germination.
Unique smell may be generated according to the soaking time of pre-germination.
When pro-germination has been completed, wash the rice and put in inner pot (Oven). Pour appropriated volume
of water, and use
GABA menu.
In summer or hot temperature environment odor may be generated. Reduce germination time and wash clean
when cooking.
1
Set the Lock/Unlock handle
at
Lock , press Menu
Selection
button to select
GABA .
When the GABA is selected,
0H is indicated in the
display.
Set button will blink, and
Mode, Menu/Selection,
Cancel and Pressure Cook
buttons will turn ON.
2
Press Set and Menu
Selection
buttons to set time.
1.Pressing “ ”
button changes
germination time by 2hours.
2.Pressing “ ”
button changes
germination time by 2hours.
3.“GABA” time can be set up by
0, 2, 4, 6 hours.
If GABA time is set “0”hours,
pressing “Pressure Cook”
button will start cooking
immediately.
To cook without germination
or cooking germinated Brown
rice, set the time at “0”.
3
Press Pressure
Cook/Turbo
button.
If 'Pressure Cook/Turbo' button is
pressed or 'Set' button is pressed after
'Pressure cook/Turbo' button is
pressed, GABA germination for given
time will begin and rice cooking will start
right after the germination process.
During GABA mode, cook
indicator will show the remaining time
and will be displayed in minutes with
the
3H mark going around clockwise.
4
HOW TO USE GABA (Brown rice)
HOW TO COOK THE MULTI-COOK
www.cuckoo.co.kr
ENGLISH
Press “Set”, “Menu/Selection” button to set up the time.
It says after setting cooking time with selection button press the cook button.
Menu/Selection button will blink, and Cancel and Pressure Cooking buttons will turn ON.
2
Use the preset time of Multi -cook as following instruction.
4
How to use the Multi-cook and preset the time
Turn the top handle to Lock, press menu to
select the Multi-cook.
Set button will blink, and Menu/Selection, Cancel and
Pressure Cooking buttons will turn ON.
When selecting Multi-cook, the display indicates cooking
time to be 20 minutes.
1
Press “Pressure Cook” button.
Pressure Cook button will blink, and Menu/Selection and Cancel buttons will turn ON.
Press the Pressure Cook/Turbo button and the Multi-cook will start.If the Multi-cook starts,
the display shows the cooking mark and remaining minutes.
3
1. Check the
present time.
2. Turn the
Lock/Unlock
handle to
Lock and
press the
“Timer” button.
6. Press the
“Timer” or
“Pressure
Cook”.
1.
Each time you press “Menu/Selection”
button, the time increases 5 minutes.
(After 90min, each 10min increase.)
To switch the functions
continuously, keep
pressing the button.
3. Press the
Menu/Selection
or Min/Heat to
preset time.
4. Press menu
selection butt
on to select
the Multi-cook.
5. Set up the
cooking time
for pressing
menu selection
button, Min/
Heat button.
2. 3. Available setting time is
10 ~ 120 minutes.
(Please refer to cooking
guide for time setting of
each menu.)
4.
If you press the yes
button after choosing
time you want it says
"press cook or tineer
button"
Each time you press “Menu/Selection”
button, the time decreases 5 minutes.
(After 90min, each 10min decrease.)
To switch the functions
continuously, keep
pressing the button.
Press the “Preset/AUTO CLEAN” button.
If you press 'Preset/AUTO CLEAN' button once, 'Preset1' mode
will be activated. If you press the button twice, 'Preset2' mode
will be activated.
The default time of 'Preset1' is AM 6:30 and 'Preset2' is PM 7:00.
f you push timer button, timer screen will be blinked.
n GABA mode, preset on “ ”is possible.
If you want to preset “Timer” while keeping warm, cancel keep
warm and preset the “Timer”
2
When preset time is set to AM07:40
Check if the current time and the menu are correct.
Refer to page 42 for the time setting.
If the current time is not set correctly, the presetting time will
also be incorrect.
Make sure not to confuse AM and PM.
1
Preset the time.
3
Press “Pressure Cook” button.
“Pressure Cook” button will blink, and “Menu/Selection” and
“Cancel” buttons will be turned ON.
It says that preset cook for glutinous is booked
Preset cook will be completed at the timer
Once cook is completed with preset time,
preset time is stored in the memory.
Don't need to set up time again.
If a small amount of rice is cooked, cook could be finished earlier
than time you set up.
5
Select menu with “Menu/Selection” button
If you select “Timer” menu with selection button, it says
“Please, press the “Cook/Turbo” button.
“Set button” will blink, and “Menu/Selection”, “Pressure Cook”
and “Cancel” buttons will turn ON.
In case of menu with “Customized Rice Taste” such as glutinous rice,
mixed rice, GABA, old rice, nu rung ji and washed rice, “Mode” button
will turn ON.
4
How to preset timer for cooking
How to use timer function
“Set” button will blink, and “Menu/Selection”, “Cancel” and
“Pressure Cook” buttons will turn ON.
In case of setting up timer while warming
10min increase by pressing “ ”button
Please set up timer after canceling warming
10min decrease when you press “ ”button
If you keep pressing, It can be changed continuously.
Please be careful not to change from AM to PM.
HOW TO PRESET TIMER FOR COOKING
HOW TO PRESET TIMER FOR COOKING
www.cuckoo.co.kr
ENGLISH
Touch Me
Glutinous
Mixed
Porridge
Multi Cook
Precautions for preset cooking
In case of preset cooking
If the rice is old and dry, the result of the cooking may not be good
If the rice is not well cooked, increase the amount of water by about half-scale.
If the preset time is longer, melanoizing effect could be increased.
Washed rice included precipitated starch, scorching may occur in case of preset cook.
To reduce scorching, cook washed rice by rinsing in running water or reduce cooking amount.
1
The change of preset time
Press “cancel” button for more than 2 seconds and restart it to change the preset time.
2
In case preset time is shorter than cooking time in the following
table, cooking starts immediately
If set time is shorter than presettable time, cooking will start immediately.
3
In case the preset time is over 13 hours.
""
will be displayed and the preset time will be changed to 13 hours automatically.
ex)
If cooking is preset to AM07:00 of the following day at PM5:00 of the day, where preset time is 14 hours,
" " will be displayed, and preset time automatically changes to AM06:00. (Preset time is 13 hours)
If the preset time is over 13 hours, it can cause bad smell. The limited preset time is set up less than 13 hours
because the rice spoils easily during the summer time
When you want to finish presetting P.M 12:00, preset P.M 12:00
Use this function when you want to finish cooking between 1 hour to 13 hours based on the preset time
If you press the set button to check the present time during the preset cooking function, the preset time will be
displayed for 2 second.
4
Menu
Class
From
20minutes
to 13 hours
71minutes
to 13 hours
From
(setting time
+ 1minutes)
to 13 hours
From
74minutes
to 13 hours
From
35minutes
to 13 hours
From
(40minutes
+ My mode)
to 13 hours
From
(43minutes
+ My mode)
to 13 hours
From
(50minutes
+ My mode)
to 13 hours
From
(58minutes
+ My mode)
to 13 hours
From
49minutes
to 13 hours
From
22minutes
to 13 hours
From
(37minutes
+ My mode)
to 13 hours
Possible
time
Setting
Automatic
Sterilization
(Steam Cleaning)
Chicken
Soup
Multi
Cook
Porridge
nutritious
rice
Rince
Free
Dried
Rice
Mixed
Rice
GABASushi
Turbo
Glutinous
Rice
Glutinous
It would be hard to open the lid during warming or finished
cooking right after, therefore at this time pull the pressure weight
aside once and exhaust the steam perfectly.
Make sure the handle must be located on “Lock” during warming
or reheating.
It is recommended to evenly stir the cooked rice after cooking.
The rice taste is improved. (For a small quantity of rice, pile up the
rice on the center area of the inner pot to keep warm)
Do not keep the scoop inside the pot while warming the rice.
When using a wooden scoop it can create serious bacteria and
odors.
It would be better to warm the rice for less than 12 hours because
of odors and color change.
The cooked rice, which cooked by pressure cooker is more prone
to changing color than the rice cooked by general cooker.
During warm mode, the rice can arise and turn white and rise.
In this case, mix the rice.
Do not mix small amount of rice or leftovers with the rice under
keeping warm. Doing so may cause an odor. (Use a microwave
oven for the cold rice.)
Cautions for Keeping Warm
The mixed and brown rice cannot be in such good condition as
white rice while in warm function due to their characteristics.
Therefore do not keep mixed and brown rice in function for a long
period of time.
<Keep warming>
indicates the time elapsed as
warming time.
<Finishing reheat>
When the reheat finishes with the beep
sound, keep warming function will be
operated and show the time elasped.
Having a meal
If you want to have warm rice, press the “Reheat/keep” warm. Then “Reheat/Keep” warm function will be started
and you can eat fresh rice in 9 minutes.
<Reheating>
The lamp blinks and indicator will
show the reheat remaining time
displayed in minutes with the mark
going around clockwise.
<Present warning
temperature>
“Intensive reheating”mode is available to avoid discolored, dried, or sour smelling rice.
The mode can be set/cancel by pushing “Keep warm/Reheat” button then 'Set' button
in the 'Customized reheating' setting mode.(Please refer page 56.)
Please set the mode as needed. (Default option is set to the normal reheating mode.)
If you change the present time during warming, see the page 42.
The frequent use of the “Reheat” function may cause the cooked rice to be discolored or dried. Use it once or twice per day.
If a separate heating appliance or gas burner is used to cook rice, put the cooked rice into the cooker and press the
“Keep Warm/Reheat” button to keep the rice warm. At this time, “ ” is shown on the display. (Like this, transferring hot
rice to a cold cooker may cause the rice to be discolored or develop an odor)
After 24 hours of heat preservation, the lamp of heat preservation time lapse blinks, indicating that long time has passed in
heat preservation condition.
In case the lid combining hand grip is in open status during heat preservation, the cooker does not go for reheating.
For reheating, lock the lid combining hand grip to (Locked) position, and then press Keep warm/reheat button.
If the lid combining hand grip is turned to open status during reheating, function display will show “ ”.
At this time, reheating will be cancelled, and heat preservation will proceed.
TO KEEP COOKED RICE WARM AND TASTY
TO KEEP COOKED RICE WARM AND TASTY
www.cuckoo.co.kr
ENGLISH
Press “Hour/up” button to change
the temperature as
Press “Minute/Down” button to
change the temperature as
1. If too much water is spilled out when you open the lid : Press “Menu/Selection” button to raise the setting mode.
2. If the edge of rice is too soft : Press “Menu/Selection” button to reduce the setting mode.
Controlling method of warming temperature
If the temperature in the oven is not proper, it smells bad and changes rice color even though it is cleaned
frequently and boiled up. Temperature needs to be set.
Press “Menu/choice” button to
change as the picture(up)
Select the menu you want, then the press the
“My Mode” button and set-up time will be
automatically entered with a buzzer. (If you press
the “Cancel” button or do not press a button
within 7 seconds, the function will be cancelled
and returned to standby mode.)
After setting temperature, press “Mode”
select button. Preset temperature will be
stored with buzzer sound.
(It will be cancelled once press “Cancel”
button or after 7 seconds without
pressing any button.)
Press “Menu/choice” button
as the picture(down)
How to operate My Mode function.
Use it while opening the lid when there is too much water or rice becomes too soft.
In standby mode, push the
“mode” button 4times.
The voice says that it is
programmed warming
mode, control the
temperature you want.
Note: The reference temperature programmed when the
product is shipped may differ from the Instruction.
1. When you smell bad odors and the rice is too watery : The keep warm temperature is too low.
In this case, increase the “Keep Warm” temperature by 1~2 .
2. When the rice has a yellowish color or is too dry : The keep warm temp is too high.
In this case decrease the “Keep Warm” temperature by 1~2 .
Change of temperature
To raise temperature
To lower temperature
“
Set” button will blink, and
“
Mode”,
“
Menu/Selection” and
“
Cancel ”
buttons will be turned ON.
To switch the functions continuously, keep pressing the button.
“
Set” button will blink, and
“
Mode”,
“
Menu/Selection” and
“
Cancel ” buttons will be turned ON.
To switch the functions continuously, keep pressing the button.
“
Set” button will blink, and
“
Mode”,
“
Menu/Selection” and
“
Cancel ” buttons will be turned ON.
To switch the functions continuously, keep pressing the button.
“
Set” button will blink, and
“
Mode”,
“
Menu/Selection” and
“
Cancel ” buttons will be turned ON.
To switch the functions continuously, keep pressing the button.
Press “Mode” button over
1 time during warming. It displays
as picture with buzzer. At the
time, means current warming
temperature.
1. Hold “the mode” button for one second, then press the “mode” button 6times to set up sleeping mode.
If sleeping mode is not shown, keep on pressing the “mode”button until it is heard or displayed.
2. When you are in sleeping mode, it says “After selecting or canceling sleeping mode, press the set button.”
At this time, Menu/Selection will blink, and the Mode, Set, and Cancel will turn on.
3. Press the “Menu/Selection” button until you hear or see “Sleeping mode”, then Press set. You will see
nothing surrounding the rice cooker on the screen.
4. In the Sleep/Warm mode, if you press the Cancel button, the Voice message will state: “Time is over. The
function setting has been canceled.” If no button is pressed for more than 7 seconds, you’ll return to the
Standby mode.
1. Hold “the mode” button for one second, then press the “mode” button 6times to set up sleeping mode.
If sleeping mode is not shown, keep on pressing the “mode”button until it is heard or displayed.
2. When you are in sleeping mode, it says “After selecting or canceling sleeping mode, press the set button.”
At this time, Menu/Selection will blink, and the Mode, Set, and Cancel will turn on.
3. Press the “Menu/Selection” button until you hear “Sleeping mode has been canceled”, then Press set.
You will see rings around the rice cooker on the screen.
4. In the Sleep/Warm mode, if you press the Cancel button, the Voice message will state: “Time is over. The
function setting has been canceled.” If no button is pressed for more than 7 seconds, you’ll return to the
Standby mode.
How to activate “Sleeping” mode.
When keeping rice warm for a long time, set up the temperature low to prevent the following quality of rice:
smelly, dry, change of color; from PM10:00 ~ AM 04:00.
When odors are rising during the warming mode
Clean the lid frequently. It can cause bacteria and odors.
Even though exterior looks clean, there might be germs and it can cause odor so please be sure to use automatic
sterilization (steam cleaning) menu for cleaning. Clean the inner pot completely after automatic cleaning function is
done. (refer to 39)
After you cook soups and steamed dishes, clean the inner pot properly to prevent rice from smelling.
How to set up
How to release
If you need to keep the rice warm during sleeping, do not use this function. This function makes the rice
cooler than normal. In summer, the rice can be spoiled and may smell bad because of high temperature.
If possible, do not use the “Custom-made warming” mode while sleeping.
This function is set up as cancel state.
TO KEEP COOKED RICE WARM AND TASTY
HOW TO USE POWER SAVING FUNCTION
www.cuckoo.co.kr
ENGLISH
What is power saving of “Standby” mode?
A little electricity is wasted if power cord is not plugged in. It is called manual way as standby electric power.
The power saving of “Standby” mode is technology which minimises elcetricity consumption.
How to start power saving
Push Cancel button for 3seconds at
waiting state saving power function
is set up.
Automatic Method
If the standby time is chosen as a number without "0" at the automatic power saving mode, the automatic saving power function
will be operated.
If you move lid handle or push any button before passing waiting time, the waiting time which is reduced will go back to the setting.
Manual Method
How to end power saving
method 1) Push any button then it will be
returned to waiting mode.
method 2) If lid handle is turned to open or close, power saving
mode will be canceled and back to waiting state.
How to set up
1. If you “Push” mode button 7times at the standby state, automatic power saving
mode is set up.
2. When automatic power saving mode is set up, it says that this is automatic
power saving mode. Press the "Set" button after selecting waiting time.
3. If you select '0'minute with “Menu/Selection” button. automatic power saving
will be canceled. After setting up waiting time you want, press the "Set" button.
4. Without pressing any button within 7seconds or pushing “Cancel” button.
Automatic power saving function will be canceled and back to waiting mode
How to set Lock buttons
1. Button will be locked if "Set" button is pressed for 3 seconds or
longer during cooking,presetting, warming, reheating or in standby
condition.
2. When button is locked, a voice will sound saying "Button lock is
selected." At this time, button lock is displayed on the screen.
Lock can be set for touch button to prevent malfunction during cleaning with touch button or by children touch.
Setting Method
1. To cancel button lock, press "Set" button for 3 seconds or longer on
locked the button.
2. “Lock” sign on the display disappears when button lock is cancelled,
a voice will be saying “Button lock is cancelled.”
Cancelling Method
HOW TO LOCK BUTTONS
www.cuckoo.co.kr
ENGLISH
CHECK BEFORE ASKING
FOR SERVICE
If there is a problem with your cooker, check the following details before requesting service to your dealer.
Sometimes the cooker may not operate as desired if used incorrectly.
Case
When the rice is not cooked.
When the rice is not well
cooked.
Bean(other grains) is half
cooked.
Rice is too watery or stiff.
When the water overflows.
When you smell odors while
warming.
signs show up.
signs show up.
Rice has gotten cold or a lot of
water flow during keeping warm
If “ ” sign is appears.
Check points
Pressure “Cook/Turbo” button is pressed?
Is there power cut while in cooking?
Did you use the measuring cup for the
rice?
Did you put proper amount of water?
Did you rinse the rice before cooking?
Did you put rice in water for a long time?
Is the rice old or dry?
Is bean (other grains) too dry?
Is the menu selected correctly?
Did you properly measure water?
Did you open the top cover before
cooking was finished?
Did you use the measuring cup?
Did you use proper amount of water?
Is the menu selected correctly?
Did you close the top cover?
Please check it the power cord is plugged.
Did it warm over 12 hours?
Is there any other substance such as rice
scoop or cold rice?
Temperature sensor or fan motor does
not work properly.
Keeping warm was set in “Sleeping”
mode
It shows on the display when pressing
“Start” button again, or when the cooking
has finished and you
ve never turned the
handle to ‘Unlock’.
Warming passed time mark
blinks during keeping warm
24 hours has not passed yet after keeping
warm
Do the following
Keep warm after cancelling or setting “Sleep
Keeping Warm” mode depending on the necessity
It can be solved by turning handle to ‘Unlock’
and then turn to ‘Lock’.
This function alarms if the rice remained warm
for more than 24 hours.
Unplug the power cord and call the Service
center.
“ ”sign shows up
Detachable cover is not mounted
Alarm sounds or reheating does
not work while keeping warm
Detachable cover is not mounted Mount detachable cover. (See page 41)
Mount detachable cover. (See page 41)
If “ ” sign is displayed continuously even
though you already installed detachable cover,
please contact customer service.
Close the top cover perfectly.
Always keep the power on while warming.
As possible, keep warming time within 12 hours.
Don’t warm rice with other substance.
Refer to page 44.
Select the correct menu.
Properly measure water.
Open the top cover after cooking finished.
Soak or steam beans and other grains before
cooking in the pressure cooker in order to avoid
partially cooked beans or grains. Beans should be
soaked for-2-minutes or steamed for-2-minutes
prior to cooking, depending on your taste.
Refer to page 44.
Add water about half the notch and then cook.
Press the “Pressure Cook” button
once. And check “ ”sign on the display.
Re-press the “Pressure Cook/Turbo” button.
If there is a problem with your cooker, check the following details before requesting service to your dealer. Sometimes the
cooker may not operate as desired if used incorrectly.
Case Check points Do the following
When the Pressure
“Cook/Turbo” Timer
button does not operate
with “ ”
When the rice is badly sticky.
Did you turn the Lock/Unlock Handle
to “Lock”
Is “pressure” lamp on?
Is there any rice or any other alien
substance on the temperature sensor or
the bottom surface of the inner pot?
When the button cannot
operate with “ ”
Is the inner pot inserted?
Check the rated voltage?
Clean all the alien substance on the temperature
sensor or the bottom surface of the inner pot.
When the time cannot be
preset.
When you smell after and
before cooking?
When the top cover cannot be
closed.
Is the current time correct?
Is AM or PM set properly?
Did you set the reservation time over 13
hours?
Did you clean it after cooking?
Is the inner pot correctly inserted in the main
body?
Is the Lock/Unlock handle on the top cover
set to “Lock”?
Is there hot food in the inner pot?
Check the rated Voitage?
Set the current time. (Refer to page 42)
Check the AM and PM.
Maximum reservation time is 13 hours.
(Refer to page 53~54)
Please clean it after cooking.
When “ ” is showed
on the LCD
Micom power is out. Please cut the power and contact customer service.
When “ ”, “ ” are
shown on the LCD by turns.
The sensor is broken. Please cut the power and contact customer service.
When “ ”, “ ” are
shown on the LCD by turns.
“ ” sign is displayed during
the cooking, warming/reheating,
or preset process is activated.
Is there inner pot in the product?
“ ”or “ ” mark shows
up during the product operation
Please insert inner pot
If the sign continuously displayed, cut the power
and contact customer service.
This function checks to see if power or product has
abnormality. If the mark shows up continuously,
contact customer service.
Please insert inner pot.
This product is 220V only.
Please turn the “Lock/Unlock” handle to “Lock”.
Cut the power and contact customer service.
It is normal to get “ ” when putting only
water.
This is only for 220V.
Please put in the inner pot perfectly.
Please turn the “Lock/Unlock” handle to “Lock”.
Pull the pressure handle to aside once.
CHECK BEFORE ASKING
FOR SERVICE
www.cuckoo.co.kr
ENGLISH
CHECK BEFORE ASKING
FOR SERVICE
Case
When cannot turn to “Unlock”.
When the top cover cannot
open although the Lock/Unlock
handle is turned to "Unlock".
When the steam exhausted
between the top cover.
When the “Cancel” button
does not operate while
cooking.
When you hear weird noises
during cooking and warming
Brown rice is not germinated
properly
Check points
Did you turn the “Lock/Unlock” handle while
cooking?
Did you turn the “Lock/Unlock” handle
before exhausting steam perfectly?
Is there an external substance on the
packing?
Is packing too old?
Is the inner pot hot?
Is currently the setting to lock mode?
Is there a wind blowing sound when
cooking the rice?
Is there a “Chi” sound when warming the
rice?
Does the amount of rice exceed the specified
maximum capacity?
Is the brown rice too old?
Do the following
Don’t open the top cover while cooking. If you want
to open top cover while cooking, press the “Cancel”
button more than 2 seconds and exhaust the steam.
Pull the pressure handle to aside once and exhaust
the steam perfectly.
Because of the pressure.
Pull the pressure handle to aside once and exhaust
the steam perfectly.
Clean the packing with duster.
Keep the packing clean.
If the steam is exhausted through the top cover,
please power off and contact the service center and
dealer.
Packing life cycle is 12 month, please replace the
packing per 1 year.
Keep pressing the “Cancel” button for 2 seconds for
safety reason if you want to cancel while cooking.
Be careful of hot steam emission or hot contents
spattered from the automatic steam outlet during
cancellation.
Please press “Set” button for over 3 seconds to
release.
This is the sound of the fan motor to cool
the internal parts. This is normal.
The “Chi” sound during the warming process is the
sound of IH cooker operating. This is normal.
Put the specified maximum capacity of brown rice.
Old rice or contaminated rice may not be
germinated properly. (Refer to page 50)
If there is a problem with your cooker, check the following details before requesting service to your dealer. Sometimes
the cooker may not operate as desired if used incorrectly.
COOKING GUIDE
COOKING GUIDE
www.cuckoo.co.kr
RECIPE
COOKING GUIDE
COOKING GUIDE
www.cuckoo.co.kr
RECIPE
COOKING GUIDE
COOKING GUIDE
www.cuckoo.co.kr
RECIPE
COOKING GUIDE
COOKING GUIDE
www.cuckoo.co.kr
RECIPE
COOKING GUIDE
e n j o y c o o k i n g
www.cuckoo.co.kr
www.cuckoo.co.kr
383-862D Rev.0
