OWNER'S MANUAL
DISHWASHER
Read this owner's manual thoroughly before operating the appliance and keep
it handy for reference at all times.
ENGLISH
SKSDW2401S
MFL69261725
Rev.16_030323
www.signaturekitchensuite.com
Copyright © 2018-2023 Signature Kitchen Suite. All Rights Reserved.
Scan to see the online manual.
TABLE OF CONTENTS
2
3 IMPORTANT SAFETY
INSTRUCTIONS
3 READ ALL INSTRUCTIONS BEFORE USE
3 WARNING STATEMENTS
6 CAUTION STATEMENTS
7 PRODUCT OVERVIEW
7 Product Features
9 INSTALLATION
9 Before Installing
10 Preparing Cabinet Opening
11 Preparing Water and Electrical Connections
12 Preparing Dishwasher
13 Sliding Dishwasher into Cabinet Opening
15 Connecting Water Supply Line and Power
17 Connecting the Drain Hose
18 Leveling Dishwasher
19 Securing Dishwasher in Cabinet Opening
20 Final Installation Check
22 OPERATION
22 Before Using
24 Control Panel
25 Wash Cycles
26 Options and Extra Functions
28 Loading the Dishwasher
29 Loading the Silverware Basket
29 Loading the Lower Rack
31 Loading the Upper Rack
34 Loading the Cutlery Rack
35 Adding Cleaning Products
38 SMART FUNCTIONS
38 LG ThinQ Application
40 Smart Diagnosis
TM
Function
42 MAINTENANCE
42 Cleaning and Care
46 TROUBLESHOOTING
46 Before Calling for Service
53 LIMITED WARRANTY
53 USA
55 CANADA
3IMPORTANT SAFETY INSTRUCTIONS
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
Safety Messages
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and
follow all safety messages.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury,
and tell you what may happen if the instructions are not followed.
WARNING STATEMENTS
WARNING
• To reduce the risk of explosion, fire, death, electric shock, scalding or injury to persons when using this
product, follow basic precautions, including the following:
Installation
• Connect to a properly rated, protected, and sized power circuit to avoid electrical overload.
• To reduce the risk of severe injury or death, follow all installation instructions.
• The appliance must be installed and electrically grounded by qualified service personnel in accordance
with local codes.
• Disconnect the power supply line, house fuse or circuit breaker before installing or servicing the
appliance.
• When moving or installing the product in a different location, call qualified service personnel for
installation and service.
• Keep packing materials out of the reach of children. Packaging material can be dangerous for children.
There is a risk of suffocation.
• Moving or installation of the appliance requires two or more people.
• This appliance is not designed for maritime use or for mobile installations such as in RVs, trailers, or
aircraft.
• Store and install the appliance where it will not be exposed to temperatures below freezing or exposed
to outdoor weather conditions.
• This appliance must be positioned near to an electrical power supply.
• Do not, under any circumstances, cut or remove the ground from the power supply line.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or injure you and others. All safety messages
will follow the safety alert symbol and either the word WARNING or CAUTION.
These words mean:
WARNING
You may be killed or seriously injured if you do not follow instructions.
CAUTION
You may be injured or cause damage to the product if you do not follow instructions.
4 IMPORTANT SAFETY INSTRUCTIONS
• When installing or moving the appliance, be careful not to pinch, crush, or damage the power supply
line.
• Do not install the appliance in humid spaces.
• Destroy the carton, plastic bag, and other packing materials after the appliance is unpacked. Children
might use them for play. Cartons covered with rugs, bedspreads, or plastic sheets can become airtight
chambers.
• Never attempt to operate this appliance if it is damaged, malfunctioning, partially disassembled, or has
missing or broken parts, including a damaged power supply line.
• Adhere to all industry recommended safety procedures including the use of long-sleeved gloves and
safety glasses.
• The installer must ensure that the dishwasher is completely enclosed at the time of installation.
• Use new hoses when connecting the appliance to the water supply. Do not reuse old hoses.
• After installing, check the hose connection for leaks.
• Do not damage or place heavy items on the power supply line of the appliance.
Operation
• Repair or immediately replace all power supply lines that have become frayed or otherwise damaged. Do
not use a power supply line that shows cracks or abrasion damage along its length or at either end.
• If you detect a strange sound, a chemical or burning smell, or smoke coming from the appliance, unplug
it immediately, and contact a SIGNATURE KITCHEN SUITE customer information center.
• Never unplug the appliance by pulling on the power supply line.
• Do not use an extension cable or adapter with this appliance.
• Do not grasp the power supply line or touch the appliance controls with wet hands.
• Do not modify or extend the power cable.
• If the product has been submerged, contact a SIGNATURE KITCHEN SUITE customer information center
for instructions before resuming use.
• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliance.
• Keep the area underneath and around your appliances free of combustible materials (lint, paper, rags,
etc.), gasoline, chemicals and other flammable vapors and liquids.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning the use of the appliance by a person responsible for their safety.
• If the electrical supply line is damaged, it must only be replaced by the manufacturer or its service agent
or a similar qualified person in order to avoid a hazard.
• Do not abuse, sit on, or stand on the door of the appliance.
• Read all instructions before using the appliance and save these instructions.
• Use this appliance only for its intended purpose.
• Do not allow children to play on, in or with the appliance. Close supervision of children is necessary when
the appliance is used near children.
• Do not tamper with controls.
• In the event of a gas leak (propane gas, LP gas, etc.) do not operate this or any other appliance. Open a
window or door to ventilate the area immediately.
• Under certain conditions, hydrogen gas may be produced in a hot-water system that has not been used
for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot-water system has not been used for
such a period, before using the appliance turn on all hot water faucets and let the water flow from each
for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not
smoke or use an open flame during this time.
5IMPORTANT SAFETY INSTRUCTIONS
ENGLISH
• Fix the drain hose securely in place.
• Use only detergents or wetting agents recommended for use in a dishwasher and keep them out of the
reach of children.
• Do not let children eat detergent or dishwasher rinse agent.
• When loading items to be washed:
- Locate sharp items so that they are not likely to damage the door seal.
- Load sharp knives with the handles up to reduce the risk of cuts or other injuries.
• Do not wash plastic items unless they are marked "dishwasher safe" or the equivalent. For plastic items
not so marked, check the manufacturer’s recommendations.
• Do not touch the HEATING ELEMENT during or immediately after use.
• Do not operate your dishwasher unless all ENCLOSURE panels are properly in place.
• Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.
• Do not install or store the dishwasher where it will be exposed to weather conditions.
• After cleaning the dishes, turn off the water supply. Before cleaning, turn the water supply back on and
check the connections.
• Do not open the appliance door while it is operating. For safety reasons, the drain pump operates if the
door is opened, resulting in a longer cycle time.
• Be careful not to catch your hand when closing the door of the product.
• Do not plug the dishwasher into a damaged outlet.
• Do not install or keep the dishwasher near electrical components or exposed flames.
• Do not wash dishes exposed to gasoline, solvents or other flammable materials.
• When cleaning, do not spray water on the product directly.
• Do not press buttons with a sharp object such as an awl or pin.
• Do not use solvent-based detergent.
• Do not come into contact with the steam outlet.
• Small parts, such as rack clips and filter retaining posts can be a choke hazard to small children if
removed from the dishwasher. Keep out of reach of small children.
Maintenance
• Do not repair or replace any part of the appliance. All repairs and servicing must be performed by
qualified service personnel unless specifically recommended in this Owner’s Manual. Use only
authorized factory parts.
• Do not disassemble or repair the appliance by yourself.
• Remove any dust or foreign matter from the power supply line.
• Disconnect this appliance from the power supply before cleaning and attempting any user maintenance.
Turning the controls to the OFF position does not disconnect this appliance from the power supply.
• Remove the door before the appliance is removed from service or discarded to avoid the danger of
children or small animals getting trapped inside.
• Unplug the appliance before cleaning to avoid the risk of electric shock.
• Before discarding the appliance, cut off the power supply line and destroy the appliance's control panel.
Grounding Instructions
• For a permanently connected dishwasher: This appliance must be connected to a grounded metal,
permanent wiring system, or an equipment-grounding conductor must be run with the circuit
conductors and connected to the equipment-grounding terminal or lead to the appliance.
• Connect the ground wire to the green ground connector in the terminal box.
6 IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
Tip Over Hazard
• Do not use the dishwasher until completely installed.
• Do not push down on the open dishwasher door.
• Failure to follow these instructions may result in serious injury or cuts.
CAUTION STATEMENTS
CAUTION
• To reduce the risk of minor or moderate injury to persons, malfunction, or damage to the product or
property when using this product, follow basic precautions, including the following:
Installation
• Install the product on a firm and level floor.
• This dishwasher must be connected to a hot water supply with a temperature range between 120 °F (49
°C) and 149 °F (65 °C). This temperature range provides the best washing results and shortest cycle time.
The temperature should not exceed 149°F (65 °C) to prevent damage to dishes.
• Do not put the drain hose under the dishwasher during installation.
Operation
• Do not place objects on top of the appliance.
• Turn off the water faucets and unplug the appliance if the appliance is to be left for an extended period
of time, such as during vacations.
• Do not store or spill liquid detergents, cleaners, or bleaches (chlorine bleach, oxygen bleach) on the
appliance. Doing so may result in corrosion, discoloration or damage to the surface of the appliance.
• Do not touch draining water which may be hot.
• If the drain hose and the water supply hose are frozen in winter, defrost before using the appliance.
• Do not put hands, feet, or metal objects below or behind the appliance.
Maintenance
• If cooking oil is spilled on the exterior of the product, wipe it off immediately. Do not clean the exterior of
the product with cleaners which contain alcohol, thinners, bleach, benzene, flammable liquids, or
abrasives. These substances may discolor or damage the appliance.
7PRODUCT OVERVIEW
ENGLISH
PRODUCT OVERVIEW
Product Features
The images in this guide may be different from the actual components and accessories, which are subject
to change by the manufacturer without prior notice for product improvement purposes.
NOTE
• For your safety and for extended product life, use only authorized components. The manufacturer is not
responsible for product malfunction or accidents caused by the use of separately purchased
unauthorized components or parts.
• Do not remove the safety cover at any time.
• To ensure reliability, each SIGNATURE KITCHEN SUITE dishwasher goes through thorough quality
control before it leaves the factory.
• You may find water droplets or water spots from this process inside your new dishwasher.

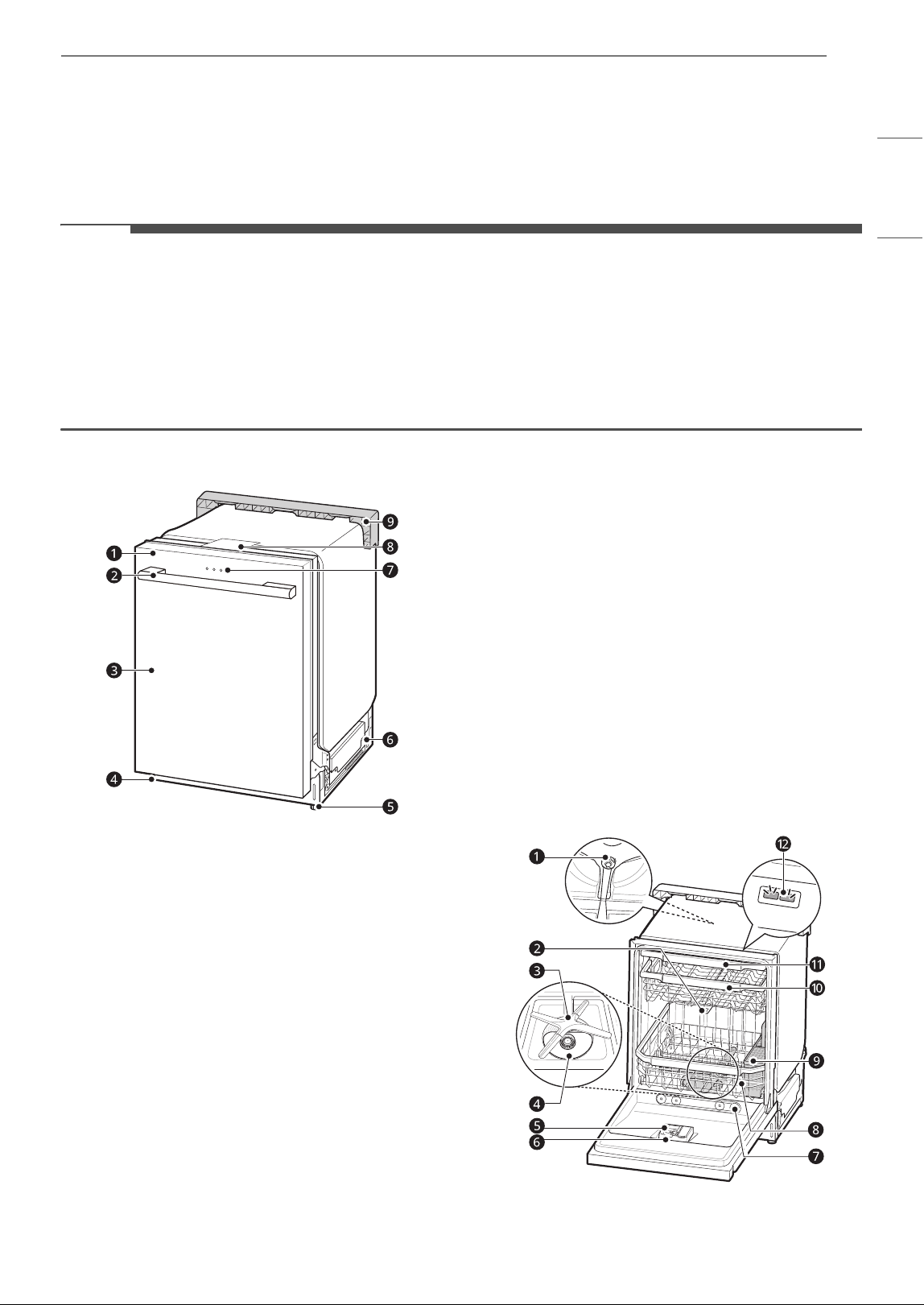

Front View
a Control Panel
b Door Handle
c Front Cover
d Lower Cover
e Leveling Feet
f Base
g SignaLight
TM
h Safety Cover
i Shipping Brace
SignaLight™ (Front Display)
The top-control models have 3 indicator LEDs
centered at the top of the front cover.
• Red: Error (See the Error Codes in
Troubleshooting section.)
• White (steady): Normal operation.
• White (blinking): Cycle has been paused. (After
four minutes in pause mode, the machine turns
off.)
• Green: Cycle finished normally.
The default ON setting keeps the green light on
until the door is opened. If the setting is changed
to OFF, the green light turns off after 90 seconds.
To change the setting, turn the power on and
press and hold the High Temp button for 3
seconds until ON or OFF appears in the display.
The setting is stored until you change it.
Interior View
a Top Wash Impeller
b Upper Spray Arm
8 PRODUCT OVERVIEW
c Lower Spray Arm
d Filtration System
e Detergent and Rinse Aid Dispenser
f Drying Vent Cover
g Steam Nozzle
h Lower Rack (appearance may vary)
i Silverware Basket
j Upper Rack
k Cutlery Rack
l Tub Light
NOTE
• The silverware basket ships installed at the back
of the bottom rack. For best performance, install
it along the right side.
• Remove all packing materials from the exterior
and interior of the dishwasher before installing
the appliance.
• Press the tab to remove the cable tie by hand.
Cutting the tie with a knife or scissors may
damage the rack or the silverware basket.
Accessories
a Installation Brackets (2 ea)
b Wood Screws (4 ea)
c Hose Clamp
NOTE
• Accessories are inside the silverware basket.
Product Specifications
The appearance and specifications listed in this
manual may vary due to constant product
improvements.
Model SKSDW2401S
Electrical
Requirements
120 V, 60 Hz AC only,
15 A circuit breaker
Water Pressure 20 psi - 80 psi
(140 kPa - 550 kPa)
Dimensions
(Width X Depth X
Height)
23 3/4” X 24 5/8” X 33 5/8”
(603 mm X 625 mm X 854
mm)
Inlet Water
Temperature
120 ℉ - 149 ℉
(49 ℃ - 65 ℃)
Net Weight 97 lb (44 kg)
a
b
c
9INSTALLATION
ENGLISH
INSTALLATION
Before Installing
Parts not Provided
a Electrical Cable
• 16 AWG, with 2 conductors and 1 ground
b Water Supply Tube
• Minimum 3/8″ O.D. copper tubing or
stainless steel braided water supply line
c Fittings for Tube
d Coupler
e Electrical Tape
f Air Gap
g Wire Nuts for 16-Gauge Wiring
h Hose Clamp
i 3/8″ UL Approved Strain Relief
Tools Needed
a Flat-Blade Screwdriver
b Phillips Screwdriver
c Hole Saw min. 2 1/2” bit
d Electric Drill
e Gloves
f Safety Glasses
g Adjustable Wrench
h Tape Measure
i Utility Knife
j Level
k 1/4” Square Drive Wrench
l Nipper
m Pliers
n Wire Stripper
o Tubing Cutter
p 3/8” Square Drive Wrench + 1/2” Socket
abc
def
ghi
abc
def
ghi
klj
mno
p
10 INSTALLATION
Installation Overview
Please read the following installation instructions
first after purchasing this dishwasher or
transporting it to another location.
a Preparing Cabinet Opening
b Preparing Water and Electrical Connections
c Preparing Dishwasher
d Sliding Dishwasher into Cabinet Opening
e Connecting Water Supply Line and Power
f Connecting the Drain Hose
g Leveling Dishwasher
h Securing Dishwasher in Cabinet Opening
i Final Installation Check

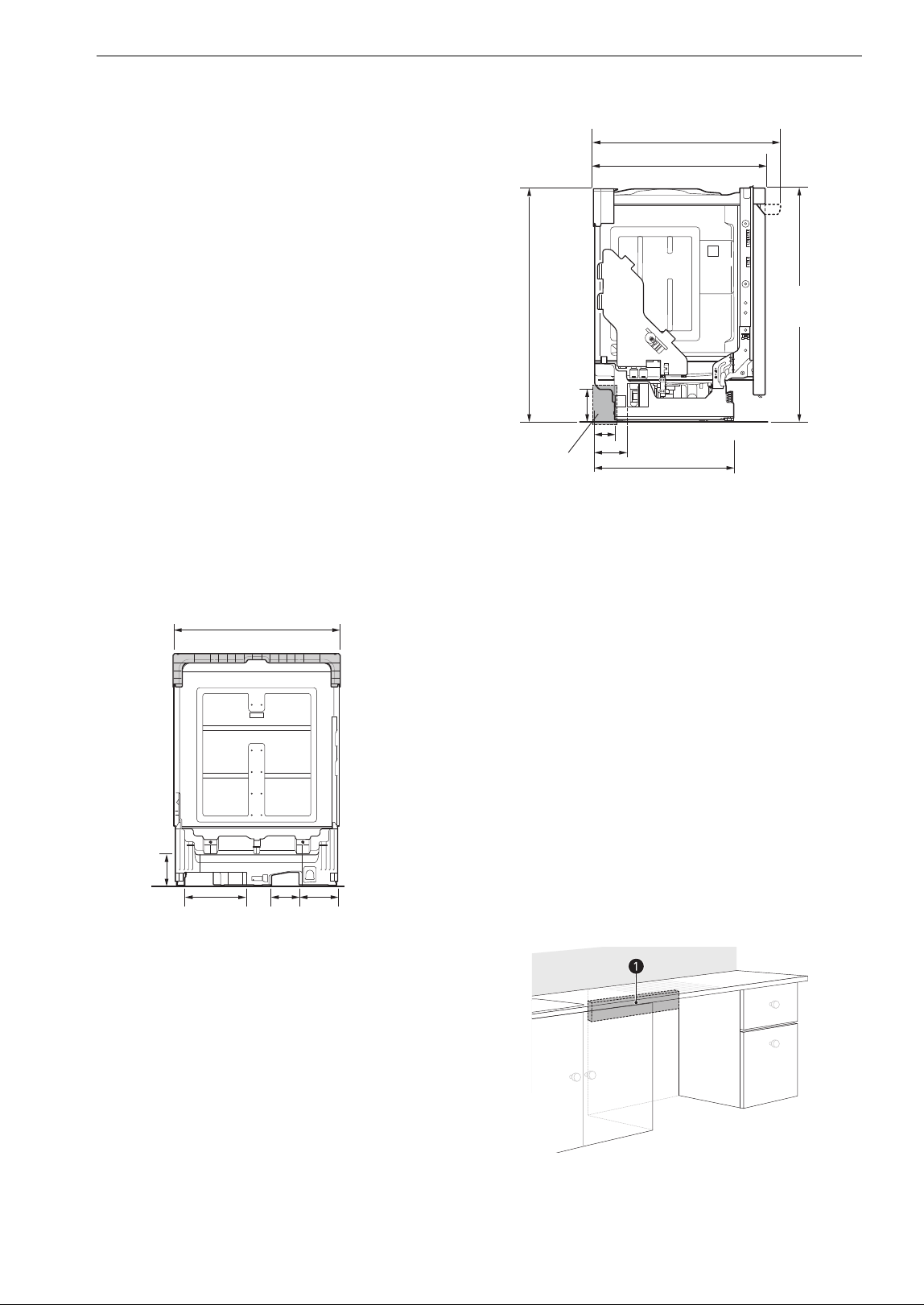

Product Dimensions
Back View
Side View
For easiest installation, see marked areas a for
water and electrical clearances in base of
dishwasher. Water supply hose, drain hose and
electric cable should be passed through this area.
Preparing Cabinet Opening
This dishwasher is designed to fit a standard
dishwasher opening. An opening may be needed
on both sides to route plumbing and electrical
connections.
• To ensure proper drainage, install the
dishwasher no more than 12 ft. (3.65 m) from
the sink.
• The location must have sufficient space for the
dishwasher door to open easily and provide at
least 0.1” (2 mm) between the dishwasher and
the cabinet sides.
• If installing the dishwasher in a corner, leave a
minimum of 2” (50 mm) between the dishwasher
and the adjacent wall.
• The adjacent wall must be free of obstructions.
• For flush installations only, you may remove the
cabinet brace
a inside the cabinet.
23 /4" (603 mm)
3
9 /8"
(238 mm)
3
4 /16"
(119 mm)
5
/4"
(134 mm)
11
1
4 /2"
(115 mm)
1
33 /16"
(846 mm)
5
4 /2"
(115 mm)
1
33 /8"
(854 mm)
5
2 /16" (75 mm)
15
20 /16" (512 mm)
3
24 /8" (625 mm)
5
4 /4" (120 mm)
3
26 /8 - 26 /16" (676 - 681 mm)
513
a
11INSTALLATION
ENGLISH

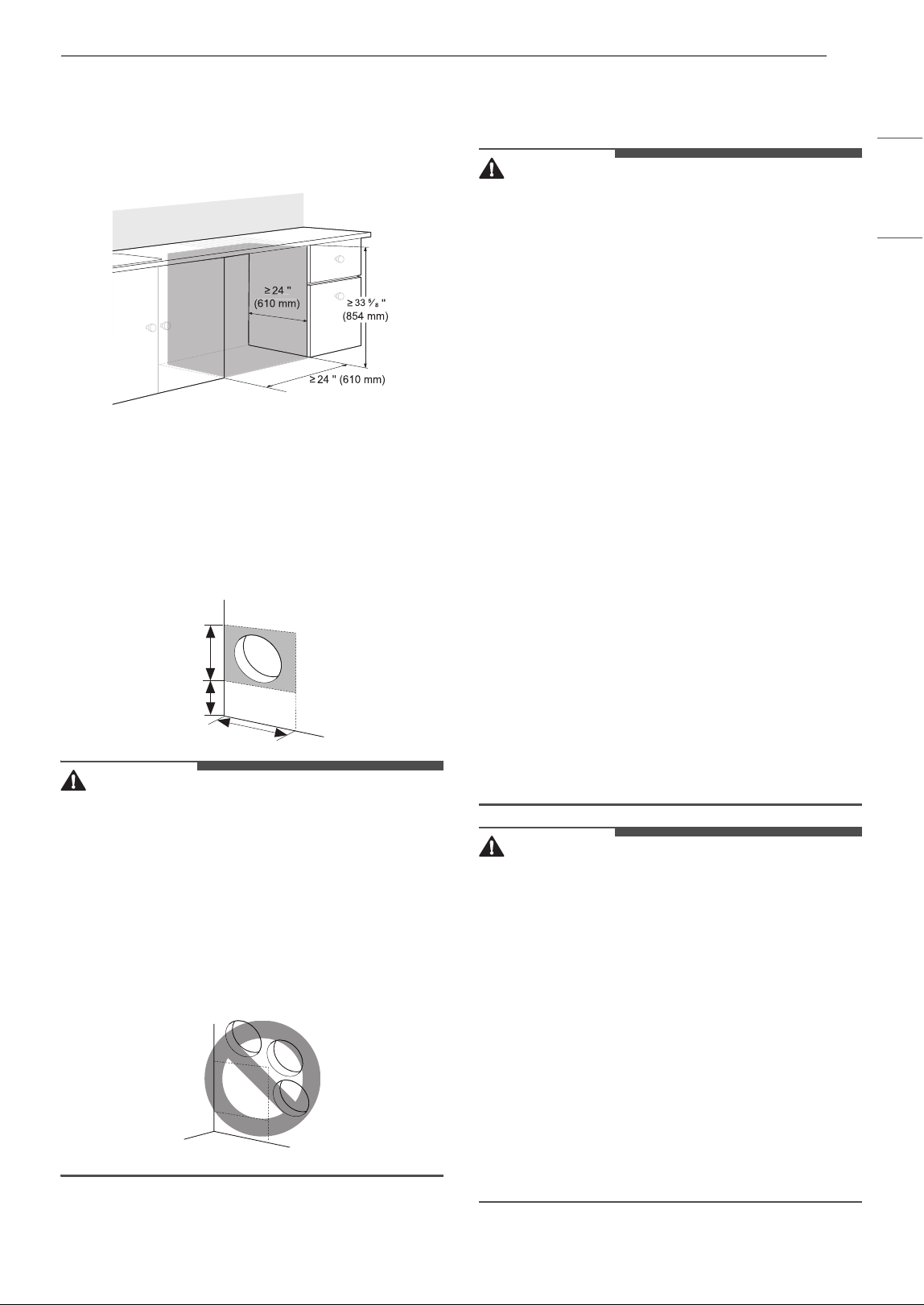

Choosing the Proper Location
1 Select a location as close to the sink as
possible for easy connections to water supply
line, drain hose and electrical connection.
2 To allow for proper clearance of plumbing
and electrical, use the template included with
the literature to determine the clearance on
the side of the cabinet where the cabinet
meets the back wall. Using a 2 1/2” diameter
hole saw, drill a hole in the target area as
shown on the template.
WARNING
• Installation damage is not covered by the
warranty, and leaks caused by improper
installation may result in property damage.
• Do not use existing holes unless they are in the
target area.
• Failure to properly locate the hole for the water
and drain lines may prevent the dishwasher
from installing flush with the cabinets and could
result in kinked, pinched, crushed, stressed or
damaged lines.
Preparing Water and
Electrical Connections
WARNING
• Water Connection
- Do not reuse an old hose. Use only a new hose
when installing the dishwasher. The old hose
could leak or burst causing flooding and
property damage. Contact a SIGNATURE
KITCHEN SUITE Customer Information Center
for assistance in buying a new hose.
• Electrical Connection
- Use a time-delay fuse or circuit breaker.
- Operate this appliance with the correct voltage
as shown in this manual and on the rating
plate.
- The wiring must be grounded properly. If in
doubt, have it checked by a qualified
electrician.
- Connect the appliance using 3-wires, including
a ground wire.
- The appliance and outlet must be positioned
so that the plug is easily accessible.
- Do not use an extension cable or adapter with
this dishwasher.
- Do not overload the outlet with more than one
appliance.
- The included 16AWG wire nuts should be used.
- It is the personal responsibility and obligation
of the product owner to have a proper outlet
installed by a qualified electrician.
CAUTION
• When connecting the dishwasher water supply
line to the house water supply, sealing tape or
compound should be used on pipe threads to
avoid leaks. Tape or compound should not be
used on compression fittings.
• Connect the dishwasher to a hot water supply
with a temperature range between 120 °F (49 ℃)
and 149 °F (65 ℃). This temperature range
provides the best washing results and shortest
cycle time. To prevent damage to dishes, the
temperature should not exceed 149 °F (65 ℃).
• Water supply pressure must be between 20 psi
and 80 psi (140–550 kPa). If the water supply
pressure exceeds 80 psi, a pressure reducing
valve must be installed. Otherwise premature
failure of the inlet valve may occur.
3.5
''
2.5
''
4
''
12 INSTALLATION

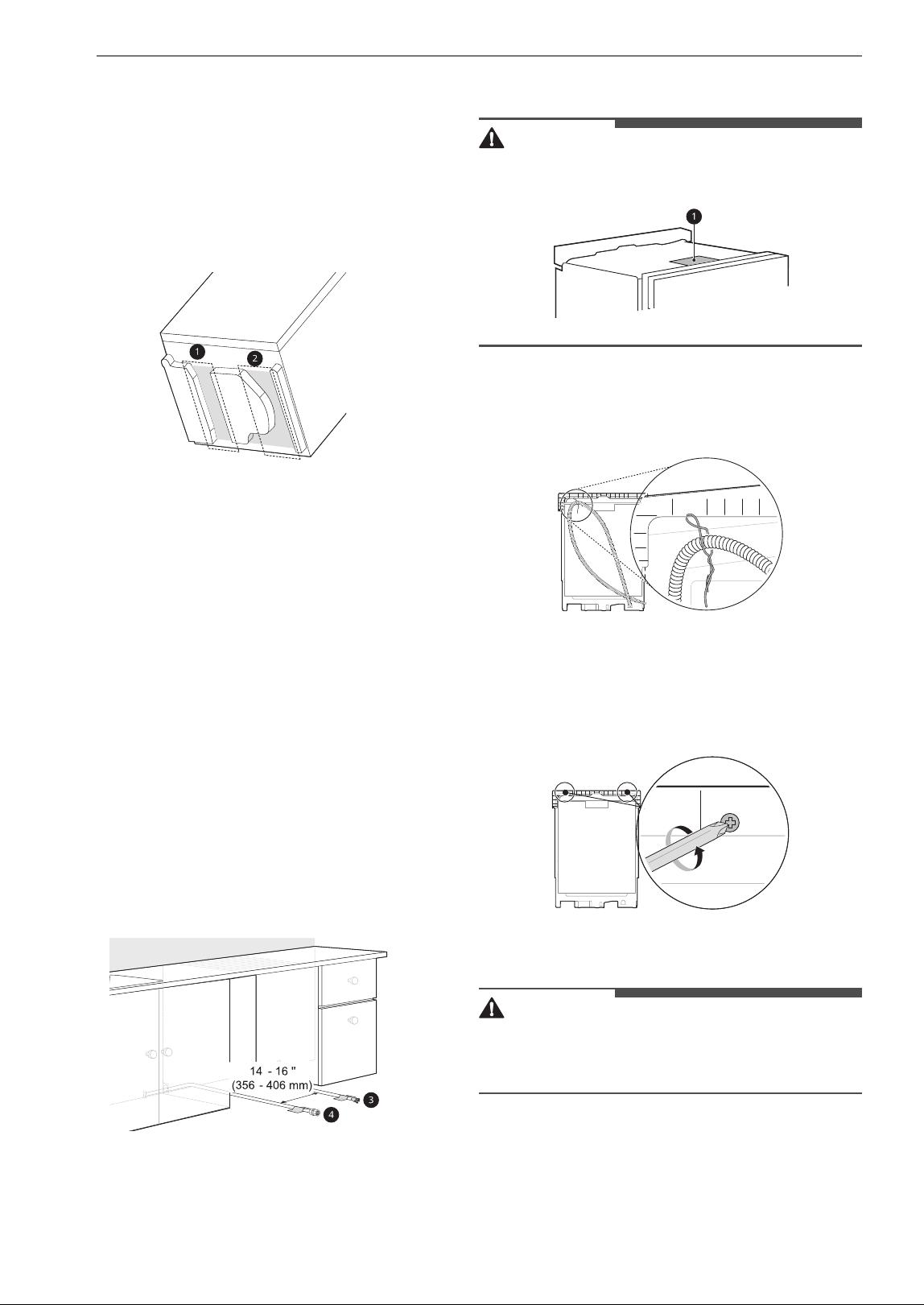

Routing Water Supply Line and
Electrical Wiring
There are 2 channels in the bottom of the
dishwasher for routing the water and electrical
connections.
• As shown in the bottom view below, channel
a
is for the water supply line, and channel
b is for
the electrical cable.
1 Turn off the house water supply and the
circuit breaker or dedicated power before
connecting the dishwasher.
2 Run the water supply line along the floor 6 1/
2" – 7 3/4" (165 mm – 197 mm) from the left
side of the opening and tape it in place in
front of the opening.
3 Run the electrical cable c along the floor 14"
– 16" (356 mm – 406 mm) from the water
supply line
d and tape it in place.
• The electrical outlet must be within 4 ft.
(1.22 m) of either side of the dishwasher.
• The best location for the electrical conduit is
on the right side of the back wall. Re-route
the electrical cable before installation if the
electrical conduit pipe is longer than 3" (76
mm) and is centered on the back wall.
Preparing Dishwasher
WARNING
• Do not remove safety cover a. Removal can
result in fire, electric shock or death.
Releasing Drain Hose
Remove the twist tie holding the drain hose to the
back of the shipping brace.
Removable Shipping Brace
The rear shipping brace can be removed if
additional clearance is needed when installing the
dishwasher under a low countertop.
Removing Lower Cover
CAUTION
• If you lay the dishwasher on its back, do so
carefully to avoid damaging the drain hose and
the tub.
1 Remove the screws at either side which attach
the lower cover to the dishwasher.
13INSTALLATION
ENGLISH
2 Remove the lower cover.
3 If there is insulation padding behind the lower
cover, remove it.
4 Set the parts aside until the installation is
complete.
Removing Packing Materials from
the Interior
Remove all packing materials from the interior of
the dishwasher before installing the appliance.

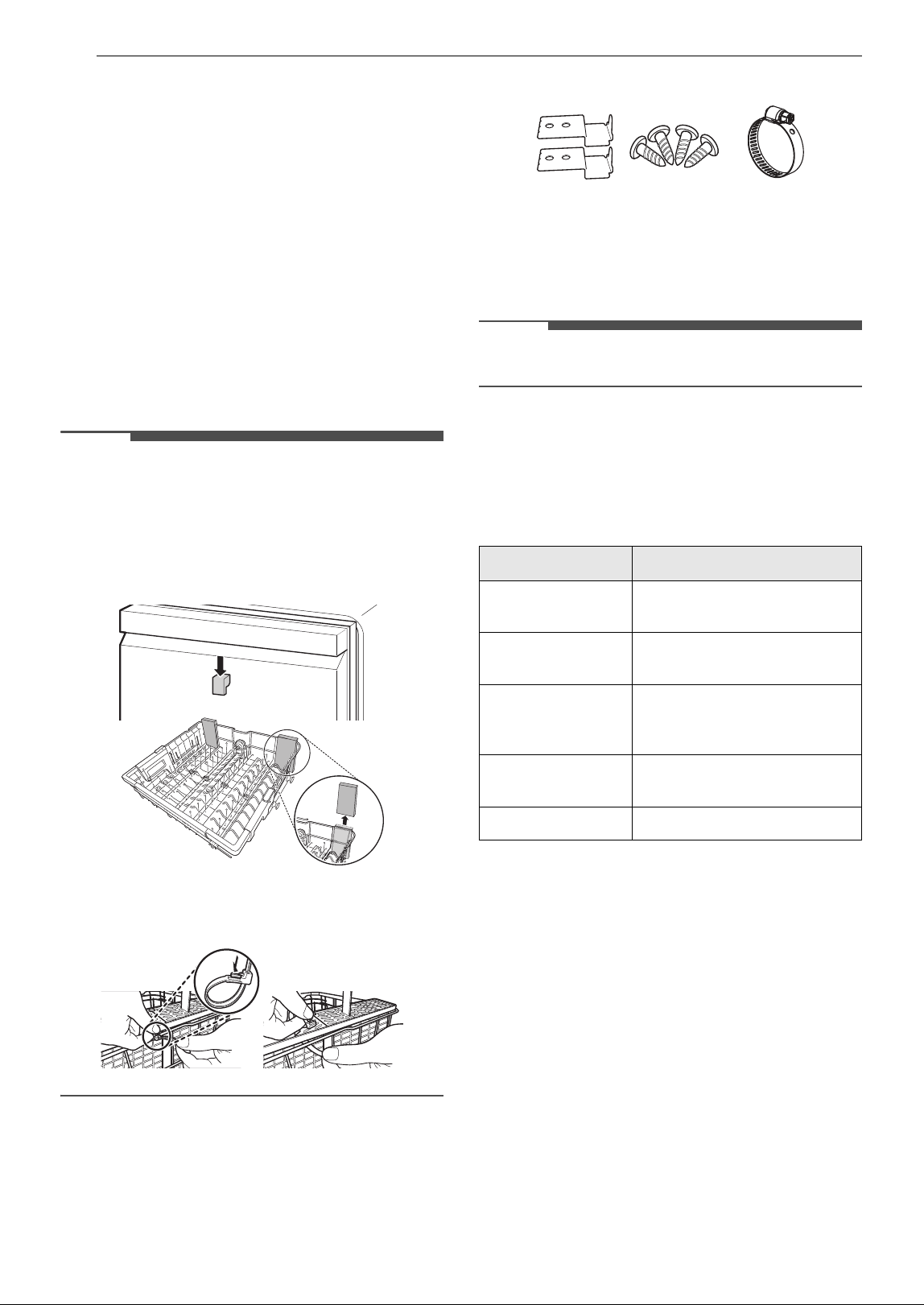

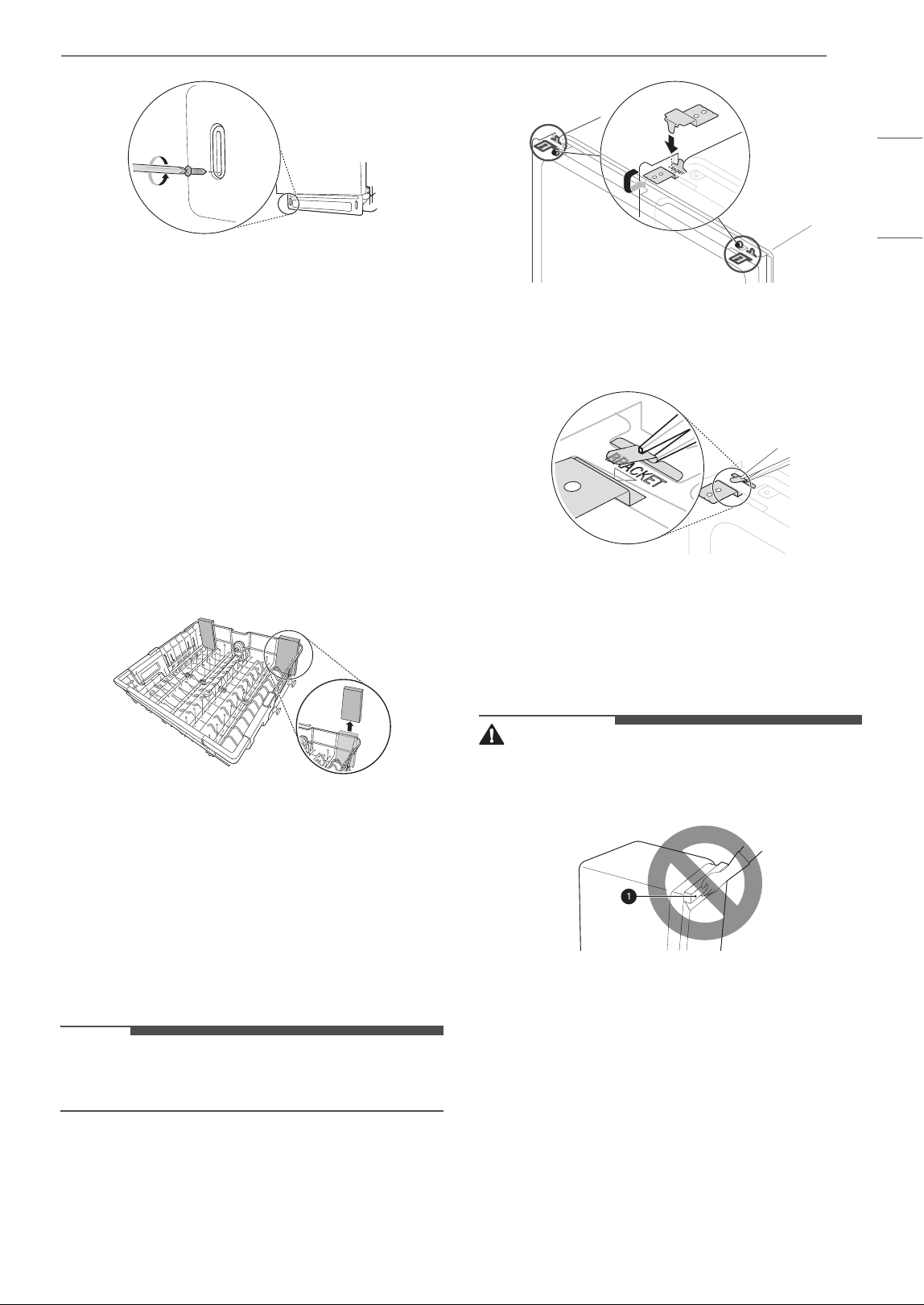

Attaching Installation Brackets
For countertops made of wood or other materials
that will not be damaged by drilling, use the metal
installation brackets provided.
For countertops made of granite, marble, or other
materials that could be damaged by drilling, use
the wood screws to attach the dishwasher to the
cabinet. See installation instructions in Securing
Dishwasher to Cabinet Opening.
NOTE
• Installation brackets and screws can be found in
the silverware basket.
1 Insert the tabbed end of the installation
brackets into the slots in the upper frame.
Rotate the brackets until the tabbed ends are
facing up.
2 Bend the tabs on the brackets to secure them
to the frame using a pair of needle nose
pliers.

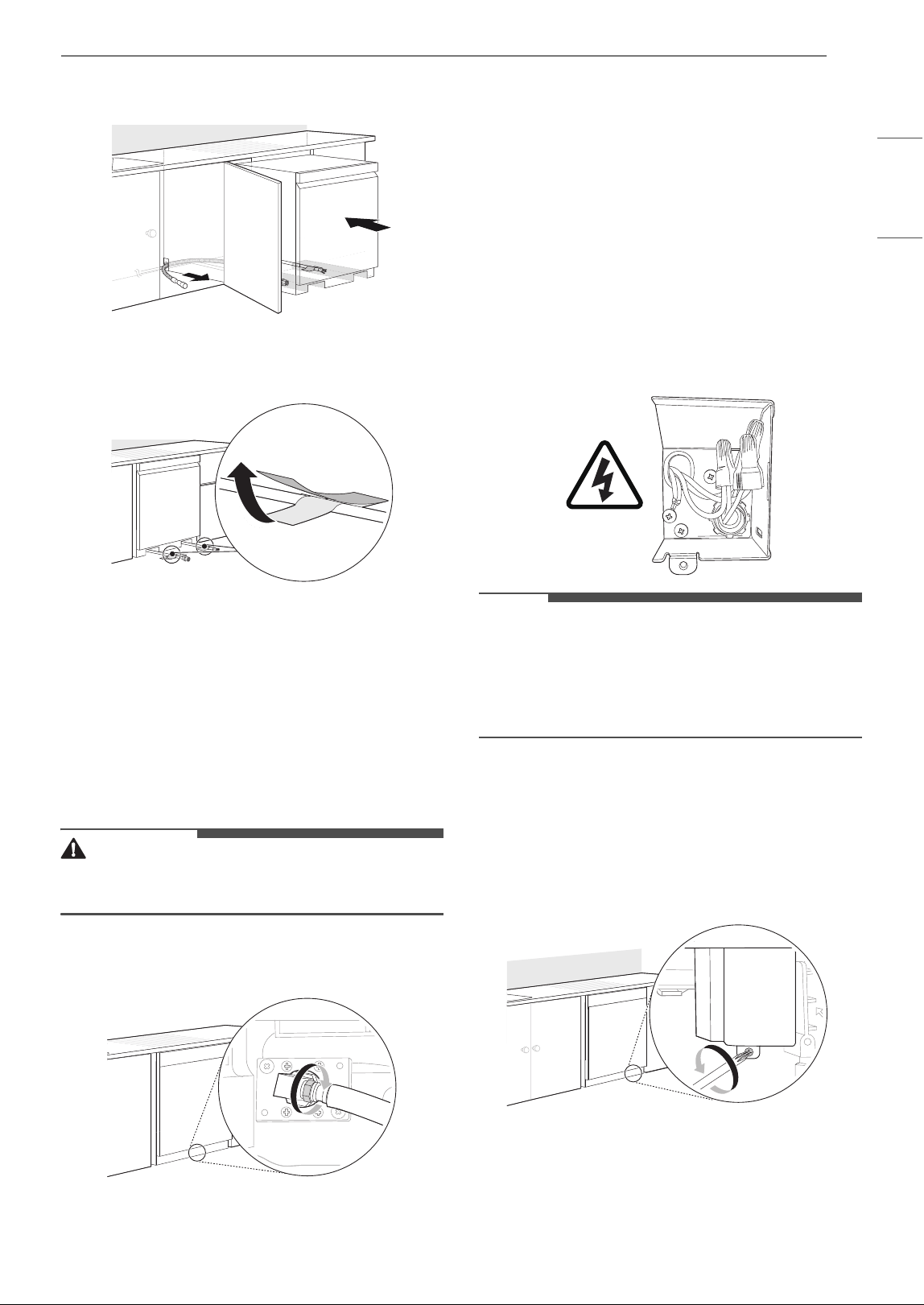

Sliding Dishwasher into
Cabinet Opening
How to Slide Dishwasher
CAUTION
• Do not pull or lift the dishwasher using the
handle a. Doing so can damage the door and
hinges.

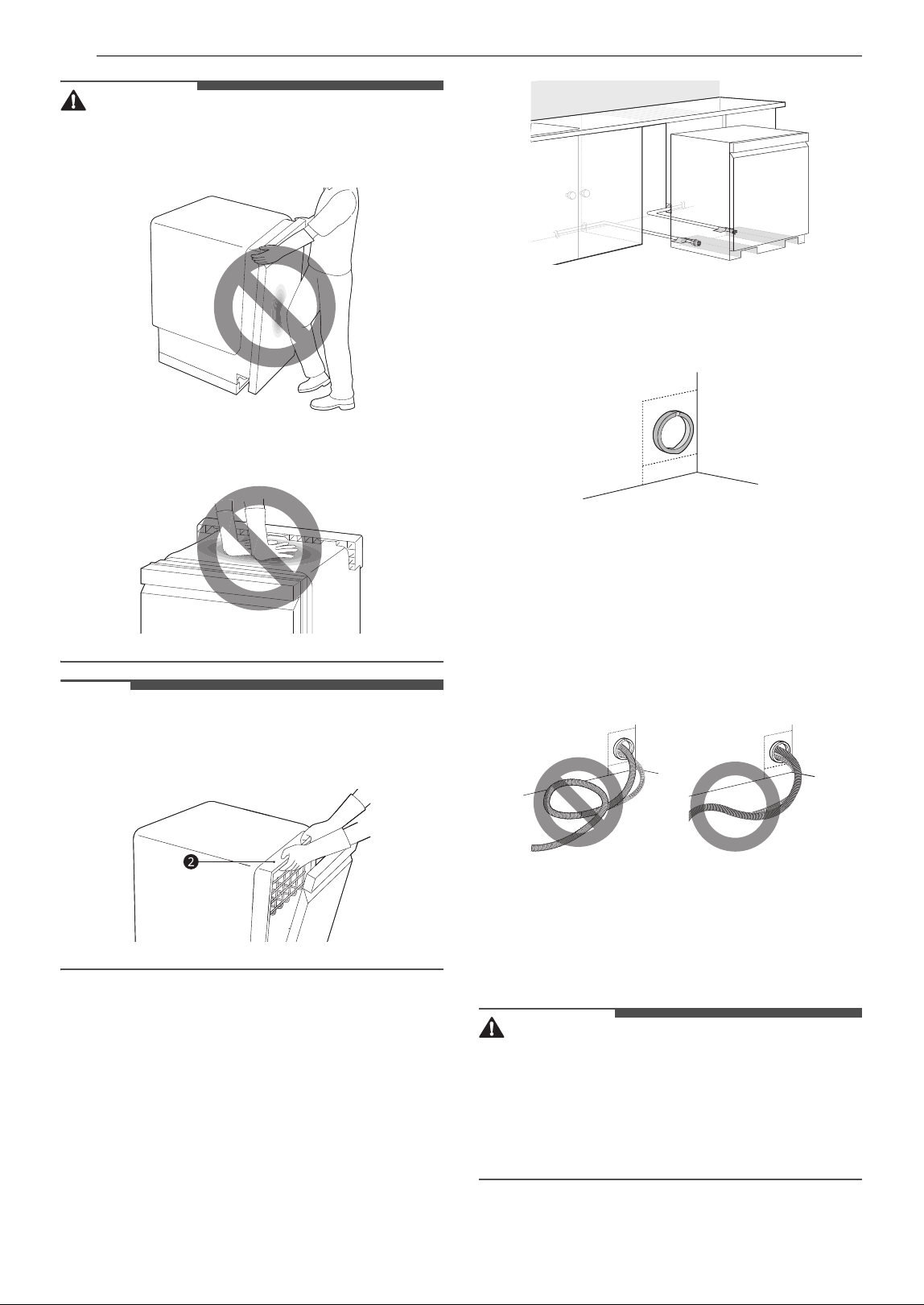

14 INSTALLATION
CAUTION
• Do not push the door of the dishwasher with
knees when sliding the dishwasher into position.
Doing so can damage the front cover.
• Do not push the top of the dishwasher. Doing so
can damage the interior of the dishwasher.
NOTE
• Open the door and grab the body frame and the
top front opening b of the tub to move or lift the
dishwasher.
1 Align the dishwasher with the opening. Make
sure the water supply line and electrical cable
are in the correct positions to slide into their
channels properly.
2 Smooth out or pad the edges of the hole
drilled for the water supply to avoid damaging
the drain hose.
3 Make sure the drain hose is straight before
feeding the end of it through the hole for the
water supply. As you slide the dishwasher into
the opening, you will want to slowly pull on
the drain hose from inside the cabinet to take
up some slack. Be careful not to kink, pinch,
crush or stress the drain hose during
installation to avoid leaking and water
damage.
4 Gradually slide the dishwasher into the
opening, making sure that the water supply
line and electrical cable are passing freely
through the channels and do not get caught
under the dishwasher.
CAUTION
• To avoid malfunctions or leakage, it is important
that the drain hose not get kinked, pinched,
stressed or crushed behind or under the
dishwasher or inside the neighboring cabinet.
• Damage resulting from improper installation is
not covered under the warranty.
• As you slide the dishwasher into the
opening, stop periodically (or have an
assistant help) to take up the slack by
15INSTALLATION
ENGLISH
pulling the drain hose farther into the
cabinet.
5 Remove the tape from the water supply line
and the electrical cable.
Connecting Water Supply
Line and Power
Connecting Water Supply Line
1 With the home water supply turned off,
connect the water supply line to the inlet valve
on the left front of the dishwasher.
CAUTION
• Tape or compound should not be used on
dishwasher inlet valve.
2 Tighten the compression nut.
3 Slide the water supply line back through the
channel, pulling gently from inside the
cabinet to make sure the line is not kinked,
pinched, stressed or crushed.
Connecting Power
The dishwasher should have a dedicated properly
grounded branch circuit to connect the 3 wire
setup which includes the ground wire.
If a 3-prong power supply is used, it should be in
an accessible location adjacent to the dishwasher
within 4 ft. (1.22 m) of the dishwasher side and not
behind the dishwasher.
NOTE
• The best location for the electrical conduit is on
the right side of the back wall. Re-route the
electrical cable before installation if the electrical
conduit pipe is longer than 3” (76 mm) and is
centered on the back wall.

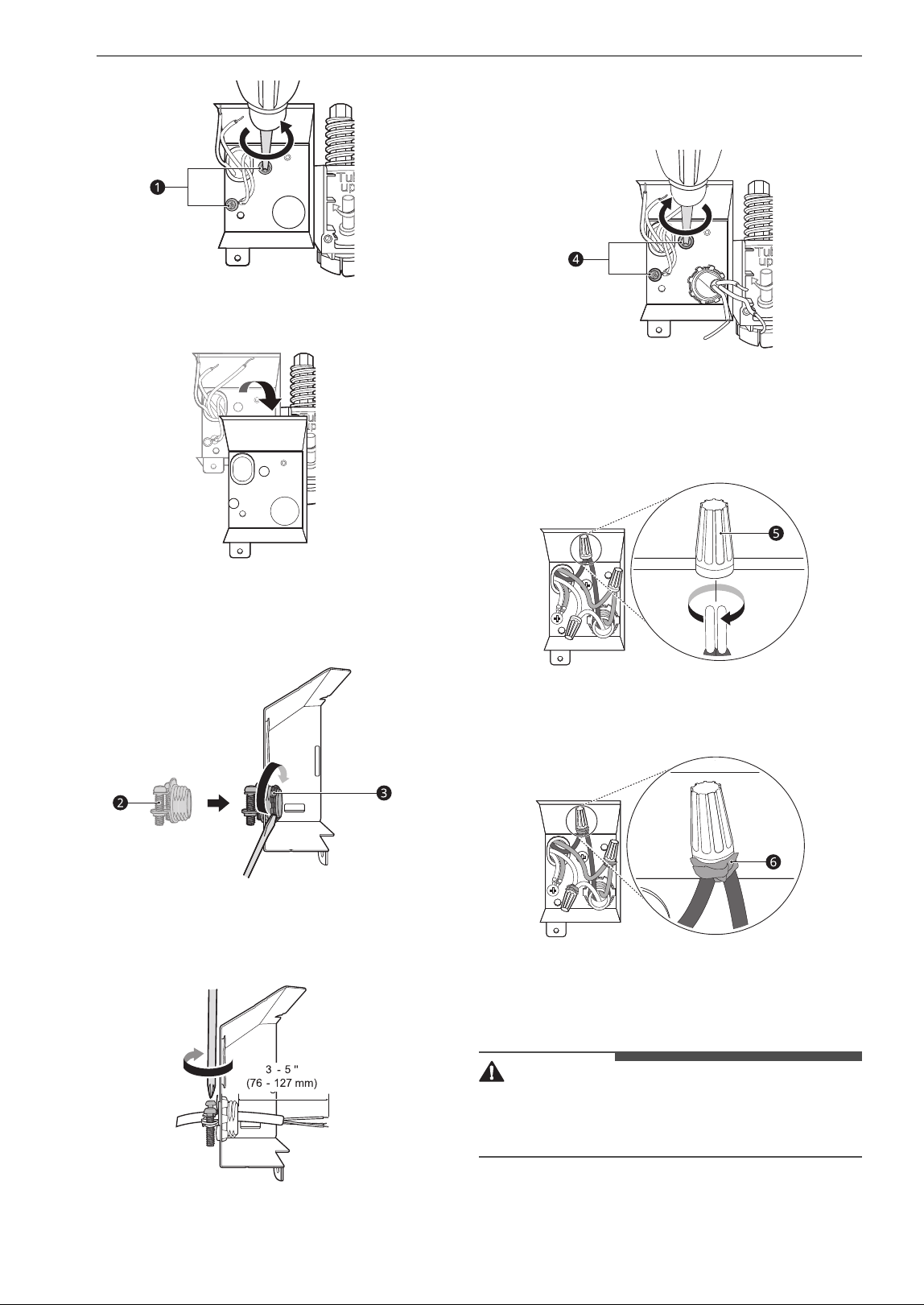

1 Turn off electrical power to the unit at the
circuit breaker.
2 Use a Phillips screwdriver to remove the
screw from the junction box cover and
remove the cover.
3 Use a Phillips screwdriver to remove 2 screws
a.
16 INSTALLATION
4 Remove the junction box from the appliance.
5 Insert a 3/8” strain relief b through the hole
in the junction box. Tighten the ring nut c to
secure it in place.
6 Insert the electrical cable through the hole in
the strain relief. Tighten 2 screws to secure
the cable.
7 Pull the existing wires through the openings
in the junction box. Tighten 2 screws d to
reassemble the junction box in the appliance.
8 Pair the white, black, and green wires to the
matching colored wires from the dishwasher.
Then twist on the provided wire nuts e tightly
to connect the corresponding wires.
9 Wrap electrical tape f around each
connection.
10 Fold the connected wires back into the
junction box and screw on the junction box
cover.
WARNING
• Verify that the black wire is hot (120 V). If not, or
if you are unsure of the power supply, have it
checked by a licensed electrician.
17INSTALLATION
ENGLISH
CAUTION
• Do not leave stripped wire exposed. Trim
stripped wire to fit completely inside wire nuts.
Connecting the Drain Hose
If the end of the drain hose does not fit the drain
line, use a heat and detergent resistant adapter
(not supplied). These may be obtained from a local
plumbing supply store.
• Cut the adapter so the end matches the size of
the drain connection.
NOTE
• For drain hose installation, use the screw style
hose clamp provided with this dishwasher in the
silverware basket.
• If connecting the dishwasher’s drain hose to the
garbage disposal, be sure to follow your
garbage disposal’s manual for proper
installation instructions.
Drain Hose Requirements
• Follow local codes and ordinances.
• Do not exceed 12 ft. (3.65 m) distance to drain.
• Do not connect drain hoses from other
appliances to the dishwasher’s drain hose.
• If an extension drain hose is required, use a 5/8"
or 7/8" inside diameter, 2-3 ft. length hose and a
coupler
a for connecting the two hose ends.
Height of the Drain Hose
The height of the drain hose end must be at least
12" (305 mm) and within 40" (1016 mm) from the
base of the dishwasher to avoid water being
siphoned from the tub.

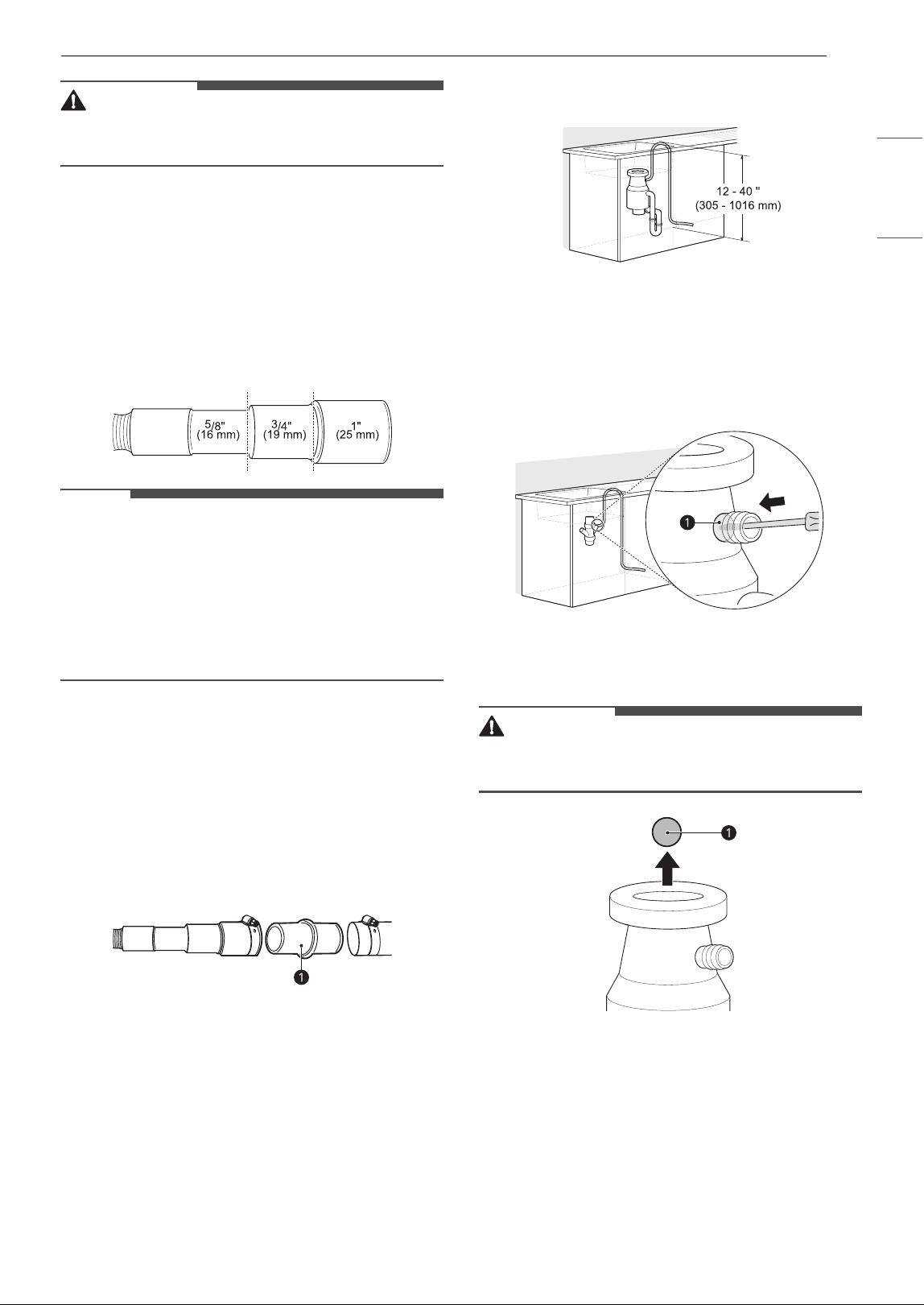

Connecting to Disposal without Air
Gap
1 Remove the knockout plug on the disposal
with a hammer and screwdriver.
2 Remove the knockout plug a from the
disposal.
CAUTION
• If the knockout plug has not been removed, the
dishwasher will not be able to drain properly.
3 Attach the drain hose to the disposal with the
hose clamp provided. Move the hose clamp
into position and tighten it with a flat-blade
screwdriver.
18 INSTALLATION

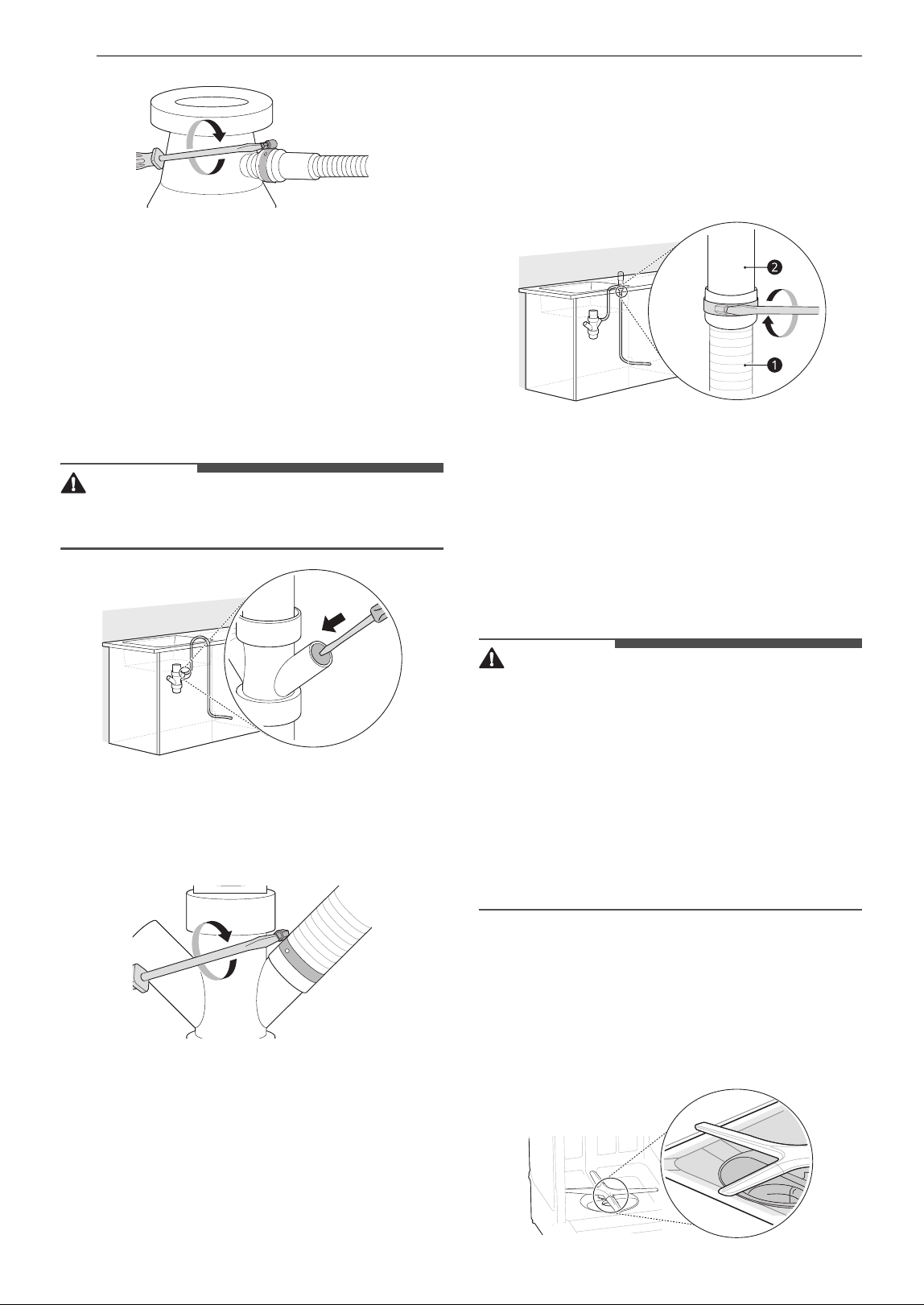

Connecting Waste Tee without Air
Gap
The height of the drain hose end must be at least
12” (305 mm) and within 40” (1016 mm) from the
base of the dishwasher to avoid water being
siphoned from the tub.
1 Remove the knockout plug with a hammer
and screwdriver.
CAUTION
• If the knockout plug has not been removed, the
dishwasher will not be able to drain properly.
2 Attach the drain hose to the waste tee with
the hose clamp provided. Move the clamp into
position and tighten it with a flat-blade
screwdriver.
Connecting to Disposal or Waste
Tee with Air Gap
1 Remove the knockout plug with a hammer
and screwdriver.
2 Connect the end of the drain hose a to the air
gap b with the hose clamp provided. Move
the clamp into position and tighten it with a
flat-blade screwdriver.
• This avoids water being siphoned from the
tub.
3 If it is not connected, attach the rubber hose
connector to the disposal or waste tee with a
hose clamp (not provided).
Leveling Dishwasher
Check that the dishwasher is level and adjust the
leveling feet if necessary.
CAUTION
• Failure to level the dishwasher may result in
leakage, problems closing the door, or noise.
• Where the cabinet opening is narrower than
recommended (see Preparing Cabinet
Opening), the dishwasher must be carefully
leveled and aligned so that the dishwasher is
supported fully by the 3 leveling feet and is not
hanging from the installation brackets. Failure to
do so can result in leaks from the front of the
dishwasher,
AE errors, difficulty in closing the
door, or failure to operate.
Checking Leveling
To check that the tub is level from front to back,
remove the lower rack and pour 169 oz. (5 L) of
water into the bottom of the tub. The water level
should be near the center of both tub lower
indentations at the front.

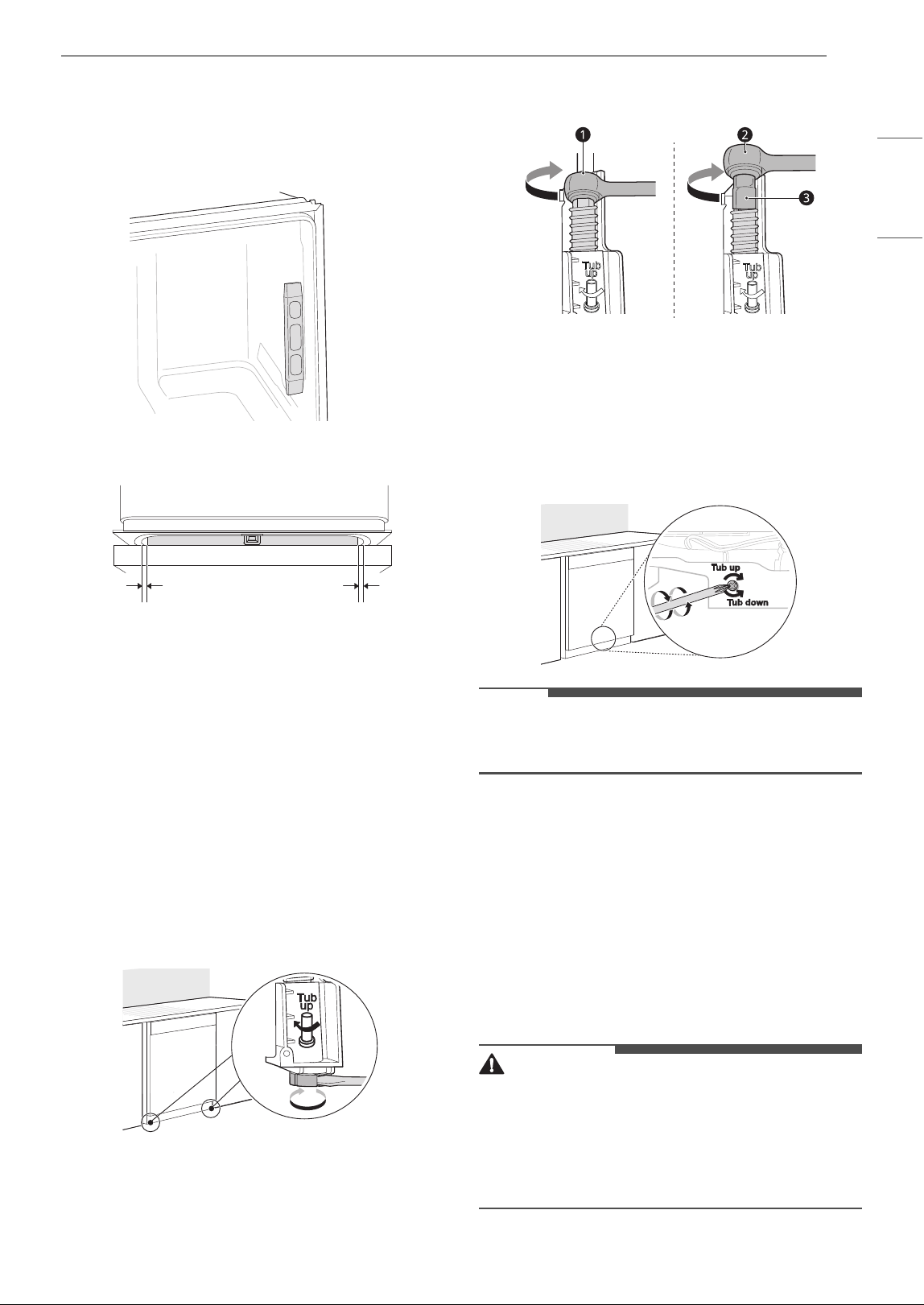

19INSTALLATION
ENGLISH
With the lower rack removed, place a level on the
inside wall of the tub to check that the dishwasher
is level from side to side.
• If you do not have a level, try using a
smartphone level application instead.
Make sure that the gap between the tub walls and
the door liner is the same on either side.
Adjusting Leveling Feet
Adjust as needed until the dishwasher is
completely leveled.
• Adjust the front and rear leveling feet until they
are all in firm contact with the floor. Failure to
level the dishwasher may prevent the door from
closing properly and the dishwasher will not turn
on.
Adjusting Front Leveling Feet
Use a flat-blade screwdriver to turn the front
leveling feet and adjust the front of the tub.
• Turn the front leveling feet clockwise to raise the
front of the tub and counterclockwise to lower it.
• The adjustments work identically for both front
leveling feet.
• When a flat-blade screwdriver is unavailable, use
a 1/4" square drive wrench
a or 3/8" square
drive wrench
b with 1/2" socket c to turn the
front leveling feet and adjust the front of the tub.
Adjusting Rear Leveling Foot
Use a Phillips screwdriver to adjust the rear
leveling foot and the rear of the tub using the
center screw at the base of the appliance in the
front.
• Turn the center screw clockwise to raise the rear
of the tub and counterclockwise to lower it.
NOTE
• To avoid damaging the screw, do not use an
electric screwdriver.
Securing Dishwasher in
Cabinet Opening
There are 2 options for securing the dishwasher. If
the countertop is made of wood or a material that
can safely be drilled into, secure the dishwasher to
the countertop with the provided brackets. If the
countertop is granite, marble, or a material that
cannot be drilled into, secure the dishwasher to
the cabinet frame with the provided wood screws.
CAUTION
• Ensure the dishwasher is level and all leveling
feet are in firm contact with the floor before
attaching the dishwasher to the countertop or
cabinet. If the dishwasher is not leveled
properly, the door may not close properly or
water may leak.
20 INSTALLATION

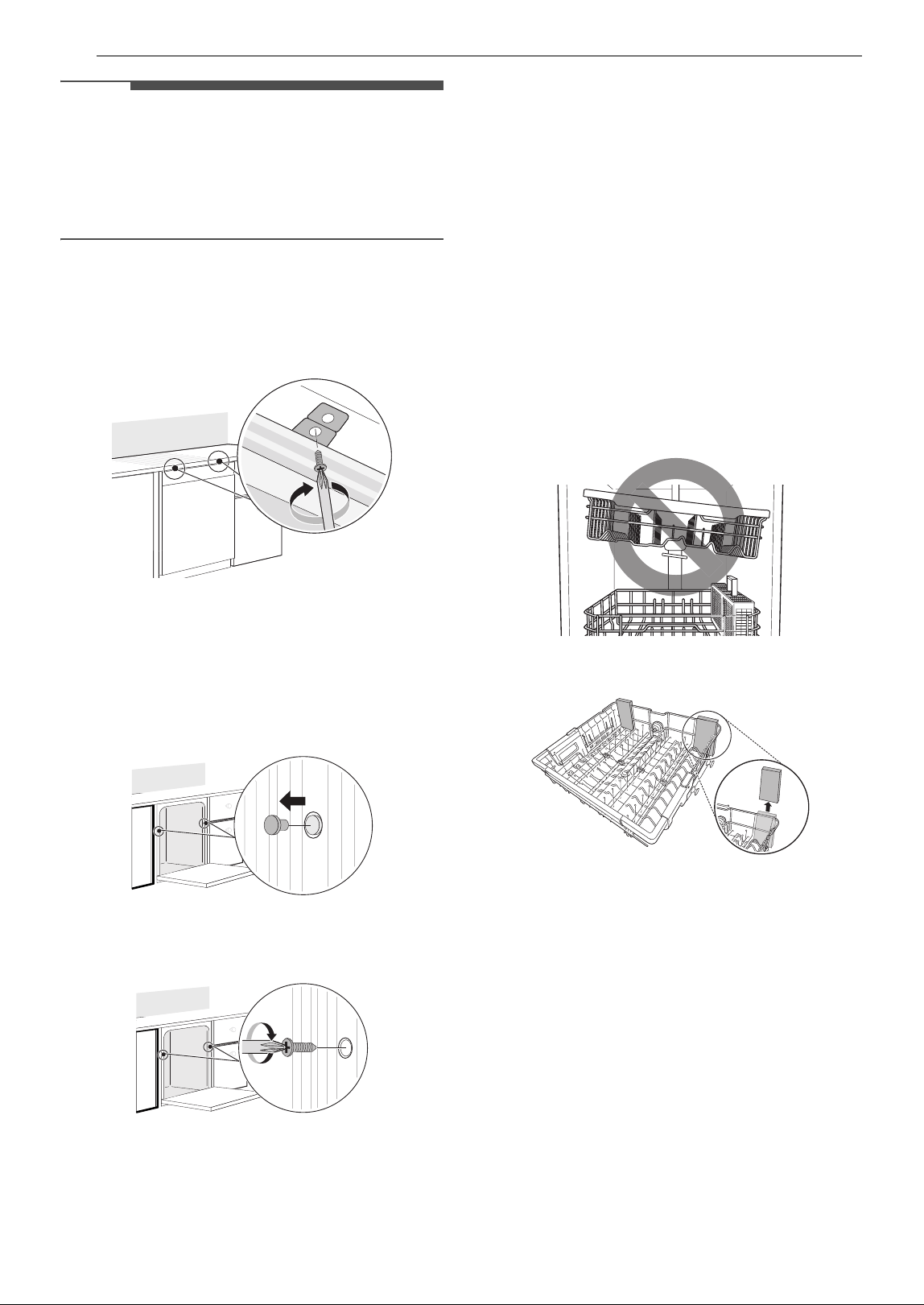

NOTE
• Installation brackets and screws can be found in
the silverware basket.
• Use a magnetic screwdriver.
• Cover the filter hole with towels to prevent
screws from falling down into the pump.
Securing Dishwasher to Countertop
Use the bracket screws provided to secure the
brackets at the top of the dishwasher to the
underside of the wood countertop.
Securing Dishwasher to Cabinet Frame
If desired, the dishwasher can also be secured to
the cabinet frame using the instructions which
follow.
1 Remove the 2 plastic caps from the mounting
bracket access holes.
2 Drive a wood screw through the mounting
bracket and into the cabinet frame.
3 Reinstall the plastic caps.
Final Installation Check
Testing the Dishwasher
Check if the dishwasher is properly installed.
1 Turn on the circuit breaker.
2 Turn on the house water supply.
3 Make sure that the door opens and closes
smoothly.
• If necessary, level the dishwasher again.
• If the door will not close, make sure the rack
is level.
• Make sure that all packaging materials have
been removed.
4 Power on the dishwasher and run a Turbo
cycle to verify proper operation.
5 Check for leaks at the drain hose and water
supply connection.
6 If a water leak is detected, press and hold the
Start button for 3 seconds to cancel the wash
cycle and automatically drain the water from
the dishwasher. Tighten all water connections
and run another cycle. Repeat until no leaks
are detected.
21INSTALLATION
ENGLISH
7 Replace the lower cover.
CAUTION
• Only install the lower cover provided with the
dishwasher. Do not install cabinet baseboard
a
as it may cause noise and leakage.
8 Remove the protective film from the door, if
present. Leaving the film on may cause
discoloration or condensation on the door.

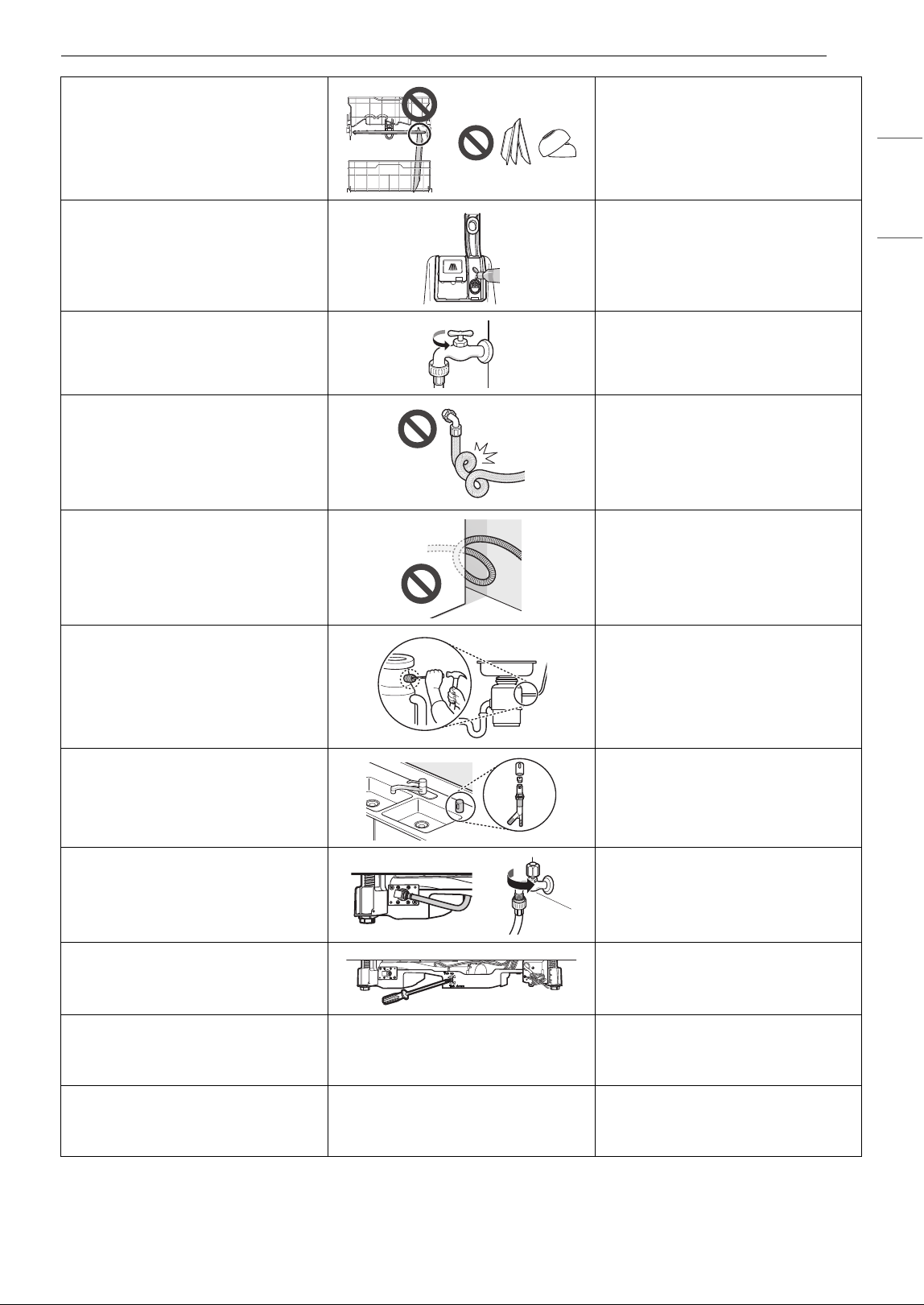

Installation Check Error Codes
Refer to the chart below before calling for service.
Error Code Possible Cause and Solution
OE
Drain hose is kinked or pinched.
• Feed the drain and water
supply hoses through the hole
under the sink. Then gradually
slide the dishwasher into the
cabinet while pulling on the
hoses under the sink to take up
any slack. This helps avoid
kinking the hoses or trapping
them beneath the dishwasher.
Drain hose is connected to the
disposal without removing the
knockout plug.
• Remove the knockout plug
from the disposal.
Waste tee or disposal is clogged.
• Remove knockout plug on the
waste tee or disposal.
IE
Water supply line is kinked
under dishwasher.
• Feed the drain and water
supply hoses through the hole
under the sink. Then gradually
slide the dishwasher into the
cabinet while pulling on the
hoses under the sink to take up
any slack. This helps avoid
kinking the hoses or trapping
them beneath the dishwasher.
House water supply is not turned
on.
• Turn the water faucet on.
Error Code Possible Cause and Solution
22 OPERATION
OPERATION
Before Using
WARNING
• To reduce the risk of fire, electric shock, or injury to persons, read the SAFETY INSTRUCTIONS before
operating this appliance.
NOTE
• Connect to the hot water supply only. The water supply temperature should be a minimum of 120 °F (49
°C) for better washing performance and shorter cycle time.
• Follow the instructions for loading the dishwasher to ensure effective cleaning.
• Remove insoluble items such as bones, toothpicks, and pieces of paper while loading the dishwasher.
Quick Start
1 Load the dishes.
• Pull each rack out and load the dishes as
described in this manual.
• Only load items that are dishwasher-safe.
• Scrape the dishes free of excess food,
bones, and any other hard, non-soluble
residue. Remove solid, burned-on scraps
from dishes prior to loading in the
dishwasher.
• Place items with deep dish bottoms at an
angle to help water run off and speed the
drying process.
• Do not load items that are not heat-
resistant or have decorative metal trim.
2 Add the detergent.
• Using the guidelines in this manual, fill the
detergent cup with the recommended
amount of detergent and close the lid. If a
prewash is desired, the recess on top of the
lid should also be filled with detergent.
3 Turn on the dishwasher.
• To turn on the display panel, press the
Power button.
4 Check the rinse aid.
•The Rinse Aid e icon will flash if the level of
rinse aid in the dishwasher is low. Add rinse
aid if the level is low to maintain the
effectiveness of the dry cycle.
5 Select the cycle and options.
• Select the cycle and options that best fit the
load by referring to the Cycle Guide. The
display will show the estimated time for the
cycle and options selected.
6 Operate the dishwasher.
• Method 1
- Press the Start button and then close the
door in less than four seconds to operate
the dishwasher. If the door is not closed
within four seconds, the white LED with
time flashes, an audible tone is heard, and
the cycle does not start.
• Method 2
- Close the door first and then press the
Start button to operate the dishwasher.
NOTE
• If the door is opened during the cycle, the
dishwasher will stop. To resume the cycle, see
methods 1 and 2 above.
• If the door is opened during the cycle and is not
closed within four seconds after selecting the
Start button, or if the door is closed without
pressing the Start button, the white LED with
time flashes, an audible tone is heard, and the
cycle does not start.
7 End of cycle.
• When the cycle is complete, a chime will
sound and the display will show
ENd until
the door is opened or Power is pressed. To
23OPERATION
ENGLISH
save energy, press and hold High Temp for
three seconds to set the
ENd display to
automatically turn off a few minutes after
the cycle ends.
• It is normal for the dishwasher to chime
continuously if you open it during operation
or just after the cycle ends. The dishwasher
is letting you know that the interior
temperatures of the unit are hot and to use
caution when reaching inside. Once the unit
has cooled down, the chiming will stop.
CAUTION
• Do not open the door during operation or
immediately after it has completed the wash
cycle as the escaping steam may cause scalding
as the door is opened.
NOTE
• Empty the lower rack first and then the upper
rack. This will avoid water dripping from the
upper rack onto dishes in the lower rack.
Auto-Off
The dishwasher automatically turns off after four
minutes of inactivity if paused or if no cycle is
started.
24 OPERATION

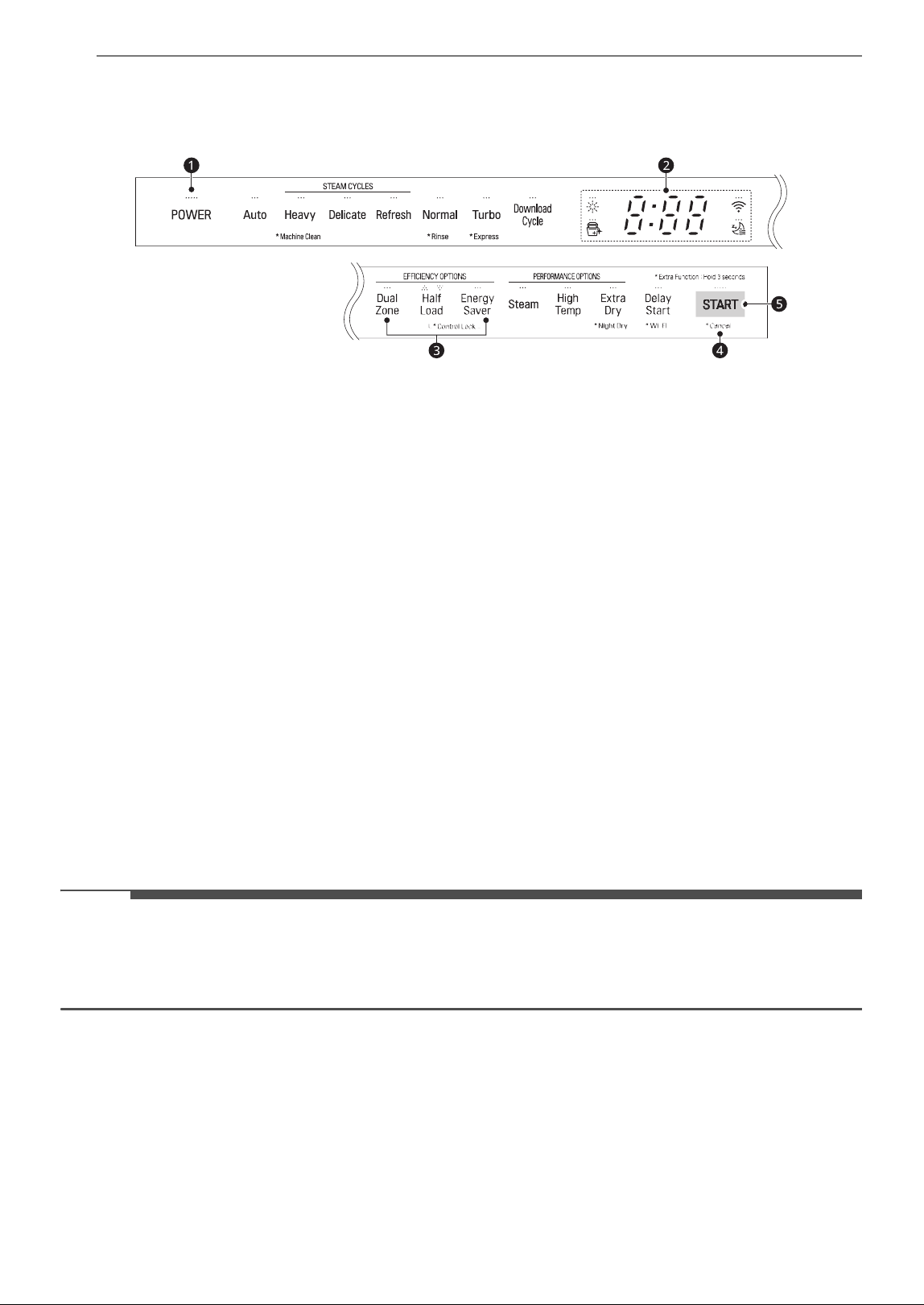

Control Panel
Control Panel Features
a Power On/Off Button
• Press this button to turn the washer on or off.
• After the cycle is complete, the power automatically turns off for purposes of safety and economy.
• If there is a power surge, power outage, or disruption of any kind, power is automatically turned off
for safety.
• When power is connected again, the dishwasher will turn on automatically and resume the cycle.
b Display
•
e : Rinse Aid Icon
- This icon illuminates when the rinse aid level is low. The LED automatically shuts off when the rinse
aid is refilled or the level is set to 0.
- Refer to the Rinse Aid Dispenser Adjustment section.
•
a: Machine Clean & Sanitized Icon
- The Machine Clean icon flashes every 30 cycles. To activate or deactivate the icon, press the
Delicate button for three seconds.
- If the Steam option is added to a cycle, the Machine Clean icon stays lit at the end of the cycle if
the dishes were properly sanitized.
•
8:88 : Digital Display
- The digital display on the control panel shows the ESTIMATED cycle time. When the cycle and
options are selected, the display shows the total estimated time to complete those selections.
During operation, the display shows the remaining estimated operating time.
NOTE
• The estimated time shown on the display does not include delay times for heating water, etc.
•If Delay Start is selected, the display shows the delay time in hours.
• Cycle time may vary depending on the soil level of your load.
• CL : Control Lock
- The Control Lock feature helps prevent settings from being changed during a cycle. Selecting this
feature locks all of the buttons, except for the Power button, on the control panel. This feature
does not lock the door.
- While a cycle is running, press and hold Half Load and Energy Saver simultaneously for three
seconds to activate or deactivate Control Lock.
- To start a new cycle, deactivate Control Lock.
25OPERATION
ENGLISH
• f : Wi-Fi
- When the appliance is connected to the internet through a home Wi-Fi network, this icon
illuminates.
- Press and hold Delay Start for approximately three seconds to connect to the network.
•
m : Night Dry
- This indicator lights up when Night Dry is selected.
c Chime On/Off Button
• To activate or deactivate the button sounds, press and hold Dual Zone and Energy Saver
simultaneously for three seconds. The error alert sound cannot be turned off.
d Cancel Button
• The drain pump activates and the cycle cancels. Once the dishwasher finishes draining, the power
turns off.
•Press and hold Start for three seconds to activate.
e Start Button
• To operate the machine, either press Start and close the door within four seconds or close the door
and press Start.
• If more than 4 seconds have passed since pressing Start, an alarm will sound when the door is
closed.
Wash Cycles
Select your desired cycle.
Auto
This cycle senses the soil amount and soil
toughness and is optimized to achieve the best
cleaning.
Heavy
This cycle is for heavily soiled dishes and dishes
with hardened on soil. This cycle defaults to the
strongest spray intensity and uses it to wash
heavily soiled dishes.
Delicate
Use this cycle to clean delicate items such as fine
china and stemware.
Refresh
This cycle freshens up and warms dishes that have
been unused for a long time.
• Do not use detergent when using this cycle.
• The steam option cannot be turned off on this
cycle.
Normal
This cycle is for daily, regular, or typical use to
completely wash a full load of normally soiled
dishes. The energy usage label is based on this
cycle without any options. Select the Night Dry
option if leaving dishes overnight. Press and hold
Extra Dry for three seconds to activate Night Dry.
• After the cycle ends, the fan runs for an hour to
help vent the warm, moist air in the tub. You can
stop the fan by opening the door after the cycle
ends.
Turbo
This cycle will clean heavily soiled dishes in an hour
using slightly more energy and water.
• This cycle does not have drying. Select the Extra
Dry and Night Dry option or another cycle for
better drying.
Download Cycle
Use a dedicated cycle downloadable via Wi-Fi or
NFC.
26 OPERATION
NOTE
• Only the cycle code for the current Download
Cycle appears on the appliance. See the
smartphone app for cycle codes, names, and
more information about the available cycles.
- Default Cycle : P1. Pots & Pans
Machine Clean
This cycle is for cleaning the inside of the
dishwasher. Use the cycle without dishes in the
machine. It eliminates residual soils, odor, white
spots, and other dirt. Add citric acid or another
cleaning agent for more effective results.
• Press and hold Heavy for three seconds to
activate.
Rinse
This cycle is a quick rinse for dishes that will not be
washed immediately. The cycle rinses dishes that
have excess soil to soften dried on residue. Rinsing
the dishes helps prevent odors in the dishwasher.
No detergent should be used.
• This cycle does not have drying.
• Press and hold Normal for three seconds to
activate.
Express
This cycle will quickly clean lightly soiled dishes.
• This cycle does not have drying. Select the Extra
Dry and Night Dry option or another cycle for
better drying.
• Press and hold Turbo for three seconds to
activate.
Options and Extra Functions
Select the desired cycle and then select the options
for that cycle.
Dual Zone
This option automatically sets the spray intensity
to soft for the upper spray arm and strong for the
lower spray arm. Place heavily soiled dishes like
plates and bowls in the lower rack and lightly
soiled dishes like cups and small plates in the
upper rack to get the best results.
Half Load
This option washes intensively by selecting the
upper or lower racks. For small loads, use just the
upper or lower rack to save energy and time. Press
the Half Load button repeatedly to select the
upper [
f] or lower [g] rack or to cancel the
option.
Energy Saver
This option saves energy by reducing the wash and
rinse temperatures. Wash time is increased to
maintain wash performance. Do not use this cycle
with heavily soiled dishes.
Steam
This option adds steam at the start of the cycle to
improve wash performance.
If the Steam option is added to a cycle, the
indicator
a stays lit at the end of the cycle if the
dishes were properly sanitized. If the dishwasher
could not properly sanitize the dishes because the
Steam option was not selected, the cycle was
interrupted or the water could not be heated to
the required temperature, the indicator will not
light up at the end of the cycle. Open and close the
door or press POWER to turn the indicator off.
NOTE
• This high temperature rinse sanitizes dishes and
glassware in accordance with the NSF/ANSI
Standard 184 for residential dishwashers.
Certified residential dishwashers are not
intended for use in licensed food
establishments. Only sanitizing cycles have been
designed to meet the requirements for soil
removal and sanitization efficacy. There is no
intention, either directly or indirectly, that all
cycles on a certified machine have passed the
sanitization performance test.
High Temp
Raises the main wash temperature to improve
cleaning.
Extra Dry
Select the Extra Dry option for better drying
performance. This option adds extra drying time to
the cycle and raises the heated rinse temperature.
27OPERATION
ENGLISH
• When the rinse aid is empty, the Extra Dry
option is selected automatically.
Night Dry
Dishes are often left in the dishwasher overnight
after the cycle ends. This can result in the steam
inside the tub condensing on dishes, leaving them
wet. This option runs the ventilation fan
periodically to help vent the steam from the tub.
• Press and hold Extra Dry for three seconds to
activate.
•The Night Dry option is selected by default for
all cycles for which it is available, except the
Normal cycle.
• To add the Night Dry option to the Normal
cycle, press and hold Extra Dry for 3 seconds.
Delay Start
This feature delays the start of a selected cycle.
Each time the Delay Start button is pressed, the
delay time increases by an hour. The delay time
can be set from 1 to 12 hours, in one-hour
increments.
Cycle/Option Guide
The cycle guide below shows the available options for each cycle.
* Extra drying time only, no added high-temperature rinse
** Default setting
NOTE
• Actual water consumption will vary depending on soil level and hardness of water.
• The actual running time and cycle time displayed may change depending on options chosen, soil level,
water temperature, and hardness of water. Therefore, display time and actual running time can be
different.
• Energy Saver cannot be used at the same time as Extra Dry or High Temp.
Cycle Auto Heavy Delicate Refresh Normal
Soil Level All levels Heavy Light Light All levels
Water Usage
(L)
13.8 -
24.5
26.9 -
32.0
19.7 -
24.8
7.8
9.2 -
25.9
(gal)
3.6 -
6.5
7.1 -
8.4
5.2 -
6.6
2.1
2.4 -
6.8
Wash Time with
Options (Mins.)
90 -
227
141 -
226
97 -
150
59 -
79
99 -
216
Available
Options
Dual Zone
## #
Half Load
### #
Energy
Saver
###
High Temp
## #
Steam
##** #** #** #
Extra Dry
###* #* #
Night Dry
#** #** #** #** #
Delay Start
#####
28 OPERATION
NOTE
• Options are not available for Download Cycle.
* Extra drying time only, no added high-temperature rinse
** Default setting
NOTE
• Actual water consumption will vary depending on soil level and hardness of water.
• The actual running time and cycle time displayed may change depending on options chosen, soil level,
water temperature, and hardness of water. Therefore, display time and actual running time can be
different.
• Energy Saver cannot be used at the same time as Extra Dry or High Temp.
• Options are not available for Download Cycle.
Loading the Dishwasher
The extra tall tub allows loading of dishes, pans, or
other utensils up to 14" high. For effective washing
performance, always follow these instructions.
• Remove large particles of food debris from
plates including bones before loading.
• Items with burnt on food should be soaked prior
to loading in the dishwasher.
• Deep pots or dishes should be placed upside
down.
• Make sure that all items do not touch each other.
Non-Dishwasher Safe Items
The combination of high water temperature and
dishwasher detergents may damage certain items.
Do not wash the following items in the dishwasher.
• Copper or anodized aluminum
Cycle Turbo Express Rinse
Machine
Clean
Soil Level Heavy Light Light
Water Usage
(L) 27.5 20.4 6.8 12.3
(gal) 7.3 5.4 1.8 3.2
Wash Time with
Options (Mins.)
60 -
121
34 -
104
12 82
Available
Options
Dual Zone
##
Half Load
Energy Saver
High Temp
##
Steam
Extra Dry
##
Night Dry
#** #**
Delay Start
####
29OPERATION
ENGLISH
• Hand painted silver or gold leaf china
• Wood or bone handled utensils
• Iron or non-rustproof utensils
• Plastic items which are not dishwasher safe
• Sterling silver or gold-plated flatware or delicate
or metal-rimmed china
• Fragile items such as crystal glasses
CAUTION
• Do not place pots or pans with plastic handles in
the appliance as the handles may deteriorate
due to the heat and detergent.
• Waterproof or long-lasting lipstick smudges on
glasses may not be removed during the wash.
Loading the Silverware
Basket
The silverware basket has separators to avoid
scratching and tarnishing of delicate silverware.
Loading Silverware into the Basket
Loading 10 Place Settings
Loading 12 Place Settings
Silverware Loading Tips:
• For best cleaning results, use the top separators
in the basket when loading silverware. The
separators will prevent nesting of silverware.
• Load sharp items, such as knives, pointing down.
• When unloading the dishwasher, it is best to
start with the silverware basket. Doing so will
prevent water droplets from falling on your
silverware from the upper rack.
WARNING
• Be careful when loading and unloading sharp
items. Load sharp knives with the handles up to
reduce the risk of personal injury.
Loading the Lower Rack
Loading Dishes into the Lower Rack
Loading 10 Place Settings
1
5
4
4
4
4
4
5
5
5
5
3
3
6
2
2
3
3465
5
5
51
5
4
4
4
4
3
2
6
2
2
2
2
2
2
1
5
4
4
4
4
4
5
5
1
5
3
6
2
3
3
465
5
1
51
5
4
4
4
42
6
2
2
2
2
2
2
30 OPERATION

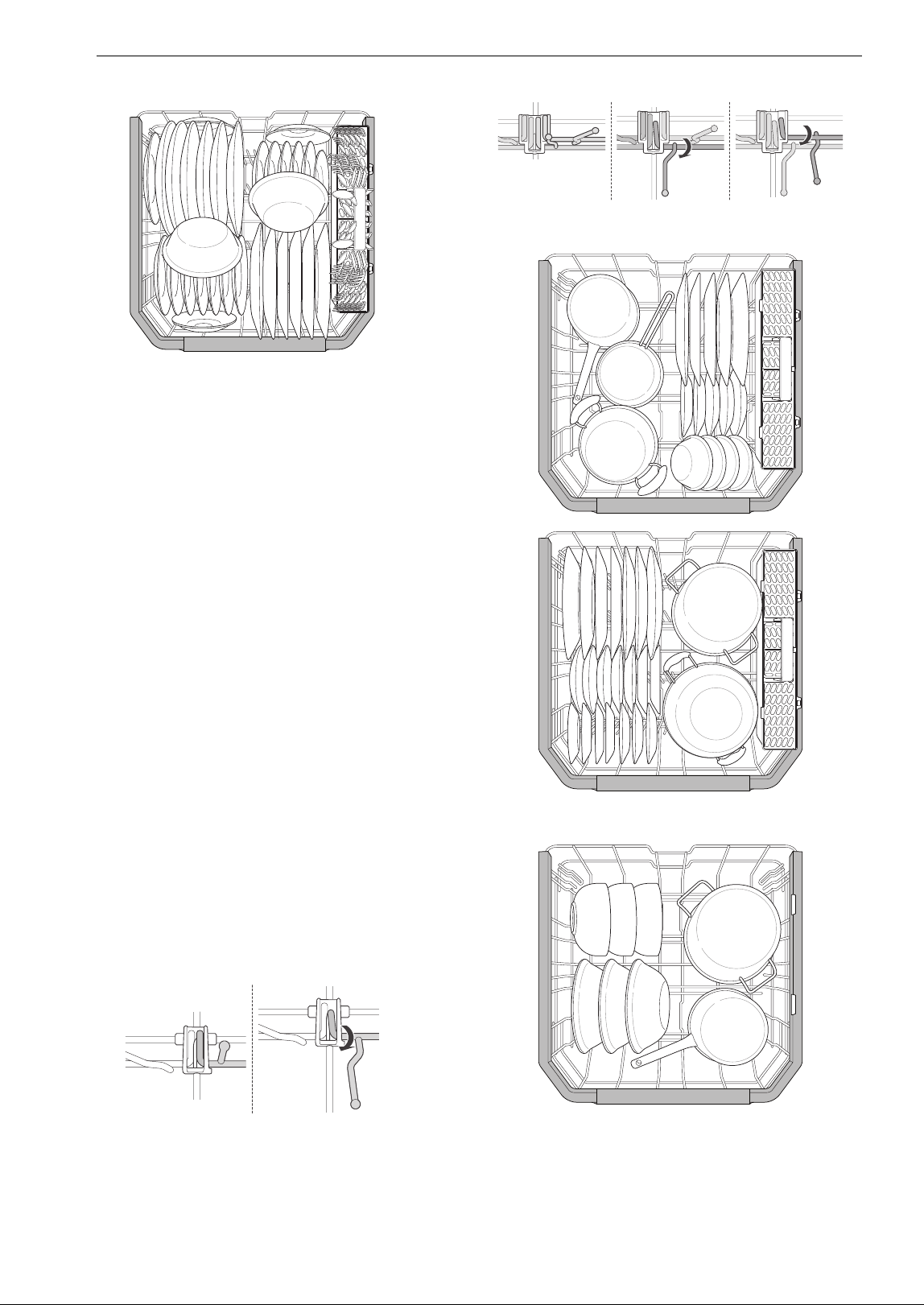

Loading 12 Place Settings
Lower Rack Loading Tips:
• Plates should be positioned upright and facing
the center of the rack, and pots, pans and large
dishes must be turned upside down.
• Load dinner plates, dishes, soup bowls, etc.
between the tines.
• Load cookie sheets, cake pans and other large
items at the sides or back of the rack. Loading
these items in the front of the dishwasher can
prevent the water spray from reaching the
detergent dispenser.
• Make sure that pot handles and other large
items do not stop the rotation of the spray arms.
• The lower rack should not be used for small
items such as cups, wine glasses, or small plates.
These items should be loaded in the upper rack.
• Make sure that large items do not interfere with
the rotation of the spray arms, and do not
prevent the detergent dispenser from opening.
Folding Down the Lower Tines
Fold tines down to fit larger dishes; pull tines back
up to fit smaller dishes.
Case 1
Case 2
Loading Dishes & Pots
Loading Pots & Bowls

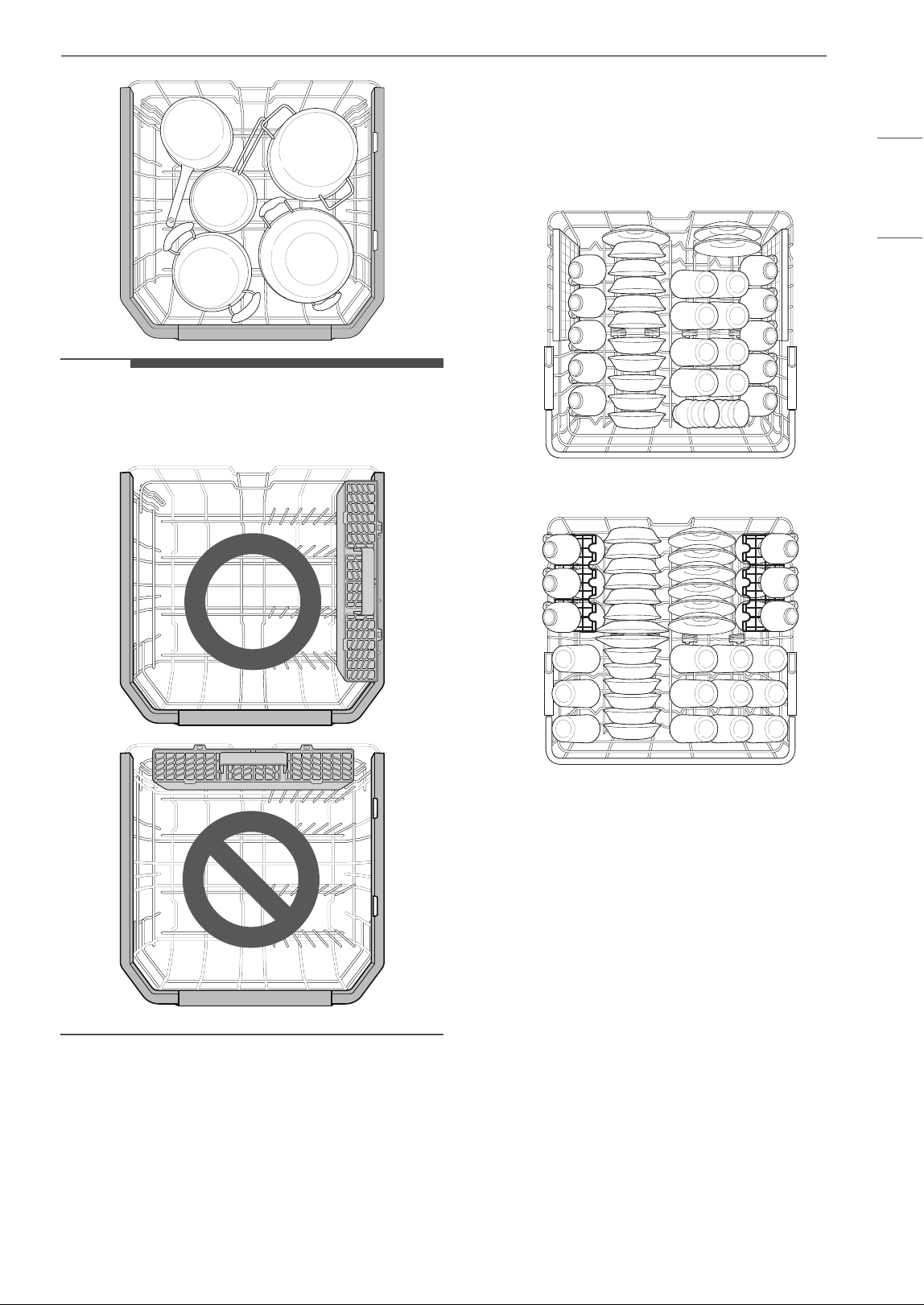

31OPERATION
ENGLISH
NOTE
• The silverware basket ships installed at the back
of the bottom rack. For best performance, install
it along the right side as shown.
Loading the Upper Rack
Loading Dishes into the Upper Rack
Loading 10 Place Settings
Loading 12 Place Settings
Upper Rack Loading Tips:
• Place cups and glasses in the rows between the
rack tines. Placing them over the rack tines can
lead to breakage and water spots.
• To avoid chipping, do not let stemware touch
other items.
• Place items so that the open end faces down for
cleaning and drying.
• Do not stack items on top of each other.
• Use the upper rack for small or delicate items
such as small plates, cups, saucers, glasses, and
dishwasher-safe plastic items.
• Cups, glasses, and bowls must be positioned
upside down.
• Make sure items do not interfere with the
rotation of the spray arms above and below the
upper rack.
• When loading larger items in the upper rack,
such as wine glasses or taller cups, it may be
32 OPERATION
necessary to remove the cutlery rack if one is
present. (For models with cutlery rack)

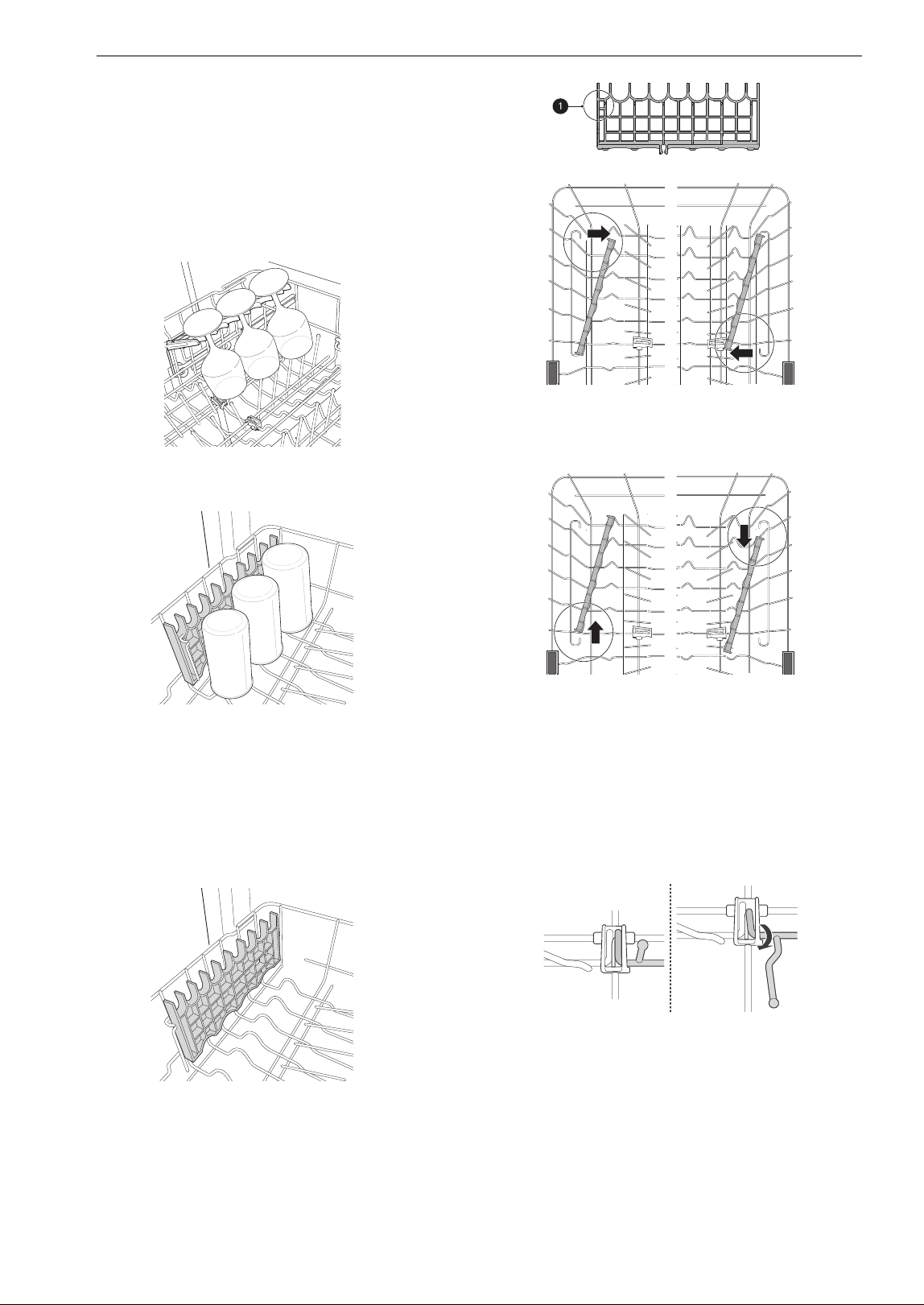

Loading the Cup Rack
Extra cups or cooking utensils can be laid on the
fold down cup racks, which also provide support
for long-stemmed glasses.
The cup racks can be folded up out of the way for
tall glasses.
Removing and Replacing Cup Rack
The left and right cup racks are interchangeable
and can be removed.
1 Slide the cup rack down into its closed
position.
2 Locate the assembly slot a on the cup rack,
align the slot with the bar, and firmly pop the
rack off the support bar on that side.
• The rack on the left pops free at the back.
The rack on the right pops free at the front.
3 Slide the cup rack off the support bar on the
opposite side.
4 Follow the instructions in reverse to replace
the cup rack.
Folding Down the Upper Tines
Fold tines down to fit larger dishes; pull tines back
up to fit smaller dishes.
33OPERATION
ENGLISH

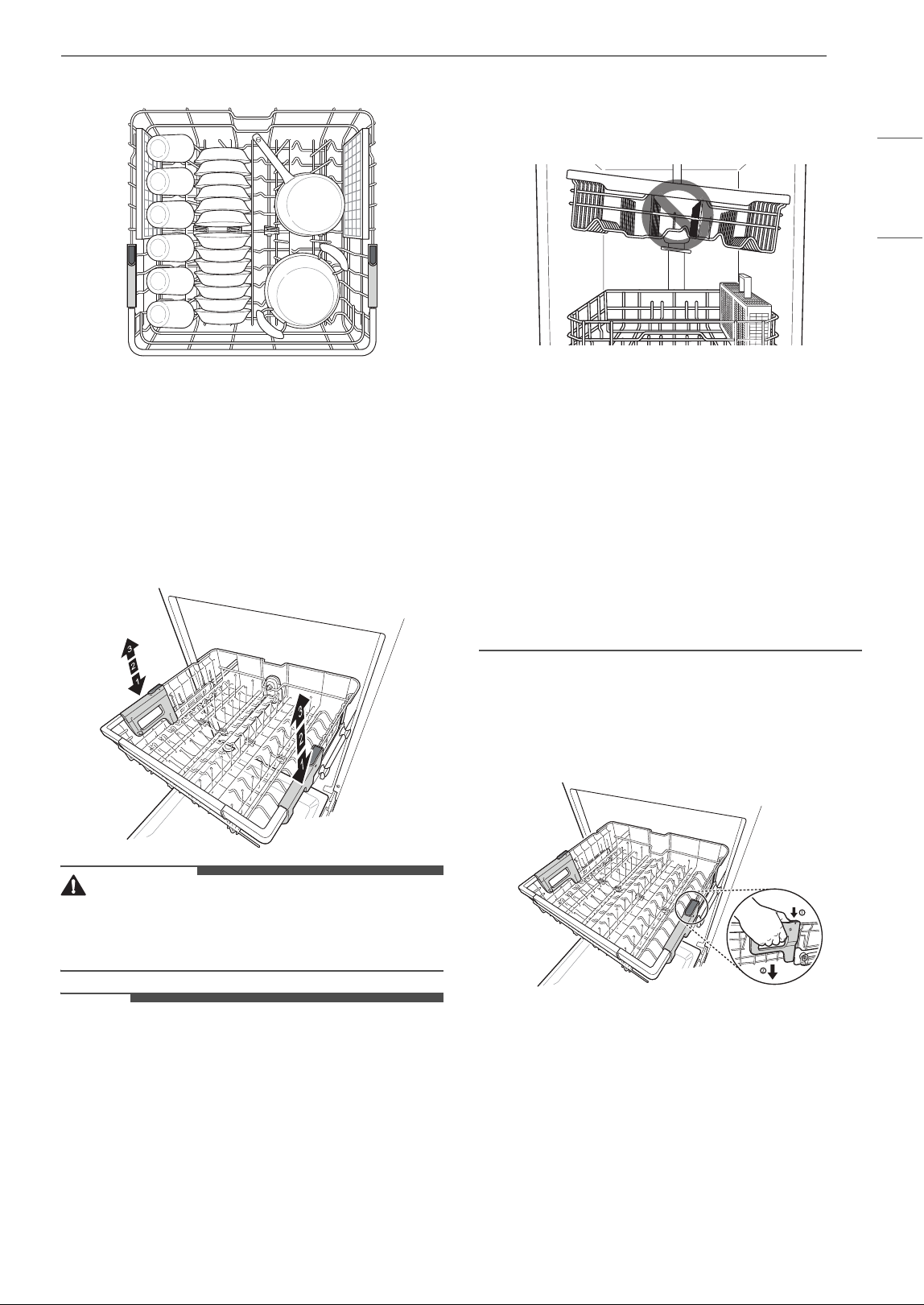

Loading Dishes & Pots
Height Adjustable Upper Rack
The upper rack adjusts up and down. Raise the
upper rack to allow items up to 14" tall in the lower
rack. Lower the upper rack to allow dishes up to
12" tall in the upper rack. The dishwasher ships
with the upper rack raised.
There are three available positions for adjusting
the height of the upper rack to create more space.
WARNING
• Before adjusting, ensure the rack is empty of all
dishes. Otherwise dishes may get damaged or
you may get injured.
NOTE
• Raise the upper rack without pushing the
buttons on each side. Pushing the buttons when
raising the rack will prevent the rack from
locking into position.
• To set the rack to the middle position, it may be
easier to lower the rack all the way down and
then raise each side of the rack individually until
it clicks into place.
• Before pushing the upper rack into the
dishwasher, ensure the rack height is the same
on both sides. If the height is not the same on
both sides, the dishwasher door will not shut
and the upper spray arm will not connect to the
water inlet.
• There is a 2 3/16 inches (56 mm) gain in height
when the upper rack is moved to the lower
position.
• After adjusting the rack levels, check that the
spray arms are free to rotate.
• When the upper rack is in the lower position,
make sure the rack and the spray arm do not hit
the items on the lower rack.
• When the upper rack is in the lower position,
push in the upper rack first, and the lower rack
later.
• Pull out the lower rack first, and the upper rack
later.
Lowering the Rack
Hold the rack at the center of each side to support
its weight. Then, push the button on each side to
release the rack and lower it into position.
34 OPERATION

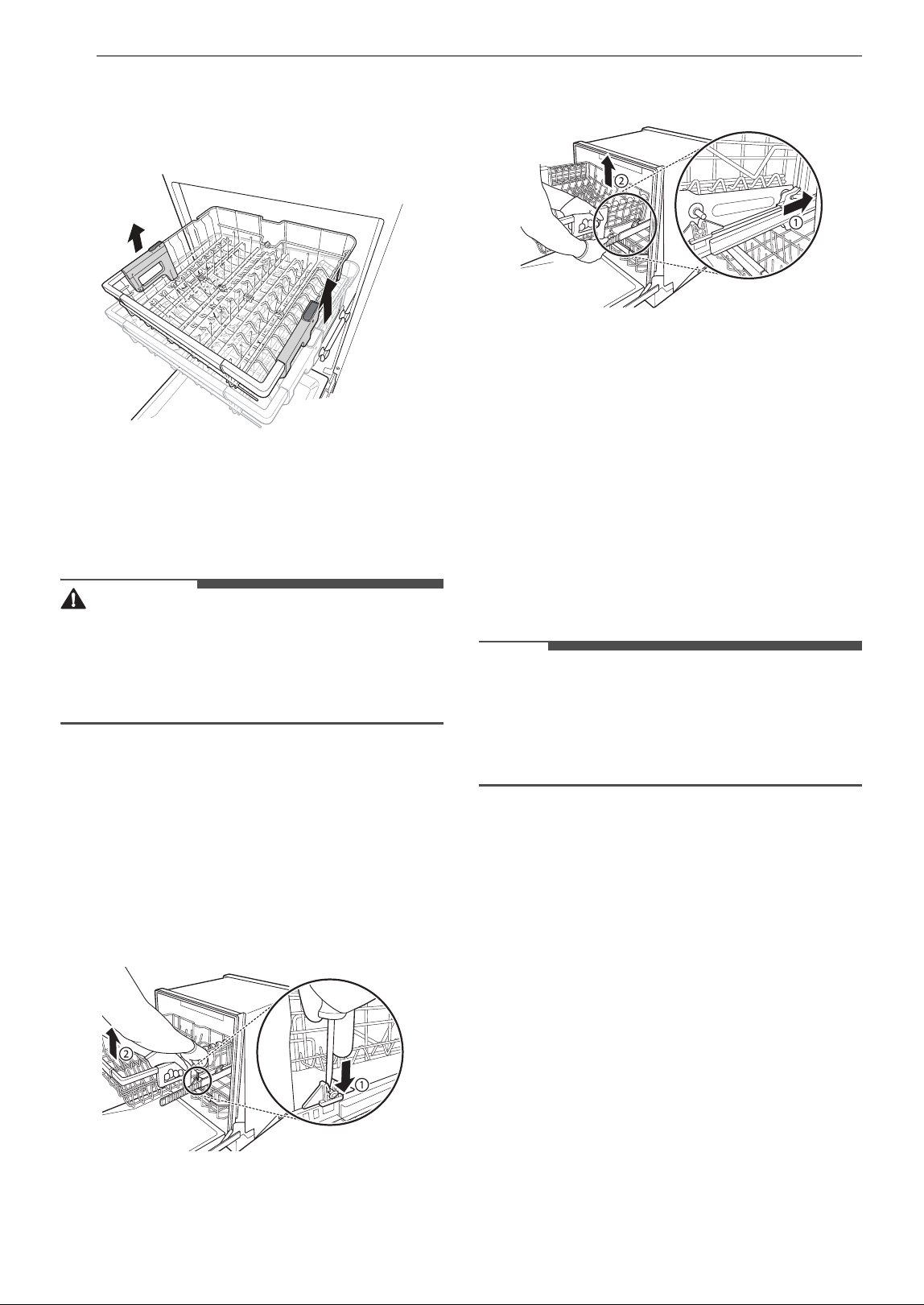

Raising the Rack
Lift the rack at the center of each side until the rack
locks into place in the upper position. It is not
necessary to lift the lock levers to raise the rack.
Removing the Snap-In Gliding
Upper Rack
These instructions are for models with snap-in rack
supports rather than wheeled rack supports.
CAUTION
• The snap-in upper rack should only be removed
for servicing. If you need to remove the rack,
wear gloves and handle the screwdriver carefully
to avoid personal injury or damage to the
dishwasher.
1 Pull the upper rack out until it stops. Remove
any contents from the rack.
2 To remove the front rack supports from the
rails, push the front hooks open with a flat-
blade screwdriver while pulling the front of
the rack up to snap the front rack support out
of the hooks. Repeat to snap the front support
out on the opposite side.
3 To remove the back rack supports from the
rails, hold a side rail with one hand, lift the
front of the rack, and firmly push the rack
back to snap the support out of the hooks in
the rear. Repeat on the opposite side.
4 To replace the rack, place the back rack
supports behind the rear hooks and pull the
rack forward to snap the supports into the
hooks. Then align the front rack supports with
the front hooks and push the front of the rack
down to snap the supports into the front
hooks.
Loading the Cutlery Rack
The cutlery rack is best suited for flatware. The
separators on the cutlery racks help keep flatware
separated to avoid damage and improve cleaning.
NOTE
• For best cleaning performance, place flatware in
the silverware baskets. Heavily soiled utensils or
items with baked on foods should be placed in
the middle rack or spoon basket for best
performance.
35OPERATION
ENGLISH

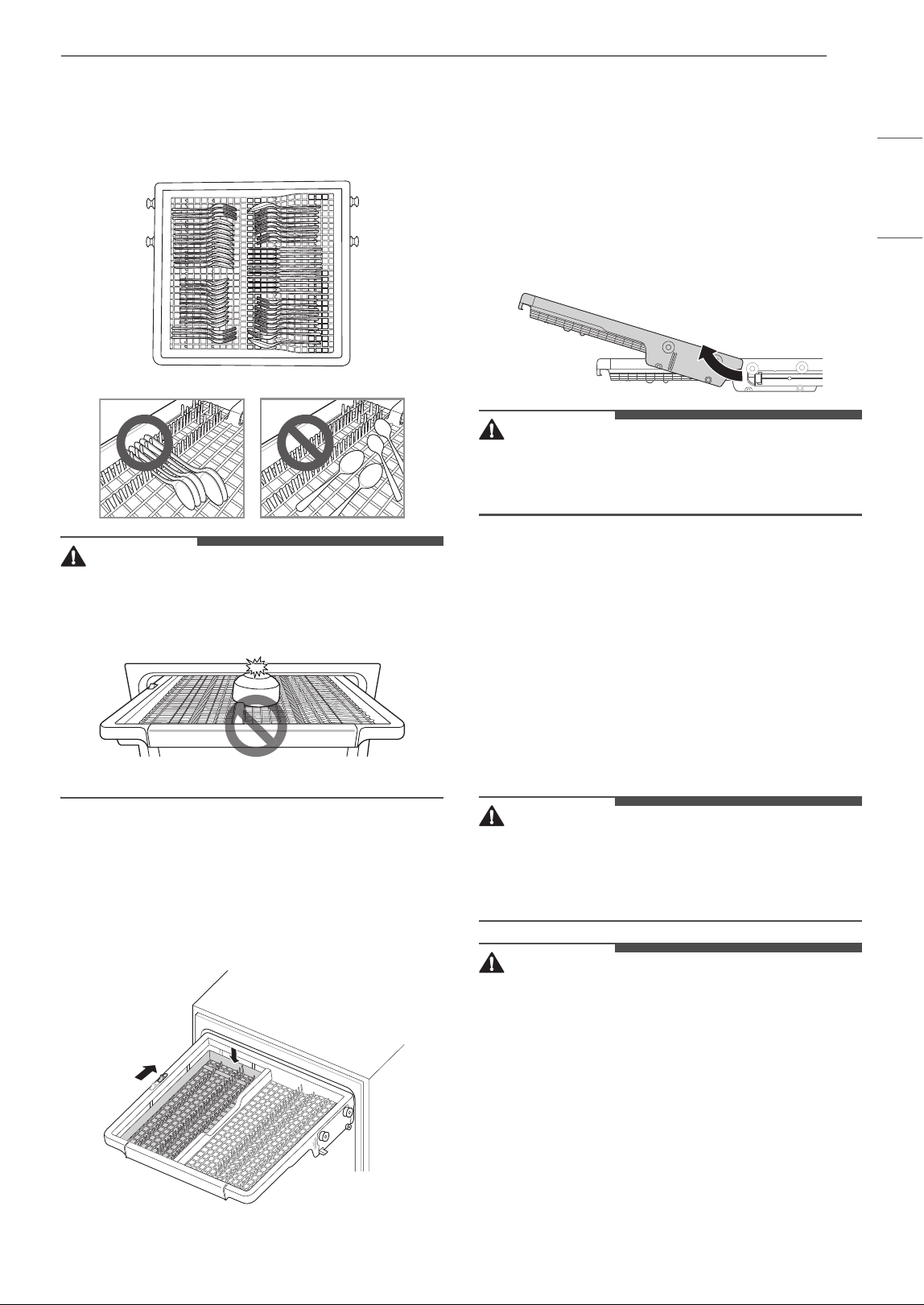

Loading Silverware into the Cutlery
Rack
Loading 10 Place Settings
CAUTION
• Do not place bowls in the center of the cutlery
rack. The door may not close properly, resulting
in leakage.
Height Adjustable Tray
The tray on the left side can be adjusted to a high
or low position to accommodate utensils or cutlery
of different sizes. Remove dishes before adjusting
the tray. Adjust the tray by sliding the lever.
Removing the Cutlery Rack
The entire cutlery rack can be removed if more
space is needed on the upper rack for larger items.
Always remove the cutlery from the rack before
removing the rack.
Pull the rack out to the end of the rails. Then, lift
the front of the rack so that the rollers clear the
stop on the end of the rail. The rack can now be
slid forward and removed from the rails.
WARNING
• Be careful when loading and unloading items
with sharp edges. Load sharp knives with the
blade down to reduce the risk of injury.
Adding Cleaning Products
Adding Detergent to the Dispenser
• Remove the label on the dispenser prior to
running the dishwasher for the first time.
• The amount of detergent needed depends on
the cycle, load size, and soil level of dishes.
• Put detergent into the detergent compartment
before starting any cycle, except the Rinse cycle.
WARNING
• Dishwasher detergent and rinse aid contain
chemical components, like all other household
detergent. So, they must be kept out of the
reach of children.
CAUTION
• Use only detergent intended for dishwashers.
Incorrect detergent may cause the dishwasher
to fill with suds during operation. Excess suds
may reduce wash performance and may cause
the dishwasher to leak.
36 OPERATION

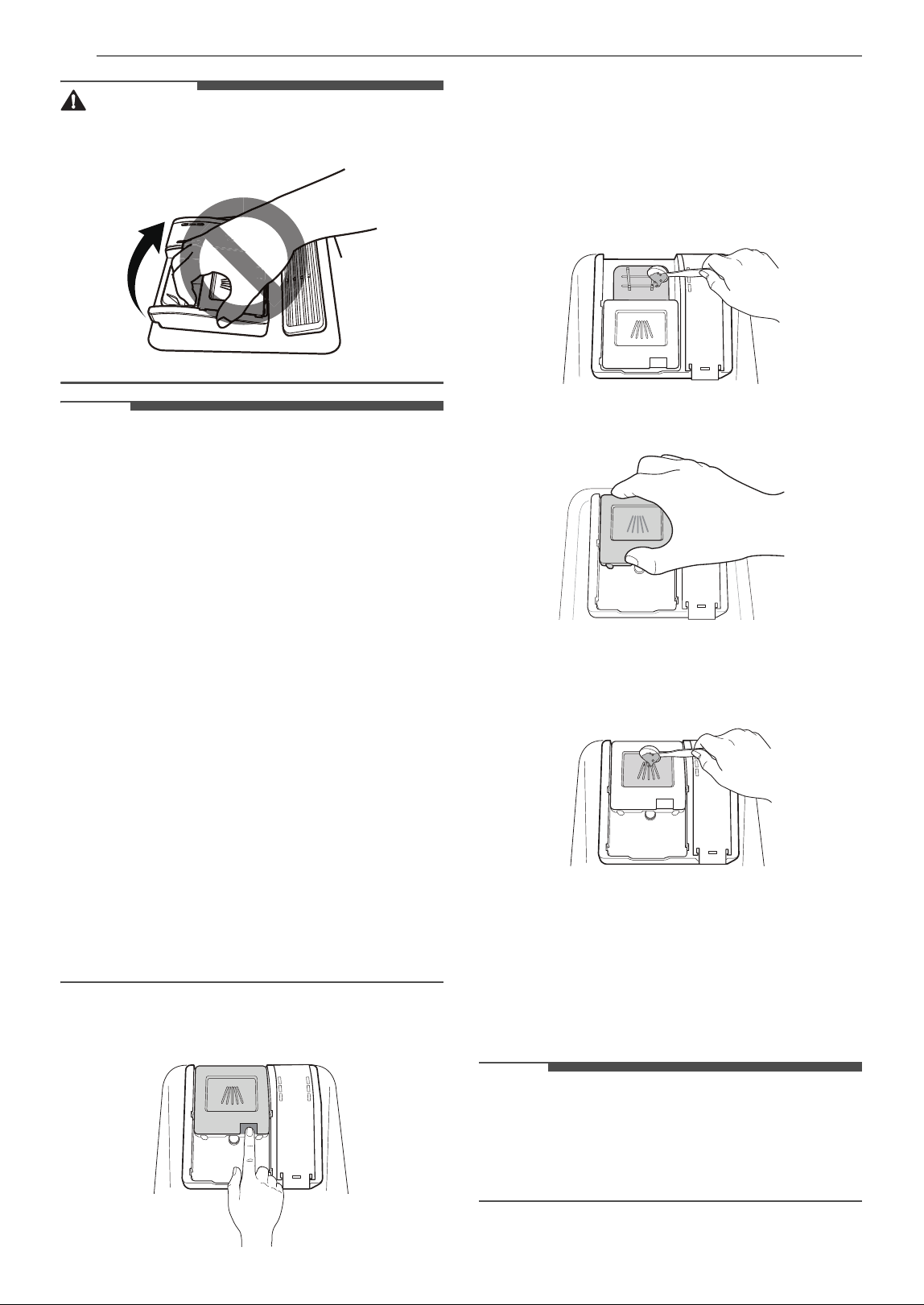

CAUTION
• To avoid damaging the dispenser, do not pull up
on the dispenser to close the dishwasher door.
NOTE
• After completion of the wash program, check
whether the detergent was completely washed
out.
• Some dishwasher detergent tablets may become
stuck in the dispenser due to their excessive size.
Tablets can be placed onto the base of the wash
tub next to the filter before starting the cycle.
• Too much detergent can leave a film on dishes
and in the dishwasher, resulting in poor wash
performance.
• If dishwasher detergent tablets are used without
liquid rinse aid, the dishes and dishwasher
interior will have excessive moisture. Select the
Extra Dry option for better drying performance.
• Using liquid rinse aid improves drying
performance by allowing water to drain off of
dishes after the final rinse.
• Do not use detergent tablets for shorter wash
cycles. The tablet may not dissolve completely,
causing detergent residue on dishes and
inefficient cleaning.
• Using a wash booster helps remove spots,
residue, and the white film caused by hard
water. It does not help remove excess detergent
residue.
1 Push the button on the dispenser lid to open
the cover.
2 Add dishwashing detergent to the main wash
compartment until the level is between the
lines marked 15 and 25.
• Fill to over the 25 line for hard water or
heavily soiled loads.
• Fill to the 15 line for soft water or lightly
soiled loads.
3 Slide the detergent lid closed until it clicks.
4 If a prewash is desired, fill the recessed
prewash compartment area on the lid with
detergent.
Adding Rinse Aid to the Dispenser
The Rinse Aid e icon appears in the display when
more rinse aid is needed.
The use of rinse aid is recommended to prevent
water spots on dishes and to enhance drying
performance.
NOTE
• Only use liquid rinse aid in the dishwasher.
• Do not overfill the rinse aid dispenser.
• Wipe off any spilled rinse aid around the
dispenser.
۱٥
۲٥
37OPERATION
ENGLISH

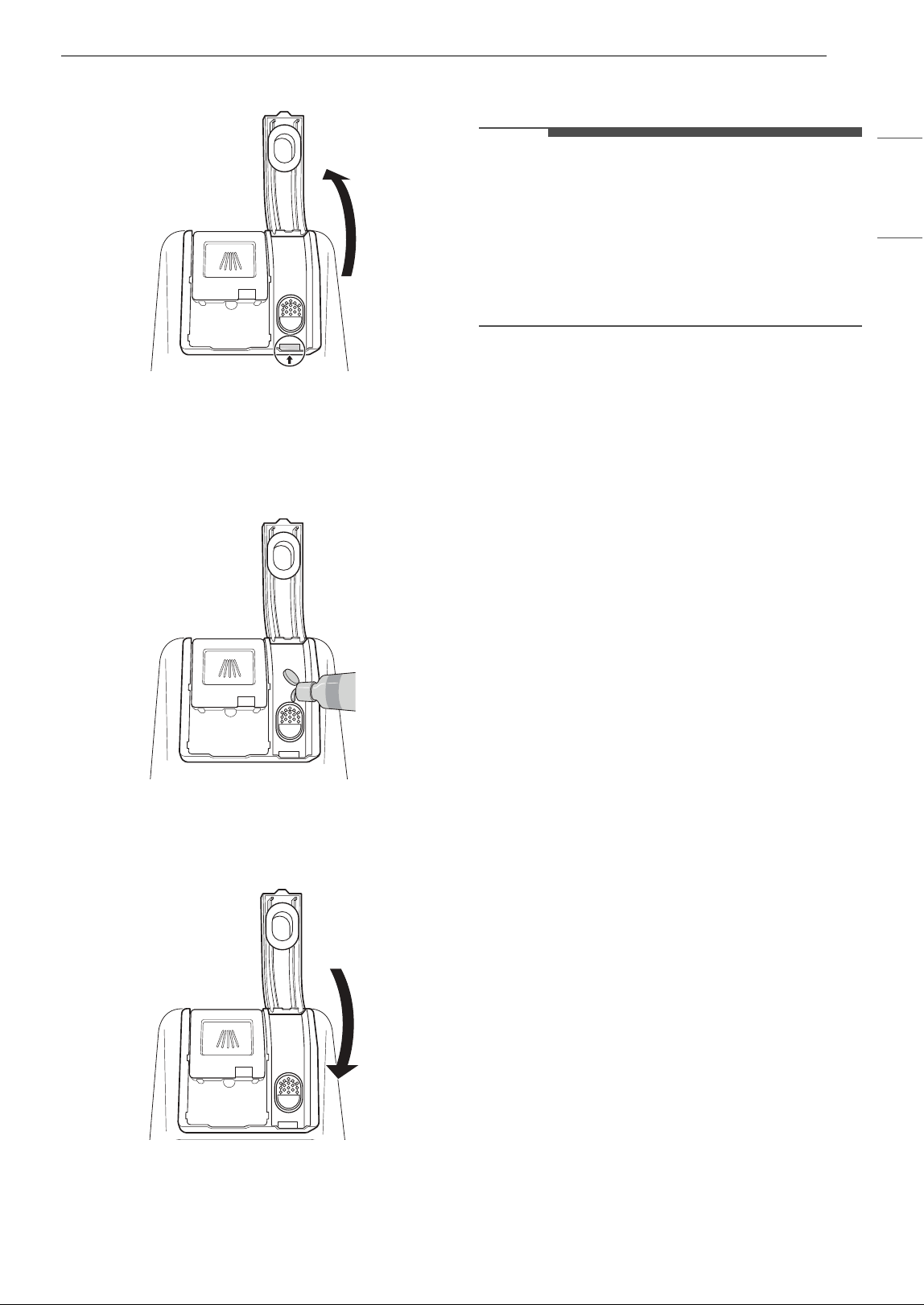

1 Open the rinse aid lid by lifting up the flap.
2 Add a liquid rinse aid to the maximum fill
level. Allow the rinse aid to settle in the
dispenser while filling, or air bubbles may
result in poor drying performance. Avoid
overfilling the dispenser.
3 Close the lid to lock the dispenser. Rinse aid is
dispensed automatically during the final rinse
cycle.
Rinse Aid Dispenser Adjustment
The dispenser has five adjustment levels. The
dishwasher is programmed at the factory for a
rinse aid dispenser level of 2. This can be checked
and adjusted from the control panel.
NOTE
• Adjust the setting higher if you have hard water
and notice calcium buildup on your dishes.
• Setting the rinse aid control too low will
contribute to spotting and streaking on dishes
and poor drying performance.
• Setting the control too high can cause foaming,
which will cause poor wash performance.
1 Ensure the appliance is off.
2 Press Dual Zone and Power simultaneously
to check the current setting.
3 Press Delay Start to change the rinse aid
dispenser setting. Each press of the button
changes the setting one step from L0 to L4.
4 Once the desired rinse aid dispenser setting is
selected, press Start to save.
Refilling the Rinse Aid
How often the dispenser needs to be refilled
depends on how often dishes are washed and the
rinse aid setting used.
•The Rinse Aid
e icon flashes when more rinse
aid is needed, unless the rinse aid dispenser
setting is set to L0.
38 SMART FUNCTIONS
SMART FUNCTIONS
LG ThinQ Application
The LG ThinQ application allows you to
communicate with the appliance using a
smartphone.
LG ThinQ Application Features
• Monitoring
- Check the current status, cycle, options,
running time and cycle end time for the
appliance on a single screen.
• Download Cycle
- You can download new and specialized cycles
that are not included in the standard cycles on
the appliance. Connect the appliance to the
app to download a variety of specialty cycles
specific to the appliance. Once cycle download
is completed in the appliance, the product
keeps the downloaded cycle until a new cycle
is downloaded.
NOTE
• Only one downloaded cycle can be stored on the
appliance at a time.
• Machine Clean Coach
- This function shows how many cycles remain
before running the Machine Clean cycle.
• Smart Diagnosis
- This function provides useful information for
diagnosing and solving issues with the
appliance based on the pattern of use.
• Settings
- Set the Rinse Aid Dispenser Level, Machine
Clean Reminder, Signal Level and Clean
Indicator Light.
When the cycle is complete or the appliance
has problems, you have the option of receiving
push notifications on a smart phone.
• Push Alerts
- Turn on the Push Alerts to receive appliance
status notifications.
The notifications are triggered even if the LG
ThinQ application is off.
NOTE
• If you change your wireless router, Internet
service provider, or password, delete the
connected appliance from the LG ThinQ
application and connect it again.
• This information is current at the time of
publication. The application is subject to change
for product improvement purposes without
notice to users.
Installing LG ThinQ Application and
Connecting an LG Appliance
Models with QR Code
Scan the QR code attached to the product using
the camera or a QR code reader application on
your smartphone.
Models without QR Code
1 Search for and install the LG ThinQ
application from the Google Play Store or
Apple App Store on a smartphone.
2 Run the LG ThinQ application and sign in with
your existing account or create an LG account
to sign in.
3 Touch the add (~) button on the LG ThinQ
application to connect your LG appliance.
Follow the instructions in the application to
complete the process.
NOTE
• To verify the Wi-Fi connection, check that the f
icon on the control panel is lit.
• The appliance supports 2.4 GHz Wi-Fi networks
only. To check your network frequency, contact
your Internet service provider or refer to your
wireless router manual.
• LG ThinQ is not responsible for any network
connection problems or any faults, malfunctions,
or errors caused by network connection.
39SMART FUNCTIONS
ENGLISH
• The surrounding wireless environment can
make the wireless network service run slowly.
• If the distance between the appliance and the
wireless router is too far, the signal becomes
weak. It may take a long time to connect or fail
to install the application.
• If the appliance is having trouble connecting to
the Wi-Fi network, it may be too far from the
router. Purchase a Wi-Fi repeater (range
extender) to improve the Wi-Fi signal strength.
• The network connection may not work properly
depending on the Internet service provider.
• The Wi-Fi may not connect or the connection
may be interrupted because of the home
network environment.
• If the appliance cannot be connected due to
problems with the wireless signal transmission,
unplug the appliance and wait about a minute
before trying again.
• If the firewall on your wireless router is enabled,
disable the firewall or add an exception to it.
• The wireless network name (SSID) should be a
combination of English letters and numbers. (Do
not use special characters.)
• Smartphone user interface (UI) may vary
depending on the mobile operating system (OS)
and the manufacturer.
• If the security protocol of the router is set to
WEP, network setup may fail. Change the
security protocol (WPA2 is recommended), and
connect the product again.
Wireless LAN Module Specifications
FCC Notice
The following notice covers the transmitter
modulecontained in this product.
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation. This equipment generates, uses, and
can radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interference to
radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to
try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment
and the receiver.
• Connect the equipment into an outlet on a
circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV
technician for help.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference
and
(2) This device must accept any interference
received, including interference that may cause
undesired operation.
Any changes or modifications in construction of
this device which are not expressly approved by
the party responsible for compliance could void
the user’s authority to operate the equipment.
FCC RF Radiation Exposure
Statement
This equipment complies with FCC radiation
exposure limits set forth for an uncontrolled
environment. This transmitter must not be co-
located or operating in conjunction with any other
antenna or transmitter.
This equipment should be installed and operated
with a minimum distance of 20 cm (7.8 inches)
between the antenna and your body. Users must
follow the specific operating instructions for
satisfying RF exposure compliance.
Industry Canada Statement
This device contains licence-exempt transmitter(s)/
receiver(s) that comply with Innovation, Science
and Economic Development Canada’s licence-
exempt RSS(s). Operation is subject to the
following two conditions:
(1) This device may not cause interference.
Frequency
Range
2412 MHz - 2462 MHz
Output Power
(Max)
< 30 dBm
40 SMART FUNCTIONS
(2) This device must accept any interference,
including interference that may cause undesired
operation of the device.
IC Radiation Exposure Statement
This equipment complies with IC radiation
exposure limits set forth for an uncontrolled
environment.
This equipment should be installed and operated
with a minimum distance of 20 cm (7.8 inches)
between the antenna and your body.
NOTE
• THE MANUFACTURER IS NOT RESPONSIBLE FOR
ANY RADIO OR TV INTERFERENCE CAUSED BY
UNAUTHORIZED MODIFICATIONS TO THIS
EQUIPMENT. SUCH MODIFICATIONS COULD
VOID THE USER’S AUTHORITY TO OPERATE THE
EQUIPMENT.
Open Source Software Notice
Information
To obtain the source code that is contained in this
product, under GPL, LGPL, MPL, and other open
source licenses that have the obligation to disclose
source code, and to access all referred license
terms, copyright notices and other relevant
documents, please visit https://
opensource.lge.com.
SIGNATURE KITCHEN SUITE will also provide open
source code to you on CD-ROM for a charge
covering the cost of performing such distribution
(such as the cost of media, shipping, and handling)
upon email request to [email protected].
This offer is valid to anyone in receipt of this
information for a period of three years after our
last shipment of this product.
Smart Diagnosis
TM
Function
Use this feature to help you diagnose and solve
problems with your appliance.
NOTE
• For reasons not attributable to LGE’s negligence,
the service may not operate due to external
factors such as, but not limited to, Wi-Fi
unavailability, Wi-Fi disconnection, local app
store policy, or app unavailability.
• The feature may be subject to change without
prior notice and may have a different form
depending on where you are located.
Using LG ThinQ to Diagnose Issues
If you experience a problem with your Wi-Fi
equipped appliance, it can transmit
troubleshooting data to a smartphone using the
LG ThinQ application.
• Launch the LG ThinQ application and select the
Smart Diagnosis
TM
feature in the menu. Follow
the instructions provided in the LG ThinQ
application.
Using Audible Diagnosis to
Diagnose Issues
Follow the instructions below to use the audible
diagnosis method.
• Launch the LG ThinQ application and select the
Smart Diagnosis feature in the menu. Follow
the instructions for audible diagnosis provided
in the LG ThinQ application.
1 Press the POWER button to turn on the
appliance.
• Do not press any other buttons.
2 Place the mouthpiece of your smartphone
close to the c or d logo.
3 Press and hold the Download Cycle button
for 3 seconds or longer while holding the
smartphone mouthpiece to the logo until the
data transfer is complete.
• Keep the smartphone in place until the data
transfer has finished. Time remaining for
data transfer is displayed.
4 After the data transfer is complete, the
diagnosis will be displayed in the application.
Max.
10 mm
Max.
10 mm
41SMART FUNCTIONS
ENGLISH
NOTE
• For best results, do not move the smartphone
while the tones are being transmitted.
42 MAINTENANCE
MAINTENANCE
To maintain performance and prevent trouble, it is important to check the outside and inside of the
dishwasher, including filters and spray arms, at regular intervals.
WARNING
• When cleaning the outside and inside of the dishwasher, do not use benzene or thinner. Otherwise, it
may cause fire or explosion.
• To prevent injury during care and maintenance or cleaning, wear gloves and/or protective clothing.
Cleaning and Care
Cleaning the Exterior
• Do not use scrub pads or abrasive cleaners on
the exterior of the dishwasher.
• Most soil can be removed using a soft, damp
cloth or sponge. A mild soap can be used to help
release stubborn soil. Rinse and wipe dry with a
soft cloth after cleaning.
• Stainless steel surfaces can be polished using a
stainless steel cleaner. Follow the instructions on
the cleaner, and wipe in the direction of the
grain.
CAUTION
• If cooking oil is spilled on the exterior of the
product, wipe it off immediately. Do not clean
the exterior of the product with cleaners which
contain alcohol, thinners, bleach, benzene,
flammable liquids, or abrasives. These
substances may discolor or damage the
appliance.
Cleaning the Interior
• Clean the interior of the dishwasher periodically
with a soft, damp cloth or sponge to remove
food and dirt particles.
• To remove white spots and odor from inside the
dishwasher, run an empty cycle, without
detergent, with one cup of white vinegar in a
dishwasher safe glass or bowl placed on the
upper rack. (Vinegar is an acid and with constant
use it could damage the appliance.)
•Using Machine Clean
- Run the Machine Clean cycle once a month or
after every 30 cycles to eliminate residual soil,
odor, white spots and other dirt inside the
appliance.
1 Remove all dishes from the appliance.
2 Add 3 tbsp. (40 g) of citric acid to the
detergent dispenser or follow the
manufacturer’s instructions if using a
dishwasher cleaning agent. Do not use
dishwasher detergent.
3 Press and hold Heavy for 3 seconds to
select the Machine Clean cycle.
4 Press Start.
NOTE
•Run the Machine Clean cycle once a month, or
more often if needed, to remove detergent
buildup and other residue.
• If you have not used the dishwasher for a long
time, refresh the inside by running the Machine
Clean cycle without detergent. When the cycle is
finished, clean the inside and outside of the
dishwasher according to the MAINTENANCE
instructions.
Clogged Drain Air Gap or In-Sink
Disposal
Check the drain air gap or in-sink disposal if the
dishwasher is not draining well.
NOTE
• The drain air gap and disposal are external
plumbing devices that are not part of the
dishwasher.
• The warranty provided with the dishwasher does
not cover service costs directly associated with

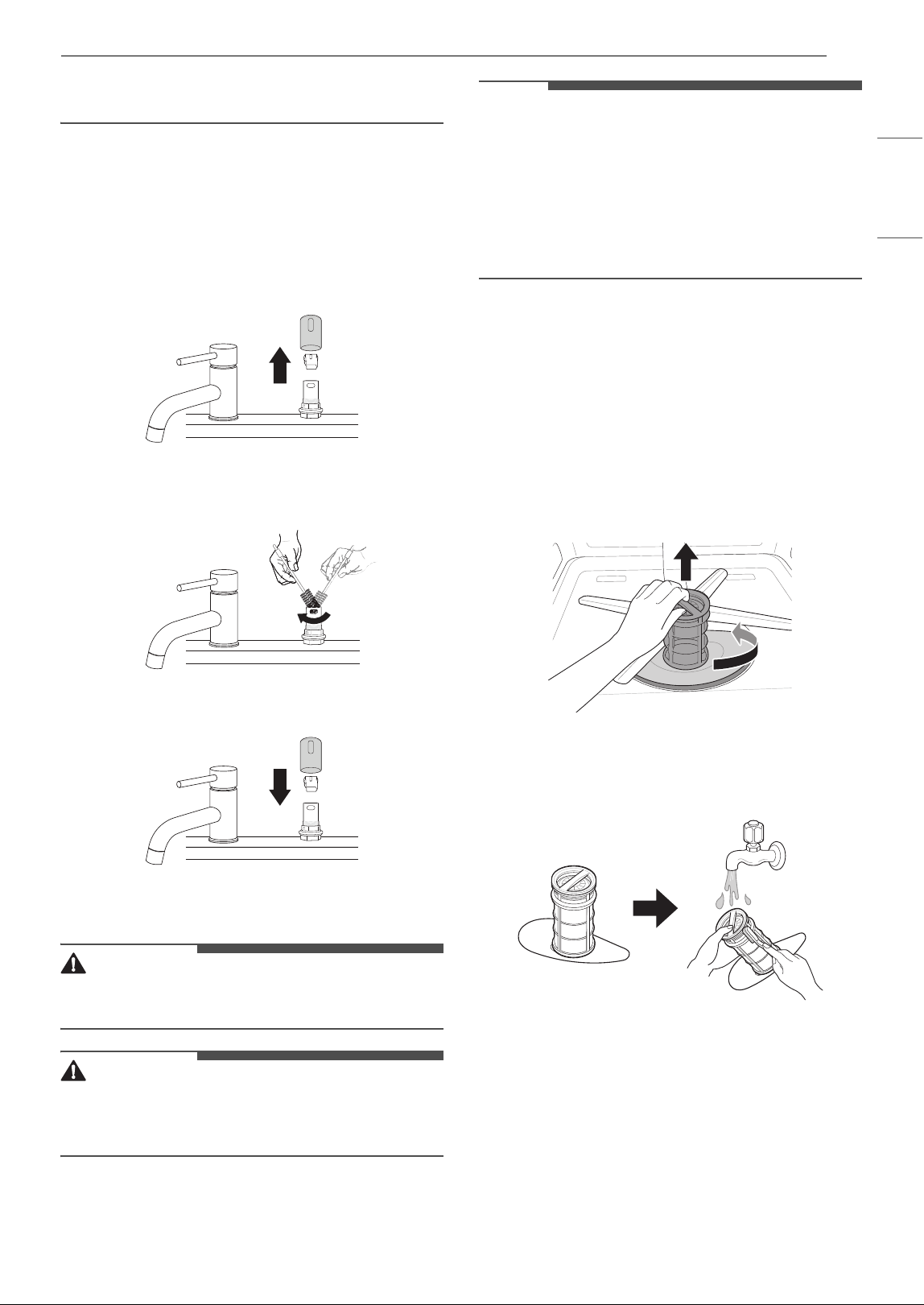

43MAINTENANCE
ENGLISH
the cleaning or repair of the external drain air
gap and disposal.
Cleaning the Air Gap
1 Turn off the dishwasher.
2 Remove the air gap cover and the plastic cap
underneath it.
3 Clean out any debris with a toothpick or
brush.
4 Replace the plastic cap and air gap cover.
Cleaning the Filters
WARNING
• Be cautious of sharp edges when handling the
stainless steel filter.
CAUTION
• Remove food residue caught in filters to prevent
the buildup of odor-causing bacteria and
possible drainage problems.
NOTE
• For best wash performance, clean the filter after
each load. If food debris remains in the filter, it
may cause an odor.
• In areas with hard water, clean the filter at least
once a month with a soft brush.
• Clean the filters using non-abrasive materials
and warm running water.
1 Remove the lower rack and position the
bottom spray arm so a wider vee is open to
the front.
2 Turn the inner filter counter-clockwise and
take out the assembled inner filter and
stainless steel filter.
With the filters removed, check the sump
opening and remove any foreign materials, if
needed.
3 Clean the filters with a soft brush under
running water. Reassemble the filters before
reinstalling them.
4 To replace the assembled filters, position the
spray arm so the wider vee is toward the
front. Fit the filters back into the filter holder
and secure them by turning the inner filter
clockwise until it clicks into place.

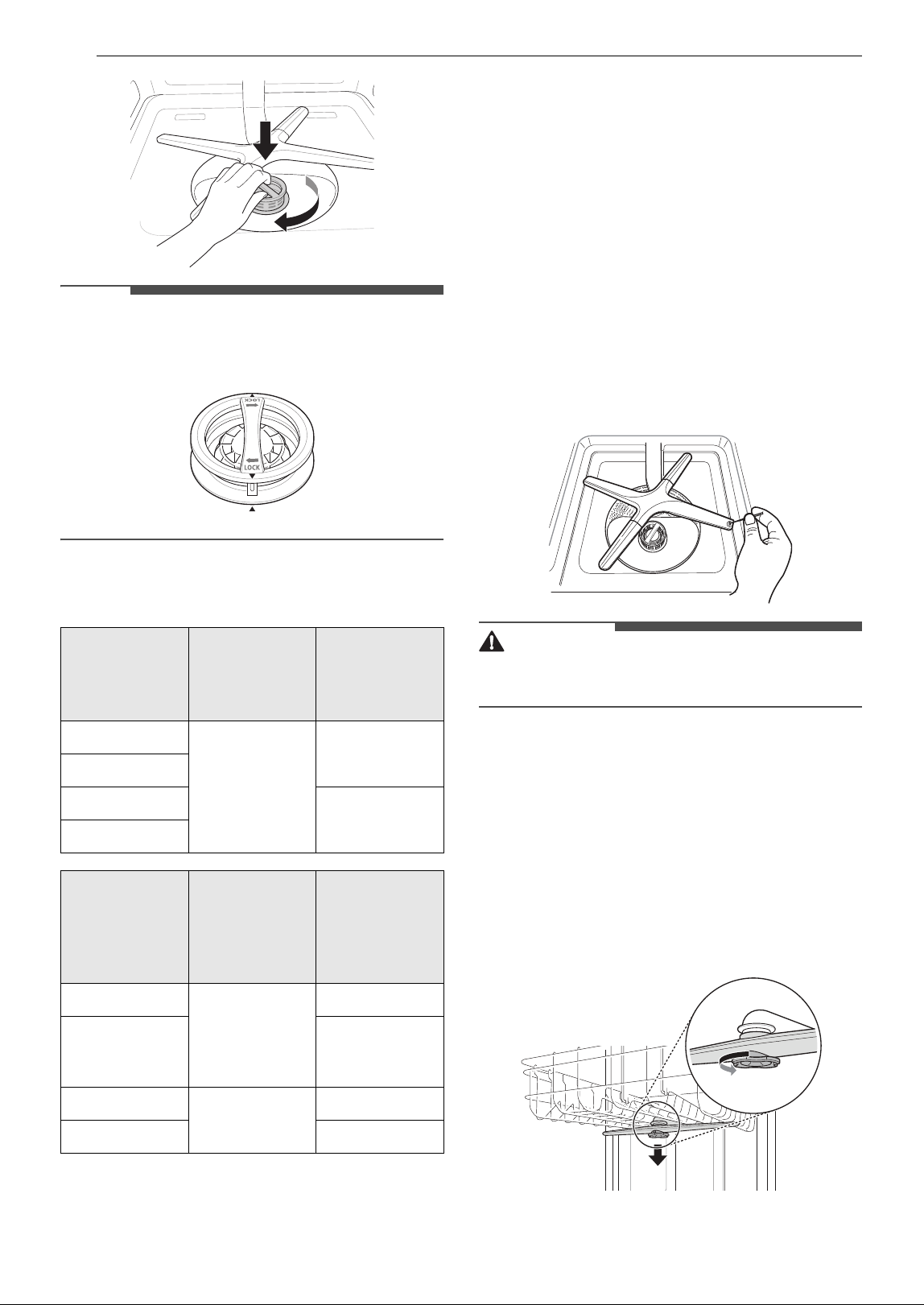

44 MAINTENANCE
NOTE
• Make sure the filter is assembled correctly
before starting a cycle. When assembling, rotate
the filter firmly until it clicks.
Recommended Filter Cleaning
Schedule
Cleaning the Spray Arm
If the spray arm holes are blocked by any food
residue, dishes may not be cleaned well due to
improper water spray.
It is recommended that the spray arms be cleaned
once every two weeks.
Cleaning the Lower Spray Arm
1 Make sure that the water jet holes are not
blocked by food particles.
2 If any food residue blocks the spray arm
holes, remove it with a pin or piece of stiff
wire.
CAUTION
• To avoid breaking the rolling spray arm sections,
do not pull or manually rotate them.
Cleaning the Upper Spray Arm
1 Pull the upper rack forward. Make sure that
the water jet holes are not blocked by food
particles.
2 When cleaning is necessary, remove the
upper spray arm by turning the nut on the
bottom of the spray arm 1/8 turn counter-
clockwise and pulling down.
Number of
Loads Per
Week
If you wash
dishes before
loading
If you scrape
and rinse
dishes before
loading
1 - 3
Every 6 months
Once a year
4 - 7
8 - 12
Every 6 months
13 - 14
Number of
Loads Per
Week
If you only
scrape dishes
before
loading
If you do not
scrape or
rinse dishes
before
loading
1 - 3
Four times a
year
Once a month
4 - 7
Twice a
month(every
15 days)
8 - 12
Every 1.5
months
Every week
13 - 14 Twice a week
45MAINTENANCE
ENGLISH
3 Remove food particles by rinsing or shaking
the spray arm.
4 If any food residue blocks the spray arm
holes, remove it with a pin or any sharp tool.
5 After removing the food residue, clean the
spray arms under running water.
6 After cleaning the upper spray arm, press it
up into place. Turn the nut 1/8 turn clockwise
to make sure that the nut locks back into
place.
7 After assembly, make sure that the spray
arms rotate freely.
Seasonal Maintenance and Storage
• If you will be absent for an extended period of
time during warmer months, close the water
valve and disconnect the power supply line, or
turn off the circuit breaker. Clean the filter, tub
and dispenser to prevent odor.
• If you will be absent for an extended period of
time during colder months and there is a
possibility of freezing temperatures, winterize
the water supply lines and the dishwasher itself.
Winterization must be performed by qualified
service personnel.
46 TROUBLESHOOTING
TROUBLESHOOTING
The washer is equipped with an automatic error-monitoring system to detect and diagnose problems at an
early stage. If the washer does not function properly or does not function at all, check the following before
you call for service.
Before Calling for Service
FAQs
Q: Does this dishwasher require a rinse aid to be used?
A: Rinse aid is strongly recommended to enhance the drying performance of the dishwasher. In order
to be more energy efficient, the hybrid drying system does not use a heating element to assist in
drying, so a rinse aid plays an integral role in the drying process. If a rinse aid is not used, water may
remain on the dishes and the tub. Rinse aid helps to ensure that the majority of the water has been
sheeted off of the dishes at the end of the rinse and that the load is ready for the dry cycle.
Q: What can be done if my dishes have a cloudy, white film on them after a wash?
A: The cloudy film is usually caused by minerals in the water reacting with the dishwasher detergent.
First, be certain not to use too much detergent. Refer to Adding Detergent to the Dispenser section
for recommended detergent amounts. Add an extra rinse to the cycle. SIGNATURE KITCHEN SUITE
Dishwashers use less water than traditional dishwashers, so adding an extra rinse helps to rinse the
film away. If the water supply is hard, it may be necessary to add a performance booster that
addresses the hard water condition.
Q: How do I remove white film on the tub?
A: Measure 3 tbsp. (40 g) of citric acid powder and use it to fill the main detergent compartment. Run a
Machine Clean cycle. Do not use detergent.
Q: What steps can I take to improve drying results?
A: Drying performance is directly affected by the amount of heat that remains in the tub after the
heated rinse is performed. If your dishwasher is far away from your home’s hot water heater, it may
be necessary to run the hot water tap in the sink before starting a wash cycle, to ensure that cool
water is purged from the hot water lines. This will ensure your dishwasher has a consistent supply of
hot water from start to finish. Using the High Temp setting also aids in keeping the inner drum
temperature and dishes hotter before drying begins.
SIGNATURE KITCHEN SUITE dishwashers are designed to be used in conjunction with a rinse aid.
Using a rinse aid will maximize the amount of water that has already been sheeted away from the
dishes before the dry cycle begins. If a rinse aid is used and the performance still needs a boost,
adjust the amount of rinse aid used. 2 is the default setting, but if necessary set the level to 3 so more
rinse aid is used.
Water tends to bead rather than sheet off plastic and nonstick surfaces, making them more difficult
to dry. If washing plastic items in a Normal cycle, select the Extra Dry or Night Dry option or both for
better drying results. When the rinse aid is empty, the Extra Dry option is selected automatically.
Allow the dishwasher to completely finish the dry cycle before opening the door. If the door is
opened in the middle of the dry cycle, the heat that is necessary for the hybrid dry system to work
will escape. This will cause all of the dishes inside to remain wet once the cycle finishes.
Q: What is the hybrid drying system?
47TROUBLESHOOTING
ENGLISH
A: The dishwasher does not rely on a heating element for the drying process; instead, it relies on the
heat that is retained by the dishes and the tub during the wash and rinse cycles to turn the moisture
in the tub into humidity.
Warm, moist air in the dishwasher is then pulled into a condensing duct in the door by a fan. The air
then cools, which causes the humidity to condense. Room temperature air is also drawn into the duct
to help the air cool down faster. When this moisture condenses into a liquid, it is drained out.
NOTE
• Rinse aid is required to enhance the drying performance. If no rinse aid is used, water may
remain on the dishes and the tub.
Q: Why am I hearing a whistling sound from the dishwasher?
A: It is important to determine the duration of the noise and when it happens (what part of the cycle).
When water is drawn into the dishwasher, a whistling noise can be heard. This is normal. If the water
pressure is too high, it will be louder, so it may be necessary to adjust the water valve to lower the
pressure if the noise is too loud.
Q: What kinds of dishes can be placed in the dishwasher?
A: Ensure that the dishes you place in the dishwasher are dishwasher safe. Plastic dishware will not dry
as effectively as glass and metal dishware. Plastic items do not retain heat as well as glass and metal
dishware. Plastic cups and dishes may require some hand drying before being put away at the end of
the cycle.
Q: Can I run a drain only cycle?
A: To drain standing water, press and hold Start for three seconds until the cycle stops. Once the
dishwasher finishes draining, the power turns off.
Q: Why does my dishwasher continuously chime if I open the door during a cycle or right after the
cycle has finished?
A: This is normal. The dishwasher is letting you know that the interior temperatures of the unit are hot
and to use caution when reaching inside. Once the unit has cooled down, the chiming will stop.
Q: What is Control Lock and how is it activated?
A: Control Lock is a feature that prevents the controls from being changed during the cycle. It does not
prevent the door from being opened or the unit from being powered off. To activate or deactivate,
press and hold Half Load and Energy Saver simultaneously for three seconds.
Q: Can I add an extension to the drain hose?
A: If a drain hose extension is required, use a 5/8" or 7/8" inside diameter, 2 ft ~ 3 ft. length hose and a
coupler to connect the two hose ends.
Q: An LED is blinking, the machine is chiming, and the dishwasher won't start. What is wrong with
the dishwasher?
A: This is a safety feature. The door must be closed within four seconds of pressing the Start button. If
the door is not closed within four seconds, an LED flashes, an audible alert sounds, and the
dishwasher does not operate. To start the dishwasher, open the door and either close the door and
press Start (front controls) or press Start and close the door within four seconds (top controls).
Q: Should I pre-rinse dishes before loading them?
A: No, you don't need to pre-rinse the dishes before loading especially if using the Normal and Auto
cycles. The dishwasher washes dishes clean without pre-rinsing.
48 TROUBLESHOOTING
Error Messages
Problem Possible Cause & Solution
IE
Water inlet problem.
• Check for a clogged, kinked or frozen water inlet hose.
• Check water supply.
OE
Drainage Problem.
• Check for a clogged, kinked or frozen water drain hose.
Air gap or disposal is clogged.
• Clean air gap or disposal.
Filters are clogged.
• Clean filters.
bE
Oversudsing caused by improper detergent, such as liquid dish soap.
• Do not use hand dishwashing liquids. Only use detergents which are designed for use in
automatic dishwashers.
•A
bE error can appear if dishes soiled with a lot of foamy food, such as whipped cream, are
loaded in the appliance. To clear the error, turn the appliance off and start a new cycle.
• To remove detergent residue in the tub, pour approximately 4 oz ~ 8 oz (100 ml ~ 200 ml)
of milk into a shallow bowl, place it in the upper rack and then run the appliance on the
Auto cycle.
Failure to level dishwasher.
• Make sure that the appliance is properly leveled.
AE
Water leakage
• Turn off the water supply to the dishwasher and call a SIGNATURE KITCHEN SUITE
Customer Information Center at 1-855-790-6655 (U.S.A.) or 1-888-289-2802 (Canada).
• The dishwasher makes an alert sound for 10 seconds, and runs the drain pump
intermittently. If power is turned off to the machine, the machine powers back on
automatically until the AE error is resolved.
FE
Excessive Water supplied.
• Please call a SIGNATURE KITCHEN SUITE Customer Information Center at 1-855-790-6655
(U.S.A.) 1-888-289-2802 (Canada).
HE
Heater circuit failure.
• Please call a SIGNATURE KITCHEN SUITE Customer Information Center at 1-855-790-6655
(U.S.A.) 1-888-289-2802 (Canada).
tE
Water temperature sensor error
• Please call a SIGNATURE KITCHEN SUITE Customer Information Center at 1-855-790-6655
(U.S.A.) 1-888-289-2802 (Canada).
LE
Wash motor error
• Please call a SIGNATURE KITCHEN SUITE Customer Information Center at 1-855-790-6655
(U.S.A.) 1-888-289-2802 (Canada).
NE
Vario motor error
• Please call a SIGNATURE KITCHEN SUITE Customer Information Center at 1-855-790-6655
(U.S.A.) 1-888-289-2802 (Canada).
P1, Pz, P3, P4
The Download Cycle is selected.
• This is not an error code. This code indicates the current Download Cycle.
N:#, U:#, d:#, t#
(# is a number.)
Test mode is selected.
• This is not an error code. This code is used when testing the dishwasher. Power the unit off
and on and the code will disappear.
49TROUBLESHOOTING
ENGLISH
Operation
LO, L1, Lz, L3, L4
Rinse aid level setting mode is selected.
• This is not an error code. This code indicates the current rinse aid level. For more
information, refer to the Adding Cleaning Products section.
CL
Control Lock is activated.
• This is not an error code. This code indicates that the control lock is activated. Press and
hold Half Load and Energy Saver simultaneously for three seconds.
Problem Possible Cause & Solution
Dishwasher will not
operate.
Start button is not pressed.
• Press the Start button.
Door is not completely closed.
• Make sure that the door is completely closed and latched.
Power supply or power supply line is not connected.
• Connect the power supply or power supply line properly.
Fuse is blown or circuit breaker tripped.
• Replace the fuse or reset the circuit breaker.
Control Lock is activated.
•Deactivate Control Lock.
Dishwasher operates
too long.
Dishwasher is connected to cold water.
• Check the water supply connection or water heater setting. (Heating cold water takes
longer.)
Water remains in tub
after completion of
cycle.
Drain hose is kinked or clogged.
• Adjust hose or clear blockage.
Noise Some level of noise is normal during operation.
• Detergent cover opening.
• Drain pump at the beginning of drain cycle.
The dishwasher is not level.
• Adjust leveling feet.
Nozzle arm knocking against dishes.
• Reposition the dishes.
Lights do not
illuminate.
Power is not connected.
• Connect power supply.
Spray arms do not
rotate smoothly.
Holes of spray arms are blocked by food particles.
• Clean the holes of spray arms.
Upper rack is
crooked.
Rack is poorly adjusted.
• See the Height Adjustable Upper Rack section.
Dishwasher
continuously chimes
when the door is
opened, during or
right after a cycle
has completed.
This is a safety measure. Contact with escaping steam or the hot contents of the
dishwasher could result in injury.
• Close the door until the dishwasher and dishes have cooled down. The chiming will stop if
the door is closed or the interior temperature has cooled.
Problem Possible Cause & Solution
50 TROUBLESHOOTING
Performance
Door does not close
completely. (For
models with cutlery
rack)
Cutlery rack is not properly loaded.
• Push the door handle to close the door properly until it clicks.
Dishwasher chimes if
panel is touched
during operation.
Bumping into or touching the control panel during operation may result in a disabled
button sound. Only the Power, Start, and Control Lock buttons are enabled during
operation to prevent cycle settings from being changed inadvertently.
• Button sounds can be turned off by pressing and holding Half Load for three seconds.
• The end of cycle chime and safety alert sounds will still sound.
Dishwasher did not
finish cycle.
Door was opened during cycle.
• If the door is opened during a cycle, the Start key must be pressed within 4 minutes or the
machine turns off and all settings are lost.
Leaking in front of
appliance
Dishwasher not leveled properly.
• Verify the appliance is level from side to side and from front to back. See leveling
instructions in the Installation section.
Wrong detergent used.
• If excessive sudsing is causing the leak, allow the foam to subside for 24 hours then clean
the inside of the tub with milk.
Problem Possible Cause & Solution
Odor The previous cycle was stopped before completion and residual water remains in the
dishwasher.
• Turn on the power, run the Cancel cycle option to remove the residual water, then run the
Turbo cycle using detergent but with the dishwasher empty.
There is food in the bottom of the appliance or in the filter.
• Clean the filter and the interior according to the Maintenance section of the owner’s
manual.
Unwashed dishes are left in the appliance for a long time.
• Run a cycle with one cup of white vinegar in a dishwasher safe glass or bowl placed on the
upper rack. (Vinegar is an acid, and with constant use it could damage your appliance.)
After cleaning, the appliance smells like detergent.
• This is normal.
Food soil remains on
dishes.
Improper cycle selection.
• Select correct cycle based on soil level and type of dishware being washed.
Water temperature is too low.
• Check water supply connection or water heater setting.
Dishwashing detergent was not used.
• Use recommended detergent.
Low inlet water pressure.
• Water pressure should be between 20 and 80 psi.
Water jet holes on spray arms blocked.
• Clean the spray arms.
Improper loading of dishes.
• Make sure dishes do not block spray arm rotation or interfere with detergent dispenser.
Problem Possible Cause & Solution
51TROUBLESHOOTING
ENGLISH
Wi-Fi
Food soil remains on
dishes.
Filters are clogged.
• Clean filters.
Cloudiness on
glassware.
Combination of excessive detergent and hard water.
• Use less detergent and use a rinse aid to minimize the problem.
Black or gray marks
on dishes.
Aluminum items rubbing dishes during cycle.
• Reposition the dishes.
Yellow or brown film
on inside surfaces of
dishwasher.
Coffee or tea stains.
• Eliminate the stain by using a stain removal product.
Spots and filming on
dishes.
Low water temperature.
• Water supply should be at least 120 °F for best wash performance.
Overloading.
• Do not overload the dishwasher.
Improper loading.
• See the Operation section.
Insufficient water pressure.
• Water pressure should be between 20 and 80 psi.
Insufficient detergent.
• Add the recommended amount of detergent. See the Operation section.
Rinse aid dispenser is empty.
• Refill rinse aid dispenser.
Hard water buildup in the tub.
• Remove all dishes, silverware and silverware holder from dishwasher. Only racks should
remain in tub. For best results, use citric acid powder (can be found in canning sections of
most grocery stores or online). Measure 3 tablespoons (40 g) of citric acid powder. Fill main
wash compartment with measured powder. If you cannot find citric acid powder, pour
approximately one cup (200 ml - 300 ml) of white vinegar into shallow bowl and place in
upper rack. Run Machine Clean cycle. Do not use detergent.
Dishes don’t dry. Rinse aid dispenser empty.
• Check and refill the rinse aid dispenser if empty.
Problem Possible Cause & Solution
Trouble connecting
appliance and
smartphone to Wi-Fi
network
The password for the Wi-Fi network was entered incorrectly.
• Delete your home Wi-Fi network and begin the connection process again.
Mobile data for your smartphone is turned on.
• Turn off the Mobile data on your smartphone before connecting the appliance.
The wireless network name (SSID) is set incorrectly.
• The wireless network name (SSID) should be a combination of English letters and
numbers. (Do not use special characters.)
Problem Possible Cause & Solution
52 TROUBLESHOOTING
Trouble connecting
appliance and
smartphone to Wi-Fi
network
The router frequency is not 2.4 GHz.
• Only a 2.4 GHz router frequency is supported. Set the wireless router to 2.4 GHz and
connect the appliance to the wireless router. To check the router frequency, check with
your Internet service provider or the router manufacturer.
The appliance and the router are too far apart.
• If the appliance is too far from the router, the signal may be weak and the connection may
not be configured correctly. Move the router closer to the appliance or purchase and
install a Wi-Fi repeater.
During Wi-Fi setup, the app is requesting a password to connect to the product (on
certain phones).
• Locate the network name which starts with "LG" under Settings > Networks. Note the last
part of the network name.
- If the network name looks like LGE_Appliance_XX-XX-XX, enter lge12345.
- If the network name looks like LGE_Appliance_XXXX, enter XXXX twice as your password.
For example, if the network name appears as LGE_Appliance_8b92, then you would
enter 8b928b92 as your password. In this instance, the password is case sensitive and
the last 4 characters are unique to your appliance.
Problem Possible Cause & Solution
53LIMITED WARRANTY
ENGLISH
LIMITED WARRANTY
USA
TERMS AND CONDITIONS
Should your SIGNATURE KITCHEN SUITE Dishwasher (“Product”) fail due to a defect in materials or
workmanship under normal and proper use, during the warranty period set forth below, SIGNATURE
KITCHEN SUITE will, at its option, repair or replace the Product. This limited warranty is valid only to
the original retail purchaser of the Product (“You”) and applies only when purchased lawfully and
used within the United States including U.S. Territories.
† Main control board is located on the bottom right of the dishwasher when viewed from the front.
• Replacement Products and parts are warranted for the remaining portion of the original warranty period
or ninety (90) days, whichever is greater.
• Replacement Products and parts may be new, reconditioned, refurbished, or otherwise factory
remanufactured.
• Replaced Product or part(s) will be the property of SIGNATURE KITCHEN SUITE.
• Proof of original retail purchase specifying the Product model and date of purchase is required to obtain
warranty service under this limited warranty.
EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THE PRODUCT IS LIMITED IN
DURATION TO THE DURATION OF THE ABOVE LIMITED WARRANTY. UNDER NO CIRCUMSTANCES
SHALL SIGNATURE KITCHEN SUITE OR ITS U.S. DISTRIBUTORS/DEALERS BE LIABLE FOR ANY INDIRECT,
INCIDENTAL, CONSEQUENTIAL, SPECIAL, OR PUNITIVE DAMAGES, INCLUDING, WITHOUT
LIMITATION, LOST GOODWILL, LOST REVENUES OR PROFITS, WORK STOPPAGE, IMPAIRMENT OF
OTHER GOODS, COST OF REMOVAL AND REINSTALLATION OF THE PRODUCT, LOSS OF USE, OR ANY
OTHER DAMAGES WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE. SIGNATURE KITCHEN
SUITE’S TOTAL LIABILITY, IF ANY, SHALL NOT EXCEED THE PURCHASE PRICE PAID BY YOU FOR THE
PRODUCT.
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL
DAMAGES OR LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE
EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS LIMITED WARRANTY GIVES YOU
SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.
THIS LIMITED WARRANTY DOES NOT COVER:
• Service trips to deliver, pick up, or install, educate how to operate, correct wiring, or correct
unauthorized repairs.
Warranty Period
Scope of
Warranty
HOW SERVICE IS HANDLED
Three (3) years from date of original retail
purchase
Labor / Parts SIGNATURE KITCHEN SUITE will also
provide, free of charge, all labor and on-
site service to replace the defective part.
Five (5) years from date of original retail
purchase
Main control
board
†
/ Racks /
Stainless Steel Door
Liner / Tub
Main control board, dishwasher racks,
stainless steel door liner, tub. Customer
will be responsible for any labor or in-
home service to replace defective parts.
Ten (10) years from date of original retail
purchase
Direct Drive Motor Direct Drive motor. Customer will be
responsible for any labor or in-home
service to replace defective parts.
54 LIMITED WARRANTY
• Damage or failure of the Product to perform during power failures and interrupted or inadequate
electrical service.
• Damage or failure of the Product caused by leaky or broken water pipes, frozen water pipes, restricted
drain lines, inadequate or interrupted water supply or inadequate supply of air.
• Damage or failure of the Product resulting from operating the Product in a corrosive atmosphere or
contrary to the Product owner’s manual.
• Damage or failure of the Product caused by accidents, pests and vermin, lightning, wind, fire, floods, acts
of nature, or any other causes beyond the control of SIGNATURE KITCHEN SUITE.
• Damage or failure of the Product caused by unauthorized modification or alteration, or if the Product is
used for other than the intended purpose, or any water leakage where the Product was not properly
installed.
• Damage or failure of the Product caused by incorrect electrical current, voltage, or plumbing codes.
• Damage or failure of the Product caused by transportation, storage, and/or handling, including
scratches, dents, chips, and/or other damage to the finish of the Product, unless such damage is
reported within one (1) week of delivery.
• Damage or failure of the Product resulting from misuse, abuse, improper installation, repair, or
maintenance. Improper repair includes the use of parts not authorized by SIGNATURE KITCHEN SUITE.
Improper installation or maintenance includes installation or maintenance contrary to the Product
owner’s manual.
• Damage or failure of the Product caused by the use of parts, components, accessories, consumable
cleaning products, or any other products or services that were not authorized by SIGNATURE KITCHEN
SUITE.
• Damage or missing items to any display or open box Product.
• Refurbished Product or any Product sold “As Is”, “Where Is”, “With all Faults”, or similar disclaimer.
• Products with original serial numbers that have been removed, altered, or cannot be readily determined.
• Increases in utility costs and additional utility expenses.
• Any noises associated with normal operation.
• Products used for other than normal and proper household use (e.g., commercial or industrial use) or
contrary to the Product owner’s manual.
• Costs associated with removal and reinstallation of the Product for repairs, or the removal and
reinstallation of the Product if it is installed in an inaccessible location or not installed in accordance with
the Product Owner's manual.
• Accessories, removable components, or consumable parts (e.g. Shelves, door bins, drawers, water/air
filters, racks, light bulbs, batteries, etc., as applicable), except for internal/functional parts covered under
this limited warranty.
The cost of repair or replacement under these excluded circumstances shall be borne by You.
TO OBTAIN WARRANTY SERVICE AND ADDITIONAL INFORMATION
Call 1-855-790-6655 and select the appropriate option from the menu.
Or visit our website at http://www.signaturekitchensuite.com.
Or by mail: SIGNATURE KITCHEN SUITE Customer Service P.O. Box 240007 Huntsville, AL 35813 ATTN: CIC
55LIMITED WARRANTY
ENGLISH
CANADA
TERMS AND CONDITIONS
Should your SIGNATURE KITCHEN SUITE Dishwasher ("Product") fail due to a defect in materials or
workmanship under normal and proper use, during the warranty period set forth below, SIGNATURE
KITCHEN SUITE will, at its option, repair, replace or pro rate the Product upon receipt of proof of the
original retail purchase. This limited warranty is valid only to the original retail purchaser of the Product
and applies only to a Product distributed, purchased from an authorized retailer and used within Canada,
as determined at the sole discretion of SIGNATURE KITCHEN SUITE.
† Main control board is located on the right bottom of the Dishwasher when viewed from the front.
• Replacement products and parts are warranted for the remaining portion of the original warranty period
or ninety (90) days, whichever is greater.
• Replacement products and parts may be new, reconditioned, refurbished, or otherwise factory
remanufactured, all at the sole discretion of SIGNATURE KITCHEN SUITE.
• Proof of original retail purchase specifying the Product model and date of purchase is required to obtain
warranty service under this Limited Warranty.
SIGNATURE KITCHEN SUITE’S SOLE LIABILITY IS LIMITED TO THE LIMITED WARRANTY SET OUT ABOVE.
EXCEPT AS EXPRESSLY PROVIDED ABOVE, SIGNATURE KITCHEN SUITE MAKES NO, AND HEREBY
DISCLAIMS, ALL OTHER WARRANTIES AND CONDITIONS RESPECTING THE PRODUCT, WHETHER
EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OR CONDITION OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, AND NO REPRESENTATIONS SHALL BE
BINDING ON SIGNATURE KITCHEN SUITE. SIGNATURE KITCHEN SUITE DOES NOT AUTHORIZE ANY
PERSON TO CREATE OR ASSUME FOR IT ANY OTHER WARRANTY OBLIGATION OR LIABILITY IN
CONNECTION WITH THE PRODUCT. TO THE EXTENT THAT ANY WARRANTY OR CONDITION IS IMPLIED
BY LAW, IT IS LIMITED TO THE WARRANTY PERIOD SET OUT ABOVE. UNDER NO CIRCUMSTANCES
SHALL SIGNATURE KITCHEN SUITE, THE MANUFACTURER OR DISTRIBUTOR OF THE PRODUCT, BE
LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL, DIRECT, INDIRECT, PUNITIVE OR
EXEMPLARY DAMAGES, INCLUDING, WITHOUT LIMITATION, LOSS OF GOODWILL, LOST PROFITS, LOSS
OF ANTICIPATED PROFITS, LOST REVENUE, LOSS OF USE, OR ANY OTHER DAMAGE, WHETHER ARISING
DIRECTLY OR INDIRECTLY FROM ANY CONTRACTUAL BREACH, FUNDAMENTAL BREACH, TORT OR
OTHERWISE, OR FROM ANY ACTS OR OMISSIONS. SIGNATURE KITCHEN SUITE’S TOTAL LIABILITY, IF
ANY, SHALL NOT EXCEED THE PURCHASE PRICE PAID BY YOU FOR THE PRODUCT.
This Limited Warranty gives you specific legal rights. You may also have other rights that vary from
province to province depending on applicable provincial laws. Any term of this Limited Warranty that
negates or varies any implied condition or warranty under provincial law is severable where it conflicts
with such provincial law without affecting the remainder of this warranty’s terms.
THIS LIMITED WARRANTY DOES NOT COVER:
• Service trips to i) deliver, pick up, or install or; educate on how to operate the Product; ii) correct wiring or
plumbing; or iii) correct unauthorized repairs or installations of the Product;
WARRANTY PERIOD: (Note: If the original date of purchase can not be verified, the warranty will begin sixty
(60) days from the date of manufacture.)
Dishwasher Extended Component Warranty (Parts Only) (Consumer will be charged
for Labor after One (1) year from the date of purchase.)
Three (3) years from the date of
original retail purchase
Five (5) years from the date of
original retail purchase
Ten (10) years from the date of
original retail purchase
Labor / Parts
(internal/functional parts only)
Main control board
†
, Rack,
Stainless Steel Door Liner, Tub
DD Motor
56 LIMITED WARRANTY
• Damage or failure of the Product to perform during power failures and interrupted or inadequate
electrical service;
• Damage or failure caused by leaky or broken water pipes, frozen water pipes, restricted drain lines,
inadequate or interrupted water supply or inadequate supply of air;
• Damage or failure resulting from operating the Product in a corrosive atmosphere or contrary to the
instructions outlined in the Product’s owner’s manual;
• Damage or failure to the Product caused by accidents, pests and vermin, lightning, wind, fire, floods, acts
of God, or any other causes beyond the control of SIGNATURE KITCHEN SUITE or the manufacturer;
• Damage or failure resulting from misuse, abuse, improper installation, repair, or maintenance of the
Product. Improper repair includes use of parts not authorized or specified by SIGNATURE KITCHEN
SUITE. Improper installation or maintenance includes installation or maintenance contrary to the
Product’s owner’s manual;.
• Damage or failure caused by unauthorized modification or alteration of the Product, or if used for other
than the intended household purpose/use of the Product, or damage or failure resulting from any water
leakage due to improper installation of the Product;
• Damage or failure caused by incorrect electrical current, voltage or plumbing codes;
• Damage or failure caused by use that is other than normal household use, including, without limitation,
commercial or industrial use, including use in commercial offices or recreational facilities, or as
otherwise outlined in the Product’s owner’s manual;
• Damage or failure caused by the use of any accessories, components or cleaning products, including,
without limitation, water filters, that are not approved/authorized by SIGNATURE KITCHEN SUITE;
• Damage or failure caused by transportation and handling, including scratches, dents, chips and/or other
damage to the finish of the Product, unless such damage results from defects in materials or
workmanship and is reported to SIGNATURE KITCHEN SUITE within one (1) week of delivery of the
Products;
• Damage or missing items to any display, open box, refurbished or discounted Product;
• Refurbished Product or any Product sold “As Is”, “Where Is”, “With all Faults”, or any similar disclaimer;
• Products with original serial numbers that have been removed, altered or cannot be readily determined
at the discretion of SIGNATURE KITCHEN SUITE;
• Increases in utility costs and additional utility expenses in any way associated with the Product;
• Any noises associated with normal operation of the Product;
• Replacement of any part that was not originally included with the Product;
• Replacement of light bulbs, filters, fuses or any other consumable parts;
• Costs associated with removal and/or reinstallation of the Product for repairs; and
• Shelves, door bins, drawers, handle and accessories to the Product, except for internal/functional parts
covered under this Limited Warranty.
All costs and expenses associated with the above excluded circumstances, listed under the heading,
This Limited Warranty Does Not Cover, shall be borne by the consumer.
TO OBTAIN WARRANTY SERVICE AND ADDITIONAL INFORMATION, PLEASE CALL OR VISIT OUR WEBSITE:
• Call 1-888-289-2802 and select the appropriate option from the menu.
• Visit our website at https://www.signaturekitchensuite.com
• By mail: 20 Norelco Drive, North York, ON, M9L 2X6
Warranty Exceptions
Poor wash results caused by
debris remaining in the filter.
Clean the filter regularly.
57LIMITED WARRANTY
ENGLISH
Poor wash results caused by
improper loading or over stacking:
wash arm won't rotate or soap
dispenser is held closed.
Make certain that no dishes or
utensils are in the path of the
spray arms.
Do not place one dish on top of
another.
Poor drying results caused by lack
of rinse aid.
Use rinse aid or combination
detergent.
Water is not supplied because the
water tap is not turned on.
IE error
Check and turn on the water tap.
Water is not supplied because the
inlet hose is kinked.
IE error
Reinstall the inlet hose.
Not draining because drain hose is
kinked.
OE error
Reinstall the drain hose.
The knockout plug in the garbage
disposal is not removed.
OE error
Remove the plug on the disposal.
The disposal or air gap is blocked
by debris.
OE error
Clean the disposal or the air gap.
Inlet valve and drain hose
connection problem caused by
improper installation.
External leakage
Reinstall the hose.
Door movement or closing
compromised by incorrect
leveling.
Adjust the lower front leveling feet
to the required height.
No power due to loose connection
of power supply line or electrical
outlet problem.
Reconnect the power supply line
or repair the electrical outlet.
Pick-up, electrical wiring,
plumbing.
Installation
You will be charged for the
installation.
58 Memo
59Memo
