INSTRUCTION
MANUAL
Please read this manual carefully before using, and keep it for future reference.
10KG
TOP LOAD
WASHING MACHINE
SC-1000AU7TLW
CONTENTS
General Safety 4
Product Overview 8
Control Panel 9
Getting Started 10
Installing Bottom Cover 10
Levelling the appliance 11
Connecting the water inlet hose 12
Connecting the Drain Hose 13
Before First Use 14
Operations 17
Programs 17
How to Use 18
Washing Blankets 18
Selecting a Wash Cycle 18
Delayed Washing 19
Adding Detergent 19
Others
Hot / Cold Warm Water Wash 20
Setting the water level and other processes 20
Set Dierent Water Levels 20
Set other Processes 20
Water Power 20
Load Sensor (Fuzzy Control) 21
Child Lock 21
Start of Washing 21
ULTRASONIC function 21
Cleaning and Maintenance 22
Troubleshooting 25
Specifications 26
Customer Helpline Last Page
4
Read this manual thoroughly before you start using the Top Load Washing
Machine. The safety precautions instructions reduces the risk of fire, electric
shock and injury when correctly complied to.
Please follow all instructions and take notice of all warnings.
Pay close attention to messages that follow this safety alert symbol or the words DANGER,
WARNING or CAUTION. These words will be used to alert you of potential hazards that and
injure you and others. Following these instruction will tell you how to reduce the chance of
injury and the possible dangers if instructions aren’t followed.
This symbol indicates when there is a serious risk of injury if
you do not pay attention to the warnings.
WARNING
CAUTION
This symbol indicates when to be careful to
avoid a serious risk of injury to oneself or
damage to property.
IMPORTANT INFORMATION
GENERAL SAFETY
5
ELECTRICAL SAFETY
• Voltage: Plug the appliance to a 230-240V ~ 50Hz, properly earthed power outlet, it
must be in good working order.
• Power connection: Do not use an adaptor or an extension cord. Plug the power
plug directly into a separate power point that cannot be accidentally turned o, and that
is easily accessible so you can switch it o if needed.
• Power cord: Do not kink or damage the power supply cord. Make sure it is behind
the appliance so no one can step on or place anything on the power supply cord or
against it. A damaged power plug may overheat and cause a fire.
• Damaged cord: Do not use a cord that shows cracks or damage. Any damage to the
cord may cause a short circuit, fire and/or electric shock. Contact our support centre
on 1300 296 699 for advice
If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard
• Disconnection: Never pull the power cord to unplug appliance. Grip the plug and
pull straight out from the power point.
• Electrical work: If the installation of this appliance requires any electrical work,
make sure it is carried out by an electrician.
To reduce risk of fire, electric shock or injury, always follow these basic precautions and
accident prevention measures when using this appliance, including the below:
NOTE: This appliance should be installed by an authorised technician else warranty
will be void.
INSTALLATION
• The product is heavy, be careful when moving it. To avoid back or other injury, have 2
people lift or mechanical aid when installing.
• When unboxing, thoroughly inspect the appliance carefully for any damage. If there
is any damage, do not install the appliance. Contact our support centre on
1300 296 699 for advice.
• While installing the appliance make sure that the power cord is not bent or flattened.
• Make sure to remove all packaging materials such as foams and tapes before
installing the appliance.
• Make sure if the machine is to be placed on carpet that the ventilation openings in
the base are not obstructed
• Install the washing machine on a flat level and stable ground.
• Allow for 20mm of space on all sides of the washing machine.
• The openings shall not obstructed by carpet.
• This appliance is intended to be used in household and similar applications such as
- Sta kitchen areas in shops, oces and other working environments;
- Farm houses
- By clients in hotels, motels and other residential type environments;
- Bed and breakfast type environments;
- Areas for communal use in blocks of flats or in launderettes.
GENERAL SAFETY INSTRUCTIONS (Cont.)
6
GENERAL SAFETY INSTRUCTIONS (Cont.)
USAGE CONDITIONS AND RESTRICTIONS
• Supervision over children is to ensure that they do not play with the appliance.
Never allow them to use, play with or crawl inside the appliance. Cleaning and
maintenance must not be done by children.
• This appliance is not to be used by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they are being supervised or been given instructions on how to use of the appliance in a
safe way and understand the hazards with using this appliance incorrectly.
• Only for indoor domestic use only. It is not to be used for industrial or commercial use.
• Do not use this product for anything other than its intended purpose, and only
use it as described in this manual. Do not attempt to alter or modify this appliance.
• In the process of a hot wash, the door window can become hot. Make sure not to
touch it or that no children or pets come into contact with the door window.
• Ensure that emptying all pockets of every item to make sure that there is no
hard, sharp objects such as coins, safety pins, bra wires, nails or screws can cause
damage to the appliance and has a chance to block the pump.
• Damage or malfunction caused from foreign objects is not covered by your
warranty to the appliance.
• Do not operate this appliance outdoors.
• Incorrect use can result in property damage, injury or death. We assume no
liability for misuse of the appliance or noncompliance with these instructions.
7
GENERAL SAFETY INSTRUCTIONS (Cont.)
CLEANING AND MAINTENANCE
• Before cleaning or maintenance, always unplug the appliance from the power socket.
Make sure you pull by the plug, not the cord as this can damage the power cord and
cause a hazard.
• Only the filter requires regular cleaning, everything else is non user-serviceable
parts. Do not try to repair, disassemble or modify the appliance.
• Check and clean the lint filter on a regular basis
• Service: Never try to repair, modify or replace any part of the appliance, unless this
manual says you can do so. All other servicing is to be done by a qualified technician,
or contact our support centre on 1300 296 699 for advice.
8
PRODUCT OVERVIEW
9
PRODUCT OVERVIEW (Cont.)

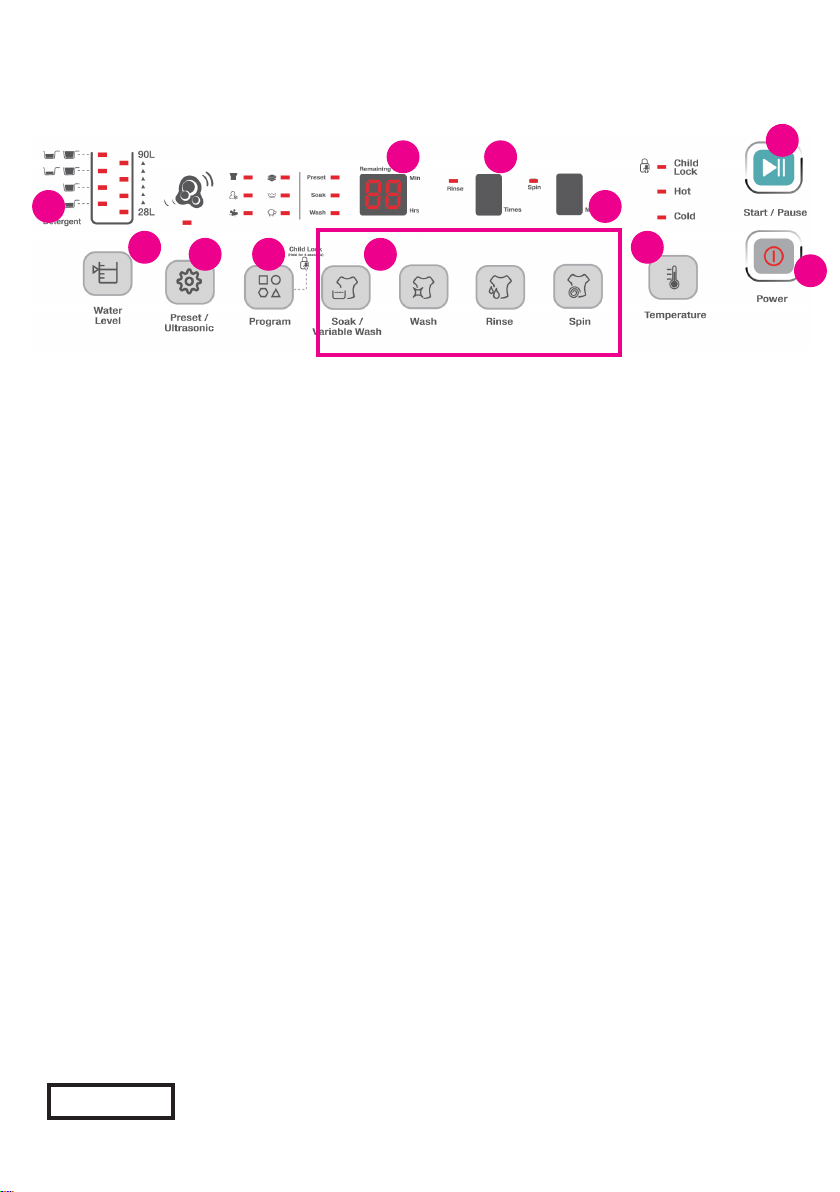

CONTROL PANEL
1. DETERGENT These are indicators to show you how much detergent to use.
2. WATER LEVEL: Choose the appropriate water level that matches your load size.
3. PRESET/ Press this button to preset the finish time of washing (not applicable for
ULTRASONIC: the delicate program.
To select or cancel ULTRASONIC function, press and hold the
button until the ULTRASONIC light is on or off.
4. WASH Select the Process button below for the desired WASH process.
PROGRAM (indicator light above process button indicates wash process).
5. SOAK / Press these this button to set various washing processes. (see page 21
VARIABLE WASH Press this this button before you start a wash to set the soak time
of up to 50 minutes (not applicable for the DELICATE and
BLANKET programs).
6. DISPLAY: This display shows you remaining times of a cycle or delay time.
Example for 20 minutes remaining: 20
Example for 2 hours remaining: 2 (no other numbers).
7. RINSE IND.: This is the indicator for the amount of rinses.
8. SPIN IND.: This is the indicator light for the Spin time (max 9 mins.)
9. TEMP: Press this button if you want to set a Hot or Cold setting.
10. POWER: Press once to POWER ON, Press again to POWER OFF.
Auto Power Shutoff: After a program has ended.
10 Mins of inactivity.
11. START/PAUSE: Press this button to start the Washing machine with all your options set.
During operation, press button again to Pause temperarily and then
press again to restart. NOTE: this is not a CANCEL button.
CHILD LOCK: Press and Hold PROGRAM button for 4 seconds to activate
CHILD LOCK Function.
3 4
6
5
9
7
8
10
11
1
2
10
Before installing your appliance, read all safety instructions in this manual,
especially the sections on electrical safety and installation.
GETTING STARTED
UNPACKING
• When unpacking the appliance, be sure to keep all the packaging materials until
you have made sure your new appliance is undamaged and in good working
order. Plastic can be a suffocation hazard for babies and young children,
make sure the materials are out of their reach.
TRANSPORTATION
• CAUTION: VERY HEAVY! Be sure to team lift the appliance with someone or
mechanical aid is required when moving the appliance. Keep the appliance
upright as possible when moving the appliance.
IMPORTANT! Installing the bottom cover
• Make sure the power cord is unplugged from the
mains supply.
• Place some padding (such as a soft mat, blanket or
thick towel) on the floor and gently lay the washing
machine on the padding, back side down. Take care
not to dent the housing.
• Insert the bottom cover into the hooks of the leg,
pushing it straight until it reaches into the
front hooks.
• Ensure to fasten the bottom cover with the
supplied screws.
• Carefully set the washer upright.
11
GETTING STARTED (Cont.)

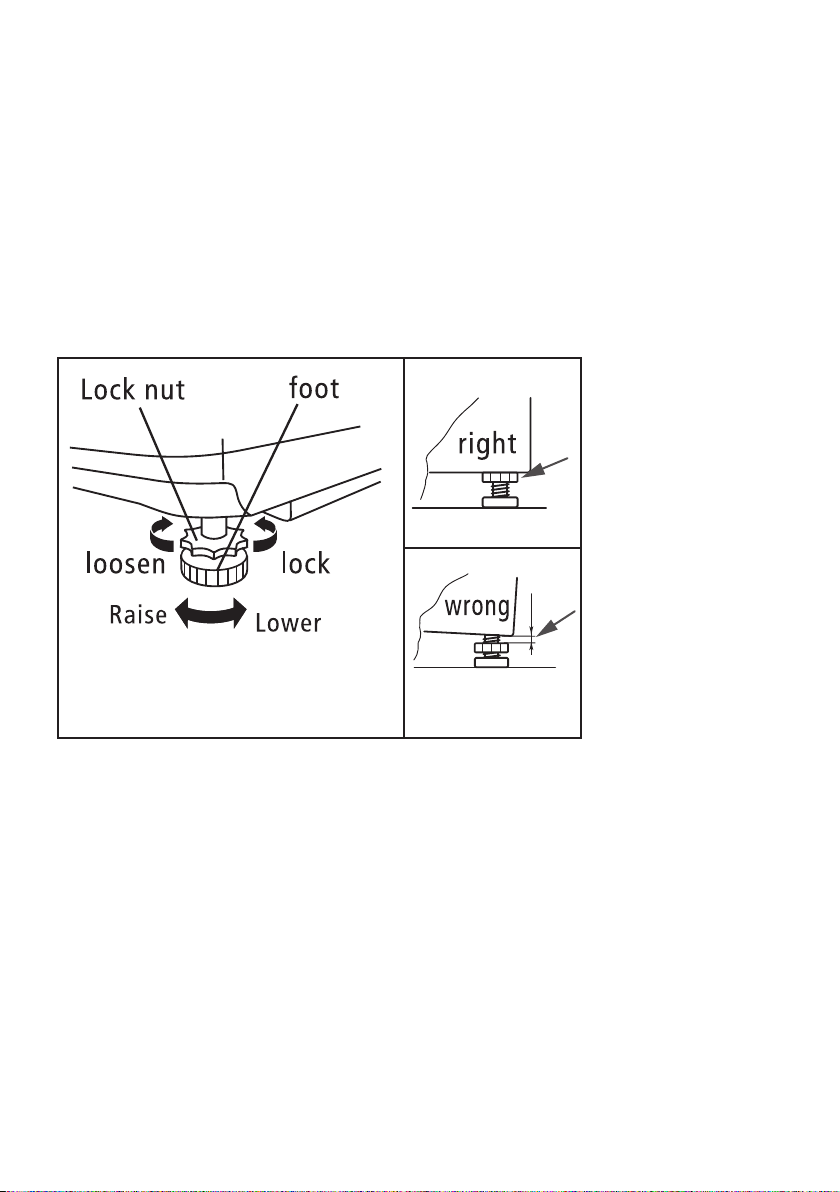

LEVELLING THE APPLIANCE
IMPORTANT! Make sure to level the appliance carefully with a spirit level to ensure the
most accurate levelling of the appliance. This is a must if your floor in unbalanced to level
the washing machine.
• Make sure to position the appliance on a level and stable ground. If the floor is uneven
you can adjust the feet by twisting the feet. Make sure to slightly incline the appliance first
then adjust the leveling feet by twisting it clockwise or counter clockwise depending if you
are raising or lowering the feet.
Note: Make sure to avoid direct sunlight onto the appliance.
• By placing a spirit level ontop of the appliance you can check correctly to aid you in
adjusting the feet levelling nuts to adjust the appliance to be completely level.
12
CONNECTING THE WATER INLET HOSE
IMPORTANT! To prevent leakage or water damage please follow the below
instructions. Do not kink, crush, modify or sever the water inlet hose.

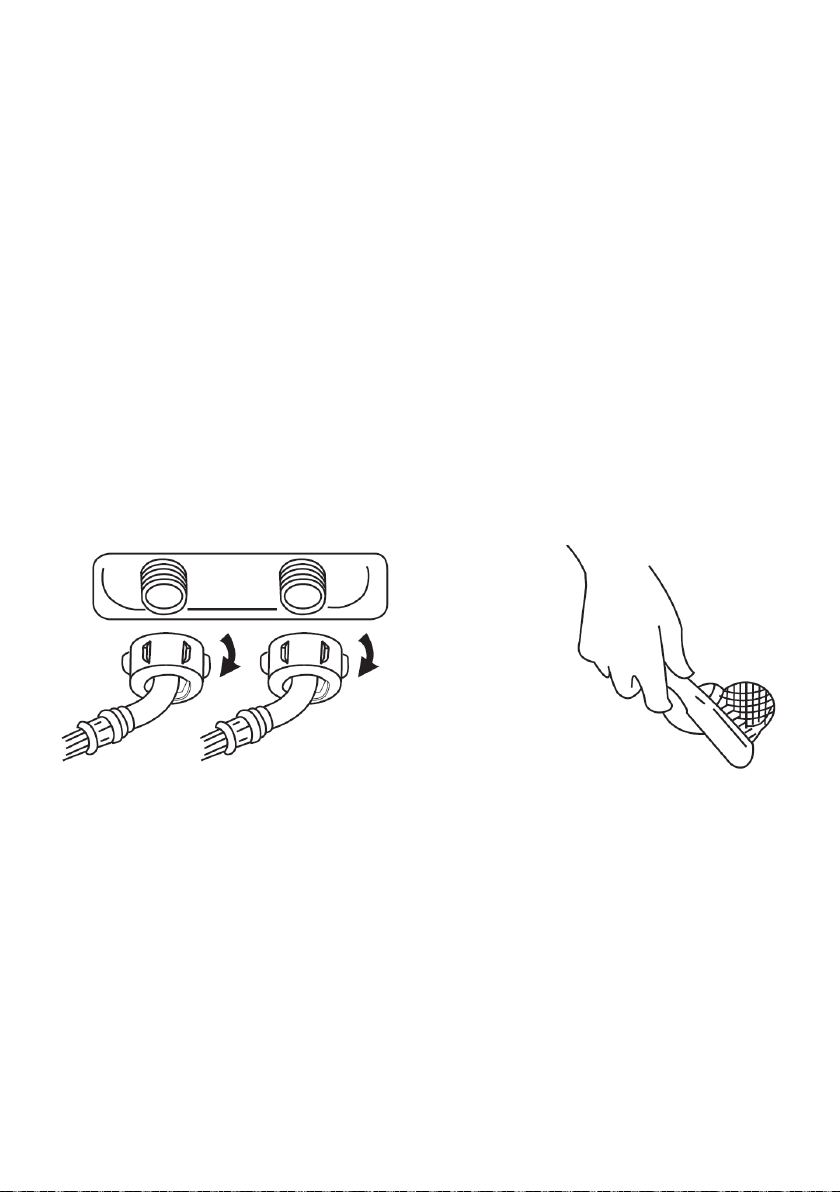

• Connect the inlet pipe as indicated, there are two ways of connecting
the inlet pipe.
• Minimum Inlet Water Pressure: 0.03MPa
Maximum Inlet Water Pressure: 0.8MPa
IMPORTANT! MAKE SURE to attach the STRAIGHT END to your Taps located in your
laundry room. the Hose with RED MARKINGS is for hot water, the Hose with
BLUE MARKINGS is for COLD Water.
Connect the other end of the inlet
pipe to the inlet valve on the back
of the appliance and fasten the
pipe tightly clockwise.
GETTING STARTED (Cont.)
13
GETTING STARTED (Cont.)

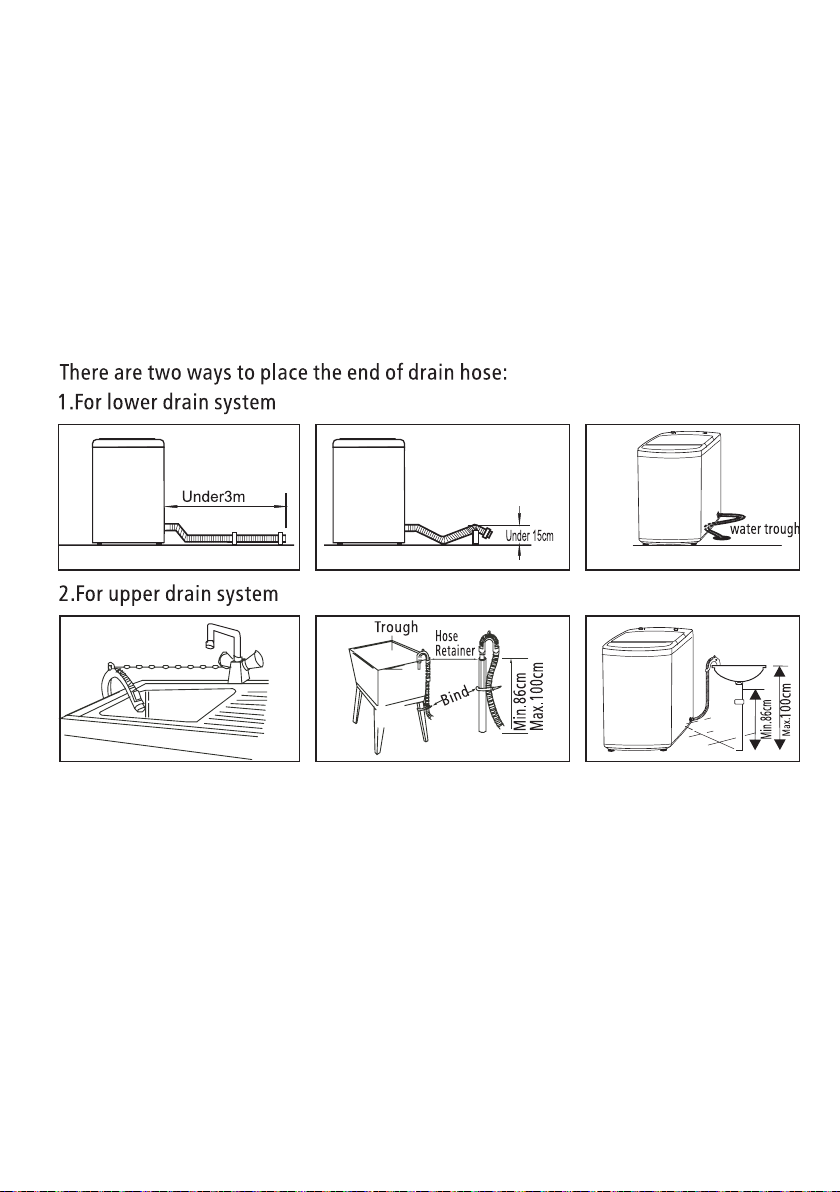

CONNECTING THE DRAIN HOSE
• Do not kink or protract the drain hose. Position the drain hose correctly other
wise damage will result in water leakage.
• The height of the water drain hose can be from 70 to 100cm.
• Do not bend the drain hose or place it under the washing machine.
• Be sure to only use new hose sets when connecting the Washing Machine.
Do not re-use old hoses.
14
BEFORE FIRST USE
• Make sure the washing machine is completely level as to previous instructions
on how to level your washing machine.
• Make sure the water inlet hose is installed correctly.
• Make sure that the washing machine is plugged into the power socket.
• When the water inlet hose is installed, turn on the water supply on the tap.
• Properly install and set up the upper drain hose at no less then the
height of 860mm, the water will overflow if it is below the recommended
height of 860mm.
After the above steps have been completed, In a few simple steps you can select the type of
wash you want and get started.
INSTRUCTIONS
15

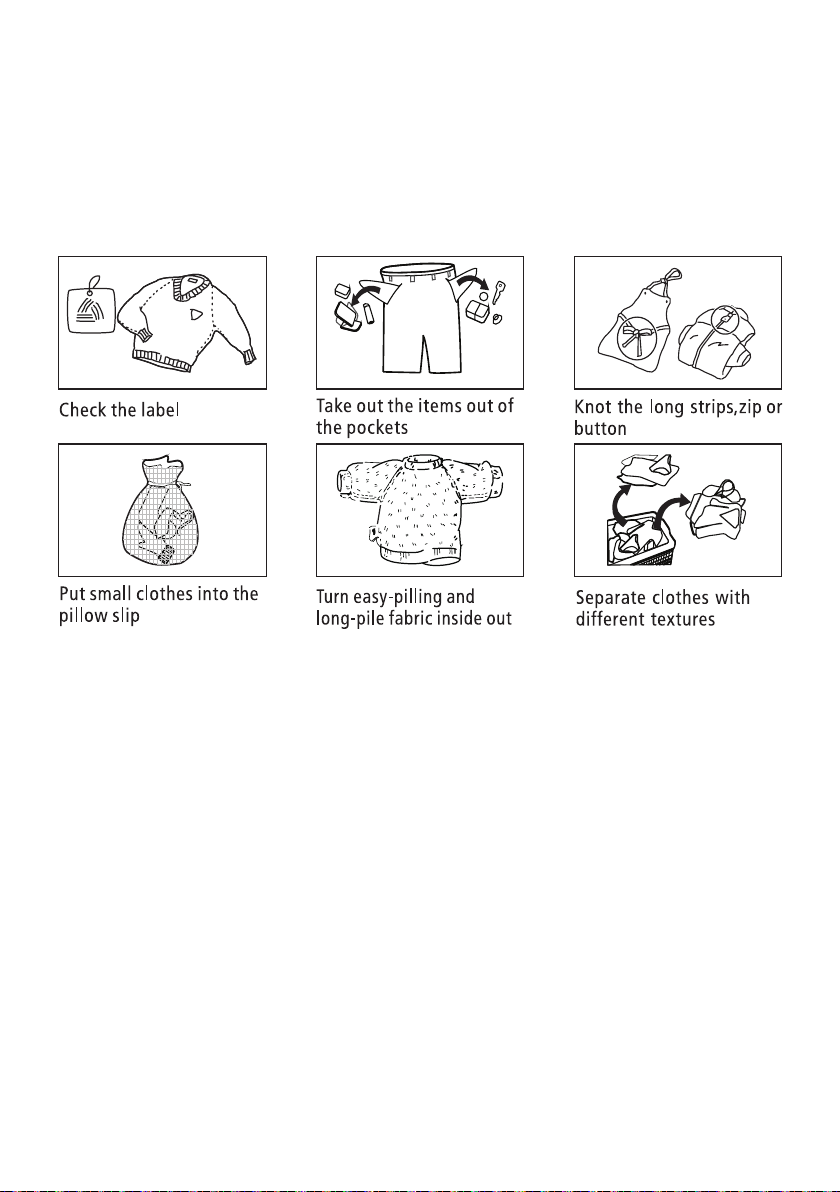

INSTRUCTIONS (Cont.)
• Make sure that the appliance is in a correct working temperature (0-40˚C). If the
appliance is used under 0˚C the inlet valve and draining system may be damaged.
• Make sure that all labels are checked on items if they can be washed.
• Use non-foaming or less-foaming detergents which are more suitable for washing machines
to wash correctly.
WARNING
• Never use the washing machine to wash a single item at any given time, if you need to
urgently wash an item, we suggest placing a few clothing items in there.
• Make sure that all labels are checked on items if they can be washed.
• Use non-foaming or less-foaming detergents which are more suitable for washing machines
to wash correctly.
• Maximum mass of dry clothes is 10kg
16

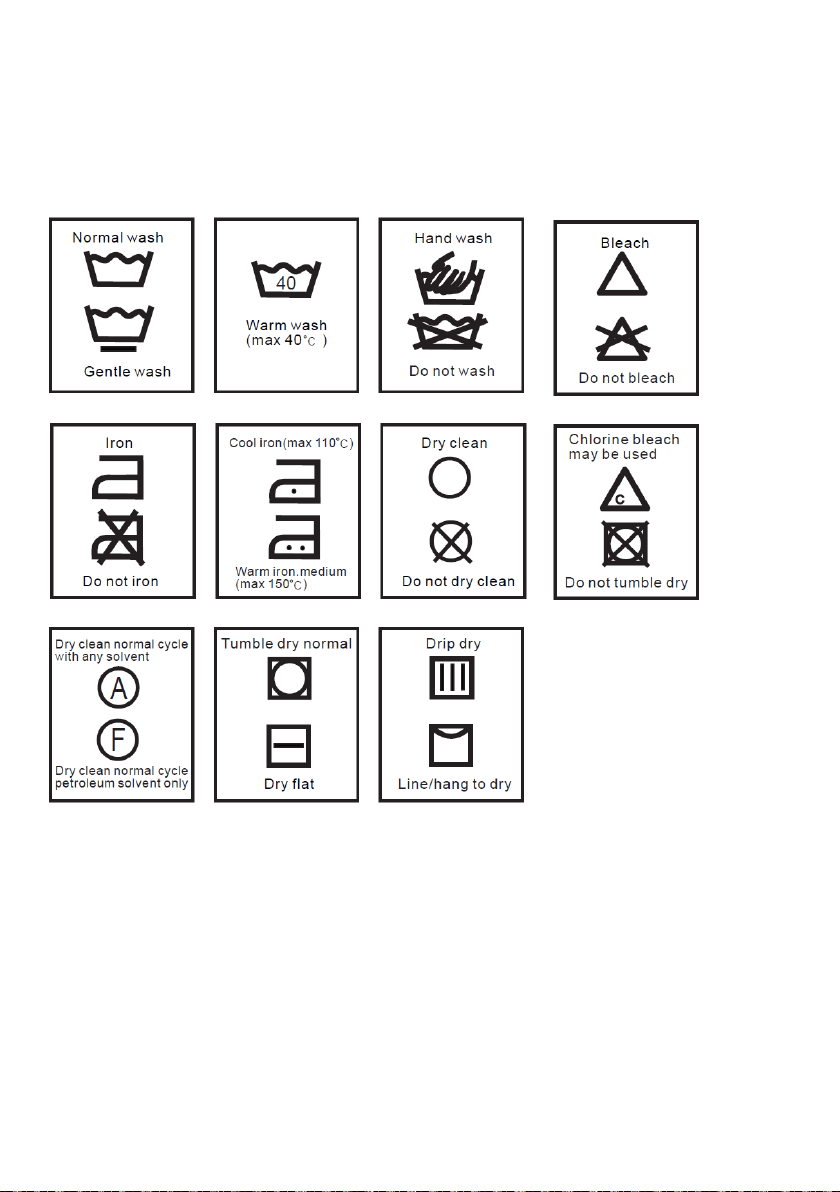

WASH CARE SYMBOLS
When choosing a wash program, check for any labels on your clothes and follow
the instructions. below are some commonly used symbols.
INSTRUCTIONS (Cont.)
17
LOAD RECOMMENDATIONS
- We suggest you use detergent in the amount recommended below. Too little will give poor
results, but too much will affect rinse performance and may cause overflow of suds, which
can interfere with machine operation. CAUTION: DO NOT OVERFILL DETERGENT.
- Add detergent into the detergent box or put it directly into the tub.
- Dilute fabric softener with a little water and carefully add it to the softener dispense on
the balance ring fo dispersion through the final rinse.
*Normal - is the standard washing programs to which the information in the energy efficiency
label relates, and they are suitable to clean normal soiled cotton laundry and they are the most
efficient programs in terms of energy and water consumption for washing that type of cotton
laundry, the actual water temperature may differ from the declared cycle temperature.
NORMAL and HEAVY DUTY programs are specially designed for 100% fuzzy control. As the
wash and spin times are determined by the load sensor, there is no default display. If you do
not adjust, the washer will run within the default interval, depending on the sensor result.
OPERATIONS
18
Follow the below instructions on how to use the washing machine and the process
involved. For this example, we will use the BLANKET program wash.
Use this program for washing blankets or other bulky items. It will automatically select the
highest water level, but you can adjust this manually down to a lower level according to the
size of your bulky item(s).
1. Press the POWER ON/OFF button and open the washer lid.
2. Press the PROGRAM button repeatedly and until the indicator for the BLANKET
program flashes.
3. Dissolve an appropriate amount of washing detergent with a little
water, then pour the detergent solution directly into the tub of the
washing machine.
4. Fold up the blanket and put it into the washing tub, as illustrated below.
5. Close the washer lid.
6. Press the START/PAUSE button for the washing program to start.
7. At the end of the washing program, a buzzer will sound to alert you that the
program has finished before the power is shut off automatically.
8. Close the water taps and unplug the power plug from the wall outlet.
9. We recommend cleaning the lint filter after washing a blanket.
HOW TO USE
19
DELAYED WASHING (PRESET TIMER)
This washing machine has a 0–24 hour delay start function which you can set to determine
the time when the washing program will finish.
NOTES: This function is not available for the DELICATE program. To avoid water leakage
when using this function, make sure the water taps are open, the drain hose is properly
installed and the washing load and detergent are properly prepared.
1. Put your washing in the machine, loading items uniformly in the tub.
2. Press the POWER button.
3. Select the required PROGRAM and any other WATER LEVEL, TEMPERATURE and
ULTRASONIC, if required.
4. Press the PRESET button to select desired time period (in hours) for the
wash to finish.
5. Select the Water Level, if necessary.
7. Close the lid and press the START/PAUSE button.
8. After setting the PRESET, the corresponding light will illuminate and all other
lights will be switched off about one minute later. From this time on until the
delayed time only the POWER and SET buttons will response when pressed.
9. To check the delayed program, press the SET button: the program will be
indicated for 5 seconds. During these 5 seconds you can press the WATER LEVEL
button and set the water level.
10. To cancel the PRESET (delay), shut off the power.
11. To change the delay time, first cancel the delay, then set it again.
HOW TO USE (Cont.)
ADDING DETERGENT
- WASHING DETERGENT
Either put detergent into the detergent
box or, if you prefer to put directly into
the wash tub, wrap the powder in a
small cloth.
- FABRIC SOFTENER
Dilute the softener with twice the
amount of water, then pour the
solution into the softener dispenser.
20
HOT / COLD WARM WATER WASH
This top load washing machine must be connected to both a cold and a hot water tap.
With both hoses connected to a cold and hot water tap, you can set the washer to use
either just cold water for a cold water wash, or just hot water for a hot water wash.
To select the wash temperature, press the TEMPERATURE button.
- COLD WASH: the cold indicator light is on.
- HOT WASH: the hot indicator light is on.
- WARM WASH: both the hot and cold indicator lights are on.
SETTING THE WATER LEVEL AND OTHER PROCESSES
You can set the water level for wash and rinse processes. For example, if you are
sensitive to detergent residues in your washing, you may want to select a higher water
level for rinsing.
TO SET DIFFERENT WATER LEVELS:
- Press the WASH button until the WASH light flashes; press the WATER LEVEL
button to choose the appropriate water level
- Then press the RINSE button until the RINSE light flashes; press the
WATER LEVEL button to choose the appropriate water level;
press the RINSE button to set the number of rinses.
TO SET OTHER PROCESSES:
- Then press the SPIN button until the SPIN light flashes; press the SPIN button
to set the SPIN time.
- Finally press the START/PAUSE button: the washer will start operating according
to the set values for wash and rinse water levels, number of rinses and spin time.
WATER POWER
The water power affects the pause time of the pulsator and hence the intensity of the wash.
It is automatically selected for the wash and rinse process, however, you can also adjust it
yourself (except for the COTTON, DELICATE and BLANKET programs).
To adjust the water power level:
- Press the START/PAUSE button, then press the SOAK/VARIABLE WASH button: the
display will show “H0”.
- Press the SOAK/VARIABLE WASH button again, repeatedly, to increase the water power
level from “H1”, “H2”, “H3” to the strongest “H4”.
- Press the SOAK/VARIABLE WASH button again, repeatedely to decrease the water power
level from “L1”, “L2”, “L3” to the weakest “L4”.
OTHERS
21
LOAD SENSOR (FUZZY CONTROL)
For certain wash programs, the machine automatically detects the weight of your wash
load and selects appropriate wash cycle process.
- For NORMAL and HEAVY DUTY programs, the machine will automatically select the
correct water power and level, wash and spin time and rinse type.
- For the CUSTOM and WOOL programs, the machine will automatically select the correct
water level. Other wash cycle processes have to be manually set.
ULTRASONIC FUNCTION
This top load washing machine is equipped with an ultrasonic pump, which generates
thousands of vibrations per second into the wash tub. These vibrations help remove
stains and dirt without chemical stain removers, thus reducing the rquired detergent and
wash time.
To select this feature, press and hold the PRESET/ULTRASONIC button for four seconds
until the corresponding light comes on and a buzzer sounds. Repeat the steps to cancel.
When selecting the ULTRASONIC wash, please use less detergent then usual.
CHILD LOCK
With the child lock activated, the machine will stop working automatically and sound an
alarm if the washer lid is opened for 5 seconds.
TO SET THE CHILD LOCK:
- Press the POWER ON/OFF button to switch on the power, then press and hold
the PROGRAM button for 4 seconds until a buzzer sounds. The child lock will be
activated when the START/PAUSE button is pressed.
- To cancel the child lock, repeat the above steps.
START OF WASHING
The machine will start washing when the water inside the tub has reached two levels
below the set level while the water will continue to flow in. This early start of washing
will increase the wash time and allow the detergent to dissolve fully before the start of the
set wash time.
THIS FUNCTION WILL BE INEFFECTIVE:
- When the first two water level: 1(28L) or 2 (35L) is selected.
- When the DELICATE or BLANKET program is selected.
- When SOAK is selected, after the soaking process.
OTHERS (Cont.)
22
CLEANING AND MAINTENANCE
WARNING:
• Before starting maintenance, ensure that the appliance is unplugged and close the tap.
CLEANING THE CABINET
Proper maintenance on the washing machine can extend its working life. The surface can
be cleaned with diluted non-abrasive neutral detergents when necessary. If there is any
water overflow, use a wet cloth to wipe it off immediately. Make sure no sharp items are
used to clean the appliance.
• Use a gentle cloth to wipe off the water and dirt on the surface of the washing machine
after every use. Detergent, properllant and other chmicals are not allowed to be used to
clean the washing machine surface as it can damage the plastic accessories.
CLEANING THE WATER INLET
1 Switch on the power, followed by shutting off the tap
2 Let the washer work for 5 seconds so that the water flows into the tub through the
hose, then turn off the power.
3 Unload the water inlet hose and clean the mesh bag, then re-install everything.
23
CLEANING AND MAINTENANCE (Cont.)
24
CLEANING AND MAINTENANCE (Cont.)

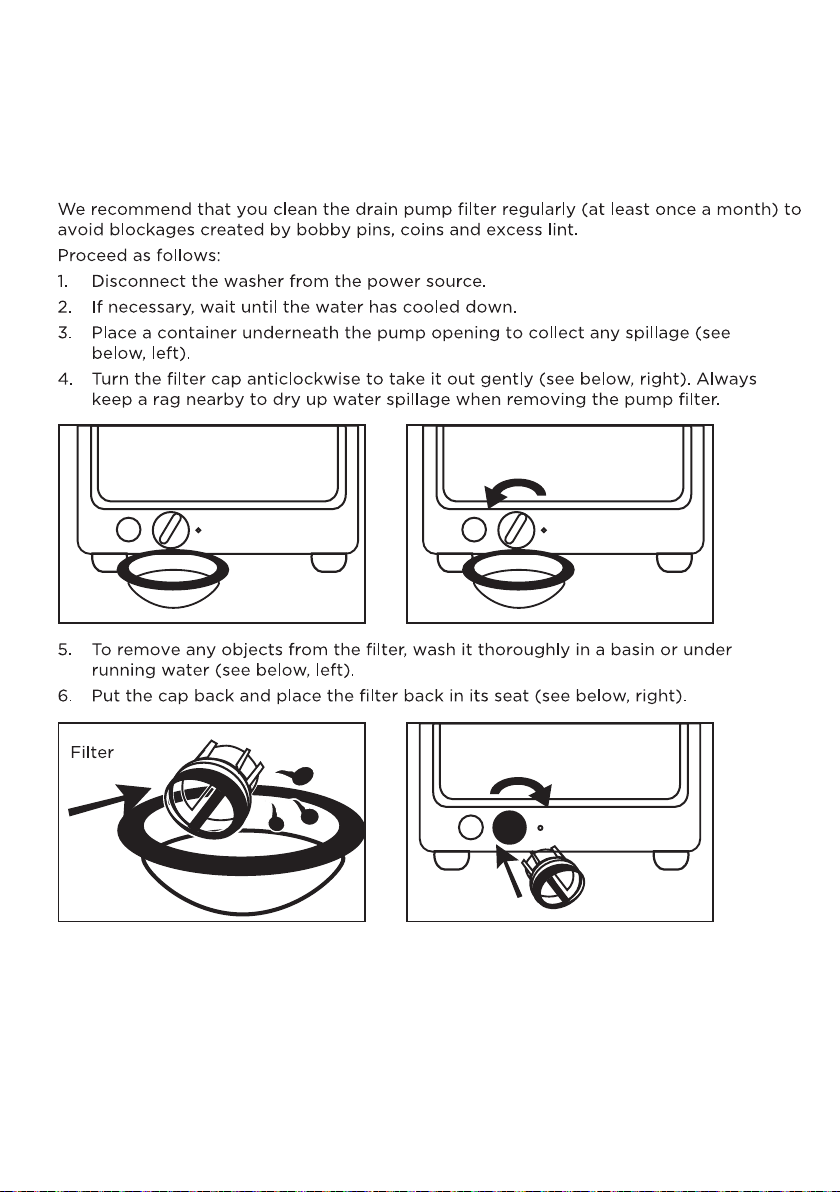

CLEANING THE DRAIN PUMP FILTER
25

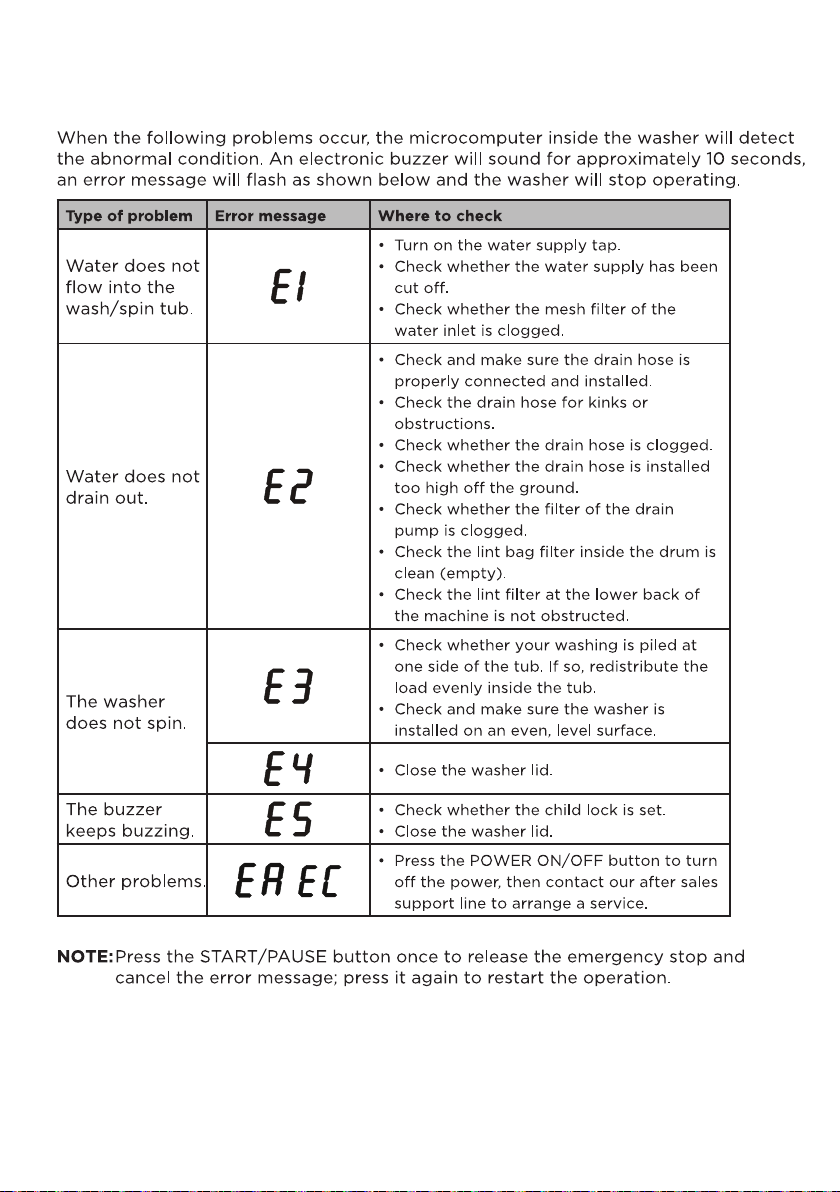

TROUBLEHSOOTING
26
SPECIFICATIONS
Power Supply 230-240V~50Hz
Standard Water Pressure 0.03MPa~0.8MPa
Washing Capacity 10KG
Rated Input Power 450W
Water Capacity 90L
Spin Speed 720 RPM
Dimensions
601 (w) x 645 (d) x 990 (h) mm -
(1350mm door open)
Weight Net: 46.5 kg / Gross: 52.5 kg
27
CUSTOMER HELPLINE:
info@ayonz.com
DISTRIBUTED BY:
Ayonz Pty Ltd
