M
odel SA320
Printed in Mexico
M08-0224-012 Q 07/12
IMPORTANT! PLEASE READ CAREFULLY AND SAVE.
This user’s manual contains important information about your Smoke
Alarm’s operation. If you are installing this Smoke Alarm for use by
others, you must leave this manual—or a copy of it—with the end user.
I
NTRODUCTION
Thank you for choosing First Alert
®
for your Smoke Alarm needs. You have
purchased a state of the art Smoke Alarm designed to provide you with an
early warning of a fire. Please take the time to read this manual and make
this Smoke Alarm an integral part of your family’s safety plan.
Key Features of the SA320 Photo & Ion Combo Smoke Alarm:
Photo & Ion Smoke Sensors: Dual photoelectric and ionization smoke
sensing technologies for optimal sensing of smoke particles produced in
both flaming and smoldering fires.
O
ptipath 360 Technology
TM
:
Patented technology provides 360˚ of direct
a
ccess to the smoke sensor.
Two Silence Features: Low Battery Silence temporarily silences low
battery chirp for up to eight hours before replacing low battery.
Alarm Silence silences an unwanted alarm for several minutes.
Two Latching Features: Alarm Latch remembers which unit initiated an
alarm. Low Battery Latch visually identifies which unit is in low battery
condition.
Perfect Mount: Mounting bracket keeps alarm secure over a wide rotation
range to allow for perfect alignment.
© 2012 BRK Brands, Inc. All rights reserved. Distributed by BRK Brands, Inc.
3901 Liberty Street Road, Aurora, IL 60504-8122
Consumer Affairs: (800) 323-9005
www.firstalert.com • www.brkelectronics.com
FIRE SAFETY TIPS
F
ollow safety rules and prevent hazardous situations: 1) Use smoking
m
aterials properly. Never smoke in bed. 2) Keep matches or lighters away
f
rom children; 3) Store flammable materials in proper containers;
4
) Keep electrical appliances in good condition and don’t overload electrical
c
ircuits; 5) Keep stoves, barbecue grills, fireplaces and chimneys grease-
a
nd debris-free; 6) Never leave anything cooking on the stove unattended;
7
) Keep portable heaters and open flames, like candles, away from flammable
m
aterials; 8) Don’t let rubbish accumulate.
K
eep alarms clean, and test them weekly. Replace alarms immediately if they
a
re not working properly. Smoke Alarms that do not work cannot alert you to a
f
ire. Keep at least one working fire extinguisher on every floor, and an additional
o
ne in the kitchen. Have fire escape ladders or other reliable means of escape
f
rom an upper floor in case stairs are blocked.
BEFORE YOU INSTALL THIS SMOKE ALARM
I
MPORTANT! Read “Recommended Locations for Smoke Alarms” and
“
Locations to Avoid for Smoke Alarms” before beginning. This unit monitors
t
he air, and when smoke reaches its sensing chamber, it alarms. It can give
y
ou more time to escape before fire spreads. This unit can ONLY give an early
w
arning of developing fires if it is installed, maintained and located where
s
moke can reach it, and where all residents can hear it, as described in this
m
anual. This unit will not sense gas, heat, or flame. It cannot prevent or
e
xtinguish fires.
Understand The Different Type of Smoke Alarms
Battery powered or electrical? Different Smoke Alarms provide different
types of protection. See “About Smoke Alarms” for details.
K
now Where To Install Your Smoke Alarms
Fire Safety Professionals recommend at least one Smoke Alarm on every
level of your home, in every bedroom, and in every bedroom hallway or
separate sleeping area. See “Recommended Locations For Smoke Alarms”
and “Locations To Avoid For Smoke Alarms” for details.
K
now What Smoke Alarms Can and Can’t Do
A Smoke Alarm can help alert you to fire, giving you precious time to
escape. It can only sound an alarm once smoke reaches the sensor.
See “Limitations of Smoke Alarms” for details.
Check Your Local Building Codes
This Smoke Alarm is designed to be used in a typical single-family home.
It alone will not meet requirements for boarding houses, apartment
buildings, hotels or motels. See “Special Compliance Considerations”
for details.
5 6 71 2 3
All First Alert
®
and BRK
®
Smoke Alarms conform to regulatory
requirements, including UL217 and are designed to detect particles of
combustion. Smoke particles of varying number and size are produced
in all fires.
I
onization technology is generally more sensitive than photoelectric
t
echnology at detecting small particles, which tend to be produced
i
n greater amounts by flaming fires, which consume combustible
m
aterials rapidly and spread quickly. Sources of these fires may include
p
aper burning in a wastebasket, or a grease fire in the kitchen.
P
hotoelectric technology is generally more sensitive than ionization
t
echnology at detecting large particles, which tend to be produced in
g
reater amounts by smoldering fires, which may smolder for hours
b
efore bursting into flame. Sources of these fires may include cigarettes
b
urning in couches or bedding.
For maximum protection, use both types of Smoke Alarms on each
level and in every bedroom of your home.
USER’S MANUAL
SMOKE ALARMS
• This unit will not alert hearing impaired residents. It is recom-
mended that you install special units which use devices like
flashing strobe lights to alert hearing impaired residents.
• This Smoke Alarm must have battery power to operate.
The Smoke Alarm cannot work until you install the batteries
in the correct position (Match “+” to “+” and “-” to “-”).
• Never remove the batteries from a battery operated unit to
stop an unwanted alarm (caused by cooking smoke, etc.).
Instead open a window or fan the smoke away from the unit.
The alarm will reset automatically.
• Do not install this unit over an electrical junction box. Only AC
powered units are intended for installation over junction boxes.
• This Smoke Alarm has a battery drawer which resists closing
unless batteries are installed. This warns you the unit will not
operate under DC power without batteries.
• Do not stand too close to the unit when the alarm is sounding.
It is loud to wake you in an emergency. Exposure to the horn at
close range may harm your hearing.
• Do not paint over the unit. Paint may clog the openings to the
sensing chambers and prevent the unit from operating properly.
4

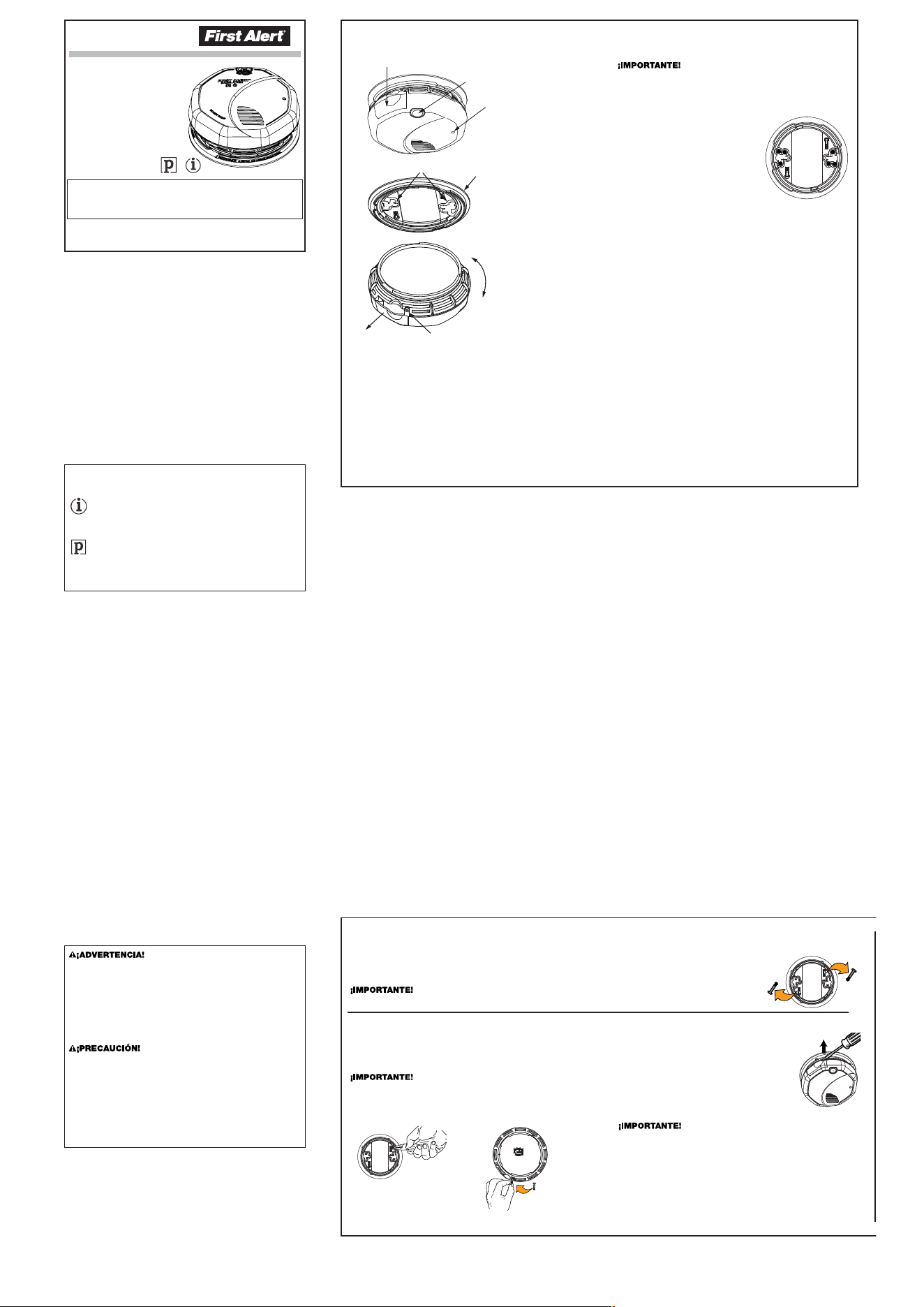

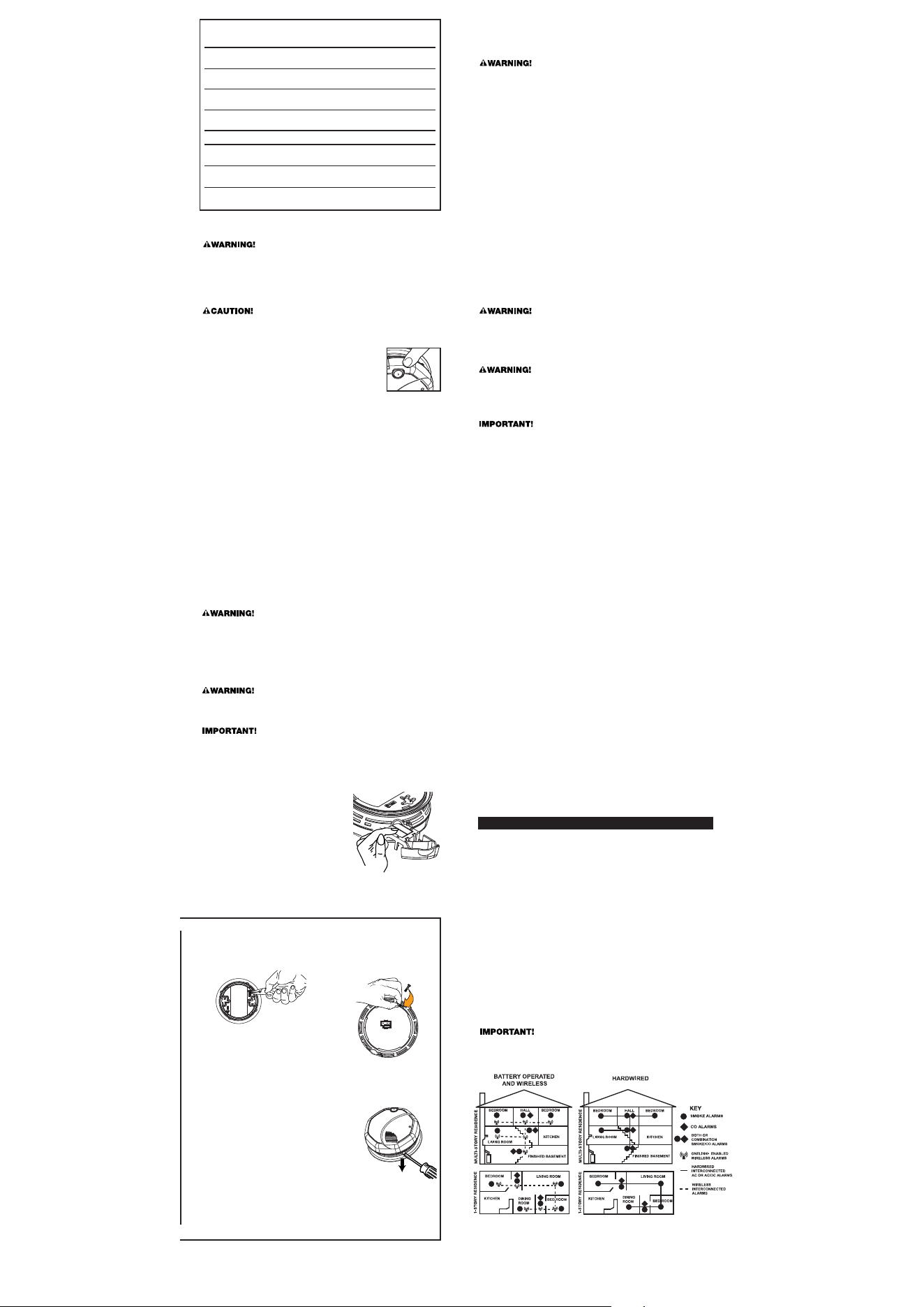

OPTIONAL LOCKING FEATURES
The locking features are designed to discourage unauthorized removal of the batteries or Alarm. It is not necessary to activate the locks in single-family
households where unauthorized battery or Alarm removal is not a concern.
These Smoke Alarms have two separate locking features: one to lock the battery compartment, and the other to lock the Smoke Alarm
to the mounting bracket. You can choose to use either feature independently, or use them both.
Tools you will need: • Needle-nose pliers or utility knife • Standard Flathead screwdriver.
Both locking features use locking pins, which are molded into the mounting bracket. Using needle-nose pliers or a utility knife, remove
one or both pins from the mounting bracket, depending on how many locking features you want to use.
To permanently remove either lock, insert a flathead screwdriver between the locking pin and the lock, and pry the pin out of the lock.

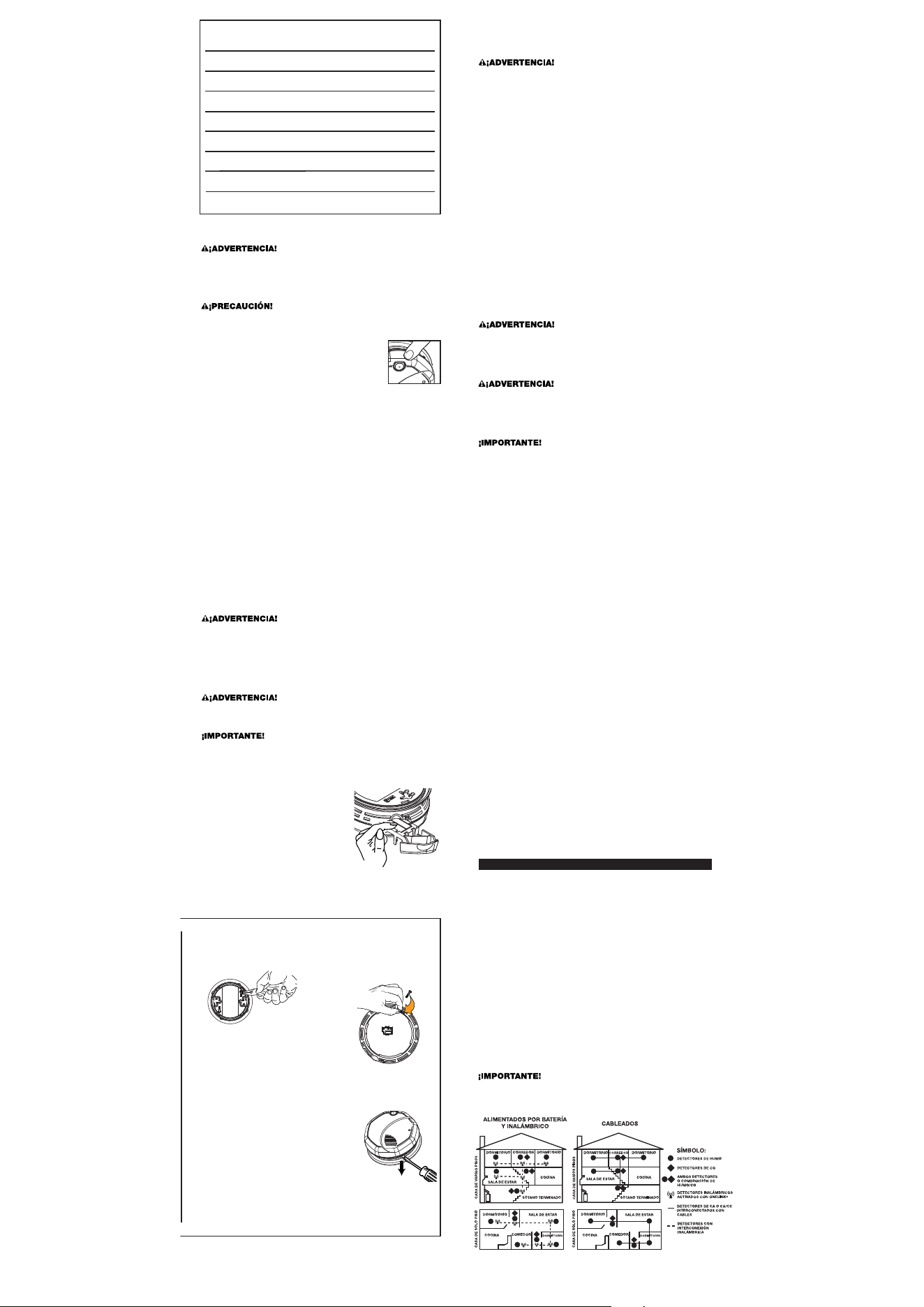

TO LOCK THE BATTERY COMPARTMENT
Do not lock the battery compartment until you have installed the
batteries and tested the alarm.
1. Push and hold Test button until the alarm sounds: 3 beeps, pause,
3 beeps, pause. LED flashes once every second.
If the unit does not alarm during testing, DO NOT lock the battery
compartment! Install new batteries and test again. If the Smoke
Alarm still does not alarm, replace it immediately.
2. Using needle-nose pliers or a utility knife, detach one locking pin
from the mounting bracket.
3. Push the locking pin through the hole near the battery drawer on the
back of the Smoke Alarm.
TO UNLOCK THE BATTERY COMPARTMENT
1. Remove the Smoke Alarm from the mounting
bracket. If the unit is locked to the bracket, see
the section “To Unlock the Mounting Bracket.”
2. Insert a flathead screwdriver under the head
of the locking pin, and gently pry it out of the
battery compartment lock. (If you plan to relock
the battery compartment, save the locking pin.)
3. To relock the battery compartment, close the
battery door and reinsert locking pin in lock.
4. Reattach the Smoke Alarm to the mounting
bracket.
When replacing the batteries, always test the Smoke Alarm before relocking
the battery compartment.
TO UNLOCK THE MOUNTING BRACKET
1. Insert a flathead screwdriver between the
mounting bracket pin and the mounting bracket.
2. Pry the Smoke Alarm away from the bracket by
turning both the screwdriver and the Smoke
Alarm counterclockwise (left) at the same time.
TO LOCK THE MOUNTING BRACKET
1. Using needle-nose pliers, detach one locking pin from mounting bracket.
2. Insert the locking pin into the lock located
opposite from the battery drawer as shown
in the diagram.
3. When you attach the Smoke Alarm to the mounting bracket, the locking
pin’s head will fit into a notch on the bracket.
Locking Features (Continued)
Printed in Mexico M08-0224-012 Q 07/12
First Alert
®
is a registered trademark of the First Alert Trust.
BRK
®
is a registered trademark of BRK Brands, Inc.
WEEKLY TESTING
• NEVER use an open flame of any kind to test this unit. You might
accidentally damage or set fire to the unit or to your home. The built-
in test switch accurately tests the unit’s operation as required by
Underwriters Laboratories, Inc. (UL).
• If the Alarm ever fails to test properly, replace it immediately.
Products under warranty may be returned to the manufacturer
for replacement. See “Limited Warranty” at the end of this manual.
DO NOT stand close to the Alarm when the horn is sounding. Exposure
at close range may be harmful to your hearing. When testing, step away
when horn starts sounding.
I
t is important to test this unit every week to make
s
ure it is working properly. Using the test button is the
r
ecommended way to test this Smoke Alarm.
P
ress and hold the Test/Silence button on the cover of the
u
nit until the alarm sounds (the unit may continue to alarm
f
or a few seconds after you release the button). If it does
n
ot alarm, make sure the unit is receiving power and test
i
t again. If it still does not alarm, replace it immediately.
During testing, you will hear a loud, repeating horn pattern: 3 beeps,
pause, 3 beeps, pause. LED flashes once every second.
W
hen testing a series of interconnected units you must test each unit
i
ndividually. Make sure all units alarm when each one is tested.
REGULAR MAINTENANCE
T
his unit has been designed to be as maintenance-free as possible, but there
a
re a few simple things you must do to keep it working properly:
•
Test it at least once a week.
• Clean the Smoke Alarm at least once a month; gently vacuum the
outside of the Smoke Alarm using your household vacuum’s soft brush
attachment. Test the Smoke Alarm. Never use water, cleaners or solvents
since they may damage the unit.
•
If the Smoke Alarm becomes contaminated by excessive dirt, dust and/or
g
rime, and cannot be cleaned to avoid unwanted alarms, replace the
u
nit immediately.
•
Relocate the unit if it sounds frequent unwanted alarms. See “Locations
T
o Avoid For Smoke Alarms” for details.
•
When the batteries become weak, the Smoke Alarm will “chirp” about
o
nce a minute (the low battery warning). This warning should last 7 days,
b
ut you should replace the batteries immediately to continue your
p
rotection.
UNDERSTANDING THE INDICATOR LIGHTS
AND ALARM HORN PATTERNS
Note: To conserve batteries, both "Latching" features last for 15 minutes
and are then turned off.
IF THIS SMOKE ALARM SOUNDS
RESPONDING TO AN ALARM
D
uring an alarm, you will hear a loud, repeating horn pattern: 3 beeps,
p
ause, 3 beeps, pause.
• If the unit alarms and you are not testing the unit, it is warning you of a
potentially dangerous situation that requires your immediate attention.
NEVER ignore any alarm. Ignoring the alarm may result in injury or
death.
•
Never remove the batteries to quiet an unwanted alarm. Removing
t
he batteries disables the Alarm so it cannot sense smoke. This will
r
emove your protection. Instead, open a window or
f
an the smoke
a
way from the unit. The Alarm will reset automatically.
•
If the unit alarms get everyone out of the house immediately.
I
f the unit alarms and you are certain that the source of smoke is not a fire—
c
ooking smoke or an extremely dusty furnace, for example—open a nearby
w
indow or door and fan the smoke away from the unit (Use the Silence Feature
t
o silence the Alarm). This will silence the alarm, and once the smoke clears the
u
nit will reset itself automatically.
WHAT TO DO IN CASE OF FIRE
•
Don’t panic; stay calm. Follow your family escape plan.
• Get out of the house as quickly as possible. Don’t stop to
get dressed or collect anything.
• Feel doors with the back of your hand before opening them.
If a door is cool, open it slowly. Don’t open a hot door. Keep doors
and windows closed, unless you must escape through them.
•
Cover your nose and mouth with a cloth (preferably damp).
T
ake short, shallow breaths.
•
Meet at your planned meeting place outside your home,
a
nd do a head count to make sure everybody got out safely.
• Call the Fire Department as soon as possible from outside.
Give your address, then your name.
• Never go back inside a burning building for any reason.
•
Contact your Fire Department for ideas on making your home safer.
Alarms have various limitations. See "Limitations of Smoke Alarms" for
details.
IF YOU SUSPECT A PROBLEM
S
moke Alarms may not operate properly because of dead, missing or weak
b
atteries, a build-up of dirt, dust or grease on the Smoke Alarm cover, or
i
nstallation in an improper location. Clean the Smoke Alarm as described in
“
Regular Maintenance,” and install fresh batteries, then test the Smoke Alarm
a
gain. If it fails to test properly when you use the test button, or if the problem
p
ersists, replace the Smoke Alarm immediately.
•
If you hear a “chirp” approximately once a minute, replace the
b
atteries.
•
If you experience frequent non-emergency alarms (like those caused
b
y cooking smoke), try relocating the Smoke Alarm.
• If the alarm sounds when no smoke is visible, try cleaning or
relocating the Smoke Alarm. The cover may be dirty.
• If the alarm does not sound during testing, try installing new batteries,
and make sure they are installed correctly.
If the Smoke Alarm is still not operating properly, and it is still under warranty,
please see “How to Obtain Warranty Service” in the Limited Warranty.
Do not try fixing the alarm yourself – this will void your warranty!
LIMITED WARRANTY
BRK Brands, Inc., ("BRK") the maker of First Alert
®
brand and BRK
®
brand
products, warrants that for a period of ten years from the date of purchase,
this product will be free from defects in material and workmanship.
BRK, at its option, will repair or replace this product or any component of
the product found to be defective during the warranty period. Replacement
will be made with a new or remanufactured product or component. If the
product is no longer available, replacement may be made with a similar
product of equal or greater value. This is your exclusive warranty.
This warranty is valid for the original retail purchaser from the date of initial
retail purchase and is not transferable. Keep the original sales receipt.
Proof of purchase is required to obtain warranty performance.
BRK dealers, service centers, or retail stores selling BRK products do not
have the right to alter, modify or any way change the terms and conditions
of this warranty.
This warranty does not cover normal wear of parts or damage resulting
from any of the following: negligent use or misuse of the product, use on
improper voltage or current, use contrary to the operating instructions,
disassembly, repair or alteration by anyone other than BRK or an authorized
service center. Further, the warranty does not cover Acts of God, such as
fire, flood, hurricanes and tornadoes or any batteries that are included with
this unit.
BRK shall not be liable for any incidental or consequential damages
caused by the breach of any express or implied warranty. Except to the
extent prohibited by applicable law, any implied warranty of merchantability
or fitness for a particular purpose is limited in duration to the duration of
the above warranty. Some states, provinces or jurisdictions do not allow
the exclusion or limitation of incidental or consequential damages or
limitations on how long an implied warranty lasts, so the above limitations
or exclusion may not apply to you. This warranty gives you specific legal
rights, and you may also have other rights that vary from state to state or
province to province.
How to Obtain Warranty Service
Service: If service is required, do not return the product to your retailer.
In order to obtain warranty service, contact the Consumer Affairs Division
at 1-800-323-9005, 7:30 AM - 5:00 PM Central Standard Time, Monday
through Friday. To assist us in serving you, please have the model number
and date of purchase available when calling.
For Warranty Service return to:
BRK Brands, Inc., 25 Spur Drive, El Paso, TX 79906
Battery: BRK Brands, Inc. make no warranty, express or implied, written or
oral, including that of merchantability or fitness for any particular purpose
with respect to battery.
RECOMMENDED LOCATIONS FOR
SMOKE ALARMS
Installing Smoke Alarms in Single-Family Residences
The National Fire Protection Association (NFPA), recommends one Smoke
Alarm on every floor, in every sleeping area, and in every bedroom. In new
construction, the Smoke Alarms must be AC powered and interconnected.
See “Agency Placement Recommendations” for details. For additional cover-
age, it is recommended that you install a Smoke Alarm in all rooms, halls,
storage areas, finished attics, and basements, where temperatures normally
remain between 40˚ F (4.4˚ C) and 100˚ F (37.8˚ C). Make sure no door or
other obstruction could keep smoke from reaching the Smoke Alarms.
More specifically, install Smoke Alarms:
• On every level of your home, including finished attics and basements.
• Inside every bedroom, especially if people sleep with the door partly or
completely closed.
• In the hall near every sleeping area. If your home has multiple sleeping
areas, install a unit in each. If a hall is more than 40 feet long (12 meters),
install a unit at each end.
• At the top of the first-to-second floor stairway, and at the bottom
of the basement stairway.
Specific requirements for Smoke Alarm installation vary from state to state
and from region to region. Check with your local Fire Department for current
requirements in your area. It is recommended AC or AC/DC units be inter-
connected for added protection.
L
IMITATIONS OF SMOKE ALARMS
S
moke Alarms have played a key role in reducing deaths resulting from home
f
ires worldwide. However, like any warning device, Smoke Alarms can only
w
ork if they are properly located, installed, and maintained, and if smoke
r
eaches the Alarms. They are not foolproof.
S
moke alarms may not waken all individuals. Practice the escape plan
a
t least twice a year, making sure that everyone is involved – from kids to
g
randparents. Allow children to master fire escape planning and practice
b
efore holding a fire drill at night when they are sleeping. If children or others
d
o not readily waken to the sound of the smoke alarm, or if there are infants
o
r family members with mobility limitations, make sure that someone is
a
ssigned to assist them in fire drill and in the event of an emergency. It is
r
ecommended that you hold a fire drill while family members are sleeping in
o
rder to determine their response to the sound of the smoke alarm while
s
leeping and to determine whether they may need assistance in the event
o
f an emergency.
Smoke Alarms cannot work without power. Battery operated units cannot
work if the batteries are missing, disconnected or dead, if the wrong type
of batteries are used, or if the batteries are not installed correctly. AC units
cannot work if the AC power is cut off for any reason (open fuse or circuit
breaker, failure along a power line or at a power station, electrical fire that
burns the electrical wires, etc.). If you are concerned about the limitations
of battery or AC power, install both types of units.
S
moke Alarms cannot detect fires if the smoke does not reach the
A
larms. Smoke from fires in chimneys or walls, on roofs, or on the other side
o
f closed doors may not reach the sensing chamber and set off the Alarm.
T
hat is why one unit should be installed inside each bedroom or sleeping
a
rea—especially if bedroom or sleeping area doors are closed at night—and
i
n the hallway between them.
Smoke Alarms may not detect fire on another floor or area of the
dwelling. For example, a stand-alone unit on the second floor may not detect
smoke from a basement fire until the fire spreads. This may not give you
enough time to escape safely. That is why recommended minimum protection
is at least one unit in every sleeping area, and every bedroom on every level
of your dwelling. Even with a unit on every floor, stand-alone units may not
provide as much protection as interconnected units, especially if the fire starts
in a remote area. Some safety experts recommend installing interconnected
AC powered units with battery back-up (see “About Smoke Alarms”) or
professional fire detection systems, so if one unit senses smoke, all units
alarm. Interconnected units may provide earlier warning than stand-alone
units since all units alarm when one detects smoke.
S
moke Alarms may not be heard. Though the alarm horn in this unit meets
o
r exceeds current standards, it may not be heard if: 1) the unit is located
o
utside a closed or partially closed door, 2) residents recently consumed
alcohol or drugs, 3) the Alarm is drowned out by noise from stereo, TV, traffic,
air conditioner or other appliances, 4) residents are hearing impaired or sound
sleepers. Special purpose units, like those with visual and audible alarms,
should be installed for hearing impaired residents.
S
moke Alarms may not have time to alarm before the fire itself causes
d
amage, injury, or death, since smoke from some fires may not reach
t
he unit immediately. Examples of this include persons smoking in bed,
c
hildren playing with matches, or fires caused by violent explosions
r
esulting from escaping gas.
S
moke Alarms are not foolproof. Like any electronic device, Smoke Alarms
a
re made of components that can wear out or fail at any time. You must test
t
he unit weekly to ensure your continued protection. Smoke Alarms cannot
p
revent or extinguish fires. They are not a substitute for property or life
i
nsurance.
Smoke Alarms have a limited life. The unit should be replaced immediately
if it is not operating properly. You should always replace a Smoke Alarm after
10 years from date of purchase. Write the purchase date on the space provided
on back of unit.
USING THE SILENCE FEATURE
The Silence Feature can temporarily quiet an unwanted alarm for up to 15
minutes.
T
he Silence Feature does not disable the unit—it makes it temporarily
l
ess sensitive to smoke. For your safety, if smoke around the unit is dense
e
nough to suggest a potentially dangerous situation, the unit will stay in
a
larm or may re-alarm quickly. If you do not know the source of the
s
moke, do not assume it is an unwanted alarm. Not responding to an
a
larm can result in property loss, injury, or death.
T
he Silence Feature on these units can temporarily quiet an unwanted alarm for
u
p to 15 minutes. To use this feature, press the Test/Silence button on the cover.
I
f the unit will not silence and no heavy smoke is present, or if it stays in
s
ilence mode continuously, it should be replaced immediately.
M
odel SA320
with Silence
B
attery Powered
Photo & Ion Smoke Alarm
TABLE OF CONTENTS
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Fire Safety Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Before You Install This Smoke Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
How To Install This Smoke Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-3
Optional Locking Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-4
Understanding the Indicator Lights
and Alarm Horn Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Weekly Testing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Regular Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
If This Smoke Alarm Sounds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
What To Do In Case Of Fire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Using the Silence Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Latching Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
If You Suspect a Problem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Recommended Locations For Smoke Alarms . . . . . . . . . . . . . . . . . . . .5-6
Locations To Avoid For Smoke Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
About Smoke Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Special Compliance Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-7
Limitations of Smoke Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
C
ONFORMS TO
UL STD 217
A
GENCY PLACEMENT RECOMMENDATIONS
N
FPA 72 Chapter 29
“For your information, the National Fire Alarm and Signaling Code, NFPA 72,
reads as follows:”
2
9.5.1* Required Detection.
2
9.5.1.1* Where required by other governing laws, codes, or standards for a
s
pecific type of occupancy, approved single and multiple-station smoke
a
larms shall be installed as follows:
(
1)*In all sleeping rooms and guest rooms
(2)*Outside of each separate dwelling unit sleeping area, within 21 ft (6.4 m)
of any door to a sleeping room, with the distance measured along a path
of travel
(
3) On every level of a dwelling unit, including basements
(
4) On every level of a residential board and care occupancy (small facility),
i
ncluding basements and excluding crawl spaces and unfinished attics
(5)*In the living area(s) of a guest suite
(6) In the living area(s) of a residential board and care occupancy
(small facility)
(Reprinted with permission from NFPA 72
®
, National Fire Alarm and Signaling
Code Copyright © 2010 National Fire Protection Association, Quincy, MA
02269. This reprinted material is not the complete and official position of
the National Fire Protection Association, on the referenced subject which is
represented only by the standard in its entirety), (National Fire Alarm and
Signaling Code
®
and NFPA 72
®
are registered trademarks of the National Fire
Protection Association, Inc., Quincy, MA 02269).
C
alifornia State Fire Marshal (CSFM)
Early warning detection is best achieved by the installation of fire detection
equipment in all rooms and areas of the household as follows: A Smoke Alarm
installed in each separate sleeping area (in the vicinity, but outside bedrooms),
and Heat or Smoke Alarms in the living rooms, dining rooms, bedrooms,
kitchens, hallways, finished attics, furnace rooms, closets, utility and storage
rooms, basements, and attached garages.
LOCATIONS TO AVOID FOR SMOKE ALARMS
For best performance, AVOID installing Smoke Alarms in these areas:
• Where combustion particles are produced. Combustion particles form
when something burns. Areas to avoid include poorly ventilated kitchens,
garages, and furnace rooms. Keep units at least 20 feet (6 meters) from
the sources of combustion particles (stove, furnace, water heater, space
heater) if possible. In areas where a 20-foot (6 meter) distance is not
possible – in modular, mobile, or smaller homes, for example – it is
recommended the Smoke Alarm be placed as far from these fuel-burning
sources as possible. The placement recommendations are intended to
keep these Alarms at a reasonable distance from a fuel-burning source,
and thus reduce “unwanted” alarms. Unwanted alarms can occur if a
Smoke Alarm is placed directly next to a fuel-burning source. Ventilate
these areas as much as possible.
• In air streams near kitchens. Air currents can draw cooking smoke into
the sensing chamber of a Smoke Alarm near the kitchen.
•
In very damp, humid or steamy areas, or directly near bathrooms with
s
howers. Keep units at least 10 feet (3 meters) away from showers,
s
aunas, dishwashers, etc.
•
Where the temperatures are regularly below 40˚ F (4.4˚ C) or above
1
00˚ F (37.8˚ C) including unheated buildings, outdoor rooms, porches,
o
r unfinished attics or basements.
• In very dusty, dirty, or greasy areas. Do not install a Smoke Alarm directly
over the stove or range. Clean a laundry room unit frequently to keep it
free of dust or lint.
• Near fresh air vents, ceiling fans, or in very drafty areas. Drafts can blow
smoke away from the unit, preventing it from reaching sensing chamber.
• In insect infested areas. Insects can clog openings to the sensing chamber
and cause unwanted alarms.
• Less than 12 inches (305 mm) away from fluorescent lights. Electrical
“noise” can interfere with the sensor.
•
In “dead air” spaces. “Dead air” spaces may prevent smoke from reaching
t
he Smoke Alarm.
AVOIDING DEAD AIR SPACES
“
Dead air” spaces may prevent smoke from reaching the Smoke Alarm. To
a
void dead air spaces, follow the installation recommendations below.
O
n ceilings, install Smoke Alarms as close to the center of the ceiling as
p
ossible. If this is not possible, install the Smoke Alarm at least 4 inches
(
102 mm) from the wall or corner.
F
or wall mounting (if allowed by building codes), the top edge of Smoke
A
larms should be placed between 4 inches (102 mm) and 12 inches (305 mm)
f
rom the wall/ceiling line, below typical “dead air” spaces.
O
n a peaked, gabled, or cathedral ceiling, install the first Smoke Alarm
w
ithin 3 feet (0.9 meters) of the peak of the ceiling, measured horizontally.
A
dditional Smoke Alarms may be required depending on the length, angle,
e
tc. of the ceiling's slope. Refer to NFPA 72 for details on requirements for
s
loped or peaked ceilings.
SPECIAL COMPLIANCE CONSIDERATIONS
This Smoke Alarm is suitable for use in apartments, condominiums, town-
houses, hospitals, day care facilities, health care facilities, boarding houses,
group homes and dormitories provided a primary fire detection system
already exists to meet fire detection requirements in common areas like
lobbies, hallways, or porches. Using this Smoke Alarm in common areas
may not provide sufficient warning to all residents or meet local fire
protection ordinances/regulations.
This Smoke Alarm alone is not a suitable substitute for complete fire
detection systems in places housing many people—like apartment buildings,
condominiums, hotels, motels, dormitories, hospitals, health care facilities,
nursing homes, day care facilities, or group homes of any kind. It is not a
suitable substitute for complete fire detection systems in warehouses,
industrial facilities, commercial buildings, and special-purpose non-residential
buildings which require special fire detection and alarm systems. Depending
on the building codes in your area, this Smoke Alarm may be used to provide
additional protection in these facilities.
In new construction, most building codes require the use of AC or AC/DC
powered Smoke Alarms only. In existing construction, AC, AC/DC, or DC
powered Smoke Alarms can be used as specified by local building codes.
Refer to NFPA 72 (National Fire Alarm and Signaling Code) and NFPA 101
(Life Safety Code), local building codes, or consult your Fire Department for
detailed fire protection requirements in buildings not defined as “households”.
HUD MAP Program
Certain HUD battery powered Smoke Alarm applications, especially those
that fall under HUD 223(f) MAP (Multi-family Accelerated Processing), may
require a 10 Year sealed tamper resistant battery. This alarm does not meet
that requirement. Substitute First Alert SA340B.
Continued...
ABOUT SMOKE ALARMS
B
attery (DC) operated Smoke Alarms: Provide protection even when
e
lectricity fails, provided the batteries are fresh and correctly installed. Units
a
re easy to install, and do not require professional installation. They do not,
h
owever, provide interconnected functionality.
AC powered Smoke Alarms: Can be interconnected so if one unit senses
smoke, all units alarm. They do not operate if electricity fails.
AC with battery (DC) back-up: will operate if electricity fails, provided the
batteries are fresh and correctly installed. AC and AC/DC units must be
installed by a qualified electrician.
Wireless Interconnected Alarms: Offer the same interconnected functionality
as with hardwired alarms, without wires. Units are easy to install and do not
require professional installation. They provide protection even when electricity
fails, provided the batteries are fresh and correctly installed.
Smoke Alarms for Solar or Wind Energy users and battery backup power
systems: AC powered Smoke Alarms should only be operated with true or
pure sine wave inverters. Operating this Smoke Alarm with most battery-
powered UPS (uninterruptible power supply) products or square wave or
“quasi sine wave” inverters will damage the Alarm. If you are not sure about
your inverter or UPS type, please consult with the manufacturer to verify.
S
moke Alarms for the hearing impaired: Special purpose Smoke Alarms
s
hould be installed for the hearing impaired. They include a visual alarm and
a
n audible alarm horn, and meet the requirements of the Americans With
Disabilities Act. These units can be interconnected so if one unit senses
smoke, all units alarm.
Smoke alarms are not to be used with detector guards unless the
combination has been evaluated and found suitable for that purpose.
All these Smoke Alarms are designed to provide early warning of fires if
located, installed and cared for as described in the user’s manual, and if
smoke reaches the Alarm. If you are unsure which type of unit to install, refer
to NFPA (National Fire Protection Association) 72 (National Fire Alarm and
Signaling Code) and NFPA 101 (Life Safety Code). National Fire Protection
Association, One Batterymarch Park, Quincy, MA 02269-9101. Local building
codes may also require specific units in new construction or in different areas
of the home.
C
hoosing a replacement battery:
Your Smoke Alarm requires two “AA” Duracell MN1500 batteries.
These batteries are available at many local retail stores.
•
Always use the exact batteries specified by this User’s Manual.
D
O NOT use rechargeable batteries. Clean the battery contacts and
a
lso those of the device prior to battery installation. Install batteries
c
orrectly with regard to polarity (+ and -).
•
Please dispose of or recycle used batteries properly, following any
l
ocal regulations. Consult your local waste management authority
o
r recycling organization to find an electronics recycling facility in
y
our area. DO NOT DISPOSE OF BATTERIES IN FIRE. BATTERIES
M
AY EXPLODE OR LEAK.
•
Keep battery out of reach of children. In the event a battery is
s
wallowed, immediately contact your poison control center, your
p
hysician, or the National Battery Ingestion hotline at 202-625-3333
a
s serious injury may occur.
Actual battery service life depends on the Alarm and the environment in which
it is installed. All the batteries specified above are acceptable replacement
batteries for this unit. Regardless of the manufacturer’s suggested battery life,
you MUST replace the battery immediately once the unit starts “chirping”
(the “low battery warning”).
T
o replace the batteries (without removing Alarm from the ceiling or wall):
1. Open the battery compartment.
2
. Press tabs A and B as shown in the diagram
a
nd remove each battery.
3. Insert the new batteries, making sure
they snap completely into the battery
compartment. Match the terminals on the
ends of the batteries with the terminals on
the unit.
4. Close the battery compartment, and then
test the unit by pressing the Test/Silence
button.
A
B
SILENCING THE LOW BATTERY WARNING
T
his Silence Feature can temporarily quiet the low battery warning “chirp” for
u
p to 8 hours. Press the Test/Silence button on the Alarm cover until you hear
t
he acknowledge “chirp”.
Once the low battery warning “chirp” silence feature is activated, the unit
continues to flash the green light once a minute for approximately 8 hours.
After 8 hours, the low battery “chirp” will resume. Replace the batteries as
soon as possible; this unit will not operate without battery power!
LATCHING FEATURE
A
larm Latch is activated after an Alarm is exposed to alarm levels of smoke.
After smoke levels drop below alarm levels, the Red LED will begin flashing
2
seconds on, 2 seconds off unless reset by test/silence button. It will continue
to flash or “latch” for about 15 minutes, to give you time to determine which
unit initiated the alarm.
T
his feature helps emergency responders, investigators, or service technicians
i
dentify which unit(s) in your home were exposed to alarm levels of smoke.
T
his can help investigators pinpoint the source of smoke.
Low Battery Latch is activated when the Alarm is in the "low battery
condition". When this occurs, the Green LED flashes 2 seconds on, 2
seconds off. This feature is designed to help you identify which Alarm needs
to have the battery replaced. Although, the Alarm will sound the low battery
chirp approximately once every minute, sometimes during the initial stages
of "low battery", the Alarm will chirp in greater intervals than one minute,
sometimes up to several hours, until the battery reaches a steady low battery
level. This innovative feature eliminates the frustration of waiting for and/or
identifying which unit is chirping. It will continue to flash or “latch” for about
15 minutes, to give you time to determine which unit has a low battery.
N
ormal Operation
Flashing Green LED once/minute
No Audible Alarm
Test Condition
A
larm Condition*
(
Initiating Unit)
R
apidly Flashing Red LED
A
udible Alarm
R
apidly Flashing Red LED
A
udible Alarm
Silence Mode
R
apidly Flashing Red LED
A
udible Alarm Off
L
ow Battery
Latching Alarm
L
ow Battery Latch
G
reen LED flashing 2 seconds on,
2
seconds off
Red LED flashing 2 seconds on,
2 seconds off
A
larm “chirp’’ approx. once/minute
I
f you want to lock the battery drawer, or lock the Smoke Alarm to
t
he mounting bracket, please read the “Optional Locking Features”
section before you begin installation.
1
. Hold base firmly and twist the mounting bracket clockwise to separate
i
t from the base.
2. Hold the mounting bracket against the
c
eiling (or wall) so the two clusters of
u
niversal mounting holes are aligned
approximately at the 9:00 and 3:00 o'clock
positions. See image. Choose one of the
t
hree sets of holes shown, A, B or C (see
image) and trace around one of the sets.
Be sure to choose a top and bottom slot
o
n opposite sides so you can rotate the
U
niversal Mounting Bracket into position
later. This will make it easier in the future
the remove the mounting bracket without
c
ompletely removing the screws.
W
ARNING! Do not install this Smoke Alarm over an existing
electrical box. Only AC powered units are intended for installation
over electrical boxes.
3
. Put the unit where it won’t get covered with dust when you drill the
mounting holes.
4
. Using a 3/16” (5 mm) drill bit, drill a hole through the center of the
o
val outlines you traced.
5. Insert the plastic screw anchors (in the plastic bag with screws) into
t
he holes. Tap the screw anchors gently with a hammer, if necessary,
until they are flush with the ceiling or wall.
6
. Install the screws but do not tighten completely. Attach the mounting
bracket by aligning the screws in the open portion of the universal
mounting slots and rotating the bracket into place. Tighten the screws
u
ntil they are snug to secure the bracket. Do not over tighten.
7. Install the batteries (included) so the terminals on the battery match
the terminals on the Smoke Alarm. Match “+” to “+” and “-” to “-.”
P
ush the batteries in until they snap in securely and cannot be shaken
loose. If the batteries are not in completely, the unit cannot receive
battery power.
N
OTE: After you install the batteries, the power indicator light will
flash and the horn will chirp. (If the unit alarms, the light will blink
rapidly, and the horn will repeatedly sound 3 beeps, pause, 3 beeps.)
8
. Attach the Smoke Alarm to the bracket. Line up the guides on the
a
larm’s base with the guides on the mounting bracket. When guides
a
re lined up, turn the base clockwise (right).
NOTE: Once the Smoke Alarm is on the bracket, you can rotate
t
he Alarm to adjust the alignment.
9
. Test the Smoke Alarm. See “Weekly Testing.”
2
1
3
2
1
4
Pull Out
3
6
5
1. Mounting bracket
2. Universal Mounting
Holes
3. Battery Drawer Lock
P
in Hole
4. Slide-open battery
drawer
5. Turn this way to remove
from bracket
6. Turn this way to attach
t
o bracket
1. Test/Silence button
2. Slide-open battery
drawer
3. Multi-color Indicator
Light (Red or Green)
HOW TO INSTALL THIS SMOKE ALARM
THE PARTS OF THIS SMOKE ALARM
FOLLOW THESE SIMPLE STEPS!
TOOLS YOU WILL NEED:
T
his unit is designed to be mounted
o
n the ceiling, or on the wall if necessary.
•
Pencil
• Drill with 3/16” (5 mm) drill bit
• Standard flathead screwdriver
•
Hammer
•
Pliers or utility knife, to activate optional
“
tamper-resistant” locking features
A
A
C
B
B
C
Mounting Hole Sets
F
CC Compliance
T
his equipment has been tested and found to comply with the limits for a
C
lass B digital device, pursuant to Part 15 of the FCC rules. These limits are
d
esigned to provide reasonable protection against harmful interference in
a
residential installation. This equipment generates, uses and can radiate
r
adio frequency energy and, if not installed and used in accordance with
t
he instructions, may cause harmful interference to radio communications.
H
owever, there is no guarantee that the interference will not occur in a
p
articular installation. If this equipment does cause harmful interference to
r
adio or television reception, which can be determined by turning the equip-
m
ent off and on, the user is encouraged to try to correct the interference by
o
ne or more of the following measures:
•
Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
•
Connect the equipment into an outlet on a circuit different from that of
t
he receiver.
• Consult the dealer or an experienced radio or TV technician for help.
Warning: Changes or modifications to the product, not expressly approved
by First Alert / BRK Brands, Inc., could void the user’s authority to operate
the equipment.
T
his device complies with Part 15 of the FCC Rules. Operation is subject
t
o the following two conditions: (1) this device may not cause harmful
i
nterference, and (2) this device must accept any interference received,
i
ncluding interference that may cause undesired operation.
S
PECIAL COMPLIANCE CONSIDERATIONS, Continued
Loading ...
