Installation and Operation Instructions
ELECTRIC FIREPLACE
XFINS2319-1
REV19-01
Control Buttons/FunctionS
Listing Approvals
Operating Instructions
Remote Control
Important Safety Instructions
2-3
5
4
7
6
Troubleshooting
Installation
8
9
Inserting firebox 10
1
2
CONSUMER SAFETY INFORMATION
Read this manual before installing and operating this appliance.
Failure to follow these instructions may result in electric shock, fire property
damage, personal injury and will void the warranty.
Requires the use of Fireplace Mantel.
Do not store or use gasoline or other flammable liquids or vapors in the vicinity
of this appliance.
IMPORTANT SAFETY INSTRUCTIONS
When using electrical appliances,basic precautions should always be followed to reduce
the risk of fire, electric shock and injury to persons including the following:
1. The manufacturers instructions completely before using this appliance.
2. This appliance will become hot when in use. To avoid burns,do not let bare skin touch
hot surfaces. The grill at the top of this heater in partic
ular will become hot when
the heater
is active. Keep combustible materials such as furniture, pillows, bedding,paper, cloth,
curtains, etc. at least 3 feet (0.9meter) away from the front of the appliance. Keep all items
away from the sides and back of the appliance and take special care not to block the air
intake or exhaust vents.
3. Extreme caution is necessary when the appliance is used by or near children or invalids
and whenever the heater is left operating and unattended.
4. Do not operate the heater if
the power cord or plug has been damaged
or the heater
has been damaged or malfunctioned in any way. Take the appliance to an authorized
service facility for examination, electrical or mechanical adjustment or repair.
5. Do not use outdoors.
6. Do not use the appliance in bathrooms, laundry rooms or other similar indoor
locations where it may contact water. Never locate the appliance where it may fall into a
bathtub or other water container.
7. Do not run the power cord under carpeting. Do not cover the power cord with throw
rugs, runners,or similar floor c
overings. Take care to position the cord away from high traffic
areas and such that it can't be tripped over.
8.
To
disconnect the appliance, turn all controls "OFF", and then remove the plug from the
electrical outlet.
9. The appliance comes equipped with a 3 prong-grounding plug. Do not attempt to cut the
grounding prong. Connect to properly grounded 120V outlets only. This appliance, when
installed, must be electrically grounded in accordance with local codes or, in the absence of
local codes, with the current
10. Do not insert or allow foreign objects to enter any ventilation or exhaust openings as
this may cause an electric shock or fire, or damage the appliance.
11.
To
prevent a possible fire, do not block air intakes or exhausts in any manner. Do not
use on soft surfaces, like a bed, where openings may become blocked.
.
12. All electrical heaters have hot and arcing or sparking parts inside. Do not use in areas
where gasoline, paint, or flammable liquids are used or stored or where the appliance will
be exposed to flammable vapors.
13. Avoid using the appliance with an extension cord. Extension cords may overheat and
cause a risk of fire. If an extension cord MUST be used, the cord must be No.16 AWG
minimum size and rated not less than 1875 Watts. The extension cord must be a 3-prong
cord with grounding type plug and cord connecti
on and should not exceed 20' (6m) in
length.
14. When transporting or storing the heater, take care to keep both the unit and power cord
/ plug dry, free from excessive vibration and away from heat sources.
15.Use the heater only as described in this manual. Any other use not recommended by
the manufacturer may cause fire, electric shock, or injury to persons.
16. Do not attempt to burn wood or other materials in this heater.
SAVE THESE INSTRUCTIONS
3
LISTING APPROVALS
This heater has been tested in accordance with the CSA Standards.
Model Number: XFINS2319-1
Description: Electric Fireplace
Voltage: 120V AC, 60Hz
Watts: MAX 1500W
Length:
22.8
Height:
Depth: 7.1
19.7
4
OPERATING INSTRUCTIONS
Read all instructions and warnings prior to operating the appliance.
Ensure that all control are in the "OFF" position before plugging the appliance into a
properly grounded electrical outlet.

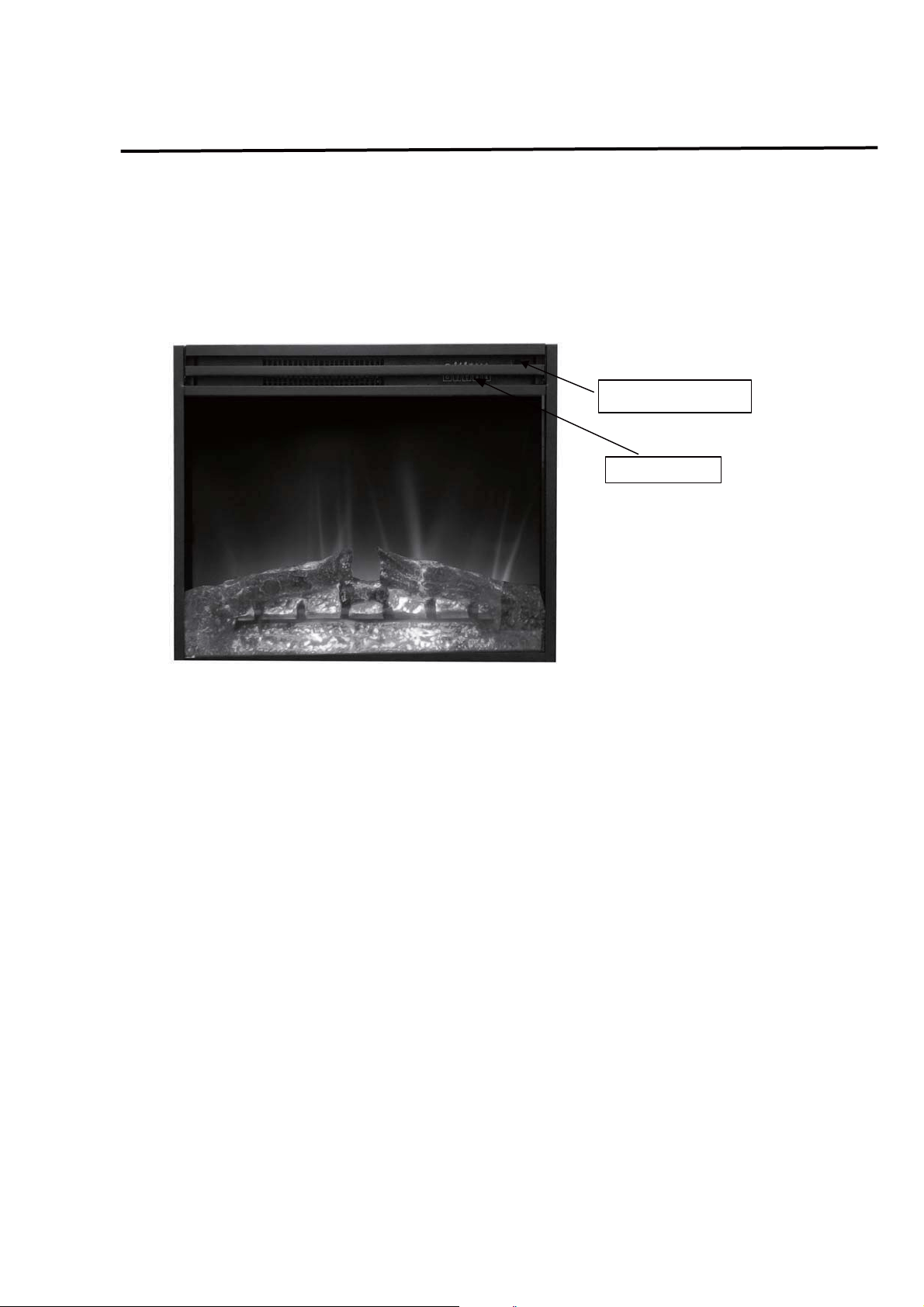

The is located on the firebox behind the upper front access panel(see Figure 1)
The control buttons are located on the firebox behind the upper front access panel(see Figure 1)
FIGURE 1
Master Power Button
ButtonMaster Power
Control Buttons
CARE AND CLEANING OR MAINTENANCE
Turn heater OFF and unplug from electrical outlet before any cleaning or maintenance is
.demrofrep
Keep combustible materials,such as furniture,pillows,bedding,papers,clothing,and curtains
at least 3 feet away from fireplace.
Use a vacuum or duster to keep heat and vent area from dust and dirt.The exterior of the
fireplace should be cleaned with a damp cloth or duster.Do not use abrasive cleaners or
liquid sprays.
Warning: Any other servicing should be performed by an authorized service representative.
5
Flip down the face plate at the top to access the controls
CONTROL
BUTTONS/FUNCTIONS
6
REMOTE CONTROLS
1. Heater Timer: Allows you to leave your heater
on with an automatic timer for shut
off. You can set your heater to be on for 1/2 hour
increments starting at a 1/2 hour up to a maximum
of 7-1/2 hours – press once for each 1/2 hour
increment. After you reach 7-1/2 hours the next
press will shut off the feature.
2. Flame brightness controls: Allows you to
twice for high heat.
.
flame brightness and to decrease flame brghtness.You must press the button several times
to see the full flame effect
3 Low heat 750 watts
4 High heat 1500 watts
5 Heater Timer: Allows you to leave your heater on with an automatic timer for shut off. You can set
your heater to be on for 1/2 hour increments starting at a 1/2 hour up to a maximum of 7-1/2 hours
- press once for each 1/2 hour increment. After you reach 7-1/2 hours the next press will shut off
the feature.
1 Power ON\OFF:(The master power switch must be "on")Power to the unit.
3 Power ON\OFF:(The master power switch must be "on")
Power to the unit.
7
ACCESS PANEL
REPLACING THE LIGHT BULBS
The electric fireplace insert uses two (2) clear 120-volt, 40-watt, E-12 socket base lightbulbs (small
base, chandelier candle-type bulbs). The lightbulbs are located at the bottom of the unit. You can
change the lightbulbs from the back of the electric fireplace. For your convenience, if one of the
lightbulbs burns out, it may be easier to replace all of the lightbulbs at the same time.
1. Turn the electric fireplace master power to the “off” position.
2. Let the electric fireplace insert cool completely before
changing lightbulbs.
3. Pull the mantel away from the wall so you can get in behind
the electric fireplace.
4. Remove the screws from the panel using a Philips or
flathead screwdriver.
5. Carefully remove the lightbulb. This may require holding the
light socket with one hand while unscrewing the lightbulb
with the other hand.
6. Install the new lightbulbs.
7. Insert and tighten the screws into the panel that were
removed in step 4.
8. Return your mantel to its original position.
Care
and maintenance:
Turn heater OFF and unplug from electrical outlet before any cleaning or maintenance is
performed.
Keep combustible materials such as furniture, pillows, bedding, papers, clothing, and
curtains at least 3feet (0.9meter) away from fireplace.
Use a vacuum or duster to keep heat and vent area clean from dust and dirt. The exterior
of the fireplace should be cleaned with a damp cloth or duster. Do not use abrasive
cleaners or liquid sprays.
Warnings
and cautions:
WARNING
To
avoid electrical shock never open the back panel of the until the
power has been turned off, and the insert unplugged.
WARNING Any electrical repairs to this electric fireplace, should only be performed by a
qualified technician.
WARNING Any electrical wiring repairs should only be performed by qualified electrician,
and also must comply with local building codes.
WARNING Discontinue use of thi
s electric fireplace if any of the follow has occurred:
Water damage, if insert has been dropped or dented, if power cord has become broken, if
power cord becomes hot to touch, if unit smokes or smells like smoke.
Note: When the heat function is used for the first time, a slight odor may be present. This
is normal and should not occur again unless heater is not used for extended periods of
time and dust is allowed to accumulate
on heater element.
TROUBLE SHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
1.No power, no indicator lights Insert was not plugged in Make sure that power cord is plugged
into 120V outlet
2.No power, no indicator lights No power at outlet Check circuit breaker or fuse
3.Log glow, but no flame Flame spinner disconnected Call customer service for instructions
4.Flame and logs glow, but no heat Heater switch is off Push heater b
utton. Indicator light will
come on
5.Heater and /or flame turn off while
operating
Timer function may been on Push On/Off button to reset
WARNING:
Turn off the appliance, unplug and let cool for at least 10 minutes before
attempting
attempting to service. Only a qualified professional should
mpt
attempt to service or repair the
appliance.
8

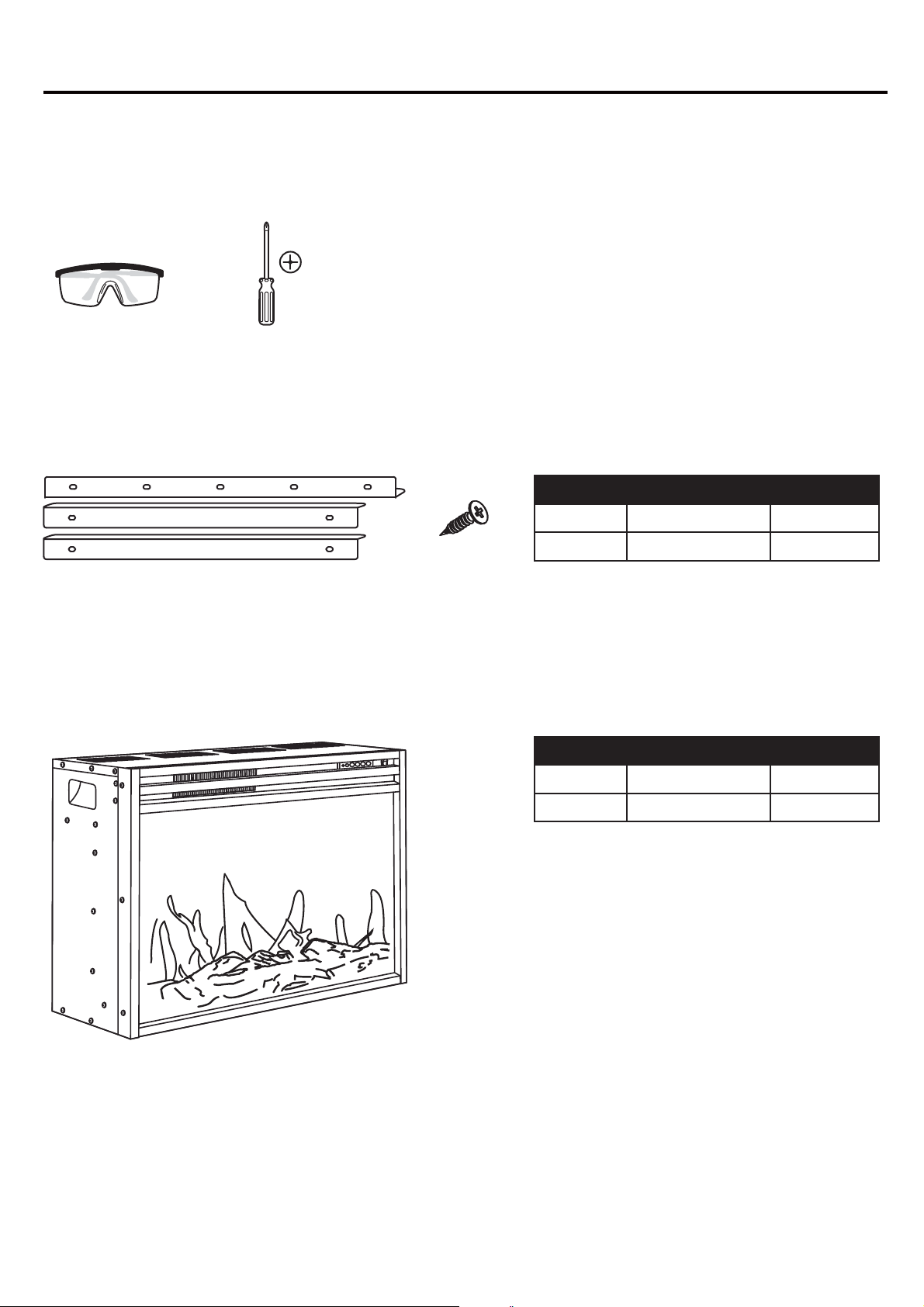

PLANNING INSTALLATION
Assembly of this product may require more than one person.
HARWARE INCLUDED
Note: Hardware not shown to actual size.
PACKAGE CONTENTS
AA
BB
Safety GogglesPhillips screwdriver
TOOLS REQUIRED
INSTALLATION
PART DESCRIPTION QUANTITY
AA Trim Pieces 3
BB Small Screws 11
PART DESCRIPTION QUANTITY
A Fireplace Insert 1
B Remote Control 1
To avoid scratching the finish, assemble the product on a soft,non-abrasive surface,such as carpet or cardboard.
9
Assembly (continued)
I
x3
PP
S
Attach the metal brackets(S) to all three
sides of the firebox and two sides of the
mantel to ensure that your firebox does
not move around as you use it. Insert
and tighten the 2 (PP) screws. Attach the
left and right side trim by inserting and
tightening 2 (PP) screws.
1 spare (PP) screw included.
Insert the firebox insert(P) into the mantel from
the rear. Be careful not to scratch the base(B).
Viewing from the front check that the insert is centered.
10
