• Page 7 - English - : ENGLISH Original instructions Intended use Your BLACKDECKER SVJ520BFS Dustbuster handheld vacuum cleaners have been designed for vacuum cleaning purposes These appliances are intended for household use only Read all of this manual carefully before operating the appliance Safety instructions Warning Read all safety warnings and all instructions Failure to follow the warnings and instructions listed below may result in electric shock re andor serious injury u The intended use is described in this manual The use of any accessory or attachment or the performance of any operation with this appliance other than those recommended in this instruction manual may present a risk of personal injury u Retain this manual for future reference Using your appliance u Do not use the appliance to pick up liquids or any materials that could catch re u Do not use the appliance near water u Do not immerse the appliance in water u Never pull the charger lead to disconnect the charger from the socket Keep the charger lead away from heat oil and sharp edges u This appliance can be used by children aged from 8 years and above and persons with reduced physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved Children shall not play with the appliance Cleaning and user maintenance shall not be made by children without supervision Inspection and repairs Before use check the appliance for damaged or defective parts Check for breakage of parts damage to switches and any other conditions that may affect its operation u Do not use the appliance if any part is damaged or defective u Have any damaged or defective parts repaired or replaced by an authorized repair agent u Regularly check the charger lead for damage Replace the charger if the lead is damaged or defective u Never attempt to remove or replace any parts other than those specied in this manual Additional safety instructions After use u Unplug the charger before cleaning the charger or charging base u When not in use the appliance should be stored in a dry place u Children should not have access to stored appliances Residual risks Additional residual risks may arise when using the tool which may not be included in the enclosed safety warnings These risks can arise from misuse prolonged use etc
• Page 8 - English - : ENGLISH Original instructions Even with the application of the relevant safety regulations and the implementa tion of safety devices certain residual risks can not be avoided These include u Injuries caused by touching any rotatingmoving parts u Injuries caused when changing any parts blades or accessories u Injuries caused by prolonged use of a tool When using any tool for prolonged periods ensure you take regular breaks u Impairment of hearing u Health hazards caused by breathing dust developed when using your tool example working with wood especially oak beech and MDF Chargers Your charger has been designed for a specic voltage Always check that the mains voltage corresponds to the voltage on the rating plate Warning Never attempt to replace the charger unit with a regular mains plug u Use your BLACKDECKER charger only to charge the battery in the appliance with which it was supplied Other batteries could burst causing personal injury and damage u Never attempt to charge non rechargeable batteries u If the supply cord is damaged it must be replaced by the manufacturer or an authorised BLACKDECKER Service Centre in order to avoid a hazard u Do not expose the charger to water u Do not open the charger u Do not probe the charger u The appliancebattery must be placed in a well ventilated area when charging Electrical safety Symbols on the charger Read all of this manual carefully before using the appliance This tool is double insulated therefore no earth wire is required Always check that the power supply corresponds to the voltage on the rating plate w Short circuit proof safety isolating transformer The mains supply is electrically separated from the transformer output x The charger automatically shuts off if the ambient temperature becomes too high As a consequence the charger will be inoperable The charging base must be disconnected from the mains supply and taken to an authorised service centre for repair The charging base is intended for indoor use only Labels on appliance The following symbols appear on this appliance along with the date code Read all of this manual carefully before using the appliance S010Q 23 Only use with charger S010Q 23 Features This tool includes some or all of the following features 1 Onoff power switch 2 Nozzle 3 Pull out crevice tool 4 Push in brush 5 Handle Onoff power switch 5A Brush control 6 Handle 7 Charging base 8 Chassis 8a Chassis release button Use Switching on and off Fig A u To switch on press the onoff switch 1 located on the handle of the Dustbuster or alternatively on the chassis handle 5 u Press the button again 1 or 5 and the unit goes to a BOOST mode u To switch off press the onoff switch 1 or 5

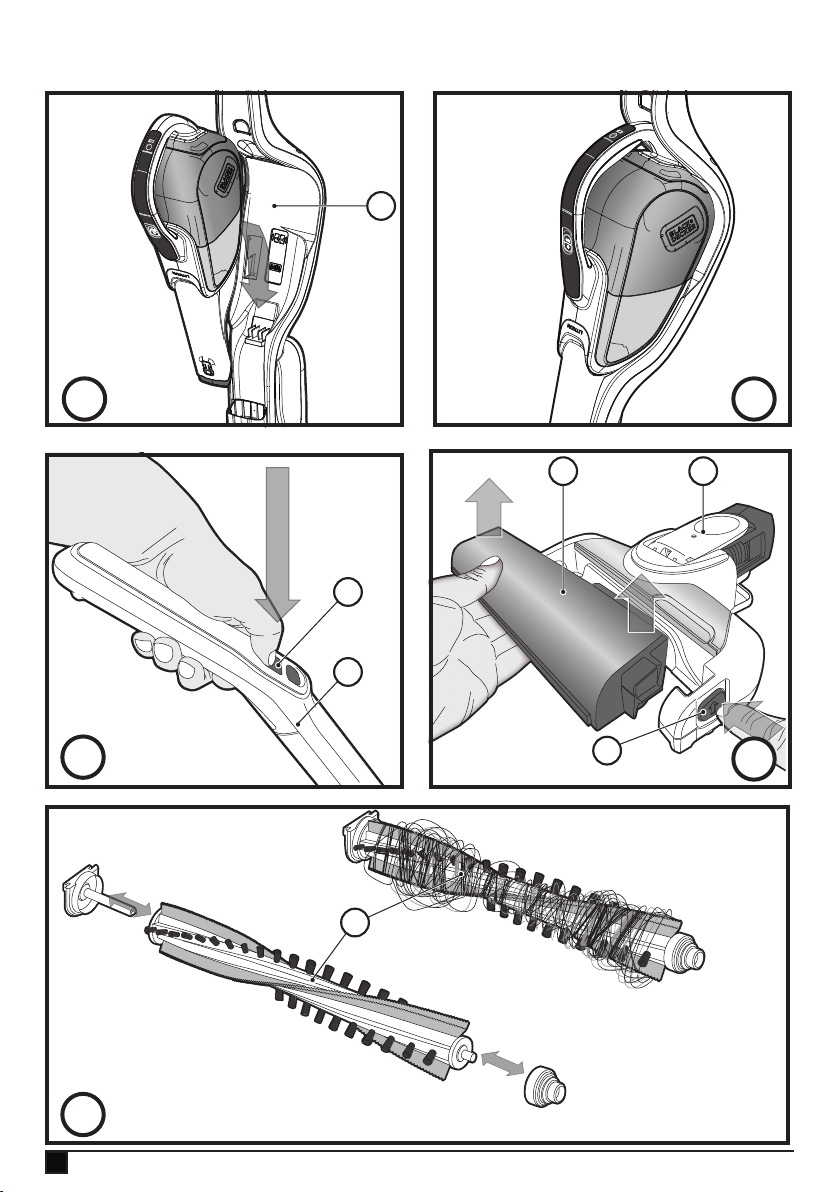

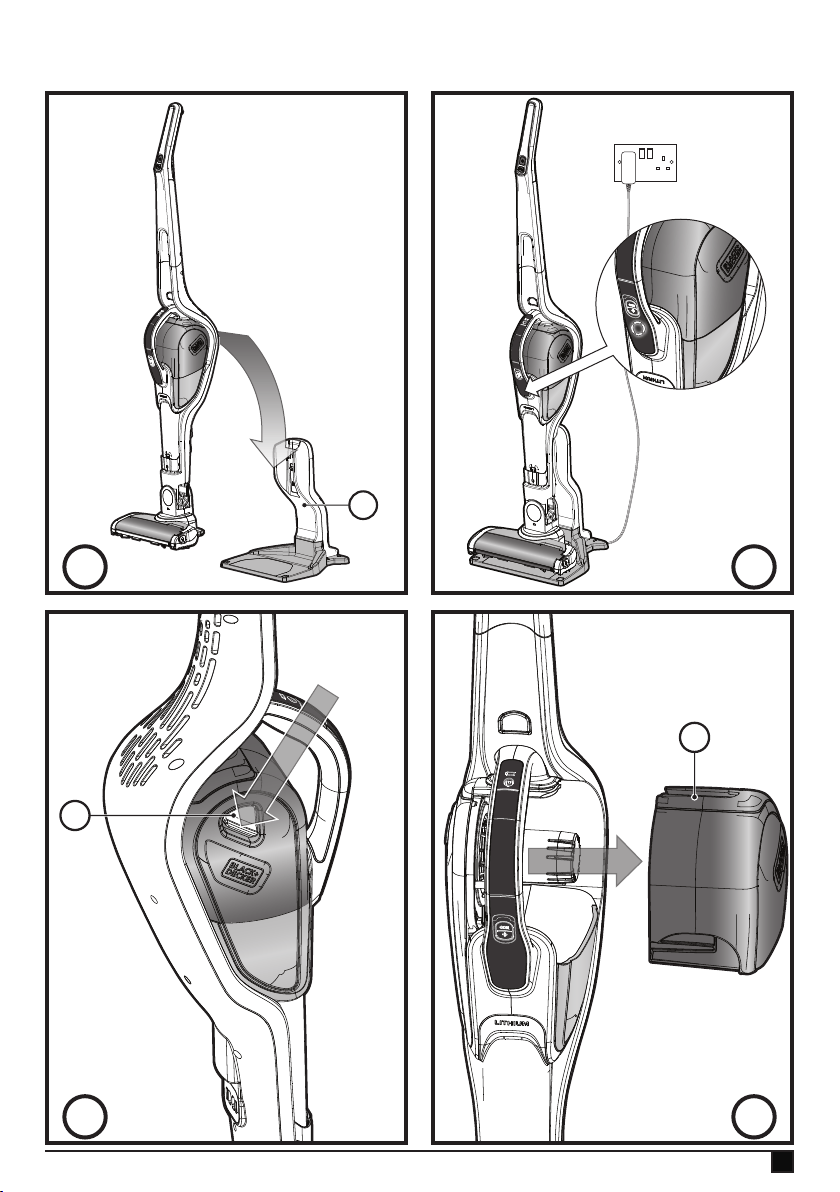

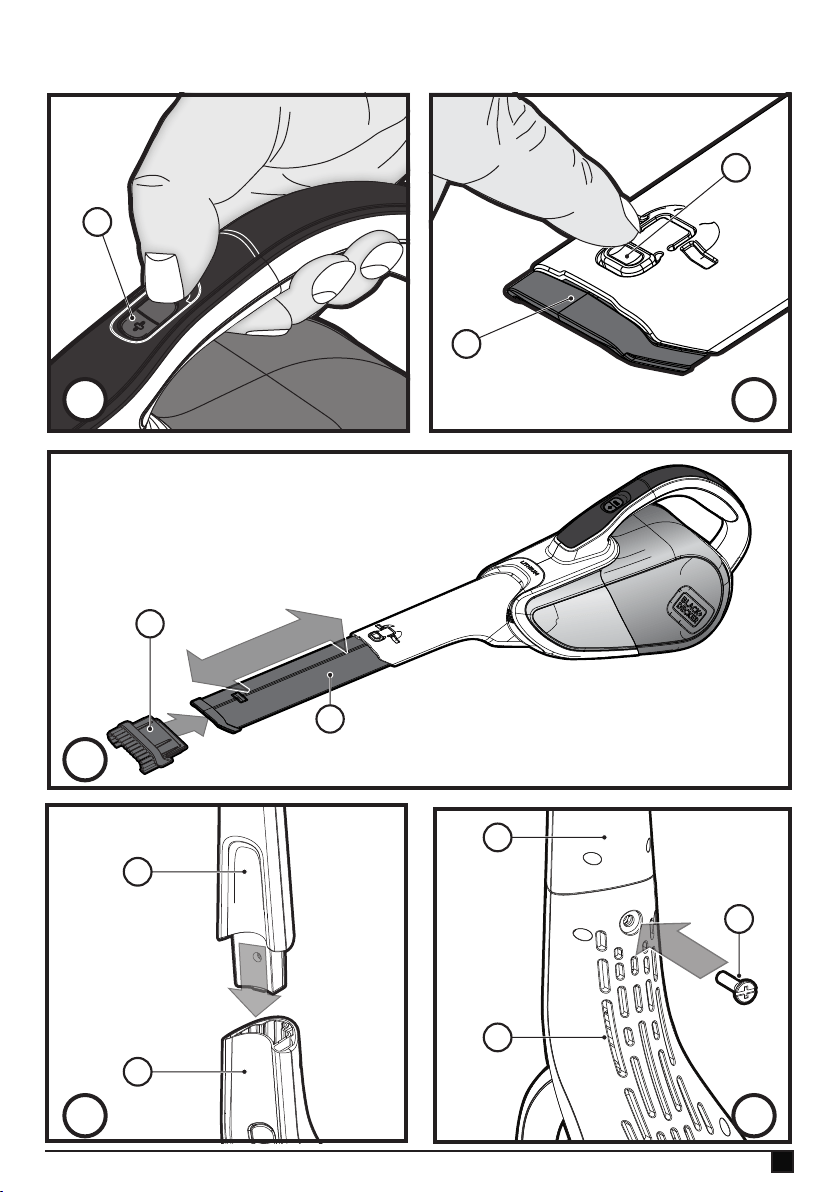

• Page 9 - English - : ENGLISH Original instructions Using the pull out crevice tool Fig BC u Extend the crevice tool 3 as shown in gure C until it clicks in place The push in brush 4 can be tted if required for dusting and upholstery cleaning u To retract the crevice tool 3 press the crevice tool release button 3a allowing it to return to its normal position Fig B Fitting the handle to the main chassis Fig D E u Slide the handle 6 into the main chassis 8 as shown in gure D u Secure with retaining screw 17 as shown in gure E Fitting the Dustbuster to the Chassis Fig F G H u Slide the Dustbuster nozzle rst into the chassis 8 until an audible click is heard as shown in gure F u To release the Dustbuster from the chassis press the chassis release button 8a and lift clear u The appliance can now be operated via the onoff button 5 on the handle 6 along with the BOOST mode as shown in gure H This also allows you to utilise the beater bars via the brush on control 5A Removing and clearing the beater bars Fig I J u To remove the beater bar unit 9 from the oor head 10 Depress the release button 11 as shown in gure I u The beater bar 12 can now be removed The end pieces are also removable allowing you to clear the brushes from any hair or other debris that may have accumulated Fig J Charging Fig K L u Place the appliance into the charging base 7 as shown in gure K u Plug the charging port 7 into an electrical outlet u Switch the electrical outlet on The LED charging indicator B will Illuminate Fig L Multi LED Display A Filter sensor Whenever a lter is Blocked and needs cleaning the red lter LED A in the handle will illuminate Clean ne dust from lter See section on cleaning lters in this manual B LED Charging display Battery icon B will illuminate when appliance requires charging Led display indicates state of charge See LED pattern chart in this manual C BOOST mode Illuminates when the appliance is in BOOST mode allowing you to operate at higher power LED Patterns Charging Battery Fault Charger Fault Battery Hot A B C

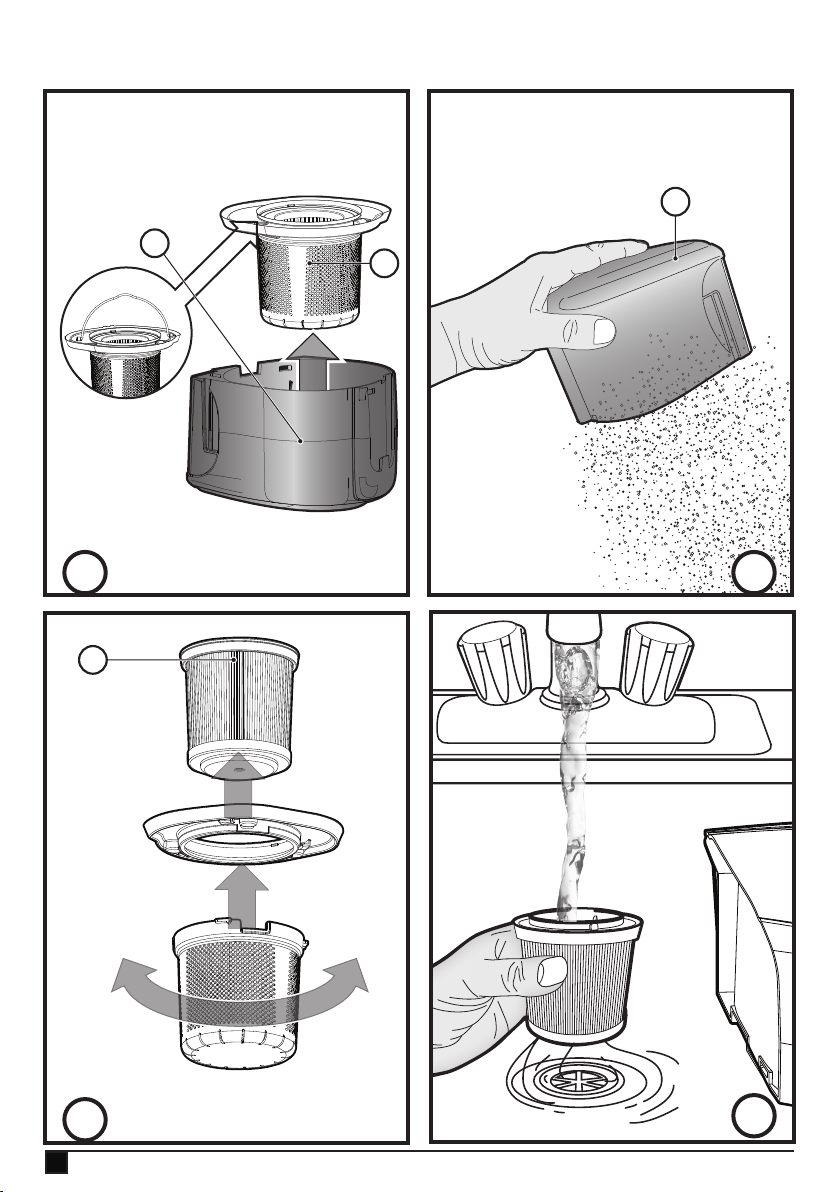

• Page 10 - English - : ENGLISH Original instructions Cleaning the lters Fig M N O P Q R u Press the dust bowl release button 13 Fig M u Eject the dust bowl 14 FigN u Lift the lter assembly 15 from the dust bowl 14 FigO u Empty the dust bowl by lightly shaking over a dustbin Fig P Note The pre filter is impregnated with a fragrance allowing for a pleasing odour to be released when the appliance is in use u The lter 16 can now be removed from the pre lter 15 Figure Q u Empty any remaining dust from the dust bowl u Rinse out the dustbowl with warm soapy water u Wash the lters with warm soapy water Fig R u Make sure the lters are dry u Ret the lters onto the appliance u Close the dustbowl Make sure the release latch 13 clicks into place Warning Before performing any maintenance or cleaning on the appliance unplug the appliance From time to time wipe the appliance with a damp cloth Do not use any abrasive or solventbased cleaner Do not immerse the appliance in water Maintenance Your BLACKDECKER cordless appliance has been designed to operate over a long period of time with a minimum of main tenance Continuous satisfactory operation depends upon proper tool care and regular cleaning Warning Before performing any maintenance on cordless appliances u Run the battery down completely if it is integral and then switch off u Unplug the charger before cleaning it Your charger does not require any maintenance apart from regular cleaning u Regularly clean the ventilation slots in your appliance charger using a soft brush or dry cloth u Regularly clean the motor housing using a damp cloth Do not use any abrasive or solventbased cleaner Replacing the lters The lters should be replaced every 6 to 9 months and whenever worn or damaged Replacement lters are available from your BLACKDECKER dealer cat no VPF20 There are also prescented lters available to be purchased cat no VSPF10LC These t all unitsWhen these lters reach the end of their lifespan they must be disposed of at a local recycling centre Warning Cotton linen fragrance Wash face hands and any exposed skin thoroughly after handling Wear protective glovesprotective clothingeye protection face protection If in eyes Rinse cautiously with water for several minutes Remove contact lenses if present and easy to do Continue rinsing If skin irritation occurs Get medical adviceattention Avoid release into the environment Do not ingest u Remove the old lters as described above u Fit the new lters as described above Protecting the environment Z Separate collection Products and batteries marked with this symbol must not be disposed of with normal household waste Products and batteries contain materials that can be recov ered or recycled reducing the demand for raw materials Please recycle electrical products and batteries according to local provisions Further information is available at www2helpUcom Technical Data SVJ520BFS Voltage 18V Watt hours 40Wh Weight 28Kg
• Page 11 - English - : ENGLISH Original instructions Guarantee Black amp Decker is condent of the quality of its products and offers an outstanding guarantee This guarantee statement is in addition to and in no way prejudices your statutory rights The guarantee is valid within the territories of the Member States of the European Union and the European Free Trade Area If a Black amp Decker product becomes defective due to faulty materials workmanship or lack of conformity within 24 months from the date of purchase Black amp Decker guarantees to replace defective parts repair products subjected to fair wear and tear or replace such products to ensure minimum inconvenience to the customer unless u The product has been used for trade professional or hire purposes u The product has been subjected to misuse or neglect u The product has sustained damage through foreign objects substances or accidents u Repairs have been attempted by persons other than authorised repair agents or Black amp Decker service staff To claim on the guarantee you will need to submit proof of purchase to the seller or an authorised repair agent You can check the location of your nearest authorised repair agent by contacting your local Black amp Decker ofce at the address indi cated in this manual Alternatively a list of authorised Black amp Decker repair agents and full details of our aftersales service and contacts are available on the Internet at www2helpU com Please visit our website wwwblackanddeckercouk to register your new BLACKDECKER product and to be kept up to date on new products and special offers Further information on the BLACKDECKER brand and our range of products is available at wwwblackanddeckercouk
• Page 12 - English - : 90633712 REV0 122015 Australia Black amp Decker Australia Pty Ltd Tel 038720 5100 20 Fletcher Road Mooroolbark Fax 039727 5940 Victoria 3138 New Zealand Black amp Decker Tel 64 9 259 1133 5 Te Apunga Place Fax 64 9 259 1122 Mt Wellington Aukland 1060 United Kingdom amp Black amp Decker Tel 01753 511234 Republic Of Ireland 210 Bath Road Fax 01753 512365 wwwblackanddeckercouk Slough Berkshire SL1 3YD emeaservicesbdinccom
