Installation Instructions / Warranty
Allegro Kitchen Faucet
06461XX0
Allegro Gourmet Kitchen Faucet
06460XX0
2
Allegro Kitchen Faucet
06461XX0
Allegro Gourmet Kitchen Faucet
06460XX0

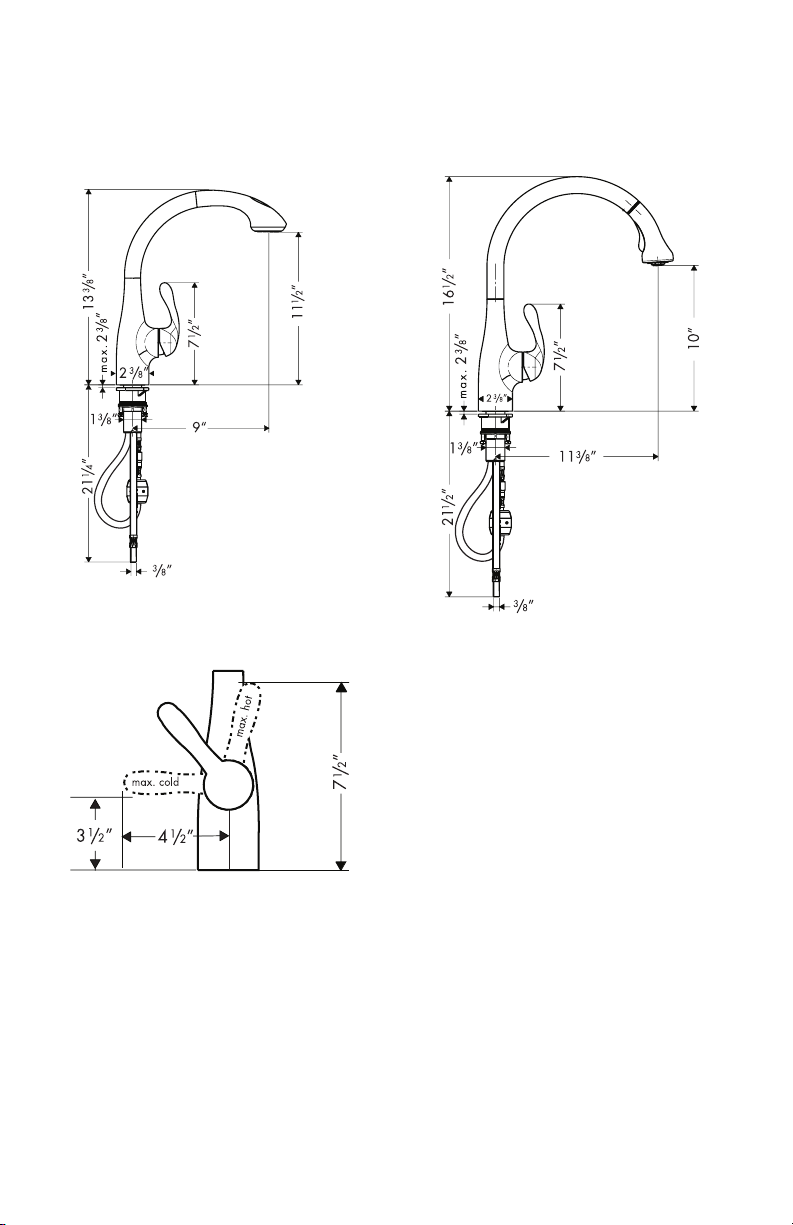

Product Specifications:
Hole size in mounting surface 1-1/2”
Maximum mounting surface depth 2-3/8”
Flow rate 2.2 GPM
Maximum incoming water pressure 145 PSI
Recommended incoming water pressure 22 - 72.5 PSI
Recommended incoming hot water temp. 120
o
- 140
o
F*
M3 ceramic mixing cartridge
*Some governing bodies require that the water heater be set to 120
o
F or less. Please know and follow all applicable local
codes when setting the temperature on the water heater.
06460XX0
06461XX0
3

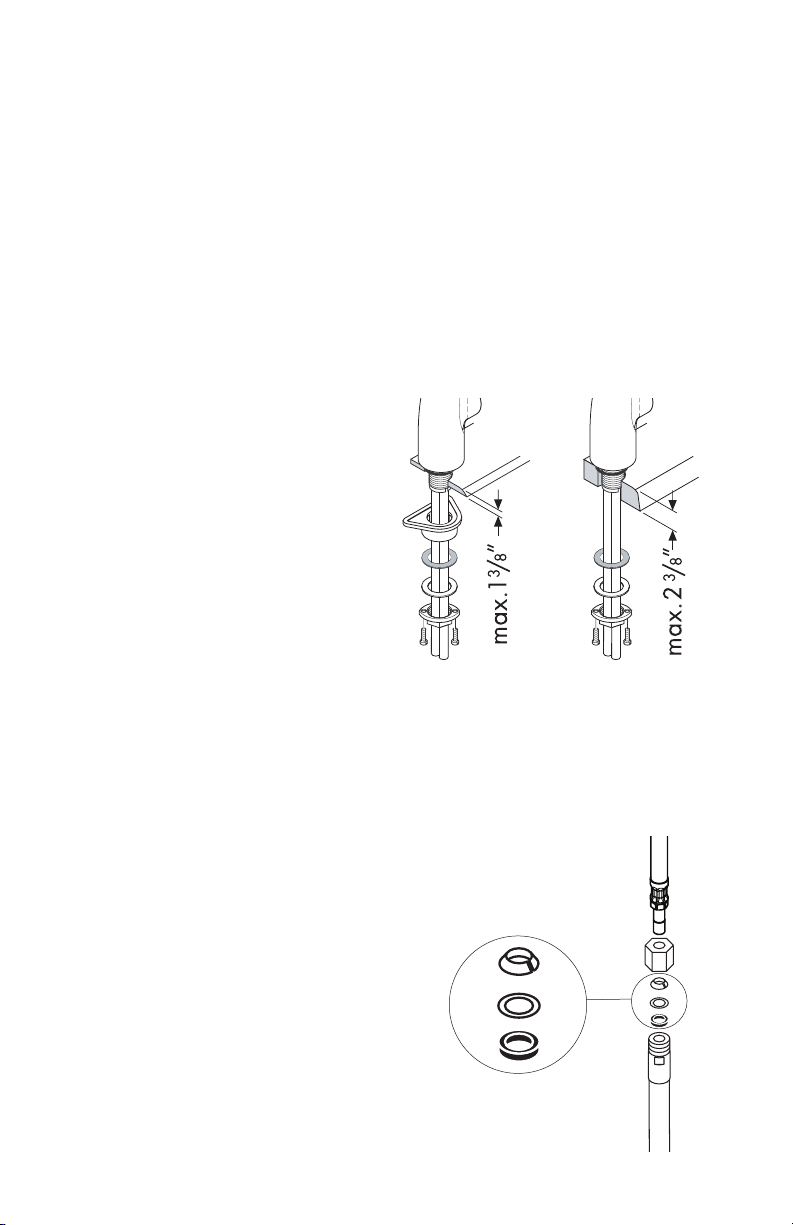

Installation
Remove the mounting nut, metal washer,
fiber washer and spacer from the faucet.
Sit the faucet with sealing ring on the
mounting surface.
If the mounting surface is thin (less than
1 3/8”) and there is sufficent space,
install the gray plastic spacer. If the
mounting surface is greater than 1
3/8”, or if there is insufficient space,
omit the spacer.
Installation Considerations
Read all instructions thoroughly before installation. Be sure you have all necessary
tools and supplies available.
Be sure there is sufficient space behind the faucet to allow the handle free move-
ment to the rear.
This unit requires supply stops with 3/8” compression fittings (not included).
Protection against back siphonage is provided by a check valve in the sprayhead.
Loosely install the fiber washer, metal washer and mounting nut.
Check the orientation of the faucet. The spout swivels 150
o
. It should swivel
evenly to the right and to the left. If it is satisfactory, finish tightening the mounting
nut and the tensioning screws.
Install the handspray hose: slide the
nut, cone washer, brass washer and black
rubber washer over the end of the connect-
ing hose. Hold the handspray hose steady
while tightening the nut. Do not allow
the handspray hose to twist. Finish
tightening the nut with a wrench.
4
User Instructions
The spout swivels 150
o
.
Pivot the handle to the right to turn the water on. Pivot it to the rear to make the
water warmer, to the front to make it cooler.
Allegro Gourmet: When the water is turned on, it will come out in the stream
mode. Press the diverter button to activate the spray mode. When the water is
turned off, it will revert to the stream mode.

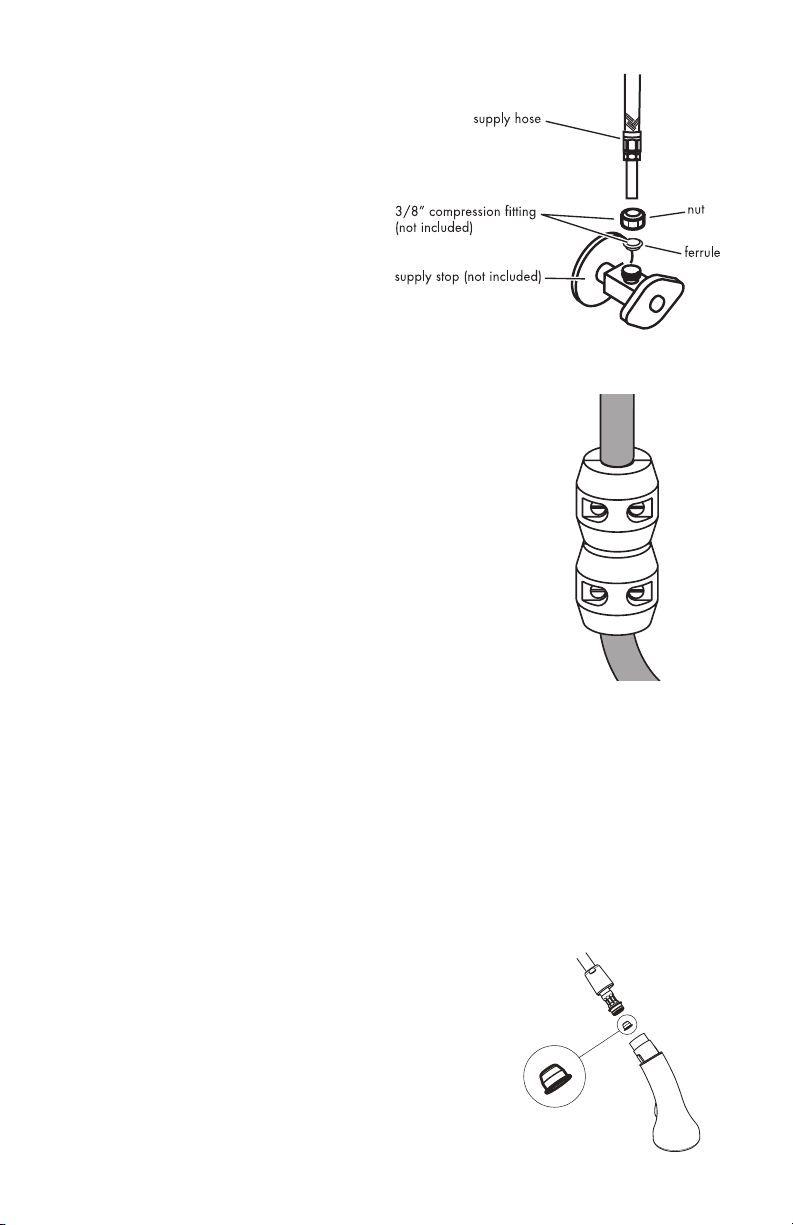

Connect the supply hoses: use
3/8” compression fittings (not in-
cluded) to connect the hot and cold
supply hoses to the stops. Tighten
firmly with a wrench.
Install the hose weights: proper positioning
of the hose weights insures that the hose will retract
smoothly.
Install the hose weights to the handspray hose. Pull
the hose out and guide it back into position. If it
does not retract smoothly, or the sprayhead does not
stay in place when resting in the spout, reposition
the weights.
Turn on the water and check all connections for
leaks.
Allegro: Press the diverter button to activate the spray
mode. Press the diverter button a second time to change
back to the stream mode.
If the flow from the handspray is reduced, remove and
clean the filter screen located at the end of the hand-
spray hose.
5

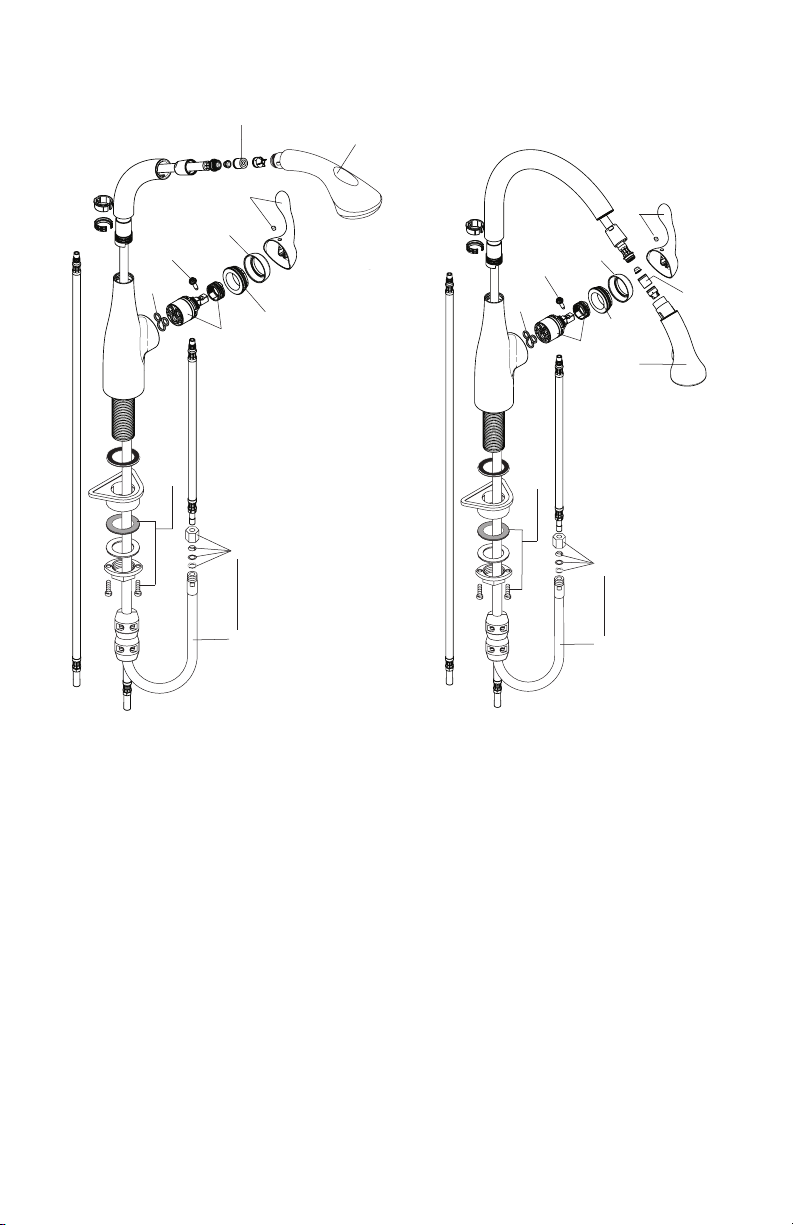

Replacement Parts
1 handle 98597XX1
2 nut cover 96468XXX
3 nut 96461000
4 cartridge 92730000
5 handspray 98598XX1
6 handspray hose 96921000
7 squeezing connection 96099000
8 mounting hardware 95049000
9 check valve 94074000
10 handle screw 96059000
11 handspray 98599XX1
12 sealing ring 95008000
XX = color
00 = chrome
04 = black sprayhead
86 = steel optik
1
2
3
4
5
6
7
8
9
10
12
12
1
2
3
4
6
7
8
9
10
11
13
6
Cleaning Recommendation for Hansgrohe Products
Modern faucetry and shower products utilize a combination of materials to comply with the needs of the
market with regard to design and functionality.
To avoid damage, it is necessary to use some caution when cleaning. Damage caused by improper
treatment is not covered under the Hansgrohe warranty.
Cleaning Materials for Faucets and Showers
• To remove lime scale, use only products made specifically for that purpose. Always follow the
manufacturer’s instructions when using.
• Do not use cleaners that contain hydrochloric, formic, acetic, or phosphoric acids, as these will
cause considerable damage to finishes and to plastic components.
• Never mix cleaning materials.
• Never use cleaners containing abrasives. Do not use abrasive cleaning cloths, pads, or sponges.
Cleaning Procedures
• Clean your faucets and shower products as and when required. Regular cleaning will prevent scale
buildup and water spotting.
• Follow the label instructions. Do not allow any cleaner to remain on the product for longer than
necessary.
• When using spray cleaners, spray first onto a sponge or cloth – do not spray directly onto the
product.
• After cleaning, rinse thoroughly with clear water to remove any cleaner residue.
Important
• Soap and shampoo residue can also cause damage to the product. Rinse well with clean water
after use.
• If the surface is already damaged, harsh cleaning materials will cause further damage.
Limited Lifetime Consumer Warranty
This product has been manufactured and tested to the highest quality standards by Hansgrohe, Inc.
(“Hansgrohe”). This warranty is limited to Hansgrohe products which are purchased by a consumer in the
United States after March 1, 1996 and installed in either the United States or Canada.
WHO IS COVERED BY THE WARRANTY
This warranty extends to the original consumer purchaser only.
WHAT IS COVERED BY THE WARRANTY
This warranty covers only your Hansgrohe manufactured product. Hansgrohe warrants this product
against defects in material or workmanship as follows: Hansgrohe will repair at no charge for parts only
or, at its option, replace any product or part of the product which proves defective because of improper
workmanship and/or material, under normal installation, use, service and maintenance. If Hansgrohe is
unable to provide a replacement and repair is not practical or cannot be timely made, Hansgrohe may
elect to refund the purchase price in exchange for the return of the product.
LENGTH OF WARRANTY
Replacement or repaired parts of products will be covered for the term of this warranty as stated in the
following two sentences. If you are a consumer who purchased the product for use primarily for personal,
family, or household purposes, this warranty extends for as long as you own the product and the home
in which the product is installed. If you purchased the product for use primarily for any other purpose,
including, without limitation, a commercial purpose, this warranty extends only (i) for 1 year, with respect
to Interaktiv and Retroaktiv productsand (ii) for 5 years, with respect to AXOR, ShowerPower and Pharo
products.
7
THIS WARRANTY DOES NOT COVER and HANSGROHE WILL NOT PAY FOR:
A. Conditions, malfunctions or damage not resulting from defects in material or workmanship.
B. Conditions, malfunctions or damage resulting from (1) improper installation, improper maintenance,
misuse, abuse, negligence, accident or alteration, or (2) the use of abrasive or caustic cleaning
agents or “no rinse” cleaning products, or the use of the product in any manner contrary to the
product instructions.
C. Labor or other expenses for the disconnection or return of the product for warranty service, or for
installation or reinstallation of the product.
D. Accessories or related products not manufactured by Hansgrohe.
TO OBTAIN WARRANTY SERVICE
Contact your Hansgrohe retailer, or write to Technical Service at:
Hansgrohe Inc.
1492 Bluegrass Lakes Parkway
Alpharetta GA 30004
Or, call Hansgrohe toll-free at (800) 334-0455.
In requesting warranty service, you will need to provide
1. The sales receipt or other evidence of the date and place of purchase.
2. A description of the problem.
3. Delivery of the product or the defective part, postage prepaid and carefully packed and insured, to
Hansgrohe Inc. 1492 Bluegrass Lakes Parkway, Alpharetta, Georgia 30004, Attention: Technical
Service, if required by Hansgrohe.
When warranty service is completed, any repaired or replacement product or part will be returned to you
postage prepaid.
EXCLUSIONS AND LIMITATIONS
REPAIR OR REPLACEMENT (OR, IN LIMITED CIRCUMSTANCES, REFUND OF THE PURCHASE PRICE) AS
PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE PURCHASER. HANSGROHE
NEITHER ASSUMES NOR AUTHORIZES ANY PERSON TO CREATE FOR IT ANY OBLIGATION OR
LIABILITY IN CONNECTION WITH THIS PRODUCT.
HANSGROHE SHALL NOT BE LIABLE TO PURCHASER OR ANY PERSON FOR ANY INCIDENTAL,
SPECIAL, OR CONSEQUENTIAL DAMAGES, ARISING OUT OF BREACH OF THIS WARRANTY OR ANY
IMPLIED WARRANTY (INCLUDING MERCHANTABILITY).
Some States do not allow the exclusion or limitation of incidental or consequential damages, so the above
limitation or exclusion may not apply to you.
This warranty gives you specific legal rights and you may have other rights which vary from State to State.
You may be required by law to give us a reasonable opportunity to correct or cure any failure to comply
before you can bring any action in court against us under the Magnuson-Moss Warranty Act.
PRODUCT INSTRUCTIONS AND QUESTIONS
Upon purchase or prior to installation, please carefully inspect your Hansgrohe product for any damage
or visible defect. Prior to installing, always carefully study the enclosed instructions on the proper
installation and the care and maintenance of the product. If you have questions at any time about the use,
installation, or performance of your Hansgrohe product, or this warranty, please call or write to us at the
toll-free number and address printed above.
Hansgrohe, Inc. • 1490 Bluegrass Lakes Parkway • Alpharetta, GA 30004
Tel. 770 360-9880 • Fax 770 360 9887
www.hansgrohe-USA.com
US - Installation Instructions • Part No.90594901 • Revised 04/2007
