VENTURER 32
(VTR32)
VISIMO (VM032/VM032+)
ROLLERMO (RM032)
EASIMO (EM032/EM032+)
RE 320 (RE32)
Original Instructions
ROLLERMO
RE320
VISIMO
EASIMO
VENTURER 32
IMPORTANT INFORMATION
Read before use
& retain for future reference

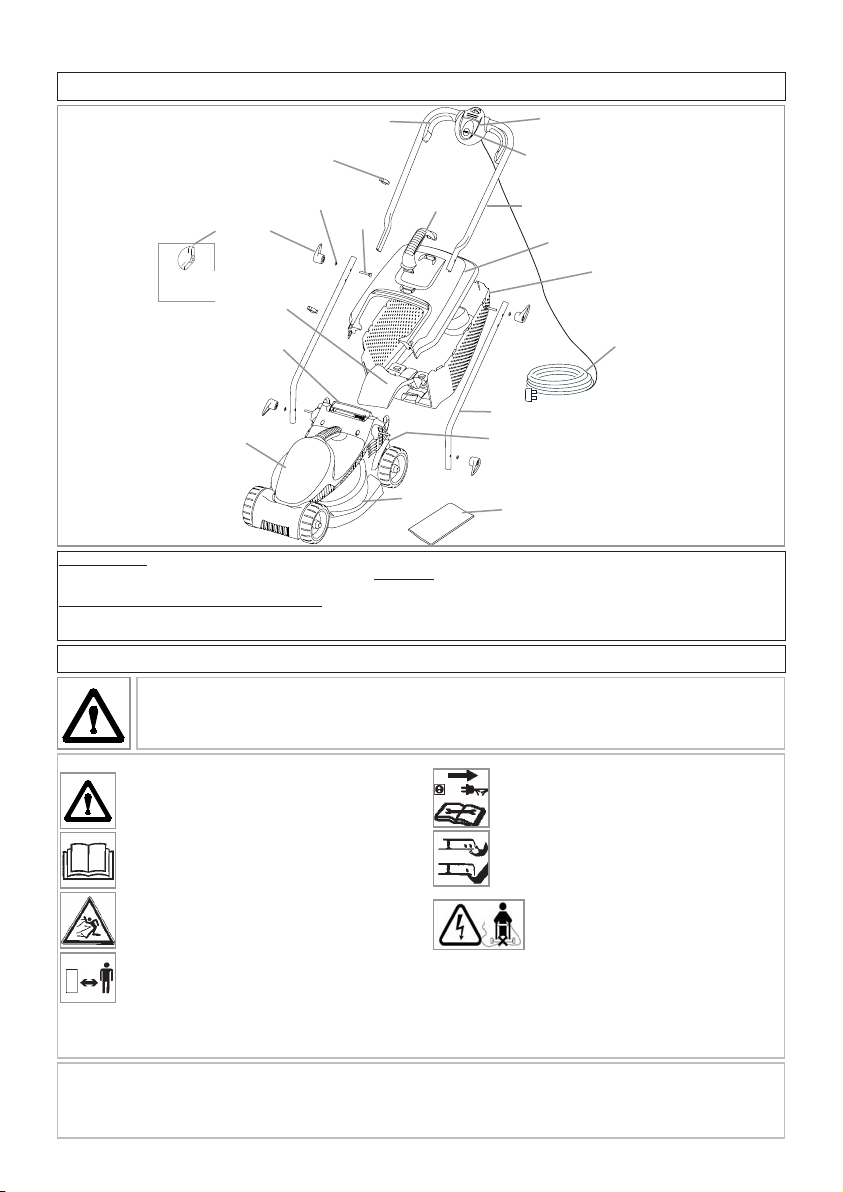

Carton Contents
IMPORTANT !
Please check the contents of the carton are correct BEFORE assembling your new Flymo product. The Loose Parts
Pack is packaged underneath the deck of the product.
IF ANY PARTS ARE MISSING CONTACT:-
Husqvarna UK Ltd Customer Service Department direct
Telephone : 0844 844 4558 UK 1800 882 350 ROI Fax : 01325 302530
Safety
If not used properly this lawnmower can be dangerous! This lawnmower can cause serious injury to the op-
erator and others, the warnings and safety instructions must be followed to ensure reasonable safety and ef-
ficiency in using this lawnmower. The operator is responsible for following the warning and safety instructions
in this manual and on the lawnmower. Never use the mower unless the grassbox or guards provided by the
manufacturer are in the correct position.
Explanation of Symbols on your product
Warning
Read the user instructions carefully to make
sure you understand all the controls and what
they do.
Always keep the lawnmower on the ground when
mowing. Tilting or lifting the lawnmower may
cause stones to be thrown out.
Keep bystanders away. Do not mow whilst
people especially children or pets are in the
mowing area.
Switch off! Remove plug from mains before
adjusting, cleaning or if cable is entangled or
damaged. Keep the cable away from the
blade.
Beware of severing toes or hands. Do not put
hands or feet near a rotating blade.
Keep the cable supply away from the
blade.
electric
cable with
moulded
on plug
grassbox
upper
grassbox
lower
cable clip x 2
bolt x 2
instruction
manual
upper handle
lower handle x 2
start/stop lever
switchbox
motor cover
safety flap
washer x 4
lock off
button
General
1. This product is not intended for use by persons (includ-
ing children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, un-
less they have been given supervision or instruction
concerning the use of the product by a person respon-
sible for their safety. Children should be supervised to
ensure that they do not play with the product. Local reg-
ulations may restrict the age of the operator.
2. Never allow children or people unfamiliar with the instruc-
wingknob x 4
grassbox
tongue
grassbox
handle
Easimo
only
deck
Roller - excluding Easimo
tions to use the machine.
3. Stop using the machine while people, especially children,
or pets are nearby.
4. Only use the lawnmower in the manner and for the
functions described in these instructions.
5. Never operate the lawnmower when you are tired, ill or
under the influence of alcohol, drugs or medicine.
6. The operator or user is responsible for accidents or haz-
ards occurring to other people or their property.
Electrical
1. We recommend the use of a Residual Current Circuit De-
vice (R.C.D.) with a tripping current of not more than
30mA. Even with a R.C.D. installed 100% safety cannot be
guaranteed and safe working practice must be followed at
all times. Check your R.C.D. every time you use it.
2. Before use, examine cable for damage, replace it if
there are signs of damage or ageing.
3. Do not use the lawnmower if the electric cables are
damaged or worn
4. Immediately disconnect from the mains electricity supply if
the cable is cut, or the insulation is damaged. Do not touch
the electric cable until the electrical supply has been dis-
connected. Do not repair a cut or damaged cable. Re-
place it with a new one.
5. Your extension cable must be uncoiled, coiled cables can
overheat and reduce the efficiency of your mower.
6. Keep cable away from lawnmower, always work away from the
power point mowing up and down, never in circles.
7. Do not pull cable around sharp objects.
8. Always switch off at the mains before disconnecting any
plug, cable connector or extension cable.
9. Switch off, remove plug from mains and examine electric
supply cable for damage or ageing before
winding cable
for storage. Do not repair a damaged cable, replace it
with a new one. Use only Flymo replacement cable.
10. Always wind cable carefully, avoiding kinking.
11. Never carry the product by the cable.
12. Never pull on the cable to disconnect any of the plugs.
13. Use only on AC mains supply voltage shown on the
product rating label.
14. Flymo Products are double insulated to EN60335.
Under no circumstance should an earth be connected
to any part of the product.
Preparation
1. While using your product always wear substantial
footwear and long trousers.
Do not operate the equip-
ment when barefoot or wearing open sandals.
2. Make sure the lawn is clear of sticks, stones, bones, wire
and debris; they could be thrown by the blade.
3. Before using the machine and after any impact, check for
signs of wear or damage and repair as necessary.
4. Replace worn or damaged blades together with their
fixings in sets to preserve balance.
Use
1. Use the lawnmower only in daylight or good artificial light.
2. Avoid operating your lawnmower in wet grass, where
feasible.
3. Take care in wet grass, you may lose your footing.
4. On slopes, be extra careful of your footing and wear
non-slip footwear.
5. Mow across the face of slopes, never up and down.
6. Exercise extreme caution when changing direction on
slopes. Walk never run.
7. Mowing on banks and slopes can be dangerous. Do
not mow on banks
or steep slopes.
8. Do not walk backwards when mowing, you could trip.
9. Never cut grass by pulling the mower towards you.
10. Switch off before pushing the mower over surfaces
other than grass.
11. Never operate the lawnmower with damaged guards or
without guards in place.
12. Keep hands and feet away from the blade at all times and es-
pecially when switching on the motor.
13. Do not tilt lawnmower when the motor is running, except when
starting and stopping. In this case, do not tilt more than ab-
solutely necessary and lift only the part which is away from the
operator. Always ensure that both hands are in the operating
position before returning the appliance to the ground.
14. Do not put hands near the grass discharge chute.
15. Never pick up or carry a mower when it is operating or
still connected to the mains supply.
16. Remove the plug from the mains :
- before leaving the mower unattended for any period;
- before clearing a blockage;
- before checking, cleaning or working on the appliance;
- if you hit an object. Do not use your lawnmower until
you are sure that the entire lawnmower is in a safe oper-
ating condition.;
- if the lawnmower starts to vibrate abnormally. Check imme-
diately. Excessive vibration can cause injury.
Maintenance and storage
1. Caution: Do not touch rotating blade(s)
2. Keep all nuts, bolts and screws tight to be sure the
lawnmower is in safe working condition.
3. Check the grassbox frequently for wear or deterioration.
4. Replace worn or damaged parts for safety.
5. Only use the replacement blade, blade bolt, spacer and
impeller specified for this product.
6. Be careful during adjustment of the lawnmower to pre-
vent entrapment of the fingers between moving blades
and fixed parts of the machine.
7. Store in a cool dry place and out of reach of
children. Do not store outdoors.
8. Allow the product to cool for at least 30 minutes before storing.
CABLES - IMPORTANT
If you want to use an extension cable when operating your
product, only the following cable dimensions should be used.
- 1.0 mm
2
: max length 40 m
- 1.5 mm
2
: max length 60 m
- 2.5mm
2
: max length 100 m
Minimum rating :
1.00mm
2
size cable, 10 amps 250 volts AC.
• YOUR PRODUCT IS SUPPLIED WITH CABLE WIRED
DIRECTLY INTO THE PRODUCT.
1. Flymo Mains Cables and Extension Cables are available
from your local Approved Service Centre.
2. Do not wire an extension cable directly to your product
yourself. Please contact your local Approved Service
Centre for further information on the connectors and kits
available.
3. Only use extension cables specifically designed for out-
door use.
CONNECTORS - IMPORTANT
• Flymo connectors are suitable for use with 2 core cable
only. Under no circumstances should these connectors
be used for earthed products.
• All Flymo connectors and cables are of splashproof con-
struction. They are not waterproof and must not be left out-
side permanently nor should they be submerged or
immersed in water. Do not let cable lay or trail through pools
of water or splashed with water from hose pipes.
MAINS PLUG REPLACEMENT - IMPORTANT
•If the plug supplied is cut off it should be destroyed. There is
an electric shock hazard if a cut off plug is inserted into a 13
amp socket.
1. No earth required. Flymo products are double insulated
to EN60335 and under no circumstances should an earth
be connected to any part of the product.
2. Ensure the mains v
oltage suits your product
3. IMPORTANT!
The wires in the mains lead are coloured in accordance
with the following code:
BLUE - NEUTRAL
BROWN - LIVE
The wire which is coloured BLUE must be connected to
the Terminal which is marked with the letter 'N' or
coloured BLACK.
The wire which is coloured BROWN must be connected
to the Terminal which is marked with the letter 'L' or
coloured RED.
4. It is important that the outer sheath is clamped correctly
into the 3-pin plug.
5. If in doubt consult your local Service Repairer or qualified
electrician before the machine is used.
6. A 13 Amp fuse must be fitted to the Mains Plug.
7. The normal plug fuse and household fuse only protect
the electrical equipment and are not a safeguard against
electrocution.
If your product is hard wired i.e. non-detachable mains
electric cable, a conversion kit and extension cable is
available from all Approved Service Centres which
can be found in your local Yellow Pages.
A
•The Loose Parts Pack is packaged underneath the deck.

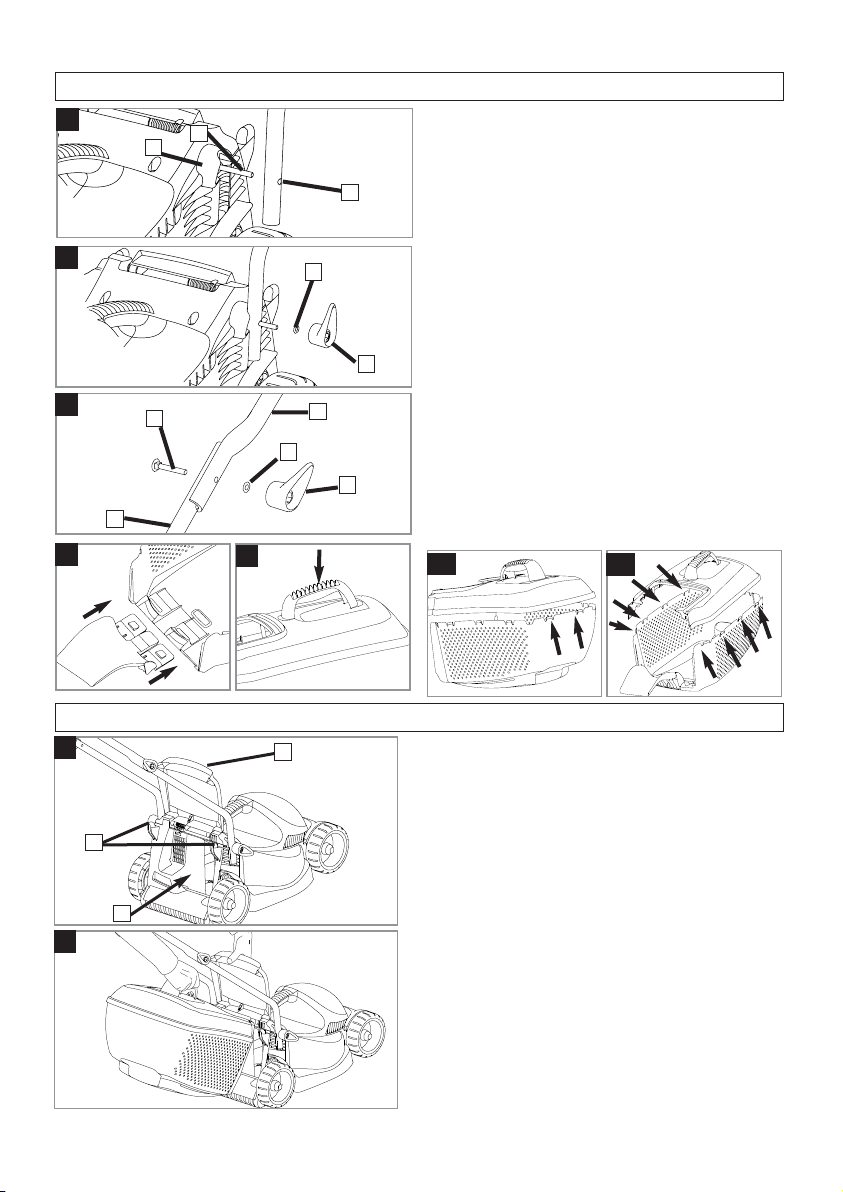

Assembly of Lower Handles to Deck
1. Place the bolt (A2) through the hole in the lower handle
(A1) until the lower handle fits into the recess (A3)
2. Place the washer (B1) and the wing knob (B2) on to
the bolt and tighten the wing knob. It may take 20 - 25
turns to fully tighten on initial assembly.
3. Repeat on the other side.
Assembly of Upper Handles to Lower Handles.
1. Ensure the upper handle is located correctly with the
lock-off button on the switchbox uppermost.
2. Ensure the upper handle (C1) and the lower handle
(C2) are aligned correctly.
4. Fit the bolts (C3), washers (C4) and wing knobs (C5).
Tighten the wing knob.
5.
Fit the cable to the handles with the clips provided.
Make sure the cable is not trapped between the upper
and lower handles.
Grassbox Assembly
1. Slide the grassbox tongue into the slots in the grassbox
lower until it clicks securely into position (D)
2. Push the grassbox handle into the slots in the grassbox
upper until it clicks securely into position. (E)
3. Starting at the rear of the grassbox, locate the grass-
box upper into the grassbox lower by aligning the clips
(F1). Ensure all clips are correctly located.(F2) before
clicking into position.
4. Clip the two halves together, ensuring all clips are se-
curely connected.
Assembly Instructions
B
C
D
1
E
F1
F2
2
3
1
2
1
2
3
4
5
Grassbox
G
1
2
3
H
Fitting Fully Assembled Grassbox to Lawnmower.
1. Lift safety flap (G1)
2. Make sure the discharge chute is clean and free from
debris (G2)
3. Locate fully assembled grassbox onto 2 location
points (G3) at the rear of the deck as illustrated in
pic. H
4. Locate safety flap onto the top of the grassbox. En-
sure the grassbox is securely located.
• IMPORTANT !
AFTER FITTING ENSURE NO GAP REMAINS BE-
TWEEN THE SAFETY FLAP AND THE GRASSBOX.
• Removal is the reverse procedure.
• For larger areas of grass where grass collection is
not required you can use your lawnmower without
the grassbox. Ensure the Safety Flap is fully closed.
The design of the safety flap permits the cut grass to
be discharged downward behind the machine.
J
grassbox
empty
grassbox
full
Visimo Only

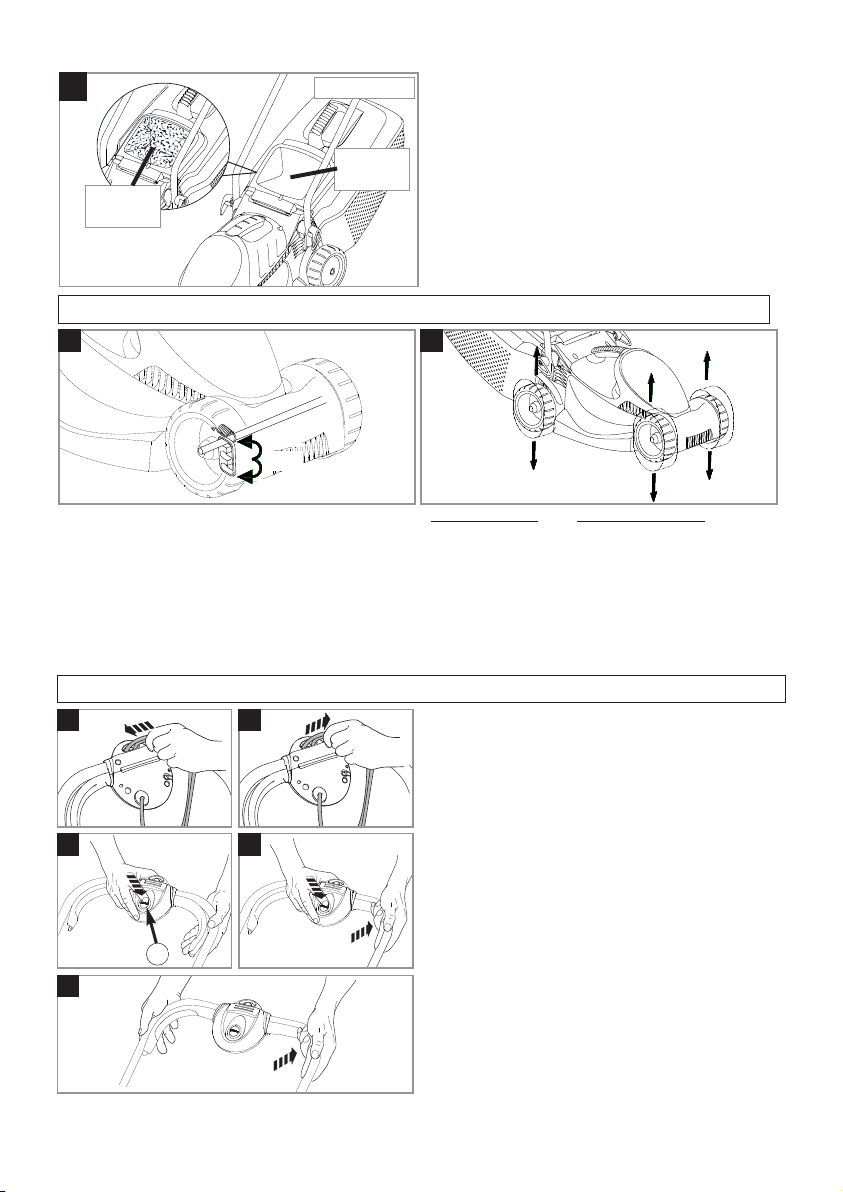

Grassbox Full Window (Visimo Only)
• As the grassbox fills up, grass will be visible
through the window (J).
• When the window/grassbox is full it is time to
empty the grassbox.
Cutting Height Adjustment
Cutting Height Adjustment (K) & (L)
• Height of cut is adjusted by raising or lowering the
Front and Rear Wheels.
• There are five heights of cut on this product.
•NOTE
A medium height of cut is recommended for most
lawns.
The quality of your lawn will suffer and collection will
be poor if you cut too low.
HEIGHT OF CUT
WHEELS POSITION
Low Front position 2cm
Rear position 2cm
Low to Medium Front position 2cm
Rear position 4cm
Medium Front position 4cm
Rear position 4cm
Medium to High Front position 4cm
Rear position 6cm
High Front position 6cm
Rear position 6cm
L
K
2cm
6cm
4cm
M N
R
Starting and Stopping
To Start your Lawnmower
1. Form loop in mains cable and push the loop through
the slot. (M)
2. To secure, position loop over the hook and pull the
cable back through the slot (N).
3. Connect plug to mains and switch on.
4. Tilt the handle downwards to slightly raise the front of
the lawnmower and to reduce the risk of lawn damage
whilst starting.
The switchbox is provided with a lock-off button (P1) to
prevent accidental starting.
5. Press and hold the lock-off button (P) on the switch-
box, then squeeze one of the Start/Stop levers towards
the upper handle (Q).
6. Continue to squeeze the start/stop lever towards the
upper handle and release the lock-off button (R).
7. Lower the lawnmower to its proper operating position
and commence mowing.
• NOTE - There are two start/stop levers fitted. Either
one can be used for starting the lawnm
ower.
•I
MPORTANT - Do not use the start/stop levers intermit-
tently
To Stop your Lawnmower
1. Release the pressure on the Start/Stop lever.
P Q
1
How to Mow
1. Start mowing the edge of the lawn nearest to the power point so the cable is laid out on the lawn you have already cut. (S)
2. Mow twice a week during the growing season, your lawn will suffer if more than a third of its length is cut at one time and this
may also result in poor collection.
Do Not Overload Your Mower
Mowing long thick grass may cause the motor speed to drop, you will hear a change in the motor sound. If the motor speed
drops you may overload your lawnmower which may cause damage. When mowing in long thick grass a first cut with the cut-
ting height set higher will help reduce the load. See Cutting Height Adjustment.

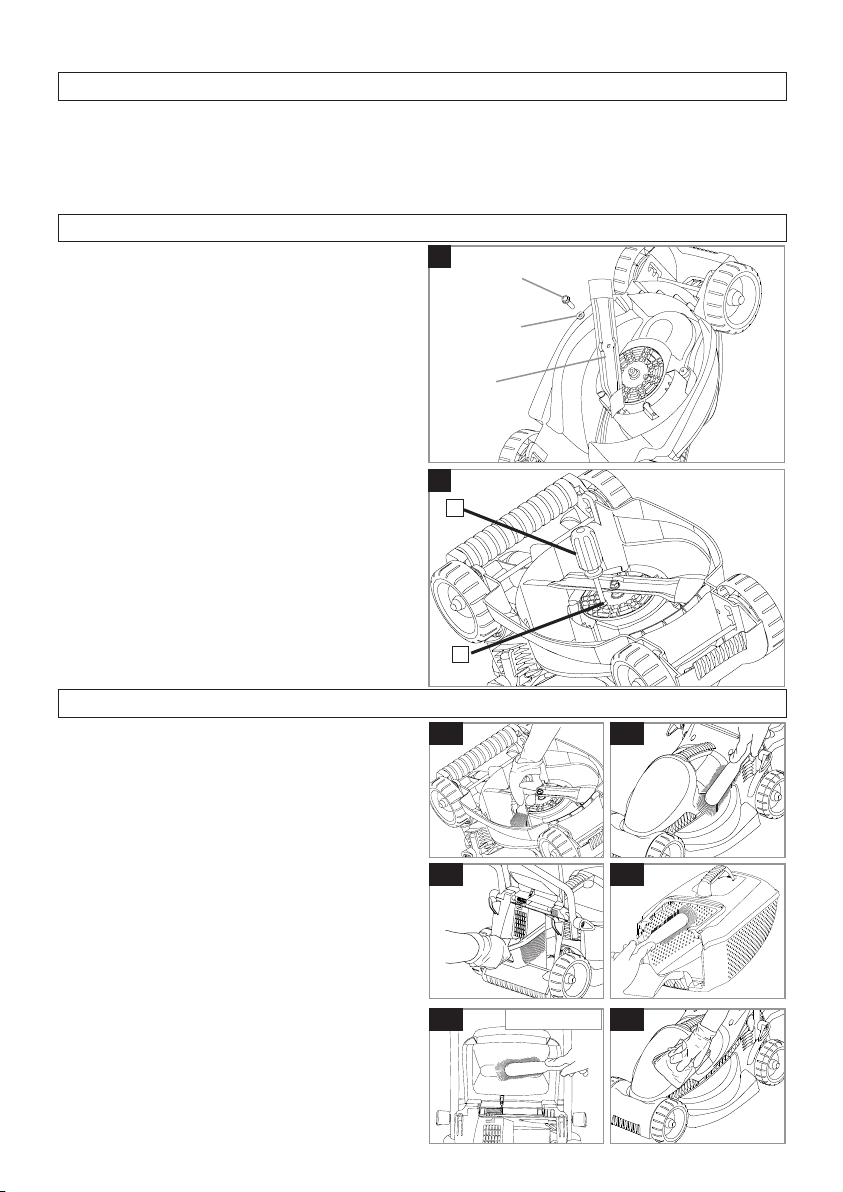

Removing and Fitting the Blade
Switch off, wait until the blade has stopped rotating and
disconnect from the mains electricity supply BEFORE at-
tempting to remove or refit the blade.
Always handle the blade with care - sharp edges could
cause injury. USE GLOVES.
Removing the Blade
1. To remove the blade bolt, hold the blade firmly with a
gloved hand and with a spanner, loosen the blade bolt
by turning it anti-clockwise (S).
2.
Remove the blade bolt, washer and blade.(S)
3. Inspect for damage and clean as necessary.
4. In the event of a blade becoming difficult to remove, in-
sert a screwdriver (T1) into the hole (T2) to lock the
drive, then use a spanner (13mm A/F) to loosen the
blade bolt by turning the spanner anti-clockwise. En-
sure the screwdriver is removed before atempting to
turn on the machine.
Renew your metal blade after 50 hours mowing or 2 years
whichever is the sooner - regardless of condition. If the
blade is cracked or damaged replace it with a new one.
Fitting the Blade
1. Fit the blade to the shaft with the sharp edges of the
blade pointing away from the shaft and you are able to
read the text on the blade ‘This side to grass’
2. Re-assemble blade bolt through the washer and the blade.
3. Hold the blade firmly with a gloved hand and tighten the
blade bolt firmly with a spanner . Do not over tighten.
S
blade
blade bolt
washer
T
1
2
Caring for your Lawnmower
Cleaning
• USE GLOVES
•IMPORTANT:- It is very important that you keep your lawn-
mower clean. Grass clippings left in any of the air intakes or
under the deck could become a potential fire hazard.
1. Remove grass from under the deck with brush. (V1)
2. Using a soft brush - remove grass clippings from all air
intakes (V2), the discharge chute (V3) and the grass
box (V4).
3. Visimo Only - Using a soft brush, remove grass clip-
pings from the vision window (V5).
4. Wipe over the surface of your lawnmower with a dry
cloth (V6).
• IMPORTANT:- Never use water for cleaning your lawn-
mower. Do not clean with chemicals, including petrol, or
solvents - some can destroy critical plastic parts.
Storing your Cable (Visimo & Rollermo only)
• Your electric cable can be wrapped around the cable
wrap wing knobs to enable tidy and safe storage (W1).
Storing your Lawnmower:
• Loosen the wing knobs to enable the handles to be
folded over the product (W2).
• Store in a dry place where your lawnmower is pro-
tected from damage
At the End of the Mowing Season
1. Replace blade, bolts, nuts or screws, if necessary.
2. Clean your lawnmower thoroughly.
3. Make sure that the electric cable is stored correctly to
prevent damage.
V1 V2
V3 V4
V5 V6
Visimo Only
Fault Finding Hints
Fails to Operate
1. Is the correct Starting procedure being followed? See ‘To
Start your Lawnmower’
2. Is the Power Turned On?
3. Check the fuse in the plug, if blown replace.
4. Fuse continues to blow?
Immediately disconnect from the mains electricity supply
and consult your local approved Service Centre.
Poor Grass Collection
1. Disconnect from the mains electricity supply.
2. Clean the outside of the air intakes, the discharge chute
and the underside of the deck.
3. Raise to a higher height of cut. See Cutting Height Adjustment.
4. If poor collection persists.
Immediately disconnect from the mains electricity supply
and consult your local approved Service Centre.
Excessive Vibr
ation
1. Disconnect from the mains electricity supply.
2. Check that the blade is fitted correctly?
3. If the blade is damaged or worn, replace it with a new one.
4. If vibration persists?
Immediately disconnect from the mains electricity supply
and consult your local approved Service Centre.
Lawnmower becomes heavy to push
1. Disconnect from the mains electricity supply.
2. In long grass or uneven ground, the height of cut should be
raised to a higher position. See Cutting Height Adjust-
ment.
3. Check that the wheels and rollers can rotate freely.
4. If problem persists?
Immediately disconnect from the mains electricity supply
and consult your local a
ppro
ved Service Centre.
Service Recommendations
1. We strongly recommend that your product is serviced at least
every twelve months, more often in a professional
application.
2. Always use genuine Spare Parts.
3. Prepacked spares are available from most Husqvarna UK
Ltd. stockists.
4. Your product is uniquely identified by a silver and black
product rating label
5. If you have a problem with your machine contact your local
Approved Service Centre ensuring you have full details of
your product as described on the product rating label.
6. Should it be necessary for work to be carried out by your
Service Centre, it is important to take your complete
machine including cable and any extension cables used.
A network of specialist dealers can be found in your local
Yellow Pages.
To obtain service on your product simply telephone or visit
your local Service Centre.
Should you require service under the terms of our guarantee
the Service Centre will require proof of purchase.
All of the centres listed stock genuine Spare Parts.
NOTE: Our Service Repair
ers act on their own behalf and are
not empowered to commit or legally bind Hus
qvarna UK Ltd.
in any manner whatsoever.
W2
W1
If any part is found to be defective due to faulty manufacture
within the guarantee period, Husqvarna UK Ltd., through its
Authorised Service Repairers will effect the repair or
replacement to the customer free of charge providing:
(a) The fault is reported directly to the Authorised Repairer.
(b) Proof of purchase is provided.
(c) The fault is not caused by misuse, neglect or faulty
adjustment by the user.
(d) The failure has not occurred through fair wear and tear.
(e) The machine has not been serviced or repaired, taken
apart or tampered with by any person not authorised by
Husqvarna UK Ltd..
(f) The machine has not been used for hire.
(g) The machine is owned by the original purchaser.
(h) The machine has not been used commercially.
* This guarantee is additional to, and in no way diminishes
the customers statutory rights.
Failures due to the following are not covered, therefore it is
important that you read the instructions contained in this
Operator's Manual and understand how to operate and maintain
your machine:
Failures not covered by guarantee
* Replacing worn or damaged blades.
* Failures as a result of not reporting an initial fault.
* Failures as a result of sudden impact.
* Failures as a result of not using the product in
accordance with the instructions and recommendations
contained in this Operator's Manual.
* Machines used for hire are not covered by this
guarantee.
* The following items listed are considered as wearing
parts and their life is dependent on regular maintenance
and are, therefore not normally subject to a valid
warranty claim: Blades, Electric Mains cable
* Caution!
Husqvarna UK Ltd. does not accept liability under the
warranty for defects caused in whole or part, directly or
indirectly by the fitting of replacement parts or additional
parts that are not either manufactured or approved by
Husqvarna UK Ltd., or by the machine having been
modified in any way.
Guarantee & Guarantee Policy
5054854-03
Husqvarna AB
561 82
Huskvarna
Sweden
Environmental Information
• Awareness of the environment must be considered
when disposing of ‘end-of-life’ product.
• If necessary, contact your local authority for disposal
information.
The symbol on the product or on its packaging
indicates that this product may not be treated as household
waste. Instead it shall be handed over to the applicable
collection point for the recycling of electrical and electronic
equipment.
By ensuring this product is disposed of correctly, you will
help prevent potential negative consequences for the
environment and human health, which could otherwise be
caused by inappropriate waste handling of this product.
For more detailed information about recycling of this
product, please contact your local council office, your
household waste disposal service or the shop where you
purchased the product.
EC Declaration of Conformity
Husqvarna AB, 561 82, Huskvarna, Sweden
Declare under our sole responsibility that the product(s);
Category........................................ Electric Rotary Lawnmower
Model(s).........................................VTR32, VM032, VM032+, RM032, EM032, RE32, EM032+
Identification of Series................... See Product Rating Label
Year of Construction...................... See Product Rating Label
Complies with the essential requirements & provisions of the following EC Directives:
2006/42/EC, 2004/108/EC, 2000/14/EC
based on the following EU harmonized standards applied:
EN60335-1, EN60335-2-77, EN50366, EN55014-1, EN61000-3-2, EN61000-3-3
The maximum A weighted sound pressure level L
pA
at the operator’s position, recorded on a sample of the above prod-
uct(s) corresponds to the Level given in the table.
The maximum hand / arm vibration weighted value measured according to EN ISO 20643 on a sample of the above
product(s) corresponds to the Value a
h
given in the table.
2000/14/EC: The Measured Sound Power L
WA
& Guaranteed Sound Power L
WA
values are according to the tabulated
figures.
Conformity Assessment Procedure.................. Annex VI
Notified Body.................................................... Intertek, Cleeve Road
Leatherhead, Surrey
KT22 7SB, England
Newton Aycliffe, 21/01/2011
M. Bowden,
Global R & D Director - Walk behind
Keeper of technical documentation
Ty pe
Width of Cut (cm)
Speed of Rotation of Cutting Device (RPM)
Power (kW)
Measured Sound Power L
WA
(dB(A))
Guaranteed Sound Power L
WA
(dB(A))
Level
L
pA
(dB(A))
Uncertainty
K
pA
(dB(A))
Value
a
h
(m/s
2
)
Weight (Kg)
Uncertainty K
ah
(m/s
2
)
Voltage/Frequency
VM032
32
3,400
1.1
95
96
80.2
2.5
2.08
9.09
1.5
230V/50Hz
VM032+
32
3,400
1.2
95
96
80.2
2.5
2.08
9.09
1.5
230V/50Hz
RM032
32
3,400
1.0
95
96
80.2
2.5
2.08
8.97
1.5
230V/50Hz
EM032/RE32
32
3,400
0.9
95
96
80.2
2.5
2.08
8.74
1.5
230V/50Hz
EM032+
32
3,400
1.0
95
96
80.2
2.5
2.08
8.74
1.5
230V/50Hz
Our policy of continuous improvement means that the specification of products may be altered from time to time without prior notice.
Copyright © 2011 Flymo S.A. All rights reserved. Flymo® and other product and feature names are registered or un-
registered trademarks of Flymo S.A.
Replacement Parts
Blade
Reference no.: FLY046 Part no.: 510760890
VTR32
32
3,400
1.0
95
96
80.2
2.5
2.08
8.69
1.5
230V/50Hz
