Please read this manual carefully before operating
your set and retain it for future reference.
LHD657 (LHD657, S67T2-S, S67T2-C, S67T2-W)
OWNER’S MANUAL
DVD Home
Theater
System
www.lg.com
Copyright © 2017 LG Electronics. All Rights Reserved
*MFL69598211*
Getting Started2
Getting Started
1
Safety Information
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
This lightning ash with arrowhead
symbol within an equilateral triangle
is intended to alert the user to the
presence of uninsulated dangerous
voltage within the product’s
enclosure that may be of sufcient
magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an
equilateral triangle is intended
to alert the user to the presence
of important operating and
maintenance (servicing)
instructions in the literature
accompanying the product.
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK
HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN
OR MOISTURE.
CAUTION: The apparatus should not be exposed to
water (dripping or splashing) and no objects lled
with liquids, such as vases, should be placed on the
apparatus.
WARNING: Do not install this equipment in a
conned space such as a book case or similar unit.
CAUTION: Do not use high voltage products around
this product. (ex. Electrical swatter) This product may
malfunction due to electrical shock.
CAUTION: Do not block any ventilation openings.
Install in accordance with the manufacturer’s
instructions.
Slots and openings in the cabinet are provided
for ventilation and to ensure reliable operation of
the product and to protect it from over heating.
The openings shall be never be blocked by placing
the product on a bed, sofa, rug or other similar
surface. This product shall not be placed in a built-
in installation such as a bookcase or rack unless
proper ventilation is provided or the manufacturer’s
instruction has been adhered to.
CAUTION: This product employs a Laser System.
To ensure proper use of this product, please read
this owner’s manual carefully and retain it for future
reference. Shall the unit require maintenance, contact
an authorized service center.
Use of controls, adjustments or the performance of
procedures other than those specied herein may
result in hazardous radiation exposure.
To prevent direct exposure to laser beam, do not try
to open the enclosure.
CAUTION concerning the Power Cord
Most appliances recommend they be placed upon a
dedicated circuit;
That is, a single outlet circuit which powers only
that appliance and has no additional outlets or
branch circuits. Check the specication page of this
owner’s manual to be certain. Do not overload wall
outlets. Overloaded wall outlets, loose or damaged
wall outlets, extension cords, frayed power cords, or
damaged or cracked wire insulation are dangerous.
Any of these conditions could result in electric
shock or re. Periodically examine the cord of your
appliance, and if its appearance indicates damage
or deterioration, unplug it, discontinue use of the
appliance, and have the cord replaced with an exact
replacement part by an authorized service center.
Protect the power cord from physical or mechanical
abuse, such as being twisted, kinked, pinched, closed
in a door, or walked upon. Pay particular attention to
plugs, wall outlets, and the point where the cord exits
the appliance. The Power Plug is the disconnecting
device. In case of an emergency, the Power Plug must
remain readily accessible.
Getting Started 3
Getting Started
1
This device is equipped with a portable battery or
accumulator.
Safety way to remove the battery or the battery
from the equipment: Remove the old battery or
battery pack, follow the steps in reverse order than
the assembly. To prevent contamination of the
environment and bring on possible threat to human
and animal health, the old battery or the battery
put it in the appropriate container at designated
collection points. Do not dispose of batteries or
battery together with other waste. It is recommended
that you use local, free reimbursement systems
batteries and accumulators. The battery shall not be
exposed to excessive heat such as sunshine, re or
the like.
NOTICE: For safety marking information including
product identication and supply ratings, please refer
to the main label on the bottom or the other surface
of the product.
Caution: No naked ame sources, such as lighted
candles, should be placed on the apparatus.
Symbols
~
Refers to alternating current(AC).
0
Refers to direct current(DC).
Refers to class II equipment.
1
Refers to stand-by.
!
Refers to “ON” (power).
Refers to dangerous voltage.
Table of Contents4
Table of Contents
1 Getting Started
2 Safety Information
6 Unique Features
6 – Portable In
6 – USB Direct Recording
6 – Full HD up-scaling
6 – Home Theater Speaker ez Setup
6 – BLUETOOTH®
7 Introduction
7 – Playable Discs
7 – About the “7” Symbol Display
7 – Symbols Used in this Manual
7 – Regional Codes
8 Playable file Requirement
9 Remote control
10 Front panel
11 Rear panel
2 Connecting
12 Assembling the speaker
14 Attaching the speakers to the unit
15 Positioning the system
16 How to Affix the Ferrite Core
16 – Affix the Ferrite Core for HDMI cable
16 Connections to Your TV
16 – HDMI Out Connection
17 – What is SIMPLINK?
17 – Video Connection
18 – Resolution Setting
18 Video Output Resolution
18 Optional Equipment Connection
18 – AUX (L/R) INPUT Connection
19 – PORT. IN (Portable Input) Connection
19 – Listening to music from your portable
player or external device
19 – USB Connection
20 – OPTICAL IN connection
20 – Home theater speaker ez setup
20 Antenna Connection
3 System Setting
21 Adjust the setup settings
21 – OSD Initial language settings - Optional
21 – To display and exit the Setup menu
22 – Language
22 – Display
23 – Audio
24 – Lock (Parental Control)
4 Operating
25 Using the Home Menu
25 Basic Operations
26 Other Operations
26 – Displaying Disc Information on-screen
26 – To display the DVD Menu
26 – To display the DVD title
26 – 1.5 times speed playback
26 – Screen Saver
26 – Starting play from selected time
26 – Resume playback
27 – Changing subtitle code page
27 – Marked Playback
28 – Viewing a PHOTO file
29 – Sleep Timer Setting
29 – Dimmer
29 – Turn off the sound temporarily
29 – Last Scene Memory
29 – Power Resume - Optional
29 – System Select - Optional
29 – Adjust the speaker level settings
29 – VOCAL FADER
29 – Auto power down
29 – How to disconnect the wireless network
connection or the wireless device.
30 Radio Operations
30 – Listening to the radio
30 – Presetting the Radio Stations
30 – Deleting all the saved stations
30 – Deleting a saved station
Table of Contents 5
1
2
3
4
5
6
30 – Improving poor FM reception
31 Sound adjustment
31 – Setting the surround mode
31 – Setting the USER EQ
32 Advanced Operations
32 – Recording to USB
33 Using a BLUETOOTH® wireless technology
33 – Listening to music of a BLUETOOTH device
35 Auto function change
36 AUTO POWER On
5 Troubleshooting
37 Troubleshooting
6 Appendix
38 Maintenance
38 – Handling the Unit
38 – Notes on Discs
39 Area Code List
40 Language code List
41 Trademarks and Licenses
42 Specifications
Getting Started6
Getting Started
1
Unique Features
Portable In
Listen to music from your portable device. (MP3,
Notebook, etc.)
USB Direct Recording
Records music from CD to your USB device.
Full HD up-scaling
Views Full HD picture quality with simple setup.
Home Theater Speaker ez Setup
Listen to sounds from TV, DVD and Digital device with
vivid 5.1 (2.1 or 2.0) ch mode.
BLUETOOTH®
Listens to music stored on your Bluetooth device.
Getting Started 7
Getting Started
1
Introduction
Playable Discs
This unit plays DVD
±
R/RW and CD-R/RW that
contains audio titles, MP3, WMA and/or JPEG les.
Some DVD
±
RW/DVD
±
R or CD-RW/CD-R cannot
be played on this unit due to the recording quality or
physical condition of the disc, or the characteristics of
the recording device and authoring software.
DVD-VIDEO (8 cm/12 cm disc)
Discs such as movies that can be
purchased or rented.
DVD
±
R (8 cm/12 cm disc)
Video mode and nalized only.
DVD-RW (8 cm/12 cm disc)
Video mode and nalized only.
DVD+R: Video mode only
Supports the double layer disc also.
DVD+RW (8 cm/12 cm disc)
Video mode and nalized only.
Audio CD: Music CDs or CD-R/CD-
RW in music CD format that can be
purchased.
About the “
7
” Symbol Display
“
7
” may appear on your TV display during operation
and indicates that the function explained in this
owner’s manual is not available on that specic
media.
Symbols Used in this Manual
r
DVD-Video, DVD
±
R/RW in Video
mode or VR mode and nalized
t
Audio CDs
y
Video les contained in the USB/
Disc
u
Audio les contained in the USB/
Disc
i
Photo les contained in the USB/
Disc
,
Note
Indicates special notes and operating features.
,
Tip
Indicates tip and hints for making the task easier.
>
Caution
Indicates cautions for preventing possible damages
from abuse.
Regional Codes
This unit has a regional code printed on the unit. This
unit can play only DVD discs labeled same as the unit
or “ALL”.
y
Most DVD discs have a globe with one or more
numbers in it clearly visible on the cover. This
number must match your unit’s regional code or
the disc cannot play.
y
If you try to play a DVD with a different regional
code from your unit, the message “Check Regional
Code” appears on the TV screen.
Getting Started8
Getting Started
1
Playable file
Requirement
Music file requirement
MP3/ WMA le compatibility with this unit is limited
as follows :
y
Sampling frequency : within 32 to 48 kHz (MP3),
within 32 to 48 kHz (WMA)
y
Bit rate : within 32 to 320 kbps (MP3),
40 to 192 kbps (WMA)
y
Support Version : v2, v7, v8, v9
y
Maximum les : Under 999
y
File extensions : “.mp3”/ “.wma”
y
CD-ROM le format : ISO9660/ JOLIET
y
We recommend that you use Easy-CD Creator,
which creates an ISO9660 le system.
y
You have to set the disc format option to
[Mastered] in order to make the discs compatible
with the LG players when formatting rewritable
discs. When setting the option to Live File System,
you cannot use it on LG players.(Mastered/ Live
File System : Disc format system for Windows
Vista)
The DTS is not supported. In case of DTS audio
format, audio is not output.
Photo file requirement
Photo le compatibility with this unit is limited as
follows :
y
Max pixel in width : 2760 x 2048 pixel
y
Maximum les : Under 999
y
Some discs may not operate due to a different
recording format or the condition of disc.
y
File extensions: “.jpg”
y
CD-ROM le format : ISO9660/ JOLIET
Video file requirement
Video le compatibility with this unit is limited as
follows:
y
Available resolution: within 720 x 576 (W x H)
pixels.
y
The le name of the Video subtitle should be
entered within 45 characters.
y
If there is impossible code to express in the Video
le, it may be displayed as “ _ “ mark on the display.
y
Frame rate : less than 30 fps.
y
If the video and audio structure of recorded les is
not interleaved, either video or audio is outputted.
y
Playable Video le : “.avi”, “.mpg”, “.mpeg”
y
Playable Subtitle format : SubRip (*.srt/ *.txt),
SAMI (*.smi), SubStation Alpha (*.ssa/ *.txt),
MicroDVD (*.sub/ *.txt), SubViewer 2.0 (*.sub/
*.txt), Vobsub (*.sub)
y
Playable Codec format :
“Xvid”, “MPEG-1”, “MPEG-2”
y
Playable Audio format : “AC3”, “PCM”, “MP3”,
“WMA”,
y
Sampling frequency : within 32 to 48 kHz (MP3),
within 32 to 48 kHz (WMA)
y
Bit rate : within 32 to 320 kbps (MP3), 40 to 192
kbps (WMA)
y
For Discs formatted in Live le system, you can not
it on this unit.
y
If the name of movie le is different from that of
the subtitle le, during playback of a Video le,
subtitle may not be display.
y
If you play a Xvid le differ from Xvid spec, it may
not operate normally.
y
If you play GMC video le which is more than
1-warp point, video playback screen will not
smooth.
Getting Started 9
Getting Started
1
Replacement of battery
Remove the battery cover on the
rear of the remote control, and
insert the battery with
4
and
5
matched correctly.
• • • • • • • • •
a
• • • • • • •
1
(Standby/On) : Switches the
unit ON or OFF.
B
(Open/Close) : Opens and closes
the disc tray.
P
FUNCTION : Selects the
function and input source.
SLEEP : Sets the System to turn
off automatically at a specied
time. (Dimmer : The display window
will be darken by half.)
MARKER : Marks play list.
n
(Home) : Displays the [Home
Menu].
• • • • • • • • •
b
• • • • • • •
m
INFO/DISPLAY : Accesses On-
Screen Display.
DISC MENU : Accesses the menu
on a DVD disc.
W/S/A/D
(up/ down/ left/
right) : Used to navigate on-screen
displays.
PRESET (
W/S
) : Selects
programme of Radio.
TUNING +/- : Tunes in the desired
radio station.
b
ENTER : Acknowledges menu
selection.
Presetting the radio stations.
x
RETURN : Moves backwards
in the menu or exits the setup
menu.
TITLE: If the current DVD title has
a menu, the title menu appears
on the screen. Otherwise, the disc
menu may not appear.
• • • • • • • • •
c
• • • • • • •
Z
(Stop) : Stops playback.
d
(Play) MONO/STEREO : Starts
playback. Selects Mono/ Stereo.
M
(Pause/Step) : Pauses playback.
C/V
(Skip) : Goes to the
next or previous chapter / track /
le.
c/v
(Scan) : Searches
backward or forward.
• • • • • • • • •
d
• • • • • • •
SPEAKER LEVEL : Sets the sound
level of desired speaker.
SOUND EFFECT : Selects a sound
effect mode.
VOL -/+ (Volume) : Adjusts speaker
volume.
(Mute) : Mutes the sound.
X
REC : USB Direct Recording.
0-9 numerical buttons : Selects
numbered options in a menu.
h
REPEAT : Selects a play
mode. (Repeat/ Random)
CLEAR : Removes a number when
setting the password.
• • • • • • • • •
e
• • • • • • •
TV Control buttons : Controls the
TV. (LG TV only)
- You can control the sound
level, input source, and power
switching of LG TVs as well. Hold
POWER (TV) and press PR/CH
(
W/S
) button repeatedly until
the TV turns on or off.
OPTICAL : Changes input source to
optical directly.
?
: This button is not available.
MIC VOL -/+ (Microphone Volume)
: Adjusts microphone volume.
ECHO VOL -/+ (Volume) : Adjusts
echo volume.
VOCAL FADER: You can enjoy the
function as karaoke, by reducing
singer vocal of music in the various
source.

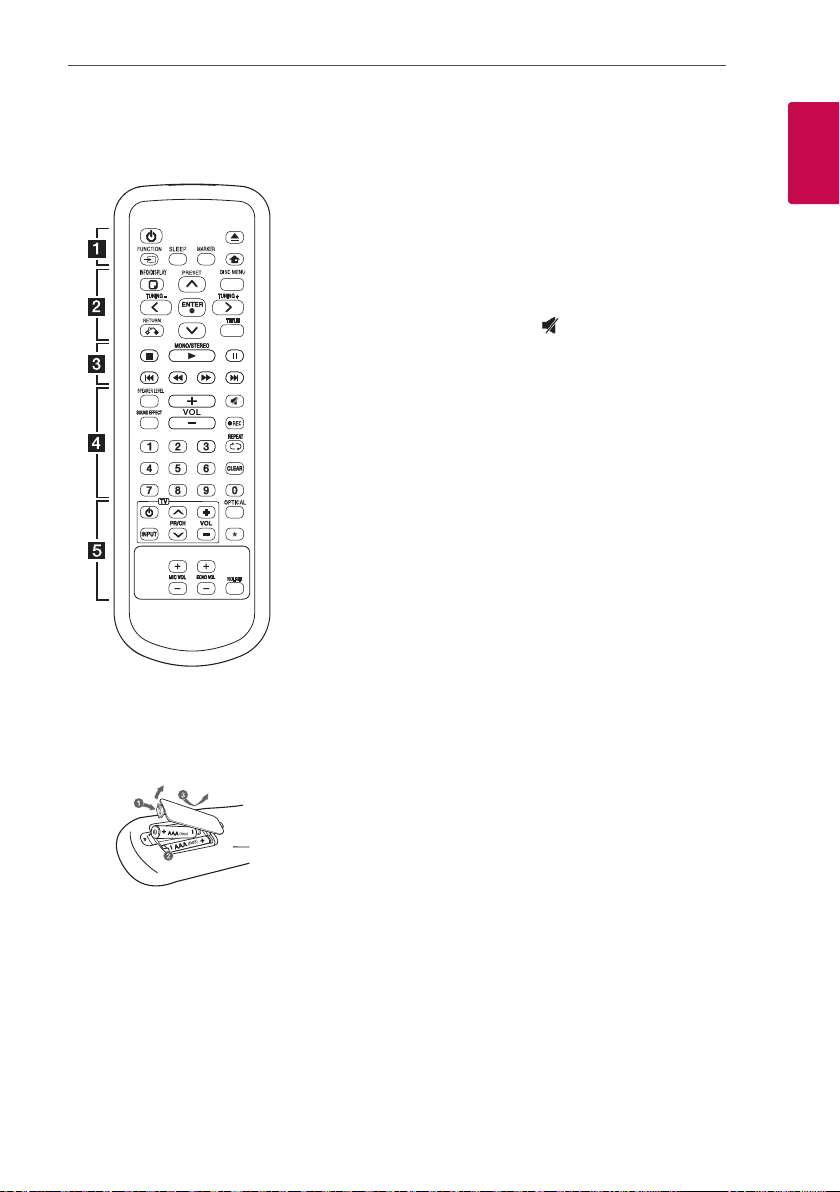

Remote control
Getting Started10
Getting Started
1
Front panel
a
Disc Tray
b
Display window
Shows the current status of the unit.
c
Microphone jacks 1/2
d
PORT. IN
Connects to a portable player with audio
outputs.
e
USB Port
Connects a USB device.
f
R
(OPEN/CLOSE)
Opens or closes the disc tray.
g
T
(PLAY/PAUSE)
Starts playback.
Pauses playback temporarily, press again to exit
pause mode.
h
I
(STOP)
Stops playback.
i
F (FUNCTION)
Changes the input source or function.
j
-/+(Volume)
Adjusts speaker volume.
k
1/!
(Standby/On)
Switches the unit ON or OFF.
Getting Started 11
Getting Started
1
a
Power cord
b
Speaker connectors
Connects the speaker cables.
c
OPTICAL IN
Connects to optical audio equipment.
d
HDMI OUT
Connects to TV with HDMI inputs.
(Interface for digital audio and video)
e
VIDEO OUT
Connects to a TV with video inputs.
f

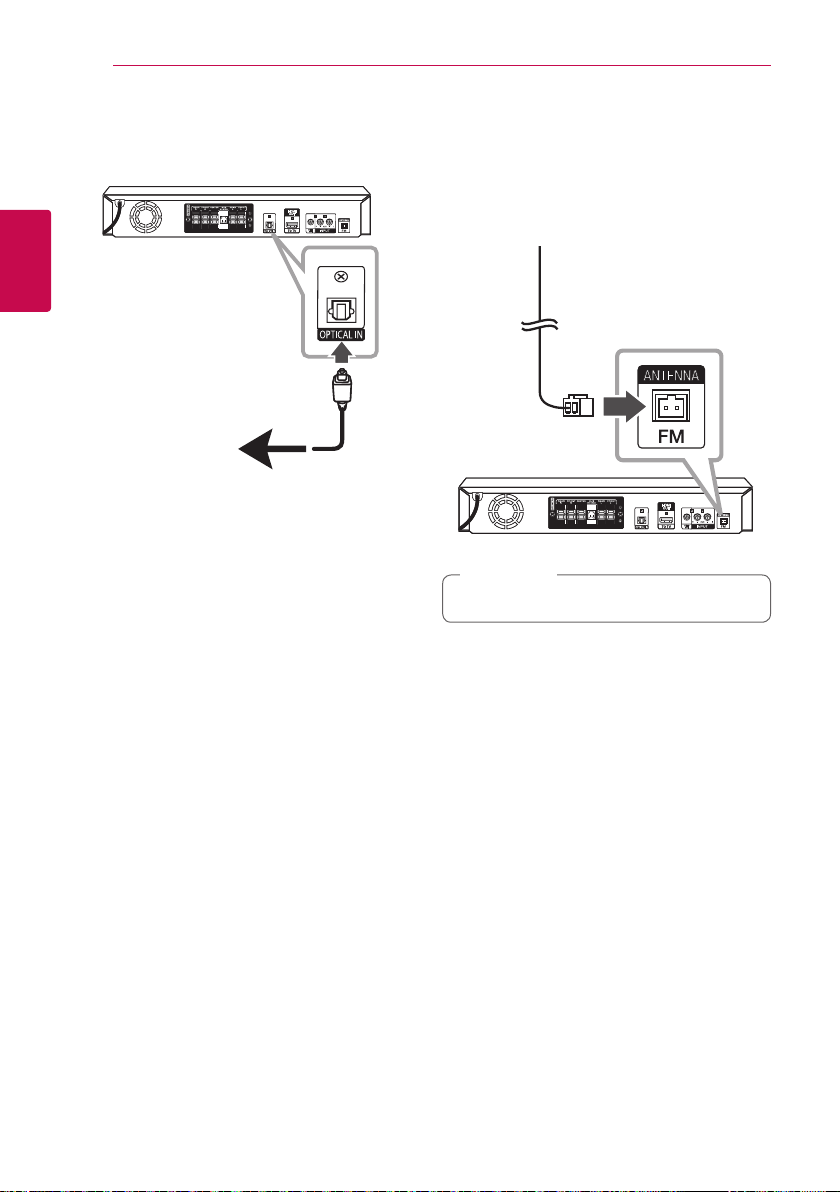

AUX (L/R) INPUT
Connects to an external source with 2 channel
audio outputs.
g
ANTENNA
FM- Connects the FM wired antenna
Rear panel
2 Connecting
Connecting12
Connecting
2

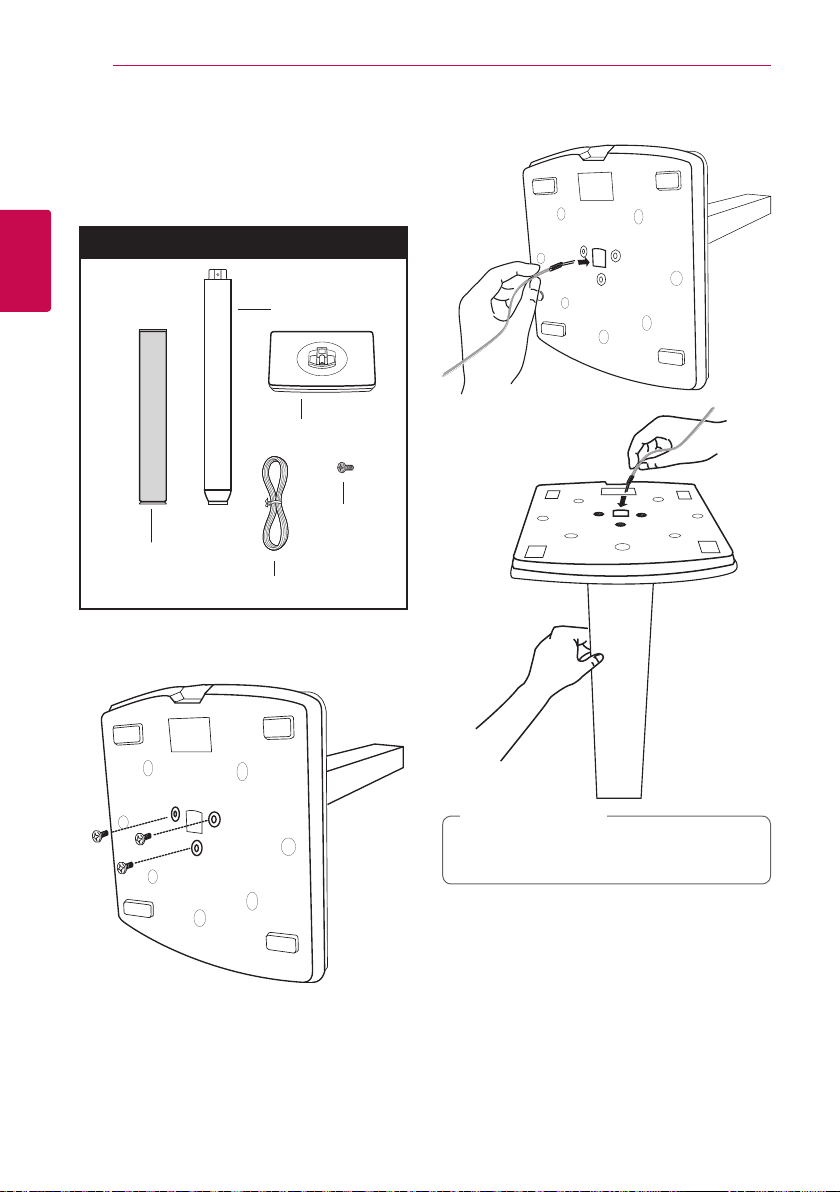

Assembling the speaker
Before connecting the speakers, assemble the
speakers. Please check the items for assembling the
speakers.
Preparation
Pole
Base
Speaker
Screw
Speaker cables

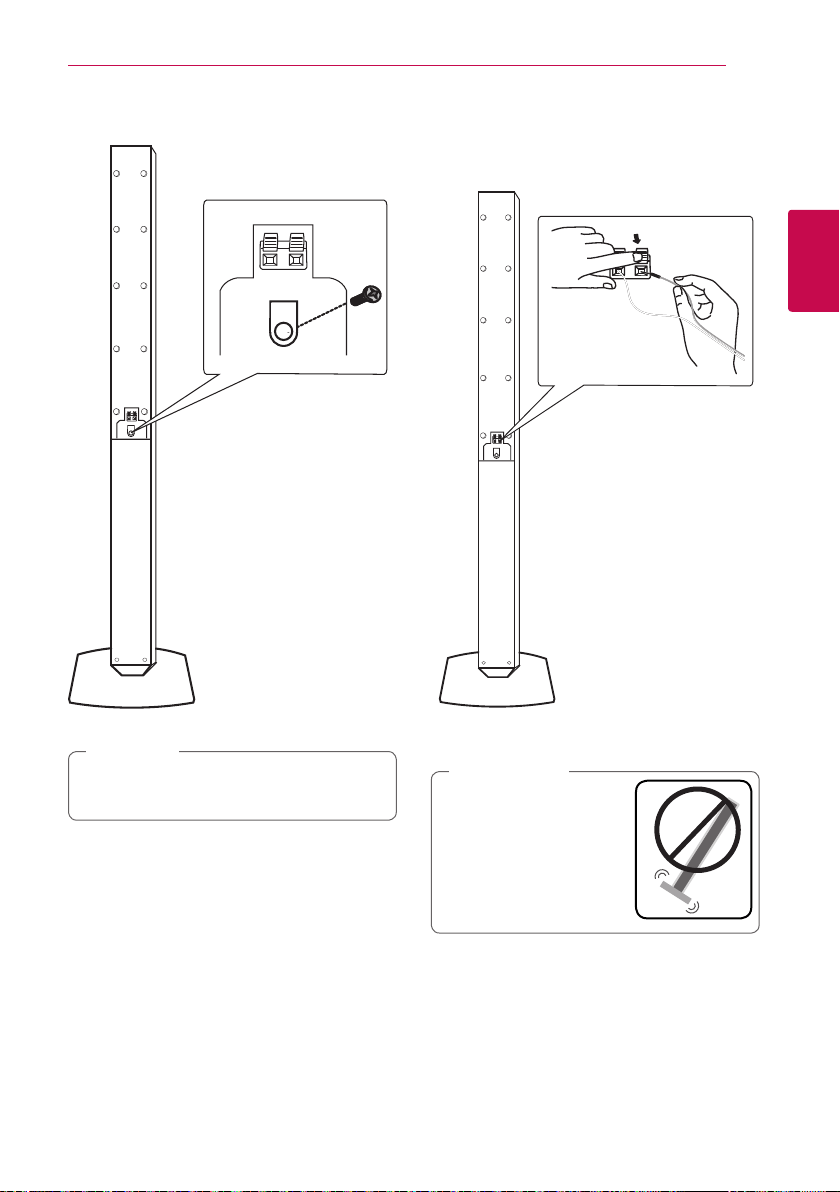

1. Attach the pole to the base, then secure the
connection with a supplied screw.
2. Draw the speaker cord through the hole on the
base.
Make sure speaker cable unfolded or in straight
condition before insert it to the hole.
,
Note
Connecting 13
Connecting
2
3. Attach the speakers to the speaker stands by
rotating the screws.
Do not catch the speaker cord between speaker
and the pole.
,
Note
4. Connect the speaker wire to the terminal on the
speaker. Make sure the wire marked black goes in
to the terminal marked “-”(minus) and the other
wire goes in to the terminal marked “+”(plus)
Be careful that the speaker
does not fall down. Otherwise
it may result in the speaker
malfunction and cause
personal injury and/ or
property damage.
>
Caution
Connecting14
Connecting
2
Attaching the speakers
to the unit
1. Connect the wires to the unit.
Match each wire’s colored band to the same
colored connection terminal on the rear of the
unit. To connect the cable to the unit, press
each plastic finger pad to open the connection
terminal. Insert the wire and release the finger
pad.
Connect the black stripe of each wire to the
terminals marked -(minus) and the other end to
the terminals marked + (plus).
Connect a woofer cord to the player. When
connecting a woofer cord to the player, insert
the connector until it clicks.
2. Connect the wires to the speakers.
Connect the other end of each wire to the correct
speaker according to the color coding:
Color Speaker Position
Grey Rear Rear right
Blue Rear Rear left
Green Center Center
Orange Sub woofer Any front position
Red Front Front right
White Front Front left
To connect the cable to the speakers, press each
plastic nger pad to open the connection terminals
on the base of each speaker. Insert the wire and
release the nger pad.
y
Be careful to make sure children do not put
their hands or any objects into the *speaker
duct.
*Speaker duct : A hole for plentiful bass
sound on speaker cabinet (enclosure).
y
Place the center speaker at a safe distance
from the child’s reach. Otherwise it may result
in the speaker falling down and causing
personal injury and/or property damage.
y
The speakers contain magnet parts, so color
irregularity may occur on the TV screen or PC
monitor screen. Please use the speakers far
away from either TV screen or PC monitor.
y
Before using the subwoofer, remove the
protective vinyl.
>
Caution
Connecting 15
Connecting
2

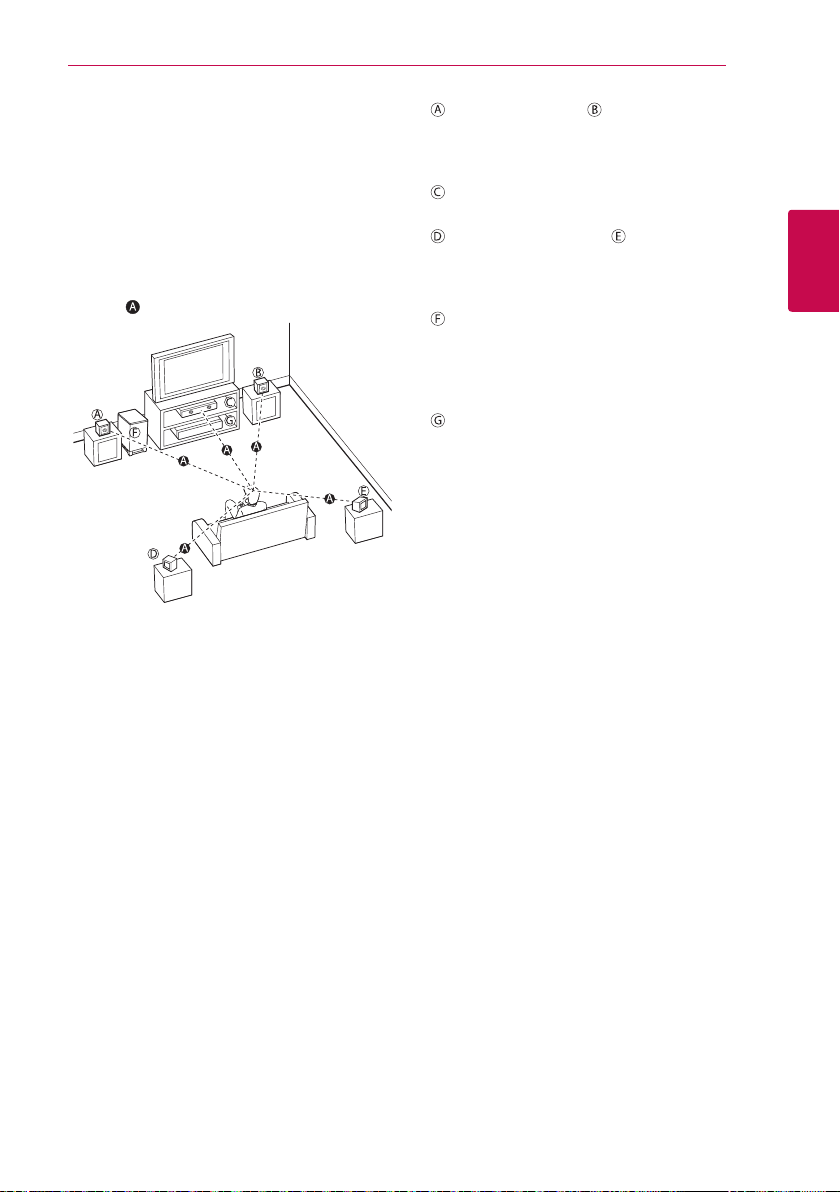

Positioning the system
The following illustration shows an example of
positioning the system. Note that the illustrations
in these instructions differ from the actual unit for
explanation purposes.
For the best possible surround sound, all the speakers
other than the subwoofer should be placed at the
same distance from the listening
position ( ).
Front left speaker (L)/ Front right speaker (R):
Place the front speakers to the sides of the
monitor or screen and as ush with the screen
surface as possible.
Center speaker: Place the center speaker above or
below the monitor or screen.
Surround left speaker (L)/ Surround right
speaker (R):
Place these speakers behind your listening
position, facing slightly inwards.
Subwoofer: The position of the subwoofer is not
so critical, because low bass sounds are not highly
directional. But it is better to place the subwoofer
near the front speakers. Turn it slightly toward the
center of the room to reduce the wall reections.
Unit
Connecting16
Connecting
2

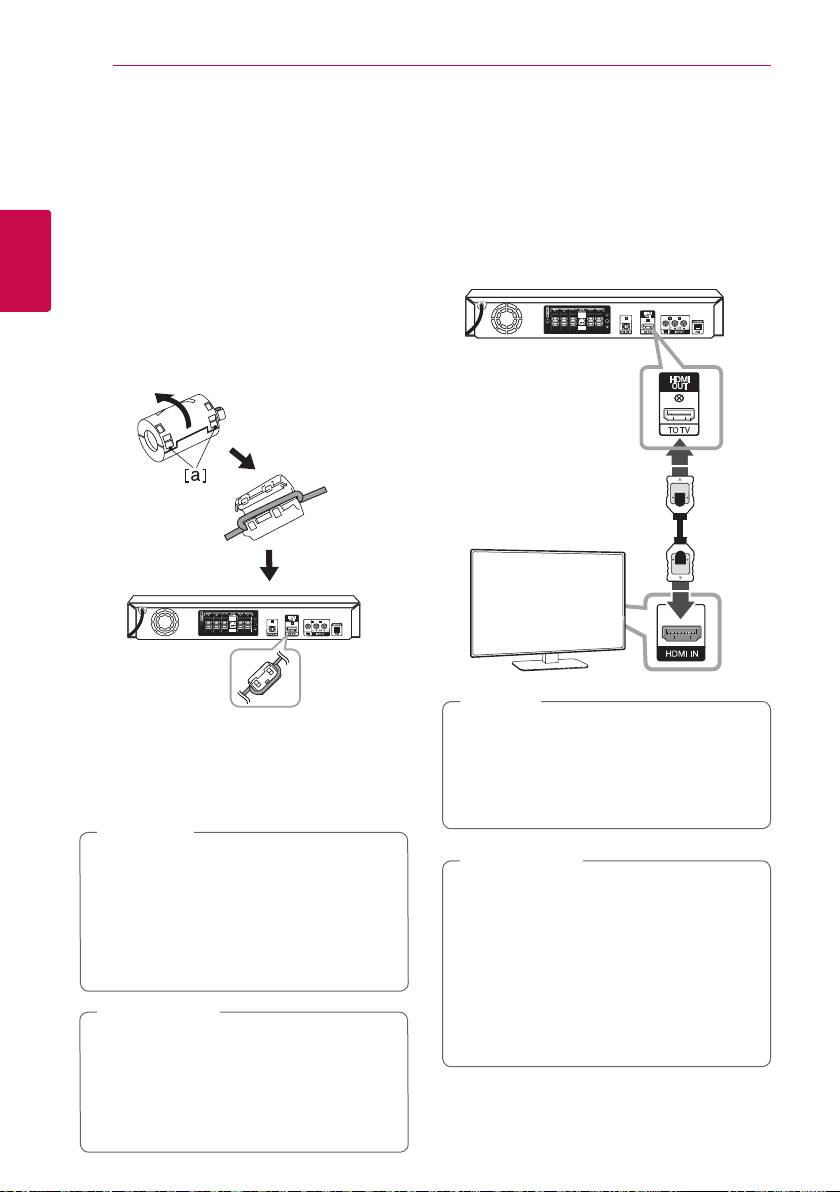

How to Afx the Ferrite
Core
Ferrite core may not be provided depending on each
nation’s regulations.
Affix the Ferrite Core for HDMI
cable
You must afx a ferrite core in order to reduce or
eliminate electrical interference.
1. Pull the stopper [a] of the ferrite core to open.
2.
Wind the HDMI cable around the ferrite core once.
3. Close the ferrite core until it clicks.
Connections to Your TV
Make one of the following connections, depending on
the capabilities of your existing equipment.
y
Depending on your TV and other equipment
you wish to connect, there are various ways
you could connect the player. Use only one of
the connections described in this manual.
y
Please refer to the manuals of your TV, Stereo
System or other devices as necessary to
make the best connections.
,
Note
y
Make sure the unit is connected directly to
the TV. Tune the TV to the correct video input
channel.
y
Do not connect your player via your VCR.
The image could be distorted by the copy
protection system.
>
Caution

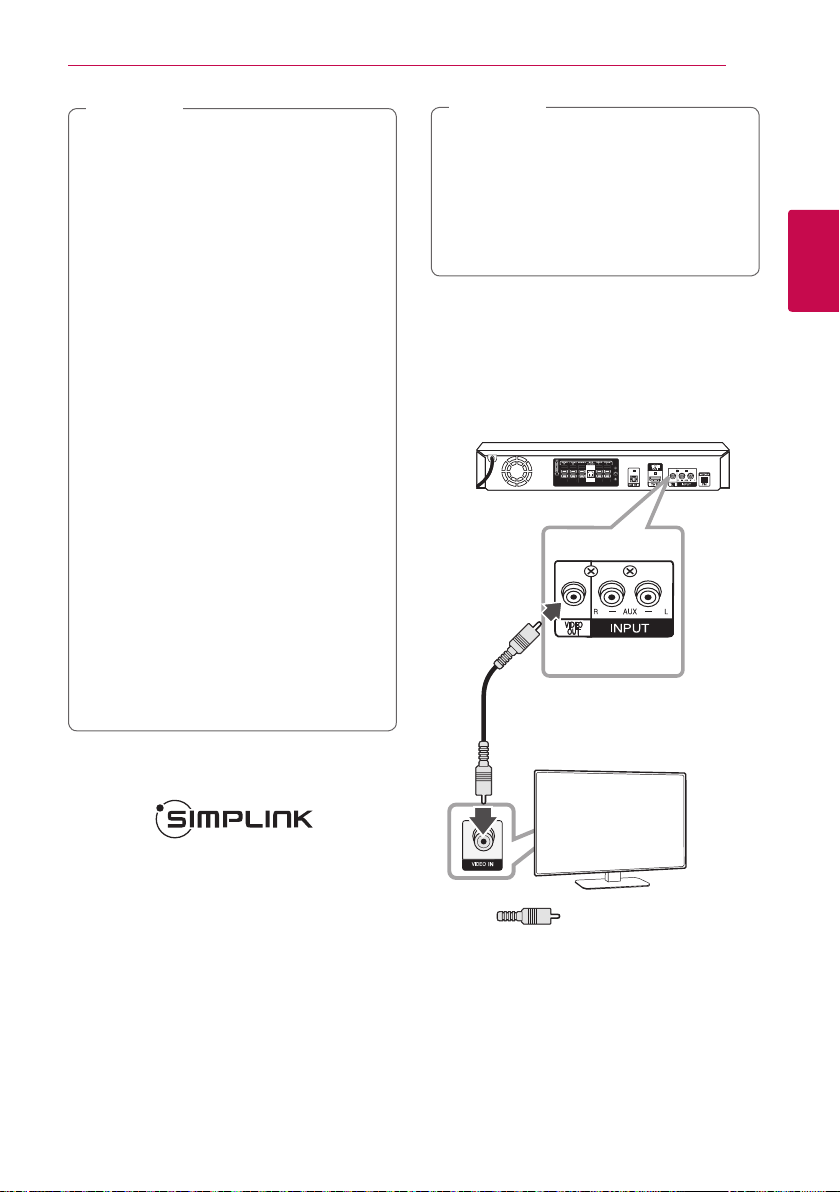

HDMI Out Connection
If you have a HDMI TV or monitor, you can connect it
to this unit using a HDMI cable (Type A, High Speed
HDMI™ Cable).
Connect the HDMI OUT jack on the unit to the HDMI
IN jack on a HDMI compatible TV or monitor.
Set the TV’s source to HDMI (refer to TV’s Owner’s
manual).
Unit
TV
y
You can fully enjoy digital audio and video
signals together with this HDMI connection.
y
When you use HDMI connection, you can
change the resolution for the HDMI output.
(Refer to “Resolution Setting” on page 18.)
,
Tip
y
Changing the resolution when the connection
has already been established may result in
malfunctions. To solve the problem, turn off
the unit and then turn it on again.
y
When the HDMI connection with HDCP is
not veried, TV screen is changed to black or
green screen or the snow noise may occur
on the screen. In this case, check the HDMI
connection, or disconnect the HDMI cable.
>
Caution
Connecting 17
Connecting
2
y
If a connected HDMI device does not accept
the audio output of the unit, the HDMI
device’s audio sound may be distorted or may
not output.
y
When you connect a HDMI or DVI compatible
device make sure of the following:
- Try switching off the HDMI/DVI device and
this unit. Next, switch on the HDMI/DVI
device and leave it for around 30 seconds,
then switch on this unit.
- The connected device’s video input is set
correctly for this unit.
- The connected device is compatible with
720 x 480i (or 576i), 720 x 480p (or 576p),
1280 x 720p, 1920 x 1080i or 1920 x
1080p video input.
y
Not all HDCP-compatible HDMI or DVI devices
will work with this unit.
- The picture will not be displayed properly
with non-HDCP device.
- This unit does not playback and TV screen
is changed to black or green screen or the
snow noise may occur on the screen.
y
If there is noise or lines on the screen, please
check the HDMI cable and use a higher
version cable than High Speed HDMI™ Cable.
y
If you use Bluetooth or AUX-OPT Function of
the unit, the audio is not output to HDMI.
,
Note
What is SIMPLINK?
Some functions of this unit are controlled by the
TV’s remote control when this unit and LG TV’s with
SIMPLINK are connected through HDMI connection.
Controllable functions by LG TV’s remote control;
Power on/off, volume up/down, mute, etc.
Refer to the TV owner’s manual for the details of
SIMPLINK function.
LG TV’s with SIMPLINK function has the logo as
shown above.
y
Depending on the disc type or playing status,
some SIMPLINK operation may differ from
your purpose or not work.
y
The function is automatically changed to
optical when you change the speaker setting
of simplink to external, no matter what kind
of the function you are using.
,
Note
Video Connection
Connect the VIDEO OUT jack on the unit to the video
in jack on the TV using a video cable.
You can hear the sound through the system’s
speakers.
Unit
TV
Yellow
Connecting18
Connecting
2
Resolution Setting
The unit provides several output resolutions for HDMI
OUT.
You can change the resolution using [Setup] menu.
1. Press
n
.
2. Use
A/D
to select the [Setup] and press
b
ENTER. The [Setup] menu appears.
3. Use
W/S
to select [Display] option then press
D
to move to the second level.
4. Use
W/S
to select the [Resolution] option then
press
D
to move to the third level.
5. Use
W/S
to select the desired resolution then
press
b
ENTER to confirm your selection.
If your TV does not accept the resolution you
have set on the player, you can set resolution to
480p (or 576p) as follows:
Press
Z
for more than 5 seconds.
,
Note
Video Output
Resolution
Displayed resolution in display window and outputted
resolution may different according to connection
type.
[HDMI OUT] : 1080p, 1080i, 720p and 480p (or
576p) and 480i (or 576i)
[VIDEO OUT] : 480i (or 576i)
Optional Equipment
Connection
AUX (L/R) INPUT Connection
Connect an Output of auxiliary device to the AUX (L/
R) INPUT Connector.
Unit
Red
White
To the audio output jacks of
your component
(TV, VCR, etc.)
If your TV has only one output for audio (mono),
connect it to the left (white) audio jack on the
unit.
,
Note
Connecting 19
Connecting
2
PORT. IN (Portable Input)
Connection
Connect an output of portable device (MP3 or PMP
etc.) to the PORT. IN connector.
MP3 player, etc
...
Listening to music from your
portable player or external
device
The unit can be used to play the music from many
types of portable player or external devices.
1. Connect the portable player to the
PORT. IN (PORTABLE IN) connector of the unit.
Or
Connect the external device to the AUX (L/R)
INPUT connector of the unit.
2. Turn the power on by pressing
1/!
.
3. Select the PORTABLE or AUX function by
pressing
P
FUNCTION.
4. Turn on the portable player or external device and
start it playing.
USB Connection
Connect the USB port of USB Memory (or MP3
player, etc.) to the USB port on the front of the unit.
Removing the USB Device from the unit.
1. Choose a different function mode or press
Z
twice in a row.
2. Remove the USB device from the unit.
,
Note
Compatible USB Devices
y
MP3 Player : Flash type MP3 player.
y
USB Flash Drive : Devices that support USB2.0 or
USB1.1.
y
The USB function of this unit does not support
some USB devices.
USB device requirement
y
Devices which require additional program
installation connected to a computer, are not
supported.
y
Do not extract the USB device while in operation.
y
For a large capacity USB, it may take longer than a
few minute to be searched.
y
To prevent data loss, back up all data.
y
If you use a USB extension cable or USB hub, the
USB device is not recognized.
y
Using NTFS le system is not supported. (Only
FAT(16/32) le system is supported.)
y
This unit is not supported when the total number
of les is 1000 or more.
y
External HDD, Card readers, Locked devices,
or hard type usb devices are not supported.
y
USB port of the unit cannot be connected to PC.
The unit can not be used as a storage device.
y
Some USB may not work with this unit.
Connecting20
Connecting
2
OPTICAL IN connection
Connect an optical output of Unit (or Digital Device
etc) to the OPTICAL IN connector.
To the digital
optical output jack of
your component
Home theater speaker ez setup
Listen to sound from TV, DVD and Digital Device with
5.1(2.1 or 2)ch mode. Even in power off mode, if you
press OPTICAL, then power is on and automatically
changed to AUX OPT mode.
1. Connect the unit’s OPTICAL IN jack to jack on
optical out of your TV (or Digital Device etc.).
2. Select the AUX OPT by using the OPTICAL on the
remote control to select the AUX OPT directly.
Or
To select the AUX OPT function, press
P
FUNCTION on the remote control.
3. Listen sound with 5.1(2.1 or 2)ch speaker.
4. To escape from AUX OPT by using the OPTICAL.
Function is retuned to previous one.
Antenna Connection
Connect the supplied FM antenna for listening to the
radio.
Connect the FM Wire antenna to the FM antenna
connector.
Be sure to fully extend the FM wire antenna.
,
Note
3 System Setting

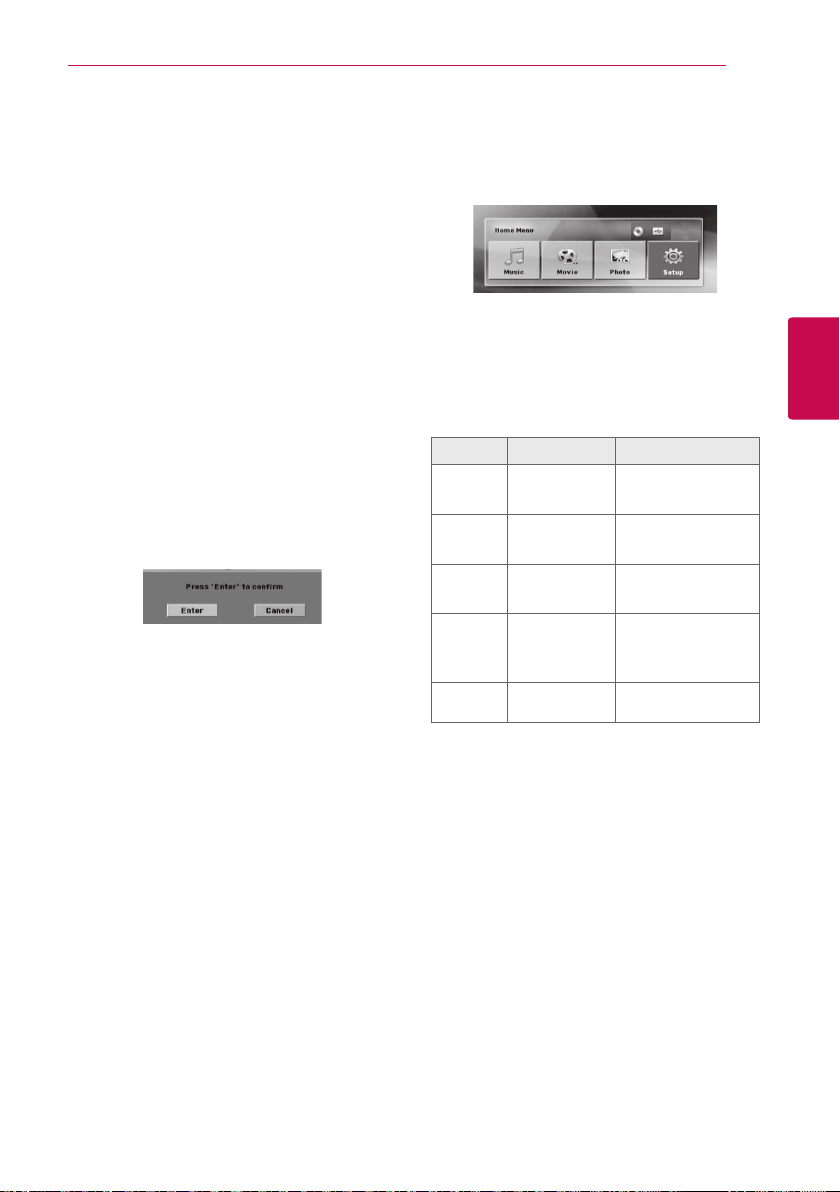

System Setting 21
System Setting
3
Adjust the setup
settings
By using the Setup menu, you can make various
adjustments to items such as picture and sound.
You can also set a language for the subtitles and the
Setup menu, among other things. For details on each
Setup menu item, see pages 21 to 24.
OSD Initial language settings -
Optional
During the rst use of this unit, the initial language
setup menu appears on your TV screen. You must
complete initial language selection before using the
unit. English will be selected as the initial language.
1. Press
1
to turn the unit on. The language setup
menu will appear on the screen.
2. Use
WSAD
to select a language then press
b
ENTER.
The confirm menu will appear.
3. Use
AD
to select the [Enter] then press
b
ENTER to finish the language setup.
To display and exit the Setup
menu
1. Press
n
.
Displays the [Home Menu].
2. Select an [Setup] by using
AD
.
3. Press
b
ENTER.
Displays the [Setup].
4. Press
n
or
x
RETURN to exit in the [Setup]
Menu.
About help menu for Setup
Menu Buttons Operation
ws
Move
WS
Moving to another
menu.
a
Move
A
Moving to previous
level.
d
Move
D
Moving to next level
or selecting menu.
x
Close
x
RETURN
To exit the [Setup]
menu or [ 5.1
Speaker Setup].
b
Select
b
ENTER
To conrm menu.
System Setting22
System Setting
3
Language
Menu Language
Select a language for the Setup menu and on screen
display.
Disc Audio / Disc Subtitle / Disc Menu
Select the language you prefer for the audio track
(disc audio), subtitles, and the disc menu.
[Original]
Refers to the original language in which the disc
was recorded.
[Other]
To select another language, press numeric
buttons and then
b
ENTER to enter the
corresponding 4-digit number according to the
language code list on the page 40. If you enter
the wrong language code, press CLEAR.
[Off (for Disc Subtitle)]
Turns off Subtitle.
Display
TV Aspect
Select the screen aspect to use based on the shape
of your TV screen.
[4:3]
Select when a standard 4:3 TV is connected.
[16:9]
Select when a 16:9 wide TV is connected.
Display Mode
The Display Mode setting works only when the TV
Aspect mode is set to 4:3.
[Letterbox]
Displays a wide picture with bands on the upper
and lower portions of the screen.
[Panscan]
Automatically displays the wide picture on the
entire screen and cuts off the portions that do
not t. (If the disc/le is not compatible with Pan
Scan, the picture is displayed at Letterbox ratio.)
Resolution
Sets the output resolution of HDMI video signal.
Refer to “Resolution Setting” for details about the
resolution (page 18).
[Auto]
If the HDMI OUT jack is connected to
TVs providing display information (EDID),
automatically selects the resolution best suited
to the connected TV. If VIDEO OUT is only
connected, this changes the resolution to 480i
(or 576i) as default resolution.
[1080p]
Outputs 1080 lines of progressive video.
[1080i]
Outputs 1080 lines of interlaced video.
[720p]
Outputs 720 lines of progressive video.
[480p (or 576p)]
Outputs 480 (or 576) lines of progressive video.
[480i (or 576i)]
Outputs 480 (or (576) lines of interlaced video.

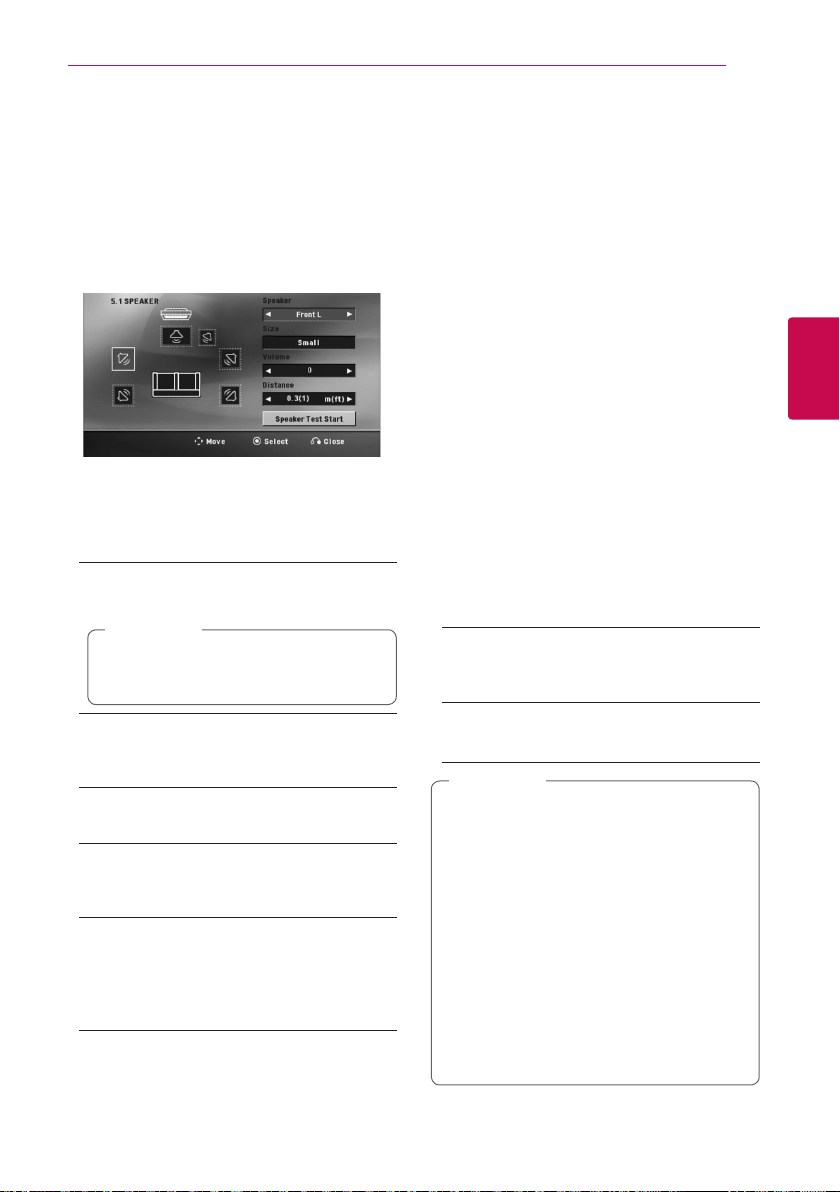

System Setting 23
System Setting
3
Audio
5.1 Speaker Setup
Make the following settings for the built-in 5.1
channel surround decoder.
1. Select [5.1 Speaker Setup] on the [Audio] menu.
2. Press
b
ENTER.
The [5.1 SPEAKER] appears.
3. Use
AD
to select the desired speaker.
4. Adjust options using
WSAD
buttons.
5. Returns to the previous menu by pressing
x
RETURN.
[Speaker]
Select a speaker that you want to adjust.
Certain speaker settings are prohibited by
the Dolby Digital licensing agreement.
,
Note
[Size]
Since the speaker settings are xed, you cannot
change the settings.
[Volume]
Adjust the output level of each speaker.
[Distance]
Adjust the distance between each speaker and
the listening position.
[Speaker Test Start]
Select [Speaker Test Start] by using the
WS
and press
b
ENTER. Press
b
ENTER again to
stop. Adjust the volume to match the volume of
test signals memorized in the system.
DRC (Dynamic Range Control)
Make the sound clear when the volume is turned
down (Dolby Digital only). Set to [On] for this effect.
Vocal
Select [On] to mix karaoke channels into normal
stereo.
This function is effective for multi-channel karaoke
DVDs only.
HD AV Sync
Sometimes Digital TV encounters a delay between
picture and sound. If this happens you can
compensate by setting a delay on the sound so that
it effectively ‘waits’ for the picture to arrive: this is
called HD AV Sync. Use
WS
(on the remote control)
to scroll up and down through the delay amount,
which you can set at anything between 0 and
300ms.
Semi Karaoke
When a chapter/ title/ track is fully nished, this
function shows the score in the screen with a fanfare
sound.
[On]
When you nished singing a score will appear on
the screen.
[Off]
Fanfare and score do not appear on the screen.
y
DVD, DVD Karaoke discs with more than 2
tracks are available discs for the this function.
y
When you watch movies, “off ” the Semi
Karaoke at the SETUP menu or enjoy it
without connecting the MIC if the fanfare or
score appears during changing a chapter.
y
This function operate on the DVD/CD mode.
y
The Semi Karaoke function is available only
when a microphone is connected.
y
If you do not use the microphone, turn down
the volume and disconnect the microphone.
,
Note
System Setting24
System Setting
3
Lock (Parental Control)
Initial Setting the Area Code:
When you use this unit for the rst time, you have to
set the Area Code.
1. Select the [Lock] menu and then press
D
.
2. Press
D
.
To access the [Lock] options, you must input the
password you have created. Input a password and
press
b
ENTER. Enter it again and press
b
ENTER to verify. If you make a mistake before
pressing
b
ENTER, press CLEAR.
3. Select the first character using
WS
buttons.
4. Press
b
ENTER and select the second character
using
WS
buttons.
5. Press
b
ENTER to confirm your Area code
selection.
Rating
Blocks playback of rated DVDs based on their
contents. Not all discs are rated.
1. Select [Rating] on the [Lock] menu then press
D
.
2. Input a password and press
b
ENTER.
3. Select a rating from 1 to 8 using the
WS
buttons.
[Rating 1-8]
Rating one (1) has the most restrictions and
rating eight (8) is the least restrictive.
[Unlock]
If you select unlock, parental control is not active
and the disc plays in full.
4. Press
b
ENTER to confirm your rating selection.
Password
You can enter or change password.
1. Select [Password] on the [Lock] menu and then
press
D
.
2. Press
b
ENTER.
3. Input a password and press
b
ENTER.
To change the password, press
b
ENTER when
the [Change] option is highlighted. Input a
password and press
b
ENTER. Enter it again and
press
b
ENTER to verify.
4. Press
n
to exit the menu.
If you forget your password, you can clear it
using the following steps:
1. Select the [Setup] menu on the [Home
Menu].
2. Input the 6-digit number “210499” and
press
b
ENTER. The password is cleared.
,
Note
Area Code
Enter the code of the area whose standards were
used to rate the DVD video disc, based on the list on
page 39.
1. Select [Area Code] on the [Lock] menu then
press
D
.
2. Input a password and press
b
ENTER.
3. Select the first character using
WS
buttons.
4. Press
b
ENTER and select the second character
using
WS
buttons.
5. Press
b
ENTER to confirm your Area code
selection.
4 Operating
Operating 25
Operating
4

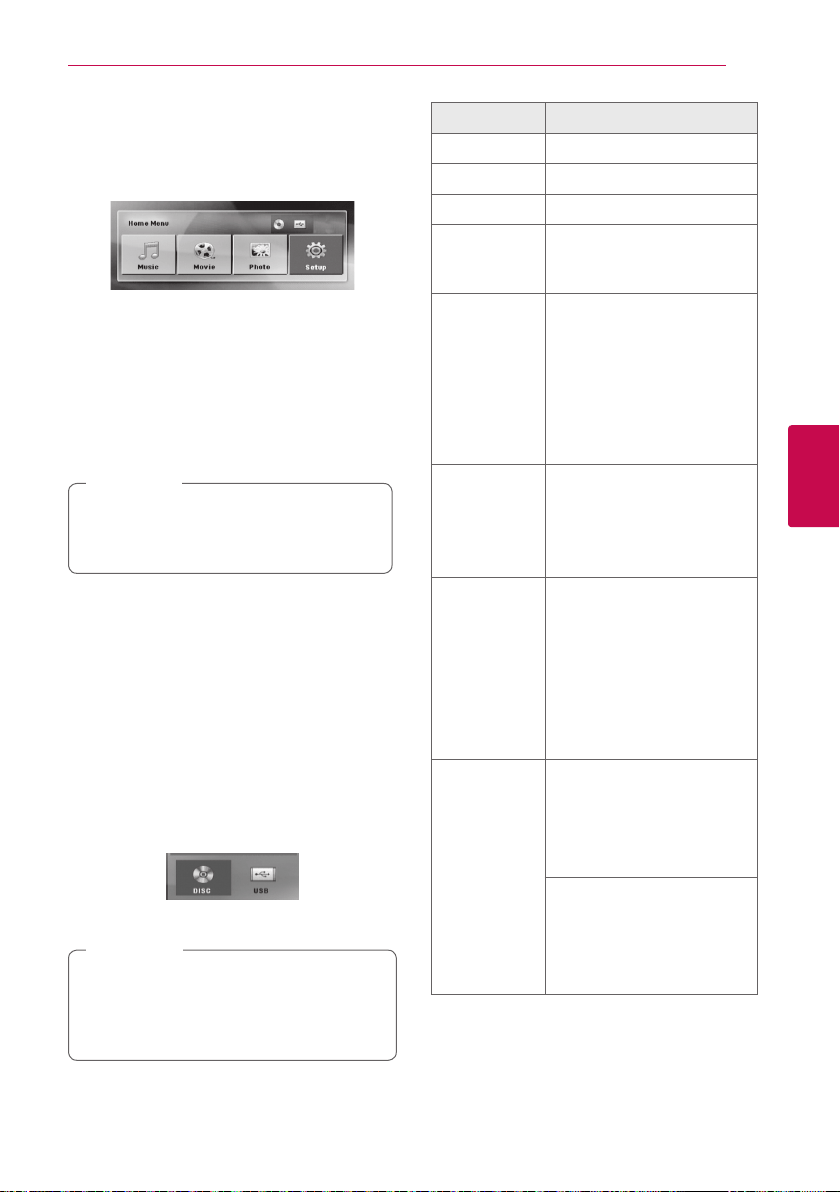

Using the Home Menu
1. Press
n
.
Displays the [Home Menu].
2. Select an option by using
AD
.
3. Press
b
ENTER then selected option menu.
[Music] – Displays [Music] menu.
[Movie] – Start video media’s playback or displays the
[Movie] menu.
[Photo] – Displays [Photo] menu.
[Setup] – Displays the [Setup] menu.
You can not select the [Music], [Movie] or
[Photo] option when the USB device is not
connected or a disc is not inserted.
,
Note
Basic Operations
1. Insert the disc by using the
B
or connect the
USB device to the USB port.
2. Press
n
.
Displays the [Home Menu].
3.
Select an option by using
AD
.
If you select the [Movie], [Photo] or [Music]
option when you connect up to two devices, it
appears as belows. Select a media then press
b
ENTER.
4. Press
b
ENTER then selected option menu.
y
For the most Audio CD and DVD-ROM discs,
playback starts automatically.
y
The unit plays only music le contained in the
USB storage device or disc automatically.
,
Note
To Do this
Stop Press
Z
.
Playback Press
d
MONO/STEREO.
Pause Press
M
.
Frame-by-
Frame playback
Press
M
repeatedly to play title
Frame-by-Frame. (DVD, Movie
only)
Skipping to the
next/ previous
chapter/ track/
le
During playback, press
C/
V
to go to the next chapter/
track/ le or to return to
the beginning of the current
chapter/ track/ le.
Press
C
twice briey to step
back to the previous chapter/
track/ le.
Locating a
point quickly by
playing a le in
fast forward or
fast reverse
During playback, press
c
/
v
repeatedly to select the
required scan speed.
To return to normal speed,
press
d
MONO/STEREO.
Playing
repeatedly or
randomly
Press
h
REPEAT repeatedly,
and the current title, chapter
or track will be played back
repeatedly or randomly.
- DVD : Chapter/ Title/ Off
- Video(MOVIE) : Title/ All/ Off
- Audio CD/ MP3/ WMA : Track/
All/ Random/ Off
Slowing down
the playing
speed
In the pause mode, press
c/v
to select the
required speed. (DVD only)
To return to normal speed,
press
d
MONO/STEREO.
In the pause mode, press
v
to select the required speed.
(Movie only)
To return to normal speed,
press
d
MONO/STEREO.
Operating26
Operating
4
Other Operations
Displaying Disc Information on-
screen
You can display various information about the disc
loaded on-screen.
1. Press
m
INFO/DISPLAY to show various
playback information.
The displayed items differ depending on the disc
type or playing status.
2. You can select an item by pressing
WS
and
change or select the setting by pressing
AD
.
Title – Current title number/ total number of titles.
Chapter – Current chapter number/ total number of
chapters.
Time – Elapsed playing time.
Audio – Selected audio language or channel.
Subtitle – Selected subtitle.
Angle – Selected angle/ total number of angles.
If any button is not pressed for a few seconds,
the on-screen display disappears.
,
Note
To display the DVD Menu
r
When you play a DVD which contains several menu,
you can select the menu you want using the Menu.
1. Press DISC MENU.
The disc’s menu appears.
2. Select the menu by using
WSAD
.
3. Press
d
MONO/STEREO to conrm.
To display the DVD title
r
When you play a DVD which contains several title,
you can select the title you want using the Menu.
1. Press TITLE.
The disc’s title appears.
2. Select the menu by pressing
WSAD
.
3. Press
d
MONO/STEREO to conrm.
1.5 times speed playback
r
The 1.5 speed allows you to watch the pictures and
listen to the sound quicker than playing at a normal
speed.
1. During playback, press
d
MONO/STEREO to
play at 1.5 times speed. “
d
X1.5” appears on the
screen.
2. Press
d
MONO/STEREO again to exit.
Screen Saver
The screen saver appears when you leave the unit in
Stop mode for about ve minutes.
Starting play from selected time
ry
To start playing at any chosen time on the le or title.
1. Press
m
INFO/DISPLAY during playback.
2. Press
WS
to select the time clock icon and
“--:--:--” appears.
3. Input the required start time in hours, minutes,
and seconds from left to right. If you enter the
wrong numbers, press CLEAR to remove the
numbers you entered. Then input the correct
numbers.
For example, to nd a scene at 1 hour, 10
minutes, and 20 seconds, enter “11020” by using
numerical buttons.
4. Press
b
ENTER to conrm. Playback starts from
the selected time.
Resume playback
ryut
The unit records the point where you pressed the
Z
depending on the disc.
If “
MZ
(Resume Stop)” appears on the screen briey,
press
d
MONO/STEREO to resume playback (from
the scene point).
If you press
Z
twice or unload the disc,
“
Z
”(Complete Stop) appears on the screen. The unit
will clear the stopped point.
Operating 27
Operating
4
y
The resume point may be cleared when a
button is pressed (for example;
1
,
B
etc).
y
This function may not work on some disc or
title/track.
,
Note
Changing subtitle code page
y
If the subtitle is not displayed properly, you can
change the subtitle code page to view the subtitle le
properly.
1. During playback, press
m
INFO/DISPLAY to
display the On-Screen display.
2. Use
WS
to select the [Code Page] option.
3. Use
AD
to select desired code option.
4. Press
x
RETURN to exit the On-Screen display.

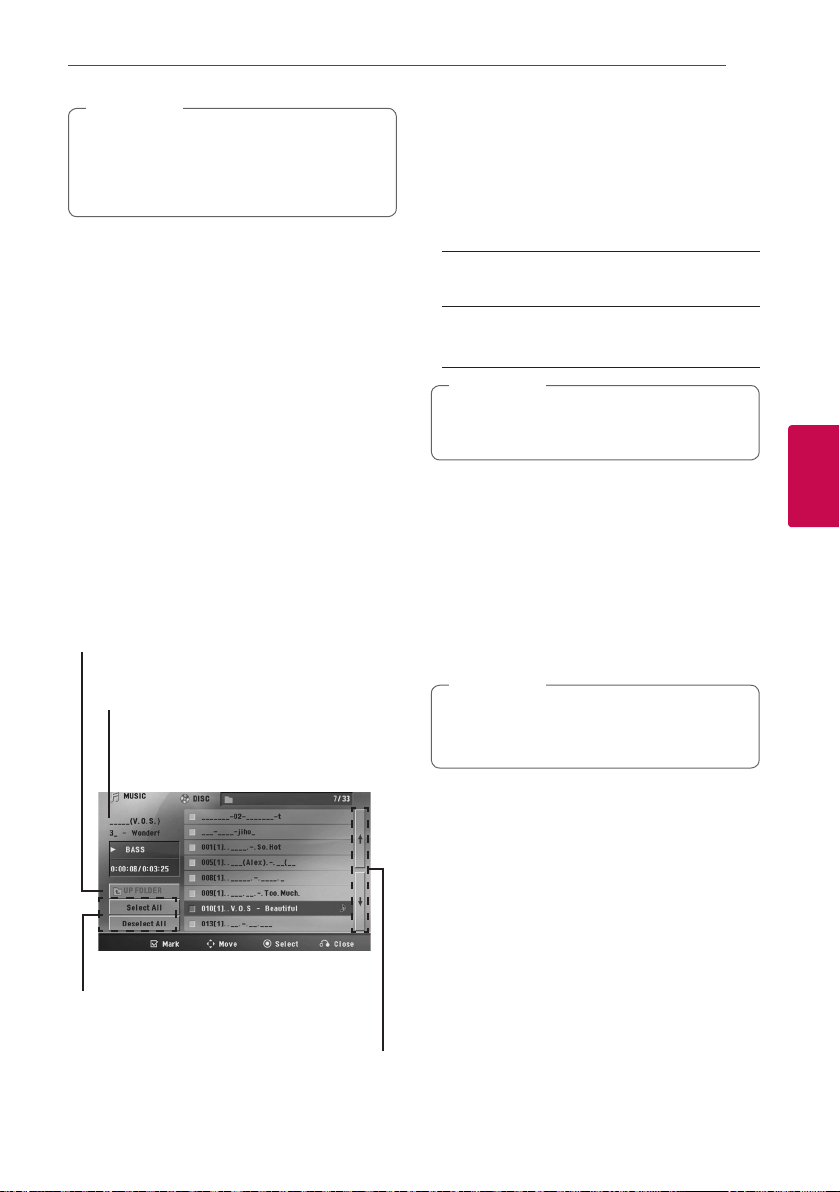

Marked Playback
ut
The mark function enables you to store your
favourite les from any disc or USB device in the unit
memory.
1. Select [Music] on the [Home Menu].
Returning to the upper folder.
(MP3/ WMA only)
Moving to the previous or next
le list.
Selecting all tracks/ les.
Deselecting all tracks/les.
File information will be displayed
according to the ID3TAG information
on the appropriate music le. (MP3
only)
2. Select a desired music on the [List] by using the
WS
then press MARKER to appears the mark on
the list.
3. Press
b
ENTER.
Displays the play mode.
4. Select the play mode by using the
WS
and press
b
ENTER.
[Mark Play]
Marked playback.
[Current Play]
Normal playback.
If you want to select all les on the list, select
[Select All] and press
b
ENTER.
,
Note
To delete a Marker
1. Use
WS
to select the track that you wish to erase
from the marked le.
2. Press MARKER.
To delete all Markers
Use
WSAD
to select [Deselect All] then press
b
ENTER in program edit mode.
The markers are also cleared when the disc or
USB device is removed, the unit is switched to
power off or the function is switched to others.
,
Note
Operating28
Operating
4

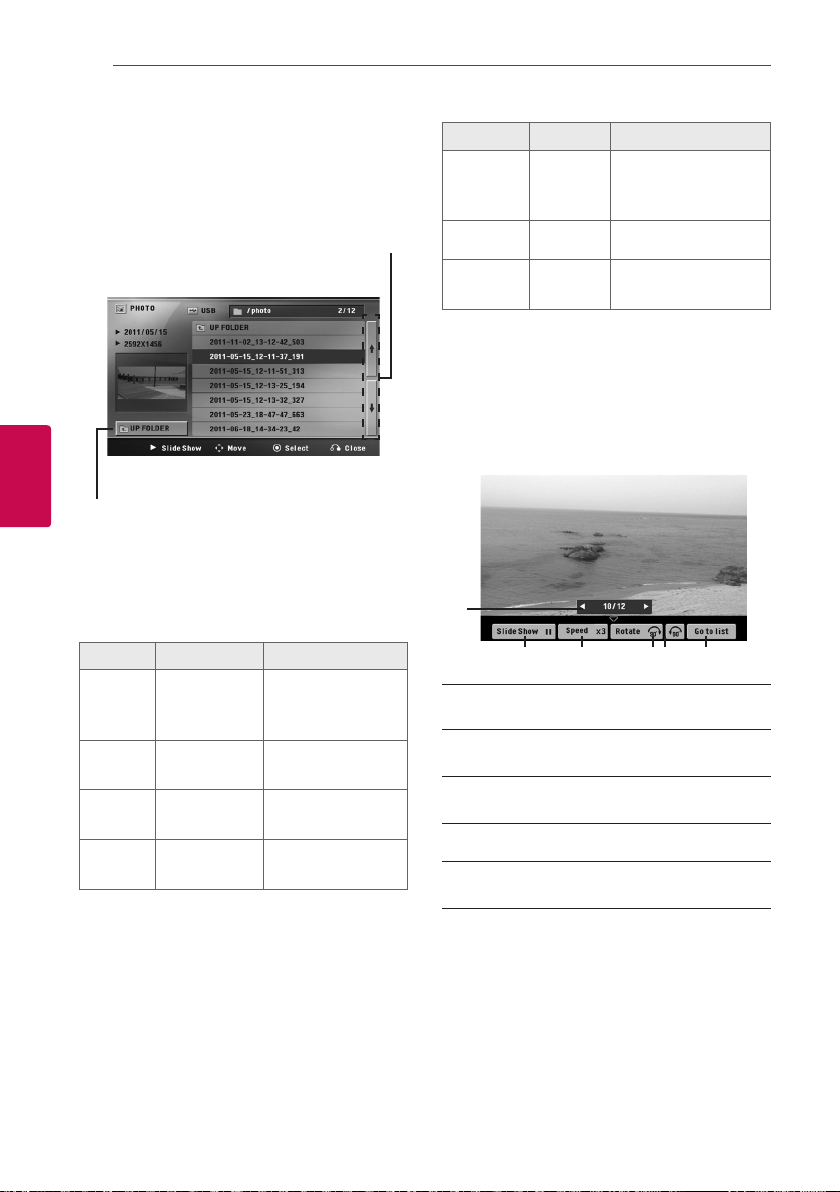

Viewing a PHOTO file
i
This unit can play discs with photo les.
1. Select [Photo] on the [Home Menu] and press
b
ENTER.
Moving to the previous or next
le list.
Returning to the upper
folder.
2. Press
WS
to select a folder, and then press
b
ENTER.
3. If you want to view a slide show, press
WS
to
highlight a file and press
d
MONO/STEREO.
About help menu in the [Photo] menu
Menu Buttons Operation
d
Slide
Show
d
MONO/
STEREO
Viewing a slide show.
wsad
Move
WSAD
Moving to another
le or content.
b
Select
b
ENTER
Viewing a particular
le.
x
Close
x
RETURN
Returning to the
[Home Menu].
About help menu in the full screen
Menu Buttons Operation
Menu
m
INFO/
DISPLAY
Displaying the Option
menu.
a/d
Prev./ Next
A/D
Moving to another le.
x
List
x
RETURN
Returning to the
[Photo] menu.
Options while viewing a photo
You can use various options during viewing a photo in
full screen.
1. While viewing a photo in full screen, press
m
INFO/DISPLAY to display the option menu.
2. Select an option using
WSAD
.
a
b c d e
a
Current photo/ Total number of photos –
Use
AD
to view previous/next photo.
b
Slide Show
z
/
M
– Press
ENTER to start
or pause slide show.
c
Speed x3/ x2/ x1 – Use
ENTER to select a
delaying speed between photos in a slide show.
d
Rotate – Press
ENTER to rotate the photo.
e
Go to list – Press
ENTER to return [Photo]
menu.
Operating 29
Operating
4
Sleep Timer Setting
Press SLEEP one or more times to select delay time
between 10 and 180 minutes, after the unit will turn
off.
To check the remaining time, press SLEEP.
To cancel the sleep function, press SLEEP repeatedly
until “SLEEP 10” appears, and then press SLEEP
once again while “SLEEP 10” is displayed.
You can check the remaining time before the
Unit turns off.
Press SLEEP The remaining time appears in the
display window.
,
Note
Dimmer
Press SLEEP once. The display window will be darken by
half. To cancel it, press SLEEP repeatedly until dim off.
Turn off the sound temporarily
Press to mute your unit.
You can mute your unit in order, for example, to
answer the telephone, appears the MUTE in the
display window. To cancel it, press again or change
the volume level.
Last Scene Memory
r
This unit memorizes last scene from the last disc that
is viewed. The last scene remains in memory even if
you remove the disc from the unit or switch off the
unit. If you load a disc that has the scene memorized,
the scene is automatically recalled.
Power Resume - Optional
r
Even if the power suddenly goes out, turn on the
unit and then it plays a position where the contents
is being played. System will periodically save current
playback status.
System Select - Optional
You must select the appropriate system mode for your
TV system. Press and hold
M
for more than ve seconds
to be able to select a system in the [Home Menu].
If the USB device is connected or a disc is
inserted, this function is not operated.
,
Note
Adjust the speaker level settings
You can adjust the sound level of each speaker.
1. Press SPEAKER LEVEL repeatedly to select a
desired speaker to set.
2. Press VOL -/+ to adjust the sound level of the
selected speaker while the level setting memu is
displayed on the display window.
3. Repeat and adjust the sound level of the other
speakers.
VOCAL FADER
You can enjoy the function as karaoke, by reducing
singer vocal of music in the various source. (MP3/
WMA/ CD/ etc.) Press the VOCAL FADER, and
“FADE ON” will appear in display window.
To cancel it, press VOCAL FADER again.
The quality of the VOCAL FADER may be different
depending on the recording conditions of music les.
y
This function is available to use only when a
microphone is connected.
y
It is not available on the MONO source.
,
Note
Auto power down
This unit will be off itself to save electric consumption in
the case main unit is not connected to external device
and is not used for 20 minutes. So does this unit after
six hours since Main unit has been connected to other
device using analog input.
How to disconnect the wireless
network connection or the
wireless device.
Turn off the unit by pressing the power button for more
than 5 seconds.
Operating30
Operating
4
Radio Operations
Be sure that FM antenna is connected.
(Refer to the page 20.)
Listening to the radio
1. Press
P
FUNCTION until FM appears in the
display window.
The last received station is tuned in.
2. Press and hold TUNING (-/+) for about two
seconds until the frequency indication starts to
change, then release. Scanning stops when the
unit tunes in a station.
or
Press TUNING (-/+) repeatedly.
3. Adjust the volume by pressing VOL (-/+)
repeatedly.
Presetting the Radio Stations
You can preset 50 stations for FM.
Before tuning, make sure that you have turned down
the volume.
1. Press
P
FUNCTION until FM appears in the
display window.
2. Select the desired frequency by using TUNING
(-/+).
3. Press
b
ENTER a preset number will ash in the
display window.
4. Press PRESET (
W/S
) to select the preset
number you want.
5. Press
b
ENTER.
The station is stored.
6. Repeat the steps 2 to 5 to store other stations.
7. To listen a preset station, pess PRESET (
W/S
)
or 0 to 9 numerical buttons on the remote
control.
Deleting all the saved stations
1. Press and hold CLEAR for two seconds.
“ERASEALL” will ash up on the unit display.
2. Press CLEAR to erase all saved of the radio
stations.
Deleting a saved station
1. Press PRESET (
W/S
) to select a preset number
you want to delete.
2. Press CLEAR, the preset number will blink in the
display window.
3. Press CLEAR again to delete the selected preset
number.
Improving poor FM reception
Press
d
MONO/STEREO on the remote control.
This will change the tuner from stereo to mono and
usually improve the reception.
Operating 31
Operating
4
Sound adjustment
Setting the surround mode
This system has a number of pre-set surround sound
elds. You can select a desired sound mode by using
SOUND EFFECT.
You can change the SOUND EFFECT using
AD
arrow key while the sound effect information is
displayed on.
The displayed items for the equalizer maybe different
depending on sound sources and effects.
On Display Description
STANDARD
(STD)
You can enjoy the sound
without equalizer effect.
BASS BLAST
(BASS)
The BASS is Bass Blast. During
playback, reinforce the treble,
bass and surround sound
effect.
USER EQ
You can adjust the sound
effect.
FOOTBALL
You can enjoy more dynamic
sound as watching sports
game in the stadium.
POWER FRONT
(P-FRONT)
You can enjoy the harmonious
sound. This mode is suited
for front-positioned speakers
when they are all placed in a
row.
y
In some of surround modes, some speakers,
there’s no sound or low sound. It depends
on the mode of surround and the source of
audio, it is not defective.
y
This function is not operated when the
microphone is connected to the unit.
,
Note
Setting the USER EQ
You can adjust the sound level of Bass(BASS) and
Treble(TRE) as your preference.
1. Use SOUND EFFECT to select the USER EQ then
press
b
ENTER.
2. Use
WS
to select Bass (BASS) or Treble(TRE).
3. Use
AD
to select the sound level of Bass(BASS)
or Treble(TRE) then press
b
ENTER to save the
setting.
32
Operating
4
Operating
Advanced Operations
Recording to USB
You can record music or sound souce to USB device
by connecting in to the port on the unit.
1. Connect the USB device to the unit.
2. Select a mode in which you want to record.
Playback a sound source rst.
3. Start the recording by pressing
X
REC.
4. To stop recording, press
Z
.
[All tracks/ les recording]
Record to USB in stop or play mode.
[Program list recording]
After marking desired le(s) and you can record
it to USB (Refer to the page 27).
It’ll be stored as follows.
Audio CD
MP3/ WMA
The other
sources (Tuner,
AUX, Portable)
y
You can check the recording percentage rate
for the USB record on the screen during the
recording. (Audio CD or MP3/ WMA CD only)
y
During recording MP3/WMA, there is no
sound.
y
When you stop recording during playback, the
le that has been recorded at that time will
be stored. (Except MP3/WMA les)
y
Do not remove the USB device or turn off
the unit during USB recording. If does not, an
incomplete le may be made and not deleted
on PC.
y
Recording through microphones is not
available.
y
If USB recording does not work, the message
like “NO USB”, “ERROR”, “USB FULL” or “NO
REC” is displayed on the display window.
y
Multi card reader device or external HDD can
not be used for USB recording.
y
A le is recorded by 128 Mbyte (about 2
hours) when you record for a long term. There
are recorded less than 4 les.
y
In the state CD-G, DTS disc USB record is not
operated.
y
The les in the sub-folders are not recorded
during all track recording.
y
You may not record more than 999 les.
y
The numbering of the recording le is entered
from the lowest number. So if you delete
some of the recording les, the next recording
le could be the lowest number among them.
,
Note
The making of unauthorized copies of copy-
protected material, including computer
programs, files, broadcasts and sound
recordings, may be an infringement of
copyrights and constitute a criminal offense.
This equipment should not be used for such
purposes.
Be responsible
Respect copyrights.
Operating 33
Operating
4
Using a BLUETOOTH®
wireless technology
About BLUETOOTH
Bluetooth is wireless communication technology for
short range connection.
The sound may be interrupted when the connection
interfered by the other electronic wave or you
connect the Bluetooth in the other rooms.
Connecting individual devices under
Bluetooth wireless technology does not incur any
charges. A mobile phone with Bluetooth wireless
technology can be operated via the Cascade if
the connection was made via Bluetooth wireless
technology.
Available Devices : Mobile phone, MP3, Laptop, PDA
(This units be supported the Stereo Headset.)
BLUETOOTH Profiles
In order to use Bluetooth wireless technology,
devices must be able to interpret certain proles.This
unit is compatible with following prole.
A2DP (Advanced Audio Distribution Prole)
Listening to music of a
BLUETOOTH device
Pairing your unit and Bluetooth device
Before you start the pairing procedure, make sure the
Bluetooth feature is turned on in to your Bluetooth
device. Refer to your Bluetooth device’s user guide.
Once a pairing operation is performed, it does not
need to be performed again.
1. Select the Bluetooth function by using the
P
FUNCTION.
Appears “BT READY” in display window.
2. Operate the Bluetooth device and perform the
pairing operation. When searching for this unit
with the Bluetooth device, a list of the devices
found may appear in the Bluetooth device display
depending on the type of Bluetooth device.Your
unit appears as “LG HTS(XX:XX)”.
XX:XX means the last four digits of BT address.
For example, if your unit has a BT address
such as 9C:02:98:4A:F7:08, you will see “LG
HTS(F7:08)” on your Bluetooth device.
,
Note
3. When this unit is successfully connected with
your Bluetooth device, “PAIRED” appears on the
display window and change to Bluetooth device
name soon.
Depending on the Bluetooth device type, some
device have a different pairing way.
,
Note
4. Listening to music.
To play a music stored on your Bluetooth device,
refer to your Bluetooth device’s user guide.
y
If you change the function of the unit, the
Bluetooth function is disconnected, operate
pairing again.
(Bluetooth Function other than the
Bluetooth)
y
Depending on the Bluetooth device type,
some device have a different pairing way.
(Enter the PIN code (0000) as needed.)
,
Note
Operating34
Operating
4
y
The sound may be interrupted when the
connection interfered by the other electronic
wave.
y
You cannot control the Bluetooth device with
this unit.
y
Pairing is limited one Bluetooth device per
one unit and multi-pairing is not supported.
y
Depending on the type of the device, you may
not be able to use the Bluetooth function.
y
You can enjoy wireless system using phone,
MP3, Notebook, headset, etc..
y
When not connected the Bluetooth, “BT
READY” appears on the display window.
y
The Electrical malfunction due to devices
using same frequency such as Medical
equipment, Microwaves or wireless LAN
devices, the connection will be disconnected.
y
When someone stands and interrupts
communication between Bluetooth device
and the player, the connection will be
disconnected.
y
If the gotten away of the distance between
Bluetooth and the unit, the sound quality
is lower and lower the connection will
disconnect when the space between the
Bluetooth and the unit gets out of the
operating range of Bluetooth.
y
If the function is changed to Bluetooth again
from other function, Bluetooth device is
paired automatically.
y
If the Bluetooth device name contains special
characters, they are displayed as “_” on the
display window.
y
Bluetooth connection are unavailable during
recording.
,
Note
Operating 35
Operating
4
Auto function change
This unit recognizes input signals such as Bluetooth
and then changes suitable function automatically.
When you try to connect BLUETOOTH
device
When you try to connect your Bluetooth device to
this unit, Bluetooth function is selected. Play your
music on the Bluetooth device.
y
The Bluetooth unit which is not paired
with this unit, cannot use the auto function
change.
y
If you change the this unit’s function to other
function, some Bluetooth unit may try to
connecting in succession. Disconnect the
Bluetooth connection before changing of the
this unit’s function.
,
Note
Operating36
Operating
4
AUTO POWER On
This unit automatically turns on by an input source :
Bluetooth.
When you turn on your external device connected
to this unit, this unit recognizes the input signal and
select the suitable function. You can hear the sound
from your device.
If you try to connect your Bluetooth device, this unit
turns on and is paired automatically. And then play
your music.
y
After the unit is turned on by AUTO POWER
function, it will be automatically turned off if
there is no signal for a certain period of time
from the external device.
y
Depending on the connected device, this
function may not operate.
y
If you disconnect Bluetooth connection by
this unit, some Bluetooth devices try to
connect to the unit continually. Therefore it is
recommended to disconnect the connection
before turn off the unit.
y
If you want to use AUTO POWER, SIMPLINK
must be turned off. It takes for about 30
seconds to switch on or off SIMPLINK.
y
If you have already paired with this unit
automatically this unit can turn on by an
input.
y
If you turn off the unit by pressing the power
button for more than 5 seconds, Auto Power
On function is disabled. To activate it, turn on
the unit.
,
Note
5 Troubleshooting
Troubleshooting 37
Troubleshooting
5
Troubleshooting
PROBLEM CORRECTION
The unit does not work properly.
y
Turn off the power of this unit and the connected external device (TV,
Woofer, DVD-player, Amplier, etc.) and turn it on again.
y
Disconnect the power cord of this unit and the connected external device (TV,
Woofer, DVD-player, Amplier, etc.) and then try connecting again.
No power
y
Plug the power cord into the wall outlet securely.
No picture
y
Select the appropriate video input mode on the TV so the picture
from the unit appears on the TV screen.
y
Connect the video cables securely to both the TV and unit.
There is little or no sound
y
Select the correct input mode of the unit so you can hear the sound
from the unit.
y
Connect the audio cables into the connection terminals correctly.
y
Replace with a new audio cable.
The DVD picture quality is poor
y
Clean the disc using a soft cloth with outward strokes.
A DVD/CD will not play
y
Insert a disc.
y
Insert a playable disc (check the disc type, colour system and
regional code).
y
Place the disc with the label or printed side facing upwards.
y
Enter your password or change the rating level.
Humming noise heard while a DVD or
CD is playing
y
Clean the disc using a soft cloth with outward strokes.
y
Move unit and audio components further away from your TV.
Radio stations can’t be tuned in
properly
y
Check the antenna connection and adjust its position.
y
Attach an external antenna if necessary.
y
Tune to the station manually.
y
Preset some radio stations, see page 30 for details.
The remote control doesn’t work well
/ at all
y
The remote is not pointed directly at the unit.
Point the remote directly at the unit.
y
The remote is too far from the unit.
Use the remote within 23 feet (7 m) of the unit.
y
There is an obstacle in the path between the remote control and
the unit.
Remove the obstacle.
y
The battery in the remote control are at.
Replace the battery with new ones.
The AUTO POWER function does not
work.
y
Check connection of the external device such as TV, DVD/Blu-Ray
player or Bluetooth device.
y
Check the state of SIMPLINK and turn off SIMPLINK.
y
Depending on the connected device, this function may not operate.
6 Appendix
Appendix38
Appendix
6
Maintenance
Handling the Unit
When shipping the unit
Please save the original shipping carton and packing
materials. If you need to ship the unit, for maximum
protection, re-pack the unit as it was originally
packed at the factory.
Keeping the exterior surfaces clean
y
Do not use volatile liquids such as insecticide spray
near the unit.
y
Wiping with strong pressure may damage the
surface.
y
Do not leave rubber or plastic products in contact
with the unit for a long period of time.
Cleaning the unit
To clean the player, use a soft, dry cloth. If the
surfaces are extremely dirty, use a soft cloth lightly
moistened with a mild detergent solution. Do not use
strong solvents such as alcohol, benzine, or thinner,
as these might damage the surface of the unit.
Maintaining the Unit
The unit is a high-tech, precision device. If the optical
pick-up lens and disc drive parts are dirty or worn, the
picture quality could be diminished. For details, please
contact your nearest authorized service center.
Notes on Discs
Handling Discs
Do not touch the playback side of the disc. Hold the
disc by the edges so that ngerprints do not get on
the surface. Never stick paper or tape on the disc.
Storing Discs
After playing, store the disc in its case. Do not
expose the disc to direct sunlight or sources of heat
and never leave it in a parked car exposed to direct
sunlight.
Cleaning Discs
Fingerprints and dust on the disc can cause poor
picture quality and sound distortion. Before playing,
clean the disc with a clean cloth. Wipe the disc from
the center to out.
Do not use strong solvents such as alcohol, benzine,
thinner, commercially available cleaners, or anti-static
spray intended for older vinyl records.
Appendix 39
Appendix
6
Area Code List
Choose an area code from this list.
Area Code Area Code Area Code Area Code
Afghanistan AF
Argentina AR
Australia AU
Austria AT
Belgium BE
Bhutan BT
Bolivia BO
Brazil BR
Cambodia KH
Canada CA
Chile CL
China CN
Colombia CO
Congo CG
Costa Rica CR
Croatia HR
Czech Republic CZ
Denmark DK
Ecuador EC
Egypt EG
El Salvador SV
Ethiopia ET
Fiji FJ
Finland FI
France FR
Germany DE
Great Britain GB
Greece GR
Greenland GL
Hong Kong HK
Hungary HU
India IN
Indonesia ID
Israel IL
Italy IT
Jamaica JM
Japan JP
Kenya KE
Kuwait KW
Libya LY
Luxembourg LU
Malaysia MY
Maldives MV
Mexico MX
Monaco MC
Mongolia MN
Morocco MA
Nepal NP
Netherlands NL
Antilles AN
New Zealand NZ
Nigeria NG
Norway NO
Oman OM
Pakistan PK
Panama PA
Paraguay PY
Philippines PH
Poland PL
Portugal PT
Romania RO
Russian
Federation RU
Saudi Arabia SA
Senegal SN
Singapore SG
Slovak Republic SK
Slovenia SI
South Africa ZA
South Korea KR
Spain ES
Sri Lanka LK
Sweden SE
Switzerland CH
Taiwan TW
Thailand TH
Turkey TR
Uganda UG
Ukraine UA
United States US
Uruguay UY
Uzbekistan UZ
Vietnam VN
Zimbabwe ZW
Appendix40
Appendix
6
Language code List
Use this list to input your desired language for the following initial settings: [Disc Audio],
[Disc Subtitle] and [Disc Menu].
Language Code Language Code Language Code Language Code
Afar 6565
Afrikaans 6570
Albanian 8381
Ameharic 6577
Arabic 6582
Armenian 7289
Assamese 6583
Aymara 6588
Azerbaijani 6590
Bashkir 6665
Basque 6985
Bengali; Bangla 6678
Bhutani 6890
Bihari 6672
Breton 6682
Bulgarian 6671
Burmese 7789
Byelorussian 6669
Chinese 9072
Croatian 7282
Czech 6783
Danish 6865
Dutch 7876
English 6978
Esperanto 6979
Estonian 6984
Faroese 7079
Fiji 7074
Finnish 7073
French 7082
Frisian 7089
Galician 7176
Georgian 7565
German 6869
Greek 6976
Greenlandic 7576
Guarani 7178
Gujarati 7185
Hausa 7265
Hebrew 7387
Hindi 7273
Hungarian 7285
Icelandic 7383
Indonesian 7378
Interlingua 7365
Irish 7165
Italian 7384
Japanese 7465
Kannada 7578
Kashmiri 7583
Kazakh 7575
Kirghiz 7589
Korean 7579
Kurdish 7585
Laothian 7679
Latin 7665
Latvian, Lettish 7686
Lingala 7678
Lithuanian 7684
Macedonian 7775
Malagasy 7771
Malay 7783
Malayalam 7776
Maori 7773
Marathi 7782
Moldavian 7779
Mongolian 7778
Nauru 7865
Nepali 7869
Norwegian 7879
Oriya 7982
Panjabi 8065
Pashto, Pushto 8083
Persian 7065
Polish 8076
Portuguese 8084
Quechua 8185
Rhaeto-Romance 8277
Rumanian 8279
Russian 8285
Samoan 8377
Sanskrit 8365
Scots Gaelic 7168
Serbian 8382
Serbo-Croatian 8372
Shona 8378
Sindhi 8368
Singhalese 8373
Slovak 8375
Slovenian 8376
Spanish 6983
Sudanese 8385
Swahili 8387
Swedish 8386
Tagalog 8476
Tajik 8471
Tamil 8465
Telugu 8469
Thai 8472
Tonga 8479
Turkish 8482
Turkmen 8475
Twi 8487
Ukrainian 8575
Urdu 8582
Uzbek 8590
Vietnamese 8673
Volapük 8679
Welsh 6789
Wolof 8779
Xhosa 8872
Yiddish 7473
Yoruba 8979
Zulu 9085
Appendix 41
Appendix
6
Trademarks and
Licenses
All other trademarks are trademarks of their
respective owners.
Manufactured under license from Dolby
Laboratories. Dolby and the double-D symbol are
trademarks of Dolby Laboratories.
The terms HDMI and HDMI High-Denition
Multimedia Interface, and the HDMI logo are
trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other
countries.
“DVD Logo” is a trademark of DVD Format/Logo
Licensing Corporation.
The Bluetooth word mark and logos are owned by
the Bluetooth SIG, Inc. and any use of such marks
by LG Electronics is under license.
Other trademarks and trade names are those of
their respective owners.
Notes on Copyrights
y
This product incorporates copyright protection
technology that is protected by U.S. patents
and other intellectual property rights. Use of
this copyright protection technology must be
authorized by Rovi, and is intended for home and
other limited viewing uses only unless otherwise
authorized by Rovi. Reverse engineering or
disassembly is prohibited.
y
Under the U.S. Copyright laws and Copyright
laws of other countries, unauthorized recording,
use, display, distribution, or revision of television
programs, videotapes, BD-ROM discs, DVDs, CDs
and other materials may subject you to civil and/or
criminal liability.
Appendix42
Appendix
6
Specifications
General (LHD657)
Power requirements Refer to main label.
Power consumption
Refer to main label.
Networked standby 0.5 W (If all network ports are activated.)
Dimensions (W x H x D) Approx. (360 x 58 x 298.5) mm without foot
Net Weight Approx. 2.46 kg
Operating temperature 5 °C to 35 °C
Operating humidity 5 % to 90 %
Bus Power Supply 5 V
0
500 mA
Inputs/ Outputs
VIDEO OUT 1.0 V (p-p), 75
Ω
, sync negative, RCA jack x 1
HDMI OUT (video/audio) 19 pin (Type A, HDMI™ Connector ) x 1
ANALOG AUDIO IN 2.0 Vrms (1 kHz, 0 dB), 600
Ω
, RCA jack (L, R) x 1
DIGITAL IN (OPTICAL) 3 V (p-p), Optical jack x 1
PORT. IN 0.5 Vrms (3.5 mm stereo jack) x 1
Amplier
Stereo mode 167 W + 167 W (3
Ω
at 1kHz)
Surround mode
Front 167 W + 167 W (3
Ω
at 1 kHz)
Center 167 W (3
Ω
at 1 kHz)
Surround 167 W + 167 W (3
Ω
at 1 kHz)
Subwoofer 167 W (3
Ω
at 60 Hz)
Tuner
FM Tuning Range 87.5 to 108.0 MHz or 87.50 to 108.00 MHz
Appendix 43
Appendix
6
Front Speaker (S67T2-S)
Type 1 way 1 speaker
Impedance 3
Ω
Rated Input Power 167 W
Max. Input Power 334 W
Net Dimensions (W x H x D) Approx. (250 x 1110 x 250) mm
Net Weight Approx. 3.5 kg
Rear Speaker (S67T2-S)
Type 1 way 1 speaker
Impedance 3
Ω
Rated Input Power 167 W
Max. Input Power 334 W
Net Dimensions (W x H x D) Approx. (250 x 1110 x 250) mm
Net Weight Approx. 3.5 kg
Centre Speaker (S67T2-C)
Type 1 way 1 speaker
Impedance 3
Ω
Rated Input Power 167 W
Max. Input Power 334 W
Net Dimensions (W x H x D) Approx. (260 x 93 x 73) mm
Net Weight Approx. 0.55 kg
Passive Subwoofer (S67T2-W)
Type 1 Way 1 Speaker
Impedance 3
Ω
Rated Input Power 167 W
Max. Input Power 334 W
Net Dimensions (W x H x D) Approx. (191 x 386 x 318) mm
Net Weight Approx. 4.88 kg
y
Design and specications are subject to change without notice.
