ADA HIGH VOLTAGE WIRING INSTRUCTIONS FOR DOUBLE BLOWER RANGE HOODS WITH
ROCKER SWITCH CONTROL
WARNING
!
For residential (domestic) installation only. Before proceeding, switch power off at service panel and lock service
disconnecting means to prevent power from being switched on accidentally. Installation work and electrical wiring
must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated
construction codes and standards. Also, it is recommended to wear safety glasses and gloves.

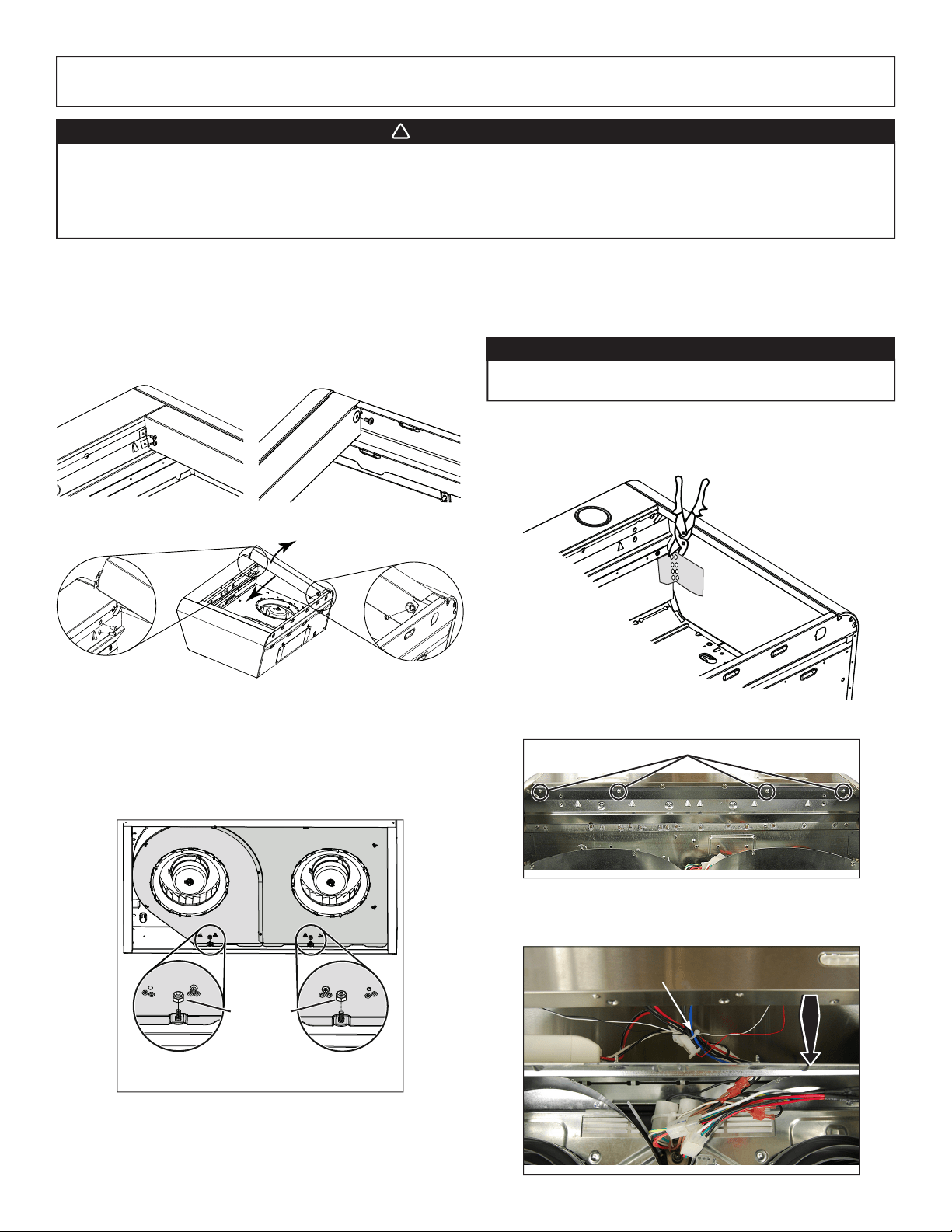

ACCESS TO RANGE HOOD CONTROL PANEL CONNECTIONS
99045893B
Remove both filters from the hood and set them aside.
Remove both side fillers by removing the 3 screws holding each
one of them. Slide each one towards the center of the hood and
tilt it up to remove it completely. Set the fillers and screws aside.
c
d
Using a 11/32” nutdriver or socket, remove both lock nuts
retaining the flange of each blower cover plate (shaded parts
on illustration at right) to the inner back of hood (see insets).
Remove all cover plate retaining screws (10 screws), then set
both blower covers along with their screws and nut aside.
HO0280
1
2
3
45
6
7
BACK OF HOOD
LOCK NUTS
8
9
10
HR0213
Locate the small plates on both left and right inner side ot the
hood (shaded part in illustration below). Use thin sheet metal
snips to split these plates.
NOTES: 1. The plates are for shipping purpose only, there is no
need to reinstall them.
2. Blower not shown on illustration to ease
understanding.
CAUTION
Be careful not to kink the range hood side panels while
splitting the plates.
Remove and set aside the 4 front screws retaining the inner front
plate to the hood.
HD1103
Screw locations
HD1104
TIE WRAP

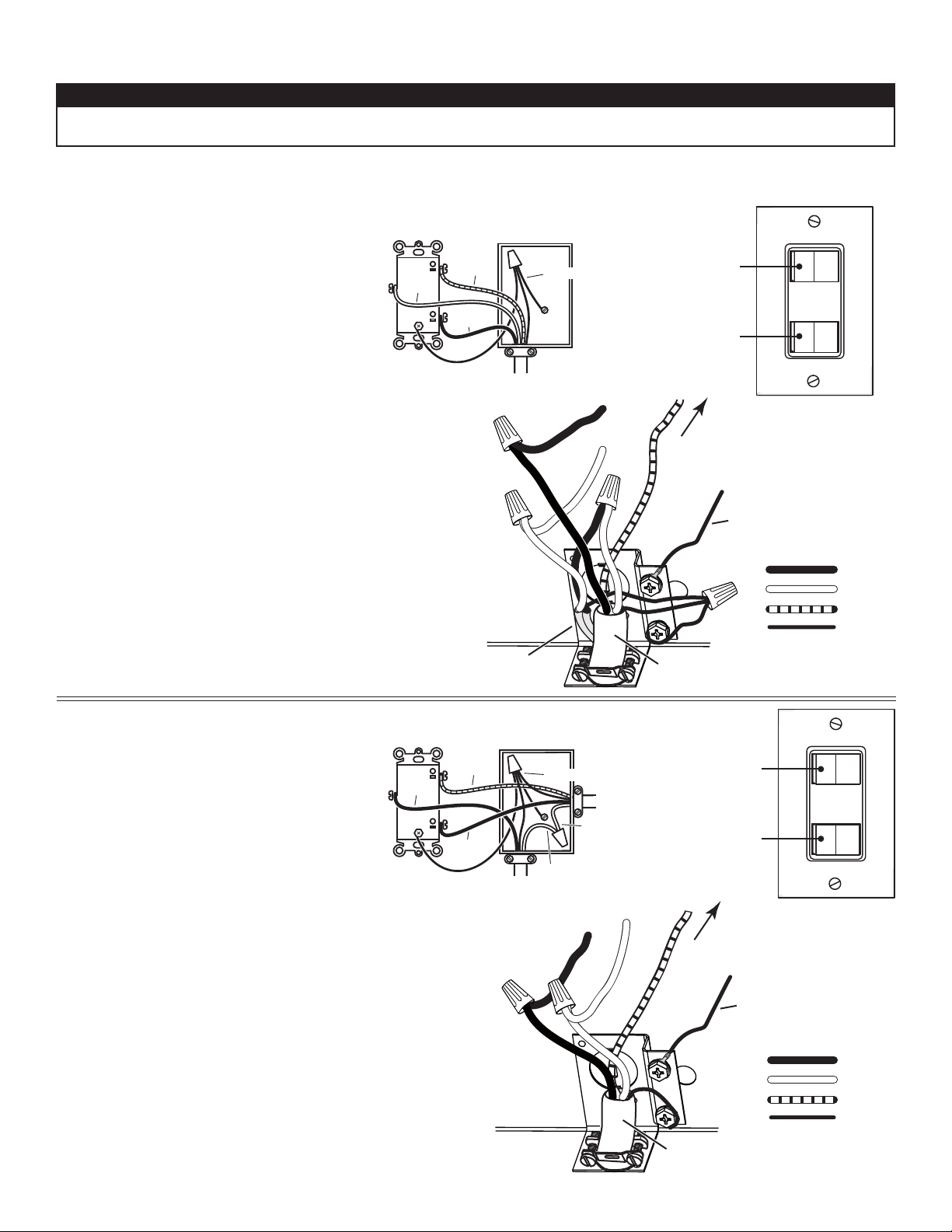

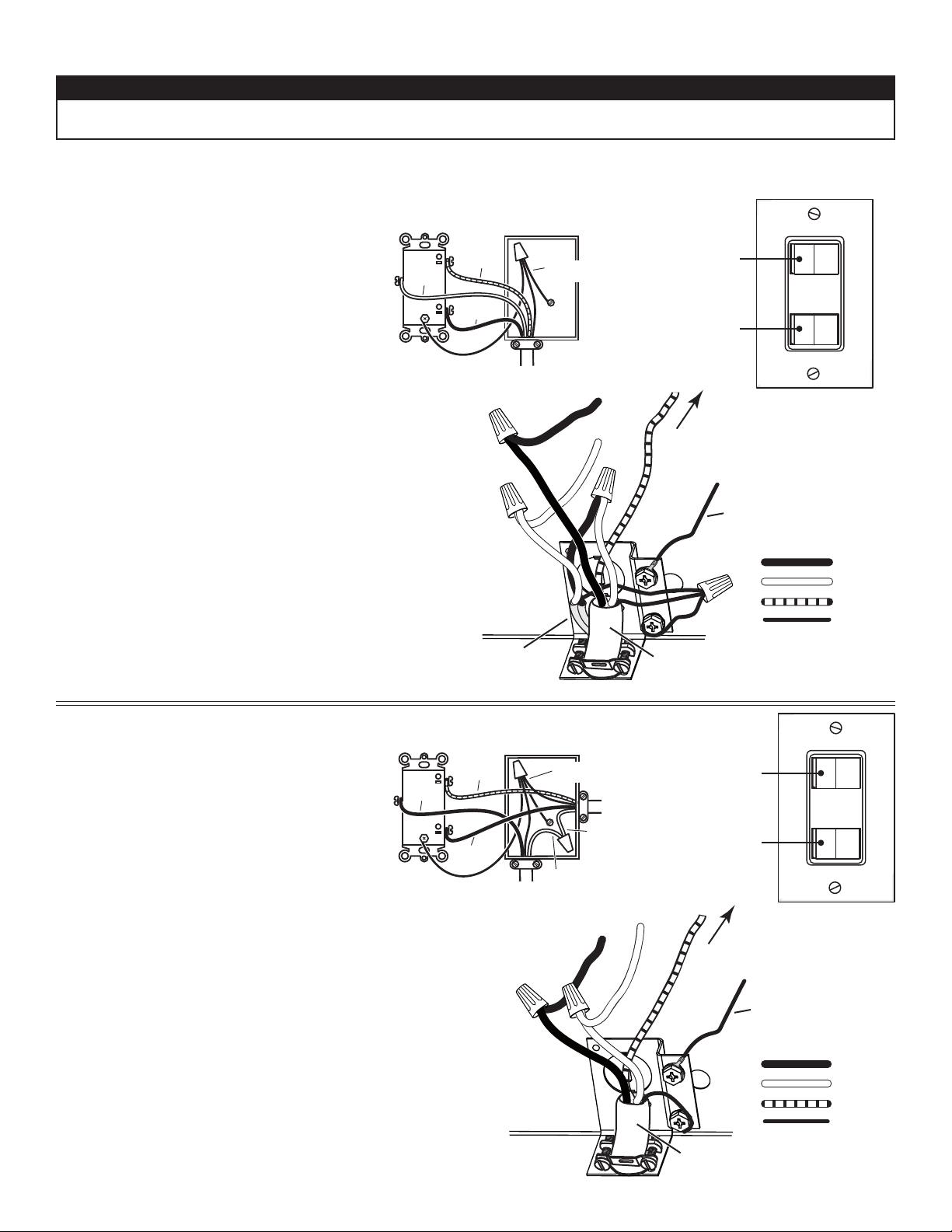

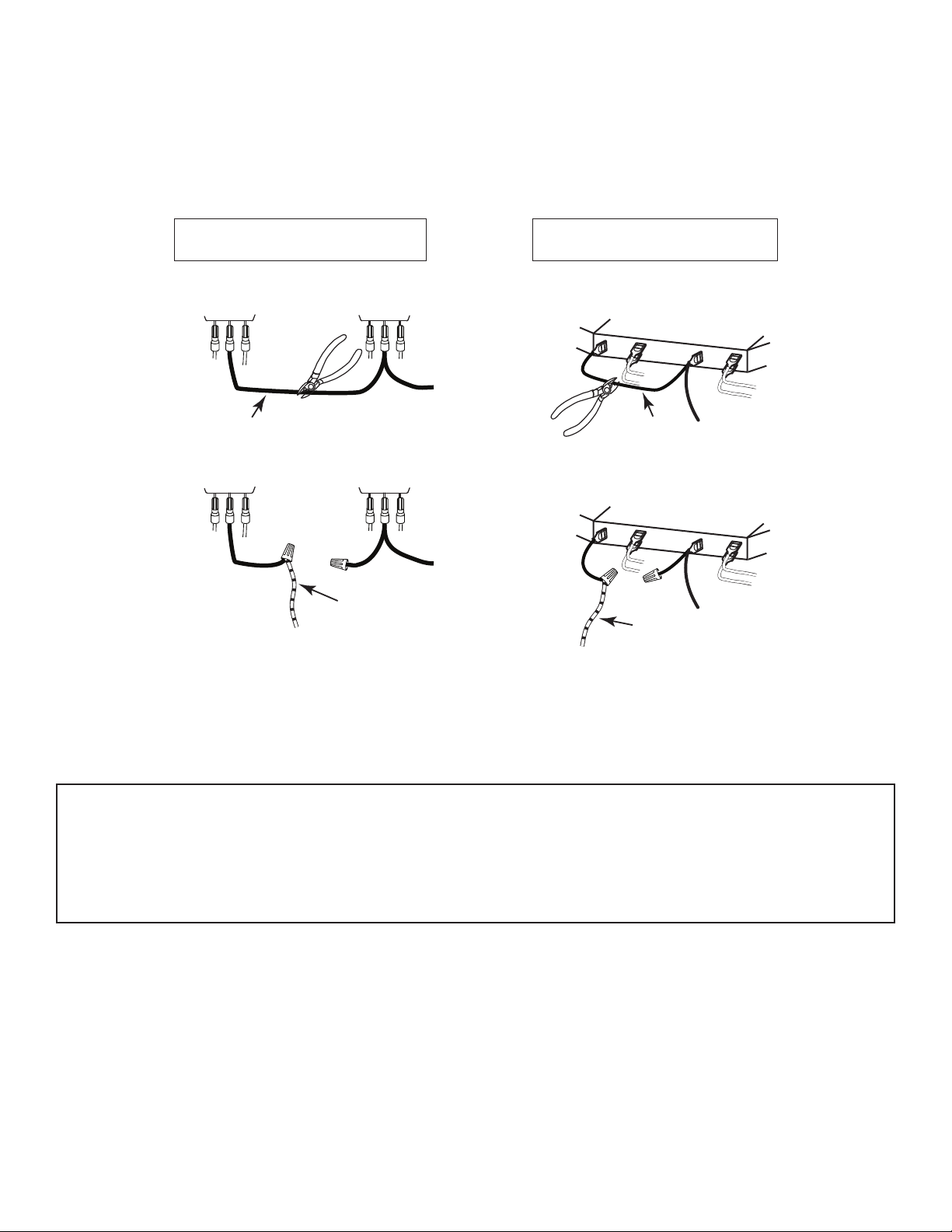

Fold back the inner front plate to access to the hood control
connections. Carefully cut-off the tie wrap retaining wires
together.
