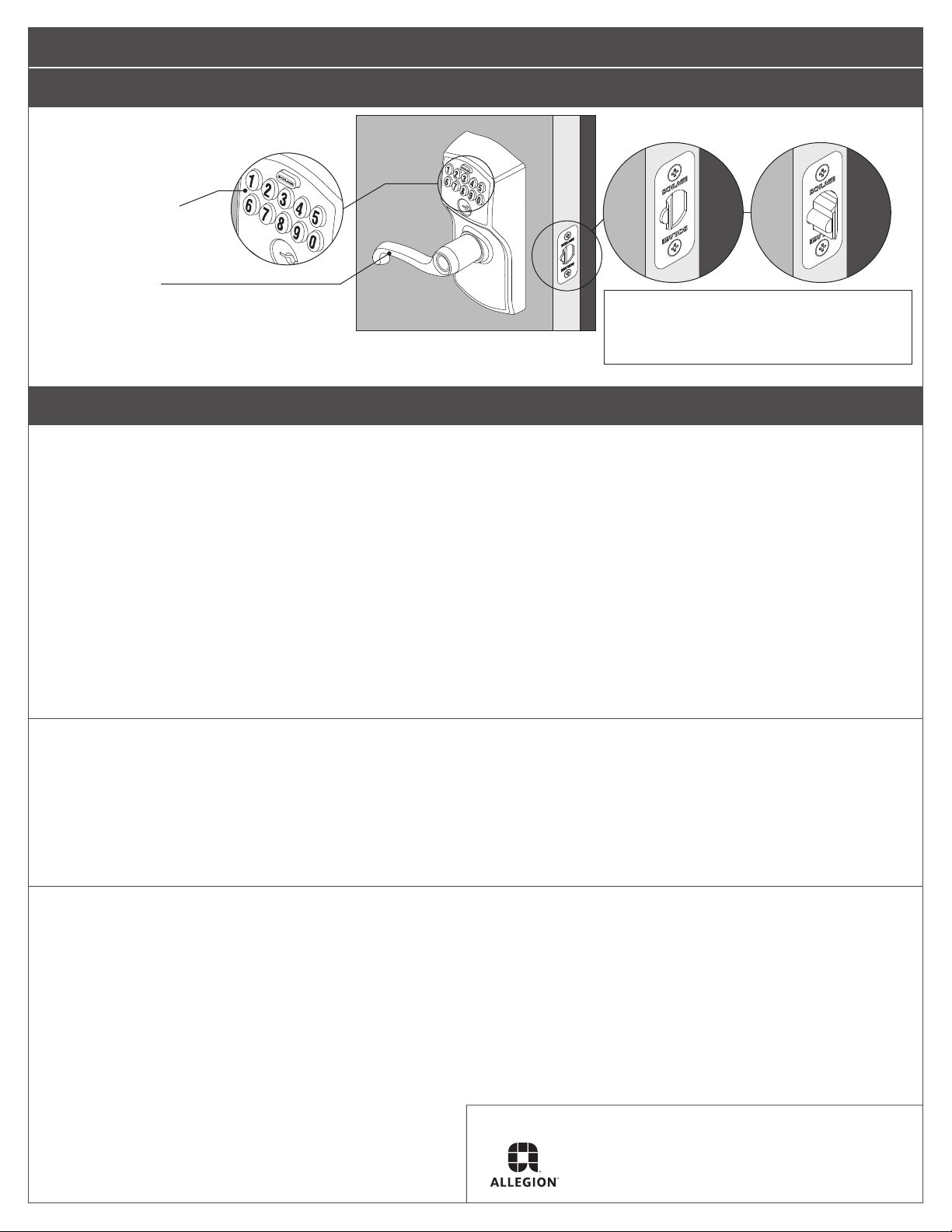

Prepare for Installation
IMPORTANT NOTES
• DO NOT use a power drill for installation!
• Use a screwdriver to remove product from packaging.
• Install and test lock with door open to avoid being locked out.
A Check door dimensions.
See consumer.schlage.com/Service-Support for door
preparation instructions if dimensions are different.
2³⁄₄” (70 mm)
OR
2³⁄₈” (60 mm)
2¹⁄₈” (53 mm)
Hole
1” (25 mm)
Door Edge
B Change faceplate, if necessary.
Choose the drawing that matches your door edge. If the hole has no
mortise, change to the circular faceplate.
OR
Door Edge
Door Edge
No change
necessary.
Additional Parts
Optional Latch
Faceplate
Pin Wrench
Tools Needed
• Phillips screwdriver
• Tape Measure
• Pencil
Optional
• Flathead
Screwdriver
• Wood Block
• Hammer
Keypad
Latch
Latch/Strike
Screws (4)
Strike

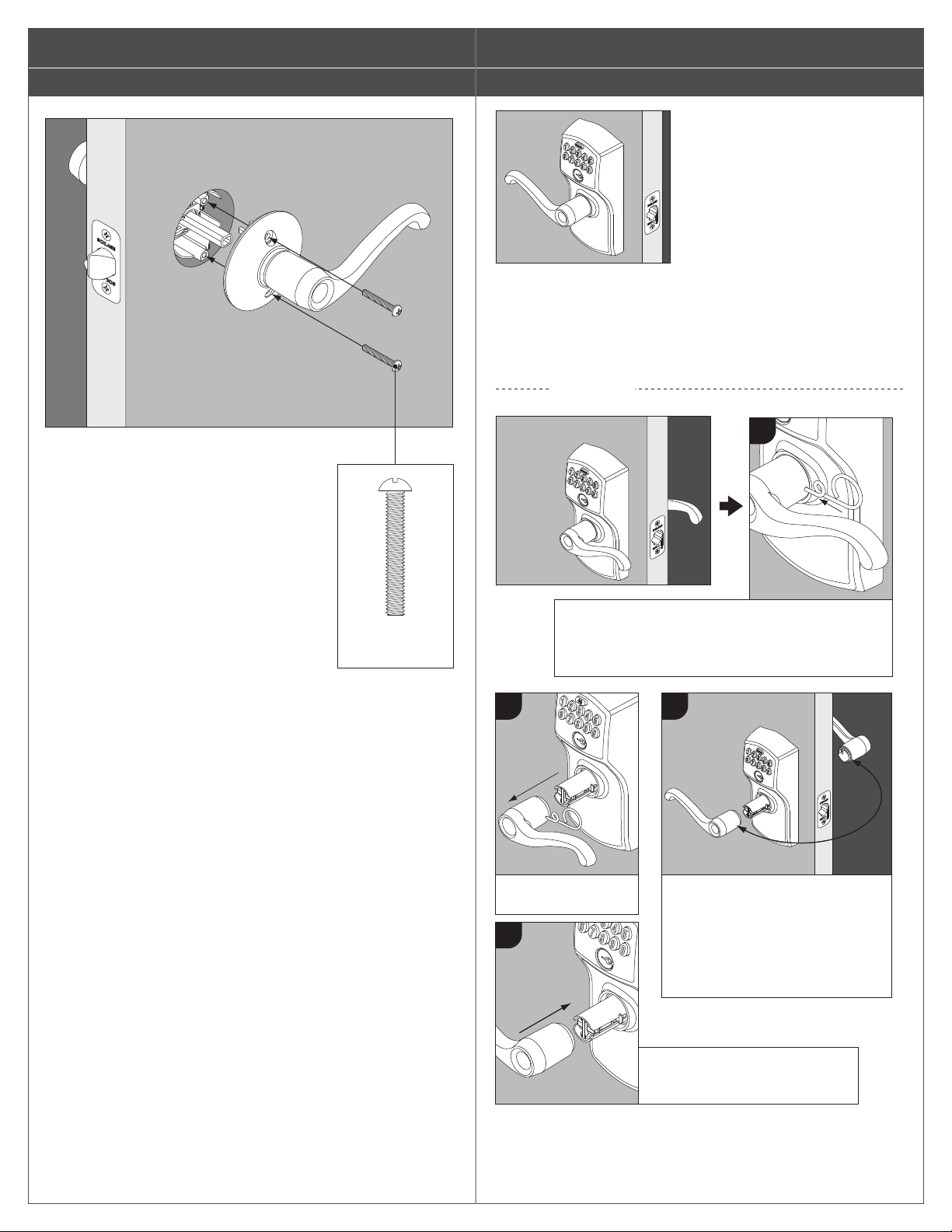

Inside Lever
Lever Screws (2)
Key
Model FE575
Keypad Lock
Installation Instructions
