• Page 1 - English - : Contents Before Getting Started Watch Face and Display Indicators Navigating Between Modes Cycling Between Timekeeping Mode Digital Display Contents Shifting the Hands Solar Charging Useful Features Using Mobile Link with a Mobile Phone Getting Ready Using the Watch in a Medical Facility or Aircraft Auto Time Adjustment Configuring World Time Settings Phone Finder Configuring Watch Settings Changing the Home City Summer Time Setting Checking the Watch Charge Level Connection Connecting with a Phone Disconnecting from a Phone Unpairing If you purchase another phone World Time Checking World Time World Time City Setting Selecting UTC Coordinated Universal Time as Your World Time City Swapping Your Home Time and World Time MA2005EA 2020 CASIO COMPUTER CO LTD Stopwatch Measuring Elapsed Time Measuring a Split Time Timing the First and Second Place Finishers Timer Setting the Countdown Start Time Using the Timer Alarms and Hourly Time Signal Configuring Alarm Settings Configuring Schedule Alarm Settings Enabling the Hourly Time Signal Turning Off an Alarm or the Hourly Time Signal Adjusting Time Settings Manually Setting a Home Time City Setting the TimeDate Selecting UTC Coordinated Universal Time as Your Home City Switching between 12hour and 24hour Timekeeping Changing the Date Display Format Specifying the Day of the Week Language Light Illuminating the Display Manually Auto Light Configuring the Full Auto Light Setting Specifying the Illumination Duration Hand Alignment Adjustment Adjusting Hand Alignment Other Settings Enabling the Button Operation Tone Configuring Power Saving Function Settings Returning the Watch to Its Factory Default Settings Moving to Another Time Zone Other Information City Table Summer Time Table Supported Phones Specifications Mobile Link Precautions Copyrights and Registered Copyrights Troubleshooting Operation Guide 5631

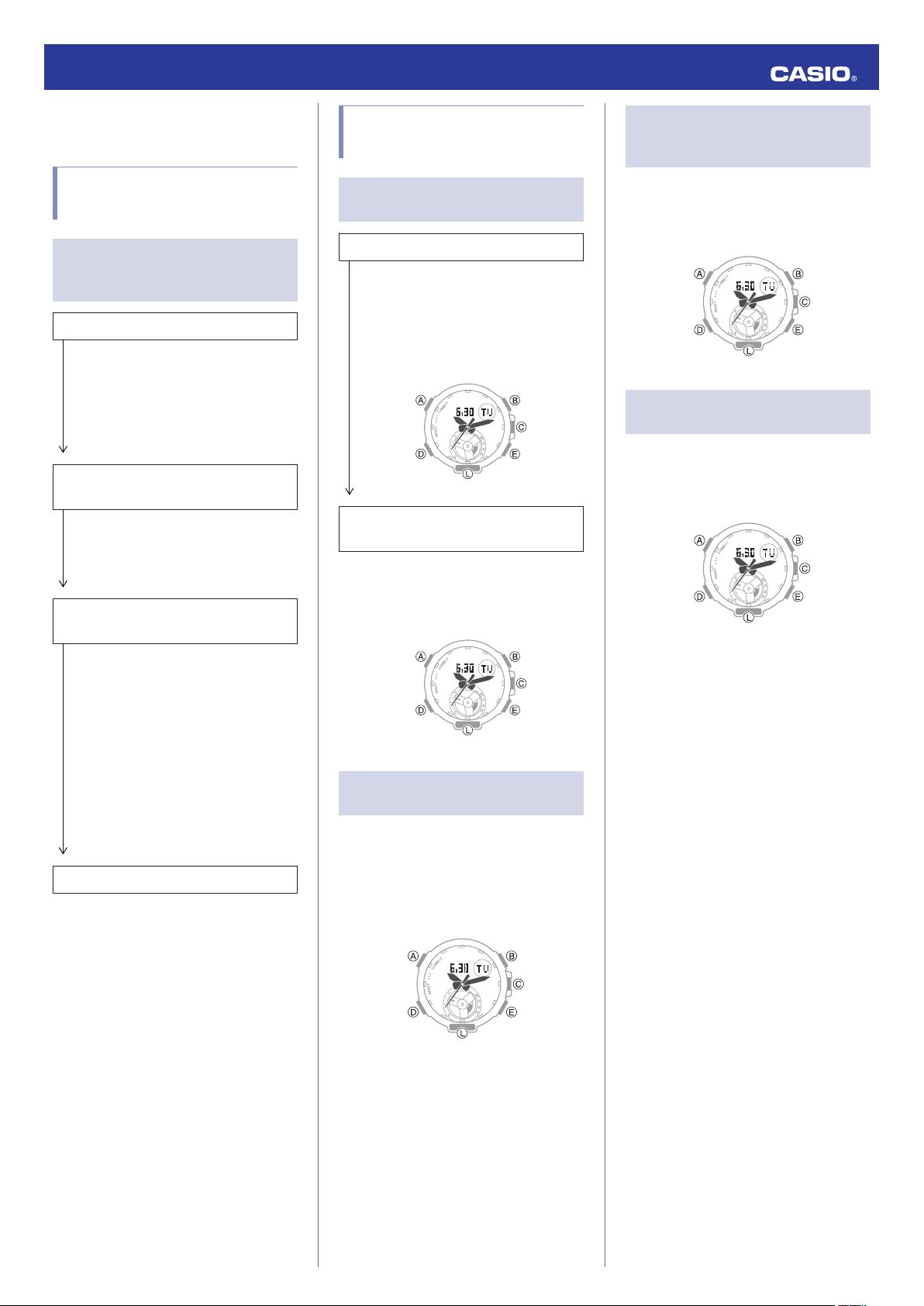

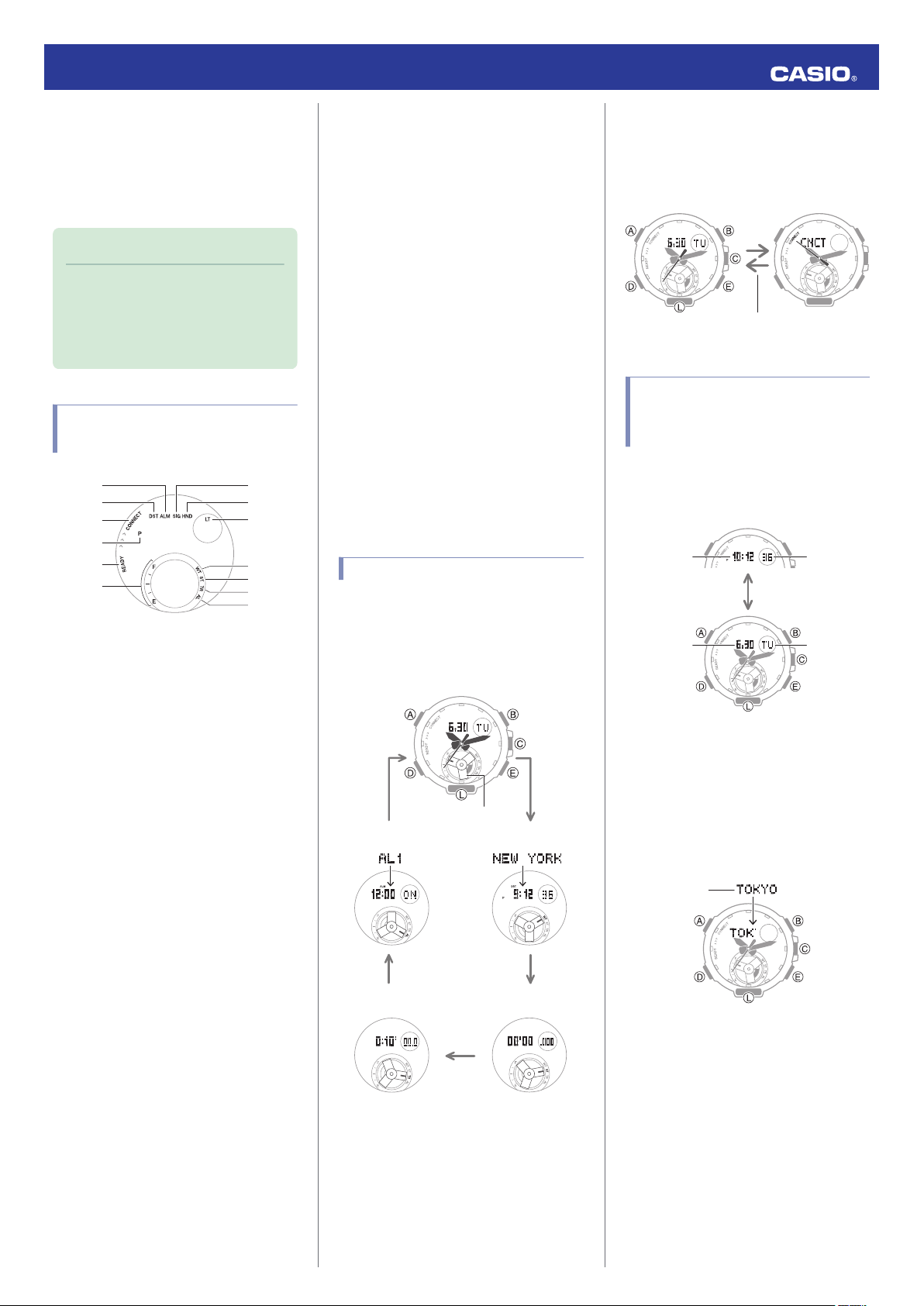

• Page 2 - English - : Before Getting Started This section provides an overview of the watch and introduces convenient ways it can be used Note The illustrations included in this operation guide have been created to facilitate explanation An illustration may differ somewhat from the item it represents Watch Face and Display Indicators ③ ④ ⑤ ⑨ ② ①⑦ ⑧ ⑫ ⑬ ⑪ ⑩ ⑥ A　Displayed while an alarm is turned on B　Displayed while the watch is indicating summer time C　The second hand will point to CONNECT if the watch is connected with a phone D　Displayed during pm times while 12hour timekeeping is being used E　The second hand will point to READY if the watch is standing by for connection with a phone F　Battery level In the Timekeeping Mode the current charge level is indicated by the mode hand G　Displayed while the hourly time signal is enabled H　Displayed while the watchs hands are shifted for easier reading I　Displayed while Auto Light is enabled J　In the World Time Mode the mode hand points to WT K　In the Stopwatch Mode the mode hand points to ST L　In the Timer Mode the mode hand points to TR M　In the Alarm Mode the mode hand points to AL Navigating Between Modes Each press of D cycles between watch modes In any mode hold down D for at least two seconds to enter the Timekeeping Mode DD D D D Mode hand Alarm Mode Timer Mode Stopwatch Mode World Time Mode Timekeeping Mode Connecting with a Phone Hold down C for about 15 seconds to connect with a phone To disconnect press any button C After connectionBefore connection Any button Cycling Between Timekeeping Mode Digital Display Contents Each press of A in the Timekeeping Mode toggles between the display information as shown below A Day of weekMonth day Hours minutes Seconds Displaying the Current Home City Pressing E displays the currently selected Home City for a short while After that the screen you started from reappears Pressing E while the currently selected Home City is displayed will also return to the screen you started from Home City Operation Guide 5631

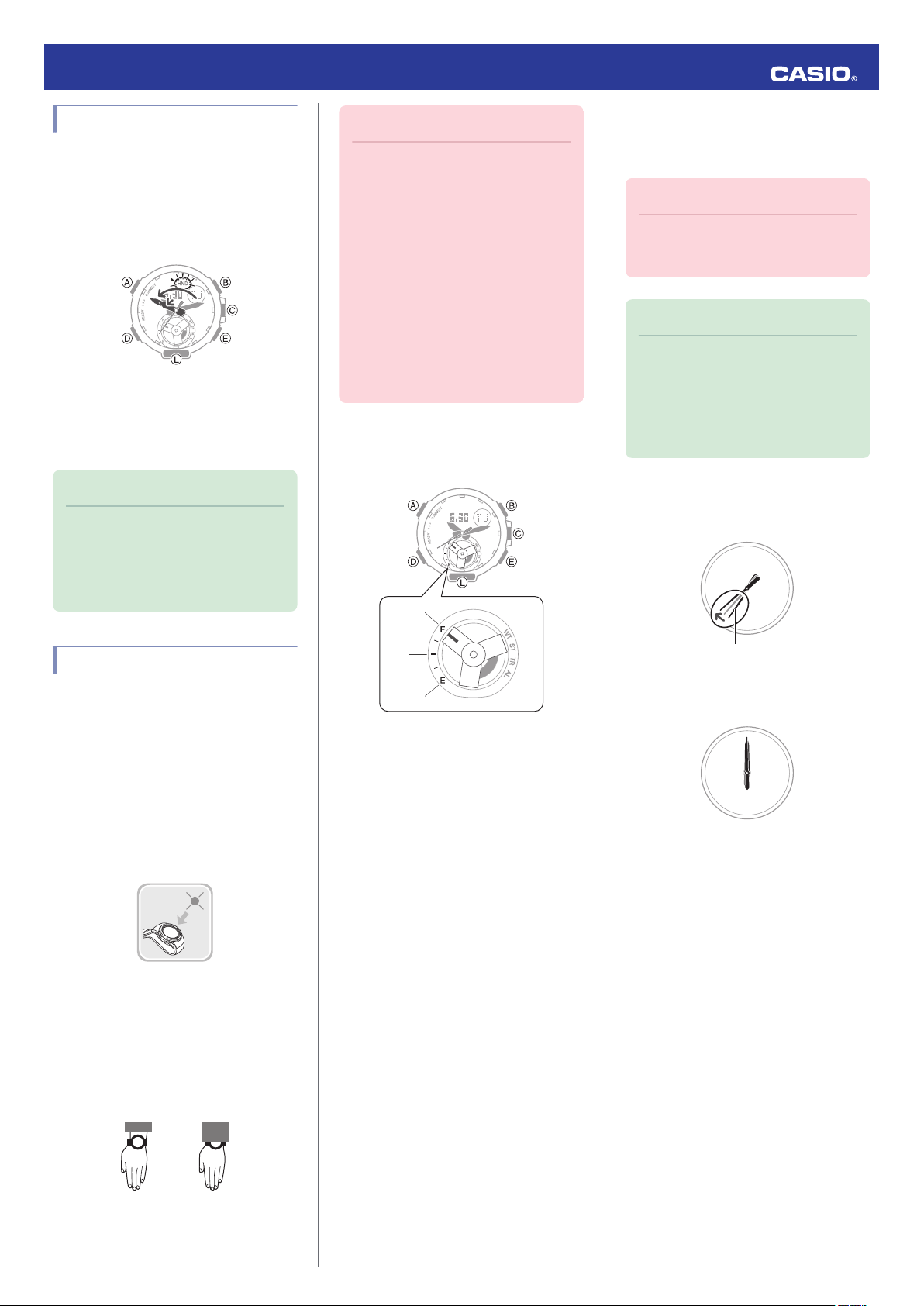

• Page 3 - English - : Shifting the Hands Hand shift moves the hands out of the way for easy viewing of display information 1 While holding down L press D This will shift the analog hands to allow easy viewing of display information 2 To return the hands to their normal timekeeping positions hold down L as you press D again or press D to change to another mode Note If you leave the watch with its hands shifted and do not perform any operation for about one hour the hands will resume normal timekeeping automatically Solar Charging This watch runs on power supplied from a rechargeable secondary battery that is charged by a solar panel The solar panel is integrated into the face of the watch and power is generated whenever the face is exposed to light Charging the Watch When you are not wearing the watch put it in a location where it is exposed to bright light While you are wearing the watch make sure that its face solar panel is not blocked from light by the sleeve of your clothing Power generation efficiency is reduced even when the face of the watch is blocked only partially NOYES Important Depending on light intensity and local conditions the watch may become hot to the touch when exposed to light for charging Take care to avoid burn injury after charging Also avoid charging the watch under high temperature conditions like the ones described below ー　 On the dashboard of a vehicle parked in the sun ー　 Near an incandescent light bulb or other source of heat ー　 Under direct sunlight or in other hot areas for long periods Checking the Charge Level In the Timekeeping Mode the current charge level is indicated by the mode hand ③ ② ① A　Good high charge B　Good medium charge C　Low Battery Remaining Charge and Dead Battery You can determine if the charge level is low by checking the hand movement Functions become disabled as battery power goes low Important Should the battery go low or go dead expose the face solar panel to light as soon as possible Note Exposing the watch face to light after the battery goes dead will cause the CHARGE indicator to appear and the second hand to rotate counterclockwise until it stops at second 57 This indicates charging has started Low Battery Power The second hand jumps at twosecond intervals Second hand Dead Battery All hands are stopped Operation Guide 5631

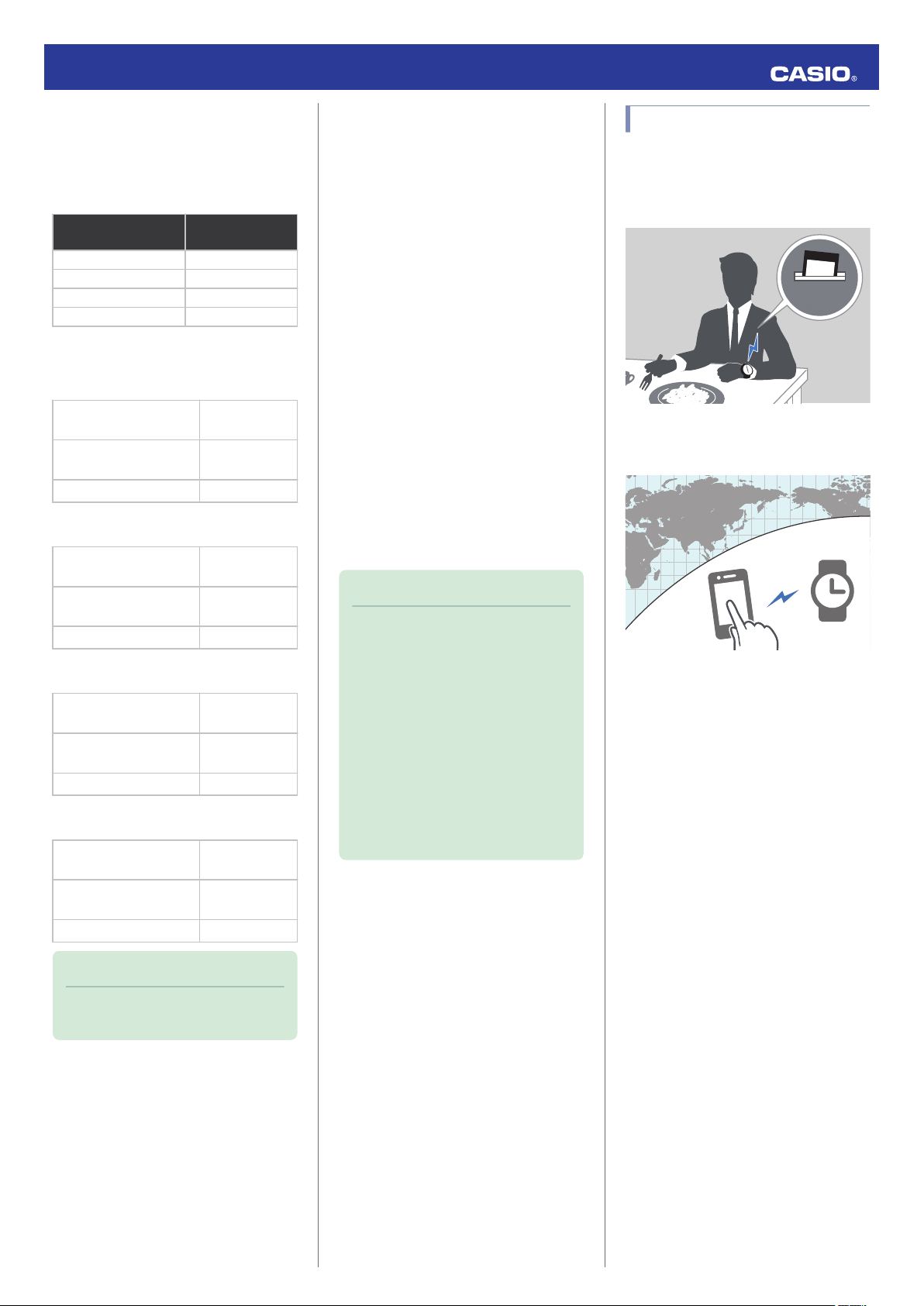

• Page 4 - English - : Charging Time Guidelines The table below shows guidelines for approximate charging times Charging Times Required for 1 Day of Operation Light Level Lux Approximate Charging Time 50000 8 minutes 10000 30 minutes 5000 48 minutes 500 8 hours Times Required to Achieve Next Charge Level Sunny day outdoors 50000 lux Dead battery n Medium charge 2 hours Medium charge n High charge 20 hours High charge n Full charge 6 hours Sunny day near a window 10000 lux Dead battery n Medium charge 6 hours Medium charge n High charge 76 hours High charge n Full charge 21 hours Overcast day near a window 5000 lux Dead battery n Medium charge 10 hours Medium charge n High charge 123 hours High charge n Full charge 33 hours Indoor fluorescent lighting 500 lux Dead battery n Medium charge 116 hours Medium charge n High charge High charge n Full charge Note Actual charging time depends on the local charging environment Power Saving Function Leaving the watch in a dark location for about one hour between the hours of 10 pm and 6 am will cause the display to go blank and the watch to enter Level 1 power saving If the watch is left in this condition for six or seven days the watch will enter Level 2 power saving Power Saving Level 1 The second hand stops at 12 oclock and the digital display goes blank to save power The watch can connect with a phone at this level Power Saving Level 2 All hands stop and the digital display goes blank to save power All functions are disabled Recovering from Power Saving Operation Use one of the operations below to exit power saving Press any button Move the watch to a bright location Trigger auto light by angling the watch towards your face Note The watch will not enter power saving in the cases below ー　 Alarm Mode ー　 While in the Stopwatch Mode ー　 While in the Timer Mode You can enable or disable Power Saving l Configuring Power Saving Function Settings Note that the watch also may enter power saving if its face is blocked from light by your sleeve while you are wearing it Useful Features Pairing the watch with your phone makes a number of the watchs features easier to use Auto time adjustment l Auto Time Adjustment 1230 Selection of More Than 300 World Time cities l Configuring World Time Settings In addition a number of other watch settings can be configured using your phone To transfer data to a watch and to configure settings you first need to pair the watch with your phone l Getting Ready Your phone needs to have the CASIO G SHOCK Connected app installed to pair with the watch Operation Guide 5631

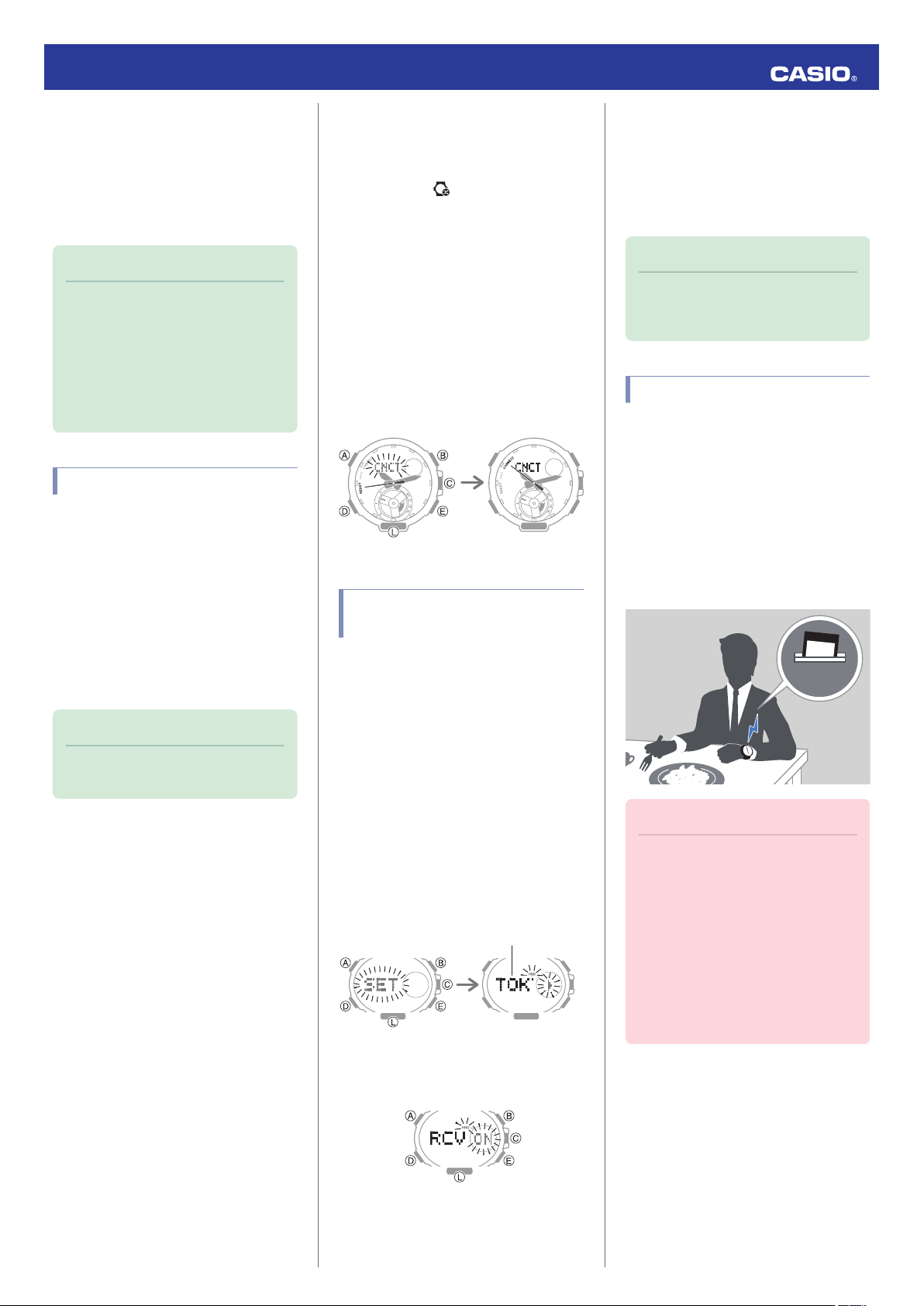

• Page 5 - English - : Using Mobile Link with a Mobile Phone While there is a Bluetooth connection between the watch and phone the watch time setting is adjusted automatically You can also change the watchs other settings Note This function is available only while G SHOCK Connected is running on the phone This section describes watch and phone operations X Watch operation Y Phone operation Getting Ready To use your watch in combination with a phone you first need to pair them Perform the steps below to pair the watch with a phone A Install the app on your phone In Google Play or the App Store search for the CASIO GSHOCK Connected app and install it on your phone B Configure Bluetooth settings Enable the phones Bluetooth Note For details about setting procedures see your phone documentation C Pair the watch with a phone Before you can use the watch in combination with a phone you first need to pair them 1 Move the phone to be paired with close to within one meter of the watch Y Tap the GSHOCK Connected icon Y Perform the operation shown on the screen of the phone to be paired with If your phone is already paired with a watch tap tap the item for connecting with a new watch and then tap this watchs name If a pairing prompt message appears perform the operation shown on the phone screen If pairing fails for some reason ERR will appear on the display momentarily and then the watch will return to the mode it was in before you started the pairing procedure Perform the pairing procedure again from the beginning Pairing completePairing started Using the Watch in a Medical Facility or Aircraft Whenever you are in a hospital on an aircraft or in any other location where connection with a phone may cause problems you can perform the procedure below to disable auto time adjustment To reenable auto time adjustment perform the same operation again X If the watch is in any mode besides the Timekeeping Mode hold down D for at least two seconds to enter the Timekeeping Mode X Hold down A for at least two seconds until the name of the currently selected Home City is displayed Home City X Press D 14 times This displays RCV X Press E to toggle between the auto time adjustment settings OFF Auto time adjustment disabled ON Auto time adjustment enabled X Press A to exit the setting screen Note The auto time adjustment setting can be changed only while the watch is paired with a phone Auto Time Adjustment Your watch will connect with a phone at preset times each day and adjust its time settings automatically Using Auto Adjust Your watch adjusts its time setting four times a day according to a preset schedule If you leave your watch in the Timekeeping Mode it will perform the adjustment operation automatically as you go about your daily life without any operation required by you 1230 Important The watch may not be able to perform auto time adjustment under the conditions described below ー　 While the watch is too far away from its paired phone ー　 While communication is not possible due to radio interference etc ー　 While the phone is updating its system ー　 While GSHOCK Connected is not running on the phone Operation Guide 5631

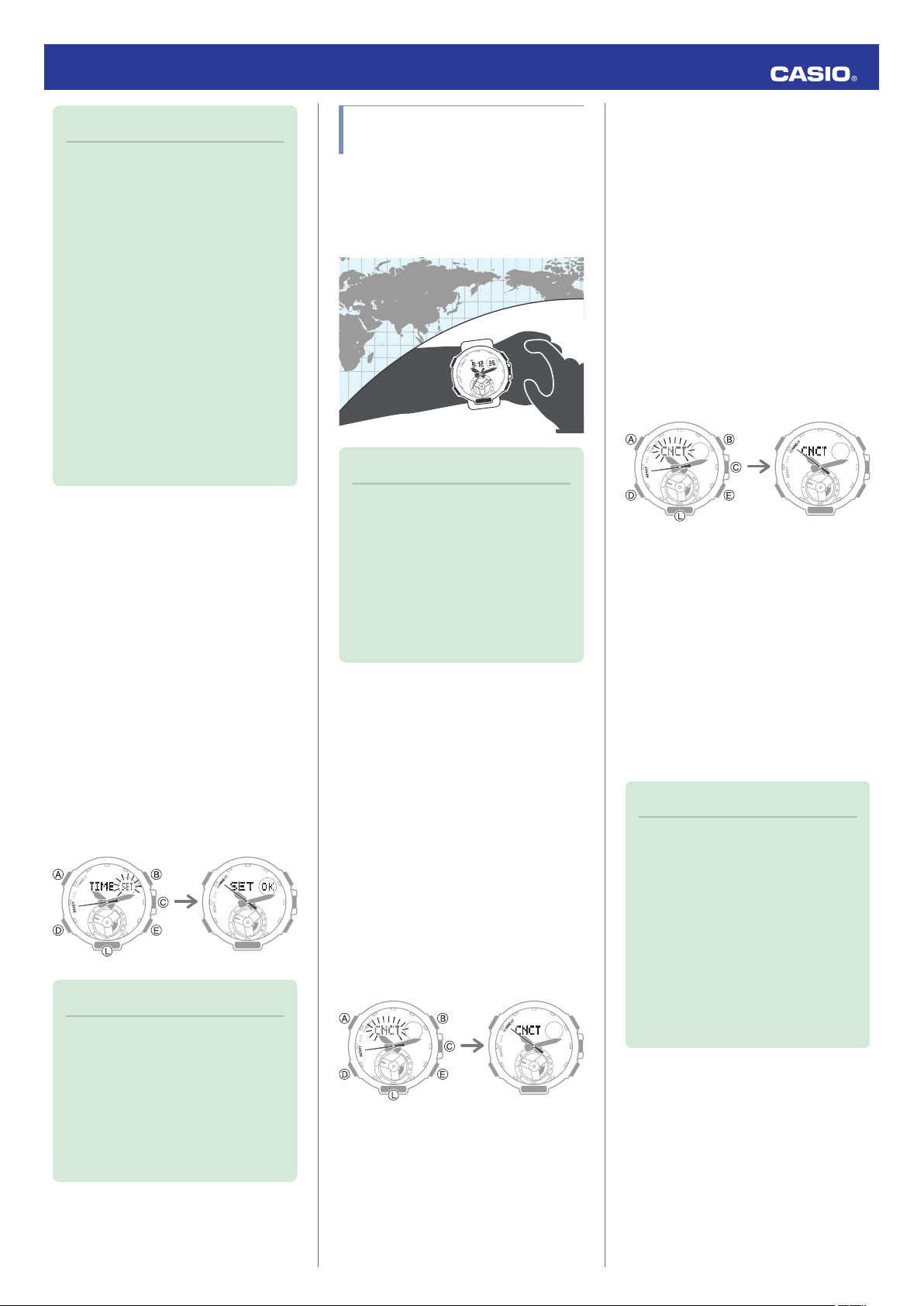

• Page 6 - English - : Note If the watch does not indicate the correct time even if is able to connect with a phone adjust the hand positions l Adjusting Hand Alignment If there is a World Time City specified with GSHOCK Connected its time will also be adjusted automatically The watch will connect with the phone and perform auto time adjustment at around 1230 am 630 am 1230 pm and 630 pm The connection is automatically terminated after auto time adjustment is complete The watch cannot connect with a phone for time adjustment while a stopwatch measurement or timer operation is in progress Triggering Immediate Time Adjustment The watchs time setting will be adjusted automatically whenever you establish a connection between the watch and a phone Whenever you want to trigger immediate time adjustment perform the procedure below to connect with a phone 1 Move the phone close to within one meter of the watch X Press C SET flashes to indicate that the watch has started the connection operation Once the watch and phone are connected OK will appear and then the watch will adjust its time setting based on information from the phone After time adjustment Trying to connect Note You can perform the above operation for time adjustment from any watch mode The connection is terminated automatically after time adjustment is complete If time adjustment fails for some reason ERR will appear Configuring World Time Settings Specifying a World Time City with GSHOCK Connected causes the watchs World Time City to change accordingly Watch settings can be configured for auto summer time switching for the World Time City Note GSHOCK Connected World Time lets you select from among approximately 300 cities as the World Time City You can use GSHOCK Connected to configure settings for user cities that are not included in the watchs builtin World Time Cities You can then use GSHOCK Connected to select a user city as your World Time City Selecting a World Time City Y Tap the GSHOCK Connected icon X Hold down C for at least 15 seconds Release the button when CNCT starts to flash When a connection is established between the watch and phone CNCT will stop flashing and the second hand will move from READY to CONNECT If connection fails for some reason ERR will appear on the display momentarily and then the watch will return to the mode it was in before you started the connection procedure ConnectedTrying to connect Y Perform the operation shown on the phone screen The World Time setting will be reflected on the watch Configuring the Summer Time Setting Y Tap the GSHOCK Connected icon X Hold down C for at least 15 seconds Release the button when CNCT starts to flash When a connection is established between the watch and phone CNCT will stop flashing and the second hand will move from READY to CONNECT If connection fails for some reason ERR will appear on the display momentarily and then the watch will return to the mode it was in before you started the connection procedure ConnectedTrying to connect Y Perform the operation shown on the phone screen to select a summer time setting Auto The watch switches between standard time and summer time automatically OFF The watch always indicates standard time ON The watch always indicates summer time Note While the summer time setting is Auto the watch will switch between standard time and summer time automatically You do not need to switch between standard time and summer time manually Even if you are in an area that does not observe summer time you can leave the watchs summer time setting as Auto For information about summer time periods refer the Summer Time Table or GSHOCK Connected Operation Guide 5631

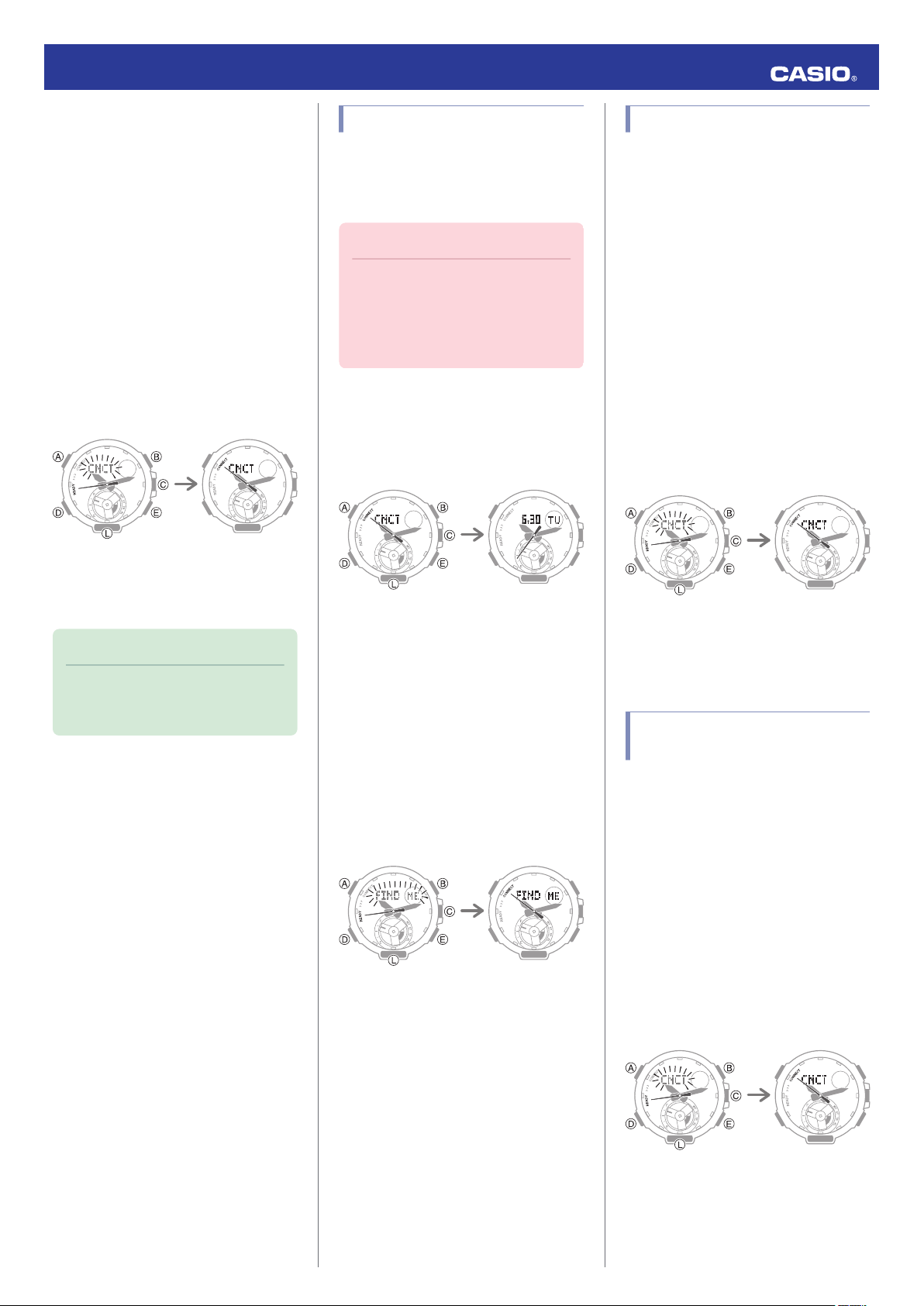

• Page 7 - English - : Swapping Your World Time and Home Time Y Tap the GSHOCK Connected icon X Hold down C for at least 15 seconds Release the button when CNCT starts to flash When a connection is established between the watch and phone CNCT will stop flashing and the second hand will move from READY to CONNECT If connection fails for some reason ERR will appear on the display momentarily and then the watch will return to the mode it was in before you started the connection procedure ConnectedTrying to connect Y Perform the operation shown on the phone screen to swap your Home Time with your World Time Note Auto time adjustment does not work for 24 hours after swapping of the Home Time and World Time Phone Finder You can use phone finder to trigger a tone on the phone to make it easy to find The tone is forced to sound even if the phone is in vibrate mode Important Do not use this function in areas where phone call tones are restricted The tone sounds at a high volume Do not use this function when listening to phone output over earphones X If the watch is connected with a phone press any button to terminate the connection DisconnectedConnected X If the watch is in any mode besides the Timekeeping Mode hold down D for at least two seconds to enter the Timekeeping Mode X Hold down E for at least 15 seconds Release the button when the second hand points to READY The phone will sound a tone when it establishes a connection with the watch It will take a few seconds before the phone tone sounds Searching for the phone Preparing to search for the phone X Press any button to stop the tone You can press any watch button to stop the phone tone only during the first 30 seconds after it starts to sound Configuring Watch Settings Alarm time timer start time and other settings can also be configured using GSHOCK Connected Y Tap the GSHOCK Connected icon X Hold down C for at least 15 seconds Release the button when CNCT starts to flash When a connection is established between the watch and phone CNCT will stop flashing and the second hand will move from READY to CONNECT If connection fails for some reason ERR will appear on the display momentarily and then the watch will return to the mode it was in before you started the connection procedure ConnectedTrying to connect Y Select the setting you want to change and then perform the operation shown on the phone screen Changing the Home City Summer Time Setting Y Tap the GSHOCK Connected icon X Hold down C for at least 15 seconds Release the button when CNCT starts to flash When a connection is established between the watch and phone CNCT will stop flashing and the second hand will move from READY to CONNECT If connection fails for some reason ERR will appear on the display momentarily and then the watch will return to the mode it was in before you started the connection procedure ConnectedTrying to connect Y Perform the operation shown on the phone screen to change your Home City summer time setting Operation Guide 5631

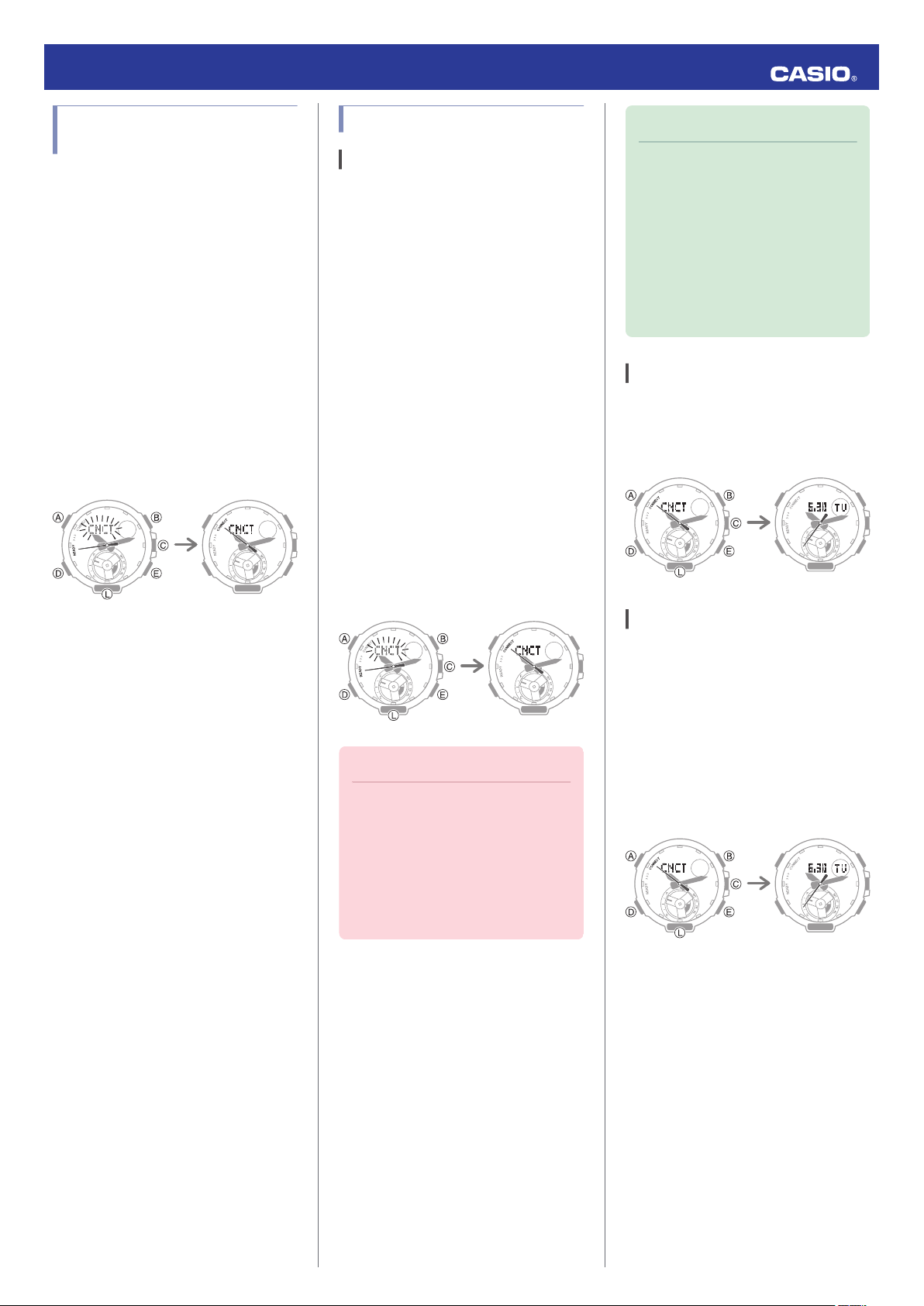

• Page 8 - English - : Checking the Watch Charge Level Use the procedure below to check the current charge level with GSHOCK Connected Y Tap the GSHOCK Connected icon X Hold down C for at least 15 seconds Release the button when CNCT starts to flash When a connection is established between the watch and phone CNCT will stop flashing and the second hand will move from READY to CONNECT If connection fails for some reason ERR will appear on the display momentarily and then the watch will return to the mode it was in before you started the connection procedure ConnectedTrying to connect Y Use GSHOCK Connected to check the charge level Connection Connecting with a Phone This section explains how to establish a Bluetooth connection with a phone that is paired with the watch If the watch is not paired with the phone you want to connect with refer to the information below and pair them l C Pair the watch with a phone 1 Move the phone close to within one meter of the watch X Hold down C for at least 15 seconds Release the button when CNCT starts to flash When a connection is established between the watch and phone CNCT will stop flashing and the second hand will move from READY to CONNECT If connection fails for some reason ERR will appear on the display momentarily and then the watch will return to the mode it was in before you started the connection procedure ConnectedTrying to connect Important If you have problems establishing a connection it could mean that G SHOCK Connected is not running on the phone On your phones home screen tap the GSHOCK Connected icon After the app starts up hold down the watchs C button for at least 15 seconds Note The connection will be terminated if you do not perform any operation on the watch or phone for a fixed amount of time To specify the connection limit time perform the following operation with G SHOCK Connected Watch settings n Connection time Next select a setting of 3 minutes 5 minutes or 10 minutes Disconnecting from a Phone Pressing any button will terminate a Bluetooth connection and return to the Timekeeping Mode DisconnectedConnected Unpairing Unpairing the watch from a phone requires both GSHOCK Connected and watch operations Deleting Pairing Information from G SHOCK Connected X If the watch is connected with a phone press any button to terminate the connection DisconnectedConnected Y Tap the GSHOCK Connected icon Y Perform the operation shown on the phone screen to unpair Operation Guide 5631

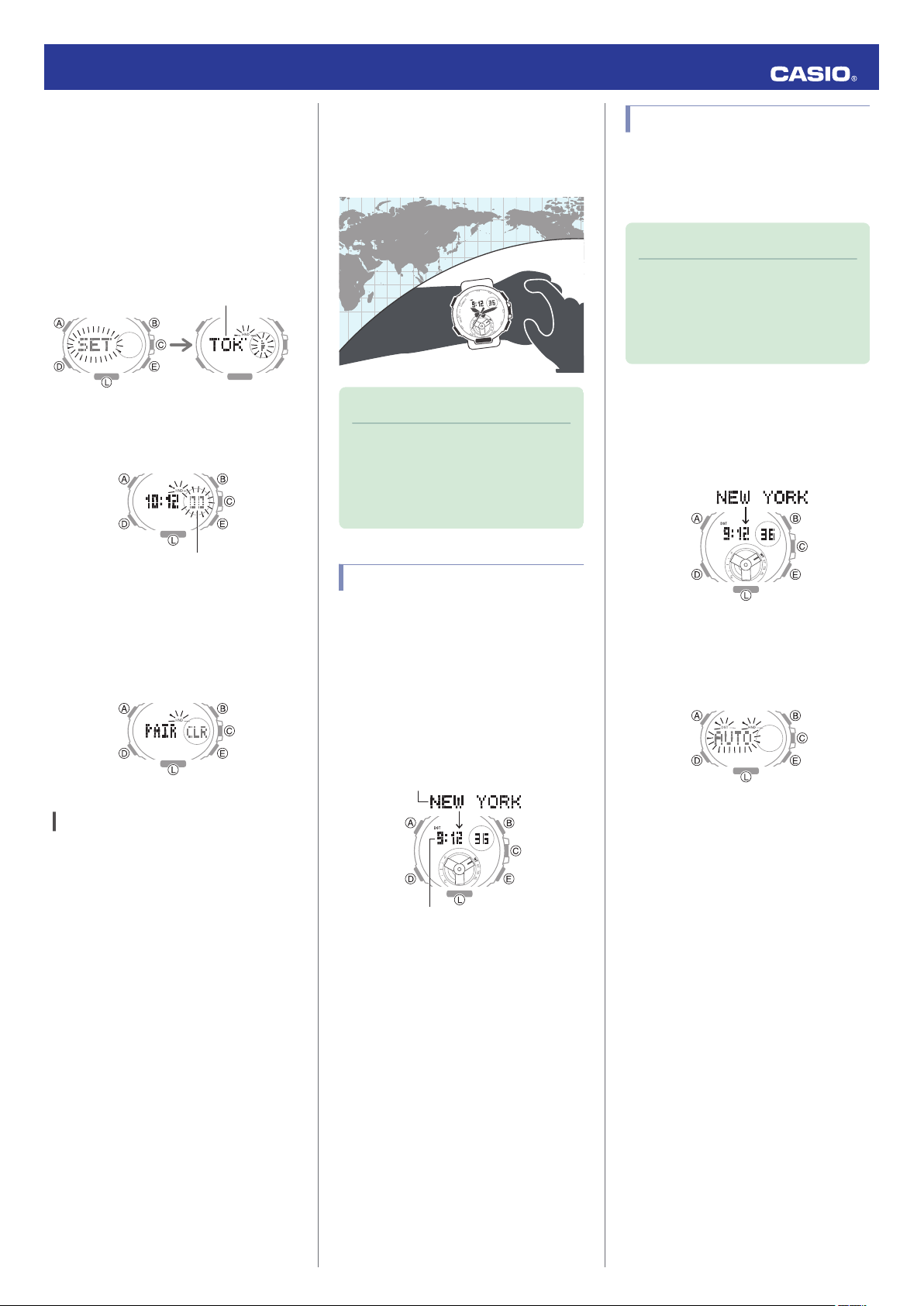

• Page 9 - English - : Deleting Pairing Information from the Watch X Hold down D for at least two seconds to enter the Timekeeping Mode X Hold down A for at least two seconds Release the button when the name of the currently selected Home City appears on the display Home City X Press D twice This causes the seconds to flash Seconds X Hold down B for at least two seconds Release it when CLR stops flashing This deletes the pairing information from the watch and returns to the timekeeping display If you purchase another phone You need to perform the pairing operation whenever you want to establish a Bluetooth connection with a phone for the first time l C Pair the watch with a phone World Time World Time lets you look up the current time in any one of 39 cities around the globe and UTC Coordinated Universal Time Note World Time cities that can be selected only by using GSHOCK Connected cannot be selected using watch operations l Configuring World Time Settings Checking World Time 1 Enter the World Time Mode l Navigating Between Modes After the currently selected World Time City name appears the watch will display the current time in that city You can display the World Time City while in the World Time Mode by pressing A World Time City World Time World Time City Setting Use the procedure in this section to select a World Time city If you are in an area that observes summer time you can also configure a summer time setting Note The initial factory default summer time setting for all cities is AUTO In many cases the AUTO setting lets you use the watch without switching between summer time and standard time 1 Enter the World Time Mode l Navigating Between Modes 2 Use B and E to display the city you want to specify as a World Time City 3 To change the summer time setting hold down A for at least two seconds Release the button when AUTO starts to flash 4 Use E to change the summer time setting Each press of E cycles through settings in the sequence shown below AUTO The watch switches between standard time and summer time automatically OFF The watch always indicates standard time ON The watch always indicates summer time 5 Press A to exit the setting screen Operation Guide 5631

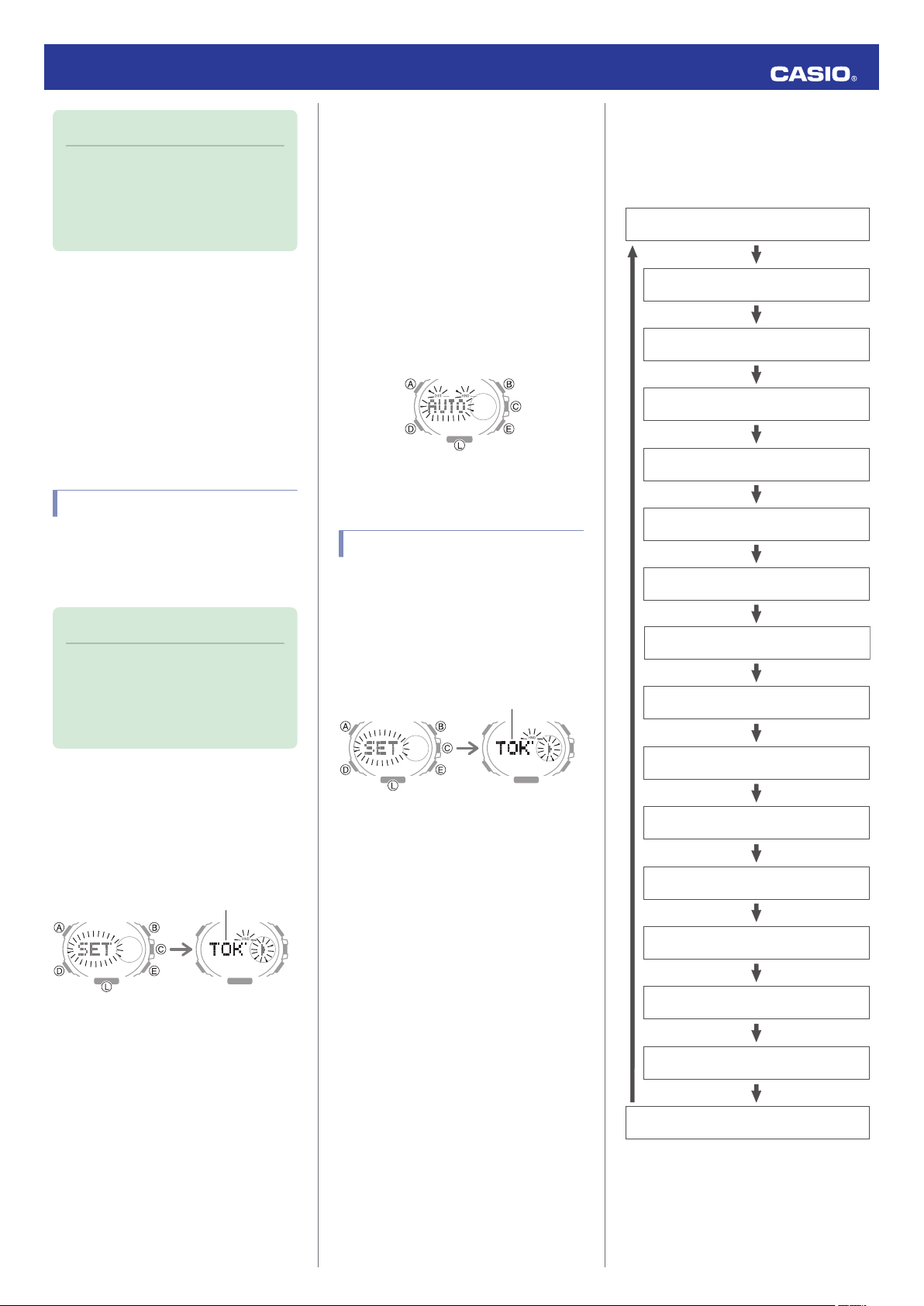

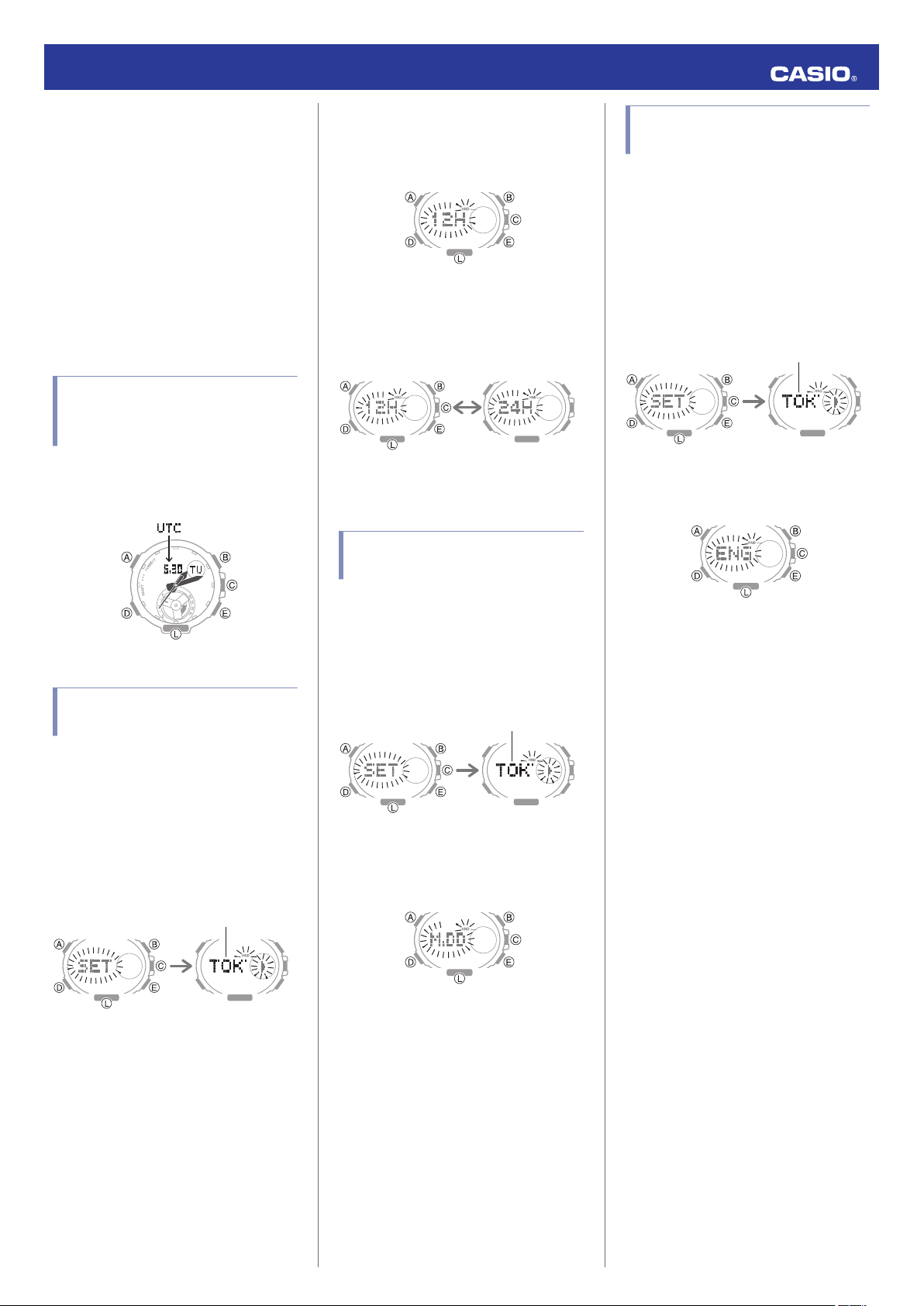

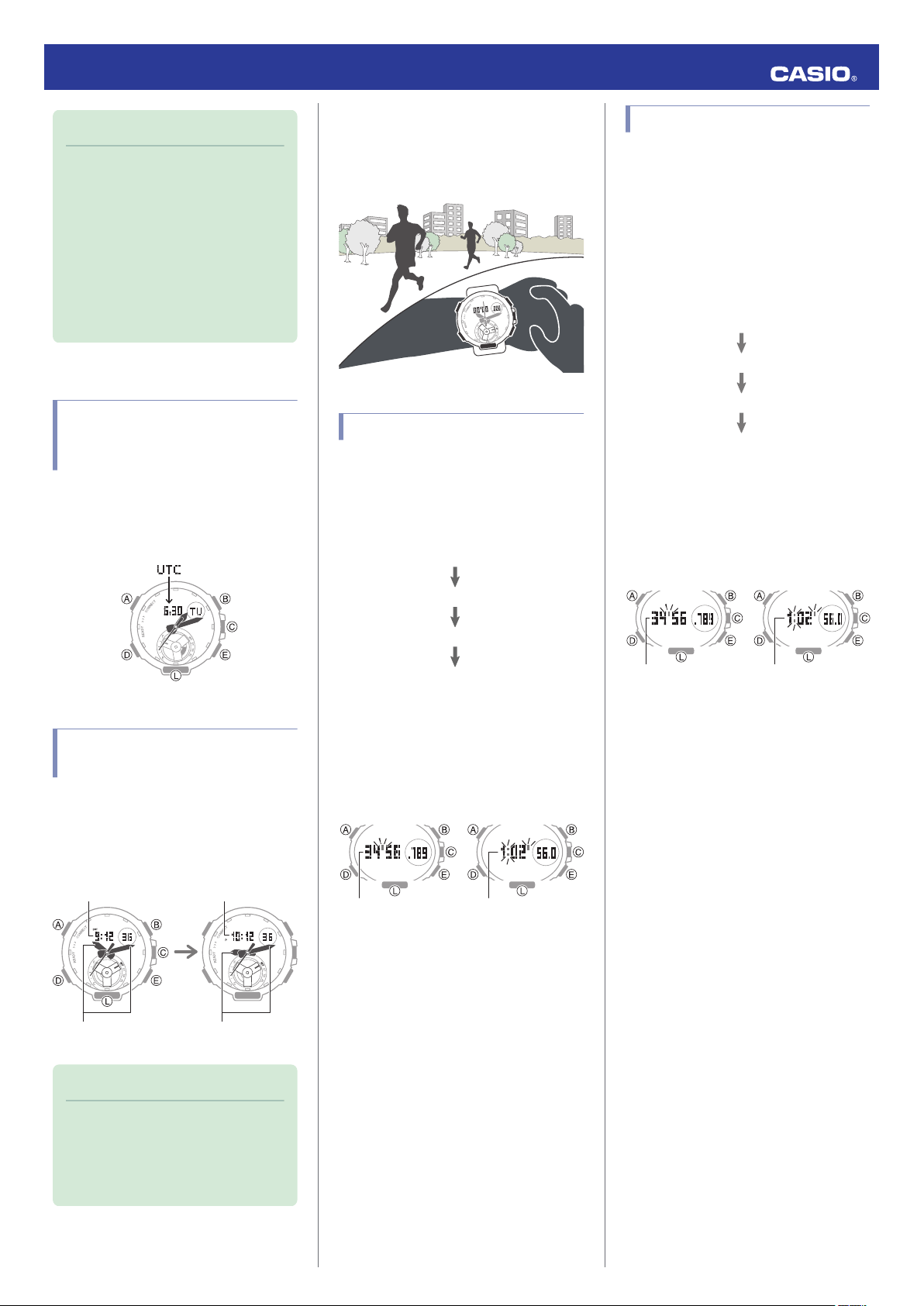

• Page 10 - English - : Note While UTC is selected as the city you will not be able to change or check the summer time setting If you select a World Time City with G SHOCK Connected and then change to a different city with a watch operation the GSHOCK Connected city information is deleted from the watch l Configuring World Time Settings Selecting UTC Coordinated Universal Time as Your World Time City In the World Time Mode pressing B and E at the same time will set UTC Coordinated Universal Time as the World Time City and display its current time Swapping Your Home Time and World Time In the World Time mode press A and L at the same time to swap your Home City time with your World Time World Time World TimeHome Time Home Time After swapping Before swapping Note This function comes in handy when you need to move to another time zone For details about how to use it go to the section below l Moving to Another Time Zone Stopwatch The stopwatch measures elapsed time in 11000second units for the first hour and in 110second units after that for up to 24 hours Measuring Elapsed Time 1 Enter the Stopwatch Mode l Navigating Between Modes 2 Use the operations below to measure elapsed time E E E E Stop Resume Stop Start Elapsed time is shown in 11000 second units for the first hour of the measurement session After the first hour elapsed time is shown in 110 second units Hours minutes seconds 110 seconds Minutes seconds 11000 seconds After first hourFirst hour 3 Press B to reset the stopwatch to all zeros Measuring a Split Time 1 Enter the Stopwatch Mode l Navigating Between Modes 2 Use the operations below to measure elapsed time Pressing B displays the elapsed time from the start of a race up to the point when you pressed the button split time E B B E Stop Split release Split Start Elapsed time is shown in 11000 second units for the first hour of the measurement session After the first hour elapsed time is shown in 110 second units Hours minutes seconds 110 seconds Minutes seconds 11000 seconds After first hourFirst hour 3 Press B to reset the stopwatch to all zeros Operation Guide 5631

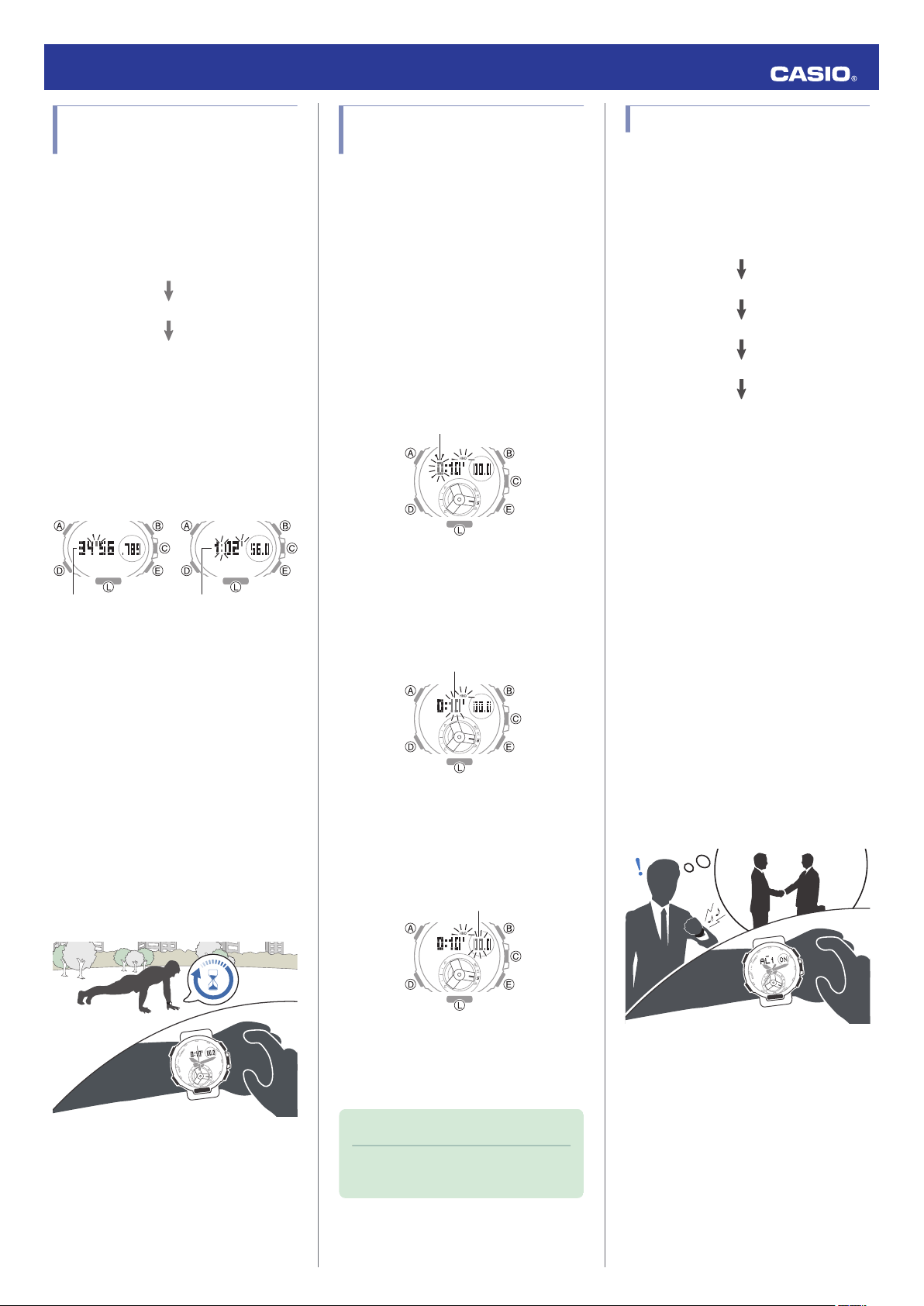

• Page 11 - English - : Timing the First and Second Place Finishers 1 Enter the Stopwatch Mode l Navigating Between Modes 2 Use the operations below to measure elapsed time E B E 2nd Finisher 1st Finisher Start Displays the time of the first finisher Elapsed time is shown in 11000 second units for the first hour of the measurement session After the first hour elapsed time is shown in 110 second units Hours minutes seconds 110 seconds Minutes seconds 11000 seconds After first hourFirst hour 3 Press B to display the time of the second place finisher 4 Press B to reset the stopwatch to all zeros Timer The timer counts down from a start time specified by you A beeper sounds when the end of the countdown is reached The beeper is muted in the cases described below ー　 When battery power is low Setting the Countdown Start Time The countdown start time can be set in 1 second units up to 24 hours If a timer countdown operation is in progress reset the timer to its current start time before performing this operation l Using the Timer 1 Enter the Timer Mode l Navigating Between Modes 2 Hold down A for at least two seconds Release the button when the hour digits start to flash This causes the hours digit to flash Hours 3 Use B and E to change the timer hours setting 4 Press D This causes the minutes digits to flash Minutes 5 Use B and E to change the minutes setting 6 Press D This causes the seconds digits to flash Seconds 7 Use B and E to change the seconds setting 8 Press A to exit the setting screen Note You can also use GSHOCK Connected to configure timer settings Using the Timer 1 Enter the Timer Mode l Navigating Between Modes 2 Use the operations below to perform a timer operation E E E Time up Resume Pause Countdown starts Start A beeper will sound for 10 seconds to let you know when the end of a countdown is reached You can reset a paused countdown to its start time by pressing B 3 Press any button to stop the tone Alarms and Hourly Time Signal The watch will beep when an alarm time is reached You can set up to five different alarms The hourly time signal causes the watch to beep every hour on the hour The alarm sound is muted in the cases described below ー　 When battery power is low ー　 When watch is at Level 2 power saving l Power Saving Function Operation Guide 5631

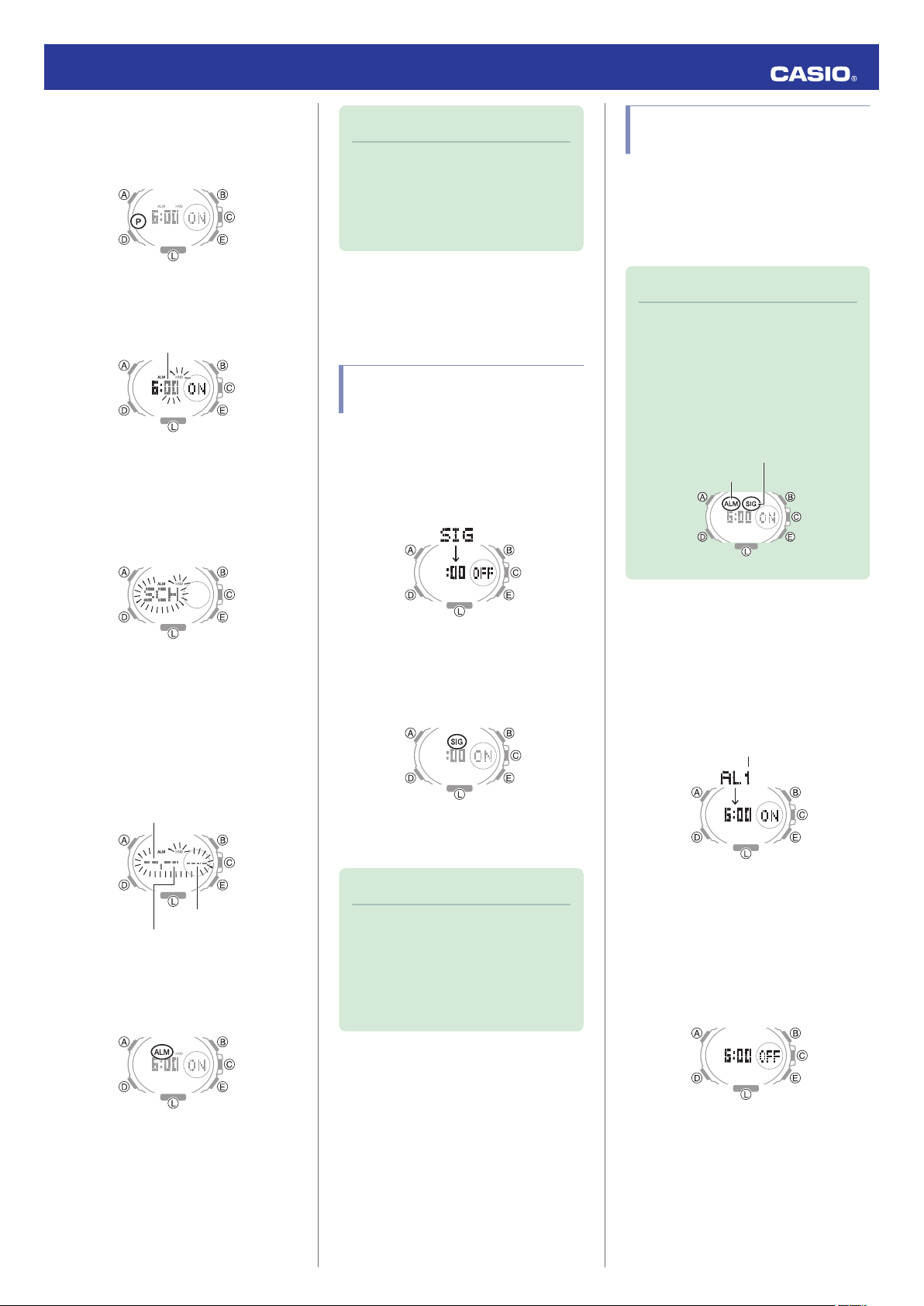

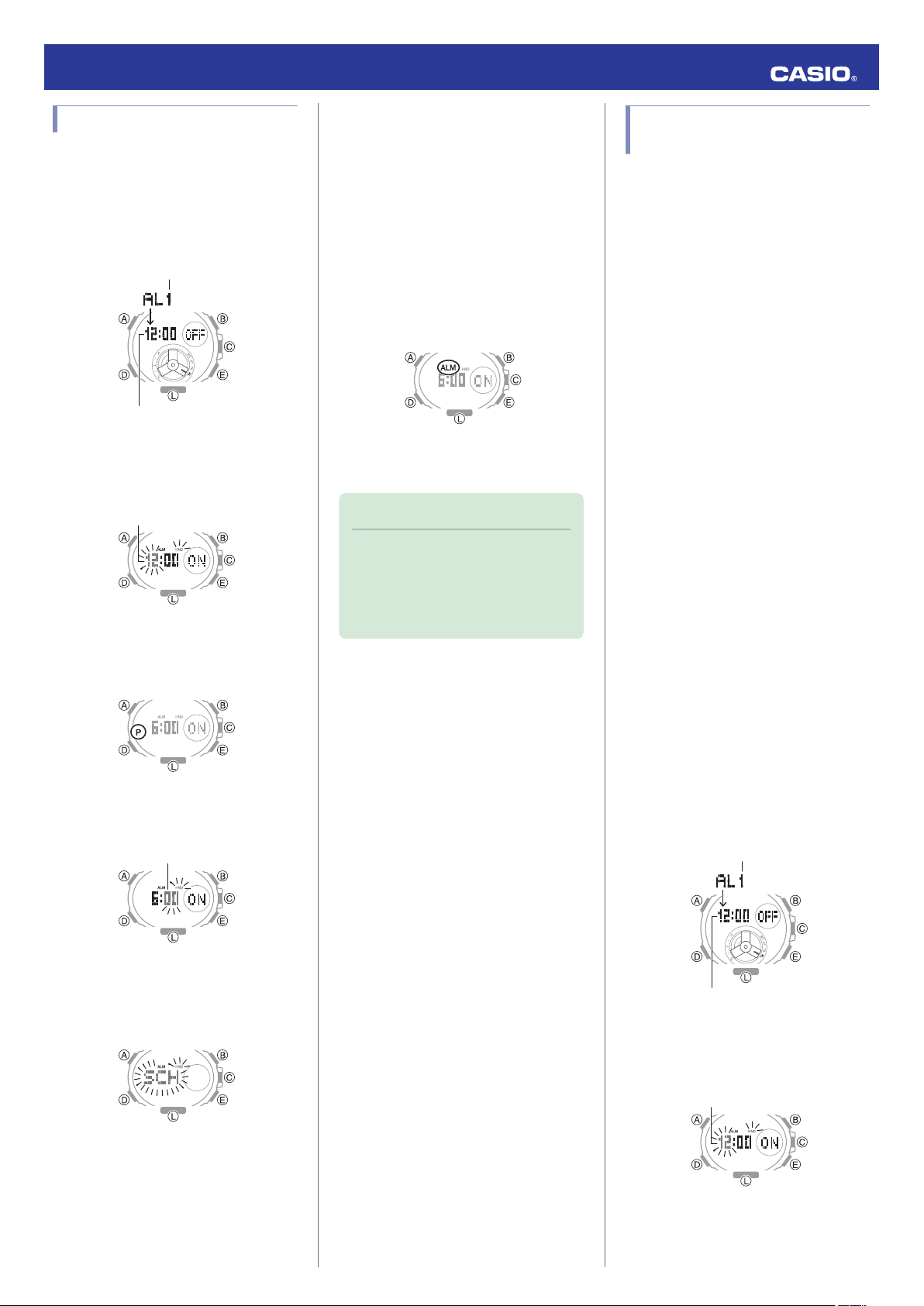

• Page 12 - English - : Configuring Alarm Settings 1 Enter the Alarm Mode l Navigating Between Modes 2 Press E to scroll through alarm numbers AL1 to AL5 until the alarm you want to configure is displayed Alarm time Alarm number 3 Hold down A for at least two seconds Release the button when the hours digits start to flash Hours 4 Use B and E to change the hour setting If you are using 12hour timekeeping P indicates pm 5 Press D This causes the minutes digits to flash Minutes 6 Use B and E to set the minute setting 7 Press D This causes the alarm type to flash 8 Use E to specify an alarm type DAILY Alarm sounds every day at the alarm time 1 TIME Alarm sounds only once at the alarm time SCH Alarm sounds on the specified date l Configuring Schedule Alarm Settings 9 Press A to exit the setting screen ALM is shown on the display while an alarm is set 10 Hold down D for at least two seconds to return to the Timekeeping Mode Note A beeper sounds for 10 seconds when an alarm time is reached You can also use GSHOCK Connected to configure alarm time settings To stop the alarm Pressing any button while the beeper is sounding stops it Configuring Schedule Alarm Settings With the SCH schedule alarm type you can specify the year month and day that you want an alarm to sound Creating a Schedule Alarm There are various schedule alarm variations and the variation that is set depends on the year month and day settings you configure Three typical setting configurations are shown below but other configurations are also possible A　Year month day all specified The alarm sounds once at the specified time on the specified date B　Year month day partially specified Specifying only the year will cause the alarm to sound at the specified time every day of the specified year Specifying only the month and day will cause the alarm to sound at the specified time on the specified date every year You can also create a schedule alarm by specifying the month only day only year and month only and year and day only C　Year month day not specified Display In this case the alarm will sound at the specified time every day 1 Enter the Alarm Mode l Navigating Between Modes 2 Press E to scroll through alarm numbers AL1 to AL5 until the alarm you want to configure is displayed Alarm time Alarm number 3 Hold down A for at least two seconds Release the button when the hours digits start to flash Hours Operation Guide 5631
• Page 13 - English - : 4 Use B and E to change the hour setting If you are using 12hour timekeeping P indicates pm 5 Press D This causes the minutes digits to flash Minutes 6 Use B and E to set the minute setting 7 Press D This causes the alarm type to flash 8 Press E to display SCH 9 Press A This displays a screen for setting the year month and day Use B and E to change the flashing setting Use D to move the flashing between settings year month day Day Month Ye ar 10 Press A to exit the setting screen ALM is shown on the display while an alarm is set Hold down D for at least two seconds to return to the Timekeeping Mode Note A beeper sounds for 10 seconds when an alarm time is reached You can also use GSHOCK Connected to configure alarm time settings To stop the alarm Pressing any button while the beeper is sounding stops it Enabling the Hourly Time Signal 1 Enter the Alarm Mode l Navigating Between Modes 2 Press E to display the hourly time signal screen SIG 3 Press B to toggle the hourly time signal between enabled on and disabled off SIG Is displayed while the hourly time signal is enabled 4 Hold down D for at least two seconds to return to the Timekeeping Mode Note Note that you will not be able to turn on a schedule SCH alarm whose date has already passed You can also use GSHOCK Connected to enable the hourly time signal Turning Off an Alarm or the Hourly Time Signal To stop an alarm or the hourly time signal from sounding perform the steps below to turn it off To have an alarm or hourly time signal sound again turn it back on Note Indicators are displayed while any of the alarms or the hourly time signal is turned on The applicable indicators are not displayed while all of the alarms are turned off andor the hourly time signal is turned off Alarm Hourly time signal 1 Enter the Alarm Mode l Navigating Between Modes 2 Use E to scroll through the alarm AL1 to AL5 and hourly time signal SIG screens until the one you want to turn off is displayed Alarm or hourly time signal 3 Press B to turn off the displayed alarm or the hourly time signal Each press of B toggles between ON and OFF Turning off all of the alarms and the hourly time signal causes ALM and SIG to disappear from the display 4 Hold down D for at least two seconds to return to the Timekeeping Mode Operation Guide 5631
• Page 14 - English - : Note If ALM remains on the display it means that at least one alarm is still turned on To turn off all of the alarms repeat steps 2 and 3 until the ALM indicator is no longer displayed Adjusting Time Settings Manually When there is no communication with a mobile phone the time and date can be adjusted with the procedure below Setting a Home Time City Use the procedure in this section to select a city to use as your Home City If you are in an area that observes summer time you can also configure a summer time setting Note The initial factory default summer time setting for all cities is AUTO In many cases the AUTO setting lets you use the watch without switching between summer time and standard time 1 Enter the Timekeeping Mode l Navigating Between Modes 2 Hold down A for at least two seconds until the name of the currently selected Home City is displayed Home City 3 Use B and E to change the Home City setting For details refer to the information below l City Table 4 Press D 5 Use E to change the summer time setting Each press of E cycles through settings in the sequence shown below AUTO The watch switches between standard time and summer time automatically OFF The watch always indicates standard time ON The watch always indicates summer time 6 Press A to exit the setting screen Setting the TimeDate 1 Enter the Timekeeping Mode l Navigating Between Modes 2 Hold down A for at least two seconds until the name of the currently selected Home City is displayed Home City 3 Use D to display the setting you want to change Each press of D cycles through settings in the sequence shown below Power Saving Auto adjust Illumination duration Auto Light enabledisable Operation tone enabledisable Day of the week language Date display format 1224hour timekeeping Day Month Ye a r Minutes Hours Seconds Summer time Home City Operation Guide 5631
• Page 15 - English - : 4 Configure the date and time settings While the seconds are flashing pressing E will reset them to 00 1 is added to the minutes when the current seconds count is between 30 and 59 seconds For all the other settings use B and E to change the flashing setting 5 Repeat steps 3 and 4 to select time and date settings 6 Press A to exit the setting screen Selecting UTC Coordinated Universal Time as Your Home City Pressing B and E at the same time will set UTC Coordinated Universal Time as the Home City and display its current time Switching between 12hour and 24hour Timekeeping You can specify either 12hour format or 24 hour format for the time display 1 Enter the Timekeeping Mode l Navigating Between Modes 2 Hold down A for at least two seconds until the name of the currently selected Home City is displayed Home City 3 Press D eight times This causes 12H or 24H to flash on the display 4 Press E to select 12H 12hour timekeeping or 24H 24hour timekeeping 24hour timekeeping 12hour timekeeping 5 Press A to exit the setting screen Changing the Date Display Format 1 Enter the Timekeeping Mode l Navigating Between Modes 2 Hold down A for at least two seconds until the name of the currently selected Home City is displayed Home City 3 Press D nine times This displays a screen for selecting the date display format 4 Press E to select a date display format M Month DD Day 5 Press A to exit the setting screen Specifying the Day of the Week Language You can select any one of six languages for the day of the week display in the Timekeeping Mode 1 Enter the Timekeeping Mode l Navigating Between Modes 2 Hold down A for at least two seconds until the name of the currently selected Home City is displayed Home City 3 Press D 10 times This causes the language setting to flash 4 Use E to select a language ENG English ESP Spanish FRA French DEU German ITA Italian PyC Russian 5 Press A to exit the setting screen Operation Guide 5631

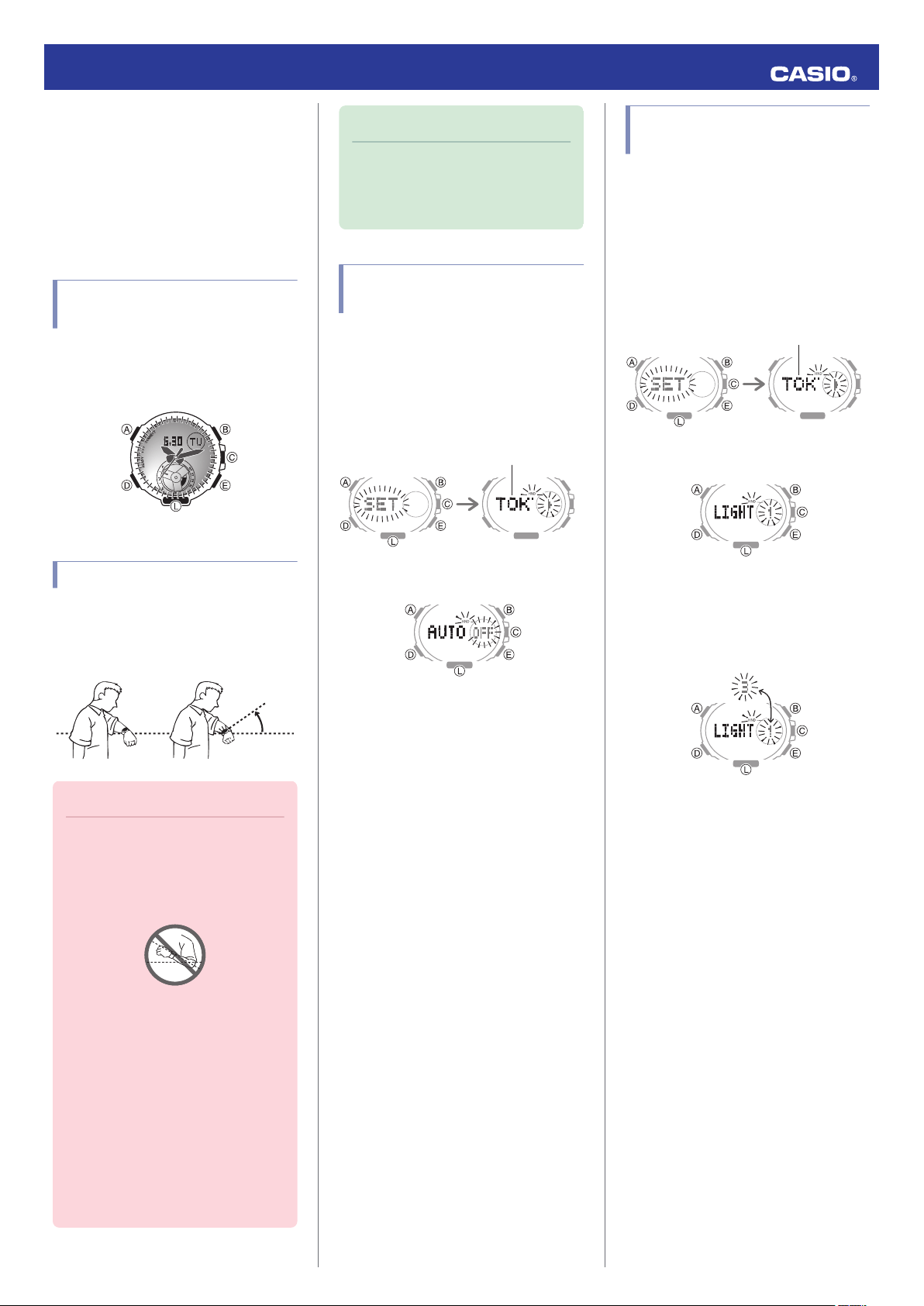

• Page 16 - English - : Light The watch has an LED light that you can turn on for viewing in the dark The watch also has an auto light function that automatically illuminates the display whenever the watch is angled for reading in the dark Illuminating the Display Manually Pressing L turns on illumination Illumination will turn off automatically if an alarm starts to sound Auto Light If Full Auto Light is enabled face illumination will turn on automatically whenever the watch is positioned at an angle of 40 degrees or more degrees or more Important Auto Light may not operate properly when the watch is at a horizontal angle of 15 degrees or greater from horizontal as shown in the illustration below Auto Light may operate unintentionally and run down the battery if the watch is blocked from light by your sleeve Electrostatic charge or magnetism can interfere with proper Full Auto Light operation If this happens try lowering your arm and then angle it towards your face again When moving the watch you may note a slight rattling sound This is the sound of Full Auto Light switch operation and does not indicate malfunction Note Full Auto Light is disabled when any one of the conditions below exists ー　 Alarm timer alert or other beeper sounding Configuring the Full Auto Light Setting 1 Enter the Timekeeping Mode l Navigating Between Modes 2 Hold down A for at least two seconds until the name of the currently selected Home City is displayed Home City 3 Press D 12 times to display AUTO 4 Press E to toggle Full Auto Light between enabled and disabled ON Face is illuminated when the watch is angled towards your face where lighting is low OFF Face is not illuminated when the watch is angled towards your face 5 Press A to exit the setting screen Specifying the Illumination Duration You can select either 15 seconds or three seconds as the illumination duration 1 Enter the Timekeeping Mode l Navigating Between Modes 2 Hold down A for at least two seconds until the name of the currently selected Home City is displayed Home City 3 Press D 13 times to display LIGHT 4 Press E to select an illumination duration 1 15second illumination 3 3second illumination 5 Press A to exit the setting screen Operation Guide 5631

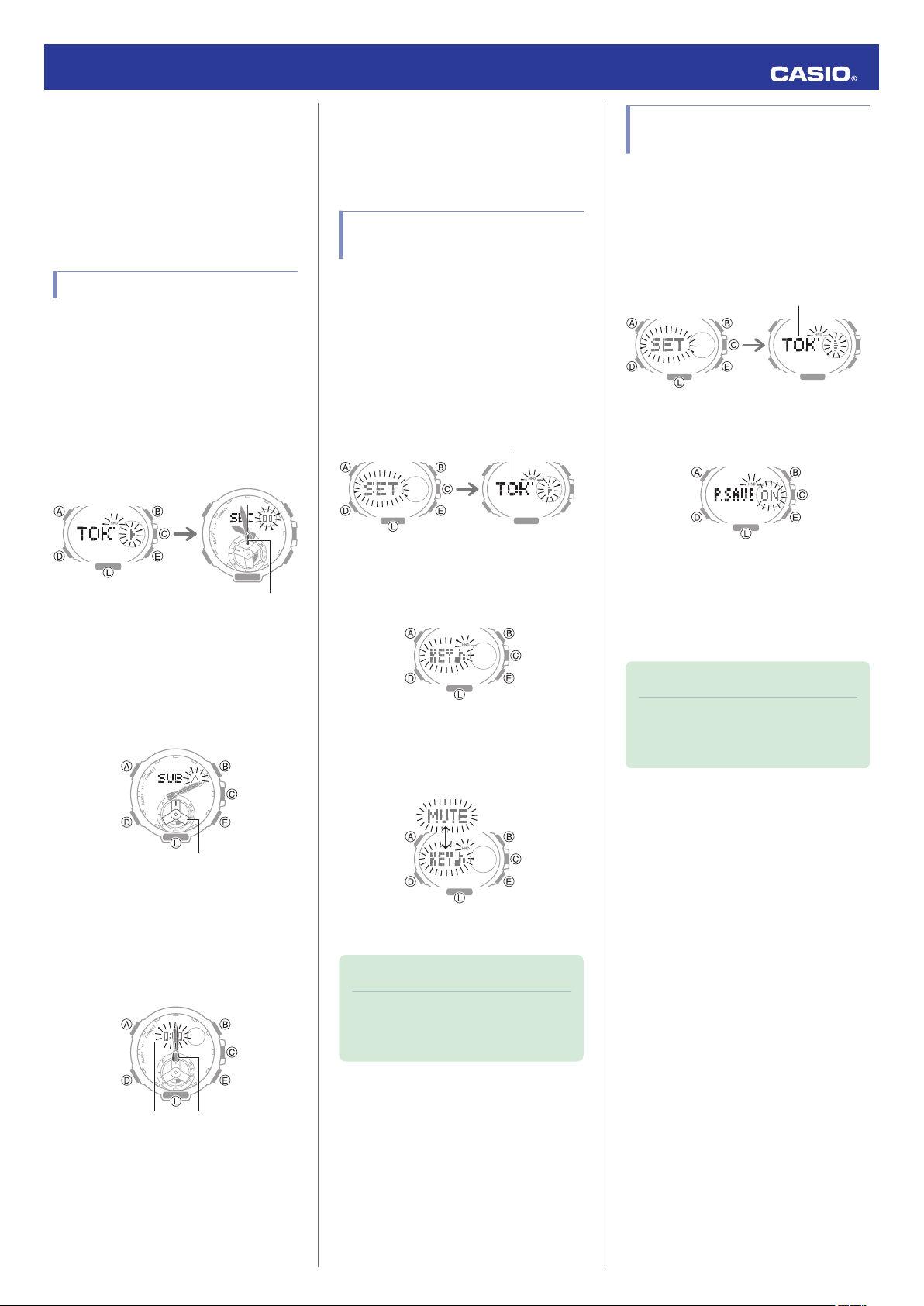

• Page 17 - English - : Hand Alignment Adjustment Strong magnetism or impact can cause the time indicated by the analog hands to become different from the time on the digital display If this happens adjust hand alignment Adjusting Hand Alignment 1 Enter the Timekeeping Mode l Navigating Between Modes 2 Hold down A for at least 5 seconds Release the button when 00 starts to flash This enables adjustment of second hand alignment After five secondsAfter two seconds Second hand 3 If the second hand is not aligned with 12 oclock use B and E to align it 4 Press D This enables adjustment of mode hand alignment Mode hand 5 If the mode hand is not aligned with 12 oclock use B and E to align it 6 Press D This enables adjustment of the hour and minute hands Minute handHour hand 7 If the hour and minute hands are not at 12 oclock use B and E to align them 8 Press A to exit the setting screen Other Settings This section explains other watch settings you can configure Enabling the Button Operation Tone Use the procedure below to enable or disable the tone that sounds when you press a button 1 Enter the Timekeeping Mode l Navigating Between Modes 2 Hold down A for at least two seconds until the name of the currently selected Home City is displayed Home City 3 Press D 11 times This causes KEY or MUTE to flash on the display 4 Press E to select KEY or MUTE KEY Operation tone enabled MUTE Operation tone muted 5 Press A to exit the setting screen Note Note that alarm and timer tones will still sound even while the operation tone is muted Configuring Power Saving Function Settings 1 Enter the Timekeeping Mode l Navigating Between Modes 2 Hold down A for at least two seconds until the name of the currently selected Home City is displayed Home City 3 Press D 15 times This displays PSAVE 4 Press E to toggle between ON and OFF ON Power Saving enabled OFF Power Saving disabled 5 Press A to exit the setting screen Note For details about Power Saving refer to the information below l Power Saving Function Operation Guide 5631

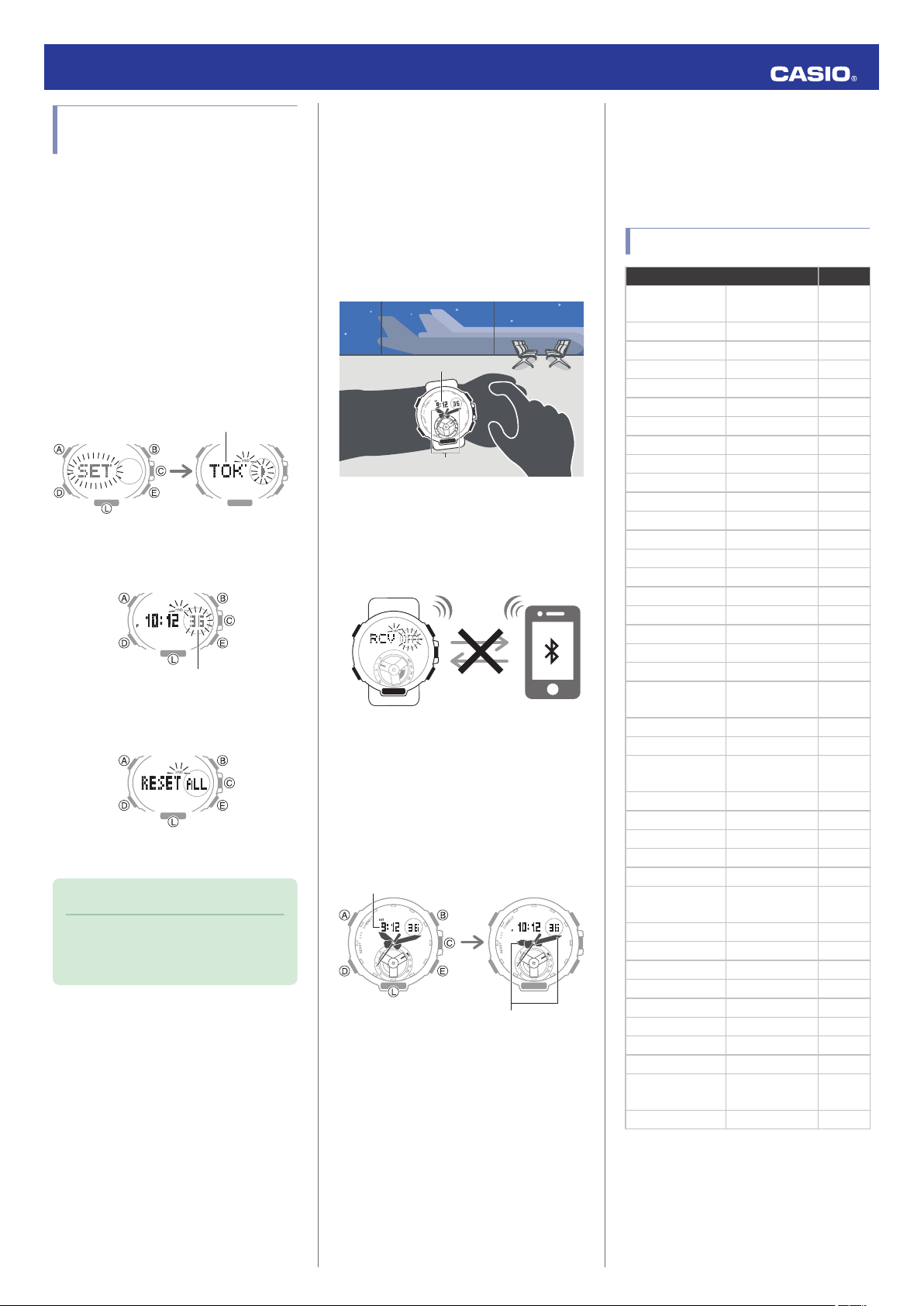

• Page 18 - English - : Returning the Watch to Its Factory Default Settings This section explains how to return the watch settings below to their initial factory defaults Watch Settings Stopwatch Timer Alarm 1 Enter the Timekeeping Mode l Navigating Between Modes 2 Hold down A for at least two seconds until the name of the currently selected Home City is displayed Home City 3 Press D twice This causes the seconds to flash Seconds 4 Hold down B for at least five seconds Release it when RESET stops flashing 5 Press A to exit the setting screen Note Resetting the watch will also delete information for pairing the watch with a phone and unpair them Moving to Another Time Zone Use the procedure below to easily change day and time settings of the watch to a destination location Before Boarding 1 Configure the World Time to the current time at your destination Destination time Current time l Using GSHOCK Connected to Configure Settings l Using Watch Operations to Configure Settings 2 Disable auto time adjustment l Using the Watch in a Medical Facility or Aircraft After Arriving 1 Swap the origin time zone time with the destination time zone time Destination time Destination time After swapping Before swapping l Using GSHOCK Connected to Configure Settings l Using Watch Operations to Configure Settings 2 Enable auto time adjustment l Using the Watch in a Medical Facility or Aircraft 3 Adjust the time setting l Triggering Immediate Time Adjustment Other Information This section provides nonoperational information you also need to know Refer to this information as required City Table City Offset UTC Coordinated Universal Time LONDON London 0 PARIS Paris 1 ATHENS Athens 2 JEDDAH Jeddah 3 TEHRAN Tehran 35 DUBAI Dubai 4 KABUL Kabul 45 KARACHI Karachi 5 DELHI Delhi 55 KATHMANDU Kathmandu 575 DHAKA Dhaka 6 YANGON Yangon 65 BANGKOK Bangkok 7 HONG KONG Hong Kong 8 PYONGYANG Pyongyang 85 EUCLA Eucla 875 TOKYO Tokyo 9 ADELAIDE Adelaide 95 SYDNEY Sydney 10 LORD HOWE ISLAND Lord Howe Island NOUMEA Noumea 11 WELLINGTON Wellington 12 CHATHAM ISLAND Chatham Islands NUKUALOFA Nukualofa 13 KIRITIMATI Kiritimati 14 BAKER ISLAND Baker Island 12 PAGO PAGO Pago Pago 11 HONOLULU Honolulu 10 MARQUESAS ISLANDS Marquesas Islands ANCHORAGE Anchorage 9 LOS ANGELES Los Angeles 8 DENVER Denver 7 CHICAGO Chicago 6 NEW YORK New York 5 HALIFAX Halifax 4 ST JOHNS St Johns 35 RIO DE JANEIRO Rio de Janeiro 3 F DE NORONHA Fernando de Noronha PRAIA Praia 1 In May 2018 the offset for PYONGYANG was changed to 9 However this watch still uses an offset of 85 Because of this selecting PYONGYANG will set an offset of 85 Operation Guide 5631
• Page 19 - English - : The information in the above table is current as of January 2020 Time zones may change and UTC differentials may become different from those shown in the table above If this happens connect the watch with a phone to update the watch with the latest time zone information Summer Time Table When AUTO is selected for a city that observes summer time switching between standard time and summer time will be performed automatically at the timing shown in the table below Note Summer time start and end dates for your current location may be different from those shown below If this happens you can have new summer time information for your Home City and World Time city sent to the watch by connecting the watch with a phone If the watch is not connected with a phone you can change the summer time setting manually City Name Summer Time Start Summer Time End London 0100 last Sunday in March 0200 last Sunday in October Paris 0200 last Sunday in March 0300 last Sunday in October Athens 0300 last Sunday in March 0400 last Sunday in October Tehran 0000 March 22 or 21 0000 September 22 or Sydney Adelaide 0200 first Sunday in October 0300 first Sunday in April Lord Howe Island 0200 first Sunday in October 0200 first Sunday in April Wellington 0200 last Sunday in September 0300 first Sunday in April Chatham Islands 0245 last Sunday in September 0345 first Sunday in April Anchorage 0200 second Sunday in March 0200 first Sunday in November Los Angeles 0200 second Sunday in March 0200 first Sunday in November Denver 0200 second Sunday in March 0200 first Sunday in November Chicago 0200 second Sunday in March 0200 first Sunday in November New York 0200 second Sunday in March 0200 first Sunday in November Halifax 0200 second Sunday in March 0200 first Sunday in November St Johns 0200 second Sunday in March 0200 first Sunday in November The information in the above table is current as of January 2020 Supported Phones For information about phones that can connect with the watch visit the CASIO website httpsworldcasiocomosmobilewat Specifications Accuracy at normal temperature 15 seconds per month average when time adjustment by communication with a phone is not possible Timekeeping Analog Hour minute moves every 10 seconds second Digital Hour minute second month day day of the week ampmP24hour timekeeping Full Auto Calendar 2000 to 2099 Summer Time World Time 39 cities 39 time zones and Coordinated Universal Time UTC Summer time Home Time swapping Direct UTC recall Stopwatch Measurement unit 11000 seconds first hour 110 seconds after first hour Measurement range 23 hours 59 minutes 599 seconds Measurement Functions Normal elapsed time split times 1st and 2nd place finisher times Timer Unit 110 seconds Range 24 hours Time setting unit 1 second Time setting range 1 second to 24 hours 10second beeper when the end of the countdown is reached Alarm Time alarms Number of alarms 5 DAILY 1 TIME SCHEDULE Setting units Hour minute DAILY 1 TIME Year month day hour minute SCHEDULE Alarm tone duration 10 seconds Hourly time signal Beep every hour on the hour Operation Guide 5631
• Page 20 - English - : Mobile Link Auto Time Correction Time setting adjusted automatically at preset time Onetouch Time Correction Manual connection and time adjustment Phone finder Watch operation sounds the alert sound of the mobile phone World Time Current time for approximately 300 cities selected for the watch Home TimeWorld Time swapping Auto Summer Time Switching Automatic switching between standard time and summer time Timer Settings Alarm Settings Hand alignment correction Data Communication Specifications Bluetooth Frequency Band 2400MHz to 2480MHz Maximum Transmission 0 dBm 1 mW Communication range Up to 2 meters depends on environment Other Highbrightness DOUBLE LED light illumination duration setting Full Auto Light power saving battery power indicator operation tone onoff hand shift Power Supply Solar panel and one rechargeable battery Battery operating time Approximately 6 months Conditions Auto time correction 4 timesday Alarm Once 10 secondsday Illumination Once 15 secondsday Power Saving 6 hoursday Specifications are subject to change without notice Mobile Link Precautions Legal Precautions This watch complies with or has received approval under the radio laws of various countries and geographical areas Using this watch in an area where it does not comply with or has not received approval under applicable radio laws may be a criminal offense For details visit the CASIO Website httpsworldcasiocomceBLE Use of this watch inside of aircraft is restricted under the aviation laws of each country Be sure to follow the instructions of airline personnel Precautions when using Mobile Link When using this watch in combination with a phone keep the watch and phone close to each other A range of two meters is recommended as a guideline but the local environment walls furniture etc the structure of a building and other factors may require a much closer range This watch can be affected by other devices electrical devices audiovisual equipment office equipment etc In particular it can be affected by operation of a microwave oven The watch may not be able to communicate normally with a phone if a microwave oven is operating nearby Conversely this watch may cause noise in radio reception and the video image of a TV Bluetooth of this watch uses the same frequency band 24 GHz as wireless LAN devices and use of such devices in close proximity of this watch may result in radio interference slower communication speeds and noise for the watch and the wireless LAN device or even communication failure Stopping Radio Wave Emission by This Watch The watch is emitting radio waves whenever the second hand is pointing to READY or CONNECT In addition the watch also connects phone automatically four times a day to adjust its time setting When in a hospital on an aircraft or in any other area where the use of radio waves is not allowed use the operation below to stop radio wave generation Stopping Radio Wave Generation Press any button to terminate the Bluetooth connection DisconnectedConnected Disabling Auto Time Adjustment Configure GSHOCK Connected settings to disable time adjustment between the watch and phone l Using the Watch in a Medical Facility or Aircraft Copyrights and Registered Copyrights The Bluetooth word mark and logos are registered trademarks owned by the Bluetooth SIG Inc and any use of such marks by CASIO Computer Co Ltd is under license iPhone and App Store are trademarks of Apple Inc in the United States and other countries iOS is a trademark or registered trademark of Cisco Systems Inc GALAXY is a registered trademark of Samsung Electronics Co Ltd Android and Google Play TM are trademarks or registered trademarks of Google LLC Other company names and product names used herein are trademarks or registered trademarks of their respective companies Operation Guide 5631
• Page 21 - English - : Troubleshooting I cant pair the watch with a phone Q1 Ive never been able to establish a pairing connection between the watch and phone Are you using a supported phone model Check if the phone model and its operating system are supported by the watch For information about supported phone models visit the CASIO Website httpsworldcasiocomosmobilewat Did you install GSHOCK Connected on your phone GSHOCK Connected needs to be installed on your phone in order to connect with the watch l A Install the app on your phone Are your phones Bluetooth settings configured correctly Configure the phones Bluetooth settings For details about setting procedures see your phone documentation iPhone Users Settings n Bluetooth n On Settings n Privacy n Bluetooth Sharing n GSHOCK Connected n On Android Users Enable Bluetooth Other than the above Some phones need to have BT Smart disabled to use GSHOCK Connected For details about setting procedures see your phone documentation On the Home Screen tap Menu n Settings n Bluetooth n Menu n BT Smart settings n Disable I cant reconnect the watch and phone Q1 The watch will not reconnect with the phone after they are disconnected Is GSHOCK Connected running The watch cannot reconnect with the phone unless GSHOCK Connected is running on the phone On your phones Home Screen tap the GSHOCK Connected icon Next on the watch hold down C for at least 15 seconds Have you tried turning your phone off and then back on again Turn your phone off and then back on and then tap the GSHOCK Connected icon Next on the watch hold down C for at least 15 seconds Q2 I cant connect while my phone is in the Airplane Mode Connection with the watch is not possible while the phones Airplane Mode is enabled After disabling the phones Airplane Mode go to the phones Home Screen and tap the G SHOCK Connected icon Next on the watch hold down C for at least 15 seconds Q3 I changed the phones Bluetooth from enabled to disabled and now I cant connect anymore On your phone reenable Bluetooth and then go to the Home Screen and tap the G SHOCK Connected icon Next on the watch hold down C for at least 15 seconds Q4 I cant connect after turning off the phone Turn your phone off and then back on and then tap the GSHOCK Connected icon Next on the watch hold down C for at least 15 seconds Operation Guide 5631
• Page 22 - English - : PhoneWatch Connection Q1 I cant establish a connection between the phone and watch Have you tried turning your phone off and then back on again Turn your phone off and then back on and then tap the GSHOCK Connected icon Next on the watch hold down C for at least 15 seconds Has the watch been repaired with the phone After deleting pairing information from G SHOCK Connected repair them l Unpairing l C Pair the watch with a phone If you are unable to establish a connection Use the procedure below to delete the pairing information from the watch and then repair the watch and phone A　Hold down D for at least two seconds to enter the Timekeeping Mode B　Hold down A for at least two seconds until the name of the currently selected Home City is displayed C　Press D twice to cause the seconds digits to flash D　Hold down B for at least two seconds Release it when CLR stops flashing This deletes the pairing information from the watch and returns to the timekeeping display Changing to a Different Phone Model Q1 Connecting the current watch to another phone Pair the watch with the phone l If you purchase another phone Auto Time Adjustment by Bluetooth Connection Time Adjustment Q1 When does the watch adjust its time The watch will connect with the phone and perform auto time adjustment at around 1230 am 630 am 1230 pm and 630 pm The connection is automatically terminated after auto time adjustment is complete Q2 Auto time adjustment is not performed at a scheduled time Is auto time adjustment not being performed according to its normal schedule Note that auto time adjustment is not performed for 24 hours after swapping of the Home Time and World Time or after the time setting is adjusted manually on the watch Auto time adjustment will resume 24 hours after either of the above operations is performed Is a stopwatch or timer operation being performed Auto time adjustment will not start at the scheduled times if a stopwatch or timer operation is in progress Stop the stopwatch or timer operation l Stopwatch l Timer Is auto time adjustment enabled Auto time adjustment will not be performed at the scheduled times unless it is enabled Enable auto time adjustment l Using the Watch in a Medical Facility or Aircraft Q3 Even if I press C the watch does not sync its time setting with my phone Time setting syncing will not be performed if you press C while a stopwatch elapsed time measurement operation or a timer countdown operation is in progress After the ongoing stopwatch or timer operation is stopped press C again Q4 Time is not displayed correctly The phones time setting may be incorrect because it is unable to connect with its network due to being out of range etc If this happens connect the phone to its network and then adjust the time setting Alarms and Hourly Time Signal Q1 An alarm andor the hourly time signal do not sound Is the watchs battery charged Keep the watch exposed to light until it recharges sufficiently l Solar Charging Other than the above Enable the alarm andor the hourly time signal l Configuring Alarm Settings l Configuring Schedule Alarm Settings l Enabling the Hourly Time Signal Operation Guide 5631
