1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible for any injuries or damage that are the result
of incorrect installation or usage. Always keep the
instructions in a safe and accessible location for future
reference.
1.1 Children and vulnerable people safety
• This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
• Children between 3 and 8 years of age and persons
with very extensive and complex disabilities shall be
kept away from the appliance unless continuously
supervised.
• Children of less than 3 years of age should be kept
away from the appliance unless continuously
supervised.
• Do not let children play with the appliance.
• Keep detergents away from children.
• Keep children and pets away from the appliance when
the door is open.
• Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
1.2 General Safety
• This appliance is intended to be used in household
and similar applications such as:
– farm houses; staff kitchen areas in shops, offices
and other working environments;
ENGLISH 3
– by clients in hotels, motels, bed & breakfast and
other residential type environments.
• Do not change the specification of this appliance.
• The operating water pressure (minimum and
maximum) must be between 0.5 (50) / 8 (800) bar
(kPa)
• Obey the maximum number of 15 place settings.
• If the supply cord is damaged, it must be replaced by
the manufacturer, its Authorised Service Centre or a
similarly qualified persons in order to avoid a hazard.
• Put knives and cutlery with sharp points in the cutlery
basket with the points down or in a horizontal position.
• Do not leave the appliance with the door open, to
avoid a tripping hazard.
• Before any maintenance operation, deactivate the
appliance and disconnect the mains plug from the
socket.
• Do not use high pressure water sprays and/or steam
to clean the appliance.
• The appliance is to be connected to the water mains
using the new supplied hose-sets. Old hose sets must
not be reused.
• The ventilation openings in the base (if applicable)
must not be obstructed by a carpet.
• Some dishwasher detergents are strongly alkaline.
They can be extremely dangerous if swallowed. Avoid
contact with the skin and eyes and keep children away
from the dishwasher when the door is open.
• Check that the detergent receptacle is empty after
completion of the wash cycle.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Do not use the appliance before
installing it in the built-in structure due
to safety manner.
• Follow the installation instructions
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
www.electrolux.com4
• Do not install or use the appliance
where the temperature is less than
0 °C.
• Install the appliance in a safe and
suitable place that meets installation
requirements.
www.youtube.com/electrolux
www.youtube.com/aeg
How to install your 60 cm
Dishwasher Sliding Hinge
2.2 Electrical connection
WARNING!
Risk of fire and electric
shock.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to
the mains plug and to the mains
cable. Should the mains cable need to
be replaced, this must be carried out
by our Authorised Service Centre.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
2.3 Water connection
• Do not cause damage to the water
hoses.
• Before connection to new pipes, pipes
not used for a long time, where repair
work has been carried out or new
devices fitted (water meters, etc.), let
the water flow until it is clean and
clear.
• Ensure that there are no visible water
leaks during and after the first use of
the appliance.
• The water inlet hose has a safety
valve and a sheath with an inner
mains cable.
WARNING!
Dangerous voltage.
• If the water inlet hose is damaged,
immediately close the water tap and
disconnect the mains plug from the
mains socket. Contact the Authorised
Service Centre to replace the water
inlet hose.
2.4 Use
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
• Dishwasher detergents are
dangerous. Follow the safety
instructions on the detergent
packaging.
• Do not drink and play with the water in
the appliance.
• Do not remove the dishes from the
appliance until the programme is
complete. Some detergent may
remain on the dishes.
• Do not store items or apply pressure
on the open door of the appliance.
• The appliance can release hot steam
if you open the door while a
programme operates.
2.5 Internal lighting
WARNING!
Risk of injury.
• Concerning the lamp(s) inside this
product and spare part lamps sold
separately: These lamps are intended
to withstand extreme physical
conditions in household appliances,
such as temperature, vibration,
humidity, or are intended to signal
ENGLISH 5
information about the operational
status of the appliance. They are not
intended to be used in other
applications and are not suitable for
household room illumination.
• To replace the internal lighting,
contact the Authorised Service
Centre.
2.6 Service
• To repair the appliance contact the
Authorised Service Centre.
• Use original spare parts only.
2.7 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent
children and pets to get closed in the
appliance.
3. PRODUCT DESCRIPTION
5
4
9
8
6
10
11
2
3
1
7
1
Ceiling spray arm
2
Upper spray arm
3
Lower spray arm
4
Filters
5
Rating plate
6
Air vent
7
Rinse aid dispenser
8
Detergent dispenser
9
Lower basket
10
Upper basket
11
Cutlery drawer
3.1 Beam-on-Floor
The Beam-on-Floor is a light that is
displayed on the floor below the
appliance door.
• A red light comes on when a
programme starts. It remains on for
the duration of the programme.
• A green light comes on when the
programme is complete.
• The red light flashes when the
appliance has a malfunction.
The Beam-on-Floor is off
when the appliance is
deactivated.
www.electrolux.com6
4. CONTROL PANEL
1 2 3
4 5 6
1
On/Off button
2
Delay Start button
3
Display
4
MY TIME selection bar
5
EXTRAS buttons
6
AUTO Sense button
4.1 Display
A
CB B
A. ECOMETER
B. Indicators
C. Time indicator

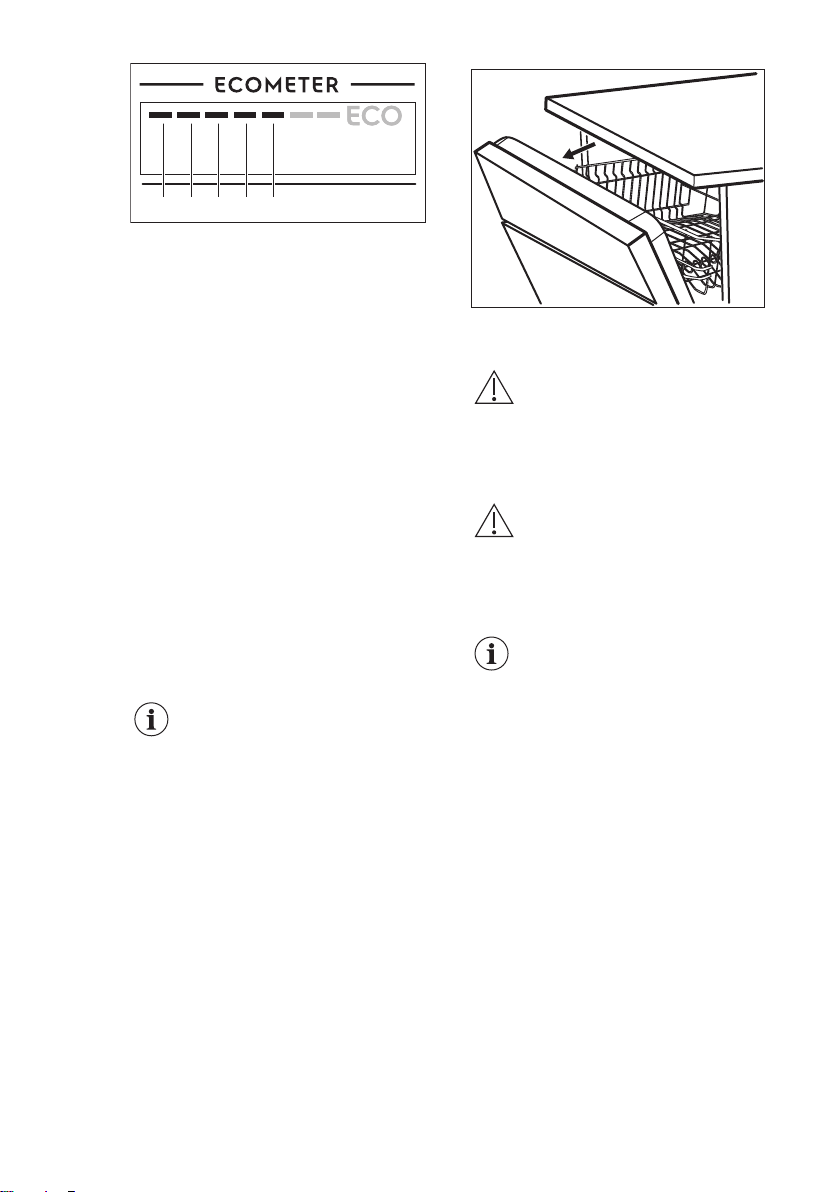

4.2 ECOMETER
The ECOMETER indicates how the
programme selection impacts energy
and water consumption. The more bars
are on, the lower the consumption is.
indicates the most
environmentally friendly programme
selection for a normally soiled load.
4.3 Indicators
Indicator Description
Rinse aid indicator. It is on when the rinse aid dispenser needs refill‐
ing. Refer to "Before first use".
Machine Care indicator. It is on when the appliance needs internal
cleaning with the Machine Care programme. Refer to "Care and
cleaning".
Drying phase indicator. It is on when a programme with the drying
phase is selected. It flashes when the drying phase operates. Refer to
"Programme selection".
5. PROGRAMME SELECTION
5.1 MY TIME
Using MY TIME selection bar, you can
select a suitable wash cycle based on
programme duration.
ENGLISH 7
CA B D E
A. • Quick is the shortest programme
(30min) suitable for washing a
load with fresh and light soil.
• Pre-rinse (15min) is a
programme for rinsing off food
remains from the dishes. It
prevents odours forming in the
appliance. Do not use detergent
with this programme.
B. 1h is a programme suitable for
washing a load with fresh and lightly
dried-on soil.
C. 1h 30min is a programme suitable
for washing and drying normally
soiled items.
D. 2h 40min is a programme suitable
for washing and drying heavily soiled
items.
E. ECO is the longest programme (3h)
offering the most efficient use of
energy and water consumption for
crockery and cutlery with normal soil.
This is the standard programme for
test institutes.
5.2 EXTRAS
You can adjust the programme selection
to your needs by activating EXTRAS.
SprayZone
SprayZone improves the washing
results by increasing the pressure and
temperature of the water as well as wash
time. The option operates within the
designated area in the lower basket.
SprayZone is suitable for washing items
with stubborn soil, e.g. pots, pans and
casserole dishes.
CAUTION!
Make sure that the items
placed in the SprayZone
area do not block the upper
spray arm.
ExtraPower
ExtraPower improves the washing
results of the selected programme. The
option increases the wash temperature
and duration.
GlassCare
GlassCare provides special care for a
delicate load. The option prevents rapid
changes in the wash temperature of the
selected programme and reduces it to
45 °C. This protects glassware in
particular from damaging.
5.3 AUTO Sense
The AUTO Sense program automatically
adjusts the wash cycle to the type of
load.
The appliance senses the degree of soil
and the amount of dishes in the baskets.
It adjusts the temperature and quantity of
water as well as the wash duration.
5.4 Programmes overview
Pro‐
gramme
Type of load Degree of
soil
Programme phases EXTRAS
Quick • Crockery
• Cutlery
• Fresh • Wash 50 °C
• Intermediate rinse
• Final rinse 45 °C
• AirDry
• ExtraPower
• GlassCare
• SprayZone
www.electrolux.com8
Pro‐
gramme
Type of load Degree of
soil
Programme phases EXTRAS
Pre-rinse
• All types
of loads
• All de‐
grees of
soil
• Prewash EXTRAS are not
applicable to this
programme.
1h • Crockery
• Cutlery
• Fresh
• Lightly
dried-on
• Wash 60 °C
• Intermediate rinse
• Final rinse 50 °C
• AirDry
• ExtraPower
• GlassCare
• SprayZone
1h 30min • Crockery
• Cutlery
• Pots
• Pans
• Normal
• Lightly
dried-on
• Wash 60 °C
• Intermediate rinse
• Final rinse 55 °C
• Drying
• AirDry
• ExtraPower
• GlassCare
• SprayZone
2h 40min • Crockery
• Cutlery
• Pots
• Pans
• Normal to
heavy
• Dried-on
• Prewash
• Wash 60 °C
• Intermediate rinse
• Final rinse 60 °C
• Drying
• AirDry
• ExtraPower
• GlassCare
• SprayZone
ECO • Crockery
• Cutlery
• Pots
• Pans
• Normal
• Lightly
dried-on
• Prewash
• Wash 50 °C
• Intermediate rinse
• Final rinse 55 °C
• Drying
• AirDry
• ExtraPower
• GlassCare
• SprayZone
AUTO
Sense
• Crockery
• Cutlery
• Pots
• Pans
The pro‐
gramme ad‐
justs to all de‐
grees of soil.
• Prewash
• Wash 50 - 60 °C
• Intermediate rinse
• Final rinse 60 °C
• Drying
• AirDry
EXTRAS are not
applicable to this
programme.
Machine
Care
• No load The pro‐
gramme
cleans the
appliance in‐
terior.
• Wash 70 °C
• Intermediate rinse
• Final rinse
• AirDry
EXTRAS are not
applicable to this
programme.
Consumption values
Programme
1)
Water (l) Energy (kWh) Duration (min)
Quick 9.4 - 11.4 0.54 - 0.67 30
Pre-rinse 4.2 - 5.2 0.01 15
1h 11.3 - 13.9 0.83 - 1.02 60
ENGLISH 9
Programme
1)
Water (l) Energy (kWh) Duration (min)
1h 30min 11.8 - 14.4 0.96 - 1.17 90
2h 40min 11.3 - 13.8 1.02 - 1.25 160
ECO 12.2 0.677 180
AUTO Sense 10.7 - 13.8 0.74 - 1.27 108 - 187
Machine Care 10.3 - 12.5 0.78 - 0.95 60
1)
The pressure and the temperature of the water, the variations of the mains supply, the
options and the quantity of dishes can change the values.
Information for test institutes
To receive the necessary information for
conducting performance tests (e.g.
according to EN60436), send an email
to:
In your request please include the
product number code (PNC) found on
the rating plate.
For any other questions regarding your
dishwasher please refer to the service
book provided with your appliance.
6. BASIC SETTINGS
You can configure the appliance by
changing basic settings according to
your needs.
No Settings Values
Description
1)
1 Rinse aid level From level 0A
to level 6A (de‐
fault: 4A)
Adjust the level of the rinse aid according
to the necessary dosage.
2 End sound On
Off (default)
Activate or deactivate the acoustic signal
for the end of a programme.
3 Auto door open On (default)
Off
Activate or deactivate the AirDry.
4 Key tones On (default)
Off
Activate or deactivate the sound of the
buttons when pressed.
5 Latest pro‐
gramme selec‐
tion
On
Off (default)
Enable or disable the automatic selection
of the most recently used programme and
options.
1)
For more details, refer to the information provided in this chapter.
You can change the basic settings in
setting mode.
When the appliance is in setting mode,
the bars of the ECOMETER represent
available settings. For each setting, a
dedicated bar of the ECOMETER
flashes.
The order of the basic settings presented
in the table is also the order of the
settings on the ECOMETER:
www.electrolux.com10
1 2 3 4 5
6.1 The rinse aid level
The rinse aid helps to dry the dishes
without streaks and stains. It is
automatically released during the hot
rinse phase. It is possible to set the
released quantity of rinse aid.
When rinse aid chamber is empty, the
rinse aid indicator is on notifying to refill
rinse aid. If the drying results are
satisfactory while using multi-tablets only,
it is possible to deactivate the dispenser
and the indicator. However, for best
drying performance, always use rinse aid
and keep the rinse aid indicator active.
To deactivate the rinse aid dispenser and
indicator, set the level of rinse aid to 0A.
6.2 End sound
You can activate an acoustic signal that
sounds when the programme is
completed.
Acoustic signals sound also
when a malfunction of the
appliance occurs. It is not
possible to deactivate these
signals.
6.3 AirDry
AirDry improves the drying results. The
appliance door opens automatically
during the drying phase and remains
ajar.
AirDry is automatically activated with all
programmes other than Pre-rinse.
CAUTION!
Do not try to close the
appliance door within 2
minutes after automatic
opening. This can cause
damage to the appliance.
CAUTION!
If children have access to
the appliance, we advise to
deactivate AirDry. The
automatic opening of the
door may pose a danger.
When AirDry opens the
door, Beam-on-Floor might
not be completely visible. To
see if the programme is
complete, look at the control
panel.
6.4 Key tones
The buttons on the control panel make a
click sound when you press them. You
can deactivate this sound.
6.5 Latest programme selection
You can set the automatic selection of
the most recently used programme and
options.
The latest programme that was
completed before the appliance
deactivation is saved. It is then selected
automatically after you activate the
appliance.
When the latest programme selection is
disabled, the default programme is ECO.
ENGLISH 11
6.6 Setting mode
How to navigate in setting
mode
You can navigate in setting mode using
MY TIME selection bar.
BA C
A. Previous button
B. OK button
C. Next button
Use Previous and Next to switch
between the basic settings and to
change their value.
Use OK to enter the selected setting and
to confirm changing its value.
How to enter setting mode
You can enter setting mode before
starting a programme. You cannot enter
setting mode while the programme is
running.
To enter setting mode, press and hold
simultaneously and for
about 3 seconds.
The lights related to the Previous, OK
and Next are on.
How to change a setting
Make sure the appliance is in setting
mode.
1. Use Previous or Next to select the
bar of the ECOMETER dedicated to
the desired setting.
• The bar of the ECOMETER
dedicated to the chosen setting
flashes.
• The display shows the current
setting value.
2. Press OK to enter the setting.
• The bar of the ECOMETER
dedicated to the chosen setting is
on. The other bars are off.
• The current setting value flashes.
3. Press Previous or Next to change
the value.
4. Press OK to confirm the setting.
• The new setting is saved.
• The appliance returns to the basic
settings list.
5. Press and hold simultaneously
and for about 3
seconds to exit setting mode.
The appliance returns to the programme
selection.
The saved settings remain valid until you
change them again.
7. BEFORE FIRST USE
1. Fill the rinse aid dispenser.
2. Open the water tap.
3. Start the Quick programme to
remove any residuals from the
manufacturing process. Do not use
detergent and do not put dishes in
the baskets.
www.electrolux.com12
7.1 How to fill the rinse aid
dispenser
A
B
C
CAUTION!
Only use rinse aid designed
specifically for dishwashers.
1. Open the lid (C).
2. Fill the dispenser (B) until the rinse
aid reaches the marking ''MAX''.
3. Remove the spilled rinse aid with an
absorbent cloth to prevent excessive
foam formation.
4. Close the lid. Make sure that the lid
locks into position.
Fill the rinse aid dispenser
when the indicator (A) is
clear.
8. DAILY USE
1. Open the water tap.
2. Press and hold until the appliance
is activated.
3. Fill the rinse aid dispenser if it is
empty.
4. Load the baskets.
5. Add the detergent.
6. Select and start a programme.
7. Close the water tap when the
programme is complete.
8.1 Using the detergent
A
B
C
CAUTION!
Only use detergent
specifically designed for
dishwashers.
1. Press the release button (A) to open
the lid (C).
2. Put the detergent, in powder or
tablets, in the compartment (B).
3. If the programme has a prewash
phase, put a small quantity of
detergent on the inner part of the
appliance door.
4. Close the lid. Make sure that the lid
locks into position.
8.2 How to select and start a
programme using MY TIME
selection bar
1. Slide your finger across MY TIME
selection bar to choose a suitable
programme.
• The light related to the selected
programme is on.
• The ECOMETER indicates the
level of energy and water
consumption.
• The display shows the
programme duration.
2. Activate applicable EXTRAS if
desired.
3. Close the appliance door to start the
programme.
ENGLISH 13
8.3 How to select and start the
programme Pre-rinse
1. To select Pre-rinse, press and
hold for 3 seconds.
• The light related to the button is
on.
• The ECOMETER is off.
• The display shows the
programme duration.
2. Close the appliance door to start the
programme.
8.4 How to activate EXTRAS
1. Select a programme using MY TIME
selection bar.
2. Press the button dedicated to the
option you want to activate.
• The light related to the button is
on.
• The display shows the updated
programme duration.
• The ECOMETER indicates the
updated level of energy and water
consumption.
By default, options must be
activated every time before
you start a programme.
If the latest programme
selection is enabled, the
saved options are activated
automatically along with the
programme.
It is not possible to activate
or deactivate options while a
programme is running.
Not all options are
compatible with each other.
Activating options often
increases the water and
energy consumption as well
as the programme duration.
8.5 How to start the AUTO
Sense program
1. Press .
• The light related to the button is
on.
• The display shows the longest
possible program duration.
MY TIME and EXTRAS are
not applicable to this
program.
2. Close the appliance door to start the
program.
The appliance senses the type of load
and adjusts a suitable wash cycle.
During the cycle, the sensors operate
several times and the initial program
duration can decrease.
8.6 How to delay the start of a
programme
1. Select a programme.
2. Press repeatedly until the display
shows the desired delay time (from 1
to 24 hours).
The light related to the button is on.
3. Close the appliance door to start the
countdown.
During the countdown, it is not possible
to change the delay time and the
programme selection.
When the countdown is complete, the
programme starts.
8.7 How to cancel the delay
start while the countdown
operates
Press and hold for about 3 seconds.
The appliance returns to the programme
selection.
If you cancel the delay start,
you have to select the
programme again.
8.8 How to cancel a running
programme
Press and hold for about 3 seconds.
The appliance returns to the programme
selection.
Make sure that there is
detergent in the detergent
dispenser before you start a
new programme.
www.electrolux.com14
8.9 Opening the door while the
appliance operates
Opening the door while a programme is
running stops the appliance. It may affect
the energy consumption and the
programme duration. After closing the
door, the appliance continues from the
point of interruption.
If the door is opened for
more than 30 seconds
during the drying phase, the
running programme ends. It
does not happen if the door
is opened by AirDry function.
8.10 The Auto Off function
This function saves energy by switching
the appliance off when it is not operating.
The function comes into operation
automatically:
• When the programme is completed.
• After 5 minutes if a programme was
not started.
8.11 End of the programme
When the programme is complete, the
display shows 0:00.
The Auto Off function switches the
appliance off automatically.
All buttons are inactive except for the
on/off button.
9. HINTS AND TIPS
9.1 General
Follow the hints below to ensure optimal
cleaning and drying results in daily use
and to help you protect the environment.
• Remove larger residues of food from
the dishes into the waste bin.
• Do not pre-rinse dishes by hand.
When needed, select a programme
with a prewash phase.
• Always use the whole space of the
baskets.
• Make sure that items in the baskets
do not touch or cover each other.
Only then can the water completely
reach and wash the dishes.
• You can use dishwasher detergent
and rinse aid separately or you can
use the multi-tablets. Follow the
instructions on the packaging.
• Select a programme according to the
type of load and the degree of soil.
ECO offers the most efficient use of
water and energy consumption for
crockery and cutlery with normal soil.
9.2 Using rinse aid and
detergent
• Only use rinse aid and detergent
designed for dishwasher. Other
products can cause damage to the
appliance.
• Detergent tablets do not fully dissolve
with short programmes. To prevent
detergent residues on the tableware,
we recommend that you use the
tablets with long programmes.
• Do not use more than the correct
quantity of detergent. Refer to the
instructions on the detergent
packaging.
9.3 Loading the baskets
• Always use the whole space of the
baskets.
• Use the appliance to wash
dishwasher-safe items only.
• Do not wash in the appliance items
made of wood, horn, aluminium,
pewter and copper as they could
crack, warp, get discoloured or pitted.
• Do not wash in the appliance items
that can absorb water (sponges,
household cloths).
• Put hollow items (cups, glasses and
pans) with the opening facing
downwards.
• Make sure that glass items do not
touch each other.
ENGLISH 15
• Put light items in the upper basket.
Make sure that the items do not move
freely.
• Put cutlery and small items in the
cutlery drawer.
• Move the upper basket upwards to
accommodate large items in the lower
basket.
• Make sure that the spray arms can
move freely before you start a
programme.
9.4 Before starting a
programme
Make sure that:
• The filters are clean and correctly
installed.
• The spray arms are not clogged.
• There is dishwasher rinse aid (unless
you use multi- tablets).
• The position of the items in the
baskets is correct.
• The programme is applicable to the
type of load and for the degree of soil.
• The correct quantity of detergent is
used.
9.5 Unloading the baskets
1. If AirDry is deactivated, open the
door by approximately 10cm at the
end of the programme.
2. Let the tableware cool down for 30 -
40 minutes before removing it from
the appliance. Hot items can be
easily damaged.
3. First remove items from the lower
basket, then from the upper basket.
At the end of the
programme, water can still
remain on the inside
surfaces of the appliance.
10. CARE AND CLEANING
WARNING!
Before any maintenance
other than running the
programme Machine Care,
deactivate the appliance and
disconnect the mains plug
from the main socket.
Dirty filters and clogged
spray arms negatively affect
the washing results. Check
these elements regularly
and, if necessary, clean
them.
10.1 Machine Care
Machine Care is a programme designed
to clean the appliance interior with
optimal results. It removes limescale and
grease buildup.
When the appliance senses the need for
cleaning, the indicator
is on. Start the
Machine Care programme to clean the
appliance interior.
How to start the Machine Care
programme
Before starting the Machine
Care programme, clean the
filters and spray arms.
1. Use a descaler or a cleaning product
designed specifically for
dishwashers. Follow the instructions
on the packaging. Do not put dishes
in the baskets.
2. Press and hold simultaneously
and for about 3 seconds.
The indicators and flash. The
display shows the programme duration.
3. Close the appliance door to start the
programme.
When the programme is complete, the
indicator
is off.
10.2 Internal cleaning
• Carefully clean the appliance,
including the rubber gasket of the
door, with a soft damp cloth.
www.electrolux.com16
• Do not use abrasive products,
abrasive cleaning pads, sharp tools,
strong chemicals, scourer or solvents.
• To maintain the performance of your
appliance, use a cleaning product
designed specifically for dishwashers
at least once every two months.
Carefully follow the instructions on the
packaging of the product.
• For optimal cleaning results, start the
Machine Care programme.
10.3 External cleaning
• Clean the appliance with a moist soft
cloth.
• Only use neutral detergents.
• Do not use abrasive products,
abrasive cleaning pads or solvents.

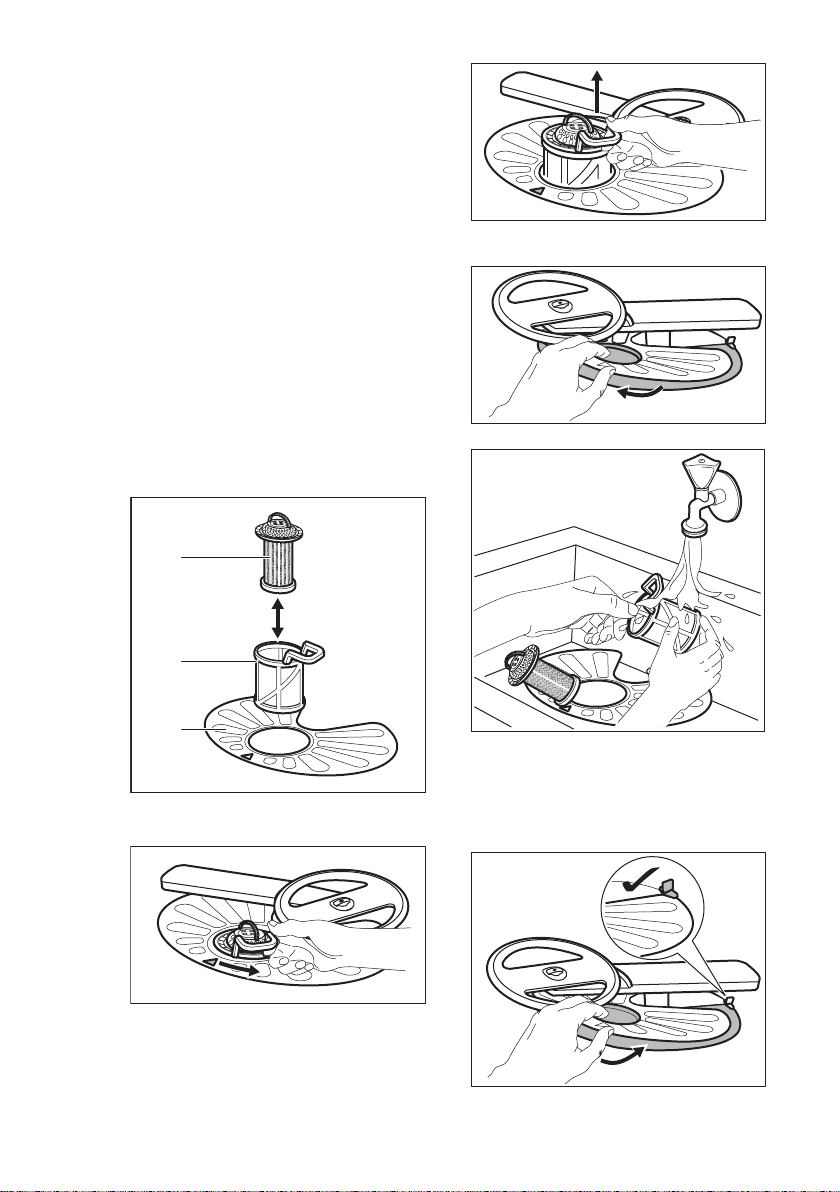

10.4 Cleaning the filters
The filter system is made of 3 parts.
C
B
A
1. Turn the filter (B) counterclockwise
and remove it.
2. Remove the filter (C) out of filter (B).
3. Remove the flat filter (A).
4. Wash the filters.
5. Make sure that there are no residues
of food or soil in or around the edge
of the sump.
6. Put back in place the flat filter (A).
Make sure that it is correctly
positioned under the 2 guides.
7. Reassemble the filters (B) and (C).
ENGLISH 17
8. Put back the filter (B) in the flat filter
(A). Turn it clockwise until it locks.
CAUTION!
An incorrect position of the
filters can cause bad
washing results and damage
to the appliance.

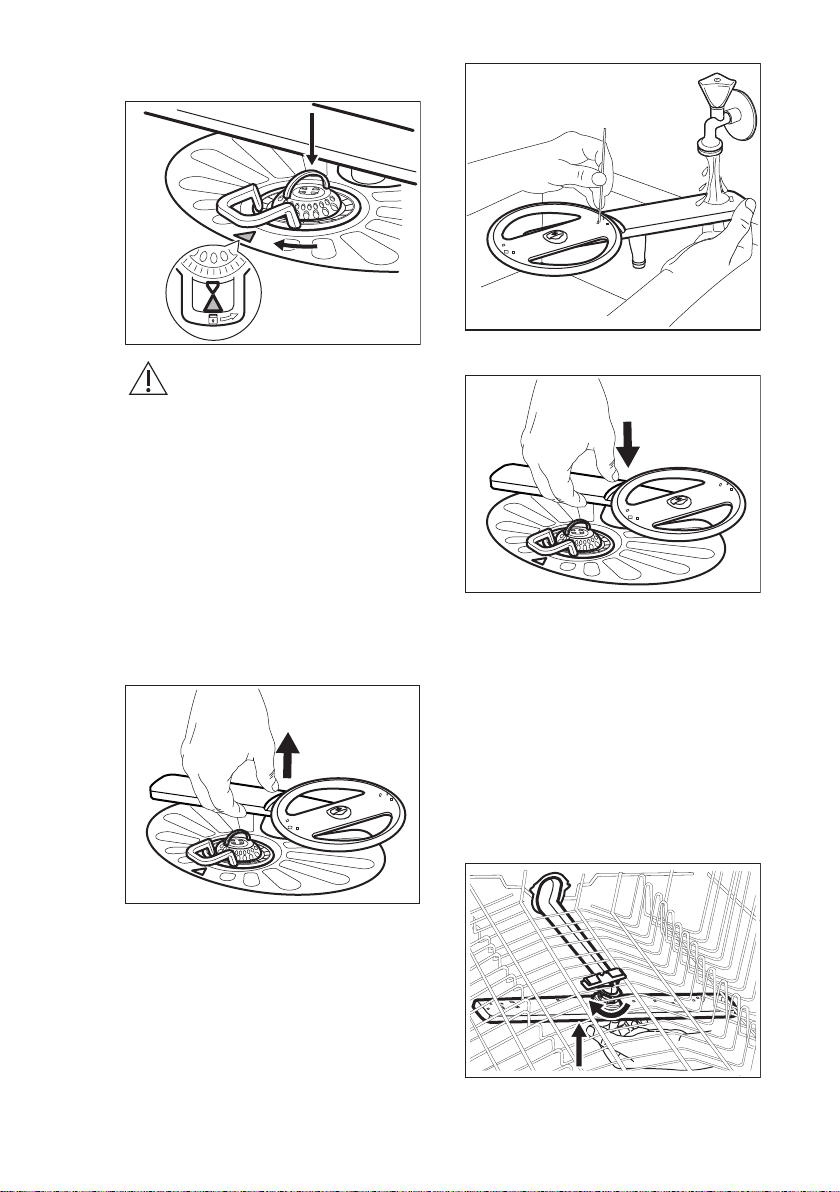

10.5 Cleaning the lower spray
arm
We recommend to clean the lower spray
arm regularly to prevent soil from
clogging the holes.
Clogged holes can cause unsatisfactory
washing results.
1. To remove the lower spray arm, pull
it upwards.
2. Wash the spray arm under running
water. Use a thin pointed tool, e.g. a
toothpick, to remove particles of soil
from the holes.
3. To install the spray arm back, press it
downwards.
10.6 Cleaning the upper spray
arm
We recommend to clean the upper spray
arm regularly to prevent soil from
clogging the holes.
Clogged holes can cause unsatisfactory
washing results.
1. Pull out the upper basket.
2. To detach the spray arm from the
basket, press the spray arm upwards
and simultaneously turn it clockwise.
3. Wash the spray arm under running
water. Use a thin pointed tool, e.g. a
www.electrolux.com18
toothpick, to remove particles of soil
from the holes.
4. To install the spray arm back, press
the spray arm upwards and
simultaneously turn it
counterclockwise until it locks into
place.
10.7 Cleaning the ceiling spray
arm
We recommend to clean the ceiling spray
arm regularly to prevent soil from
clogging the holes. Clogged holes can
cause unsatisfactory washing results.
The ceiling spray arm is placed on the
ceiling of the appliance. The spray arm
(C) is installed in the delivery tube (A)
with the mounting element (B).
C
B
A
1. Remove the stoppers from the sliding
rails of the cutlery drawer and pull the
drawer out.
2
1
2. Move the upper basket to the lowest
level to reach the spray arm more
easily.
3. To detach the spray arm (C) from the
delivery tube (A), turn the mounting
element (B) counterclockwise and
pull the spray arm downwards.
4. Wash the spray arm under running
water. Use a thin pointed tool, e.g. a
toothpick, to remove particles of soil
from the holes. Run the water
through the holes to wash soil
particles away from the inside.
ENGLISH 19
5. To install the spray arm (C) back,
insert the mounting element (B) in
the spray arm and fix it in the delivery
tube (A) by turning it clockwise. Make
sure that the mounting element locks
into place.
6. Install the cutlery drawer on the
sliding rails and insert the stoppers.
11. TROUBLESHOOTING
WARNING!
Improper repair of the
appliance may pose a
danger to the safety of the
user. Any repairs must be
performed by qualified
personnel.
The majority of problems that may
occur can be solved without the need
to contact an Authorised Service
Centre.
Refer to the below table for information
on possible problems.
With some problems, the display shows
an alarm code.
Problem and alarm code Possible cause and solution
You cannot activate the
appliance.
• Make sure that the mains plug is connected to the
mains socket.
• Make sure that there is no damaged fuse in the fuse
box.
The programme does not
start.
• Make sure that the appliance door is closed.
• If the delay start is set, cancel the setting or wait for
the end of the countdown.
The appliance does not fill
with water.
The display shows i10 or
i11.
• Make sure that the water tap is open.
• Make sure that the pressure of the water supply is
not too low. For this information, contact your local
water authority.
• Make sure that the water tap is not clogged.
• Make sure that the filter in the inlet hose is not clog‐
ged.
• Make sure that the inlet hose has no kinks or bends.
The appliance does not
drain the water.
The display shows i20.
• Make sure that the sink spigot is not clogged.
• Make sure that the filter in the outlet hose is not clog‐
ged.
• Make sure that the interior filter system is not clog‐
ged.
• Make sure that the drain hose has no kinks or bends.
www.electrolux.com20
Problem and alarm code Possible cause and solution
The anti-flood device is on.
The display shows i30.
• Close the water tap and contact an Authorised Serv‐
ice Centre.
The appliance stops and
starts more times during
operation.
• It is normal. It provides optimal cleaning results and
energy savings.
The programme lasts too
long.
• If the delay start option is set, cancel the delay set‐
ting or wait for the end of the countdown.
• Activating options can increase the programme dura‐
tion.
The remaining time in the
display increases and
skips nearly to the end of
the programme duration.
• This is not a defect. The appliance is working cor‐
rectly.
Small leak from the appli‐
ance door.
• The appliance is not levelled. Loosen or tighten the
adjustable feet (if applicable).
• The appliance door is not centred on the tub. Adjust
the rear foot (if applicable).
The appliance door is diffi‐
cult to close.
• The appliance is not levelled. Loosen or tighten the
adjustable feet (if applicable).
• Parts of the tableware are protruding from the bas‐
kets.
Rattling or knocking
sounds from the inside of
the appliance.
• The tableware is not properly arranged in the bas‐
kets. Refer to basket loading leaflet.
• Make sure that the spray arms can rotate freely.
The appliance trips the cir‐
cuit-beaker.
• The amperage is insufficient to supply simultaneous‐
ly all the appliances in use. Check the socket amper‐
age and the capacity of the meter or turn off one of
the appliances in use.
• Internal electrical fault of the appliance. Contact an
Authorised Service Centre.
Once you have checked the appliance,
deactivate and activate the appliance. If
the problem occurs again, contact an
Authorised Service Centre.
For alarm codes not described in the
table, contact an Authorised Service
Centre.
WARNING!
We do not recommend using
the appliance until the
problem has been
completely fixed. Unplug the
appliance and do not plug it
in again until you are certain
that it operates correctly.
11.1 The product number code
(PNC)
If you contact an Authorised Service
Centre, you need to provide the product
number code of your appliance.
The PNC can be found on the rating
plate on the appliance door. You can
also check the PNC on the control panel.
Before checking the PNC, make sure the
appliance is in the programme selection.
1. Press and hold simultaneously
and for about 3 seconds.
The display shows the PNC of your
appliance.
ENGLISH 21
2. To exit the PNC presentation, press
and hold simultaneously and
for about 3 seconds.
The appliance returns to the programme
selection.
11.2 The washing and drying results are not satisfactory
Problem Possible cause and solution
Poor washing results. • Refer to "Daily use", "Hints and tips" and the
basket loading leaflet.
• Use more intensive washing programme.
• Activate the SprayZone option to wash items with
heavy or stubborn soil.
• Activate the ExtraPower option to improve the
washing results of a selected programme.
• Clean spray arm jets and filter. Refer to "Care and
Cleaning".
• Make sure that the spray arms are correctly posi‐
tioned.
Poor drying results. • Tableware was left for too long inside the closed
appliance. Activate AirDry to set the automatic
opening of the door and to improve the drying per‐
formance.
• There is no rinse aid or the dosage of rinse aid is
not sufficient. Fill the rinse aid dispenser or set the
level of rinse aid to a higher level.
• The quality of the rinse aid can be the cause.
• We recommend to use rinse aid always, even in
combination with multi-tablets.
• Plastic items may need to be towel dried.
• The programme does not have the drying phase.
Refer to "Programmes overview".
There are whitish streaks or
bluish layers on glasses and
dishes.
• The released quantity of rinse aid is too high. Ad‐
just the rinse aid level to a lower level.
• The quantity of detergent is too high.
There are stains and dry wa‐
ter drops on glasses and
dishes.
• The released quantity of rinse aid is not sufficient.
Adjust the rinse aid level to a higher level.
• The quality of the rinse aid can be the cause.
The interior of the appliance
is wet.
• This is not a defect of the appliance. Humid air con‐
densates on the appliance walls.
Unusual foam during wash‐
ing.
• Use the detergent designed specifically for dish‐
washers.
• There is a leak in the rinse aid dispenser. Contact
an Authorised Service Centre.
Traces of rust on cutlery. • Silver and stainless steel cutlery were placed to‐
gether. Do not put silver and stainless steel items
close together.
www.electrolux.com22
Problem Possible cause and solution
There are residues of deter‐
gent in the dispenser at the
end of the programme.
• The detergent tablet was stuck in the dispenser
and therefore was not completely washed away by
water.
• Water cannot wash away the detergent from the
dispenser. Make sure that the spray arms are not
blocked or clogged.
• Make sure that items in the baskets do not impede
the lid of the detergent dispenser from opening.
Odours inside the appliance. • Refer to "Internal cleaning".
• Start the Machine Care programme with a descaler
or a cleaning product designed for dishwashers.
Limescale deposits on the
tableware, on the tub and on
the inside of the door.
• Start the Machine Care programme with a descaler
designed for dishwashers.
• If limescale deposits still remain, clean the appli‐
ance with appliance cleaners which are particularly
suitable for this purpose.
• Try a different detergent.
• Contact the detergent manufacturer.
Dull, discoloured or chipped
tableware.
• Make sure that only dishwasher-safe items are
washed in the appliance.
• Load and unload the basket carefully. Refer to the
basket loading leaflet.
• Place delicate items in the upper basket.
• Activate the GlassCare option to ensure special
care for glassware and delicate items.
Refer to "Before first use",
"Daily use", or "Hints and
tips" for other possible
causes.
12. TECHNICAL INFORMATION
Dimensions Width / height / depth (mm) 596 / 818 - 898 / 550
Electrical connection
1)
Voltage (V) 200 - 240
Frequency (Hz) 50 - 60
Wattage (W) 1550-2200
Water supply pressure bar (minimum and maximum) 0.5 - 8
kPa (minimum and maximum) 50 - 800
Water supply Cold water
2)
min 5 °C
ENGLISH 23
Capacity Place settings 15
1)
Refer to the rating plate for other values.
2)
Cold water connection is recommended for best washing performance.

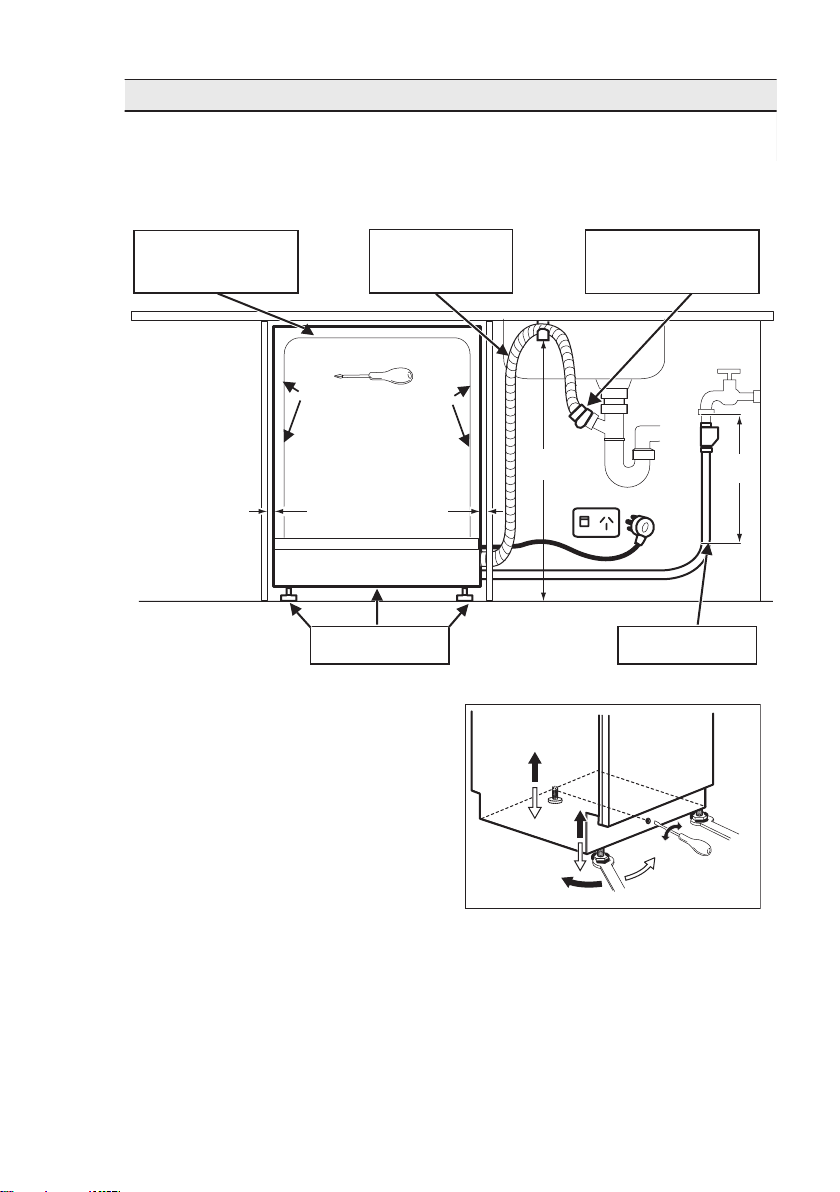

13. INSTALLATION
If floor is not level, adjust
levelling legs to suit
The hose should not be
extended by more than
2 metres or water pump-
out
problems may occur
Removeentire plastic
membranefrom sink trap
spigot & fit drain hose to spigot
with clamp
Thereshould be a minimum
2mm gap between the top of
the dishwasher and
underside of bench top
Gap on both sides should be
equal, & no greater than
5 mm per side.
Secure dishwasher with
brackets or screws provided
Min. 400 mm straight
section
600mm max
300mm min
400mm
min
DISHWASHER
SINK
POWER OUTLET
Install the appliance under a kitchen
counter.
Put the appliance adjacent to a water tap
and a water drain.
For the venting of the appliance only
water hoses and mains cable openings
are necessary.
13.1 Adjusting the height of the
appliance
1. To adjust the front height of the
appliance, turn the 2 front feet
counterclockwise.
2. To adjust the rear height of the
appliance, turn the middle screw
counterclockwise.
13.2 Adjusting the level of the
appliance
A correct adjustment of the level of the
appliance allows the door to close and
seal correctly.
www.electrolux.com24
If the door does not close correctly,
loosen or tighten the adjustable feet to
level the appliance.
13.3 Water inlet hose
Connect the inlet hose to a water tap
with an external BSP thread spout of
3/4''.
For best washing performance it is
recommended to connect the appliance
to a cold water supply.
Energy savings can be made by
connecting the appliance to a Solar
water system and using economy
options, however the water temperature
must not exceed 60° C.
Inlet water supply
• Water pressure: 800 kPa max - 50
kPa min.
• Water flow rate 10 L / minute min.
• If water pressure is in excess of 800
kPa, a pressure reducing valve should
be used. Check for leaks.
• If water temperature is in excess of
60° C, a tempering valve should be
used. Check for leaks.
CAUTION!
Always use new hoses when
you connect the appliance to
the water mains. Old hoses
must not be used. The water
inlet hose must be examined
at an interval of twelve
months for deterioration and
replaced if necessary.
The water pressure must be in the limits
indicated in the chapter ''TECHNICAL
INFORMATION''. Make sure that the
local water authority gives you the
average mains pressure in your area.
In order to pass the safety valve through
the kitchen cabinets, an opening of at
least 45 mm x 90 mm is needed.
13.4 Water drain hose
The highest point of the drain hose must
be no more than 600 mm from the floor
and must have a continuous fall to the
plumbing connection.
The drain hose can be lengthened using
additional lengths and connectors. These
must be purchased from Electrolux
Spare Parts. The extension length must
not exceed 2 metres.
The drain hose must be free of
obstructions.
Remove the sink plug when the
appliance drains the water to prevent
that the water goes back into the
appliance.
The appliance has a security feature to
prevent dirty water going back into the
appliance. If the spigot of the sink has a
non-return valve, this valve can cause
the appliance to drain incorrectly. remove
the non-return valve.
If you connect the water drain hose to a
trap spigot under the sink, remove the
plastic membrane. If you do not remove
the membrane, remaining food can
cause a blockage in the drain hose
spigot.
ENGLISH 25
Remove
entire
internal
membrane
14. WARRANTY
FOR SALES IN AUSTRALIA AND NEW
ZEALAND
APPLIANCE: ELECTROLUX
DISHWASHERS
This document sets out the terms and
conditions of the product warranties
for Electrolux Appliances. It is an
important document. Please keep it
with your proof of purchase
documents in a safe place for future
reference should there be a
manufacturing defect in your
Appliance. This warranty is in addition
to other rights you may have under
the Australian Consumer Law.
1. In this warranty
a. ‘ACL’ or ‘Australian Consumer
Law’ means Schedule 2 to the
Competition and Consumer Act
2010;
b. ‘Appliance’ means any Electrolux
product purchased by you and
accompanied by this document;
c. ‘ASC’ means Electrolux’
authorised serviced centres;
d. ‘Electrolux’ is the brand
controlled by Electrolux Home
Products Pty Ltd of 163
O’Riordan Street, Mascot NSW
2020, ABN 51 004 762 341 in
respect of Appliances purchased
in Australia and Electrolux (NZ)
Limited (collectively “Electrolux”)
of 3-5 Niall Burgess Road, Mount
Wellington, in respect of
Appliances purchased in New
Zealand;
e. ‘Warranty Period’ means the
period specified in clause 3 of
this warranty;
f. ‘you’ means the purchaser of the
Appliance not having purchased
the Appliance for re-sale, and
‘your’ has a corresponding
meaning.
2. Application: This warranty only
applies to new Appliances,
purchased and used in Australia or
New Zealand and is in addition to
(and does not exclude, restrict, or
modify in any way) other rights and
remedies under a law to which the
Appliances or services relate,
including any nonexcludable
statutory guarantees in Australia and
New Zealand.
3. Warranty Period: Subject to these
terms and conditions, this warranty
continues for in Australia for a period
of 24 months and in New Zealand for
a period of 24 months, following the
date of original purchase of the
Appliance.
4. Repair or replace warranty: During
the Warranty Period, Electrolux or its
ASC will, at no extra charge if your
Appliance is readily accessible for
service, without special equipment
and subject to these terms and
conditions, repair or replace any
parts which it considers to be
defective. Electrolux may, in its
absolute discretion, choose whether
the remedy offered for a valid
warranty claim is repair or
replacement. Electrolux or its ASC
may use refurbished parts to repair
your Appliance. You agree that any
replaced Appliances or parts become
the property of Electrolux.
5. Travel and transportation costs:
Subject to clause 7, Electrolux will
www.electrolux.com26
bear the reasonable cost of
transportation, travel and delivery of
the Appliance to and from Electrolux
or its ASC. Travel and transportation
will be arranged by Electrolux as part
of any valid warranty claim.
6. Proof of purchase is required before
you can make a claim under this
warranty.
7. Exclusions: You may not make a
claim under this warranty unless the
defect claimed is due to faulty or
defective parts or workmanship. This
warranty does not cover:
a. light globes, batteries, filters or
similar perishable parts;
b. parts and Appliances not
supplied by Electrolux;
c. cosmetic damage which does not
affect the operation of the
Appliance;
d. damage to the Appliance caused
by:
1. negligence or accident;
2. misuse or abuse, including
failure to properly maintain or
service;
3. improper, negligent or faulty
servicing or repair works
done by anyone other than
an Electrolux authorised
repairer or ASC;
4. normal wear and tear;
5. power surges, electrical
storm damage or incorrect
power supply;
6. incomplete or improper
installation;
7. incorrect, improper or
inappropriate operation;
8. insect or vermin infestation;
9. failure to comply with any
additional instructions
supplied with the Appliance;
In addition, Electrolux is not liable
under this warranty if:
a. the Appliance has been, or
Electrolux reasonably believes
that the Appliance has been,
used for purposes other than
those for which the Appliance
was intended, including where
the Appliance has been used for
any non-domestic purpose;
b. the Appliance is modified without
authority from Electrolux in
writing;
c. the Appliance’s serial number or
warranty seal has been removed
or defaced.
8. How to claim under this warranty:
To enquire about claiming under this
warranty, please follow these steps:
a. carefully check the operating
instructions, user manual and the
terms of this warranty;
b. have the model and serial
number of the Appliance
available;
c. have the proof of purchase (e.g.
an invoice) available;
d. telephone the numbers shown
below.
9. Australia: For Appliances and
services provided by Electrolux in
Australia: Electrolux goods come with
guarantees that cannot be excluded
under the Australian Consumer Law.
You are entitled to a replacement or
refund for a major failure and for
compensation for any other
reasonably foreseeable loss or
damage. You are also entitled to
have the Appliance repaired or
replaced if the Appliance fails to be of
acceptable quality and the failure
does not amount to a major failure.
‘Acceptable quality’ and ‘major
failure’ have the same meaning as
referred to in the ACL.
10. New Zealand: For Appliances and
services provided by Electrolux in
New Zealand, the Appliances come
with a guarantee by Electrolux
pursuant to the provisions of the
Consumer Guarantees Act, the Sale
of Goods Act and the Fair Trading
Act. Where the Appliance was
purchased in New Zealand for
commercial purposes the Consumer
Guarantee Act does not apply.
11. Confidentiality: You accept that if
you make a warranty claim,
Electrolux and its agents including
ASC may exchange information in
relation to you to enable Electrolux to
meet its obligations under this
warranty.
ENGLISH 27
Important Notice
Before calling for service, please ensure that the steps listed in clause 8 above have
been followed.
FOR SERVICE
or to find the address of
your nearest authorised
service centre in Australia
PLEASE CALL 13 13 49
For the cost of a local call (Australia
only)
AUSTRALIA
ELECTROLUX HOME
PRODUCTS
163 O’Riordan Street, Mas‐
cot NSW 2020
electrolux.com.au
FOR SPARE PARTS
or to find the address of
your nearest
spare parts centre in Aus‐
tralia
PLEASE CALL13 13 50
For the cost of a local call (Austral‐
ia only)
FOR SERVICE
or to find the address of
your nearest authorised
service centre in New Zea‐
land
PLEASE CALL 0800 10
66 10
(New Zealand only)
NEW ZEALAND
ELECTROLUX (NZ) Limi‐
ted
3-5 Niall Burgess Road,
Mount Wellington
electrolux.co.nz
FOR SPARE PARTS
or to find the address of
your nearest state spare
parts centre in New Zea‐
land
PLEASE CALL 0800 10
66 20
(New Zealand only)
EDish_Warr_Jul17
15. ENVIRONMENTAL CONCERNS
Recycle materials with the symbol .
Put the packaging in relevant containers
to recycle it. Help protect the
environment and human health by
recycling waste of electrical and
electronic appliances. Do not dispose of
appliances marked with the symbol
with the household waste. Return the
product to your local recycling facility or
contact your municipal office.
*
www.electrolux.com28
www.shop.electrolux.com.au
117858710-A-202020
