XAS004-1
INSTRUCTION MANUAL
If you have any questions along the way, just give us a call
1-800-460-0956 or mail to [email protected].
We’re ready to help!
R
2

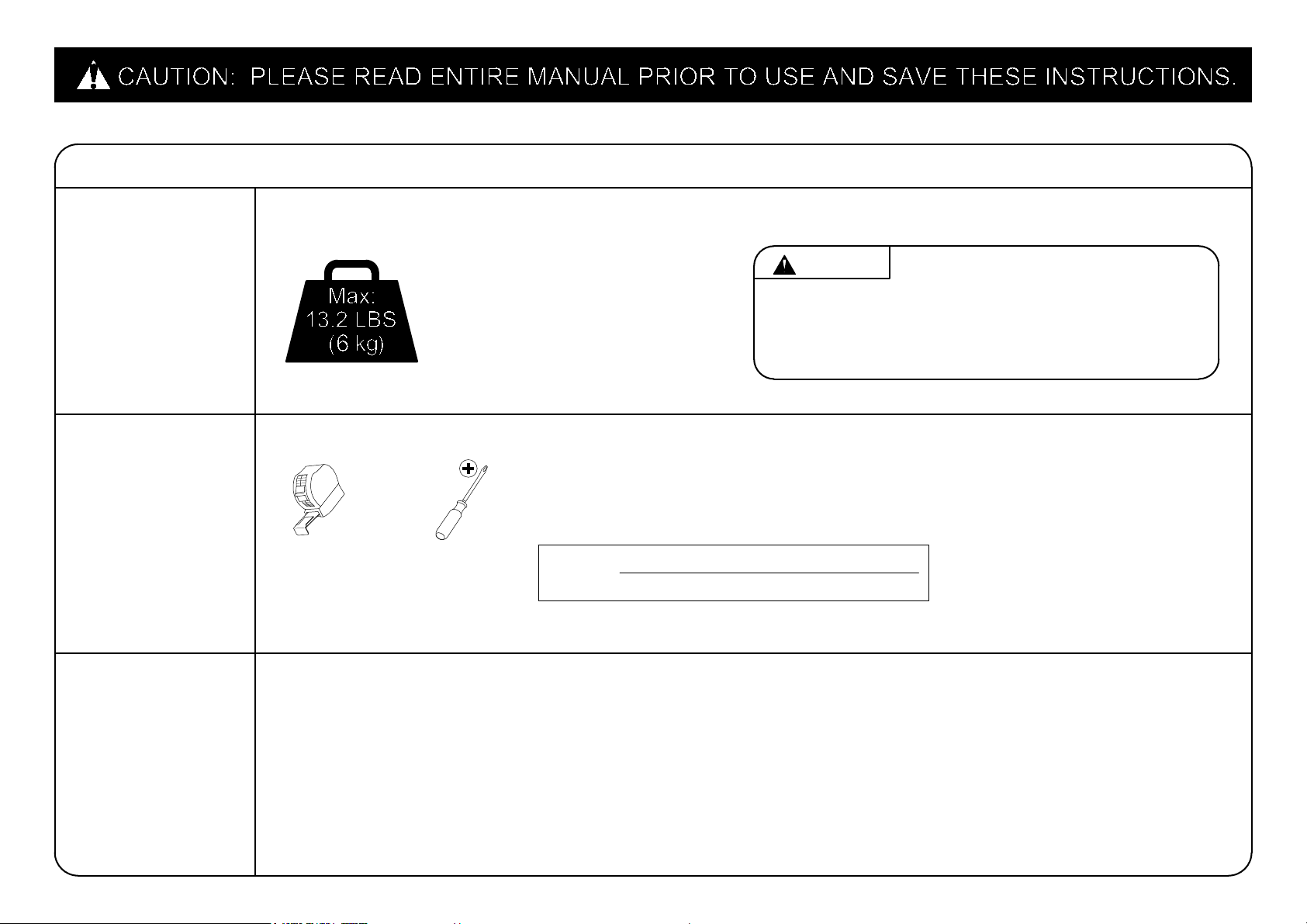

Before getting started, let’s check below lists to make sure it is just right for you!
1
2
3
Does your soundbar
(including accessories)
weigh MORE than
13.2 lbs. (6 kg)?
Do you have
all the tools
needed?
(NOT INCLUDE)
Tape
Measure
CAUTION
Screw
driver
No? Perfect – you may continue.
Yes? This mount is NOT compatible.
CAUTION: DO NOT exceed the maximum weight
indicated. This mounting system is intended for use only
with the maximum weights indicated. Use with products
heavier than the maximum weights indicated may result
in collapse of the mount and its accessories, causing
possible injury.
● Do not use this product for any purpose not explicitly specified by manufacturer
● Manufacturer is not responsible for damage or injury caused by incorrect assembly or use
Please read this instruction carefully before installation.
If you do not understand these instructions or have doubts about the safety of the
installation, assembly or use of this product, please feel free to contact Customer
Service:
E-mail: customerservice@x-mount.com
Phone call: 1-800-460-0956
FRONT VIEW
3-D
FRONT VIEW
3
200mm
200mm
[7.87in]
200mm
[7.87in]
FRONT VIEW
200mm
[7.87in]
200mm
[7.87in]
600mm
400mm
220mm
[8.66in]
220mm
[8.66in]
220mm
[8.66in]

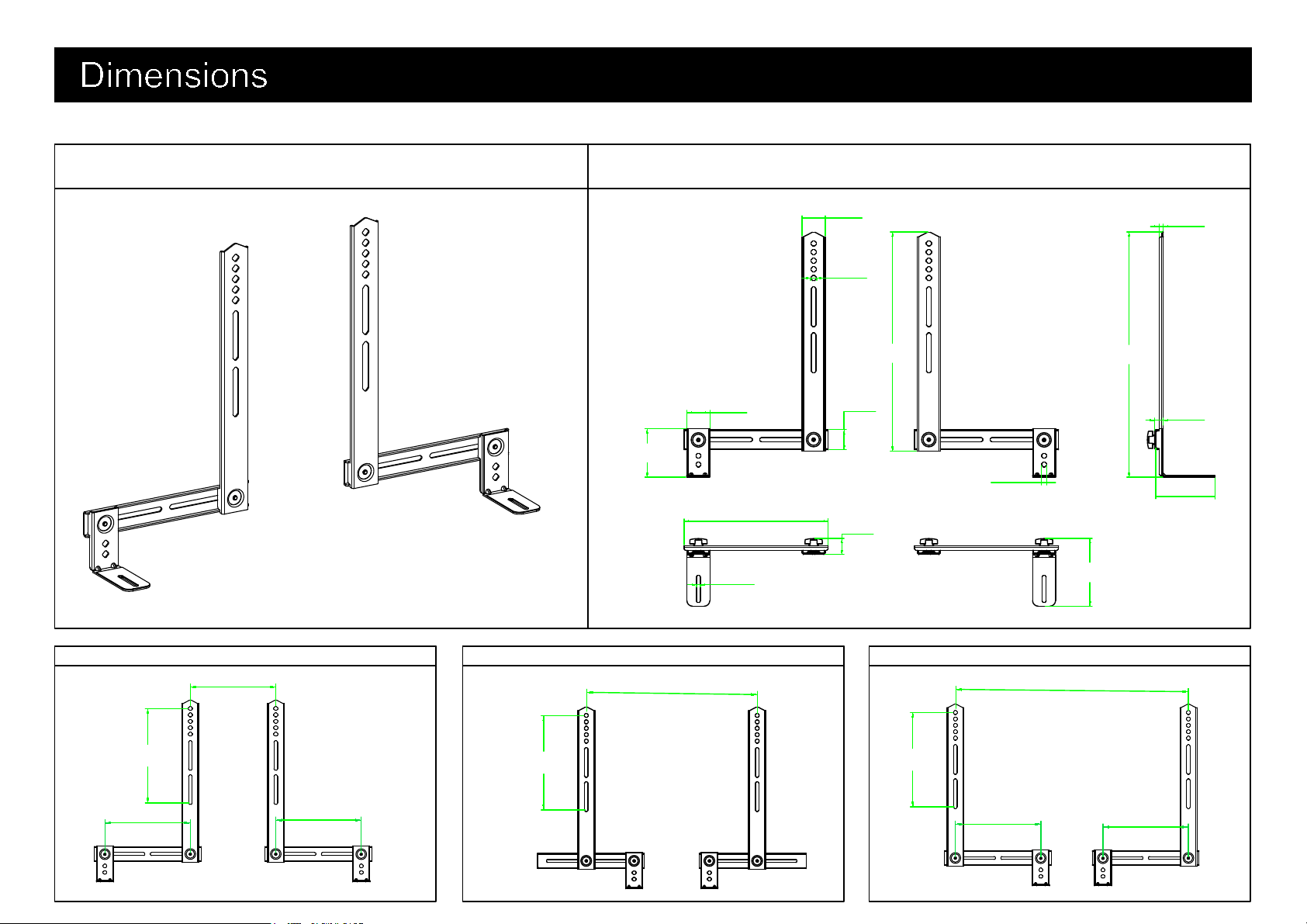

Product dimensions
40mm
[1.57in]
380mm
[14.96in]
426mm
[16.75in]
250mm
[9.84in]
27mm
[1.08in]
118mm
[4.63in]
103mm
[4.06in]
15mm
[0.59in]
84mm
[3.31in]
40mm
[1.57in]
35mm
[1.38in]
7mm
[0.28in]
10mm
[0.41in]
7mm
[0.28in]
10mm
[0.38in]
WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts
are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact
Customer Service.
Never use damaged parts!
NOTE: Not all hardware included will be used.
4

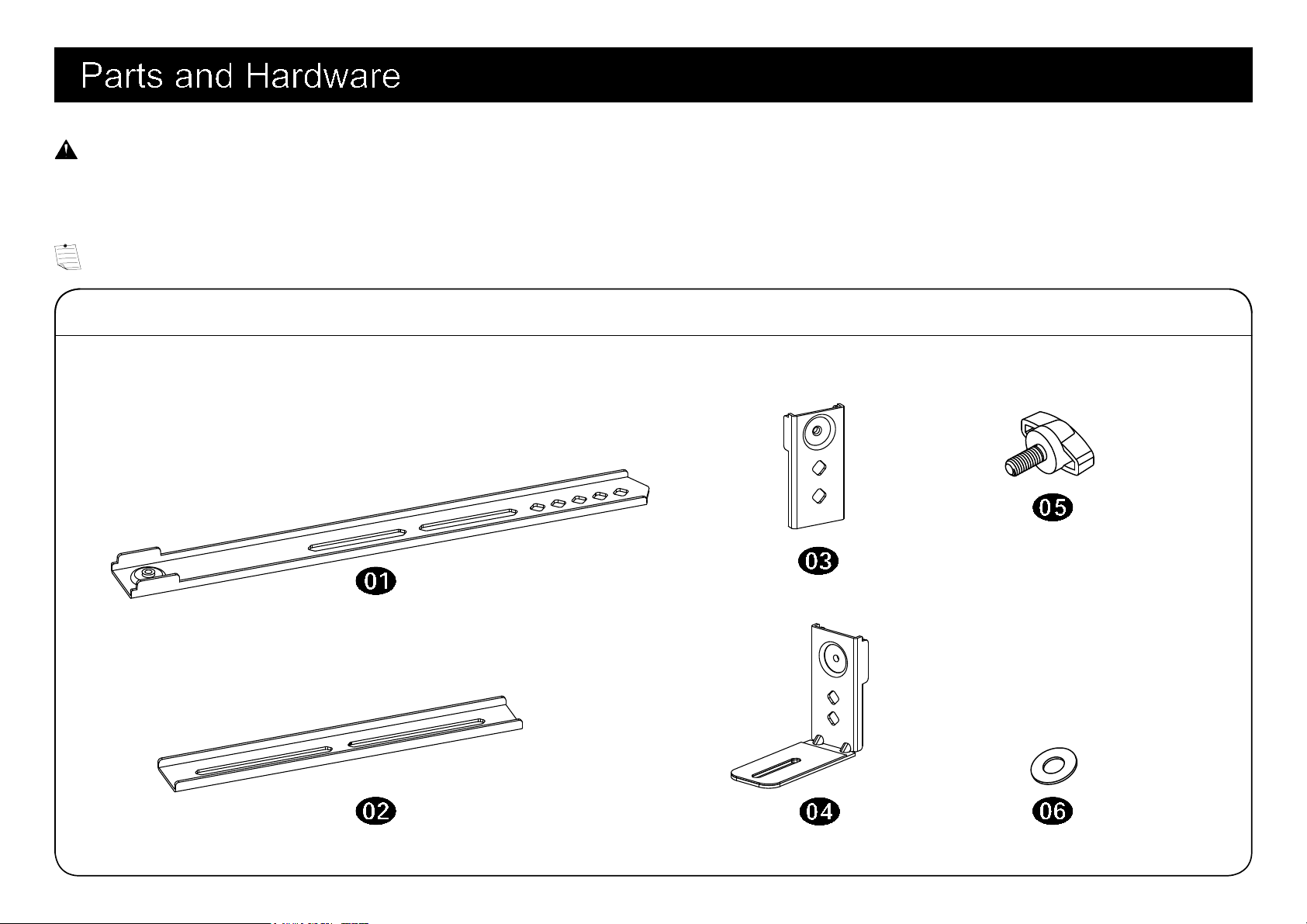

Parts and Hardware for Brackets Installation
x2
M6 Washers
Hook(big)
x2
x4
x2
x2
x2
Hook(small)
Handle
Horizontal Bar
Bracket
Spacers
TV Screws
M6x16mm
M8x20mm
M6x25mm
M8x30mm
M6
8x10mm
2.5mm
Washers
x4 x4
x4
x4
x4
x4
x2
5

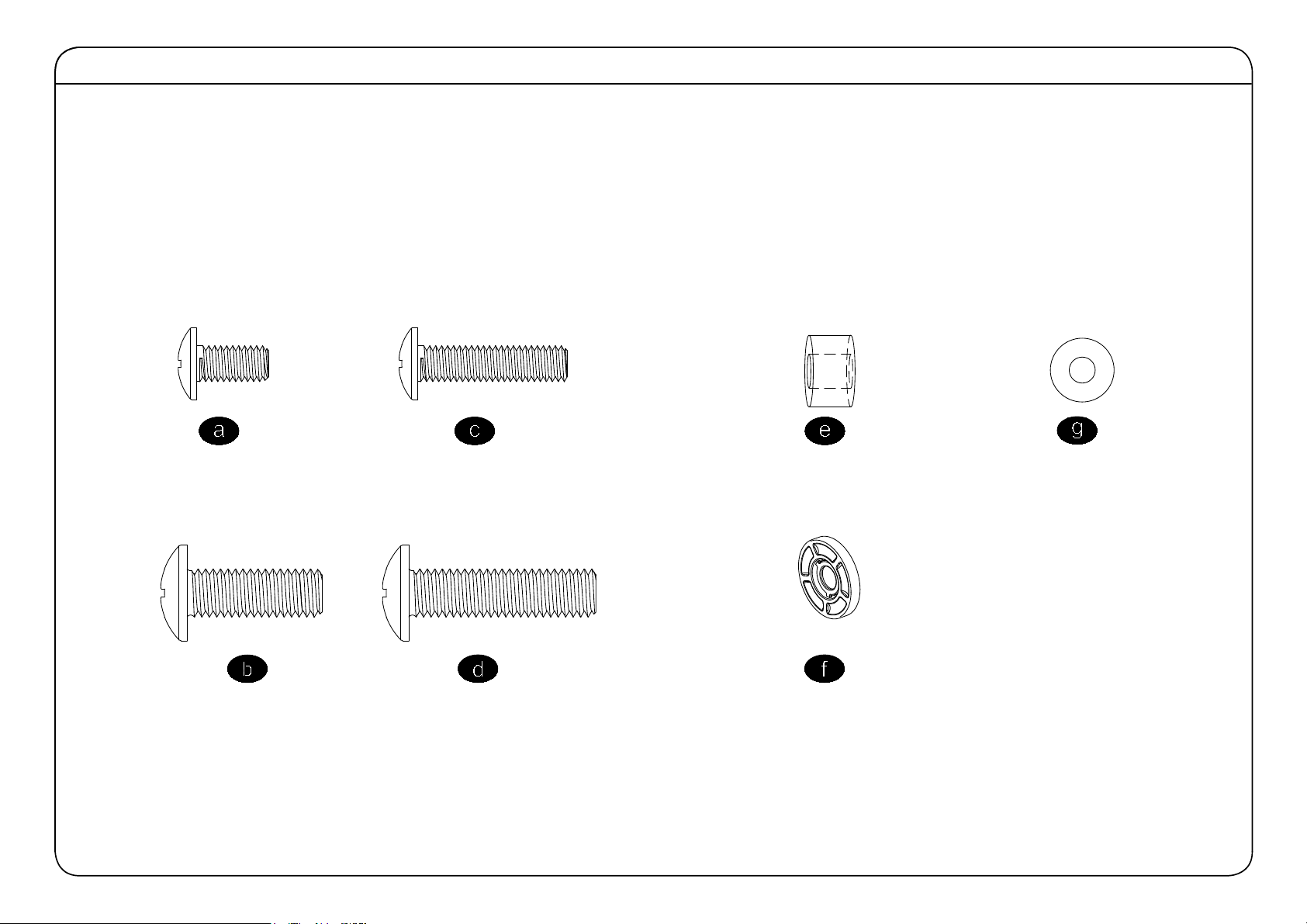

Hardware for Soundbar Installation
6

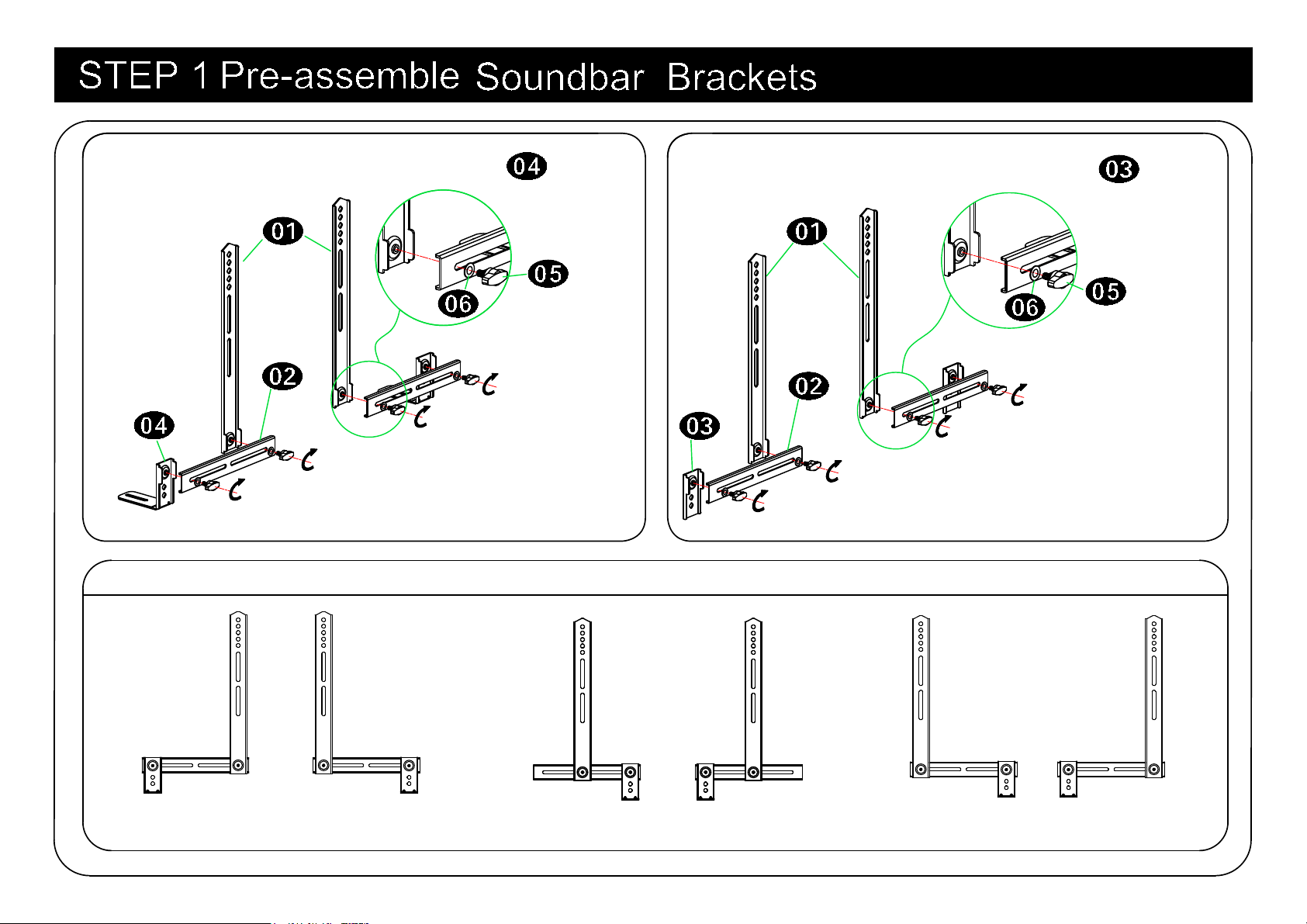

Option 1 Soundbar Brackets with Hook
Option 2 Soundbar Brackets with Hook
The Effects of Brackets Assemble
Tips: The horizontal distance of the brackets depends on your TV VESA.
Ⅰ Remove all cables
Ⅱ Take off the TV
from the mount
Ⅲ Remove the TV
brackets from your TV
TV
1 2
7
8
No!

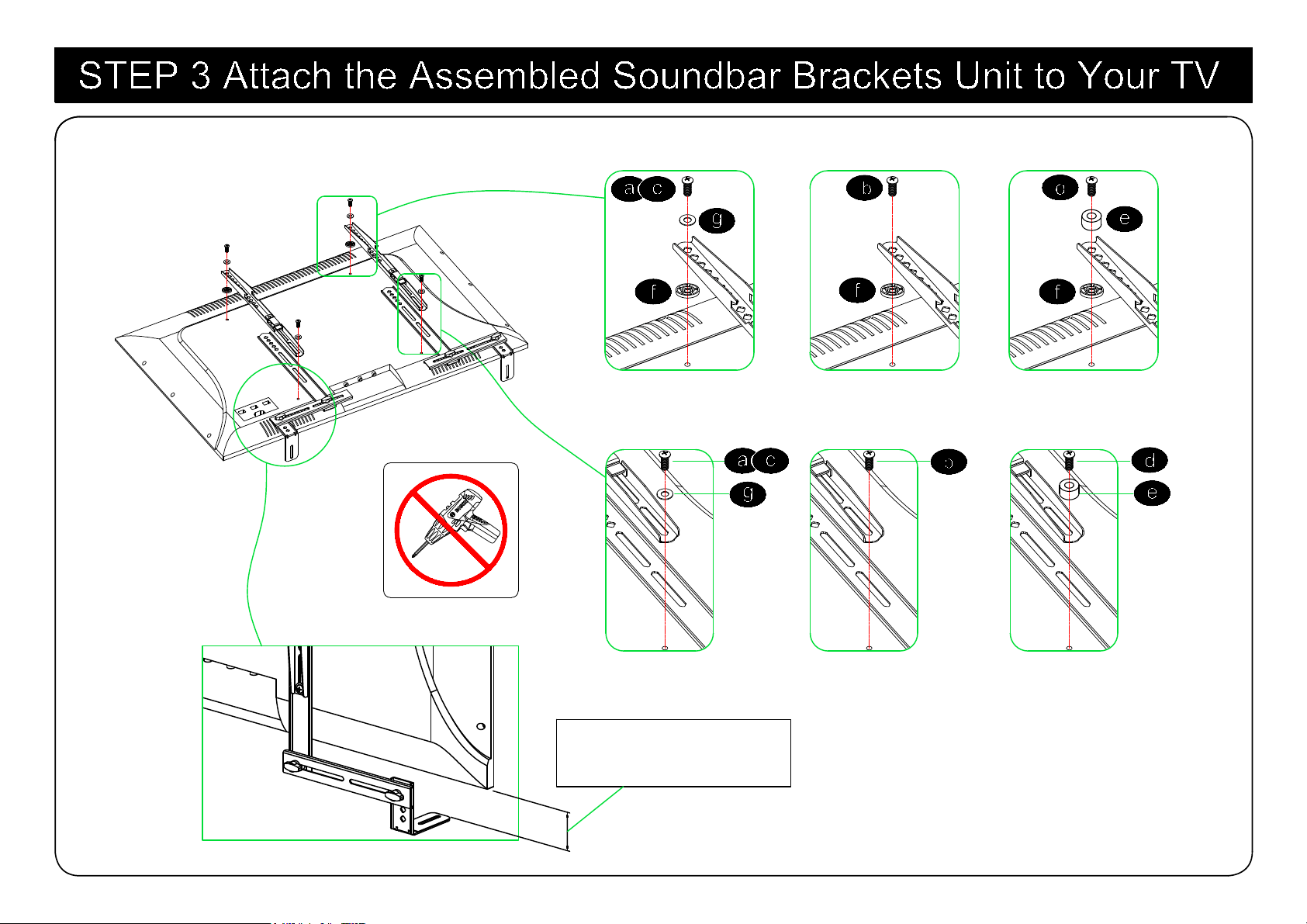

Tips: Before attach the TV,
check the vertical
distance of TV and bracket.
Tips: No need to use washer (g) when using M8 screw (b/d).
Option 1 Option 2 Option 3
Option 1 Option 2 Option 3
TV
1 2

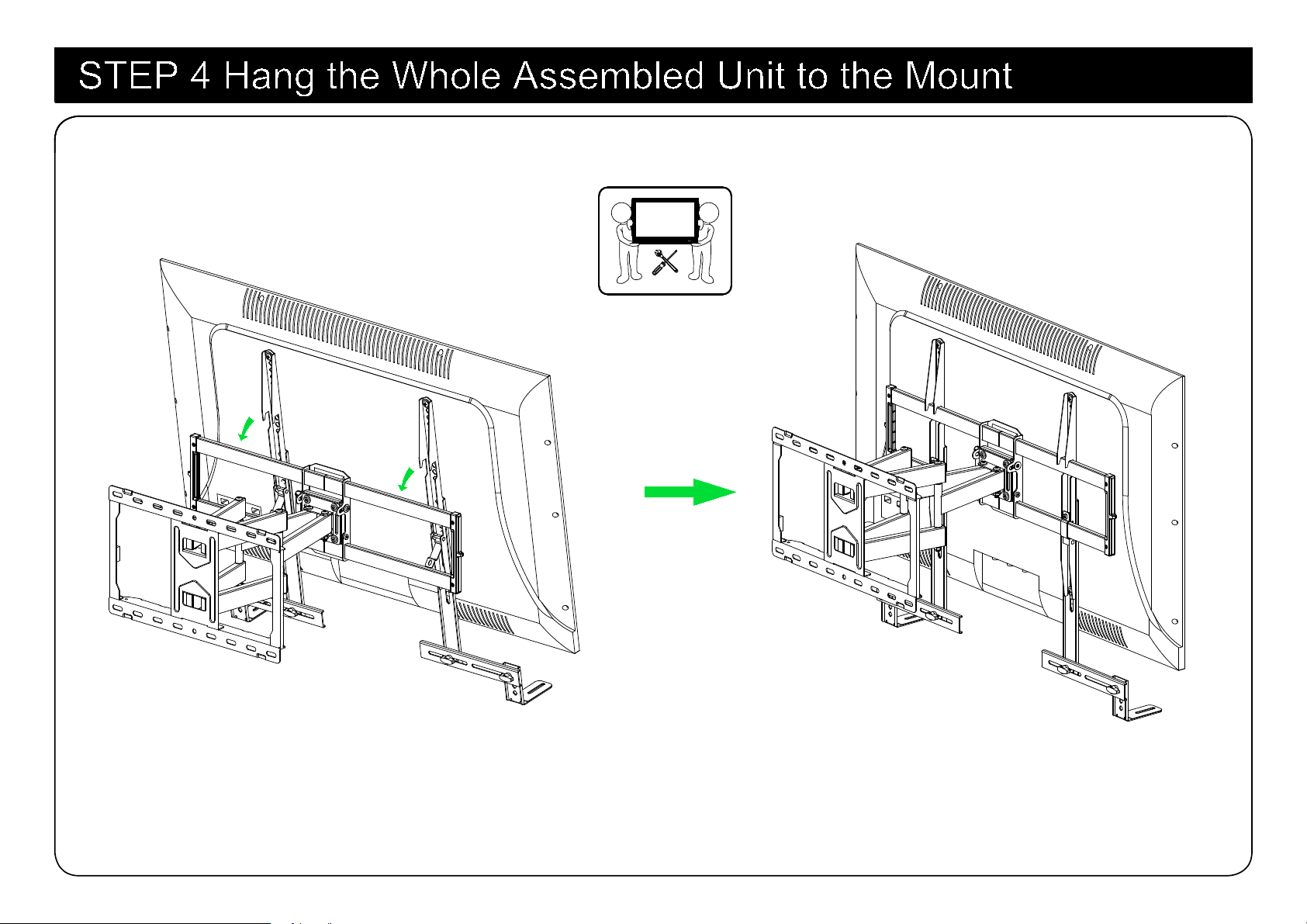

9

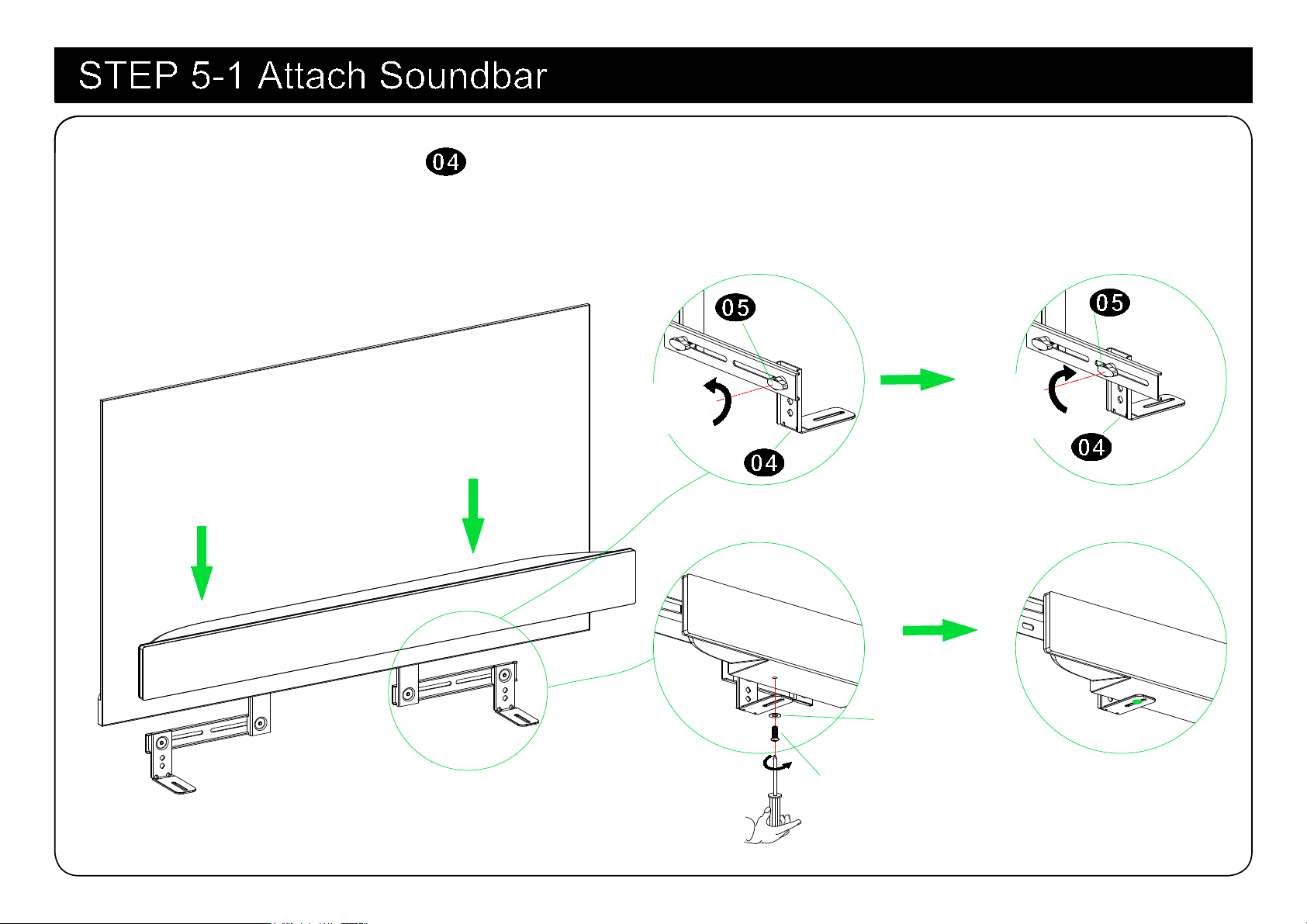

Put the soundbar on the hook (you can adjust the position of hook), and fully fasten the bottom
bolts of soundbar as shown below.
Tips:The position of hook depends on the bottom hole of soundbar.
10
Washer
Bolt
Loosen
Tighten
Option A Screw Hole
Option B Key Hole

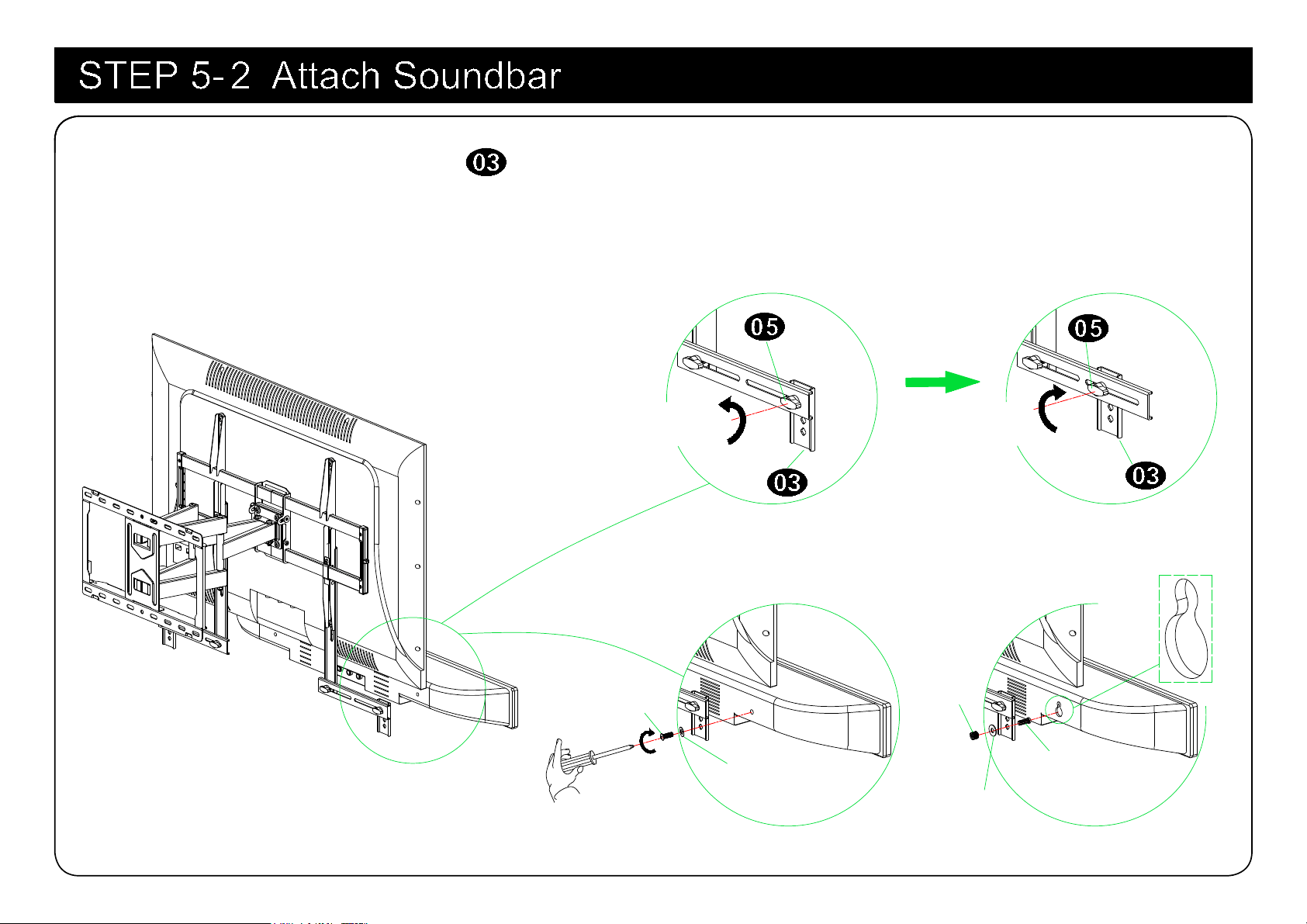

Attach the soundbar to the hook (you can adjust the position of hook), and fully fasten
the back bolts&nuts of soundbar as shown below.
Tips:The position of hook depends on the back hole of soundbar.
11
Bolt
Washer
Washer
Bolt
Nut
Loosen
Tighten
