Read these instructions before using the machine.
86369590-C
08/13/20
Operating instructions (ENG)
MODELS:
T708
1.013-006.0
T708IE
1.013-007.0
T716
1.013-008.0
T716IE
1.013-009.0
T720TP
1.013-010.0
Wet / Dry Vacuums
IPX4
2 86369590 Titan Vacuum
Machine Data Label
Overview
This machine is a commercial vacuum designed for wet and dry pick-up.
Warranty Registration
Thank you for purchasing a Windsor product. Warranty registration is quick and easy.
Your registration will allow us to serve you better over the lifetime of the product.
To register your product go to :
www.windsorind.com/WarrantyRegistration.aspx
For customer assistance:
1-800-444-7654
3
Table of Contents
Machine Data Label . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
How To Use This Manual . . . . . . . . . . . . . . . . . . . . .4
Safety
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . .5
Grounding Instructions:. . . . . . . . . . . . . . . . . . . . . . . 7
Operations
Vacuum And Accessories Components . . . . . . . . . .8
Maintenance
Periodic Maintenance . . . . . . . . . . . . . . . . . . . . . . . 10
Servicing the Filter . . . . . . . . . . . . . . . . . . . . . . . . .10
Servicing the Vacuum Motor. . . . . . . . . . . . . . . . . .10
Servicing The Vacuum Motor . . . . . . . . . . . . . . . . .11
Parts

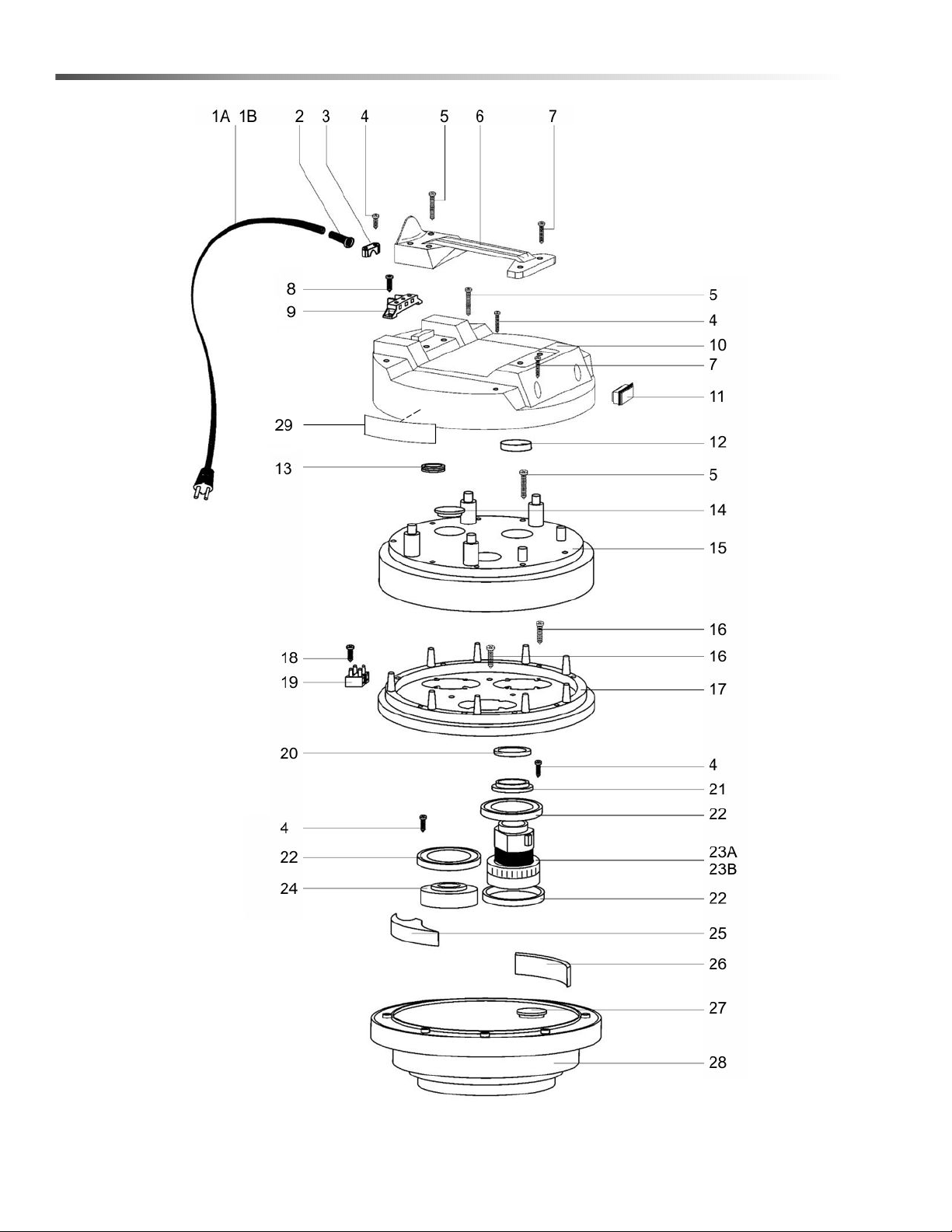

Vacuum Motor Assembly - T708 / T708IE . . . . . . 14
Vacuum Motor Assembly - T716 / T720TP. . . . . . 16

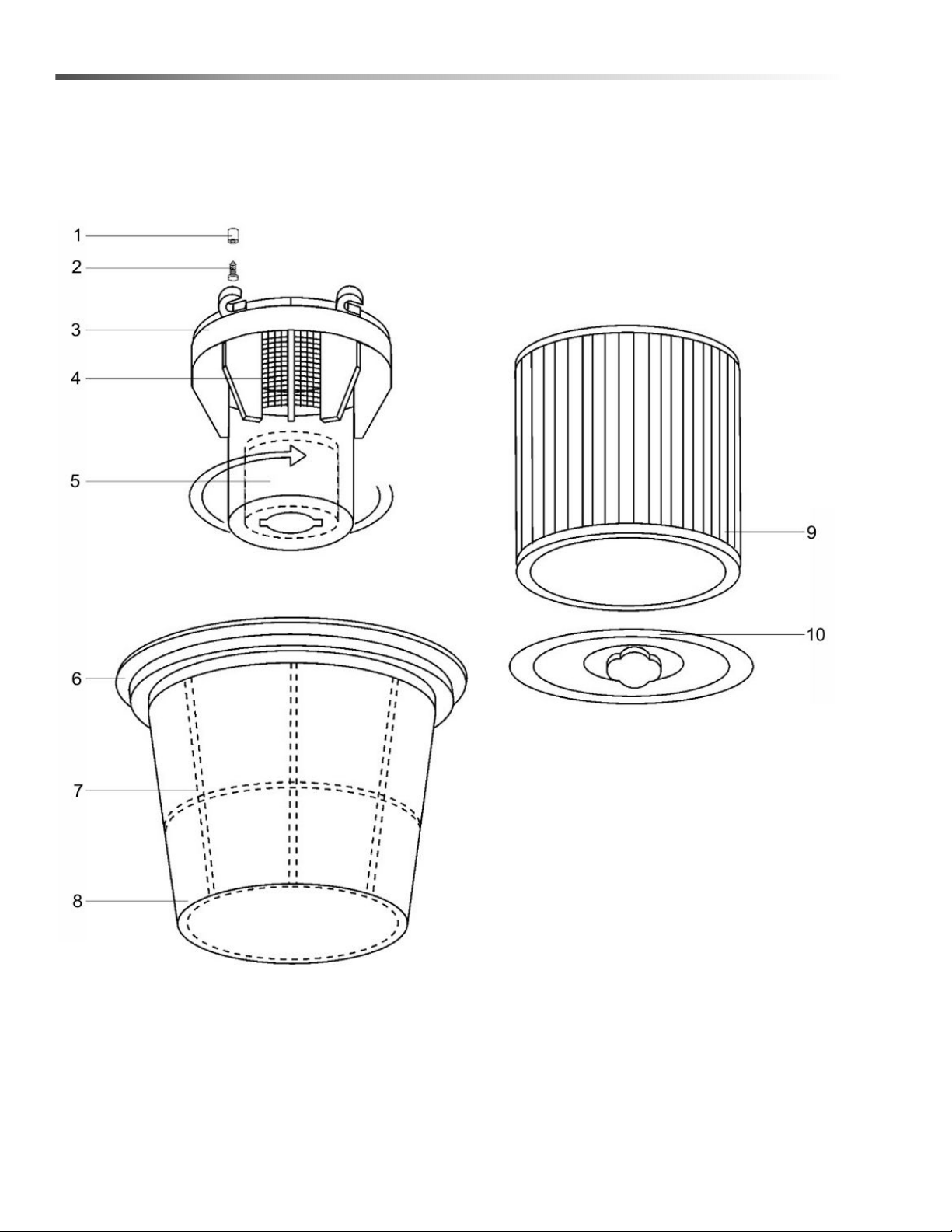

Filter Group T708 . . . . . . . . . . . . . . . . . . . . . . . . . 18
Filter T716 / T720TP . . . . . . . . . . . . . . . . . . . . . . . 20
Tank T708. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

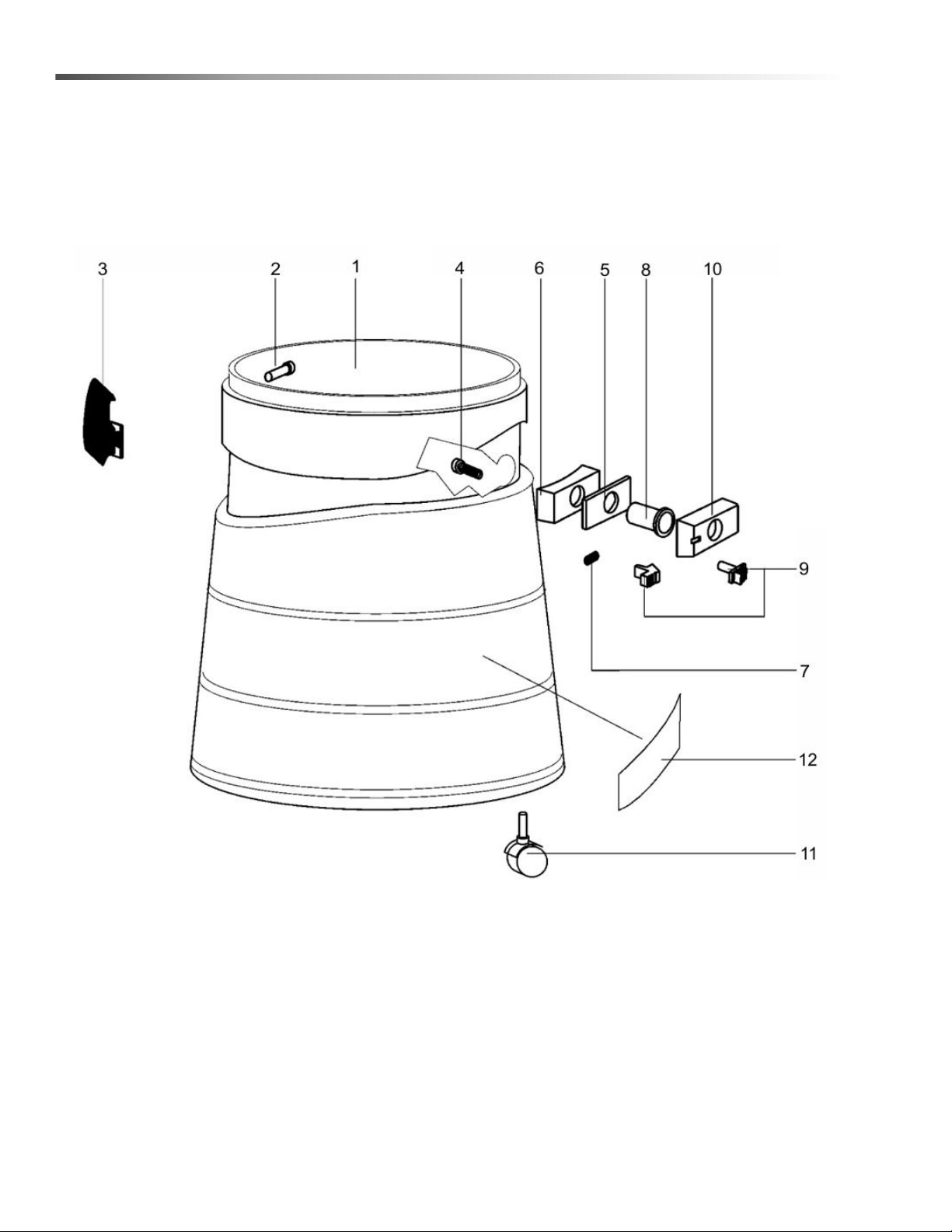

Tank T716. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

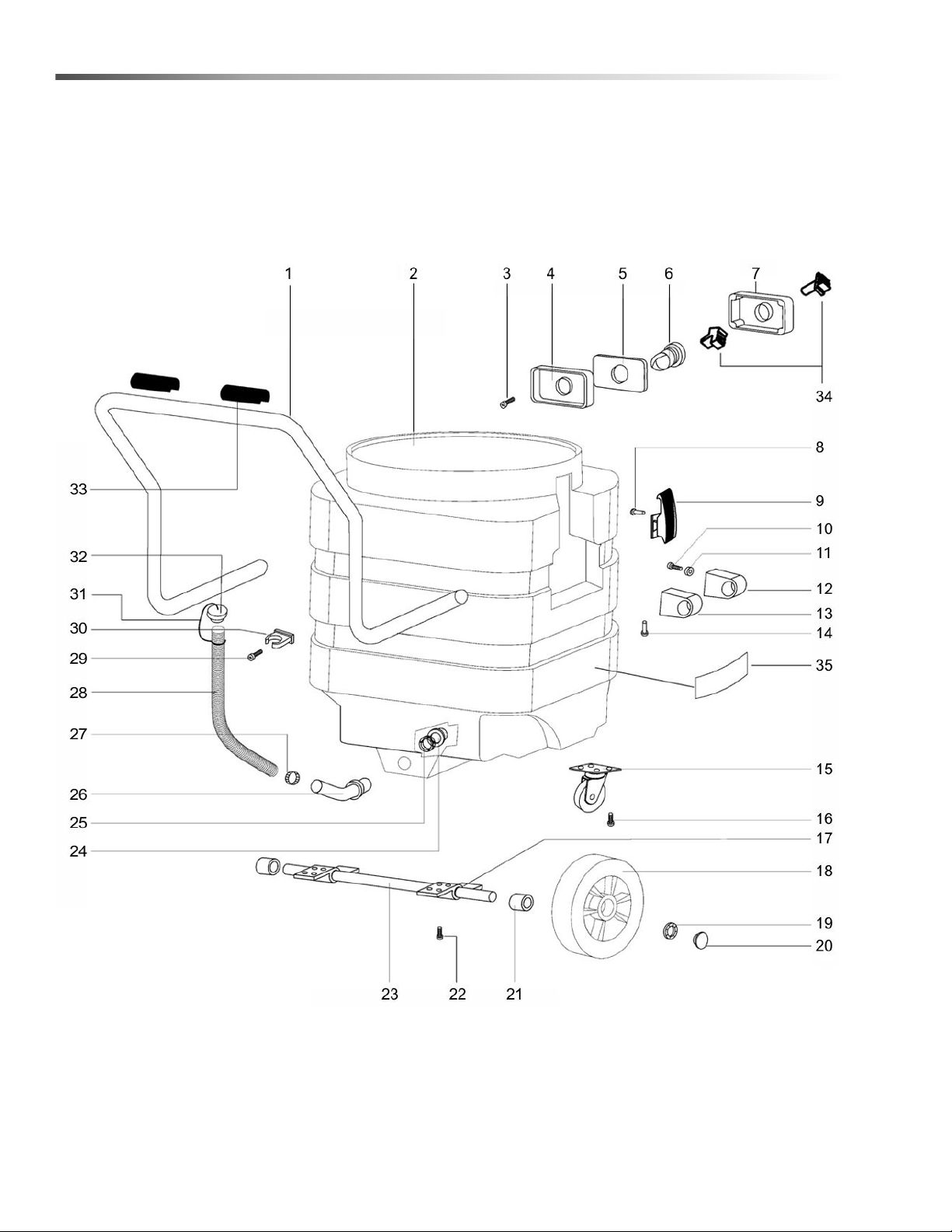

Tank and Cart - T720TP . . . . . . . . . . . . . . . . . . . . 26

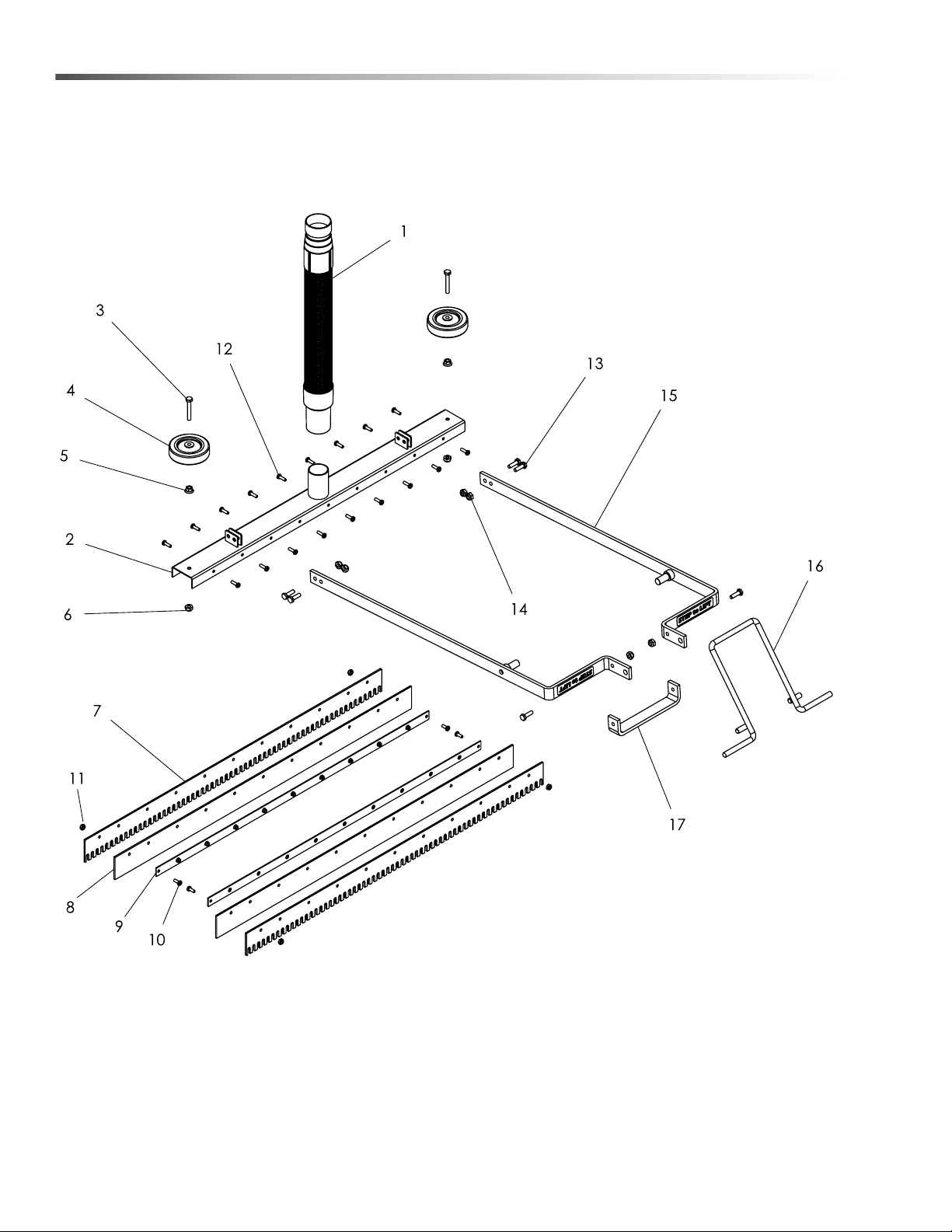

Front Mounted Squeegee - TSQ16. . . . . . . . . . . . 28
Front Mounted Squeegee - TSQ20. . . . . . . . . . . . 30
Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Suggested Spare Parts. . . . . . . . . . . . . . . . . . . . . 33
86369590 Titan Vacuum
4
How To Use This Manual
This manual contains the following sections:
• How to Use This Manual
•Safety
• Operations
• Maintenance
• Parts List
The HOW TO USE THIS MANUAL section will tell you
how to find important information for ordering correct
repair parts.
Parts may be ordered from authorized dealers. When
placing an order for parts, the machine model and
machine serial number are important. Refer to the
MACHINE DATA box which is filled out during the
installation of your machine. The MACHINE DATA box
is located on the inside of the front cover of this manual.
The model and serial number of your machine is
located on the back of the motor head under the power
cord.
The SAFETY section contains important information
regarding hazardous or unsafe practices of the
machine. Levels of hazards are identified that could
result in product damage, personal injury, or severe
injury resulting in death.
The OPERATIONS section is to familiarize the operator
with the operation and function of the machine.
The MAINTENANCE section contains preventive main-
tenance to keep the machine and its components in
good working condition.
The PARTS LIST section contains assembled parts
illustrations and corresponding parts list. The parts lists
include a number of columns of information:
• REF – column refers to the reference number
on the parts illustration.
• PART NO. – column lists the part number for
the part.
• ALT NO. – reference number.
• QTY – column lists the quantity of the part used
in that area of the machine.
• DESCRIPTION – column is a brief description
of the part.
• SERIAL NO. FROM – If this column has an (*)
and a Reference number, see the SERIAL
NUMBERS page in the back of your manual. If
column has two asterisk (**), call manufacturer
for serial number. The serial number indicates
the first machine the part number is applicable
to. The main illustration shows the most current
design of the machine. When a boxed illustra-
tion is shown, it displays the older design.
• NOTES – column for information not noted by
the other columns.
NOTE: If a service or option kit is installed on your
machine, be sure to keep the KIT INSTRUCTIONS
which came with the kit. It contains replacement parts
numbers needed for ordering future parts.
NOTE: The manual part number is located on the
lower left corner of the front cover.
Model:
Date of Purchase:
Serial Number:
Dealer:
Address:
Phone Number:
Sales Representative:
86369590 Titan Vacuum
5
Safety
IMPORTANT SAFETY INSTRUCTIONS
When using this machine, basic precaution
must always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE.
To reduce the risk of fire, electric shock, or injury:
Failure to read and observe all DANGER statements could result in severe bodily injury
or death. Read and observe all DANGER statements found in your Owner’s Manual
and on your machine.
Failure to read and observe all WARNING statements could result in injury to you or to
other personnel; property damage could occur as well. Read and observe all
WARNING statements found in your Owner’s Manual and on your machine.
Failure to read and observe all CAUTION statements could result in damage to the
machine or to other property. Read and observe all CAUTION statements found in your
Owner’s Manual and on your machine.
Read the Owner’s Manual prior to operating or attempting any service or maintenance procedure to your machine.
You must have training in the operation of this machine before using it. If the operator(s) cannot read English, have
this manual explained fully before attempting to operate this machine.
Do not operate this machine until it is completely assembled. Inspect the machine carefully before operation. Use
only as described in this manual. Use only the manufacturer’s recommended attachments.
Do not use this machine with or near fuels, grain dust, solvents, thinners, or other flammable materials.
Do not pick up flammable fluids, dust or vapors.
Do not vacuum anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
This machine is not suitable for picking up health endangering dust.
Do not use the machine if the power cord is damaged. Do not use the electrical cord to move the machine. Keep
cord away from heated surfaces. Do not unplug by pulling on the cord; grasp the plug, not the cord. Turn off all
controls before unplugging. Do not close a door on cord or pull around sharp edges or corners.
Disconnect the power supply before attempting any maintenance or service.
Read all machine labels before attempting to operate the machine. Make sure all of the labels are attached or
fastened to the machine. Get replacement labels and decals from the manufacturer’s distributor.
Keep the electrical components of the machine dry. Always store the machine in a dry area.
Do not use this machine as a step or furniture. Do not allow to be used as a toy. Close attention is necessary when
used by or near children.
Keep hands, feet, loose clothing, hair, fingers, and all parts of the body away from openings and moving parts.
86369590 Titan Vacuum
6
Safety
Do not handle plug or appliance with wet hands.
Always install float before any wet pick-up operation.
Before opening cover, switch off machine. Wait until the fan stops completely or dust and debris may be ejected.
If the machine is not working properly, has been dropped, damaged, left outdoors, or dropped into water, return it to
an Authorized service center.
Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything
that may reduce air flow.
Do not use the machine without the dust bag and/or filters in place.
Use extra caution when cleaning on stairs.
Always use a 3-wire electrical system connected to the electrical ground. Whenever possible connect the machine
to an outlet protected by a ground fault interrupter (GFCI). See “Grounding Instructions.”
READ AND SAVE THESE INSTRUCTIONS
86369590 Titan Vacuum
7
Safety
Grounding Instructions:
This appliance must be grounded. If it should malfunction or break down, grounding provides a path of least resis-
tance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord having an
equipment-grounding conductor and grounding plug. The plug must be inserted into an appropriate outlet that is
properly installed and grounded in accordance with all local codes and ordinances.
Improper connection of the equipmentgrounding conductor can result in a risk of electric shock. Check with a
qualified electrician or service person if you are in doubt as to whether the outlet is properly grounded. Do not
modify the plug provided with the appliance - if it will not fit the outlet , have a proper outlet installed by a qualified
electrician.
This Product Is For Commercial Use Only.
Electrical:
The amp, hertz, and voltage are listed on the data label found on each machine. Using voltages above or below
those indicated on the data label will cause serious damage to the motors.
Extension Cords:
If an extension cord is used, the wire size must be at least one size larger than the power cord on the machine, and
must be limited to 50 feet (15.5m) in length.
86369590 Titan Vacuum
8
Operations
Vacuum And Accessories Components
A. Motor Block
B. On/Off Switch
C. Float: Keeps liquid out of Motor Block
D. Polyester Filter: Remove for use with liquids
E. Hooks: Secure Motor Block to Tank
F. Suction Inlet
G. Tank
H. 2-pc. Chrome Wand
I. 10-ft. x 1-1/2" Flexible Hose
J. 2-pc PVC Wand
K. 3" Round Brush
L. Crevice Tool
M. 16" Brush
N. 16" Squeegee
O. Fixed Carpet Tool
NOTE: The Polyester Filter must be cleaned after
each use to maintain efficient suction.
Important Instructions
• Before use, the equipment must be correctly
assembled with all its components.
• Check that electrical outlet is correct for use
with the plug on the machine.
• Before connecting, check that the specified
motor voltage corresponds to the main voltage
available.
• Never use the equipment near inflammable,
explosive or toxic substances: sparks from the
motor could cause dangerous reactions.
• Always unplug the machine from electrical
outlet when leaving machine unattended or
before attempting any repair.
• Service and repair should be done by qualified
personnel only.
• Use only original manufacturer’s replacement
parts.
86369590 Titan Vacuum
9
Operations
This machine is a commercial vacuum designed for wet
and dry pick-up.
Dry soil can be vacuumed directly into the tank. To
empty the tank of dry soil, remove the top and dump
into trash receptacle.
For wet pick-up, remove polyester filter. The machine is
equipped with a float shut-off. As the tank is filled to
capacity, a float rises and seals the vac intake, causing
loss of vacuum. Switch off the vacuum when this
happens and bring the machine to a floor drain.
Use the convenient drain hose at the back of the
vacuum to empty the tank.
With both wet and dry applications be sure to frequently
clean the filter. This is especially true when the vacuum
is being used with strippers and wax.
Strippers and some detergents produce foam which will
damage the vac motors. The vac shut-off may not be
sensitive to all foams. Be sure to check that the tank is
not filling with foam. Use a defoaming agent to avoid
pulling foam through vac motor. Should vac motor
become wet, remove source of overflow and immedi-
ately run vac motor open to dry.
At the end of each working day:
1. After each use, rinse tank with fresh water. Periodi-
cally inspect the recovery tank and decontaminate
if necessary, using a Hospital Grade Virucide or a
1:10 bleach to water solution. Waste water should
be disposed of properly.
2. Remove head assembly and allow tank to dry.
3. Remove filters for cleaning or to allow to dry.
4. Inspect hoses for wear. Frayed or cracked hoses
should be replaced to avoid vacuum loss.
5. Inspect power cord for wear. This cable will lay on
wet surfaces. To prevent electrical shock replace
cords with frayed or cracked insulation immedi-
ately.
86369590 Titan Vacuum
10
Maintenance
Periodic Maintenance
(Every six to twelve months):
1. Check filter for wear, replace dirt saturated filters that do
not respond to normal cleaning.
2. Inspect gasket seals and replace those which have
begun to leak.
3. Examine carbon motor brushes and commutator.
Servicing the Filter
The filter is accessed by lifting the head assembly off the tank.
Polyester filter is easily removed by simply lifting the filter basket out of the tank.
Cartridge filters – Remove the filter retainer by turning the black knob 90 degrees counter-clockwise.
Cartridge filter will then slide off of float assembly.
NOTE: Be sure to frequently clean the filter. Allow filter to dry after being used for wet pick-up. Filters used for wet
pick-up including stripper must be thoroughly cleaned before being allowed to dry. Worn filters can affect vacuum
performance. Replace the filter when it becomes worn out and normal cleaning will not restore vacuum
performance.

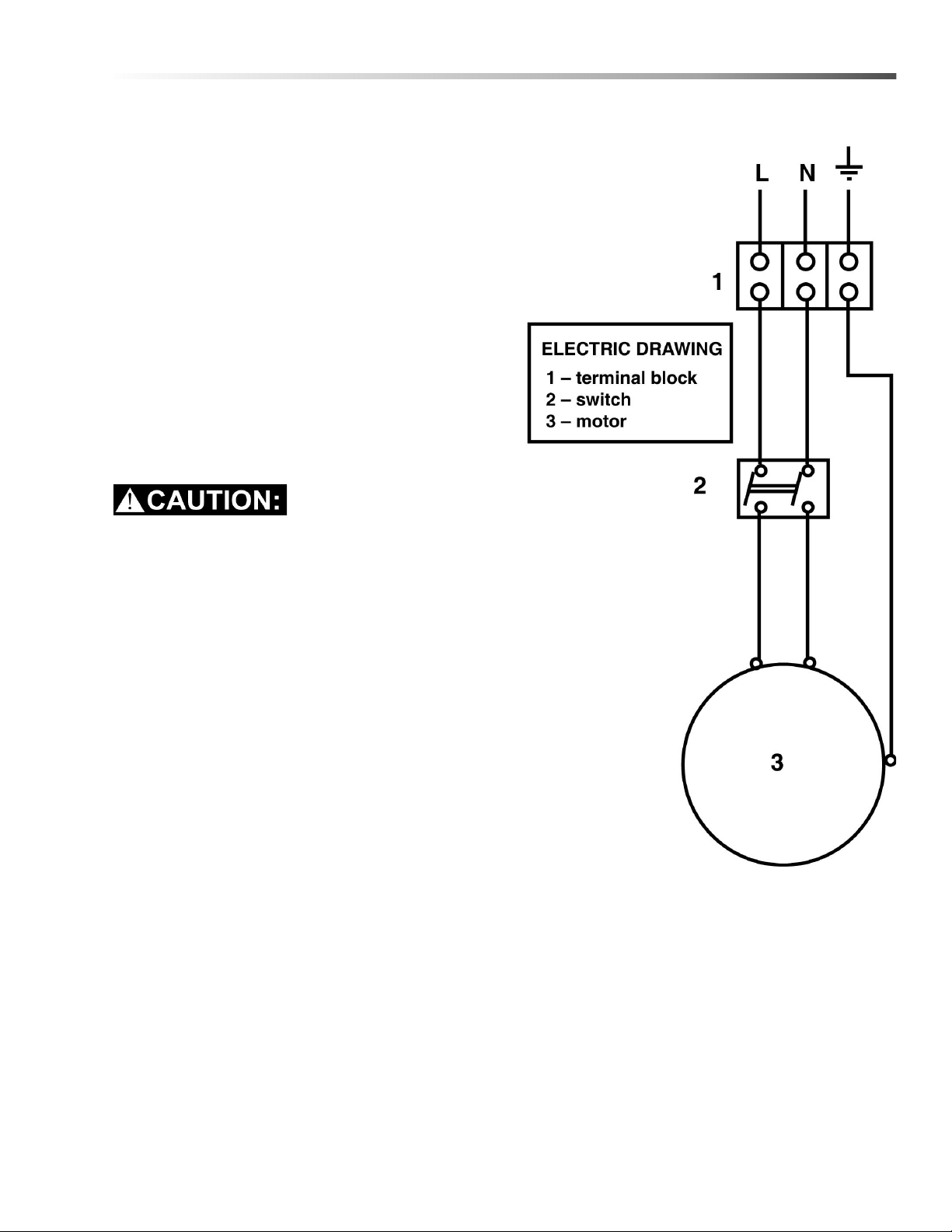

Servicing the Vacuum Motor
Motor Replacement
1. Disconnect power cord from power source.
2. To access the vacuum motor, remove the screws that attach the main cover to the head assembly and set the
cover to one side.
3. Disconnect the motor ’s 2 red lead wires from the main switch.
4. Disconnect green/yellow wire by removing screw from motor core.
5. Remove the four motor mounting screws.
6. Remove motor plate and set aside.
7. Take out the motor and remove the upper and lower gaskets.
8. Inspect gaskets. If they shown any wear or tear in the material, replace.
9. Install gaskets onto new motor. Make sure gaskets are properly seated.
10. Install the new motor. Make sure foam mufflers are positioned properly.
11. Attach motor plate to motor.
12. Connect green/yellow wire to motor core.
13. Connect motor ’s 2 red lead wires to main switch.
14. Re-assemble vacuum cover.
15. Test for proper operation.
86369590 Titan Vacuum
Replace both carbon brushes when either is less
than 3/8" long.
(P/N 8.616-352.0) 120V, (P/N 8.616-353.0) 230V
11
Maintenance
Servicing The Vacuum Motor
Carbon Brush Replacement
1. Disconnect power cord from power source.
2. To access the vacuum motor, remove the screws
that attach the main cover to the head assembly
and set the cover to one side.
3. Remove the motor cover by removing two screws.
See Figure 1
4. Remove the wire terminal from carbon brush
housing. See Figure 2
5. Remove the carbon brush assembly by removing
the 2 screws that attach it to the vacuum motor.
See Figure 3
6. Inspect armature commutator. If it is extremely
pitted, grooved or not concentric then the motor will
need to be replaced or sent to a qualified service
center.
7. Slide the yellow brush housing from plastic holder.
See Figure 4
8. Reverse steps 7 through 4 to install new brush and
housing (part number S8TOEG845 120 V -
S8TOGB839 230 V)
9. Repeat steps 4 through 8 for the other carbon
brush.
10. Reverse steps 3 and 2 for re-assembly.
11. Test for proper operation.
86369590 Titan Vacuum
Figure 1
Figure 2
Figure 4
Figure 3
12 86369590 Titan Vacuum
Notes:
13
PARTS
86369590 Titan Vacuum
Parts
14
Vacuum Motor Assembly - T708 / T708IE
86369590 Titan Vacuum
1586369590 Titan Vacuum
Vacuum Motor Assembly - T708 / T708IE
REF PART NO. PRV NO. QTY DESCRIPTION
SERIAL NO.
FROM
NOTES
1A 8.616-284.0 S81122 CORD, 120 VOLT
1B 8.616-283.0 S80117 CORD, 230 VOLT
2 8.616-407.0 S80138 1 STRAIN RELIEF
3 8.616-421.0 S80139 1 TERMINAL CLIP
4 8.616-386.0 S81006 2 SCREW, 5 X 20
5 8.616-422.0 S80450 1 TERMINAL BLOCK
6 8.616-328.0 S83733AUG6 1 HANDLE, GRAY
7
8.718-781.0
90-1982 4
SCREW, M5 X 8 X 40MM,
PHILLPS PAN HD ZINC
8 8.616-386.0 S81006 2 SCREW, 5 X 20
9 8.616-389.0 S81054 2 SCREW, 5 X 30
10 8.616-287.0 S83734AUB.LAB 1 COVER
11 8.616-415.0 S80326 1 SWITCH, ON/OFF
12 8.616-312.0 S83937 1 FILTER, Ø95
13 8.616-388.0 S81050 6 SCREW, 5 X 35
14 8.616-285.0 S82738AUG6 1 COVER, MOTOR, GRAY
15 8.616-321.0 S83969 1 GASKET
16 8.616-378.0 S80310 1 RING
17 8.616-311.0 S83900 1 FILTER
18 8.616-348.0 S82591AUG6 1 MOTOR RING, GRAY
19 8.616-320.0 S83901 2 GASKET
20A 8.616-347.0 S81120S 1 MOTOR, 120 VOLT
20B 8.616-351.0 S83891S 1 MOTOR, 230 VOLT
21 8.616-294.0 S83866 1 DISK, NOISE REDUCTION
22 8.616-261.0 S81189GG6 1 BASE, MOTOR, GRAY
23 8.616-341.0 T9008 1 LABEL, WINDSOR LOGO
16
Vacuum Motor Assembly - T716 / T720TP
86369590 Titan Vacuum
1786369590 Titan Vacuum
Vacuum Motor Assembly - T716 / T720TP
REF PART NO. ALT NO. QTY DESCRIPTION
SERIAL NO.
FROM
NOTES
1A 8.616-284.0 S81122 CORD, 120 VOLT
1B 8.616-283.0 S80117 CORD, 230 VOLT
2 8.616-407.0 S80138 1 STRAIN RELIEF
3 8.616-421.0 S80139 1 TERMINAL CLIP
4 8.616-386.0 S81006 2 SCREW, 5 X 20
5 8.616-389.0 S81054 4 SCREW, 5 X 50
6 8.616-329.0 S86097AUG6 1 HANDLE, GRAY
7 8.616-392.0 S81979 2 SCREW, 5 X 25
8 8.616-385.0 S81005 2 SCREW, 5 X 14
9 8.616-423.0 S80490 1 TERMINAL BLOCK
10 8.616-288.0 S86070AUB.LAB 1 COVER, BLUE
11 8.616-415.0 S80326 1 SWITCH, ON/OFF
12 8.616-312.0 S83937 1 FILTER
13 8.616-318.0 S81502 1 GASKET
14 8.616-274.0 S83383 2 CAP
15 8.616-286.0 S82957AUG6 1 COVER, GRAY
16 8.718-781.0 90-1982 9
SCREW, M5 X 8 X 40MM,
PHILLPS PAN HD ZINC
17 8.616-349.0 S82937AUG6 1 MOTOR BASE, GRAY
18 - S81004 1 SCREW, 3 X 19
19 8.616-422.0 S80450 1 TERMINAL BLOCK
20 8.616-321.0 S83969 1 GASKET
21 8.616-378.0 S80310 1 RING
22 8.616-320.0 S83901 3 L-GASKET
23A 8.616-347.0 S81120S 1 MOTOR, 120 VOLT
23B 8.616-351.0 S83891S 1 MOTOR, 230 VOLT
24 8.616-350.0 S83451 2 MOTOR SEAL
25 - S82454 3 FILTER
26 8.616-310.0 S83456 3 FILTER
27 8.616-264.0 S83519 1 BASE PLUG
28 8.616-263.0 S83108GG6 1 BASE
29 8.616-341.0 T9008 1 LABEL, WINDSOR LOGO
18
Filter Group T708
86369590 Titan Vacuum
1986369590 Titan Vacuum
Filter Group T708
REF PART NO. ALT NO. QTY DESCRIPTION
SERIAL NO.
FROM
NOTES
1 86162730 S83706 4 BUSHING
2 86163950 S83724 4 SCREW, 5 X 25
3 86162690 S82823 1 BODY, FILTER SUPPORT
4 86163080 S83138 1 FILTER/STRAINER
5 86163150 S82676 1 FLOAT
6 - S80123 1 RING, FILTER
7 86163050 S82860 1 FILTER BAG
8 86164130 S82859 1 SUPPORT, FILTER BAG
20
Filter T716 / T720TP
86369590 Titan Vacuum
2186369590 Titan Vacuum
Filter T716 / T720TP
REF PART NO. ALT NO. QTY DESCRIPTION
SERIAL NO.
FROM
NOTES
1 86162730 S83706 4 BUSHING
2 86163950 S83724 4 SCREW, 5X25
3 86162690 S82823 1 BODY, FILTER SUPPORT
4 86164080 S83117 1 STRAINER
5 86163150 S82676 1 FLOAT
6 86163010 S80473 1 FILTER RING
7 86163020 S82845 1 FILTER BAG
8 86164120 S82833 1 SUPPORT, FILTER
9 86163030 S82852 1 FILTER – OPTIONAL
10 86163040 S82855 1 FILTER RETAINER – OPTIONAL
22
Tank T708
86369590 Titan Vacuum
2386369590 Titan Vacuum
Tank T708
REF PART NO. ALT NO. QTY DESCRIPTION
SERIAL NO.
FROM
NOTES
1 86164190 S82599 1 TANK
2 86163800 S81300 4 RIVET, 5 X 24.5
3 86164160 S81847G6 2 TANK CLAMP
4 86163880 S81050 4 SCREW, M5 X 35
5 86163190 S82846 1 GASKET
6 86163770 S82585AG6BL 1 RETAINER, TANK ADAPTER
7 86164010 S82608 1 SPRING, PUSH BUTTON
8 86164180 S82593 1 TANK DEFLECTOR
9 86163710 S82594BL 1 PUSH BUTTON, TWO-PIECE, BLUE
10 86163360 S82583AG6BL 1 HOSE ADAPTER, BLUE
11 86162760 S80558 6 CASTER
12 86163400 T9007 1 LABEL, TITAN
24
Tank T716
86369590 Titan Vacuum
2586369590 Titan Vacuum
Tank T716
REF PART NO. ALT NO. QTY DESCRIPTION
SERIAL NO
FROM
NOTES
1 86163270 S82558V 1 HANDLE
2 86164200 S82637 1 TANK – 400
3 86163870 S81026 4 SCREW, M5X
4 86163760 S82584AG6 1 RETAINER, TANK
5 86163190 S82846 1 GASKET
6 86164180 S82593 1 DEFLECTOR, TANK
7 86162560 S82652AG6 1 ADAPTER
8 86163800 S81300 4 RIVET, 5 X 24.5
9 86164160 S81847G6 2 CLAMP
10 86163880 S81050 8 SCREW, M8 X 15
11 86163670 S83883 8 PLASTIC WASHER
12 86164090 S81072 2 SUPPORT, HANDLE
13 86164100 S81860 2 SUPPORT
14 86163810 S81302 2 RIVET, M5 X 19
15 86164310 S82559 2 WHEEL CASTER
16 86163930 S82680 8 SCREW, M8 X 15
17 86164110 S82556 2 SUPPORT, AXLE
18 86164300 S80904 2 WHEEL
19 86162750 S82557 2 CAP, END
20 86162600 S83835 2 AXLE CAP
21 86164000 S82607 2 SPACER, WHEEL
22 86163860 S81006 8 SCREW, M5 X 20
23 86162580 S82555 1 AXLE
24 86163570 S80834 1 NUT, FLANGE, 1-1/4
25 86163170 S80256 1 GASKET
26 86162980 S82763 1 ELBOW
27 86162800 S83308 1 CLAMP
28 86162950 S82765 1 DRAIN TUBE
29 86163940 S83156 1 SCREW, M5 X 20
30 86162810 S82788 1 CLIP TUBE
31 - S82812 1 TIE ROD, PLUG
32 86163690 S82764 1 PLUG, STOPPER
33 86163300 S86250 2 HANDGRIP
34 86163710 S82594BL 1
PUSH BUTTON, TWO-
PIECE, BLU
35 86163400 T9007 1 LABEL, TITAN
26
Tank and Cart - T720TP
86369590 Titan Vacuum
2786369590 Titan Vacuum
Tank and Cart - T720TP
REF PART NO. ALT NO. QTY DESCRIPTION
SERIAL NO.
FROM
NOTES
1 86164170 S82048 1 TANK – 400
2 86163870 S81026 4 SCREW, M5 X 30
3 86163670 S83883 4 PLASTIC WASHER
4 86163310 S83028 1 HOOK, LATCH
5 86163750 S82970 2 RELEASE SWIVEL
6 86163740 S82969 2 RELEASE KNOB
7 86164160 S81847G6 2 CLAMP
8 86163800 S81300 4 RIVET
9 86162560 S82652AG6 1 HOSE ADAPTER
10 86164180 S82593 1 DEFLECTOR, TANK
11 86163190 S82846 1 GASKET
12 - S82586AG6 1 RETAINER, TANK ADAPTER
13 86163880 S81050 4 SCREW, M5 X 35
14 86163710 S82594BL 1 PUSH BUTTON, TWO-PIECE, BLUE
15 86163400 T9007 1 LABEL, TITAN
16 86162620 S82185 1 BASE
17 86163650 S80976 2 PLASTIC PAD
18 86163560 S80478 2 NUT, M10
19 86164260 S81012 2 WASHER, M10
20 86164290 S80479 2 WHEEL, CASTER
21 86164320 S82896 2 WHEEL
22 86164280 S82922 2 WASHER
23 86163660 S83607 2 PLASTIC RETAINER
24 86162590 S82972 2 AXLE CAP
25 86163300 S86250 2 HAND GRIP
28
Front Mounted Squeegee - TSQ16
86369590 Titan Vacuum
2986369590 Titan Vacuum
Front Mounted Squeegee - TSQ16
REF PART NO. ALT NO. QTY DESCRIPTION
SERIAL NO.
FROM
NOTES
1 86163330 BD705205 1 HOSE ASSEMBLY
2 86163390 BD715508 1 HOUSING
3 - BD735608 2 BOLT, GUIDE WHEEL, 1/4-20 X 1.75"L.
4 86163220 BD735607 2 GUIDE WHEEL
5 - BD735611 2 JAM NUT, 1/4-20 SERRATED FLANGED
6 - BD735609 2 NYLOCK NUT, 1/4-20
7 86163960 BD735602 2 SLOTTED BLADE
8 86163980 BD735601 2 SOLID BLADE
9 86162650 BD715509 2 BLADE SUPPORT
10 - BD735604 4 BLADE END SCREW, 10-32 X 1/2"L, SS
11 - BD735605 4
BLADE END SCREW NUT, 10-32,
NYLOCK
12 - BD735603 18
BLADE ATTACH’T SCREW, 10-32 X 5/
8"L SS
13 - BD735612 6 MOUNTING BOLTS, 1/4-20 X 3/4"L
14 - BD735609 6 NYLOCK NUT, 1/4-20
15 86163440 BD705201 2 LIFTING ARM
16 86163420 BD705203 1 LATCH
17 86162910 BD705202 1 CROSS MEMBER
- 86162820 BD705200 1 COMPLETE SQUEEGEE ASSEMBLY
INCLUDES
PARTS 2-12
30
Front Mounted Squeegee - TSQ20
86369590 Titan Vacuum
3186369590 Titan Vacuum
Front Mounted Squeegee - TSQ20
REF
PART
NO.
ALT NO. QTY DESCRIPTION
SERIAL NO.
FROM
NOTES
1 86163330 BD705205 1 HOSE ASSEMBLY
2 86163390 BD715508 1 HOUSING
3 - BD735608 2 BOLT, GUIDE WHEEL, 1/4-20 X 175"L
4 86163220 BD735607 2 GUIDE WHEEL
5 - BD735611 2
JAM NUT, 1/4-20 SERRATED
FLANGED
6 - BD735603 18
BLADE ATTACH’T SCREW, 10-32 X 5/
8"L SS
7 - BD735609 2 NYLOCK NUT, 1/4-20
8 - BD735605 4
BLADE END SCREW NUT, 10-32,
NYLOCK
9 86163960 BD735602 2 SLOTTED BLADE
10 86163980 BD735601 2 SOLID BLADE
11 86162650 BD715509 2 BLADE SUPPORT
12 - BD735603 4
BLADE ATTACH’T SCREW, 10-32 X 5/
8"L SS
13 - BD735609 4 NYLOCK NUT, 1/4-20
14 - BD735612 4 MOUNTING BOLTS, 1/4-20 X 3/4"L
15R 86163460 BD705225R 1 LIFTING ARM RIGHT SIDE
15L 86163450 BD705225L 1 LIFTING ARM LEFT SIDE
16 - BD735613 2
BOLT, LIFTING ARM CLAMP, 5/16-18 X
1"L
17 86162780 BD705209 2 CLAMP, LIFTING ARM
18 86162920 BD705210 1 CROSS MEMBER
19 - BD735614 2 NYLOCK NUT, 5/16-18
20 - BD735612 2 BOLT, PEDAL MOUNT, 1/4-20 X 3/4"L
21 86163630 BD705212 2 PEDAL MOUNT
22 86162790 BD705213 2 CLAMP, PEDAL MOUNT
23 - BD735609 2 NYLOCK NUT, 1/4-20
24 86163640 BD705229 1 PEDAL ASSEMBLY
32
Accessories
*Also order PN 86163040 (ALT S82855) Retainer with Filter.
PART NO ALT NO DESCRIPTION
SERIAL NO
FROM
NOTES
86164030 TSQ16 FRONT MOUNTED SQUEEGEE
86164040 TSQ20 FRONT MOUNTED SQUEEGEE
86163620 S72741 PAPER BAG
86163050 S82860 FILTER BAG, STANDARD FOR 708 MODEL
86163020 S82845 FILTER BAG, STANDARD FOR T716 AND T720TP
86163030 S82852
FILTER CARTRIDGE, PAPER, OPTIONAL FOR T716
AND T720TP
*
86163000 S76061
FILTER CARTRIDGE, WASHABLE PAPER,
OPTIONAL FOR T716 AND T720TP
*
86163070 S82995
FILTER CARTRIDGE, HEPA EQUIVALENT,
OPTIONAL FOR T716 AND T720TP
*
86163060 S82881
FILTER CARTRIDGE, HEPA EQUIVALENT,
OPTIONAL FOR T708
86163040 S82855
CARTRIDGE FILTER RETAINER, FOR T716 AND
T720TP
86369590 Titan Vacuum
33
Suggested Spare Parts
PART NO PRV NO DESCRIPTION
SERIAL NO
FROM
NOTES
86163520 S8TOEG845 MOTOR BRUSH, 120 VOLT MOTOR
86163530 S8TOGB839 MOTOR BRUSH, 230 VOLT MOTOR
86164150 S80326 SWITCH, ON/OFF
86163050 S82860 POLYESTER FILTER, T708
86163020 S82845 POLYESTER FILTER, T716 AND T720TP
86164080 S83117 STRAINER
86369590 Titan Vacuum
