chef 900 Glass Canopy Installation and Operation Manual
1
There is a fire risk if cleaning is not carried out in accordance with the instruction.
DUCTING ACCESSORIES
AR125RC
AR125F
AR125FD
Roof cowl
Flue
1200mm length
Alternative flue connection
1 metre flexible duct with joiners
Flashing
Not Supplied
90º bend
AR125B
AR500RK
AR125WV
Wall vent
(includes 400mm of flue)
Accessories
Use 125mm round exhaust ducting for best performance.
Try to keep exhaust duct short and straight.
Keep bends in the exhaust duct to a minimum.
Do not reduce the size or restrict exhaust duct.
Roof Cowl
90° Bend
Flue 1200mm Long
Flexible Duct - 1 Metre Long When Expanded
Wall Vent Kit
Extra Length Flue Cover 1100mm Length Brushed Stainless Steel
Recirculating Kit
Replacement Carbon Filters
Part Numbers: Description:
AR125RC
AR125B
AR125F
AR125FD
AR125VW
AR1200FS
AR500RK
AR500CF
2
AR1200FS
DIMENSIONS ARE IN MILLIMETRES

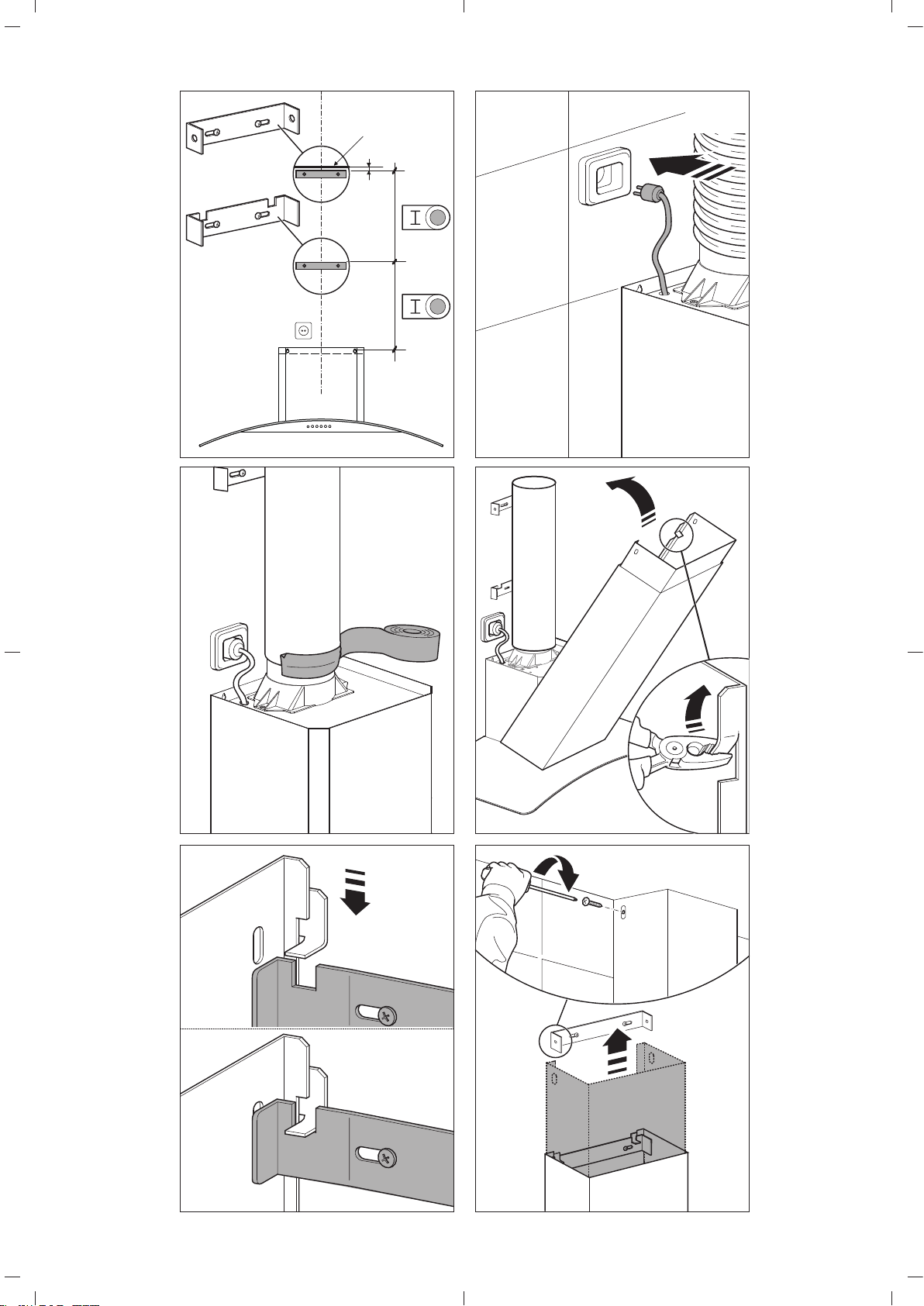

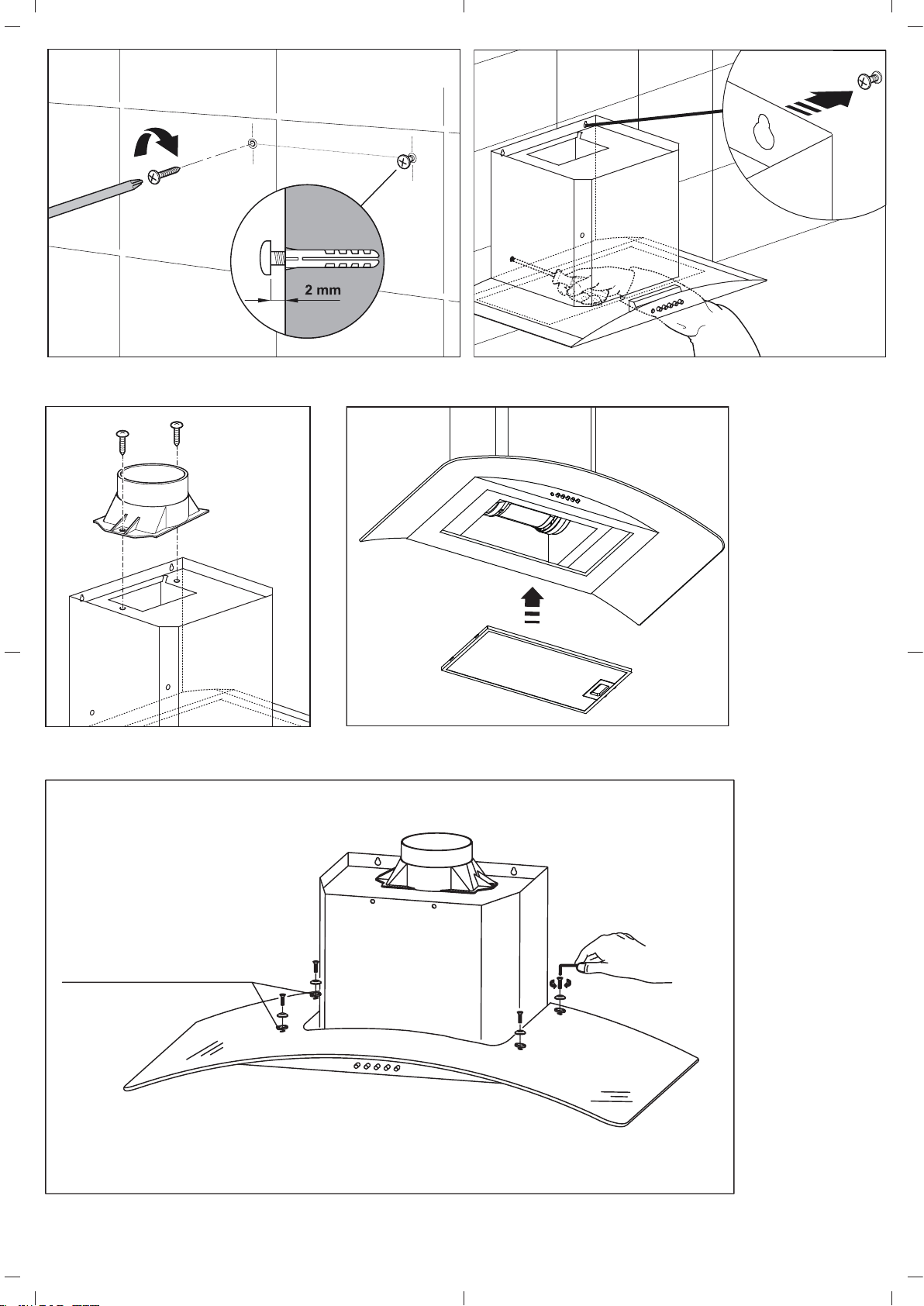

INSTALLING THE COOKER HOOD
COMPONENTS LIST
COMPONENTS NOT INCLUDED
1 instruction book
1 plastic duct transition: oblong to round
brackets to wall.
Fixings required to attach the cooker hood to
wall.
Remove polystyrene packaging from inside
behind fan motor.
(Diagrams
C)
protective plastic covering.
NOTE:
Some installations may require
hack saw blade, taking care not to
.
Diagram B:
Recommended working heights.
Te
C
L
Hood base
Top of hob
MINIMUM:
600 electric
650 gas
MAXIMUM:
800 mm
B
53
95 95
125 125
253
232
117.5 117.5
24
The maximum space between the wall and screw cap is 5mm.
C
that is used for exhausting fumes from
appliances burning gas or other fuels.
3
A
1
A
2
3
4
Important :
Rubber washer to be
assembled against glass
5
4
3mm
Ceiling
6 7
8
9
10
11
5

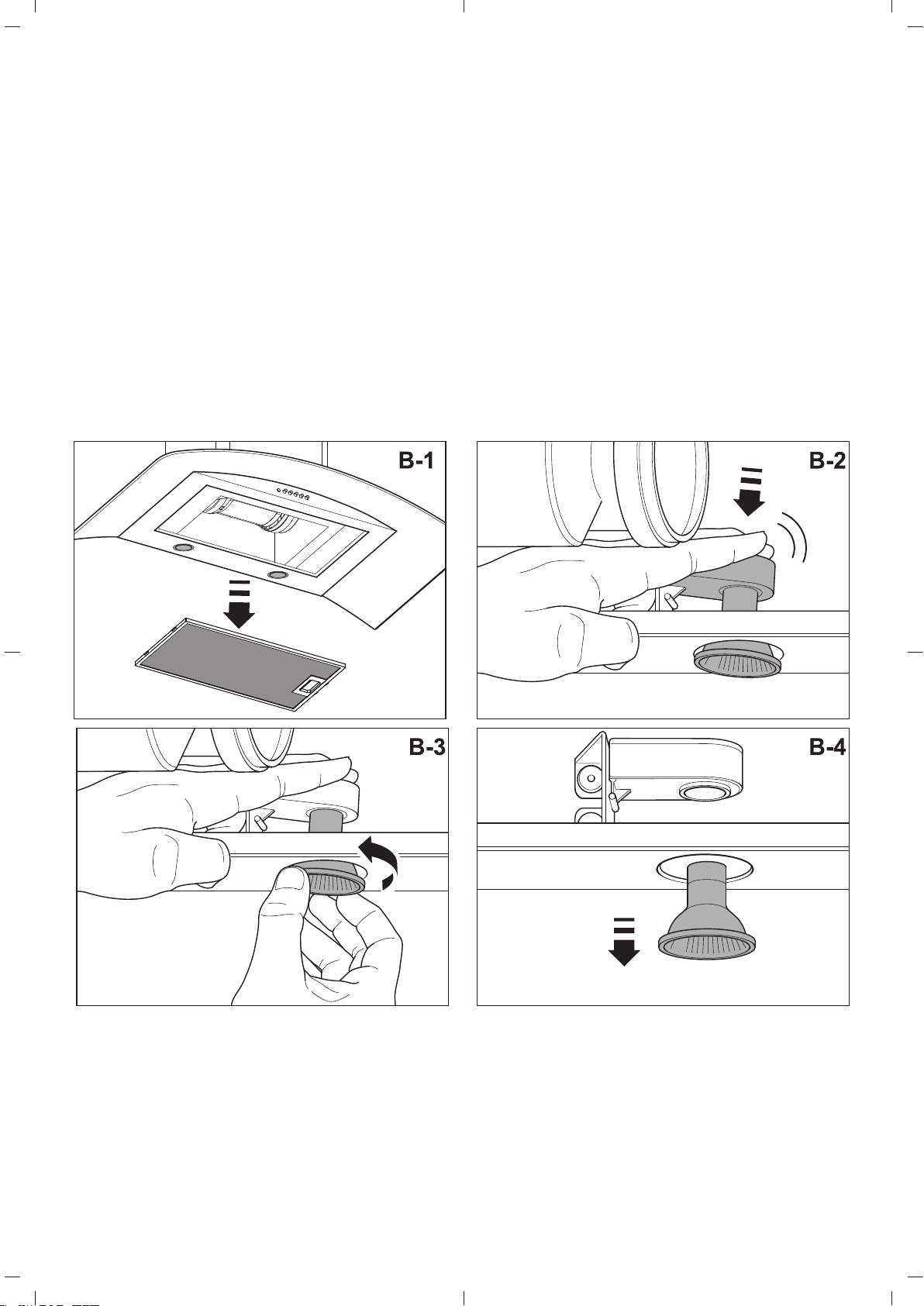

IMPORTANT WARNING FOR EXTRACTOR HOODS WITH HALOGEN LAMPS
If the halogen lamps need replacing, they must be replaced by lamps with an aluminium reector, never dichroic
lamps, to avoid unnecessary overheating in the lamp holders.
THE MANUFACTURER WAIVES ALL LIABILITY FOR FAILURE TO OBSERVE THE INSTRUCTIONS FOR THE
APPROPRIATE INSTALLATION, MAINTENANCE AND USE OF THE EXTRACTOR HOOD.
If you need any technical help or would like more information about our products, please do not hesitate to contact
our ocial distributor.
THE MANUFACTURER reserves the right to eect any technological improvement or modication without prior
notice.
6
7
NOTE: This product is fitted with a safety cutout device.
If the cooker hood is installed to close to the cooktop, flambe cooking, operating the cooktop without cooking utensils and
blocked filters may activate the safety cutout device. If the hood stops during operation, correct the faults and allow time for
the safety cutout device to reset, the cooker hood will then function correctly.
Do not operate cooktop without pots/pans.
Do not flambe under cooktop.
8
p/n: 0342-001-594, issue: B 2012-10
