Air Purification System
Instruction Book – CLI-AP30
by
2
CLI-MATE
RECOMMENDS
SAFETY FIRST
At Cli-Mate we are very
safety conscious. We design
and manufacture consumer
products with the safety of you,
our valued customer, foremost
in mind. In addition we ask
that you exercise a degree of
care when using any electrical
appliance and adhere to the
following precautions.
IMPORTANT
SAFEGUARDS
READ ALL
INSTRUCTIONS BEFORE
USE AND SAVE FOR
FUTURE REFERENCE
• All components need to
be installed in accordance
with the user manual
instructions for correct
performance of unit.
• This appliance should be
used in conjunction with
a safety switch.
• This appliance is not
intended for use by
persons (including
children) with reduced
physical, sensory or
mental capabilities,
or lack of experience
and knowledge, unless
they have been given
supervision or instruction
concerning use of the
appliance by a person
responsible for their safety.
2 Cli-Mate Recommends
Safety First
6 Components
7 Functions
12 Care & Cleaning
13 Troubleshooting
Contents
3
• Do not operate any
appliance with a damaged
cord or plug or after the
appliance malfunctions, or
has been damaged in any
manner.
• If the supply cord
is damaged, it must
be replaced by the
manufacturer, its service
agent or similarly
qualified persons in order
to avoid a hazard.
• Children should be
supervised to ensure that
they do not play with the
appliance.
• Do not use appliance for
other than intended use.
• Do not disassemble, repair
or re-form the unit, it may
cause injury, fire or other
malfunctions. A qualified
service agent must make
all service adjustments.
Unauthorised
disassembling of the
product will void
the warranty.
• Unplug from outlet when
not in use and before
cleaning. Never plug in
or unplug unit with wet
hands.
• Do not use unit outdoors
or expose to greasy
or damp environments.
• Keep the rear air inlet
and outlet free from air
blocking materials such
as clothing, plastic bags
or papers. Air flow
is required for the unit
to operate effectively.
• Place unit on a flat
location at least 30cm
from wall or other
appliances.
• When the unit is in
operation, keep all body
parts, jewellery, hair and
loose clothing away from
the openings
• Unit must be placed
on a stable flat surface to
reduce possible excessive
vibration and noise.
4
• Keep the unit away
from fire, flammable gas,
combustible products
or vapours, and corrosive
substances.
• Do not operate the unit
without filters.
• When transporting the
air purifier, always hold
the handles on the side
of the unit.
• To protect against
fire, electric shock and
personal injury, do not
immerse cord, plugs,
or appliance in water
or other liquid.
• Do not place on or near
a hot gas, electric burner
or heating appliance.
• Check voltage to be sure
that the voltage indicated
on the nameplate agrees
with your voltage.
IMPORTANT
SAFEGUARDS
FOR ALL
ELECTRICAL
APPLIANCES
• Unwind the power cord
fully before use.
• Do not let the power
cord hang over the edge
of a bench or table, touch
hot surfaces, or become
knotted.
• To protect against electric
shock do not immerse
power cord, power plug
or appliance in water
or any other substance.
• This appliance is not
intended for use by
persons (including
children) with reduced
physical, sensory or mental
capabilities, or lack of
experience or knowledge,
unless they have been
given supervision or
instruction concerning
use of the appliance
by a person responsible
for their safety.
5
• Children should be
supervised to ensure
they do not play with
the appliance.
• It is recommended
to regularly inspect the
appliance. Do not use the
appliance if power cord,
power plug or appliance
becomes damaged in
anyway. Return the
entire appliance to
the nearest authorised
Cli-Mate Service Centre
for examination and/
or repair.
• Any maintenance other
than cleaning should
be performed at an
authorised Cli-Mate
Service Centre.
• This appliance is
recommended for
household use only.
Do not use this appliance
for anything other than
its intended use. Do not
use in moving vehicles
or boats. Do not use
outdoors. Misuse may
cause injury.
• The installation of
a residual current
device (safety switch)
is recommended to
provide additional safety
protection when using
electrical appliances.
It is advisable that
a safety switch with
a rated residual operating
current not exceeding
30mA be installed in the
electrical circuit supplying
the appliance. See your
electrician for professional
advice.
WARNING
Fully unwind the cord
before use.
FOR HOUSEHOLD USE ONLY
SAVE THESE INSTRUCTIONS
6

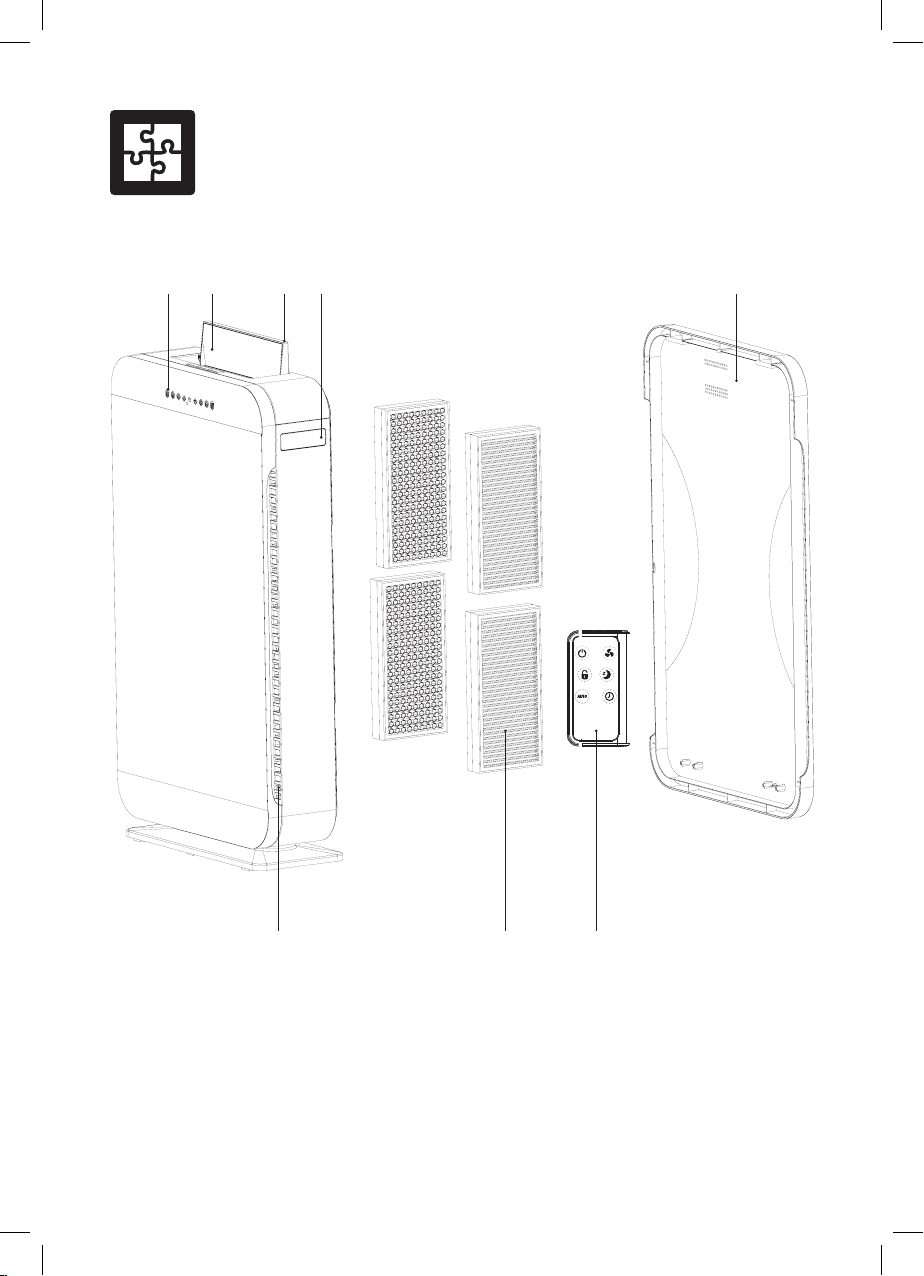

Components
A B C D
F EG
H
A. Display panel
B. Control buttons
C. Air outlet cover
D. Hidden handles
E. Remote control
F. Air inlet
G. Pre-filter, HEPA and active carbon filter
H. Back cover
7
PRODUCT FEATURES
Filters
The 3-layer filter contains a Pre-filter,
a HEPA filter and an activated carbon filter.
• The Pre-filter traps larger particles such
as dust, pet hair and large-sized allergens.
• The HEPA filter (Grade H12) removes 99.5%
of particles as small as 0.3 microns and
greater from the air. It is capable of removing
smoke, dust, pollen, pet dander, mould spores,
bacteria and allergens in the air.
• The Activated carbon filter absorbs common
household odours, VOCs, cigarette odours,
chemical fumes and smoke.
Functions
Pre-filter
HEPA filter
Activated Carbon Filter
8
CONTROL PANEL/BUTTONS
1. Speed Options
Allows selection for desired speed setting
– high, medium, low and sleep. Default
setting at low speed.
Filter timer reset button
Press and hold for 3 seconds to reset
filter timer.
2. Power button
Turns unit on or off.
3. Auto Mode
In this mode, the speed of the air flow/fan
speed will change automatically depending
on the air quality as detected by the dust
and odour sensors.
REMOTE CONTROL
A. On/off
B. Child-safety lock
C. Auto-mode
D. Speed options
E. Sleep mode
F. Off timer options
NOTE
• Avoid storing the remote control in direct
sunlight.
• The battery for this remote control is for
initial use only and will need to be changed.
• When replacing battery, always use
a 3V lithium coin battery.
• When the unit will not be used for an
extended period, remove the battery from
the remote to prevent battery fluid leakage.
C
B
A D
E
F
• For safety reasons, access to the battery
requires removing the small screw with
a small Phillips head screwdriver. Always
ensure the screw is in place when there
is a battery in the remote.
9
A
E
D
a. d.b.
e.
c.
f. g.
B C

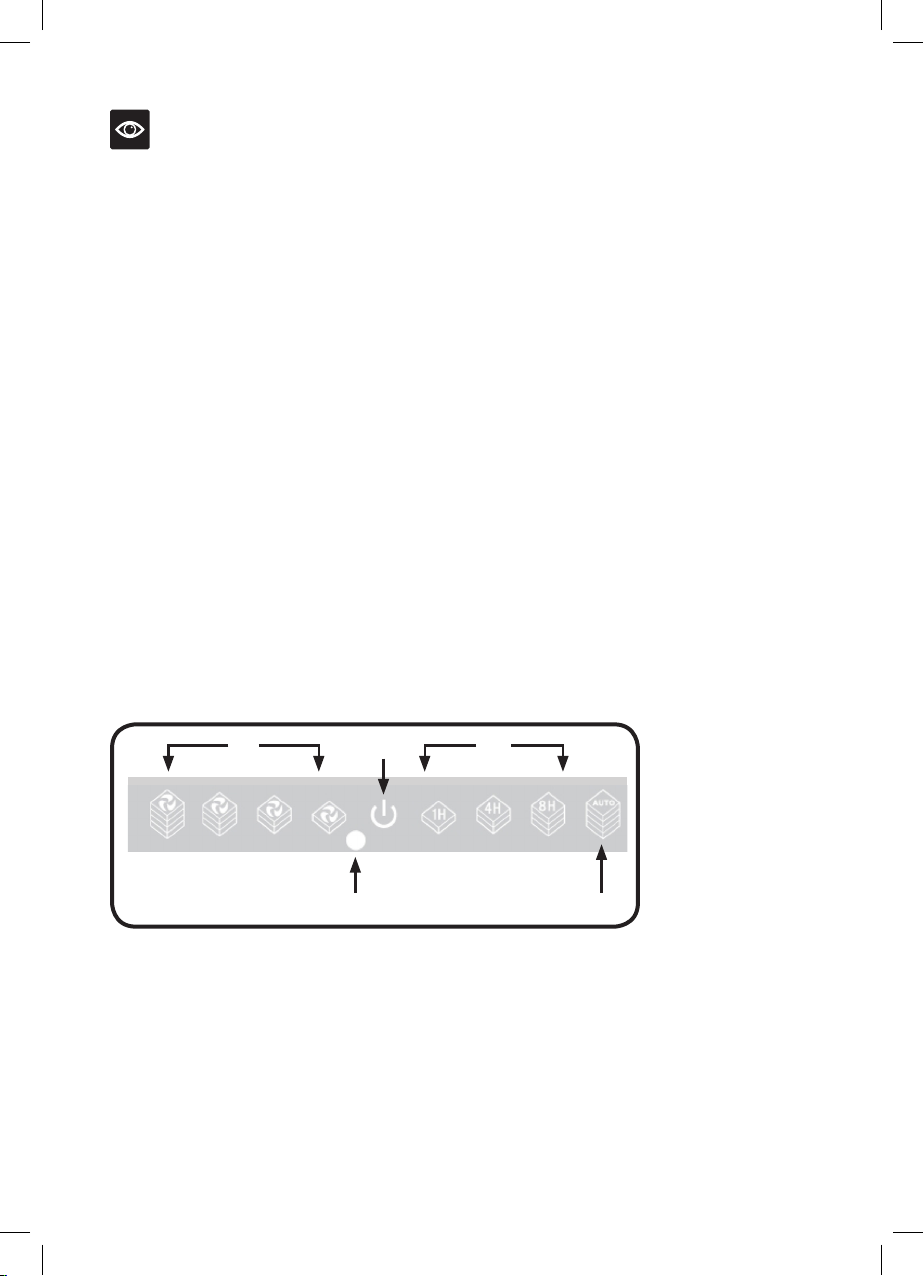

DISPLAY PANEL
A. Power Indicator
Illuminates green when power to the unit
and blue when unit switched ON.
Filter Change
Indicator Light will flash when filter
needs to be changed.
Child-Lock
Power Indicator Illuminates Green
when Child Safety Lock is ON.
B. Fan Speed Indicator
a. High speed
b. Medium speed
c. Low speed
d. Sleep (Ultra-quiet mode)
C. Timer Indicator
e. 1 hour
f. 4 hours
g. 8 hours
D. Automatic Mode Indicator
Red – Poor air quality
Purple – Moderate air quality
Blue – Good air quality
E. Remote Control Signal Receiver
WARNING - KEEP BATTERIES
OUT OF REACH OF CHILDREN
Swallowing may lead to serious injury in as
little as 2 hours or death, due to chemical burns
and potential perforation of the oesophagus.
If you suspect your child has swallowed or
inserted a button battery immediately call the
24-hour Poisons Information Centre on
13 11 26 for fast, expert advice.
Examine devices and make sure the battery
compartment is correctly secured, e.g. that
the screw or other mechanical fastener is
tightened. Do not use if compartment is not
secure.
Dispose of used button batteries immediately
and safely. Flat batteries can still be dangerous.
Tell others about the risk associated with
button batteries and how to keep their
children safe.
10
PRODUCT SPECIFICATIONS AIR PURIFIER
MODEL CODE CLI-AP30
DIMENSIONS (MM) H679 x W394 x D153
COVERAGE AREA Up to 25m
POWER CONSUMPTION 50 watts
NET WEIGHT 7.2 kg
GROSS WEIGHT 8.4 kg
AIR CHANGE PER HOUR 30m
3
x 6
CLEAN AIR DELIVERY RATE 176m
3
/h
NOISE LEVEL IN TURBO MODE ≤58dB
NOISE LEVEL IN SLEEP MODE ≤36dB
REPLACEMENT FILTER CLI-AP30-RF
OPERATION INSTRUCTIONS
Important: Before first use open back cover
and unwrap filters before operation.
See page 12 for filter details.
1. Plug unit into power socket, POWER light
will be lit green. Unit is now in standby mode.
2. Press POWER button to turn unit on.
The unit will beep and the fan will
start running. The air outlet cover will
automatically open and display panel lights
will illuminate indicating current settings.
NOTE
The purification default setting is at LOW
speed mode.
3. To select speed, press until LED Light
is on desired speed-LOW, MEDIUM,
HIGH, SLEEP.
NOTE
To select SLEEP mode on the remote control,
press button.
4. To set automatic off timer, press on
the remote control until LED light is
on desired time 1/4/8 hours. Unit will
automatically switch off once selected
time duration has lapsed.
5. To select AUTO-MODE, press AUTO
button. The auto-mode icon on
the display panel will light up. The icon
colour will change indicating the current
air quality. The fan speed of the unit will
change automatically depending on the
air quality as detected by the dust and
odour sensors.
11
GOOD AIR QUALITY MODERATE AIR QUALITY POOR AIR QUALITY
INDICATOR LIGHT Blue Purple Red
OPERATING SPEED Sleep Low High
6. To activate CHILD-LOCK function,
press on the remote control. The power
indicator light will change to green when
this feature is activated. This function
will lock the control buttons on the unit
and remote control.
NOTE
To deactivate the CHILD LOCK function,
hold the button on the remote control for
3 seconds until the POWER indicator LED
light on the unit changes to blue.
12
Care & Cleaning
EXTERNAL CLEANING OF UNIT
1. Do not clean unit with any abrasive
cleaning agents or solvents.
2. Do not apply any water directly to the unit
of cleaning.
3. Only use a soft clean cloth for all cleaning
purposes.
4. Clean the air inlet and outlet with a dry
cloth, soft brush or vacuum cleaner.
CLEANING THE PRE-FILTER
It is recommended that the Pre-filters
(the removable white layer) are cleaned every
2 weeks of unit operation, depending on the
air quality of the room. To clean the Pre-filter:
1. The removable pre-filters are attached by
Velcro. Gently peel away the pre-filters.
2. Run a vacuum cleaner with a nozzle
or brush attachment on low power setting
along both sides of the pre-filter.
3. Re-attach the pre-filters.
CLEANING THE HEPA AND
ACTIVATED CARBON FILTER
It is recommended that the HEPA and
activated carbon filters are cleaned every
100–500 hours of unit operation, depending
on the air quality of the room.
To clean the HEPA and Activated Carbon Filter:
1. Turn off unit and disconnect the power.
2. Place both hands at the bottom corners
of the rear cover, and pull out.
3. Pull out the 4 filters by the white belt attached.
4. Gently peel away the Pre-filter layers.
5. Run a vacuum cleaner with a nozzle
or brush attachment on low power setting
along the HEPA (white side) and Activated
Before carrying out any maintenance or cleaning of the unit, make sure that the power to the unit
is turned off and power cord is unplugged from the power socket.
Carbon (black side) filters to pick up the
dust and various particles.
6. Re-attach Pre-filter layers and place back
into the air purifier.
NOTE
When placing the filters back into the air
purifier, ensure that the white belts are facing
outwards and that the Pre-filters are facing
towards the air inlet.
REPLACING FILTER
When the lifespan of the 3-layer filter reaches
it end, the POWER light will flash, indicating
that it needs to be changed. Discard the old filter
and replace with a new one. It is not reusable.
The lifespan and duration of the filter depends
on the air quality and surrounding environment.
The higher level of pollutants, the shorter the filter
lifespan. It is advisable to change the filter at least
every 8 months or 2000 hours of unit operation.
Cli-Mate Replacement Filter Product Code:
CLI-AP30-RF.
HOW TO REPLACE THE FILTER
7. Turn off unit and disconnect the power.
8. OPEN THE REAR COVER: Place both
hands at the bottom corners of the rear
cover, and pull out.
9. REMOVE THE FILTER: Pull out the filters
by the white belt attached and discard.
10. INSTALL NEW FILTER: Replace with new
filters. Ensure that the white belt is facing
outwards and that the Pre-filter is facing
towards the air inlet.
11. Reattach the rear cover.
12. Hold down Speed button on the unit
to reset the unit.
13
PROBLEM POSSIBLE CAUSES EASY SOLUTION
No Power.
•
Unit is not plugged into wall
socket.
•
Check connection to wall socket.
Unit overheating.
•
Air ventilation around unit not
sufficient.
•
There must be at least 30cm
between unit and wall or other
appliances.
•
Air inlet or air outlet is being
obstructed or blocked by
foreign objects.
•
Ensure there are no object
obstructing the air inlet or air outlet.
•
Internal malfunction.
•
Return unit to service agent,
call Customer Service.
The unit is not effective.
•
Filters may be heavily soiled
and due for replacement.
•
Replace filter.
Excessive/loud noise.
•
Unit is on an uneven surface.
•
Ensure the unit is placed
on a level surface.
•
Foreign objects have fallen into
the unit.
•
Ensure that no foreign objects have
fallen into the unit via the air outlet.
•
Faulty internals.
•
Call Customer Service.
The remote control does
not work.
•
Battery could be dead, depleted
or not correctly installed.
•
Replace battery. Ensure the battery
is correctly installed.
•
Remote is not pointed directly
at the unit.
•
Aim the remote at the remote
control signal receiver located
on the control display.
•
Remote control distance is out
of range.
•
Remote effective distance
approx. 5m.
Odour coming from
the air outlet.
•
Filter may be heavily soiled
and due for replacement.
•
Replace filter.
Troubleshooting
14
Notes
15
Notes
Breville is a registered trademark of Breville Pty. Ltd. A.B.N. 98 000 092 928.
Copyright Breville Pty. Ltd. 2018.
Due to continued product improvement, the products illustrated/photographed
in this brochure may vary slightly from the actual product.
CLI-AP30 ANZ – A18
Web: www.breville.co.nzWeb: www.breville.com.au
Australian Customers
Phone: 1300 139 798
New Zealand Customers
Phone: 0800 273 845
Breville Customer Service Centre
