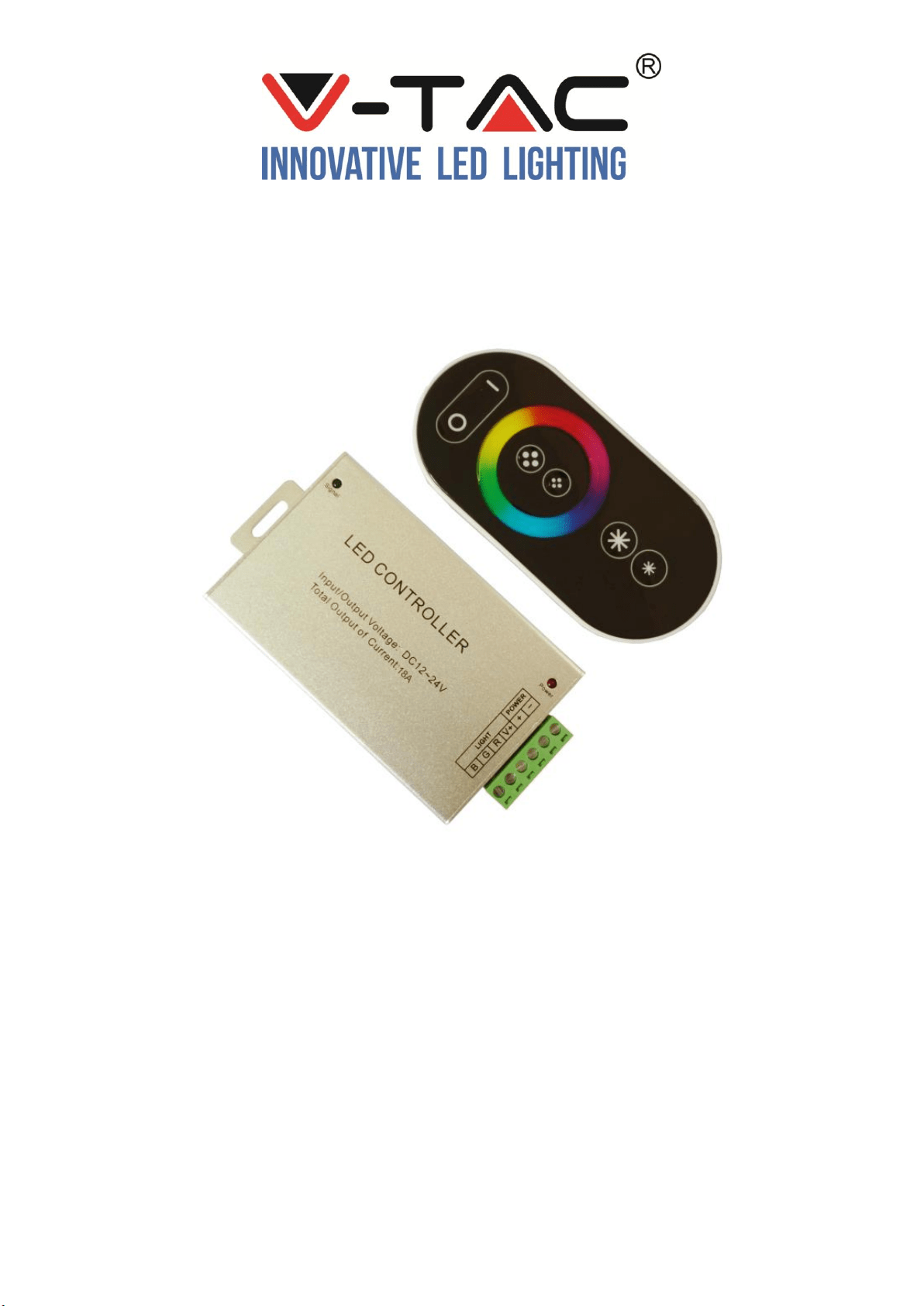

RF CONTROLLER WITH TOUH REMOTE
MODEL NO: VT-2405.
SKU: 3312.
PRODUCT DESCRIPTION:
Adopts Capacitive Touch technology, ultra sensitive.
With RF remote control, very easy to control RGB LED strips like 5050, 3528, etc.
With brightness, color and speed adjustable and according to different needs.
Full color wheel for convenient operation.
With auto sleep and wake up function, low power consumption and energy conservation.
Small size and long service life.
Auto memorizing function, saving your last setting.
TECHNICAL PARAMETERS
Working temperature
-20-60℃
Supply voltage
DC12V～24V
0utput
3 channels
Connecting mode
common anode
Static power consumption
<1W
Output current
<6A(each channel)
Output power
12V<216W；24V<432W；
The dynamic modes are as below:
REMOTE CONTROL FUNCTION INSTRUCTION:
NO
Mode
NO
Mode
NO
mode
1
Three-color gradual
changing
7
Yellow strobe-flash
13
Blue cross-fade
2
Seven-color jumpy changing
8
Cyan strobe-flash
14
Yellow cross-fade
3
Seven-color gradual
changing
9
Purple strobe-flash
15
Cyan cross-fade
4
Red strobe-flash
10
White strobe-flash
16
Purple cross-fade
5
Green strobe-flash
11
Red cross-fade
17
White cross-fade
6
Blue strobe-flash
12
Green cross-fade
Button
Function
Switch for power on and off. The left button is OFF & the right button is
ON.
The top button is Mode + used to go to the next static mode.
The bottom button is Mode – used to go back to the previous mode.
The color wheel is used to change station colors.
Used to increase the brightness.
Used to decrease the brightness.
CONNECTION
CAUTION
This products Input voltage is DC12V~24V. Other input voltages are not allowed.
Lead wire should be connected correctly, according to the wire color and the connecting diagram
offers.
Overloads are prohibited.
