Your new tumble dryer
You have opted for a tumble dryer
manufactured by Bosch.
Please take a few minutes to read and
become familiar with the advantages of
your tumble dryer.
To meet the high quality demands
required by Bosch, every tumble dryer
that leaves our factory is carefully
checked to ensure that it functions
correctly and is in perfect condition.
For more information on our products,
accessories, replacement parts and
services, see our website www.bosch-
home.com or contact our Customer
Service centres.
If the operating and installation
instructions describe different models,
any differences will be pointed out at the
relevant points in the text.
Read these operating and installation
instructions before operating the tumble
dryer.
Display rules
: Warning!
This combination of symbol and signal
word indicates a possibly dangerous
situation. Not heeding the warning can
cause death or injuries.
Caution!
This signal word indicates a possibly
dangerous situation. Not heeding the
caution can cause property and/or
environmental damage.
Note/tip
Information about the optimum use of
the appliance/any other useful
information.
1. 2. 3. / a) b) c)
The steps are represented by numbers
or letters.
■ / -
Lists are represented by a small box or
a dash.
en
3
Contents
en Installation and operating instructions
8 Intended use. . . . . . . . . . . . . . . . .4
( Safety instructions . . . . . . . . . . .4
Electrical safety. . . . . . . . . . . . . . . . . . 4
Safety for children. . . . . . . . . . . . . . . . 5
Appliance safety . . . . . . . . . . . . . . . . . 5
7 Environmental protection . . . . . .7
Packaging/old appliance . . . . . . . . . . 7
Coolant . . . . . . . . . . . . . . . . . . . . . . . . 7
Energy-saving tips. . . . . . . . . . . . . . . . 7
Y The main points in brief . . . . . . .8
* Getting to know
your appliance . . . . . . . . . . . . . . .9
Dryer. . . . . . . . . . . . . . . . . . . . . . . . . . 9
Control panel . . . . . . . . . . . . . . . . . . 10
Display panel . . . . . . . . . . . . . . . . . . 11
Z Laundry . . . . . . . . . . . . . . . . . . .12
Preparing the laundry . . . . . . . . . . . . 12
Sorting washing according to: . . . . . 12
/ Programmes and buttons . . . . .13
Programmes . . . . . . . . . . . . . . . . . . . 13
Buttons . . . . . . . . . . . . . . . . . . . . . . . 14
1 Operating the appliance . . . . . .16

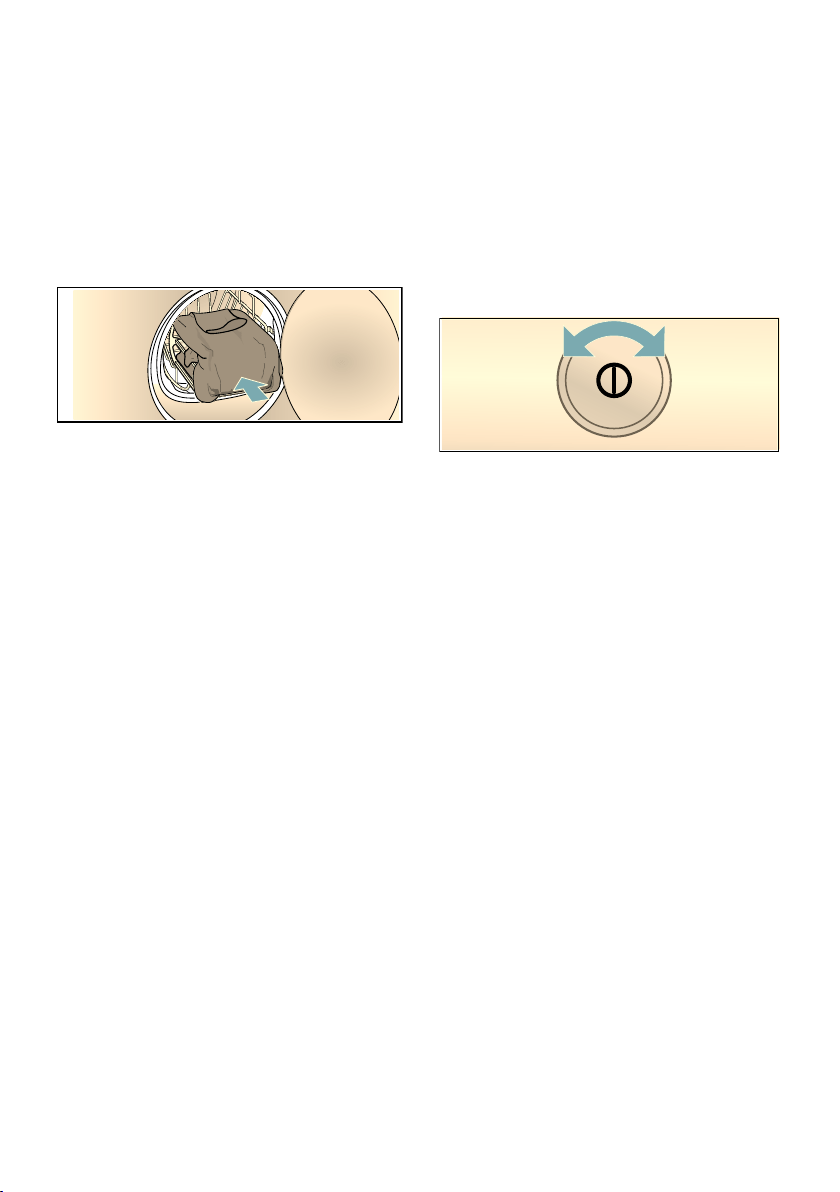

Loading laundry and switching on
the dryer . . . . . . . . . . . . . . . . . . . . . . 16
The basket for woollens . . . . . . . . . . 16
Drying with the basket
for woollens . . . . . . . . . . . . . . . . . . . 17
Setting a programme . . . . . . . . . . . . 18
Starting the programme . . . . . . . . . . 19
Programme sequence . . . . . . . . . . . 19
Changing the programme
or adding laundry . . . . . . . . . . . . . . . 19
Cancelling the programme . . . . . . . . 19
Programme end . . . . . . . . . . . . . . . . 19
Removing laundry
and switching off the dryer . . . . . . . . 19

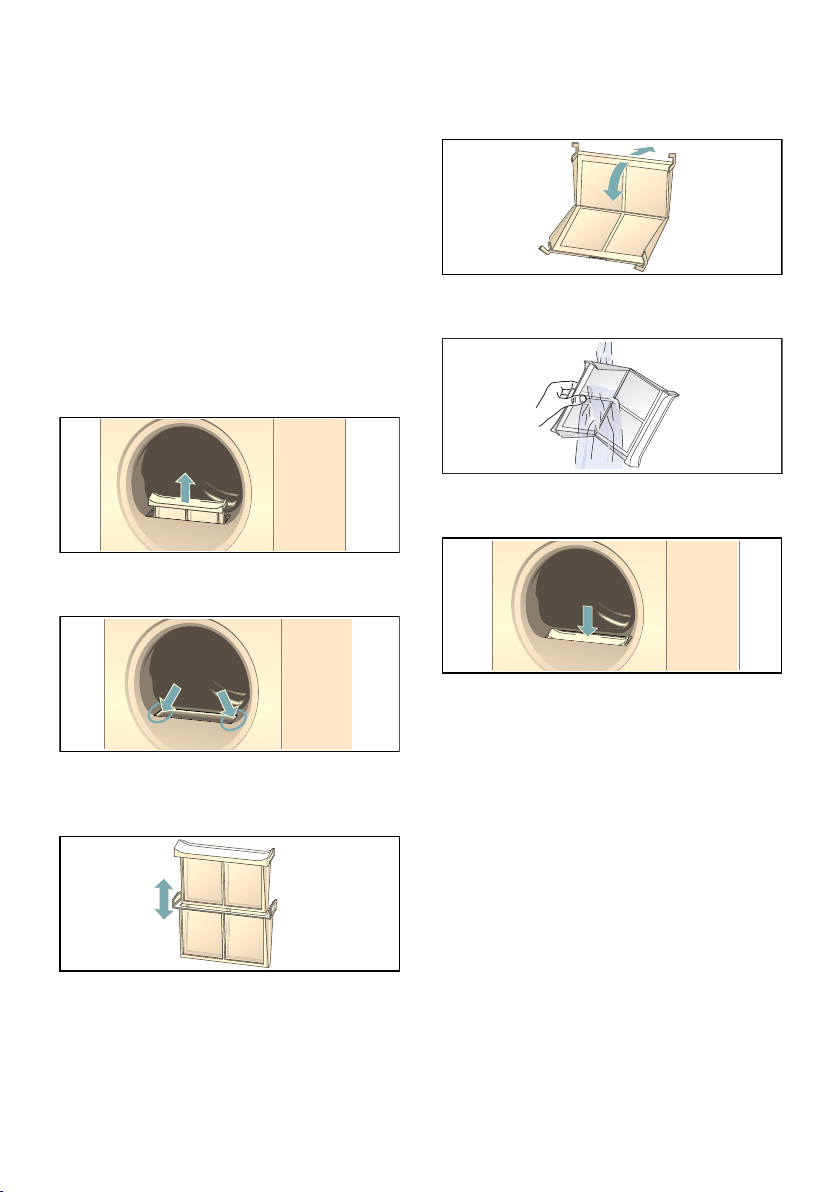

Clean the fluff filter . . . . . . . . . . . . . .20
Emptying the condensate
container . . . . . . . . . . . . . . . . . . . . . .21
> Noises . . . . . . . . . . . . . . . . . . . . 22
D Cleaning . . . . . . . . . . . . . . . . . . . 23
Cleaning the dryer
and the control panel . . . . . . . . . . . .23
Cleaning the moisture sensor . . . . . .23
Cleaning the filter
in the condensate container . . . . . . .24
3 Faults and what to do
about them . . . . . . . . . . . . . . . . . 25
J After-sales service . . . . . . . . . . 27
[ Consumption values. . . . . . . . . 28
Consumption values table . . . . . . . . .28
J Technical data . . . . . . . . . . . . . . 29
5 Installation and connection . . . 29
Scope of delivery. . . . . . . . . . . . . . . .29
Installing and connecting
the dryer . . . . . . . . . . . . . . . . . . . . . .29
Changing the condensation drain . . .31
Changing the side on which
the door is hinged . . . . . . . . . . . . . . .33
Optional accessories. . . . . . . . . . . . .35
Transport and frost protection . . . . . .35
en Intended use
4
8 Intended use
Intended use
■ For private domestic use only.
■ Only to dry and refresh fabrics that
have a care label specifying that
they are suitable for use in a dryer.
■ The dryer can be operated by
children 8 years old and older, by
persons with reduced physical,
sensory or mental abilities and by
persons with insufficient experience
or knowledge if they are supervised
or have been instructed in its use by
a responsible adult.
■ Keep children under the age of
3 years old away from the dryer.
■ This appliance is intended for use up
to a maximum height of
4000 metres above sea level.
■ Do not let children carry out any
unsupervised cleaning or
maintenance work on the dryer.
■ Keep pets away from the dryer.
( Safety instructions
Safety instructions
Electrical safety
:Warning
Risk of death!
There is a risk of electric shock
as the dryer is operated with
electricity.
You should therefore observe
the following:
■ Never touch or hold the
mains plug with wet hands.
■ Only pull out the mains cable
directly at the plug and never
by the cable, as this could
damage it.
■ Do not use extension cables,
multiple plugs or connectors.
■ Only have the mains cable
replaced by our after-sales
service.
Safety instructions en
5
Safety for children
:Warning
Risk of death or injury!
You should therefore observe
the following:
■ Do not leave the dryer
unattended when children or
other people who cannot
assess the risks are nearby.
■ Do not let children play with
the dryer.
■ Children may become
entangled in packaging or
film if allowed to play with
them, or they may pull them
over their heads and
suffocate. Keep packaging,
packaging parts and film out
of the reach of children.
■ Children may lock
themselves in the dryer.
Therefore, when an
appliance has reached the
end of its service life, unplug
it from the mains, cut through
the mains cable and destroy
the lock on the dryer door.
Appliance safety
:Warning
Risk of death!
■ Do not use the dryer if
industrial chemicals have
been used to clean it.
■ Laundry that has come into
contact with solvents, oil,
wax, wax remover, paint,
grease or stain remover may
ignite or cause an explosion
when drying is in progress.
Before drying, rinse the
laundry in hot water with
detergent.
■ Coal dust or flour in the area
around the dryer may cause
an explosion.
■ Only replace defective
components with genuine
spare parts.
■ The dryer contains the
environmentally friendly yet
combustible refrigerant
R290. Keep naked flames
and ignition sources away
from the dryer.
Caution: Risk of fire.
en Safety instructions
6
Caution!
Risk of material damage to the
dryer or fabrics
■ Only use the dryer for drying
and freshening up fabrics at
home and for fabrics that
have been washed with
water and are suitable for
tumble-drying.
Any other use is not
considered intended use and
is prohibited.
■ Foamed material or foam
rubber may become
deformed or melt during
drying. Do not dry any
laundry that contains foamed
material or rubber.
■ Do not lean or sit on the
dryer door, as the dryer may
tip over.
■ Loose cables or hoses may
cause you to trip. Avoid
tripping hazards.
■ Light things, such as hair,
may be sucked into the air
inlet during operation; keep
these away from the dryer.
■ The last phase of the drying
cycle takes place without any
heat (cooling cycle) to
ensure that the laundry
remains at a temperature
that will not damage it.
Environmental protection en
7
7 Environmental
protection
Environmental protection
Packaging/old appliance
)
Dispose of packaging in an
environmentally-responsible manner.
This appliance is designated according
to European directive 2012/19/EC
which governs waste electrical and
electronic equipment (WEEE).
The directive provides a framework for
the collection and recycling of old
appliances, which is valid across
the EU.
Coolant
Caution!
Risk of fire/risk of poisoning/risk of
material damage and damage to the
appliance
The appliance contains refrigerant
which, although it is environmentally
friendly, is flammable R290. Failure to
dispose of it properly may result in a fire
or poisoning.
Dispose of the appliance properly and
do not damage the pipes in the
refrigerant circuit.
Energy-saving tips
■ Spin the laundry before drying.
The drier the laundry, the shorter
the drying time will be, thus
consuming less energy.
■ Load the dryer with the maximum
load.
Note: Do not exceed the maximum
load for the programs, as this
prolongs the drying time
and increases energy consumption.
■ Ventilate the room and keep the air
inlet on the dryer free to ensure air
exchange.
■ Clean the fluff filter after each drying
cycle. If the fluff filter is dirty,
the drying time is prolonged
and energy consumption is
increased.
■ Energy saving mode: If the dryer is
not operated for a prolonged period,
it automatically switches off before
the program starts and when
the program has ended to save
energy. The display panel
and indicator lamps go off after
a few minutes and the Start button
flashes. To activate the lighting,
press any button, open or close
the dryer door or turn the program
selector.
en The main points in brief
8
Y The main points in brief
The main points in brief
--------
--------
--------
1 @ @
Load the laundry and close
the door.
Switch off the dryer. Select a programme and, if
necessary, adjust
the default programme
settings.
2 @ @
Select the start button A. Dry. Unload the laundry.
3 @ @
Switch off the dryer. Empty the condensate
container.
Clean the fluff filter.
Getting to know your appliance en
9
* Getting to know your appliance
Getting to know your appliance

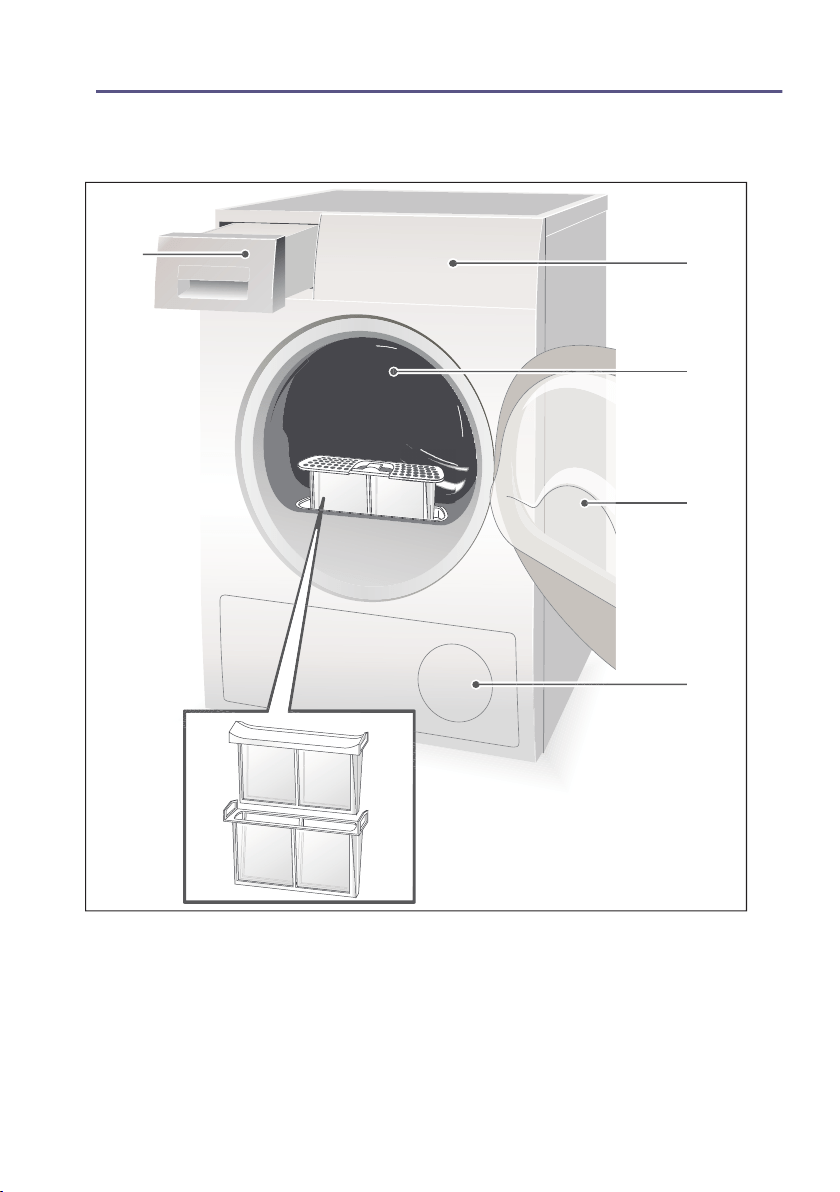

Dryer
( Condensate container
0 Control and display panel
8 Drum interior light (depending on the model)
@ Dryer door
H Air inlet
P Fluff filter
#
+
3
en Getting to know your appliance
10
Control panel
Note: All buttons are sensitive and only need to be touched briefly.
#
+
( Programmes ~ Page 13.
0 Programme selector and On/Off button.
8 Display panel with buttons ~ Page 13.
@ Start button for starting, interrupting or cancelling the programme.
H Buttons ~ Page 14.
Getting to know your appliance en
11
Display panel
Button
Other displays
+#
Button Description Display
( Select the dryness level. ö Iron Dry
e Cupboard Dry
Ò Cupboard Dry Plus
0 Select Anti-Crease. 120
Anti-Crease function in minutes
8 Select Ready in. 1:40
Expected programme duration in hours and minutes or timed
programme selected
3 h
Programme delay in hours when "Ready in" time is selected
@ Select Settings 3 sec. End signal
Button signal
Automatic switch-off
Language
H Select Options. Ú Spin class
ù Fine adjustment of the dryness level
K Low heat
For a detailed description of all buttons, see ~ Page 14 onwards.
Display Description
Heat exchanger is being rinsed The heat exchanger is cleaned automatically.
Please empty the condensate container Empties the condensate container; ~ Page 21.
Please clean the fluff filters Cleans the fluff filters; ~ Page 20.
D Childproof lock; ~ Page 14.
Pause, Ready/Anti-Crease Programme progress: Anti-Crease; End and Pause
en Laundry
12
Z Laundry
Laundry
Preparing the laundry
:Warning
Risk of explosion or fire!
Remove any cigarette lighters
and matches from pockets.
Caution!
The dryer drum and fabrics may be
damaged.
Remove all objects from pockets
and take note of the following
information:
■ Tie cloth belts, apron strings, etc.
together or use a laundry bag.
■ Close zips, hooks and eyes, and do
up any buttons.
■ To ensure a consistent drying result,
sort the laundry by fabric type
and drying programme.
■ Remove any metal objects, such as
paper clips, from pockets.
■ Knitted fabrics, such as T-shirts
and jerseys, often shrink slightly
the first time they are tumble-dried.
Use a gentle programme.
■ Do not over-dry easy-care laundry.
This increases creasing of
the laundry.
■ When washing laundry that is to be
tumble-dried afterwards, use
the correct amount of fabric softener
as specified in the manufacturer's
instructions.
Sorting washing according to:
c Suitable for tumble drying
a Dry at normal temperature
` Dry at low temperature
b Do not tumble-dry
If you dry thin- and thick-layered fabrics
and fabrics with several layers together,
these will dry to differing degrees.
To achieve an even drying result, you
should therefore only dry laundry of
the same type of fabric and structure
together. If you feel that the laundry is
still too damp afterwards, you can select
a time programme for subsequent
drying ~ Page 13.
Caution!
Risk of material damage to the dryer
or laundry.
Do not dry non-breathable fabrics, such
as rubber-coated laundry.
Programmes and buttons en
13
/ Programmes and buttons
Programmes and buttons
Programmes
Programme and fabrics Maximum load and programme
settings/info
Name of the programme
Which fabrics is the programme suitable for?
The maximum load is based on
the dry weight of the fabrics
Possible programme settings
Cottons
Hard-wearing fabrics, heat-resistant fabrics made of cotton or linen.
9 kg
Easy Care
Synthetic or blended fabrics.
3.5 kg
Mixed Load
Mixed load consisting of cotton and synthetic fabrics.
3 kg
Delicates
For delicate, washable textiles, e.g. made of satin, synthetic fibres or
blended fabrics.
2 kg
Wool in basket
Fabrics made from wool or a wool blend that are suitable for tumble
drying.
Note: Only dry the fabrics using the basket for woollens
~ Page 16.
1.5 kg
Timed program cold
All types of fabric. For freshening up or airing items of laundry that
have not been worn for long.
3 kg
You can adjust the programme
length using the Dryness level
button.
Timed program warm
All types of fabric; time programme.
Suitable for pre-dried or slightly damp laundry and for drying off
multi-layered, thick laundry.
3 kg
You can adjust the programme
length using the Dryness level
button.
Shirts
Non-iron shirts or blouses made of cotton, linen, synthetic fibres
or blended fabrics.
1.5 kg
Quilts
Fabrics, pillows, quilts or bedspreads filled with synthetic fibres.
Dry large items individually. Observe the care label.
2.5 kg
en Programmes and buttons
14
--------
Buttons
Down Wear
Fabrics, pillows, bedspreads or eiderdowns filled with down.
Dry large items individually.
1.5 kg
Sportswear
Weatherproof and outdoor clothing with a membrane coating
and water-repellent fabrics.
1.5 kg
Towels
Hard-wearing towels made of cotton.
6 kg
SuperQuick 40’
Synthetics and light cottons.
2 kg
Allergy Plus
Hard-wearing fabrics.
Note: Particularly suitable for the highest hygiene requirements.
4 kg
Buttons Explanations and notes
Note: Not all buttons and their functions can be selected in all programmes.
Fine adjust: Select the dryness level (e.g. Cupboard Dry) or the drying time (20 mins up to
3 hrs 30 mins, depending on the model and programme).
Select the dryness level according to the laundry to be dried.
If you have selected a dryness level, this is stored for all programmes, except for
Cottons, even after the dryer has been switched off.
Ò Cupboard dry
plus
For multi-layered, thick laundry which is difficult to dry.
± Cupboard dry Normal, single-layered laundry.
ö Iron Dry Normal, single-layered laundry that still needs to be damp after drying and is suitable
for ironing or hanging up.
Easy-Iron The drum moves the laundry at regular intervals for 60 to 120 minutes after drying,
in any programme, to prevent creasing.
Finished in The programme will end in between 1 h and 24 h. Set the "Ready in" time in
increments of one hour to delay the start of the programme. The required number of
hours after the programme ends is displayed on the display panel.
D Childproof lock You can activate or deactivate the childproof lock by pressing and holding
the "Ready in" button for five seconds.
Programmes and buttons en
15
--------
Options Select the button and the menu will be displayed in the display panel.
ø Spin class For the spin class, set the spin speed at which the laundry has been spun in the
washing machine. This permits the expected drying time to be indicated more pre-
cisely. Speeds of between 600 and 1800 rpm can be selected.
Default setting: 1000 rpm
ù Fine adjustment
of the dryness level
If the laundry is too damp after drying, you can finely adjust the dryness levels e.g.
Cupboard Dry. The dryness level can be increased in three stages, from +1 to +3.
If you have adjusted the dryness level, the setting for all programmes with
a selectable dryness level is retained even after the dryer is switched off.
K Low heat Reduced temperature for delicate fabrics, e.g. polyacrylic or elastane, may increase
the drying time.
Memory 1/2 You can save individual programme settings under Memory 1 and 2.
Select the required programme settings and press the Memory 1 or Memory 2
button for 3 seconds until the display panel shows that Memory programme 1 or 2
is saved. Your selected programme settings are retained even after the dryer is
switched off.
Default setting: No Memory programme saved.
basic settings
3 sec.
Press both buttons at the same time and hold them for 3 seconds. The menu will be
displayed in the display panel.
End signal, button
signal
Select the button signal volume: off - quiet - normal - loud - very loud.
Default setting: loud
Automatic switch-off Automatically switching off the dryer after 15, 30 or 60 minutes, or never automati-
cally switching off.
Default setting: 15 minutes
Language Select the desired language in the display panel.
Start/Pause A Starts or pauses the programme.
en Operating the appliance
16
1 Operating
the appliance
Operating the appliance
Loading laundry and
switching on the dryer
Note: The dryer must be correctly
positioned and connected, ~ Page 29.
1. Place the laundry in the drum.
2. Press the # button to switch the
dryer on.
3. Close the dryer door.
Caution!
Risk of material damage to the dryer
or laundry.
Do not trap any laundry between the
dryer door and the door seal.
Note: The dryer drum is lit up after the
door is opened and closed and once
the programme has started. The drum
interior light goes out on its own.
The basket for woollens
Note: The basket for woollens is
supplied with your dryer
*
or it can be
purchased as an accessory from the
after-sales service.
Caution!
Risk of material damage to the dryer
and fabrics.
Never operate the dryer if the basket for
woollens is damaged.
* Depending on the model
( Basket for woollens
0 Insert for the basket for woollens
8 Recesses for mounting the basket
for woollens
@ Notch for the basket for woollens
#
Operating the appliance en
17
Drying with the basket for
woollens
1. Insert the feet of the basket
for woollen s into the holes on
the fluff filter.
2. Lean the basket for woollens against
the upper notch.
The basket for woollens should now
be firmly inserted in the drum.
3. Place the required fabric in the insert
of the basket for woollens
Notes
– Spin the fabrics before placing
them in the insert.
– Place the laundry loosely in
the insert. Do not squash
the fabrics.
Application examples:
a) Trousers or skirt
b) Pullover
c) Sports shoes
Place sports shoes in the basket
for woollens without the insert.
Pull out the tongues of the shoes
and remove the insoles or heel
cushions.
Roll up a towel and place it under
the sports shoes to create an
inclined surface. Place the shoes
so that the heels are on the towel.
d) Soft toys
Dry soft toys in the basket for
woollens without the insert.
Only place as many soft toys
in the basket for woollens as is
possible without any falling out.
en Operating the appliance
18
4. Place the insert or the sports shoes
in the basket for woollens.
Caution!
Risk of material damage to
the fabrics.
Place the fabrics in the insert of
the basket for woollens so that they
do not come into contact with
the drum.
5. Use the programme selector to
select the programme for the basket
for woollens or a time programme.
6. Set the drying time.
Thin woollen pullover:
Approx. 1:20 hrs
Thick woollen pullover:
Approx. 1:30 hrs - 3:00 hrs
Skirt: Approx. 1:00 hr - 1:30 hrs
Trousers: Approx. 1:00 hrs -
1:30 hrs
Gloves: Approx. 30 min
Sports shoes: Approx. 1:30 hrs/
with airing max. 2:00 hrs
Note: For thicker or multi-layered
fabrics, you must extend the drying
time, as required, to achieve the
required level of dryness.
7. Start the programme.
8. Remove the fabrics and switch off
the dryer.
Setting a programme
Note: If you have activated the
childproof lock, you must deactivate it
before you can set a programme, see
~ Page 14.
1. Select the required programme;
detailed information on the
programmes can be found from
~ Page 13 onwards.
2. Use the programme selector to set
the required programme. The default
programme settings for the selected
programme appear in the display
panel.
Note: Default programme settings
are standard settings that are
already defined when a programme
is selected. After selecting a
programme, you can see the default
programme settings in the display
panel.
3. If required, adjust the default
programme settings. You can find
detailed information on this from
~ Page 13 onwards.
Operating the appliance en
19
Starting the programme
Press the Start button.
Note: If you want to lock the
programme to prevent it from being
inadvertently adjusted, you can select
the childproof lock, see ~ Page 14.
Programme sequence
The programme status is displayed in
the display field.
Changing the programme or
adding laundry
You can remove or add laundry and
change or alter the programme at any
time during drying.
1. To pause the programme, open the
dryer door or press the Start button.
2. Add or remove laundry.
3. Select another programme or an
additional function, if required.
4. Close the dryer door.
5. Press the Start button.
Note: The programme duration in the
display panel is updated depending on
the load and residual moisture in the
laundry. The values displayed may
change after the programme is
changed or the load is adapted.
Cancelling the programme
The programme can be interrupted at
any time; to pause, open the dryer door
or press the Start button.
Caution!
Risk of fire. Laundry may catch fire.
If you cancel the programme, you must
remove the laundry items and spread
them out so that the heat can disperse.
Programme end
FERTIG. WAESCHE ENTNEHMEN.
appears in the display panel.
Removing laundry and
switching off the dryer
1. Remove the laundry.
2. Press the # button to switch the
dryer off.
en Operating the appliance
20
Clean the fluff filter
Note: During drying, fluff and hair from
the laundry is trapped by the fluff filter. If
the fluff filter is blocked or dirty, this
reduces the flow of air, which prevents
the dryer from achieving its maximum
performance. Clean fluff filters also
reduce energy consumption and the
drying time.
Clean the fluff filter after each drying
cycle:
1. Open the dryer door and remove all
fluff from the door.
2. Pull out the two-part fluff filter.
3. Remove the fluff from the recess in
the fluff filter.
Note: Ensure that no fluff falls into
the open shaft.
4. Pull apart the two-part fluff filter.
5. Open both filters and remove all
the fluff.
6. Rinse away the fluff under warm,
running water.
7. Dry the fluff filter, close it and reinsert
the two-part fluff filter.
Caution!
The dryer may be damaged.
Do not operate the dryer without a fluff
filter or if the fluff filter is defective.
Operating the appliance en
21
Emptying the condensate
container
Notes
■ You can drain off the condensation
into the waste-water system using an
optional condensation drain
*
. For
installation, see ~ Page 31.
■ If you drain the condensation using
an optional condensation drain, you
do not have to empty
the condensate container.
Note: After each drying cycle, empty
the condensate container; otherwise
the next drying programme may be
cancelled as a result of the condensate
container being full.
1. Pull out the condensate container
horizontally.
2. Pour out the condensation water.
Caution!
Dirty condensation water may be
harmful to your health and cause
material damage.
Condensation water is not suitable
for drinking and may be
contaminated with fluff. Do not drink
the condensation water or reuse it.
3. Push in the condensate container
until you feel it lock back into place
in the dryer.
Note: The filter in the condensate
container filters the condensation which
is used during the dryer's automatic
cleaning cycle. The filter is cleaned by
emptying the condensation.
Nevertheless, you should check the
filter regularly for remaining deposits
and remove them. See ~ Page 24.
* Depending on the model
en Noises
22
> Noises
Noises
Note: During drying, the compressor
and the pump generate noises which
are entirely normal.
From time to time, the compressor in
the dryer generates a humming noise.
However, the volume may vary
depending on the programme
and progress of the drying process.
Every now and then, the compressor is
ventilated. This creates a whirring noise.
The automatic cleaning of the dryer
causes a clicking sound.
The condensation is pumped into
the condensate container using
a pump. This generates pumping
noises.
Cleaning en
23
D Cleaning
Cleaning
Cleaning the dryer and the
control panel
:Warning
Risk of death!
There is a risk of electric shock as the
dryer is operated with electricity.
Disconnect the dryer from the mains
before cleaning.
Clean the dryer using only water and a
soft, damp cloth.
Remove all detergent residue, spray
residue or other residues immediately.
Do not use cleaning agents or agents
for pre-treating laundry (e.g. prewash
sprays, stain removers). Do not use
high-pressure cleaners or steam jet
cleaners to clean your appliance.
Cleaning the moisture sensor
Note: The dryer is equipped with a
stainless-steel moisture sensor.
The moisture sensor measures how
damp the laundry is.
After long periods of use, a fine layer of
limescale can form on the moisture
sensors. This must be removed
regularly.
Open the door and clean the moisture
sensor with a rough sponge.
Caution!
The moisture sensor may be damaged.
Do not clean the moisture sensor with
steel wool and abrasive materials.
en Cleaning
24
Cleaning the filter
in the condensate container
Note: The filter in the condensate
container cleans the condensation
water that is used during the dryer's
automatic cleaning cycle.
1. Pull out the condensate container
horizontally.
2. Pour out the condensation water.
3. Remove the filter.
4. Clean the filter under warm, running
water or in the dishwasher.
5. Push in the filter until you feel it lock
into place.
Caution!
The dryer may be contaminated
with fluff and thus become
damaged.
Only operate the dryer with the filter
inserted.
6. Push in the condensate container
until you feel it lock into place.
Faults and what to do about them en
25
3 Faults and what to do about them
Faults and what to do about them
Faults Cause/remedy
Please empty the con-
densate container on
the display panel and the
drying cycle is inter-
rupted.
■ Empty the condensate container; ~ Page 21 and the dryer; ~ Page 35.
■ If the optional condensation drain* is installed, the drain hose may be
blocked or kinked. Check the hose for deposits and rinse the hose. Lay the
hose without any kinks.
Please clean the fluff
filters on the display
panel.
Clean the fluff filter and press the Start button ~ Page 20.
Heat exchanger is
being rinsed on the dis-
play panel.
Not a fault. The heat exchanger is cleaned automatically. Do not pull out the
condensate container while this is displayed.
Dryer does not start. ■ Mains plug plugged in or fuse checked?
■ Programme selected? Select a programme.
■ Dryer door open? Close the door.
■ Childproof lock activated? Deactivate the childproof lock.
■ "Ready in" time selected? Programme starts after a delay ~ Page 14.
Creasing. ■ Creasing occurs when you have exceeded the maximum load or selected
the wrong programme for the type of fabric. All the required information
can be found in the programme table ~ Page 13.
■ Remove clothes immediately after drying; creasing may occur if they are
left in the drum.
Water is leaking out. Not a fault; the dryer may be positioned on an incline. Level the dryer.
Laundry is not dried cor-
rectly or is still too damp.
■ After the end of the programme, warm laundry feels damper than it actually
is. Spread the laundry out and allow the heat to disperse.
■ Finely adjust the dryness level – this extends the drying time but does not
increase the temperature. Your laundry will become drier ~ Page 14.
■ Select a programme with a longer drying time or increase the drying level.
This does not increase the temperature.
■ Select a timed programme for subsequent drying of laundry that is still
damp ~ Page 13.
■ If you have exceeded the maximum load for the programme, the laundry
may not be dried properly.
■ Clean the moisture sensor in the drum. A fine layer of limescale may
adversely affect the performance of the sensors and your washing will not
dry properly ~ Page 23.
■ Drying has been interrupted as a result of a power cut, because the conden-
sate container is full or because the maximum drying time has been
exceeded.
Note: See also the laundry tips ~ Page 12.
* Depending on the model
en Faults and what to do about them
26
Note: If you cannot rectify the fault yourself by turning the dryer off and on, please
contact our after-sales service.
Drying time too long? ■ The fluff filter may be dirty and cause a longer drying time. Clean the fluff
filter.
■ If the air inlet on the dryer is blocked or not freely accessible, this may
increase the drying time. Make sure that the air inlet remains unobstructed.
■ If the ambient temperature is higher than 35 °C, this may extend the drying
time.
■ Insufficient air circulation in the room may increase the drying time.
Ventilate the room.
Display panel goes off
and Start button flashes.
Not a fault. Energy saving mode is active ~ Page 7.
Residual water in the
condensate container
despite the dryer being
connected to the con-
densation drain*.
Not a fault. If the condensation drain is installed, residual water remains in
the condensate container due to the dryer's self-cleaning function.
Humidity in the room
increases.
Not a fault. Make sure the room is sufficiently ventilated.
Power cut. The drying programme is interrupted. Remove the laundry and spread it out,
or restart the programme.
Unusual noises when
drying.
Not a fault. Noises are produced by the automatic cleaning of the heat
exchanger ~ Page 22.
The dryer feels cold
despite drying.
Not a fault. The dryer can dry efficiently at low temperatures using a heat pump.
Faults Cause/remedy
* Depending on the model
After-sales service en
27
J After-sales service
After-sales service
After-sales service
If you cannot rectify the fault yourself
(faults, what to do?), please contact our
after-sales service. We will always find
an appropriate solution to avoid
unnecessary visits by engineers.
The contact information for your nearest
after-sales service can be found here or
in the enclosed after-sales service
directory.
Please provide after-sales service with
the dryer's product number (E-no.) and
production number (FD).
You can find this information on the
inside of the dryer door or on the rear of
the dryer.
Trust the expertise of the
manufacturer.
Contact us. You can therefore be sure
that the repair is carried out by trained
service technicians who carry original
spare parts.
(1U )'
en Consumption values
28
[ Consumption values
Consumption values
Consumption values table
Programme
Spin speed used for
spinning the laundry
Duration** Energy consumption**
Cottons 9 kg 9 kg
Cupboard Dry* 1400 rpm 214 min 1.27 kWh
1000 rpm 240 min 1.42 kWh
800 rpm 268 min 1.59 kWh
Iron Dry* 1400 rpm 142 min 0.76 kWh
1000 rpm 164 min 0.95 kWh
800 rpm 186 min 0.99 kWh
Easy-Care 3.5 kg 3.5 kg
Cupboard Dry* 800 rpm 60 min 0.40 kWh
600 rpm 73 min 0.46 kWh
For testing in accordance with applicable standard EN61121 the dryer shall be used with external
drain set.
* Programme setting for testing in accordance with the EN 61121 standard.
** The values may differ from those specified, depending on the type of fabric, composition of laundry
to be dried, residual moisture in the fabric, the degree of dryness that has been set and the amount
of laundry being loaded.
Technical data en
29
J Technical data
Technical data
Dimensions:
85 x 60 x 60 cm
Height x width x depth
Weight:
Approx. 57 kg
Maximum load:
9 kg
Condensate container:
4.6 l
Connected voltage:
220 - 240 V
Connected load:
Max. 700 W
Fuse:
10 A
Drum interior light
*
Ambient temperature:
5 - 35 °C
5 Installation and
connection
Installation and connection
Scope of delivery
■ Dryer
■ Installation and operating
instructions
■ Basket for woollens*
■ Condensation drain*
Installing and connecting the
dryer
:Warning
Risk of death!
There is a risk of electric shock as the
dryer is operated with electricity.
■ Check the dryer for visible damage.
You must not operate the dryer if it is
damaged.
■ Before connecting the dryer to the
power supply, ensure that the
electric voltage specified on the
rating plate matches the voltage of
your socket.
■ Only use residual current circuit
breakers with the following
symbol: z.
■ Ensure that the mains cable is not
kinked or trapped, and that it does
not come into contact with heat
sources or sharp edges.
:Warning
Children could lock themselves in
the dryer, putting their lives at risk!
Do not set up the dryer behind a door
or sliding door, as this may obstruct the
dryer door or prevent it from opening.
* Depending on the model
en Installation and connection
30
:Warning
Risk of fire/risk of poisoning/risk of
material damage and damage to
the appliance!
The dryer contains refrigerant which,
although it is environmentally friendly, is
flammable R290.
■ Make sure that the air inlet on the
dryer is always kept clear and that
the room has sufficient ventilation.
■ In the event of a leak, any escaping
refrigerant could lead to poisoning
and create a combustible air/gas
mixture if the room is too small.
Only operate this appliance in rooms
which are sufficiently large. The
room must have a capacity of 1 m³
per 8 g of refrigerant. The amount of
refrigerant in your appliance can be
found on the back of the appliance.
■ Do not place the dryer near open
fires and ignition sources.
Caution!
Risk of injury
■ As the dryer is heavy, you could
injure yourself by trying to lift it.
Do not lift the dryer on your own.
■ You could cut your hands on the
sharp edges of the dryer. Do not
hold the dryer by the sharp edges.
■ Protruding parts on the dryer may
break off when it is lifted or pushed.
Do not move the dryer by holding
onto protruding parts.
Caution!
Risk of material damage to the dryer or
fabrics
■ Check the dryer for damage caused
during transportation. Never operate
a dryer if it is damaged.
■ Any residual water in the dryer may
freeze and damage the dryer. Do not
install the dryer in rooms that are at
risk of frost.
During installation, ensure that:
■ The dryer is placed on a clean, level
and firm surface,
■ The mains plug can be accessed at
all times,
■ The area around the dryer is kept
clean and
■ The dryer is levelled using the
threaded feet. Use a spirit level to do
this.
Installation and connection en
31
Changing the condensation
drain
Notes
■ The condensation from the dryer can
either be discharged into
the condensate container or drained
off via a connection to the waste-
water system. The factory setting is
for the condensation from the dryer
to be discharged into
the condensate container.
■ If the condensation drain is installed,
residual water remains in
the condensate container because
of the dryer's self-cleaning function.
Change the condensation drain as
follows:
1. Remove the accessory from
the dryer drum.
2. Delivery status of the dryer. The hose
for discharging the condensation
into the condensate container is
secured to the connecting piece.
3. Disconnect the hose from
the connecting piece and move it
into the "parked" position.
4. Remove the drain hose from
the accessory and secure it to the
empty connecting piece.
5. Depending on how you connect
the hose (A, B or C), secure the
drain hose with the remaining
accessories on the other side.
Caution!
Blocked water can be drawn back
into the dryer and may cause
material damage.
Check that the water drains away
from the wash basin quickly.
The drain must not be sealed or
blocked.
Caution!
Material damage due to leaks or
draining water.
Secure the drain hose so that it
cannot slip out. Do not kink the drain
hose. Observe the height difference
between the installation surface and
the drain of max. 100 cm, and 80
cm for a drain in a siphon.
$
%
&
PLQFP
PD[FP
$
&
en Installation and connection
32
6. Pull out the condensate container
fully.
7. Turn the condensate container 180°
onto its underside and remove
the stopper that is fitted. Turn
the condensate container back and
insert the stopper into the recess on
the top side of the condensate
container.
8. Pull the filter out of the notch and
place it into the recess on
the condensate container.
9. Slide in the condensate container
until it clicks into place.
The condensation is now discharged via
the drain hose into the waste-water
system or into a wash basin.
Note: If you want to change the
condensation drain back to
the condensate container, carry out
these steps in reverse order.
Installation and connection en
33
Changing the side on which
the door is hinged
Proceed as follows to change the side
on which the door is hinged:
1. Set the programme selector to the
"Off" position, disconnect the dryer
from the mains and open the door.
2. Remove the screws from the dryer
and then remove the dryer door.
Note: Use a T20 (Torx) screwdriver
only. Do not use any other tools to
change the side on which the door is
hinged.
3. Carefully place the dryer door onto a
flat surface, and place a hand towel
or other such item between the door
and the surface to avoid scratching
or damaging the door.
4. Now remove the screws from the
door hinge, and remove the hinge
from the dryer door.
5. Remove the screws from the door
handle on the dryer door and
remove the door handle.
6. Unlock the door ring.
7. Now lift the dryer door from the door
ring. Rotate the dryer door and place
it back onto the door ring in the
corresponding place.
en Installation and connection
34
8. Lock the door ring back in place.
9. Put the door hinge and door handle
in place as shown in the picture, and
screw them back onto the dryer
door.
10.Remove the cover from the door
lock on the dryer and place it to one
side.
11.Remove the door lock.
12.Insert the door lock (1.) on the other
side of the dryer and screw the
cover (2.) back on.
13.Now also screw the dryer door back
on.
14.You can now reconnect the dryer,
close the door and start a
programme.
Installation and connection en
35
Optional accessories
Order optional accessories
*
from the
after-sales service:
■ Washer-dryer stack connection set:
To save space, the dryer can be
placed on top of a suitable washing
machine of the same width and
depth.
The dryer must be secured to the
washing machine using this
connection set.
Order number with pull-out worktop:
WTZ11400;
Order number without pull-out
worktop: WTZ20410.
■ Platform:
For easier loading and unloading,
raise your dryer with a platform.
Transport laundry with the clothes
basket integrated into the platform
drawer.
Order number: WMZ20500.
Transport and frost protection
1. Empty the condensate container.
2. Select any programme using
the programme selector.
3. Press the Start button.
4. Wait for 5 minutes.
Note: The condensation is drained.
5. Empty the condensate container
again.
6. Switch off the dryer.
Note: Despite draining, there will
always be some residual water in
the dryer.
Caution!
Any residual water may leak out
and cause material damage.
Transport the dryer in an upright
position.
Caution!
The dryer contains coolant and may be
damaged.
Allow the dryer to rest for two hours
before initial use.
* Depending on the model
Robert Bosch Hausgeräte GmbH
Carl-Wery-Straße 34
81739 München, GERMANY
*9001054578*
9001054578 (9508)
You can find the contact information for all countries in the attached after-sales
service directory.
7 Advice and repair order in the event of faults
GB 0344 892 8979 (Calls charged at local or mobile rate.)
IE 01450 2655 (0.03 € per minute at peak. Off peak 0.0088 € per minute.)
