INSTALLATION GUIDE
for the
SB-GM-CAMCONV/10W1v2
SKU# 94526
2011 - Up Chevrolet Camaro Convertible
Thank you for choosing a JL Audio Stealthbox® for your automotive sound system.
With proper installation, your new vehicle-specific enclosed subwoofer system
will deliver years of listening pleasure.
We strongly recommend that you have your new Stealthbox® installed by your authorized
JL Audio dealer. The installation professionals employed by your dealer have the necessary tools
and experience to disassemble and reassemble your vehicle properly. Also, keep in mind that your
warranty coverage extends to 2 years if your system is installed or approved by
your authorized JL Audio dealer. If you prefer to perform your own installation,
please read this installation guide completely before beginning the process.
If you choose to perform the installation yourself, it is absolutely vital that
the Stealthbox
®
be properly mounted to the vehicle according to these
instructions. Failure to mount the enclosure properly presents two problems:
1) The sub-bass performance will suffer due to the movement of the enclosure
caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a collision
or sudden deceleration.
Continued on Next Page
SB-GM-CAMCONV/10W1v2 INSTR_SKU# 011327
INSTALLATION
DIFFICULTY:
3
5
OUT
OF
ESTIMATED TIME:
3 HOUR
STEP 3
Carefully pull up on the upper rear plastic trim panel to
release the clips, and remove the panel.
STEP 2
Carefully pull up on the upper side plastic trim panel to
release the clips, and remove the panel as shown. Repeat for
the opposite side.
STEP 1
Open the convertible top, and clear out back seat area.
Continued on Next Page
SB-GM-CAMCONV/10W1v2 INSTR_SKU# 011327

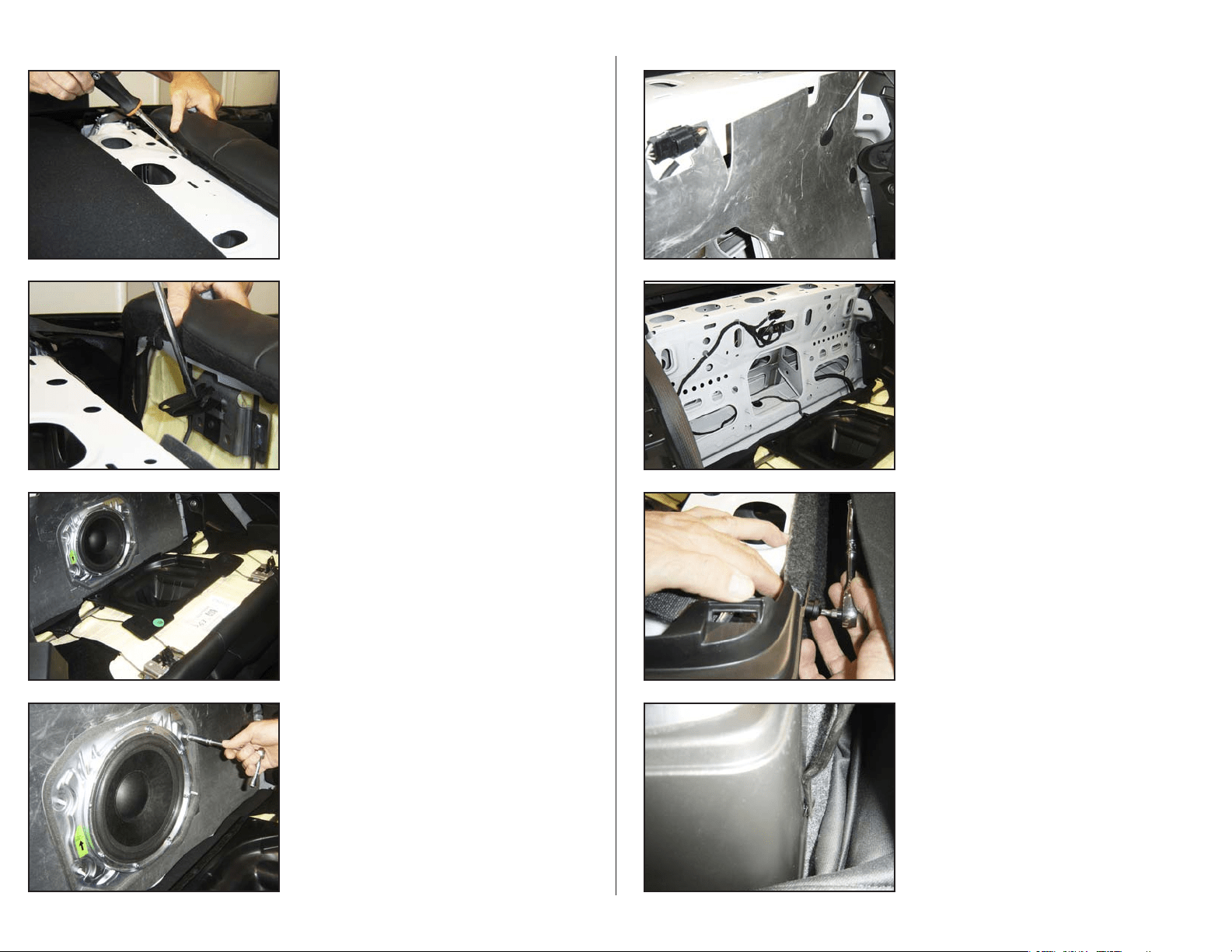

STEP 7
Remove the four nuts that hold the factory subwoofer in
place, and remove the subwoofer.
STEP 11
Remove the clip located low in the recess for the convertible
top. Repeat Steps 10-11 for the opposite side.
STEP 6
Fold down the seat back to access the factory subwoofer, as
shown.
STEP 10
Remove the screw and wignut located in the recess for the
convertible top.
STEP 5
Pictured is a close up of the release tab. Repeat Step 4 for
the opposite side.
STEP 9
Pictured is the vehicle with the factory subwoofer and sound
barrier removed.
STEP 4
Using a long flat blade screwdriver, push down on the seat
back release tab as shown. Reference the next step for a
detailed image of the release tab location.
STEP 8
Remove the clips that hold the sound barrier in place, and
remove the barrier.
Page 2 • JL Audio, Inc., 2011
Continued on Next Page
SB-GM-CAMCONV/10W1v2 INSTR_SKU# 011327
Page 3 • JL Audio, Inc., 2011

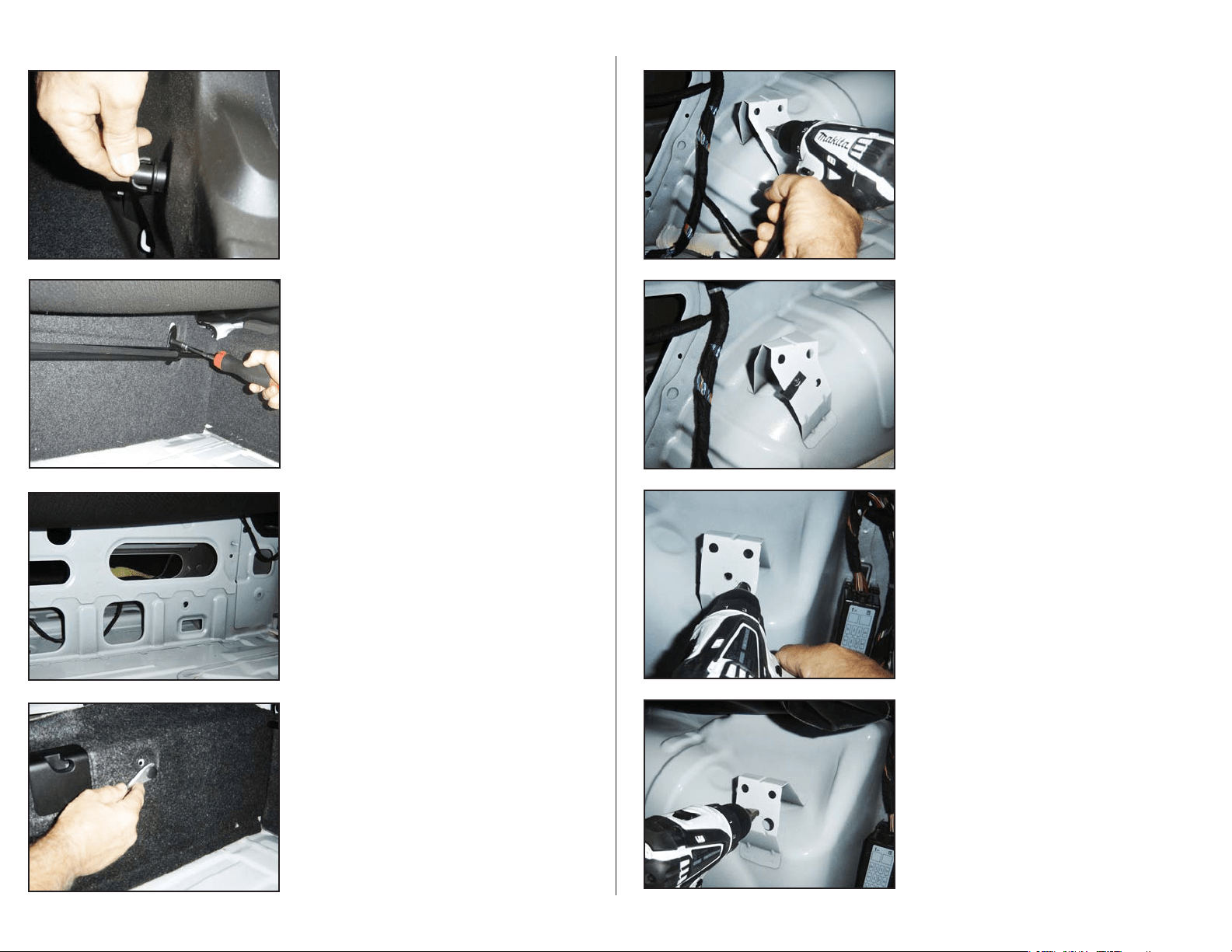

STEP 15
Remove the clips that hold each side trunk liner in place, and
remove the trunk liner.
STEP 14
Pictured is the trunk with the rear trunk liner removed.
STEP 18
Locate the lower hole on the passenger side bracket, and
enlarge the hole to 1”.
STEP 13
Remove the two bolts holding in the cargo cover, and
remove the cover. Remove the rear trunk liner.
STEP 17
Align the U-Nut with the enlarged hole, as shown.
STEP 12
Close the convertible top, and open the trunk. Remove the
trunk floor panels. Remove the tie down hooks on the trunk
sill panel, and unclip and remove the panel.
STEP 16
Locate the lower hole on the driver’s side bracket, and
enlarge the hole to 1/2”.
STEP 19
Enlarge the center hole to 1/2”.
Continued on Next Page
SB-GM-CAMCONV/10W1v2 INSTR_SKU# 011327
Page 4 • JL Audio, Inc., 2011

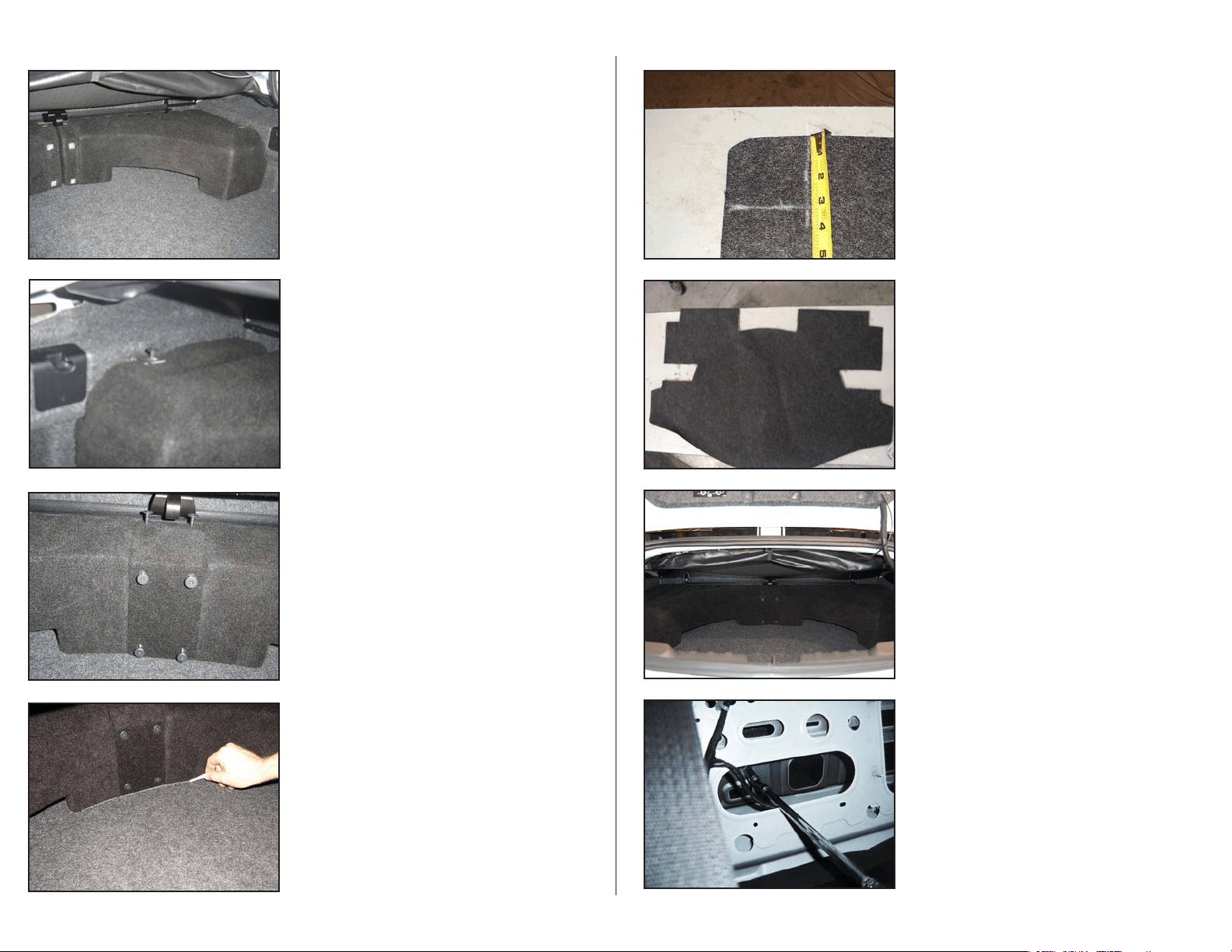

STEP 23
Align a straight edge with the lower edges of the
indentations in the rear trunk liner. Using a grease pencil,
draw a line across the panel, as shown.
STEP 22
Replace the passenger side trunk liner. Place a 3/8” - 16 x
1-1/2” Bolt through a 3/8” Split Lock Washer, 3/8” Flat Washer,
Bracket, 3/4” Spacer, and the hole in the trunk liner, as shown,
thread it into the U-Nut, and firmly tighten.
STEP 26
Reinstall the floor panels.
STEP 21
Replace the driver’s side trunk liner. Place a 3/8” - 16 x 1-1/2”
Bolt through a 3/8” Split Lock Washer, 3/8” Flat Washer,
Bracket, 3/4” Spacer, and the hole in the trunk liner, as shown,
thread it into the U-Nut, and firmly tighten.
STEP 25
Reinstall the upper portion of the rear trunk liner, as shown,
then reinstall the cargo cover.
STEP 20
Insert a U-Nut through the larger hole, and align with the
center hole, as shown.
STEP 24
Cut along the line with a razor knife.
STEP 27
Place one of the enclosures in the trunk.
Continued on Next Page
SB-GM-CAMCONV/10W1v2 INSTR_SKU# 011327
Page 5 • JL Audio, Inc., 2011

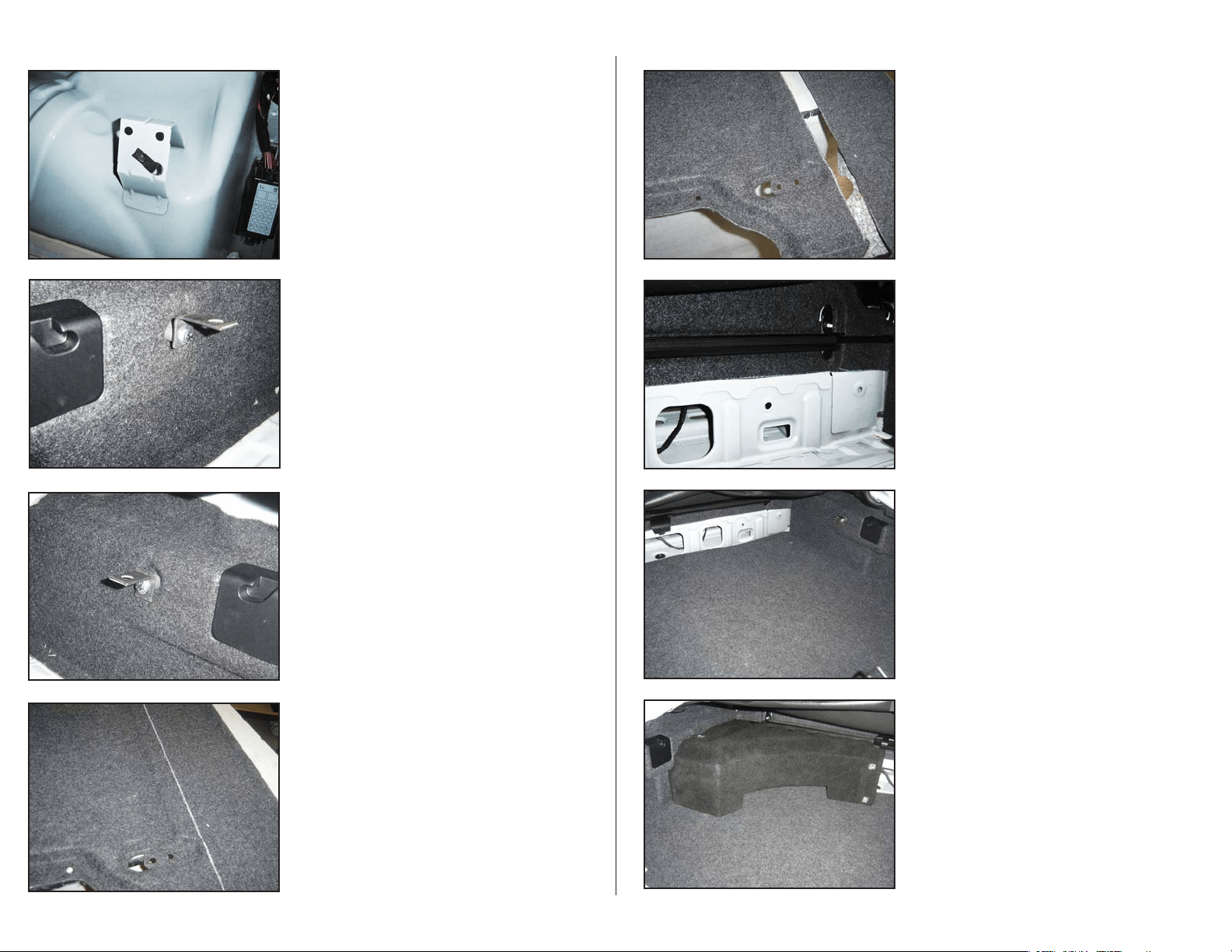

STEP 31
Using a grease pencil, trace the legs of the Stealthbox® onto
the floor panel. Remove the Carpeted Center Cover, the
enclosures, and the floor panel.
STEP 30
Align the Carpeted Center Cover between the two
enclosures as shown, and thread the six 1/4 - 20 x 1-1/2” Hex
Bolts into the threaded inserts in the enclosures.
STEP 34
Attach speaker cable to the enclosures, and reinstall the
Stealthbox®. Route the cable as necessary. Hand tighten the
eight 1/4 - 20 x 1-1/2” Hext Bolts, and reinstall the floor panel.
STEP 33
Carefully cut the floor panel along the lines. Pictured is the
floor panel after it has been cut.
STEP 28
Place the second enclosure in the trunk, and align the two
enclosures, as shown.
STEP 32
Mark a 3” x 3” square on the rear corners of the floor panel.
STEP 35
From inside the back seat area, locate the threaded insert on
the back of each enclosure. Place a 1/4” Lock Washer, and
a 1/4” Flat Washer on each 1/4 - 20 x 1-1/2” Bolt, and thread
an assembly into each of the threaded inserts, and firmly
tighten. Then firmly tighten the eight 1/4 - 20 x 1-1/2” Hex
Bolts installed in the previous step.
STEP 29
Thread a 1/4 - 20 x 1-1/2” Hex Bolt through each bracket
and into the threaded inserts in each enclosure to hold the
enclosures in place.
SB-GM-CAMCONV/10W1v2 INSTR_SKU# 011327
Page 6• JL Audio, Inc., 2011
INCLUDED HARDWARE
(2) 3/8” Split Lock Washer (2) 3/4” Spacer (2) 1/4” Flat Washer (1) Carpeted Center Cover
(2) 3/8” Flat Washer (2) U-Nut (2) 1/4- 20 x 1-1/2” Bolt (2) Bracket
(2) 3/8” - 16 x 1-1/2” Bolt (2) 1/4” Lock Washer (8) 1/4 - 20 x 1-1/2” Hex Bolt
SPECIFICATIONS
Enclosure Type: Acoustic Suspension (sealed)
Driver Type: (2) 10W1v2
Nominal Impedance: 2 ohm
Continuous Power Handling: 600 watts
POWER RECOMMENDATION
JL Audio recommends high quality ampliers such as the JL Audio XD600/1, 500/1v2 or J2 500.1.
The diagram below shows the recommended crossover settings for the XD600/1. If another amplier is being
used, please reference this illustration and use similar settings on that amplier.
All JL Audio ampliers are very versatile audio components. Please consult the owner’s manual for even more
detailed information about installing and tuning your amplier.
CONNECTIONS
Using quality power, signal and speaker wire is essential in ensuring the performance of your Stealthbox®.
JL Audio recommends using a 4 AWG power kit such as the XC-PCS4-1B for your Stealthbox® amplier. Other
kits are available should you be using more than one amplier. Signal wire such as the JL Audio Premium
Audio Interconnect Cables should be used to provide signal for both channels of the amplier. JL Audio
reccommends using 12AWG speaker wire for subwoofers such as our XC-BCS12-25.
MID/HIGH FREQUENCY DRIVER FITMENT
A variety of JL Audio coaxial and component systems will t in the factory speaker locations of you vehicle. A
StealthMod® is also available for this vehicle.
Front Speaker Size / Location: 6-1/2”- Front Doors
Fits JL Audio Models: TR650-CSi, TR650-CXi, C2-650, C2-650x, C3-650,
C5-650, C5-650x & ZR650-CSi
Rear Speaker Size / Location: 3-1/2”- Side Panels
Fits JL Audio Models: TR350-CXi, C2-350x
All specifications are subject to change without notice. “JL Audio®” and the JL Audio logo, “Stealthbox” and the Stealthbox logo are registered
trademarks of JL Audio, Inc.,. “Ahead of the Curve” and its respective logo is a trademark of JL Audio, Inc.,.
JLA-SKU# 94526 08.09.2011 • Printed in USA • ©2011 JL Audio, Inc.,. • U.S. PATENTS: #5,734,734 #5,949,898 #6,118,884 #6,229,902 #6,243,479
#6,294,959 #6,501,844 #6,496,590 #6,441,685 #5,687,247 #6,219,431 #6,625,292 #D472,891 #D480,709 Other U.S. & Foreign patents pending.
For more detailed information please visit us online at www.jlaudio.com.
(954) 443-1100
www.jlaudio.com
10369 NORTH COMMERCE PARKWAY • MIRAMAR, FLORIDA • 33025 • USA
CONGRATULATIONS!
You have completed the installation for this model!
Enjoy your new Stealthbox®!
Please refer to the Power Recommendation section for
an amplifier recommendation and basic set-up help.
STEP 36
Fasten the seat back, and reinstall the three trim panels.
