User Manual Dishwasher

USING THE DISHWASHER

Getting started

Features and appearance will vary throughout this manual

Match the control panel for your unit to a similar control panel below.

1. Load Dishwasher

For best dishwashing results, follow the loading guidelines found in the Loading section. No pre-rinsing of normal food soil is required. Scrape off hard soils, including bones, toothpicks, skins, and seeds. Remove leafy vegetables, meat trimmings, and excessive amounts of grease or oil.

2. Add Detergent

Add needed amount of detergent to the detergent dispenser. Use detergent such as Finish® Quantum® Automatic Dishwashing Detergent. See Dispensers section.

3. Add Rinse

Agent Add rinse agent such as Finish® Jet-Dry® Rinse Aid to the rinse agent dispenser. See Dispensers section.

4. Select Cycle

On some models, an indicator light above the selected pad will be on to indicate which CYCLE has been selected. NOTE: Actual cycle times vary based on soil level, water temperature, and options selected.

POTS & PANS/ HEAVY WASH (on some models)For heavily soiled dishes or cookware with dried-on or baked-on soils. Everyday dishes may be included. This cycle will not remove burned-on foods.
NORMAL/ NORMAL WASHThis cycle is meant for daily, regular, or typical use to completely wash a full load of normally soiled dishes and is designed to conserve both water and energy.
SHORT WASH (on some models)For quickly washing loads of everyday dishes with medium soils that have not dried on, such as loads consisting mostly of glasses.
(on some models) For quickly washing loads of everyday dishes with medium soils that have not dried on, such as loads consisting mostly of glasses. WATER SAVER/ LIGHT WASH (on some models)For dishes with light soils.
RINSE ONLYFor rinsing partial loads that will be washed later. Do not use detergent.
DRYING/ PLATE WARMER (on some models)For warming clean dishes and serving plates. This cycle will take approximately 30 minutes
HOT PREWASH/ HOT START (on some models)Preheats wash water to the correct temperature
CHINA CRYSTAL (on some models)For lightly soiled china and crystal.

Cycle Chart

Models

Cycle

Water Usage (gallons)

Cycle Time (minimum)

Timer ModelsHot Start Option12.510
Heavy Wash4.9 - 7.0120
Pots & Pans6.0 - 7.0118
Normal Wash*3.5 - 5.0106
Light Wash/Water Saver3.9 - 5.5114
Rinse Only2.258
Plate Warmer/Drying0.045
Electronic ModelsPots & Pans8.8121
Heavy Wash7.5115
Normal Wash3.5109

China/Crystal

6.387
Rinse Only1.35

1 : Hot Start Option adds water amount and cycle time shown when selected.

* Normal Wash button should be pushed to run this cycle.

NOTE: Not all models have every cycle listed.

5. Select Options

On some models, an indicator light above the selected pad will be on to indicate which CYCLE has been selected.

HI TEMP RINSE (on some models)Turns on the heater in all final rinse cycles to help prevent spotting on dishware. This option may be turned ON or OFF during the wash cycle.
HI TEMP WASHEnergizes the heater to boost water temperature in prewash and main wash fill cycles. Recommended for use with heavily soiled dishes. Option may be turned ON or OFF during the wash cycle.
HEATED DRY OFFShuts off the drying heat option. Dishes air dry naturally and energy is saved. Open the dishwasher door to speed drying.
HEATED DRY ONTurns the heater on for fast drying. This cycle will extend the time to your wash cycle by 30 minutes. DO NOT use with RINSE ONLY cycle.
LOCK (electronic models only)When the LOCK pad is touched twice within 3 seconds, all pads become inoperative. You can lock the controls to prevent any selections from being made. Or you can lock the controls after you have started a cycle or selected DELAY START so the cycle or DELAY START is not interrupted. Children cannot accidentally start dishwasher by touching pads with this option selected. To unlock the dishwasher after it has been locked, touch the LOCK pad twice within 3 seconds. The light above the LOCK pad will turn off.
DELAY HOURS (on some models)Delays the start of a wash cycle for up to 8 hours.
RESET (timer models only)Touch RESET to cancel options.
START/RESET (electronic models only)Touch START/RESET one time to start dishwasher cycle. Touch START/RESET a second time to pump out and then turn off the dishwasher. Do not touch START/RESET more than one time unless you intend to end the cycle.

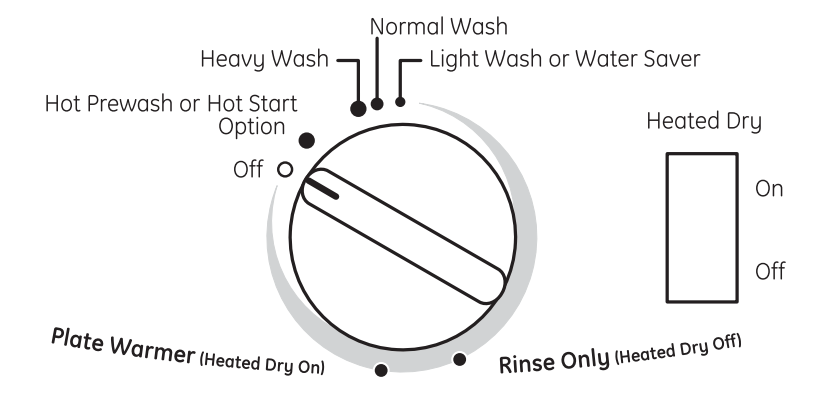

Starting the dishwasher - Models with a cycle dial

Rinse Only

For rinsing partial loads that will be washed later. Do not use detergent.

  1. Make sure HEATED DRY is not selected
  2. Be sure the door is unlatched.
  3. Slowly turn the dial to RINSE ONLY.
  4. Latch the door to start the cycle.

Plate Warmer or Drying

For warming clean dishes and serving plates. This cycle will take approximately 39 minutes.

  1. Load clean dishware to be warmed.
  2. Select HEATED DRY ON.
  3. Be sure the door is unlatched.
  4. Slowly turn the dial to PLATE WARMER or DRYING.
  5. Latch the door to start the cycle.

Hot Start or Hot Prestart Option

Preheats wash water.

  1. Select the HOT START or HOT PRESTART cycle and any other option on the push button pad.
  2. Be sure the door is unlatched.
  3. Slowly turn the dial to HOT START or HOT PRESTART.
  4. Latch the door to start the cycle.

Short Wash or Light Wash or Water Saver

For quickly washing loads of everyday dishes with light to medium soils that have not dried on.

  1. Be sure the door is unlatched.
  2. Slowly turn the Dial to SHORT WASH, LIGHT WASH or WATER SAVER.
  3. Latch the door to start the cycle.

Start (Models with a Dial)

Slowly turn the dial to the START or ON position, or the selected cycle. Don’t turn it past the START, ON or cycle position; you could accidentally miss a prewash. There is a time delay between start-up and water fill so you will not hear any wash action right away.

  • Latch the door to begin the cycle.

Starting the dishwasher - Model GSD4000 only

Start

  1. The door must be closed and locked into place to select a LOAD SELECTION or an OPTION.
  2. If the door is opened during a cycle and left open, the dishwasher will beep once every 30 seconds until the door is closed and latched into place.

Close and latch the door. Touch the START/RESET pad to begin the cycle. Water fill begins and approximately 60 seconds later the wash action begins. NOTE: The dishwasher remembers your last cycle so you don’t have to reprogram each time. When the dishwasher is loaded and the door latch is in the locked position, the control panel lights will be on and display the last settings you selected. If you don’t want to change any of the settings, simply touch the START/RESET pad to begin the cycle. Also, if a power failure occurs, NORMAL and HEATED DRY will automatically be programmed. Make any new selections and touch the START/RESET pad to begin the cycle.

Clean

This light is illuminated when a wash cycle is complete. The light will stay ON until the door is opened.

Flashing Display Lights

Lights

What It Means

What to do

This is normal. The START/ RESET pad has been pressed.Allow the dishwasher to drain and reset before you start a new wash cycle.

Plus a beeping sound

Control ErrorPress the START/RESET pad to turn off the beeper. If the CLEAN light continues to flash, call for service.

Plus a beeping sound

Control ErrorPress the START/RESET pad to turn off the beeper and the dishwasher will attempt to reset. Restart the wash cycle. If this error continues, turn off the power to the dishwasher at the circuit breaker for 30 seconds. Try the dishwasher again. If the error is still present, call for service.

Dispensers

Check the Water Temperature

The entering water should be at least 120°F (49°C) and not more than 150°F (66°C) for effective cleaning and to prevent dish damage. Check the water temperature with a candy or meat thermometer. Turn on the hot water faucet nearest the dishwasher, place the thermometer in a glass and let the water run continuously into the glass until the temperature stops rising. Adjust the maximum/minimum temperature of the water heater if necessary to deliver water at the proper temperature.

Use a Rinse Agent

Rinse agents, such as Finish® Jet-Dry® Rinse Aid are designed for great drying action and to protect against spots and film build-up on your dishes, glasses, flatware, cookware, and plastic.

Filling the Rinse Agent Dispenser

Fill the rinse agent dispenser until it reaches the bottom of lip inside the opening. Replace cap. To check if rinse agent is needed, remove the cap and look into the dispenser. A full dispenser should last about one month. If the rinse agent spills, wipe up the excess.

Detergent Dispenser

Use only detergent specifically made for use in dishwashers. Finish® Quantum® Automatic Dishwashing Detergents have been approved for use in all GE Appliances dishwashers. Keep your detergent fresh and dry. Don’t put powder detergent into the dispenser until you’re ready to wash dishes. The amount of detergent to use depends on whether your water is hard or soft. With hard water, you need extra detergent. With soft water, you need less detergent. Protect your dishes and dishwasher by contacting your water department and asking how hard your water is. Twelve or more grains is extremely hard water. A water softener is recommended. Without it, lime can build up in the water valve, which could stick while open and cause flooding. You’ll find two detergent dispensers on the inside door of your dishwasher. All wash cycles require detergent in the main cup. When using automatic dishwashing detergent tabs, such as Finish® Quantum® Powerball®, simply place one tab in the main cup and close. Be sure the dial is OFF before adding detergent. Otherwise, the detergent cup will not close and latch properly. Add detergent then close the main cup.

Use the table as a starting point and then adjust the amount of detergent you use. Use just enough to get good wash performance. Using just the right amount of detergent will provide great wash performance without wasting detergent or etching glassware.

Number of Grains/Gal.

Detergent Cup(s) to Fill

Less than 4Fill cup to 1/3 full
4 to 8Fill cup to 2/3 full
8 to 12Fill cup completely full
Greater than 12Fill both main wash cup and open cup

Using too much detergent with very soft and/or very hot water may cause a condition called etching on your glassware. Etching is a permanent cloudiness in your glassware. This condition is irreversible. However, using too little detergent will cause poor wash performance.

DO NOT USE HAND DISH DETERGENT

Loading

For best dishwashing results, follow these loading guidelines. Features and appearance of racks and silverware baskets may vary from your model.

Upper Rack

The upper rack is for glasses, cups and saucers. Cups and glasses fit best along the sides. This is also a secure place for dishwasher-safe plastics. The upper rack is good for all kinds of odd-shaped utensils. Saucepans, mixing bowls and other items should be placed face down.

Secure larger dishwasher-safe plastics over two fingers when possible. Make sure small plastic items are secure so they can’t fall onto the heating element.

Lower Rack

The lower rack is best used for plates, saucers and cookware. Large items such as broiler pans and racks should go along the sides. Load platters, pots and bowls along the sides, in corners or in the back. The soiled side of items should face the center of the rack. When loading the lower rack, do not load large platters or trays in the front right corner. They may prevent detergent from circulating during the wash cycle.

Wash Tower

Keep the center area clear in the lower rack.

The wash tower rises through the center of the lower rack during the wash and rinse portions of the cycle.

Don’t block the wash tower or load tall things next to it.

Be sure items don’t fall through rack and block rotation of the spray arm. Also, be careful not to let a portion of an item such as a pot or dish handle extend through the bottom rack. This could block the wash arm and cause poor washing results. Don’t block the upper rack wash tower.

Silverware Basket

Put flatware in the removable basket with fork and knife handles up to protect your hands. Place spoons in the basket with handles down. Mix knives, forks and spoons so they don’t nest together. Distribute evenly. Small plastic items, such as measuring spoons and lids from small containers, should go in the bottom of the silverware basket with silverware on top Don’t let any item extend through bottom of silverware basket and rack, to ensure proper function of spray arm.

Loading

For best dishwashing results, follow these loading guidelines. Features and appearance of racks and silverware baskets may vary from your model.

Upper Rack—8 place settings Undersink Models

Lower Rack—8 place settings Undersink Models

Upper Rack—10 place settings

Upper Rack—10 place settings

Lower Rack—10 place settings

Upper Rack—12 place settings

Upper Rack—12 place settings

Lower Rack—12 place settings

Forget to Add a Dish?

A forgotten dish can be added any time before the main wash.

  1. Push the door latch to the left.
  2. Once the water calms, open the door. Steam may rise out of the dishwasher.
  3. Add forgotten dish.
  4. Close the door and push the latch to the far right.

CARE AND CLEANING

Control Panel

To clean the control panel, use a lightly dampened cloth. Then dry thoroughly.

Exterior Door Panel

Use a clean, soft, lightly dampened cloth, then dry thoroughly. Do not use scouring pads or powered cleaners because these products can scratch the finish.

Stainless Steel Door Panel

For cleaning rust and tarnish, cleaners with oxalic acid such as Bar Keepers Friend Soft Cleanser™ will remove rust, tarnish and small blemishes. Use only a liquid cleanser free of grit and rub in the direction of the brush lines with a damp soft sponge. Do not use appliance wax or polish on the stainless steel.

For other blemishes and marks, use Stainless Steel Magic or a similar product using a clean soft cloth. Do not use appliance wax, polish, bleach or products containing chlorine on Stainless Steel. You can order Stainless Steel Magic # WX10X29 through GE Appliances Parts by calling 877.959.8688. In Canada, call 1-800-661-1616.

Dishwasher Interior

To clean and de-odorize your dishwasher, use citric acid or Finish® Dishwasher Cleaner, a detergent additive. Finish® Dishwasher Cleaner will break up mineral deposits, and remove hard water film and stains. You can order citric acid GE Appliances kit # WD35X151 through GE Appliances Parts by calling 877-959-8688 or visiting GEApplianceparts.com. In Canada, call 1-800-661-1616. You can purchase Finish® Dishwasher Cleaner at your local grocery store.

Stainless Steel Inner Door and Tub

The stainless steel used to make the dishwasher tub and inner door provides the highest reliability available in a GE Appliances dishwasher. If the dishwasher tub or inner door should be scratched or dented during normal use, they will not rust or corrode. These surface blemishes will not affect their function or durability.

Protect Against Freezing

If your dishwasher is left in an unheated place during the winter, ask a service technician to:

  1. Turn off electrical power to the dishwasher. Remove fuses or trip circuit breaker.
  2. Turn off the water supply and disconnect the water inlet line from the water valve.
  3. Drain water from the water inlet line and water valve. (Use a pan to catch the water.)
  4. Reconnect the water inlet line to the water valve.
  5. Remove the plastic sump cover in the tub bottom and use a sponge to soak up water in the rubber boot.

Does Your Dishwasher Have an Air Gap?

An air gap protects your dishwasher against water backing up into it if a drain clogs. The air gap is not a part of the dishwasher. It is not covered by your warranty. Not all plumbing codes require air gaps, so you may not have one.

Check the air gap any time your dishwasher isn’t draining well.

The air gap is easy to clean.

  1. Turn off the dishwasher and lift off the air gap cover.
  2. Remove the plastic cap under the cover and clean with a toothpick.
  3. Replace the cap and cover when the air gap is clean.

TROUBLESHOOTING TIPS

Problem

Possible Cause

What To Do

Dishes and flatware not cleanLow inlet water temperatureRaise the water heater temperature to 120°F. Use HOT START, POTS & PANS or HEAVY WASH and HI TEMP WASH.
Poor performing detergentUse a highly rated detergent such as Finish® Quantum® Automatic Dishwashing Detergent.
Old or damp powdered detergentSee USING THE DISHWASHER section, refer to Detergent Dispenser for detergent recommendations.
Water pressure is temporarily lowTurn on a faucet. Is water coming out more slowly than usual? If so, wait until pressure is normal before using your dishwasher. Normal water pressure to the dishwasher should be 20-120 psi.
Air gap or disposer cloggedClean the air gap or flush the disposer.
Improper rack loadingMake sure large dishware does not block the detergent dispenser or the wash arm. See the Loading section.
High drain loop or air gap not installedRefer to the Installation Instructions for proper drain line installation.
Spots and filming on glasses and flatwareExtremely hard waterUse rinse agents such as Finish® Jet-Dry® Rinse Aid to prevent spots and prevent new film build-up. If water is extremely hard, a softener may be required.
Low inlet water temperatureMake sure water temperature is at least 120°F (49°C).
Overloading or improper loading of the dishwasherLoad dishwasher as shown in the Loading section.
Old or damp powder detergentMake sure detergent is fresh. Use a highly rated detergent such as Finish® Quantum® Automatic Dishwashing Detergent
Rinse agent dispenser emptyRefill with rinse agent such as Finish® Jet-Dry® Rinse Aid.
Too little or low performing detergentMake sure you use the proper amount of highly rated detergent.
Cloudiness on glasswareCombination of soft water and too much detergentThis is called etching and is permanent. To prevent this from happening, use less detergent if you have soft water. Wash glassware in the shortest cycle that will get it clean.
Low performing phosphatefree detergentSee A white film on glassware, dishware and the interior in this TROUBLESHOOTING section.
Water temperature entering dishwasher exceeds 150°FThis could be etching. Lower the water heater temperature.
A white film on glassware, dishware and the interiorThis problem is likely caused by a low quality phosphate-free dishwasher detergentTo remove the white film, run your dishes through a dishwasher cycle with citric acid. Use a WD35X151 citric acid kit found online. Otherwise, use Finish® Dishwasher Cleaner found at your local grocery store. Pour the citric acid in the detergent cup and close the cover. Place the filmed but otherwise clean glassware and dishware in the dishwasher. Leave silverware and other metal items out of the dishwasher. Turn the dishwasher on and let it run through a complete cycle without detergent. The glassware, dishware, and dishwasher should come out film free. Alternatively, a vinegar rinse may be used. Pour 1 cup of vinegar into dishwasher just after the detergent cup opens and let the dishwasher complete its cycle. This may be repeated several times a year as needed. The use of a rinse agent such as Finish® Jet-Dry® Rinse Aid may help minimize a repeat build up of film. Also, the use of a highly rated detergent such as Finish® Quantum® Automatic Dishwashing Detergent will help prevent film build-up.
Suds in the tubWrong detergentUse only automatic dishwasher detergents to avoid sudsing. Finish® Quantum® Automatic Dishwashing Detergent has been approved for use in all GE Appliances dishwashers. To remove suds from the tub, open the dishwasher and let suds dissipate. Add 1 gallon of cold water to the tub. On Models with a dial: Close and latch the dishwasher. Pump out water by slowly turning the dial until a drain period is reached. Repeat if necessary. On Models with Electronic Control: Pump out water by pressing the START/RESET pad, then 10 seconds later, press START/RESET pad again. Repeat if necessary.
Rinse agent was spilledAlways wipe up rinse agent spills immediately
Detergent cup lid won’t latchDial is not in the OFF positionTurn the timer dial to OFF.
Detergent left in dispenser cupsDishes or utensils are blocking the detergent cupReposition the dishes. See the Loading section.
Black or gray marks on dishesAluminum utensils have rubbed against dishesRemove marks with a mild, abrasive cleaner.
Dishes don’t dryLow inlet water temperatureMake sure inlet water temperature is at least 120°F. Select HEATED DRY. Use HOT START and ADDED HEAT options. Select a higher cycle, such as POTS & PANS or HEAVY WASH.
Rinse agent dispenser is emptyCheck the rinse agent dispenser and fill as required.
Control panel responded to inputs but dishwasher never filled with waterDoor latch may not be properly seatedCall for service.
Water valve may be turned offMake sure water valve (usually located under the sink) is turned on.
Stained tub interiorSome tomato-based foods can cause reddish stainsUse of the RINSE ONLY cycle after adding the dish to the load can decrease the level of staining.
Tea or coffee stainsRemove the stain by hand, using a solution of 1/2 cup bleach and 3 cups warm water
Caution: Before cleaning interior, wait at least 20 minutes after a cycle for the heating elements to cool down. Failure to do so can result in burns.
An overall yellow or brown film can be caused by iron deposits in waterA special filter in the water supply line is the only way to correct this problem. Contact a water softener company.
White film on inside surface— hard water mineralsGE Appliances recommends Finish® Jet-Dry® Rinse Aid to help prevent hard water mineral deposits from forming. Run dishwasher with citric acid to remove mineral deposits. Citric acid (Part number: WD35X151) can be ordered through GE Appliances Parts. See Consumer Support section for ordering information. Alternatively, purchase Finish® Dishwasher Cleaner and follow the directions on the label.
Dishwasher won’t runFuse is blown or circuit breaker is trippedReplace fuse or reset circuit breaker. Remove any other appliances from the circuit.
Power is turned offIn some installations, the power to the dishwasher is provided through a wall switch, often located next to the disposer switch. Make sure it is on.
Control panel lights go off when you’re setting controlsTime too long between touching of selected padsEach pad must be touched within 30 seconds of the others. To relight, touch any pad again or unlatch and relatch the door.
Water standing in the bottom of the tubThis is normalA small amount of clean water around the outlet on the tub bottom at the back of the tub keeps the water seal lubricated.
Water won’t pump out of the tubDrain is cloggedIf you have an air gap, clean it. See the Care and Cleaning section. If the dishwasher drains into a disposer, run disposer clear. Check to see if your kitchen sink is draining well. If not, you may need a plumber.
SteamThis is normalWarm, moist air comes through the vent during drying and when water is being pumped out. This is necessary for drying.
Sanitized light does not illuminate at the end of the cycleThe door was opened and the cycle was interrupted during final rinseDo not interrupt the cycle by opening the door during the wash cycle.
The incoming water temperature was too lowRaise the water heater temperature to between 120°F and 150°F
NoiseNormal operating sounds: Hard food disposer shredding action. Drain valve opening to pump water out. Timer control as cycle progresses. Detergent cup opening. The motor stopping during the drying period. Water draining out of tub immediately after touching the start/reset pad.These are all normal. No action is required.
Utensils are not secure in rack or something small has dropped into rackMake sure everything is secured in dishwasher
Rattling dishes when the spray arm rotatesMake sure dishes are properly loaded. See the Loading section.
Rattling silverware against door during washTall utensils may be placed in the upper rack to avoid bumping against inner door during wash cycle
Motor humsDishwasher has not been used on a regular basis. If you do not use your dishwasher often, set it to fill and pump out once every week. This will help keep the seal moist.


See other models: GSD4000KWW GDF570SGJCC GDF530PMMES GDF630PMMES GSD3301KWW

GE - General Electric GSD2100VWW | File type: PDF | Filename: GSD2100VWW GE® Built-In Dishwasher.pdf | Size: 1.3 MB | Language: English, French | Other documents: 3 files.

Download User Manual

Product Infomation and Reviews - GSD2100VWW photo

GSD2100VWW Photo

View more photos

GE - General Electric in United States

1-800-432-2737 Monday - Friday: 7 a.m. - 10 p.m. ET Saturday - Sunday: 8 a.m. - 6 p.m. E
