MUSIC SYSTEM FOR iPod
®
& iPhone
®
MODEL
DK-CL5P
OPERATION MANUAL
Thank you for purchasing this SHARP product.
To obtain the best performance from this product, please read this
manual carefully. It will guide you in operating your SHARP product.
&
d
o
Pi
R
O
F
ME
T
S
Y
S C
I
SU
M
iP
h
o
n
e
DK-CL5P
VOLUM
E
TUN
I
N
G
D
I
M
M
ER
FU
N
CTION
ALA
R
M
R
E
S
E
T
AL
A
R
M
ON
/
STAN
D
-BY
P
R
E
S
E
T
T
R
A
CK
CLOCK / ME
MORY
DIS
PLA
Y
Accessories
Please confirm that only the following accessories are included.
Remote control unit (x 1)
(Remote control x 1)
(Coin Battery x 1)
92L34900034101
92L88900034101
AC/DC adaptor x 1
iPhone adaptor 15 iPhone adaptor 19iPhone adaptor 12
92L43200033101 92L43200033301
92L43200033201
iPhone, iPod, iPod classic,
iPod nano, and iPod touch are
trademarks of Apple Inc.,
registered in the U.S. and
other countries.
2
2010 November 3
DK-CL5P_A6 02-27.fm
DK-CL5P
Important Instruction
SPECIAL NOTES
NOTE
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following
measures:
● Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
● Consult the dealer or an experienced radio/TV technician for
help.
WARNING
FCC Regulations state that any unauthorized changes or
modifications to this equipment not expressly approved by the
manufacturer could void the user's authority to operate this
equipment.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING : TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE
TO RAIN OR MOISTURE.
“Made for iPod” and “Made for iPhone” mean that an electronic
accessory has been designed to connect specifically to iPod or
iPhone, respectively, and has been certified by the developer to
meet Apple performance standards. Apple is not responsible for
the operation of this device or its compliance with safety and
regulatory standards. Please note that the use of this accessory
with iPod or iPhone may affect wireless performance.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE
PAR TS INSIDE. REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
Explanation of Graphical Symbols:
The lightning fl ash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be of suffi cient
magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to
the presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
FOR YOUR RECORDS
For your assist
ance in reporting thisunit in case of lo
ss
or
theft, please record below the model numb
er
a
nd serial
number which are located on the rear of the
unit. Please retain
thi
s information.
Model number
..............................................
Serial number ..............................................
Date of purchase ..............................................
Place of purchase ..............................................
3
2010 November 3
DK-CL5P_A6 02-27.fm
DK-CL5P
Important Instruction
IMPORTANT SAFETY INSTRUCTIONS
Electricity is used to perform many useful functions, but it can
also cause personal injuries and property damage if improperly
handled. This product has been engineered and manufactured
with the highest priority on safety. However, improper use can
result in electric shock and/or fire. In order to prevent potential
danger, please observe the following instructions when
installing, operating and cleaning the product. To ensure your
safety and prolong the service life of this product, please read
the following precautions carefully before use.
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance
with the manufacturer's instructions.
8) Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers)
that produce heat.
9) Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the
third prong are provided for your safety. If the provided plug
does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
11) Only use attachments/accessories specified by the
manufacturer.
12) Use only with the cart, stand, tripod, bracket,
or table specified by the manufacturer, or sold
with the apparatus. When a cart is used, use
caution when moving the cart/apparatus
combination to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when
unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing
is required when the apparatus has been damaged in any
way, such as power-supply cord or plug is damaged, liquid
has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does
not operate normally, or has been dropped.
Additional Safety Information
15) Power Sources - This product should be operated only from
the type of power source indicated on the marking label. If
you are not sure of the type of power supply to your home,
consult your product dealer or local power company. For
product intended to operate from battery power, or other
sources, refer to the operating instructions.
16) Overloading - Do not overload wall outlets, extension cords,
or integral convenience receptacles as this can result in a
risk of fire or electric shock.
17) Object and Liquid Entry - Never push objects of any kind into
this product through openings as they may touch dangerous
voltage points or short-out parts that could result in a fire or
electric shock. Never spill liquid of any kind on the product.
4
2010 November 3
DK-CL5P_A6 02-27.fm
DK-CL5P
Important Instruction
IMPORTANT SAFETY INSTRUCTIONS (continued)
18) Damage Requiring Service - Unplug this product from the
wall outlet and refer servicing to qualified service personnel
under the following conditions:
a) When the AC cord or plug is damaged,
b) If liquid has been spilled, or objects have fallen into the
product,
c) If the product has been exposed to rain or water,
d) If the product does not operate normally by following
the operating instructions. Adjust only those controls
that are covered by the operating instructions as an
improper adjustment of other controls may result in
damage and will often require extensive work by a
qualified technician to restore the product to its normal
operation,
e) If the product has been dropped or damaged in any
way, and
f ) When the product exhibits a distinct change in
performance - this indicates a need for service.
19) Replacement Parts - When replacement parts are required,
be sure the service technician has used replacement parts
specified by the manufacturer or have the same
characteristics as the original part. Unauthorized
substitutions may result in fire, electric shock, or other
hazards.
20) Safety Check - Upon completion of any service or repairs to
this product, ask the service technician to perform safety
checks to determine that the product is in proper operating
condition.
21) Wall or ceiling mounting - When mounting the product on a
wall or ceiling, be sure to install the product according to the
method recommended by the manufacturer.
22) Power Lines - An outside antenna system should not be
located in the vicinity of overhead power lines or other
electric light or power circuits, or where it can fall into such
power lines or circuits. When installing an outside antenna
system, extreme care should be taken to keep from touching
such power lines or circuits as contact with them might be
fatal.
23) Protective Attachment Plug - The product is equipped with
an attachment plug having overload protection. This is a
safety feature. See Instruction Manual for replacement or
resetting of protective device. If replacement of the plug is
required, be sure the service technician has used a
replacement plug specified by the manufacturer that has the
same overload protection as the original plug.
24) Stand - Do not place the product on an unstable cart, stand,
tripod or table. Placing the product on an unstable base can
cause the product to fall, resulting in serious personal
injuries as well as damage to the product. Use only a cart,
stand, tripod, bracket or table recommended by the
manufacturer or sold with the product. When mounting the
product on a wall, be sure to follow the manufacturer's
instructions. Use only the mounting hardware
recommended by the manufacturer.
5
2010 November 3
DK-CL5P_A6 02-27.fm
DK-CL5P
General Information
SPECIAL NOTES Contents
Page
■ General Information
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Controls and indicators . . . . . . . . . . . . . . . . . . 7 - 9
■
Preparation for Use
System connections . . . . . . . . . . . . . . . . . . 10 - 11

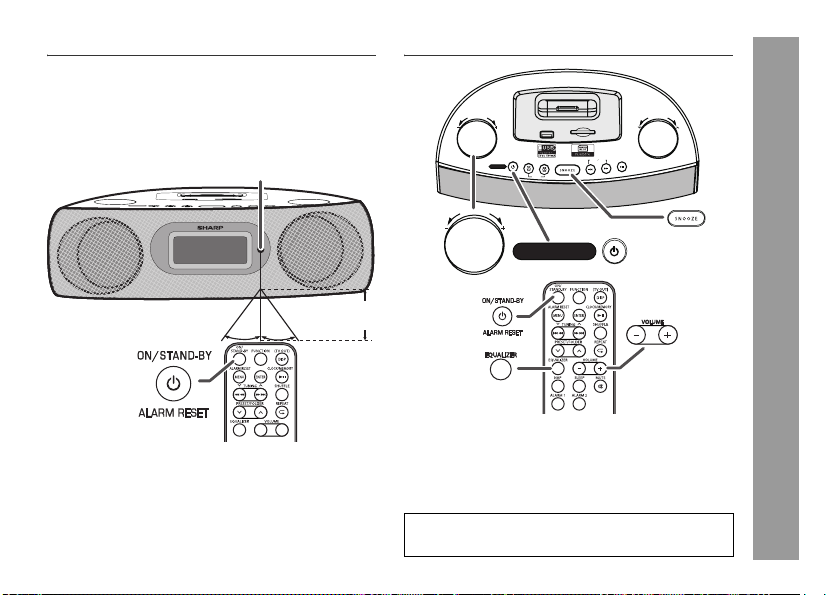

Remote control . . . . . . . . . . . . . . . . . . . . . . . 12 - 13
■
Basic Operation

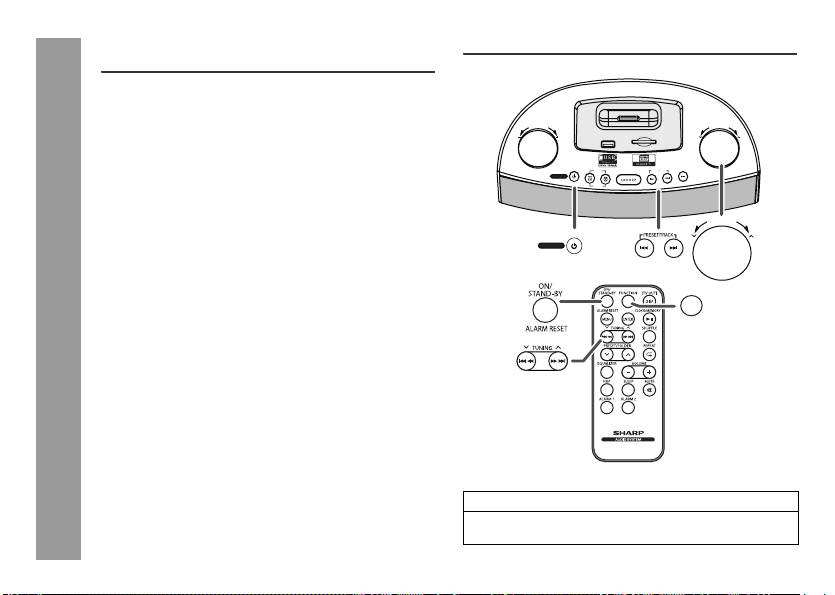

General control . . . . . . . . . . . . . . . . . . . . . . . 13 - 14
Setting the time and date . . . . . . . . . . . . . . . . . . . 15
■

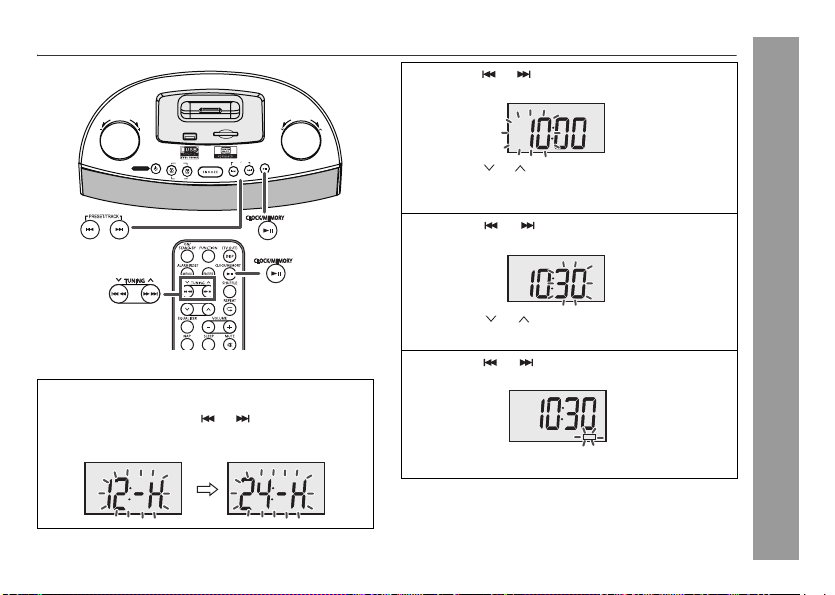

iPod and iPhone

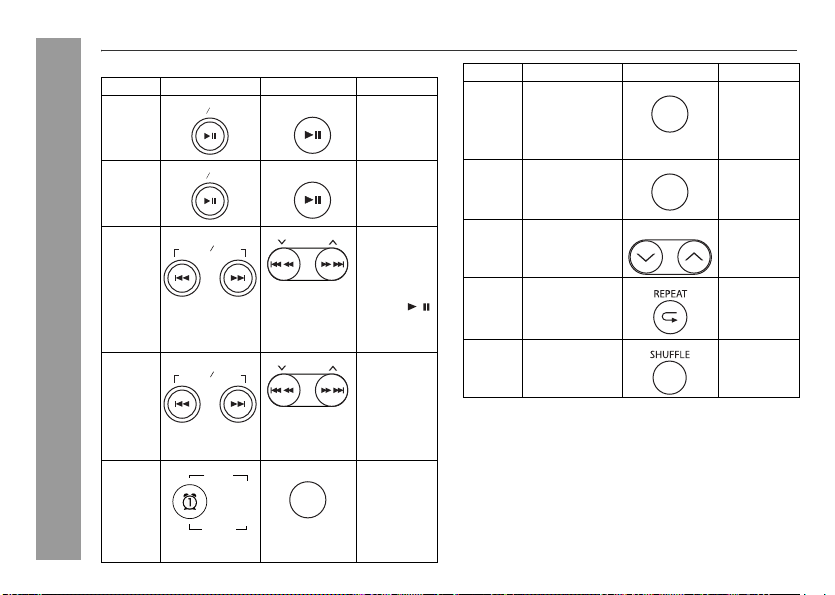

Listening to the iPod or iPhone . . . . . . . . . 16 - 18
■
USB Memory Playback
Listening to USB mass storage device/
SD Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 - 20
■
Radio
Listening to the radio . . . . . . . . . . . . . . . . . . 20 - 22
■
Advanced Features
Alarm and sleep operation . . . . . . . . . . . . . 22 - 25
Enhancing your system . . . . . . . . . . . . . . . . 25 - 26
■
References
Troubleshooting chart . . . . . . . . . . . . . . . . . 26 - 28
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Specifications . . . . . . . . . . . . . . . . . . . . . . . . 29 - 30
CONSUMER LIMITED WARRANTY . . . .Back cover
Products that have earned the
ENERGY STAR
®
are designed
to protect the environment
through superior energy
efficiency.
ENERGY STAR
®
Program Information
ENERGY STAR
®
is a U.S. registered mark.
6
2010 November 3
DK-CL5P_A6 02-27.fm
DK-CL5P
General Information
Precautions
■ General
● Do not place anything on top of the unit.
● Do not expose the unit to moisture, to temperatures higher
than 140°F (60°C) or to extremely low temperatures.
● If your system does not work properly, disconnect the AC/DC
adaptor from the AC outlet. Plug the AC/DC adaptor back in,
and then turn on your system.
● This unit should only be used within the range of 41°F - 95°F
(5°C - 35°C).
● To prevent fire or shock hazard, do not expose this appliance
to dripping or splashing. No object filled with liquids, such as
vases shall be placed on the apparatus.
Warning:
The voltage used must be the same as that specified on this
unit. Using this product with a higher voltage other than that
which is specified is dangerous and may result in a fire or other
type of accident causing damage. SHARP will not be held
responsible for any damage resulting from use of this unit with a
voltage other than that which is specified.
■ Volume control
The sound level at a given volume setting depends on speaker
efficiency, location and various other factors. It is advisable to
avoid exposure to high volume levels, which occurs while
turning the unit on with the volume control setting up high, or
while continually listening at high volumes.
● Please ensure that the equipment is
positioned in a well-ventilated area
and ensure that there is at least
4" (10 cm) of free space along the
sides, top and back of the equipment.
● Use the unit on a firm, level surface
free from vibration.
●
Keep the unit away from direct
sunlight, strong magnetic
fields, excessive dust, humidity
and electronic/electrical
equipment (home computers,
facsimiles, etc.) which
generate electrical noise.
● In case of an electrical storm,
unplug the unit for safety.
4" (10 cm)
4" (10 cm)
M
US
IC
S
YS
T
E
M FO
R
i
Po
d
&
i
P
hone
DK
-CL
5
P
V
O
LU
M
E
TUNIN
G
D
I
M
M
E
R
F
U
N
C
TI
O
N
A
L
A
R
M RESE
T
A
L
ARM
O
N
/
S
TAND-B
Y
PR
E
S
ETT
R
A
C
K
MEM
O
RY
/
C
LOC
K
M
U
S
I
C
S
YS
T
E
M
F
O
R
i
P
o
d &
i
P
h
o
n
e
D
K-
CL
5
P
V
O
L
U
M
E
TU
NI
N
G
D
IM
M
ER
FUNCT
IO
N
ALAR
M
RE
SE
T
AL
ARM
O
N
/
S
T
AND-BY
P
RES
ETTRACK
ME
M
O
R
Y
/C
LO
C
K
●
Hold the AC/DC adaptor by the
head when removing it from the
AC outlet, as pulling the cord
can damage internal wires.
● The AC/DC adaptor is used as
a disconnect device and shall
always remain readily
operable.
● Do not remove the
outer cover, as this
may result in electric
shock. Refer internal
service to your local
SHARP service
facility.
DC IN 8V
AUDIO IN
VIDEO OUT
FM ANTENNA
7
2010 November 3
DK-CL5P_A6 02-27.fm
DK-CL5P
General Information
Controls and indicators
■ Top panel
Reference page
1. USB Slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
2. iPod and iPhone Dock . . . . . . . . . . . . . . . . . . . . . . . 17
3. Memory Card Slot . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
4. Volume Down / Up Knob . . . . . . . . . . . . . . . . . . . . . 14
5. ON/STAND-BY / FUNCTION
Alarm Reset Button . . . . . . . . . . . . . . . . . . . 13, 19, 23
6. Alarm 1/Display Button . . . . . . . . . . . . . . . . . . . . 22, 23
7. Alarm 2/Display Button . . . . . . . . . . . . . . . . . . . 22, 23
8. SNOOZE / DIMMER Button . . . . . . . . . . . . . 13, 23, 28
9. Preset / Track Down Button . . . . . . . . . . . . . . . . 15, 18
10. Preset / Track Up Button . . . . . . . . . . . . . . . . . . 15, 18
11. Memory / Clock / Play / Pause Button . . . . . 15, 18, 19
12. Tuning Down / Up Knob . . . . . . . . . . . . . . . . . . . . . 20
■ Display
Reference page
1. Alarm (1 and 2) indicator. . . . . . . . . . . . . . . . . . . . . . 22
2. iPod indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
3. USB indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
4. SD Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
5. Sleep Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
6. Nap Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
7. FM Tuner Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . 21
8. Day Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
MUSIC SYSTEM FOR iPod & iPhone
DK-CL5P
TUNING
VOLUME
DIMMER
FUNCTION
ALARM RESET
ALARM
DISPLAY
ON / STAND -BY
PRESET TRACK
CLOCK / MEMORY
1
45
2
3
11 12
9
106
7
8
2 3 4 58 67
1
1
iPod
1
Radio
PM
1
Buzzer
FM
MHz
AM
SLEEPSD
USB
iPod
MON
TUE
WED
THU FRI SAT SUN
2
iPod
2
Radio
2
Buzzer
8
2010 November 3
DK-CL5P_A6 02-27.fm
DK-CL5P
General Information
Controls and indicators (continued)
■ Bottom view
Reference page
1. Battery Compartment . . . . . . . . . . . . . . . . . . . . . . . 11
■ Rear panel
Reference page
1. FM Antenna Wire (fixed). . . . . . . . . . . . . . . . . . . . . . 25
2. Video Out Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3. Audio In Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
4. DC Input Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
1
1A
The spec label (*)
(*) Label is located at the bottom of the unit.
The spec label illustration may be different
from the actual label used.
The iPod rating label (*)
DC IN 8V
AUDIO IN
VID EO OUT
FM ANTENNA
12
4
3
9
2010 November 3
DK-CL5P_A6 02-27.fm
DK-CL5P
General Information
■ Remote control
Reference page
1. Remote Control
Tra nsmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2. ON/STAND-BY/Alarm
Reset Button . . . . . . . . . . . . . . . . . . . . . . 13, 15, 19, 20
3. Menu Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4. Tuning Up/Down/Fast Forward/Next/
Fast Reverse/Prev Button . . . . . . . . . . . 15, 18, 19, 20
5. Preset/Folder Up and Down Buttons . . . . . . . . 18, 22
6. Equalizer Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
7. NAP Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
8. Alarm 1 and Alarm 2 Button . . . . . . . . . . . . . . . 22, 23
9. Function Button . . . . . . . . . . . . . . . . . . . 10, 17, 21, 26
10. Display (TV Out) Button . . . . . . . . . . . . . . . . . . . 10, 18
11. Clock/Memory/Play/Pause Button . . . . . . . . 15, 18, 19
12. Enter Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10, 18
13. Shuffle Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
14. Repeat Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
15. Volume Up and Down Buttons . . . . . . . . . . . . . . . . 13
16. Mute Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
17. Sleep Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
10
11
12
13
14
15
17
16
9
2
1
5
4
3
6
7
8
10
2010 November 11
DK-CL5P_A6 02-27.fm
DK-CL5P
Preparation for Use
DC IN 8V
AUDIO IN
VIDEO OUT
FM ANTENNA
TUOOEDIV
Video cable
(not supplied)
To video input jack
TV
1 Plug the AC/DC adaptor cable into the DC IN jack on
the unit.
2 Plug the AC/DC adaptor into an AC outlet.
DC IN 8V
AUDIO IN
VIDEO OUT
FM ANTENNA
DC IN 8V
AUD IO IN
O OUT
2
1
AC/DC Adaptor Cable
DC IN Jack
(DC 8V)
AC Outlet
(AC 100 - 240 V, 50/60 Hz)
System connections
Connecting iPod or iPhone to TV
Video files from iPod or iPhone can be viewed by connecting the system to
TV/monitor.
If the TV/monitor has a video input, connect it to the VIDEO OUT jack at the
back of the unit and set the TV Out on the iPod unit to “ON” position.
Watching videos on a TV connected to iPod
Notes:
To return to watch video on iPod or iPhone screen, return to the menu. Press
and hold the DISP(TV OUT) on remote control or ALARM 1 (DISPLAY) on
the main unit until “OFF” appear on the display.
During iPod or iPhone video playback, press and hold the DISP(TV OUT) on
the remote control or ALARM 1 (DISPLAY) on the main unit until “OFF”
appear will not toggle video out display between iPod or iPhone
and TV.
Please make sure to set iPod unit to either NTSC or PAL to match your TV
signal. Please visit Apple’s home page for further information.
Customer should also refer iPod and iPhone operation manual before
making video out setting.
AC/DC adaptor connection
Notes:
Unplug the AC/DC adaptor from the AC outlet if the unit will
not be used for a prolonged period of time.
Use only the supplied AC/DC adaptor. Using other AC/DC
adaptor may cause an electric shock or fire.
Connecting the AC/DC adaptor to the unit disconnects the
batteries.
During unit operational with batteries, iPod or iPhone
attached can be used for playback only.
CAUTION:
TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF
PLUG TO WIDE SLOT, FULLY INSERT.
Make sure to unplug the AC/DC adaptor before making any connections.
1
Press the FUNCTION button on the main unit or remote
control to select the iPod function.
2
Enter the iPod or iPhone menu.
Press and hold DISP(TV OUT) button on the remote control or
ALARM 1 (DISPLAY) button on the main unit until ON appear
on the display.
3
Select the desired video to be pla
yed.
4
Press the ENTER button on the remote control to start playback.
11
2010 November 3
DK-CL5P_A6 02-27.fm
DK-CL5P
Preparation for Use
■ Install/Replace batteries
Notes:
● The battery system is use to provide continuous alarm
operation and clock setting in event of a power failure. Please
make sure the AC/DC adaptor is connected, otherwise all
setting may be lost during battery replacement.
● Remove the batteries if the unit will not be used for a long
period of time to prevent battery leakage which may cause
potential damage.
● Connecting the AC/DC adaptor to the unit disconnects the
batteries.
● The first time the batteries is install, the clock will blinking on
the display. Please set the time and date (refer page 15).
Note:
Battery life may vary depending on the temperature, battery
types and usage conditions.
Precautions for battery use:
● Installing the batteries incorrectly may cause the unit to
malfunction.
● Insert the batteries according to the direction indicated in the
battery compartment.
● Replace all old batteries with new ones at the same time.
● Do not mix old and new batteries.
● Batteries (battery pack or batteries installed) shall not be
exposed to excessive heat such as sunshine, fire or the like.
Caution:
Do not use rechargeable batteries (nickeI-cadmium battery, etc.).
Use 6 “C” size batteries (UM-2/R14 or similar).
Batteries are not included.
For Backup battery:
Use 2 “AA” size batteries (UM/SUM-3, R6, HP-7 or similar).
Batteries are not included.
1 Open the battery cover.
2 Insert the batteries according to the direction
indicated in the battery compartment.
When inserting or removing the batteries, push them
towards the battery terminal.
3 Close the cover.
–
PU
SH OPEN
PU
S
H OPEN
12
2010 November 3
DK-CL5P_A6 02-27.fm
DK-CL5P
Preparation for Use
Remote control
■ Battery installation
This product contains a CR Coin Lithium Battery which contains
Perchlorate Material – special handling may apply. California
residents, see www.dtsc.ca.gov/hazardouswaste/perchlorate/
Note:
Before using remote control, please remove plastic shield at
battery holder.
1 Whilst pushing the locking tab towards the center of the
remote control, slide out the battery holder.
2 Remove the old battery from the battery holder, insert the
new battery and then slide the battery holder back into the
remote control.
Precautions for battery use:
● Remove the battery if the unit will not be used for long periods
of time. This will prevent potential damage due to battery
leakage.
Caution:
● Do not use rechargeable battery (nickel-cadmium battery,
etc.).
● Danger of explosion if battery is incorrectly replaced.
● Replace only with the same or equivalent type.
● Batteries (battery pack or battery installed) shall not be
exposed to excessive heat such as sunshine, fire or the like.
● Installing the battery incorrectly may cause the unit to
malfunction.
Notes concerning use:
● Replace the battery if the operating distance is reduced or if
the operation becomes erratic. Purchase “CR 2025” 3 V, coin
lithium battery.
● Periodically clean the transmitter on the remote control and
the sensor on the unit with a soft cloth.
● Exposing the sensor on the unit to strong light may interfere
with operation. Change the lighting or the direction of the unit
if this occurs.
● Keep the remote control away from moisture, heat, shock,
and vibrations.
Remote
control
Plastic
shield
Back of remote
control
Battery holder
Locking tab
Polarity(+)
symbol
Positive (+)
side up
Locking tab
Battery type
Battery holder
13
2010 November 3
DK-CL5P_A6 02-27.fm
DK-CL5P
Preparation for Use/Basic Operation
■ Test of the remote control
Check the remote control after checking all the connections
(see pages 10 - 11).
Point the remote control directly at the remote sensor on the
unit.
The remote control can be used within the range shown
below:
General control
■ To turn the power on
Press the ON/STAND-BY button to turn the power on.
The first time power is supplied to the unit, the clock will be
blinking on the display. Please set the time and date
(refer page 15).
MUSIC SYSTEM FOR iPod & iPhone
DK-CL5P
+
R
E
N
U
T
-
T
U
N
E
R
+
N
OITC
NU
F
UNC
TIO
N
I
D
S
YA
LP
D
IS
P
LAY
P/
N
/P
S P
E
EL
SLE
E
P
U
N
E
M
E
N
U
P
R
E
S
T
E
PR
ES
ET
1
M
RALA
ALAR
M
1
2
M
R
A
L
A
ALA
R
M
2
RE
T
NE
EN
T
ER
.
M
E
M
/K
C
OL
C
LO
C
K/M
E
M
.
Remote sensor
15°
15°
8" - 20'
(0.2m - 6m)
After use:
Press and hold the ON/STAND-BY button to enter the power
stand-by mode.
MUSIC SYSTEM FOR iPod & iPhone
DK-CL5P
TUNING
VOLUME
DIMMER
FUNCTION
ALARM RESET
ALARM
DISPLAY
ON / STAND-BY
ON / STAND-BY
PRESET TRACK
CLOCK / MEMORY
DIMMER
VOLUME
FUNCTION
ALARM RESET
14
2010 November 3
DK-CL5P_A6 02-27.fm
DK-CL5P
Basic Operation
General control (continued)
■ Display brightness control (DIMMER)
Press the SNOOZE/DIMMER button to adjust the brightness of
LCD display.
Note:
● Setting dimmer to display in the brightest mode during battery
operation will affect battery life.
● During battery operations in standby mode, the brightness of
display will automatically go to the lowest mode (dim OFF)
after 5 seconds.
■ Volume auto set in
If you turn off and on the main unit with the volume set to 17 or
higher, the volume starts at 16.
■ Muting
The volume will muted temporarily when pressing the MUTE button
on the remote control.
“
L-00
”
will be blinking on the display. Press
the MUTE button again to restore the volume.
■ Equalizer
Press the EQUALIZER button repeatedly until the desired
sound mode appears.
■ Volume control
Main unit operation:
Rotate the Volume knob anti-clockwise to
decrease volume and clockwise to
increase volume.
Remote control operation:
Press the VOLUME (+ or –) button to
increase or decrease the volume.
Volume indicator will be blinking when the
volume reaches maximum or minimum
level.
Dimmer 1 (Display is dim)
Dimmer 2 (Display gets dimmer)
Dimmer off (Display is bright)
E-FL
E-ro
E-CL
E-Po
E-JA
Equalizer off.
For rock music.
For classical music.
For pop music.
For jazz music.
15
2010 November 3
DK-CL5P_A6 02-27.fm
DK-CL5P
Basic Operation
Setting the time and date
In this example, the clock is set for the 12-H (12 hour) display.
Note:
During battery operations in standby mode, press the SNOOZE/
DIMMER button to display the clock for about 5 seconds.
1 In standby mode, press the CLOCK/MEMORY button
for more than 2 seconds. The clock time display format
will blinking. Press the ( or ) button to select
12-H or 24-H for clock time display format, then press
CLOCK/MEMORY to confirm.
MUSIC SYSTEM FOR iPod & iPhone
TUNING
VOLUME
DIMMER
FUNCTION
ALARM RESET
ALARM
DISPLAY
ON / STAND-BY
PRESET TRACK
CLOCK / MEMORY
2 Press the or button to adjust the hour and then
press the CLOCK/MEMORY button.
Press the ( or ) button once to advance the time by 1
hour. Hold it down to advance continuously.
“AM” or “PM” indicator will interchange after each 12 hour
cyclic.
3 Press the or button to adjust the minutes and
then press the CLOCK/MEMORY button.
Press the ( or ) button once to advance the time by
1 minute. Hold it down for about 5 seconds to change the
time in 5-minutes interval.
4 Press the or button to adjust the day and then
press the CLOCK/MEMORY button.
“:” will be blinking to indicate time and date setting is
completed.
PM
PM
SUN
PM
16
2010 November 3
DK-CL5P_A6 02-27.fm
DK-CL5P
iPod and iPhone
Listening to the iPod or iPhone
iPod and iPhone operations
Made for:
● iPhone 4
● iPhone 3GS
● iPhone 3G
● iPhone
● iPod touch (3
rd
generation)
● iPod touch (2
nd
generation)
● iPod touch (1
st
generation)
● iPod classic
● iPod with video
● iPod nano (5
th
generation)
● iPod nano (4
th
generation)
● iPod nano (3
rd
generation)
● iPod nano (2
nd
generation)
● iPod nano (1
st
generation)
● iPod with colour display
● iPod mini
Caution:
● Please update your iPod unit to the latest software version
before using it. Please visit Apple’s homepage to download
the latest version for your iPod.
Notes:
● Once the iPod or iPhone is connected to the unit it will begin
charging.
● If you have an iPod or iPhone that does not have an iPod 30
Pin connector, you can use an auxillary cable to connect it to
the AUDIO IN jack.
● The message “This accessory is not made to work with
iPhone” or similar, may appear on the iPhone screen when:
- battery is low.
- the iPhone is not properly docked (eg. slanting).
If this occurs, remove and re-dock the iPhone.
● The iPod or iPhone will not be charged while the main unit
uses batteries as power supply.
■ iPod and iPhone adaptor connection
Note:
You can use an audio cable to connect your iPod or iPhone to
the AUDIO IN socket if:
1. Your iPod or iPhone adaptor does not fit into the dock on the
main unit.
2. You have an iPod or iPhone that does not have an iPod or
iPhone adaptor.
3. You have an iPod that does not have an iPod 30 pin
connector.
iPhone
Adaptor No.
iPhone Description Capacity
12 iPhone 4GB & 8GB & 16GB
15 iPhone 3G 8GB & 16GB
15 iPhone 3GS 16GB & 32GB
19 iPhone 4 16GB & 32GB
17
2010 November 3
DK-CL5P_A6 02-27.fm
DK-CL5P
iPod and iPhone
Listening to the iPod or iPhone (continued)
■ To insert iPod or iPhone adaptor
1. Insert the iPod or iPhone adaptor into unit and connect your
iPod or iPhone.
Caution:
Unplug all accessories for the iPod or iPhone before inserting it
into the dock.
■ To remove iPod or
iPhone adaptor
Insert the tip of a screwdriver (“-”
type, small) into the adaptor hole
as
shown and lift upward to remove.
iPod and iPhone
■ iPod or iPhone playback
■ To disconnect iPod or iPhone
Simply remove the iPod or iPhone from the dock. It is safe to do
so even during playback.
iPhone
Dock connector
iPhone (bottom)
iPhone dock
iPhone connector
iPhone adaptor
1 Press the ON/STAND-BY button to turn the power on.
2 Press the FUNCTION button on main unit or remote
control to select the iPod function.
3 Insert iPod or iPhone unit into the dock of main unit.
4 Press the ENTER button on the remote control to start
playback.
For iPod touch and iPhone, playback will automatically
start once the desired file is selected.
ROF ME
T
S
Y
S
CISUMiP
o
d
&
i
P
ho
n
e
DK-CL5P
T
DIMM
E
R
O
I
T
C
N
UF
N
S
E
T
A
L
A
RM
B
-D
N
ATS
/
NOY
PR
ES
ET
iPhone
18
2010 November 11
DK-CL5P_A6 02-27.fm
DK-CL5P
iPod and iPhone
Listening to the iPod or iPhone (continued)
■ Various iPod or iPhone functions
iPod and iPhone operation
The operations described above depend on the generation iPod
and iPhone you are using.
Function Main unit Remote control Operation
Play Press in the
pause mode.
Pause Press in the
playback
mode.
Track
up/down
Press in the
playback or
pause mode.
If you press the
button in the
pause mode,
press the /
button to start
the desired
track.
Fast
forward/
reverse
Press and hold
down in the
playback
mode.
Release the
button to
resume
playback.
TV OUT
Press for more
than 2 seconds
to toggle the
video out
display
between iPod
or iPhone and
TV.
CLOCK MEMORY
CLOCK/MEMORY
CLOCK/MEMORY
CLOCK MEMORY
CLOCK/MEMORY
CLOCK/MEMORY
PRESET TRACK
TUNING
TUNING
PRESET TRACK
TUNING
TUNING
ALARM
DISPLAY
(TV OUT)
(TV OUT)
DISP
DISP
Function Main unit Remote control Operation
Menu
____
Press to view
the iPod and
iPhone menu
during iPod
and iPhone
function.
Enter
____
Press to
confirm the
selection.
Cursor
____
Press to
select iPod
and iPhone
menu.
Repeat
____
Press to
select repeat
mode.
Shuffle
____
Press to turn
on/off shuffle
mode.
MENU
ENTER
PRESET/FOLDER
PRESET/FOLDER
19
2010 November 3
DK-CL5P_A6 02-27.fm
DK-CL5P
USB Memory Playback
Listening to USB mass storage device/SD Card
Note:
This product is not compatible with MTP and AAC file systems
from USB mass storage device or MP3 player.
■ To playback USB/SD Card
Note:
To pause playback:
Press the / button.
Auto power off function:
In the stop mode of USB operation, the main unit enters the
stand-by mode after 15 minute of inactivity.
■ To remove USB memory device
MUSIC SYSTEM FOR iPod & iPhone
DK-CL5P
TUNING
VOLUME
DIMMER
FUNCTION
ALARM RESET
ALARM
ON / STAND-BY
CLOCK / MEMORY
MEMORY
CLOCK
FUNCTION
ALARM RESET
ON / STAND-BY
N
O
I
T
C
N
UF
FU
N
C
T
I
O
N
PRESET TRACK
1 Press the FUNCTION button repeatedly on main unit to select
USB or SD function. Connect the USB memory device or SD
card that has MP3 format files on the unit. When the USB
memory or SD card is connected to the main unit, playback
will start at first track of first supported folder.
2 Press the FOLDER ( or ) button to select desired
playback folder.
3 Select desired file to be played back by pressing the or
button. Playback will start at desired file.
Press DISPLAY button to display track number and folder
number.
1 Press the FUNCTION button to change to other function.
2 Disconnect USB memory device from the USB terminal.
20
2010 November 3
DK-CL5P_A6 02-27.fm
DK-CL5P
USB Memory Playback/Radio
Listening to USB mass storage
device/SD Card (continued)
■ To remove SD card
Notes:
● SHARP will not be held liable for the loss of data whilst the
USB memory device is connected to the audio system.
● Files compressed in MP3 format only can be played back
when connected to the USB or SD card terminal.
● This USB memory’s or SD card format supports FAT 16 or
FAT 32.
● SHARP cannot guarantee that all USB memory devices will
work on this audio system.
● USB cable is not recommended for use in this audio system
to connect to USB memory device. Use of the USB cable will
affect the performance of this audio system.
● This USB memory cannot be operated via USB hub.
● The USB terminal in this unit is not intended for a PC
connection but is used for music streaming with a USB
memory device.
● External HDD-storage cannot be played back via USB
terminal.
● If the data inside the USB memory or SD card is large, it may
take longer time for the data to be read.
● The display will show “no” when not supported device is plug-
in.
Listening to the radio
■ Tuning
1 Press the FUNCTION button to change to other function.
2 Disconnect SD card from the SD card slot.
1 Press the ON/STAND-BY button to turn the power on.
2 Press the FUNCTION button repeatedly to select the
Tuner function.
MUSIC SYSTEM FOR iPod & iPhone
DK-CL5P
TUNING
VOLUME
DIMMER
FUNCTION
ALARM RESET
ALARM
DISPLAY
ON / STAND-BY
CLOCK / MEMORY
TUNING
FUNCTION
ALARM RESET
ON / STAND-BY
N
O
I
T
C
N
UF
FU
N
C
T
I
O
N
PRESET TRACK
21
2010 November 3
DK-CL5P_A6 02-27.fm
DK-CL5P
Radio
Listening to the radio (continued)
Notes:
●
When radio interference occurs, auto scan tuning may stop
automatically at that point.
●
Auto scan tuning will skip weak signal stations.
●
To stop the auto tuning, press the TUNING (
s
or
r
) button again.
Receiving an FM stereo transmission:
● If the FM reception is weak, the reception will auto changes to
monaural, and the sound becomes clearer.
■ Programming a station
You can store 20 FM stations in memory and recall them at the
push of a button. (Preset tuning)
3 Tune to the desired station.
Main Unit
Manual tuning:
Rotate the TUNING (s or r) knob clockwise or counter
clockwise to tune into the desired station.
Remote Control
Manual tuning:
Press the TUNING (s or r) button as many times as
required to tune in to the desired station.
Auto tuning (remote control only):
When the TUNING (s or r) button is pressed for more
than 0.5 seconds, scanning will start automatically and the
tuner will stop at the first receivable broadcast station.
1 Perform steps 1 - 3 in “Tuning” on pages 20 - 21.
2 Press the CLOCK/MEMORY button for more than 2
seconds on the main unit or remote control to enter
the preset tuning saving mode.
3 Within 7 seconds, press the or button on the
main unit or s or r button on the remote control to
select the preset channel number.
Store the stations in memory, in order, starting with preset
channel 1.
4 Within 7 seconds, press the CLOCK/MEMORY button
to store that station in memory.
If the preset number indicators disappear before the
station is programmed, repeat the operation from step 2.
5 Repeat steps 1 - 4 to set other stations, or to change a
preset station.
When a new station is stored in memory, the station
previously programmed for that preset channel number will
be erased.
MON
MON MON
22
2010 November 3
DK-CL5P_A6 02-27.fm
DK-CL5P
Radio/Advanced Features
Listening to the radio (continued)
Note:
The batteries system protects the programmed stations should
there be a power failure or the AC/DC adaptor becomes
disconnected. If the backup batteries are drain off, the
programmed stations will be erased.
■ To recall a programmed station
Alarm and sleep operation
■ Alarm
The unit turns on and play desired source (iPod, iPhone or
TUNER) or Buzzer sound for 1 hour alarm cycle.
Before setting the alarm:
Setting the alarms
In this example, the setting is for ALARM 1. The same method
is used to set for ALARM 2.
Press PRESET/TRACK ( or ) button on main unit
repeatedly or PRESET/FOLDER
(
s
or
r
)
on remote control
repeadtedly to select the desired programmed station.
1 Check that the clock is set to the correct time. (refer page 15)
If it is not set, you cannot use the alarm function.
2 For iPod or iPhone playback: Insert iPod or iPhone to the
unit. (refer page 17)
3 For TUNER: Set preset memory. (refer page 21)
1 In standby mode, press and hold the ALARM 1 button
until the alarm time blinking.
2 Press the ( or ) button to adjust the hour and
press the ALARM 1 button.
Press the ( or ) button once to advance the time by 1
hour. Hold it down to advance continuously. “AM” or “PM”
indicator will interchange after each 12 hour cyclic.
PM
23
2010 November 3
DK-CL5P_A6 02-27.fm
DK-CL5P
Advanced Features
Note:
If wake up source is set to iPod, and iPod is not present, the
alarm source will change to default Buzzer.
■ Activate and deactivate the alarm
Daily Alarm:
● During alarm function, press ALARM RESET button to stop
alarm and it will come again on the next day.
■ Snooze function
Once alarm has started, pressing the SNOOZE/DIMMER button
will stop alarm for 9 minutes.
Once the snooze time has expired, alarm will continue.
The snooze function can be operated during 1 hour alarm cycle.
3 Press the ( or ) button to adjust the minutes and
then press the ALARM 1 button.
Press the ( or ) button once to advance the time by 1
minute. Hold it down to change the time in 5 minutes
interval.
4 Press the ( or ) button to select the day for alarm
and then press the ALARM 1 button.
Weekday : MON - FRI (alarm activate from Monday to
Friday only)
Weekend : SAT - SUN (alarm activate from Saturday to
Sunday only)
Everyday : MON - SUN (alarm activate daily)
5 Press the ( or ) button to select the wake up
source and then press the ALARM 1 button.
Wake up source:
Alarm icon “ ” will light up to indicate alarm setting.
PM
PMPM
iPod BUZZER RADIO
1 Press ALARM 1 or ALARM 2 button once to deactivate
current alarm times and wake up source.
2 Press ALARM 1 or ALARM 2 button again to activate
the alarm function. When the alarm setting time is
activated, alarm icon ( or ) will appear on display.
3 When alarm has started, alarm icon ( or ) will
blinking on the display.
FUNCTION
ALARM RESET
ON / STAND-BY
24
2010 November 3
DK-CL5P_A6 02-27.fm
DK-CL5P
Advanced Features
Alarm and sleep operation (continued)
■ Sleep operation
The unit can be turned off automatically.
To confirm the remaining sleep time:
To cancel the sleep operation:
Press and hold the ON/STAND-BY button while “SLEEP” is
indicated.
To cancel the sleep operation without setting the unit to the
stand-by mode, proceed as follows.
■ To use alarm and sleep operation together
Sleep and alarm:
For example, you the can fall asleep listening to the radio and
wake up to listening to the iPod in the next morning.
1 Playback the desired sound source.
2 Press the SLEEP button on the remote control
repeatedly to select sleep time.
3 After 5 seconds the display
will return to previous mode
and sleep indicator appears.
1 While “SLEEP” is indicated, press the SLEEP button once
to display “XXX”.
“XXX” is sleep remaining time.
● The remaining sleep time is displayed for about 5 seconds.
● You can change the remaining sleep time while it is displayed
by pressing the SLEEP button (step 2).
1 While “SLEEP” is indicated, press the SLEEP button
repeteadly to select “OFF”.
120 90 60
oFF 15 30
1 Set the sleep time (steps 1 - 3, page 24).
2 While the sleep timer is set, set the alarm
(steps 1 - 4, pages 22 - 23).
3 Activate the alarm (page 23).
Alarm start time
Sleep operation will
automatically stop
15 minutes - 2 hours
1 hour
End time
Alarm setting
Sleep timer setting
25
2010 November 3
DK-CL5P_A6 02-27.fm
DK-CL5P
Advanced Features
■ NAP
The main unit will temporarily enters stand-by mode when pressing
NAP button. After nap time, main unit will power on into last function
used.
To confirm the remaining nap time:
To cancel the NAP operation:
Press the ON/STAND-BY button while “ ” is indicated.
Enhancing your system
The auxiliary cable is not included. Purchase a separate
auxiliary cable as shown below.
1 Playback the desired sound source.
2
Press the NAP button on the remote control repeatedly to
select nap time.
Note:
Selecting
“
oFF
”
during NAP setting will activate the last
function.
3 The unit will go to standby mode and NAP indicator ( )
appears on the display.
1 While “ ” is indicated, press the NAP button once to display
“XXX”.
“XXX” is NAP remaining time.
● The remaining NAP time is displayed for about 3 seconds.
● You can change the remaining NAP time while it is displayed
by pressing the NAP button (step 2).
120 90 60 30
oFF 05 10 20
DC IN 8V
AUDIO IN
VIDE O OUT
FM ANTENNA
Portable audio player
Computer
To the line
output jack
Auxiliary cable
(not supplied)
26
2010 November 3
DK-CL5P_A6 02-27.fm
DK-CL5P
Advanced Features/References
Enhancing your system
(continued)
■ Listening to the audio/video sounds from
portable audio player, computer etc.
Note:
To prevent noise interference, place the unit away from the
television and do not make any auxiliary playback, while
listening to the iPod or iPhone.
Troubleshooting chart
Many potential problems can be resolved by the owner without
calling a service technician.
If something is wrong with this product, check the following
before calling your authorized SHARP dealer or service center.
■ General
■ Remote control
1 Use the auxiliary cable to connect the portable audio
player, computer etc. to the AUDIO IN jack.
When using video equipment, connect the audio output to
this unit and the video output to a television.
2 Press the ON/STAND-BY button to turn the power on.
3 Press the FUNCTION button on main unit or remote
control to select Audio In function.
4 Play the connected equipment.
Symptom Possible cause
● The clock is not set to the
correct time.
● Did a power failure occur?
Reset the clock. (Refer to
page 15)
● When a button is
pressed, the unit does
not respond.
● Set the unit to the power
stand-by mode and then turn
it back on.
● If the unit still malfunctions,
reset it.
(Refer to page 28)
● No sound is heard. ● Is the volume level set to “0”?
Symptom Possible cause
● The remote control does
not operate.
● Is the AC/DC adaptor of the
unit plugged in?
● Is the battery polarity
correct?
● Is the battery dead?
● Is the distance or angle
incorrect?
● Does the remote control
sensor receive strong light?
27
2010 November 3
DK-CL5P_A6 02-27.fm
DK-CL5P
References
■ USB/SD
■ Tuner
■ iPod and iPhone
Symptom Possible cause
● Device cannot be
detected.
● Is there any MP3 file
available?
● Is the device properly
connected?
● Is it an MTP device?
● Does the device contain
AAC file only?
● Playback does not start. ● Is it a false MP3 file?
Symptom Possible cause
● The radio makes unusual
noises continuously.
● Is the unit placed near the
TV or computer?
● Is the FM antenna placed
properly? Move the antenna
away from the AC/DC
adaptor if it is located
nearby.
Symptom Possible cause
● No sound is produced.
No image appears on
the TV/monitor.
● The iPod or iPhone unit
software version is not update
to the latest version. Please
visit Apple’s homepage.
● The iPod or iPhone is not
playing.
● The iPod or iPhone is not
properly connected to the unit.
● Is the AC/DC adaptor of the
unit plugged in?
● The video cable is not properly
connected.
● The TV/monitor’s input
selection is not properly set.
● iPod or iPhone will not
charge.
● The iPod or iPhone is not
making full contact with the
connector.
● Is the AC/DC adaptor of the
unit plugged in?
● Using iPod (3
rd
generation).
● The main unit is using
batteries as power supply.
● The iPod or iPhone is not
supported. Refer page 16 for
compatible models.
● “This accessory is not
made to work with
iPhone” or similar
appears on iPhone
screen.
● The iPhone battery is low.
Please charge the iPhone.
● iPhone not properly docked.
28
2010 November 3
DK-CL5P_A6 02-27.fm
DK-CL5P
References
Troubleshooting chart (continued)
■ Condensation
Sudden temperature changes, storage or operation in an
extremely humid environment may cause condensation inside
the cabinet or on the transmitter on the remote control.
Condensation can cause the unit to malfunction. If this happens,
leave the power on until normal playback is possible (about 1
hour). Wipe off any condensation on the transmitter with a soft
cloth before operating the unit.
■ If problem occurs
When this product is subject during operation to strong external
interference (mechanical shock, excessive static electricity,
abnormal supply voltage due to lightning, etc.) or if it is operated
incorrectly, it may malfunction.
If such a problem occurs, do the following:
1 Set the unit to the stand-by mode and turn the power on
again.
2 If the unit is not restored in the previous operation, unplug
and plug in the unit, and then turn the power on.
Note:
If neither operation above restores the unit, remove the backup
batteries.
■ Clearing all the memory (reset)
During standby mode, press and hold SNOOZE/DIMMER
button for 5 seconds. Display will become blank for a while and
main unit will reset.
Caution:
This operation will erase all data stored in memory including
clock, alarm settings and tuner preset.
■ Before transporting the unit
Undock the iPod or iPhone and remove the USB/SD card from
the unit. Then, set the unit to the power standby mode. Carrying
the unit with iPod or iPhone left docked or USB/SD card
unremoved might damage the systems.
Maintenance
■ Cleaning the unit
Periodically wipe the unit with a clean soft cloth.
Caution:
● Do not use chemicals for cleaning (gasoline, paint thinner,
etc.). It may damage the unit finishing.
● Do not apply oil to the inside of the unit. It may cause
malfunctions.
29
2010 November 3
DK-CL5P_A6 02-27.fm
DK-CL5P
References
Specifications
As part of our policy of continuous improvement, SHARP
reserves the right to make design and specification changes for
product improvement without prior notice. The performance
specification figures indicated are nominal values of production
units. There may be some deviations from these values in
individual units.
■ General
■ USB/SD Card
■ Tuner
Power source DC IN 8V 2350mA: AC/DC adaptor
(AC 100 - 240 V ~ 50/60 Hz)
9V
(
UM
-2/
SUM
-2, R14/CC)
x
6
Clock Backup: 3V (UM-3/SUM-3, R6/
AA) x 2
Power
consumption
14 W
Output power Front speakers:
2 watts minimum RMS per channel into
8 ohms from 100 Hz to 20 kHz, 10% total
harmonic distortion.
Speaker 1-way type speaker system
2.5" (6.5 cm) Full Range
Speaker maximum
input power
4 W/Channel
Speaker rated
input power
2 W/Channel
Output terminals Video output: 1Vp-p
Input terminals Auxiliary (audio signal):
500 mV/47 k ohms
Dimensions Width: 11-1/8" (282 mm)
Height: 4-7/16" (113 mm)
Depth: 5-29/32" (150 mm)
Weight 2.29 lbs. (1.04 kg)
USB host interface ● Complies with USB 1.1 (Full Speed)/
2.0 Mass Storage Class.
● Support Bulk only and CBI protocol.
Support file ● MPEG 1 Layer 3
Bitrate support ● MP3 (32 ~ 320 kbps)
Other ● Maximum total number of MP3 files is
999.
● Maximum total number of folders is
255 INCLUSIVE of root directory.
File system
support
● Support USB devices with Microsoft
Windows/DOS/FAT 12/FAT 16/ FAT
32.
● 2 kbyte block length for sector.
Frequency range FM: 87.5 - 108.0 MHz
MEMO
MEMO
SHARP ELECTRONICS CORPORATION
Sharp Plaza, Mahwah, New Jersey 07495 - 1163
Printed in China
10K R KI 1
CONSUMER LIMITED WARRANTY
SHARP ELECTRONICS CORPORATION warrants to the first consumer purchaser that this Sharp brand product (the “Product”), when ship
in its original container,
will be free from defective workmanship and materials, and agrees that it will, at its option, either repair the defect or replace the defective Product or part
thereof with a
new or remanufactured equivalent at no charge to the purchaser for parts or labor for the period(s) set forth below.
This warranty does not apply to any appearance items of the Product nor to the additional excluded item(s) set forth below nor
to any Product the exterior of which has
been damaged or defaced, which has been subjected to improper voltage or other misuse, abnormal service or handling, or which has been altered or modified in
design or construction.
In order to enforce the rights under this limited warranty, the purchaser should follow the steps set forth below and provide p
roof of purchase to the servicer.
The limited warranty described herein is in addition to whatever implied warranties may be granted to purchasers by law. ALL IM
PLIED WARRANTIES INCLUDING
THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR USE ARE LIMITED TO THE PERIOD(S) FROM THE DATE OF PURCHASE SET FORTH BELOW
.
Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.
Neither the sales personnel of the seller nor any other person is authorized to make any warranties other than those described
herein, or to extend the duration of any
warranties beyond the time period described herein on behalf of Sharp.
The warranties described herein shall be the sole and exclusive warranties granted by Sharp and shall be the sole and exclusive remedy available to the purchaser.
Correction of defects, in the manner and for the period of time described herein, shall constitute complete fulfillment of all liabilities and responsibilities of Sharp to the
purchaser with respect to the Product, and shall constitute full satisfaction of all claims, whether based on contract, neglige
nce, strict liability or otherwise. In no event
shall Sharp be liable, or in any way responsible, for any damages or defects in the Product which were caused by repairs or attempted repairs performed by anyone
other than an authorized servicer. Nor shall Sharp be liable or in any way responsible for any incidental or consequential econ
omic or property damage. Some states
do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.
Model Specific Section
Y
our Product Model Number & Description:
(Be sure to have this information available when you need service for your Product.)
Warranty Period for this Product:
One (1) year parts and labor from the date of purchase.
Additional Item(s) Excluded from W
arranty Coverage (if any): Non-functional accessories, supplies, and consumable items.
Where to Obtain Service:
At a Sharp Authorized Servicer located in the United States.
To find a location of the nearest Sharp Authorized Servicer, call Sharp toll free at 1-800-BE-SHARP.
What to do to Obtain Service:
Ship your Product prepaid to a Sharp Authorized Servicer.
Be sure to have Proof of Purchase
available. If you ship the Product, be sure it is insured and
packaged securely.
TO OBTAIN SUPPLY, ACCESSORY OR PRODUCT INFORMATION, CALL 1-800-BE-SHARP.
DK-CL5P MUSIC SYSTEM FOR iPod & iPhone
92L87500034101
