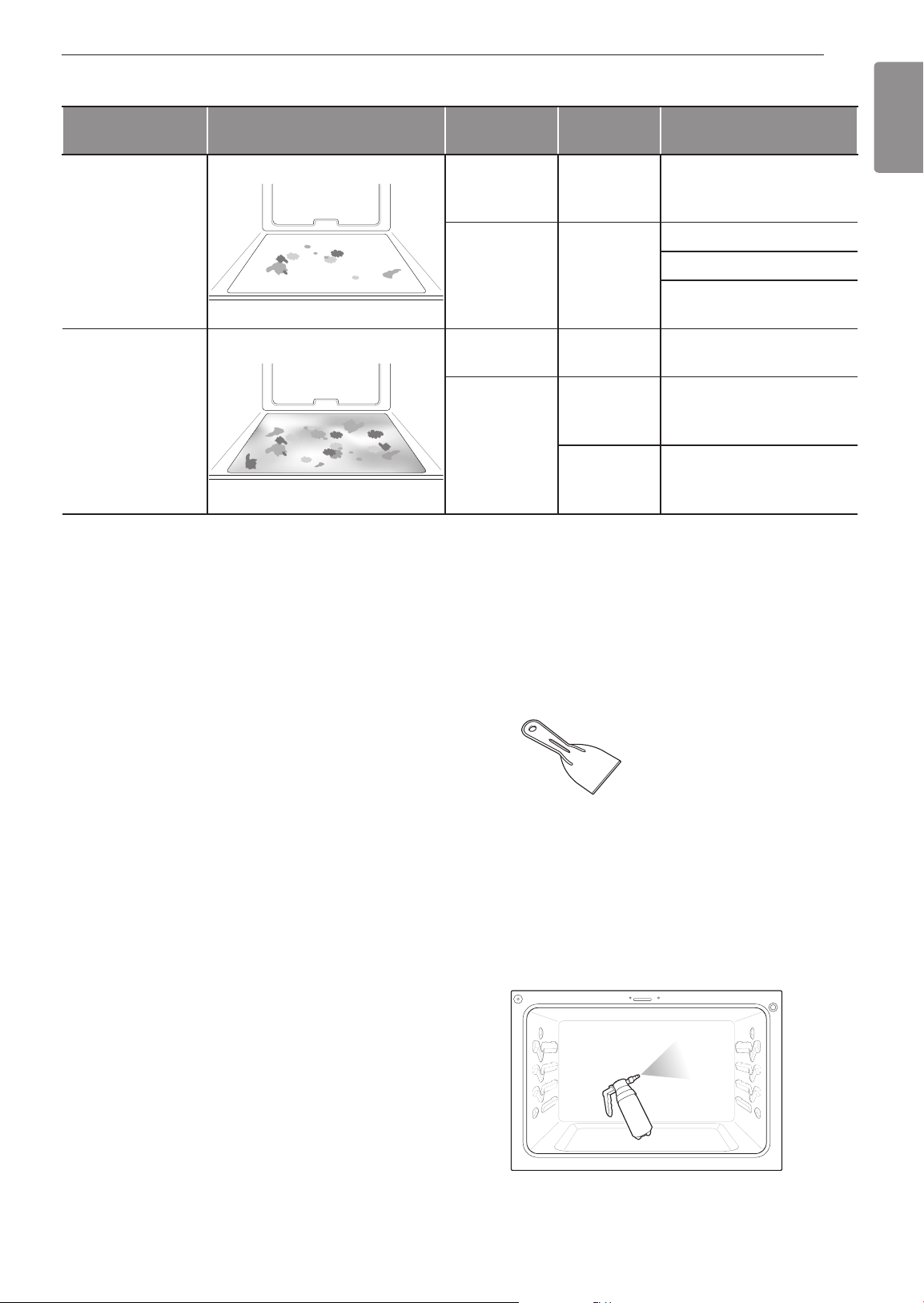

User Manual LG Electronics LDE4415BD 7.3 cu. ft. Electric Double Oven Range

• Owner's manual - (English)

• Dimension Guide - (English)

User manual Range for LG Electronics LDE4415BD

Table of contents

• IMPORTANT SAFETY
• INSTRUCTIONS

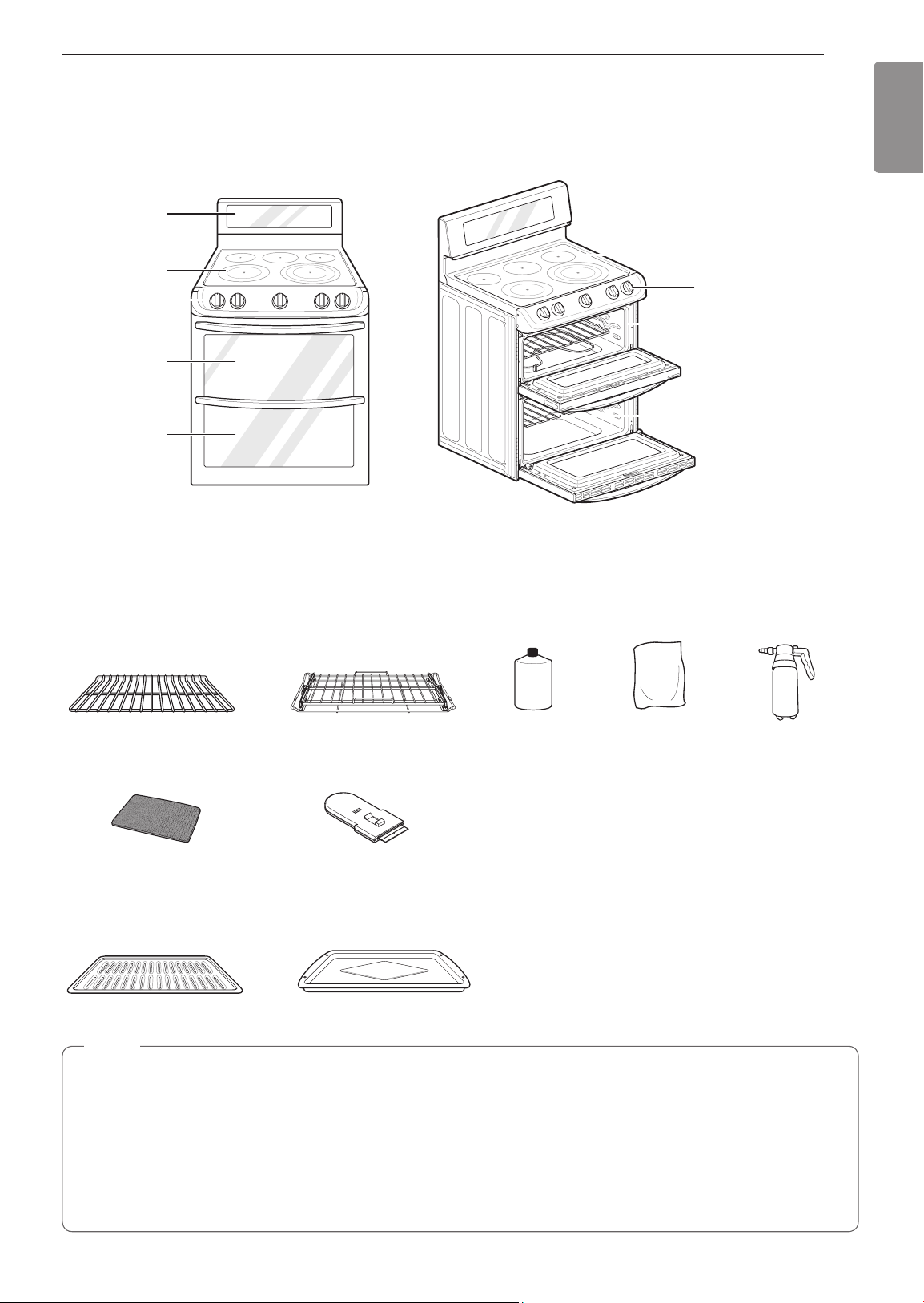

• PRODUCT OVERVIEW
• INSTALLATION
• OPERATION

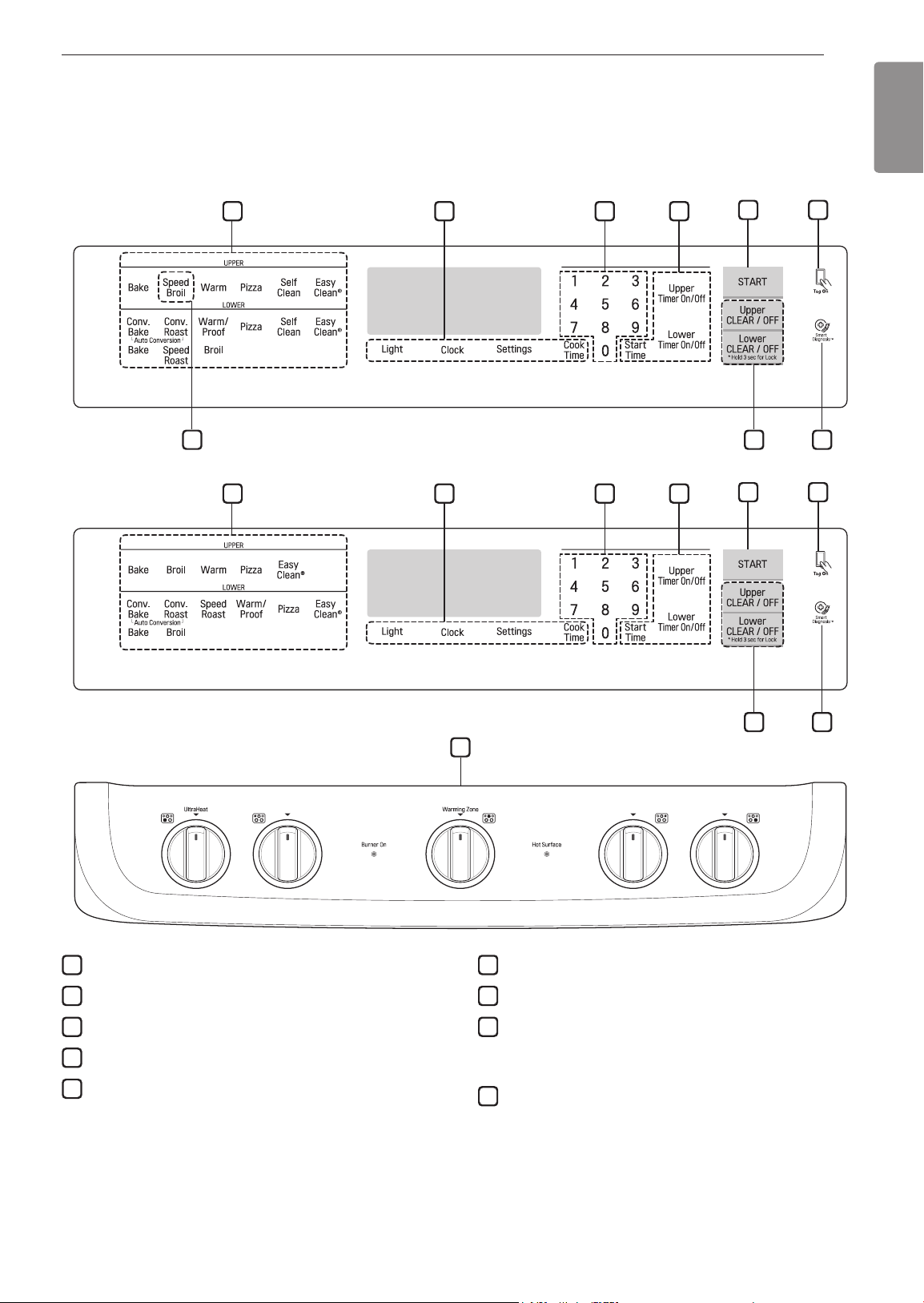

• Control Panel Overview

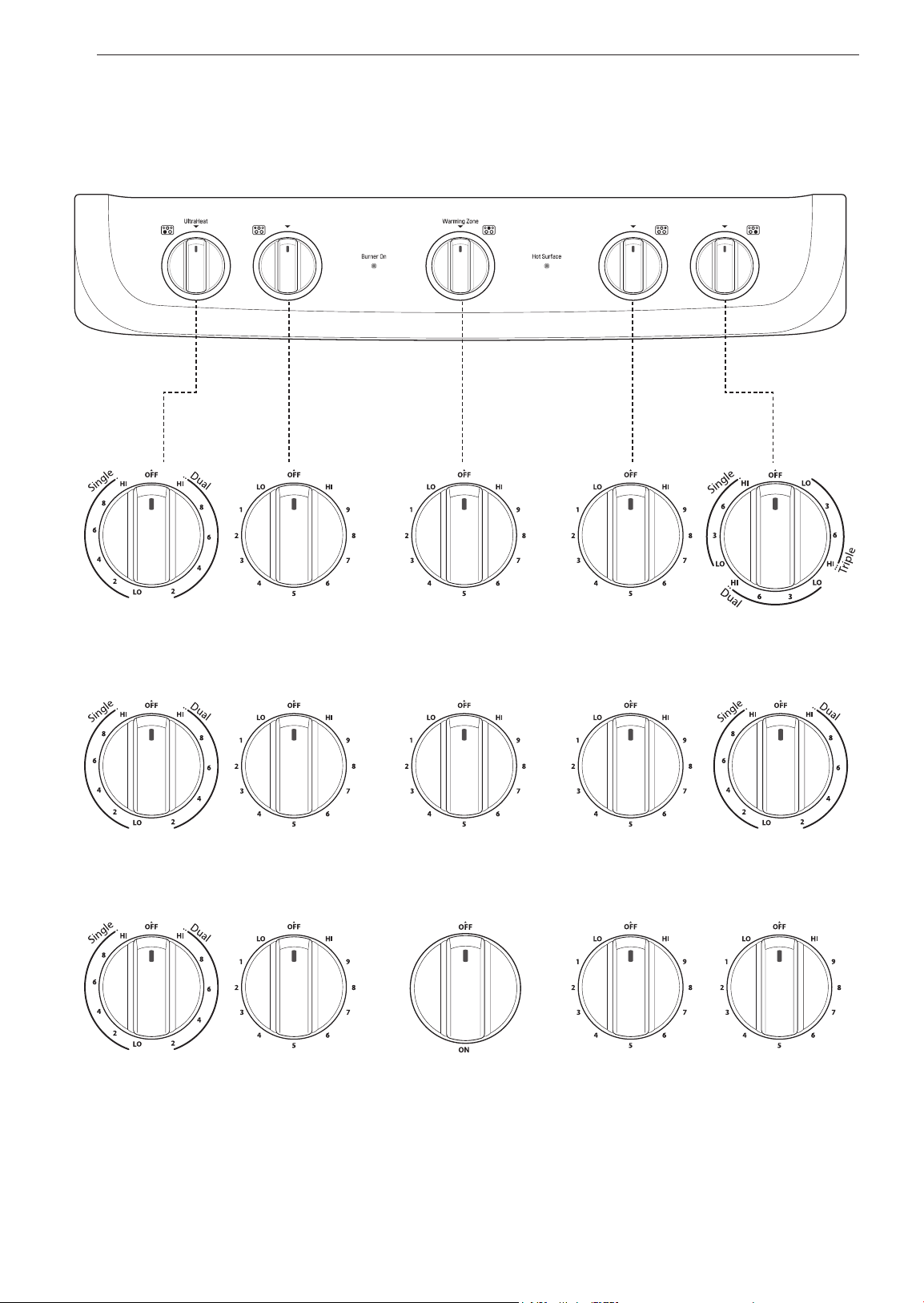

• Knob Position
• Setting Convection Auto Conversion
• Adjusting the Oven Temperature
• Turning the Preheat Alarm Light On/Off
• Adjusting the Beeper Volume
• Adjusting Cooktop On alert Volume
• Selecting Fahrenheit or Celsius
• Lockout
• Start Time (Delayed Timed Cook)
• Cook Time (Timed Cook)

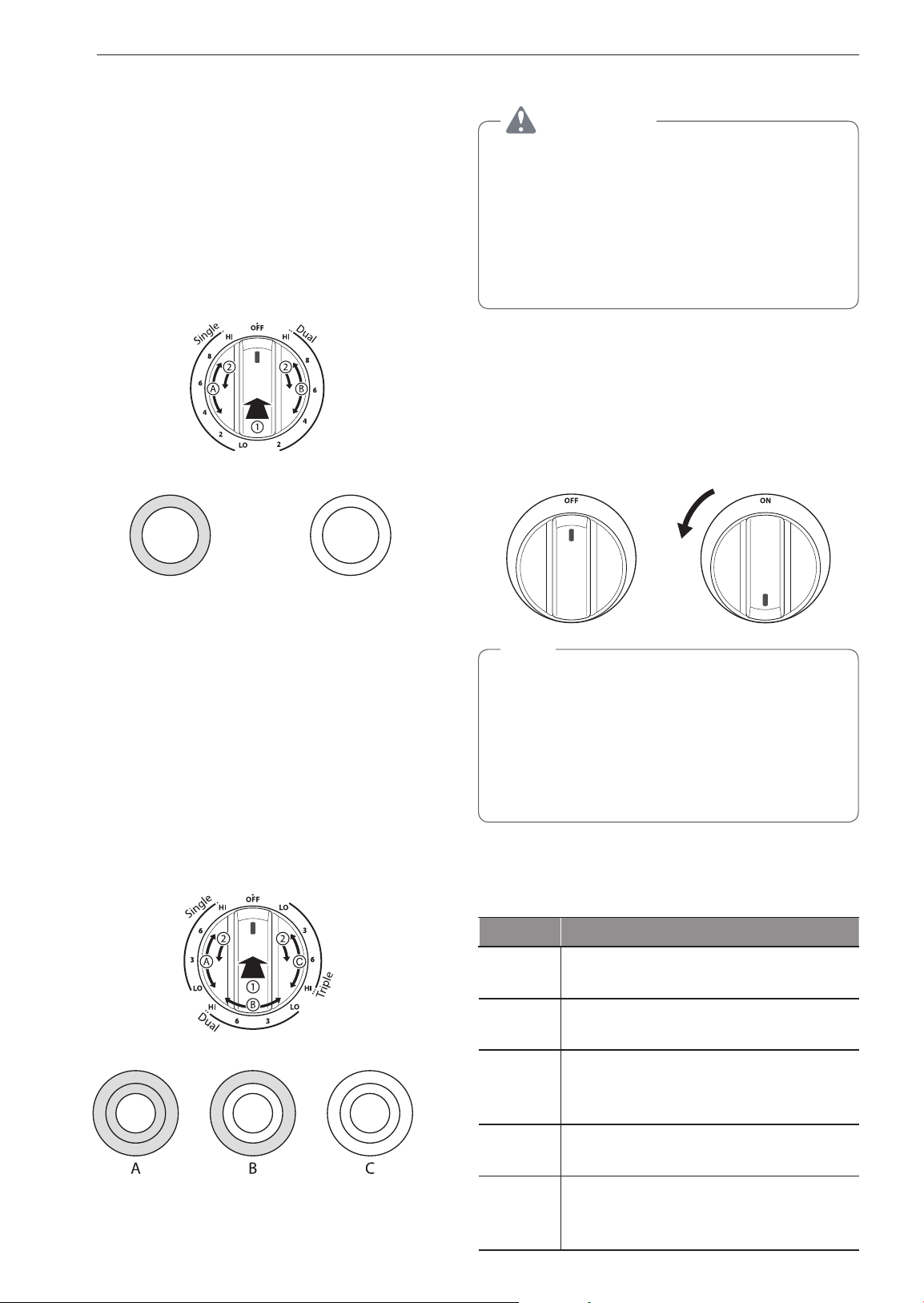

• Using the Cooktop

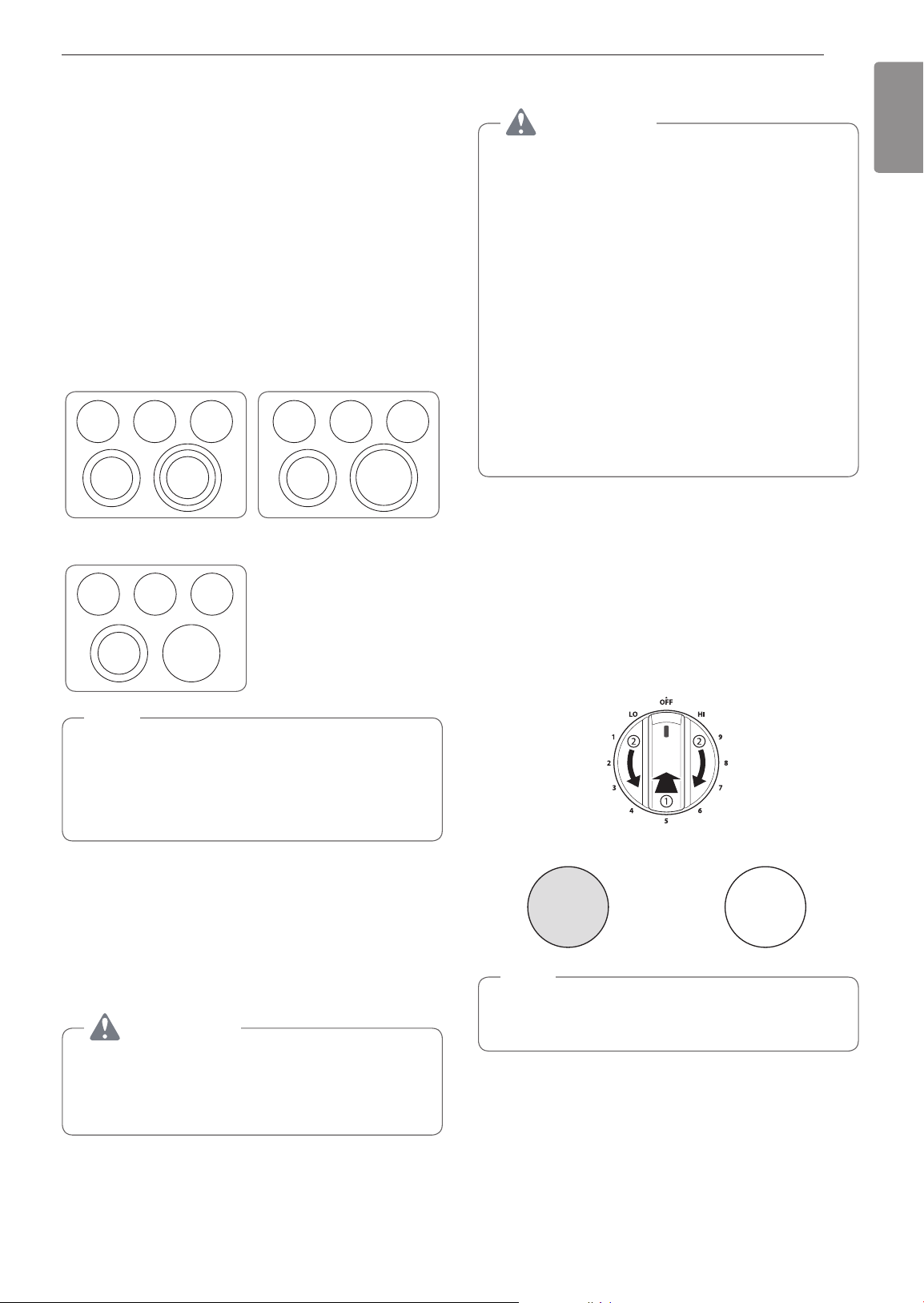

• Cooking Areas
• Hot Surface Indicator
• Using the Cooktop Elements
• The Recommended Surface Cooking
• Setting
• Using the Proper Cookware
• Choosing Cookware
• TROUBLESHOOTING

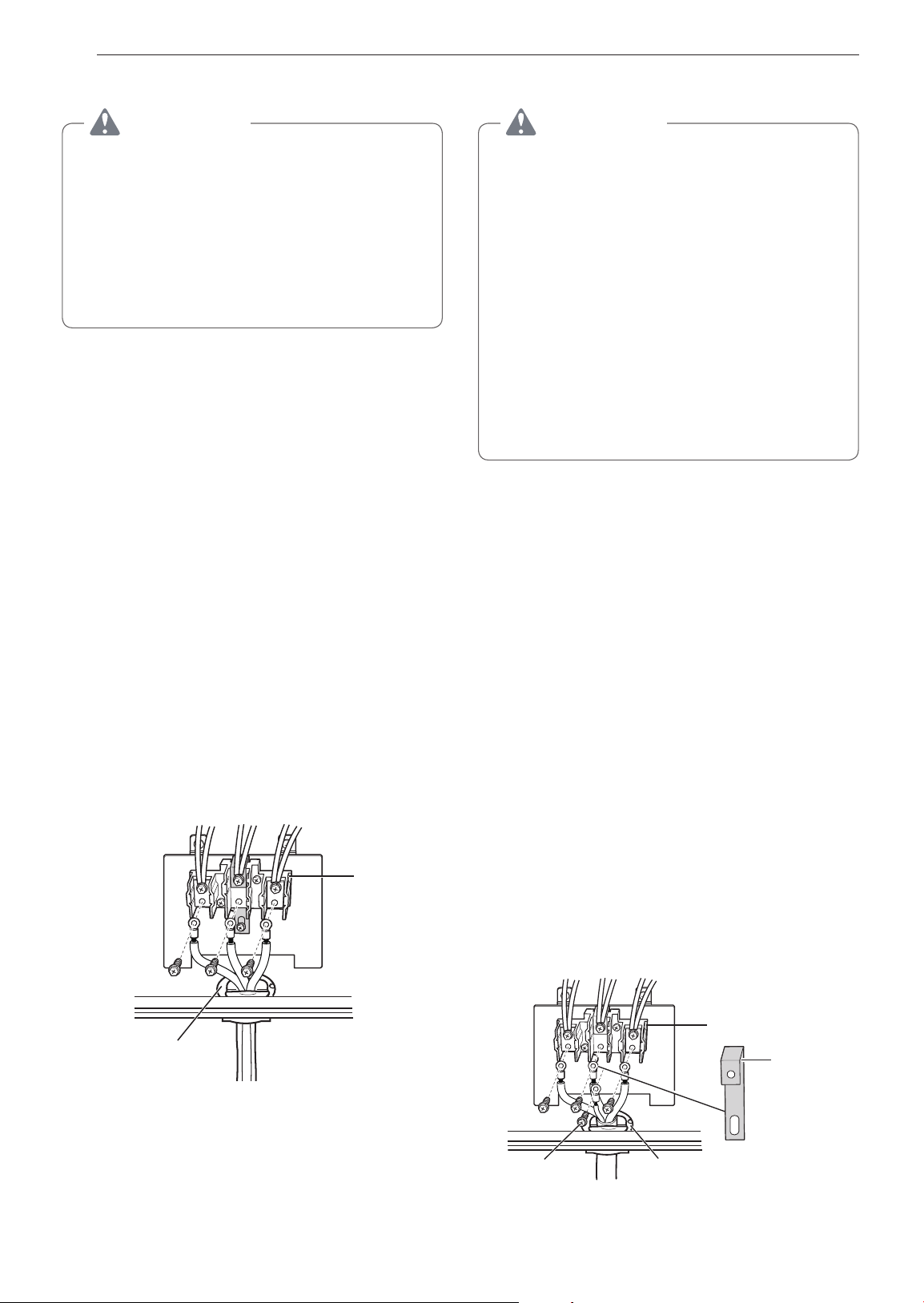

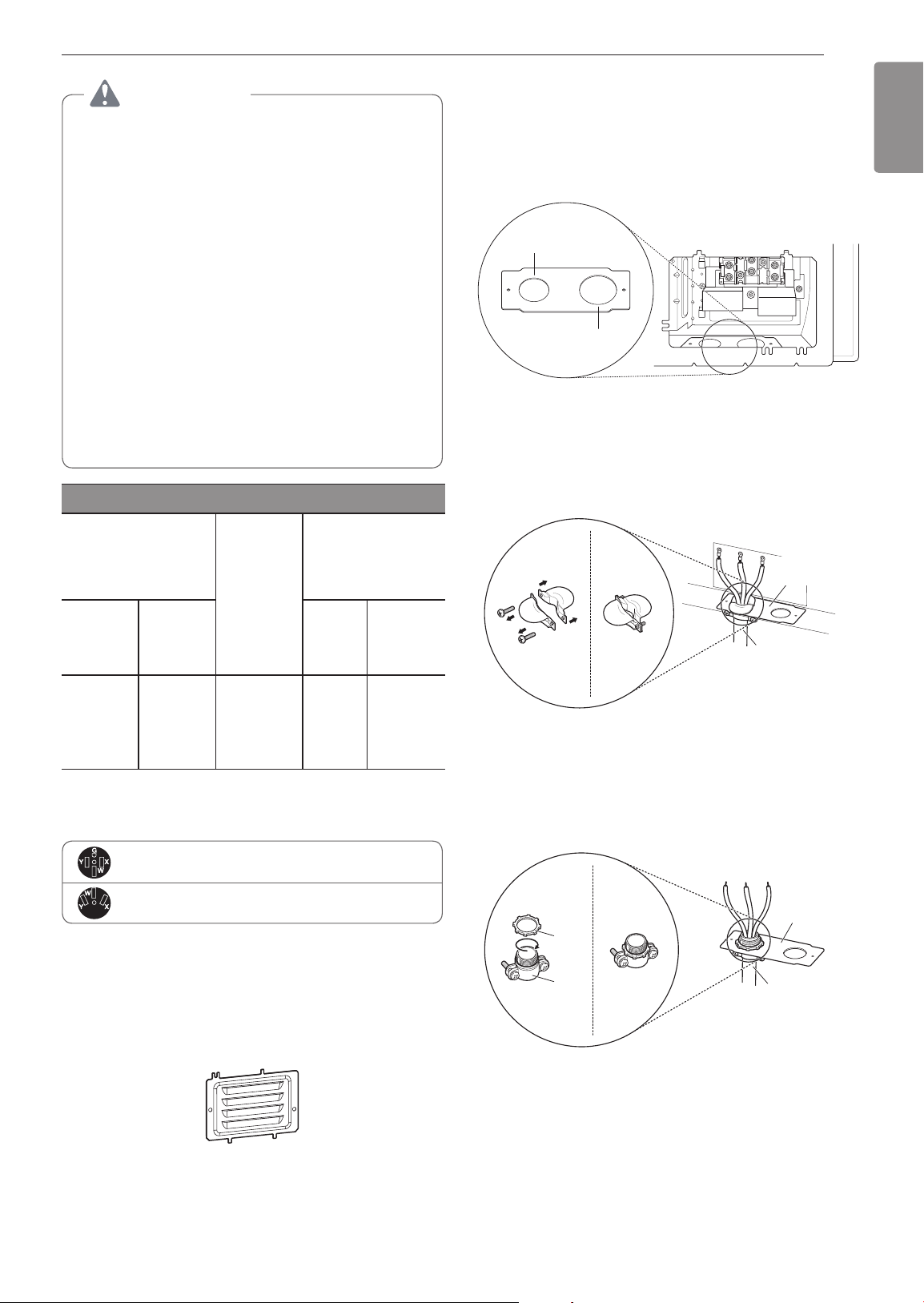

Electrical Requirements

• This appliance must be installed and grounded on a branch circuit by a qualified technician in accordance with the National Electrical code ANSI/NFPA NO. 70 - latest edition.
• All wiring should conform to Local and NEC codes. This range requires a single-phase, 3 wire, A.C 120/208 V or 120/240 V 60 Hz electrical system. Use only a 3-conductor or a 4-conductor UL- listed range cord with closed-loop terminals, open-end spade lugs with upturned ends or similar termination. Do not install the power cord without a strain relief.
• A range cord rated at 40 amps with 120/208 or 120/240 minimum volt range is required. If a 50 amp range cord is used, it should be marked for use with 13/8" diameter connection openings. This appliance may be connected by means of a conduit or power cord. If a conduit is being used, go to page 17 for 3 wire conduit connections or 4 wire conduit connections.

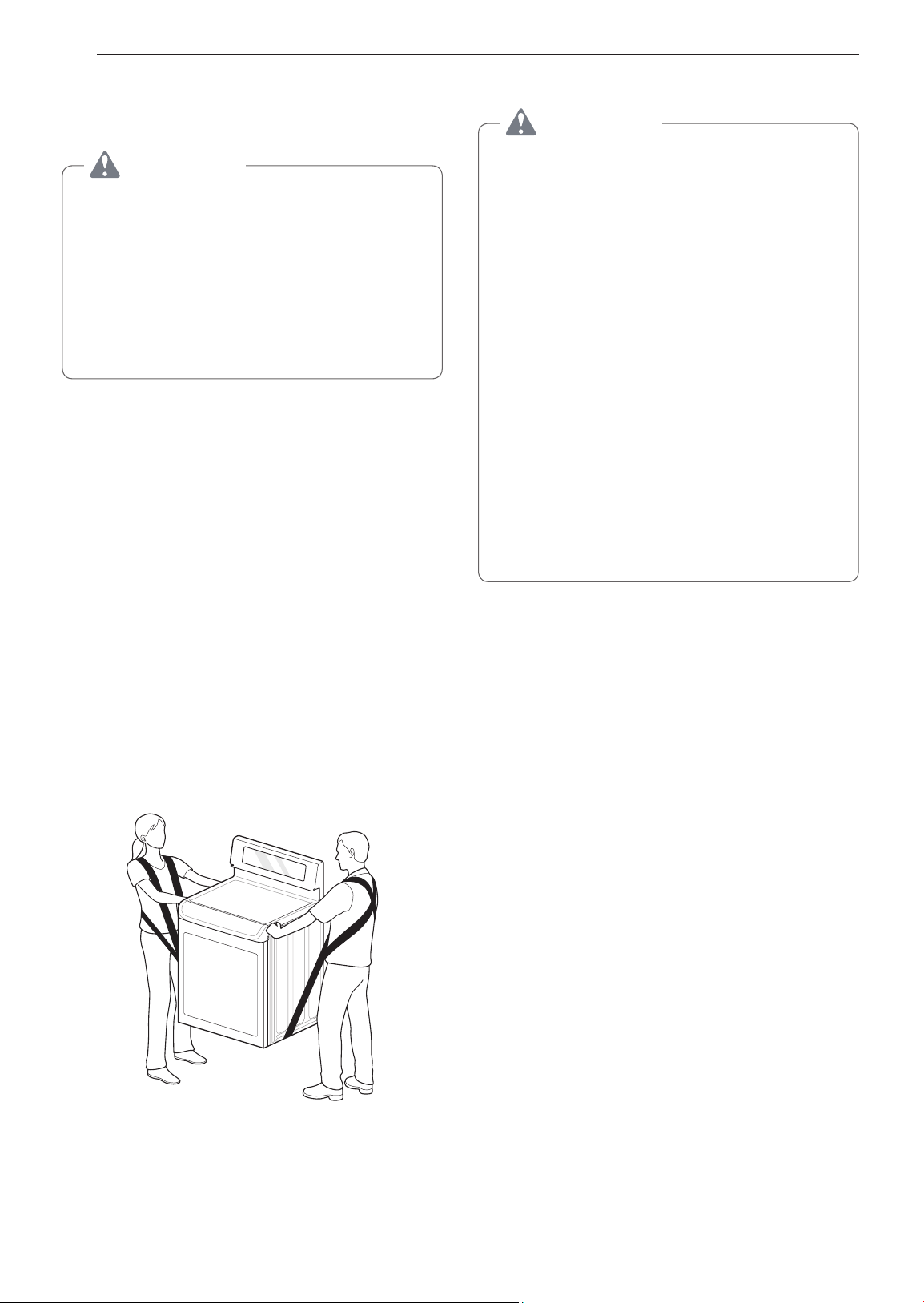

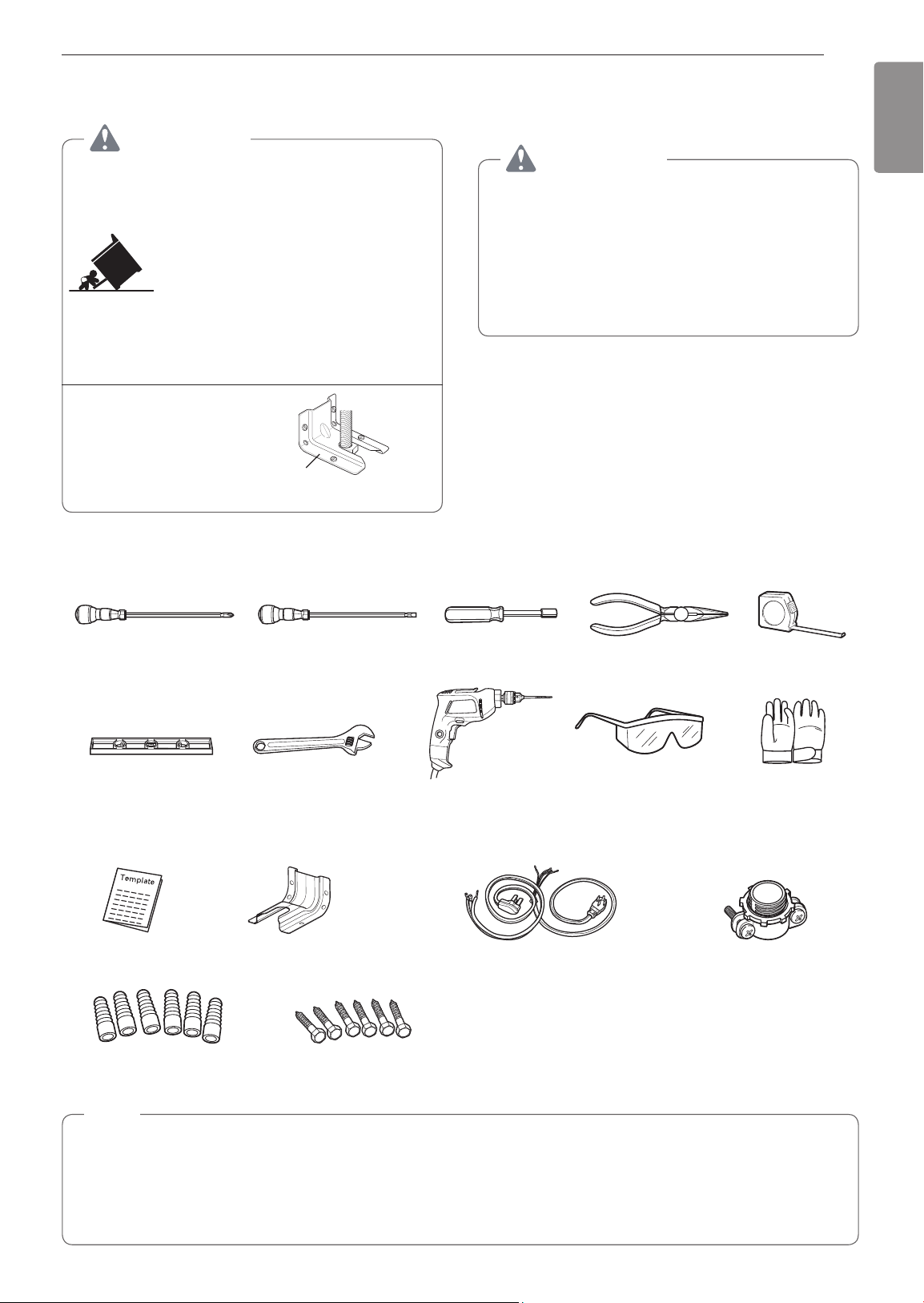

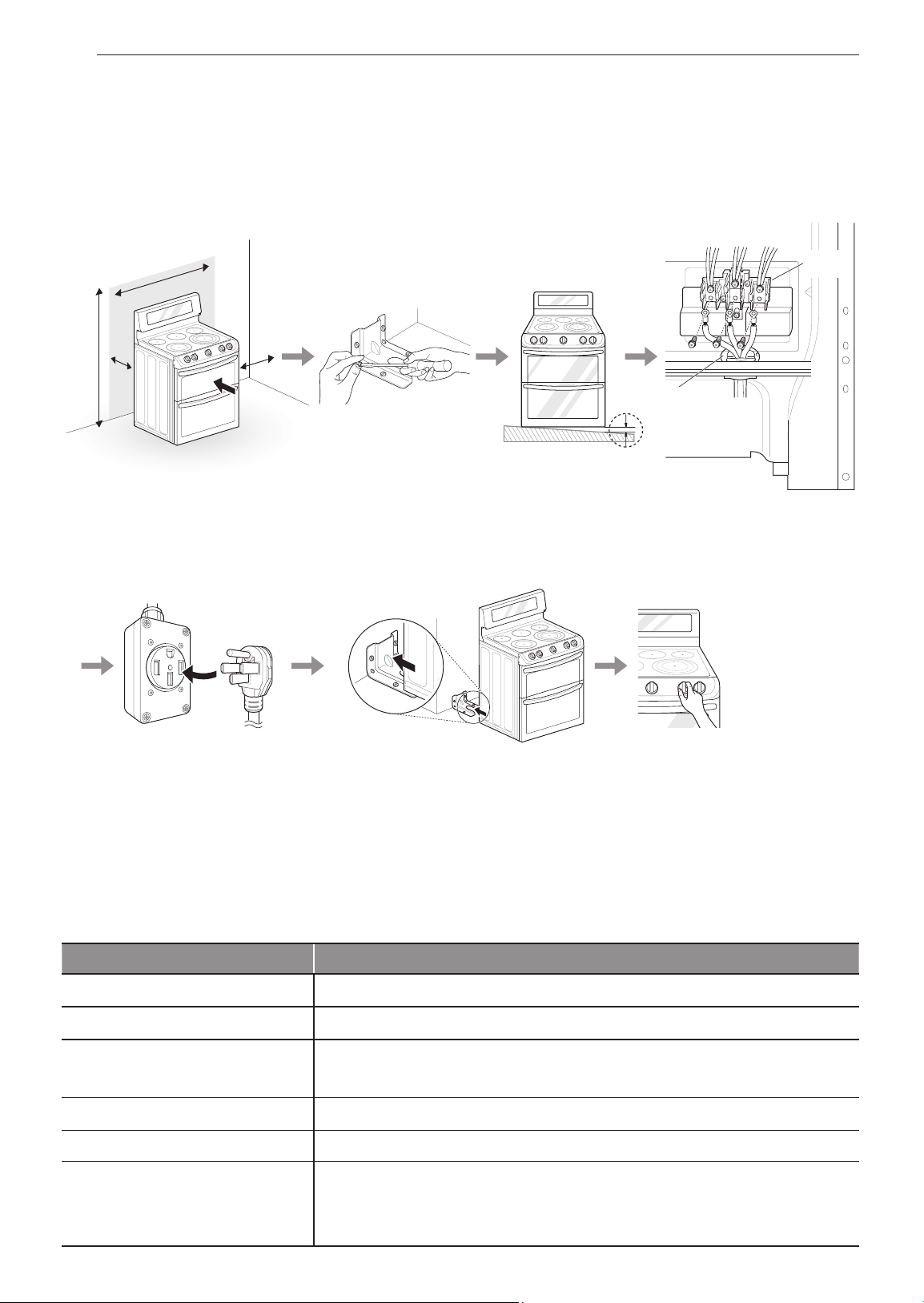

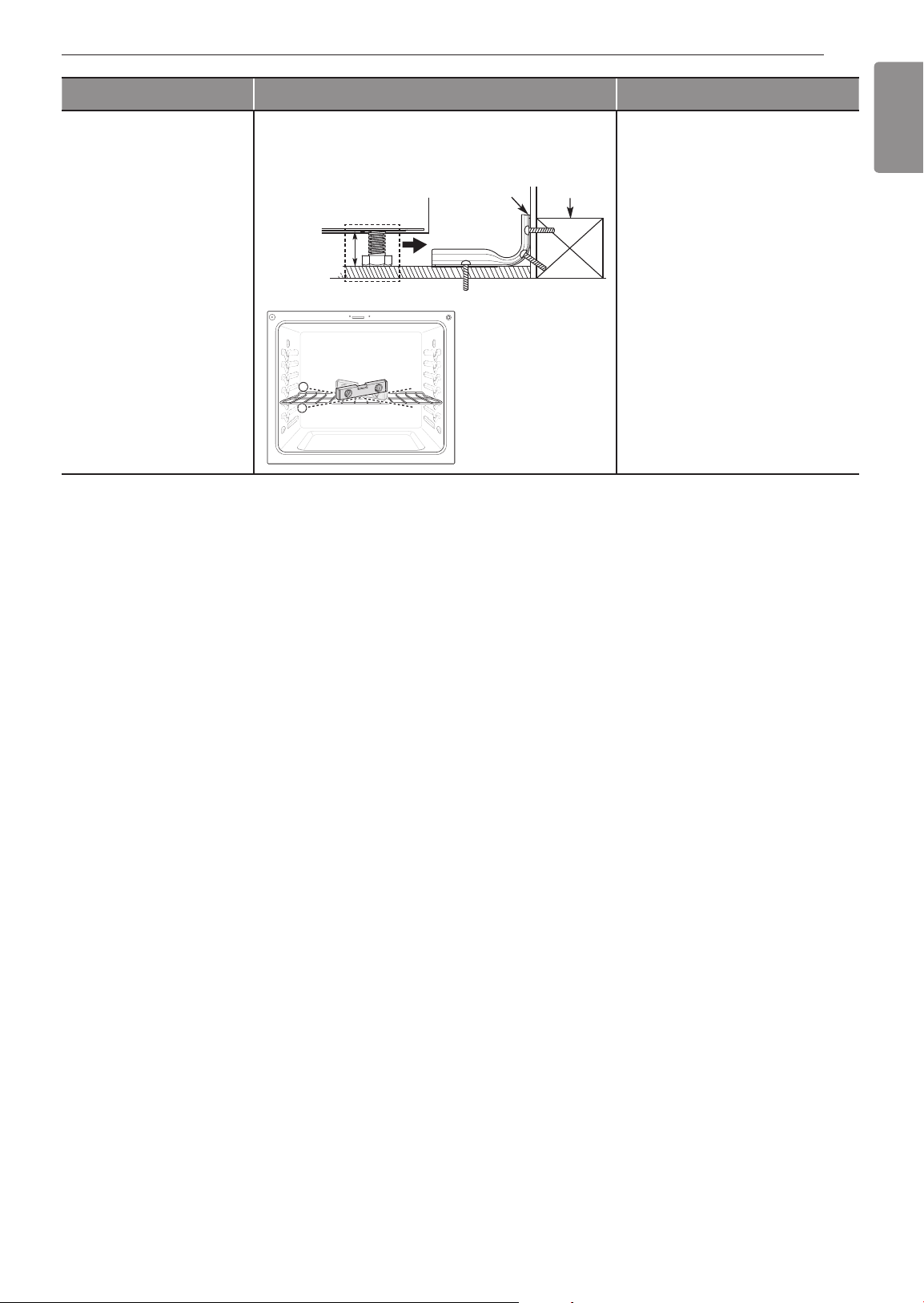

Engaging the Anti-tip Device

• Move the range close enough to the opening to plug into the receptacle.
• Slide the range into position ensuring that the back leg slides under the anti-tip bracket. The range should sit flush against the back wall when properly installed.

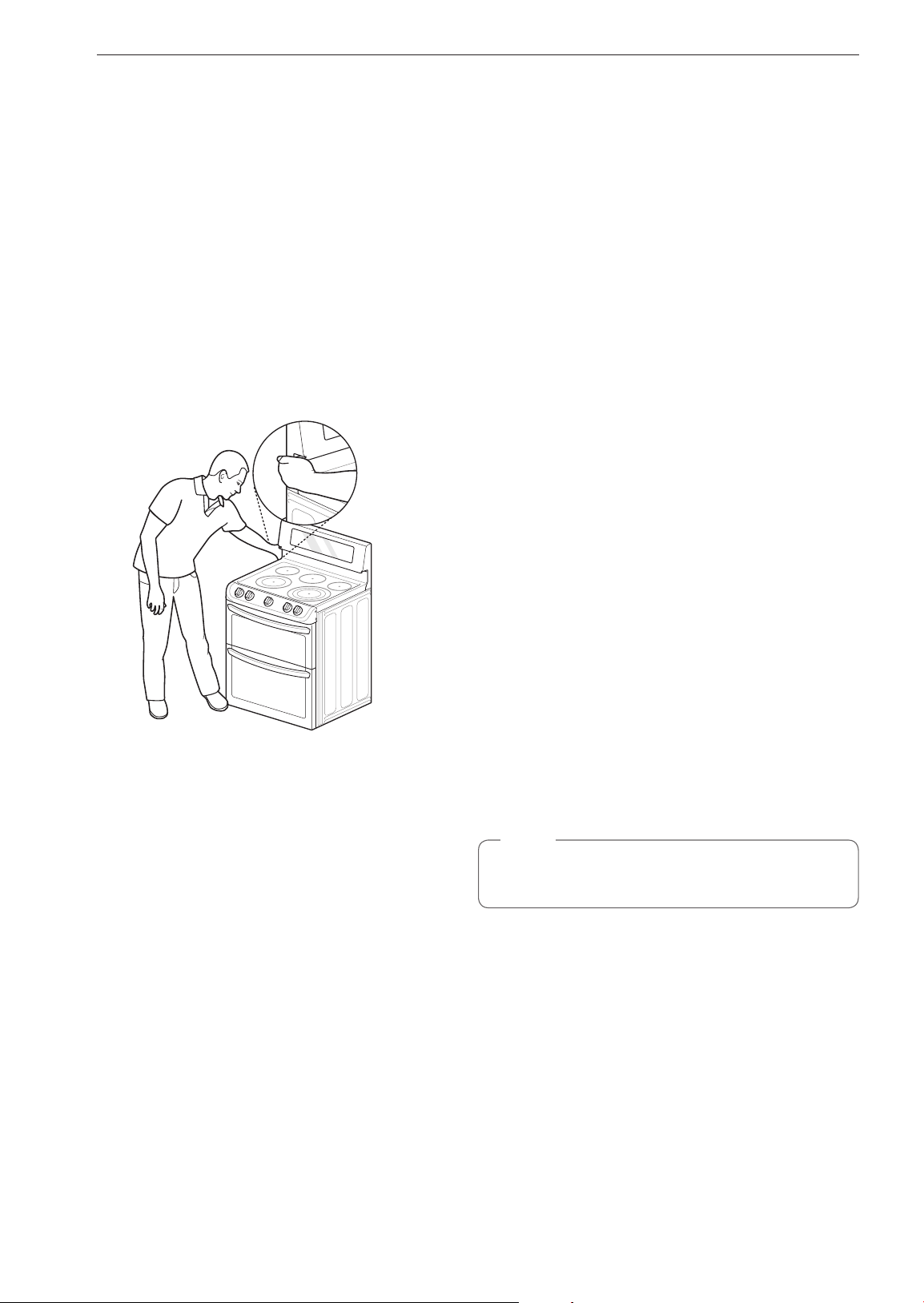

• Carefully attempt to tip the range forward to ensure that the anti-tip bracket is engaged properly. If properly installed, the anti-tip bracket will prevent the range from being tipped. If the range can be tipped, reinstall the range until the anti-tip bracket is properly installed and the range will not tip forward.
• Turn on electrical power. Check the range for proper operation.

Clock

The clock must be set to the correct time of day in order for the automatic oven timing functions to work properly.

• Touch Clock.
• Touch the numbers to enter the time. For example, to set the clock for 10:30, touch the numbers: 1, 0, 3 and 0.
• Touch Start.

Settings

Touch the Settings key repeatedly to toggle through and change oven settings.

The Settings key allows you to:

• set the hour mode on the clock (12 or 24 hours)
• enable/disable convection auto conversion
• adjust the oven temperature
• activate/deactivate the preheating alarm light
• set the beeper volume
• switch the temperature scale between Fahrenheit and Celsius

Setting Convection Auto Conversion

When Conv. Bake and Conv. Roast are selected,

Convection Auto Conversion automatically converts the standard recipe temperature entered to a convection temperature by subtracting 25 °F / 14 °C. This auto-converted temperature shows on the display. For example, select Conv. Bake, enter 350 °F, and 325 °F shows on the display after preheat.

Convection Auto Conversion is enabled by default. To change the setting, follow these instructions.

• Touch Settings repeatedly until Auto appears in the display.
• Touch 1 to disable or enable auto conversion.
• Touch Start to accept the change.
