Page:
1
User Manual:
Model Code/s:
ETLW7
Product:
7kg Top
Load Washing
Machine
Document:
User Manual
Dear Customer, Congratulations on purchasing your washing
machine. The Esatto brand is proudly distributed
within Australia by Residentia Group Pty Ltd.
Please refer to the warranty card at the rear of this
manual for information regarding your product’s
parts and labour warranty, or visit us online at
www.residentiagroup.com.au.
At Residentia Group, we are customer obsessed
and our Support Team are there to ensure you get
the most out of your appliance. Should you want
to learn more about your washing machine such
as the various washing modes or importantly taking
care of the appliance, our Support Team are here
to help.
You can use our online Support Centre at anytime
by visiting http://support.residentiagroup.com.au,
or you can contact us via phone by dialling:
1300 11 HELP (4357).
It is important that you read through the following
use and care manual thoroughly to familiarise
yourself with the installation and operation
requirements of your appliance to ensure optimum
performance.
Again, thank you for choosing an Esatto appliance
and we look forward to being of service to you.
Kind Regards,
The Residentia Team
T 1300 11 4357
E info@residentiagroup.com.au
W residentiagroup.com.au
ACN
600 546 656
Residentia Group
PO Box 581
Stanhope Gardens
NSW A
ustralia 2768
Page:
3
User Manual:
Contents: Page:
Safety instructions 4
Installation Instructions 8
Washing Preperation 10
Parts List 11
Operating Your Washer 12
Quick Start 14
The Main Wash 15
Special Features 16
Full Automatic Wash Programs 18
Cleaning & Maintenance 20
Troubleshooting 21
Technical Specications 23
Warranty information 24
Notes 26
Page:
4
User Manual:

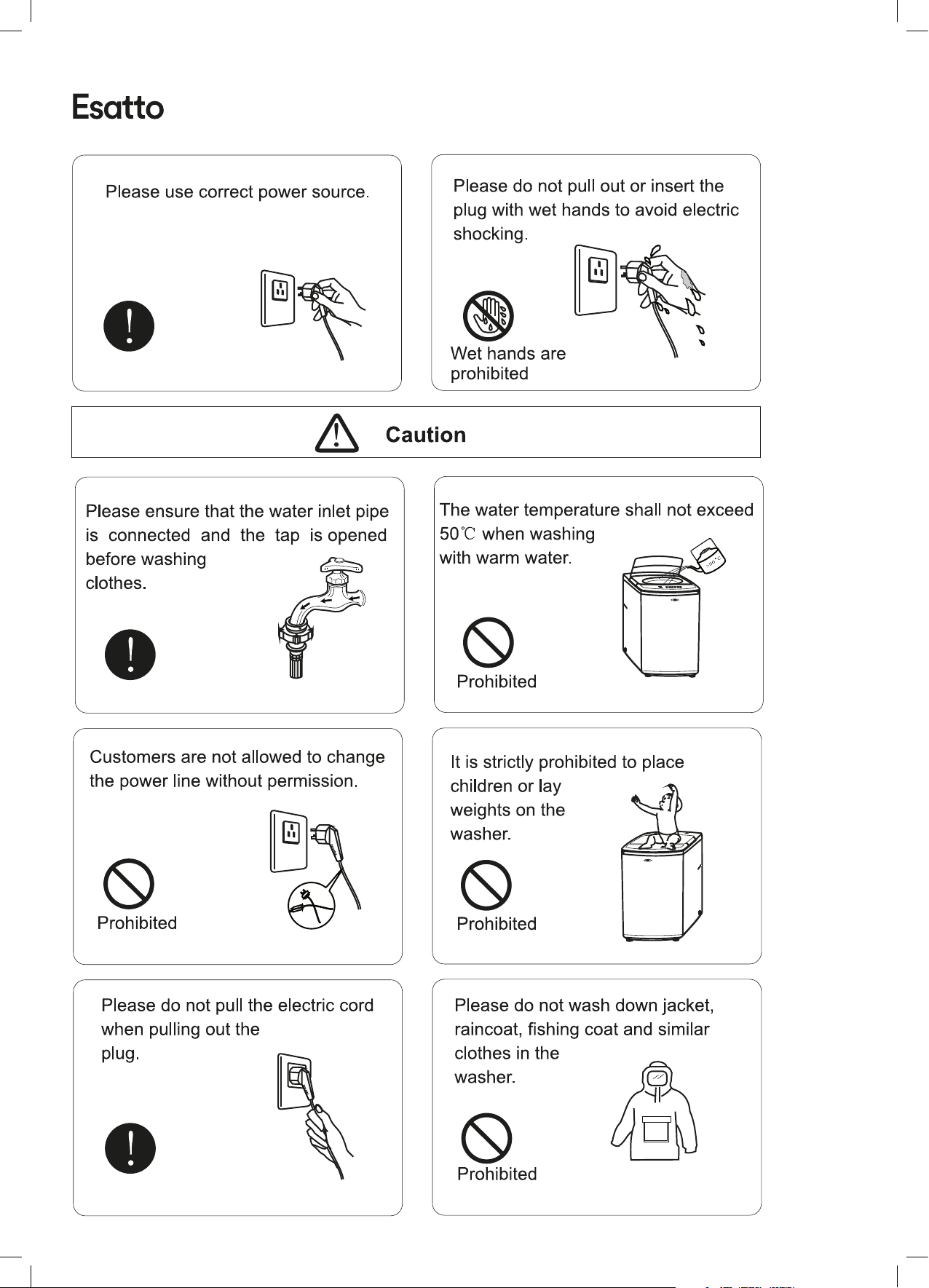

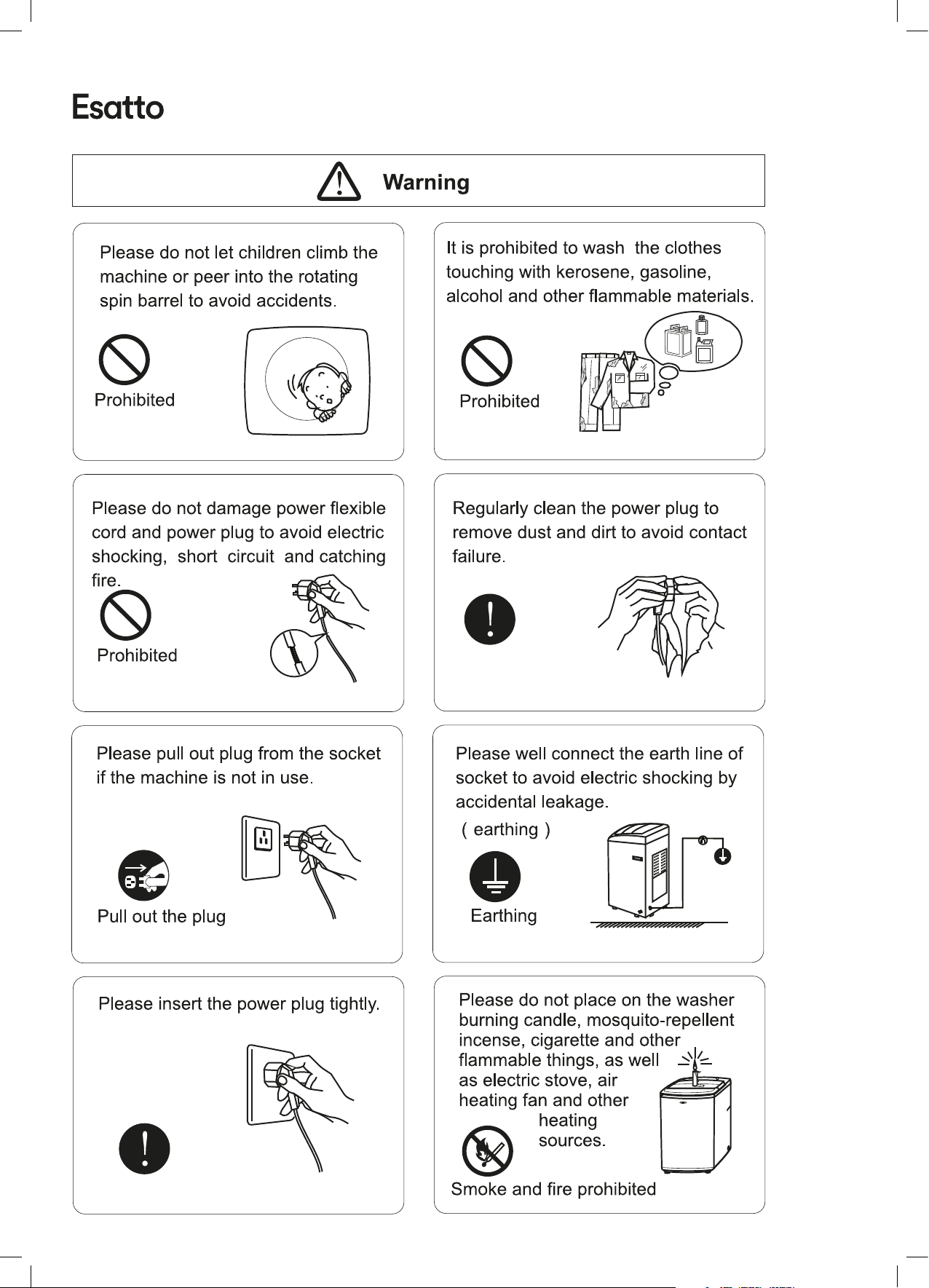

Safety Instructions
→ This appliance is only intended for use within the interior of a domestic
environment.
→ This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
→ Children should be supervised to ensure that they do not play with the
appliance.
→ Never insert your hands, or try to remove clothes from inside the washing
machine, until the drum has completely stopped spinning.
UNPACKING
→ During transportation, protective packaging was used to protect
the appliance against any damage. After unpacking, please dispose
of all elements of packaging in a way that will not cause damage to
the environment. All materials used for packaging the appliance are
environmentally friendly; they are 100% recyclable and are marked with
the appropriate symbol.
Caution! During unpacking, the packaging materials (polythene
bags, polystyrene pieces, etc.) should be kept out of reach
of children.
DISPOSAL OF THE APPLIANCE
→ Old appliances should not simply be disposed of with normal household
waste, but should be delivered to a collection and recycling centre for
electric and electronic equipment. A symbol shown on the product, the
instruction manual or the packaging shows that it is suitable for recycling.
→ Materials used inside the appliance are recyclable and are labeled with
information concerning this. By recycling materials or other parts from
used devices you are making a signicant contribution to the protection
of our environment.
→ Information on appropriate disposal centres for used devices can be
provided by your local authority.
Page:
5
User Manual:
Page:
6
User Manual:
Page:
7
User Manual:
Page:
8
User Manual:
Installation Instructions
Page:
9
User Manual:
Page:
10
User Manual:
Washing Preparation
Page:
11
User Manual:

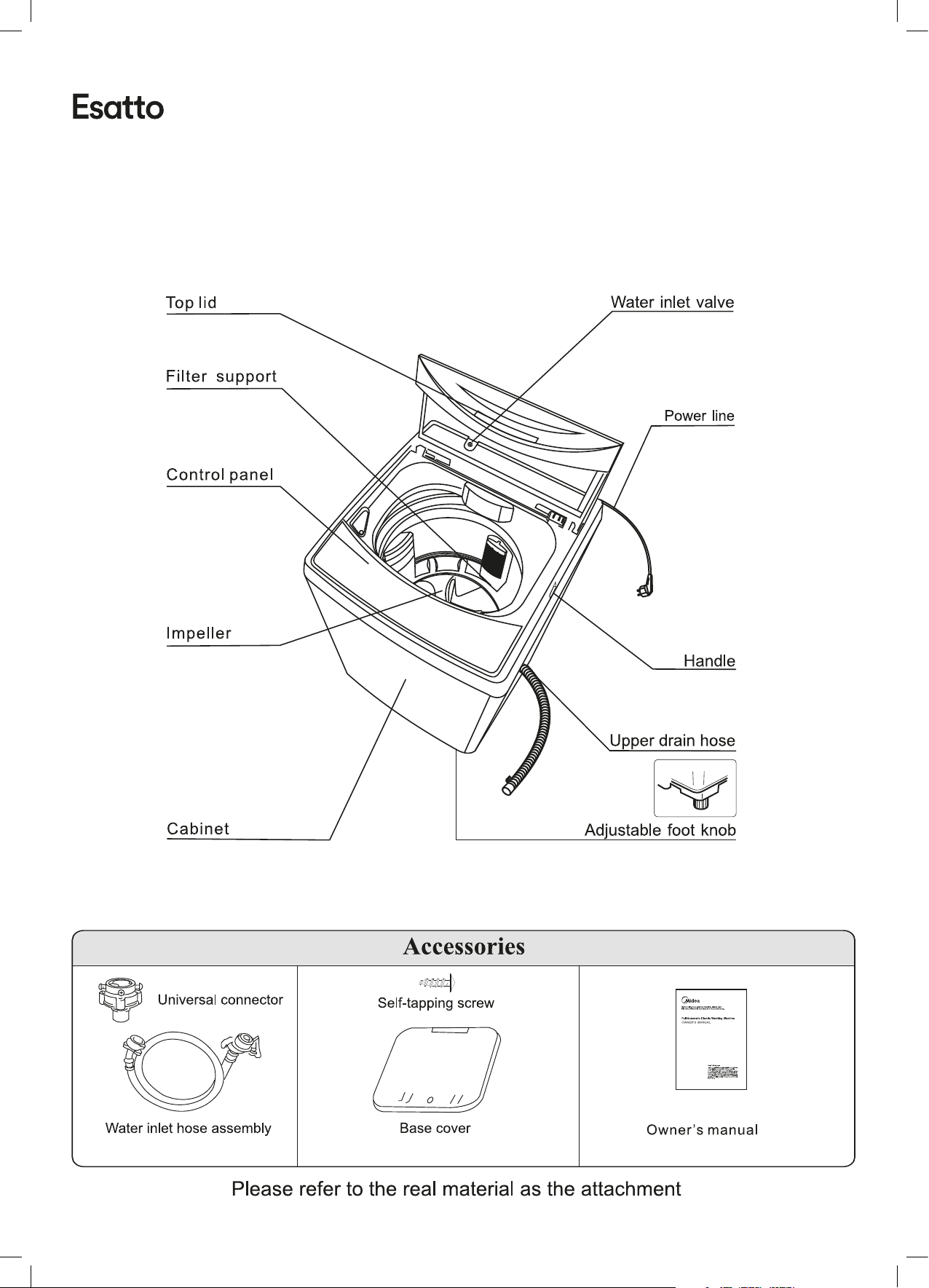

Parts List
Page:
12
User Manual:

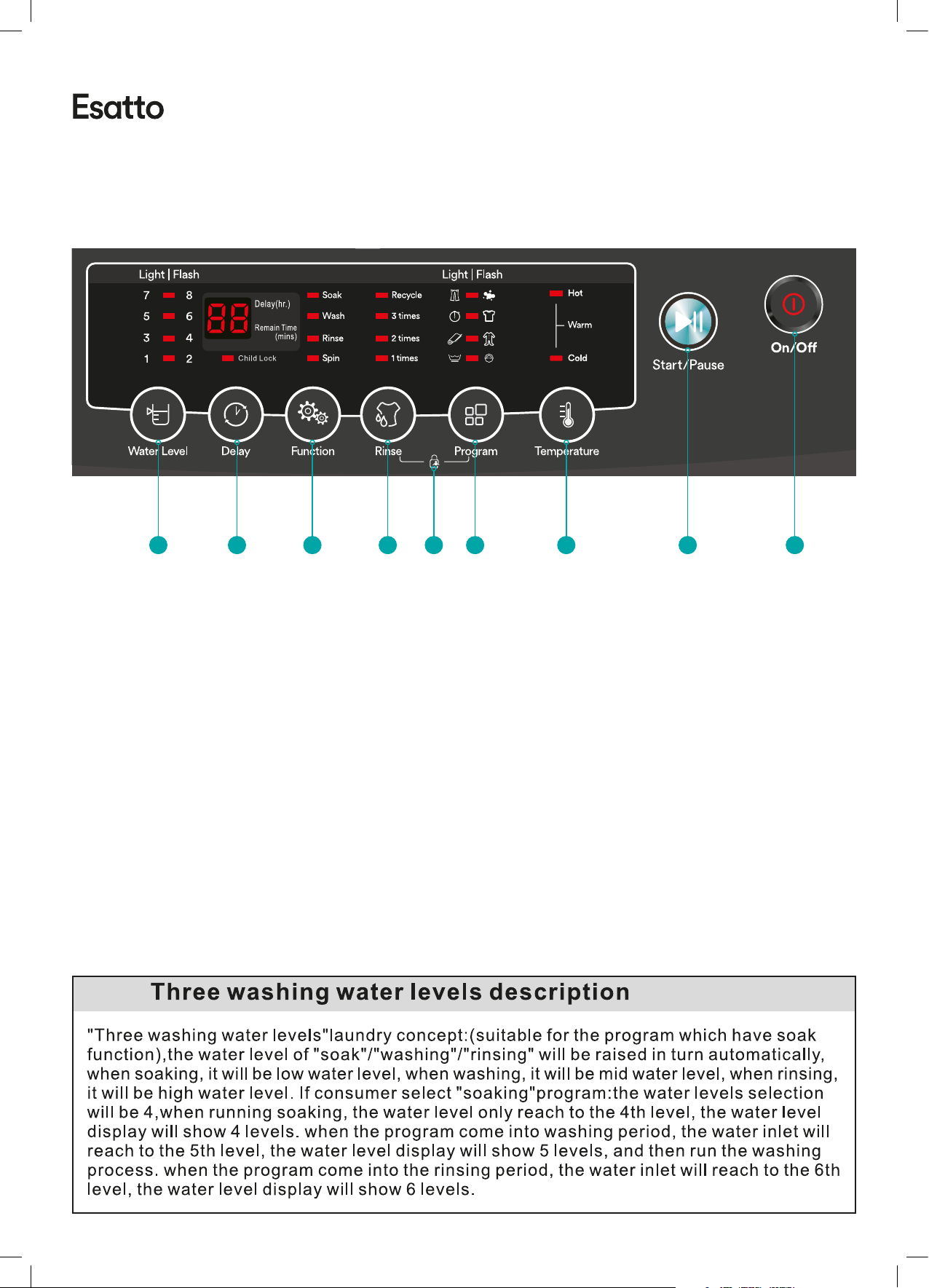

Operating Your Washer
12978463 5
Page:
13
User Manual:
1. On/O
—
The [On/O] button has the function to turn the
power supply on or o.
2. Start/Pause
—
This button controls the Starting and Pausing
functions. Continuously press [Start/Pause]
and the machine will switch between start and
pause.
3. Water Level Selection
—
Before washing, the water level can be selected
here accodirng to the amount of materials,
weight of clothes or the level or dirt.
4. Function
—
After the start, one light will ash between
the functions of Soak, Wash, Rinse and Spin
according to the process.
5. Child Lock
—
Press the [Start/Pause] button to start the
program, then press the [Program] and [Rinse]
button at the same time to activate the child
lock function. The child lock function locks the
selected program. To deactivate the function,
re-press the [Program] and [Rinse] button at the
same time.
6. Delay
—
To increase the delay time, hold down the
[Delay] button (every 0.5 seconds it is held
down will increase the time by 1 hour). After
24 hours, a single beep will be emitted and it
will return to “no delay”. After “delay” starts,
do not press the [Child Lock] combination, and
at this stage you can review the set prgams by
pressing the [Delay] button again. When “delay”
starts, an alarm will go o if the lid is left open
and will stop when the lid is closed.
7. Program Selection
—
Before starting, press the [Program] button
continuously to select the corresponding
program above.
8. Rinse Description
—
The [Rinse] button can only be activated under
the normal program.Continuously press this
to select the corresponding rinsing times and
water cycle function above.
9. Temperature
—
Press the [Temperature] button to select
dierent water temperature’s for the washing
process.
Page:
14
User Manual:
Quick Start
Page:
15
User Manual:
The Main Wash
Page:
16
User Manual:

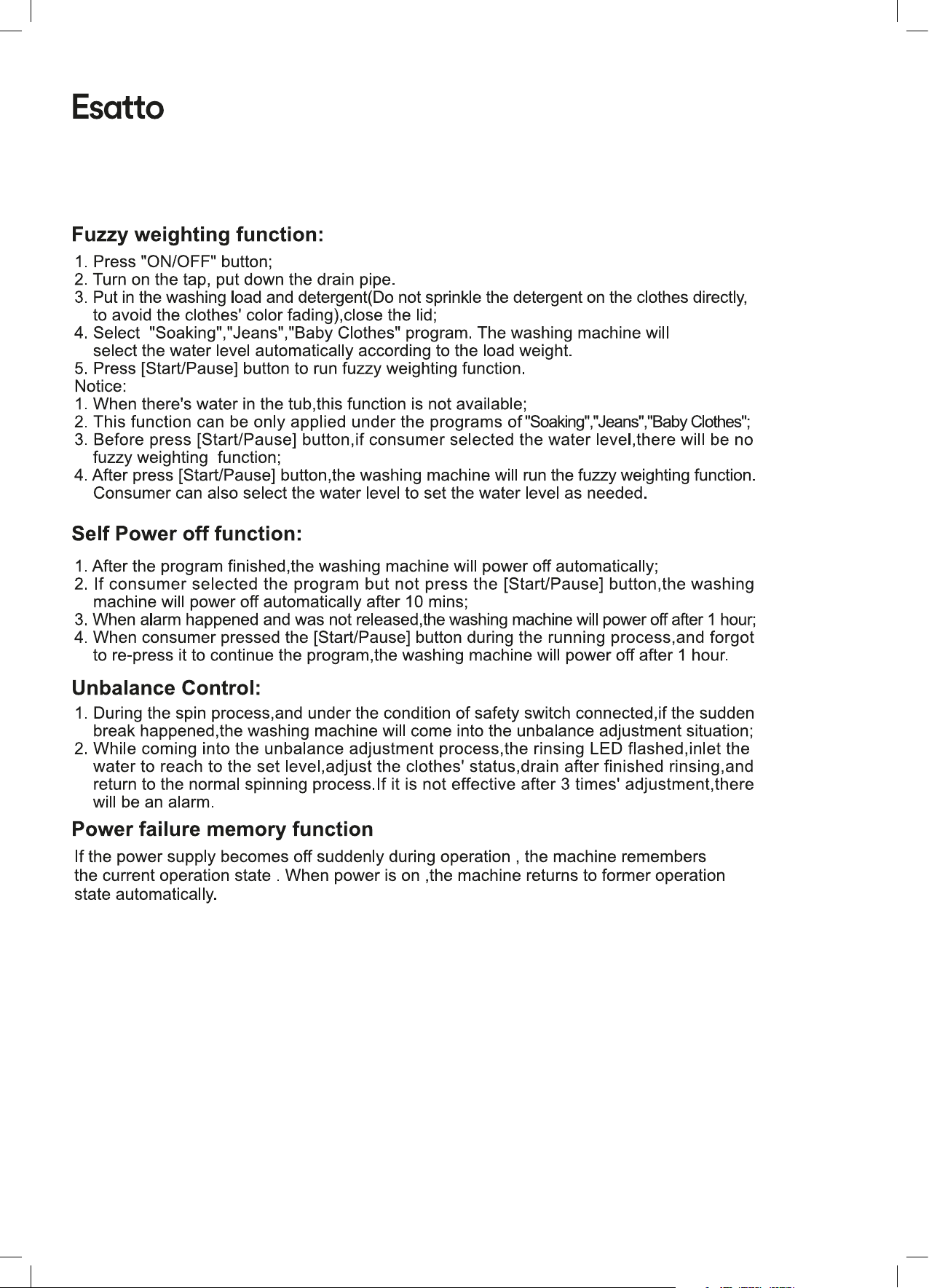

Special Features
Page:
17
User Manual:
Page:
18
User Manual:

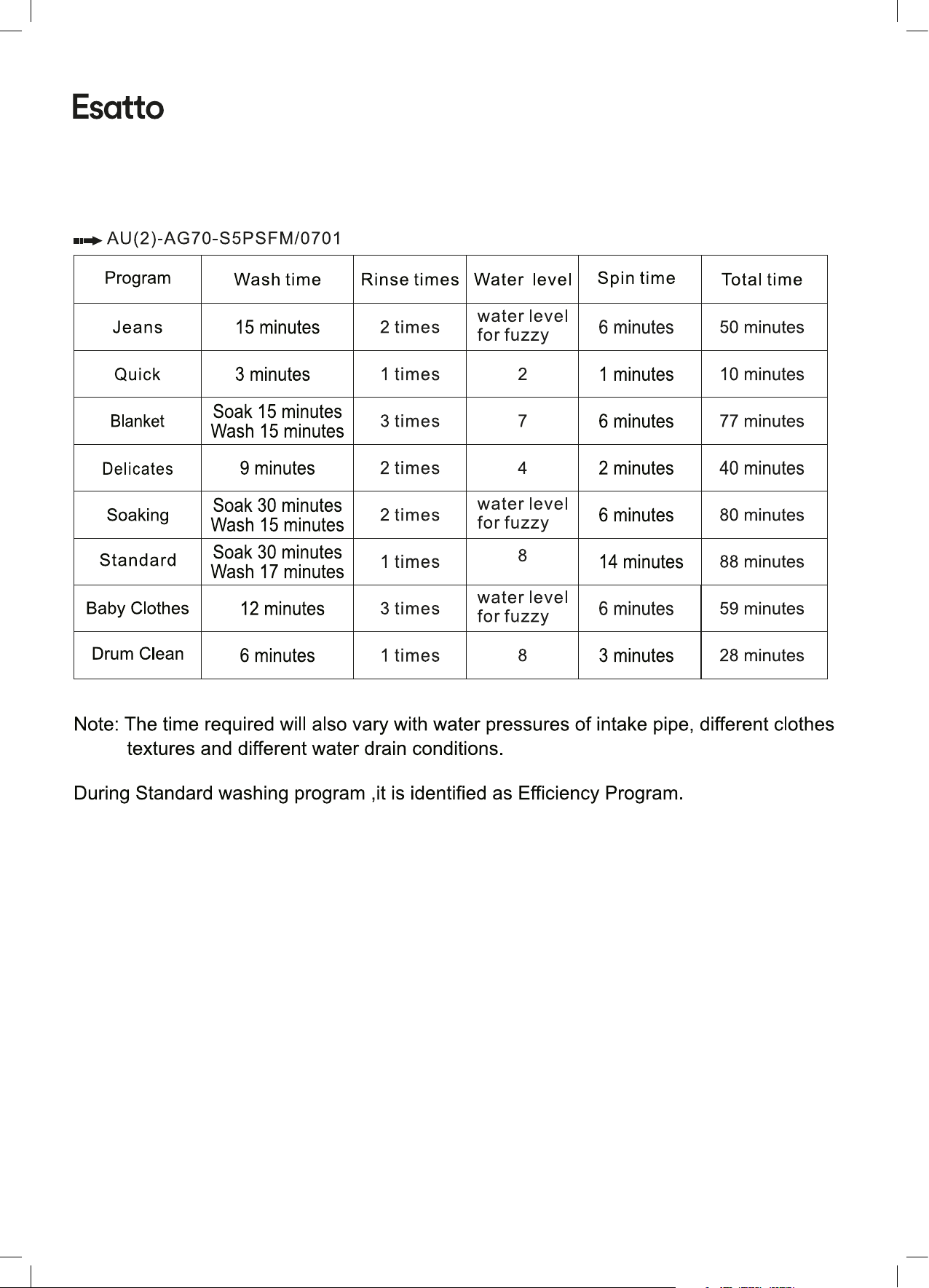

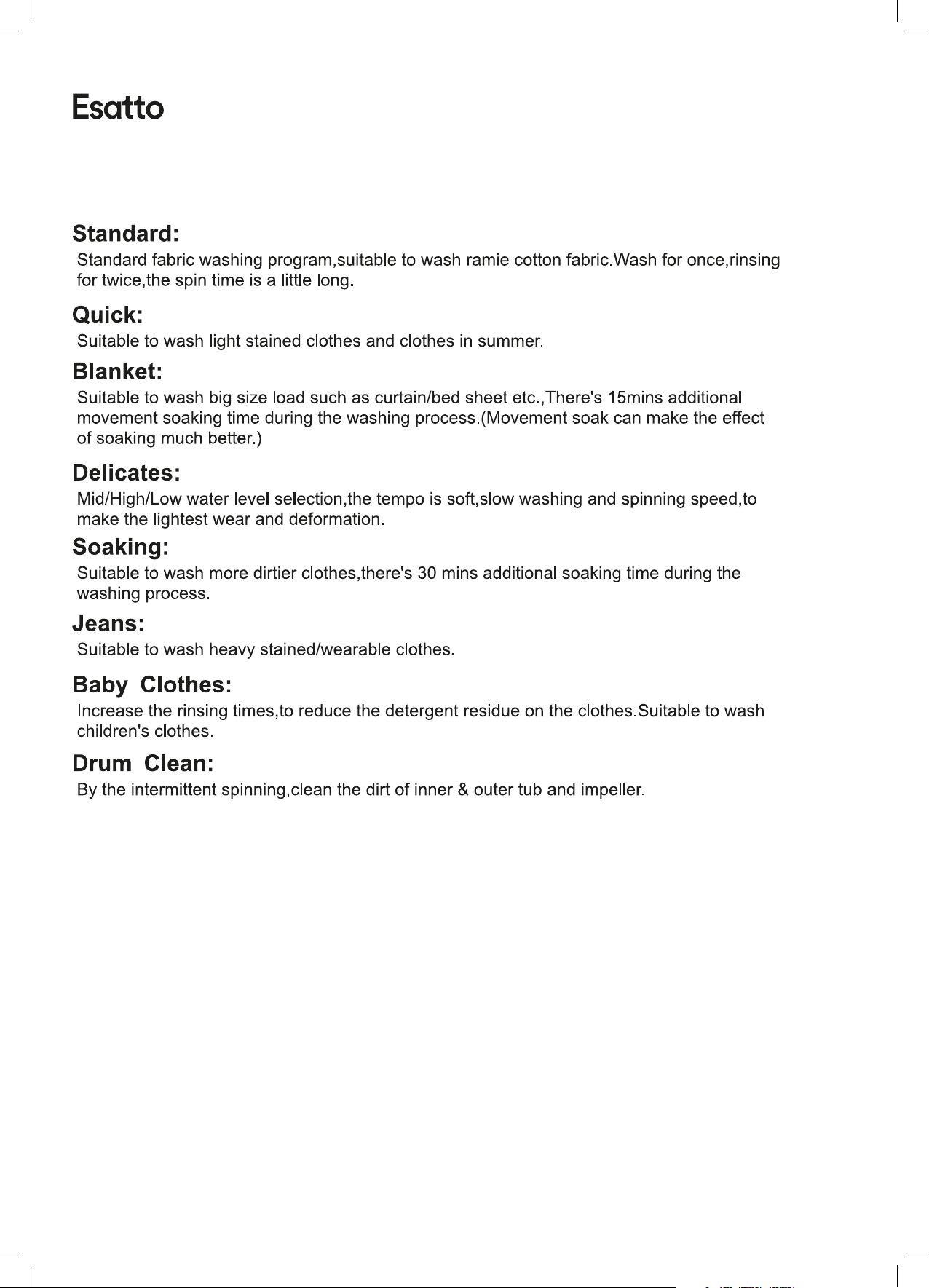

Full Automatic Wash Programs
Page:
19
User Manual:
Page:
20
User Manual:
Cleaning & Maintenance
Page:
21
User Manual:

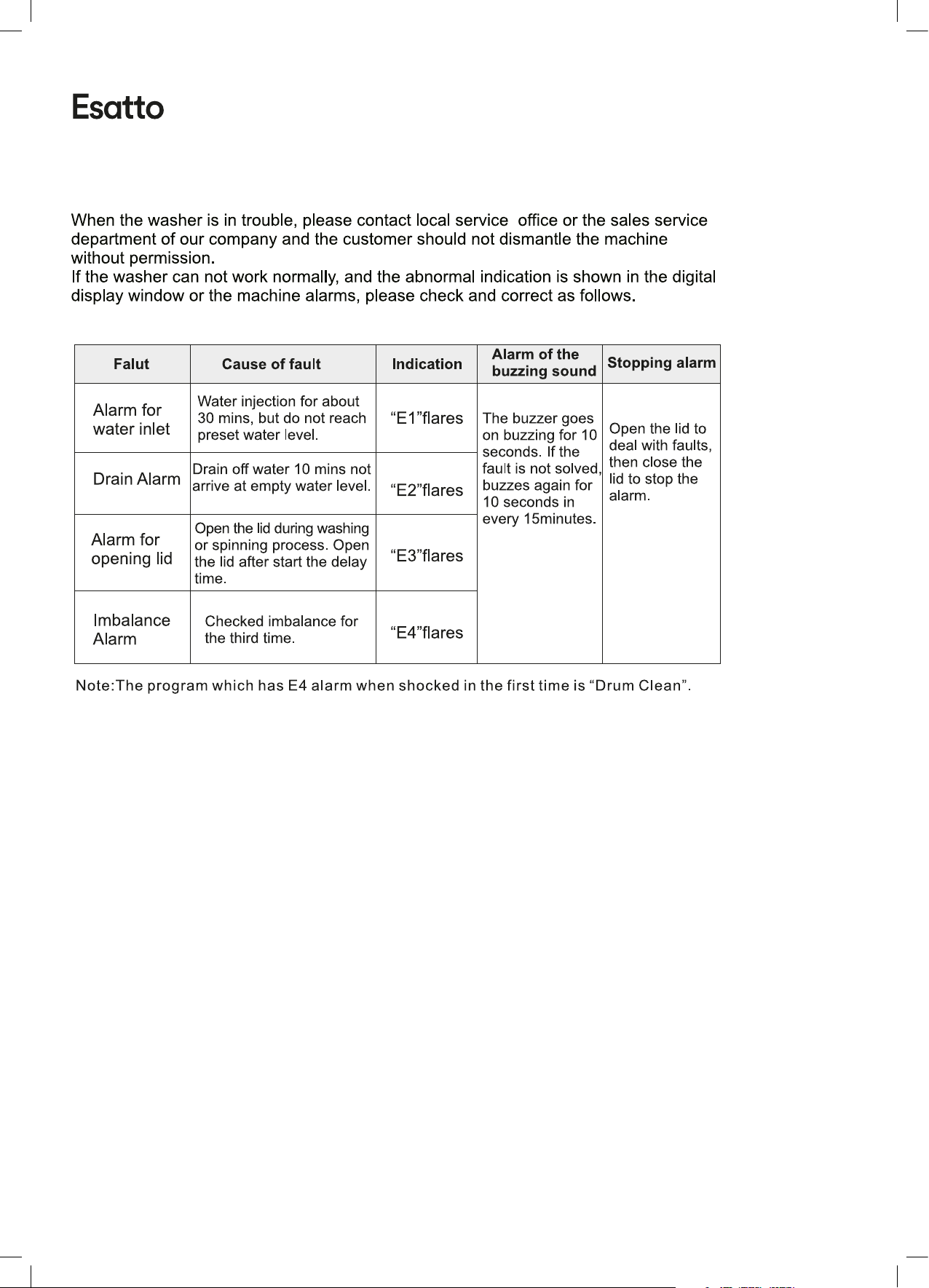

Troubleshooting
Page:
22
User Manual:
Page:
23
User Manual:
Technical Specications
Page:
24
User Manual:
Continued over page →
Warranty
WARRANTY TERMS AND CONDITIONS
LAUNDRY APPLIANCES
→ This document sets out the terms and conditions of the product warranties for Residentia
Group Appliances. It is an important document. Please keep it with your proof of
purchase documents in a safe place for future reference should you require service for
your Appliance.
1. In this warranty
(a) ‘ acceptable quality’ as referred to in clause 10 of this warranty has the same meaning
referred to in the ACL;
(b) ‘ ACL’ means Trade Practices Amendment (Australian Consumer Law) Act (No.2)
2010;
(c) ‘ Appliance’ means any Residentia Group product purchased by you accompanied by
this document;
(d) ‘ ASR’ means Residentia Group authorised service representative;
(e) ‘ Residentia Group’ means Residentia Group Pty Ltd of 20 Yaltara Avenue, Bundoora
Victoria 3083, ACN 600 546 656 in respect of Appliances purchased in Australia;
(f) ‘ major failure’ as referred to in clause 10 of this warranty has the same meaning
referred to in the ACL and includes a situation when an Appliance cannot be
repaired or it is uneconomic for Residentia Group, at its discretion, to repair an
Appliance during the Warranty Period;
(g) ‘Warranty Period’ means:
(i) where the Appliance is used for personal, domestic or household use
(i.e. normal single family use) as set out in the instruction manual, the
Appliance is warranted against manufacturing defects in Australia for 12
months following the date of original purchase of the Appliance;
(h) ‘ you’ means the purchaser of the Appliance not having purchased the Appliance for
re-sale, and ‘your’ has a corresponding meaning.
2. This warranty only applies to Appliances purchased and used in Australia and is in addition to (and does
not exclude, restrict, or modify in any way) any non-excludable statutory warranties in Australia.
3. During the Warranty Period Residentia Group or its ASR will, at no extra charge if your Appliance is
readily accessible for service, without special equipment and subject to these terms and conditions,
repair or replace any parts which it considers to be defective. Residentia Group or its ASR may use
remanufactured parts to repair your Appliance. You agree that any replaced Appliances or parts become
the property of Residentia Group. This warranty does not apply to light globes, batteries, lters or
similar perishable parts.
4. Parts and Appliances not supplied by Residentia Group are not covered by this warranty.
5. You will bear the cost of transportation, travel and delivery of the Appliance to and from Residentia
Group or its ASR. If you reside outside of the service area, you will bear the cost of:
(a) travel of an authorised representative;
(b) transportation and delivery of the Appliance to and from Residentia Group or its
ASR, in all instances, unless the Appliance is transported by Residentia Group or its
ASR, the Appliance is transported at the owner’s cost and risk while in transit to and
from Residentia Group or its ASR.
6. Proof of purchase is required before you can make a claim under this warranty.
Page:
25
User Manual:
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled
to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or
damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality
and the failure does not amount to a major failure.
The Australian Consumer
Law requires the inclusion
of the following statement
with this warranty:
Warranty continued
7. You may not make a claim under this warranty unless the defect claimed is due to faulty or defective
parts or workmanship. Residentia Group is not liable in the following situations (which are not
exhaustive):
(a) the Appliance is damaged by:
(i) accident
(ii) misuse or abuse, including failure to properly maintain or service
(iii) normal wear and tear
(iv) power surges, electrical storm damage or incorrect power supply
(v) incomplete or improper installation
(vi) incorrect, improper or inappropriate operation
(vii) insect or vermin infestation
(viii) failure to comply with any additional instructions supplied with the
Appliance;
(b) the Appliance is modied without authority from Residentia Group in writing;
(c) the Appliance’s serial number or warranty seal has been removed or defaced;
(d) the Appliance was serviced or repaired by anyone other than Residentia Group, an
authorised repairer or ASR.
8. This warranty, the contract to which it relates and the relationship between you and Residentia Group
are governed by the law applicable where the Appliance was purchased.
9. To the extent permitted by law, Residentia Group excludes all warranties and liabilities (other than as
contained in this document) including liability for any loss or damage whether direct or indirect arising
from your purchase, use or non use of the Appliance.
10. For Appliances and services provided by Residentia Group in Australia, the Appliances come with a
guarantee by Residentia Group that cannot be excluded under the Australian Consumer Law. You are
entitled to a replacement or refund for a major failure and for compensation for any other reasonably
foreseeable loss or damage. You are also entitled to have the Appliance repaired or replaced if the
Appliance fails to be of acceptable quality and the failure does not amount to a major failure. The
benets to you given by this warranty are in addition to your other rights and remedies under a law in
relation to the Appliances or services to which the warranty relates.
11. At all times during the Warranty Period, Residentia Group shall, at its discretion, determine whether
repair, replacement or refund will apply if an Appliance has a valid warranty claim applicable to it.
12. To enquire about claiming under this warranty, please follow these steps:
(a) carefully check the operating instructions, user manual and the terms of this
warranty;
(b) have the model and serial number of the Appliance available;
(c) have the proof of purchase (e.g. an invoice) available;
(d) telephone the numbers shown below.
13. You accept that if you make a warranty claim, Residentia Group and its ASR may
exchange information in relation to you to enable Residentia Group to meet its
obligations under this warranty.
IMPORTANT Before calling for service, please ensure that the steps in point 12 have been followed.
Service: Please call 1300 11 HELP (4357)
Spare Parts: Please call 1300 11 SPARE (7727)
Page:
26
User Manual:
Notes
Page:
27
User Manual:
Page:
28
User Manual:
Model Code/s:
ETLW7
