User Manual Bosch SHP87PZ55N Benchmark® Dishwasher 24'' Stainless steel

Documents for Bosch SHP87PZ55N

User Manual

For SHP87PZ55N. Also, The document are for others Bosch models: SHP87P****, SHX87P****, SHXM98***, SHXM88****, SHPM88****, SHVM88****, SHPM78****, SHP878****, SHXM78****, SHVM78****, SHX878****, SHV878****

• Table of contents3
  • en-us Operating instructions3
    • ( Safety Definitions 53
    • ( IMPORTANT SAFETY INSTRUCTIONS 63
    • ƒ Causes of Damage 93
    • * Getting Started 103
    • , Rinse Aid 133
    • - Loading the Dishwasher 153
    • . Detergent 273
    • / Dishwasher Cycles 293
    • 0 Dishwasher Cycle Options 303
    • 1 Operating the Dishwasher 343
    • 2 Care and Maintenance 393
    • 3 Troubleshooting 443
    • 4 Customer Service 493
    • ‡ Statement of Limited Product Warranty 503
    • ( Safety Definitions5
      • Safety Definitions5
      • 9 WARNING5
      • 9 CAUTION5
        • NOTICE5
          • Note:5
• ( IMPORTANT SAFETY INSTRUCTIONS6
  • IMPORTANT SAFETY INSTRUCTIONS6
  • READ AND SAVE THESE INSTRUCTIONS6
    • To reduce the risk of fire, electrical shock, or serious injury, observe the following:6
      • Risk of fire, electrical shock, or serious injury6
    • 9 WARNING6
      • Risk of injury or death!6
    • 9 WARNING6
      • Risk of injury!6
    • 9 WARNING6
      • Risk of electrical shock or fire!6
    • 9 WARNING6
      • RIsk of explosion!6
    • 9 WARNING7
      • Health hazard!7
      • GROUNDING INSTRUCTIONS7
    • 9 WARNING7
      • Risk of electric shock!7
      • Safe Operation7
    • 9 CAUTION7
      • 9 WARNING8
        • Risk of injury!8
      • 9 WARNING8
        • CHILD SAFETY!8
        • Proper Care and Maintenance8
          • Note:8
          • NOTICE8
        • Proposition 65 Warning:8
    • ƒ Causes of Damage9
      • Causes of Damage9
      • NOTICES9
    • * Getting Started10
      • Getting Started10
      • Appliance overview10
      • Operating panel11
        • Note:11
      • Dishwasher interior components11
      • Display indicators11
      • Menu overview12
        • Setting12
        • Factory setting12
        • Description12
    • , Rinse Aid13
      • Rinse Aid13
      • Note:13
      • Adding rinse aid13
        • NOTICE13
          • 1. Open the rinse aid dispenser 92 by pressing on the latch of the lid and pull it open.13
          • 2. Add liquid rinse aid to the dispenser 92 until it is full. Do not overfill. Avoid spilling into air vent hole.13
          • 3. Close the lid. Lid must be fully closed until it clicks in order to seal.13
          • 4. Wipe up any excess rinse aid that may have puddled when the dispenser reservoir is full.13
        • Tip:13
          • NOTICE13
      • Setting the amount of rinse aid used14
        • Setting14
        • Amount14
          • 1. Open the door.14
          • 2. Press the On/Off button (.14
          • 3. Hold down the function key # and press the Start button P until the display 8 indicates š:‹x (x can be any number). Release both buttons.14
          • 4. Press the function key # until the display 8 shows §:‹†.14
          • 5. Press the function key 3 to select the desired setting.14
          • 6. Press the Start button P to save the setting.14
      • Turning off rinse aid indicator14
        • NOTICE14
    • - Loading the Dishwasher15
      • Loading the Dishwasher15
      • Dishware material15
        • Note:15
        • Recommended15
        • Not Recommended15
      • Loading the racks16
        • For best dishwashing results, observe the following when loading the dishwasher:16
          • NOTICE16
        • Loading the upper rack16
          • Note:16
        • Loading the lower rack16
      • Loading patterns for lower rack17

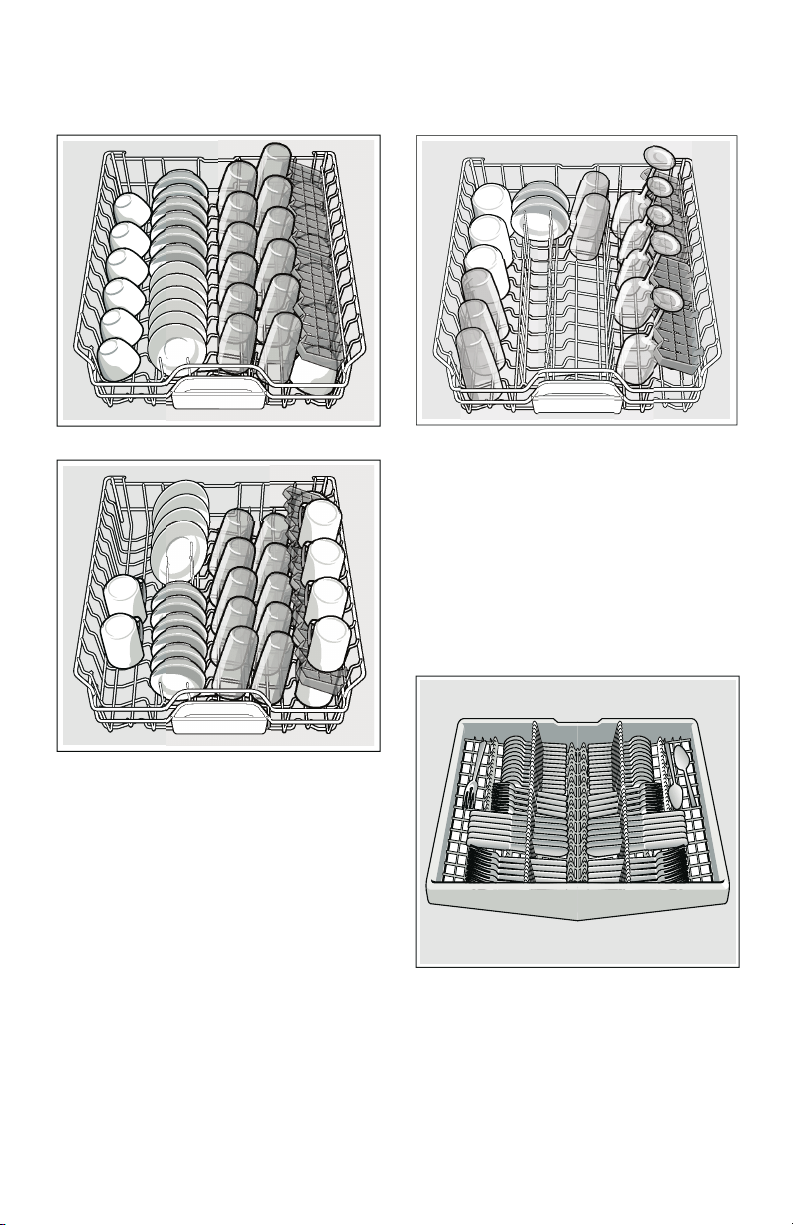

        • 12 place setting suggested loading pattern17
        • Alternate loading pattern17
        • Alternate loading pattern with pots and pans17
      • Loading patterns for upper rack17
        • 12 place setting suggested loading pattern, with third rack cutlery drawer *17
        • 12 place setting suggested loading with My Way Rack™ *18
        • Alternate loading pattern18
        • Alternate loading pattern with stemware18
      • Loading patterns for third rack18
        • 12 place setting suggested loading pattern *18
        • My Way Rack™ *19
      • Loading the silverware basket19
        • 9 WARNING19
          • Risk of injury!19
          • Silverware basket *19
            • Note:19
          • The Double Flex silverware basket *20
          • Side by side20
          • Back to back20
            • Note:20
          • Suggested loading patterns21
          • Silverware basket21
          • Double Flex silverware basket21
      • Unloading the dishwasher21
      • 9 CAUTION21
        • Note:21

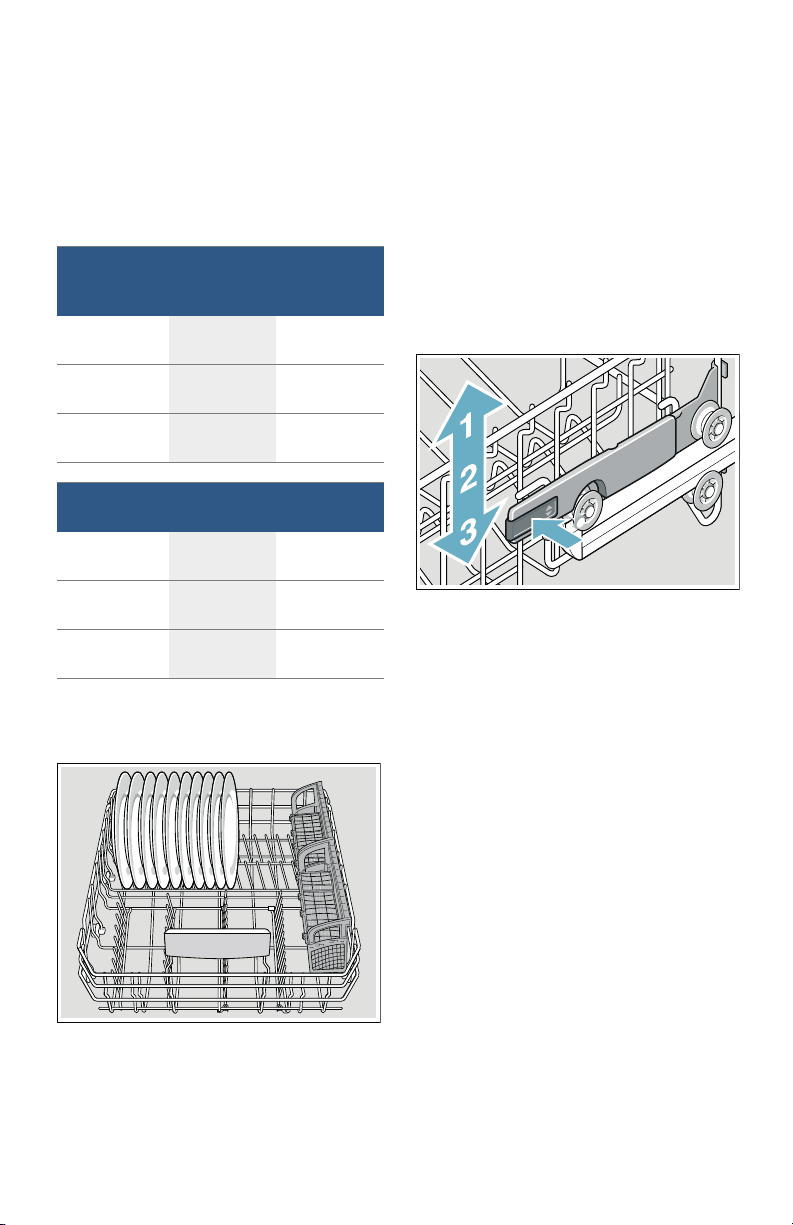

      • Adjusting the height of the rack22
        • With silverware basket22
        • Upper rack22
        • Lower rack22
    • 9.4 in (24 cm)22
    • 12.6 in (32 cm)22
    • 10.4 in (26.5 cm)22
    • 11.8 in (30 cm)22
    • 11.4 in (29 cm)22
    • 10.6 in (27 cm)22
      • With third rack22
      • Upper rack22
      • Lower rack22
    • 7 in (18 cm)22
    • 12.6 in (32 cm)22
    • 8 in (20.5 cm)22
    • 11.8 in (30 cm)22
    • 9 in (23 cm)22
    • 10.6 in (27 cm)22
      • RackMatic®22
        • 1. Pull the upper rack out of the dishwasher until it stops.22
        • 2. To lower the rack, push the RackMatic® lever inward.22
        • 3. To raise the rack, hold the basket on the sides of the upper rack and lift it up.22
        • Note:22
      • Rack accessories23
        • Flip tines23
        • Third rack23
        • My Way Rack™ *24
        • Cup shelves24
        • Extra tall item sprinkler*24
          • Note:25
          • NOTICE25

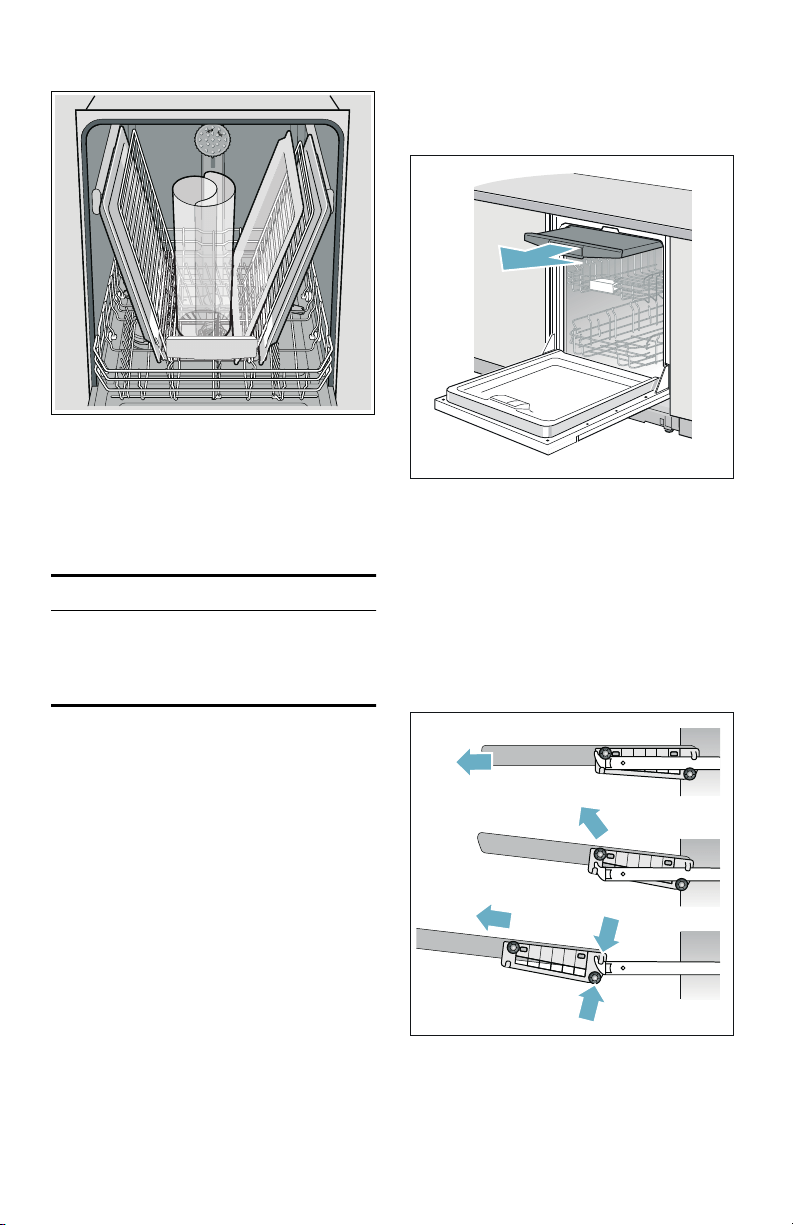

      • Removing/Installing third rack25
        • Removing third rack 1*25
          • 1. Pull out third rack all the way (1).25
          • 2. Lift upper rollers over the stopper hooks of both rails (2).25
          • 3. Pull third rack out forward and upward so that the holding hooks and the lower rollers of the rack slide over the stopper hooks of both rails (3).25
        • Installing third rack 1*26
          • 1. Pull out third rack rails all the way (1).26
          • 2. Insert third rack at an angle. Make sure that the stopper hooks of both rails slide in between the holding hooks and the lower rollers of the third rack (2).26
          • 3. Slide third rack in and lift the upper rollers over the front stopper hooks of both rails (3).26
          • 4. Push in third rack (4).26
      • Removing/Installing upper rack with Rackmatic®26
        • Removing upper rack 1226
          • 1. Pull out upper rack all the way (1).26
          • 2. Lift front rollers over the stopper hook of the rail (2).26
          • 3. Pull out upper rack forwards and upwards so that the upper and lower rollers of the rack slide over the stopper hooks of both rails (3).26
        • Installing upper rack 1226
          • 1. Pull out upper rack rails all the way (1).26
          • 2. Insert upper rack at an angle. Make sure that the stopper hooks of both rails slide in between the upper and lower rollers on the rear side of the rack (2).26
          • 3. Slide upper rack in and lift the upper rollers over the front stopper hooks of both rails (3).26
          • 4. Push in upper rack (4).26
      • . Detergent27
        • Detergent27
        • NOTICE27
          • Note:27
        • Wash Cycle27
        • Hard Water/ Heavy Soil27
        • Medium Water/ Medium Soil27
        • Soft Water/ Little Soil27

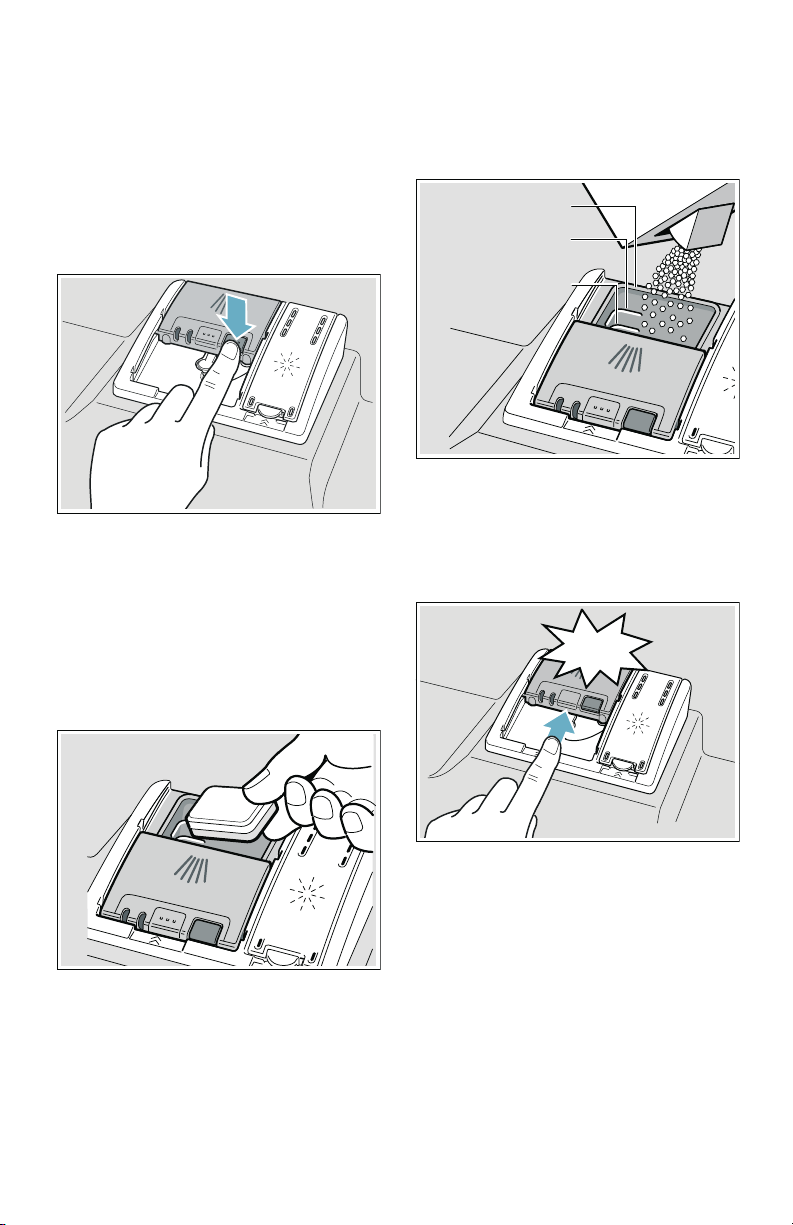

        • Adding detergent28
          • 1. If the detergent dispenser 9: is still closed, push the button 9B to open it.28
          • Note:28
            • 2. When using detergent tabs, lay them such that they do not come in contact with the cover, insert a detergent tab flat, not on its side.28
          • Note:28
            • 3. Close the lid by placing the finger on the lid as shown. Slide the lid closed until it clicks.28
            • Tip:28
      • / Dishwasher Cycles29
        • Dishwasher Cycles29
        • Wash cycle29
        • Recommended use29
        • Possible wash cycle option29
        • Note:29
          • Note:29
  • The Energy Guide label was based on the Normal soil sensing cycle as follows: The unit was tested without any rinse aid (liquid) in the rinse aid dispenser 92. A single dose of detergent was inserted into the detergent dispenser 9:, with no detergent...29
    • 0 Dishwasher Cycle Options30
      • Dishwasher Cycle Options30
      • Delay30
      • Half Load30
      • Delicate30
      • Sanitize30
      • CrystalDry™30
      • Eco *30
      • ExtraScrub® *30
      • Wash Cycle Information31
        • Eco31
          • Note:33
  • Only sanitizing cycles have been designed to meet the requirements of Section 6 of the NSF/ANSI Standard for Residential Equipment for soil removal and sanitization efficacy. There is no intention, either directly or indirectly, to imply that all cyc...33
    • 1 Operating the Dishwasher34
      • Operating the Dishwasher34
      • Note:34
      • 9 WARNING34
        • Risk of injury!34
      • Protection against unintentional operation34
        • This function will be activated when:34
          • Note:34
      • AquaSensor34
      • Switching the appliance on34
        • 1. Turn the water supply on fully.34
        • 2. Open the door.34
        • 3. Press the On/Off button (.34
        • 4. Press Start button P.34
        • Note:34
      • Time display35
      • Delay Start35
        • To set Delay start:35
          • 1. Open the door and press the On/Off button (. Select a cycle.35
          • 2. Press the Delay button from the wash cycle options H until the displayed time corresponds with your requirements.35
          • 3. Press the Start button P to activate Delay start.35
        • To cancel Delay start:35
          • 1. Open the door and press the Delay button until œ:‹‹ is indicated on the digital display 8.35
          • 2. Press the Start button P to save setting.35
          • Note:35
      • Wash cycle end35
        • To change the signal volume:35
          • 1. Open the door.35
          • 2. Press the On/Off button (.35
          • 3. Hold down function key # and press Start button P until the display 8 indicates š:‹x (x can be any number). Release both buttons.35
          • 4. Press function key # until the display shows ›:‹ƒ.35
          • 5. Press function key 3. Each time the button is pressed the set value increases by one level; when it reaches the value ›:‹„, the display jumps back to ›:‹‹ (off).35
          • 6. Press Start button P to save the setting.35
      • Auto power off36
        • To change the setting:36
          • 1. Press the On/Off button (.36
          • 2. Hold down the function key # and press the Start button P until the display 8 indicates š:‹x (x can be any number).36
          • 3. Release both buttons.36
          • 4. Press the function key # until the display 8 indicates ˜:‹x.36
          • 5. Press the function key 3 until the display corresponds with your requirements.36
          • 6. Press the Start button P.36
      • Switching off the appliance36
        • Short time after the end of the wash cycle:36
          • 1. Press On/Off button (.36
          • 2. Remove the dishes when they have cooled down.36
        • 9 WARNING36
          • Risk of injury!36
      • Interrupting the wash cycle36
      • 9 CAUTION36
        • 1. Open the door.36
        • 2. Switch off On/Off switch (.36
        • 3. To continue the wash cycle, switch on the On/Off switch ( again.36
        • 4. Close the door.36
        • Note:36
      • Terminating the wash cycle (Reset)37
        • Terminating the wash cycle37
        • 1. Press and hold Start button P for approximately 3 seconds until the display reads ‹:‹‚.37
        • 2. Wait about 1 minute while the dishwasher drains.37
        • 3. Press On/Off button (.37
      • Changing the wash cycle37
      • InfoLight® *37
        • To change the setting:37
          • 1. Open the door.37
          • 2. Press the On/Off button (.37
          • 3. Hold down function key # and press Start button P until the display 8 indicates š:‹x (x can be any number). Release both buttons.37
          • 4. Press function key # until the display shows ‚:‹‚.37
          • 5. Press the function key 3 to switch the InfoLight® feature on ‚:‹‚ or off ‚:‹‹.37
          • 6. Press Start button P to save the setting.37
      • TimeLight® (Optical display while the wash cycle is running) *38
        • All time remaining displays38
        • To change the setting:38
          • 1. Open the door.38
          • 2. Press On/Off button (.38
          • 3. Hold down function key # and press Start button P until the display 8 shows •:‹x or š:‹x (x can be any number).38
          • 4. Release both buttons. The light above function key # flashes and the display 8 shows the factory set value.38
          • 5. Press function key # until the display 8 shows the factory set value †:‹‚.38
          • 6. Press function key 3 to switch between †:‹‹ and †:‹‚.38
          • 7. Press Start button P to save setting.38
      • Intensive drying38
        • 1. Open the door.38
        • 2. Press the On/Off button (.38
        • 3. Hold down function key # and press Start button P until the display 8 indicates š:x (x can be any number).38
        • 4. Release both buttons.38
        • 5. Press function key # until the display 8 indicates the factory set value š:‹‹.38
        • 6. Press function key 3 to switch the Extra dry feature on š:‹‚ or off š:‹‹.38
        • 7. Press Start button P to save setting.38
    • 2 Care and Maintenance39
      • Care and Maintenance39
      • Cleaning the dishwasher39
        • NOTICE39
        • 9 WARNING39
          • RIsk of explosion!39
        • 9 WARNING39
      • Filters40
        • Filter components40
        • The filter system 1j consists of three parts.40
        • Cleaning intervals40
          • Your filter system may need to be cleaned when:40
        • Cleaning interval40
        • Use this setting,40
          • Note:40
        • To check or clean the filter system:41
          • 1. Unscrew the Large Object Trap as illustrated and remove the entire filter system.41
          • 2. Remove the microfilter from the fine filter for easier cleaning.41
          • 3. Rinse the filters under running water and use a soft brush to clean.41
        • Note:41
          • 4. Reinstall the filter system in reverse sequence and lock into place by screwing the Large Object Trap until the marking arrows align.41
      • Spray arms41
        • Check spray arms 1:, 1Z for grease and limescale deposits. If you find such deposits:41
      • Drain pump42
        • Large food remnants in the rinsing water not retained by the filters may block the waste water pump. In this case:42
          • Note:42
      • Preparing your unit for vacation43
        • NOTICE43
      • Winterizing your unit43
        • NOTICE43
    • 3 Troubleshooting44
      • Troubleshooting44
      • Note:44
      • Note:46
      • Note:46
      • Note:48
    • --------48

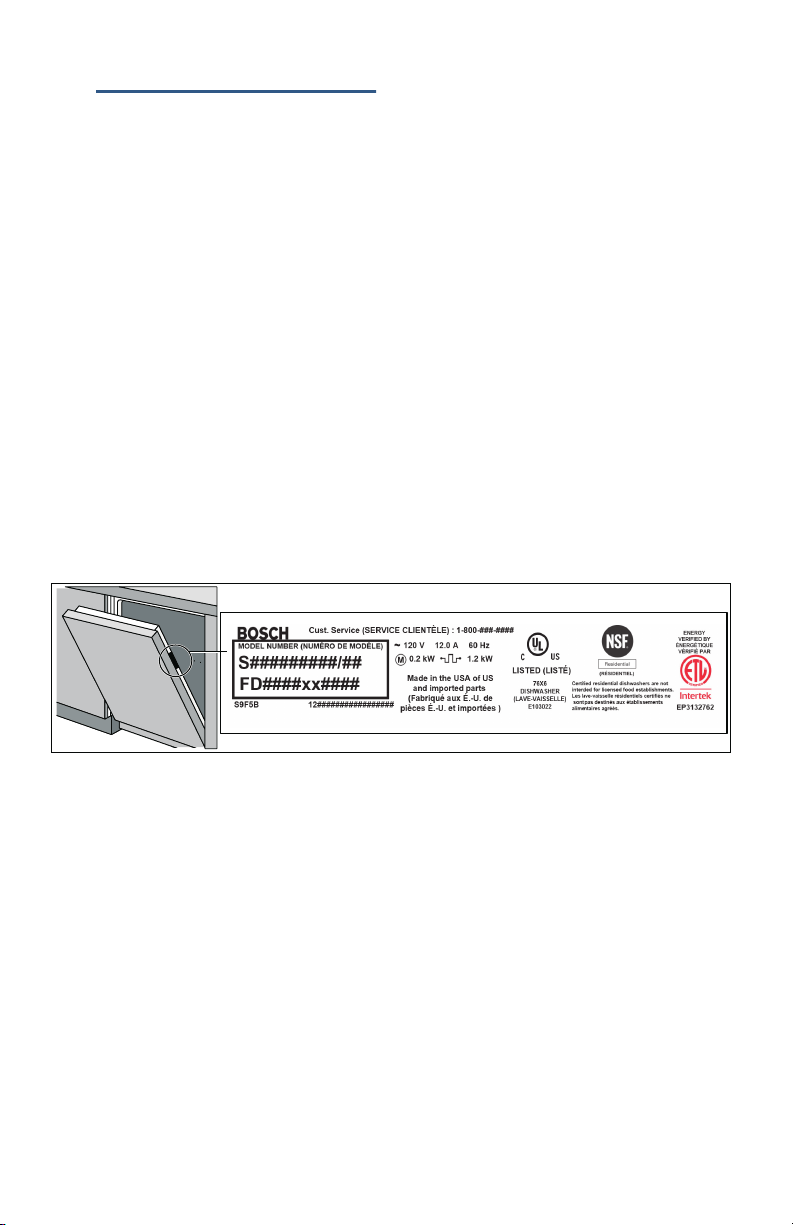

      • 4 Customer Service49
        • Customer Service49
        • 1. Call us at 1-800-944-290449
        • 2. Contact Customer Service from our web site: www.bosch-home.com/us or www.bosch-home.ca49
        • 3. Contact your installer or the Bosch Authorized Service Contractor in your area.49
        • 4. Write us:49
      • ‡ Statement of Limited Product Warranty50
        • Statement of Limited Product Warranty50
        • What this Warranty Covers & Who it Applies to:50
        • How Long the Warranty Lasts50
        • Extended Limited Warranty50
          • BSH also provides these additional limited warranties:50
        • Repair/Replace as Your Exclusive Remedy51
        • Out of Warranty Product51
        • Warranty Exclusions51
        • Obtaining Warranty Service:53
