Installation Instructions

This is the main product document for model AUG-SL04-M01-S04.

The file format is pdf, 18 pages, you can download this manual here .

5
background
InstallingDoorSense™AugustSmart
Lock
First,decidehowyouwouldliketoinstalltheDoorSense.Augustprovidestwooptionsfor
installation:asurfacemountandaflushmountinstallation.Thesurfacemountinstallation
requirestheuseofascrewdriveronly.Theflushmountinstallationwillprovideacleanerand
lessvisiblelookwithmorerobustperformance,butdoesrequiredrillinga⅝”holeintoyourdoor
frame.
SurfaceMountInstallation
TheDoorSensewillcomepartiallyassembledforthesurfacemountinstallationwiththemagnet
enclosureinsidethehousingandyouwillonlyneedascrewdriverforthisinstallation.
background
What’sinthebox
background
Whatyou’llneedtoprovide
1.Determinemountinglocation
Foroptimalperformance,DoorSenseshouldbemountedwithin1.5inchesfrom
theedgeofyourdoorframe,andwithin1.5inchesfromthetopoftheextended
deadbolt.
background
NOTE:Ifyoudonothaveaflatdoorframeoryouhaveaperpendicularwalldirectlynexttoyour
door,theDoorSensecanbealternativelyinstalledontheperpendicularwall.Thedeadbolt
shouldstillbeusedasaguidefortherecommendedheightoftheDoorSenseinstallation.
2.Attachmountingtape
Removeonesideoftheadhesivebacking.AttachtothebackofyourDoorSense,
makingsuretoaligntheedgesandscrewholes.Removetheothersideoftheadhesive
backing.
background
3.Placeondoorframe
PresstheadhesivesideoftheDoorSenseonyourframeintheproperidentifiedmounting
position.Makesuretoalignthepillshapevertically.
background
4.Screwintoframe
HandtightenyourDoorSensetotheframeusingtheincludedscrews.
Youmaywishtocompletethisstepuntilafteryourlockissetupandcalibratedtoensurethat
youareabletoretrieveaccuratedoorstatereadingsbeforemodifyingyourdoorframe.
background
5.Attachthecover
PressthecoverontotheDoorSenseUnit.
background
CalibrateyourLock
Oncethelockissetup,navigatetotheLockSettingsandselectCalibrateLockandselect
LOCKANDDOORSENSE.Followtheinstructionsintheappuntilyouhavesuccessfully
calibratedyourAugustSmartLockandDoorSensetogether.
Openandclosethedoorandvalidatethatthedoorstateisaccurate.Ifitisnotaccurateorthe
calibrationwasunsuccessful,relocatetheDoorSensehousingclosertotheAugustSmartLock
andgothroughthecalibrationprocessagainuntilyougetaccurateresults.
Ifyouelectedtonotinsertthescrewsintothedoorframe,gobackandinsertthescrewsintothe
housingandsecurethemintoyourdoorframeorwallandplacethecoveroverthehousing.
Ifyounoticethatyourreadingsarenotaccurateovertime,performanotherDoorState
Calibrationtoseeimprovedperformance.
background
FlushMountInstallation
Youwillneedadrillanda⅝”drillbitforthisinstallation.
Ifyourdoorframeishollowmetal,asurfacemountinstallationisthepreferredmethod.Ifyoudo
choosetoflushmounttheDoorSenseunit,takeextremecarenottodrilltheholetoolargeasto
letthemagnetassemblyfallinside.
background
What’sinthebox
background
Whatyou’llneedtoprovide

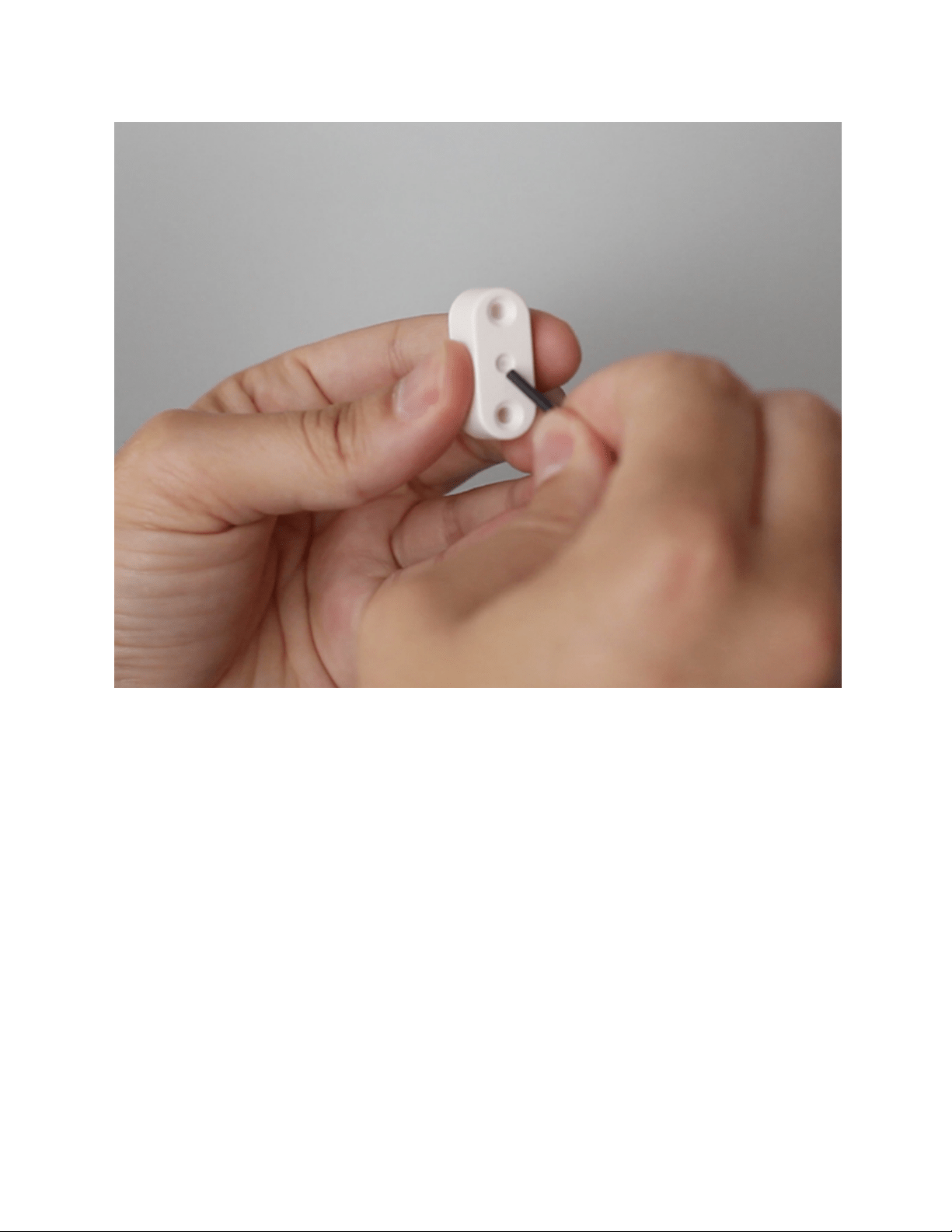

1.Removemagnetfromhousing
Usingasmallbluntobject,pushthemagnetcarrierfromthehousingthroughthe
centerhole.Thismayrequiresomeforce.
background
2.Assemblemagnettocap
Exposetheadhesivebyremovingthebluebacking.Pressthecapontothe
notchedsideofthemagnetcarrier.Thetwoshapesshouldinterlock.
background

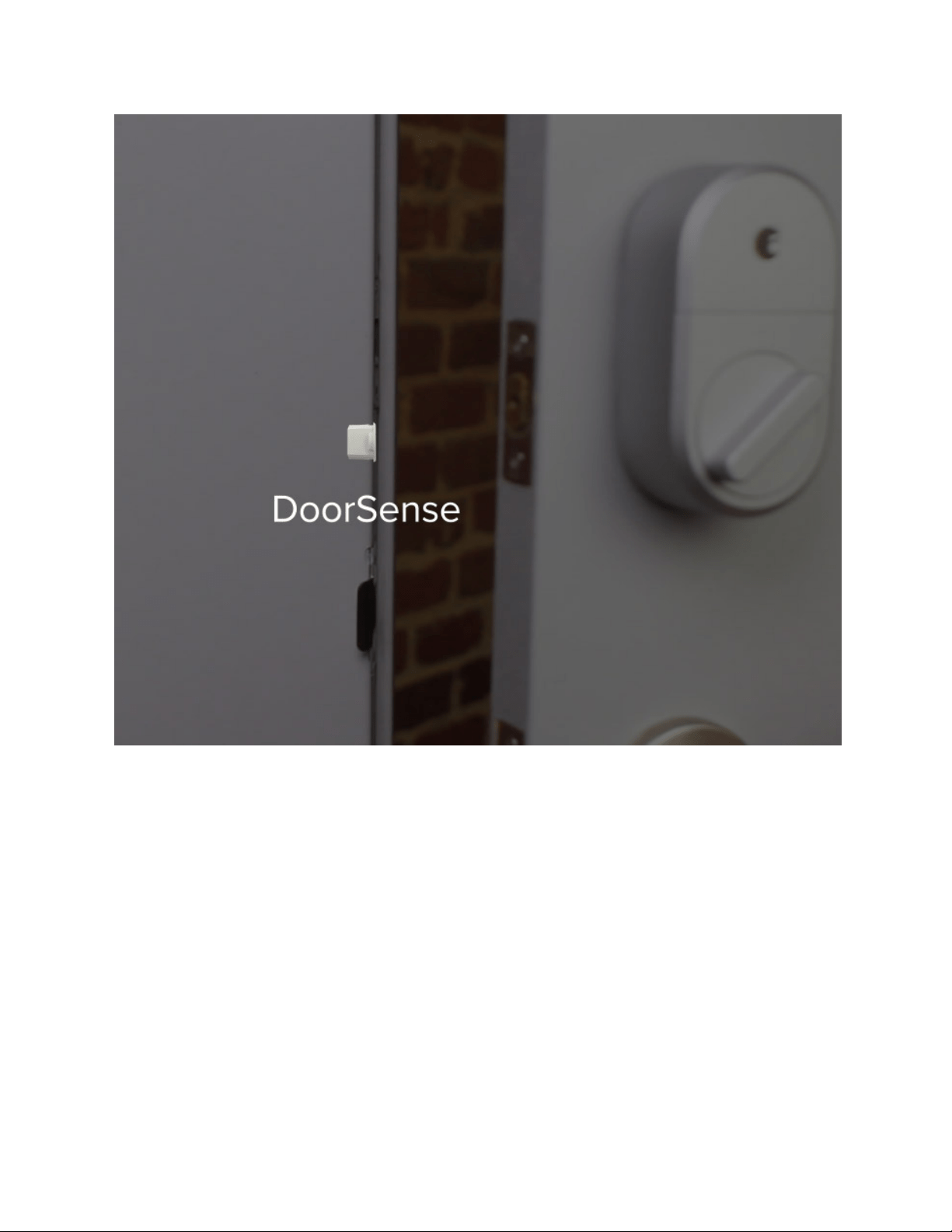

3.Determinemountinglocation
DoorSense™willbeflushmountedintotheframeofyourdoor,soyourSmartLockswings
awaywhenthedoorisopened.
background
DoorSenseshouldbemountednomorethan1.5inchesfromthetopedgeofyourdeadbolt
strikeplate,centeredontheframe.
background
4.Tapedrillbit
Itmaybehelpfultoattachtapetoyourdrillbittomarktheproperdepthofholetodrill.
DoorSenserequiresa1/2inchdeephole,butitmayhelptousetheassembledDoorSenseasa
guide.
background
5.Drillhole
Drilltheholeintheproperlocationonyourdoorframe,keepingthedrillstraightandsteady.
background
6.InsertDoorSenseintohole
InserttheDoorSenseintothehole.Ifitistoosnugtopushinbyhand,youcanprotecttheframe
withapieceofscrapwoodanduselightblowswithahammerormallet.
background
Ifyounoticethatyourreadingsarenotaccurateovertime,performanotherDoorState
Calibrationtoseeimprovedperformance.

Specifications
